Article

Characterization of 42 Microsatellite Markers from Poison Ivy, Toxicodendron radicans (Anacardiaceae)

1
Endemic Species Research Institute, Nantou 552, Taiwan
2
Department of Nursing, Meiho University, Pingtung 912, Taiwan
3
Department of Life Sciences, National Cheng Kung University, Tainan 701, Taiwan
4
Department of Biological Sciences, National Sun Yat-sen University, Kaohsiung 804, Taiwan
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2013, 14(10), 20414-20426; https://doi.org/10.3390/ijms141020414
Submission received: 21 August 2013 / Revised: 22 September 2013 / Accepted: 23 September 2013 / Published: 14 October 2013
(This article belongs to the Section Biochemistry)

Abstract

:
Poison ivy, Toxicodendron radicans, and poison oaks, T. diversilobum and T. pubescens, are perennial woody species of the Anacardiaceae and are poisonous, containing strong allergens named urushiols that cause allergic contact dermatitis. Poison ivy is a species distributed from North America to East Asia, while T. diversilobum and T. pubescens are distributed in western and eastern North America, respectively. Phylogreography and population structure of these species remain unclear. Here, we developed microsatellite markers, via constructing a magnetic enriched microsatellite library, from poison ivy. We designed 51 primer pairs, 42 of which successfully yielded products that were subsequently tested for polymorphism in poison oak, and three subspecies of poison ivy. Among the 42 loci, 38 are polymorphic, while 4 are monomorphic. The number of alleles and the expected heterozygosity ranged from 1 to 12 and from 0.10 to 0.87, respectively, in poison ivy, while varied from 2 to 8 and, from 0.26 to 0.83, respectively in poison oak. Genetic analysis revealed distinct differentiation between poison ivy and poison oak, whereas slight genetic differentiation was detected among three subspecies of poison ivy. These highly polymorphic microsatellite fingerprints enable biologists to explore the population genetics, phylogeography, and speciation in Toxicodendron.

1. Introduction

Toxicodendron radicans (L.) Kuntze (ANACARDIACEAE), poison ivy, is a species widespread from North America to East Asia [1]. Poison ivy is a perennial woody vine with compound leaves. Urushiol, mixed oily chemical substances of pentadecylcatechols synthetized by T. radicans [2,3], is an allergen to humans and animals, often causing allergic contact dermatitis. Taxonomically, T. radicans is divided into several subspecies. For example, there are seven subspecies in North America, mostly in southern Cascades, Great Basin, and Mojave Desert [4]; in East Asia, two subspecies are distributed in Japan (ssp. orientale), and in Taiwan and South China (ssp. hispidum) [5,6]. Poison ivy is therefore a species complex consisting of many morphologically variable taxa, providing perfect materials for phylogeographic study [7,8].
In Section Eutoxicodendron [9], as sisters to the poison ivy, poison oaks contain two species, T. diversilobum and T. pubescens [1]. The former species are distributed in the western North America, and the latter is distributed in eastern North America. Additionally, Toxicodendron rydbergii, the western poison ivy, is morphological similarity but geographically distinct in western North America (1). In this study, we developed microsatellite fingerprints from the poison ivy for estimating population structuring within species (three subspecies of poison ivy) and genetic affinity among species. Theses markers are tested for the species transferability, and genetic polymorphisms.

2. Results and Discussion

2.1. Enrichment Microsatellite Library and Sequencing Results

For constructing a magnetic bead enriched library, a total of 507 white colonies were selected for sequencing from the Toxicodendron radicans. In total, 172 sequences were detected with microsatellite motifs that contained more than 10 repeats and 20 bps in DNA length with Tandem Repeats Finder version 4.07b [10]. Average sequence length was 818 bps, with the maximum and minimum lengths of 1496 bps and 308 bps, respectively.

2.2. Development of Microsatellite Markers

In total, 51 primer pairs were designed at the up- and down-flanking regions based on the primer design parameters computed with FastPCR software version 6.4.18 [11]. To test the optimal annealing temperatures, which were obtained with gradient temperature PCRs, two individuals of Toxicodendron species/subspecies were selected as the template DNAs. We thereby selected 42 loci from the 51 microsatellites based on unambiguous amplicoms with a gradient PCR protocol. The characteristics of 42 microsatellite loci are listed in Table 1. Of the 42 loci, 34 are complete microsatellite loci, including 23 carrying a dinucleotide motif, 5 with a trinucleotide motif, 4 with a tetranucleotide motif, and 2 with a hexanucleotide motif. Of the 8 remaining loci, 2 carried a compound motif and 6 carried interrupted motif.

2.3. Genotyping and Population Genetics Analysis

To examine the extent of genetic polymorphisms at each locus, 20–40 individuals were collected in fields from each subspecies of T. radicans (Table 2). A total of 80 plants from 3 subspecies were genotyped at the 42 microsatellite loci. Of the 42 loci, 38 loci are polymorphic and 4 are monomorphic (M67, M68, M137, and M148) in all subspecies (Table 3). In addition, two of 38 loci, AG153 and M85, cannot be amplified in ssp. orientale or ssp. radicans. To evaluate the genetic diversity, several genetic variation indices, including the number of alleles (Na), the effective number of alleles (Ne), the observed and expected heterozygosities (Ho and He), and Shannon’s information index (H) were calculated at the 38 polymorphic loci. Here Ne represents an estimate of the number of equally frequent alleles in an ideal population following the formula of Ne = 1/(1 − He). As shown in Table 3, the number of alleles (Na) ranged from 1 to 10 in Taiwan and China populations of ssp. hispidum, and from 1 to 8 and 1 to 12 in ssp. orientale and ssp. radicans, respectively. Ne varied from 1.00 to 4.82 and 1.00 to 6.78 in two areas of ssp. hispidum, and from 1.00 to 4.94 and 1.00 to 7.55 in two other subspecies. Ho and HE were also estimated in each subspecies. For example, Ho ranged from 0.20 to 1.00 and HE varied 0.32 to 0.79 in Taiwan population of ssp. hispidum. The mean of Shannon’s information index was 0.78 in ssp. orientale and 0.96 in ssp. radicans, while it was 0.98 in the Taiwanese population and 1.07 in the mainland Chinese population of ssp. hispidum. Significant deviations from Hardy-Weinberg equilibrium (HWE) were detected at 1–3 loci in the subspecies of poison ivy (Table 3). A total of 27 and 7 private alleles were observed in the Taiwan and China populations of ssp. hispidum, respectively. Likewise, 5 private alleles were observed in ssp. orientale and ssp. radicans.
To test the transferability of these microsatellite loci, PCR amplification was conducted on these primers in two species of the poison oaks, including T. diversilobum and T. pubescens. In total, 20 samples from three populations of each species were used for the cross-species amplification (Table 4). Of 42 loci, 25 loci were of successful transferability. At these polymorphic loci, Na and Ne ranged from 2 to 8 and from 1.60 to 5.80 in T. diversilobum, and from 2 to 8 and from 1.34 to 5.56 in T. pubescens (Table 4). Ho and HE ranged from 0.35 to 0.85 and 0.38 to 0.83 in T. diversilobum and 0.30 to 0.90 and 0.26 to 0.82 in T. pubescens, respectively. The average of Shannon’s information index of 0.69 and 0.61 was observed in T. diversilobum (with 12 private alleles) and T. diversilobum (with one single private allele), respectively. No loci were detected with significant deviations from HWE in the poison oak, except for two loci in T. pubescens.
Genetic composition and distinction within and between Toxicodendron taxa was examined with a principle coordinate analysis (PCoA) and Bayesian assignment test (Figure 1). Based on 38 polymorphic microsatellite loci, the genetic composition of poison ivy was differentiated from that of the poison oak, as indicated by the first axis, which explained 58.41% variation (Figure 1A). Within poison oaks, the genetic composition cannot be distinguished at the first or second axis (Figure 1A), indicating genetic homogeneity without geographic differentiation. Among subspecies within T. radicans, genetic compositions among subspecies cannot be separated at the first axis but are spread out by the second axis (explained 21.69% variations) (Figure 1A). Subspecies of the poison ivy were not significantly differentiated as indicated by PCoA, a pattern similar to the results based on ISSR fingerprints [6].
Clustering of poison ivy and poison oak was examined with STRUCTURE analysis [1214]. The best and second fit numbers of grouping were inferred as two and three by the ΔK evaluations (ΔK = 216.171 at K = 2 and ΔK = 157.323 at K = 3) based on the Bayesian assignment test. When K = 2, Toxicodendron taxa were divided into two major groups (Figure 1B). The first and second groups with a high percentage of composition 1 (segment in blue, Figure 1B) or composition 2 (segment in red, Figure 1B) corresponded to the poison oak and ivy, respectively. When K = 3, composition 1 (T. radicans) was subdivided into composition 1a (blue segment in Figure 1B) and 1b (green segment in Figure 1B). Several individuals from China of ssp. hispidum and of ssp. radicans displayed genetic admixture, likely due to shared ancestral polymorphism [15] or recurrent gene flow [16,17].

3. Experimental Section

3.1. Sampling and DNA Extractions

Twenty individuals were collected from three populations of the poison oak (T. pubescens, T. diversilobum), and of each subspecies of poison ivy, T. radicans subsp. orientale, and ssp. hispidum from Taiwan and mainland China, respectively (Table 2). The sample size, location, and voucher specimens number are listed in Table 2. All voucher specimens were deposited in the Herbarium of Taiwan Endemic Species Research Institute (TAIE). Total genomic DNAs were extracted from silica-dried leaf powder using the Plant Genomic DNA Extraction Kit (RBC Bioscience, Taipei, Taiwan).

3.2. Isolation of Microsatellite DNA Loci and Identification

The modified AFLP [18] and magnetic bead enrichment method [19,20] were used to select microsatellite loci. Genomic DNA of T. radicans ssp. radicans was digested by restriction enzyme MseI (Promega, Madison, WI, USA) and electrophoresed on 1% Nusieve® 3:1 agarose gels (FMC Bio Products, Rockland, ME, USA). Fragment DNAs of 400 to 1000 bp were isolated using HiYield™ Gel PCR DNA Fragments Extraction Kit (RBC Bioscience) and ligated to a double stranded MseI-adaptor (complementary oligo A: 5′-TACTCAGGACTCAT-3′, 5′ phosphorylated oligo B: 5′-GACGATGAGTCCTGAG-3′) and incubated at 21 °C overnight. Ligated products were used as template DNAs for prehybridization PCR in order to enrich the partial genomic library. Total 20 μL of PCR cocktail was included with 20 ng template DNA, 10 pmol adapter-specific primer (5′-GATGAGTCCTGAGTAAN-3′), 2 μL 10× reaction buffer, 2 mM dNTP mix, 2 mM MgCl2, 0.5 U Taq DNA polymerase (Promega), and sterile water. The amplification reaction was executed at 94 °C for 5 min, followed by 18 cycles of 94 °C for 30 s, 53 °C for 1 min, and 72 °C for 1 min using a Labnet MultiGene 96-well Gradient Thermal Cycler (Labnet, Edison, NJ, USA). PCR products were denatured and hybridized to two biotinylated probes (B-(AG)15, B-(AC)15) at 68 °C for 1 h, followed by addition of 1 mg Streptavidin MagneSphere Paramagnetic Particles (Promega) to capture the hybridizations at 42 °C for 2 h. The enriched DNA fragments were eluted with high- and low-salt solutions and used as template DNAs for 25 cycles of PCR amplification. PCR cocktail and amplifciation protocol were identical to prehybridization PCR except the number of PCR cycles. Amplicons were purified using HiYield™ Gel PCR DNA Fragments Extraction Kit (RBC Bioscience) and then cloned using pGEM®-T Easy Vector System (Promega). White colonies were selected and screened using PCR with primer pairs: (AG)10 or (AC)10/SP6 or T7). Selected clones were purified and sequenced in both directions with an ABI PRISM® 3700 DNA Sequencer (Applied Biosystems, Inc., Foster City, CA, USA.). Sequences containing tandem repeat sequences were identified using Tandem Repeats Finder version 4.07b [10]. We designed the pair of specific primers for each microsatellite locus using FastPCR software version 6.4.18 [11]. The parameters for the microsatellite specific primer design were set at a PCR product size ranging from 100 to 450 bp, an optimum annealing temperature of 55 °C, and a GC content ranging from 40% to 60%.

3.3. DNA Amplification and Genotyping

For testing annealing temperature, each primer pair was evaluated following a gradient PCR procedure. All primer pairs were tested for PCR amplification on DNA extracted from each species and subspecies, i.e., one individual of T. pubescens, T. diversilobum, T. radicans subsp. radicans, and two individuals of T. radicans subsp. orientale, and T. radicans subsp. hispidum from Taiwan and mainland China. The procedure was performed at 94 °C for 5 min, followed by 30 cycles of 94 °C for 40 s, 48–65 °C for 60 s, 72 °C for 60 s, and a final extension of 72 °C for 10 min with the Labnet MultiGene 96-well Gradient Thermal Cycler (Labnet). Amplicoms were checked by 10% PAGE electrophoresis to separate the target DNA bands, which were confirmed based on sequences. These SSR primer pairs with confirmed target DNA bands were chosen for polymorphism evaluation.
For examining genetic polymorphisms, 20 individuals from 3 populations of two species and four subspecies (Table 2) were selected. PCR amplifications were performed using a Labnet MultiGene 96-well Gradient Thermal Cycler (Labnet), in a 20 μL reaction cocktail containing 20 ng template DNA, 0.2 μM each of reverse and forward primers, 2 μL 10× reaction buffer, 2 mM dNTP mix, 2 mM MgCl2, 0.5 U Taq DNA polymerase (Promega), and sterile water. The PCR program was conducetd at 94 °C for 5 min, followed by 30 cycles of 94 °C for 40 s, at the optimal annealing temperature (Ta) for 60 s, 72 °C for 60 s, and a final extension of 72 °C for 10 min [21]. Amplicons were visualized under UV light by electrophoresis on a 10% polyacrylamide gel (acrylamide: bisacrylamide 29:1, 80 V for 14–16 h) using a 25 or 50 bp DNA Step Ladder (Promega) to determine the allele size. The sizes of the PCR products were detected and analyzed using Quantity One software version 4.62 (Bio-Rad Laboratories, Hercules, CA, USA).

3.4. Data Analysis

Genetic variation indices, including the number of alleles (Na), the effective number of alleles (Ne), the observed and expected heterozygosity (Ho and He), Shannon’s information index, private alleles were calculated using GenAlEx version 6.4 [22]. Hardy–Weinberg equilibrium (HWE) was tested using Arlequin software version 3.5.1.2 [23].
Genetic composition and genetic distinction among Toxicodendron species and subspecies were evaluated using the PCoA by GenAlEx version 6.4 [22] and the Bayesian assignment test using STRUCTURE version 2.3.3 [1214]. The posterior probability of the grouping number (K = 1~6) was calculated by the Markov chain Monte Carlo (MCMC) method with 20 separate runs to estimate the stability of the results. Each run was assessed with 5,000,000 steps and a 500,000-step burn-in based on the admixture model [24]. The best fit number of grouping was assessed by ΔK [25] using STRUCTURE HARVESTER version 0.6.8 [26]. A final 10,000,000 simulation with a 1,000,000-step burn-in was performed based on the best K.

4. Conclusions

In total 42 microsatellite loci, including 38 polymorphic and 4 monomorphic, developed from Toxicodendron radicans are characterized in two species of the poison oak and three subspecies of the poison ivy. These SSR fingerprints were useful in assessing the population structuring and genetic diversity in taxa from different geographic areas. Genetic analyses revealed significant differentiation between poison oaks and poison ivy, whereas slight differentiation was seen among subspecies of the poison ivy. Furthermore, abundant allelic polymorphisms in these microsatellite fingerprints make them useful for genetic assessing genetic diversity, population differentiation, phylogeography, and speciation.

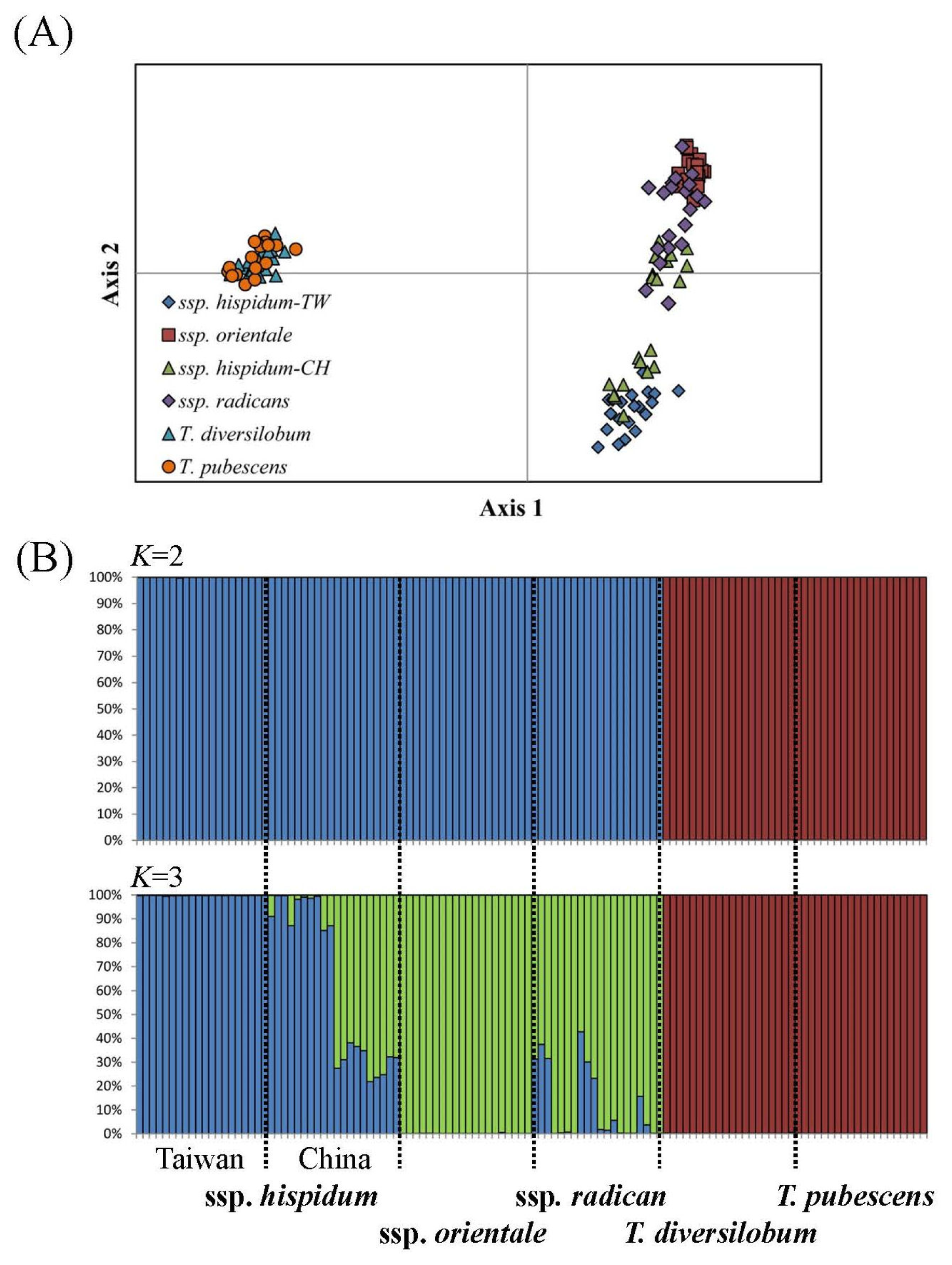

Figure 1. (A) Plots of the first two axes in principle coordinate analysis (PCoA) and (B) the assignment test with Bayesian clustering analysis, including the best (K = 2) and second fit numbers (K = 3) of grouping based on 38 polymorphic microsatellite loci. Abbreviations TW and CH indicate Taiwan Island and mainland China, respectively.
Figure 1. (A) Plots of the first two axes in principle coordinate analysis (PCoA) and (B) the assignment test with Bayesian clustering analysis, including the best (K = 2) and second fit numbers (K = 3) of grouping based on 38 polymorphic microsatellite loci. Abbreviations TW and CH indicate Taiwan Island and mainland China, respectively.
Ijms 14 20414f1
Table 1. Characteristics of 42 microsatellite loci isolated from Toxicodenderon radicans.
Table 1. Characteristics of 42 microsatellite loci isolated from Toxicodenderon radicans.
LocusPrimer sequence (5′–3′ )Repeat motifAllelic size (bp)Ta (°C)GenBank Accession No.
AC3F: GCGCAAATACGAAAGCGAGA(AG)27104~14655HF680270
R: AAAAATGGGCTCAAGCGATC

AC6F: CGGGATCGATGATGAGTCCTGA(ATT)7(TTC)2N(CTT)13299~33755HF680271
R: ATCAGAGGAGCGAGTCAGC

AC11F: GTGAAGAAACTGAAGAGCCAC(AG)24194~21855HF680272
R: TCACCAAAACTTAAGGGTGG

AC19F: CCACTCCACCCGTAACAACG(AGAAAA)5N(CT)14N(ATG)7324~34055HF680273
R: TCGTCCGTCATCGCTGCCCT

AC20F: CGTGCGTTACTTCTGCTCAC(ATG)12(AAG)9(ATG)9237~24555HF680274
R: ACTGTGAATCACCTGACCACG

AC139F: GAGGTGATATTGGTACTTGG(TA)9(GA)10112~12855HF680275
R: TTCCTCTCACTTTTACGTTC

AG28F: TATCGCATCAGGGGTTCCCA(GGA)15222~23055HF680276
R: CGGGATGGAGCCGCCAATGA

AG153F: GATGAGTCCTGAGTAAACCA(TTTC)19165–16951HF680277
R: TGCATATTTCATGATAATGG

M8F: TTCTTCTTCATTGTGCCGTC(GA)23136~14055HF680278
R: ATGTAGGCATGAATGAGGTG

M18F: AGGCTCCAAATCCATGCCTC(AAGA)27187~19555HF680279
R: CAAGAGCAAGAACATAGAATATAA

M19F: AGTGAATAGGTAGAATTCTCC(AG)22129~12955HF680280
R: CGGATTTTAGCTCAATTCCATC

M22F: AAGGATCAAGAAGGAAGGTG(AG)30155~15955HF680281
R: CCCTTCTCTTTCTTCTTCCC

M24F: GATTCATCTGGGTCACCTGG(GAGTGA)14166~17855HF680282
R: GACAATAGACTCCGACAACG

M27F: CATTCTTCTTCATTGTGCCG(GA)27110~11255HF680283
R: CCAATTTACCGAATCCAAGC

M30F: AAAGTTCATCATGGGTGTTTG(TG)16124~14855HF680284
R: AAACAAATCAGCCCTTCCAC

M31F: AGTTGTGTATGTCTGTGTTG(GT)92218~24455HF680285
R: AAACAAAGATGATGTAAAACGC

M452F: GACCAAGTGAAGCTGAATAG(GA)1275~10555HF680286
R: CTCACCAACTCAGCTAAGC

M493F: GCATCCTTCATTTTCTTATGG(AAGA)25221~22355HF680287
R: CGTTATCCAAACAACTCCAC

M54F: AAAACGTTAGCCGATAAGG(GA)15108~13255HF680288
R: TCAGCCTCTCCCCTCTTTTC

M56F: TGGAGATGGAGATGAAGAGG(AG)1293~12355HF680289
R: GCGTAAGATAGTCACTGTAC

M60F: AACTGAAGAGGTGCAATGGG(TGA)17122~14455HF680290
R: AGAGACTCTTCATCTTCTCC

M61F: CCGTTCACTGATTTTGCTAG(AG)11169~20755HF680291
R: CTGGCTACTAGATGATCCAG

M64F: ATAGTGAGTGCATGGTGGCG(AG)17114~12855HF680292
R: CTCCTCTTGAAACTGAGCTG

M66F: TGGAGCACTCATTTGTAACG(AG)11N(AG)9N(AG)9116~13255HF680293
R: CTGGATCTATACTCAATTCC

M67F: AGTGTGCTCTAAGAGTAAGG(GAAT)1415355HF680294
R: TATCCTACTAGGACTCTACC

M68F: CTGGTGTTGGGAAAGAAGG(TGGTGA)1012051HF680295
R: TTATTACCATATTATCCTTTACAT

M821F: TTGTCATCGTCGTCCAAACC(TTG/A)11158~16055HF680296
R: AAATCTCCTCATCCAACGCC

M822F: GGTGGATTGAAGAAATGACG(GA)4(GAGAA)4N(GA)12127~14955HF680297
R: AAATTCATTCGCTTTCACCTC

M83F: CATTCAACGCCGACAATTCC(AAT/C)16124~12655HF680298
R: TCCATATTCAGCCCAAGTGC

M85F: TTTGCTTTGGTTGAGAGTGC(AG)11118~12255HF680299
R: AATGTAATGTTCCTCCAACG

M97F: AGTTCTGGAGCTCAACATGG(GT)12163~17955HF680300
R: TCGAAGCTCTGATACCACTG

M99F: CCTTCCGGAGAGGTAGATTG(AG)10140~15255HF680301
R: TCTATAAGTACACCTTCTCC

M104F: TGGATTAGGCGAGTCACACC(AG)15149~15755HF680302
R: GTTTCACAGCATCCACGTGC

M120F: CGACTCATAATTGACGAGCC(TG)10119~14355HF680303
R: CTGTAAAATTACTATAGCCC

M121F: TGATTCTTTTGTGGTTTGCG(AG)14210~21655HF680304
R: TGTGTAGTGATTATAGAAGG

M123F: GTAATGTGTTTCAGTGCGTC(AG)12138~15455HF680305
R: CTTTTGGGCTATCATGGATG

M124F: AAGTACAGTTCCCGAAACTG(AAAG)10N(AG)11296~32055HF680306
R: TATTTTCACTAACCCTACCC

M137F: AGTGAGCTATCCAGCTATCG(AG)2212452HF680307
R: TCGTGTCAGTTTCGAGTAGC

M148F: GATCTGAATTTTCCGAAAGCG(AG)1019753HF680308
R: AGTGGGAGTTACAGTATACC

M154F: AAGAACTTCATTCACCGTCC(TGG)102417~44555HF680309
R: GTACTGCCTTCAAGGAAGTC

M155F: TCTAACCCTTCCAAAATTGG(AG)12130~14755HF680310
R: AAATTATGGGCCTGTTACTG

M156F: AAGCTAGCAAATACACATAGG(CA)14(CT)9N(AAT/C)16120~15255HF680311
R: CTGACAAGTTCCAGACAGGG
Note: F = the forward primer; R = the reverse primer; Ta = optimized annealing temperature.
Table 2. Sample location for each species, subspecies, and populations of Toxicodenderon. Sample size, location, coordinate, and voucher specimens are indicated.
Table 2. Sample location for each species, subspecies, and populations of Toxicodenderon. Sample size, location, coordinate, and voucher specimens are indicated.
SpeciesLocalitySample sizeLongitudeLatitudeVoucher Specimens Number
T. radicans ssp. hispidumYilan Co., Taiwan7N 24°30′26.2″E121°31′00.7″Hsu18286
Hsinchu, Taiwan7N 24°30′17.0″E121°07′05.6″Hsu18285
Nantou, Taiwan6N 24°06′39.8″E121°12′50.5″Hsu18287

ssp. hispidumDaguan, Yunnan, China7N 28°12′28.6″E103°56′26.8″Hsu18290
Leibo, Sichuan, China6N 28°20′50.4″E103°43′49.8″Hsu18289
Pingshan, Sichuan, China7N 28°43′31.1″E103°58′09.7″Hsu18295

ssp. orientaleKochi, Shikoku, Japan7N 33°46′02.4″E134°02′11.0″Hsu18281
Okayama, Honshu, Japan7N 35°05′18.1″E133°31′35.6″Hsu18282
Nagano, Honshu, Japan6N 36°10′59.6″E137°31′30.0″Hsu18284

ssp. radicansWashington Co., MO, USA7N 38°04′20.1″W90°41′57.6″Hsu18300
Montgomery Co., MO, USA7N 38°51′25.9″W91°30′57.6″Hsu18296
Monroe Co., MO, USA6N 39°30′50.3″W91°47′24.1″Hsu18298

T. diversilobumButte Co., CA, USA7N 39°32′08.5″W121°25′24.4″Hsu18302
Chico, CA, USA7N 39°44′06.9″W121°49′38.1″Hsu18303
Medford, OR, USA6N 42°17′34.9″W122°49′55.3″Hsu18305

T. pubescensCarter Co., MO, USA7N 36°55′40.5″W91°07′12.5″Hsu18304
Oregon Co., MO, USA7N 36°48′29.8″W91°07′45.3″Hsu18306
Howell Co., MO, USA6N 36°32′23.9″W91°50′29.7″Hsu18307
Table 3. Average genetic diversity for three subspecies of Toxicodenderon radicans based on the 42 newly developed microsatellites. For each locus, number of alleles (Na), effective number of alleles (Ne), observed heterozygosity (HO), expected heterozygosity (HE), and Shannon’s information index (H) are indicated.
Table 3. Average genetic diversity for three subspecies of Toxicodenderon radicans based on the 42 newly developed microsatellites. For each locus, number of alleles (Na), effective number of alleles (Ne), observed heterozygosity (HO), expected heterozygosity (HE), and Shannon’s information index (H) are indicated.
Locusssp. hispidum (Taiwan)ssp. hispidum (China)ssp. orientalessp. radicans

NaNeHOHEHNaNeHOHEHNaNeHOHEHNaNeHOHEH
AC363.770.650.741.45106.780.700.852.0484.940.800.801.7685.230.600.811.78
AC642.620.600.621.1495.440.800.821.8874.600.800.781.68127.550.850.872.19
AC1132.230.350.550.8963.760.500.731.4974.080.550.761.5863.460.450.71 *1.39
AC1932.040.300.510.7853.490.450.711.3764.620.600.781.6274.440.850.781.64
AC2032.070.250.520.7832.350.500.570.9432.350.500.570.9442.690.600.631.11
AC13921.660.350.400.5931.970.450.490.8532.570.650.611.0232.560.550.611.02
AG2843.240.500.69 *1.2332.170.400.540.9032.270.450.56 *0.9032.510.450.600.98
AG15331.870.300.47 *0.8221.720.300.420.61----------
M821.470.200.320.5021.220.100.18 *0.3311.00---11.00---
M1843.520.850.721.3232.330.600.570.9611.00---31.680.400.410.74
M1921.720.300.420.6111.00--0.0011.00---11.00---
M2221.660.250.400.5931.680.250.410.7421.880.350.470.6621.960.350.490.68
M2421.780.250.440.6332.850.500.651.0743.770.700.741.3554.650.600.791.57
M2721.780.350.440.6321.280.150.220.3811.00---11.00---
M3043.850.900.741.3764.020.850.721.5243.830.800.741.3684.820.750.791.77
M3153.900.550.74 *1.4585.630.650.821.8811.00---41.800.350.440.86
M45232.300.400.570.9331.110.100.100.2341.780.350.440.8251.680.600.410.80
M49321.720.300.420.6121.600.300.380.5611.00---11.00---
M5464.790.750.791.6763.880.700.741.5663.560.700.721.4563.540.500.72 *1.47
M5611.00--0.0052.420.450.591.1653.620.500.721.4263.160.550.681.41
M6064.651.000.791.6563.980.750.751.5921.830.300.460.6552.170.500.541.09
M6121.920.400.480.6764.120.750.761.5773.900.850.741.6085.520.800.821.86
M6443.380.550.701.2732.600.600.621.0132.060.400.520.8231.800.450.450.75
M6621.880.450.470.6632.460.550.590.9711.00---21.780.350.440.63
M6711.00------------------
M6811.00---11.00---11.00---11.00---
M82121.780.450.440.6321.470.300.320.5011.00---11.00---
M82211.00--0.0021.160.150.140.2721.910.350.480.8141.950.400.490.89
M8321.980.500.500.6921.410.250.290.4621.280.150.220.3821.280.150.220.38
M8532.970.400.661.0932.520.500.601.00----------
M9753.520.750.721.3753.760.600.731.4511.00---42.030.350.510.98
M9964.080.500.761.5143.290.600.701.2821.470.200.320.5021.960.350.490.68
M10453.860.600.741.4632.630.400.62 *1.0311.00---21.720.300.420.61
M12074.820.700.791.7365.060.700.801.7142.790.600.641.1552.560.550.611.19
M12132.470.500.601.0032.690.550.631.0421.720.300.420.6132.380.700.580.94
M12332.690.550.631.0463.240.650.691.4674.760.600.791.7073.960.800.751.63
M12463.130.650.681.3543.010.650.671.1732.350.400.570.9442.780.600.641.17
M13711.00---11.00---11.00---11.00---
M14811.00---11.00---11.00---11.00---
M15432.970.600.661.0942.910.600.661.1853.030.450.671.2763.940.650.751.48
M15532.750.400.641.0642.680.450.631.1542.910.500.661.1942.670.500.631.17
M15671.830.400.451.0172.950.650.66 *1.3961.470.650.741.4773.150.650.681.42

Mean3.262.490.490.590.983.932.730.500.591.073.182.270.520.610.784.052.600.530.600.96
*Significance of deviation from Hardy-Weinberg equilibrium: p < 0.05.
Table 4. Average genetic diversity in poison oak, Toxicodendron diversilobum and T. pubescens, at 42 loci with high transferability. For each locus, number of alleles (Na), effective number of alleles (Ne), observed heterozygosity (HO), expected heterozygosity (HE), and Shannon’s information index (H) are indicated.
Table 4. Average genetic diversity in poison oak, Toxicodendron diversilobum and T. pubescens, at 42 loci with high transferability. For each locus, number of alleles (Na), effective number of alleles (Ne), observed heterozygosity (HO), expected heterozygosity (HE), and Shannon’s information index (H) are indicated.
LocusT. diversilobumT. pubescens

NaNeHOHEHNaNeHOHEH
AC363.940.700.751.5463.940.650.751.54
AC654.620.800.781.5654.710.800.791.58
AC1185.800.850.831.9085.560.900.821.87
AC1953.690.800.731.4563.080.650.681.43
AC2021.960.350.490.6821.960.450.490.68
AC139----------
AG2843.290.500.701.2832.820.400.651.07
AG153----------
M8----------
M1852.830.600.651.2543.920.500.75 *1.38
M1931.940.350.480.8311.00---
M2231.940.350.480.8332.520.450.601.00
M24----------
M2722.000.400.500.6921.980.400.500.69
M3062.740.600.641.2632.200.550.550.86
M31----------
M45211.00---11.00---
M493----------
M54----------
M56----------
M6075.300.800.811.7742.710.650.63 *1.15
M6153.400.600.711.3921.340.300.260.42
M64----------
M6621.600.300.380.5621.980.300.500.69
M67----------
M68----------
M82121.980.400.500.6921.980.400.500.69
M82221.600.500.380.5621.600.400.380.56
M8321.960.450.490.6821.980.500.500.69
M8511.00---11.00---
M97----------
M99----------
M10464.850.800.791.6754.190.600.761.49
M12032.060.450.520.8921.830.300.460.65
M121----------
M12352.290.550.561.1352.320.550.571.15
M12454.280.650.771.5354.190.700.761.52
M137----------
M148----------
M15432.380.450.580.9432.220.400.550.92
M15532.690.600.631.0432.520.600.601.00
M156----------

Mean3.842.850.560.620.693.282.580.520.580.61
*Deviation from Hardy-Weinberg equilibrium: p < 0.05.

Acknowledgments

We thank Xun Gong and Tingshuang Yi for assistance with the field work. This work was supported by the National Science Council, Taiwan (NSC 95-2313-B-20-016-MY3, 95-2621-B-020-003, 98-2621-B-110-004-MY3, and 100-2621-B-110-001-MY3) to Yu-Chung Chiang.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Gladman, A.C. Toxicodendron dermatitis: Poison ivy, oak, and sumac. Wilderness Environ. Med 2006, 17, 120–128. [Google Scholar]
  2. Billets, S.; Craig, J.C.; Corbett, M.D.; Vickery, J.F. Component analysis of the urushiol content of poison ivy and poison oak. Phytochemistry 1976, 15, 533–535. [Google Scholar]
  3. Dawson, C.R. The chemistry of poison ivy. Trans. N. Y. Acad. Sci 1956, 18, 427–443. [Google Scholar]
  4. Gillis, W.T. The systematics and ecology of poison-ivy and the poison-oaks (Toxicodendron, Anacardiaceae). Rhodora 1971, 73, 370–443. [Google Scholar]
  5. Gillis, W.T. Poison-ivy and its kin. Arnoldia 1975, 35, 93–123. [Google Scholar]
  6. Liao, P.C.; Chao, Y.S.; Chiang, Y.C. Chapter 2-Species Occurrence, Hybridization and Speciation in Postglacial East and South Asia. In The Molecular Basis of Plant Genetic Diversity; Caliskan, M., Ed.; InTech–Open Access Publisher: Rijeka, Croatia, 2012; pp. 33–60. [Google Scholar]
  7. Milne, R.I. Phylogeny and biogeography of Rhododendron subsection Pontica, a group with a tertiary relict distribution. Mol. Phylogenet. Evol 2004, 33, 389–401. [Google Scholar]
  8. Wen, J. Evolution of eastern Asian and eastern North American biogeographic disjunctions: A few additional issues. Int. J. Plant Sci 2001, 162, S117–S122. [Google Scholar]
  9. Barkley, F.A. A monographic study of Rhus and its immediate allies in North and Central America, including the West Indies. Ann. MO Bot. Gard 1937, 24, 265–498. [Google Scholar]
  10. Benson, G. Tandem repeats finder: A program to analyze DNA sequences. Nucleic Acids Res 1999, 27, 573–580. [Google Scholar]
  11. Kalendar, R.; Lee, D.; Schulman, A.H. Java web tools for PCR, in silico PCR, and oligonucleotide assembly and analysis. Genomics 2011, 98, 137–144. [Google Scholar]
  12. Pritchard, J.K.; Stephens, M.; Donnelly, P. Inference of population structure using multilocus genotype data. Genetics 2000, 155, 945–959. [Google Scholar]
  13. Falush, D.; Stephens, M.; Pritchard, J.K. Inference of population structure using multilocus genotype data: Linked loci and correlated allele frequencies. Genetics 2003, 164, 1567–1587. [Google Scholar]
  14. Falush, D.; Stephens, M.; Pritchard, J.K. Inference of population structure using multilocus genotype data: Dominant markers and null alleles. Mol. Ecol. Notes 2007, 7, 574–578. [Google Scholar]
  15. Ge, X.J.; Hsu, T.W.; Hung, K.H.; Lin, C.J.; Huang, C.C.; Huang, C.C.; Chiang, Y.C.; Chiang, T.Y. Inferring mutiple refugia and phylogeographical patterns in Pinus massoniana based on nucleotide sequence variation and fingerprinting. PLoS One 2012, 7, e43717. [Google Scholar]
  16. Chiang, Y.C.; Huang, B.H.; Chang, C.W.; Wan, Y.T.; Lai, S.J.; Huang, S.; Liao, P.C. Asymmetric introgression in the horticultural living fossil Cycas Sect. Asiorientales using a genome-wide scanning approach. Int. J. Mol. Sci 2013, 14, 8228–8251. [Google Scholar]
  17. Liao, P.C.; Tsai, C.C.; Chou, C.H.; Chiang, Y.C. Introgression between cultivars and wild populations of Momordica charantia L. (Cucurbitaceae) in Taiwan. Int. J. Mol. Sci 2012, 13, 6469–6491. [Google Scholar]
  18. Zane, L.; Bargelloni, L.; Patarnello, T. Strategies for microsatellite isolation: A review. Mol. Ecol 2002, 11, 1–6. [Google Scholar]
  19. Liao, P.C.; Gong, X.; Shih, H.C.; Chiang, Y.C. Isolation and characterization of eleven polymorphic microsatellite loci from an endemic species, Piper polysyphonum (Piperaceae). Conserv. Genet 2009, 10, 1911–1914. [Google Scholar]
  20. Chiang, Y.C.; Shih, H.C.; Chang, L.W.; Li, W.R.; Lin, H.Y.; Ju, L.P. Isolation of 16 polymorphic microsatellite markers from an endangered and endemic species, Podocarpus nakaii (Podocarpaceae). Am. J. Bot 2011, 98, e306–e309. [Google Scholar]
  21. Chiang, Y.C.; Shih, H.C.; Huang, M.C.; Ju, L.P.; Hung, K.H. The characterization of microsatellite loci from an endemic tree Litsea hypophaea (Lauraceae) in Taiwan. Am. J. Bot 2012, 99, e251–e254. [Google Scholar]
  22. Peakall, R.; Smouse, P.E. GENALEX 6: Genetic analysis in Excel. Population genetic software for teaching and research. Mol. Ecol. Notes 2006, 6, 288–295. [Google Scholar]
  23. Excoffier, L.; Lischer, H.E.L. Arlequin suite ver 3.5: A new series of programs to perform population genetics analyses under Linux and Windows. Mol. Ecol. Resour 2010, 10, 564–567. [Google Scholar]
  24. Hubisz, M.J.; Falush, D.; Stephens, M.; Pritchard, J.K. Inferring weak population structure with the assistance of sample group information. Mol. Ecol. Resour 2009, 9, 1322–1332. [Google Scholar]
  25. Evanno, G.; Regnaut, S.; Goudet, J. Detecting the number of clusters of individuals using the software structure: A simulation study. Mol. Ecol 2005, 14, 2611–2620. [Google Scholar]
  26. Earl, D.A.; vonHoldt, B.M. STRUCTURE HARVESTER: A website and program for visualizing STRUCTURE output and implementing the Evanno method. Conserv. Genet. Resourc 2012, 4, 359–361. [Google Scholar]

Share and Cite

MDPI and ACS Style

Hsu, T.-W.; Shih, H.-C.; Kuo, C.-C.; Chiang, T.-Y.; Chiang, Y.-C. Characterization of 42 Microsatellite Markers from Poison Ivy, Toxicodendron radicans (Anacardiaceae). Int. J. Mol. Sci. 2013, 14, 20414-20426. https://doi.org/10.3390/ijms141020414

AMA Style

Hsu T-W, Shih H-C, Kuo C-C, Chiang T-Y, Chiang Y-C. Characterization of 42 Microsatellite Markers from Poison Ivy, Toxicodendron radicans (Anacardiaceae). International Journal of Molecular Sciences. 2013; 14(10):20414-20426. https://doi.org/10.3390/ijms141020414

Chicago/Turabian Style

Hsu, Tsai-Wen, Huei-Chuan Shih, Chia-Chi Kuo, Tzen-Yuh Chiang, and Yu-Chung Chiang. 2013. "Characterization of 42 Microsatellite Markers from Poison Ivy, Toxicodendron radicans (Anacardiaceae)" International Journal of Molecular Sciences 14, no. 10: 20414-20426. https://doi.org/10.3390/ijms141020414

Article Metrics

Back to TopTop
