Int. J. Mol. Sci. 2013, 14(1), 1-16; doi:10.3390/ijms14010001

Articles
Cantharidin and Its Anhydride-Modified Derivatives: Relation of Structure to Insecticidal Activity
Wenbo Sun , Zhongyi Liu and Yalin Zhang *
Key Laboratory of Plant Protection Resources & Pest Management of Ministry of Education, Northwest A & F University, Yangling 712100, Shaanxi, China; E-Mails: wbsun06@yahoo.com.cn (W.S.); zhy.liu@hotmail.com (Z.L.)
*
Author to whom correspondence should be addressed; E-Mail: yalinzh@yahoo.com.cn; Tel./Fax: +86-29-8709-2190.
Received: 21 September 2012; in revised form: 12 November 2012 / Accepted: 26 November 2012 /
Published: 20 December 2012

Abstract

: Cantharidin is a natural compound of novel structure with ideal insecticidal activity. However, the relationship of structure to insecticidal activity of cantharidin and its derivatives has not been ever clarified. To explore what determines the insecticidal activity structurally of cantharidin-related compounds, two series target compounds 6 and 7 were synthesized by replacing the anhydride ring of norcantharidin with an aromatic amine or fatty amine with different electron density, respectively. The structures of these compounds were characterized by 1H NMR, 13C NMR and HRMS-ESI. A bioassay showed that compounds 6 (am) lacked any larvicidal activity against Plutella xylostella; whereas their ring-opened partners 7 (am) provided a variety of larvicidal activities against P. xylostella, and compound 7f indicated the highest larvicidal activity with LC50 value of 0.43 mM. The present work demonstrated that the form of the compound (cyclic or ring-opened) or their ability to hydrolyze facilely was the key to determine whether it exhibits larvicidal activity. Moreover, it revealed that the improvement of insecticidal activity required a reasonable combination of both aliphatic amide and aromatic amide moieties, and the type of substituent Y on the aniline ring was critical.
Keywords:
cantharidin; anhydride ring opening; derivatives; synthesis; larvicidal activity; structure-activity relationship

1. Introduction

The blister beetle Mylabris phalerata (Coleoptera: Meloidae) has been used for centuries as a traditional Chinese medicine. Cantharidin 1 (Figure 1), the active ingredient in the blister beetle toxin, has served as a valuable drug against several kinds of cancer. Similar to what occurs when a variety of human cancer cell lines are co-cultured with cantharidin, insect cell lines Spex-VII and Sf9 can be induced to undergo apoptosis by this toxin [14]. Among the novel applications of cantharidin and its analogs were preliminary studies of the anti-insect activity of this natural product.

Cantharidin has been confirmed to be toxic to arthropods in a diversity of orders: Coleoptera, Diptera, Hymenoptera, Homoptera, Lepidoptera and Acarina [57]. Apoptosis-like symptoms of insect tissues (midgut, Malpighian tubules, testes, fat body and epidermis) due to cantharidin poisoning of insects were observed under the transmission electron microscope [810]. Additionally, the activities of acid phosphatase, alkaline phosphatase and polyphenol oxidase in cantharidin-treated Mythimna separata significantly declined [11].

Whereas the procedure for synthesizing cantharidin under assay conditions is complex and difficult [1214], its analogs are much easier to be synthesized and are promising substitutes for cantharidin. However, cantharidin derivatives possess different structures and are likely to have either higher or lower insecticidal effects.

Our study is designed to explore the relationships between the structures and insecticidal activities of cantharidin analogs. Two series of anhydride-modified cantharidin analogs were designed and synthesized with norcantharidin 3 (Figure 1) as the parent compound. Among them, 6b, 6g, 6m, 7a, 7b, 7e and 7f, seven derivatives, were new compounds. Their insecticidal activities were evaluated against the pre-third-instar larvae of Plutella xylostella, in vivo.

2. Results and Discussion

2.1. Chemistry

As shown in Scheme 1, the target analogs 6 were synthesized by the reaction of norcantharidin 3 and various primary amines in the presence of triethylamine as the binding acid agent [15], and the analogues 7 were synthesized by replacing the anhydride ring of norcantharidin 3 with an aromatic amine or fatty amine of different electron density [16].

Compound 5 was synthesized to imitate the synthetic procedure of phthalimide [17], as shown in Scheme 2.

As can be seen from Schemes 3 and 4, compounds 1 and 3 underwent a rapid conversion to dicarboxylic acid (compounds 2 and 4) under assay conditions, or through the slow but facile way that the hydrolyzing occurred at room temperature.

Thus the hydrolytic stabilities of analogs 6 presented in Table 1 were examined. We noted that analogs 6 were stable under assay conditions, showing no decomposition even under infrared radiation (typically no decomposition after 12 h treatment).

2.2. Insecticidal Activity

After a period of starvation, released larvae wriggled around and attempted to eat the nearby treated leaves. They would not present a series of symptoms until a certain amount of the drug was taken. All active compounds caused the same symptoms.

Unlike most commercial pesticides currently used, the poisoned larvae gradually lost their locomotive ability and were powerless to resist mechanical irritations. Meanwhile, compared with the healthy larvae (Figure 2A,B), a darker patch often appeared anteriorly on each dying larva (Figure 2C), which would spread gradually to the whole bodies until they died (Figure 2D). Wet, green frass might stick to the anal areas of dying larvae (Figure 2D), and mucus was frequently observed at the end of the abdomen of dead larvae, which either was kept between the fourth pair of prolegs and caudal prolegs (Figure 2E), or it glued dying larvae to leaves or filter papers (Figure 2F) indicating the experimental drugs might disrupt the digestive system in larvae.

In addition, cantharidin is well known as a strong inhibitor of serine/threonine protein phosphatases (PPs) [18], a broad class of PPs associated with signaling and control of numerous cellular processes in many organisms [19]. The toxicity associated with cantharidin is derived from its ability to inhibit the family of PPs. However, the catalytic domain of all PP subfamilies is highly conserved in animals, plants, protozoans and all eukaryotes [20]. Inhibitors, such as cantharidin and norcantharidin, bind to a hydrophobic pocket of the PP active site [21]. The structural similarity between cantharidin and norcantharidin has been apparent to animal scientists and similar mechanisms of action on animal serine/threonine PPs have been confirmed [22]. Like all other eukaryotes, the family of serine/threonine protein phosphatases belonging to insects and related arthropods should be considered since it is highly similar to that of mammals. Hence, it is deduced that PPs are the potential target sites of insecticidal activity of cantharidin and its related compounds. Meanwhile, because of the high conservation of the catalytic domain of all PP subfamilies, cantharidin and its derivatives are indeed toxic to all eukaryotes, not just insects.

2.3. SAR

Among the sixteen compounds listed in Table 1, only cantharidin 1 and norcantharidin 3 showed any significant larvicidal activities with 100% mortality at concentrations of 500 μg mL−1, respectively. Interestingly, the replacement of the anhydride oxygen atom of norcantharidin 3 with nitrogen (compound 5) resulted in complete loss of activity. Meanwhile, Table 1 showed that the target compounds 6 also lacked any larvicidal activities. Indeed, to result in any larvicidal activity, no modifications of the cyclic anhydride are tolerated, consequently resulting in larvicidal activity. We thought the replacement of the O-atom with N (as N–H and N–R, where R = alkyl of aryl) would furnish us with a better understanding of the relationship between the electronic effect and larvicidal activities; however no larvicidal activity was demonstrated for the modified cyclic anhydride.

The biological activities of the target compounds 7a to 7m against P. xylostella at a concentration of 500 μg mL−1 are summarized in Table 2. To provide structure-activity relationship information about the effect of the aliphatic amide moiety substituent, R, compounds 7a, 7b and 7c were designed to contain −CH3, −CH(CH3)2 and −CH2(CH2)2CH3, respectively. Although it is difficult to construct a clear structure-activity relationship from the data shown in Table 2, it can be concluded that the general trend in larvicidal activity for the substituents was −CH3 (7a) > −CH(CH3)2 (7b) > −CH2(CH2)2CH3 (7c). For example, compound 7a (R = −CH3, 77%) displayed a significantly higher insecticidal activity than compound 7b (R = −CH(CH3)2, 12%) and 7c (R = −CH2(CH2)2CH3, 4%) at 500 μg mL−1.

To examine the electronic effect of substituent Y on the aniline ring, the electron-donating substituent –OCH3 and electron-withdrawing substituents −CF3, –OCF3, F and −CO2H were introduced. Compounds with electron-withdrawing substituents displayed higher larvicidal activities against P. xylostella than compounds with electron-donating substituents, as seen in the comparison of the compounds 7d (Y = 2′-OCH3), 7e (Y = 2′-F) and 7f (Y = 2′-NO2) of the series with Y at 2′-position on the aniline ring, 7g (Y = 3′-OCH3), 7h (Y = 3′-F) and 7i (Y = 3′-CF3) of the series with Y at 3′-position on the aniline ring, and 7j (Y = 4′-OCH3), 7k (Y = 4′-CO2H), 7l (Y = 4′-F) and 7m (Y = 4′-OCF3) of the series with Y at 4′-position on the aniline ring. These observations revealed that substitution patterns on the aniline ring have an important influence on the larvicidal activity. Compounds with electron-withdrawing substituents showed excellent larvicidal activities against P. xylostella, while compounds with electron-donating substituents display lower larvicidal activity.

In addition, as shown in Table 2, compound 2, 4 and 7f were the most active compounds. All of their larvicidal activities against P. xylostella at 500 μg mL−1 were 100% after 48 h, while the larvicidal activity of the parent compounds 1 and 2 were 100% at the same concentration after 48 h as shown in Table 1. These results indicated that compounds 2, 4 and 7f displayed comparable larvicidal activity with their corresponding lead compound against P. xylostella at 500 μg mL−1. Therefore, we carried out further insecticidal activity assay for compounds 2, 4 and 7f, and cantharidin 1 and norcantharidin 2 were used as a control to make a judgment on the larvicidal potency of these compounds. As shown in Table 3, it was found that the LC50 values of compounds 4 and 7f against P. xylostella were 0.70 mM and 0.43 mM respectively, while that of the parent compound norcantharidin was 0.84 mM. Moreover, the LC50 of compounds 2 was the same as that of its parent compound cantharidin 1 with value of 0.06 mM.

The larvicidal activity values of anhydride analogs in Table 1 were compared with those of their ring-opened dicarboxylic acid partners in Table 2. The anhydride analogs indicated no any larvicidal activity, except 1 and 3, as mentioned above. However, their ring-opened dicarboxylic acid partners all suggested various larvicidal activities. On the one hand, the larvicidal activities of cantharidin 1 and norcantharidin 3 were equal to that of their ring-opened partners, compounds 2 and 4 with LC50 values of 0.06 mM, 0.84 mM, 0.06 mM, and 0.70 mM in Table 3, respectively. And the larvicidal activities of cantharidin 1 and norcantharidin 3 appeared to be the results of the spontaneous hydrolyzing process to ring-opened compounds 2 and 4. On the other hand, compared with 1 and 3, compounds 6 were so stable that they could not be hydrolyzed to their ring-opened partners naturally, which leads to the absence of larvicidal activity. Therefore, we conjectured that the active form of cantharidin and its derivatives is the dicarboxylic acid analog, a ring-opened compound.

3. Experimental Section

3.1. General Experimental Procedures

Melting points of all compounds were determined on a WRS-2 apparatus (Shanghai Precision & Scientific Instrument Co. Ltd., Shanghai, China) and are uncorrected. 1H NMR and 13C NMR spectra were obtained using a Bruker AVANCE-500 MHz spectrometer in CDCl3 or DMSO solution with tetramethylsilane as the internal standard. Chemical shift values (δ) were given in parts per million (ppm). High-resolution mass spectrometry (HRMS) data were obtained on a Bruker micrOTOF-Q II instrument.

Cantharidin 1 was isolated from Mylabris phalerata (Chinese blister beetle), which was bought from the Chinese herbal medicine market in Xian, China. Norcantharidin 3 was purchased from Alfa Aesar Chemical Co. Ltd. (Haverhill, MA, USA). All primary amine reagents were of analytical reagent grade. Solvents were dried and purified using standard techniques immediately before use. Silica gel for TLC and CC was obtained from Qingdao Haiyang Chemical Co. Ltd. (Qingdao, China).

3.2. Synthetic Procedures

3.2.1. General Synthetic Procedure for Compound 2

To a solution of cantharidin 1 (390 mg, 2 mmol) in water (10 mL) was dropwise added a solution of sodium hydroxide (180 mg, 4.5 mmol) in water (5 mL). This was stirred at 100 °C for 2 h. After the mixture had cooled to room temperature, a solution of hydrogen chloride (4.5 mmol) in water (9 mL) was added dropwise to the mixture and stirred overnight at room temperature. The white slurry was filtered and the cake washed with dichloromethane. The crude solid was recrystallized from methanol to give 2 as white solid (400 mg, 93%). mp: 232–233 °C. 1H NMR (500 MHz, D2O) δ: 1.03 (s, 6H, H-9, 10), 1.44 (d, J = 8.51 Hz, 2H, H-1, 2, exo), 1.76 (d, J = 7.88 Hz, 2H, H-1, 2, endo), 4.53 (br, s, 2H, H-3, 6). 13C NMR (125 MHz, D2O) δ: 17.26 (C-9, C-10), 23.98 (C-1, C-2), 58.45 (C-4, C-5), 84.29 (C-3, C-6), 183.94 (C-7, C-8). HR-MS (ESI): m/z calcd for C10H13O5 ([M−1]) 213.0763, found 213.0773.

3.2.2. General Synthetic Procedure for Compound 4

A mixture of norcantharidin 3 (1.0 g, 5.95 mmol) and water (15 mL) was refluxed for 8 h. After the mixture had cooled to room temperature, the reaction was concentrated in vacuo and filtered. The resulting precipitate was recrystallized from methanol to obtain compound 4 as white solid (960 mg, 87%). mp: 137–138 °C. 1H NMR (500 MHz, DMSO-d6) δ: 1.48–1.60 (m, 4H, H-1, 2), 2.92 (s, 2H, H-4, 5), 4.67 (d, J = 2.21 Hz, 2H, H-3, 6), 12.05 (br, s, 2H, H-9, 10). 13C NMR (125 MHz, DMSO-d6) δ: 29.08 (C-1, C-2), 52.03 (C-4, C-5), 78.20 (C-3, C-6), 172.89 (C-7, C-8). HR-MS (ESI): m/z calcd for C8H9O5 ([M−1]) 185.0450, found 185.0455.

3.2.3. General Synthetic Procedure for Compound 5

A mixture of norcantharidin 3 (1.0 g, 5.95 mmol), carbamide (220 mg, 3.57 mmol) and DMF (1.4 mL) was heated at 130–135 °C. After the mixture had melted completely, it was allowed to react at 160–165 °C. When the reaction was completed according to TLC analysis, the mixture cooled to room temperature. After filtration, the crude solid was recrystallized from EtOAc/Hexane (1:1, v/v) resulting in product 5 as yellow solid (920 mg, 88.5%). mp: 186–188 °C. 1H NMR (500 MHz, CDCl3) δ: 1.60 (d, J = 7.57 Hz, 2H, H-1, 2, exo), 1.87 (d, J = 7.57 Hz, 2H, H-1, 2, endo), 2.93 (br, s, 2H, H-4, 5), 4.92 (br, s, 2H, H-3, 6), 8.33 (br, s, 1H, H-9). 13C NMR (125 MHz, CDCl3) δ: 28.52 (C-1, C-2), 51.36 (C-4, C-5), 79.12 (C-3, C-6), 177.23 (C-7, C-8). HR-MS (ESI): m/z calcd for C8H9NO3Na ([M+Na]+) 190.0480, found 190.0474.

3.2.4. General Synthetic Procedure for the Target Compounds 6 (am)

Primary amine (1 equiv, 5.59 mmol) was added to a stirred mixture of norcantharidin 3 (1.0 g, 5.95 mmol), triethylamine (1.5 mL) and toluene (15 mL). The reaction was carried out at reflux temperature, and the progress was monitored by TLC. After completion, the mixture was moved to vacuo. The residue was either recrystallized from EtOAc/Hexane (1:1, v/v) or purified by column chromatography on a silica gel using EtOAc and hexane (EtOAc/Hexane, 2:5, v/v) as the eluent to afford the target compounds 6. The yields, physical properties, 1H NMR, 13C NMR, and HR-MS of the target compounds 6 were as follows:

Data for6-a: white solid; yield, 93%; mp: 132–133 °C; 1H NMR (500 MHz, CDCl3) δ: 1.58–1.64 (m, 2H, H-1, 2, exo), 1.83–1.90 (m, 2H, H-1, 2, endo), 2.89 (s, 2H, H-4, 5), 2.96 (s, 3H, H-1′), 4.88 (br, s, 2H, H-3, 6); 13C NMR (125 MHz, CDCl3) δ: 25.07 (C-1′), 28.59 (C-1, C-2), 50.03 (C-4, C-5), 79.00 (C-3, C-6), 177.26 (C-7, C-8); HR-MS (ESI): m/z calcd for C9H11NO3Na ([M+Na]+) 204.0637, found 204.0633.

Data for6-b: white solid; yield, 71%; mp: 141–142 °C; 1H NMR (500 MHz, CDCl3) δ: 1.36 (d, J = 6.94 Hz, 6H, H-2′, 3′), 1.56–1.62 (m, 2H, H-1, 2, exo), 1.80–1.88 (m, 2H, H-1, 2, endo), 2.79 (s, 2H, H-4, 5), 4.32 (dt, J = 13.87, 6.94 Hz, 1H, H-1′), 4.82–4.89 (m, 2H, H-3, 6); 13C NMR (125 MHz, CDCl3) δ: 19.16 (s, 2C, C-2′, C-3′), 28.63 (s, 2C, C-1, C-2), 43.99 (s, 1C, C-1′), 49.58 (s, 2C, C-4, C-5), 79.18 (s, 2C, C-3, C-6), 177.27 (s, 2C, C-7, C-8); HR-MS (ESI): m/z calcd for C11H15NO3Na ([M+Na]+) 232.0950, found 232.0953.

Data for6-c: white solid; yield, 89%; mp: 80–81 °C; 1H NMR (500 MHz, CDCl3) δ: 0.91 (t, J = 7.25 Hz, 3H, H-4′), 1.29 (sxt, J = 7.31 Hz, 2H, H-3′), 1.52 (quin, J = 7.41 Hz, 2H, H-2′), 1.60 (d, J = 7.25 Hz, 2H, H-1, 2, exo), 1.86 (d, J = 7.88 Hz, 2H, H-1, 2, endo), 2.86 (s, 2H, H-4, 5), 3.46 (t, J = 7.25 Hz, 2H, H-1′), 4.87 (br, s, 2H, H-3, 6); 13C NMR (125 MHz, CDCl3) δ: 13.62 (C-4′), 19.94 (C-3′), 28.61 (C-1, C-2), 29.65 (C-2′), 38.88 (C-1′), 49.87 (C-4, C-5), 79.07 (C-3, C-6), 177.28 (C-7, C-8); HR-MS (ESI): m/z calcd for C12H17NO3Na ([M+Na]+) 246.1106, found 246.1101.

Data for6-d: white solid; yield, 71%; mp: 149–150 °C; 1H NMR (500 MHz, CDCl3) δ: 1.65 (d, J = 7.25 Hz, 2H, H-1, 2, exo), 1.90 (d, J = 7.88 Hz, 2H, H-1, 2, endo), 3.00–3.10 (m, 2H, H-4, 5), 3.76–3.82 (m, 3H, H-7′), 4.99 (d, J = 2.84 Hz, 2H, H-3, 6), 6.97–7.05 (m, 2H, H-3′, 4′), 7.06–7.17 (m, 1H, H-5′), 7.39 (t, J = 7.72 Hz, 1H, H-6′); 13C NMR (125 MHz, CDCl3) δ: 28.66 (C-1, C-2), 50.41 (C-4, C-5), 55.81 (C-7′), 79.43 (C-3, C-6), 112.09 (C-3′), 112.57 (C-6′), 120.98 (C-1′), 129.32 (C-5′), 130.84 (C-4′), 154.57 (C-2′), 176.28 (C-7, C-8); HR-MS (ESI): m/z calcd for C15H15NO4Na ([M+Na]+) 296.0899, found 296.1001.

Data for6-e: white solid; yield, 71%; mp: 139–140 °C; 1H NMR (500 MHz, CDCl3) δ: 1.62–1.70 (m, 2H, H-1, 2, exo), 1.87–1.95 (m, 2H, H-1, 2, endo), 3.09 (br, s, 2H, H-4, 5), 5.00 (br, s, 2H, H-3, 6), 7.18–7.22 (m, 1H, H-4′), 7.23 (br, s, 2H, H-3′, 5′), 7.37–7.45 (m, 1H, H-6′); 13C NMR (125 MHz, CDCl3) δ: 28.64 (s, 2C, C-1, C-2), 50.39 (s, 2C, C-4, C-5), 79.51 (s, 2C, C-3, C-6), 119.65 (s, 1C, C-3′), 124.67 (br, s, 1C, C-5′), 128.24 (s, 1C, C-1′), 129.42 (br. s, 1C, C-4′), 131.01 (s, 1C, C-6′), 156.29 (s, 1C, C-2′), 175.54 (s, 2C, C-7, C-8); HR-MS (ESI): m/z calcd for C14H12FNO3Na ([M+Na]+) 284.0699, found 284.0691.

Data for6-f: white solid; yield, 52%; mp: 179–181 °C; 1H NMR (500 MHz, CDCl3) δ: 1.68 (d, J = 7.25 Hz, 2H, H-1, 2, exo), 1.92 (d, J = 7.88 Hz, 2H, H-1, 2, endo), 3.11–3.21 (m, 2H, H-4, 5), 4.96–5.06 (m, 2H, H-3, 6), 7.41 (d, J = 7.57 Hz, 1H, H-4′), 7.61 (t, J = 7.57 Hz, 1H, H-5′), 7.70–7.80 (m, 1H, H-6′), 8.18 (d, J = 8.20 Hz, 1H, H-3′); 13C NMR (125 MHz, CDCl3) δ: 28.61 (C-1, C-2), 50.59 (C-4, C-5), 79.49 (C-3, C-6), 125.81 (C-6′), 130.19 (C-4′), 130.66 (C-3′), 134.39 (C-5′), 175.47 (C-7, C-8); HR-MS (ESI): m/z calcd for C14H12N2O5Na ([M+Na]+) 311.0644, found 311.0623.

Data for6-g: white solid; yield, 79%; mp: 147–148 °C; 1H NMR (500 MHz, CDCl3) δ: 1.62–1.69 (m, 2H, H-1, 2, exo), 1.87–1.95 (m, 2H, H-1, 2, endo), 3.03 (s, 2H, H-4, 5), 3.81 (s, 3H, H-7′), 5.00 (br, s, 2H, H-3, 6), 6.78 (s, 1H, H-4′), 6.84 (d, J = 7.88 Hz, 1H, H-2′), 6.94 (dd, J = 8.35, 1.73 Hz, 1H, H-6′), 7.36 (t, J = 8.04 Hz, 1H, H-5′); 13C NMR (125 MHz, CDCl3) δ: 28.68 (C-1, C-2), 50.08 (C-4, C-5), 55.48 (C-7′), 79.56 (C-3, C-6), 112.24 (C-2′), 114.91 (C-4′), 118.81 (C-6′), 129.89 (C-5′), 132.85 (C-1′), 160.14 (C-3′), 176.30 (C-7, C-8); HR-MS (ESI): m/z calcd for C15H15NO4Na ([M+Na]+) 296.0899, found 296.1015.

Data for6-h: white solid; yield, 85%; mp: 139–140 °C; 1H NMR (500 MHz, CDCl3) δ: 1.64–1.70 (m, 2H, H-1, 2, exo), 1.87–1.94 (m, 2H, H-1, 2, endo), 3.03 (s, 2H, H-4, 5), 4.99 (d, J = 2.21 Hz, 2H, H-3, 6), 7.11–7.18 (m, 2H, H-4′, 6′), 7.22–7.29 (m, 2H, H-2′, 5′); 13C NMR (125 MHz, CDCl3) δ: 28.66 (s, 2C, C-1, C-2), 50.04 (s, 2C, C-4, C-5), 79.57 (s, 2C, C-3, C-6), 116.09 (s, 1C, C-2′), 116.28 (s, 1C, C-4′), 127.75 (s, 1C, C-6′), 128.35 (s, 1C, C-5′), 161.31 (s, 1C, C-1′), 163.29 (s, 1C, C-3′), 176.27 (s, 2C, C-7, C-8); HR-MS (ESI): m/z calcd for C14H12FNO3Na ([M+Na]+) 284.0699, found 284.0692.

Data for6-i: white solid; yield, 92%; mp: 197–198 °C; 1H NMR (500 MHz, CDCl3) δ: 1.65–1.71 (m, 2H, H-1, 2, exo), 1.89–1.96 (m, 2H, H-1, 2, endo), 3.06 (s, 2H, H-4, 5), 5.01 (d, J = 2.21 Hz, 2H, H-3, 6), 7.50 (d, J = 7.88 Hz, 1H, H-6′), 7.56–7.62 (m, 2H, H-4′, 5′), 7.63–7.68 (m, 1H, H-2′); 13C NMR (125 MHz, CDCl3) δ: 28.65 (s, 2C, C-1, C-2), 50.09 (s, 2C, C-4, C-5), 79.64 (s, 2C, C-3, C-6), 123.56 (s, 1C, C-4′), 124.59 (s, 1C, C-7′), 125.44 (s, 1C, C-2′), 129.70 (s, 1C, C-5′), 131.56 (s, 1C, C-3′), 131.82 (s, 1C, C-6′), 132.38 (s, 1C, C-1′), 175.88 (s, 2C, C-7, C-8); HR-MS (ESI): m/z calcd for C15H12F3NO3Na ([M+Na]+) 334.0667, found 334.0665.

Data for6-j: white solid; yield, 85%; mp: 189–190 °C; 1H NMR (500 MHz, CDCl3) δ: 1.66 (d, J = 7.25 Hz, 2H, H-1, 2, exo), 1.90 (d, J = 8.20 Hz, 2H, H-1, 2, endo), 3.02 (s, 2H, H-4, 5), 3.82 (s, 3H, H-7′), 4.99 (br, s, 2H, 2H, H-3, 6), 6.97 (d, J = 8.83 Hz, 2H, H-3′, 5′), 7.17 (d, J = 8.83 Hz, 2H, H-2′, 6′); 13C NMR (125 MHz, CDCl3) δ: 28.69 (C-1, C-2), 40.48 (C-7′), 49.99 (C-4, C-5), 79.47 (C-3, C-6), 112.44 (C-3′, C-5′), 120.25 (C-1′), 127.17 (C-2′, C-6′), 150.57 (C-4′), 176.98 (C-7, C-8); HR-MS (ESI): m/z calcd for C15H15NO4Na ([M+Na]+) 296.0899, found 296.1011.

Data for6-k: white solid; yield, %; mp: 270–271 °C; 1H NMR (500 MHz, DMSO-d6) δ: 1.71 (s, 4H, H-1, 2), 2.94 (q, J = 7.25 Hz, 2H, H-4, 5), 4.83 (s, 2H, H-3, 6), 7.31 (d, J = 8.20 Hz, 2H, H-2′, 6′), 8.03 (d, J = 8.51 Hz, 2H, H-3′, 5′); 13C NMR (125 MHz, DMSO-d6) δ: 28.48 (s, 2C, C-1, C-2), 50.31 (s, 2C, C-4, C-5), 79.37 (s, 2C, C-3, C-6), 126.87 (s, 2C, C-2′, C-6′), 130.27 (s, 2C, C-3′, C-5′), 133.71 (s, 1C, C-4′), 135.51 (s, 1C, C-1′), 167.83 (s, 1C, C-7′), 177.07 (s, 2C, C-7, C-8); HR-MS (ESI): m/z calcd for C30H26N2O102Na ([2M+Na]+) 597.1531, found 597.1535.

Data for6-l: white solid; yield, 71%; mp: 140–141 °C; 1H NMR (500 MHz, CDCl3) δ: 1.63–1.69 (m, 2H, H-1, 2, exo), 1.88–1.94 (m, 2H, H-1, 2, endo), 3.03 (s, 2H, H-4, 5), 4.99 (d, J = 2.21 Hz, 2H, H-3, 6), 7.10–7.19 (m, 2H, H-3′, 5′), 7.22–7.29 (m, 2H, H-2′, 6′); 13C NMR (125 MHz, CDCl3) δ: 28.66 (s, 2C, C-1, C-2), 50.04 (s, 2C, C-4, C-5), 79.57 (s, 2C, C-3, C-6), 116.09 (s, 2C, C-3′, C-5′), 127.75 (s, 1C, C-1′), 128.35 (s, 2C, C-2′, C-6′), 163.29 (s, 1C, C-4′), 176.27 (s, 2C, C-7, C-8); HR-MS (ESI): m/z calcd for C14H12FNO3Na ([M+Na]+) 284.0699, found 284.0675.

Data for6-m: white solid; yield, 85%; mp: 177–178 °C; 1H NMR (500 MHz, CDCl3) δ: 1.67 (d, J = 7.57 Hz, 2H, H-1, 2, exo), 1.92 (d, J = 7.88 Hz, 2H, H-1, 2, endo), 3.05 (s, 2H, H-4, 5), 5.00 (br, s, 2H, H-3, 6), 7.28–7.33 (m, 2H, H-3′, 5′), 7.33–7.38 (m, 2H, H-2′, 6′); 13C NMR (125 MHz, CDCl3) δ: 28.66 (s, 2C, C-1, C-2) 50.05 (s, 2C, C-4, C-5) 79.62 (s, 2C, C-3. C-6) 119.36 (s, 1C, C-1′) 121.60 (s, 2C, C-3′, C-5′) 127.98 (s, 2C, C-2′, C-6′) 130.22 (s, 1C, C-4′) 148.89 (s, 1C, C-7′) 176.07 (s, 2C, C-7, C-8); HR-MS (ESI): m/z calcd for C15H12F3NO4Na ([M+Na]+) 350.0616, found 350.0615.

3.2.5. General Synthetic Procedure for the Target Compounds 7 (am)

A mixture of norcantharidin 3 (1.0 g, 5.95 mmol), primary amine regent (1 equiv, 5.95 mmol) and THF (10 mL) was stirred for several hours at room temperature, and the progress of reaction was monitored by TLC. After norcantharidin disappeared, the reaction was concentrated under reduced pressure and diluted with acetone (100 mL). The resulting precipitate was either recrystallized from methanol or purified by column chromatography (MeOH/CH2Cl2, 1:4, v/v) to afford the desired products 7. The yields, physical properties, 1H NMR, 13C NMR, and HR-MS of the target compounds 7 were as follows:

Data for7-a: white solid; yield, 84%; mp: 144–146 °C; 1H NMR (500 MHz, D2O) δ: 1.45–1.70 (m, 4H, H-1, 2), 2.57 (s, 3H, H-1′), 2.88–2.95 (m, 2H, H-4, 5), 4.60 (d, J = 4.73 Hz, 1H, H-6), 4.79 (d, J = 4.41 Hz, 1H, H-3); 13C NMR (125 MHz, D2O) δ: 25.87 (C-1′), 28.20 (C-1, C-2), 53.84 (C-4), 54.70 (C-5), 78.68 (C-3), 79.39 (C-6), 175.58 (C-8), 177.81 (C-7); HR-MS (ESI): m/z calcd for C9H12NO4 ([M−1]) 198.0766, found 198.0753.

Data for7-b: white solid; yield 74%; mp: 136–137 °C; 1H NMR (500 MHz, DMSO-d6) δ: 1.02 (dd, J = 6.31, 2.52 Hz, 6H, H-2′, 3′), 1.41–1.62 (m, 4H, H-1. 2), 2.75–2.85 (m, 2H, H-4, 5), 3.76 (dq, J = 13.52, 6.74 Hz, 1H, H-1′), 4.47 (d, J = 4.73 Hz, 1H, H-6), 4.72 (d, J = 4.10 Hz, 1H, H-3), 7.16 (d, J = 7.88 Hz, 1H, H-9); 13C NMR (125 MHz, DMSO-d6) δ: 22.67 (s, 1C, C-2′), 22.88 (s, 1C, C-3′), 28.93 (s, 1C, C-1), 29.31 (s, 1C, C-2), 43.13 (s, 1C, C-1′), 52.60 (s, 1C, C-3), 53.60 (s, 1C, C-4), 77.41 (s, 1C, C-3), 79.08 (s, 1C, C-6), 170.20 (s, 1C, C-8), 173.07 (s, 1C, C-7); HR-MS (ESI): m/z calcd for C11H18NO4 ([M+1]+) 228.1236, found 228.1233.

Data for7-c: white solid; yield, 83.5%; mp: 139–140 °C; 1H NMR (500 MHz, DMSO-d6) δ: 0.88 (t, J = 7.25 Hz, 3H, H-4′), 1.23–1.32 (m, 2H, H-3′), 1.32–1.40 (m, 2H, H-2′), 1.42–1.63 (m, 4H, H-1, 2), 2.81–2.87 (m, 2H, H-1′), 2.94–3.05 (m, 2H, H-4, 5), 4.48 (d, J = 4.41 Hz, 1H, H-6), 4.74 (d, J = 4.10 Hz, 1H, H-3), 7.33 (t, J = 5.20 Hz, 1H, H-9), 11.89 (br, s, 1H, H-10); 13C NMR (125 MHz, DMSO-d6) δ: 14.17 (C-4′), 20.06 (C-3′), 28.88 (C-2), 29.34 (C-1), 31.06 (C-2′), 38.65 (C-1′), 51.89 (C-4), 53.56 (C-5), 77.22 (C-3), 79.28 (C-6), 170.76 (C-8), 172.82 (C-7); HR-MS (ESI): m/z calcd for C12H19NO4Na ([M+Na]+) 264.1212, found 264.1213.

Data for7-d: white solid; yield, 66%; Mp: 151–152 °C; 1H NMR (500 MHz, DMSO-d6) δ: 1.52–1.72 (m, 4H, H-1, 2), 3.05–3.17 (m, 2H, H-4, 5), 3.83 (s, 3H, H-7′), 4.71 (d, J = 5.04 Hz, 1H, H-6′), 4.89 (d, J = 3.47 Hz, 1H, H-3′), 6.86–6.93 (m, 1H, H-5′), 7.02 (d, J = 4.10 Hz, 2H, H-3′, 4′), 8.11 (d, J = 7.88 Hz, 1H, H-6′), 8.87 (s, 1H, H-9), 12.20 (br, s, 1H, H-10); 13C NMR (125 MHz, DMSO-d6) δ: 28.96 (C-1, C-2), 52.44 (C-7′), 55.32 (C-4), 56.45 (C-5), 77.52 (C-3), 79.54 (C-6), 111.44 (C-3′), 120.32 (C-6′), 120.79 (C-5′), 123.84 (C-3′), 128.31 (C-4′), 148.84 (C-2′), 169.95 (C-8), 172.61 (C-7); HR-MS (ESI): m/z calcd for C15H17NO5Na ([M+Na]+) 314.1004, found 314.1008.

Data for7-e: white solid; yield, 85%; mp: 114–115 °C; 1H NMR (500 MHz, DMSO-d6) δ: 1.53–1.68 (m, 4H, H-1, 2), 3.04 (d, J = 9.46 Hz, 1H, H-4), 3.21 (d, J = 9.77 Hz, 1H, H-5), 4.61–4.77 (m, 1H, H-6), 4.78–4.93 (m, 1H, H-3), 7.06–7.19 (m, 2H, H-3′, 5′), 7.20–7.28 (m, 1H, H-4′), 8.02 (t, J = 7.72 Hz, 1H, H-6′), 9.28 (s, 1H, H-9), 12.13 (br, s, 1H, H-10); 13C NMR (125 MHz, DMSO-d6) δ: 28.92 (s, 1C, C-1), 29.11 (s, 1C, C-2), 52.28 (s, 1C, C-4), 54.13 (s, 1C, C-5), 77.54 (s, 1C, C-3), 79.36 (s, 1C, C-6), 115.53 (s, 1C, C-3′), 123.24 (s, 1C, C-1′), 124.83 (s, 1C, 6′), 126.95 (s, 1C, 4′), 152.24 (s, 1C, C-5′), 154.17 (s, 1C, C-2′), 170.22 (s, 1C, C-8), 172.71 (s, 1C, C-7); HR-MS (ESI): m/z calcd for C14H14FNO4Na ([M+Na]+) 302.0805, found 302.0807.

Data for7-f: yellow solid; yield, 47%; mp: 160–161 °C; 1H NMR (500 MHz, DMSO-d6) δ: 1.46–1.72 (m, 4H, H-1, 2), 2.98–3.12 (m, 2H, H-4, 5), 4.63–4.85 (m, 2H, H-3, 6), 7.60 (t, J = 8.20 Hz, 1H, H-4′), 7.82 (d, J = 7.88 Hz, 1H, H-5′), 7.90 (d, J = 7.88 Hz, 1H, H-6′), 8.65 (br, s, 1H, H-3′), 10.28 (br, s, 1H, H-9), 12.02–12.09 (m, 1H, H-10); 13C NMR (125 MHz, DMSO-d6) δ: 28.91 (C-2), 29.44 (C-1), 52.24 (C-4), 53.82 (C-5), 77.49 (C-3), 79.00 (C-6), 113.68 (C-6′), 117.96 (C-4′), 125.55 (C-3′), 130.53 (C-5′), 140.91 (C-1′), 148.42 (C-2′), 170.61 (C-8), 172.63 (C-7); HR-MS (ESI): m/z calcd for C14H14N2O6Na 329.0750, found 329.0754.

Data for7-g: white solid; yield, 73%; mp: 165–166 °C; 1H NMR (500 MHz, DMSO-d6) δ: 1.47–1.70 (m, 4H, H-1, 2), 2.95 (d, J = 9.46 Hz, 1H, H-4), 3.07 (d, J = 9.77 Hz, 1H, H-5), 4.64 (d, J = 4.41 Hz, 1H, H-6), 4.80 (d, J = 3.78 Hz, 1H, H-3), 6.61 (dd, J = 8.20, 1.89 Hz, 1H, H-4′), 7.05 (d, J = 8.20 Hz, 1H, H-6′), 7.15–7.22 (m, 1 H, H-5′), 7.29 (s, 1H, H-2′), 9.68 (s, 1H, H-9), 11.99 (br, s, 1H, H-10); 13C NMR (125 MHz, DMSO-d6) δ: 28.91 (C-2), 29.46 (C-1), 52.05 (C-7′), 54.03 (C-4), 55.42 (C-5), 77.34 (C-3), 79.23 (C-6), 105.36 (C-6′), 108.97 (C-2′), 111.89 (C-4′), 129.81 (C-5′), 140.95 (C-1′), 159.95 (C-3′), 169.83 (C-8), 172.72 (C-7); HR-MS (ESI): m/z calcd for C15H17NO5Na ([M+Na]+) 314.1004, found 314.0983.

Data for7-h: white solid; yield, 86%; mp: 163–164 °C; 1H NMR (500 MHz, DMSO-d6) δ: 1.41–1.71 (m, 4H, H-1, 2), 2.97 (d, J = 9.46 Hz, 1H, H-4), 3.07 (d, J = 9.46 Hz, 1H, H-5), 4.66 (d, J = 4.41 Hz, 1H, H-6), 4.80 (d, J = 3.78 Hz, 1H, H-3), 6.85 (td, J = 8.43, 2.36 Hz, 1H, H-4′), 7.22 (d, J = 8.20 Hz, 1H, H-6′), 7.29–7.36 (m, 1H, H-5′), 7.57 (d, J = 11.66 Hz, 1H, H-2′), 9.95 (s, 1H, H-9) 12.01 (s, 1H, H-10); 13C NMR (125 MHz, DMSO-d6) δ: 28.89 (s, 1C, C-1), 29.44 (s, 1C, C-2), 52.17 (s, 1C, C-4), 53.89 (s, 1C, C-5), 77.38 (s, 1C, C-3), 79.07 (s, 1C, C-6), 106.28 (s, 1C, C-4′), 109.72 (s, 1C, C-2′), 115.31 (s, 1C, C-6′), 130.62 (s, 1C, C-5′), 141.46 (s, 1C, C-1′), 161.65 (s, 1C, C-3′), 170.19 (s, 1C, C-8), 172.64 (s, 1C, C-7); HR-MS (ESI): m/z calcd for C14H14FNO4Na ([M+Na]+) 302.0805, found 302.0811.

Data for7-i: white solid; yield, 49%; mp: 174–176 °C; 1H NMR (500 MHz, DMSO-d6) δ: 1.43–1.76 (m, 4H, H-1, 2), 2.99 (d, J = 9.46 Hz, 1H, H-4), 3.09 (d, J = 9.46 Hz, 1H, H-5), 4.69 (d, J = 2.84 Hz, 1H, H-6), 4.80 (br, s, 1H, H-3), 7.38 (d, J = 7.57 Hz, 1H, H-5′), 7.54 (t, J = 7.88 Hz, 1H, H-4′), 7.68 (d, J = 7.88 Hz, 1H, H-6′), 8.12 (br, s, 1H, H-2′), 10.11 (s, 1H, H-9), 12.04 (s, 1H, H-10); 13C NMR (125 MHz, DMSO-d6) δ: 28.90 (s, 1C, C-1), 29.43 (s, 1C, C-2), 52.19 (s, 1C, C-4), 53.85 (s, 1C, C-5), 77.43 (s, 1C, C-3), 79.04 (s, 1C, C-6), 115.67 (s, 1C, C-4′), 119.70 (s, 1C, C-7′), 123.08 (s, 1C, C-6′), 123.56 (s, 1C, C-2′), 125.72 (s, 1C, C-5′), 130.29 (s, 1C, C-3′), 140.51 (s, 1C, C-1′), 170.43 (s, 1C, C-8), 172.67 (s, 1C, C-7); HR-MS (ESI): m/z calcd for C15H14F3NO4Na ([M+Na]+) 352.0773, found 352.0775.

Data for7-j: white solid; yield, 71%; mp: 167–168 °C; 1H NMR (500 MHz, DMSO-d6) δ: 1.46–1.69 (m, 4H, H-1, 2), 2.94 (d, J = 9.77 Hz, 1H, H-4), 3.03 (d, J = 9.46 Hz, 1H, H-5), 4.63 (d, J = 4.10 Hz, 1H, 1H, H-6), 4.79 (d, J = 3.78 Hz, 1H, 1H, H-3), 6.87 (d, J = 8.83 Hz, 2H, H-3′, 5′), 7.44 (d, J = 8.83 Hz, 2 H, H-2′, 6′), 9.51 (s, 1H, H-9), 11.93 (br, s, 1H, H-10); 13C NMR (125 MHz, DMSO-d6) δ: 28.89 (C-2), 29.47 (C-1), 52.07 (C-7′), 53.87 (C-4), 55.64 (C-5), 77.29 (C-3), 79.20 (C-6), 114.20 (C-3′, C-5′), 121.24 (C-2′, C-6′), 132.91 (C-1′), 155.54 (C-4′), 169.33 (C-8), 172.76 (C-7); HR-MS (ESI): m/z calcd for C15H17NO5Na ([M+Na]+) 314.1004, found 314.1025.

Data for7-k: white solid; yield, 44%; mp: 269–270 °C; 1H NMR (500 MHz, DMSO-d6) δ: 1.52–1.64 (m, 4H, H-1, 2), 2.98 (d, J = 9.46 Hz, 1H, H-4), 3.11 (d, J = 9.77 Hz, 1H, H-5), 4.68 (d, J = 4.41 Hz, 1H, H-6), 4.80 (d, J = 3.78 Hz, 1H, H-3), 7.66 (d, J = 8.83 Hz, 2H, H-2′, 6′), 7.89 (d, J = 8.83 Hz, 2H, H-3′, 5′), 10.05 (s, 1H, H-9), 12.35 (br, s, 2H, H-10); 13C NMR (125 MHz, DMSO-d6) δ: 28.91 (s, 1C, C-1) 29.44 (s, 1C, C-2) 52.20 (s, 1C, C-4) 53.97 (s, 1C, C-5) 77.42 (s, 1C, C-3) 79.11 (s, 1C, C-6) 118.80 (s, 2C, C-2′, C-6′) 125.29 (s, 1C, C-4′) 130.78 (s, 2C, C-3′, C-5′) 143.69 (m, 1C, C-1′) 167.32 (m, 1C, C-7′) 170.32 (s, 1C, C-8) 172.65 (s, 1C, C-7); HR-MS (ESI): m/z calcd for C15H15NO6Na ([M+Na]+) 328.0797, found 328.0796.

Data for7-l: white solid; yield, 78%; mp: 157–159 °C; 1H NMR (500 MHz, DMSO-d6) δ: 1.45–1.69 (m, 4H, H-1, 2), 2.93–2.98 (m, 1H, H-4), 3.02–3.08 (m, 1H, H-5), 4.65 (d, J = 4.10 Hz, 1H, H-6), 4.79 (d, J = 3.78 Hz, 1H, H-3), 7.13 (t, J = 8.83 Hz, 2H, H-2′, 6′), 7.55 (dd, J = 8.83, 5.04 Hz, 2H, H-3′, 5′), 9.73 (s, 1H, H-8), 11.98 (br, s, 1H, H-7); 13C NMR (125 MHz, DMSO-d6) δ: 28.90 (s, 1C, C-1), 29.46 (s, 1C, C-2), 52.15 (s, 1C, C-4), 53.83 (s, 1C, C-5), 77.34 (s, 1C, C-3), 79.10 (s, 2C, C-6), 115.49 (s, 2C, C-3′, C-5′), 121.37 (s, 2C, C-2′, C-6′), 136.13 (s, 1C, C-1′), 157.37 (s, 1C, C-4′), 169.71 (s, 1C, C-8), 172.68 (s, 1C, C-7); HR-MS (ESI): m/z calcd for C14H14FNO4Na ([M+Na]+) 302.0805, found 302.0813.

Data for7-m: yellow solid; yield, 47%; mp: 170–171 °C; 1H NMR (500 MHz, DMSO-d6) δ: 1.46–1.69 (m, 4H, H-1, 2), 2.95–3.00 (m, 1H, H-4), 3.07 (d, J = 9.77 Hz, 1H, H-5), 4.67 (d, J = 4.41 Hz, 1H, H-6), 4.80 (d, J = 3.78 Hz, 1H, H-3), 7.30 (d, J = 8.83 Hz, 2H, H-3′, 5′), 7.65 (d, J = 8.83 Hz, 2H, H-2′, 6′), 9.91 (s, 1H, H-9), 12.01 (s, 1H, H-10); 13C NMR (125 MHz, DMSO-d6) δ: 28.84 (m, 1C, C-1), 29.44 (m, 1C, C-2), 52.17 (m, 1C, C-4), 53.89 (m, 1C, C-5), 77.34 (m, 1C, C-3), 79.07 (m, 1C, C-6), 120.88 (s, 2C, C-3′, C-5′), 121.65 (s, 1C, C-7′), 121.97 (s, 2C, C-2′, C-6′), 138.91 (m, 1C, C-1′), 143.80 (m, 1C, C-4′), 169.85 (m, 1C, C-8), 172.47 (m, 1C, C-7); HR-MS (ESI): m/z calcd for C15H14F3NO5Na ([M+Na]+) 368.0722, found 368.0732.

3.3. Bioassay

Plutella xylostella were continuously maintained in our laboratory without exposure to any insecticide at 25 ± 2 °C, 50% RH with a photoperiod of 16L:8D. The larvae were reared on pakchoi seedlings.

Compounds were dissolved in component solvent (water:acetone:dimethyl sulfoxide = 20:19:1, v/v) containing 0.5% Tween-80 to the different concentrations. The bioactivities of all compounds against the early third instar larvae of P. xylostella were tested using cotyledons of pakchoi seedlings. The seedlings were treated by firstly dipping them in the test solutions for about 5 s, then placing cotyledons slanting over a blotting paper to drain superfluous fluid and to dry the test solution for about 25 min at room temperature.

For each bioassay, ten treated leaves were put on a wet filter paper (Ø 9 cm) paved in a Petri plate (Ø 9 cm) to keep fresh, and ten larvae were released to the plate after a starvation for 4 h, and kept in a growth cabinet under the same conditions the larvae were reared. Each sample was repeated four times and mortality was recorded after 48 h. A component solvent containing 0.5% Tween-80 was used as control. Bioassay data were polled and analyzed by standard probit analysis [23], using Abbott’s correction for control mortality [24], and the toxicity was ascertained by estimating the median lethal dose (LD50, killing 50%) of each compound.

4. Conclusions

In summary, two series of cantharidin analogs (compounds 6 and compounds 7) containing alkyl and aryl groups at 9-position were designed and synthesized. Their structures were confirmed by 1H NMR, 13C NMR and HRMS. The larvicidal activities of cantharidin and its derivatives against the pre-third-instar P. xylostella were evaluated. All of the cyclic compounds except cantharidin 1 and norcantharidin 3 lacked any larvicidal activity. The ring-opened cantharidin derivatives demonstrated different activities, and compound 7f showed the highest larvicidal activity with LC50 value of 0.43 mM. Structure-activity relationship study indicated that the form of compound (cyclic or ring-opened) or their ability to hydrolyze facilely is the key to determine whether it exhibits larvicidal activity. Meanwhile, this revealed that the improvement of insecticidal activity required a reasonable combination of both aliphatic amide and aromatic amide moieties, and the type of substituent Y on the aniline ring was critical.

Acknowledgments

We appreciate the kind help and helpful advice given by Xuan Tian (Lanzhou University, China) and Hong-Li Zhang (Northwest A & F University, China) during the spectroscopic analysis on the anhydride modified derivatives of Cantharidin. We also give thanks to J. R. Schrock (Emporia State University, USA) for revising the manuscript. This study was supported by the Special Fund for the Public Interest (Agriculture) (Grant No. 200903052) and the “13115” Sci-Tech Innovation Project of Shaanxi Province (No. 2009ZDKG-06).

References

  1. Kuo, J.H.; Chu, Y.L.; Yang, J.S.; Lin, J.P.; Lai, K.C.; Kuo, H.M.; Hsia, T.C.; Chung, J.G. Cantharidin induces apoptosis in human bladder cancer TSGH 8301 cells through mitochondria-dependent signal pathways. Int. J. Oncol 2010, 37, 1243–1250. [Google Scholar]
  2. Huang, W.W.; Ko, S.W.; Tsai, H.Y.; Chung, J.G.; Chiang, J.H.; Chen, K.T.; Chen, Y.C.; Chen, Y.F.; Yang, J.S. Cantharidin induces G2/M phase arrest and apoptosis in human colorectal cancer colo 205 cells through inhibition of CDK1 activity and caspase-dependent signaling pathways. Int. J. Oncol 2011, 38, 1067–1073. [Google Scholar]
  3. Morihiko, S.; Tomonori, N.; Hideo, U.; Yasuo, I.; Masahiro, K. Cantharidin induces apoptosis of human multiple myeloma cells via inhibition of the JAK/STAT pathway. Cancer Sci 2008, 99, 1820–1826. [Google Scholar]
  4. Chen, L.P.; Yang, B.D.; Zhang, Z.Y.; Wang, J.Z.; Sun, S.L. Effects of cantharidin on insect cell Spex-VII and Sf9. J. Beijing Univ. Agric 2008, 23, 17–20. [Google Scholar]
  5. Carrel, J.E.; Eisner, T. Cantharidin: Potent feeding deterrent to insects. Science 1974, 183, 755–757. [Google Scholar]
  6. Li, X.F.; Chen, X.S.; Hou, X.H. The toxicity effect of cantharidin on six pests. Guizhou Agric. Sci 2008, 36, 65–66. [Google Scholar]
  7. Liu, R.R.; Ma, Y.; Ma, Z.Q.; Zhang, Y.L. Bioactivity of cantharidin against eleven pests. J. Northwest AF Univ 2010, 38, 181–185. [Google Scholar]
  8. Lu, B.L. Pathological changes following the administration of cantharidin to Leucania separata (Walker). Acta Entomol. Sin 1964, 13, 824–834. [Google Scholar]
  9. Zhang, Y.L.; Zhou, Y.; Zhang, Z.Y. Effect of cantharidin on the midgut of the orient armyworm (Mythimna separata) and diamondback moth (Plutella xylostella). Acta Entomol. Sin 2003, 46, 272–276. [Google Scholar]
  10. Chen, L.P.; Yang, B.D.; Zhang, Z.Y.; Zhang, A.H.; Zhang, Z.M.; Zhang, L.X.; Sun, S.L. Effect of cantharidin on the integument structure of Plutella xylostella. Entomol. Knowl 2011, 48, 1779–1785. [Google Scholar]
  11. Ma, Y.; Liu, R.R.; Ma, Z.Q.; Zhang, Y.L. Effects of cantharidin on four metabolizing enzymes and PPO in Mythimna separata (Walker) (Lepidoptera Noctuidae). Acta Entomol. Sin 2010, 53, 870–875. [Google Scholar]
  12. Srork, G.; Tamelen, E.; Friedman, L.J.; Burgstahler, A.W. Cantharidin. A stereospecific total synthesis. J. Am. Chem. Soc 1951, 73, 4501. [Google Scholar]
  13. Srork, G.; Tamelen, E.; Friedman, L.J.; Burgstahler, A.W. Stereospecific synthesis of cantharidin. J. Am. Chem. Soc 1953, 75, 384–392. [Google Scholar]
  14. Dauben, W.G.; Kessel, C.R.; Takemura, K.H. Simple, efficient total synthesis of cantharidin via a high-pressure Diels-Alder reaction. J. Am. Chem. Soc 1980, 102, 6893–6894. [Google Scholar]
  15. Hill, T.A.; Stewart, S.G.; Ackland, S.P.; Gilbert, J.; Sauer, B.; Sakoff, J.A.; McCluskey, A. Norcantharimides, synthesis and anticancer activity: Synthesis of new norcantharidin analogues and their anticancer evaluation. Bioorg. Med. Chem 2007, 15, 6126–6134. [Google Scholar]
  16. Hill, T.A.; Stewart, S.G.; Gordon, C.P.; Ackland, S.P.; Gilbert, J.; Sauer, B.; Sakoff, J.A.; McCluskey, A. Norcantharidin analogues: Synthesis, anticancer activity and protein phosphatase 1 and 2A inhibition. ChemMedChem 2008, 3, 1878–1892. [Google Scholar]
  17. Yue, H.Y.; Liu, Z.F. A new synthetic process of phthalimide. Fine Chem. Inter 2004, 35, 44–45. [Google Scholar]
  18. Bajsa, J.; Duke, S.O.; Tekwani, B.L. Plasmodium falciparum serine/threonine phosphoprotein phosphatases (PPP): From housekeeper to the “Holy Grail”. Curr. Drug Targets 2008, 9, 997–1012. [Google Scholar]
  19. Lin, X.H.; Walter, J.; Scheidmann, K.; Ohst, K.; Newport, J.; Walter, G. Protein phosphatase 2A is required for the initiation of chromosomal DNA replication. Proc. Natl. Acad. Sci. USA 1998, 95, 14693–14698. [Google Scholar]
  20. Moorhead, G.B.; de Wever, V.; Templeton, G.; Kerk, D. Evolution of protein phosphatases in plants and animals. Biochem. J 2009, 417, 401–409. [Google Scholar]
  21. Bertini, I.; Calderone, V.; Fragai, M.; Luchinat, C.; Talluri, E. Structural basis of serine/threonine phosphatase inhibition by the archetypal small molecules cantharidin and norcantharidin. J. Med. Chem 2009, 52, 4838–4843. [Google Scholar]
  22. Li, Y.M.; Mackintosh, C.; Casida, J.E. Protein phosphatase 2A and its[3H] cantharidin/[3H] endothall thioanhydride binding site. Inhibitor specificity of cantharidin and ATP analogues. Biochem. Pharmacol. 1993, 46, 1435–1443. [Google Scholar]
  23. Finney, D.J. Probit Analysis, 2nd ed; Cambridge University Press: Cambridge, UK, 1971; pp. 35–41. [Google Scholar]
  24. Abbott, W.S. A method of computing the effectiveness of an insecticide. J. Econ. Entomol 1925, 18, 265–267. [Google Scholar]
Ijms 14 00001f1 1024

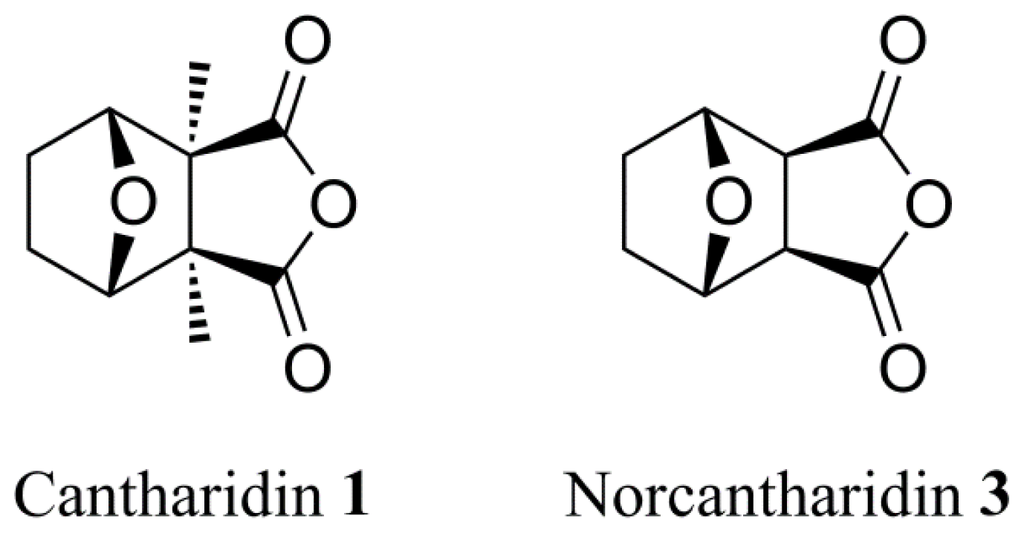

Figure 1. The structures of cantharidin 1 and norcantharidin 3.

Click here to enlarge figure

Figure 1. The structures of cantharidin 1 and norcantharidin 3.
Ijms 14 00001f1 1024
Ijms 14 00001f2 1024
Figure 2. (A, B) Healthy larvae with light and uniform body color; (C) A darker patch appeared anteriorly on a dying larva poisoned by cantharidin; (D) Darker patches spread all over the body of a dead larva poisoned by cantharidin with wet, green frass stuck to its anal area, as shown at the arrow; (E) Mucus was kept between the fourth pair of prolegs and caudal prolegs as shown at the arrow; (F) A larva that died from cantharidin was glued posteriorly and ventrally to a leaf by mucus.

Click here to enlarge figure

Figure 2. (A, B) Healthy larvae with light and uniform body color; (C) A darker patch appeared anteriorly on a dying larva poisoned by cantharidin; (D) Darker patches spread all over the body of a dead larva poisoned by cantharidin with wet, green frass stuck to its anal area, as shown at the arrow; (E) Mucus was kept between the fourth pair of prolegs and caudal prolegs as shown at the arrow; (F) A larva that died from cantharidin was glued posteriorly and ventrally to a leaf by mucus.
Ijms 14 00001f2 1024
Ijms 14 00001f3 1024

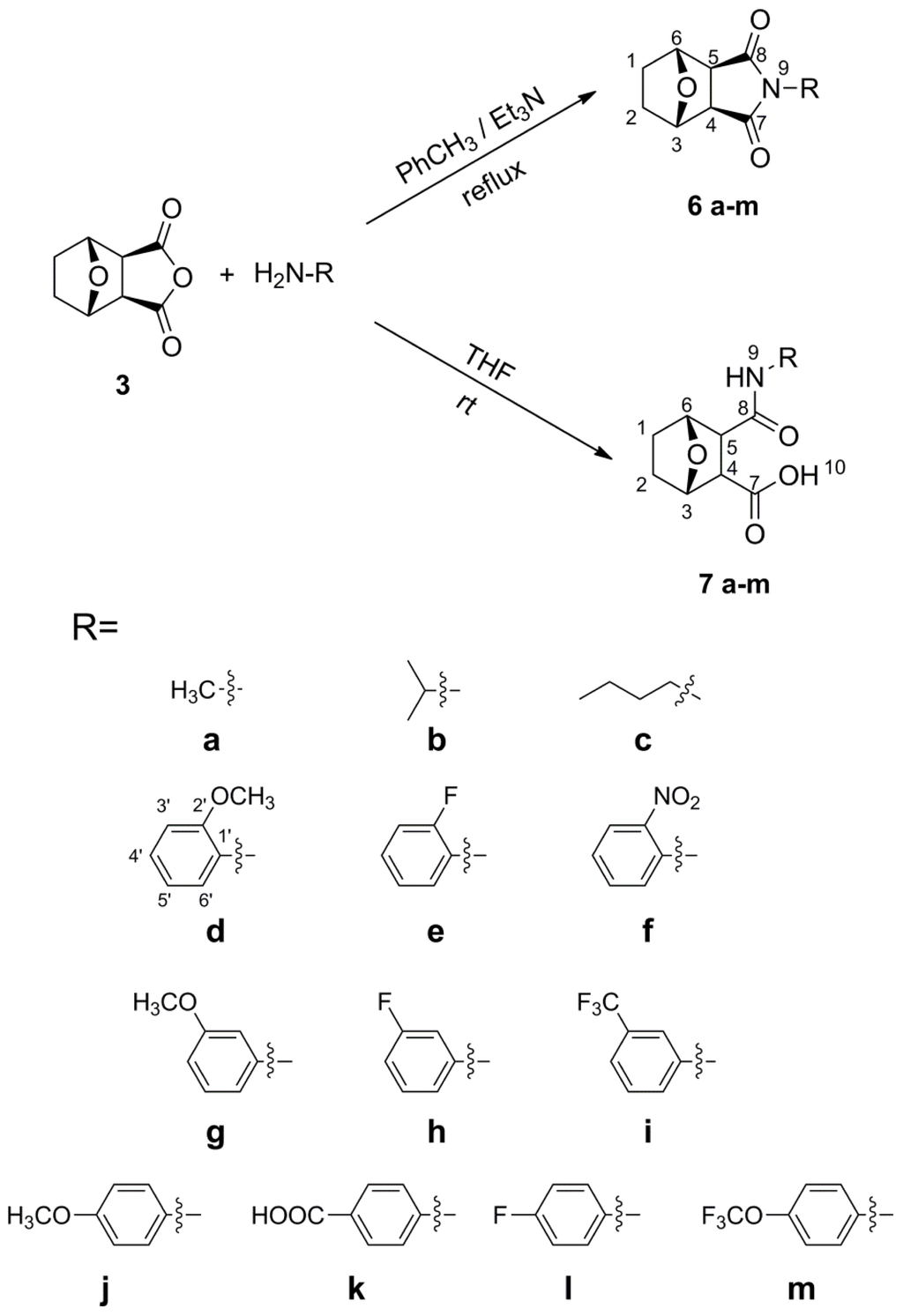

Scheme 1. The structure and synthesis of compounds 6 and 7.

Click here to enlarge figure

Scheme 1. The structure and synthesis of compounds 6 and 7.
Ijms 14 00001f3 1024
Ijms 14 00001f4 1024
Scheme 2. The structure and synthesis of compound 5.

Click here to enlarge figure

Scheme 2. The structure and synthesis of compound 5.
Ijms 14 00001f4 1024
Ijms 14 00001f5 1024

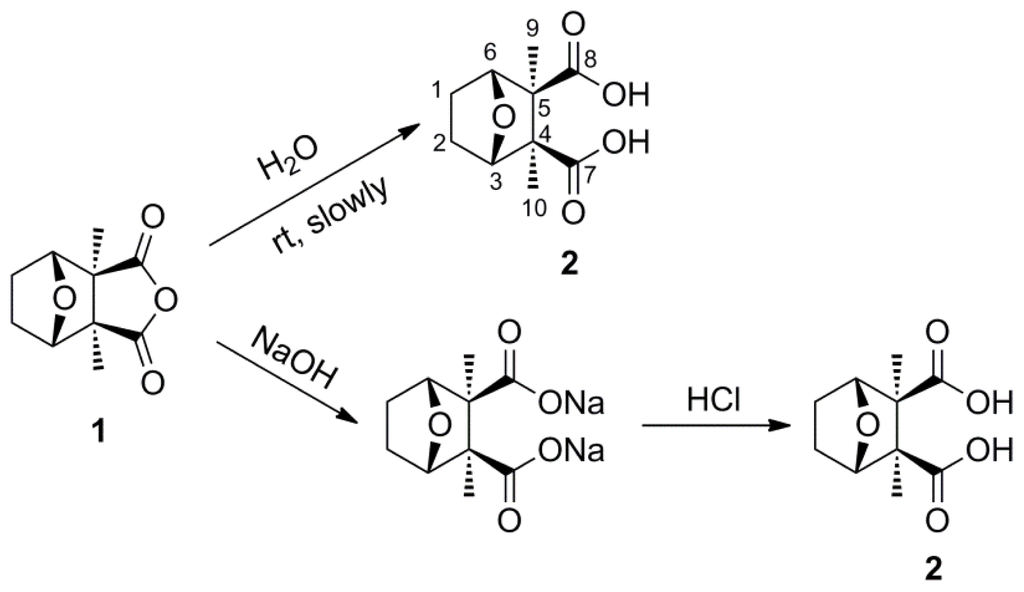

Scheme 3. The structure and synthesis of compound 2.

Click here to enlarge figure

Scheme 3. The structure and synthesis of compound 2.
Ijms 14 00001f5 1024
Ijms 14 00001f6 1024

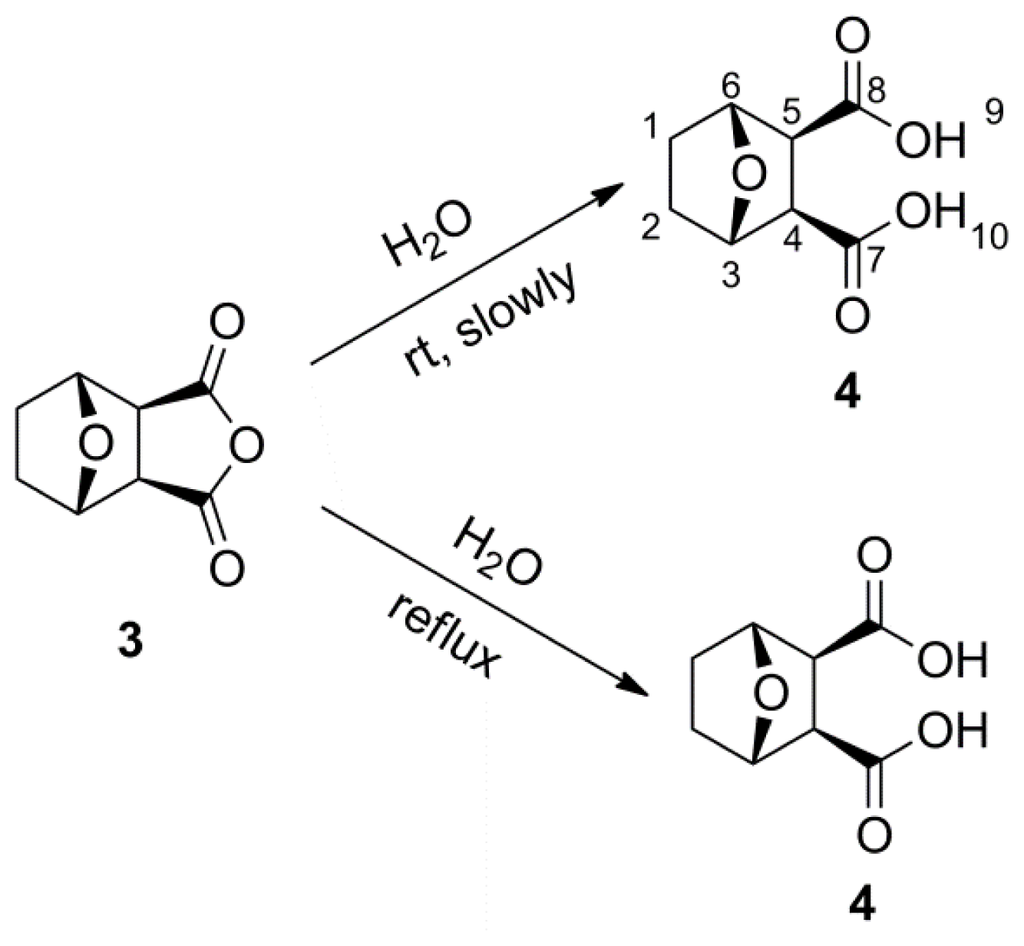

Scheme 4. The structure and synthesis of compound 4.

Click here to enlarge figure

Scheme 4. The structure and synthesis of compound 4.
Ijms 14 00001f6 1024
Table Table 1. Structures and larvicidal activities against P. xylostella of compounds 5, 6, 1 and 3.

Click here to display table

Table 1. Structures and larvicidal activities against P. xylostella of compounds 5, 6, 1 and 3.
CompoundsRConcentration (μg mL−1)Mortality (%)
5H5000
6a−CH35000
6b−CH(CH3)25000
6c−CH2(CH2)2CH35000
6d2′-OMePh5000
6e2′-FPh5000
6f2′-NO2Ph5000
6g3′-OMePh5000
6h3′-FPh5000
6i3′-CF3Ph5000
6j4′-OMePh5000
6k4′-CO2HPh5000
6l4′-FPh5000
6m4′-OCF3Ph5000
Cantharidin 1-500100
Norcantharidin 3-500100
Table Table 2. Structures and larvicidal activities against P. xylostella of compounds 7, 2 and 4.

Click here to display table

Table 2. Structures and larvicidal activities against P. xylostella of compounds 7, 2 and 4.
CompoundsRConcentration (μg mL−1)Mortality (%)
7a−CH350077
7b−CH(CH3)250012
7c−CH2(CH2)2CH35004
7d2′-OMePh50025
7e2′-FPh50060
7f2′-NO2Ph500100
7g3′-OMePh50024
7h3′-FPh50041
7i3′-CF3Ph50032
7j4′-OMePh50011
7k4′-CO2HPh50097
7l4′-FPh50038
7m4′-OCF3Ph50019
2-500100
4-500100
Table Table 3. Insecticidal activities against P. xylostella of compounds 14 and 7f.

Click here to display table

Table 3. Insecticidal activities against P. xylostella of compounds 14 and 7f.
Compoundsy = a + bxrLC50 (95% CI) (mM)LC90 (95% CI) (mM)
Cantharidin 1y = 9.4287 + 3.6777x0.990.06 (0.06–0.07)0.14 (0.11–0.17)
2y = 9.6322 + 3.8866x0.990.06 (0.05–0.07)0.14 (0.11–0.18)
Norcantharidin 3y = 5.4052 + 5.1887x0.970.84 (0.75–0.93)1.48 (0.94–1.97)
4y = 5.8547 + 5.4057x0.980.70 (0.64–0.77)1.20 (0.94–1.52)
7fy = 6.8918 + 5.2902x0.990.43 (0.39–0.48)0.76 (0.59–0.99)
