Int. J. Mol. Sci. 2012, 13(9), 12046-12061; doi:10.3390/ijms130912046
Abstract: Porcine reproductive and respiratory syndrome (PRRS) is a disease produced by the (PRRS) virus, characterized by endemic evolution in the majority of countries, which remains in actuality being a permanent threat to health and economic free farms, as well as for those infected. The aim of this study was to evaluate the genetic diversity of Romanian PRRSV isolates from the four most important pig farms in Romania by comparing the nucleotide sequences obtained for ORF5 and ORF7 with a wide range of sequences from GenBank belonging to the main types of PRRSV; the type 1. Eighteen different sequences were obtained for ORF5 gene and 10 for ORF7 gene. One Romanian isolate (Rom3) was found in three of the four different investigated farms. The phylogenetic analysis revealed that the Romanian PRRSV nucleotide sequences clustered in three groups within the subtype 1 of the virus. The analysis of amino acid sequences evidenced for GP5 and N-nucleocapsid proteins confirmed that the Romanian virus belonged to type 1.
Porcine reproductive and respiratory syndrome (PRRS) is the pathological dominant of the 90 decade for pigs. PRRS is a viral disease, characterized by endemic evolution in the majority of countries, which remains in actuality being a permanent threat to health and economic free farms, as well as for those infected.
In March 1991, a group of researchers from the Institute of Lelystad, Netherlands, was able to isolate and identify the etiologic agent and experimental reproduction of the disease [1,2]. It has been established that PRRS is caused by a virus that belongs to a new group of RNA viruses. Genome organization, structure and biology are similar to those of increased lactate dehydrogenase virus (dairy Dehydrogenase Elevating virus LDV), virus infectious equine arteritis (equine arteritis virus EAV) and the Ebola virus simian apes (simian hemorrhagic fever SHFV) . Comparison of PRRS virus, lactate dehydrogenase (LD) and equine arthritis (AE), allows for the possibility of a common phylogenetic tree, in which the PRRS virus is closer to the LD virus than the AE virus. Hence, the hypothesis that PRRS virus is a variant of LD virus adapted to pigs.
Porcine reproductive and respiratory syndrome virus belongs to the family Arteriviridae in the order of Nidovirales . It has dimensions of 45–70 nm, icosahedron symmetry; its envelope covers an internal spherical nucleocapsid of 25–30 nm . Genetic material is represented by a simple linear RNA molecule (15,000 nucleotide, with positive polarity). The viral genome consists of nine open reading frames (ORF): ORF1a, ORF1b, ORF2a, ORF2b, ORF3, ORF4, ORF5, ORF6, ORF7 [6,7].
PRRSV is divided into two genotypes: type 1 and type 2. Comparison of antigenic different strains demonstrated that European and American strains are approximately 60% similar to each other .
The purpose of the present study was to investigate the PRRSV genetic variability based on sequence transcription, amplification and sequencing of genes of ORF7 and ORF5, using different tissues homogenates, collected from four pig farms in Romania. To confirm the occurrence of type 1 of PRRSV in Romania, both genes of ORF5 and ORF7 were sequenced.
The studied PRRS outbreaks have appeared in four important counties in different geographical areas in Romania.
2. Results and Discussion
In order to investigate the PRRSV genetic variability in four pig farms in Romania, 605 samples were collected from different individuals. From the total amount of samples, 33 were positive for PRRSV by PCR. We were able to conduct the investigations on both ORF5 and ORF7 genes on 23 samples but for the other 10 samples due to the small quantity of initial tissue, we were only able to fulfill the investigations on the ORF5 gene (Table 1). In our study, we divided Romania into four different areas (Figure 1).
In Table 2, we described the areas, the total number of swine and the number of samples collected and analyzed from four geographical areas.
The ORF5 and ORF7 specific PCR products were sequenced to confirm the occurrence of type 1 of PRRSV in Romania. The obtained nucleotide sequences were aligned using CLUSTAL W program , resulting in a 606 nucleotides alignment for ORF5 gene and a 387 nucleotides alignment for ORF7. In our study, we indentified 18 sequences for ORF5 and 10 sequences for ORF7 with at least one nucleotide point mutation compared with data already available in the GenBank.
Interestingly, based on ORF5 gene analysis, among the 18 different Romanian isolates, Rom3 PRRSV strain was detected in three of the four pig farms investigated (Braila, Iasi, Arad counties), while Rom5 PRRSV strain was found in 2 different pig farms (Braila and Arad counties). Taking into account the number of identical nucleotide sequences obtained for gene ORF5, PRRSV strain Rom3 was isolated from 14 different individuals (10 pigs from Braila farm, three pigs from Iasi farm and one from Arad farm). Based on the analysis of ORF7 nucleotide sequence, the new PRRSV strains are different among all Romanian pig farms investigated, but the Rom4 isolate is the most prevalent in Braila farm (found in ten different individuals, Table 1).
In 2008, Stadejek et al. proposed the division of the type 1 PRRSV genotype into three subtypes, based on ORF7 analysis . Two phylogenetic trees were constructed, based on the complete sequences obtained for ORF5 gene and ORF7 gene of PRRSV Romanian isolates, together with a wide range of sequences selected from GenBank (Table 3). The evolutionary history was inferred using the Maximum Likelihood method . The bootstrap consensus tree inferred from 1000 replicates is taken to represent the evolutionary history of the taxa analyzed . Branches corresponding to partitions reproduced in less than 50% bootstrap replicates are collapsed. The tree is drawn to scale, with branch lengths in the same units as those of the evolutionary distances used to infer the phylogenetic tree. The evolutionary distances were computed using the Tamura-Nei method  and are in the units of the number of base substitutions per site. The rate variation among sites was modeled with a gamma distribution (shape parameter = 1) with Invariant. The differences in the composition bias among sequences were considered in evolutionary comparisons . The analysis involved 72 nucleotide sequences for ORF5 and 99 nulcleotide sequences for ORF7. Codon positions included were 1st + 2nd + 3rd + Noncoding. All ambiguous positions were removed for each sequence pair. Evolutionary analyses were conducted in MEGA4  (Figures 1 and 2). The type 1 PRRSV clade is clearly divided into three clusters corresponding to subtypes 1, 2 and 3 .

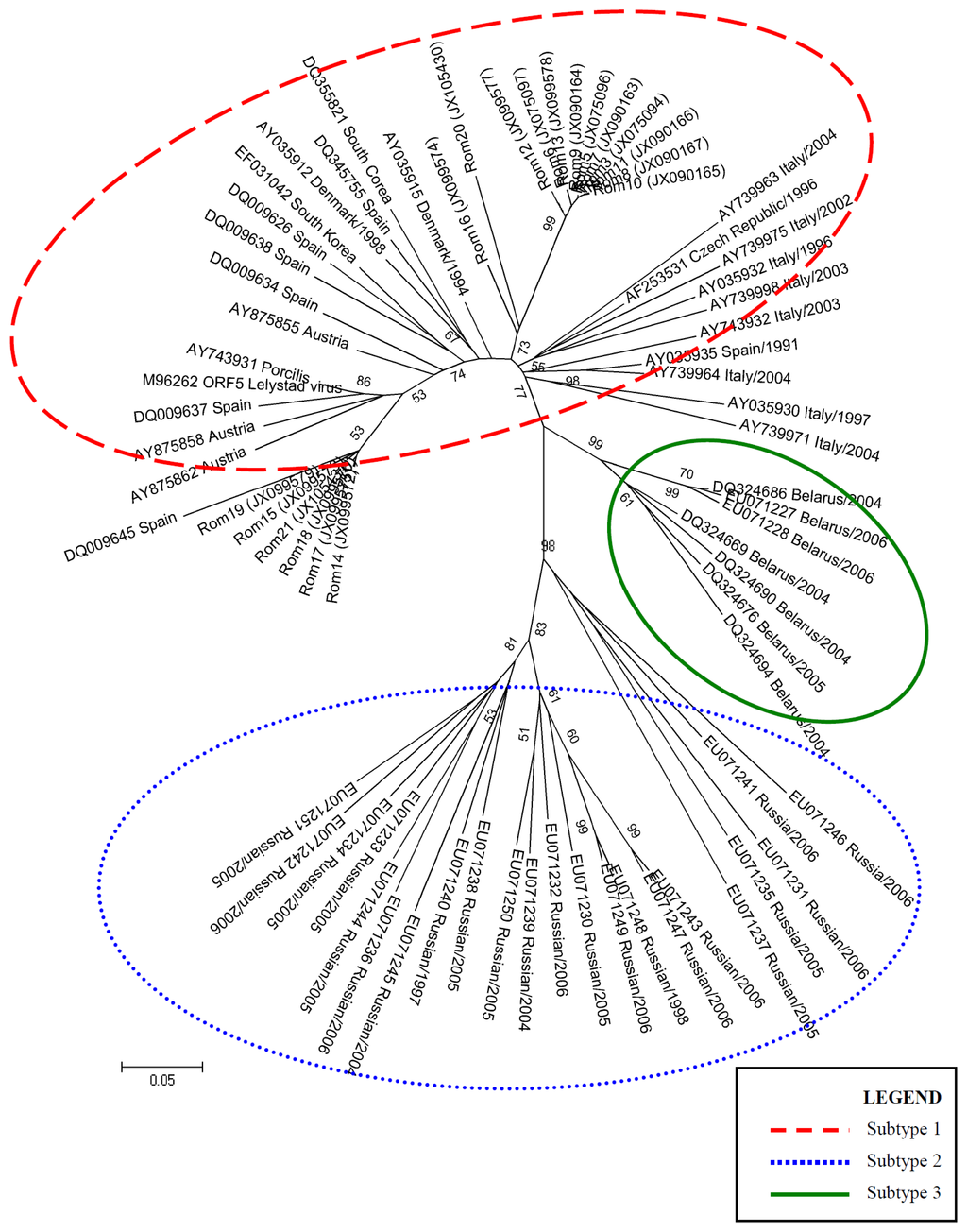

The phylogenetic tree constructed, based on ORF5 gene (Figure 2), shows that all Rom isolates cluster within the type 1 PRRSV strain, indicating a high similarity with other virus strains belonging to the subtype 1.
In our phylogeny study on ORF5 gene, we used Maximum Likelihood method with gamma distribution. In the analysis of the phylogenetic tree, we identified three major clades according with the three subtypes indicated by Stadejek et al. . The isolates from Russia are included in subtype 2, from Belarus are included in subtype 3, and Romanian sequences were distributed in a monofiletic group according to subtype 1 from Type 1. In this group, our Romanian sequences: Rom11, 10, 8, 3, 7, 5, 9, 13, 6, 12, 16 and 20 form a distinct clade. The Romanian sequences Rom15, 21, 18, 17, 14 and 19 form a clade with the sequences from Spain, Austria, Lelystad virus and Porcilis vaccine.
The results from our study are in concordance with the analysis made by Stadejek et al. in 2008  and permit us to include the Romanian isolates in subtype 1 on PRRSV.

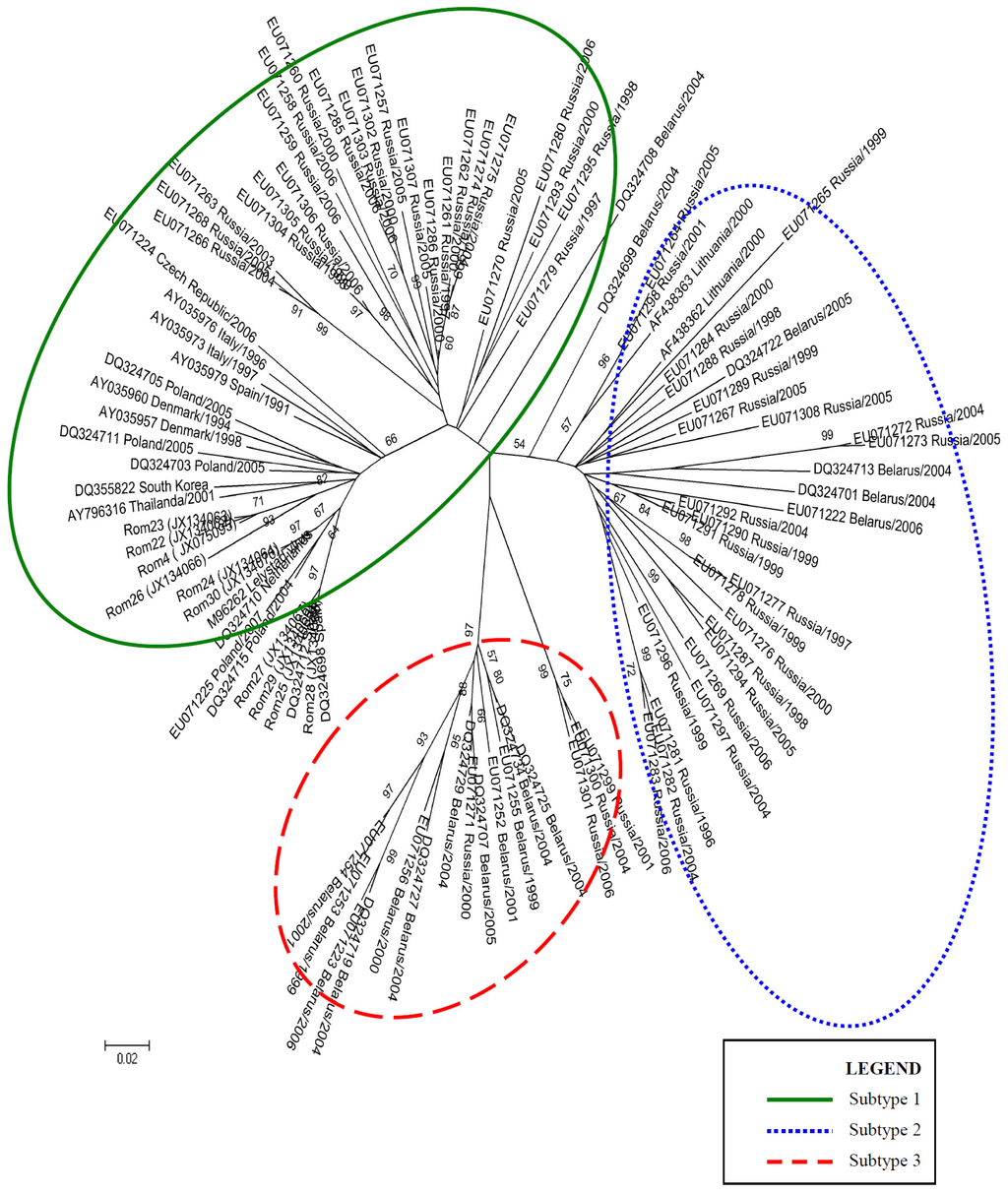

The phylogenetic tree obtained based on ORF7 sequences (Figure 3) shows the same topology as the tree based on ORF5 sequences. The division of the type 1 clade into three large subtypes 1, 2 and 3, isolates is also noticeable as suggested by other authors as well . We realized that one sequence, DQ324708, is not included in the three subtypes described; all other sequences were included in the three subtypes.
The results obtained for ORF7 Romanian isolates are in accordance with those obtained for ORF5 isolates. In the case of Romanian sequences, were evidenced two monophyletic groups. One distinct monophyletic group constituted of sequences Rom26, 4, 22 and 23; the second monophyletic group were represented by the ORF7 sequences of Porcilis vaccine (DQ324710), Lelystad virus (M96262) and sequences from Spain (DQ324698 and DQ324712).

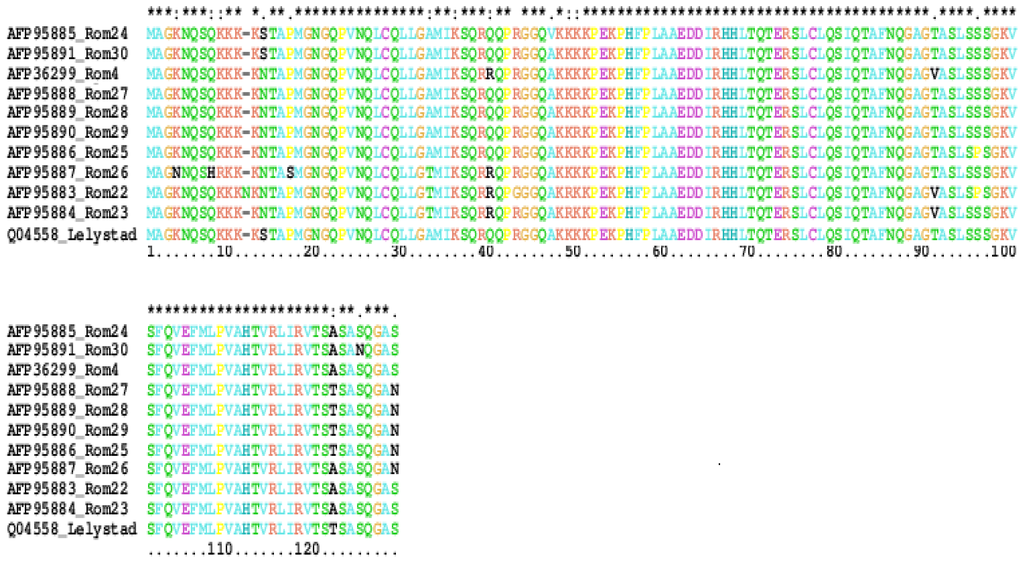

The deduced amino acid sequences encoded by both ORF5 and ORF7 genes were aligned using CLUSTAL W program , resulting in a 201 amino acids alignment, corresponding to ORF5 gene (Figure 4) and a 128 amino acid alignment corresponding to ORF7 gene (Figure 5). A single exception can be noticed: the amino acid sequence for Rom22 isolate from Braila farm has an asparagine inserted at position 12 of the sequence.
It is known that GP5 protein is very polymorphic [16,17] being under the permanent pressure of selection forces due to its exposed position at the exterior of the virion . This is why GP5 is highly informative regarding the evolution and origin of different PRRSV isolates. In particular, some known functional domains of GP5, such as the signal peptide, mature chain with transmembrane regions, some motifs in GP5 like primary neutralizing epitope (PNE) and decoy epitope were also analyzed according to a previous report . Our aim was to investigate the amino acid difference among the subtype 1 of Romanian isolates. The GP5 amino acid sequences of 17 PRRSV isolates were aligned, together with the Lelystad virus sequence. Multiple alignments of GP5 sequences of Romanian PRRSV isolates indicated that all 17 isolates encode a GP5 protein of 201 amino acid residues (Figure 4).
Nucleocapsid protein (N) is encoded by ORF7 gene [18,20] and has 128 amino acids in type 1 PRRSV. The N-terminus of the protein interacts with the viral genomic RNA [21,22] and the C-terminus has the role of maintaining the tertiary structure of N protein . The deduced amino acid sequences for all 10 different Romanian isolates aligned with CLUSTAL W program  reveal no extended hypervariable regions, as expected due to the fact that nucleocapsid protein is a very conserved molecule.
The distribution of sequence diversity across the ORF7 protein was investigated for all 10 sequences analyzed in this study. The analysis sequences which contains 128 amino acids demonstrate that Romanian isolates have some amino acid substitutions compared with Lelystad virus: Rom22 isolate with an asparagine inserted between positions 11 and 12 of the alignment, and one substitution in position 42, Rom26 with three amino acid substitutions in positions 4, 8 and 16 and Rom30 with one amino acid substitution in position 124 (Figure 5).
3. Experimental Section
3.1. Sampling and RNA Extraction
The biological samples were supplied from four pig farms contaminated with PRRSV, with clinical signs of disease. The pig farms were from different geographical areas of Romania: Braila, Arad, Cluj-Napoca and Iasi counties.
Samples used in this study were collected post mortem from all selected pigs from 2010 to 2012. Also, all the samples were collected as early as possible after exitus, deposited in RNA, later buffer, for transportation, and then stored at −80 °C.
Numbers of samples totaled 605 were collected: 260 from pigs from Braila farm, 85 from pigs from Iasi farm, 200 from pigs belonging to Arad farm and 60 from pigs from Cluj-Napoca farm. The tissues used for PRRSV-RNA extraction were tonsil, lung, mediastinal lymph node, liver, spleen, and kidney.
Total RNA was extracted using the RNeasy Mini Kit (Qiagen, Austin, TX, USA). 200μL tissue homogenate was processed in accordance with the manufacturer’s instructions.
3.2. PCR Analysis
Two genes specific to PRRSV were analyzed in our study: ORF7 (open reading frame 7) and ORF5 (open reading frame 5).
For ORF7 gene, One-Step RT-PCR was carried out in a final volume of 25 μL (23, 5 μL PCR mix and 1, 5 μL RNA extract). The PCR mix contains 40 U/μL RNasin (Promega, Madison, WI 53711, USA) (0, 1 μL), 5 μM forward primer, 5 μM reverse primer, and 1 μL One-Step RT-PCR Enzyme mix (Qiagen), dNTPs, Buffer 5X (Qiagen), and nuclease-free water. The following primers were used for ORF7 One-Step RT-PCR: ORF7 B-forward primer (5′-GCCCCTGCCCAICACG-3′), (TibMolBiol, Berlin, Germany) and ORF7 C-reverse primer (5′-TCGCCCTAATTGAATAGGTGA-3′), (TibMolBiol, Berlin, Germany). These primers are used for the diagnosis of PRRSV European-type strains in accordance with the Lelystad virus sequence.
PCR was performed using a iCycler-BIO-RAD thermocycler, with the following program: 30 min at 50 °C, 1 cycle; 15 min at 95 °C, 1 cycle; 45 s at 95 °C, 45 s at 55 °C, 60 s at 72 °C, 45 cycles; and 4 °C ∞.
The complete amplification of ORF5 gene sequence was accomplished by nested RT-PCR. The first step PCR was set up in a volume of 25 μL (23, 5 μL PCR mix and 1, 5 μL RNA extract). The PCR mix and the thermocycler program (iCycler-BIO-RAD) were the same as for ORF7 PCR. The following primers were used for ORF5 first step PCR: EU-5F-forward primer (5′-TGATCA CATTCGGTTGCT-3′), (TibMolBiol, Berlin, Germany) and EU-5R-reverse primer (5′-GGGCGT ATATCATTATAGGTG-3′) (TibMolBiol, Berlin, Germany).
The second step PCR was set up in a volume of 25, 15 μL (23, 65 μL PCR mix and 1, 5 μL DNA). The PCR mix contains 5 μM forward primer, 5 μM reverse primer, 0, 15 μL OneStep RT-PCR Enzyme mix (Qiagen) and 4 μL MgCl2 (25 M), dNTPs, Buffer5X and nuclease-free water. The following primers were used for ORF5 second step PCR: EU5B-forward primer (5′-CAA TGAGGTGGGCIACAACC-3′), (TibMolBiol, Berlin, Germany) and EU5C-reverse primer (5′-TAT GTIATGCTAAAGGCTAGCAC-3′) (TibMolBiol, Berlin, Germany). PCR was performed using a iCycler-BIO-RAD thermocycler, with the following program: 5 min at 95 °C, 1 cycle; 45 s at 95 °C, 45 s at 55 °C, 60 s at 72 °C, 45 cycles; 72 °C at 10 min, 1 cycle and 4 °C ∞.
The PCR products were visualized on 2% agarose gels stained with ethidium bromide.
3.3. Sequencing and Phylogenetic Analysis
The PCR reaction products were purified using Wizard® PCR Preps DNA Purification System (Promega, Madison, WI, USA), and the concentration and purity of the products were evaluated by spectrophotometry (Eppendorf BioPhotometer, Hamburg, Germany). The DNA sequencing reactions were performed for both forward and reverse strands using BigDye Terminator Kit v3.1 (Applied Biosystems, Foster City, CA, USA).
The sequencing was performed on a 3130 Genetic Analyzer (Applied Biosystems, Foster City, CA, USA). The sequences obtained were proofread manually, truncated to the real dimensions of the genes (606 bp for ORF5 gene and 387 bp for ORF7 gene) using BioEdit version 220.127.116.11  and aligned using CLUSTAL W application from MegAlign program (DNASTAR, Intelligenetics, Madison, WI, Wisconsin). ORF5 and ORF7 corresponding sequences were compared with a set of reference sequences selected from GenBank to cover a wide range of genetic and geographic diversity from Europe. All the Romanian isolates received GenBank accession numbers (Table 1). The set of reference sequences used to construct the phylogenetic tree is presented in Table 2. The two phylogenetic trees were generated from the aligned sequences in MEGA4 program  using a Maximum Likelihood method . The evolutionary distances were computed using the Tamura-Nei + gamma + I model  and are in the units of the number of base substitutions per site. Percentage reliability values at each internal node of the trees were obtained by performing 1000 bootstrap analyses.
This is the first extensive study on Romanian PRRSV isolates that provides information about the genetic diversity of this virus in the four most important pig farms in Romania. This study completes our early data on the first two Romanian strains analyzed . The results obtained from the phylogenetic trees together with the pairwise nucleotide sequence identity confirm the affiliation of all Romanian isolates to the subtype 1 of the virus. The evolution of PRRSV in the Romanian pig farms follows four distinct directions.
For ORF5, the isolates from Romanian sequences were distributed in a monofiletic group according to subtype 1 from Type 1. A distinct clade is seen for the Romanian sequences Rom11, 10, 8, 3, 7, 5, 9, 13, 6, 12, 16 and 20, while the Romanian Rom15, 21, 18, 17, 14 and 19 are grouped along with sequences from Spain, Austria, Lelystad virus and Porcilis vaccine.
In the case of ORF7, we observed the existence of two monophyletic groups. The Romanian sequences Rom 26, 4, 22 and 23 belong to a different monophyletic group compared to sequences of Porcilis vaccine (DQ324710), Lelystad virus (M96262) and sequences from Spain (DQ324698 and DQ324712).
For the amino acid sequences for ORF5, we identified two hypervariable regions, one in the signal peptide and one in the beginning of the mature chain. Regarding N protein, Romanian isolates have some amino acid substitutions compared with Lelystad virus: Rom22 isolate with an asparagine inserted between position 11 and 12 of the alignment, and one substitution in position 42, Rom26 with three amino acid substitutions in positions 4, 8 and 16, Rom30 with one amino acid substitution in position 124.
- Wensvoort, G.; Terpstra, C.; Pol, J.M.; ter Laak, E.A.; Bloemraad, M.; de Kluyver, E.P.; Kragten, C.; van Buiten, L.; den Besten, A.; Wagenaar, F.; et al. Mystery swine disease in The Netherlands: The isolation of Lelystad virus. Vet. Q 1991, 13, 121–130. [Google Scholar]
- Benfield, D.A.; Nelson, E.; Collins, J.E.; Harris, L.; Goyal, S.M.; Robison, D.; Christianson, W.T.; Morrison, R.B.; Gorcyca, D.; Chladek, D. Characterization of swine infertility and respiratory syndrome (SIRS) virus (isolate ATCC VR-2332). J. Vet. Diagn. Investig 1992, 4, 127–133. [Google Scholar]
- Plagemann, P.G.W.; Rowland, R.R.; Even, C.; Faaberg, K.S. Lactate dehydrogenase-elevating virus: An ideal persistent virus? Springer Semin. Immunopathol 1995, 17, 167–186. [Google Scholar]
- Cavanagh, D. Nidovirales: A new order comprising Coronaviridae and Arteriviridae. Arch. Virol 1997, 142, 629–633. [Google Scholar]
- Paton, D.J. Porcine reproductive and respiratory syndrome (blue-eared pig disease). Rev. Med. Microbiol 1995, 6, 119–125. [Google Scholar]
- Meulenberg, J.J.; Hulst, M.M.; de Meijer, E.J.; Moonen, P.L.; den Besten, A.; de Kluyver, E.P.; Wensvoort, G.; Moormann, R.J. Lelystad virus, the causative agent of porcine epidemic abortion and respiratory syndrome (PEARS), is related to LDV and EAV. Virology 1993, 192, 62–72. [Google Scholar]
- Wootton, S.K.; Yoo, D.; Rogan, D. Full-length sequence of a Canadian porcine reproductive and respiratory syndrome virus (PRRSV) isolate. Arch. Virol 2000, 145, 2297–2323. [Google Scholar]
- Nelsen, C.J.; Murtaugh, M.P.; Faaberg, K.S. Porcine reproductive and respiratory syndrome virus comparison: Divergent evolution on two continents. J. Virol 1999, 73, 270–280. [Google Scholar]
- Thompson, J.D.; Higgins, D.G.; Gibson, T.J. CLUSTAL W: Improving the sensitivity of progressive multiple sequence alignment through sequence weighting, position-specific gap penalties and weight matrix choice. Nucleic Acids Res 1994, 22, 4673–4680. [Google Scholar]
- Stadejek, T.; Oleksiewicz, M.B.; Scherbakov, A.V.; Timina, A.M.; Krabbe, J.S.; Chabros, K.; Potapchuk, D. Definition of subtypes in the European genotype of porcine reproductive and respiratory syndrome virus: Nucleocapsid characteristics and geographical distribution in Europe. Arch. Virol 2008, 153, 1479–1488. [Google Scholar]
- Le Cam, L. Maximum likelihood: An introduction. Int. Stat. Rev 1990, 58, 153–171. [Google Scholar]
- Felsenstein, J. Confidence limits on phylogenies: An approach using the bootstrap. Evolution 1985, 39, 783–791. [Google Scholar]
- Tamura, K.; Nei, M. Estimation of the number of nucleotide substitutions in the control region of mitochondrial DNA in humans and chimpanzees. Mol. Biol. Evol 1993, 10, 512–526. [Google Scholar]
- Tamura, K.; Kumar, S. Evolutionary distance estimation under heterogeneous substitution pattern among lineages. Mol. Biol. Evol 2002, 19, 1727–1736. [Google Scholar]
- Tamura, K.; Peterson, D.; Peterson, N.; Stecher, G.; Nei, M.; Kumar, S. MEGA5: Molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol. Biol. Evol 2011, 28, 2731–2739. [Google Scholar]
- Kapur, V.; Elam, M.R.; Pawlovich, T.M.; Murtaugh, M.P. Genetic variation in porcine reproductive and respiratory syndrome virus isolates in the Midwestern United States. J. Gen. Virol 1996, 77, 1271–1276. [Google Scholar]
- Andreyev, V.G.; Wesley, R.D.; Mengling, W.L.; Vorwald, A.C.; Lager, K.M. Genetic variation and phylogenetic relationships of 22 porcine reproductive and respiratory syndrome virus (PRRSV) field strains based on sequence analysis of open reading frame 5. Arch. Virol 1997, 142, 993–1001. [Google Scholar]
- Meulenberg, J.J.; Petersen-Den Besten, A.; de Kluyver, E.P.; Moormann, R.J.; Schaaper, W.M.; Wensvoort, G. Characterization of proteins encoded by ORFs 2 to 7 of Lelystad virus. Virology 1995, 206, 155–163. [Google Scholar]
- Zhou, Y.J.; Yu, H.; Tian, Z.J.; Li, G.X.; Hao, X.F.; Yan, L.P.; Peng, J.M.; An, T.Q.; Xu, A.T.; Wang, Y.X.; et al. Genetic diversity of the ORF5 gene of porcine reproductive and respiratory syndrome virus isolates in China from 2006 to 2008. Virus Res 2009, 144, 136–144. [Google Scholar]
- Dea, S.; Gagnon, C.A.; Mardassi, H.; Pirzadeh, B.; Rogan, D. Current knowledge on the structural proteins of porcine reproductive and respiratory syndrome (PRRS) virus: Comparison of the North American and European isolates. Arch. Virol 2000, 145, 659–688. [Google Scholar]
- Meng, X.J.; Paul, P.S.; Halbur, P.G.; Lum, M.A. Phylogenetic analysis of the putative M (ORF6) and N (ORF7) genes of porcine reproductive and respiratory syndrome virus (PRRSV): Implication for the existence of two genotypes of PRRSV in the US and Europe. Arch. Virol 1995, 140, 745–755. [Google Scholar]
- Zhou, Y.J.; An, T.Q.; Liu, J.X.; Qiu, H.J.; Wang, Y.F.; Tong, G.Z. Identification of a conserved epitope cluster in the N protein of porcine reproductive and respiratory syndrome virus. Viral Immunol 2006, 19, 383–390. [Google Scholar]
- Wootton, S.; Koljesar, G.; Yang, L.; Yoon, K.J.; Yoo, D. Antigenic importance of the carboxy-terminal-strand of the porcine reproductive and respiratory syndrome virus nucleocapsid protein. Clin. Diagn. Lab. Immunol 2001, 8, 598–603. [Google Scholar]
- Hall, T.A. BioEdit: A user-friendly biological sequence alignment editor and analysis program for Windows 95/98/NT. Nucleic Acids Symp. Ser 1999, 41, 95–98. [Google Scholar]
- Tamura, K.; Dudley, J.; Nei, M.; Kumar, S. MEGA4: Molecular Evolutionary Genetics Analysis (MEGA) software version 4.0. Mol. Biol. Evol 2007, 24, 1596–1599. [Google Scholar]
- Tajima, F.; Nei, M. Estimation of evolutionary distance between nucleotide sequences. Mol. Biol. Evol 1984, 1, 269–285. [Google Scholar]
- Zaulet, M.; Nicolae, I.; Toana, A.; Baraitareanu, S.; Otelea, M.R.; Stadejek, T. Genetic characterization of Romanian porcine reproductive and respiratory syndrome viruses based on ORF7 nucleoprotein gene sequences. Rom. Biotechnol. Lett 2011, 6, 6800–6808. [Google Scholar]
|Location (City)||Sample identification number||ORF5||ORF7|
|Isolate||GenBank accession No.||Isolate||GenBank accesion No.|
|Geographical Area||Total number of swine||Total number of swine in county||Number of samples analyzed|
|Sequence number||Farm and sequence name||Country||Year||Gene Bank ACC No.|
|106||Porcilis PRRS||The Netherlands||vaccine||-||DQ324710|
|136||Lelystad||Netherlands||1993||M 96262||M 96262|
