Int. J. Mol. Sci. 2012, 13(9), 10807-10827; doi:10.3390/ijms130910807

Analysis of Genome Survey Sequences and SSR Marker Development for Siamese Mud Carp, Henicorhynchus siamensis, Using 454 Pyrosequencing
Feni Iranawati *,, Hyungtaek Jung *,, Vincent Chand, David A. Hurwood and Peter B. Mather
Earth, Environmental and Biological Sciences, Science and Engineering Faculty, Queensland University of Technology, Brisbane, Queensland 4000, Australia
Authors to whom correspondence should be addressed; Tel.: +61-7-3138-4152 (F.I. & H.J.); Fax: +61-7-3138-2330 (F.I. & H.J.).
These authors contributed equally to this work.
Received: 5 July 2012; in revised form: 30 July 2012 / Accepted: 24 August 2012 / Published: 29 August 2012


: Siamese mud carp (Henichorynchus siamensis) is a freshwater teleost of high economic importance in the Mekong River Basin. However, genetic data relevant for delineating wild stocks for management purposes currently are limited for this species. Here, we used 454 pyrosequencing to generate a partial genome survey sequence (GSS) dataset to develop simple sequence repeat (SSR) markers from H. siamensis genomic DNA. Data generated included a total of 65,954 sequence reads with average length of 264 nucleotides, of which 2.79% contain SSR motifs. Based on GSS-BLASTx results, 10.5% of contigs and 8.1% singletons possessed significant similarity (E value < 10−5) with the majority matching well to reported fish sequences. KEGG analysis identified several metabolic pathways that provide insights into specific potential roles and functions of sequences involved in molecular processes in H. siamensis. Top protein domains detected included reverse transcriptase and the top putative functional transcript identified was an ORF2-encoded protein. One thousand eight hundred and thirty seven sequences containing SSR motifs were identified, of which 422 qualified for primer design and eight polymorphic loci have been tested with average observed and expected heterozygosity estimated at 0.75 and 0.83, respectively. Regardless of their relative levels of polymorphism and heterozygosity, microsatellite loci developed here are suitable for further population genetic studies in H. siamensis and may also be applicable to other related taxa.
Henichorynchus siamensis; 454 pyrosequencing; SSR marker

1. Introduction

Siamese mud carp (Henichorynchus siamensis) is a phytoplankton feeding, freshwater carp species that occurs naturally in bottom to mid water depths widely across the Mekong River Basin (MRB) and in some other drainages in South East Asia [1]. While categorized as a small cyprinid (up to 20 cm), H. siamensis numbers are so abundant that at certain times of the year in the lower MRB they constitute a significant percentage of the total fish catch in the river. This species is morphologically very similar to H. lobatus and based on several catch reports, fisherman find them hard to distinguish and so they are classified simply as small cyprinids in catch data, although densities of the two species vary widely in different areas [2]. The two Henichorynchus species contributed more than 50% to the total bag-net fish catch in Cambodia inland waters in 1994 [3] and approximately 50% in the Khone Falls region [4]. Although annual fish catch trends in the MRB are likely to increase, compared with catch effort, total production in 2000 was less than half of that obtained in 1994 [5], a result that is a warning about potential threats to Mekong River fisheries and aquatic biodiversity across the region.

A recent analysis of H. siamensis wild stock structure in the MRB using mtDNA markers identified 3 discrete stocks [6], while in contrast, for the closely related H. lobatus, a single panmictic stock was detected across the basin, with the exception of a sample from the Mun River (a tributary of the Mekong) that was highly divergent and indicated a population that had been evolving independently for a long period of time [7]. These two genetic studies suggest that previous ecological reports [4] of long distance migrations by both species, both up and down stream and in the main Mekong River channel may be incorrect. Different wild population structures in these two species indicate that they may have had different evolutionary histories in the MRB. Discrete populations of mud carp in the MRB that apparently exchange genes at different geographical scales suggest multiple management units.

A major limitation of these studies however, was that they only estimated female gene flow and hence provided only partial resolution of the structure of sampled wild populations [8]. The problem with only assessing female gene flow was highlighted further by the fact that a single individual from the Mekong River clade was sampled in the Mun River, indicating that both genetic groups may co-exist to some extent. Using a molecular marker that is inherited maternally does not provide insight into whether individuals from divergent lineages actually interbreed in the wild. Furthermore, because mtDNA is a single genetic locus, it may have insufficient power to fully resolve fine scale population structure where it exists [9]. A multi-locus nuclear marker (e.g., SSR) approach in parallel with mtDNA analysis can address this problem and provide a comprehensive assessment of the population structure present [9,10]. Effective management of these important fisheries resources will require a detailed understanding of the geographical scale at which discrete wild stocks are present to guarantee sustainable harvesting into the future.

Microsatellites or SSRs representing tandem repeated short DNA sequences (1–8 bases) are scattered widely and randomly across prokaryotic and eukaryote genomes, can be scored easily [11] and conform to the laws of Mendelian inheritance [12]. As they are nuclear DNA markers, each diploid individual will carry two copies and they are inherited in a co-dominant fashion, so they are useful for assessing population differentiation in gene flow studies due to their high allelic variation. In general, SSR loci typically encode large allelic variation (often >10 alleles) per locus and have potential for cross amplification in closely related taxa [1315]. Fast evolution rate in SSRs is an advantage for detecting the effects of recent demographic events [16] so SSR markers have become the preferred tool for application in fisheries stock management, population analyses, and biodiversity preservation programs due to their ability to detect differences between closely related populations and their efficiency for revealing extensive allelic variation [17,18].

SSR marker development can be problematic however, in many non-model species because of the high cost and time required for library construction using the traditional approach [14,15]. This can now be overcome using next generation sequencing techniques (NGST), for example 454 pyrosequencing. Significant random genomic DNA fragment (genome survey sequence or GSS) and large expressed sequence tag (EST) data sets can be generated from Roche 454 pyrosequencing and can be applied to identify new genes and data resources including for SSR and single nucleotide polymorphism (SNP) marker development [14,1922] and for other applications [23], including phylogenetic analysis [24] and adaptation studies [25].

To identify genes in new species, finding sequence similarity with published cDNA, EST or protein sequences in public database is now a widely accepted approach. Reliability of identification of novel sequences as putative genes however, can vary depending on the database screened. Depending on the database screened and the sequence similarity, identification of novel sequence as putative genes is effective not only for cDNAs, ESTs and proteins but also for gDNA sequences (GSSs) [26]. In addition, the GSS approach to predict putative genes can be a powerful compliment to EST profiling because there is the possibility that expression of a gene maybe associated with a particular developmental stage and this may not be recognized in an EST library depending on the samples screened [22]. According to Strong and Nelson [22], the GSS approach can be more productive and efficient than an EST approach for gene identification because redundant mRNA sequences from highly expressed genes can be avoided. GSSs which have low similarity and short sequence lengths can be problematical however, for obtaining the exact sequence from expressed genes using BLASTx searches because predicting exact exon-intron boundaries is often difficult. GSSs however, that possess high similarity and long sequence lengths can provide a feasible approach for predicting putative gene functions and for identifying potential exon–intron boundaries. While the majority of SSR markers could be neutral markers, mainly coming from non-coding regions, some SSR markers developed in functional genes can still be useful for evaluating functional diversity [13,15,27]. Here we screened putative SSR motifs from a partial GSS dataset and developed microsatellite markers for H. siamensis using a 454 pyrosequencing approach. Since there is little information about GSS in H. siamensis, this study will provide a foundation for studying the biology of this species from a fisheries management perspective.

2. Results and Discussion

Roche 454 GS-FLX sequencing and contig assembly of GSSs prepared from H. siamensis gDNA that was purified from fin tissue were undertaken. Sequences that passed basic quality standards were clustered and assembled de novo. The 454 sequencing run produced a total of 65,954 GSS sequences (total = 17.44 Mb) from gDNA isolated from pooled fin tissue samples. Average GSS length was 264 nucleotides (nt). Assembly of high quality GSSs generated 857 contigs averaging 352 nt in length from 5297 GSSs (Table 1). Most GSSs were unassembled as singletons comprising a total of 46,393 ESTs (total = 12.07 Mb) with an average GSS length of 274 nt. Total average GSS read length (264 nt) were longer than previous studies have reported in similar 454 sequencing runs for EST in non-model species including for Glanville fritillary (197 nt [19]), cichlid fishes (202 and 206 nt [25]) and European hake (206 nt [28]), but lower than for channel catfish (292 nt [29]), giant freshwater prawn (311 nt [21]) and bream (367 nt [14]). Different average read lengths may result from the total number of raw reads and different target material (mRNA vs. gDNA) subjected to sequencing. As shown in Figure 1, assembly of high quality H. siamensis GSS sequences generated 857 contigs varying in length from 101 nt to 2373 nt (average 352 nt; total 301,534 nt), with 143 (17%) being >500 nt in length. Singletons ranged from 50 nt to 742 nt in length (average 274 nt, total 12,706,536 nt) (Figure 1). To our knowledge, this is the first large scale study of genomic data from H. siamensis.

2.1. Comparative Analysis of GSSs

BLASTx searches of H. siamensis GSS sequences showed that 90 of the 857 (10.5%) contigs and 3751 of the 46,393 (8.1%) singletons possessed significant similarity (E value < 10−5) with proteins in the GenBank non-redundant (nr) database (Table S1). The majority of contigs (62%) and singletons (87%) matched well to reported fish sequences (Figures 2a,b), an outcome that agrees with previous fish studies [20,25,30,31]. Species most represented in the BLASTx searches included zebra fish (Danio rerio), spotted green puffer (Tetraodon nigroviridis), European seabass (Dicentrarchus labrax), carp (Cyprinus carpio), Torafugu (Takifugu rubripes), medaka (Oryzias latipes), Nile tilapia (Oreochromis niloticus), Atlantic salmon (Salmo salar), Florida lancelet (Branchiostoma floridae), and channel catfish (Ictalurus punctatus), largely due to their availability of their sequences in public databases. Sequence homologies are indicative of close evolutionary relationships of H. siamensis with other fish. While zebra fish (Danio rerio) produced the top hit number with H. siamensis, this does not necessarily imply that zebra fish is more closely related phylogenetically to H. siamensis than common carp (cyprinus carpio). The explanation may simply be that the sequence dataset available for zebra fish is greater than for common carp and that H. siamensis is close to other teleosts, in general. No GSSs identified here matched sequences published for H. siamensis in the database and this is most likely due to the low number of H. siamensis sequences currently available in the NCBI database (only a few mitochondrial DNA sequences were available [6,7]). The H. siamensis GSS sequences generated here will vastly expand the number of genes identified in this species. A significant number of H. siamensis GSSs did not possess coding sequences matching to any sequence in the GenBank database which is not surprising in uncharacterized GSS studies [21,25,29,31]. While most of the anonymous EST sequences probably span non-coding regions of gDNA, or are the result of assembly errors from homopolymers as reported in other EST and 454 pyrosequencing analyses [21,32,33], some may also constitute novel genes unique to this species or may not have been identified previously in teleosts.

2.2. Gene Ontology Assignment

Gene Ontology (GO) terms could be assigned to 47,250 H. siamensis contigs (857) and singletons (46,393) based on BLAST matches to proteins with known functions (Figure 3, Table S1). GSS coding sequences were assigned to cellular components (4004 sequences), molecular function (4790 sequences) and biological processes (8313 sequences) (Figure 3). Among the H. siamensis GSSs assigned molecular functions, many were assigned to binding or catalytic functions, predominantly either enzyme regulators or molecular transducers (Figure 3). Cellular component assignments showed many GSS coding sequences were likely to possess cell and cell part functions, while those assigned biological process were mostly predicted to be involved in cellular or metabolic processes. Analyses of sequences in other fish species have identified transcripts possessing a similar range of potential metabolic functions [20,30,31].

2.3. KEGG Analysis

Many of the sequences present in the H. siamensis GSS contig and singleton dataset were identified to occur in KEGG pathways; purine metabolism (n = 49), phosphatidylinositol signalling system (n = 23), inositol phosphate metabolism (n = 17), oxidative phosphorylation (n = 15), and glycerophospholid metabolism (n = 14) (Table S1). Purine metabolism, that is important in numerous biochemical and cellular processes during vertebrate embryonic development [34], showed the highest number of GSSs here. During times of cellular stress (e.g., oxygen depletion or oxidative stress), purine metabolic pathways are involved in interactions with ATP and GTP levels [35,36] and mutations in these pathways can result in developmental defects including; eye-pigment disorders, eye-growth, bristle, and pupal lethality [34,37]. A total of 23 and 17 sequences were identified as related to phosphatidylinositol signalling systems and inositol phosphate metabolism, respectively. As one of the signalling molecules activated during oocyte and/or gonad maturation and activation of gonadotropin hormone release, phosphatidylinositol 3-kinase (Pik3) and inositol phosphate signalling systems have been observed in many species [3842].

Of interest however, was that we recovered a high number of sequences that mapped to oxidative phosphorylation that are involved in ATP production in mitochondria [43,44]. Glycerophospholid metabolism, that plays a central role in the structure of cell membrane bilayers [45], also showed a high number of sequences recovered in H. siamensis. A total of 12 H. siamensis GSSs were predicted to be involved in the fatty acid metabolism pathway. Fatty acids are regarded to be key sources of metabolic energy in growth, reproduction and movement [45,46] and are important factors in maintaining homeostasis [46,47]. Although not all of the major genes reported in putative KEGG pathways were identified in H. siamensis GSSs, those that were detected provide insights into the specific responses and functions involved in molecular processes during H. siamensis metabolism.

2.4. Protein Domains

InterProScan searches identified 4015 protein domains among the 47,250 H. siamensis contigs (857) and singletons (46,393) (Table S1). Consistent with similar analyses in other fish species [20,30], domains that dominated include reverse transcriptase, immunoglobulin, integrase catalytic core, ribonuclease, and zinc finger domains (Table 2).

Immunoglobulin (Ig) motifs that play a critical role in the immune system where they recognize and respond to a wide range of antigens [4850] were identified among the H. siamensis sequences, in particular, Ig-like fold (84), Ig-like (26), Ig V-set (24), and Ig I-set (14). Ig-like fold domains are also reported to be involved in a variety of functions including cell-cell recognition, cell-surface receptors, muscle structure and the immune system [51], and are often involved with protein-protein interactions mediated by their β-sheets as with other Ig-like domains [51,52]. In addition, the most common DNA binding motifs that present as transcription factors in a wide variety of organisms [53] were prevalent among the H. siamensis sequences, with 52 C2H2 and 31 C2H2-type zinc finger (Znf) domains identified. Transcription factors usually contain several Znf domains capable of making multiple contacts with DNA [54], and can also bind to RNA and protein targets [55].

23 domains containing integrase (IN) catalytic core were also predicted in the H. siamensis GSS sequences. IN is the virus-encoded enzyme responsible for key catalytic events associated with integration [56,57]. A total of 15 cadherin families that are involved in mediating calcium dependent cell-cell adhesion as transmembrane glycoproteins and that are crucial to various steps during embryonic development, were also predicted [58,59]. Other common domains identified in the dataset include; GPCR rhodopsin-like 7TM, Protein kinase catalytic domain and Protein kinase-like.

2.5. Analysis of Genes

Among GSSs derived from contig sequences with homology to ORF2-encoded protein, novel protein, reverse transcriptase-like protein, transposase, and enzymatic poly were most abundant (Table 3). In addition, among GSSs derived from singleton sequences with homology to retrotransposable element tf2, novel protein, ORF-encoded protein, reverse transcriptase-like protein, and transposase were most abundant. GSSs detected commonly in both contig and singleton sequences included ORF2-encoded protein, novel protein, reverse transcriptase-like protein, transposase, enzymatic poly, and protein nlrc3-like (Table 3). Although the focus of the current study was mainly to identify putative SSR motifs in the H. siamensis genome, several putative functional sequences identified provide a foundation for future genetic studies. GSS sequences with identified putative functions provide a starting point for deciphering the potential role of novel genes in each tissue, but further studies will need to be conducted to understand the molecular basis of specific genes.

Transposable element tc1 transposase, identified in the H. siamensis GSS dataset belongs to a superfamily of class-II transposable elements (TEs) widely present from protozoa to vertebrates [60,61] and it has also been identified in several teleost species [6264]. As the name suggests, it has been hypothesized that the transfer of TEs from one genome to another potentially occur by vertical (sexual) or horizontal transmission [63]. Active TEs found in several fish have been reactivated successfully after molecular genetic manipulation from inactive genomic copies [65]. A larger number of TEs or mobile sequences could be useful for identifying genes important in fish aquaculture using inverted terminal repeats [6567]. Furthermore, understanding the dynamics, control and evolution of fish TEs could allow insertion of selected sequences into fish germ cells to develop transgenics or for identifying genes important for growth and/or in somatic cells to improve DNA vaccination [65].

In the current study, we found a high occurrence of a gtpase IMAP family member 8-like sequence that was the first reported member of a family of putative GTPases but was renamed as GTPase in the immunity-associated protein family (GIMAP) [68]. GIMAP proteins are thought to be involved mainly in regulation of cell death in vertebrates [69] but a possible immune role has been suggested in Atlantic salmon and three-spine stickleback [70,71]. It is likely that GIMAP could provide a candidate molecular marker for immune studies in fish, where disease is a significant problem in many cultured species.

2.6. Putative Microsatellite Markers

A total 1837 simple sequence repeats (SSRs) or microsatellites comprising 74.41% dinucleotide repeats, 9.53% trinucleotide repeats and 16.06% tetra/penta/hextanucleotide repeats were detected (Figure 4) among the H. siamensis GSS sequences. Recognition of a high number of dinucleotide repeats in H. siamensis is consistent with previous studies in fish and other aquatic organisms [21,14]. From 1837 detected SSRs, a total of 422 SSR primer sets comprising 78% dinucleotide repeat primers, 8.3% trinucleotide repeat primers, and 13.7% tetra/penta/hextanucleotide repeat primers were designed successfully (Table S2). The majority of SSRs detected and primers designed for their amplification in H. siamensis were singletons. A large number of SSRs were detected in H. siamensis contig sequences but primers were not designed successfully in these sequences. This result suggests that the GSSs in H. siamensis mostly consisted of non-coding regions which have high polymorphic sites, or alternatively this could be a common homopolymer problem with 454 sequencing.

A large number of PCR primers were designed from predicted polymorphic SSRs (Table S2) and await validation as genetic markers for examining adaptive and ecological processes in H. siamensis as has been done with other non-model species [e.g., 31,14]. In addition, SSRs detected here are potentially transferable to other closely related teleost species [14,7274]. The potential markers identified here in H. siamensis GSSs will provide a valuable resource for studying the evolution and ecology of this species and can be applied to genome mapping and quantitative trait loci (QTL) analyses.

2.7. GSS-SSR Markers Test

One thousand eight hundred and thirty seven sequences containing SSR motif repeats were identified, of which, 422 qualified for primer design. At present, CAG and GATA repeat types predominate in vertebrate SSRs while common SSR markers developed for fish genetic studies are dinucleotide (CA) repeats [73]. The most common repeat motifs in H. siamensis included AC, GT (dinucleotide repeat), AAT, ATT (trinucleotide repeat), AGAT and ATCT (tetranucleotide repeat). Saarinen and Austin [75] found the same common repeat motif set (AC, GT, AAT, ATT, AGT and ATCT) in a north American fish (Esheostoma okaloosae), while GATA and CAG repeat were the most common repeat motifs reported in Japanese flounder (Paralichthtys olivaceus) and silver crucian carp (Carassius auratus gibelio) [73,76].

We chose 25 tetranucleotide repeats for screening in H. siamensis based on their relative mutability compared with other repeat types [77] and their ease of scoring [78]. Eight loci were selected for subsequent polymorphism tests in two wild populations of H. siamensis samples (Battambang (BB), Cambodia and Ubon Rathachani (UB), Thailand). From the statistical results (Table 4), observed (Ho) heterozygosity (mean ± standard deviation) ranged from 0.341 to 0.976 (mean 0.75 ± 0.04) while expected (He) heterozygosity ranged from 0.504 to 0.962 (mean 0.83 ± 0.04). Number of alleles (Na) ranged from 6 to 37 (mean 17.44 ± 2.37) with a higher number of alleles detected per locus (6 out of 8 loci) in the UB population compared with the BB population.

BLASTx searches using the non-redundant (nr) database is a common approach for identifying functional roles of genes. After checking with BLASTx, only six out of eight SSR sequences generated from contigs in H. siamensis were identified as putative genes but most SSR sequences showed very low similarity (>9.00 × 10−8) except for H21 that was identified as trafficking protein particle complex 10 (4.00 × 10−23). It has been suggested that the Roche 454 platform can be useful for generating large fragment gDNA sequences to provide a wealth of anonymous nuclear loci markers in non-model organisms [79]. Therefore, it is likely unidentified contig sequences (for primers HS2 and HS12) could be new genes in this species or result from non-coding regions for which we were not able to find a putative function due to the limited genetic information currently available for the target species. A cautious interpretation must be made however, because of the complexity of gene structure and potential for detection of pseudogenes.

3. Experimental Section

3.1. Samples and DNA Extraction

H. siamensis samples were collected from fin tissues. Initial species identification was verified after examination of external morphological traits in the field and this confirmed via mtDNA sequencing. Fresh fin tissues stored in 95% ethanol were used for gDNA extraction using a modified salt extraction method [80].

3.2. Library Construction and 454 Pyrosequencing

Pooled gDNA sample from two individuals were sent to the Australian Genome Research Facility (AGRF), Brisbane, Australia, and subjected to 454 GS-FLX sequence analysis [81]. Randomly sheared gDNA yields were quantified using a Quant-iT RiboGreen fluorometer (Invitrogen, Mulgrave, Australia) and average lengths were determined by analysis of aliquots (1 μL) on a Bioanalyzer (Agilent, Mulgrave, Australia). Pooled gDNA samples were subjected to sequencing on a eighth of a pico-titer plate via 454 GS-FLX using pyrosequencing chemistry (Roche, Branford, CT, USA) according to the manufacturer’s protocol.

3.3. Sequence Cleaning and Assembly

All sequence reads taken directly from the 454 GS-FLX sequencer were run through the sff file program (Roche) to remove sequencing adapters A and B, poor sequence data and barcodes. Sequences containing homopolymers of a single nucleotide comprising >60% of the read and that were >100 nucleotides in length were discarded. Trimmed sequences were assembled de novo using the default parameters in Newbler 2.5.3 (Roche). After initial quality filtering, AGRF provided assembled contig and singleton datasets for analysis. Due to the small sample numbers subjected to 454 GS-FLX, SNP discovery was not conducted. All H. siamensis partial GSS sequences were submitted to NCBI Sequence Read Archive under Accession No. SRA 053105.

3.4. Annotation

BLASTx searches [82] of the GenBank non-redundant (nr) database hosted by the National Center for Biotechnology Information (NCBI) [83] were performed on all contigs and singletons to identify putative gene functions (E value threshold < 1 × 10−5). The Blast2GO software suite [84] was used to predict functions of individual GSSs, to assign Gene Ontology terms (The Gene Ontology Consortium 2008), and to predict metabolic pathways using Kyoto Encyclopaedia of Genes and Genome (KEGG) [85]. To identify protein domains, all GSS sequences were interrogated against the InterPro databases [86] using the InterProScan tool [87]. The numbers of contigs annotated with each GO term were quantified using WEGO [88].

3.5. Identification of GSS-SSR Motifs

All GSS sequences were searched for SSR motifs using Msatcommander [89]. Default settings were employed to detect perfect di, tri, tetra, penta, and hexanucleotide motifs (including compound motifs). To be assigned, dinucleotide SSRs required a minimum of eight repeats, and all other SSR types a minimum of six repeats. Maximum interruption between two neighboring SSRs to be considered a compound SSR was set at 100 nucleotides. Perl script modules linked to the primer modeling software Primer3 [90] were used to design PCR primers flanking each unique SSR region identified.

3.6. Microsatellite Screening, Amplification and Testing

SSR marker amplification can produce nonspecific bands if primers are located in flanking regions that grouped into similar sequence. To check the possibility of grouping, all sequences containing SSR motifs were detected using microfamily software [91]. Twenty five selected primers to be tested here were derived only from the unique flanking sequence. Initial primer tests for PCR amplification were performed on 10 individuals derived from five discrete populations from the Mekong River, and from this, eight primers were selected for further analysis. PCR reactions were conducted in 12.5 μL total volume containing 1.5 μL 5× MyTaq Red Buffer (Bioline (Aust) Pty. Ltd Australia), 0.1 μL MyTaq DNA Polymerase (Bioline (Aust) Pty. Ltd Australia), 0.4 μL (10 pmol) of forward and reverse primer and 1 μL of DNA template and ddH2O up to 12.5 μL. PCR conditions were 5 min at 94 °C, followed by 30 cycles of 30 s at 94 °C, 15 s at 57 °C and 15 s at 72 °C, then 5 min of 72 °C and 15 min of 15 °C. Multiplexed PCR products (1 μL of each locus) were then analyzed in an ABI-3500 sequencer for genotyping and 1 μL of GeneScan™ 600 LIZ® Size Standard v2.0. GeneMapper software (Version 4.1; Applied Biosystems: Mulgrave, Australia, 2011) was utilized for allele scoring. Polymorphic loci were tested on 89 individuals from 2 populations, BB and UB, because these are the largest population samples available to us from the MRB and more variation is expected. The BB site is located in Cambodia (13°04′N; 103°08′E) while the UB site is located in Thailand (15°15′N; 104°52′E). GenAlEex 6 software [92] and Excel-microsatellite-toolkit version 3.1 [93] were used for statistical analyses. Presence of genotyping errors were checked using MICROCHECKER software [94] employing a 95% confidence level.

4. Conclusions

The pyrosequencing method using partial GSS sequences was applied to development of SSR markers for H. siamensis, an economically important species in the Mekong River Basin. To date, eight polymorphic SSR loci have been selected and tested for genetic studies in H. siamensis populations and a large number of potentially useful markers await validation in this species, of which many could have potential applications in closely related species. A large number of putative SSR markers provide new possibilities for studying genetic variation, phylogeography and population structure in the target species. In addition, several putative genes that could have immune and growth-related functions in H. siamensis were identified but require confirmation due to the complexity of nuclear gene structure. The methods described here allowed us to obtain a large number of SSRs rapidly and the markers will be useful for future management of wild H. siamensis populations and permit a better understanding of discrete wild population structure to be developed at different geographical scales across the MRB.


The authors would like to acknowledge research collaborators working in national fisheries agencies from the four Mekong River Commission countries (Lao PDR, Cambodia, Vietnam and Thailand) for collecting samples for this study. This research forms part of Feni Iranawati’s Ph.D project, and is supported by the Indonesian government and Brawijaya University. Partial funding for this work was provided by Queensland University of Technology and an International Postgraduate Research Scholarship awarded to Hyungtaek Jung. We would also like to acknowledge the helpful comments provided on the manuscript by two anonymous reviewers.


  1. Rainboth, W.J. Fishes of the Cambodian Mekong. FAO Species Identification Field Guide for Fishery Purposes; Food and Agriculture Organization of the United Nations: Rome, Italy, 1996; pp. 111–122. [Google Scholar]
  2. Poulsen, A.F.; Valbo-Jørgensen, J. Fish Migrations and Spawning Habits in the Mekong Mainstream—A Survey Using Local Knowledge; AMFC Technical Report; Mekong River Commission: Phnom Penh, Cambodia, 2000; pp. 38–42. [Google Scholar]
  3. Lieng, S.; Yim, C.; van Zalinge, N.P. Fisheries of Cambodia I: The bagnet (Dai) fishery in the Tonlesap River. Asian Fish. Sci 1995, 8, 255–262. [Google Scholar]
  4. Baird, I.G.; Flaherty, M.S.; Phylavanh, B. Rhythms of the river: Lunar phases and migrations of small carp (Cyprinidae) in the Mekong River. Nat. Hist. Bull. Siam Soc 2003, 51, 5–36. [Google Scholar]
  5. Baran, E.; van Zalinge, N.; Bun, N.P. Floods, Floodplains and Fish Production in the Mekong Basin: Present and Past Trends. Proceeding of the Second Asian Wetland Symposium, Penang, Malaysia, 27–30 August 2001; Penerbit Universiti Sains: Kuala Lumpur, Malaysia, 2001; pp. 920–932. [Google Scholar]
  6. Adamson, E.A.S.; Hurwood, D.A.; Baker, A.M.; Mather, P.B. Population subdivision in Siamese mud carp Henicorhynchus siamensis in the Mekong River basin: Implications for management. J. Fish Biol 2009, 75, 1371–1392. [Google Scholar]
  7. Hurwood, D.A.; Adamson, E.A.S.; Mather, P.B. Evidence for strong genetic structure in a regionally important, highly vagile cyprinid (Henicorhynchus lobatus) in the Mekong River Basin. Ecol. Freshw. Fish 2008, 17, 273–283. [Google Scholar]
  8. Avise, J.C. Phylogeography: The History and Formation of Species; Harvard University Press: Cambridge, MA, USA, 2000; pp. 22–32. [Google Scholar]
  9. Forister, M.L.; Nice, C.C.; Fordyce, J.A.; Gompert, Z.; Shapiro, A.M. Considering evolutionary processes in the use of single-locus genetic data for conservation, with examples from the Lepidoptera. J. Insect Conserv 2008, 12, 37–51. [Google Scholar]
  10. Zink, R.M.; Barrowclough, G.F. Mitochondrial DNA under siege in avian phylogeography. Mol. Ecol 2008, 17, 2107–2121. [Google Scholar]
  11. Féral, J.P. How useful are the genetic markers in attempts to understand and manage marine biodiversity? J. Exp. Mar. Biol. Ecol 2002, 268, 121–145. [Google Scholar]
  12. Zhang, D.; Hewitt, G.M. Nuclear DNA analyses in genetic studies of populations: Practice, problems and prospects. Mol. Ecol 2003, 12, 563–584. [Google Scholar]
  13. Cheng, L.; Liao, X.; Yu, X.; Tong, J. Development of EST-SSRs by an efficient FIASCO-based strategy: A case study in rare minnow (Gobiocyrpis Rarus). Anim. Biotech 2007, 18, 143–152. [Google Scholar]
  14. Wang, J.; Yu, X.; Zhao, K.; Zhang, Y.; Tong, J.; Peng, Z. Microsatellite development for an endangered bream Megalobrama pellegrini (Teleostei, Cyprinidae) using 454 sequencing. Int. J. Mol. Sci 2012, 13, 3009–3021. [Google Scholar]
  15. Guichoux, E.; Lagache, L.; Wagner, S.; Chaumeil, P.; Léger, P.; Lepais, O.; Lepoittevin, C.; Malausa, T.; Revardel, E.; Salin, F.; et al. Current trends in microsatellite genotyping. Mol. Ecol. Resour 2011, 11, 591–611. [Google Scholar]
  16. Morin, P.A.; Luikart, G.; Wayne, R.K. The SNP workshop group. SNPs in ecology, evolution and conservation. Trends Ecol. Evol 2004, 19, 208–216. [Google Scholar]
  17. O’Connell, M.; Write, J.M. Microsatellite DNA in fishes. Rev. Fish Biol. Fish 1997, 7, 331–363. [Google Scholar]
  18. Romana-Eguia, M.R.R.; Ikeda, M.; Basiao, Z.U.; Taniguchi, N. Genetic diversity in farmed Asian Nile and red hybrid tilapia stocks evaluated from microsatellite and mitochondrial DNA analysis. Aquaculture 2004, 236, 131–150. [Google Scholar]
  19. Vera, J.C.; Wheat, C.W.; Fescemyer, H.W.; Frilander, M.J.; Crawford, D.L.; Hanski, I.; Marden, J.H. Rapid transcriptome characterization for a nonmodel organism using 454 pyrosequencing. Mol. Ecol 2008, 17, 1636–1647. [Google Scholar]
  20. Salem, M.; Rexroad, C.E., III; Wang, J.; Thorgaard, G.H.; Yao, J. Characterization of the rainbow trout transcriptome using Sanger and 454-pyrosequencing approaches. BMC Genomics 2010, 11. [Google Scholar] [CrossRef]
  21. Jung, H.; Lyons, R.E.; Dinh, H.; Hurwood, D.A.; McWilliam, S.; Mather, P.B. Transcriptomics of a giant freshwater prawn (Macrobrachium rosenbergii): De novo assembly, annotation and marker discovery. PLoS One 2011, 6, e27938. [Google Scholar]
  22. Strong, W.B.; Nelson, R.G. Preliminary profile of the Cryptosporidium parvum genome: An expressed sequence tag and genome survey sequence analysis. Mol. Biochem. Parasitol 2000, 107, 1–32. [Google Scholar]
  23. Lynch, M.; Sung, W.; Morris, K.; Coffey, N.; Landry, C.R.; Dopman, E.B.; Dickinson, W.J.; Okamoto, K.; Kulkarni, S.; Hartl, D.L.; et al. A genome-wide view of the spectrum of spontaneous mutations in yeast. Proc. Natl. Acad. Sci. USA 2008, 105, 9272–9277. [Google Scholar]
  24. Jansen, R.K.; Cai, Z.; Raubeson, L.A.; Daniell, H.; de Pamphilis, C.W.; Leebens-Mack, J.; Müller, K.F.; Guisinger-Bellian, M.; Haberle, R.C.; Hansen, A.K.; et al. Analysis of 81 genes from 64 plastid genomes resolves relationships in angiosperms and identifies genome-scale evolutionary patterns. Proc. Natl. Acad. Sci. USA 2007, 104, 19369–19374. [Google Scholar]
  25. Elmer, K.R.; Fan, S.; Gunter, H.M.; Jones, J.C.; Boekhoff, S.; Kuraku, S.; Meyer, A. Rapid evolution and selection inferred from the transcriptomes of sympatric craterlake cichlid fishes. Mol. Ecol 2010, 19, 197–211. [Google Scholar]
  26. Burge, C.B.; Karlin, S. Finding the genes in genomic DNA. Curr. Opin. Struct. Biol 1998, 8, 346–354. [Google Scholar]
  27. Shikano, T.; Ramadevi, J.; Shimada, Y.; Merila, J. Utility of sequenced genomes for microsatellite marker development in non-model organisms: A case study of functionally important genes in nine-spined sticklebacks (Pungitius pungitius). BMC Genomics 2010, 11. [Google Scholar] [CrossRef]
  28. Milano, I.; Babbucci, M.; Panitz, F.; Ogden, R.; Nielsen, R.O.; Taylor, M.I.; Helyar, S.J.; Carvalho, G.R.; Espineira, M.; Atanassova, M.; et al. Novel tools for conservation genomics: Comparing two high-throughput approaches for SNP discovery in the transcriptome of the European hake. PLoS One 2011, 6, e28008. [Google Scholar]
  29. Jiang, Y.; Lu, J.; Peatman, E.; Kucuktas, H.; Liu, S.; Wang, S.; Sun, F.; Liu, Z. A pilot study for channel catfish whole genome sequencing and de novo assembly. BMC Genomics 2011, 12. [Google Scholar] [CrossRef]
  30. Coppe, A.; Pujolar, J.M.; Maes, G.E.; Larsen, P.F.; Hansen, M.M.; Bernatchez, L.; Zane, L.; Bortoluzzi, S. Sequencing, de novo annotation and analysis of the first Anguilla anguilla transcriptome: EelBase opens new perspectives for the study of the critically endangered European eel. BMC Genomics 2010, 11, 635. [Google Scholar]
  31. Panhuis, T.M.; Broitman-Maduro, G.; Uhrig, J.; Maduro, M.; Reznick, D.N. Analysis of expressed sequence tags from the placenta of the live-bearing fish Poeciliopsis (Poeciliidae). J. Hered 2011, 102, 353–361. [Google Scholar]
  32. Wang, J.-P.Z.; Lindsay, B.G.; Leebens-Mack, J.; Cui, L.; Wall, K.; Miller, W.C.; depamphilis, C.W. EST clustering error evaluation and correction. Bioinformatics 2004, 20, 2973–2984. [Google Scholar]
  33. Mittapalli, O.; Bai, X.; Mamidala, P.; Rajarapu, S.P.; Bonello, P.; Herms, D.A. Tissue-specific transcriptomics of the exotic invasive insect pest emerald ash borer. PLoS One 2010, 5, e13708. [Google Scholar]
  34. Ng, A.; Uribe, R.A.; Yieh, L.; Nuckels, R.; Gross, J.M. Zebrafish mutations in gart and paics identify crucial roles for de novo purine synthesis in vertebrate pigmentation and ocular development. Development 2009, 136, 2601–2611. [Google Scholar]
  35. Mommsen, T.P.; Hochachka, P.W. The purine nucleotide cycle as two temporally separated metabolic units. A study on trout muscle. Metabolism 1988, 37, 552–556. [Google Scholar]
  36. Hardie, D.G.; Hawley, S.A. AMP-activated protein kinase. The energy charge hypothesis revisited. BioEssays 2001, 23, 1112–1119. [Google Scholar]
  37. Tiong, S.Y.; Keizer, C.; Nash, D.; Bleskan, J.; Patterson, D. Drosophila purine auxotrophy: New alleles of adenosine 2 exhibiting a complex visible phenotype. Biochem. Genet 1989, 27, 333–348. [Google Scholar]
  38. Weber, G.; Sullivan, C. In vitro hormone induction of final oocyte maturation in striped bass (Morone saxatilis) follicles is inhibited by blockers of phosphatidylinositol 3-kinase activity. Comp. Biochem. Physiol. B 2001, 129, 467–473. [Google Scholar]
  39. Cantley, L.C. The phosphoinositide 3-kinase pathway. Science 2002, 296, 1655–1657. [Google Scholar]
  40. Pace, M.C.; Thomas, P. Steroid-induced oocyte maturation in Atlantic croaker (Micropogonias undulatus) is dependent on activation of the phosphatidylinositol 3-kinase/akt signal transduction pathway. Biol. Reprod 2005, 73, 988–996. [Google Scholar]
  41. Kavanaugh, S.I.; Nozaki, M.; Sower, S.A. Origins of gonadotropin-releasing hormone (GnRH) in vertebrates: Identification of a novel GnRH in a basal vertebrate, the sea lamprey. Endocrinology 2008, 149, 3860–3869. [Google Scholar]
  42. Pemberton, J.G.; Stafford, J.L.; Yu, Y.; Chang, J.P. Differential involvement of phosphoinositide 3-kinase in gonadotrophin-releasing hormone actions in gonadotrophs and somatotrophs of goldfish, Carassius auratus. J. Neuroendocrinol 2011, 23, 660–674. [Google Scholar]
  43. Wallace, K.B.; Starkov, A.A. Mitochondrial targets of drug toxicity. Annu. Rev. Pharmacol. Toxicol 2000, 40, 353–388. [Google Scholar]
  44. Birceanu, O.; McClelland, G.B.; Wang, Y.S.; Brown, J.C.L.; Wilkie, M.P. The lampricide 3-trifluoromethyl-4-nitrophenol (TFM) uncouples mitochondrial oxidative phosphorylation in both sea lamprey (Petromyzon marinus) and TFM-tolerant rainbow trout (Oncorhynchus mykiss). Comp. Biochem. Physiol. C 2011, 153, 342–349. [Google Scholar]
  45. Tocher, D.R. Metabolism and functions of lipids and fatty acids in teleost fish. Rev. Fish Sci 2003, 11, 107–184. [Google Scholar]
  46. Leaver, M.J.; Bautista, J.M.; Björnsson, T.; Jönsson, E.; Krey, G.; Tocher, D.R.; Torstensen, B.E. Towards fish lipid nutrigenomics: Current state and prospects for fin-fish aquaculture. Rev. Fish Sci 2008, 16, 73–94. [Google Scholar]
  47. Minghetti, M.; Leaver, M.J.; Tocher, D.R. Transcriptional control mechanisms of genes of lipid and fatty acid metabolism in the Atlantic salmon (Salmo salar L.) established cell line, SHK-1. Biochim. et Biophys. Acta 2011, 1811, 194–202. [Google Scholar]
  48. Kock, H.; Fischer, U. A novel immunoglobulin-like transcript from rainbow trout with two Ig-like domains and two isoforms. Mol. Immunol 2008, 45, 1612–1622. [Google Scholar]
  49. Østergaard, A.E.; Lubieniecki, K.P.; Martin, S.A.M.; Stet, R.J.M.; Davidson, W.S.; Secombes, C.J. Genomic organisation analysis of novel immunoglobulin-like transcripts in Atlantic salmon (Salmo salar) reveals a tightly clustered and multigene family. BMC Genomics 2010, 11. [Google Scholar] [CrossRef]
  50. Secombes, C.J. Fish immunity: The potential impact on vaccine development and performance. Aqua Res 2011, 42, 90–92. [Google Scholar]
  51. Teichmann, S.A.; Chothia, C. Immunoglobulin superfamily proteins in Caenorhabditis elegans. J. Mol. Biol 2000, 296, 1367–1383. [Google Scholar]
  52. Potapov, V.; Sobolev, V.; Edelman, M.; Kister, A.; Gelfand, I. Protein-protein recognition: Juxtaposition of domain and interface cores in immunoglobulins and other sandwich-like proteins. J. Mol. Biol. 2004, 342, 665–679. [Google Scholar]
  53. Brown, R.S. Zinc finger proteins: Getting a grip on RNA. Curr. Opin. Struct. Biol 2005, 15, 94–98. [Google Scholar]
  54. Wolfe, S.A.; Nekludova, L.; Pabo, C.O. DNA recognition by Cys2His2 zinc finger proteins. Annu. Rev. Biophys. Biomol. Struct 2000, 29, 183–212. [Google Scholar]
  55. Brayer, K.J.; Segal, D.J. Keep your fingers off my DNA: Protein-protein interactions mediated by C2H2 zinc finger domains. Cell Biochem. Biophys 2008, 50, 111–131. [Google Scholar]
  56. Craigie, R. Retroviral DNA Integration. In Mobile DNA II; Craig, N.L., Craigie, R., Gellert, M., Lambowitz, A.M., Eds.; ASM Press: Washington. DC, USA, 2002; pp. 613–630. [Google Scholar]
  57. Gao, X.; Voytas, D.F. A eukaryotic gene family related to retroelement integrases. Trends Genetics 2005, 21, 133–137. [Google Scholar]
  58. Gumbiner, B.M. Regulation of cadherin adhesive activity. J. Cell Biol 2000, 148, 399–404. [Google Scholar]
  59. Wheelock, M.J.; Johnson, K.R. Cadherins as modulators of cellular phenotype. Annu. Rev. Cell Dev. Biol 2003, 19, 207–35. [Google Scholar]
  60. Langin, T.; Capy, P.; Daboussi, M.J. The transposable element impala, a fungal member of the Tc1-mariner superfamily. Mol. Gen. Genet 1995, 246, 19–28. [Google Scholar]
  61. Robertson, H.M. The Tc1-mariner superfamily of transposons in animals. J. Insect Physiol 1995, 41, 99–105. [Google Scholar]
  62. Avancini, R.; Walden, K.; Robertson, H. The genomes of most animals have multiple members of the Tc1 family of transposable elements. Genetica 1996, 98, 131–140. [Google Scholar]
  63. Capriglione, T.; Odierna, G.; Caputo, V.; Canapa, A.; Olmo, E. Characterization of a Tc1-like transposon in the Antarctic ice-fish, Chionodraco hamatus. Gene 2002, 295, 193–198. [Google Scholar]
  64. Clark, K.J.; Carlson, D.F.; Leaver, M.J.; Foster, L.K.; Fahrenkrug, S.C. Passport, a native Tc1 transposon from flatfish, is functionally active in vertebrate cells. Nucleic Acids Res 2009, 37, 1239–1247. [Google Scholar]
  65. Tafalla, C.; Estepa, A.; Coll, J.M. Fish transposons and their potential use in aquaculture. J. Biotechnol 2006, 123, 397–412. [Google Scholar]
  66. Collier, L.S.; Carlson, C.M.; Ravimohan, S.; Dupuy, A.J.; Largaespada, D.A. Cancer gene discovery in solid tumours using transposon-based somatic mutagenesis in the mouse. Nature 2005, 436, 272–276. [Google Scholar]
  67. Dupuy, A.J.; Akagi, K.; Largaespada, D.A.; Copeland, N.G.; Jenkins, N.A. Cancer biology: Sleeping beauty awakens. Nature 2005, 436, 184–186. [Google Scholar]
  68. Krücken, J.; Schroetel, R.M.; Müller, I.U.; Saïdani, N.; Marinovski, P.; Benten, W.P.; Stamm, O.; Wunderlich, F. Comparative analysis of the human gimap gene cluster encoding a novel GTPase family. Gene 2004, 341, 291–304. [Google Scholar]
  69. Saunders, A.; Lamb, T.; Pascall, J.; Hutchings, A.; Dion, C.; Carter, C.; Hepburn, L.; Langhorne, J.; Butcher, G.W. Expression of GIMAP1, a GTPase of the immunity-associated protein family, is not up-regulated in malaria. Malar. J 2009, 8, 53. [Google Scholar]
  70. Leveelahti, L.; Leskinen, P.; Leder, E.H.; Waser, W.; Nikinmaa, M. Responses of threespine stickleback (Gasterosteus aculeatus, L.) transcriptome to hypoxia. Comp. Biochem. Physiol. D 2011, 6, 370–381. [Google Scholar]
  71. Timmerhaus, G.; Krasnov, A.; Nilsen, P.; Alarcon, M.; Afanasyev, S.; Rode, M.; Takle, H.; Jøgensen, S.M. Transcriptome profiling of immune responses to cardiomyopathy syndrome (CMS) in Atlantic salmon. BMC Genomics 2011, 12. [Google Scholar] [CrossRef]
  72. Ellis, J.R.; Burke, J.M. EST-SSRs as a resource for population genetic analyses. Heredity 2007, 99, 125–132. [Google Scholar]
  73. Zheng, X.H.; Lu, C.Y.; Zhao, Y.Y.; Lee, C.; Cao, D.C.; Chang, Y.M.; Liang, L.Q.; Sun, X.W. A set of polymorphic trinucleotide and tetranucleotide microsatellite markers for silver Crucian carp (Carassius auratus gibelio) and cross-amplification in Crucian carp. Biochem. Genet 2010, 48, 624–635. [Google Scholar]
  74. Ma, H.; Chen, S. Development of polymorphic microsatellite markers in barfin flounder (Verasper moseri) and spotted halibut (Verasper variegates) by the cross-species amplification. Mol. Biol. Rep 2011, 38, 4545–4551. [Google Scholar]
  75. Saarinen, E.V.; Austin, J.D. When technology meets conservation: Increased microsatellite marker production using 454 genome sequencing on the endangered Okaloosa Darter (Ethostoma okaloosae). J. Hered 2010, 101, 784–788. [Google Scholar]
  76. Castaño-Sanchez, C.; Fuji, K.; Hayashida, K.; Tagami, M.; Ozaki, A.; Hasegawa, O.; Sakamoto, T.; Kawai, J.; Hayashizaki, Y.; Okamoto, N. A set of polymorphic trinucleotide and tetranucleotide microsatellite markers for the Japanese flounder (Paralichthys olivaceus). Anim. Genet 2007, 38, 75–76. [Google Scholar]
  77. Chambers, G.K.; MacAvoy, E.S. Microsatellites: Consensus and controversy. Comp. Biochem. Physiol. B 2000, 126, 455–476. [Google Scholar]
  78. Ellegren, H. Microsatellites: Simple sequences with complex evolution. Genetics 2004, 5, 435–445. [Google Scholar]
  79. Bertozzi, T.; Sanders, K.L.; Sistrom, M.J.; Gardner, M.G. Anonymous nuclear loci in non-model organisms: Making the most of high-throughput genome surveys. Bioinformatics 2012, 28, 1807–1810. [Google Scholar]
  80. Miller, S.A.; Dykes, D.D.; Polesky, H.F. A simple salting out procedure for extracting DNA from human nucleated cells. Nucleic Acids Res. 1998, 16, 1215. [Google Scholar]
  81. Gardner, M.G.; Fitch, A.J.; Bertozzi, T.; Lowe, A.J. Rise of the machines, recommendations for ecologists using next generation sequencing for microsatellite development. Mol. Ecol. Resour 2011, 11, 1093–1101. [Google Scholar]
  82. Altschul, S.F.; Madden, T.L.; Schaffer, A.A.; Zhang, J.; Miller, W. Gapped BLAST and PSIBLAST: A new generation of protein database search programs. Nucleic. Acids Res 1997, 25, 3389–3402. [Google Scholar]
  83. National Center for Biotechnology Information (NCBI). Available online: accessed on 27 September 2011.
  84. Götz, S.; García-Gómez, J.M.; Terol, J.; William, T.D.; Nagaraj, S.H.; Nueda, M.J.; Robles, M.; Talón, M.; Dopazo, J.; Conesa, A. High-throughput functional annotation and data mining with Blast2GO suite. Nucleic Acids Res 2008, 36, 3420–3435. [Google Scholar]
  85. Kanehisa, M.; Goto, S.; Hattori, M.; Aoki-Kinoshita, K.F.; Itoh, M.; Kawashima, S.; Katayama, T.; Araki, M.; Hirakawa, M. From genomics to chemical genomics: New developments in KEGG. Nucleic Acids Res 2006, 34, D354–D357. [Google Scholar]
  86. InterPro Databases; European Molecular Biology Laboratory: Cambridgeshire, UK, 1999. Available online: accessed on 25 January 2012.
  87. Hunter, S.; Apweiler, R.; Attwood, T.K.; Bairoch, A.; Bateman, A.; Binns, D.; Bork, P.; Das, U.; Daugherty, L.; Duguenne, L.; et al. InterPro: The integrative protein signature database. Nucleic Acids Res 2009, 37, D211–D215. [Google Scholar]
  88. Ye, J.; Fang, L.; Zheng, H.; Zhang, Y.; Chen, J.; Zhang, Z.; Wang, J.; Li, S.; Li, R.; Bolund, L.; et al. WEGO: A web tool for plotting GO annotations. Nucleic Acids Res 2006, 34, W293–W297. [Google Scholar]
  89. Faircloth, B.C. Msatcommander: Detection of microsatellite repeat arrays and automated, locus-specific primer design. Mol. Ecol. Resour 2008, 8, 92–94. [Google Scholar]
  90. Rozen, S.; Skaletsky, H. Primer3 in the WWW for general users and for biologist programmers. Methods Mol. Biol 2000, 132, 365–386. [Google Scholar]
  91. Meglécz, E. MICROFAMILY (version 1): A computer program for detecting flanking-region similarities among different microsatellite loci. Mol. Ecol. Notes 2007, 7, 18–20. [Google Scholar]
  92. Peakall, R.; Smouse, P.E. GENALEX 6: Genetic analysis in Excel. Population genetic software for teaching and research. Mol. Ecol. Notes 2006, 6, 288–295. [Google Scholar]
  93. Park, S.D.E. Trypanotolerance in West African cattle and the population genetic effects of selection. Ph.D. thesis, University of Dublin, Dublin, Ireland, 2001. [Google Scholar]
  94. Van Oosterhout, C.; Hutchinson, W.F.; Wills, D.P.M.; Shipley, P. MICRO-CHECKER: Software for identifying and correcting genotyping errors in microsatellite data. Mol. Ecol. Notes 2004, 4, 535–538. [Google Scholar]

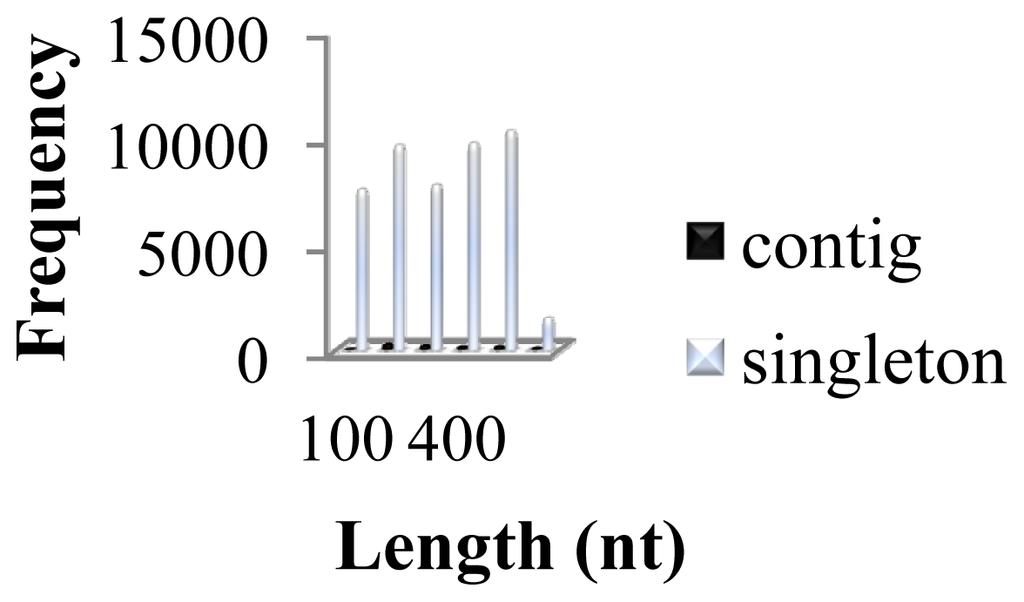

Figure 1. Summary of H. siamensis 454 pyrosequencing sequences.
Figure 1. Summary of H. siamensis 454 pyrosequencing sequences.
Ijms 13 10807f1 1024
Figure 2. Top 25 hit species distribution based on BLASTx. E value cut-off is 10−5. Singleton (A) and contig (B). Bold text indicates teleosts.
Figure 2. Top 25 hit species distribution based on BLASTx. E value cut-off is 10−5. Singleton (A) and contig (B). Bold text indicates teleosts.
Ijms 13 10807f2 1024

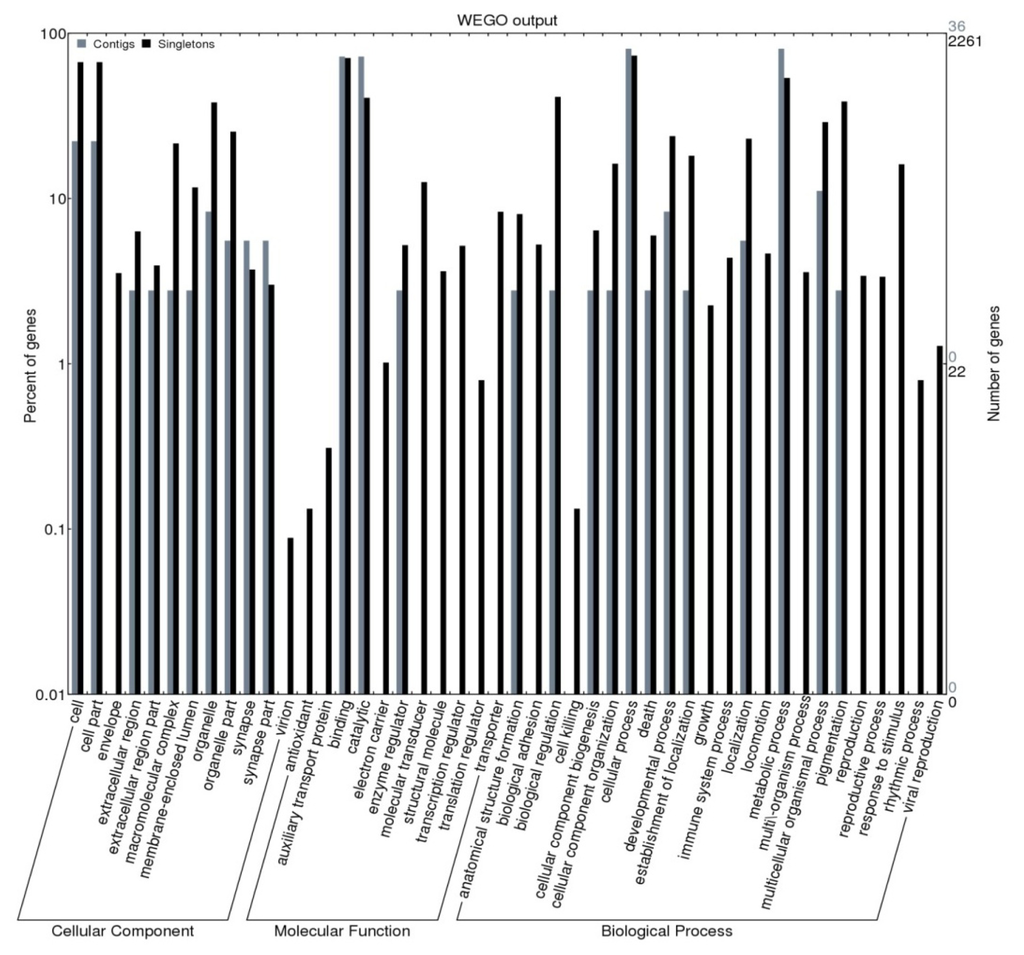

Figure 3. Gene Ontology (GO) terms for contig and singleton sequences in H. siamensis.
Figure 3. Gene Ontology (GO) terms for contig and singleton sequences in H. siamensis.
Ijms 13 10807f3 1024
Figure 4. Distribution of simple sequence repeat (SSR) nucleotide classes among different nucleotide types in H. siamensis.
Figure 4. Distribution of simple sequence repeat (SSR) nucleotide classes among different nucleotide types in H. siamensis.
Ijms 13 10807f4 1024
Table 1. Summary of 454 pyrosequencing.
Table 1. Summary of 454 pyrosequencing.
Total number of bases (Mb)17.44 Mb
Average read length (nt)264 nt
Number of reads
Total reads65,954
Number of contig
Total contigs857
Average contig read length (nt)352 nt
Largest contig (nt)2,373 nt
Number of large contigs > 500 nt143
Table 2. Summary of the top 20 domains combining contigs (Con) and singletons (Sing) in H. siamensis.
Table 2. Summary of the top 20 domains combining contigs (Con) and singletons (Sing) in H. siamensis.
IPR accessionDomain nameDomain descriptionTotal of occurrence (Con/Sing)
IPR006130Asp/Orn_carbamoylTrfaseAspartate/ornithine carbamoyltransferase1 (1/0)
IPR006132Asp/Orn_carbamoyltranf_P-bdAspartate/ornithine carbamoyltransferase carbamoyl-P binding,1 (1/0)
IPR002126CadherinCadherin15 (0/15)
IPR005135Exo_endo_phosEndonuclease/exonuclease/phosphatase1 (1/0)
IPR001845HTH_ArsR_DNA-bd_domHTH arsR-type DNA-binding domain1 (1/0)
IPR013098Ig_I-setImmunoglobulin I-set14 (1/13)
IPR007110Ig_likeImmunoglobulin-like26 (0/26)
IPR013783Ig-like_foldImmunoglobulin-like fold84 (2/82)
IPR013106Ig_V-setImmunoglobulin V-set24 (0/24)
IPR001584Integrase_cat-coreIntegrase, catalytic core23 (1/22)
IPR011009Kinase-like_domProtein kinase-like domain14 (0/14)
IPR000719Prot_kinase_cat_domProtein kinase, catalytic domain15 (0/15)
IPR012337RNaseH-likeRibonuclease H-like29 (1/28)
IPR000477RVTReverse transcriptase37 (2/35)
IPR0002767TM_GPCR_RhodpsnGPCR, rhodopsin-like, 7TM18 (0/18)
IPR002492Transposase_Tc1-likeTransposase, Tc1-like2 (2/0)
IPR002035VWF_AVon Willebrand factor, type A2 (2/0)
IPR006612Znf_C2CHZinc finger, C2CH-type1 (1/0)
IPR013087Znf_C2H2/integrase_DNA-bd 5Zinc finger, C2H2-type/ integrase, DNA-binding28 (0/28)
IPR007087zf-C2H2Zinc finger, C2H252 (0/52)
Table 3. Frequency of genes identified in contigs (Con) and singletons (Sing) in H. siamensis.
Table 3. Frequency of genes identified in contigs (Con) and singletons (Sing) in H. siamensis.
Candidate genesE value rangeMatched speciesLength range (nt)Total of occurrence (Con/Sing)
Enzymatic poly3.12 × 10−91–4.80 × 10−13Tetraodon nigroviridis269–103715 (3/12)
Lrr and pyd domainscontaining protein 123.42 × 10−35–1.72 × 10−8Danio rerio123–43919 (0/19)
Novel protein1.18 × 10−65–5.42 × 10−6Danio rerio120–59543 (7/36)
Orf2-encoded protein4.63 × 10−97–3.33 × 10−8Danio rerio143–167927 (7/20)
Protein nlrc3-like7.76 × 10−71–1.32 × 10−9Danio rerio220–52813 (2/11)
Retrotransposable element tf23.95 × 10−97–4.63 × 10−6Takifugu rubripes145–527120 (2/118)
Reverse transcriptase-like protein7.74 × 10−52–1.34 × 10−11Danio rerio151–54422 (4/18)
Sjchgc01974 protein5.82 × 10−27–5.28 × 10−7Mus musculus139–43018 (0/18)
Transposable element tc1 transposase 155 kda protein type 1-like6.41 × 10−23–1.80 × 10−8Danio rerio128–2335 (5/0)
Transposase1.65 × 10−47–5.92 × 10−12Rana catesbeiana196–50721 (4/17)
Table 4. Details of 8 tetranucleotide SSR repeats designed for H. siamensis.
Table 4. Details of 8 tetranucleotide SSR repeats designed for H. siamensis.
LocusPrimer sequenceRepeat MotifPop *Na *Ho *He *PIC *PHWE *Percent missing

*Pop, population; BB, Battambang (41 samples); UB, Ubon Rathanchani (48 samples); Na, number of alleles; Ho, observed heterozygosity; He, expected heterozygosity; PIC, Polymorphism information content; PHWE significant at p < 0.003 after Bonferroni correction.

Int. J. Mol. Sci. EISSN 1422-0067 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
