Int. J. Mol. Sci. 2012, 13(8), 9572-9583; doi:10.3390/ijms13089572

Article
Molecular Dynamics Simulation of Palmitate Ester Self-Assembly with Diclofenac
Roghayeh Abedi Karjiban 1,*, Mahiran Basri 1,2, Mohd Basyaruddin Abdul Rahman 1,3 and Abu Bakar Salleh 2
1
Department of Chemistry, Faculty of Science, UPM Serdang, Universiti Putra Malaysia, Selangor 43400, Malaysia; E-Mails: mahiran@science.upm.edu.my (M.B.); basya@science.upm.edu.my (M.B.A.R.)
2
Laboratory of Molecular Biomedicine, Institute of Bioscience, UPM Serdang, Universiti Putra Malaysia, Selangor 43400, Malaysia; E-Mail: abubakar@biotech.upm.edu.my
3
Structural Biology Research Center, Malaysia Genome Institute, UKM Bangi, Selangor 43600, Malaysia
*
Author to whom correspondence should be addressed; E-Mail: rosa.abedi@gmail.com; Tel.: +603-8946-7487; Fax: +603-8943-5380.
; in revised form: 10 July 2012 / Accepted: 17 July 2012 /
Published: 31 July 2012

Abstract

: Palm oil-based esters (POEs) are unsaturated and non-ionic esters with a great potential to act as chemical penetration enhancers and drug carriers for transdermal drug nano-delivery. A ratio of palmitate ester and nonionic Tween80 with and without diclofenac acid was chosen from an experimentally determined phase diagram. Molecular dynamics simulations were performed for selected compositions over a period of 15 ns. Both micelles showed a prolate-like shape, while adding the drug produced a more compact micellar structure. Our results proposed that the drug could behave as a co-surfactant in our simulated model.
Keywords:
palmitate ester; Tween80; diclofenac acid; self-assembly; molecular dynamics simulation

1. Introduction

Transdermal drug delivery offers many advantages, such as a continuous release into the blood over a longer time and the elimination of gastrointestinal difficulties [1]. The main problem is the skin barrier, which is a rigid lipid bilayer structure at the stratum corneum. Nanoemulsions, due to their very small droplet size and long-term physical stability, have been introduced as a potential solution to this problem. Nanoemulsions can increase the permeation of the drug in a number of diseases and disorders, such as Parkinson’s and Alzheimer’s diseases [2,3]. The nanoemulsion system consists of oil, surfactant, and water with a droplet size in the range of 20–200 nm [4]. The chemical constituents of the nanoemulsion system are considered to be chemical permeation enhancers (CPEs). Nanoemulsions of palm oil-based esters (POEs) have been suggested as potential CPEs due to their lipophilic properties [5].

POEs are unsaturated and nonionic esters that can be prepared by palm oil enzymatic synthesis. Several types of esters that can be found in POEs include oleyl laurate (C30:1) (0.4%), oleylmyristate (C32:1) (2.6%), oleyl palmitate (C34:1) (42.1%), oleyl stearate (C36.1) (5.3%), oleyl oleate (C36:2) (31.7%), and oleyl linoleate (C36:3) (10.2%) [6]. Each of these esters can contribute excellent physicochemical properties to the nanoemulsion system. The hydrophilic-lipophilic balance (HLB) value of POEs has not been reported, but the polar group at the head of POEs makes them hydrophilic. Palm oil-based nanoemulsions are described as dispersions of aggregated molecules of POEs and surfactant molecules in water [7]. In the formulation of nanoemulsions for transdermal drug nano-delivery, nonionic and nontoxic surfactants, such as Polysorbate 80 (or Tween80®), are usually used to reduce the interfacial tension between oil and water due to their amphiphilic properties [8]. Tween80 are odorless and tasteless with a hydrophilic-lipophilic balance (HLB) value of 15.0 ± 1.0 and are often used as an emulsifier, a solubilizer and a wetting agent [9]. By definition, the aggregation occurs above the critical micelle concentration (CMC) for a multicomponent system that follows Equation (1), where Ci is the CMC for each type of amphiphiles and fi is the activity coefficient considering the nonideality of the solution [10].

1 C M C = i = 1 n x i f i C i

In recent years, molecular simulation techniques, such as molecular dynamics (MD), have shown very promising results for predicting micellar behavior in aqueous solution. Organizing virtual atoms using MD can effectively be used to simulate the molecular systems at the atomic level. MD calculations originate from selected force fields based on Newton’s equation of motion [11]. The all-atom level of MD, which is based on realistic potential energies, has been widely used to examine micelles with nonionic structures such as octyl glucoside [12,13], C12E4 in β-cyclodextrin [14], and dodecylphosphocholine (DPC) [1517], in addition to ionic structures such as sodium dodecyl sulfate (SDS) [18] and sodium octanoate [19,20]. Abdul Rahman et al. (2009) reported that POE nanoemulsion could have a great potential to be used as a drug carrier for transdermal drug delivery [21]. A composition of water/POEs/Span20 (75:5:20) was chosen from the experimental phase diagram to perform MD simulation. From their results, a spherical micelle was formed where the POE molecules were surrounded by Span20. In another study by Abdul Rahman et al. (2010), a micellar system, consisting of oleyl oleate (OE) with nonionic Span20 (S20) and Tween80 (T80), was simulated in water to investigate the self-assembly profile of the micelles that formed [22]. The simulation results showed a cylindrical micelle for both models, while the OE/T80 system exhibited a lower eccentricity and a smaller size compared to the OE/S20 micelle. However, after 20 ns, the OE/T80 model also showed a spherical shape.

Here, we aim to investigate the self-assembly of the micelles of oleyl palmitate (OP) and nonionic Tween80 (T80) with and without diclofenac acid (DIF) to understand the drug’s stability and its interaction with the nanoemulsion system (see Figure 1 for molecular structures). Two series of MD simulations were performed at different compositions of OP/T80/water and OP/T80/DIF/water according to the experimental formulation for 15 ns. Diclofenac acid or 2-[(2,6-dichlorophenyl)amino] benzene acetic acid (C14H11Cl2NO2) is a non-steroidal anti-inflammatory hydrophobic drug (NSAID) with the molecular mass of 296.148. It is commercially available in the form of anhydrous sodium salt. Diclofenac is used for the treatment of rheumatoid arthritis, osteoarthritis, ankylosing spondylitis, and a variety of non-rheumatic inflammatory problems. Gastrointestinal difficulties frequently occur after oral consumption for a long period of time, so delivery through the skin by using the nanoemulsion formulation will be a good alternative to decrease its adverse effects [23].

2. Results and Discussion

The formation of micelles can be explained by the interaction of molecules/atoms with one another. We calculated the number of the clusters formed based on the distance between molecules by using the g_clustsize tool in GROMACS version 3.3.2 [24,25]. Molecules that were located over 0.5 nm away from one another were not considered to be part of the same cluster. Figure 2 shows snapshot pictures from our simulated models. As observed above, the OP molecules showed a great potential for self-assembly. This is because the hydrophobic tail of the ester can interact strongly with other ester molecules and with surfactant molecules [26]. Additionally, the molecules that were located at the surface of the smaller clusters tended to disengage themselves and to attach to each other to form the bigger clusters as a result of the Ostwald ripening [27]. This process was repeated many times until a stable aggregate formed. Although the molecules in OP/T80 model did not aggregate to form one large cluster, they moved aggressively throughout the simulation until several clusters were formed, and the number of clusters remained constant until the end of the simulation. The lower stability of the OP/T80 system in 15 ns may suggest that exchange with the bulk solution is a fast process for this model micelle [28].

From our results, adding DIF to the OP/T80 micellar system produced a stable micelle after 10 ns with few escaped OP and DIF molecules (see Figure 2). Our results for the OP/T80/DIF aggregated structure were in consistent with the study reported by the De Smet et al., (1999), where the rate of Ostwald ripening could be affected by the presence of oil-swollen surfactant micelles in the aqueous solution [29]. The aggregation of molecules to form a micelle can be influenced by both hydrophobic and hydrophilic effects. A system with amphiphilic behavior, such as POEs and nonionic Tween80 with a high HLB value, assists in the formation of a stable micellar system. At the same time, diclofenac may also behave as a co-surfactant supporting micelle formation.

It has already been shown that micellization is a dynamic process in which the micelles show a size distribution rather than a specific size [30]. The computation of the effective radius, Rs, of a micelle is an excellent quantitative approach to compare the simulated values with the experimentally observed values [12]. If we assume that the micelles are an approximately spherical shape, the effective radius of the micelle depends on the radius of a solid sphere with uniform density. The effective radius can be calculated from the average radius of gyration according to the following equation:

R s = 5 / 3 R g

Figure 3 shows the fluctuation in the radius of gyration, Rg, as a function of time for both simulated models [black for the OP/T80 system and red for the OP/T80/DIF model]. The compactness of the micelles can be estimated from the Rg values. From Figure 3, a sharp decrease in Rg was observed for the OP/T80/DIF model until 2.5 ns, and then it smoothly decreased until the end of the simulation. However, some sudden spikes were observed approximately 8 ns and 11.5 ns that were most likely a result of periodic boundary conditions. In the OP/T80 model, the Rg increased for the first few picoseconds of the simulation, and then it remained constant until 5 ns. After 5 ns, it constantly increased until the end of the simulation. However, several spikes were observed between 5 ns and 12 ns. After 12 ns, both models showed a constant fluctuation in the radius of gyration until the end of the simulations with a tendency to increase for OP/T80 and decrease for OP/T80/DIF. As observed below, our Rg results showed the formation of one stable aggregate in the OP/T80/DIF model, which can also be observed in Figure 2.

Table 1 reports a summary of the effective radius of the micelles formed and the average radius of gyration in addition to the eccentricity value and the moment of inertia along either the x, y, or z axes. All calculations were averaged over the last 500 ps of the production simulations. The escaped molecules were not included in the subsequent calculations. Our results showed that the OP/T80/DIF micelle was more compact compared to the OP/T80 micelle. The shape of the micelles formed can be quantified by monitoring the three time-averaged principle moments of inertia and evaluating the eccentricity value, e, from Equation (3) [31],

e = 1 - I min / I a v g

where Imin is the moment of inertia along either the x, y, or z axis with the smallest value, and Iavg is the average value over all three axes. The moment of inertia was calculated from the gyration results according Equation (4), where mi is the mass of the atom i, and ri is the distance between the atom and the center of mass of each molecule involved.

R g = ( i r i 2 m i i m i ) 1 / 2

The micelle with an eccentricity value of zero showed a perfect spherical shape; however, our eccentricity results did not suggest the formation of any spherical micelles (see Table 1). We estimated the shapes of the micelles formed by calculating the ratio of the average principal moments of inertia tensors. This analysis is particularly important when the micelle shows significant deviation from the spherical/symmetrical shape [32]. The estimated ratios of the principal moments of inertia were 1.5:1.4:1 for the OP/T80 system and 1.3:1.1:1 for the OP/T80/DIF model; these ratios mimic a prolate-like shape. The values for the OP/T80 model system, however, were much further apart.

The solvent accessible surface area (SASA) can also be used to quantitatively determine the molecular packing in the micellar system. The water accessibility of the surfactant can be evaluated via estimation of the SASA value per molecule of surfactant depending on the micelle size. Table 2 reports the average hydrophobic and hydrophilic values and the total SASA value for our simulated models. A higher total SASA value of 221.52 (±5.33) nm2 per surfactant was found for the OP/T80 model compared to 153.65 (±2.57) for the OP/T80/DIF system; these results indicate a slightly more diffuse and irregular arrangement of molecules relative to each other. The SASA value of the hydrophobic moieties showed the same trend for both models; this result implies that the surfactant molecules packed rather tightly against the surface at the core. This observation might be related to the fact that the micelle geometry re-arranged upon the addition of the DIF molecules. As observed from the results, the area of the micelle surface covered by the hydrophilic SASA decreased only slightly for the two simulated systems, while the area of the hydrophobic parts decreased significantly. As such, the surfaces of the OP/T80 micelle were more hydrophilic, as expected, due to the strong interactions between the surfactant and the water molecules.

Diclofenac is topically administered in the form of gel as 1% sodium salt because it has a high partition coefficient (log P = 4.0) and very low water solubility (17.8 mg/L) in the unionized form [23]. Furthermore, due to several adverse effects, such as a high portion of hepatic first-pass metabolism (~50%) as well as a short biological half-life (1.2–2 h), diclofenac is administered frequently. Therefore, the delivery of diclofenac through the skin may provide better patient compliance over oral consumption [33]. The high hydrophobicity of the molecule is partly maintained even when the drug is in the form of salt. The Diclofenac anion has a positive log P of 0.69, as calculated by the fragment constant method [34]. Diclofenac salt is soluble in aqueous solution, and its penetration into the skin depends on partitioning of the unionized form into the lipophilic phase of the topical emulsion [35]. Although diclofenac acid is a hydrophobic molecule with low solubility in water due to its structure, the hydrophilic carboxylic acid plays an important role in assisting the aggregation process.

The hydrophobic properties of diclofenac will lead the drug molecules to the micelle surface; this effect is the same as what occurs with the hydrophobic Ibuprofen molecule. Long et al., (2006) simulated the solid lipid microparticles (SLM) loaded with Ibuprofen molecules and examined the drug release for the SLM carrier [36]. They found that the Ibuprofen molecules were mainly distributed on the surface of the SLM micelle until the end of the simulation, which was a period of 10 ns. From our results, diclofenac molecules were similarly placed at the surface of the micelle (see Figure 4).

Tween80 and palmitate ester possess the hydrophilic hydroxyls that can easily form hydrogen bonds between these molecules and the carboxyl group of diclofenac. Thus, the hydrophobic tail of the diclofenac remains in the body of the carrier with the hydrophilic part at the oil/water interface along with the Tween80 and palmitate ester molecules. However, Tween80 was used as a surfactant in our study, but due to the characteristic properties of diclofenac molecule, we suggest that diclofenac may have behaved as a co-surfactant in the self-assembly process.

3. Experimental Section

MD simulations were performed based on the OPLS-AA force field [37], and the oleyl palmitate (OP), Tween80 (T80), and diclofenac (DIF) atom types were assigned accordingly. All structures were geometry-optimized by using WinGAMESS [38]. Due to the large size of the T80 and OP molecular structures, optimization was first performed at a lower basis set of STO-3G, and then the equilibrated geometries were re-optimized at the 6-31G level, while the DIF optimization was directly performed at the 6-31G level. The atomic charges were then computed using the Restrained Electrostatics Potential (RESP) method based on electrostatic potentials (ESP) calculated at the 6-31G level in all structures [39].

MD simulations and energy minimization were performed using GROMACS version 3.3.2 [24,25]. All starting structures were placed in a cubic simulation box with pre-equilibrated SPC water [40]. The prepared systems were then energetically minimized using the steepest descent and conjugate gradient techniques until the minimization converged with the maximum force (less than 5 kJ mol−1 nm−1). The systems were heated for 20 ps at 300 K in an NVT ensemble using periodic boundary conditions. A 2 fs stepsize was used with all covalent bonds to hydrogen atoms held rigid using the LINCS approach [41], while the water geometry was constrained using the SETTLE algorithm [42]. The temperature was kept constant at 300 K with τT = 0.5 using the Berendsen thermostat [43]. The electrostatic interactions were cut-off at 1.0 nm using the Particle-Mesh-Ewald (PME) method [44]. Fourth-order interpolation was applied by setting PME_order = 4. This spacing gave electrostatic energies accurately to approximately 5 × 10−3. The van der Waals interactions were cut-off at 1.4 nm for the OP/T80 system, while the cut-off distance for the system involving DIF (OP/T80/DIF) was set at 1.0 nm. The neighbor-searching was cut off at 1.0 nm. To obtain an equilibrated structure, a short equilibration of 300 ps followed by a production of 1 ns with a step size of 2 fs in an NPT ensemble was carried out with the same protocols, except the van der Waals interactions were cut-off between 1 and 1.2 nm for all molecules. The pressure was coupled with the Parrinello-Rahman thermostat at 1.0 bar with a τP of 1.0 [45].

The ternary phase diagram of OP/T80/water was experimentally determined by our research group [46]. We chose one spot from the isotropic region (20:50:30; OP:T80:W) for our simulations. The weight-to-weight ratio of OP/T80 was divided by the molecular weight of each component and was then multiplied by Avogrado’s number to obtain the total number of molecules for each simulated model. Two model systems were prepared. The composition of molecules in our first model without inserting DIF (OP/T80) was chosen as OP (8) and T80 (20). For another model with the drug (OP/T80/DIF), 4 molecules of DIF were added to the previous system. To form the initial mixtures, the equilibrated T80, OP, and DIF molecules were chosen. Twenty molecules of T80 and 8 molecules of OP were placed randomly in a cube using Packmol [47] for OP/T80 model, and then 4 molecules of DIF were added for the OP/T80/DIF model system, followed by salvation in a pre-equilibrated system of SPC water. Two series of MD simulations were performed (see Table 3). Both systems were first energetically minimized using both the steepest-descent and conjugated-gradient techniques and then equilibrated for 300 ps. MD production simulations were performed in an NPT ensemble with a stepsize of 2 fs for 15 ns. The MD protocols were the same as above except that the temperature was coupled to a 300 K bath with the τT changing between 0.2 and 0.5, and the van der Waals forces were cut-off at 1.0 nm.

4. Conclusions

We carried out all-atom MD simulations of oleyl palmitate ester and Tween80 micelle formation with and without diclofenac in aqueous solution for 15 ns. Our results revealed that the self-assembly of these model systems from randomly positioned molecules into micelles is fast and can occur within a nanosecond time scale. The structural properties that we estimated revealed a prolate-like shape for both model systems, and adding the drug produced a more compact micellar structure. Additionally, the drug behaved as a co-surfactant in our simulated models. The presented theoretical study gave a more detailed insight into understanding the complexity of the aggregation process in palm oil-based nanoemulsions and their applications as chemical penetration enhancers and drug carriers.

Acknowledgment

The authors gratefully acknowledge financial support from UPM Research University Grant Scheme RUGS 9199656 for the research grant.

References

  1. Drakulic, B.J.; Juranic, I.O.; Eric, S.; Zloh, M. Role of complexes formation between drugs and penetration enhancers in transdermal delivery. Int. J. Pharm 2008, 363, 40–49. [Google Scholar]
  2. Tadros, T.; Izquierdo, P.; Esquena, J.; Solans, C. Formulation and stability of nano-emulsions. Adv. Colloid Interface Sci 2004, 109, 303–318. [Google Scholar]
  3. Devarajan, V.; Ravichandran, V. Nanoemulsions: As modified drug delivery tool. Int. J. Compr. Pharm 2011, 2, 1–6. [Google Scholar]
  4. Solans, C.; Izquierdo, P.; Nolla, J.; Azemar, N.; Garcia-Celma, M.J. Nano-emulsions. Curr. Opin. Colloid Interface Sci 2005, 10, 102–110. [Google Scholar]
  5. Sulaiman, A.; Basri, M.; Salleh, A.B.; Rahman, R.N.Z.; Ahmad, R.S. Phase behavior of oleyl oleate with nonionic surfactants. J. Dispersion Sci. Technol 2005, 26, 1–3. [Google Scholar]
  6. Gunawan, E.R.; Basri, M.; Rahman, M.B.A.; Salleh, A.B.; Rahman, R.N.Z. Study on response surface methodology (RSM) of lipase-catalyzed synthesis of palm-based wax ester. Enzym. Microb. Technol 2005, 37, 739–744. [Google Scholar]
  7. Peltola, S.; Saarinen-Savolainen, P.; Kiesvaara, J.; Suhonen, T.M.; Urtti, A. Microemulsions for topical delivery of estradiol. Int. J. Pharm 2003, 254, 99–107. [Google Scholar]
  8. El-Sabbagh, H.; Ghanem, A.H.; Abdel-Alim, H.M. Solubilization of indometacin. Pharmazie 1978, 33, 529–531. [Google Scholar]
  9. Rowe, R.C.; Sheskey, P.J.; Owen, A.J. Handbook of Pharmaceutical Excipients; American Pharmaceutical Association: Washington, DC, USA, 2005. [Google Scholar]
  10. Puvvada, S.; Blankschtein, D. Theoretical and experimental investigations of micellar properties of aqueous solutions containing binary mixtures of nonionic surfactants. J. Phys. Chem 1992, 96, 5567–5579. [Google Scholar]
  11. Van Gunsteren, W.S.; Bakowies, D.; Baron, R.; Chandrasekhar, I.; Christen, M.; Daura, X.; Gee, P.; Geerke, D.P.; Glattli, A.; Hunenberger, P.H.; et al. Biomolecular modeling: Goals, problems, perspectives. Angew. Chem. Int. Ed 2006, 45, 4064–4092. [Google Scholar]
  12. Bogusz, S.; Venable, R.M.; Pastor, R.W. Molecular dynamics simulations of Octyl Glucoside Micelles: Structural properties. J. Phys. Chem. B 2000, 104, 5462–5470. [Google Scholar]
  13. Bogusz, S.; Venable, R.M.; Pastor, R.W. Molecular dynamics simulations of Octyl Glucoside Micelles: Dynamic properties. J. Phys. Chem. B 2001, 105, 8312–8321. [Google Scholar]
  14. Cunha-Silva, L.; Teixeira-Dias, J.J.C. Aqueous solution inclusion of the nonionic surfactant C12E4 in β-cyclodextrin: Implications of micellization in stoichiometry determination and model calculations. J. Incl. Phenom. Macrocycl. Chem 2002, 43, 127–131. [Google Scholar]
  15. Tieleman, D.P.; van der Spoel, D.; Berendsen, H.J.C. Molecular dynamics simulations of dodecylphosphocholine micelles at three different aggregate sizes: Micellar structure and chain relaxation. J. Phys. Chem. B 2000, 104, 6380–6388. [Google Scholar]
  16. Marrink, S.J.; Tieleman, D.P.; Mark, A.E. Molecular dynamics simulation of the kinetics of spontaneous micelle formation. J. Phys. Chem. B 2000, 104, 12165–12173. [Google Scholar]
  17. Lazaridis, T.; Mallik, B.; Yong, C. Implicit solvent simulations of DPC micelle formation. J. Phys. Chem. B 2005, 109, 15098–15106. [Google Scholar]
  18. Bruce, C.D.; Berkowitz, M.L.; Perera, L.; Forbes, M.D.E. Molecular dynamics simulation of sodium dodecyl sulfate micelle in water: Micellar structural characteristics and counterion distribution. J. Phys. Chem. B 2002, 106, 3788–3793. [Google Scholar]
  19. De Moura, A.F.; Freitas, L.C.G. Molecular dynamics Simulation of the sodium octanoate micelle in aqueous solution: Comparison of force field parameters and molecular topology effects on the micellar structure. Braz. J. Phys 2004, 34, 64–72. [Google Scholar]
  20. De Moura, A.F.; Freitas, L.C.G. Molecular dynamics simulation of the sodium octanoate micelle in aqueous solution. Chem. Phys. Lett 2005, 411, 474–478. [Google Scholar]
  21. Abdul Rahman, M.B.; Huan, Q.-Y.; Tejo, B.A.; Basri, M.; Salleh, A.B.; Abdul Rahman, R.N.Z. Self-assembly formation of palm-based esters nano-emulsion: A molecular dynamics study. Chem. Phys. Lett 2009, 480, 220–224. [Google Scholar]
  22. Abdul Rahman, M.B.; Latif, M.A.M.; Basri, M.; Salleh, A.B.; Abdul Rahman, R.N.Z. Molecular dynamics simulation of oleyl oleate swollen micelles system. Mol. Simul 2010, 36, 403–407. [Google Scholar]
  23. Manconi, M.; Mura, S.; Sinico, C.; Fadda, A.M.; Vila, A.O.; Molina, F. Development and characterization of liposomes containing glycols as carriers for diclofenac. Colloids Surf. A 2009, 342, 53–58. [Google Scholar]
  24. Lindahl, E.; Hess, B.; van der Spoel, D. GROMACS 3.0: A package for molecular simulation and trajectory analysis. J. Mol. Model 2001, 7, 306–317. [Google Scholar]
  25. Van der Spoel, D.; Lindahl, E.; Hess, B.; Groenhof, G.; Mark, A.E.; Berendsen, H.J.C. GROMACS: Fast, flexible and free. J. Comput. Chem 2005, 26, 1701–1718. [Google Scholar]
  26. Israelachvili, J.; Ladyzhinski, I. The Physico-Chemical Basis of Self-Assembling Structures. In Forces, Growth and form in Soft Condensed Matter: At the Interface between Physics and Biology; Springer: Dordrecht, The Netherlands, 2005; pp. 1–28. [Google Scholar]
  27. Ratke, L.; Voorhees, P.W. Growth and Coarsening: Ostwald Ripening in Material Processing; Springer: Dordrecht, The Netherlands, 2002; pp. 117–118. [Google Scholar]
  28. Bogusz, S.; Venable, R.M.; Pastor, R.W. Molecular dynamics simulations of octyl glucoside micelles: Structural properties. J. Phys. Chem. B 2000, 104, 5462–5470. [Google Scholar]
  29. De Smet, Y.; Deriemaeker, L.; Finsy, R. Ostwald ripening of alkane emulsions in the presence of surfactant micelle. Langmuir 1999, 15, 6745–6754. [Google Scholar]
  30. Maillet, J.B.; Lachet, V.; Coveney, P.V. Large scale molecular dynamics simulation of self-assembly processes in short and long chain cationic surfactants. Phys. Chem. Chem. Physics 1999, 1, 5277–5290. [Google Scholar]
  31. Salinal, S.; Cui, S.; Cochran, H.; Cummings, P. Molecular simulation of a dichain surfactant/water/carbon dioxide system.1: Structural properties of aggregates. Langmuir 2001, 17, 1773–1783. [Google Scholar]
  32. Konidala, P.; He, L.; Niemeyer, B. Molecular dynamics characterization of n-octyl-β-d-glucopyranoside micelle structure in aqueous solution. J. Mol. Graph. Model 2006, 25, 77–86. [Google Scholar]
  33. Nokhodchi, A.; Sharabiani, K.; Rashidi, M.R.; Ghafourian, T. The effect of terpene concentrations on the skin penetration of diclofenac sodium. Int. J. Pharm 2007, 335, 97–105. [Google Scholar]
  34. Fini, A.; Fazio, G.; Gonzalez-Rodriguez, M.; Cavallari, C.; Passerini, N.; Rodriguez, L. Formation of ion-pairs in aqueous solutions of diclofenac salts. Int. J. Pharm 1999, 187, 163–173. [Google Scholar]
  35. Sintov, A.C.; Botner, S.H. Transdermal drug delivery using microemulsion and aqueous systems: Influence of skin storage conditions on the in vitro permeability of diclofenac from aqueous vehicle systems. Int. J. Pharm 2006, 311, 55–62. [Google Scholar]
  36. Long, C.; Zhang, L.; Qian, Y. Dissipative Particle Dynamics Simulation of Ibuprofen Molecules Distribution in the Matrix Of solid Lipid Microparticles (SLM). Proceedings of 16th European Symposium on Computer Aided Process Engineering and 9th International Symposium on Process Systems Engineering, Garmisch-Partenkirchen, Germany, 9–13 July 2006; pp. 1649–1654.
  37. Jorgensen, W.L.; Maxwell, D.S.; Tirado-Rives, J. Development and testing of the OPLS all-atom force field on conformational energetics and properties of organic liquids. J. Am. Chem. Soc 1996, 118, 11225–11236. [Google Scholar]
  38. Schmidt, M.W.; Baldridge, K.K.; Boatz, J.A.; Elbert, S.T.; Gordon, M.S.; Jensen, J.H.; Koseki, S.; Matsunaga, N.; Nguyen, K.A.; Su, S.J.; et al. General atomic and molecular electronic structure system. J. Comput. Chem 1993, 14, 1347–1363. [Google Scholar]
  39. Bayly, C.I.; Cieplak, P.; Cornell, W.; Kollman, P.A. A well-behaved electrostatic potential based method using charge restraints for deriving atomic charges: The RESP model. J. Phys. Chem 1993, 97, 10269–10280. [Google Scholar]
  40. Ferguson, D.M. Parameterization and evaluation of a flexible water model. J. Comput. Chem 1995, 16, 501–511. [Google Scholar]
  41. Hess, B.; Bekker, H.; Berendsen, H.J.C.; Fraaije, J.G.E.M. LINCS: A linear constraint solver for molecular simulation. J. Comput. Chem 1998, 18, 1463–1472. [Google Scholar]
  42. Miyamoto, S.; Kollman, P.A. SETTLE: An analytical version of the SHAKE and RATTLE algorithm for rigid water models. J. Comput. Chem 1992, 13, 952–962. [Google Scholar]
  43. Berendsen, H.J.C.; Postma, J.P.M.; van Gunsteren, W.F.; DiNola, A.; Haak, J.R. Molecular dynamics with coupling to an external bath. J. Chem. Phys 1984, 81, 3684–3690. [Google Scholar]
  44. Essman, U.; Perera, L.; Berkowitz, M.; Darden, T.; Lee, H.; Pedersen, L.G. A smooth particle mesh Ewald method. J. Chem. Phys 1995, 103, 8577–8593. [Google Scholar]
  45. Parrinello, M.; Rahman, A. Polymorphic transitions in single crystals: A new molecular dynamics method. J. Appl. Phys 1981, 52, 7182–7190. [Google Scholar]
  46. Matazmi, I.D. Formation and Characterization of Oleyl Esters nanoemulasion system. In M.Sc. Thesis; Universiti Putra Malaysia: Kuala Lumpur, Malaysia, 2009. [Google Scholar]
  47. Martinez, J.M.; Martinez, L. Packing optimization for automated generation of complex system’s initial configurations for molecular dynamics and docking. J. Comput. Chem 2003, 24, 819–825. [Google Scholar]
Ijms 13 09572f1 1024
Figure 1. Chemical structure of oleyl palmitate, Tween80, and Diclofenac Acid.

Click here to enlarge figure

Figure 1. Chemical structure of oleyl palmitate, Tween80, and Diclofenac Acid.
Ijms 13 09572f1 1024
Ijms 13 09572f2a 1024

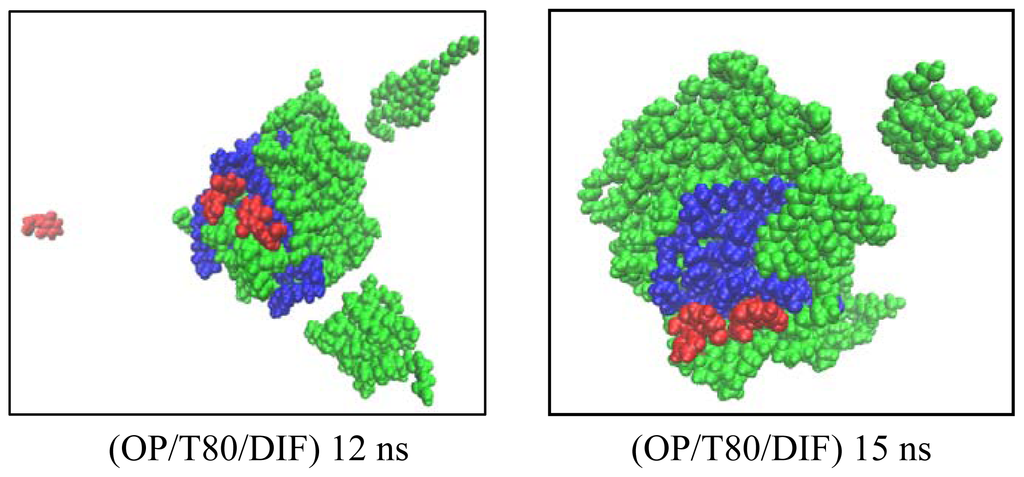

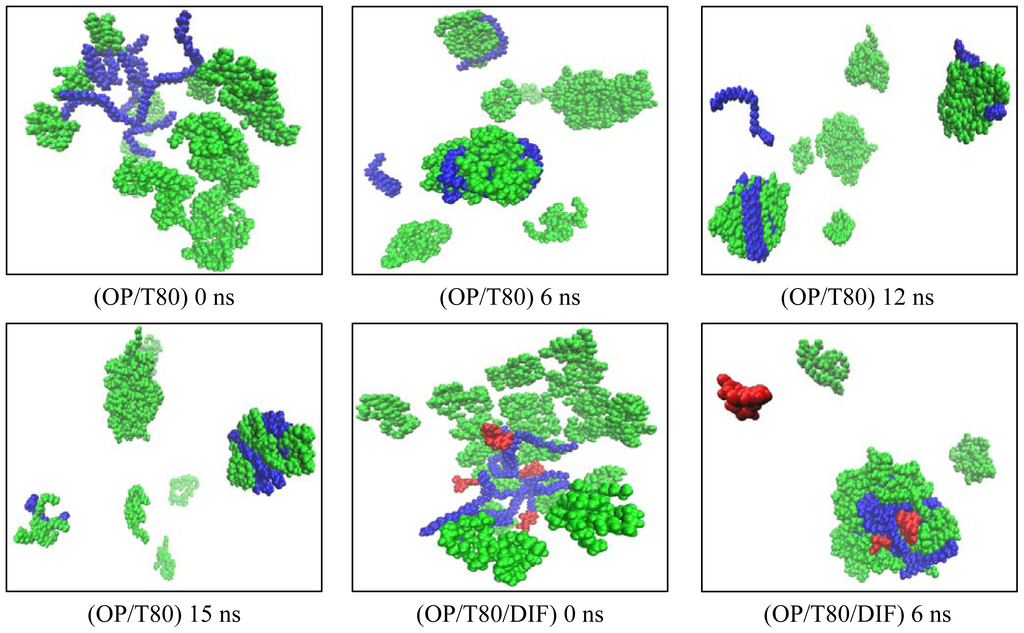

Figure 2. Snapshot pictures during molecular dynamics (MD) simulations of oleyl palmitate (OP)/Tween80 (T80) & OP/T80/diclofenac (DIF) systems at 300 K; OP (Blue); T80 (green); DIF (red).

Click here to enlarge figure

Figure 2. Snapshot pictures during molecular dynamics (MD) simulations of oleyl palmitate (OP)/Tween80 (T80) & OP/T80/diclofenac (DIF) systems at 300 K; OP (Blue); T80 (green); DIF (red).
Ijms 13 09572f2a 1024Ijms 13 09572f2b 1024
Ijms 13 09572f3 1024

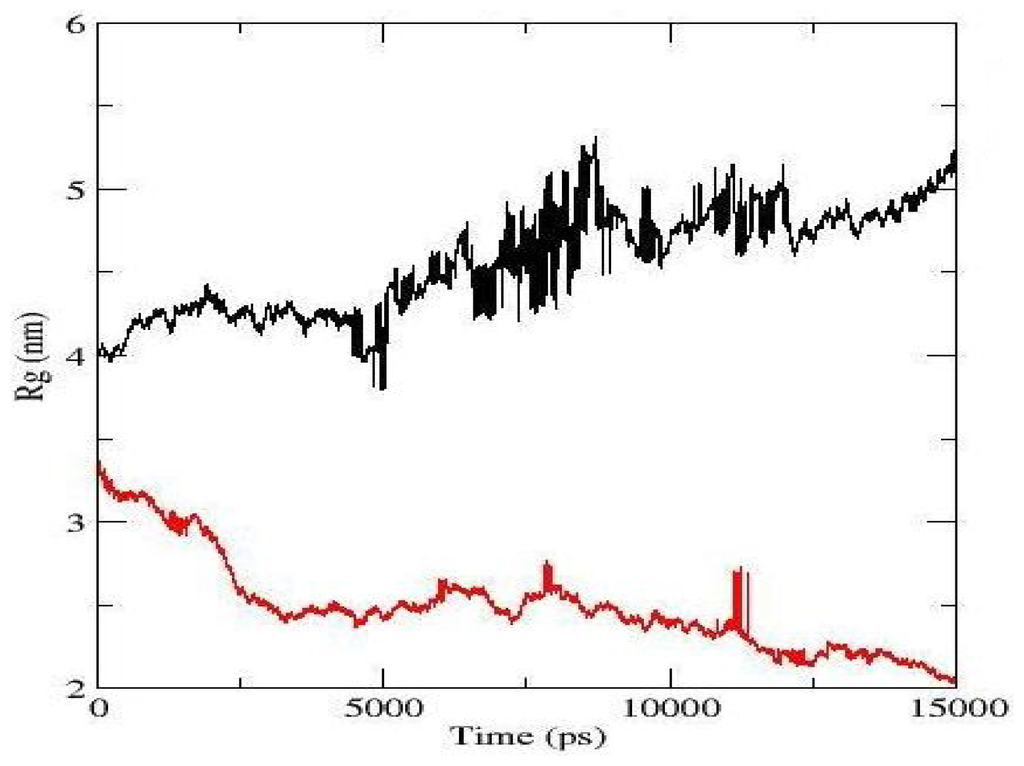

Figure 3. The radius of gyration, with fluctuation as a function of time for both simulations; black (OP/T80) and red (OP/T80/DIF).

Click here to enlarge figure

Figure 3. The radius of gyration, with fluctuation as a function of time for both simulations; black (OP/T80) and red (OP/T80/DIF).
Ijms 13 09572f3 1024
Ijms 13 09572f4 1024

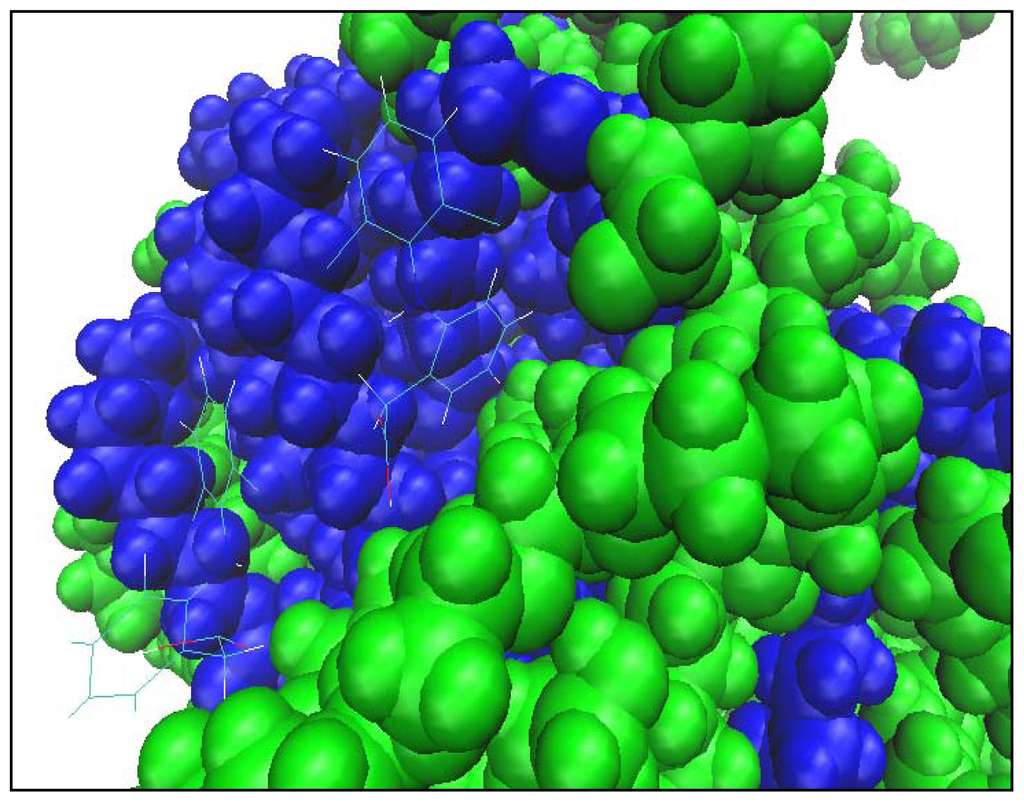

Figure 4. Close-up of a typical conformation of diclofenac molecules (upper) and of oleyl palmitate and Tween80. For the basic color scheme, see caption of Figure 2. Additionally, all oxygens were colored red and hydrogens of the hydroxyl groups white to illustrate the hydrogen bonds.

Click here to enlarge figure

Figure 4. Close-up of a typical conformation of diclofenac molecules (upper) and of oleyl palmitate and Tween80. For the basic color scheme, see caption of Figure 2. Additionally, all oxygens were colored red and hydrogens of the hydroxyl groups white to illustrate the hydrogen bonds.
Ijms 13 09572f4 1024
Table Table 1. A Summary of the averaged Rg, Rs, moment of inertia, and eccentricity values of the OP/T80 and OP/T80/DIF models for the last 500 ps of both simulations.

Click here to display table

Table 1. A Summary of the averaged Rg, Rs, moment of inertia, and eccentricity values of the OP/T80 and OP/T80/DIF models for the last 500 ps of both simulations.
Model system<Rg> (nm)Rs (nm)<I1> (104 amu nm2)<I2> (104 amu nm2)<I3> (104 amu nm2)I1:I2:I3eDroplet size (Exp.) (nm)
OP/T805.10 (±0.006)6.5860.22 (±1.24)55.80 (±1.10)39.94 (±1.96)1.5:1.4:10.65.87
OP/T80/DIF2.07 (±0.002)2.6710.43 (±0.31)8.75 (±0.15)7.86 (±0.25)1.3:1.1:10.5-
Table Table 2. A summary of the hydrophobic, hydrophilic, and total solvent accessible surface area (SASA) values of three model systems, averaged per molecule of Tween80 for the last 500 ps of both simulations.

Click here to display table

Table 2. A summary of the hydrophobic, hydrophilic, and total solvent accessible surface area (SASA) values of three model systems, averaged per molecule of Tween80 for the last 500 ps of both simulations.
Model systemHydrophobic (nm2)Hydrophilic (nm2)Total (nm2)
OP/T80192.58 (±4.65)28.94 (±0.93)221.52 (±5.33)
OP/T80/DIF132.41 (±2.23)21.24 (±0.91)153.65 (±2.57)
Table Table 3. An overview of the MD simulations.

Click here to display table

Table 3. An overview of the MD simulations.
ModelNumber of molecules# SPCBox edge (nm)Average density (g/cm3)Concentration (w%)Average total energy (kJ/mol)
T801536851.01 ± 0.001.4−1.69 × 105 ± 305
OP1214541.01 ± 0.001.3−6.76 × 104 ± 191
DIF113913.51.01 ± 0.001.2−4.41 × 104 ± 142
OP/T8020;84913311.5-3.0;0.5−1.52 × 106 ± 1140
OP/T80/DIF20;8;45583712-2.6;0.4;0.1−1.74 × 106 ± 1038
