ijms International Journal of Molecular Sciences Int. J. Mol. Sci. 1422-0067 Molecular Diversity Preservation International (MDPI) 10.3390/ijms130810067 ijms-13-10067 Article 2,3-Dihydro-1H-cyclopenta[b]quinoline Derivatives as Acetylcholinesterase Inhibitors—Synthesis, Radiolabeling and Biodistribution SzymańskiPaweł1* LázničkováAlice2 LázničekMilan2 BajdaMarek3 MalawskaBarbara3 MarkowiczMagdalena1 Mikiciuk-OlasikElżbieta1 Department of Pharmaceutical Chemistry and Drug Analyses, Medical University, ul. Muszyńskiego 1, Lodz 90-151, Poland; E-Mails: magdalena.markowicz@umed.lodz.pl (M.M.); elzbieta.mikiciuk-olasik@umed.lodz.pl (E.M.-O.) Faculty of Pharmacy in Hradec Kralove, Charles University in Prague, Heyrovskeho 1203, Hradec Kralove CZ-50005, Czech Republic; E-Mails: alice.laznickova@faf.cuni.cz (A.L.); milan.laznicek@faf.cuni.cz (M.L.) Department of Physicochemical Drug Analysis, Faculty of Pharmacy, Jagiellonian University Medical College, Medyczna 9, Krakow 30-688, Poland; E-Mails: marek.bajda@uj.edu.pl (M.B.); barbara.malawska@uj.edu.pl (B.M.) Author to whom correspondence should be addressed; E-Mail: pawel.szymanski@umed.lodz.pl; Tel./Fax: +48-42-677-9250. 2012 13 08 2012 13 8 10067 10090 07 07 2012 06 08 2012 © 2012 by the authors; licensee Molecular Diversity Preservation International, Basel, Switzerland. 2012

This article is an open-access article distributed under the terms and conditions of the Creative Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).

In the present study we describe the synthesis and biological assessment of new tacrine analogs in the course of inhibition of acetylcholinesterase. The obtained molecules were synthesized in a condensation reaction between activated 6-BOC-hydrazinopyridine-3-carboxylic acid and 8-aminoalkyl derivatives of 2,3-dihydro-1H-cyclopenta[b]quinoline. Activities of the newly synthesized compounds were estimated by means of Ellman’s method. Compound 6h (IC50 = 3.65 nM) was found to be most active. All obtained novel compounds present comparable activity to that of tacrine towards acetylcholinesterase (AChE) and, simultaneously, lower activity towards butyrylcholinesterase (BChE). Apart from 6a, all synthesized compounds are characterized by a higher affinity for AChE and a lower affinity for BChE in comparison with tacrine. Among all obtained molecules, compound 6h presented the highest selectivity towards inhibition of acetylcholinesterase. Molecular modeling showed that all compounds demonstrated a similar binding mode with AChE and interacted with catalytic and peripheral sites of AChE. Also, a biodistribution study of compound 6a radiolabeled with 99mTc was performed.

 biological activity medicinal chemistry isotopic labeling drug design radiopharmaceuticals 1. Introduction

Alzheimer’s disease (AD), the most common form of dementia with an incidence that is highly age dependent, is a degenerative disease of the central nervous system characterized by a noticeable cognitive decline. The most characteristic symptoms of AD are memory loss, deficit in learning ability, and a reduced ability to perform the basic activities of daily living. With the ageing of the world population, the prevalence, cost, and potential societal effects of AD will increase with certainty.

Several theories explaining the mechanism of AD development have been proposed by scientists over the past decades. Loss of cholinergic function, known as cholinergic hypothesis, amyloid cascade (amyloid hypothesis), oxidative stress, decrease of steroid hormone concentration, and an inflammatory process are most often mentioned [1]. The widely accepted cholinergic hypothesis has been verified repeatedly.

The most characteristic abnormality associated with AD is a decrease in central cholinergic neurotransmission, a consequence of decreased activity of choline acetyltransferase (ChAT), an enzyme that synthesizes acetylcholine (ACh) [2,3]. Acetylcholine, an ester of choline and acetic acid, acts in both the peripheral nervous system and central nervous system. The second enzyme which influences the level of ACh is acetylcholinesterase (AChE). In its natural state, it is a monomer with a molecular weight of approximately 60 kDa; often, however, it forms aggregates which continue to produce catalytic activity. The enzyme monomer is an α/β protein that contains 537 amino acids. It consists of a 12-stranded mixed beta sheet surrounded by 14 alpha helices [4].

Recent scientific reports suggest that AChE also plays a non-cholinergic role in the development of AD [5,6] by working as a chaperone molecule, accelerating the Aβ peptide deposition, and the aggregation of Aβ into insoluble fibrils [7,8].

One of the most popular therapeutic strategies in the treatment of AD is the control of cholinergic neurotransmission by slowing down the decline of neuronal degeneration or increasing cholinergic transmission [9]. Acetylcholinesterase inhibitors (AChEIs), which increase the synaptic amount of ACh by preventing its degradation, constitute the best-developed and widely approved class of AD drugs [10–13] and are used for mild-to-moderate stages of the disease. Results of clinical trials and imaging suggest that this group of drugs may lead also to a reduction in amyloid precursor protein (APP) formation [11]. Tacrine (1,2,3,4-tetrahydro-9-acridinamine-monohydrochloride) was the first drug approved by the United States Food and Drug Administration in 1993 for the palliative treatment of AD. It is a centrally active non-competitive reversible acetylcholinesterase inhibitor. However, its use is limited by a significant incidence of hepatotoxicity, cardiovascular system impairment, and mild cognitive benefits, while not altering the course of the disease [14].

Nevertheless, the search for new candidates–tacrine analogues is still of interest to scientists involved in AD research [15,16]. For example, 6-fluorotacrin-1-ol and 6-chlorotacrin-1-ol were found to be more potent than tacrine [17]. In the last decade, analogues containing two tacrine moieties linked by an alkylene chain were synthesized. It was reported that these dimeric molecules of tacrine were characterized by a stronger potency and a higher selectivity towards AChE [18,19]. It was proven that bis-(7)-tacrine had several modes of action, such as inhibition of AChE, N-Methyl-d-aspartate (NMDA) receptors, and nitric oxide synthase signaling. Furthermore, several homodimeric tacrine-based AChE inhibitors were synthesized. Their increased inhibitory potency was believed to be derived from the simultaneous binding of the units to the active and peripheral anionic sites of AChE [19]. One of these novel compounds, heptylene-linked bis-tacrine, was found to be 150-fold more active against rat AChE than tacrine and 250-fold more selective for acetylcholinesterase (AChE) than for butyrylcholinesterase (BChE) [20].

Second generation AChEIs (donepezil, rivastigmine and galantamine) demonstrate greater efficacy in AD treatment. Furthermore, when compared to tacrine, these drugs have fewer side effects and longer half-lives [6]. Therefore, synthesis of the analogues of the approved drugs: donepezil, rivastigmine, and galantamine is still of interest for many research groups [21,22].

Because of the complex pathophysiology of AD, involving numerous pathways, development of a satisfactory therapy is problematic. The key therapeutic targets are diffuse loss of neurons, reduced levels of the neurotransmitter acetylcholine (ACh), deposits of β-amyloid (Aβ) plaques, and neurofibrillary tangles [23]. For example, Tomassoli et al. reported that new 4-hydroxy-2-oxo-1,2-dihydroquinoline-3-carboxamides, 4-hydroxy-2-oxo-1,2-dihydroquinoline-3-carbohydrazide, and hexahydropyrimido [5,4-c]quinoline-2,5-diones were characterized by moderate activity towards AChE/BuChE inhibition; none of the synthesized compounds, however, showed higher inhibitory activity than tacrine [24]. Another scientific team investigated the potential activity of substituted 2-aminopyridine-3-carbonitriles towards AChE and BChE inhibition. Biological studies showed that some of these molecules were good AChE inhibitors, in the nanomolar range, and quite selective with regards to the inhibition of BChE [25].

The purpose of this study was to synthesize new derivatives of 2,3-dihydro-1H-cyclopenta [b]quinoline and nicotinic acid and to determine their activity towards inhibition of AChE and BChE. Furthermore, the selectivity of synthesized compounds was determined. This is significant for further phases of our study related to complexation of radioactive isotopes because during the design of novel potential radiopharmaceuticals selectivity and capability of binding with specified biological targets are more important than activity. Molecular modeling studies for synthesized compounds were also performed in order to elucidate the interactions between the enzymes and synthesized compounds. Furthermore, one of the synthesized molecules (compound 6a) was labeled with 99mTc and a biodistribution study of radioactivity was conducted following intravenous administration of 99mTc-6a to rats in order to estimate its potential as diagnostic marker in AD.

 2. Results and Discussion 2.1. Chemistry

The first step of the synthesis was the preparation of 6-BOC-hydrazinopyridine-3-carboxylic acid (2). The substrate for this synthesis was 6-chloronicotinic acid. This compound reacted with hydrazine to give 6-hydrazinenicotinic acid (1). Subsequently, it was treated with di-tert-butyl dicarbonate and triethylamine in the presence of dimethylformamide (Scheme 1).

These syntheses were described earlier by Abrams and co-workers [26]. 8-chloro-2,3-dihydro-1H-cyclopenta[b]quinoline (3) was prepared according to a procedure mentioned in a previous paper [17]. This reaction involved cyclization of anthranilic acid with cyclopentanone in POCl3. Subsequently, the obtained compound (3) was coupled with the appropriate alkyldiamine (number of carbon atoms ranging from 2 to 9) and giving 8-amino-2,3-dihydro-1H-cyclopenta[b]quinolines (Scheme 2) [27–31].

Novel compounds were obtained via the synthesis between 6-(N′-tertbutoxycarbonylhydrazino)-nicotinic acid (2), previously activated by 2-chloro-4,6-dimethoxy-1,3,5-triazine (CDMT), and N-methylmorpholine in solvent and reacted with compounds 4a–4h. The best results (75% yield) in this reaction were achieved with drop by drop addition of N-methylmorpholine to the solution in tetrahydrofuran at −5 °C. Monitoring the reaction by TLC showed that the reaction of activation of the carboxylic group was usually completed within 1–4 h; subsequently, a mixture of the appropriate reactant 4a–4h in the respective solvent was added at −5 °C. The last step of the synthesis involved conversion of the obtained compounds 5a–5h into hydrochlorides 6a–6h (Scheme 3) in the presence of hydrochloric acid with recrystallization from HCl in ether. In this step, the BOC group split off and the new compound precipitated.

 2.2. Pharmacological Evaluation 2.2.1. Studies of AChE/BChE Inhibition

The activity of the synthesized compounds towards inhibition of both enzymes (AChE and BChE) was estimated by Ellman’s spectrophotometric method [32–34]. Table 1 presents IC50 values of the newly obtained compounds with respect to AChE and BChE inhibition. Among these molecules, the most active towards inhibition of AChE appears to be molecule 6h (IC50 = 3.65 nM). Compound 6g (IC50 = 5.17 nM) exhibits a similar value of IC50 to tacrine. Obtained data shows that all synthesized molecules were characterized by lower BChE inhibitory activity in comparison with tacrine. Table 1 also lists values of relative inhibitory effects towards acetylcholinesterase (ratio IC50 BChE/AChE) and butyrylcholinesterase (ratio IC50 AChE/BChE). The most active molecule, compound 6h, was more selective for AChE than tacrine. Derivative 6g, with similar activity with regard to tacrine, was characterized by a higher selectivity for AChE in comparison with tacrine. All acquired compounds possessed lower affinity for BChE than tacrine; among all synthesized compounds, compound 6a presented the highest activity for BChE. These findings are significant in view of the pathological processes involved in this type of neurodegenerative disease [35].

 2.2.2. Studies of Molecular Modeling

A novel series of compounds was docked to acetyl- and butyrylcholinesterase to show the possible interactions between inhibitors and enzymes. All ligands demonstrated a similar binding mode with AChE. They were extended along the active gorge and interacted with catalytic and peripheral sites. The most active molecule (compound 6h) and its binding mode are presented in Figure 1. The fragment of the tacrine analogue with a cyclopentane ring created a characteristic sandwich due to p–p stacking with Trp84 and Phe330. The linker was located in the middle of the gorge, where it formed hydrophobic interactions with aromatic rings of Tyr121 and Tyr334. The nicotinamide moiety, in particular the amide bond, was located between two aromatic residues of the peripheral anionic site—Tyr70 and Trp279. Hydrazine interacted by H–bonding with the carbonyl group of the Asp276 backbone which was why the pyridine ring was shifted and was not able to create classical p–p stacking; it was engaged in some hydrophobic interactions.

In the case of butyrylcholinesterase, the binding mode of the cyclopentaquinoline moiety was similar. The small differences concerned the location of the hydrazinenicotinic fragment in the reduced peripheral anionic site of BChE. The binding mode of the most potent butyrylcholinesterase inhibitor 6a is shown in Figure 2. A fragment of the tacrine analogue created p–p stacking with Trp82 and CH–p interactions with Trp430. The carbonyl group of the inhibitor amide bond formed H-bonding with OH Thr120 and the hydrazine moiety with the C=O of the Ile69 backbone.

 2.2.3. Radiolabeling with <sup>99m</sup>Tc and Biodistribution Studies in Rats

Compound 6a was designed for radiolabeling. Also, spectrophotometric experiments were performed to determine its stability in water (Figure 3).

Taking into consideration all synthesized compounds, compound 6a is characterized by the highest selectivity towards BChE. Assessment of the level of this enzyme is very important as it is different in various stages of Alzheimer’s disease. Quality control of 99mTc-labeled HYNIC-compounds with tricine as coligand with HPLC confirmed the purity of the product, which was found to be without unbound technetium (pertechnetate or hydrolyzed form, which would have appeared after a short elution time) [36]. Figure 4 presents radiochromatograms of complexes formed by technetium-99m with tricine and HYNIC.

Table 2 presents the tissue distribution of radioactivity after intravenous administration of 99mTc-6a to rats. Collectively, compound 6a exhibited relatively rapid blood radioactivity clearance; a large percentage of 99mTc-radioactivity was located in the liver, but also partly in the kidney, lung, and the gastrointestinal tract. Whereas the liver radioactivity uptake persisted for a long time for 99mTc-6a (Table 2), radioactivity found in the kidney and the gastrointestinal tract is more likely connected with elimination of the parent compounds and/or their metabolites from the body. Radioactivity concentrations in the brain were very low; probably, as a result of the hydrophilicity of radiolabelled compounds (the effect of technetium and co-ligands attached to the 2,3-dihydro-1H-cyclopenta [b]quinoline analogues), which are unable to cross the blood-brain barrier. This behavior is disadvantageous for the intended use of the agents for diagnosis of Alzheimer’s disease.

 3. Experimental Section 3.1. Chemistry

During conducted syntheses dry organic solutions were used. This was achieved by employing anhydrous Na2SO4. Solvents were removed with a rotary evaporator. Melting points were determined by using an Electrothermal apparatus with open capillaries and were uncorrected. For monitoring of conducted reactions, TLC with 25 DC-Alufolien Kieselgel 60F254 (Merck) was used; detection was carried out with a UV Lamp (254 nm). Column chromatography was executed using silica gel 60 (200–400 mesh, Merck). For determining IR spectra, Mattson Infinity Series FT-IR spectrophotometer was used. IR spectra were recorded in KBr. 1H NMR spectra were recorded with Varian Mercury 300 MHz spectrometer, with tetramethylsilane as an internal standard. Mass spectra were performed by the Centre of Molecular and Macromolecular Studies in Lodz (Polish Academy of Sciences).

3.1.1. 6-Hydrazinopyridine-3-carboxylic Acid (<bold>1</bold>)

6-Chloronicotinic acid (8.0 g, 50.77 mmol) was dissolved in 80% hydrazine hydrate (35 mL, 930.0 mmol) and placed in a 100 °C oil bath for 4 h. The homogeneous reaction mixture was cooled to room temperature and concentrated to dryness to give a white solid. The solid was dissolved in water and on acidification to pH 5.5 with concentrated hydrochloric acid, a precipitate was formed. The precipitate was isolated by filtration; the solid was washed with 95% ethanol and ether, and dried in vacuum. Compound 1: yield 85%; mp 292–293 °C; 1H NMR (DMSO) (δ ppm.): 8.5 (1H, s, COOH), 8.3 (1H, s, CHN), 7.8 (1H, d, J = 2.4 Hz CCHC), 6.7 (1H, d, J = 8.8 Hz, CCHC), 3.2 (1H, s, CNH), 2.5 (2H, s, NH2); IR (KBr) ν (cm−1): 1333.0, 3080.1, 3308.2; MS (FAB) m/z (M + 1) 154.1; Elemental Analysis: Calc. for C6H7N3O2: C 47.06, H 4.61, N 27.44 Found: C 46.79 H 4.86 N 27.14.

 3.1.2. 6-BOC-hydrazinopyridine-3-carboxylic Acid (<bold>2</bold>)

To a solution of 1 (1.4 g, 9.8 mmol) and triethylamine (1.2 mL, 11.8 mmol) in DMF (10 mL) was added di-tert-butyl dicarbonate (2.13 g, 9.8 mmol). The reaction mixture became homogeneous over 1 h and stirring was continued for 16 h at room temperature. The reaction mixture was concentrated to dryness under reduced pressure to give a brown solid. Recrystallization from ethyl acetate gave the desired product 2 as a white solid. Compound 2: yield 66%; mp 282–285 °C; 1H NMR (DMSO) (δ ppm.): 12.5 (1H, s, COOH), 8.9 (1H, d, J = 2.4 Hz NHC), 8.6 (1H, s, CHN), 7.9 (1H, d, J = 8.8 Hz, CCHC), 6.5 (1H, d, J = 8.8 Hz CCHC), 3.3 (1H, s, CNH), 1.9 (9H, s, BOC); IR (KBr) ν (cm−1): 1608.8, 1706.4, 3253.7; MS (FAB) m/z (M + 1) 254.2, 198.0; Elemental Analysis: Calc. for C11H15N3O4: C 52.17, H 5.97, N 16.59 Found: C 51.35, H 6.07, N 16.29.

 3.1.3. 9-Chloro-2,3-dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinoline (<bold>3</bold>)

To a mixture of anthranilic acid (7.4 g, 53.9 mmol) and cyclopentanone (1.64 mL, 53.9 mmol) was carefully added 30 mL of POCl3 in an ice bath. The mixture was heated under reflux for 2 h, then cooled to room temperature, and concentrated under reduced pressure to give a slurry. The residue was diluted with ethyl acetate (50 mL), neutralized with aqueous K2CO3 (30 mL), and washed with brine (2 × 20 mL). The organic layer was dried over MgSO4 and concentrated to dryness under reduced pressure to give a brown solid. Recrystallization from acetone gave the desired product 1 as a yellow solid. Compound 1: yield 54%; mp 85–87 °C; 1H NMR (CDCl3) (δ ppm.): 8.1 (1H, d, J = 8.3 Hz, ArH), 7.9 (1H, d, J = 8.5 Hz, ArH), 7.6 (1H, t, J = 6.9 Hz, ArH), 7.4 (1H, t, J = 6.9 Hz, ArH), 3.0 (2H, d, J = 5.9 Hz, CH2), 2.9 (2H, d, J = 5.0 Hz, CH2), 1.8 (2H, t, J = 6.9 CH2); IR (KBr) ν (cm−1): 766.2, 1607.2, 2955.1, 2920.7, 3417.8.

 3.1.4. <italic>N</italic>′-(2,3-Dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-yl)ethane-1,2-diamine (<bold>4a</bold>)

A mixture of 3 (0.71 g, 3.5 mmol), 1,2-diaminoethane (0.47 mL, 7 mmol), phenol (1.5 g), and NaI (0.07 g) was carefully heated at 180 °C for 2 h and then cooled to room temperature. The mixture was diluted with ethyl acetate (50 mL) and made basic with 10% KOH solution (30 mL). The organic layer was washed with water (20 mL) and brine (2 × 20 mL), and then dried over MgSO4 and concentrated under reduced pressure. The resulting residue was purified with silica gel chromatography (CH2Cl2: CH3OH:NH3 = 10:4.6:0.5) to afford 4a as an oil. Compound 4a: yield 64%; 1H NMR (CDCl3) (δ ppm.): 7.8 (1H, d, J = 8.3 Hz, ArH), 7.7 (1H, d, J = 8.3 Hz, ArH), 7.5 (1H, t, J = 6.9 Hz, ArH), 7.3 (1H, t, J = 8.1 Hz, ArH), 5.4 (1H, s, NH), 3.6 (2H, d, J = 5.4 Hz, NHCH2), 3.1 (2H, t, J = 7.3 Hz CH2NH2), 2.8–3.0 (4H, m, CH2), 2.6 (2H, p, J = 7.5, 7.5 Hz CH2), 1.6 (2H, s, NH2), IR (KBr) ν (cm−1): 1570.4, 2856.4, 2924.5, 2950.0, 3355.7; MS (FAB) m/z (M + 1) 228.1, 197.0, 185.0; MS-HR (FAB) Calc. for C14H17N3: 227.1422 Found: 227.14195.

 3.1.5. <italic>N</italic>′-(2,3-Dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-yl)propane-1,3-diamine (<bold>4b</bold>)

A mixture of 3 (0.71 g, 3.5 mmol), 1,3-diaminopropane (0.58 mL, 7 mmol), phenol (1.5 g), and NaI (0.07 g) was combined as above to afford 4b as an oil. Compound 4b: yield 72%; 1H NMR (CD3OD) (δ ppm.): 8.0 (1H, d, J = 7.6 Hz, ArH), 7.7 (1H, d, J = 7.6 Hz, ArH), 7.6 (1H, t, J = 7.1 Hz, ArH), 7.4 (1H, t, J = 6.8 Hz, ArH), 3.7 (2H, t, J = 7.1 Hz, NHCH2), 3.3 (2H, t, J = 7.1 CH2NH2), 3.0 (2H, t, J = 7.1 Hz, CH2), 2.8 (2H, t, J = 7.1 Hz CH2), 2.1 (2H, p, J = 7.6, 7.8 Hz CH2), 1.9 (2H, p, J = 7.1, 7.1 Hz, CH2); IR (film) ν (cm−1): 1568.8, 2870.4, 2951.9, 3348.7; MS (FAB) m/z (M + 1) 242.2, 197.0, 185.0; MS-HR (FAB) Calc. for C15H19 N3: 241.1579 Found: 241.15789.

 3.1.6. <italic>N</italic>′-(2,3-Dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-yl)butane-1,4-diamine (<bold>4c</bold>)

A mixture of 3 (0.71 g, 3.5 mmol), 1,6-diaminohexane (0.81 g, 7 mmol), phenol (1.5 g), and NaI (0.07 g) was combined as above to afford 4c as an oil. Compound 4c: yield 52%; 1H NMR (CD3OD) (δ ppm.): 8.0 (1H, d, J = 7.6 Hz, ArH), 7.7 (1H, d, J = 7.3 Hz, ArH), 7.5 (1H, t, J = 6.8 Hz, ArH), 7.4 (1H, t, J = 8.3 Hz, ArH), 3.6 (2H, t, J = 6.3 Hz, NHCH2), 3.2 (2H, t, J = 7.1 CH2NH2), 2.9 (2H, t, J = 7.8 Hz, CH2), 2.7 (2H, t, J = 7.1 Hz CH2), 2.1 (2H, p, J = 7.6, 7.6 Hz CH2), 1.6–1.8 (4H, m, CH2); IR (film) ν (cm−1): 1566.8, 2865.0, 2934.1, 3304.1; MS (FAB) m/z (M + 1) 256.2, 197.0, 185.0; MS-HR (FAB) Calc. for C16H21N3: 255.1735 Found: 255.17328.

 3.1.7. <italic>N</italic>′-(2,3-Dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-yl)penthane-1,5-diamine (<bold>4d</bold>)

A mixture of 3 (0.71 g, 3.5 mmol), 1,5-diaminopentane (0.82 mL, 7 mmol), phenol (1.5 g), and NaI (0.07 g) was combined as above to afford 4d as an oil. Compound 4d: yield 75%; 1H NMR (CDCl3) (δ ppm.): 7.8 (1H, d, J = 7.3 Hz, ArH), 7.6 (1H, d, J = 7.5 Hz, ArH), 7.5 (1H, t, J = 6.9 Hz, ArH), 7.3 (1H, t, J = 6.9 Hz, ArH), 4.6 (1H, s, NH), 3.5 (2H, m, NHCH2), 3.1 (2H, t, J = 6.9 Hz, CH2), 3.0 (2H, t, J = 7.7 Hz, CH2NH2), 2.6 (2H, t, J = 6.7 Hz, CH2), 2.1 (2H, p, J = 3.9, 3.8 Hz, CH2), 1.9 (2H, s, NH2), 1.6 (2H, p, J = 7.3, 6.5 Hz, CH2), 1.3–1.5 (4H, br, CH2); IR (film) ν (cm−1): 1567.9, 2856.5, 2931.8, 3310.4; MS (FAB) m/z (M + 1) 270.3, 197.1, 185.0; MS-HR (FAB) Calc. for C17H23N3: 269.1892 Found: 270.19712 (M + 1).

 3.1.8. <italic>N</italic>′-(2,3-Dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-yl)hexane-1,6-diamine (<bold>4e</bold>)

A mixture of 3 (0.71 g, 3.5 mmol), 1,6-diaminohexane (0.82 g, 7 mmol), phenol (1.5 g), and NaI (0.07 g) was combined as above to afford 4e as an oil. Compound 4e: yield 64%; 1H NMR (CD3OD) (δ ppm.): 8.0 (1H, d, J = 8.3 Hz, ArH), 7.7 (1H, d, J = 8.3 Hz, ArH), 7.5 (1H, t, J = 7.8 Hz, ArH), 7.3 (1H, t, J = 7.8 Hz, ArH), 3.6 (2H, t, J = 7.1 Hz, NHCH2), 3.2 (2H, t, J = 7.1 Hz, CH2), 3.0 (4H, t, J = 7.8 Hz, CH2NH2), 2.6 (2H, t, J = 6.8 Hz, CH2), 2.1 (2H, p, J = 7.6, 7.3 Hz, CH2), 1.6–1.7 (2H, m, CH2), 1.3–1.5 (6H, br, CH2); IR (film) ν (cm−1): 1567.5, 2855.0, 2928.4, 3350.4; MS (FAB) m/z (M + 1) 284.3, 197.0, 185.0; MS-HR (FAB) Calc. for C18H25N3: 283.2048 Found: 283.20426.

 3.1.9. <italic>N</italic>′-(2,3-Dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-yl)heptane-1,7-diamine (<bold>4f</bold>)

A mixture of 3 (0.75 g, 3.5 mmol), 1,7-diaminoheptane (0.92 g, 7 mmol), phenol (1.5 g), and NaI (0.07 g) was combined as above to afford 4f as an oil. Compound 4f: yield 72%; 1H NMR (CDCl3) (δ ppm.): 7.9 (1H, d, J = 7.5 Hz, ArH), 7.7 (1H, t, J = 8.3 Hz, ArH), 7.5 (1H, t, J = 7.1 Hz, ArH), 7.4 (1H, t, J = 6.9 Hz, ArH), 4.6 (1H, s, NH), 3.6 (2H, m, NHCH2), 3.3 (2H, t, J = 7.5 Hz, CH2), 3.0 (2H, t, J = 7.7 Hz, CH2NH2), 2.6 (2H, t, J = 6.7 Hz, CH2), 2.1 (2H, p, J = 7.7, 7.3 Hz, CH2), 1.7 (2H, s, NH2), 1.5–1.6 (2H, m, CH2CH2), 1.2–1.5 (8H, br, CH2CH2); IR (film) ν (cm−1): 1567.9, 2853.9, 2927.9, 3294.4; MS (FAB) m/z (M + 1) 298.3, 197.0, 185.0; MS-HR (FAB) Calc. for C19H27N3: 297.2205 Found: 298.22911 (M + 1).

 3.1.10. <italic>N</italic>′-(2,3-Dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-yl)octane-1,8-diamine (<bold>4g</bold>)

A mixture of 3 (0.71 g, 3.5 mmol), 1,8-diaminooctane (1.00 g, 7 mmol), phenol (1.5 g), and NaI (0.07 g) was combined as above to afford 4g as an oil. Compound 4g: yield 68%; 1H NMR (CDCl3) (δ ppm.): 7.8 (1H, d, J = 8.3 Hz, ArH), 7.5 (1H, t, J = 7.3 Hz, ArH), 7.3 (1H, t, J = 7.5 Hz, ArH), 4.5 (1H, s, NH), 3.5 (2H, m, NHCH2), 3.1 (2H, t, J = 7.1 Hz, CH2), 3.0 (2H, d, J = 7.7 Hz, CH2NH2), 2.6 (2H, t, J = 6.5 Hz, CH2), 1.5–1.6 (4H, br, CH2, NH2), 1.1–1.5 (10H, br, CH2); IR (film) ν (cm−1): 1567.2, 2853.2, 2925.5, 3329.5; MS (FAB) m/z (M + 1) 312.5, 197.1, 185.1; MS-HR (FAB) Calcd. for C20H29N3: 311.2361 Found: 312.24442 (M + 1).

 3.1.11. <italic>N</italic>′-(2,3-Dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-yl)nonane-1,9-diamine (<bold>4f</bold>)

A mixture of 3 (0.71 g, 3.5 mmol), 1,9-diaminononane (1.10 g, 7 mmol), phenol (1.5 g), and NaI (0.07 g) was combined as above to afford 4f as an oil. Compound 4f: yield 66%; 1H NMR (CDCl3) (δ ppm.): 7.8 (1H, d, J = 7.3 Hz, ArH), 7.6 (1H, d, J = 7.5 Hz, ArH), 7.5 (1H, t, J = 6.9 Hz, ArH), 7.2 (1H, t, J = 6.9 Hz, ArH), 4.6 (1H, s, NH), 3.5 (2H, m, NHCH2), 3.1 (2H, t, J = 7.1 Hz CH2), 3.0 (2H, t, J = 7.7 Hz, CH2NH2), 2.6 (2H, t, J = 6.9 Hz CH2), 2.1 (2H, p, J = 7.7, 7.7 Hz CH2), 1,7 (2H, s, NH2), 1.5–1.6 (2H, m, CH2CH2), 1.1–1.3 (14H, br, CH2CH2); IR (film) ν (cm−1): 1568.0, 2852.5, 2925.7, 3294.4; MS (FAB) m/z (M + 1) 326.3, 185.0; MS-HR (FAB) Calc. for C21H31N3: 325.2518 Found: 326.26086 (M + 1).

 3.1.12. <italic>N</italic>-{5-[2-(2,3-Dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-ylamino)ethylcarbamoyl]pyridin-2-yl} hydrazinecarboxylic Acid <italic>tert</italic>-Butyl Ester (<bold>5a</bold>)

To the 2-chloro-4,6-dimethoxy-1,3,5-triazine (CDMT) (1.76 g, 10 mmol) and 2 (2.53 g, 10 mmol) in THF (10 mL), N-methylmorpholine (1.1 mL, 10 mmol) was added drop by drop at a rate sufficient to keep the temperature between −5 °C and 0 °C. Stirring was continued at 0 °C for 1–4 h until all CDMT was consumed. Subsequently, to the crude mixture obtained as described above, 4a (2.27 g, 10 mmol) in THF (8 mL) at −5 °C to 0 °C was added. Stirring was continued at 0 °C for 2 h, and then for 12 h at room temperature. Precipitate formed and was isolated by filtration. Recrystallization from ethyl acetate afforded the desired product 5a as a yellow solid. Compound 5a: yield 68%; mp 200–202 °C; 1H NMR (CD3OD) (δ ppm.): 8.5 (1H, s, ArH),8.3 (1H, d, J = 8.3 Hz, ArH), 7.9 (1H, d, J = 11.5 Hz, ArH), 7.8 (1H, t, J = 7.1 Hz, ArH), 7.7 (1H, d, J = 8.5 Hz, ArH), 7.6 (1H, t, J = 7.1 Hz, ArH), 6.7 (1H, d, J = 8.5 Hz, ArH), 4.0 (2H, t, J = 5.6 Hz, CH2), 3.7 (2H, t, J = 6.0 Hz, CH2), 3.4 (2H, t, J = 6.6 Hz, CH2), 3.1 (2H, t, J = 7.8 Hz, CH2), 2.3 (2H, p, J = 7.6, 7.8 Hz, CH2), 1.3–1.5 (9H, m, BOC); IR (KBr) ν (cm−1): 1464.2, 1610.9, 1740.6, 2869.2, 2936.2, 3422.1; MS (FAB) m/z (M + 1) 463.4, 363.2; 183.1; MS-HR (FAB) Calc. for C25H30N6O3: 462.23794 Found: 463.24583 (M + 1).

 3.1.13. <italic>N</italic>-{5-[3-(2,3-Dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-ylamino)propylcarbamoyl]pyridin-2-yl} hydrazinecarboxylic Acid <italic>tert</italic>-Butyl Ester (<bold>5b</bold>)

A mixture of 2-chloro-4,6-dimethoxy-1,3,5-triazine (CDMT) (1.76 g, 10 mmol), 2 (2.53 g, 10 mmol) in THF (10 mL), and N-methylmorpholine (1.1 mL, 10 mmol) and after 4 h 4b (2.41 g, 10 mmol) in THF were combined as above to afford 5b as yellow solid. Compound 5b: yield 66%; mp 159–161 °C; 1H NMR (CD3OD) (δ ppm.): 8.5 (1H, s, ArH),8.3 (1H, d, J = 8.5 Hz, ArH), 7.9 (1H, d, J = 9.0 Hz, ArH), 7.8 (1H, t, J = 5.9 Hz, ArH), 7.7 (1H, d, J = 7.6 Hz, ArH), 7.6 (1H, t, J = 8.5 Hz, ArH), 6.7 (1H, d, J = 8.5 Hz, ArH), 3.8 (2H, t, J = 6.8 Hz, CH2), 3.7 (2H, t, J = 4.6 Hz, CH2), 3.5 (2H, t, J = 6.4 Hz, CH2), 3.3 (2H, m, NH), 3.1 (2H, t, J = 7.8 Hz, CH2), 2.5 (2H, m, NH), 2.2 (2H, p, J = 7.8, 7.6 Hz, CH2), 2.0 (2H, p, J = 7.6, 5.1 Hz, CH2), 1.3–1.5 (9H, m, BOC); IR (KBr) ν (cm−1): 1470.7, 1635.8, 1721.1, 2853.4, 2967.2, 3259.6; MS (FAB) m/z (M + 1) 477.3, 377.3, 183.0; MS-HR (FAB) Calc. for C26H32N6O3: 476.25359 Found: 477.25943 (M + 1).

 3.1.14. <italic>N</italic>-{5-[4-(2,3-Dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-ylamino)butylcarbamoyl]pyridin-2-yl} hydrazinecarboxylic Acid <italic>tert</italic>-Butyl Ester (<bold>5c</bold>)

A mixture of 2-chloro-4,6-dimethoxy-1,3,5-triazine (CDMT) (1.76 g, 10 mmol), 2 (2.53 g, 10 mmol) in THF (10 mL), and N-methylmorpholine (1.1 mL, 10 mmol) and after 4 h 4c (2.55 g, 10 mmol) in THF were combined as above to afford 5c as yellow solid. Compound 5c: yield 67%; mp 145–148 °C; 1H NMR (CD3OD) (δ ppm.): 8.5 (1H, s, ArH),8.3 (1H, d, J = 7.9 Hz, ArH), 7.9 (1H, m, ArH), 7.8 (1H, t, J = 7.3 Hz, ArH), 7.7 (1H, d, J = 6.9 Hz, ArH), 7.6 (1H, t, J = 6.9 Hz, ArH), 6.7 (1H, d, J = 8.3 Hz, ArH), 3.8 (2H, t, J = 6.9 Hz, CH2), 3.7 (2H, t, J = 4.6 Hz, CH2), 3.3–3.4 (4H, m, NH, CH2), 3.1 (2H, t, J = 7.9 Hz, CH2), 2.5 (2H, m, NH), 2.3 (2H, p, J = 7.7, 9.3 Hz, CH2), 1.7 (4H, m, CH2), 1.3–1.5 (9H, m, BOC); IR (KBr) ν (cm−1): 1466.6, 1634.1, 1721.1, 2934.4, 3260.6; MS (FAB) m/z (M + 1) 491.3, 391.3, 185.1; MS-HR (FAB) Calc. for C27H34N6O3: 490.26924 Found: 491.27811 (M + 1).

 3.1.15. <italic>N</italic>-{5-[5-(2,3-Dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-ylamino)pentylcarbamoyl]pyridin-2-yl} hydrazinecarboxylic Acid <italic>tert</italic>-Butyl Ester (<bold>5d</bold>)

A mixture of 2-chloro-4,6-dimethoxy-1,3,5-triazine (CDMT) (1.76 g, 10 mmol), 2 (2.53 g, 10 mmol) in THF (10 mL), and N-methylmorpholine (1.1 mL, 10 mmol) and after 4 h 4d (2.69 g, 10 mmol) in THF were combined as above to afford 5d as yellow solid. Compound 5d: yield 70%; mp 106–108 °C; 1H NMR (CD3OD) (δ ppm.): 8.4 (1H, s, ArH),8.2 (1H, d, J = 8.7 Hz, ArH), 7.9 (1H, d, J = 8.9 Hz, ArH), 7.8 (1H, t, J = 5.6 Hz, ArH), 7.7 (1H, d, J = 8.1 Hz, ArH), 7.5 (1H, t, J = 8.3 Hz, ArH), 6.6 (1H, d, J = 8.9 Hz, ArH), 3.8 (2H, t, J = 6.9 Hz, CH2), 3.7 (2H, t, J = 4.8 Hz, CH2), 3.4 (2H, m, NH), 3.3 (2H, t, J = 7.1 Hz, CH2), 3.1 (2H, t, J = 7.7 Hz, CH2), 2.5 (2H, m, NH), 2.2 (2H, p, J = 7.9, 7.5 Hz, CH2), 1.6–1.8 (6H, m, CH2), 1.3–1.5 (9H, m, BOC); IR (KBr) ν (cm−1): 1465.2, 1634.4, 1716.0, 2855.0, 2927.0, 3275.6; MS (FAB) m/z (M + 1) 505.4, 405.3, 185.0; MS-HR (FAB) Calc. for C28H36N6O3: 504.28489 Found: 505.29257 (M + 1).

 3.1.16. <italic>N</italic>-{5-[6-(2,3-Dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-ylamino)hexylcarbamoyl]pyridin-2-yl} hydrazinecarboxylic Acid <italic>tert</italic>-Butyl Ester (<bold>5e</bold>)

A mixture of 2-chloro-4,6-dimethoxy-1,3,5-triazine (CDMT) (1.76 g, 10 mmol), 2 (2.53 g, 10 mmol) in THF (10 mL), and N-methylmorpholine (1.1 mL, 10 mmol) and after 4 h 4c (2.83 g, 10 mmol) in THF were combined as above to afford 5c as yellow solid. Compound 5c: yield 75%; mp 110–112 °C; 1H NMR (CD3OD) (δ ppm.): 8.5 (1H, s, ArH), 8.3 (1H, d, J = 8.1 Hz, ArH), 8.0 (1H, d, J = 9.1 Hz, ArH), 7.8 (1H, t, J = 5.7 Hz, ArH), 7.7 (1H, d, J = 7.5 Hz, ArH), 7.6 (1H, t, J = 7.1 Hz, ArH), 6.7 (1H, d, J = 8.9 Hz, ArH), 3.8 (2H, t, J = 7.2 Hz, CH2), 3.7 (2H, t, J = 4.8 Hz, CH2), 3.4 (4H, m, NH, CH2), 3.2 (2H, t, J = 5.4 Hz, CH2), 2.5 (2H, m, NH), 2.3 (2H, p, J = 7.7, 7.7 Hz, CH2), 1.8 (4H, m, CH2), 1.7 (4H, m, CH2), 1.3–1.5 (9H, m, BOC); IR (KBr) ν (cm−1): 1466.2, 1634.4, 1717.01, 2855.5, 2930.2, 3250.3; MS (FAB) m/z (M + 1) 519.3, 419.3, 185.0; MS-HR (FAB) Calc. for C29H38N6O3: 518.30054 Found: 519.30705 (M + 1).

 3.1.17. <italic>N</italic>-{5-[7-(2,3-Dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-ylamino)heptylcarbamoyl]pyridin-2-yl} hydrazinecarboxylic Acid <italic>tert</italic>-Butyl Ester (<bold>5f</bold>)

A mixture of 2-chloro-4,6-dimethoxy-1,3,5-triazine (CDMT) (1.76 g, 10 mmol), 2 (2.53 g, 10 mmol) in THF (10 mL), and N-methylmorpholine (1.1 mL, 10 mmol) and after 4 h 4d (2.97 g, 10 mmol) in THF were combined as above to afford 5d as yellow solid. Compound 5d: yield 66%; mp 105–107 °C; 1H NMR (CD3OD) (δ ppm.): 8.5 (1H, s, ArH), 8.3 (1H, d, J = 8.7 Hz, ArH), 8.0 (1H, d, J = 6.9 Hz, ArH), 7.8 (1H, t, J = 8.1 Hz, ArH), 7.7 (1H, d, J = 8.5 Hz, ArH), 7.6 (1H, t, J = 6.9 Hz, ArH), 6.7 (1H, d, J = 8.7 Hz, ArH), 4.0 (2H, t, J = 4.0 Hz, CH2), 3.8 (2H, t, J = 7.1 Hz, CH2), 3.4 (2H, t, J = 6.1 Hz, CH2), 3.2 (2H, t, J = 7.9 Hz, CH2), 2.3 (2H, p, J = 8.1, 6.9 Hz, CH2), 1.8 (4H, m, CH2), 1.6 (6H, m, CH2), 1.3–1.5 (9H, m, BOC); IR (KBr) ν (cm−1): 1566.5, 1717.7, 2855.1, 2927.2, 3295.0; MS (FAB) m/z (M + 1) 533.3, 433.3, 185.0; MS-HR (FAB) Calc. for C30H40N6O3: 532.31619 Found: 533.32329 (M + 1).

 3.1.18. <italic>N</italic>-{5-[8-(2,3-Dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-ylamino)octylcarbamoyl]pyridin-2-yl} hydrazinecarboxylic Acid <italic>tert</italic>-Butyl Ester (<bold>5g</bold>)

A mixture of 2-chloro-4,6-dimethoxy-1,3,5-triazine (CDMT) (1.76 g, 10 mmol), 2 (2.53 g, 10 mmol) in THF (10 mL), and N-methylmorpholine (1.1 mL, 10 mmol) and after 4 h 4c (3.11 g, 10 mmol) in THF were combined as above to afford 5c as yellow solid. Compound 5c: yield 46%; mp 134–136 °C; 1H NMR (CD3OD) (δ ppm.): 8.5 (1H, s, ArH), 8.3 (1H, d, J = 8.7 Hz, ArH), 8.0 (1H, d, J = 6.6 Hz, ArH), 7.8 (1H, t, J = 6.9 Hz, ArH), 7.7 (1H, d, J = 8.5 Hz, ArH), 7.6 (1H, t, J = 6.9 Hz, ArH), 6.7 (1H, d, J = 8.7 Hz, ArH), 4.6 (2H, m, NH), 4.0 (2H, t, J = 3.8 Hz, CH2), 3.8 (2H, t, J = 7.3 Hz, CH2), 3.4 (4H, m, NH,CH2), 3.2 (2H, t, J = 7.9 Hz, CH2), 2.3 (2H, p, J = 7.7, 6.9 Hz, CH2), 1.7 (6H, m, CH2), 1.6 (6H, m, CH2), 1.3–1.5 (9H, m, BOC); IR (KBr) ν (cm−1): 1466.7, 1634.1, 1717.2, 2854.3, 2928.2, 3259.6; MS (FAB) m/z (M + 1) 547.3, 447.3, 183.0; MS-HR (FAB) Calc. for C31H42N6O3: 546.33184 Found: 547.33977 (M + 1).

 3.1.19. <italic>N</italic>-{5-[9-(2,3-Dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-ylamino)nonylcarbamoyl]pyridin-2-yl} hydrazinecarboxylic Acid <italic>tert</italic>-Butyl Ester (<bold>5h</bold>)

A mixture of 2-chloro-4,6-dimethoxy-1,3,5-triazine (CDMT) (1.76 g, 10 mmol), 2 (2.53 g, 10 mmol) in THF (10 mL), and N-methylmorpholine (1.1 mL, 10 mmol) and after 4 h 4d (3.26 g, 10 mmol) in THF were combined as above to afford 5d as yellow solid. Compound 5d: yield 62%; mp 81–83 °C; 1H NMR (CD3OD) (δ ppm.): 8.5 (1H, s, ArH), 8.4 (1H, d, J = 8.3 Hz, ArH), 8.0 (1H, m, ArH), 7.8 (1H, t, J = 8.3 Hz, ArH), 7.7 (1H, d, J = 8.1 Hz, ArH), 7.5 (1H, t, J = 7.3 Hz, ArH), 6.6 (1H, d, J = 9.1 Hz, ArH), 4.6 (2H, m, NH), 4.0 (2H, m, CH2), 3.8 (2H, m, CH2), 3.4 (2H, m, NH), 3.0 (2H, m, CH2), 2.7 (2H, m, CH2), 2.0 (2H, p, J = 7.7, 6.9 Hz, CH2), 1.8 (6H, m, CH2), 1.7 (8H, m, CH2), 1.3–1.5 (9H, m, BOC); IR (KBr) ν (cm−1): 1489.8, 1636.3, 1709.1, 2868.7, 2927.8, 3421.7; MS (FAB) m/z (M + 1) 561.5, 461.3, 183.0; MS-HR (FAB) Calc. for C32H44N6O3: 560.34749 Found: 561.35526 (M + 1).

 3.1.20. 6-Hydrazino-<italic>N</italic>-[2-(2,3-dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-ylamino)Ethyl]nicotinamide hydrochloride (<bold>6a</bold>)

Compound 5a (0.20 g, 0.43 mmol) was dissolved in ether (2 mL), HCl/ether (4 mL) was added, and the reaction mixture was stirred at room temperature. After 24 h, the solution became cloudy and precipitate formed. The precipitate was isolated by filtration and the solid was washed with ether and dried. Compound 6a: yield 34%; mp 235–136 °C; 1H NMR (CD3OD) (δ ppm.): 8.5 (1H, s, ArH), 8.4 (1H, d, J = 8.3 Hz, ArH), 8.2 (1H, d, J = 9.0 Hz, ArH), 7.9 (1H, t, J = 7.6 Hz, ArH), 7.7 (1H, d, J = 8.3 Hz, ArH), 7.6 (1H, t, J = 8.1 Hz, ArH), 7.0 (1H, d, J = 9.0 Hz, ArH), 4.0 (2H, t, J = 5.9 Hz, CH2), 3.8 (2H, t, J = 5.9 Hz, CH2), 3.5 (2H, t, J = 7.1 Hz, CH2), 3.1 (2H, t, J = 7.8 Hz, CH2), 2.3 (2H, p, J = 7.6, 7.6 Hz, CH2), IR (KBr) ν (cm−1): 1585.7, 1646.1, 2852.8, 2928.0, 3435.6; MS (FAB) m/z (M + 1) 363.2, 348.2; 185.0; MS-HR (FAB) Calc. for C20H22N6O: 362.18551 Found: 363.19414 (M + 1).

 3.1.21. 6-Hydrazino-<italic>N</italic>-[3-(2,3-dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-ylamino)propyl]nicotinamide hydrochloride (<bold>6b</bold>)

A 5b (0.20 g, 0.42 mmol) were combined as above to afford 6b as brown solid. Compound 6b: yield 36%; mp 226–229 °C; 1H NMR (DMSO) (δ ppm.): 14.1 (1H, s, HCl), 9.9 (1H, s, NH), 8.9 (1H, m, ArH), 8.8 (1H, m, ArH), 8.5 (1H, d, J = 8.7 Hz, ArH), 8.1 (1H, d, J = 8.9 Hz, ArH), 7.8 (1H, t, J = 7.3 Hz, ArH), 7.6 (1H, t, J = 7.7 Hz, ArH), 6.9 (1H, d, J = 8.5 Hz, ArH), 3.7 (4H, m, NH), 3.4–3.6 (4H, m, CH2), 3.3 (2H, t, J = 6.9 Hz, CH2), 3.1 (2H, t, J = 8.3 Hz, CH2), 2.1 (2H, m, Hz, CH2), 1.9 (2H, m, CH2); IR (KBr) ν (cm−1): 1585.3, 1648.5, 2857.0, 2933.0, 3277.6; MS (FAB) m/z (M + 1) 377.2, 362.1; 185.0 MS-HR (FAB) Calc. for C21H24N6O: 376.20116 Found: 377.21072 (M + 1).

 3.1.22. 6-Hydrazino-<italic>N</italic>-[4-(2,3-dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-ylamino)butyl]nicotinamide hydrochloride (<bold>6c</bold>)

A 5c (0.20 g, 0.41 mmol) were combined as above to afford 6c as yellow solid. Compound 6c: yield 30%; mp 171–173 °C; 1H NMR (DMSO) (δ ppm.):14.3 (1H, s, HCl), 9.9 (1H, s, NH), 8.8 (1H, m, ArH), 8.7 (1H, m, ArH), 8.6 (1H, m, ArH), 8.1 (1H, d, J = 8.9 Hz, ArH), 7.8 (1H, t, J = 8.3 Hz, ArH), 7.6 (1H, t, J = 6.7 Hz, ArH), 6.9 (1H, d, J = 8.5 Hz, ArH), 3.7 (4H, m, NH), 3.3–3.4 (4H, m, CH2), 3.2 (2H, t, J = 7.7 Hz, CH2), 3.1 (2H, t, J = 7.7 Hz, CH2), 2.1 (2H, m, CH2), 1.6–1.8 (4H, m, CH2); IR (KBr) ν (cm−1): 1541.7, 1647.7, 2857.4, 2904.7, 3414.7; MS (FAB) m/z (M + 1) 391.4, 376.4, 185.0; MS-HR (FAB) Calc. for C22H26N6O: 391.21681 Found: 391.22435 (M + 1).

 3.1.23. 6-Hydrazino-<italic>N</italic>-[5-(2,3-dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-ylamino)pentyl]nicotinamide hydrochloride (<bold>6d</bold>)

A 5d (0.20 g, 0.40 mmol) were combined as above to afford 6d as brown solid. Compound 6d: yield 36%; mp 107–108 °C; 1H NMR (DMSO) (δ ppm.):14.4 (1H, s, HCl), 10.0 (1H, s, NH), 8.9 (1H, m, ArH), 8.8 (2H, m, ArH), 8.1 (1H, d, J = 8.9 Hz, ArH), 7.8 (1H, t, J = 10.1 Hz, ArH), 7.6 (1H, t, J = 7.5 Hz, ArH), 6.9 (1H, d, J = 8.9 Hz, ArH), 3.7 (4H, m, NH), 3.3 -3.4 (4H, m, CH2), 3.2 (2H, t, J = 9.9 Hz, CH2), 3.1 (2H, t, J = 7.5 Hz, CH2), 2.1 (2H, p, J = 7.5, 7.1 Hz, CH2), 1.4–1.6 (6H, m, CH2); IR (KBr) ν (cm−1): 1558.4, 1647.7, 2858.4, 2931.2, 3385.2; MS (FAB) m/z (M + 1) 405.3, 390.3, 185.0; MS-HR (FAB) Calc. for C23H28N6O: 404.23246 Found: 405.24165 (M + 1).

 3.1.24. 6-Hydrazino-<italic>N</italic>-[6-(2,3-dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-ylamino)hexyl]nicotinamide hydrochloride (<bold>6e</bold>)

A 5e (0.20 g, 0.39 mmol) were combined as above to afford 6e as yellow solid. Compound 6e: yield 33%; mp 166–167 °C; 1H NMR (DMSO) (δ ppm.):14.4 (1H, s, HCl), 10.0 (1H, s, NH), 8.9 (1H, m, ArH), 8.8 (2H, m, ArH), 8.1 (1H, d, J = 6.7 Hz, ArH), 7.9 (1H, t, J = 8.1 Hz, ArH), 7.6 (1H, t, J = 8.1 Hz, ArH), 6.9 (1H, d, J = 8.9 Hz, ArH), 3.7 (4H, m, NH), 3.4–3.5 (4H, m, CH2), 3.3 (2H, t, J = 7.1 Hz, CH2), 3.1 (2H, t, J = 7.7 Hz, CH2), 2.2 (2H, p, J = 7.7, 7.1 Hz, CH2), 1.4–1.7 (8H, m, CH2); IR (KBr) ν (cm−1): 1559.3, 1636.9, 2857.4, 2930.2, 3424.8; MS (FAB) m/z (M + 1) 419.3, 404.3, 185.0; MS-HR (FAB) Calc. for C24H30N6O: 418.24811 Found: 419.25754 (M + 1).

 3.1.25. 6-Hydrazino-<italic>N</italic>-[7-(2,3-dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-ylamino)heptyl]nicotinamide hydrochloride (<bold>6f</bold>)

A 5f (0.20 g, 0.38 mmol) were combined as above to afford 6f as brown solid. Compound 6f: yield 43%; mp 105–107 °C; 1H NMR (DMSO) (δ ppm.):14.4 (1H, s, HCl), 10.0 (1H, s, NH), 8.8 (1H, m, ArH), 8.6 (2H, m, ArH), 8.1 (1H, d, J = 6.5 Hz, ArH), 7.9 (1H, t, J = 9.5 Hz, ArH), 7.6 (1H, t, J = 6.7 Hz, ArH), 6.9 (1H, d, J = 8.9 Hz, ArH), 3.7 (4H, m, NH), 3.4 (4H, m, CH2), 3.2 (2H, t, J = 7.5 Hz, CH2), 3.1 (2H, t, J = 7.7 Hz, CH2), 2.2 (2H, p, J = 7.1, 7.1 Hz, CH2), 1.3–1.7 (10H, m, CH2); IR (KBr) ν (cm−1): 1558.9, 1648.0, 2855.3, 2926.6, 3259.7, 3405.0; MS (FAB) m/z (M + 1) 433.3, 418.3, 185.0; MS-HR (FAB) Calc. for C25H32N6O: 432.26376 Found: 433.27207 (M + 1).

 3.1.26. 6-Hydrazino-<italic>N</italic>-[8-(2,3-dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-ylamino)octyl]nicotinamide hydrochloride (<bold>6g</bold>)

A 5g (0.20 g, 0.37 mmol) were combined as above to afford 6g as yellow solid. Compound 6g: yield 43%; mp 170–173 °C; 1H NMR (DMSO) (δ ppm.):14.2 (1H, s, HCl), 9.9 (1H, s, NH), 8.8 (1H, m, ArH), 8.6 (2H, m, ArH), 8.1 (1H, d, J = 8.9 Hz, ArH), 7.8 (1H, m, ArH), 7.6 (1H, m, ArH), 6.9 (1H, d, J = 8.3 Hz, ArH), 3.7 (4H, m, NH), 3.3 (4H, m, CH2), 3.2 (2H, t, J = 5.7 Hz, CH2), 3.1 (2H, t, J = 9.1 Hz, CH2), 2.2 (2H, p, J = 7.3, 7.3 Hz, CH2), 1.3–1.8 (12H, m, CH2); IR (KBr) ν (cm−1): 1558.5, 1634.0, 2854.2, 2926.7, 3200.6, 3422.2; MS (FAB) m/z (M + 1) 447.1, 432.2, 185.0; MS-HR (FAB) Calc. for C26H34N6O: 446.27941 Found: 447.28878 (M + 1).

 3.1.27. 6-Hydrazino-<italic>N</italic>-[9-(2,3-dihydro-1<italic>H</italic>-cyclopenta[<italic>b</italic>]quinolin-9-ylamino)nonyl]nicotinamide hydrochloride (<bold>6h</bold>)

A 5h (0.20 g, 0.35 mmol) were combined as above to afford 6h as brown solid. Compound 6h: yield 44%; mp 85–87 °C; 1H NMR (DMSO) (δ ppm.):14.5 (1H, s, HCl), 10.0 (1H, s, NH), 8.9 (1H, m, ArH), 8.8 (2H, m, ArH), 8.1 (1H, d, J = 6.9 Hz, ArH), 7.8 (1H, t, J = 6.7 Hz, ArH), 7.6 (1H, t, J = 7.1 Hz, ArH), 6.9 (1H, d, J = 8.9 Hz, ArH), 3.7 (4H, m, NH), 3.4 (4H, m, CH2), 3.3 (2H, m, CH2), 3.2 (2H, t, J = 7.7 Hz, CH2), 2.1 (2H, m, CH2), 1.5–1.7 (14H, m, CH2); IR (KBr) ν (cm−1): 1585.8, 1647.3, 2853.5, 2925.4, 3438.1; MS (FAB) m/z (M + 1) 461.3, 446.3, 183.0; MS-HR (FAB) Calc. for C27H36N6O: 460.29506 Found: 461.30121 (M + 1).

 3.2. Biochemical Studies

Determination of the inhibitory activity of all synthesized compounds towards AChE and BChE was performed by means of Ellman’s spectrophotometric method with our own modifications. Every sample contained 5,5′-dithiobisnitrobenzoic acid (DTNB, 0.05 mL, 0.5 M), acetylthiocholine iodide (substrate), newly synthesized inhibitor, and AChE (5 units/mL) or BChE (5 units/mL), respectively, in cholinesterases activity measurements. Every measurement was conducted in the presence of phosphate buffer (0.1 M, pH 8.0) at 37 °C. The total volume of every sample amounted to 3 mL. Measurement procedure was identical for all samples. All ingredients were incubated for 1 min and then the absorbance was recorded at 412 nm. Seven concentrations of acetylthiocholine iodide were used in order to obtain the inhibition curves for every compound. Every measurement was conducted three times. Also, samples without inhibitor were evaluated in order to obtain absolute AChE and BChE activity. The value of IC50, defined as the drug concentration that contributes to the inhibition of 50% AChE or BChE activity, was determined by non-linear and linear regression.

All reagents: DTNB, enzymes (C2629 Acetylcholinesterase from Electrophorus electricus (electric eel) and C4290 Butyrylcholinesterase from equine serum) and acetylthiocholine iodide were purchased from Sigma-Aldrich.

 3.3. Molecular Modeling

The three-dimensional structures of inhibitors were created by Corina on-line (Molecular Networks) and subsequently prepared with Sybyl 8.0 (Tripos). Atom types were checked, hydrogen atoms were added, and, then, Gasteiger-Marsili charges were assigned. Ligands were bound to acetylcholinesterase from 2CKM and butyrylcholinesterase from 1P0I crystal complex. Protein was prepared before binding with GoldSuite 5.0.1 (CCDC). All histidine residues were protonated at Nɛ, the hydrogen atoms were added, ligand and water molecules were removed, and the binding site was defined as all amino acid residues within 10 Å from bis-(7)-tacrine for AChE and 20 Å from the glycerol molecule present in the active center of BChE. A standard set of genetic algorithms with population size of 100, number of operations 100,000, and clustering with a tolerance of 1Å was applied. As a result 10 ligand poses, sorted by GoldScore (AChE) and ChemScore (BChE) function value were obtained. The results were visualized by PyMOL 0.99rc6 (DeLano Scientific LLC).

 3.4. Spectrophotometric Experiments

The absorption spectrum was obtained by scanning the sample between 200 and 350 nm with a Perkin Elmer spectrophotometer. The experiment was started with a solution of pure water at room temperature. The stability of compound 6a was assessed by monitoring the variability of the spectrum at regular intervals (15 min) over 4 h.

 3.5. Radiolabelling

For radiolabeling with Tc-99m, 1 mg of the ligand 6a was dissolved in 150 μL of water. Subsequently, 100 mg of tricine and 1.5 mL of technetium eluate were added together with 25 μL of SnCl2 in ethanol (1 mg/mL). After 30 min incubation at room temperature, quality control was performed by HPLC analysis. HPLC analysis was performed on an Agilent System 1100 Series with UV and radiometric detection, with LiChrocart column 250-3 Luichrospher 100 RP-18 (5 μm). Flow rate was 1 mL/min.

Gradient I:

Mobile phase A: 0.9% NaCl, B: CH3CN.

1–25 min 50% B.

25–30 min 50%–100% B.

30–35 min 100% B.

35–40 min 100%–0% B.

Gradient II:

0–10 min 0% B.

10–25 min 0%–100% B.

25–30 min 100% B.

30–35 min 100%–0% B.

 3.6. Biodistribution Studies in Rats 3.6.1. Animals

For biological experiments, the radiolabelled compound was dissolved in saline to a concentration of the ligand equal to 100 μg/mL. Intravenous dose was 20 μg per animal

For biodistribution studies, male Wistar rats weighing 190–260 g were used. Prior to the experiment, the animals were fasted overnight (to empty the bowels), but had free access to water. All animal experiments were approved by the Ethics Committee of the Faculty of Pharmacy, Charles University, Hradec Kralove.

 3.6.2. Biodistribution in Rats

The agent was administered to rats intravenously in a volume of 0.2 mL. During the course of the experiments, each animal was placed in an individual cage. At various time points after injection, the carotid artery was exposed under ether anesthesia and a blood sample was collected in glass tubes containing dry heparin. The rats were sacrificed and dissected. The organs of interest were weighed and counted for radioactivity in an automatic gamma counter (1480 Wizard 3).

The results were expressed as mean ± standard deviations of at least four animals.

 4. Conclusions

As a consequence of a limited number of efficacious drugs in the treatment of AD, many scientific teams are aiming to discover novel compounds able to improve cholinergic neurotransmission. Currently approved AChE inhibitors, such as galantamine, rivastigmine, and donepezil, provide comparatively little chance for a prolonged improvement in cognitive functions. Thus, the search for novel compounds with anticholinesterase activity continues as numerous scientists are focused on the development of novel compounds such as cystamine-tacrine dimers [37], bisquaternary isoquinolinium derivatives [38], diversely substituted furo[2,3-b]quinolin-4-amine and pyrrolo[2,3-b]quinolin-4-amine derivatives [39], and tacrine-8-hydroxyquinoline hybrid [40] that might increase the level of ACh.

Several teams have also utilized derivatives of tacrine as potential radiopharmaceuticals. Tacrine and its modified structure derivatives were marked with radioactive isotope in order to determine the level of AChE or BChE as a function of tacrine analogue labeled isotope accumulated in the target site [41,42]. Also, other AChE inhibitors such as donepezil and huperzine were modified and marked with radioisotopes [43,44].

In our previous papers, we presented the synthesis and biological evaluation of derivatives of tetrahydroacridine derivatives with hydrazine nicotinate (HYNIC) moiety [45,46]. The fragment of tetrahydroacridine that possesses the possibility to inhibit both the moieties of cholinesterase and HYNIC has the potential to be utilized as a co-ligand for radiolabeling.

As described in this article, eight synthesized compounds differed from each other only in the length of the aliphatic chain between the tetrahydroacridine and the hydrazine nicotinate moiety. According to the results of the studies, compounds showing the highest activity with regard to AChE inhibition were those with six and eight carbon atoms in the aliphatic chain; which were approximately 7- and 9- fold more active than tacrine, respectively. This data suggests that altering the molecule by incorporating a longer aliphatic chain proved to be a good choice. All novel compounds, apart from the one with six carbon atoms in the aliphatic chain, described in these studies were characterized, in comparison to tacrine, by lower inhibitory activity towards BChE [45,46].

Within this work, compared to our previous studies, the six membered ring of tetrahydroacridine was exchanged with a five membered ring; this influenced the activity and interaction with active sites. Of all the synthesized compounds, the most active was 6h (IC50 = 3.65 nM). This compound was about 1.5-fold more active than tacrine and, as compared to this reference compound, more selective towards AChE. Compound 6g exhibited a similar value of IC50 to that of tacrine. Similarly to our previous studies, obtained data suggests that the activity of the synthesized compounds increases simultaneously with the length of the aliphatic chain between the hydrazine nicotinate moiety and 2,3-dihydro-1H-cyclopenta[b]quinolone. Our data showed that all synthesized molecules were characterized by lower BChE inhibitory activity in comparison to tacrine.

On the other hand, selectivity of the obtained compounds is very promising because the moiety of 6-hydrazinenicotinic acid (HYNIC) is thought to be responsible for the binding of technetium-99m radiotracer (99mTc) (as reported previously by Abrams et al.) [26].

According to molecular modeling studies, all ligands were extended along the active gorge and interacted with both the catalytic and peripheral site of AChE. This dual type of binding to AChE is responsible for an additional function related to the interaction with β-amyloid. The mode of binding with BChE was similar; the main difference was the location of the hydrazinenicotinic fragment in the reduced peripheral anionic site of BChE. These results are of vital importance as it has been established that AChE not only plays a crucial role in cholinergic dysfunction, but also is involved in the β-amyloid cascade via the AChE peripheral anionic site (PAS), such as mediating the adhesion, differentiation and deposition of β-amyloid in AD. It has been reported that AChE is a protein associated with the amyloid core of mature senile plaques, pre-amyloid diffuse deposits, and cerebral blood vessels in AD brain. Alvares et al., in in vitro studies showed that AChE is incorporated into β-amyloid aggregates by forming macromolecular complexes with the growing β-amyloid fibrils. The following scientific work of Alvares demonstrated that these complexes accelerate the maturation of β-amyloid plaques and are more toxic at the cellular level than the amyloid fibrils alone [47,48]. Molecular modeling studies presented within this work revealed that synthesized compounds are dual binding site inhibitors; thus, there is a possibility to influence non-cholinergic functions of AChE including AChE-induced aggregation of β-amyloid.

Biodistribution studies in rats revealed that compound 6a exhibited comparatively rapid blood radioactivity clearance. 99mTc-radioactivity was mainly located in the liver, and to a lesser extent in the kidney, lung, and the gastrointestinal tract. Low radioactivity concentrations in the brain suggest that these agents do not cross the blood-brain barrier, and, therefore, cannot be regarded as potential agents for diagnosis of Alzheimer’s disease. However, similarly to [11C]choline, the synthesized compounds might be further evaluated as molecules suitable for the detection of cancers in certain organs (e.g., liver, kidney, lungs) or to monitor the response to various therapies. For example, there are scientific reports which prove that [11C]choline, developed by Hara et al., as an oncologic PET (positron emission tomography) radiopharmaceutical, might be utilized with good results in the diagnosis of lung cancer [49], colon cancer [50], or prostate cancer [51]. Furthermore, [11C]choline and multimodality fusion imaging with integrated PET and contrast-enhanced CT (PET/CT) could be used to monitor the response to anti-androgenic therapy [52].

Results of our synthesis and analysis suggest that the obtained hybrids of 2,3-dihydro-1H-cyclopenta[b]quinolone and 6-hydrazinonicotynic acid may be considered as novel potential anti-Alzheimer’s drugs. Conversely, these compounds, following radiolabeling, could be used in the detection of the cholinergic deficit occurring in the peripheral nervous system or in the diagnosis of various types of cancers or to correct physiological functions.

 Acknowledgments

This work was supported by the grant (N N405 669940) from National Science Centre in Poland and by the Grant Agency of the Czech Republic (grant P304/10/1738).

 References DelfiniM.di CocoM.E.PiccioniF.PorcelliF.BorioniA.RodomonteA.del GiudiceM.R.Tacrine derivatives–acetylcholinesterase interaction. 1H NMR relaxation studyBioorg. Chem20073524325710.1016/j.bioorg.2007.01.00117303215 KurzA.PerneczkyR.Novel insights for the treatment of Alzheimer’s diseaseProg. Neuro-Psychopharmacol20113537337910.1016/j.pnpbp.2010.07.018 SjogrenM.AndreasenN.BlennowK.Advances in the detection of Alzheimer’s disease-use of cerebrospinal fluid biomarkersClin. Chim. Acta200333211010.1016/S0009-8981(03)00121-912763273 SilmanaI.SussmanJ.L.Acetylcholinesterase: How is structure related to function?Chem. Biol. Interact200817531010.1016/j.cbi.2008.05.03518586019 SoreqH.SeidmanS.Acetylcholinesterase—New roles for an old actorNat. Rev. Neurosci2001229430211283752 AkasofuS.KimuraM.KosasaT.SawadaK.OguraH.Study of neuroprotection of donepezil, a therapy for Alzheimer’s diseaseChem. Biol. Interact200817522222610.1016/j.cbi.2008.04.04518571635 JiaP.ShengR.ZhangJ.FangL.HeQ.YangB.HuY.Design, synthesis and evaluation of galanthamine derivatives as acetylcholinesterase inhibitorsEur. J. Med. Chem20094477278410.1016/j.ejmech.2008.04.01818550228 PanL.TanJ.-H.HouJ.-Q.HuangS.-L.GuL.-Q.HuangZ.-S.Design, synthesis and evaluation of isaindigotone derivatives as acetylcholinesterase and butyrylcholinesterase inhibitorsBioorg. Med. Chem. Lett2008183790379410.1016/j.bmcl.2008.05.03918524585 BlassJ.P.Alzheimer’s disease and Alzheimer’s dementia: Distinct but overlapping entitiesNeurobiol. Aging2002231077108410.1016/S0197-4580(02)00036-212470805 ShahR.S.LeeH.G.XiongweiZ.PerryG.SmithM.A.CastellaniR.J.Current approaches in the treatment of Alzheimer’s diseaseBiomed. Pharmacother20086219920710.1016/j.biopha.2008.02.00518407457 SallowayS.MintzerJ.WeinerM.F.CummingsJ.L.Disease-modifying therapies in Alzheimer’s diseaseAlzheimer’s Dement20084657910.1016/j.jalz.2007.10.001 JinK.XieL.MaoX.O.GreenbergD.A.Alzheimer’s disease drugs promote neurogenesisBrain Res2006108518318810.1016/j.brainres.2006.02.08116580645 ListonD.R.NielsenJ.A.VillalobosA.ChapinD.JonesS.B.HubbardS.T.ShalabyI.A.RamirezA.NasonD.WhiteW.F.Pharmacology of selective acetylcholinesterase inhibitors: Implications for use in Alzheimer’s diseaseEur. J. Pharmacol200448691710.1016/j.ejphar.2003.11.08014751402 DavisK.L.PochwikP.TacrineLancet199511625630 MusiałA.BajdaM.MalawskaB.Development of acetylcholinesterase inhibitors for Alzheimer’s disease treatmentCurr. Med. Chem2007142654267910.2174/09298670778202321717979717 TumiattiV.MinariniA.BolognesiM.L.MilelliA.RosiniM.MelchiorreC.Tacrine derivatives and Alzheimer’s diseaseCurr. Med. Chem2010171825183810.2174/09298671079111120620345341 HuM.-K.WuL.-J.HsiaoG.YenM.-H.Homodimeric tacrine congeners as acetylcholinesterase inhibitorsJ. Med. Chem2002452277228210.1021/jm010308g12014965 RydbergE.H.BrumshteinB.GreenblattH.M.WongD.M.ShayaD.WilliamsL.D.CarlierP.R.PangY.-P.SilmanI.SussmanJ.L.Complexes of alkylene-linked tacrine dimers with Torpedo californica acetylcholinesterase: Binding of bis(5)-tacrine produces a dramatic rearrangement in the active-site gorgeJ. Med. Chem2006495491550010.1021/jm060164b16942022 LiW.MakM.JiangH.WangQ.PangY.ChenK.HanY.Novel anti-Alzheimer’s dimer Bis(7)-cognitin: Cellular and molecular mechanisms of neuroprotection through multiple targetsNeurotherapeutics2009618720110.1016/j.nurt.2008.10.04019110209 CarlierP.R.HanY.F.ChowE.S.LiC.P.WangH.LieuT.X.WongH.S.PangY.P.Evaluation of short-tether Bis-THA AChE inhibitors. A further test of the dual binding site hypothesisBioorg. Med. Chem1999735135710.1016/S0968-0896(98)00213-210218828 ShenY.YuY.LvH.FengL.ZhangG.Design, synthesis and evaluation of tacrine based acetylcholinesterase inhibitorsLett. Drug Des. Discov2010734134510.2174/157018010791163532 ZhouJ.HuX.ZhangH.QianH.HuangW.QiF.ZhangY.Synthesis and biological evaluation of 5,6-dihydro-benzo[c]acridin-7-ol derivatives as anti-Alzheimer’s disease drugsLett. Drug Des. Discov2009662362810.2174/157018009789353527 BellutiF.PiazziL.BisiA.GobbiS.BartoliniM.CavalliA.ValentiP.RampaA.Design, synthesis, and evaluation of benzophenone derivatives as novel acetylcholinesterase inhibitorsEur. J. Med. Chem2009441341134810.1016/j.ejmech.2008.02.03518396354 TomassoliI.IsmailiL.PudloM.de los RíosC.SorianoE.ColmenaI.GandíaL.RivasL.SamadiA.Marco-ContellesJ.Synthesis, biological assessment and molecular modeling of new dihydroquinoline-3-carboxamides and dihydroquinoline-3-carbohydrazide derivatives as cholinesterase inhibitors, and Ca channel antagonistsEur. J. Med. Chem20114611010.1016/j.ejmech.2010.08.05421111515 SamadiA.ValderasC.de los RíosC.BastidaA.ChiouaM.González-LafuenteL.ColmenaI.GandíaL.RomeroA.del BarrioL.Cholinergic and neuroprotective drugs for the treatment of Alzheimer and neuronal vascular diseases. II. Synthesis, biological assessment, and molecular modelling of new tacrine analogues from highly substituted 2-aminopyridine-3-carbonitrilesBioorg. Med. Chem20111912213310.1016/j.bmc.2010.11.04021163662 AbramsM.J.JuweidM.TenKateC.I.SchwartzD.A.HauserM.M.GaulF.E.Technetium-99-m-Human Polyclonal IgG radiolabeled via the hydrazino nicotinamide derivative for imaging focal sites of infection in ratsJ. Nucl. Med199031202220282266401 DorronsoroI.AlonsoD.CastroA.Synthesis and biological evaluation of tacrine-thiadiazolidinone hybrids as dual acetylcholinesterase inhibitorsArch. Pharm. Chem. Life Sci2005338182310.1002/ardp.200400919 RosiniM.AndrisanoV.BartoliniM.BolognesiM.L.HreliaP.MinariniA.TarozziA.MelchiorreC.Rational approach to discover multipotent anti-Alzheimer drugsJ. Med. Chem20054836036310.1021/jm049112h15658850 FangL.KrausB.LehmanJ.Tacrine–Ferulic acid hybrids as multi-potent anti-Alzheimer drug candidatesBioorg. Med. Chem2008182905290910.1016/j.bmcl.2008.03.073 CarlierP.R.ChowE.S.-W.HanY.F.LiuJ.El YazakJ.PangY.-P.Heterodimeric tacrine-based acetylcholinesterase inhibitors: Investigating ligand-peripheral site interactionsJ. Med. Chem1999424225423110.1021/jm990224w10514292 FangL.AppenrothD.DeckerM.KiehntopfM.LuppA.PengS.FleckC.ZhangY.LehmannJ.Tacrine hybrid compounds improve scopolamine-induced cognition impairment and show less hepatotoxicityJ. Med. Chem2008517666766910.1021/jm801131a19053746 EllmanG.L.CourtneyK.D.AndresV.FeatherstoneR.M.A new and rapid colorimetric determination of acetylcholinesterase activityBiochem. Pharm19617889510.1016/0006-2952(61)90145-913726518 ChengY.C.PrusoffW.H.Relationship between the inhibition constant (K1) and the concentration of inhibitor which causes 50 per cent inhibition (I50) of an enzymatic reactionBiochem. Pharm1973223099310810.1016/0006-2952(73)90196-24202581 TiptonK.F.Commentary: Enzyme kinetics in relation to enzyme inhibitorsBiochem. Pharm1973222933294110.1016/0006-2952(73)90179-24202580 Neşe ÇokuğraşA.Butyrylcholinesterase: Structure and physiological importanceTurk. J. Biochem2003285461 LiuS.EdwardsD.S.99mTc-Labeled small peptides as diagnostic radiopharmaceuticalsChem. Rev1999992235226810.1021/cr980436l11749481 MinariniA.MilelliA.TumiattiV.RosiniM.SimoniE.BolognesiM.L.AndrisanoV.BartoliniM.MotoriE.AngeloniC.Cystamine-Tacrine dimer: A new multi-target-directed ligand as potential therapeutic agent for Alzheimer’s disease treatmentNeuropharmacology201262997100310.1016/j.neuropharm.2011.10.00722032870 BinderJ.PaarM.JunD.PohankaM.HrabinovaM.OpletalovaV.KucaK.New bisquaternary isoquinolinium inhibitors of brain cholinesterases-synthesis and anticholinesteraseLett. Drug Des. Discov2010714 MartinsC.Carmo CarreirasM.LeónR.de los RíosC.BartoliniM.AndrisanoV.IriepaI.MoraledaI.GálvezE.GarcíaM.Synthesis and biological assessment of diversely substituted furo[2,3-b]quinolin-4-amine and pyrrolo[2,3-b]quinolin-4-amine derivatives, as novel tacrine analoguesEur. J. Med. Chem2011466119613010.1016/j.ejmech.2011.09.03822000936 AntequeraD.BolosM.SpuchC.PascualC.FerrerI.Fernandez-BachillerM.I.Rodríguez-FrancoM.I.CarroE.Effects of a tacrine-8-hydroxyquinoline hybrid (IQM-622) on Aβ accumulation and cell death: Involvement in hippocampal neuronal loss in Alzheimer’s diseaseNeurobiol. Dis20124668269110.1016/j.nbd.2012.03.00922426395 AkulaM.R.KabalkaG.W.Synthesis of 7-[123I]iodotacrine: A potential SPECT agent to map acetylcholinesteraseJ. Labelled Compd. Radiopharm19994295996410.1002/(SICI)1099-1344(199910)42:10<959::AID-JLCR254>3.0.CO;2-M NishiokaK.KamadaT.KanamaruH.14C-Labeling of a tetrahydroacridine, a novel CNS-selective cholinesterase inhibitorJ. Labelled Compd. Radiopharm19923155356010.1002/jlcr.2580310707 LemanL.KitsonS.L.BrownR.T.CairnsJ.WattersW.McMordieA.MurrellV.MarfurtJ.Synthesis of isotopically labelled [14C]ZT-1 (Debio-9902), [d3]ZT-1 and (−)-[d3]huperzine A, a new generation of acetylcholinesterase inhibitorsJ. Labelled Compd. Radiopharm20115472073010.1002/jlcr.1918 De VosF.SantensP.VermeirschH.DewolfI.DumontF.SlegersG.DierckxR.A.de ReuckJ.Pharmacological evaluation of [11C]donepezil as tracer for visualization of acetylcholinesterase by PETNucl. Med. Biol20002774574710.1016/S0969-8051(00)00166-911150706 SzymańskiP.ŻurekE.Mikiciuk-OlasikE.New tacrine-hydrazinonicotinamide hybrids as acetylcholinesterase inhibitors of potential interest for the early diagnostics of Alzheimer’s diseasePharmazie20066126927316649535 SzymańskiP.MarkowiczM.Mikiciuk-OlasikE.Synthesis and biological activity of derivatives of tetrahydroacridine as acetylcholinesterase inhibitorsBioorg. Chem20113913814210.1016/j.bioorg.2011.05.00121621811 AlvarezA.OpazoC.AlarconR.GarridoJ.InestrosaN.C.Acetylcholinesterase promotes the aggregation of amyloid-β-peptide fragments by forming a complex with the growing fibrilsJ. Mol. Biol199727234836110.1006/jmbi.1997.12459325095 AlvarezA.AlarconR.OpazoC.CamposE.O.MunozF.J.CalderonF.H.DajasF.GentryM.K.DoctorB.P.de MelloF.G.Stable complexes involving acetylcholinesterase and amyloid-β peptide change the biochemical properties of the enzyme and increase the neurotoxicity of Alzheimer’s fibrilsJ. Neurosci199818321332239547230 InagakiK.MoritaT.FujiiK.KosakaN.HaraT.Mediastinal lymph node staging in non-small cell lung cancer using PET with C-11 choline and F-18 FDGJ. Nucl. Med1999405960 HaraT.KosakaN.KondoT.KishiH.KoboriO.Imaging of brain tumor, lung cancer, esophagus cancer, colon cancer, prostate cancer, and bladder cancer with [C-11]cholineJ. Nucl. Med1997382509025748 ReskeS.N.BlumsteinN.M.NeumaierB.GottfriedH.W.FinsterbuschF.KocotD.MöllerP.GlattingG.PernerS.Imaging prostate cancer with 11C-choline PET/CTJ. Nucl. Med2006471249125416883001 GiovacchiniG.PicchioM.CoradeschiE.ScattoniV.BettinardiV.CozzariniC.FreschiM.FazioF.MessaC.[11C]Choline uptake with PET/CT for the initial diagnosis of prostate cancer: Relation to PSA levels, tumour stage and anti-androgenic therapyEur. J. Nucl. Med. Mol. Imaging2008351065107310.1007/s00259-008-0716-218200444 Figures and Tables

Binding mode of compound 6h with acetylcholinesterase.

Binding mode of compound 6a with butyrylcholinesterase.

UV spectra of compound 6a in aqueous solution at different times of incubation (0 to 4 h, measured every 15 min).

Radiochromatograms of complexes formed by technetium-99m with tricine and hydrazine nicotinate (HYNIC). (a) Compound 6a; (b) Compound 6a after 24 h.

Synthesis of 6-BOC-hydrazinopyridine-3-carboxylic acid. Reagents: (a) 85% NH2NH2; (b) (t-BuOCO)2O, triethyl amine, DMF.

Synthesis of compounds (3), 4a–4h. Reagents: (a) cyclopentanone, POCl3, reflux; (b) diamine, phenol, NaI, reflux.

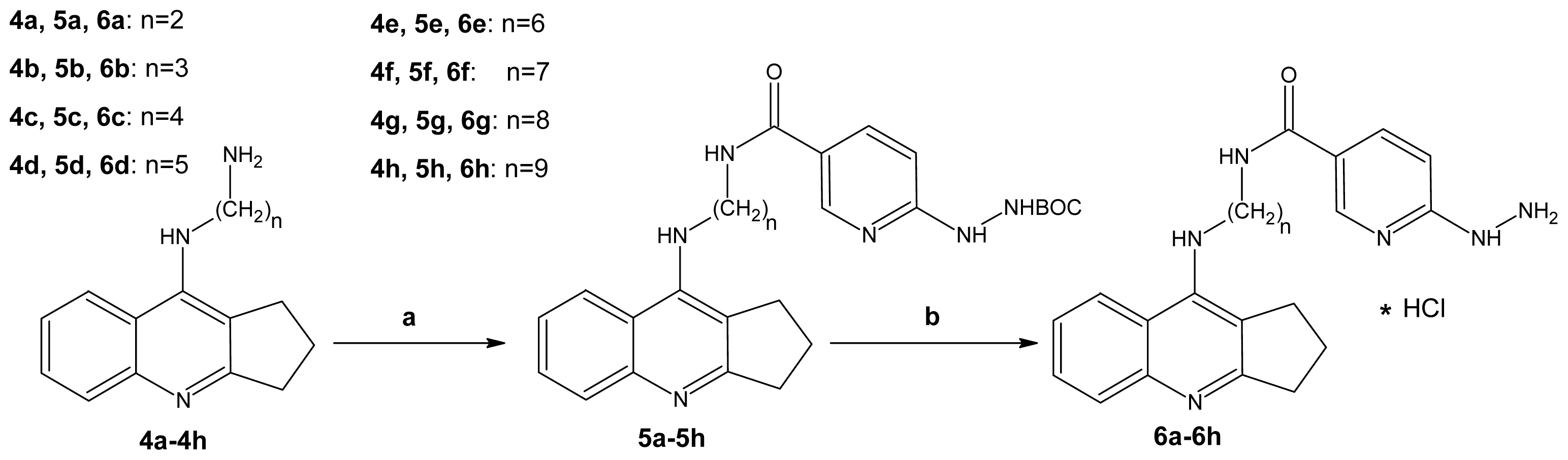

Synthesis of compounds 5a–5h and 6a–6h. Reagents: (a) Reactant 2, 2-chloro-4,6-dimethoxy-1,3,5-triazine (CDMT), N-methylmorpholine, THF; (b) HCl/ether.

IC50 values for activities towards acetylcholinesterase (AChE) and butyrylcholinesterase (BChE).

Compound AChE IC50, (nM) ± SEM a BChE IC50, (nM) ± SEM b Selectivity for AChE c Selectivity for BChE d
6a 31.50 ± 1.9 164.00 ± 1.6 5.21 0.19
6b 19.30 ± 1.1 197.00 ± 3.4 10.21 0.10
6c 22.40 ± 1.7 2650.00 ± 9.5 118.30 0.01
6d 7.84 ± 2.2 4240.00 ± 2.2 540.82 0.00
6e 41.60 ± 1.0 16600.00 ± 17.5 399.04 0.00
6f 17.60 ± 0.8 22700.00 ± 20.6 1289.77 0.00
6g 5.17 ± 1.4 19600.00 ± 16.4 3791.10 0.00
6h 3.65 ± 0.5 17100.00 ± 21.3 4684.93 0.00
tacrine 5.46 ± 1.0 2.44 ± 0.6 0.45 2.24

Inhibitor concentration (means ± SEM of three experiments) for 50% inactivation of AChE;

Inhibitor concentration (means ± SEM of three experiments) for 50% inactivation of BChE;

Selectivity for AChE is defined as IC50(BChE)/IC50(AChE);

Selectivity for BChE is defined as IC50(AChE)/IC50(BChE).

Distribution of radioactivity in selected organs and systems of rats after intravenous administration of 99mTc-6a.

99mTc-6a (% Dose/g)
Organs 5 min 60 min 120 min 24 h
Blood 0.850 ± 0.108 0.114 ± 0.015 0.091 ± 0.017 0.033 ± 0.004
Plasma 0.921 ± 0.124 0.183 ± 0.024 0.150 ± 0.027 0.052 ± 0.003
Pancreas 0.551 ± 0.109 0.117 ± 0.019 0.092 ± 0.015 0.067 ± 0.006
Liver 5.752 ± 0.742 5.160 ± 0.586 5.630 ± 0.508 5.095 ± 0.478
Adrenals 1.186 ± 0.231 0.900 ± 0.102 0.890 ± 0.040 0.793 ± 0.137
Kidney 3.838 ± 0.264 1.556 ± 0.148 1.332 ± 0.209 1.026 ± 0.130
Lung 3.497 ± 0.239 2.010 ± 0.323 1.824 ± 0.438 1.354 ± 0.066
Heart 0.779 ± 0.078 0.241 ± 0.013 0.204 ± 0.025 0.147 ± 0.009
Spleen 0.999 ± 0.218 1.840 ± 0.618 2.172 ± 0.391 2.631 ± 0.199
Stomach 0.206 ± 0.044 0.469 ± 0.438 0.311 ± 0.153 0.571 ± 0.389
Intestine 0.977 ± 0.313 4.242 ± 0.113 3.661 ± 1.491 0.196 ± 0.055
Colon 0.108 ± 0.031 0.044 ± 0.003 1.566 ± 1.539 1.809 ± 0.976
Testes 0.054 ± 0.004 0.033 ± 0.001 0.030 ± 0.005 0.022 ± 0.003
Skin 0.290 ± 0.039 0.196 ± 0.017 0.169 ± 0.029 0.100 ± 0.010
Muscle 0.157 ± 0.004 0.056 ± 0.007 0.048 ± 0.006 0.037 ± 0.005
Thyroid 0.551 ± 0.040 0.225 ± 0.021 0.189 ± 0.009 0.124 ± 0.037
Brain 0.049 ± 0.003 0.013 ± 0.001 0.014 ± 0.003 0.007 ± 0.001
Fat 0.305 ± 0.060 0.120 ± 0.019 0.105 ± 0.017 0.070 ± 0.017
Femur 0.330 ± 0.036 0.202 ± 0.015 0.218 ± 0.031 0.232 ± 0.037
