Int. J. Mol. Sci. 2012, 13(7), 9035-9050; doi:10.3390/ijms13079035

Article
Quantitative and Chemical Fingerprint Analysis for the Quality Evaluation of Isatis indigotica based on Ultra-Performance Liquid Chromatography with Photodiode Array Detector Combined with Chemometric Methods
Yan-Hong Shi 1, Zhi-Yong Xie 1, Rui Wang 1,*, Shan-Jun Huang 1, Yi-Ming Li 1 and Zheng-Tao Wang 2
1
School of Pharmacy, Shanghai University of Traditional Chinese Medicine, Shanghai 201203, China; E-Mails: yhs_lucky@163.com (Y.-H.S.); xzy0372@yahoo.com.cn (Z.-Y.X.); sese1986@gmail.com (S.-J.H.); ymlius@163.com (Y.-M.L.)
2
Institute of Chinese Materia Medica, Shanghai University of Traditional Chinese Medicine, Shanghai 201203, China; E-Mail: wangzht@hotmail.com
*
Author to whom correspondence should be addressed; E-Mail: ellewangtcm@gmail.com; Tel.: +86-21-513-221-81; Fax: +86-21-513-221-93.
Received: 18 June 2012; in revised form: 5 July 2012 / Accepted: 12 July 2012 /
Published: 20 July 2012

Abstract

: A simple and reliable method of ultra-performance liquid chromatography with photodiode array detector (UPLC-PDA) was developed to control the quality of Radix Isatidis (dried root of Isatis indigotica) for chemical fingerprint analysis and quantitative analysis of eight bioactive constituents, including R,S-goitrin, progoitrin, epiprogoitrin, gluconapin, adenosine, uridine, guanosine, and hypoxanthine. In quantitative analysis, the eight components showed good regression (R > 0.9997) within test ranges, and the recovery method ranged from 99.5% to 103.0%. The UPLC fingerprints of the Radix Isatidis samples were compared by performing chemometric procedures, including similarity analysis, hierarchical clustering analysis, and principal component analysis. The chemometric procedures classified Radix Isatidis and its finished products such that all samples could be successfully grouped according to crude herbs, prepared slices, and adulterant Baphicacanthis cusiae Rhizoma et Radix. The combination of quantitative and chromatographic fingerprint analysis can be used for the quality assessment of Radix Isatidis and its finished products.
Keywords:
Radix Isatidis; UPLC-PDA; quality control; quantitative; fingerprint

1. Introduction

Radix Isatidis is the dried root of Isatis indigotica Fort. (Fam. Cruciferae), which is known as Banlangen (BLG) or Bei-Banlangen. Baphicacanthis cusiae Rhizoma et Radix is the dried rhizome and root of Baphicacanthus cusia (Nees) Bremek. (Fam. Acanthaceae), which is known as Nan-Banlangen (NBLG). In several southern regions in China, NBLG has been improperly used as Radix Isatidis even though both have been officially listed in Chinese Pharmacopoeia (State Pharmacopoeia 2000) as two different crude herbs [14].

Radix Isatidis and its finished products have important functions in preventing and treating influenza, tonsillitis, and malignant infectious diseases [57], especially severe acute respiratory syndrome (SARS) and H1N1-influenza [811] because of its anti-viral, anti-bacterial, anti-inflammatory, anti-tumor, and immune regulatory functions. Moreover, numerous gratifying successes of the Radix Isatidis anti-viral effect have been reported [1215]. Radix Isatidis has become an important component in various traditional Chinese medicine preparations (TCMPs), of which Banlangen Granules (BLGG) is widely used for toxic-heat removal and as an anti-viral drug in clinical practice.

The chemical constituents in Radix Isatidis are as follows: nucleosides, glucosinolates, amino acids, polysaccharides, alkaloids, organic acid, trace elements, and so on [1618]. Compared with other Radix Isatidis extraction methods, the water extraction method has the most significant anti-viral, anti-bacterial, and anti-endotoxic effects, and the chemical constituents of glucosinolates (R,S-gotrin, progoitrin, epiproguotrin, and gluconapin) and nucleosides (hypoxanthine, adenosine, uridine, and guanosine) are the major bioactive components [1921]. Therefore, using the non-polar components of Indigotin, Indirubin, and the nonspecific amino acid constituent as quality control markers of Radix Isatidis is unsuitable [2227].

Glucosinolates are one of the characteristic components of Cruciferae. They degrade under endogenous myrosinase effects to work on multi-bioactivities including anti-virus and anti-bacteria [28,29]. R,S-goitrin reflects bioactivities that are relevant to the Radix Isatidis effects with high specificity. In our previous studies, we established thin layer chromatography (TLC) identification and high-performance liquid chromatography (HPLC) assay methods for the quality control of Radix Isatidis using R,S-goitrin as the marker [30], and these methods have been adopted by the ChP 2010 Edition [1]. Progoitrin, epiproguotrin, and R,S-gotrin all exist in Radix Isatidis. Under the effects of myrosinase, some parts or all of progoitrin and epiproguotrin transfer to R,S-goitrin via degradation [31].

In previous studies, based on the issues related to Radix Isatidis such as the improper use of NBLG, glucosinolate degradation, lack of specificity using amino acid as the BLGG quality control marker, establishing proper and scientific-based methods for quality control of Radix Isatidis and its finished products is necessary. Current studies about quantitative and chemical fingerprinting of Radix Isatidis depend on non-polar extracts or spots of chemical compositions [3235]. Chemical fingerprint and quantitative analysis has become one of the most frequently applied approaches in the quality control of traditional Chinese medicine (TCM) and its finished products [3641]. Studies about combining chromatographic fingerprint and multi-ingredient quantification by ultra-performance liquid chromatography with photodiode array detector (UPLC-PDA) for the quality control of Radix Isatidis and its preparations have not been reported.

This study aims to reveal the correlation and consistency of quality control in crude herbs, prepared slices, and Radix Isatidis preparations. A simple, accurate, and practical UPLC-PDA method was developed for the simultaneous determination of eight bioactive components in Radix Isatidis and its preparations. The chemical fingerprints of Radix Isatidis from various sources were established and investigated by similarity analysis (SA), hierarchical clustering analysis (HCA), and principal component analysis (PCA). The combination of chromatographic fingerprint analysis and the simultaneous determination of the eight bioactive components offer a more comprehensive strategy for the quality evaluation of Radix Isatidis and its finished products.

2. Results and Discussion

2.1. Optimization of UPLC Conditions

Different UPLC parameters were examined and compared, including various columns, mobile phases, detection wavelengths, and gradient elution conditions to obtain as much chemical information as possible and to determine the best separation mechanism in chromatograms.

Four kinds of reversed-phase columns, namely, Waters ACQUITY UPLC BEH C18 (1.7 μm, 2.1 mm × 50 mm/100 mm) and Thermo Syncronis C18/Waters ACQUITY UPLC HSS T3 (1.7 μm, 2.1 mm × 100 mm) were investigated and compared. The Waters ACQUITY UPLC BEH C18 (1.7 μm, 2.1 mm × 100 mm) column had good peak separation and sharp peaks.

The effect of mobile phase composition (methanol-water and acetonitrile-water with different modifiers including acetic acid, formic acid, phosphoric acid, and triethylamine) on chromatographic separation was investigated. Adding 0.1% triethylamine in the mobile phase and adjusting the pH to 4.0 with formic acid provided a better resolution and separation of the eight bioactivity components, and resulted in high precision sensitivity and selectivity.

Based on the maximum absorption and full-scan experiment of the marker components in the UV spectra of the three-dimensional chromatograms obtained by PDA detection, the detection wavelengths at 210, 230, 254, 280 nm were selected to compare the peak number and peak resolution of all marker compounds. Finally, the wavelength was set at 254 nm (Figure 1).

2.2. Optimization of Extraction Methods

Satisfactory extraction efficiency was obtained by comparing water-refluxing, ultrasonic, and soxhlet extraction methods. Refluxing extraction was simpler and more effective for nucleosides and glucosinolates among the other methods. Therefore, this method was used in further experiments. In this study, different concentrations (0%, 20%, 50%, 75%, 90%, and 100%) of ethanol solutions, sample-solvent ratios (1:10, 1:20, 1:50, and 1:100, w/v), and extraction times (20, 30, 45, and 60 min) were used for the BLG extraction procedure (Batch No. 20101121). As a result, the best extraction condition was established as follows: the samples were extracted by refluxing extraction using 20 mL of water as the extraction solvent, and the duration was 30 min.

2.3. Method Validation of Quantitative Analysis

The method was validated in terms of linearity, limit of detection (LOD), limit of quantification (LOQ), precision, reproducibility, stability, and recovery test.

2.3.1. Calibration Curves, LOD, and LOQ

Methanol stock solutions containing eight analytes were diluted to appropriate concentrations for calibration curve construction. The analyte solutions at six different concentrations were injected in triplicate, and the calibration curves were established by plotting the peak area (Y) versus the concentration (x) of each component. LOD and LOQ, which were expressed by 3-and 10-fold of the signal-to-noise ratio (S/N), were also determined. The detailed information regarding the calibration curves, linear ranges, LODs, and LOQs of the eight bioactive compounds are listed in Table 1.

2.3.2. Precision, Reproducibility, Stability, and Recovery

As shown in Table 2, the precision based on the peak area measurements of the eight bioactive components were higher than 0.48% (RSD, n = 6, S-01). The reproducibility (RSD, n = 6, S-01) of the proposed method based on six replicate injections was in the range of 0.10% to 1.24%. The stability (RSD, n = 6, S-01) of the measurements over 3 days for the eight compounds was 0.22% to 1.44%. The recovery test was performed by the standard addition method. Low, medium, and large high amounts of the standards were added to the known sample (S-01). Extraction and analysis were performed as described in Section 2.4. The mean recovery was calculated according to the following formula: recovery (%) = (amount found–original amount)/amount spiked × 100%, and RSD (%) = (SD/mean) × 100%. The mean recovery of the eight bioactive compounds was 99.5%–103.0%, and the RSD value was 0.73%–1.81%.

2.4. Sample Analysis

The newly established analytical method was subsequently applied to determine simultaneously the eight bioactive components in 21 commercial samples of Radix Isatidis and its finished products from different provinces or manufacturers in China. All samples were analyzed using the optimized extraction method in optimized UPLC conditions. Each sample was analyzed in triplicate to determine the mean content (mg·g−1), and the results are tabulated in Table 3.

Glucosinolates are the characteristic constituents in the Cruciferae plants [28,29]. The results from the quantitative analysis (Table 3) showed that the crude herbs generally contained the eight selected constituents and the glucosinolate content ranged from 6.48 mg g−1 to 73.63 mg g−1. Table 3 and Figure 2 show that the average contents of epiprogoitrin, progoitrin, and R,S-goitrin in Radix Isatidis crude herbs are 5.86, 6.25, and 0.07 mg g−1. However, the average epiprogoitrin and progoitrin contents in prepared Radix Isatidis slices significantly decreased (2.53 and 2.68 mg g−1, respectively), whereas the R,S-goitrin content clearly increased (0.64 mg g−1). The traditional processing methods improve the glucosinolate biotransformation and increase the degradation product (R,S-goitrin) content [31].

The total content of eight compounds in different samples, especially those from different sources and harvesting times, were significantly different. Moreover, epiprogoitrin and progoitrin could not be distinctly detected (below LOD) in BLGG that was prepared and precipitated with ethanol by the water extracts of Radix Isatidis [1].

Overall, the internal qualities of 21 batches of Radix Isatidis samples from different sources with different geographical sources were varied, and the qualities needed evaluation by chemical fingerprinting.

2.5. UPLC Fingerprint of Radix Isatidis

Altogether, 15 batches of samples were analyzed, and all chromatograms were introduced into the Computer-Aided Similarity Evaluation System for Chromatographic Fingerprint of TCM (China Committee of Pharmacopeia, 2004). Peaks existing in all sample chromatograms were assigned as the “common peak,” and 10 common peaks were observed between 3 and 20 min in all 15 batches (Figure 1). Eight common peaks (peak 1, 2, 3, 4, 5, 6, 7, and 9) were identified as hypoxanthine, uridine, progoitrin, epiprogoitrin, adenosine, guanosine, R,S-goitrin, and gluconapin with reference substances (Figure 3). Peak 7 (R,S-goitrin, RT = 11 min), which was one of the most important active constituents of Radix Isatidis (China Pharmacopoeia Committee 2010), was chosen as the internal reference peak to calculate the relative retention time (RRT) and relative peak area (RPA) of the other peaks.

Figure 1 shows that the investigated nucleosides, glucosinolates, and other compounds in Radix Isatidis were separated and determined using the developed UPLC-PDA method. The differences of the water-soluble bioactive components from BLG and NBLG were recognized, and the components could be rapidly and efficiently differentiated by the chromatographic method (Figure 1B,D). Moreover, the bioactive constituents of glucosinolates and nucleosides were simultaneously shown by the same chromatographic method, and the high correlation between BLG and BLGG (Figure 1B,C) provided a basis to investigate the relationship between Radix Isatidis and its preparations.

2.5.1. Similarity Analysis (SA)

The State Food and Drug Administration (SFDA) suggested that all herbal chromatograms should be evaluated in terms of similarity by calculating the correlation coefficient and/or angle cosine value of the original data [3638]. Therefore, SA was conducted based on the standard fingerprints, and the results are shown in Table 4. The same samples showed similarities (crude herbs: 0.752 to 0.820; prepared slices: 0.933 to 0.991). The same samples had similar constituents with the slight difference resulting from the environmental conditions and the planting techniques. However, the crude herbs and the prepared slices were significantly different because of the production process and the contents of main bioactive constituents. The biotransformation, the glucosinolate contents, and the degradation products have the most important influence on the similarities.

2.5.2. Hierarchical Cluster Analysis (HCA)

The HCA results clearly showed that the samples were appropriately divided into two main clusters related to the Radix Isatidis type (Figure 4). Cluster-I was S01 to S08, which were the prepared slices of Radix Isatidis, whereas Cluster-II was S09 to S15, which were the crude herb samples. The HCA result was fully consistent with the actual situation of samples.

2.5.3. Principal Component Analysis (PCA)

PCA, which is an unsupervised multivariate data analysis approach, is appropriate when a function of many attributes is believed to be involved in different samples [40,41]. PCA was employed to analyze the relationship of the 15 Radix Isatidis samples (seven crude herbs and eight prepared slices) from different sources, and the score plot derived from PCA is shown in Figure 5A.

On the basis of eigenvalues > 1, the first two principal components, PC1 and PC2, are often used to provide a convenient visual aid for identifying inhomogeneity in the data sets. The samples were clustered into two main groups. The PCA loading plot (Figure 5B) indicated that peak 4 (progoitrin) and peak 7 (R,S-goitrin) showed the greatest influence on the scores. Peak 2 (uridine) and other compounds also affected the scores. Progoitrin content in the crude herbs was obviously higher than that in the prepared slices, whereas R,S-goitrin content had a reverse trend. The difference between crude herbs and prepared Radix Isatidis slices could be generally tracked to the transformation of glucosinolates to their degradation products.

3. Experimental Section

3.1. Materials, Reagents, and Chemicals

Eight BLG (prepared slices) batches, seven BLG (crude herbs) batches, six BLGG batches, and four NBLG batches were collected from different provinces or manufacturers in China, and were numbered from S-01 to S-25 (Table 4). The BLG and NBLG samples were identified by Dr. Li-Hong Wu, and the voucher specimens were deposited in the Herbarium of Shanghai University of Traditional Chinese Medicine (Shanghai, China).

R,S-goitrin was obtained from Shanghai Research and Development Center for Standardization of Traditional Chinese Medicine (Shanghai, China). Hypoxanthine, uridine, guanosine, and adenosine were purchased from the National Institute for Food and Drug control (Beijing, China). Progoitrin, epiprogoitrin, and gluconapin were isolated from the root of Isatis indigotica Fort. and their structures were elucidated by mass spectrometry, 1H nuclear magnetic resonance spectrometry, and 13C nuclear magnetic resonance spectroscopy, and were confirmed by comparing the data with those of previous studies. The compound purity was over 98% based on the HPLC area normalization method. The standard structures are illustrated in Figure 6.

HPLC-grade acetonitrile, triethylamine, and formic acid (Tedia, Fairfield, OH, USA) were used for mobile phase preparation. Purified water was prepared with a Mili-Q water-purification system (Millipore, Bedford, MA, USA). Other solvents used for analyses were of analytical grade.

3.2. Instrumentation and Chromatographic Condition

UPLC analysis was performed on a Waters ACQUITY UPLC H-Class system (Waters, Milford, MA, USA) equipped with a binary solvent delivery pump, an auto sampler, and a photodiode array detector (PDA) and was controlled by the Empower-II software. UPLC fingerprinting analysis was carried out at 25 °C on a Waters ACQUITY UPLC BEH C18 (1.7 μm, 2.1 mm × 100 mm). A binary gradient elution system composed of acetonitrile (phase A) and 0.1% triethylamine in water (phase B, the pH was adjusted to 4.0 with formic acid) was applied to the fingerprint analysis with the gradient elution as follows: 0 min to 5 min, 0% A; 5 min to 7 min, 0% to 3% A; 7 min to 10 min, 3% A; 10 min to 20 min, 3% to 10% A. The wavelength was set at 254 nm, the mobile flow rate at 0.3 mL min−1, and the on-line UV spectra was recorded in the range of 190 nm to 500 nm.

3.3. Preparation of Standard Solution

R,S-goitrin, progoitrin, epiprogoitrin, gluconapin, adenosine, uridine, guanosine, and hypoxanthine CRS were accurately weighed, and dissolved in methanol to produce a solution containing 1.0 mg mL−1, which was used as the reference solution.

3.4. Preparation of Sample Solution

The crude herbs and the prepared BLG and NBLG slices were oven-dried at 50 °C until the weight remained constant. Each sample (1.0 g powder) was extracted with 20 mL of water, which was subjected to reflux for 30 min. The final solution was filtered through a 0.22 μm membrane prior to use. An aliquot of 2.0 μL of each sample solution was injected into the UPLC system for analysis.

3.5. Method Validation

The method was validated for linearity, LOD, LOQ, precision, reproducibility, stability, and accuracy following the International Conference on Harmonization (ICH) guideline and several reports on determination analysis [36,38].

3.6. Data Analysis

Data analysis was performed by the professional software of the Computer-Aided Similarity Evaluation System for Chromatographic Fingerprint of TCM (China Committee of Pharmacopeia, 2004A), which was recommended by the SFDA. The software was employed for synchronization and quantitative comparison between different samples [37].

In addition, the RRT and RPA of each characteristic peak related to the reference peak (R,S-goitrin) were also statistically analyzed using the SPSS software package (version 15.0; IBM: Chicago, IL, USA, 2006) and Soft Independent Modeling of Class Analogy (SIMCA)-P (version 13.0; Umetrics: Basel, Switzerland, 2012) [3941].

4. Conclusions

In conclusion, the UPLC fingerprint and quantitative analysis of the water-soluble extract of Radix Isatidis were first established in this study to determine the eight bioactive constituents in Radix Isatidis and its finished products.

Meanwhile, the results from the three chemometric techniques (SA, HCA, and PCA) showed good consistency with one another. The samples from different locations of the same type (crude herbs or prepared slices) were still clustered into one group, and the eight bioactive components were mostly close, which indicates the similarity of internal quality of the samples in the same type. Furthermore, eight marker constituents were found to be specific variables, which could provide the most discrimination and quality control of Radix Isatidis and its finished products by quantitative analysis. The PCA loading plot identified the greatest impact factor of characteristic constituents to the classification. In addition, this chromatographic method was efficient and rapid in distinguishing Radix Isatidis from other species such as NBLG.

Based on this study, the UPLC fingerprint and quantitative analysis methods provided reliable assurance on systematic and complete quality control on Radix Isatidis and its finished products, which would be helpful in improving reasonable developments in Radix Isatidis and its finished products.

Acknowledgments

This research project was supported by the grant from the National Natural Science Foundation of China (No. 81173518, 81172951), the Innovation Program of Shanghai Municipal Education Commission (11YZ70), and the SHUTCM Program for the Establishment of TCM Chemistry.

References

  1. Pharmacopoeia of People’s Republic of China. The State Pharmacopoeia Committee of People’s Republic of China; Chemical Industry Press: Beijing, China, 2010; Volume 1, pp. 20–21.
  2. State Administration of Traditional Chinese Medicine of the People’s Republic of China. Chinese Materia Medica (No.21); Shanghai Scientific & Technical Publishers: Shanghai, China, 1999.
  3. Wu, P.Y.; Wang, J.M. Botanical study on “Da Qing Ye”, “Ban Lan Gen” and “Qing Dai”. Acta Univer. Tradit. Med. Sin. Pharmacol. Shanghai 1996, 10, 50–52.
  4. Wu, Q.Z.; Wang, Y.L. Comparative analysis of chemical constituents in north-banlangen and south-banlangen. Strait Pharm. J 2007, 19, 82–83.
  5. Qin, H.Z.; Shi, B.; Li, S.Y.; Fan, X.J.; Song, D.Z.; Xian, H.M. Comparing research in Antiviral action of Rhizoma et Radix Baphicacanthis Cusiae and Radix Isatidis against a virus. Chin. Arch. Tradit. Chin. Med 2009, 27, 168–169.
  6. Xu, Y.S.; Sun, J.; He, S.Q. Effect of three kinds of Radix isatidis preparation on the expression of nucleoprotein of influenza virus. Shandong Med. J 2010, 50, 8.
  7. Liu, S.; Chen, W.S.; Qiao, C.Z.; Zheng, S.Q.; Zeng, M.; Zhang, H.M. Antiviral action of Radix Isatidis and Folium Isatidis from different germplasm against influenza A virus. Acad. J. Sec. Mil. Med. Univ 2000, 21, 204–206.
  8. Lin, C.W.; Tsai, F.J.; Tsai, C.H.; Lai, C.C.; Wan, L.; Ho, T.Y.; Hsieh, C.C.; Chao, P.D. Anti-SARS coronavirus 3C-like protease effects of Isatis indigotica root and plant-derived phenolic compounds. Antiviral Res 2005, 68, 36–42.
  9. Sun, H.H. Establishment of a Mouse Model for Pandemic H1N1 Influenza Virus and Study on Effect of Banlangen Granules on Mice Challenged with Pandemic H1N1 Influenza Virus; Peaking Union Medical College: Beijing, China, 2010; pp. 39–49.
  10. Wang, Y.T.; Yang, Z.F.; Zhao, H.S.; Qin, S.; Guan, W.D. Screening of anti-H1N1 active constituents from Radix Isatidis. J. Guangzhou Uni. Tradit. Chin. Med 2011, 28, 419–422.
  11. Sun, H.H.; Deng, W.; Zhan, L.J.; Xu, L.L.; Li, F.D.; Nv, Q.; Zhu, H. Effect of Banlangen Granules on mice challenged with a/California/7/2009. Chin. J. Comp. Med 2010, 20, 53–56.
  12. Cheng, Y.; Li, X.; Chen, J.W.; He, L.W.; Wang, Y.Y. A study on antiviral effects of the active parts from Radix Isatidis. J. Nanjing TCM Univ 2011, 27, 155–157.
  13. Ye, W.Y.; Li, Y.; Guo, J.W. Screening of 11 antiviral effect constituents from Radix Isatidis. J. Emerg. Tradit. Chin. Med 2011, 20, 1172–1774.
  14. Li, X.M. Remarkable progresses in studies on antiviral mechanism researches of Radix Isatidis (Baiyunshan, Guangdong). China News of TCM 2011, 8.
  15. Liu, S.Y. Tucking up veil the Antiviral causes of Radix Isatidis. China News of TCM 2011, A13.
  16. Liu, Y.H.; Wu, X.Y.; Fang, J.G.; Xie, W. Chemical constituents from Radix Isatidis. Cent. South Pharm 2003, 5, 302–305.
  17. Fang, J.G.; Wang, S.B.; Xu, H.; Liu, Y.H.; Liu, Y.W. Chemical constituents from Radix Isatidis. Chin. Tradit. Herb. Drugs 2004, 35, 845–846.
  18. He, L.W.; Li, X.; Chen, J.W.; Sun, D.D.; Ju, W.Z.; Wang, C.H. Chemical constituents from water extract of Radix isatidis. Acta Pharm. Sin 2006, 41, 1193–1196.
  19. Wang, Y.Y.; Li, X.; Chen, J.W.; Chen, Y.; Wang, S. Study on Chemical constituents from water extract of Radix isatidis. Res. Pract. Chin. Med 2009, 23, 54–56.
  20. Lee, K.C.; Cheuk, M.W.; Chan, W. Determination of glucosinolates in traditional Chinese herbs by high-performance liquid chromatography and electrospray ionization mass spectrometry. Anal. Bioanal. Chem 2006, 386, 2225–2232.
  21. Xu, L.H.; Huang, F.; Chen, T.; Wu, J. Antivirus constituents of radix of Isatidis indigotica. Chin. J. Nat. Med 2005, 3, 359–360.
  22. Deng, X.Y.; Gao, G.H.; Zheng, S.N.; Li, F.M. Qualitative and quantitative of flavonoids in the leaves of Isatis indigatica Fort. by ultra-performance liquid chromatography with PDA and electrospray ionization tandem mass spectrometry detection. J. Pharm. Biomed. Anal 2008, 48, 562–567.
  23. Ye, W.T.; Ou-Yang, H.F.; Li, X.L. Study on quality standard of CO Banlangen Granules. Clin. Med. Eng 2010, 4, 51–52.
  24. Kong, W.J.; Zhao, Y.L.; Shan, L.M.; Xiao, X.H.; Guo, W.Y. Investigation on the spectrum-effect relationships of ETOAc extract from Radix isatidis based on HPLC fingerprints and microcalorimetry. J. Chromatogr. B 2008, 1, 109–144.
  25. Kong, W.J.; Zhao, Y.L.; Shan, L.M.; Xiao, X.H.; Guo, W.Y. Thermochemical studies on the quantity-antibacterial effect relationship of four organic Accids from Radix Isatidis on Escherichia coli growth. Biol. Pharm. Bull 2008, 31, 1301–1305.
  26. Kong, W.J.; Zhao, Y.L.; Shan, L.M.; Xiao, X.H.; Guo, W.Y.; Wang, J.B. Determination of salicylic acid in total acid extraction of Radix Isatidis by HPLC. Cent. South Pharm 2008, 2, 137–140.
  27. Fan, L.F.; Zhang, L.T.; Yuan, Z.F.; Xu, H.J.; He, W. HPLC determination the contents of indigo and indirubin in Radix Isatidis. Chin. J. Pharm. Anal 2008, 4, 540–543.
  28. Na, G.X.; Fang, P. Research overview in degradation of glucosinolates. Food Sci 2008, 29, 350–354.
  29. Hashem, F.A.; Saleh, M.M. Antimicrobial components of some cruciferae plants (Diplotaxis harra Forsk. and Erucaria microcarpa Boiss.). Phytother. Res 1999, 13, 329–332.
  30. Wang, R.; Yang, H.Y.; Yang, Q.W. Study on quality standard of Isatidis Radix. Chin. Tradit. Herb. Drug 2010, 41, 478–480.
  31. Xie, Z.Y.; Shi, Y.H.; Wang, Z.T.; Wang, R.; Li, Y.M. Biotransformation of glucosinolates epiprogoitrin and progoitrin to (R)- and (S)-goitrin in Radix isatidis. J. Agric. Food. Chem 2011, 59, 12467–12472.
  32. Zhou, W.; Xie, M.F.; Zhang, X.Y.; Liu, T.T.; Duan, G.L. Improved liquid chromatography fingerprint of fat-soluble Radix Isatidis extract using multi-wavelength combination technique. J. Sep. Sci 2011, 34, 1123–1132.
  33. Xiao, X.; Luo, G.A.; Wang, Y.M. Fingerprints of Isatidis Radix by HPLC. J. Jiangxi Univ. TCM 2010, 22, 67–69.
  34. Zou, P.; Hong, Y.; Koh, H.L. Chemical fingerprinting of Isatis Indigatica root by RP-HPLC and Hierarchical clustering analysis. J. Pharm. Biomed. Anal 2005, 38, 514–520.
  35. Shi, Y.H.; Xie, Z.Y.; Wu, Y.C.; Li, Y.M.; Wang, R.; Wang, Z.T. Determination of R,S-goitrin of Banlangen preparations by RP-HPLC. Chin. J. Exp. Tradit. Med. Form 2010, 17, 144–146.
  36. Tang, D.Q.; Yang, D.Z.; Tang, A.B.; Gao, Y.Y.; Jiang, X.G.; Mou, J.; Yin, X.X. Simultaneous chemical fingerprint and quantitative analysis of Ginkgo biloba extract by HPLC-DAD. Anal. Bioanal. Chem 2010, 396, 3087–3095.
  37. Wei, H.; Sun, L.N.; Tai, Z.G.; Gao, S.H.; Xu, W.; Chen, W.S. A simple and sensitive HPLC method for the simultaneous determination of 8 bioactive components and fingerprint analysis of Schisandra sphenanthera. Anal. Chim. Acta 2010, 662, 97–104.
  38. Jin, X.F.; Lu, Y.H.; Wei, D.Z.; Wang, Z.T. Chemical fingerprint and quantitative analysis of Salvia plebeian R.Br. by high-performance liquid chromatography. J. Pharm. Biomed. Anal 2008, 48, 100–104.
  39. Li, Y.; Wu, T.; Zhu, J.J.; Wan, L.L.; Yu, Q.; Li, X.X.; Cheng, Z.Z.; Guo, C. Combinative method using HPLC fingerprint and quantitative analyses for quality consistency evaluation of an herbal medicinal preparation produced by different manufactures. J. Pharm. Biomed. Anal 2010, 52, 597–602.
  40. Wang, Y.X.; Li, Q.; Wang, Q.; Li, Y.J.; Ling, J.H.; Liu, L.L.; Chen, X.H.; Bi, K.S. Simultaneous determination of seven bioactive components in Oolong Tea Camellia sinensis: Quality control by chemical composition and HPLC fingerprints. J. Agric. Food Chem 2012, 60, 256–260.
  41. Wu, Q.Y.; Zhou, Y.; Jin, X.; Guan, Y.; Xu, M.; Liu, L.F. Chromatographic fingerprint and the simultaneous determination of five bioactive components of Geranium carolinianum L. water extract by high performance liquid chromatography. Int. J. Mol. Sci 2011, 12, 8740–8749.
Ijms 13 09035f1a 200Ijms 13 09035f1b 200

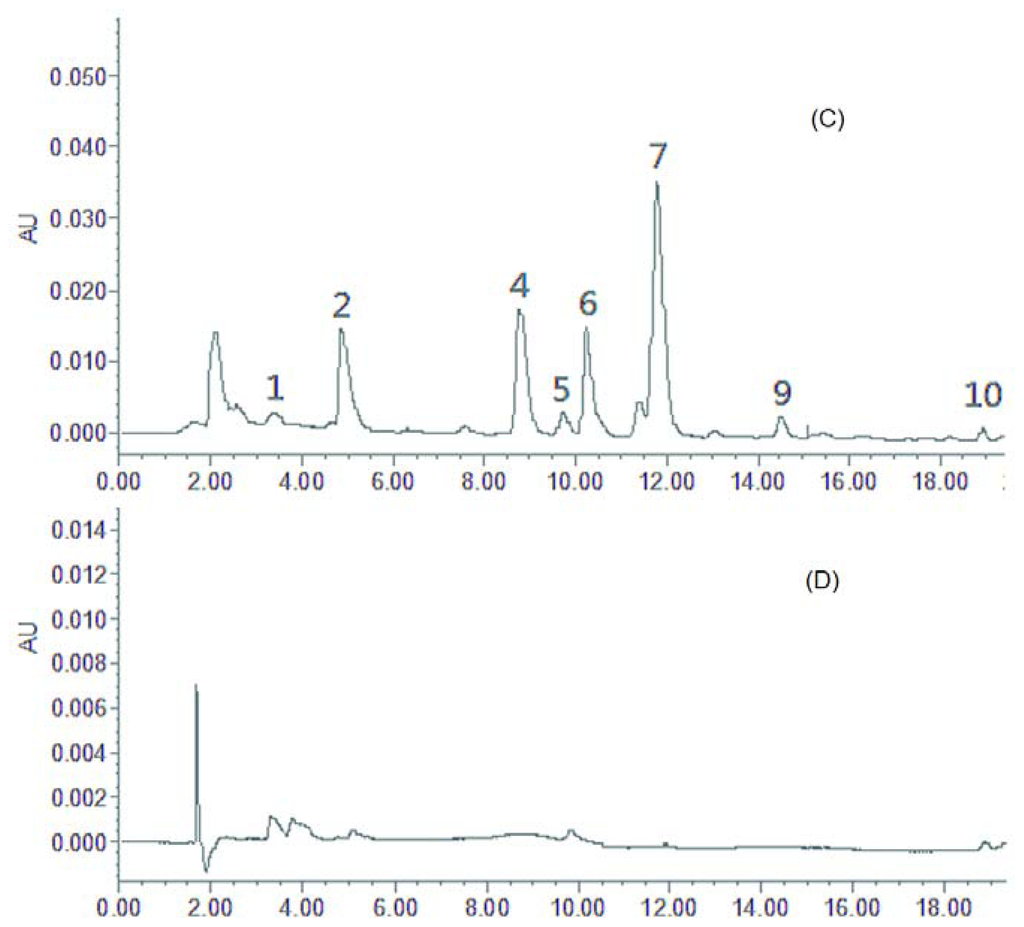

Figure 1. Typical chromatograms for determining the eight bioactive compounds in different samples. (A) Mixed standards; (B) Radix Isatidis (No. 20101121); (C) Banlangen Granules (BLGG) (No. 090921); (D) Nan-Banlangen (NBLG) (No. 060308-1). Peaks 1 = hypoxanthine, 2 = uridine, 3 = progoitrin, 4 = epiprogoitrin, 5 = adenosine, 6 = guanosine, 7 = R,S-goitrin, and 9 = luconapin.

Click here to enlarge figure

Figure 1. Typical chromatograms for determining the eight bioactive compounds in different samples. (A) Mixed standards; (B) Radix Isatidis (No. 20101121); (C) Banlangen Granules (BLGG) (No. 090921); (D) Nan-Banlangen (NBLG) (No. 060308-1). Peaks 1 = hypoxanthine, 2 = uridine, 3 = progoitrin, 4 = epiprogoitrin, 5 = adenosine, 6 = guanosine, 7 = R,S-goitrin, and 9 = luconapin.
Ijms 13 09035f1a 1024Ijms 13 09035f1b 1024
Ijms 13 09035f2 200
Figure 2. Bar graph of the contents of progoitrin, epiprogoitrin, and R,S-gotrin in 15 sample batches.

Click here to enlarge figure

Figure 2. Bar graph of the contents of progoitrin, epiprogoitrin, and R,S-gotrin in 15 sample batches.
Ijms 13 09035f2 1024
Ijms 13 09035f3 200

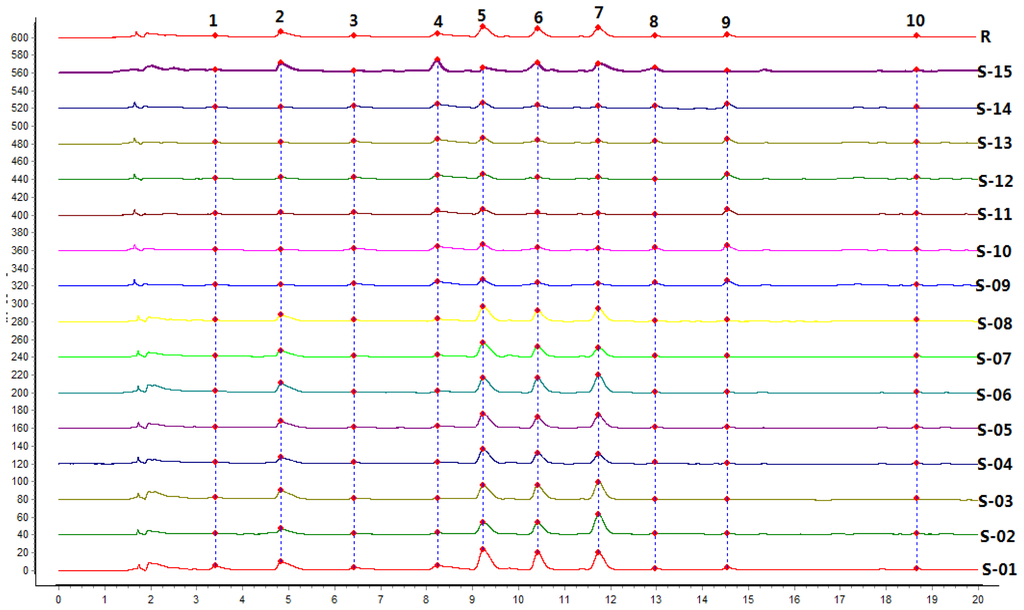

Figure 3. Ultra-performance liquid chromatography (UPLC) fingerprint chromatograms of 15 batches of Radix Isatidis (R: digital standard fingerprint).

Click here to enlarge figure

Figure 3. Ultra-performance liquid chromatography (UPLC) fingerprint chromatograms of 15 batches of Radix Isatidis (R: digital standard fingerprint).
Ijms 13 09035f3 1024
Ijms 13 09035f4 200

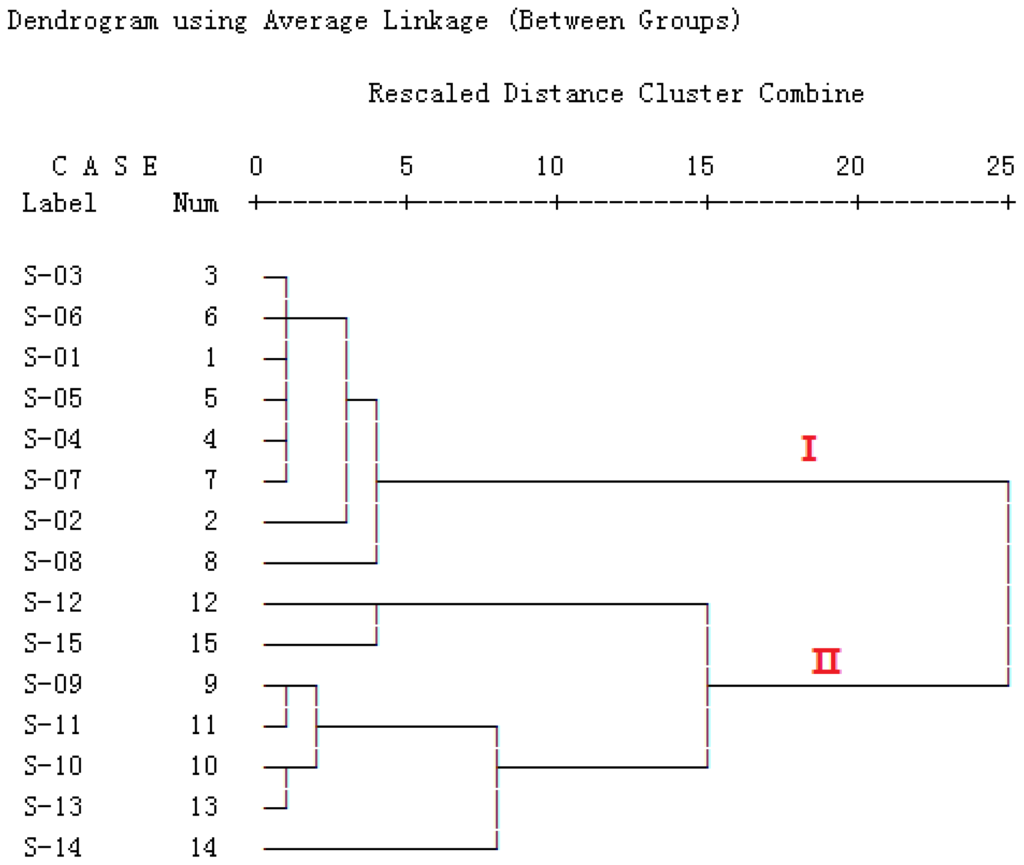

Figure 4. Dendrogram of hierarchical clustering analysis (HCA) for the 15 tested samples. The hierarchical clustering was done by the SPSS software (version 15.0; IBM: Chicago, IL, USA, 2006). Ward’s method was performed, and Squared Euclidean distance was selected as a measurement.

Click here to enlarge figure

Figure 4. Dendrogram of hierarchical clustering analysis (HCA) for the 15 tested samples. The hierarchical clustering was done by the SPSS software (version 15.0; IBM: Chicago, IL, USA, 2006). Ward’s method was performed, and Squared Euclidean distance was selected as a measurement.
Ijms 13 09035f4 1024
Ijms 13 09035f5 200

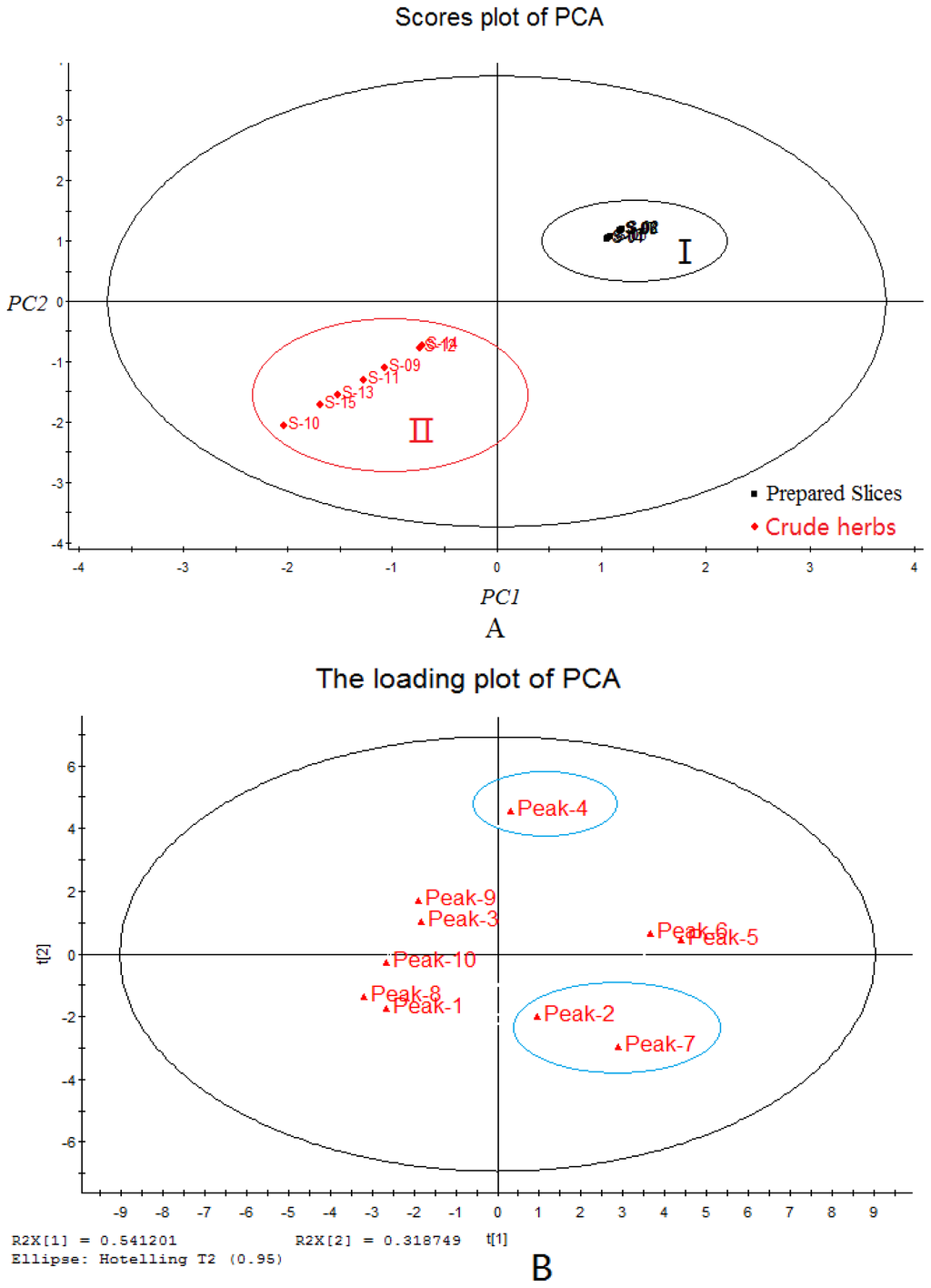

Figure 5. Score plot of principal component analysis (PCA) (A) and PCA loading plot (B) of Radix Isatidis.

Click here to enlarge figure

Figure 5. Score plot of principal component analysis (PCA) (A) and PCA loading plot (B) of Radix Isatidis.
Ijms 13 09035f5 1024
Ijms 13 09035f6 200

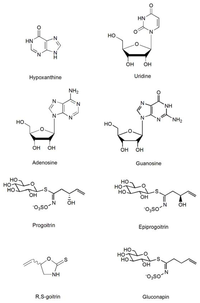

Figure 6. The structures of eight bioactive components in Radix Isatidis.

Click here to enlarge figure

Figure 6. The structures of eight bioactive components in Radix Isatidis.
Ijms 13 09035f6 1024
Table 1. Regression data, limits of detection (LODs), and limits of quantification (LOQs) for the eight bioactive constituents.

Click here to display table

Table 1. Regression data, limits of detection (LODs), and limits of quantification (LOQs) for the eight bioactive constituents.
CompoundRegression equation (Y = ax + b) aR bLinear range (μg mL−1)LOD a (μg mL−1)LOQ b (μg mL−1)
HypoxanthineY = 914.32x − 684.640.99996.50–130.000.0150.049
UridineY = 1945.9x + 263.110.99994.12–82.400.0120.041
AdenosineY = 6870.2x − 3669.60.99994.26–85.200.0050.017
GuanosineY = 12618x − 1461.71.00003.90–78.000.0170.045
ProgoitrinY = 2579.2x − 886.870.99972.30–34.500.5631.875
EpiprogoitrinY = 4336.8x − 68.7330.99982.30–34.500.7082.100
R,S-goitrinY = 1756.6x − 757.891.00004.50–90.000.0140.045
GluconapinY = 1865.8x − 240.440.99992.05–30.750.4561.640

aY and x stand for the peak area and the injection quantity (μg) of each standard substance, respectively;bR = correlation coefficient, n = 6.

Table 2. Precision, reproducibility, stability, and recovery of the eight bioactive constituents.

Click here to display table

Table 2. Precision, reproducibility, stability, and recovery of the eight bioactive constituents.
CompoundPrecision
RSD (%) (n = 6)
Reproducibility
RSD (%) (n = 6)
Stability
RSD (%) (n = 6)
Recovery (%)
(n = 9) Mean ± RSD (%)
Hypoxanthine0.150.460.22101.5 ± 1.63
Uridine0.180.100.39101.2 ± 1.33
Adenosine0.070.610.49101.1 ± 1.11
Guanosine0.121.241.30100.9 ± 1.72
Progoitrin0.110.190.2499.5 ± 1.81
Epiprogoitrin0.111.921.44100.2 ± 1.73
R,S-goitrin0.480.720.91100.4 ± 0.73
Gluconapin0.310.330.48103.0 ± 1.14
Table 3. The contents (mg g−1) of eight targets in 21 commercial samples (n = 3).

Click here to display table

Table 3. The contents (mg g−1) of eight targets in 21 commercial samples (n = 3).
NameNo.aContent b (mg g−1)

1 c2345679Total
Prepared slicesS-010.1370.4145.9386.6050.4920.5250.7764.05118.937
S-020.0220.2791.5291.5000.2930.3770.8990.8705.768
S-030.0420.4362.3892.0940.3430.4650.7891.2107.767
S-040.0240.2832.4652.2930.3420.3360.4141.1907.347
S-050.0190.2783.3313.3550.3470.3450.5511.97710.203
S-060.0370.4161.1781.4130.3720.4240.7320.4014.974
S-070.0210.3841.4161.7500.3360.3470.4830.5745.310
S-080.3360.3451.9502.4410.3480.3790.4360.5016.735
Crude herbsS-090.0560.0835.9296.6050.1140.0950.05710.02022.959
S-100.0220.0577.3456.5650.1270.1320.0839.45823.790
S-110.0280.0705.2866.4240.1200.1160.07010.13022.244
S-120.0350.0843.9345.6600.1240.1370.1237.23517.333
S-130.0480.0576.3966.5340.1050.1350.0626.74720.084
S-140.0400.0595.5076.2530.1220.3270.0849.61122.003
S-150.0330.0706.6285.7130.1050.2070.0545.49818.309
GranulesS-16N.D. d0.045N.D.N.D.0.0060.0080.0850.3300.473
S-170.0040.022N.D.N.D.N.D.N.D.0.0270.0940.147
S-18N.D.0.058N.D.N.D.0.0030.0050.0750.5760.716
S-19N.D.0.021N.D.N.D.0.001N.D.0.0330.1000.154
S-200.0060.061N.D.N.D.0.0070.0060.0870.5150.681
S-210.0360.053N.D.0.1020.0120.0100.0670.1690.448

aNo. means sample numbers as listed in Table 4;bValues in mg g−1 of dry raw materials; and in mean ± SD, n = 3, the SD was < 4% of the mean, which is not shown for clarity;c(1–7,9) mean the bioactive constituents number as listed in Figure 1;dN.D.: below LOD.

Table 4. All samples used in this work and their corresponding similarities.

Click here to display table

Table 4. All samples used in this work and their corresponding similarities.
NameNo.Batch No.ResourceOriginsSimilarity
Prepared SlicesS-0120101121AnhuiIsatis indigotica Fort.0.991
S-02101001AnhuiIsatis indigotica Fort.0.933
S-038100182AnhuiIsatis indigotica Fort.0.948
S-04100709AnhuiIsatis indigotica Fort.0.947
S-0520110213JiangsuIsatis indigotica Fort.0.967
S-06100713MongoliaIsatis indigotica Fort.0.954
S-07100602MongoliaIsatis indigotica Fort.0.954
S-08101120ZhejiangIsatis indigotica Fort.0.967

Crude herbsS-0920110224-1ShanghaiIsatis indigotica Fort.0.777
S-1020110224-2ShanghaiIsatis indigotica Fort.0.774
S-1120110224-3ShanghaiIsatis indigotica Fort.0.752
S-1220080902HarbinIsatis indigotica Fort.0.759
S-13blg-081020HenanIsatis indigotica Fort.0.818
S-1420110205AnhuiIsatis indigotica Fort.0.820
S-1520081017HebeiIsatis indigotica Fort.0.811

GranuleS-16090921Shanghai--
S-17100302Shanghai--
S-18A0F090Guangzhou--
S-19L9F043Guangzhou--
S-20100303Sichuan--
S-21100702Sichuan--

Nan-BanlangenS-22060308-1JiangxiBaphicacanthus eusia (Nees) Bremek.-
S-231678-3GuizhouBaphicacanthus eusia (Nees) Bremek.-
S-2420110923FujianBaphicacanthus eusia (Nees) Bremek.-
S-2520111025FujianBaphicacanthus eusia (Nees) Bremek.-
Int. J. Mol. Sci. EISSN 1422-0067 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
