Int. J. Mol. Sci. 2012, 13(7), 8752-8761; doi:10.3390/ijms13078752

Comparison of Different Ranking Methods in Protein-Ligand Binding Site Prediction
Jun Gao 1,2,, Qi Liu 1,, Hong Kang 1, Zhiwei Cao 1,* and Ruixin Zhu 1,3,4,*
College of Life Science and Biotechnology, Tongji University, Shanghai 200092, China
College of Information Engineering, Shanghai Maritime University, Shanghai 201306, China
Institute for Advanced Study of Translational Medicine, Tongji University, Shanghai 200092, China
School of Pharmacy, Liaoning University of Traditional Chinese Medicine, Dalian 116600, China
Authors to whom correspondence should be addressed; Tel./Fax: +86-21-65981041 (Z.C.), (R.Z.).
These authors contributed equally to this work.
Received: 14 May 2012; in revised form: 19 June 2012 / Accepted: 2 July 2012 / Published: 16 July 2012


: In recent years, although many ligand-binding site prediction methods have been developed, there has still been a great demand to improve the prediction accuracy and compare different prediction algorithms to evaluate their performances. In this work, in order to improve the performance of the protein-ligand binding site prediction method presented in our former study, a comparison of different binding site ranking lists was studied. Four kinds of properties, i.e., pocket size, distance from the protein centroid, sequence conservation and the number of hydrophobic residues, have been chosen as the corresponding ranking criterion respectively. Our studies show that the sequence conservation information helps to rank the real pockets with the most successful accuracy compared to others. At the same time, the pocket size and the distance of binding site from the protein centroid are also found to be helpful. In addition, a multi-view ranking aggregation method, which combines the information among those four properties, was further applied in our study. The results show that a better performance can be achieved by the aggregation of the complementary properties in the prediction of ligand-binding sites.
ranking aggregation; protein-ligand binding site; prediction

1. Introduction

In most cellular processes, proteins interact with many other molecules to perform their biological functions. The successful identification of ligand-binding sites on protein surfaces is generally the starting point for the annotation of protein function and drug discovery. In addition, as a result of various structural genomic projects performed, structural information of proteins with little or no functional annotations is increasing exponentially. However, in most cases, protein-ligand complex structures are not easily experimentally accessible, which leads to the demand of in silico methods to serve as an alternative [1,2]. Fortunately, it has been proven that the prediction of binding sites using computational methods is efficient and powerful compared to in vivo approaches, and several computational methods have been presented in this area [3,4]. However, research in this area is clearly in an infant stage and there still remain many issues to be solved and improved.

To predict the potential binding site, several computational methods have been developed. Briefly, these algorithms can be divided into three categories, i.e., (1) purely geometry-based methods, which follow the assumption that the protein-ligand binding sites are generally located at crevices on the protein surface or cavities in the protein. Methods falling in this category include POCKET [5], LIGSITE [6], PASS [7], SURFNET [8], and PocketPicker [9] etc.; (2) energetic-based methods, which coat the protein surface with a layer of probes to calculate van der Waals interaction energies between the protein and probes. As an example, Q-SiteFinder [10] is a classical tool falling in this category; (3) knowledge based methods, which includs various statistical methods [11], machine learning methods [12] and similarity comparison methods. Besides, a part of them predict protein-ligand binding sites by searching for clusters or patterns of the conserved residues [13,14].

Generally speaking, a computational method for binding site prediction has to consider several challenging issues: (1) Identification of candidate protein-ligand binding sites [517], which relate to delimit cavities or pockets at the protein surface that are likely to bind molecules; (2) ranking binding sites according to their likeliness to accept a molecule, since there are often several presumed binding sites that can be predicted on a protein surface, and it is necessary to derive an approach to characterize and rank them to select the more relevant ones [18]; (3) induced fit, which may enhance the fidelity of molecular recognition in the presence of competition and noise via conformational proofreading mechanism [19]. In this study, we focus primarily on the ranking of binding sites. It is said that the largest pocket tends to frequently correspond to the observed ligand-binding site [20]. Based on this assumption, most prediction methods rank the candidate sites according to the pocket size. Nevertheless, different studies have also tried to solve this ranking problem from other perspectives [16,21,22].

Our former work for binding site prediction is based on the integration of sequence conservation information with geometry-based cleft identification. In this study, in order to improve the performance of our work and investigate the contribution of different ranking methods in the prediction of protein-ligand binding sites, five ranking methods (pocket size, distance from the protein centroid, sequence conservation, number of hydrophobic residues, multi-view method) involving four properties have been tested. The results show that (1) if only one property is considered, the use of sequence conservation information helps ranking the pockets best; and (2) the innovative multi-view method, which integrates complementary properties such as pocket size and distance from the protein centroid, can achieve a better performance than if only one individual property is considered.

2. Results and Discussion

2.1. Individual Property Comparison

For the bound and unbound/bound test sets, 17 pockets were predicted for each protein on average with our geometry-based site finding method. The TOP1 and TOP3 accuracy differs for different ranking methods. The accuracy of the TOP 1 and TOP 3 in different individual property prediction ranking lists is listed in Table 1. A geometry-based method, SURFNET [8], with its own ranking algorithm is also tested for comparison. It is shown that ranking that presumes binding sites according to conservation score achieves the best performance with a 59% success rate in the top 1 prediction, which means that almost 124 of the 210 proteins in the bound test set are correctly predicted. Ranking with the criterion of “volume and distance from the protein centroid” (shown in the “Distance” column) also performs with better results, which may indicate that the size and the depth of the binding site could be helpful in ligand binding site prediction. However, we found that ranking according to the hydrophobic attribute does not deliver the expected results. We explain this by the fact that the description of hydrophobic properties in our study may be too simple.

2.2. Ranking Aggregation from a Multi-View Perspective

In some cases the conservation profiles of proteins are not easily accessible, which may make it impossible to rank presumed binding sites by conservation score. In addition, there is an urgent need for developing an efficient approach to fully integrate various complementary ranking lists from a comprehensive multi-view perspective. Thus in our study, an innovative ranking aggregation method is further applied to address these problems. We integrate the ranking lists of different properties like the combination of “binding site size” and “the distance from the protein centroid”. The corresponding results are listed in Table 2. It is shown that after the ranking aggregation, most of the success rates are improved remarkably and some of them are comparable to the conservation ones. These results indicate that the combination of different individual complimentary properties will generally improve the prediction success rate. In addition, “Volume plus Distance” is found to be an alternative to “Conservation” when proteins with no conservation profiles are predicted. An example (PDB: 2SIM [23]) for such a kind of ranking aggregation is presented in Table 3. It can be seen that the ordering of the correctly predicted binding sites (*Pocket 9) is promoted after ranking aggregation, which leads to the improvement of the TOP 1 success rate. In Figure 1, the surface position of Pocket 9 is visualized with Jmol [24]. However, it is worth noting that when two or more properties that are not complementary are used, such as the information of volume and conservation, the final success rate probably does not show any improvement.

In summary, our study has not only validated the significance of sequence conservation in ligand binding site prediction, but also indicated the usefulness of the size and depth of the binding site in the ranking of binding sites. Furthermore, rather than only considering one property, an innovative multi-view ranking method was applied, which could achieve a much better performance for binding site prediction.

3. Methods

Our study relies on a new protein-ligand binding site prediction method introduced in our previous work. It is based on the integration of geometry and sequence conservation information [4]. An overview of the ranking study is presented in Figure 2.

3.1. Four Properties Used for Ranking

The four properties for the ranking of binding sites are calculated as follows:

  • Pocket size. This is one of the most popular ranking properties. In this study, the volume of every presumed binding site is calculated with the Qhull program [25].

  • Distance of binding site from the protein centroid. This property is considered to reflect the depth of a presumed binding site. And the distance is defined as the Euclidian distance between the protein centroid and the geometric center of the presumed binding site.

    d = ( x b - x p ) 2 + ( y b - y p ) 2 + ( z b - z p ) 2

    where (xb, yb, zb) is the coordination of the predicted binding site center, and (xp, yp, zp) is the center of the protein.

  • Sequence conservation value. The sequence conservation information is achieved by the ConSurf-DB [26], which provides the pre-calculated evolutionary conservation profiles for proteins with known structures in the PDB. In ConSurf-DB, every residue in every corresponding protein is evaluated with a normalized conservation score so that its average over all residues is zero and the standard deviation is one. Low (negative) scores indicate the conserved positions while the high scores indicate the variable ones. In our study, the candidate binding sites are ranked according to the conservation score of all residues in the same binding site.

  • The number of hydrophobic residues. Due to the importance of hydrophobicity in protein-ligand binding sites [27,28], the number of hydrophobic residues in each presumed binding site is also calculated. The hydrophobic residues include ALA, VAL, LEU, ILE, PRO, PHE, TRP and MET. The following equation is used to calculate hydrophobic residues:

    N H = n i , i { A L A , V A L , L E U , I L E , P R O , P H E , T R P , M E T }

3.2. Multi-View Ranking Aggregation

The complementary properties listed above might be helpful in ranking presumed binding sites. Such an innovative ranking aggregation method was also applied in our previous study [29]. It is based on the equalitarian philosophical paradigm to seek a consensus list among individual ranking lists. Before defining the two distance measures, some necessary notations should be introduced. Let Mi(1), ···, Mi(k) be the scores associated with the ordered list Li, where Mi(1) is the best score, Mi(2) is the second best one, and so on. Let rLi(A) be the rank of A in the list Li if A is within the top k, and otherwise equal to k + 1. The distance between two ranking lists can be defined as:

d ( L i , L j ) = t L i L j r L i ( t ) - r L j ( t )

which is also named the Spearman’s footrule distance [30]. rLj (t) in equation (3) indicates the position of element t in the ordered list j.

In order to discover a comprehensive ranking list that would also be as close as possible to all the given ranking lists, an optimization function is defined:

δ * = arg  ( min { Φ ( δ ) } )
Φ ( δ ) = i = 1 m W i d ( δ , L i )

where Wi is the importance weight of ranking list Li. It is set to one in our study as we treat the four properties equally. Parameter d, which is calculated according to Spearman distance, represents the distance between the “comprehensive list” δ* and Li. The goal of the ranking aggregation is to find δ* which minimizes the total distance between the “comprehensive list” and every ranking list. To accomplish this goal, the Cross-Entropy method (CE) [31] is used here, which is a general Monte Carlo approach for multi-extremum optimization. The CE algorithm requires users to set a number of parameters. It is recommended that the number of samples N for each stage is set to at least 10 k2, and the rarity parameter ρ in the sampling stage of CE [31] used to update the cell probabilities is set to 0.01 when N is relatively large, and 0.1 when N is small (less than 100). All data are aggregated under R statistical environment with the RankAggreg package.

3.3. Test Dataset and Evaluation of the Pocket Prediction

In this study, two datasets, i.e., the 210 bound structures and 48 unbound/bound structures, which are used to evaluate the LIGSITEcsc [16] algorithm are also used as a kind of unbound/bound and bound test set. To assess the quality of binding-site predictions, a standard evaluation method presented previously [4,6,9,16] is applied, which defines a prediction to be a met, if the geometric center of the presumed pocket lies within 4 Å to any atom of the ligand. Predictions that do not meet this criterion are excluded in the calculation of prediction success rates.

We also used another evaluation measurement, i.e., the Matthews Correlation Coefficient [32] (MCC) as a comparison. For each protein, residue predictions were classified as true positives (TP: correctly predicted binding site residues), true negatives (TN: correctly predicted nonbinding site residues), false negatives (FN: incorrectly predicted as nonbinding site residues), false positives (FP: incorrectly predicted as binding site residues). The MCC was computed using Equation 6:

M C C = T P × T N - F P × F N ( T P + F P ) × ( T P + F N ) × ( T N + F P ) × ( T N + F N )

For the bound and unbound/bound test sets, the MCC score for each protein can be calculated with a certain prediction method. In our implementation, different score can be calculated for different ranking methods. To determine the significant differences between different ranking methods as well as their combinations, the one-sided Wilcoxon signed ranked sum test is used based on MCC scores for each protein. The statistical evaluation is performed using R (version 2.15.0).

For the 210 bound structures, the evaluation is very straightforward and we will follow the above described routing procedure. For the unbound/bound dataset, the Biojava development package [33] is first used for the alignment of all the structures, and the ligands in the bound structures are mirrored to the corresponding unbound structures. Finally the predictions are performed for the unbound structures and then they are checked against the bound structures.

4. Conclusions

The prediction of protein-ligand binding sites has great significance for protein function annotation and computer-aided drug design. Besides the binding site identification, the binding sites’ ranking according to their likeliness to accept a molecule is also an important and challenging issue. In order to improve the findings of our previous work, this paper represents an initial effort to study the contribution of different ranking methods to protein-ligand binding site prediction. Five ranking methods (pocket size, distance from the protein centroid, sequence conservation, number of hydrophobic residues, multi-view ranking aggregation) have been tested in our study. The results show that when only one property is considered, the use of sequence conservation information helps ranking the pockets best. In addition, pocket size and depth can also serve as important attributes. Moreover, it is also proven that ranking aggregation which involves complementary properties can obtain a better performance than that of individual properties. This finding not only supports the findings of our previous work, but also provides useful suggestions for other related binding site identification studies.


This work was supported in part by grants from National Natural Science Foundation of China (Grant No. 30976611, Grant No. 31100956 and Grant No. 61173117). Research Fund for the Doctoral Program of Higher Education of China (Grant No. 20100072120050, Grant No. 20110072120048), and TCM modernization of Shanghai (Grant No. 09dZ1972800).


  1. Zhu, R.; Hu, L.; Li, H.; Su, J.; Cao, Z.; Zhang, W. Novel natural inhibitors of CYP1A2 identified by in silico and in vitro screening. Int. J. Mol. Sci 2011, 12, 3250–3262. [Google Scholar]
  2. Zhu, R.; Liu, Q.; Tang, J.; Li, H.; Cao, Z. Investigations on inhibitors of hedgehog signal pathway: A quantitative structure-activity relationship study. Int. J. Mol. Sci 2011, 12, 3018–3033. [Google Scholar]
  3. Henrich, S.; Salo-Ahen, O.M.; Huang, B.; Rippmann, F.F.; Cruciani, G.; Wade, R.C. Computational approaches to identifying and characterizing protein binding sites for ligand design. J. Mol. Recognit 2010, 23, 209–219. [Google Scholar]
  4. Dai, T.; Liu, Q.; Gao, J.; Cao, Z.; Zhu, R. A new protein-ligand binding sites prediction method based on the integration of protein sequence conservation information. BMC Bioinforma 2011, 12(Suppl 14), S9. [Google Scholar]
  5. Levitt, D.G.; Banaszak, L.J. POCKET: A computer graphics method for identifying and displaying protein cavities and their surrounding amino acids. J. Mol. Graph 1992, 10, 229–234. [Google Scholar]
  6. Hendlich, M.; Rippmann, F.; Barnickel, G. LIGSITE: Automatic and efficient detection of potential small molecule-binding sites in proteins. J. Mol. Graph. Model 1997, 15. [Google Scholar]
  7. Brady, G.P., Jr; Stouten, P.F. Fast prediction and visualization of protein binding pockets with PASS. J. Comput. Aided Mol. Des 2000, 14, 383–401. [Google Scholar]
  8. Laskowski, R.A. SURFNET: A program for visualizing molecular surfaces, cavities, and intermolecular interactions. J. Mol. Graph 1995, 13, 323–330. [Google Scholar]
  9. Weisel, M.; Proschak, E.; Schneider, G. PocketPicker: Analysis of ligand binding-sites with shape descriptors. Chem. Cent. J 2007, 1, 7. [Google Scholar]
  10. Laurie, A.T.; Jackson, R.M. Q-SiteFinder: An energy-based method for the prediction of protein-ligand binding sites. Bioinformatics 2005, 21, 1908–1916. [Google Scholar]
  11. Zhou, Y.Q.; Liang, S.D.; Zhang, C.; Liu, S. Protein binding site prediction using an empirical scoring function. Nucleic Acids Res 2006, 34, 3698–3707. [Google Scholar]
  12. Sonavane, S.; Chakrabarti, P. Prediction of active site cleft using support vector machines. J. Chem. Inf. Model 2010, 50, 2266–2273. [Google Scholar]
  13. Manning, J.R.; Jefferson, E.R.; Barton, G.J. The contrasting properties of conservation and correlated phylogeny in protein functional residue prediction. BMC Bioinforma 2008, 9, 51. [Google Scholar]
  14. Caffrey, D.R.; Somaroo, S.; Hughes, J.D.; Mintseris, J.; Huang, E.S. Are protein-protein interfaces more conserved in sequence than the rest of the protein surface? Protein Sci 2004, 13, 190–202. [Google Scholar]
  15. Prymula, K.; Jadczyk, T.; Roterman, I. Catalytic residues in hydrolases: Analysis of methods designed for ligand-binding site prediction. J. Comput. Aided Mol. Des 2011, 25, 117–133. [Google Scholar]
  16. Huang, B.; Schroeder, M. LIGSITEcsc: Predicting ligand binding sites using the Connolly surface and degree of conservation. BMC Struct. Biol 2006, 6, 19. [Google Scholar]
  17. Huang, B. MetaPocket: A meta approach to improve protein ligand binding site prediction. OMICS 2009, 13, 325–330. [Google Scholar]
  18. Le Guilloux, V.; Schmidtke, P.; Tuffery, P. Fpocket: An open source platform for ligand pocket detection. BMC Bioinforma 2009, 10, 168. [Google Scholar]
  19. Savir, Y.; Tlusty, T. Conformational proofreading: The impact of conformational changes on the specificity of molecular recognition. PLoS One 2007, 2, e468. [Google Scholar]
  20. Nayal, M.; Honig, B. On the nature of cavities on protein surfaces: Application to the identification of drug-binding sites. Proteins 2006, 63, 892–906. [Google Scholar]
  21. An, J.; Totrov, M.; Abagyan, R. Comprehensive identification of “druggable” protein ligand binding sites. Genome Inform 2004, 15, 31–41. [Google Scholar]
  22. Zhong, S.; MacKerell, A.D., Jr. Binding response: A descriptor for selecting ligand binding site on protein surfaces. J. Chem. Inf. Model 2007, 47, 2303–2315. [Google Scholar]
  23. Crennell, S.J.; Garman, E.F.; Philippon, C.; Vasella, A.; Laver, W.G.; Vimr, E.R.; Taylor, G.L. The structures of Salmonella typhimurium LT2 neuraminidase and its complexes with three inhibitors at high resolution. J. Mol. Biol 1996, 259, 264–280. [Google Scholar]
  24. Jmol: An open-source Java viewer for chemical structures in 3D, Available online: accessed on 29 March 2012.
  25. Barber, C.B.; Dobkin, D.P.; Huhdanpaa, H. The Quickhull algorithm for convex hulls. ACM Trans. Math. Softw 1996, 22, 469–483. [Google Scholar]
  26. Goldenberg, O.; Erez, E.; Nimrod, G.; Ben-Tal, N. The ConSurf-DB: Pre-calculated evolutionary conservation profiles of protein structures. Nucleic Acids Res 2009, 37, D323–D327. [Google Scholar]
  27. Wang, L.; Berne, B.J.; Friesner, R.A. Ligand binding to protein-binding pockets with wet and dry regions. Proc. Natl. Acad. Sci. USA 2011, 108, 1326–1330. [Google Scholar]
  28. Guharoy, M.; Chakrabarti, P. Conserved residue clusters at protein-protein interfaces and their use in binding site identification. BMC Bioinforma 2010, 11, 286. [Google Scholar]
  29. Kang, H.; Sheng, Z.; Zhu, R.; Huang, Q.; Liu, Q.; Cao, Z. Virtual drug screen schema based on multiview similarity integration and ranking aggregation. J. Chem. Inf. Model 2012, 52, 834–843. [Google Scholar]
  30. Fagin, R.; Kumar, R.; Sivakumar, D. Comparing top k lists. SIAM J. Discret. Math 2003, 17, 134–160. [Google Scholar]
  31. Pihur, V.; Datta, S. Weighted rank aggregation of cluster validation measures: A Monte Carlo cross-entropy approach. Bioinformatics 2007, 23, 1607–1615. [Google Scholar]
  32. Matthews, B.W. Comparison of the predicted and observed secondary structure of T4 phage lysozyme. Biochim. Biophys. Acta 1975, 405, 442–451. [Google Scholar]
  33. Holland, R.C.; Down, T.A.; Pocock, M.; Prlic, A.; Huen, D.; James, K.; Foisy, S.; Drager, A.; Yates, A.; Heuer, M.; et al. BioJava: An open-source framework for bioinformatics. Bioinformatics 2008, 24, 2096–2097. [Google Scholar]

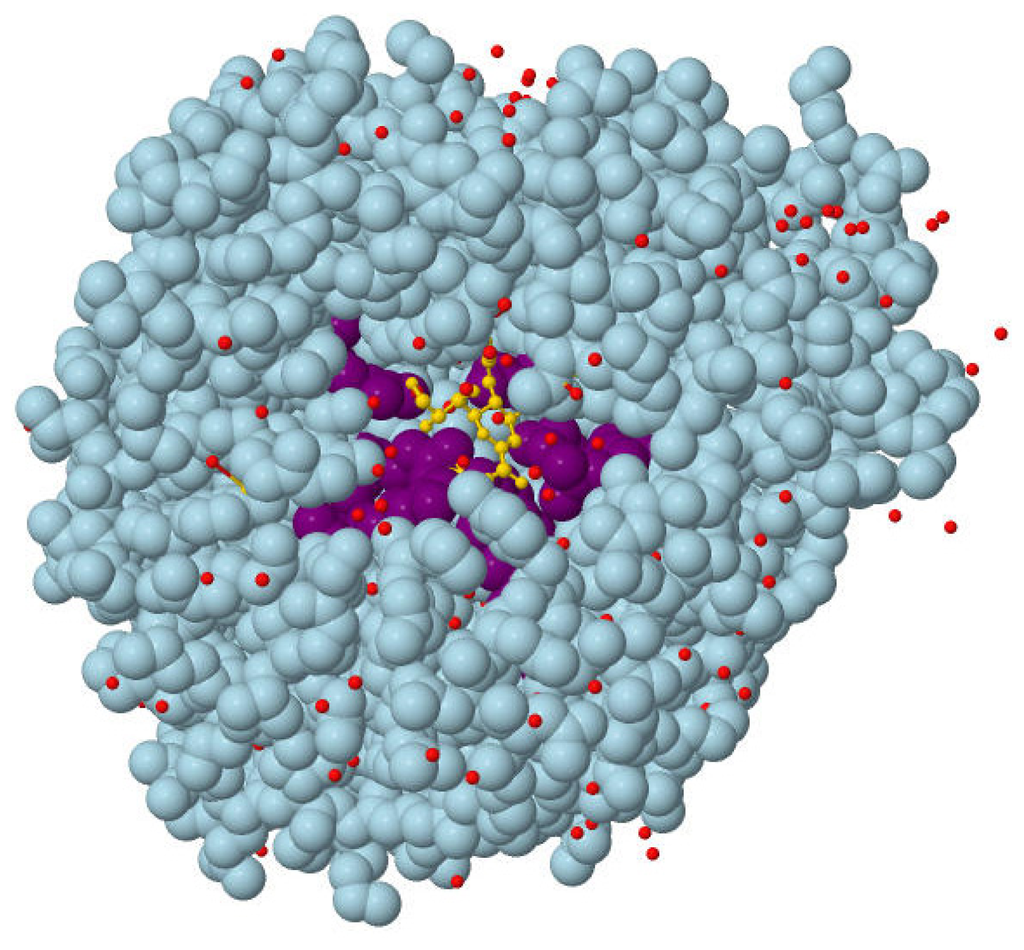

Figure 1. The surface position of Pocket 9 in protein structure. PDB ID: 2SIM. (Red points: water molecule; Light blue: the whole protein; Golden: molecular ligand; Purple: predicted binding site constituted by amino acids).
Figure 1. The surface position of Pocket 9 in protein structure. PDB ID: 2SIM. (Red points: water molecule; Light blue: the whole protein; Golden: molecular ligand; Purple: predicted binding site constituted by amino acids).
Ijms 13 08752f1 1024
Figure 2. The concept of multi-view ranking aggregation.
Figure 2. The concept of multi-view ranking aggregation.
Ijms 13 08752f2 1024
Table 1. Prediction success rate presented by different ranking methods.
Table 1. Prediction success rate presented by different ranking methods.

Conservation score59%0.5373%570.5372
SURFNET (Control)42%~57%~~~
Table 2. Prediction success rate of ranking aggregation.
Table 2. Prediction success rate of ranking aggregation.

CON + DIS57%0.5274%610.5374
VOL + DIS52%0.5173%540.5374
CON + VOL52%0.5272%480.5465
VOL + HYDRO46%0.5067%390.5361
DIS + HYDRO47%0.5168%440.4963
CON + HYDRO53%0.5170%390.5361
DIS + CON + HYDRO53%0.5072%480.5167
VOL + CON + HYDRO51%0.5271%410.5563
VOL + DIS + HYDRO50%0.5271%460.5067
VOL + DIS + CON54%0.5173%520.5374
VOL + DIS + CON + HYDRO53%0.5272%480.5367

*The one-sided Wilcoxon signed ranked sum test is used based on the Matthews Correlation Coefficient (MCC) scores for each protein. The p values for the comparison of different methods are listed in the Supporting Information (Table S1 for bound test set, S2 for unbound/bound test set).

Table 3. Part of results obtained for different ranking methods, which include volume (VOL), distance of presumed binding sites from the protein centroid (DIS), rank aggregation (REG) for VOL and DIS, and conservation score (CONS).
Table 3. Part of results obtained for different ranking methods, which include volume (VOL), distance of presumed binding sites from the protein centroid (DIS), rank aggregation (REG) for VOL and DIS, and conservation score (CONS).
1Pocket 0Pocket 12*Pocket 9*Pocket 9
2*Pocket 9*Pocket 9Pocket 0Pocket 5
3Pocket 5Pocket 0Pocket 10Pocket 0
4Pocket 10Pocket 7Pocket 12Pocket 2

*Pocket 9 corresponds to the observed binding site.
