Int. J. Mol. Sci. 2012, 13(6), 7521-7531; doi:10.3390/ijms13067521

Article
Mechanism of Cellular Oxidation Stress Induced by Asymmetric Dimethylarginine
Srinidi Mohan 1 and Ho-Leung Fung 2,*
1
Department of Pharmaceutical Sciences, University of New England, Portland, ME 04103, USA; E-Mail: smohan@une.edu
2
Department of Pharmaceutical Sciences, University at Buffalo, State University of New York, Buffalo, NY 14260, USA
*
Author to whom correspondence should be addressed; E-Mail: hlfung@buffalo.edu; Tel.: +1-716-645-4843; Fax: +1-716-645-3693.
Received: 2 May 2012; in revised form: 7 June 2012 / Accepted: 13 June 2012 /
Published: 18 June 2012

Abstract

: The mechanism by which asymmetric dimethylarginine (ADMA) induces vascular oxidative stress is not well understood. In this study, we utilized human umbilical vein endothelial cells (HUVEC) to examine the roles of ADMA cellular transport and the uncoupling of endothelial nitric oxide synthase (eNOS) in contributing to this phenomenon. Dihydroethidium (DHE) fluorescence was used as an index of oxidative stress. Whole cells and their isolated membrane fractions exhibited measureable increased DHE fluorescence at ADMA concentrations greater than 10 μM. ADMA-induced DHE fluorescence was inhibited by co-incubation with L-lysine, tetrahydrobiopterin (BH4), or L-nitroarginine methyl ester (L-NAME). Oxidative stress induced in these cells by angiotensin II (Ang II) were unaffected by the same concentrations of L-lysine, L-NAME and BH4. ADMA-induced reduction in cellular nitrite or nitrite/nitrate production was reversed in the presence of increasing concentrations of BH4. These results suggest that ADMA-induced DHE fluorescence involves the participation of both the cationic transport system in the cellular membrane and eNOS instead of the Ang II-NADPH oxidase pathway.
Keywords:
asymmetric dimethylarginine; tetrahydrobiopterin; endothelial nitric oxide synthase; oxidative stress

1. Introduction

Asymmetric (NG, NG) dimethylarginine (ADMA), a naturally occurring L-Arginine (ARG) analog, is a methylated amino acid derived from the proteolysis of proteins [13]. ADMA has been associated with impaired endothelial function in humans [4], and clinical evidence suggests that serum ADMA may be a novel cardiovascular risk factor [5,6]. Elevated ADMA plasma concentrations have been demonstrated in patients with a diverse array of diseases, including hypertension [7], hyperlipidemia [8], hyperhomocyst(e)inemia [9], coronary artery disease [10], peripheral arterial occlusive disease [11], congestive heart failure [12], stroke [13], pulmonary hypertension [14], and end-stage renal disease [15].

Several studies have demonstrated that ADMA induces oxidative stress in vascular tissues. Veresh et al. [16] showed that 1 mM ADMA increased dihydroethidium (DHE) fluorescence in isolated rat femoral artery. Superoxide (O2•−) dismutase reversed the deleterious vascular effects of ADMA and ethidium bromide fluorescence [17]. Serum ADMA was correlated, in multiple linear regression, with vascular O2•− levels in the saphenous veins and internal mammary arteries taken from 201 patients undergoing coronary bypass surgery [18].

The mechanisms by which ADMA induces vascular oxidative stress have not been completely defined. Results from chronic administration of ADMA in mice appeared to indicate that renin-angiotensin system (RAS) may be involved [1922]. Recently, Veresh et al. [16] showed that in isolated rat arterioles, ADMA activates the local RAS, releasing angiotensin II (Ang II), which in turn activates NADPH oxidase, leading to O2•− accumulation. However, Antoniades et al. [23] found no correlation between elevated serum ADMA and NADPH-stimulated vascular O2•−. Thus, the exact role of NADPH oxidase in mediating ADMA-induced vascular O2•− accumulation is still unclear.

Examination of the mechanisms of ADMA-induced oxidative stress in cell culture systems, particularly in human vascular endothelial cells, has been quite limited. In preliminary studies (n = 3), Antoniades et al. [23] showed that incubation of human umbilical vein endothelial cells (HUVEC) with 1 mM for 48 h induced a 2-fold increase in O2•− accumulation. However, serum ADMA concentrations are typically below 1 μM, and the relationship between O2•− induction and ADMA concentration was not determined.

Here, we examined the oxidative stress effects of ADMA using HUVEC. We show that the behavior of ADMA-induced DHE fluorescence is significantly different to that of Ang II, and that ADMA-induced oxidative stress requires the participation of both the cationic transport system in the cellular membrane, and endothelial nitric oxide synthase (eNOS). Evidence for ADMA-induced eNOS uncoupling and involvement of tetrahydrobiopterin (BH4) is presented.

2. Results and Discussion

2.1. ADMA Induces Enchanced DHE Fluorescence in HUVEC Cells and Cell Membranes

Upon exposure to ADMA at various concentrations above 10 μM for 7 days, HUVEC displayed a concentration-dependent increase in DHE fluorescence intensity (Figure 1), which was attained near plateau values over 100 μM ADMA. No increase in DHE fluorescence was observed below 10 μM ADMA. This concentration-dependency was reproduced by incubating the HUVEC cell membranes for 30 min, indicating that the cell membrane was the principal cellular sites for ADMA to produce oxidative stress, and that intracellular proteins are not critical for this effect (Figure 1).

Although we have shown 10 μM ADMA to be the threshold for measuring sufficient DHE fluorescence, our results do not necessarily mean that ADMA would not produce effects of oxidative stress in cells below this concentration, because we measured DHE fluorescence only at one time point, and that certain cellular proteins could have a higher sensitivity toward smaller changes in cellular oxidative stress which our chemical assay system could not detect. Zhao et al. [24] showed that DHE fluorescence cannot be equated quantitatively to O2•− production. Thus, the enhanced DHE fluorescence that we observed may include other reactive oxygen species besides O2•−. However, using the same methods and conditions, we showed in a parallel study [25] that L-arginine induced DHE fluorescence was completely inhibited by PEG-superoxide dismutase, indicating that this oxidative stress most likely involved the production of O2•−. Our current results also showed that, when intact HUVEC were incubated with 100 μM ADMA for 7 days, the enhancement in DHE fluorescence was similar in magnitude to that observed for L-arginine under identical conditions [25].

2.2. Involvement of Membrane ADMA Transport and eNOS in Oxidative Stress

Co-incubation of 100 μM ADMA with L-lysine (0.1 to 1 mM) reduced DHE fluorescence from isolated HUVEC cell membranes in a concentration-dependent manner, and the increase in DHE fluorescence was completely abolished at 1 mM L-lysine, which utilizes the cellular transport system for basic amino acids including ADMA. In contrast, L-lysine had no effect on the extent of oxidative stress induced by Ang II (Figure 2). An inhibitor of eNOS, L-nitroarginine methyl ester (L-NAME), at 30 μM, completely inhibited the DHE fluorescence of ADMA on HUVEC cell membranes, at all L-lysine concentrations (Figure 2), and the fluorescence observed was not different from that of control (i.e., no ADMA).

These results indicate that the oxidative effects of ADMA requires cellular uptake, probably via its principal transport protein, Cationic Amino Acid Transporter 1 (CAT-1), which ADMA shares with ARG and L-lysine [26]. Since L-lysine, up to 1 mM, did not affect DHE fluorescence induced by Ang II, it indicates that this amino acid did not exert a general anti-oxidant effect over the concentration range studied, and that ADMA and Ang II may induce oxidative stress via different mechanisms. Figure 2 also shows that 30 μM L-NAME completely inhibited DHE fluorescence by ADMA, whether or not L-lysine was present. This result indicates that the oxidative mechanism of ADMA may involve the participation of eNOS and its possible uncoupling to produce O2•− [18].

2.3. Effect of BH4 on ADMA-Induced Oxidative Stress

Addition of BH4, a critical cofactor for eNOS activity, significantly reduced the DHE fluorescence intensity induced by 100 μM ADMA on HUVEC cell membranes, and at 50 μM BH4, the oxidative effects of ADMA was completely abrogated. In contrast, BH4, up to 50 μM, had no effect on Ang II-induced DHE fluorescence. These results indicate the protective effects of BH4 against oxidative stress (Figure 3) during ADMA supplementation. Again, in contrast, BH4 did not act as a general antioxidant because it did not attenuate the DHE fluorescence from Ang II, even at a high concentration of 50 μM. Electromagnetic resonance studies showed that in the absence of BH4, O2•− is the sole in vitro product of recombinant eNOS [27]. In the absence of BH4, electron transfer within eNOS becomes uncoupled and ferrous dioxygen releases O2•− with a finite probability [27].

2.4. Nitric Oxide (NO) Bioavailability

NO bioavailability was assessed by determining the accumulation of inorganic nitrite and total nitrite/nitrate ions (Figure 4). Similar to the concentration-dependent effect of ADMA on DHE fluorescence (Figure 1), nitrite and nitrite/nitrate production were not increased by ADMA concentrations up to 10 μM. However, above this concentration, nitrite and nitrite/nitrate accumulation was significantly decreased by ADMA. However, adding BH4 to the cells not only reversed the diminished production of NO from ADMA, but enhanced NO availability as BH4 concentration increased. An earlier report by Vasquez-Vivar and colleagues [28] provided evidence that increase in oxidation of BH4 produced BH2 induces eNOS uncoupling and decreased NO production. These results indicate that ADMA decreased NO formation most likely through increased oxidative stress, which in turn brought about eNOS uncoupling. The beneficial effect of BH4 on cellular NO availability in the presence of ADMA is highly consistent with this interpretation.

Closs et al. [29] demonstrated that ADMA is a good substrate for human CAT. The capacity and activity of CATs determines the partition of cationic amino acids across cells and thereby the ratio of ARG to ADMA in competition for the eNOS binding site. Here, we showed in Figure 4 that in the absence of extracellular ARG, ADMA concentration-dependently inhibited cellular nitrite and nitrite/nitrate production. This result could be attributed, at least in part, by the displacement of endogenous ARG from eNOS in the presence of increasing ADMA concentrations. However, the strong reversing effect of BH4 (Figure 4) argued more strongly on behalf of a mechanism of oxidative stress, rather than mere displacement of ARG from eNOS binding, for the reduced NO availability induced by ADMA.

Our results indicate that ADMA behaved differently to Ang II in generating cellular NO. As expected, oxidative stress brought about by Ang II was unaffected by L-NAME, L-lysine and BH4 (Figures 2,3), while these substances significantly affect ADMA-induced oxidative stress.

2.5. Effects of Apocynin or Losartan on ADMA-Induced O2•− Production

A role for NADPH oxidase for mediating ADMA O2•− formation was implicated recently [16] by the observation that the NADPH oxidase inhibitor (apocynin) or the Ang II receptor inhibitor (losartan) reduced O2•− production from 100 μM ADMA. However, in this study, effects from these agents by themselves, i.e., 300 μM apocynin or 20 μM losartan alone without ADMA, were not investigated. HUVEC when exposed to 100 μM ADMA exhibited increased DHE fluorescence signals (1989 ± 134 arb units) vs. control cells (599 ± 114 arb units, p < 0.05). These increases were abrogated in the presence of 300 μM apocynin (660 ± 141 arb units) or 20 μM lorsatan (683 ± 113 arb units). However, 300 μM apocynin alone, or 20 μM lorsatan alone, significantly reduced DHE fluorescence signals to about half of the control value (i.e., to 338 ± 62 and 337 ± 71 arb units, respectively). The effect of apocynin observed here is consistent with its general antioxidant properties [30]. While these NADPH oxidase-related agents did reduce the production of DHE fluorescence from ADMA, the effect is contributed by a reduction in baseline production or a general antioxidant effect. Thus, a conclusion of NADPH oxidase involvement in ADMA-induced oxidative stress cannot be conclusively proven by the use of these inhibitors alone.

3. Experimental Section

3.1. Supplies and Reagents

Endothelial cell culture was purchased from American Type Culture Collection (Manassas, VA) and culture reagents were from Invitrogen (Carlsbad, CA). All culture supplies and chemicals were from Laboratory Product Sales (Rochester, NY) and Sigma-Aldrich (St. Louis, MO) respectively. The nitrite-nitrate fluorometric assay kit was purchased from Cayman Chemical Company (Ann Arbor, MI). Deionized water (18 MΩ) was used in all experiments.

3.2. Cell Studies

HUVEC were cultured in physiological F-12K medium containing 100 μM ARG and 90 mg/dL glucose, supplemented with 20% horse serum, 100 U/mL penicillin and 100 μg/mL streptomycin. Cells were maintained in a humidified chamber at 37 °C with 5% CO2, and passages between 6 and 16 (mean passage number = 9 ± 3) were used in all the experiments. For acute studies, cell culture in 6-well plates were incubated in Locke’s buffer containing either 12.5 to 500 μM ADMA, or combinations of 100 μM ADMA with or without 300 μM apocynin, 10 μM losartan, or 0.05 to 50 μM BH4 for 2 h. Chronic ADMA effect was assessed by incubating cultured cells in F-12K medium containing 1 to 500 μM ADMA for 7 days.

3.3. Membrane Studies

HUVECs were washed twice with 2 mL of phosphate buffered saline (PBS) and incubated with trypsin EDTA (0.5 mL) for less than 3 min before adding equal amount of F-12K medium (0.5 mL). The cells were centrifuged at 300 g for 5 min, washed twice with 1 mL of PBS, resuspended in 1 mL Locke’s buffer, sonicated for 2 min, and centrifuged at 300 g for 5 min to separate the membrane fractions as pellets. The membrane fractions were reconstituted in 1 mL Locke’s buffer containing either 12.5 to 500 μM ADMA, or combinations of 100 μM ADMA with or without L-lysine (0.1–1 mM), 30 μM L-NAME, 1 mM angiotensin II (Ang II), or BH4 (0.05–50 μM), and incubated for 30 min for subsequent determination of DHE fluorescence or nitrite/nitrate.

3.4. DHE Fluorescence Measurement Using a Micro-Plate Reader

Oxidative stress in HUVEC and its membrane fractions was assessed by DHE fluorescence [24]. At the end of the incubations, cells or membrane fractions were washed and incubated in Locke’s buffer at a final DHE concentration of 10 nM for 20 min. The resulting mixtures were harvested in acetonitrile (0.2 mL/well), sonicated (10 s), and centrifuged (13,000 g for 5 min at 4 °C). The supernatant fraction was air-dried, reconstituted in PBS and fluorescence was determined, in duplicate, using a micro-plate reader at excitation and emission wavelengths of 490 and 570 nm, respectively.

3.5. Inorganic Nitrite and Total Nitrite/Nitrate Determination

Cell lysate samples or freshly prepared nitrite standard were first brought to volume of 100 μL with double-deionized water. Samples were protected from light, and 10 μL of freshly prepared diaminonaphalene (DAN, 0.05 mg/mL in 1 M HCl) was added and mixed immediately. After 10 min incubation at room temperature, the reaction was terminated with 5 μL of 2.8 M NaOH. The intensity of the fluorescent signal produced was measured using a plate reader with excitation at 360 nm and emission read at 420 nm, with a gain setting at 100%.

In order to measure total nitrite/nitrate, nitrate was converted to nitrite by the action of nitrate reductase from Aspergillus niger. Briefly, the samples were incubated with 40 μM NADH and 14 mU of enzyme in a final volume of 50 μL of 20 mM Tris, pH 7.6, followed by 30 min incubation with 10 μL of DAN at room temperature. The reaction was terminated after 30 min with 20 μL of NaOH. NOx in the samples were then calculated by first subtracting the value of the enzyme blank containing NADH. The values were further normalized using total protein concentration, which were measured according to the Lowry method [31] using bovine serum albumin as standard.

3.6. Statistical Analysis

Data are presented as mean ± standard deviation (n = 4 replicates) unless otherwise stated. Statistical comparisons among groups were performed using one-way analysis of variance (ANOVA), followed by Fisher’s and Tukey’s post-hoc test procedure (version 15.x; Minitab). Statistical significance was concluded when p < 0.05.

4. Conclusions

Our studies utilized HUVEC to explore the mechanisms by which ADMA generates oxidative stress. In whole cells and isolated cell membranes, ADMA increased cellular DHE fluorescence at concentrations above 10 μM, indicating that intracellular proteins are not critical for this action. ADMA-induced DHE fluorescence was inhibited by L-lysine and L-NAME, suggesting that cellular uptake and interaction with eNOS were necessary, consistent with the mechanisms of oxidative stress induced by ARG that we have shown recently [25]. Addition of BH4 abrogated ADMA-induced cellular oxidative stress and reduced NO availability, indicating that the oxidative effects of ADMA may be mediated via eNOS uncoupling. In contrast, Ang II-induced DHE fluorescence in HUVEC was not affected by L-lysine, L-NAME and BH4. These results suggest that ADMA most likely induced oxidative stress through the CAT-1/eNOS complex, instead of the RAS, as has been previously suggested.

Acknowledgments

This work was supported by National institute of Health Grant HL81580 awarded to H.-L. Fung. We thank Kathleen Boje for allowing us to use her cell culture facility.

References

  1. MacAllister, R.J.; Fickling, S.A.; Whitley, G.S.; Vallance, P. Metabolism of methylarginines by human vasculature; implications for the regulation of nitric oxide synthesis. Br. J. Pharmacol 1994, 112, 43–48. [Google Scholar]
  2. McDermott, J.R. Studies on the catabolism of Ng-methylarginine, Ng, Ng-dimethylarginine and Ng, Ng-dimethylarginine in the rabbit. Biochem. J 1976, 154, 179–184. [Google Scholar]
  3. Rawal, N.; Rajpurohit, R.; Lischwe, M.A.; Williams, K.R.; Paik, W.K.; Kim, S. Structural specificity of substrate for S-adenosylmethionine:protein arginine N-methyltransferases. Biochim. Biophys. Acta 1995, 1248, 11–18. [Google Scholar]
  4. Juonala, M.; Viikari, J.S.; Alfthan, G.; Marniemi, J.; Kahonen, M.; Taittonen, L.; Laitinen, T.; Raitakari, O.T. Brachial artery flow-mediated dilation and asymmetrical dimethylarginine in the cardiovascular risk in young Finns study. Circulation 2007, 116, 1367–1373. [Google Scholar]
  5. Maas, R.; Schulze, F.; Baumert, J.; Lowel, H.; Hamraz, K.; Schwedhelm, E.; Koenig, W.; Boger, R.H. Asymmetric dimethylarginine, smoking, and risk of coronary heart disease in apparently healthy men: Prospective analysis from the population-based Monitoring of Trends and Determinants in Cardiovascular Disease/Kooperative Gesundheitsforschung in der Region Augsburg study and experimental data. Clin. Chem 2007, 53, 693–701. [Google Scholar]
  6. Schnabel, R.; Blankenberg, S.; Lubos, E.; Lackner, K.J.; Rupprecht, H.J.; Espinola-Klein, C.; Jachmann, N.; Post, F.; Peetz, D.; Bickel, C.; et al. Asymmetric dimethylarginine and the risk of cardiovascular events and death in patients with coronary artery disease: Results from the AtheroGene Study. Circ. Res 2005, 97, e53–e59. [Google Scholar]
  7. Surdacki, A.; Nowicki, M.; Sandmann, J.; Tsikas, D.; Boeger, R.H.; Bode-Boeger, S.M.; Kruszelnicka-Kwiatkowska, O.; Kokot, F.; Dubiel, J.S.; Froelich, J.C. Reduced urinary excretion of nitric oxide metabolites and increased plasma levels of asymmetric dimethylarginine in men with essential hypertension. J. Cardiovasc. Pharmacol 1999, 33, 652–658. [Google Scholar]
  8. Boger, R.H.; Bode-Boger, S.M.; Szuba, A.; Tsao, P.S.; Chan, J.R.; Tangphao, O.; Blaschke, T.F.; Cooke, J.P. Asymmetric dimethylarginine (ADMA): A novel risk factor for endothelial dysfunction: Its role in hypercholesterolemia. Circulation 1998, 98, 1842–1847. [Google Scholar]
  9. Sydow, K.; Schwedhelm, E.; Arakawa, N.; Bode-Boger, S.M.; Tsikas, D.; Hornig, B.; Frolich, J.C.; Boger, R.H. ADMA and oxidative stress are responsible for endothelial dysfunction in hyperhomocyst(e)inemia: Effects of L-arginine and B vitamins. Cardiovasc. Res 2003, 57, 244–252. [Google Scholar]
  10. Valkonen, V.P.; Paiva, H.; Salonen, J.T.; Lakka, T.A.; Lehtimaki, T.; Laakso, J.; Laaksonen, R. Risk of acute coronary events and serum concentration of asymmetrical dimethylarginine. Lancet 2001, 358, 2127–2128. [Google Scholar]
  11. Boger, R.H.; Bode-Boger, S.M.; Thiele, W.; Junker, W.; Alexander, K.; Frolich, J.C. Biochemical evidence for impaired nitric oxide synthesis in patients with peripheral arterial occlusive disease. Circulation 1997, 95, 2068–2074. [Google Scholar]
  12. Usui, M.; Matsuoka, H.; Miyazaki, H.; Ueda, S.; Okuda, S.; Imaizumi, T. Increased endogenous nitric oxide synthase inhibitor in patients with congestive heart failure. Life Sci 1998, 62, 2425–2430. [Google Scholar]
  13. Yoo, J.H.; Lee, S.C. Elevated levels of plasma homocyst(e)ine and asymmetric dimethylarginine in elderly patients with stroke. Atherosclerosis 2001, 158, 425–430. [Google Scholar]
  14. Gorenflo, M.; Zheng, C.; Werle, E.; Fiehn, W.; Ulmer, H.E. Plasma levels of asymmetrical dimethyl-L-arginine in patients with congenital heart disease and pulmonary hypertension. J. Cardiovasc. Pharmacol 2001, 37, 489–492. [Google Scholar]
  15. Kielstein, J.T.; Boger, R.H.; Bode-Boger, S.M.; Schaffer, J.; Barbey, M.; Koch, K.M.; Frolich, J.C. Asymmetric dimethylarginine plasma concentrations differ in patients with end-stage renal disease: Relationship to treatment method and atherosclerotic disease. J. Am. Soc. Nephrol 1999, 10, 594–600. [Google Scholar]
  16. Veresh, Z.; Racz, A.; Lotz, G.; Koller, A. ADMA impairs nitric oxide-mediated arteriolar function due to increased superoxide production by angiotensin II-NAD(P)H oxidase pathway. Hypertension 2008, 52, 960–966. [Google Scholar]
  17. Toth, J.; Racz, A.; Kaminski, P.M.; Wolin, M.S.; Bagi, Z.; Koller, A. Asymmetrical dimethylarginine inhibits shear stress-induced nitric oxide release and dilation and elicits superoxide-mediated increase in arteriolar tone. Hypertension 2007, 49, 563–568. [Google Scholar]
  18. Antoniades, C.; Shirodaria, C.; Leeson, P.; Antonopoulos, A.; Warrick, N.; van-Assche, T.; Cunnington, C.; Tousoulis, D.; Pillai, R.; Ratnatunga, C.; et al. Association of plasma asymmetrical dimethylarginine (ADMA) with elevated vascular superoxide production and endothelial nitric oxide synthase uncoupling: Implications for endothelial function in human atherosclerosis. Eur. Heart J 2009, 30, 1142–1150. [Google Scholar]
  19. Hasegawa, K.; Wakino, S.; Tatematsu, S.; Yoshioka, K.; Homma, K.; Sugano, N.; Kimoto, M.; Hayashi, K.; Itoh, H. Role of asymmetric dimethylarginine in vascular injury in transgenic mice overexpressing dimethylarginie dimethylaminohydrolase 2. Circ. Res 2007, 101, e2–e10. [Google Scholar]
  20. Jiang, J.L.; Zhu, H.Q.; Chen, Z.; Xu, H.Y.; Li, Y.J. Angiotensin-converting enzyme inhibitors prevent LDL-induced endothelial dysfunction by reduction of asymmetric dimethylarginine level. Int. J. Cardiol 2005, 101, 153–155. [Google Scholar]
  21. Napoli, C.; Sica, V.; de Nigris, F.; Pignalosa, O.; Condorelli, M.; Ignarro, L.J.; Liguori, A. Sulfhydryl angiotensin-converting enzyme inhibition induces sustained reduction of systemic oxidative stress and improves the nitric oxide pathway in patients with essential hypertension. Am. Heart J 2004, 148. [Google Scholar] [CrossRef]
  22. Suda, O.; Tsutsui, M.; Morishita, T.; Tasaki, H.; Ueno, S.; Nakata, S.; Tsujimoto, T.; Toyohira, Y.; Hayashida, Y.; Sasaguri, Y.; et al. Asymmetric dimethylarginine produces vascular lesions in endothelial nitric oxide synthase-deficient mice: Involvement of renin-angiotensin system and oxidative stress. Arterioscler. Thromb. Vasc. Biol 2004, 24, 1682–1688. [Google Scholar]
  23. Antoniades, C.; Shirodaria, C.; Crabtree, M.; Rinze, R.; Alp, N.; Cunnington, C.; Diesch, J.; Tousoulis, D.; Stefanadis, C.; Leeson, P.; et al. Altered plasma versus vascular biopterins in human atherosclerosis reveal relationships between endothelial nitric oxide synthase coupling, endothelial function, and inflammation. Circulation 2007, 116, 2851–2859. [Google Scholar]
  24. Zhao, H.; Kalivendi, S.; Zhang, H.; Joseph, J.; Nithipatikom, K.; Vasquez-Vivar, J.; Kalyanaraman, B. Superoxide reacts with hydroethidine but forms a fluorescent product that is distinctly different from ethidium: Potential implications in intracellular fluorescence detection of superoxide. Free Radic. Biol. Med 2003, 34, 1359–1368. [Google Scholar]
  25. Mohan, S.; Wu, C.C.; Shin, S.; Fung, H.L. Continuous exposure to L-arginine induces oxidative stress and physiological tolerance in cultured human endothelial cells. Amino Acids 2011. [Google Scholar] [CrossRef]
  26. Teerlink, T.; Luo, Z.; Palm, F.; Wilcox, C.S. Cellular ADMA: Regulation and action. Pharmacol. Res 2009, 60, 448–460. [Google Scholar]
  27. Vasquez-Vivar, J.; Kalyanaraman, B.; Martasek, P.; Hogg, N.; Masters, B.S.; Karoui, H.; Tordo, P.; Pritchard, K.A., Jr. Superoxide generation by endothelial nitric oxide synthase: The influence of cofactors. Proc. Natl. Acad. Sci. USA 1998, 95, 9220–9225. [Google Scholar]
  28. Vasquez-Vivar, J.; Martasek, P.; Whitsett, J.; Joseph, J.; Kalyanaraman, B. The ratio between tetrahydrobiopterin and oxidized tetrahydrobiopterin analogues controls superoxide release from endothelial nitric oxide synthase: An EPR spin trapping study. Biochem. J 2002, 362, 733–739. [Google Scholar]
  29. Closs, E.I.; Graf, P.; Habermeier, A.; Cunningham, J.M.; Forstermann, U. Human cationic amino acid transporters hCAT-1, hCAT-2A, and hCAT-2B: Three related carriers with distinct transport properties. Biochemistry 1997, 36, 6462–6468. [Google Scholar]
  30. Heumuller, S.; Wind, S.; Barbosa-Sicard, E.; Schmidt, H.H.; Busse, R.; Schroder, K.; Brandes, R.P. Apocynin is not an inhibitor of vascular NADPH oxidases but an antioxidant. Hypertension 2008, 51, 211–217. [Google Scholar]
  31. Lowry, O.H.; Rosebrough, N.J.; Farr, A.L.; Randall, R.J. Protein measurement with the Folin phenol reagent. J. Biol. Chem 1951, 193, 265–275. [Google Scholar]
Ijms 13 07521f1 1024

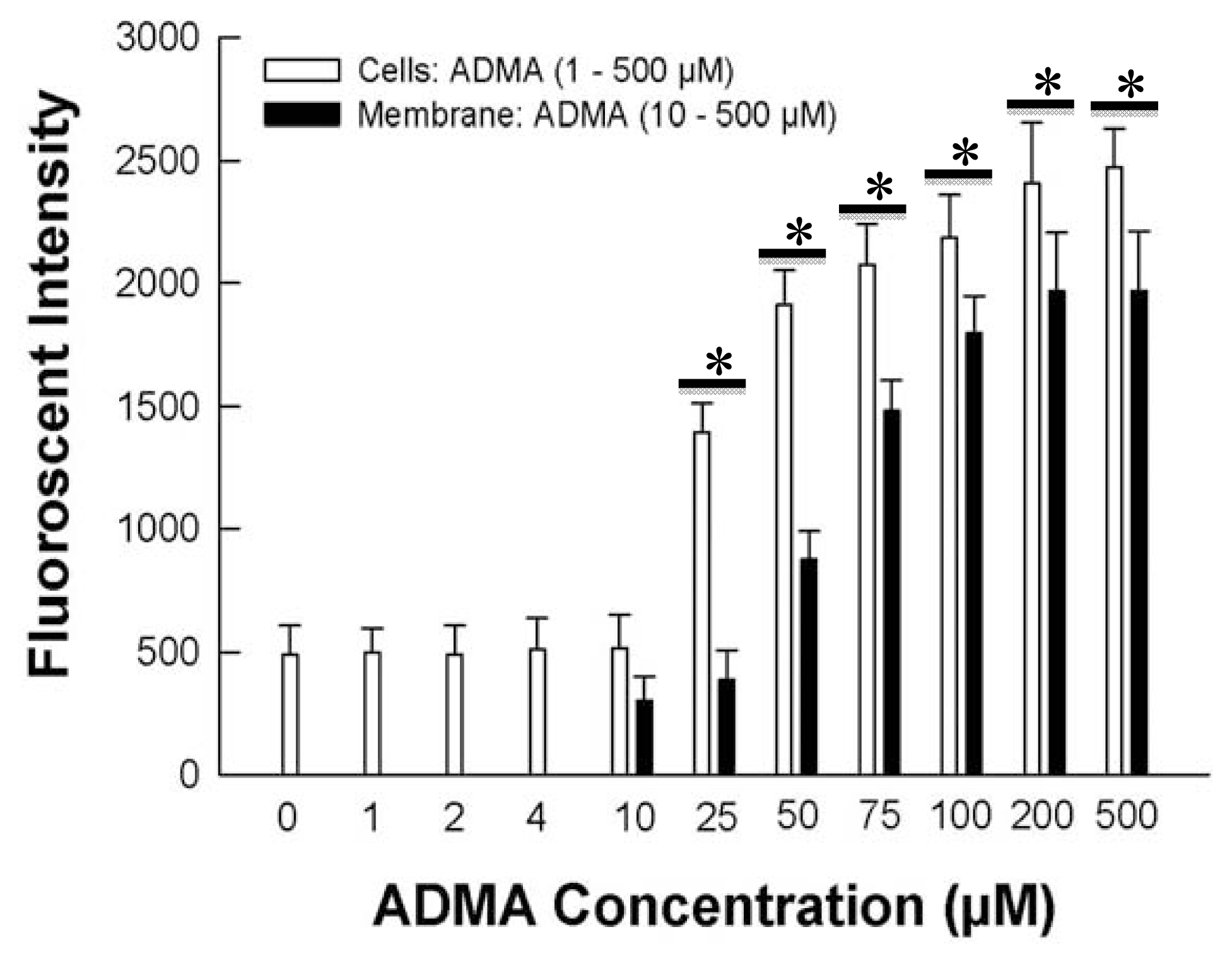

Figure 1. Dihydroethidium (DHE) fluorescence in human umbilical vein endothelial cells (HUVEC) whole cells incubated chronically for 7 days with 0 to 500 μM asymmetric dimethylarginine (ADMA), or HUVEC membranes incubated for 30 min with 10 to 500 μM ADMA. * p < 0.05 versus 10 μM ADMA whole cell or cell membrane treatment. n = 6.

Click here to enlarge figure

Figure 1. Dihydroethidium (DHE) fluorescence in human umbilical vein endothelial cells (HUVEC) whole cells incubated chronically for 7 days with 0 to 500 μM asymmetric dimethylarginine (ADMA), or HUVEC membranes incubated for 30 min with 10 to 500 μM ADMA. * p < 0.05 versus 10 μM ADMA whole cell or cell membrane treatment. n = 6.
Ijms 13 07521f1 1024
Ijms 13 07521f2 1024

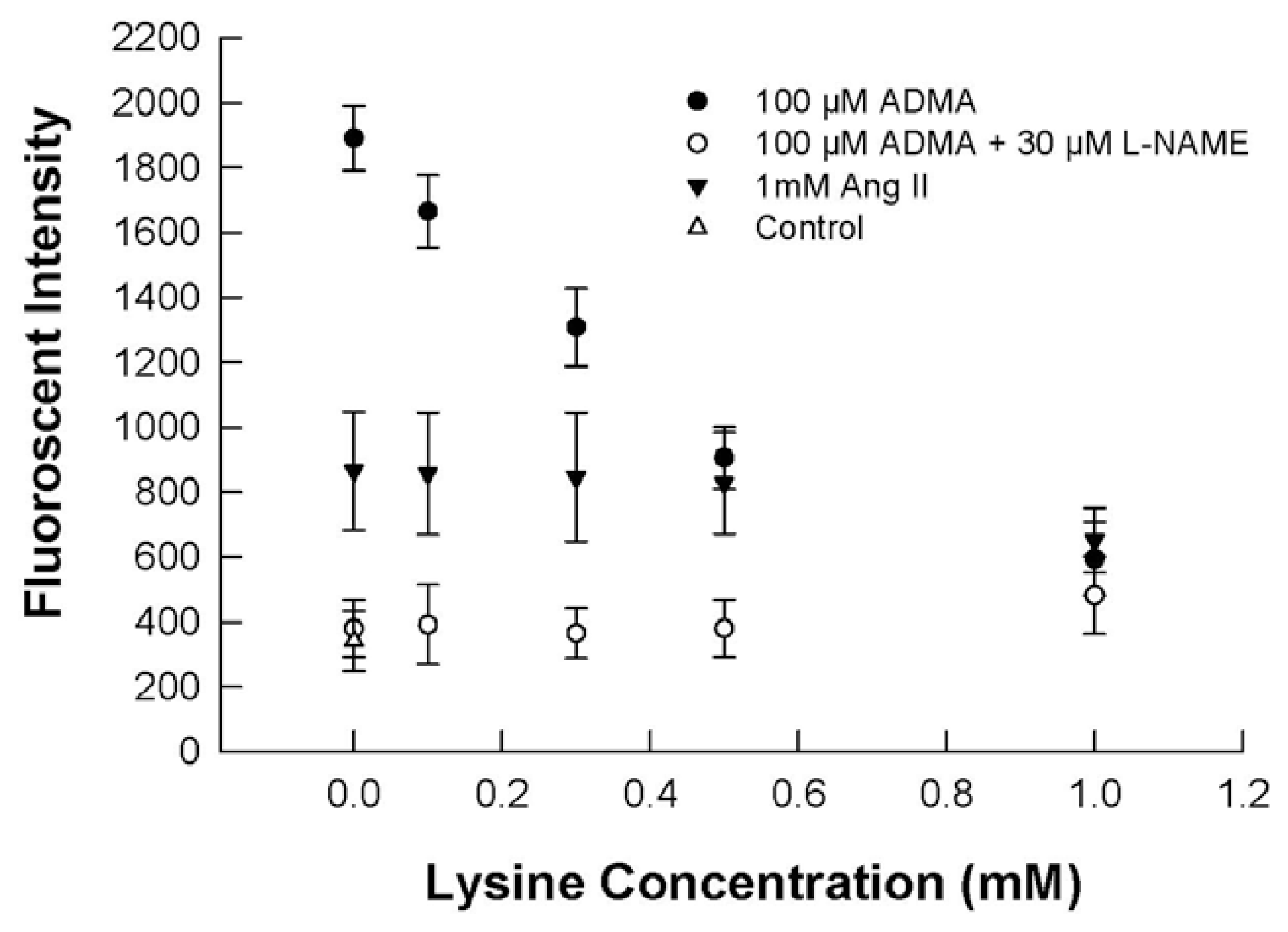

Figure 2. Effects of L-lysine and L-nitroarginine methyl ester (L-NAME) on DHE fluorescence production from HUVEC cell membranes after exposure to 100 μM ADMA or 1 mM Ang II for 30 minutes. n = 6.

Click here to enlarge figure

Figure 2. Effects of L-lysine and L-nitroarginine methyl ester (L-NAME) on DHE fluorescence production from HUVEC cell membranes after exposure to 100 μM ADMA or 1 mM Ang II for 30 minutes. n = 6.
Ijms 13 07521f2 1024
Ijms 13 07521f3 1024

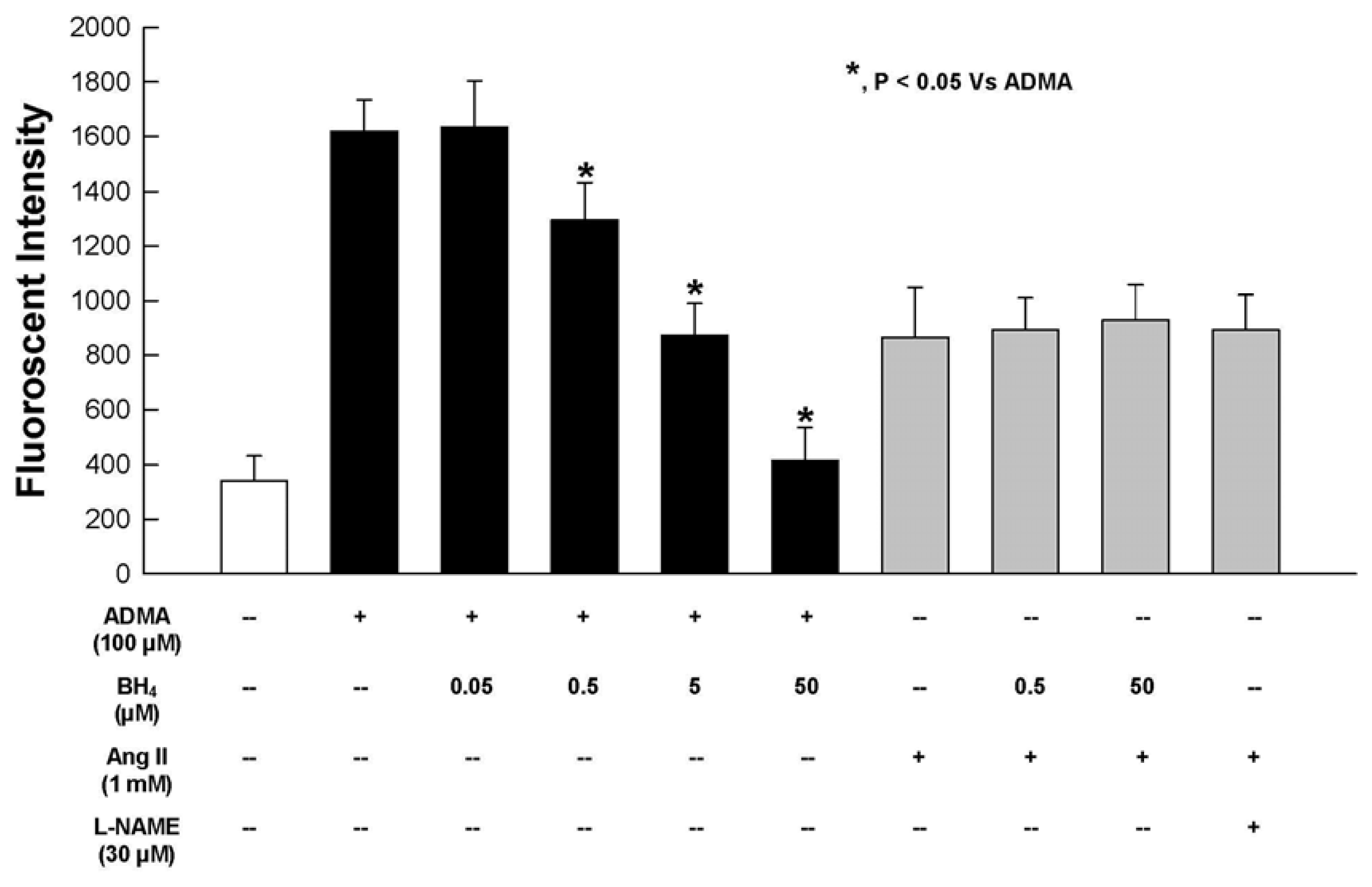

Figure 3. Effect of BH4 on ADMA or Ang II-induced DHE fluorescence from isolated HUVEC membranes after incubation for 30 minutes. n = 6.

Click here to enlarge figure

Figure 3. Effect of BH4 on ADMA or Ang II-induced DHE fluorescence from isolated HUVEC membranes after incubation for 30 minutes. n = 6.
Ijms 13 07521f3 1024
Ijms 13 07521f4 1024

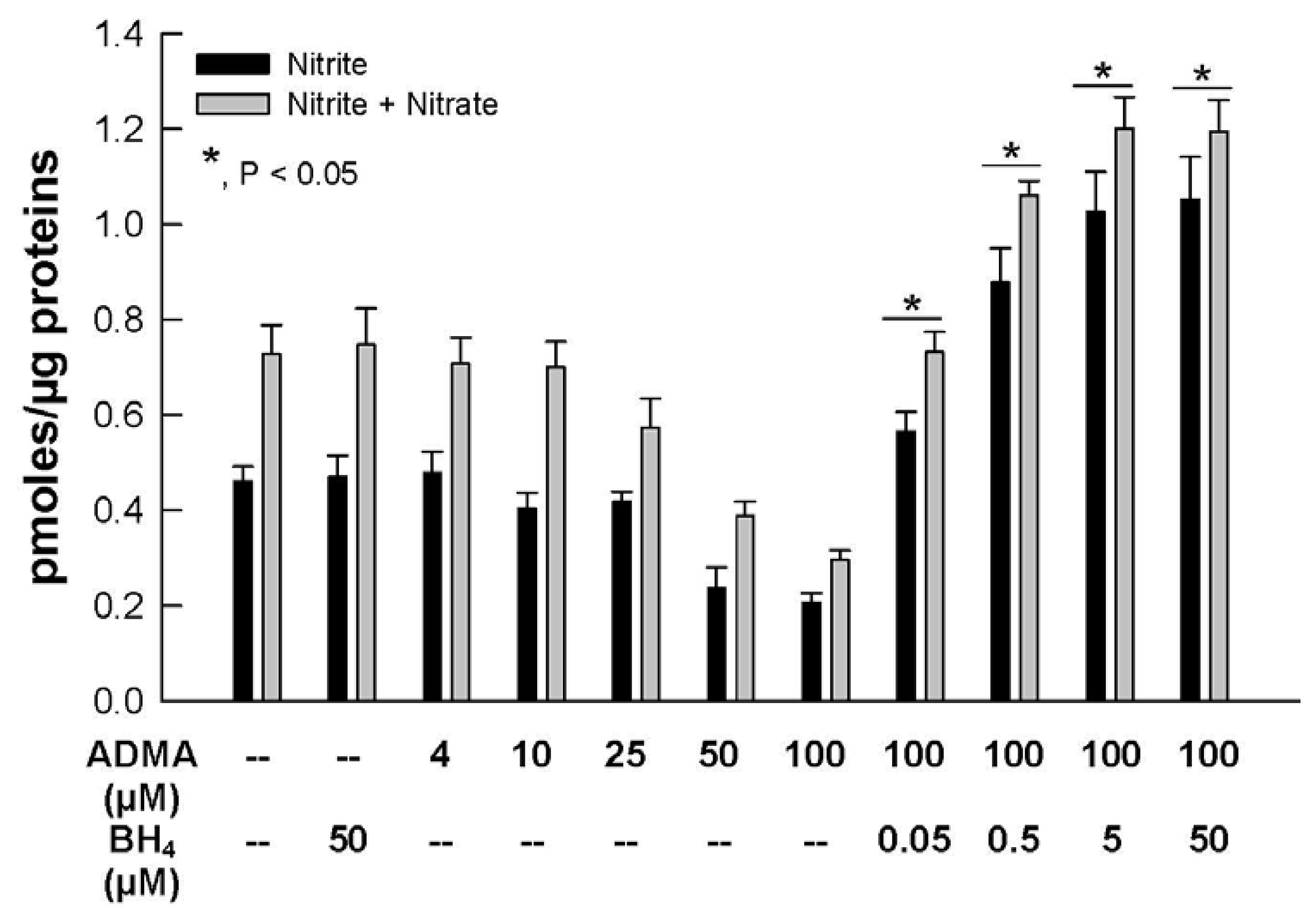

Figure 4. Effects of BH4 on NO2 or nitrite/nitrate (NOx) production in the presence of ADMA. HUVEC NO were exposed for 2 hrs in 0–100 μM ADMA alone or 100 μM ADMA plus 0.05 to 50 μM BH4. *, p < 0.05 versus 100 μM ADMA treatment. n = 6.

Click here to enlarge figure

Figure 4. Effects of BH4 on NO2 or nitrite/nitrate (NOx) production in the presence of ADMA. HUVEC NO were exposed for 2 hrs in 0–100 μM ADMA alone or 100 μM ADMA plus 0.05 to 50 μM BH4. *, p < 0.05 versus 100 μM ADMA treatment. n = 6.
Ijms 13 07521f4 1024
