Enhanced Production of a Novel Cyclic Hexapeptide Antibiotic (NW-G01) by Streptomyces alboflavus 313 Using Response Surface Methodology
Zhengyan Guo 1,2,*, Ling Shen 3, Zhiqin Ji 1,4,5 and Wenjun Wu 1,4,5,*
1
State Key Laboratory of Crop Stress Biology in Arid Areas, Northwest A & F University, Yangling 712100, China; E-Mail: jizhiqin@nwsuaf.edu.cn
2
Anhui provincial laboratory of Agro-Food safety, Resources & Environment College, Anhui Agricultural University, Hefei 230036, China
3
School of Life Sciences, Anhui Agricultural University, Hefei 230036, China; E-Mail: shenling@ahau.edu.cn
4
Shaanxi Province Key Laboratory Research & Development on Botanical Pesticide, Northwest A & F University, Yangling 712100, China
5
Key Laboratory of Plant Protection Resources and Pest Integrated Management, Ministry of Education, College of Plant Protection, Northwest A & F University, Yangling 712100, China
*
Authors to whom correspondence should be addressed; E-Mails: gzhengyan@hotmail.com (Z.G.); wuwenjun@nwsuaf.edu.cn (W.W.); Tel.: +86-29-87092191 (Z.G.); Fax: +86-29-87093987 (Z.G.); Tel./Fax: +86-29-87093987 (W.W.).
Received: 6 January 2012; in revised form: 16 April 2012 / Accepted: 17 April 2012 /
Published: 24 April 2012

Abstract

: NW-G01, produced by Streptomyces alboflavus 313, is a novel cyclic hexapeptide antibiotic with many potential applications, including antimicrobial activity and antitumor agents. This study developed a system for optimizing medium components in order to enhance NW-G01 production. In this study, Plackett-Burman design (PBD) was used to find the key ingredients of medium components, and then response surface methodology (RSM) was implemented to determine their optimal concentrations. The results of PBD revealed that the crucial ingredients related to the production of NW-G01 were (NH4)2SO4, peptone and CaCO3. A prediction model has been built in the experiments of central composite design and response surface methodology, and its validation has been further verified. The optimal medium composition was determined (g/L): corn starch 15, glucose 15, peptone 3.80, (NH4)2SO4 0.06, NaCl 1.5, CaCO3 1.30, MgSO4·7H2O 0.015, K2HPO4·3H2O 0.015, MnCl2·4H2O 0.015, FeSO4·7H2O 0.015, and ZnSO4·7H2O 0.015. Compared with NW-G01 production (5.707 mg/L) in non-optimized fermentation medium, the production of NW-G01 (15.564 mg/L) in optimized fermentation medium had a 2.73-fold increase.
Keywords:
NW-G01; medium optimization; Streptomyces alboflavus 313; Plackett-Burman design; response surface methodology

1. Introduction

Agricultural antibiotic produced by different species of actinomyces is a biological product from a natural resource. Agricultural antibiotics have been attracting growing interest with the development of environmentally friendly and safe integrated crop management. In our ongoing screening for new bioactive microbial compounds, a novel hexapeptide antibiotic NW-G01 (Figure 1) was obtained by Streptomyces alboflavus 313 which is isolated from a soil sample collected from Shaanxi province of China. Absolute structure was determined using a combination of single crystal X-ray diffraction and Marfey’s method finally. The antibiotic incorporated one molecule of valine, N-methyl-alanine, chlorinated pyrroloindoline derivative, and three molecules of piperazic acids [1,2]. Interestingly, NW-G01 exhibited strong antibacterial activity against several species of gram-positive bacteria, such as Bacillus subtilis, Bacillus cereus, and Staphyloccocus aureus [3]. In addition, it had strong in vitro fungistatic activity against some plant pathogen, such as Sclerotinia sclerotiorum, Botrytis cinerea, Coniothyrium diplodiella and Exserohlum turcium [4]. These consequences imply that NW-G01 has the potential to be developed into anti-infection agents or agro-fungicides.

An appropriate fermentation medium is one of the crucial factors in the antibiotic industry, because the medium composition could significantly affect secondary metabolic yield from microorganisms [5]. The conventional method for medium optimization is the “one-factor-at-a-time” approach, which is time consuming, labor expensive, and does not take into consideration the interactions between multiple factors involved when a large number of variables have to be investigated. The main advantage of optimizing the parameters by statistical experimental design is to eliminate these limitations of single factor optimization process [6]. Plackett–Burman is widely used in the statistical designs for the selection of the medium components, which can screen the important variables as well as their significance levels [7]. Following this, factorial design and response surface analysis are used to determine the optimum values of the factors studied based on the initial screening. In the present biotechnology study, several researchers have applied these techniques for the optimization of culture conditions, determination of optimal values of processing parameters and feeding rates [811]. Furthermore, these techniques also have been successfully applied to the optimization of medium components and cultivation conditions for metabolic production by Streptomyces [1217] and other microorganisms [1821]. Response Surface Methodology (RSM) has eased process development and has been of significant use at industrial level, among which central composite design methodology considers the interaction effects among the variables [22].

To the best of our knowledge, the medium requirements for S. alboflavus 313 in liquid fermentation have not been demonstrated. Moreover, it is necessary and important to decrease production cost and to enhance productivity. This paper explores the feasibility of production of NW-G01 in liquid fermentation by S. alboflavus 313 and its optimization by RSM. Initially, effects of various carbon sources, nitrogen sources and inorganic salts were investigated by a Plackett-Burman design, and subsequently by RSM. Finally, the production of NW-G01 was validated using the optimized condition.

2. Results and Discussion

2.1. Optimization by Plackett-Burman Design (PBD)

The importance of the eleven components, corn starch, glucose, (NH4)2SO4, peptone, NaCl, CaCO3, MgSO4·7H2O, K2HPO4·3H2O, MnCl2·4H2O, FeSO4·7H2O and ZnSO4·7H2O for NW-G01 production was investigated by PBD. The results showed the effects of these components on the response and significant levels in Tables 1 and 2.

According to statistical analysis of the data by Design expert software, the results showed that only (NH4)2SO4, peptone and CaCO3 had confidence levels above 95% (p < 0.05) and were considered to influence NW-G01 production significantly. The others had confidence levels below 95% and hence were considered insignificant. In these results, R2 = 0.9285 indicated that 92.85% of the variability in the response could be explained in the model.

PBD results indicated that the effect of (NH4)2SO4, peptone and CaCO3 were negative. Decreasing the three components concentration might result in higher production of antibiotic NW-G01. Thus, the three variables (NH4)2SO4 (x3), peptone (x4) and CaCO3 (x6) were selected and their optimal levels were identified further using response surface methodology.

2.2. Optimization by Response Surface Methodology

RSM using central composite design (CCD) was applied to determine the optimal levels of the three selected variables that affected the production of NW-G01. The respective low and high levels (g/L) with the coded levels for the factors are defined in Table 3.

The concentrations of the other factors were fixed at zero level as shown in Table 1. Experimental design and results are shown in Table 4.

The experimental results were fitted with the second-order polynomial (Equation (1)):

Y = 13.57 - 3.46 x 3 - 0.17 x 4 - 2.77 x 6 - 0.75 x 3 x 4 - 0.51 x 3 x 6 + 1.09 x 4 x 6 - 1.32 x 3 2 - 1.18 x 4 2 + 0.70 x 6 2

where Y was the predicted response, x3, x4 and x6 were coded values of (NH4)2SO4, peptone and CaCO3 concentration, respectively.

The statistical significance of Equation (1) was checked by F-test, and the ANOVA for response surface quadratic model is summarized in Table 5. The model F-value of 222.43 implied the model was significant, the P-value was also very low (<0.0001) indicating that there was only a 0.01% chance that a “Model F-Value” this large could occur due to noise. The success of the model could be checked by the determination coefficient R2, which was calculated to be 0.9850, indicating that 98.50% of the variability in the response could be explained by the model. Normally, a regression model, having an R2-value higher than 0.9, was considered as a high correlation [23]. The present R2-value, therefore, reflected a very good fit between the observed and predicted responses, and it was considered reasonable to use the regression model to analyze trends of the responses. A lower value of coefficient variation (CV = 3.33%) showed the experiments conducted were precise and reliable [24]. The Lack of fit P-value of 0.1095 implied the “Lack of Fit” is not significant relative to the pure error and no-significant lack of fit indicated the model is good.

The significance of the regression coefficients was tested by a t-test. The regression coeffiecients and corresponding p-values for the model presented in Table 6. Values of “Prob > F” less than 0.05 indicate that model terms are significant while values greater than 0.1 indicate that the model terms are not significant [25]. Therefore, among the model terms in the present study, (NH4)2SO4 (x3) and CaCO3 (x6) were very significant with probability of over 99% while peptone (x4) was not significant with a probability of over 84%. In Table 6, the results also indicated that the mutual interaction between x3 and x3, x4 and x4, x6 and x6, x3 and x4, x3 and x6, x4 and x6, had a very significant influence on antibiotics NW-G01 production.

The final results showed that among the independent factors, x3((NH4)2SO4) and x6(CaCO3) had significant effects on antibiotic NW-G01 production and the negative coefficient of them showed a linear effect to decrease antibiotics NW-G01 production. The quadratic term of the three factors and the interaction between x3((NH4)2SO4), x4(peptone) and x6(CaCO3) also had a significant effect.

The 3D response surface curves were then plotted to explain the interactions of medium components and the optimum concentration of each component required for the NW-G01 production (Figures 24). Each figure presents the effect of two factors while the other factor was held at zero level. These 3D plots and their respective contour plots provided a visual interpretation of the interaction between two factors and facilitate the location of optimum experimental conditions.

2.3. Validation of the Optimized Condition

On the basis of medium optimization, the quadratic model predicted that the maximum production of NW-G01 was 15.387 mg/L, when the model predicted the optimal values of test factors in the coded units were x3 = −1.68, x4 = 0.80 and x6 = 0.74, which were 0.06 g/L (NH4)2SO4, 3.80 g/L peptone and 1.30 g/L CaCO3, respectively. To verify the predicted results, validation experiments in shake flasks were performed in triplicate testes. Under the optimized medium, the observed experimental value of average NW-G01 concentration was 15.564 mg/L, suggesting that experimental and predicted values (15.387 mg/L) of NW-G01 yield were in good agreement. The concentration was 5.707 mg/L in non-optimized medium, 2.73-fold increase had been obtained, while the growth of the strain in the two media was comparable. This result therefore corroborated the predicted values and the effectiveness of the model, indicating that the optimized medium favors the production of NW-G01.

3. Experimental Section

3.1. Microorganism

The strain 313 was isolated from the soil samples from the northeast of China, which was identified as S. alboflavus 313 based on morphological, physiological characteristics and analysis of the 16S rDNA sequence. The culture was maintained at 4 °C on modified Humic acid-Vitamins (HV) agar slants. The strain was stored in glycerol suspension (30%, v/v) at −20 °C.

3.2. Medium and Culture Conditions

Fermentation was performed in two stages: seed growth and antibiotics NW-G01 production. For the seed growth stage, medium from a plate culture was inoculated into 100 mL of seed medium (glucose 20 g/L, peptone 6 g/L, NaCl 2.5 g/L, CaCO3 1 g/L. pH 7.0) in a 500-mL Erlenmeyer flask and grown at 28 °C with 180 rpm on a rotary shaker (ShangHai Fuma Test Equipment Co., Ltd.) for 16 h. Then, 10% (v/v) seed cultures were inoculated into 50-mL production medium in a 250-mL Erlenmeyer flask. The strain was incubated at 28 °C with 180 rpm on a rotary shaker for 108 h. Triplicate experiments were carried out and the mean value was calculated.

In our preliminary experiments, various carbon and nitrogen sources, and inorganic salts were evaluated for the suitability to sustain good NW-G01 production by S. alboflavus 313. The results revealed that the major variable affecting the performance of the medium in terms of NW-G01 yield were corn starch, glucose, peptone, (NH4)2SO4, NaCl, CaCO3, MgSO4·7H2O, K2HPO4·3H2O, MnCl2·4H2O, FeSO4·7H2O, and ZnSO4·7H2O. Components were chosen for further optimization. The amount of every component was changed in different experimental processes and the pH of production medium was 7.0.

3.3. Analytical Method

After centrifuging the fermentation broth (3000 rpm, 10 min), 1 mL supernatants were filtered (0.45 μm) and analyzed by high performance liquid chromatography (HPLC, Shimadzu 6AD, Kyoto, Japan) using a Sinochrom ODS-BP (5 μm, 4.6 mm × 250 mm) reverse phase column, methanol-water (75/25, v/v) as the mobile phase, flow rate of 1.0 mL/min, monitored by UV detector at 210 nm [1].

3.4. Experimental Design and Data Analysis

3.4.1. Plackett-Burman Design (PBD)

PBD was employed for screening the most significant fermentation parameters affecting NW-G01 production with S. alboflavus 313. Each independent variable was tested at high and low levels, which are denoted by (+) and (−), respectively. The experimental design with the name, symbol code, and actual levels of the variables is shown in Table 1, whereas Table 2 shows the detail of the design.

3.4.2. Central Composite Design (CCD) and Response Surface Methodology (RSM)

Central composite design (CCD) and response surface methodology (RSM) were employed to optimize the three most significant factors ((NH4)2SO4, peptone, CaCO3) for enhancing NW-G01 production. The three independent variables were studied at five different levels (−1.682, −1, 0, 1, 1.682) (Table 3) and a set of 20 experiments were carried out (Table 4).

The factors were coded according to the following equation:

x i = ( X i - X 0 ) Δ X , i = 1 , 2 , 3 , , k

where xi was the coded independent factor, Xi was the real independent factor, X0 was the value of Xi at the center point and ΔX was the step change value.

The response variable (antibiotic production) was explained by the following second-order polynomial equation:

Y = β 0 + β i x i + β i i x i 2 + β i j x i x j , i = 1 , 2 , 3 , , k

where Y was the predicted response, β0 was the intercept, xi and xj were the coded independent factors, βi was the linear coefficient, βii was the quadratic coefficient and βij was the interaction coefficient.

3.4.3. Statistical Analysis

Design Expert Version 7.1 (Stat-Ease Inc.: Minneapolis, MN, USA, 2007) was used for the experimental designs and regression analysis of the experimental data. Statistical analysis of the model was performed to evaluate the analysis of variance (ANOVA). The quality of the polynomial model equation was judged statistically by the coefficient of determination R2, and its statistical significance was determined by an F-test. The significance of the regression coefficients was tested by a t-test.

3.4.4. Experimental Validation of the Optimized Medium

In order to validate the optimization of medium composition, three tests were carried out using the optimized condition, to confirm the result from the analysis of the response surface.

4. Conclusion

Plackett–Burman design and response surface methodology had been proved to be effective on optimization for enhancing NW-G01 production with S. alboflavus 313. The final medium composition optimized was (g/L): corn starch 15, glucose 15, peptone 3.80, (NH4)2SO4 0.06, NaCl 1.5, CaCO3 1.30, MgSO4·7H2O 0.015, K2HPO4·3H2O 0.015, MnCl2·4H2O 0.015, FeSO4·7H2O 0.015, and ZnSO4·7H2O 0.015, which resulted in an overall 2.73-fold increase compared with that using the non-optimized medium. Validation experiments were also carried out to verify the adequacy and the accuracy of the model, and the results showed that the predicted value agreed with the experimental values well. The optimum culture medium obtained in this experiment laid a foundation for further study with large scale batch fermentation in a fermenter for NW-G01 production from S. alboflavus 313.

Acknowledgments

This study was supported by the grant of The National Key Basic Research Program (973 Program, Project No. 2010CB126100) from Science and Technology Ministry of China and the foundation of National Science Program of China (Project No. 31101468).

References

  1. Guo, Z.Y.; Ji, Z.Q.; Zhang, J.W.; Deng, J.; Shen, L.; Liu, W.; Wu, W.J. NW-G01, a novel cyclic hexapeptide antibiotic, produced by Streptomyces alboflavus 313: II. Structural Elucidation. J. Antibiot 2010, 63, 231–235. [Google Scholar]
  2. Guo, Z.Y.; Ji, Z.Q.; Zhang, J.W.; Deng, J.; Shen, L.; Liu, W.; Wu, W.J. Corrigendum: NW-G01, a novel cyclic hexapeptide antibiotic, produced by Streptomyces alboflavus 313: II. Structural Elucidation. J. Antibiot 2010, 63. [Google Scholar] [CrossRef]
  3. Guo, Z.Y.; Shen, L.; Ji, Z.Q.; Zhang, J.W.; Huang, L.Z.; Wu, W.J. NW-G01, a novel cyclic hexapeptide antibiotic, produced by Streptomyces alboflavus 313: I. Taxonomy, fermentation, isolation, physicochemical properties and antibacterial activities. J. Antibiot 2009, 62, 201–205. [Google Scholar]
  4. Guo, Z.Y. Studies on Antimicrobial Components from Fermentation Broth of Streptomyces alboflavus 313 (In Chinese). Ph.D. Dissertation, Northwest A & F University, Yangling, China, 2009. [Google Scholar]
  5. Gao, H.; Liu, M.; Liu, J.; Dai, H.Q.; Zhou, X.L.; Liu, X.Y.; Zhuo, Y.; Zhang, W.Q.; Zhang, L.X. Medium optimization for the production of avermectin B1a by Streptomyces avermitilis 14-12A using response surface methodology. Bioresour. Technol 2009, 100, 4012–4016. [Google Scholar]
  6. Zhang, C.H.; Ma, Y.J.; Yang, F.X.; Liu, W.; Zhang, Y.D. Optimization of medium composition for butyric acid production by Clostridium thermobutyricum using response surface methodology. Bioresour. Technol 2009, 100, 4284–4288. [Google Scholar]
  7. Plackett, R.L.; Burman, J.P. The design of optimum multifactorial experiments. Biometrica 1946, 33, 305–325. [Google Scholar]
  8. Kalil, S.J.; Maugeri, F.; Rodrigues, M.I. Response surface analysis and stimulation as a tool for bioprocess design and optimization. Process Biochem 2000, 35, 539–550. [Google Scholar]
  9. Liu, G.Q.; Wang, X.L. Optimization of critical medium components using response surface methodology for biomass and extracellular polysaccharide production by Agaricus blazei. Appl. Microbiol. Biotechnol 2007, 74, 78–83. [Google Scholar]
  10. Sunitha, K.; Kim, Y.O.; Lee, J.K.; Oh, T.K. Statistical optimization of seed and induction conditions to enhance phytase production by recombinant Escherichia coli. Biochem. Eng. J 2010, 5, 51–56. [Google Scholar]
  11. Vohara, A.; Satyanarayana, T. A cost effective molasses medium for enhanced cell bound phytase production by Pichia anomala. J. Appl. Microbiol 2004, 97, 471–476. [Google Scholar]
  12. Jia, B.; Jin, Z.H.; Mei, L.H. Medium optimization based on statistical methodologies for pristinamycins production by Streptomyces pristinaespiralis. Appl. Biochem. Biotechnol 2008, 144, 133–143. [Google Scholar]
  13. Niladevi, K.N.; Sukumaran, R.K.; Jacob, N.; Anisha, G.S.; Prema, P. Optimization of lactase production from a novel strain Streptomyces psammoticus using response surface methodology. Microbiol. Res 2009, 164, 105–113. [Google Scholar]
  14. Suutari, M.; Lignell, U.; Hyvarinen, A.; Nevalainen, A. Media for cultivation of indoor Streptomycetes. J. Microbiol. Methods 2002, 51, 411–416. [Google Scholar]
  15. Tuncer, M.; Kuru, A.; Isikli, M.; Sahin, N.; Celenk, F.G. Optimization of extracellular endoxylanase, endoglucanase and peroxidase production by Streptomyces sp. F2621 isolated in Turkey. J. Appl. Microbiol 2004, 97, 783–791. [Google Scholar]
  16. Xiong, Z.Q.; Tu, X.R.; Tu, G.Q. Optimization of medium composition for actinomycin X2 production by Streptomyces spp. JAU4234 using response surface methodology. J. Ind. Microbiol. Biotechnol 2008, 35, 729–734. [Google Scholar]
  17. Yu, J.C.; Liu, Q.; Liu, Q.; Liu, X.D.; Sun, Q.; Yan, J.F.; Qi, X.H.; Fan, S.D. Effect of liquid culture requirements on antifungal antibiotic production by Streptomyces rimosus MY02. Bioresour. Technol 2008, 99, 2087–2091. [Google Scholar]
  18. Khanna, S.; Srivastava, A.K. Statistical media optimization studies for growth and PHB production by Ralstonia eutropha. Process Biochem 2005, 40, 2173–2182. [Google Scholar]
  19. Kim, P.; Kim, J.H.; Oh, D.K. Improvement in cell yield of Methylobacterium sp. reducing the inhibition of medium components for poly-β-hydroxybutyrate production. World J. Microbiol. Biotechnol 2003, 19, 357–361. [Google Scholar]
  20. Mu, W.; Chen, C.; Li, X.; Zhang, T.; Jiang, B. Optimization of culture medium for the production of phenyllactic acid by Lactobacillus sp. SK007. Bioresour. Technol 2009, 100, 1366–1370. [Google Scholar]
  21. Yuan, L.L.; Li, Y.Q.; Wang, Y.; Zhang, X.H.; Xu, Y.Q. Optimization of critical medium components using response surface methodology for phenazine-l-carboxylic acid production by Pseudomonas sp. M-18Q. J. Biosci. Bioeng 2008, 105, 232–237. [Google Scholar]
  22. Han, Y.; Li, Z.Y.; Miao, X.L.; Zhang, F.L. Statistical optimization of medium components to improve the chitinase activity of Streptomyces sp. Da11 associated with the South China Sea sponge Craniella australiensis. Process Biochem 2008, 43, 1088–1093. [Google Scholar]
  23. Chen, X.C.; Bai, J.X.; Cao, J.M. Medium optimization for the production of cyclic adenosine 3′,5′-monophosphate by Microbacterium sp. No. 205 using response surface methodology. Bioresour. Technol 2009, 100, 919–924. [Google Scholar]
  24. Box, G.E.P.; Hunter, W.G.; Hunter, J.S. Statistics for Experimenters: An Introduction to Design, Data Analysis and Model Building; John Wiley: New York, NY, USA, 1978; pp. 291–334. [Google Scholar]
  25. Li, X.Y.; Liu, Z.Q.; Chi, Z.M. Production of phytase by a marine yeast Kodamaea ohmeri BG3 in an oats medium: Optimization by response surface methodology. Bioresour. Technol 2008, 99, 6386–6390. [Google Scholar]
Ijms 13 05230f1 1024

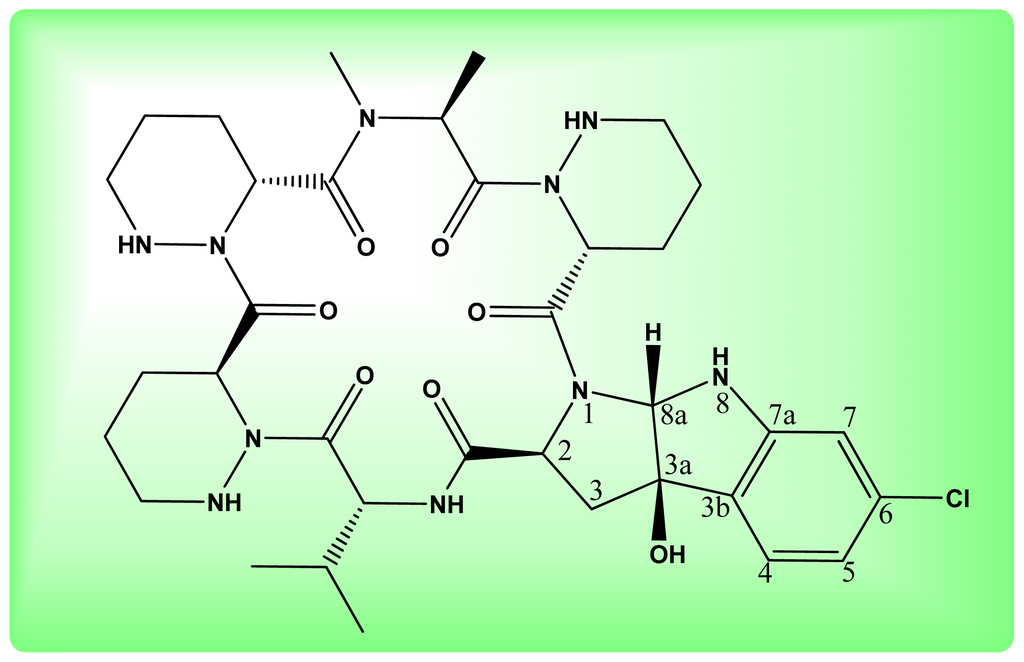

Figure 1. The molecular structure of Novel Cyclic Hexapeptide Antibiotic (NW-G01).

Click here to enlarge figure

Figure 1. The molecular structure of Novel Cyclic Hexapeptide Antibiotic (NW-G01).
Ijms 13 05230f1 1024
Ijms 13 05230f2 1024

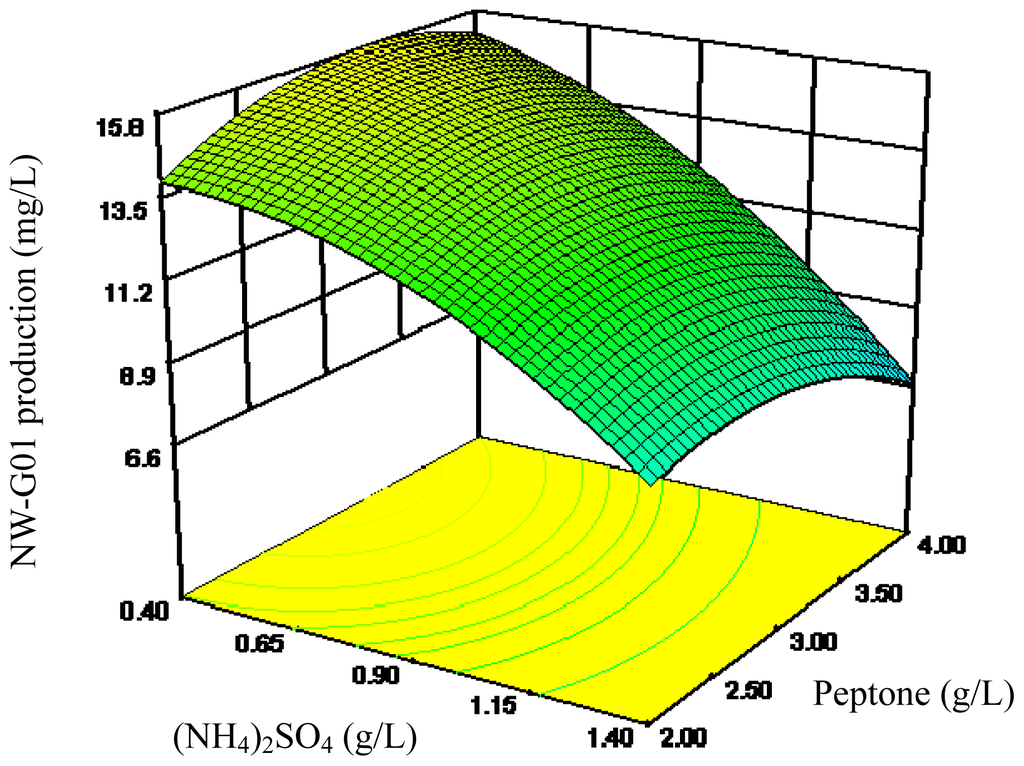

Figure 2. Response surface curve for NW-G01 production by Streptomyces alboflavus 313 as a function of (NH4)2SO4 and peptone concentrations, when CaCO3 concentration was maintained at 1.00 g/L.

Click here to enlarge figure

Figure 2. Response surface curve for NW-G01 production by Streptomyces alboflavus 313 as a function of (NH4)2SO4 and peptone concentrations, when CaCO3 concentration was maintained at 1.00 g/L.
Ijms 13 05230f2 1024
Ijms 13 05230f3 1024

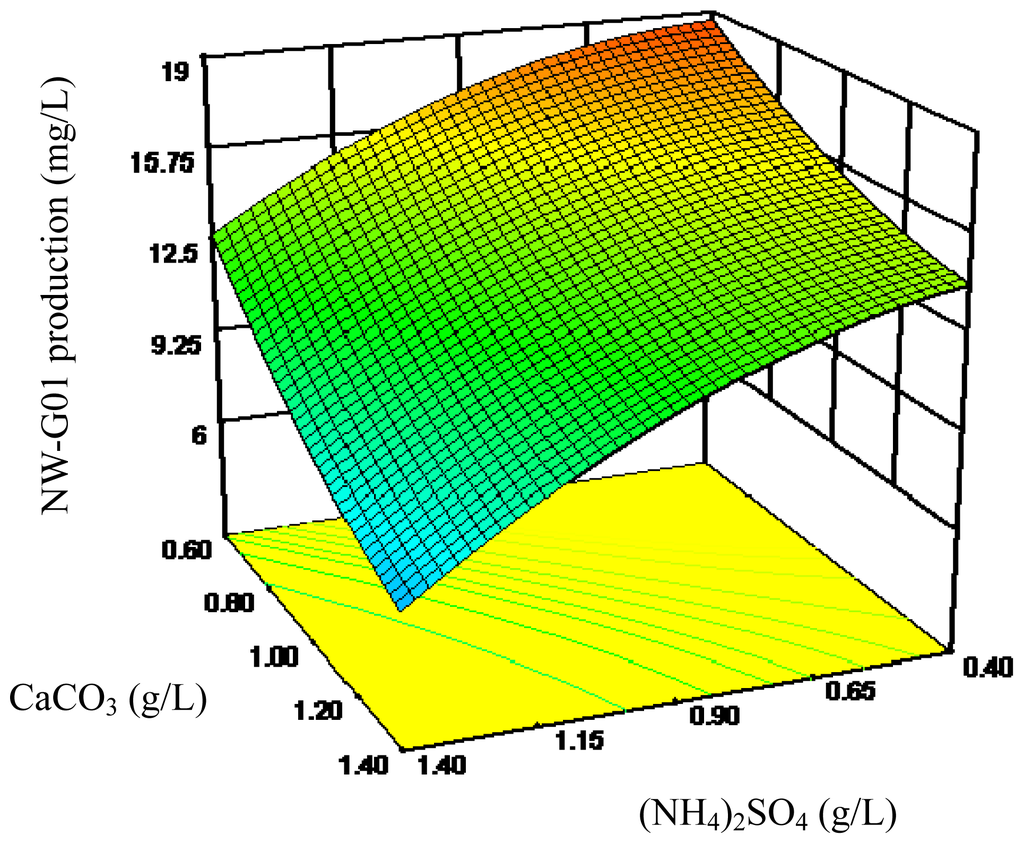

Figure 3. Response surface curve for NW-G01 production by Streptomyces alboflavus 313 as a function of (NH4)2SO4 and CaCO3 concentrations, when peptone concentration was maintained at 3.00 g/L.
