Int. J. Mol. Sci. 2012, 13(12), 16084-16103; doi:10.3390/ijms131216084

Article
Carbohydrate Stress Affecting Fruitlet Abscission and Expression of Genes Related to Auxin Signal Transduction Pathway in Litchi
Jian-Fei Kuang 1,, Jian-Yang Wu 2,3,, Hai-Ying Zhong 1, Cai-Qin Li 2, Jian-Ye Chen 1, Wang-Jin Lu 1 and Jian-Guo Li 2,*
1
State Key Laboratory for Conservation and Utilization of Subtropical Agro-Bioresources/Guangdong Key Laboratory for Postharvest Science, College of Horticulture, South China Agricultural University, Guangzhou 510642, China; E-Mails: jfkuang@scau.edu.cn (J.-F.K.); zhyxfy@126.com (H.-Y.Z.); chenjianye@scau.edu.cn (J.-Y.C.); wjlu@scau.edu.cn (W.-J.L.)
2
China Litchi Research Center, South China Agricultural University, Guangzhou 510642, China; E-Mails: wjiany065@163.com (J.-Y.W.); lcq_chin@163.com (C.-Q.L.)
3
College of Basic Education, Zhanjiang Normal University, Zhanjiang 524037, China
*
Author to whom correspondence should be addressed; E-Mail: jianli@scau.edu.cn; Tel./Fax: +86-20-8528-8265.
These authors contributed equally to this work.
Received: 18 October 2012; in revised form: 6 November 2012 / Accepted: 16 November 2012 /
Published: 29 November 2012

Abstract

: Auxin, a vital plant hormone, regulates a variety of physiological and developmental processes. It is involved in fruit abscission through transcriptional regulation of many auxin-related genes, including early auxin responsive genes (i.e., auxin/indole-3-acetic acid (AUX/IAA), Gretchen Hagen3 (GH3) and small auxin upregulated (SAUR)) and auxin response factors (ARF), which have been well characterized in many plants. In this study, totally five auxin-related genes, including one AUX/IAA (LcAUX/IAA1), one GH3 (LcGH3.1), one SAUR (LcSAUR1) and two ARFs (LcARF1 and LcARF2), were isolated and characterized from litchi fruit. LcAUX/IAA1, LcGH3.1, LcSAUR1, LcARF1 and LcARF2 contain open reading frames (ORFs) encoding polypeptides of 203, 613, 142, 792 and 832 amino acids, respectively, with their corresponding molecular weights of 22.67, 69.20, 11.40, 88.20 and 93.16 kDa. Expression of these genes was investigated under the treatment of girdling plus defoliation which aggravated litchi fruitlet abscission due to the blockage of carbohydrates transport and the reduction of endogenous IAA content. Results showed that transcript levels of LcAUX/IAA1, LcGH3.1 and LcSAUR1 mRNAs were increased after the treatment in abscission zone (AZ) and other tissues, in contrast to the decreasing accumulation of LcARF1 mRNA, suggesting that LcAUX/IAA1, LcSAUR1 and LcARF1 may play more important roles in abscission. Our results provide new insight into the process of fruitlet abscission induced by carbohydrate stress and broaden our understanding of the auxin signal transduction pathway in this process at the molecular level.
Keywords:
Litchi chinensis Sonn.; auxin responsive genes; auxin response factor; clone; gene expression; carbohydrate stress; fruitlet abscission

1. Introduction

Fruit abscission, occurring in advance of harvest, is characterized by the activation of a specific abscission zone (AZ) located between the pedicel and fruitlet, resulting in severe economic losses in many fruits [1,2]. The abscission is a highly regulated developmental process that is both influenced and activated by either internal cues or environmental conditions. Endogenous plant hormones have been implicated to contribute to the abscission of immature fruit, among which auxin is suggested to be a key regulator in fruit retention [3]. Spraying of auxins or synthetic auxins (e.g., 1-naphthaleneacetic acid (NAA) or 2,4-dichlorophenoxyacetic acid (2,4-D)) can efficiently reduce the fruit abscission by maintaining the cells adherence in the AZ and repress the activity of hydrolytic enzymes, such as cellulases which, in turn, promote fruitlet abscission by loosening the cell walls [4,5].

Auxin plays a pivotal role in the process of plant organ abscission. It is increasingly interesting to investigate the role of genes related to the auxin signal transduction pathway in this process. It is well documented that auxin stimulates the rapid transcription of a set of genes called primary or early auxin responsive genes including Aux/IAA, GH3, SAUR[68]. The AUX/IAA proteins are short-lived nuclear proteins that function as repressors of auxin-induced transcription, and auxin promotes the degradation of this large family of transcriptional regulators, leading to diverse downstream responses [9,10]. GH3 genes encode IAA-conjugating enzymes, which could act as feedback regulators by reducing free auxin levels [11], while SAUR genes code for highly conserved short-lived small proteins and likely function in cell expansion, hypocotyls and stamen filament elongation [12,13]. The promoter regions of these primary/early auxin-responsive genes contain one or more auxin-responsive elements (AuxRE) conferring auxin responsiveness. The identification of the AuxRE sequence led to the isolation of the Arabidopsis Auxin Response Factor1 (ARF1) gene which was shown to bind with specificity to AuxRE [14,15]. ARF transcription factors regulate many responses to auxin, including embryo patterning, vascular formation, phototropism and gravitropism [16,17]. Recently, it was found that expression of Ce-IAA in the AZ was negatively correlated with floret bud abscission in Cestrum cut flower [18]. Similar correlation between the effectiveness of auxin in delaying abscission and induction of Aux/IAA gene expression were also found in Cestrum elegans[19] and Mirabilis jalapa[20]. In tomato, SlIAA genes play important roles in delaying floral pedicel abscission, with SlIAA1, 9 and 12 required for the completion of ethylene-induced abscission and SlIAA4, 6, 7, 8, 14, 16, 17 and 29 important for calcium-delayed abscission [21]. Tomato GH3 effectively represses the delayed abscission induced by IAA, while SAUR may serve as a marker of IAA level throughout the abscission process [21]. In Arabidopsis, two ARF genes, ARF1 and ARF2, along with other ARF genes, Nonphototropic Hypocotyl4 (NPH4)/ARF7 and ARF19, might act together to regulate senescence and floral organ abscission [22].

The substantial production of Litchi (Litchi chinensis Sonn.), an important economic fruit crop widely grown in southern China and other southeast Asian areas [23], has been challenged by excessive fruit drop, one of the major factors causing irregular cropping or alternate bearing. There are two or three distinct abscission periods depending on cultivar during each reproductive cycle, typically a year [24]. The first period of abscission occurs at the end of full female bloom and lasts for about a month; the second abscission wave starts one or two weeks later and lasts for about two weeks [25]. The third drop wave, lasting for about one week, takes place two to three weeks before fruit maturation [24]. Generally, only 2% to 5% of the initial female flowers develop into mature fruits [25]. The peak and periodicity of fruit drop are affected by environmental and/or internal factors, for instance, spells of heavy overcast and rainy weather. Low temperature or drought during the flowering and fruit-setting period always induces sever fruit abscission. Yuan and Huang (1988) demonstrated that litchi fruit-set relied greatly upon current photosynthates and the fruit abscission multiwaves were in parallel with the upsurges of abscissic acid (ABA) in the seed, while IAA seemed to be antagonistic [26]. Basipetal IAA flux through AZ prevents abscission by rendering the AZ insensitive to ethylene [20,27]. Recently, microarray analysis revealed that expressions of abscission-related genes were initiated by flower removal and leading to pedicel abscission were inhibited by IAA application, confirming that ethylene sensitivity in the AZ is associated with altered expression of auxin-regulated genes resulting from auxin depletion [28]. In addition, auxin can also influence carbohydrate availability to affect fruit abscission. For example, application of synthetic auxin 3,5,6-TPA (3,5,6-trichloro-2-pyridil-oxyacetic acid) stimulated carbohydrate accumulation in developing fruitlets to reduce the dropping of citrus fruit [29]. Synthetic auxins including NAA, 2,4-D, 2,4,5-T (2,4,5-trichlorophenoxyacetic acid) and 2,4,5-TP (2-(2,4,5-trichlorophenoxy) propionic acid), were also widely used to prevent fruit abscission in litchi management practices [30,31]. As auxin response is known to be mediated in part by altering gene expression, characterization of genes related to the auxin signal transduction pathway is of particular significance for understanding the molecular basis of auxin action [18,20,22].

Therefore, in this study, genes related to auxin signaling were firstly isolated from litchi fruit, and their expression patterns in response to girdling plus defoliation treatment—an approach to completely block the carbohydrate transport to fruitlets and induce severe carbohydrate stress for fruit development [32,33]—were investigated. Our results expand our understanding of carbohydrate stress-induced fruitlet abscission at the molecular level and have theoretical implications for exploring effective strategies to regulate litchi fruit abscission.

2. Results

2.1. Isolation of AUX/IAA, GH3, SAUR and ARF Genes from Litchi Fruit

Full-Length sequences of one AUX/IAA (LcAUX/IAA1), one GH3 (LcGH3.1), one SAUR (LcSAUR1) and two ARF (LcARF1 and LcARF2) genes were isolated and characterized from litchi fruit for the first time. Sequence analysis of the full-length LcAUX/IAA1 cDNA revealed that it bore a 609 bp open reading frame (ORF) encoding a predicted polypeptide of 203 amino acids, with the predicted molecular weights of 22.67 kDa and pI of 8.27. Multiple sequence alignment showed that LcAUX/IAA1 contained four conserved domains (I, II, III and IV), which are typical motifs for the Aux/IAA proteins (Figure 1) [7]. In addition, the basic amino acids located in between the domains I and II (.KR.RSYR..) constitute a bipartite nuclear localization signal (NLS) and a basic cluster KRLRIMK, resembling Simian Virus 40 (SV40) and a Mat a2-like NLS, which is present at the end of domain IV (Figure 1) [34]. The litchi GH3 gene contains an ORF of 613 amino acids, with the predicted molecular weights of 69.20 kDa and pI of 6.81. The deduced protein contains three short conserved sequence motifs, GTSAGERK (Motif 1), YASSE (Motif 2) and YRVGD (Motif 3), which are involved in Adenosine Triphosphate (ATP)/Adenosine Monophosphate (AMP) binding as characteristic of the acyladenylate/thioester-forming enzyme super family (Figure 2) [3537]. The LcSAUR1 is 426 bp in length, which is deduced to encode a polypeptide of 142 amino acids with a predicted molecular weight of 11.40 kDa and pI of 11.52. Figure 3 shows that the LcSAUR1 protein contains a conserved SAUR specific domain (SSD) of approximately 60 residues in the central region like other reported SAUR proteins [38], but it does not contain the calmodulin-binding domain (CBD) that is present within the N-terminal extensions of SAUR-B and SAUR37 [38,39]. As for the two ARFs, their deduced proteins of LcARF1 and LcARF2 are of different lengths (792 and 832 aa), molecular masses (88.20 and 93.16 kDa), and isoelectric points (6.47 and 6.03). LcARF1 and LcARF2 show the typical features of auxin response factors, such as one N-terminal DNA-binding domain and two C-terminal domains (“Box III” and “Box IV”), which are implicated in protein dimerization (Figure 4). Interestingly, the middle regions of the two litchi ARFs (LcARF1 and LcARF2) are rich in proline, serine and threonine residues, a feature shared by AtARF1, which can repress auxin-induced, AuxRE-mediated gene expression, suggesting that they might function as transcription repressors [40].

2.2. Effect of Girdling Plus Defoliation on the Abscission of Litchi Fruitlet and Endogenous IAA Content

As shown in Figure 5A, relative fruitlet abscission rate for the control remained nearly unchanged from 1 to 4 days, with a small peak at 1 days followed by slight decrease thereafter, whereas the treatment of girdling combined with defoliation led to a significant increase in the rate of fruit abscission during the same period, especially at 4 days when a striking increase was observed. Similar pattern of abscission was observed in total fruit drop (Figure 5B). The treatment induced a higher level of fruitlet drop, with two-fold fruitlet abscised when compared to the control at 4 days. However, endogenous IAA content less accumulated in the treated fruitlet, with 17.2% lower than that of the control at 4 days after treatment (Figure 6), suggesting that girdling plus defoliation treatment accelerates the fruit drop probably via reducing auxin availability in fruitlet.

2.3. Effect of Girdling Plus Defoliation on the Expression of Litchi AUX/IAA, GH3, SAUR and ARF Genes

To determine the possible roles of LcAUX/IAA1, LcGH3.1, LcSAUR1, LcARF1 and LcARF2 in relation to fruitlet abscission, quantitative real-time RT-PCR (qRT-PCR) analysis was performed using tissue samples from the abscission zones (AZ) and fruitlets. As shown in Figure 7, all the genes showed different expression patterns in the AZ and fruitlet, suggestive of the different roles of those genes [41]. In general, transcript levels of LcAUX/IAA1, LcGH3.1 and LcSAUR1 mRNAs were increased after the treatment of girdling plus defoliation in both AZ and fruitlet, whereas those of LcARF1 and LcARF2 were decreased during the same period. Although LcAUX/IAA1, LcGH3.1 and LcSAUR1 transcripts were induced by the treatment, their accumulation patterns were quite different. The level of LcAUX/IAA1 mRNA in the AZ was increased to reach its maximum at 1 day after treatment, and markedly declined to the lowest point at 2 days, with an obvious increase observed thereafter. In contrast, the LcAUX/IAA1 was increased gradually and peaked at 4 days in the control. In fruitlet LcAUX/IAA1 transcript level was decreased in both the control and treated fruitlet. For the LcGH3.1, transcripts accumulated to a higher level in the AZ and fruitlet in response to the girdling plus defoliation application. The transcripts of LcGH3.1 in the AZ after the treatment accumulated slowly and peaked at 4 days with approximately 2.6-fold over untreated controls whereas, in the fruitlet after the treatment, the increase of transcripts occurred at 1 days and reached the maximum level (>15-fold) at 2 days, then declined steeply afterward. In the case of LcSAUR1, its expression increased in the AZ under the treatment of girdling plus defoliation. The relative expression level of LcSAUR1 also increased in the fruitlet, but this increase was much lower than that occurring in the AZ. In addition, LcARF1 transcripts were inhibited in both the AZ and the fruitlet by girdling plus defoliation. Without the treatment, LcARF1 transcripts decreased at 1 day and increased afterward. But when girdling plus defoliation were applied, LcARF1 mRNAs decreased in abundance and remained constant and low at 2 to 4 days post-treatment, implying that LcARF1 was negatively regulated by girdling plus defoliation treatment. LcARF2, in contrast, were nearly unaffected by the treatment and equally expressed in both the AZ and the fruitlet tissues, with a decrease at 1 day followed by a increase at 2 days and a subsequent decrease again at 4 days (Figure 7).

3. Discussion

Like many fruit trees species, litchi trees blossom with high profusion and thereafter exhibit massive fruitlet abscission, which leads to a low yield problem, thus limiting litchi industry development [42]. This process is generally under hormonal and metabolic regulation [43]. There is circumstantial evidence that developing fruitlets compete for photoassimilates, and the fruit abscission multiwaves are in parallel with the upsurges of abscissic acid (ABA), while IAA seems to be antagonistic [26]. Although the nature of the hormonal signals that link carbohydrate shortage and abscission are still unknown, it is commonly believed that the endogenous balance of ethylene and auxin in the AZ affects organ abscission. Application of exogenous ethylene accelerates abscission, whereas auxin treatment decreases cell sensitivity to ethylene and delays or inhibits the process [44]. Auxin exerts its effects by regulating the expression of numerous genes, including early auxin responsive genes and ARFs. In this paper, the isolation of LcAUX/IAA1, LcGH3.1, LcSAUR1 and LcARFs from litchi fruit was firstly reported. LcAUX/IAA1, LcGH3.1, LcSAUR1, LcARF1 and LcARF2 were predicted to encode proteins of 203, 613, 142, 792 and 832 amino acids, with calculated molecular weights of 22.67, 69.20, 11.40, 88.20 and 93.16 kDa, respectively. The genes isolated have shown the highest homology to the corresponding genes: LcAUX/IAA: 70% amino acid identity with RcIAA1 (XP_002517529.1 from castor bean); LcGH3.1: 87% amino acid identity with RcGH3.6 (XP_002533739.1 from castor bean); LcSAUR1: 49% amino acid identify with PtSAUR (XP_002305471.1 from Populus trichocarpa); LcARF1: 79% amino acid identity with VvARF4 (XP_002285019.2 from grape); LcARF2: 78% amino acid identity with VvARF8 (XP_002266678.2 from grape). LcAUX/IAA1, like its homologs from other plant species, contains all the four conserved domains (I, II, III and IV). It is generally accepted that domain I has a repressor function [15], and domain II contributes to the rapid degradation of the Aux/IAA proteins, while domains III and IV are responsible for homo- and heterodimerization among the various members of the Aux/IAA and auxin response factor (ARF) proteins [45]. LcAUX/IAA1 may be nuclear-localized proteins due to the existence of two types of NLS (Figure 1). The protein encoded by LcGH3.1 gene conserves three motifs essential for conjugating amino acid to excessive IAA (Figure 2) [11]. Apart from IAA, some GH3 genes from Arabidopsis are also known to adenylate other plant hormones such as jasmonic acid and salicylic acid [35]. The deduced ORF of LcSAUR1 encodes small proteins with molecular mass of 11.40 kDa, similar with those of OsSAURs, which ranged from 10 kDa for OsSAUR1 to 27 kDa for OsSAUR21 (Figure 3) [46]. The multiple sequence alignments of the full-length protein sequences showed that LcSAUR1 contains a conserved, SAUR-specific domain (SSD) of approximately 60 residues in the central region. In addition, alignment of the LcARFs amino acid sequences with that of other reported ARFs revealed that the predicted proteins shared typical features including an N-terminal DNA-binding domain and two C-terminal domains, “Box III” and “Box IV” (Figure 4), which contribute to protein dimerization [14,15].

It has been proposed that carbohydrates and hormones participate in a complex signal transduction system [33,47]. Previous work demonstrated that defoliation and girdling management could reduce the amount of resources available for current reproduction in individual branches, resulting in decrease of fruit production [32]. In addition, defoliation or shading reduces photosynthesis but also enhanced levels of abscisic acid (ABA) and 1-aminocyclo-propane-1-carboxylic acid (ACC) that positively correlated with abscission [26,47]. In the present work, we demonstrated that treatment of girdling plus defoliation reduced endogenous IAA concentration concomitant with increasing fruitlet abscission (Figures 5 and 6) and that, in litchi fruit, auxin has a key role in fruit retention. None of the litchi early auxin responsive genes or ARFs was AZ specific and they were also detected in the whole fruitlet. The expression patterns of auxin-related genes differed during litchi fruit AZ activation. The expression of LcAUX/IAA1, LcGH3.1 and LcSAUR1 increased in AZ and fruitlet after treatment with girdling plus defoliation which significantly induced litchi fruitlet shedding (Figure 7). By comparing the expression levels of the LcAUX/IAA1, LcGH3.1 and LcSAUR1 in the different tissues and IAA content, it is likely that the LcAUX/IAA1 and LcSAUR1 may play a more important role in abscission than the LcGH3.1, because the LcAUX/IAA1 and the LcSAUR1 were expressed mostly in AZ. However, these results differed from the finding of tomato flower pedicel abscission. During the first 4 h after flower excision, most SlIAA genes in the control reached their peak expression level at 1 h but then decreased sharply, which corresponded well to the changes of endogenous IAA level [21]. Moreover, tomato GH3 increased slightly after 8 h and maintained a low expression level during abscission, implying that it may be an effective negative regulator in IAA-induced delay in abscission, while small auxin-up RNA was suggested to be a marker of IAA level throughout the abscission process [21]. Additionally, application of 2,4-D, which delayed floret abscission, induced a higher expression of Aux/IAA genes in the floret AZ [21]. Our findings, together with previous reports, suggest that functional divergence underlying abscission processes may be present between litchi and tomato. Thus, further studies are needed to fully unravel the function of LcAUX/IAA1 and LcSAUR1 genes in regulating fruit abscission.

LcARF1 and LcARF2 exhibited similar expression patterns both in AZ and fruitlet tissues (Figure 7). In particular, LcARF1 was negatively correlated with fruitlet abscission in that its transcript decreased in AZ and fruitlet under the treatment of girdling and defoliation, which was contrary to the work of [22] showing that an increase of ARF2 mRNA in detached leaves in Arabidopsis thaliana following dark treatment, with a time course similar to that of SAG12 mRNA. Interestingly, the expression pattern in AZ during abscission of LcARF2 was decreased at 1 days and then increased at 2 days and finally decreased again at 4 days, which is opposite of that of LcAUX/IAA1, suggesting that a cascade of AUX/IAA-ARF might also exist in litchi fruit. The developmental specificity of auxin response is determined by the interacting pairs of ARFs and Aux/IAAs [48]. Among the auxin-signaling, AUX/IAAs are proposed to bind to ARFs and inhibit transcription of ARF target genes, while a degradation of AUX/IAAs in response to auxin treatment would lead to increase ARF activity [4951]. It should be needed to examine whether LcAUX/IAA1 is able to interact with LcARF2 in the future.

4. Experimental Sections

4.1. Plant Materials and Treatment

Three randomly selected 10-year-old litchi trees (Litchi chinensis Sonn. cv. kulin) growing in an orchard in South China Agricultural University were chosen for this study. Twenty fruit-bearing shoots located in different directions of each tree were tagged. Ten of them were treated with girdling (removing bark by about 0.5 cm in width) followed by defoliation (removing all leaves above the girdling site) at 25 days after anthesis, while the remaining untreated shoots were used as controls. Sampling was conducted at 0, 1, 2 and 4 days after treatment. Fruitlets and fruit abscission zone were collected immediately. Fruit abscission zones were excised by cutting ~1 mm at each side of the abscission fracture plane. After separation, all tissues were quickly frozen in liquid nitrogen and stored at −80 °C for future analysis. Each tree was treated as a biological replicate.

4.2. RNA Isolation and cDNA Cloning

Total RNA was extracted from the frozen fruitlets (~10 g) and abscission zone (~100 mg) sample according to the method of [52] and [53], respectively. RNA quality was determined by denaturing agarose gel [1.2% (w/v) agarose, 0.5 × 3-(N-morpholino)propanesulfonic acid (MOPS)] and spectrophotometer. Following the RNA extraction, potentially contaminating DNA was removed by the treatment with DNase I digestion using the RNase-free kit (Promega, Madison, WI, USA). The DNA-free total RNA was then used as template for reverse transcription-PCR (RT-PCR). The first-strand cDNA was subjected to PCR amplification. To isolate AUX/IAA, GH3, SAUR and ARF orthologs from litchi fruit, degenerate primers were designed based on available sequence information in Genbank (Table 1). PCR reactions were carried out using 0.3 μL LA Taq DNA Polymerase (Takara, Dalian Division, China) under different annealing temperatures, extension times and cycles according to the melting point of primer pairs, and the amplified fragments were cloned into a pGEM-T Easy vector (Promega, USA), sequenced, and compared with Genbank sequences using the Blast program. Extension of partial cDNA segments was carried out using the 3′- and 5′-Rapid Amplification of cDNA ends (RACE) kit (Takara, Dalian Division, China) according to the manufacturer’s instructions. The products obtained from 3′- and 5′-RACE were cloned and determined, as described above. Full-Length cDNA sequences of LcAUX/IAA1, LcGH3.1, LcSAUR1, LcARF1 and LcARF2 were assembled through sequential ligation and cloning, and verified by DNA sequencing. Deduced molecular weights and the theoretical isoelectric points of proteins were computed using the ProtParam tool. Multiple alignments were performed using ClustalX and GeneDoc program.

4.3. Abscission Rate Evaluation

To determine fruit abscission rate, fruit number on the tagged shoots were counted at each sampling date. Relative fruitlet abscission rate was calculated by subtracting the number of remaining fruitlets from the last recorded number, dividing by the last number and multiplying by 100. Cumulative fruit abscission was calculated by subtracting the number of remaining fruitlets from the initial number, dividing by the initial number, and multiplying by 100. Final results were expressed as percentage. Means and standard errors were calculated on a per-tree basis.

4.4. Measurement of Endogenous IAA Content

The IAA content was measured using the 3-indoleacetic acid (IAA) ELISA kit as previously described by [54] and [55], which has been widely used to measure IAA contents in various tissues. Tissues of fruitlet (300 mg) were sampled with a mortar and pestle under liquid nitrogen. IAA was extracted by 80% methanol and centrifuged at 5000 g for 10 min at 4 °C. The supernatant was collected and immediately passed through a pre-equilibrated C18 Sep-Pak cartridge (Millipore). The efflux was collected, and was dried in N2 gas. The residue was dissolved in 100% methanol for methylation with freshly synthesized ethereal diazomethane. The solution was then dried under N2 gas and redissolved in 300 μL of phosphate buffered saline (PBS) for IAA ELISA using a monoclonal antibody of high specificity for IAA methyl ester. In a standard procedure, both a recovery assay (using an internal control) and a dilution assay (making a series of sample extract dilutions) were performed, the first to ensure good sample recovery and the second to guarantee the absence of nonspecific inhibitors in the extracts. IAA was determined three times on the same extract, and samples were assayed in three biological replicates from three different trees.

4.5. Quantitative Real-Time PCR Analysis

RNA isolation and first-strand cDNA synthesis were performed as described previously. The synthesized cDNA was diluted 1:40 with water, and 2 μL of the diluted cDNA was used as a template for quantitative real-time PCR analysis (qPCR). PCRs were performed in a total volume of 20 μL, containing 1 μL of each primer (10 μM; final concentration 500 nM) and 10 μL of SYBR® Green PCR Supermix (Bio-Rad Laboratories) on a Bio-Rad CFX96 Real-Time PCR System according to the manufacturer’s instructions. The qPCR program included an initial denaturation step at 94 °C for 5 min, followed by 40 cycles of 10 s at 94 °C, 30 s at 60 °C, and 30 s at 72 °C. No-Template controls for each primer pair were included in each run. The oligonucleotide primers for qPCR analysis were designed on the basis of the 3′-untranslated region using Primer 5.0 software. Each assay using the gene-specific primers amplified a single product of the correct size with high PCR efficiency (90–110%). All qPCRs were normalized using the cycle threshold (Ct) value corresponding to the reference gene. The relative expression levels of the target gene were calculated using the formula 2−ΔΔCt [56]. Results are representative of three biological replicates. LcACTIN was selected as a reference gene according to our previous study on the selection of reliable reference genes for expression study by RT-qPCR in litchi fruit [57]. The gene characteristics and their primer sequences are listed in Table 2.

5. Conclusions

In conclusion, one AUX/IAA (LcAUX/IAA1), one GH3 (LcGH3.1), one SAUR (LcSAUR1) and two ARF (LcARF1 and LcARF2) genes were isolated and characterized from litchi fruit for the first time. Expression studies of these genes revealed different expression patterns in response to girdling plus defoliation application which induced fruitlet abscission of litchi and reduced endogenous IAA content. By comparing these genes’ expression levels, IAA content and fruitlet abscission, it was postulated that LcAUX/IAA1, LcSAUR1 and LcARF1 may play a more important role in the abscission of litchi fruitlet. These results provide novel molecular insight into carbohydrate stress-induced fruitlet abscission and the auxin signal transduction pathway involved in litchi fruitlet abscission.

Acknowledgements

We are grateful to Rui Xia (Department of Horticulture, Virginia Tech, Blacksburg, VA 24060, USA) for his helpful suggestions and critical English language editing. Financial support was provided by the National Natural Science Foundation of China (31171920), China Agricultural Research System (CARS-33-11) and Scientific Research Foundation for Returned Scholars, Ministry of Education of China (2010-1561).

  • Conflict of InterestThe authors declare no conflict of interest.

References

  1. Sun, L.; Bukovac, M.J.; Forsline, P.L.; Van Nocker, S. Natural variation in fruit abscission-related traits in apple (Malus). Euphytica 2009, 165, 55–67.
  2. Ish-Shalom, M.; Dahan, Y.; Maayan, I.; Irihimovitch, V. Cloning and molecular characterization of an ethylene receptor gene, MiERS1, expressed during mango fruitlet abscission and fruit ripening. Plant Physiol. Biochem 2011, 49, 931–936.
  3. Yuan, R.; Kender, W.J.; Burns, J.K. Young fruit and auxin transport inhibitors affect the response of mature “Valencia” oranges to abscission materials via changing endogenous plant hormones. J. Am. Soc. Hort. Sci 2003, 128, 302–308.
  4. Bonghi, C.; Tonutti, P.; Ramina, A. Biochemical and molecular aspects of fruitlet abscission. Plant Growth Regul 2000, 31, 35–42.
  5. De Almeida, I.M.L.; Rodrigues, J.D.; Ono, E.O. Application of plant growth regulators at pre-harvest for fruit development of “Pera” oranges. Braz. Arch. Biol. Technol 2004, 47, 511–520.
  6. Abel, S.; Theologis, A. Early genes and auxin action. Plant Physiol 1996, 111, 9–17.
  7. Hagen, G.; Guilfoyle, T. Auxin-Responsive gene expression: Genes, promoters and regulatory factors. Plant Mol. Biol 2002, 49, 373–385.
  8. Dharmasiri, N.; Dharmasiri, S.; Jones, A.M.; Estelle, M. Auxin action in a cell free system. Curr. Biol 2003, 13, 1418–1422.
  9. Ulmasov, T.; Murfett, J.; Hagen, G.; Guilfoyle, T.J. Aux/IAA proteins repress expression of reporter genes containing natural and highly active synthetic auxin response elements. Plant Cell 1997, 9, 1963–1971.
  10. Worley, C.K.; Zenser, N.; Ramos, J.; Rouse, D.; Leyser, O.; Theologis, A.; Callis, J. Degradation of Aux/IAA proteins is essential for normal auxin signalling. Plant J 2000, 21, 553–562.
  11. Staswick, P.E.; Serban, B.; Rowe, M.; Tiryaki, I.; Maldonado, M.T.; Maldonado, M.C.; Suza, W. Characterization of an Arabidopsis enzyme family that conjugates amino acids to indole-3-acetic acid. Plant Cell 2005, 17, 616–627.
  12. Spartz, A.K.; Lee, S.H.; Wenger, J.P.; Gonzalez, N.; Itoh, H.; Inze, D.; Peer, W.A.; Murphy, A.S.; Overvoorde, P.; Gray, W.M. The SAUR19 subfamily of SMALL AUXIN UP RNA genes promote cell expansion. Plant J 2012, 70, 978–990.
  13. Chae, K.; Isaacs, C.G.; Reeves, P.H.; Maloney, G.S.; Muday, G.K.; Nagpal, P.; Reed, J.W. Arabidopsis SMALL AUXIN UP RNA63 promotes hypocotyls and stamen filament elongation. Plant J 2012, 71, 684–691.
  14. Ulmasov, T.; Hagen, G.; Guilfoyle, T.J. ARF1, a transcription factor that binds to auxin response elements. Science 1997, 276, 1865–1868.
  15. Tiwari, S.B.; Hagen, G.; Guilfoyle, T. The roles of auxin response factor domains in auxin-responsive transcription. Plant Cell 2004, 15, 533–543.
  16. Hardtke, C.S.; Berleth, T. The Arabidopsis gene MONOPTEROS encodes a transcription factor mediating embryo axis formation and vascular development. EMBO J 1998, 17, 1405–1411.
  17. Harper, R.M.; Stowe-Evans, E.L.; Luesse, D.R.; Muto, H.; Tatematsu, K.; Watahiki, M.K.; Yamamoto, K.; Liscum, E. The NPH4 locus encodes the auxin response factor ARF7, a conditional regulator of differential growth in aerial Arabidopsis tissue. Plant Cell 2000, 12, 757–770.
  18. Abebie, B.; Lers, A.; Philosoph-Hadas, S.; Goren, R.; Riov, J.; Meir, S. Differential effects of NAA and 2,4-D in reducing floret abscission in cestrum (Cestrum elegans Schlecht) cut flowers are associated with their differential activation of Aux/IAA homologous genes. Ann. Bot 2008, 101, 249–259.
  19. Abebie, B.; Goren, R.; Huberman, M.; Meir, S.; Philosoph-Hadas, S.; Riov, J. Prevention of bud and floret abscission in Cestrum cut flowers is related to the mode of transport and metabolism of synthetic auxins. Acta Hortic 2005, 682, 789–794.
  20. Meir, S.; Hunter, D.A.; Chen, J.C.; Halaly, V.; Reid, M.S. Molecular changes occurring during acquisition of abscission competence following auxin depletion in Mirabilis jalapa. Plant Physiol 2006, 141, 1604–1616.
  21. Zuo, X.; Xu, T.; Qi, M.; Lv, S.; Li, J.; Gao, S.; Li, T. Expression patterns of auxin-responsive genes during tomato flower pedicel abscission and potential effects of calcium. Aust. J. Bot 2012, 60, 68–78.
  22. Ellis, C.M.; Nagpal, P.; Young, J.C.; Hagen, G.; Guilfoyle, T.J.; Reed, J.W. AUXIN RESPONSE FACTOR1 and AUXIN RESPONSE FACTOR2 regulate senescence and floral organ abscission in Arabidopsis thaliana. Development 2005, 132, 4563–4574.
  23. Jiang, Y.M.; Chen, F. A study on polyamine change and browning of fruit during cold storage of litchi (Litchi chinensis Sonn.). Postharvest Biol. Tec 1995, 5, 245–250.
  24. Mitra, S.K.; Pereira, L.S.; Pathak, P.K.; Majumadar, D. Fruit abscission pattern of lychee cultivars. Acta Hortic 2005, 665, 215–218.
  25. Stern, R.A.; Kigel, J.; Tomer, E.; Gazit, S. “Mauritius” lychee fruit development and Rreduced abscission after treatment with the auxin 2,4,5-TP. J. Am. Soc. Hort. Sci 1995, 120, 65–70.
  26. Yuan, R.; Huang, H. Litchi fruit abscission: Its patterns, effect of shading and relation to endogenous abscisic acid. Scientia Hort 1988, 36, 281–292.
  27. Rungruchkanont, K.; Ketsa, S.; Chatchawankanphanich, O.; Van Doorn, W.G. Endogenous auxin regulates the sensitivity of Dendrobium (cv. Miss Ten) flower pedicel abscission to ethylene. Funct. Plant Biol 2007, 34, 885–894.
  28. Meir, S.; Philosoph-Hadas, S.; Sundaresan, S.; Selvaraj, K.S.; Burd, S.; Ophir, R.; Kochanek, B.; Reid, M.S.; Jiang, C.Z.; Lers, A. Microarray analysis of the abscission-related transcriptome in the tomato flower abscission zone in response to auxin depletion. Plant Physiol 2010, 154, 1929–1956.
  29. Agusti, M.; Almela, V.; Juan, M.; Alferez, F.; Tadeo, F.R.; Zacarias, L. Histological and physiological characterization of rind breakdown of “Navelate” sweet orange. Ann. Bot 2001, 88, 415–422.
  30. Stern, R.A.; Gazit, S. The reproductive biology of the lychee. Hortic Rev 2003, 28, 393–453.
  31. Yuan, R.; Huang, H. Effect of NAA, NAA plus nucleotides on fruit set of lychee. Austral. Lychee Yearbook 1991, 1, 46–50.
  32. Obeso, J.R. Effects of defoliation and girdling on fruit production in Ilex aquifolium. Funct. Ecol 1998, 12, 486–491.
  33. Gómez-Cadenas, A.; Mehouachi, J.; Tadeo, F.R.; Primo-Millo, E.; Talon, M. Hormonal regulation of fruitlet abscission induced by carbohydrate shortage in citrus. Planta 2000, 210, 636–643.
  34. Liu, D.J.; Chen, J.Y.; Lu, W.J. Expression and regulation of the early auxin-responsive Aux/IAA genes during strawberry fruit development. Mol. Biol. Rep 2011, 38, 1187–1193.
  35. Staswick, P.E.; Tiryaki, I.; Rowe, M.L. Jasmonate response locus JAR1 and several related Arabidopsis genes encode enzymes of the firefly luciferase superfamily that show activity on jasmonic, salicylic, and indole-3-acetic acids in an assay for adenylation. Plant Cell 2002, 14, 1405–1415.
  36. Terol, J.; Domingo, C.; Talon, M. The GH3 family in plants: Genome wide analysis in rice and evolutionary history based on EST analysis. Gene 2006, 371, 279–290.
  37. Kuang, J.F.; Zhang, Y.; Chen, J.Y.; Chen, Q.J.; Jiang, Y.M.; Lin, H.T.; Xu, S.J.; Lu, W.J. Two GH3 genes from longan are differentially regulated during fruit growth and development. Gene 2011, 485, 1–6.
  38. Park, J.E.; Kim, Y.S.; Yoon, H.K.; Park, C.M. Functional characterization of a small auxin-up RNA gene in apical hook development in Arabidopsis. Plant Sci 2007, 172, 150–157.
  39. Reddy, V.S.; Ali, G.S.; Reddy, A.S. Genes encoding calmodulin-binding proteins in the Arabidopsis genome. J. Biol. Chem 2002, 277, 9840–9852.
  40. Ulmasov, T.; Hagen, G.; Guilfoyle, T.J. Activation and repression of transcription by auxin-response factors. Proc. Natl. Acad. Sci. USA 1999, 96, 5844–5849.
  41. Ruperti, B.; Cattivelli, L.; Pagni, S.; Ramina, A. Ethylene-Responsive genes are differentially regulated during abscission, organ senescence and wounding in peach (Prunus persica). J. Exp. Bot 2002, 53, 429–437.
  42. Stern, R.A.; Meron, M.; Naor, A.; Wallach, R.; Bravdo, B.; Gazit, S. Effect of fall irrigation level in “Mauritius” and “Floridian” lychee on soil and plant water status, flowering intensity, and yield. J. Am. Soc. Hort. Sci 1998, 123, 150–155.
  43. Gillaspy, G.; Ben-David, H.; Gruissem, W. Fruits: A develop-mental perspective. Plant Cell 1993, 5, 1439–1451.
  44. Roberts, J.A.; Whitelaw, C.A.; Gonzales-Carranza, Z.H.; McManus, M.T. Cell separation processes in plants—models, mechanisms and manipulation. Ann. Bot 2000, 86, 223–235.
  45. Ouellet, F.; Overvoorde, P.J.; Theologis, A. A IAA17/AXR3: Biochemical insight into an auxin mutant phenotype. Plant Cell 2001, 13, 829–841.
  46. Jain, M.; Tyagi, A.K.; Khurana, J.P. Genome-Wide analysis, evolutionary expansion, and expression of early auxin-responsive SAUR gene family in rice (Oryza sativa). Genomics 2006, 88, 360–371.
  47. Zhou, L.; Jan, J.C.; Jones, T.L.; Sheen, J. Glucose and ethylene signal transduction crosstalk revealed by an Arabidopsis glucose-insensitive mutant. Proc. Natl. Acad. Sci. USA 1998, 95, 10294–10299.
  48. Weijers, D.; Benkova, E.; Jager, K.E.; Schlereth, A.; Hamann, T.; Kientz, M.; Wilmoth, J.C.; Reed, J.W.; Jurgens, G. Developmental specificity of auxin response by pairs of ARF and Aux/IAA transcriptional regulators. EMBO J 2005, 24, 1874–1885.
  49. Liscum, E.; Reed, J.W. Genetics of Aux/IAA and ARF action in plant growth and development. Plant Mol. Biol 2002, 49, 387–400.
  50. Okushima, Y.; Overvoorde, P.J.; Arima, K.; Alonso, J.M.; Chan, A.; Chang, C.; Ecker, J.R.; Hughes, B.; Lui, A.; Nguyen, D.; et al. Functional genomic analysis of the AUXIN RESPONSE FACTOR gene family members in Arabidopsis thaliana: Unique and overlapping functions of ARF7 and ARF19. Plant Cell 2005, 17, 444–463.
  51. Szemenyei, H.; Hannon, M.; Long, J.A. TOPLESS mediates auxin-dependent transcriptional repression during Arabidopsis embryogenesis. Science 2008, 319, 1384–1386.
  52. Wan, C.Y.; Wilkins, T.A. A modified hot borate method significantly enhances the yield of high quality RNA from cotton (Gossypium hirsutum L.). Anal. Biochem 1994, 223, 7–12.
  53. Wu, J.Y.; Peng, G.; Li, C.Q.; Lu, W.J.; Wang, Z.H.; Li, J.G. A new rapid and effective method for RNA isolation from litchi tissues of fruitlet and abscission zone. Acta Hortic. Sin 2011, 38, 1191–1196.
  54. Lin, W.H.; Wang, Y.; Mueller-Roeber, B.; Brearley, C.A.; Xu, Z.H.; Xue, H.W. At5PTase13 modulates cotyledon vein development through regulating auxin homeostasis. Plant Physiol 2005, 139, 1677–1691.
  55. Chen, J.G.; Wang, S.; Lazarus, C.M.; Napier, R.M.; Jones, J.M. Altered expression of Auxin-binding Protein 1 affects cell expansion and auxin pool size in tobacco cells. J. Plant Growth Regul 2006, 25, 69–78.
  56. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(−Delta Delta C(T)) method. Methods 2001, 25, 402–408.
  57. Zhong, H.Y.; Chen, J.W.; Li, C.Q.; Chen, L.; Wu, J.Y.; Chen, J.Y.; Lu, W.J.; Li, J.G. Selection of reliable reference genes for expression studies by reverse transcription quantitative real-time PCR in litchi under different experimental conditions. Plant Cell Rep. 2011, 30, 641–653.
Ijms 13 16084f1 200

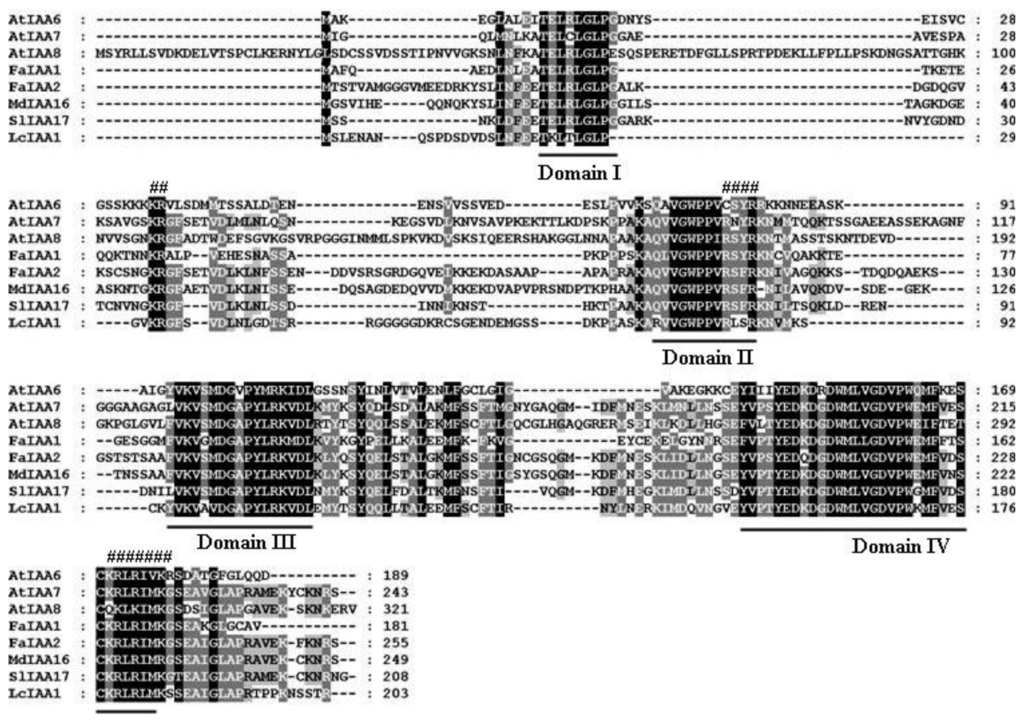

Figure 1. Alignment of the deduced amino acid sequence of litchi LcAUX/IAA1 and its respective homologs from Arabidopsis (AtIAA6, Q38824; AtIAA7, Q38825; AtIAA8, Q38826), strawberry [34], and tomato (SlIAA17, AEX00360). The shading indicates sequence similarities of 100% (black), or 80% (gray) among AUX/IAA proteins. Multiple alignments was done by Clustal W and viewed with Boxshade program. The four conserved domains in Aux/IAA proteins were underlined. A bipartite nuclear localization signal (NLS) between domains I and II, and a MAT α2-like NLS present at the end of domain IV were marked with “#”.

Click here to enlarge figure

Figure 1. Alignment of the deduced amino acid sequence of litchi LcAUX/IAA1 and its respective homologs from Arabidopsis (AtIAA6, Q38824; AtIAA7, Q38825; AtIAA8, Q38826), strawberry [34], and tomato (SlIAA17, AEX00360). The shading indicates sequence similarities of 100% (black), or 80% (gray) among AUX/IAA proteins. Multiple alignments was done by Clustal W and viewed with Boxshade program. The four conserved domains in Aux/IAA proteins were underlined. A bipartite nuclear localization signal (NLS) between domains I and II, and a MAT α2-like NLS present at the end of domain IV were marked with “#”.
Ijms 13 16084f1 1024
Ijms 13 16084f2 200

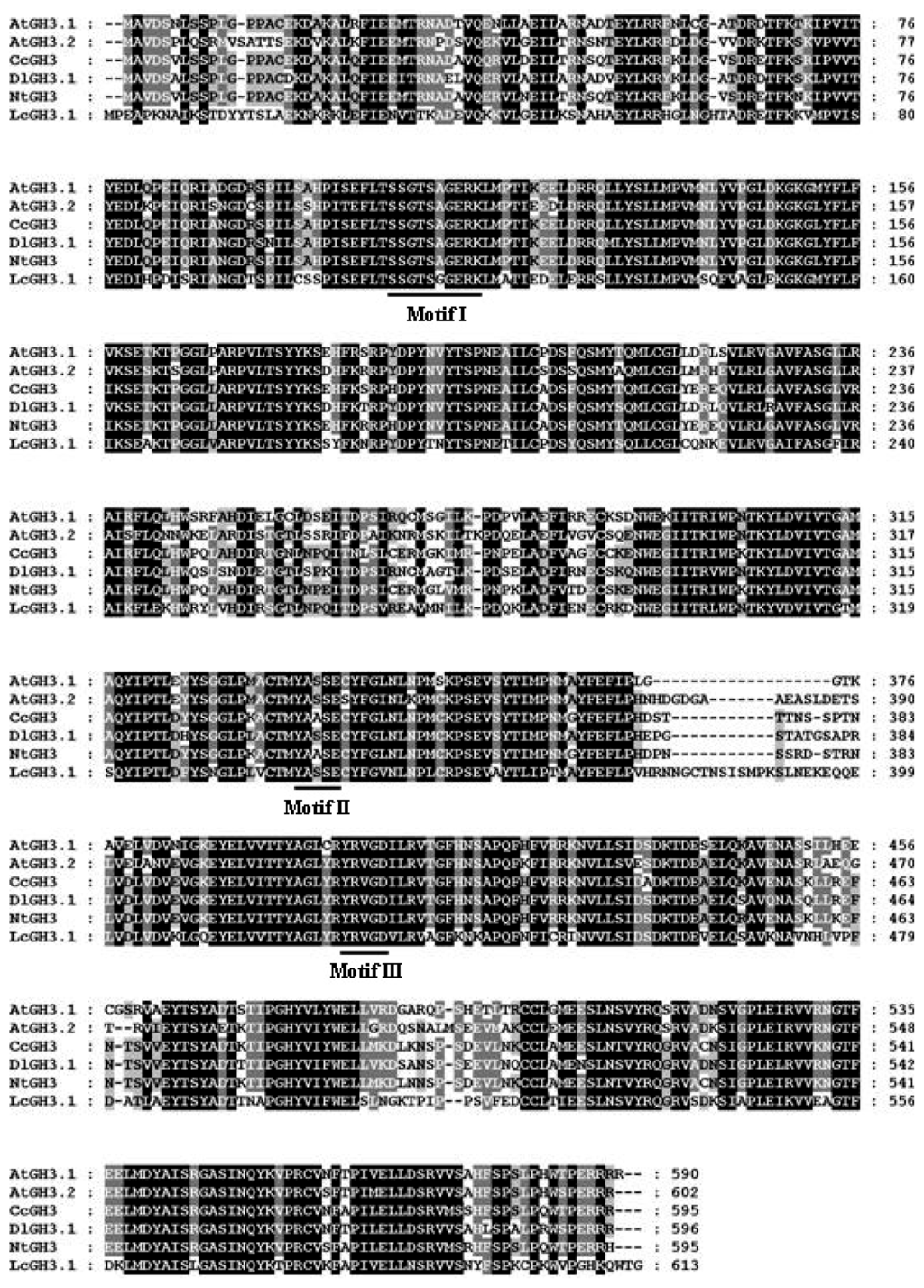

Figure 2. Alignment of the deduced amino acid sequence of litchi LcGH3.1 and its respective homologs from Arabidopsis (AtGH3.1, NM_127059; AtGH3.2, NM_119902), pepper (CcGH3, AY525089), longan (DlGH3.1, ADK27716) and tobacco (NtGH3, AF123503). The shading indicates sequence similarities of 100% (black), or 80% (gray) among GH3 proteins. Multiple alignments was done by Clustal W and viewed with Boxshade program. The three functional motifs (I, II and III) involved in ATP/AMP binding were underlined.

Click here to enlarge figure

Figure 2. Alignment of the deduced amino acid sequence of litchi LcGH3.1 and its respective homologs from Arabidopsis (AtGH3.1, NM_127059; AtGH3.2, NM_119902), pepper (CcGH3, AY525089), longan (DlGH3.1, ADK27716) and tobacco (NtGH3, AF123503). The shading indicates sequence similarities of 100% (black), or 80% (gray) among GH3 proteins. Multiple alignments was done by Clustal W and viewed with Boxshade program. The three functional motifs (I, II and III) involved in ATP/AMP binding were underlined.
Ijms 13 16084f2 1024
Ijms 13 16084f3 200
Figure 3. Alignment of the deduced amino acid sequence of litchi LcSAUR1 and its respective homologs from Arabidopsis (SAUR15, NP_195596; SAUR26, NP_187035; SAUR27, NP_187034; SAUR31, NP_567196; SAUR33, NP_191749; SAUR37, NP_194860; SAUR-B, NP_197581), and Glycine max (GmSAUR, S44175). The shading indicates sequence similarities of 100% (black), or 80% (gray) among SAUR proteins. Multiple alignments was done by Clustal W and viewed with Boxshade program. The SAUR specific domain is underlined. The calmodulin-binding domain is indicated by boxed.

Click here to enlarge figure

Figure 3. Alignment of the deduced amino acid sequence of litchi LcSAUR1 and its respective homologs from Arabidopsis (SAUR15, NP_195596; SAUR26, NP_187035; SAUR27, NP_187034; SAUR31, NP_567196; SAUR33, NP_191749; SAUR37, NP_194860; SAUR-B, NP_197581), and Glycine max (GmSAUR, S44175). The shading indicates sequence similarities of 100% (black), or 80% (gray) among SAUR proteins. Multiple alignments was done by Clustal W and viewed with Boxshade program. The SAUR specific domain is underlined. The calmodulin-binding domain is indicated by boxed.
Ijms 13 16084f3 1024
Ijms 13 16084f4 200

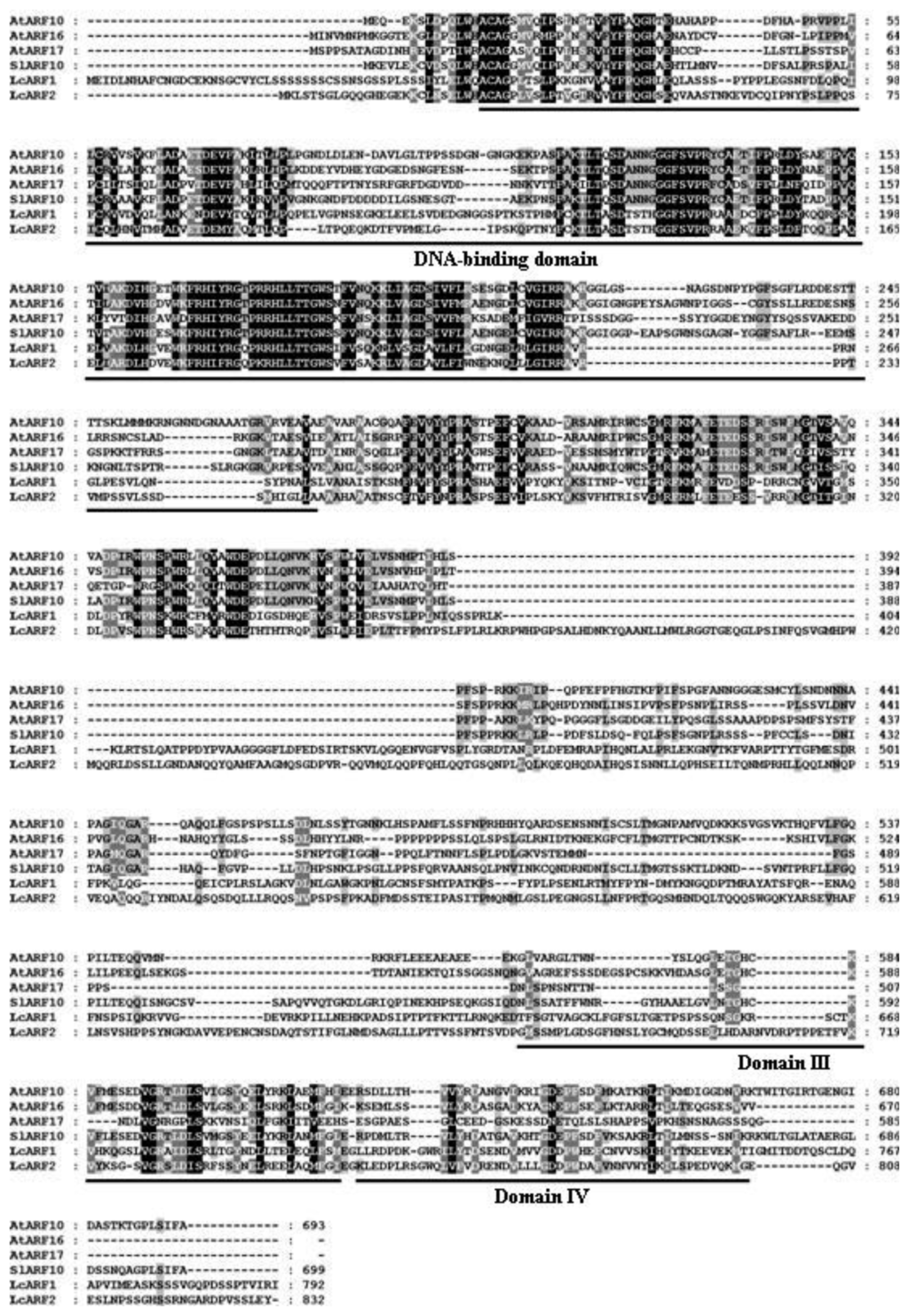

Figure 4. Alignment of the deduced amino acid sequence of two litchi ARFs (LcARF1 and LcARF2) and their homologs from Arabidopsis (AtARF10, NP_180402; AtARF16, NP_567841; AtARF17, NP_565161), and tomato (SlARF10, NP_001234796). The shading indicates sequence similarities of 100% (black), or 80% (gray) among ARF proteins. Multiple alignments was done by Clustal W and viewed with Boxshade program. DNA-binding domain and protein–protein interaction domains Box III and Box IV are underlined.

Click here to enlarge figure

Figure 4. Alignment of the deduced amino acid sequence of two litchi ARFs (LcARF1 and LcARF2) and their homologs from Arabidopsis (AtARF10, NP_180402; AtARF16, NP_567841; AtARF17, NP_565161), and tomato (SlARF10, NP_001234796). The shading indicates sequence similarities of 100% (black), or 80% (gray) among ARF proteins. Multiple alignments was done by Clustal W and viewed with Boxshade program. DNA-binding domain and protein–protein interaction domains Box III and Box IV are underlined.
Ijms 13 16084f4 1024
Ijms 13 16084f5 200

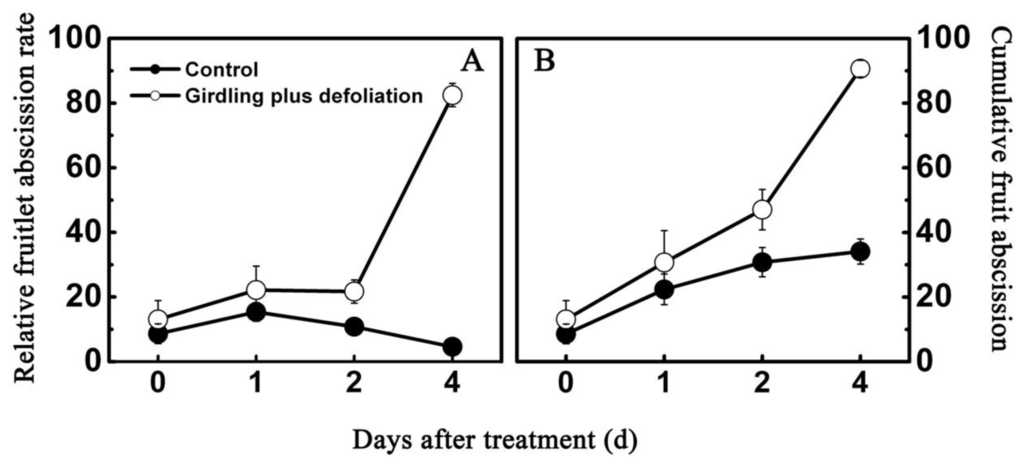

Figure 5. Effect of girdling plus defoliation treatment on fruitlet abscission of litchi. (A) Change of relative fruit abscission rate within four days after the girdling plus defoliation treatment; (B) Change of cumulative fruit abscission rate within four days after the girdling plus defoliation treatment. Each value represented the means of three biological replicates from three different trees, with the standard error (SE) indicated by vertical bars.

Click here to enlarge figure

Figure 5. Effect of girdling plus defoliation treatment on fruitlet abscission of litchi. (A) Change of relative fruit abscission rate within four days after the girdling plus defoliation treatment; (B) Change of cumulative fruit abscission rate within four days after the girdling plus defoliation treatment. Each value represented the means of three biological replicates from three different trees, with the standard error (SE) indicated by vertical bars.
Ijms 13 16084f5 1024
Ijms 13 16084f6 200

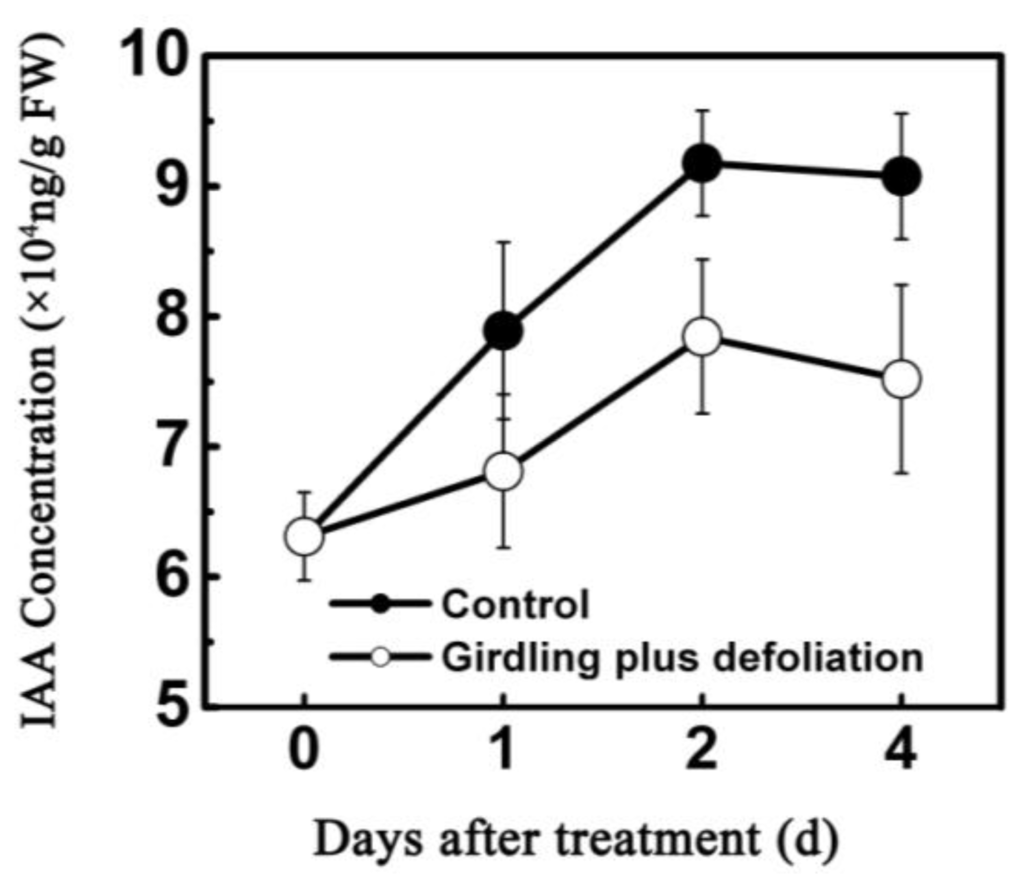

Figure 6. Quantitative assay of free IAA content in fruitlet of control and girdling plus defoliation treatment. Samples from 0, 1, 2 and 4 days after the treatment were used for Enzyme-linked immunosorbent assay (ELISA) analysis. Each value represented the means of three biological replicates from three different trees, with the standard error (SE) indicated by vertical bars.

Click here to enlarge figure

Figure 6. Quantitative assay of free IAA content in fruitlet of control and girdling plus defoliation treatment. Samples from 0, 1, 2 and 4 days after the treatment were used for Enzyme-linked immunosorbent assay (ELISA) analysis. Each value represented the means of three biological replicates from three different trees, with the standard error (SE) indicated by vertical bars.
Ijms 13 16084f6 1024
Ijms 13 16084f7 200

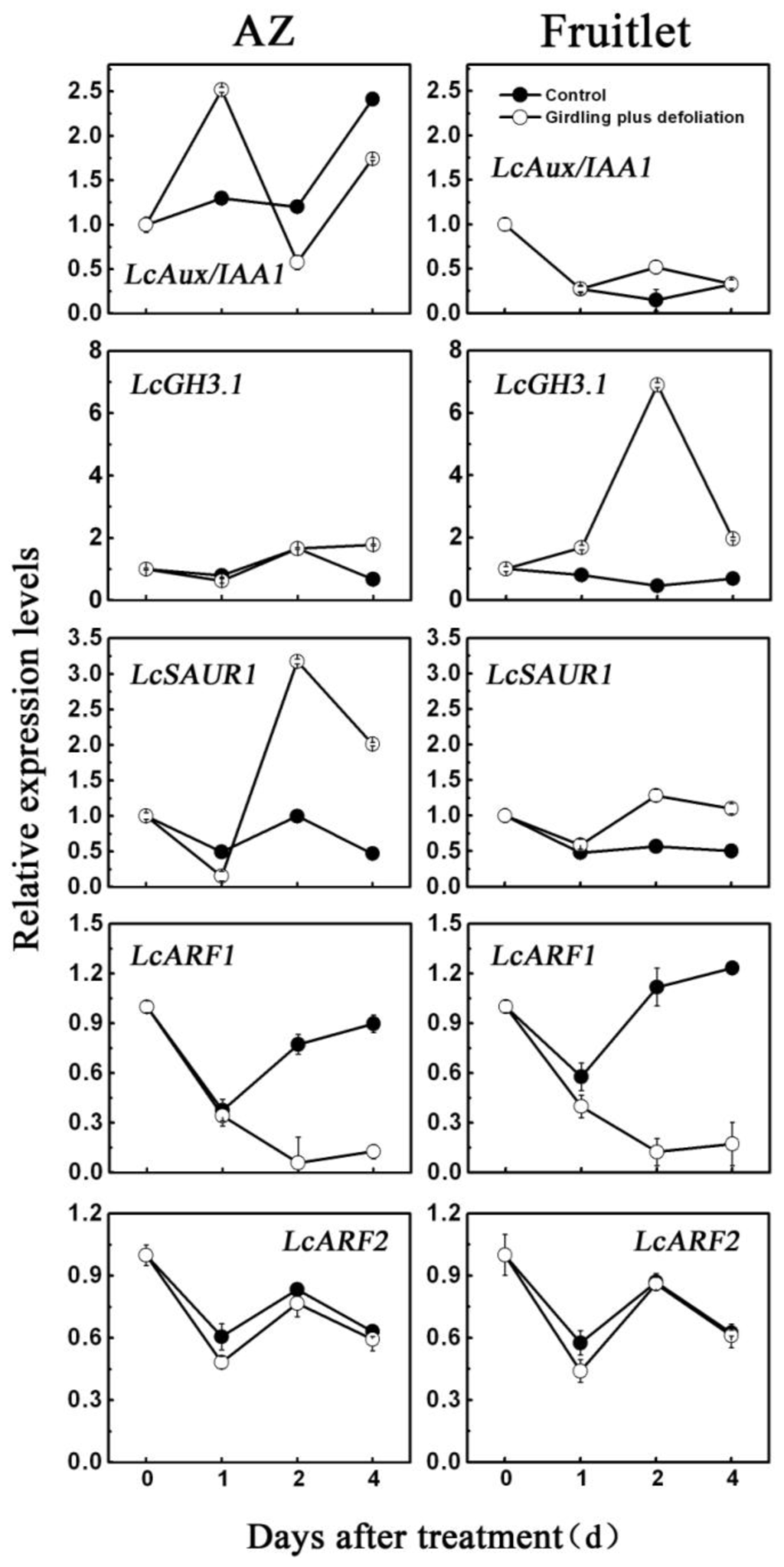

Figure 7. Expression analysis of LcAUX/IAA1, LcGH3.1, LcSAUR1, LcARF1 and LcARF2 mRNAs in the fruitlet abscission zone (AZ) and fruitlet of litchi after the treatment of girdling plus defoliation. Total RNA were isolated from fruit AZ and fruitlet collected at 0, 1, 2, and 4 days after the treatment, and subjected to qRT-PCR analysis using Litchi chinensis actin (LcACTIN) as an internal control. Expression levels of each gene are expressed as a ratio relative to the treatment time (0 day), which was set to 1. Each value represented the means of three biological replicates from three different trees with the standard error (SE) indicated by vertical bars.

Click here to enlarge figure

Figure 7. Expression analysis of LcAUX/IAA1, LcGH3.1, LcSAUR1, LcARF1 and LcARF2 mRNAs in the fruitlet abscission zone (AZ) and fruitlet of litchi after the treatment of girdling plus defoliation. Total RNA were isolated from fruit AZ and fruitlet collected at 0, 1, 2, and 4 days after the treatment, and subjected to qRT-PCR analysis using Litchi chinensis actin (LcACTIN) as an internal control. Expression levels of each gene are expressed as a ratio relative to the treatment time (0 day), which was set to 1. Each value represented the means of three biological replicates from three different trees with the standard error (SE) indicated by vertical bars.
Ijms 13 16084f7 1024
Table 1. Primers used for cloning LcAUX/IAA1, LcGH3.1, LcSAUR1, LcARF1 and LcARF2.

Click here to display table

Table 1. Primers used for cloning LcAUX/IAA1, LcGH3.1, LcSAUR1, LcARF1 and LcARF2.
NameSequences (5′-3′)
AUX/IAA-ForGGTGGTGCGCTGGCGNCCNRT
AUX/IAA-RevCGATCGCCTCGGACCGYTTNATDAT
GH3-ForCTACGACACCTACCARCAGWTSTAYWSNCA
GH3-RevCAGCTCCCAGAAGATCAYGTRRTSNCCNGG
SAUR-5RACE1AGGATGTACTCGAAGGTTGCCWYNTCRCANGG
SAUR-5RACE2CCTCCTGCTCGAAGCCGWAYTCYTCNKC
ARF-ForTGGAGGTTCAGGCACATCTTCMGNGGNCARCC
ARF-RevAGCAGAACTCCTCCCATGGRTCRTCNCC
LcAUX/IAA1-3RACE1GTAAAGGTGGCTGTGGATGG
LcAUX/IAA1-3RACE2TGAGGAGATGTTTTCGTGCT
LcAUX/IAA1-5RACE1GTCGCCATCATTGTCCTCATAAG
LcAUX/IAA1-5RACE2ACATCTCCTCAAGAGCAGTCAAG
LcGH3.1-3RACE1CGACCCTACGACCCTTACAA
LcGH3.1-3RACE2CCTACAAGTCCTCCGTCTCG
LcGH3.1-5RACE1CACAGAAGGGTCAGTGATTTGGG
LcGH3.1-5RACE2CCAGAGGCAAAAATAGCACCAAC
LcSAUR1-3RACE1GCAGGAGGTTCATCGTTCG
LcSAUR1-3RACE2GCACCTGAACCACCCTCTTT
LcARF1-3RACE1CGAACAAGGAAGTGGATGCT
LcARF1-3RACE2GCAACCTCTGAATCCGCAAG
LcARF1-5RACE1TTGCCCAACTCTGCTGGAAGGTA
LcARF1-5RACE2GAGCATCCACTTCCTTGTTCGTT
LcARF2-3RACE1ACCCAACTACCCCAACCTTC
LcARF2-3RACE2ACGGATGAGGTCTACGCACA
LcARF2-5RACE1TGTGCGTAGACCTCATCCGTTTC
LcARF2-5RACE2CTTGGAAGGAAGGTTGGGGTAGT
Table 2. Primers used for real-time PCR.

Click here to display table

Table 2. Primers used for real-time PCR.
NameForward primer(5′-3′)Reverse primer(5′-3′)
LcAUX/IAA1TGAAGCAACAATAAGTGGAAAAGGTTCGCGTGAAACAAGATGTTGTA
LcGH3.1GCCACACTGCTGATAGAGAGACTTCCCCTCCTGATGTCCCAGAACT
LcSAUR1AGTGCAACAAGATTCGTCACATTGGCGCTGCCGATGACCCTCTAGAC
LcARF1CAAAGAAGAAGTGGAGAAGATGACATGTAACTAGGTTCAGGTTTTCAC
LcARF2AGGGGTTGAATCCTTAAATCCAAGATTTTCGTGGGATTATGTTATGTC
LcACTINACCGTATGAGCAAGGAAATCACTGTCGTCGTACTCACCCTTTGAAATC
