Int. J. Mol. Sci. 2012, 13(1), 1225-1238; doi:10.3390/ijms13011225

Disruption of Axonal Transport in Motor Neuron Diseases
Kensuke Ikenaka 1, Masahisa Katsuno 1,*, Kaori Kawai 1, Shinsuke Ishigaki 1,2, Fumiaki Tanaka 1 and Gen Sobue 1,2,*
Department of Neurology, Nagoya University Graduate School of Medicine. 65 Tsurumai-cho, Showa-ku, Nagoya 466-8550, Japan
Core Research for Evolutional Science and Technology (CREST), Japan Science and Technology Agency (JST), Saitama 332-0012, Japan
Authors to whom correspondence should be addressed; Tel.: +81-52-744-2391 (M.K.); +81-52-744-2385 (G.S.); Fax: +81-52-744-2394 (M.K.); +81-52-744-2384 (G.S.).
Received: 2 November 2011; in revised form: 11 January 2012 / Accepted: 16 January 2012 / Published: 23 January 2012


: Motor neurons typically have very long axons, and fine-tuning axonal transport is crucial for their survival. The obstruction of axonal transport is gaining attention as a cause of neuronal dysfunction in a variety of neurodegenerative motor neuron diseases. Depletions in dynein and dynactin-1, motor molecules regulating axonal trafficking, disrupt axonal transport in flies, and mutations in their genes cause motor neuron degeneration in humans and rodents. Axonal transport defects are among the early molecular events leading to neurodegeneration in mouse models of amyotrophic lateral sclerosis (ALS). Gene expression profiles indicate that dynactin-1 mRNA is downregulated in degenerating spinal motor neurons of autopsied patients with sporadic ALS. Dynactin-1 mRNA is also reduced in the affected neurons of a mouse model of spinal and bulbar muscular atrophy, a motor neuron disease caused by triplet CAG repeat expansion in the gene encoding the androgen receptor. Pathogenic androgen receptor proteins also inhibit kinesin-1 microtubule-binding activity and disrupt anterograde axonal transport by activating c-Jun N-terminal kinase. Disruption of axonal transport also underlies the pathogenesis of spinal muscular atrophy and hereditary spastic paraplegias. These observations suggest that the impairment of axonal transport is a key event in the pathological processes of motor neuron degeneration and an important target of therapy development for motor neuron diseases.
axonal transport; dynactin-1; dynein; kinesin; neurofilament; motor neuron; amyotrophic lateral sclerosis; spinal and bulbar muscular atrophy; spinal muscular atrophy; hereditary spastic paraplegia

1. Introduction

Motor neurons are highly specialized cells that possess the longest axons (more than 1 m long in human), which connect the soma with synaptic sites distant from the cell body. Moreover, although axons can represent >99% of the volume of a cell, protein and lipid syntheses occur almost exclusively in the cell body [1]. Therefore, active transport is required to supply the axon with newly synthesized materials and to transport neurotrophic factors and damaged organelles from the axon terminal to the cell body [24]. The major components of axonal transport are a group of specialized motor proteins and the cytoskeletal networks of microtubules and actin filaments. An increasing number of reports link defects in axonal transport with motor neuron degenerations, such as amyotrophic lateral sclerosis (ALS), spinal and bulbar muscular atrophy (SBMA), spinal muscular atrophy (SMA), and hereditary spastic paraplegias (HSPs) [1,5]. Moreover, several studies identified mutations in microtubule-based motor proteins of the kinesin and dynein superfamilies in certain hereditary forms of motor neuron diseases (MNDs): mutations in the genes encoding kinesin 1 motors (KIF5A) in certain types of HSPs [6]; two missense mutations in the dynein gene in the Loa and Cra mouse models of ALS [7]; and a mutation in the dynactin-1 gene linked to a familial form of lower motor neuron disease [8]. Dysfunctions of various membrane-associated proteins also cause motor neuron diseases by impairing the efficient transport of cargos such as mitochondria and endosomes. In this article, we summarize the current knowledge of the relationships between axonal transport defects and the pathogeneses of MNDs.

2. Motor Proteins and Motor Neuron Disease

2.1. Dynein/Dynactin Complex

Cytoplasmic dynein consists of two homodimerized heavy chains and multiple accessory proteins, including intermediate, light intermediate, and light chains [9], and is a major motor driving retrograde transport in cells. Dynein is involved in a variety of intracellular motile processes, including mitosis, maintenance of the Golgi apparatus, and the trafficking of membranous vesicles and other intracellular particles [5,10,11]. Two dynein mutant mouse strains, Legs at odd angles (Loa) and Cramping1 (Cra1), were identified in a screen for genes involved in late onset MND [7]. Heterozygous mice carrying these mutations exhibit an age-related progressive loss of muscle tone and locomotor ability [7]. The mechanisms by which these mutations cause neurodegeneration are still discussed. Although Hafezparast et al. demonstrated that the Loa mutation causes axonal transport defect by using an assay for the visualization and quantitation of axonal retrograde transport of motor neuron cultures from Loa/Loa mouse based on a fluorescent fragment of tetanus toxin (TeNT HC), heterozygous knock out of dynein did not exacerbate, but ameliorated, axonal transport in a mutant superoxide dismutase 1 (SOD1) mouse model of ALS [7,12]. Moreover, Ori-McKenney et al. reported that neurodegeneration in the Loa+/− mutant mouse is unlikely to result from dynein subunit dissociation or dissociation of dynein from its cargo, but from an altered interaction between dynein and microtubules [13]. On the other hand, another mutation of dynein, sprawling (Swl), induces an early-onset sensory neuropathy, but not progressive motor neuron loss, in the heterozygous knock out mice for this gene, indicating the perplexing relationship between dynein mutations and axonal transport [14]. In addition to the mutations in dynein, a G59S mutation in the P150Glued subunit of dynactin (dynactin-1) has been identified in families with a slowly progressive, autosomal dominant form of lower motor neuron disease [8]. Dynactin is a multiprotein complex associated with dynein [15] and is required to attach dynein to its cargos [16]. Indeed, the dynactin depletion model of Drosophila exhibited disrupted axonal transport [17]. The G59S substitution occurs in the highly conserved CAP-Gly motif of dynactin-1, a domain that binds directly to microtubules [8] and slows transport of organelles in vitro [18]. The G59S-mutated protein also has an enhanced propensity to misfold and forms aggregates in which trapped organelles, such as mitochondria, are found. Although early degeneration of axons and neuromuscular junctions are the common features of three different mouse models of mutant G59S [19,20], whether an axonal transport defect is present in these models has yet to be elucidated. Lai et al. reported that the retrograde transport of neurofilaments and synaptophysin were affected in motor neurons of heterozygous knock-in mice with G59S mutant dynactin-1 [21]. However, Chevalier-Larsen et al. demonstrated the absence of axonal transport defects in their transgenic mouse model by performing a double ligation assay on sciatic nerves [19]. To resolve this discrepancy, further experiments, such as in vivo imaging of axons, are needed to analyze the transport of cargos, and it is also important to generate and analyze dynactin-1 depletion models.

2.2. Kinesin

The kinesin superfamily proteins (KIFs) comprise three major groups: N-terminal motor domain KIFs (N-KIFs), middle motor domain KIFs (M-KIFs), and C-terminal motor domain KIFs (C-KIFs), and are mainly responsible for the anterograde transport of the various materials to nerve terminals [2224]. KIF5A encodes a neuron-specific, kinesin-1 heavy chain member of the kinesin superfamily, which has been implicated in MND. Mutations in the gene for the KIF5A subunit of kinesin 1 (formerly SPG10) are associated with an early-onset, pure form of HSP, exhibiting a dying-back neuropathy characterized by progressive weakness and spasticity of the legs [5,25]. The pathological mechanism underlying this mutant is the disruption of KIF5A’s ability to bind with microtubules, leading to a failure of adequate anterograde transport [26]. Because KIF5A motor proteins transport many cargos that are important for neurons, including neurofilaments, mitochondria, and SNARE proteins essential for synaptic vesicle docking [27,28], disruption of KIF5A motility results in dysregulation of axonal homeostasis. In addition to mutations in the kinesin family itself, modifications of the motor domain are also potential causes of MNDs [29].

3. Axonal Transport Defects and Cargo Accumulation

As a result of the decreased motility of motor proteins or their decreased binding to motor proteins, various cargos of motor proteins are accumulated in degenerated motor neurons. Among these we highlight three of the major cargos, neurofilaments, mitochondria, and autophagosomes, accumulations of which are the pathological hallmarks of various MNDs.

3.1. Neurofilaments

Neurofilaments are made up of three components, neurofilament light chain (NF-L), middle chain (NF-M), and heavy chain (NF-H). Neurofilament assembly in the axon is essential for establishing proper axon diameter, and its aggregates have long been recognized as a characteristic pathological change in MNDs [3032]. Neurofilaments are transported along microtubules by kinesin and the dynein/dynactin-1 complex, and dysfunctions of these motor proteins lead to accumulation of neurofilaments in axons and somata, as observed in the KIF5A mutant mouse and dynactin-1 mutant mouse [20,30,33,34]. Moreover, mutations in neurofilaments also cause motor neuron degeneration. Mersiyanova et al. reports that the A998C transversion in the first exon of NF-L results in Charcot-Marie-Tooth (CMT) type 2 [35]. The missense mutations in NF-L observed in CMT lead to disruption of axonal transport of neurofilaments and to the subsequent assembly and aggregation of NF-L in neuronal cells and in primary cultured neurons [36,37]. These studies strongly suggest that disruption of the axonal transport of neurofilaments is one of the underlying pathogenic mechanisms in the development of MNDs.

3.2. Mitochondria

Growing evidence suggests that mitochondrial damage is involved in motor neuron degeneration in CMT, HSP, and ALS. Local energy synthesis by mitochondria is essential to axonal homeostasis and its altered distribution and dysfunction play critical roles in axonal degeneration. Because mitochondria are transported by kinesin and the dynein/dynactin complex [24], defects in axonal transport result in abnormal accumulation of mitochondria. It has been shown that mitochondria accumulate in the axons of spinal motor neurons in mouse mutant SOD1 models [3840] and in sporadic ALS (SALS) patients [41], suggesting an impairment of axonal transport in ALS. Indeed, in mutant SOD1 models, a defect in the axonal transport of mitochondria in sciatic nerves was directly observed during the presymptomatic stage [39]. Moreover, the presence of mitochondria with abnormal morphology, observed in both ALS models and SALS patients, indicates a poor recycling or degradation of abnormal mitochondria due to impaired retrograde transport [4244].

It is important to assess whether the activation of mitochondrial mobility in axons has a beneficial effect on axonal degeneration in MNDs. It is proposed that increased mitochondrial transport might aid the efficient delivery of healthy mitochondria to axons and/or the removal of damaged mitochondria from the periphery. However, Zhu et al. reported that mutant SOD1 mice crossed with syntaphilin knock-out mice that have a higher proportion of axonal mitochondrial mobility, displayed no observable improvement in the deterioration of motor function or in disease progression and lifespan [45]. They suggested that mitochondrial dysfunction, rather than impaired mobility, may be more important for mutant SOD1 toxicity. On the other hand, a mouse model of mutant HSPB1-induced CMT exhibits impaired axonal transport of mitochondria, and treatment with histone deacetylase 6 inhibitors restored mitochondrial transport and attenuated the motor phenotype of this model [46].

3.3. Autophagosomes

The autophagy-lysosome pathway is responsible for the highly regulated recycling of intracellular contents, and it is well known that dysfunction of this pathway causes neurodegeneration [47,48]. Abnormal intraneuronal accumulation of autophagosomes is observed in various neurodegenerative diseases, including Alzheimer’s disease [49], Parkinson’s disease [50], and Huntington’s disease [51]. Because the autophagosome is a cargo that moves bidirectionally along microtubules powered by the kinesin family of motor proteins and the dynein/dynactin complex [5255], the autophagosomes accumulates in those motor neurons with altered axonal transport. Human pathology and animal models of motor neuron disease also exhibited the same accumulations of autophagosomes, for example in SALS patients [56], the mutant dynein model (Loa mouse) [47], and in the mutant dynactin-1 mouse model [20]. Abnormal organelles, such as damaged mitochondria and dilated endoplasmic reticulum, are also observed in these motor neurons, and organelle accumulations are also observed in the neuritis of the Atg7−/− mouse, which cannot form autophagosomes [48]. Therefore, disruption of autophagosomal transport resulting in the dysfunction of the autophagy system in axons is construed to be a causative mechanism of axonal degeneration.

4. MND and Axonal Transport Defects

MNDs affect various motor systems, including corticospinal upper motor neurons, lower motor neurons, neuromuscular junctions, and skeletal muscles. Impairments of these systems result in various motor phenotypes, such as muscle atrophy, weakness, and spasticity. Recent studies implicate axonal transport defects in the pathogeneses of MNDs (Table 1).


Amyotrophic lateral sclerosis is a fatal neurodegenerative disease characterized by progressive loss of motor neurons [67]. Approximately 10% of ALS cases are familial (FALS) with inheritance patterns, while 90% are sporadic (SALS) with no known genetic defect [68,69]. There is at present no obvious consensus understanding of the pathogenic mechanism of SALS; however, the abnormal accumulation of neurofilaments, damaged mitochondria, and autophagosomes present in motor neurons of SALS patients [41,44,56,70], suggests that axonal transport defects might be implicated in the pathogenesis, but the molecular mechanisms causing axonal transport defects are still unclear.

To uncover this mechanism, we created a motor neuron-specific gene expression profile in patients with SALS using microarray technology combined with laser-captured microdissection, the results of which were further verified by in situ hybridization and quantitative wide-ranging research activities [71]. Among the genes with dysregulated expressions, dynactin-1 was markedly and widely downregulated in SALS motor neurons [71]. Furthermore, we found that the downregulation of dynactin-1 occurs prior to the accumulation of phosphorylated-neurofilament, which is, again, a marker of defective axonal transport and is considered a rather early marker of neurodegeneration (Figure 1) [72]. The dramatic change in dynactin-1 in patients with SALS seems to be specific for motor neurons, as dynactin-1 expression was preserved in neurons in the dorsal nucleus of Clarke and the intermediolateral nucleus in the spinal cord, Purkinje cells of the cerebellum, and cortical neurons in the occipital cortex. By taking into account that mutations in dynactin-1 cause MNDs, these results strongly suggest that the downregulation of dynactin-1 in motor neurons may play a significant role in motor neuron degeneration in SALS.


Spinal and bulbar muscular atrophy, or Kennedy’s disease, is a hereditary neurodegenerative disease characterized by a loss of bulbar and spinal motor neurons [63,73]. The causative molecular defect in SBMA is the expansion of a trinucleotide CAG repeat, which encodes a polyglutamine tract in the first exon of the AR gene [74]. The resulting mutant AR forms aggregations in the nucleus and affects the expression of various genes by inhibiting transcription factors and coactivators [75,76]. Polyglutamine-expanded AR inhibits axonal transport via a pathway involving cJun N-terminal kinase (JNK) activation, phosphorylation of kinesin-1 heavy chain subunits by JNK, and inhibition of kinesin-1 function [29]. Interestingly, we found that dynactin-1 is downregulated in the spinal motor neurons of SBMA patients and transgenic model mice (Figure 2) [62], which is also observed in SALS patients [71,72]. Fluoro-gold labeling revealed that retrograde axonal transport in SBMA mice was significantly impaired. Moreover, abnormal accumulations of neurofilaments and synaptic proteins were observed in the distal part of axons in these mice. The retrograde transport defects preceded the onset of motor symptoms, and were restored by hormonal interventions that prevent accumulations of mutant AR in the nucleus. The disruption of retrograde axonal transport was also documented in a knock-in mouse model of SBMA and in mice over-expressing wildtype AR in muscle [77], although this was not the case in another mouse model of SBMA [78].


Spinal muscular atrophy is an autosomal recessive disease that selectively affects lower motor neurons and is classified into 3 forms: a severe form (type I; Werdnig–Hoffmann disease), an intermediate form (type II), and a juvenile form (type III; Kugelberg–Welander disease). SMA occurs in 1/6000 live births and is the leading genetic cause of infantile mortality in the USA. SMA is caused by the mutation or deletion of the “survival motor neuron 1” gene (SMN1), which plays an important role in RNA metabolism [79]. Reduced levels of SMN1 lead to pathological changes at neuromuscular junctions, including decreased synaptic vesicle density, synaptic transmission defects, and neurofilament accumulation [80]. In a mouse model of SMA, fast anterograde axonal transport is disrupted, providing the molecular basis for the synaptic pathology [81]. The levels of dynein in the sciatic nerve are also reduced in this mouse model, suggesting the concomitant involvement of retrograde axonal transport [81].


The hereditary spastic paraplegias are a heterogeneous group of genetic disorders characterized by lower extremity spastic weakness due to retrograde degeneration of the corticospinal tracts and posterior columns, which is often accompanied by brisk reflexes, extensor plantar reflexes, and urinary urgency [82]. This disorder is classified into pure (uncomplicated) HSP and complicated HSP, depending on the presence of other neurological features in addition to spastic paraparesis. Spastic weakness is confined to the lower extremities in pure HSP, whereas complicated HSP is associated with mental retardation, ataxia, extrapyramidal signs, visual dysfunction or epilepsy. Among the causative proteins of HSPs, atlastin, spastin, and K1F5A regulate axonal transport [33,6466]. While atlastin and spastin facilitate vesicle trafficking, KIF5A regulates anterograde axonal transport as described above.

5. Conclusions

The fine-tuning of axonal transport is crucial for the survival of motor neurons, while defects in axonal transport have been implicated in the pathogenesis of various disorders that affect motor systems. The elucidation of relationships between axonal transport and motor neuron degeneration is key to the development of molecular-targeted therapies and biomarkers for MNDs.


This work was supported by a Center-of-Excellence (COE) grant, a Grant-in-Aid for Scientific Research on Innovated Areas “Foundation of Synapse and Neurocircuit Pathology” [No, 22110005], and Grant-in-Aids from the Ministry of Education, Culture, Sports, Science, and Technology of Japan [No. 21229011, 22390175]; grants from the Ministry of Health, Labor and Welfare of Japan; and Core Research for Evolutional Science and Technology (CREST) of the Japan Science and Technology Agency (JST).


  1. Holzbaur, E.L. Motor neurons rely on motor proteins. Trends Cell Biol 2004, 14, 233–240. [Google Scholar]
  2. Chao, M.V. Retrograde transport redux. Neuron 2003, 39, 1–2. [Google Scholar]
  3. Hollenbeck, P.J.; Saxton, W.M. The axonal transport of mitochondria. J. Cell Sci 2005, 118, 5411–5419. [Google Scholar]
  4. Hollenbeck, P.J. The pattern and mechanism of mitochondrial transport in axons. Front Biosci 1996, 1, d91–d102. [Google Scholar]
  5. El-Kadi, A.M.; Soura, V.; Hafezparast, M. Defective axonal transport in motor neuron disease. J. Neurosci. Res 2007, 85, 2557–2566. [Google Scholar]
  6. Fichera, M.; Lo Giudice, M.; Falco, M.; Sturnio, M.; Amata, S.; Calabrese, O.; Bigoni, S.; Calzolari, E.; Neri, M. Evidence of kinesin heavy chain (kif5a) involvement in pure hereditary spastic paraplegia. Neurology 2004, 63, 1108–1110. [Google Scholar]
  7. Hafezparast, M.; Klocke, R.; Ruhrberg, C.; Marquardt, A.; Ahmad-Annuar, A.; Bowen, S.; Lalli, G.; Witherden, A.S.; Hummerich, H.; Nicholson, S.; et al. Mutations in dynein link motor neuron degeneration to defects in retrograde transport. Science 2003, 300, 808–812. [Google Scholar]
  8. Puls, I.; Jonnakuty, C.; LaMonte, B.H.; Holzbaur, E.L.; Tokito, M.; Mann, E.; Floeter, M.K.; Bidus, K.; Drayna, D.; Oh, S.J.; et al. Mutant dynactin in motor neuron disease. Nat. Genet 2003, 33, 455–456. [Google Scholar]
  9. Pfister, K.K.; Fisher, E.M.; Gibbons, I.R.; Hays, T.S.; Holzbaur, E.L.; McIntosh, J.R.; Porter, M.E.; Schroer, T.A.; Vaughan, K.T.; Witman, G.B.; et al. Cytoplasmic dynein nomenclature. J. Cell Biol 2005, 171, 411–413. [Google Scholar]
  10. King, S.M. The dynein microtubule motor. Biochim. Biophys. Acta 2000, 1496, 60–75. [Google Scholar]
  11. Holzbaur, E.L.; Vallee, R.B. Dyneins: Molecular structure and cellular function. Annu. Rev. Cell Biol 1994, 10, 339–372. [Google Scholar]
  12. Kieran, D.; Hafezparast, M.; Bohnert, S.; Dick, J.R.; Martin, J.; Schiavo, G.; Fisher, E.M.; Greensmith, L. A mutation in dynein rescues axonal transport defects and extends the life span of ALS mice. J. Cell Biol 2005, 169, 561–567. [Google Scholar]
  13. Ori-McKenney, K.M.; Xu, J.; Gross, S.P.; Vallee, R.B. A cytoplasmic dynein tail mutation impairs motor processivity. Nat. Cell Biol 2010, 12, 1228–1234. [Google Scholar]
  14. Chen, X.J.; Levedakou, E.N.; Millen, K.J.; Wollmann, R.L.; Soliven, B.; Popko, B. Proprioceptive sensory neuropathy in mice with a mutation in the cytoplasmic Dynein heavy chain 1 gene. J. Neurosci 2007, 27, 14515–14124. [Google Scholar]
  15. Gill, S.R.; Schroer, T.A.; Szilak, I.; Steuer, E.R.; Sheetz, M.P.; Cleveland, D.W. Dynactin, a conserved, ubiquitously expressed component of an activator of vesicle motility mediated by cytoplasmic dynein. J. Cell Biol 1991, 115, 1639–1650. [Google Scholar]
  16. Karki, S.; Holzbaur, E.L. Affinity chromatography demonstrates a direct binding between cytoplasmic dynein and the dynactin complex. J. Biol. Chem 1995, 270, 28806–28811. [Google Scholar]
  17. Haghnia, M.; Cavalli, V.; Shah, S.B.; Schimmelpfeng, K.; Brusch, R.; Yang, G.; Herrera, C.; Pilling, A.; Goldstein, L.S. Dynactin is required for coordinated bidirectional motility, but not for dynein membrane attachment. Mol. Biol. Cell 2007, 18, 2081–2089. [Google Scholar]
  18. Levy, J.R.; Sumner, C.J.; Caviston, J.P.; Tokito, M.K.; Ranganathan, S.; Ligon, L.A.; Wallace, K.E.; LaMonte, B.H.; Harmison, G.G.; Puls, I.; et al. A motor neuron disease-associated mutation in p150glued perturbs dynactin function and induces protein aggregation. J. Cell Biol 2006, 172, 733–745. [Google Scholar]
  19. Chevalier-Larsen, E.S.; Wallace, K.E.; Pennise, C.R.; Holzbaur, E.L. Lysosomal proliferation and distal degeneration in motor neurons expressing the g59s mutation in the p150glued subunit of dynactin. Hum. Mol. Genet 2008, 17, 1946–1955. [Google Scholar]
  20. Laird, F.M.; Farah, M.H.; Ackerley, S.; Hoke, A.; Maragakis, N.; Rothstein, J.D.; Griffin, J.; Price, D.L.; Martin, L.J.; Wong, P.C. Motor neuron disease occurring in a mutant dynactin mouse model is characterized by defects in vesicular trafficking. J. Neurosci 2008, 28, 1997–2005. [Google Scholar]
  21. Lai, C.; Lin, X.; Chandran, J.; Shim, H.; Yang, W.J.; Cai, H. The g59s mutation in p150 (glued) causes dysfunction of dynactin in mice. J. Neurosci 2007, 27, 13982–13990. [Google Scholar]
  22. Miki, H.; Setou, M.; Kaneshiro, K.; Hirokawa, N. All kinesin superfamily protein, kif, genes in mouse and human. Proc. Natl. Acad. Sci. USA 2001, 98, 7004–7011. [Google Scholar]
  23. Hirokawa, N.; Takemura, R. Molecular motors and mechanisms of directional transport in neurons. Nat. Rev. Neurosci 2005, 6, 201–214. [Google Scholar]
  24. Hirokawa, N.; Niwa, S.; Tanaka, Y. Molecular motors in neurons: Transport mechanisms and roles in brain function, development, and disease. Neuron 2010, 68, 610–638. [Google Scholar]
  25. Reid, E.; Kloos, M.; Ashley-Koch, A.; Hughes, L.; Bevan, S.; Svenson, I.K.; Graham, F.L.; Gaskell, P.C.; Dearlove, A.; Pericak-Vance, M.A.; et al. A kinesin heavy chain (kif5a) mutation in hereditary spastic paraplegia (spg10). Am. J. Hum. Genet 2002, 71, 1189–1194. [Google Scholar]
  26. Song, H.; Endow, S.A. Decoupling of nucleotide- and microtubule-binding sites in a kinesin mutant. Nature 1998, 396, 587–590. [Google Scholar]
  27. Hirokawa, N.; Noda, Y. Intracellular transport and kinesin superfamily proteins, kifs: Structure, function, and dynamics. Physiol. Rev 2008, 88, 1089–1118. [Google Scholar]
  28. Shi, P.; Strom, A.L.; Gal, J.; Zhu, H. Effects of als-related SOD1 mutants on dynein- and kif5-mediated retrograde and anterograde axonal transport. Biochim. Biophys. Acta 2010, 1802, 707–716. [Google Scholar]
  29. Morfini, G.; Pigino, G.; Szebenyi, G.; You, Y.; Pollema, S.; Brady, S.T. Jnk mediates pathogenic effects of polyglutamine-expanded androgen receptor on fast axonal transport. Nat. Neurosci 2006, 9, 907–916. [Google Scholar]
  30. Lee, M.K.; Cleveland, D.W. Neuronal intermediate filaments. Annu. Rev. Neurosci 1996, 19, 187–217. [Google Scholar]
  31. Garcia, M.L.; Lobsiger, C.S.; Shah, S.B.; Deerinck, T.J.; Crum, J.; Young, D.; Ward, C.M.; Crawford, T.O.; Gotow, T.; Uchiyama, Y.; et al. Nf-m is an essential target for the myelin-directed “Outside-in” Signaling cascade that mediates radial axonal growth. J. Cell Biol 2003, 163, 1011–1020. [Google Scholar]
  32. Bruijn, L.I.; Miller, T.M.; Cleveland, D.W. Unraveling the mechanisms involved in motor neuron degeneration in als. Annu. Rev. Neurosci 2004, 27, 723–749. [Google Scholar]
  33. Xia, C.H.; Roberts, E.A.; Her, L.S.; Liu, X.; Williams, D.S.; Cleveland, D.W.; Goldstein, L.S. Abnormal neurofilament transport caused by targeted disruption of neuronal kinesin heavy chain kif5a. J. Cell Biol 2003, 161, 55–66. [Google Scholar]
  34. Koehnle, T.J.; Brown, A. Slow axonal transport of neurofilament protein in cultured neurons. J. Cell Biol 1999, 144, 447–458. [Google Scholar]
  35. Mersiyanova, I.V.; Perepelov, A.V.; Polyakov, A.V.; Sitnikov, V.F.; Dadali, E.L.; Oparin, R.B.; Petrin, A.N.; Evgrafov, O.V. A new variant of charcot-marie-tooth disease type 2 is probably the result of a mutation in the neurofilament-light gene. Am. J. Hum. Genet 2000, 67, 37–46. [Google Scholar]
  36. Perez-Olle, R.; Jones, S.T.; Liem, R.K. Phenotypic analysis of neurofilament light gene mutations linked to charcot-marie-tooth disease in cell culture models. Hum. Mol. Genet 2004, 13, 2207–2220. [Google Scholar]
  37. Perez-Olle, R.; Lopez-Toledano, M.A.; Goryunov, D.; Cabrera-Poch, N.; Stefanis, L.; Brown, K.; Liem, R.K. Mutations in the neurofilament light gene linked to charcot-marie-tooth disease cause defects in transport. J. Neurochem 2005, 93, 861–874. [Google Scholar]
  38. Magrane, J.; Manfredi, G. Mitochondrial function, morphology, and axonal transport in amyotrophic lateral sclerosis. Antioxid. Redox. Signal 2009, 11, 1615–1626. [Google Scholar]
  39. Bilsland, L.G.; Sahai, E.; Kelly, G.; Golding, M.; Greensmith, L.; Schiavo, G. Deficits in axonal transport precede als symptoms in vivo. Proc. Natl. Acad. Sci. USA 2010, 107, 20523–20528. [Google Scholar]
  40. Collard, J.F.; Cote, F.; Julien, J.P. Defective axonal transport in a transgenic mouse model of amyotrophic lateral sclerosis. Nature 1995, 375, 61–64. [Google Scholar]
  41. Sasaki, S.; Iwata, M. Impairment of fast axonal transport in the proximal axons of anterior horn neurons in amyotrophic lateral sclerosis. Neurology 1996, 47, 535–540. [Google Scholar]
  42. Wong, P.C.; Pardo, C.A.; Borchelt, D.R.; Lee, M.K.; Copeland, N.G.; Jenkins, N.A.; Sisodia, S.S.; Cleveland, D.W.; Price, D.L. An adverse property of a familial als-linked SOD1 mutation causes motor neuron disease characterized by vacuolar degeneration of mitochondria. Neuron 1995, 14, 1105–1116. [Google Scholar]
  43. Kong, J.; Xu, Z. Massive mitochondrial degeneration in motor neurons triggers the onset of amyotrophic lateral sclerosis in mice expressing a mutant SOD1. J. Neurosci 1998, 18, 3241–3250. [Google Scholar]
  44. Sasaki, S.; Iwata, M. Mitochondrial alterations in the spinal cord of patients with sporadic amyotrophic lateral sclerosis. J. Neuropathol. Exp. Neurol 2007, 66, 10–16. [Google Scholar]
  45. Zhu, Y.B.; Sheng, Z.H. Increased axonal mitochondrial mobility does not slow als-like disease in mutant SOD1 mice. J. Biol. Chem 2011, 26, 23432–23440. [Google Scholar]
  46. d’Ydewalle, C.; Krishnan, J.; Chiheb, D.M.; Van Damme, P.; Irobi, J.; Kozikowski, A.P.; Berghe, P.V.; Timmerman, V.; Robberecht, W.; Van Den Bosch, L. Hdac6 inhibitors reverse axonal loss in a mouse model of mutant hspb1-induced charcot-marie-tooth disease. Nat. Med 2011, 17, 968–974. [Google Scholar]
  47. Ravikumar, B.; Acevedo-Arozena, A.; Imarisio, S.; Berger, Z.; Vacher, C.; O’Kane, C.J.; Brown, S.D.; Rubinsztein, D.C. Dynein mutations impair autophagic clearance of aggregate-prone proteins. Nat. Genet 2005, 37, 771–776. [Google Scholar]
  48. Komatsu, M.; Wang, Q.J.; Holstein, G.R.; Friedrich, V.L., Jr; Iwata, J.; Kominami, E.; Chait, B.T.; Tanaka, K.; Yue, Z. Essential role for autophagy protein atg7 in the maintenance of axonal homeostasis and the prevention of axonal degeneration. Proc. Natl. Acad. Sci. USA 2007, 104, 14489–14494. [Google Scholar]
  49. Yu, W.H.; Cuervo, A.M.; Kumar, A.; Peterhoff, C.M.; Schmidt, S.D.; Lee, J.H.; Mohan, P.S.; Mercken, M.; Farmery, M.R.; Tjernberg, L.O.; et al. Macroautophagy—a novel beta-amyloid peptide-generating pathway activated in Alzheimer’s disease. J. Cell Biol 2005, 171, 87–98. [Google Scholar]
  50. Jellinger, K.A. Basic mechanisms of neurodegeneration: a critical update. J. Cell Mol. Med 2010, 14, 457–487. [Google Scholar]
  51. Sapp, E.; Schwarz, C.; Chase, K.; Bhide, P.G.; Young, A.B.; Penney, J.; Vonsattel, J.P.; Aronin, N.; DiFiglia, M. Huntingtin localization in brains of normal and huntington’s disease patients. Ann. Neurol 1997, 42, 604–612. [Google Scholar]
  52. Kimura, S.; Noda, T.; Yoshimori, T. Dynein-dependent movement of autophagosomes mediates efficient encounters with lysosomes. Cell Struct. Funct 2008, 33, 109–122. [Google Scholar]
  53. Yang, Y.; Xu, K.; Koike, T.; Zheng, X. Transport of autophagosomes in neurites of pc12 cells during serum deprivation. Autophagy 2008, 4, 243–245. [Google Scholar]
  54. Yue, Z.; Wang, Q.J.; Komatsu, M. Neuronal autophagy: Going the distance to the axon. Autophagy 2008, 4, 94–96. [Google Scholar]
  55. Katsumata, K.; Nishiyama, J.; Inoue, T.; Mizushima, N.; Takeda, J.; Yuzaki, M. Dynein- and activity-dependent retrograde transport of autophagosomes in neuronal axons. Autophagy 2010, 6, 378–385. [Google Scholar]
  56. Sasaki, S. Autophagy in spinal cord motor neurons in sporadic amyotrophic lateral sclerosis. J. Neuropathol. Exp. Neurol 2011, 70, 349–359. [Google Scholar]
  57. Rosen, D.R.; Siddique, T.; Patterson, D.; Figlewicz, D.A.; Sapp, P.; Hentati, A.; Donaldson, D.; Goto, J.; O’Regan, J.P.; Deng, H.X.; et al. Mutations in Cu/Zn superoxide dismutase gene are associated with familial amyotrophic lateral sclerosis. Nature 1993, 362, 59–62. [Google Scholar]
  58. Otomo, A.; Hadano, S.; Okada, T.; Mizumura, H.; Kunita, R.; Nishijima, H.; Showguchi-Miyata, J.; Yanagisawa, Y.; Kohiki, E.; Suga, E.; et al. Als2, a novel guanine nucleotide exchange factor for the small gtpase rab5, is implicated in endosomal dynamics. Hum. Mol. Genet 2003, 12, 1671–1687. [Google Scholar]
  59. Nishimura, A.L.; Mitne-Neto, M.; Silva, H.C.; Richieri-Costa, A.; Middleton, S.; Cascio, D.; Kok, F.; Oliveira, J.R.; Gillingwater, T.; Webb, J.; et al. A mutation in the vesicle-trafficking protein vapb causes late-onset spinal muscular atrophy and amyotrophic lateral sclerosis. Am. J. Hum. Genet 2004, 75, 822–831. [Google Scholar]
  60. Parkinson, N.; Ince, P.G.; Smith, M.O.; Highley, R.; Skibinski, G.; Andersen, P.M.; Morrison, K.E.; Pall, H.S.; Hardiman, O.; Collinge, J.; et al. Als phenotypes with mutations in chmp2b (charged multivesicular body protein 2b). Neurology 2006, 67, 1074–1077. [Google Scholar]
  61. Cox, L.E.; Ferraiuolo, L.; Goodall, E.F.; Heath, P.R.; Higginbottom, A.; Mortiboys, H.; Hollinger, H.C.; Hartley, J.A.; Brockington, A.; Burness, C.E.; et al. Mutations in chmp2b in lower motor neuron predominant amyotrophic lateral sclerosis (als). PLoS One 2010, 5. [Google Scholar] [CrossRef]
  62. Katsuno, M.; Adachi, H.; Minamiyama, M.; Waza, M.; Tokui, K.; Banno, H.; Suzuki, K.; Onoda, Y.; Tanaka, F.; Doyu, M.; et al. Reversible disruption of dynactin-1-mediated retrograde axonal transport in polyglutamine-induced motor neuron degeneration. J. Neurosci 2006, 26, 12106–12117. [Google Scholar]
  63. Sobue, G.; Hashizume, Y.; Mukai, E.; Hirayama, M.; Mitsuma, T.; Takahashi, A. X-linked recessive bulbospinal neuronopathy. A clinicopathological study. Brain 1989, 112, 209–232. [Google Scholar]
  64. Zhao, X.; Alvarado, D.; Rainier, S.; Lemons, R.; Hedera, P.; Weber, C.H.; Tukel, T.; Apak, M.; Heiman-Patterson, T.; Ming, L.; et al. Mutations in a newly identified gtpase gene cause autosomal dominant hereditary spastic paraplegia. Nat. Genet 2001, 29, 326–331. [Google Scholar]
  65. Rismanchi, N.; Soderblom, C.; Stadler, J.; Zhu, P.P.; Blackstone, C. Atlastin GTPases are required for Golgi apparatus and ER morphogenesis. Hum. Mol. Genet 2008, 17, 1591–1604. [Google Scholar]
  66. Hazan, J.; Fonknechten, N.; Mavel, D.; Paternotte, C.; Samson, D.; Artiguenave, F.; Davoine, C.S.; Cruaud, C.; Durr, A.; Wincker, P.; et al. Spastin, a new aaa protein, is altered in the most frequent form of autosomal dominant spastic paraplegia. Nat. Genet 1999, 23, 296–303. [Google Scholar]
  67. Rowland, L.P.; Shneider, N.A. Amyotrophic lateral sclerosis. N. Engl. J. Med 2001, 344, 1688–1700. [Google Scholar]
  68. Ince, P.G.; Highley, J.R.; Kirby, J.; Wharton, S.B.; Takahashi, H.; Strong, M.J.; Shaw, P.J. Molecular pathology and genetic advances in amyotrophic lateral sclerosis: an emerging molecular pathway and the significance of glial pathology. Acta Neuropathol 2011, 122, 657–671. [Google Scholar]
  69. Wroe, R.; Wai-Ling Butler, A.; Andersen, P.M.; Powell, J.F.; Al-Chalabi, A. ALSOD: the Amyotrophic Lateral Sclerosis Online Database. Amyotroph. Lateral. Scler 2008, 9, 249–250. [Google Scholar]
  70. Sasaki, S.; Warita, H.; Abe, K.; Iwata, M. Impairment of axonal transport in the axon hillock and the initial segment of anterior horn neurons in transgenic mice with a G93A mutant SOD1 gene. Acta Neuropathol 2005, 110, 48–56. [Google Scholar]
  71. Jiang, Y.M.; Yamamoto, M.; Kobayashi, Y.; Yoshihara, T.; Liang, Y.; Terao, S.; Takeuchi, H.; Ishigaki, S.; Katsuno, M.; Adachi, H.; et al. Gene expression profile of spinal motor neurons in sporadic amyotrophic lateral sclerosis. Ann. Neurol 2005, 57, 236–251. [Google Scholar]
  72. Jiang, Y.M.; Yamamoto, M.; Tanaka, F.; Ishigaki, S.; Katsuno, M.; Adachi, H.; Niwa, J.; Doyu, M.; Yoshida, M.; Hashizume, Y.; et al. Gene expressions specifically detected in motor neurons (dynactin-1, early growth response 3, acetyl-coa transporter, death receptor 5, and cyclin c) differentially correlate to pathologic markers in sporadic amyotrophic lateral sclerosis. J. Neuropathol. Exp. Neurol 2007, 66, 617–627. [Google Scholar]
  73. Kennedy, W.R.; Alter, M.; Sung, J.H. Progressive proximal spinal and bulbar muscular atrophy of late onset. A sex-linked recessive trait. Neurology 1968, 18, 671–680. [Google Scholar]
  74. La Spada, A.R.; Wilson, E.M.; Lubahn, D.B.; Harding, A.E.; Fischbeck, K.H. Androgen receptor gene mutations in x-linked spinal and bulbar muscular atrophy. Nature 1991, 352, 77–79. [Google Scholar]
  75. Gatchel, J.R.; Zoghbi, H.Y. Diseases of unstable repeat expansion: Mechanisms and common principles. Nat. Rev. Genet 2005, 6, 743–755. [Google Scholar]
  76. Cha, J.H. Transcriptional dysregulation in huntington’s disease. Trends Neurosci 2000, 23, 387–392. [Google Scholar]
  77. Kemp, M.Q.; Poort, J.L.; Baqri, R.M.; Lieberman, A.P.; Breedlove, S.M.; Miller, K.E.; Jordan, C.L. Impaired motoneuronal retrograde transport in two models of SBMA implicates two sites of androgen action. Hum. Mol. Genet 2011, 22, 4475–4490. [Google Scholar]
  78. Malik, B.; Nirmalananthan, N.; Bilsland, L.G.; La Spada, A.R.; Hanna, M.G.; Schiavo, G.; Gallo, J.M.; Greensmith, L. Absence of disturbed axonal transport in spinal and bulbar muscular atrophy. Hum. Mol. Genet 2011, 20, 1776–1786. [Google Scholar]
  79. Lorson, C.L.; Rindt, H.; Shababi, M. Spinal muscular atrophy: mechanisms and therapeutic strategies. Hum. Mol. Genet 2010, 19, R111–R118. [Google Scholar]
  80. Kong, L.; Wang, X.; Choe, D.W.; Polley, M.; Burnett, B.G.; Bosch-Marcé, M.; Griffin, J.W.; Rich, M.M.; Sumner, C.J. Impaired synaptic release and immaturity of neuromuscular junctions in spinal muscular atrophy mice. J. Neurosci 2009, 29, 842–851. [Google Scholar]
  81. Dale, J.M.; Shen, H.; Barry, D.M.; Garcia, V.B.; Rose, F.F., Jr; Lorsen, C.L.; Garcia, M.L. The spinal muscular atrophy mouse model, SMAΔ7, displays altered axonal transport without global neurofilament alterations. Acta Neuropathol 2011, 122, 331–341. [Google Scholar]
  82. Blackstone, C.; O’Kane, C.J.; Reid, E. Hereditary spastic paraplegias: membrane traffic and the motor pathway. Nat. Rev. Neurosci 2011, 12, 31–42. [Google Scholar]

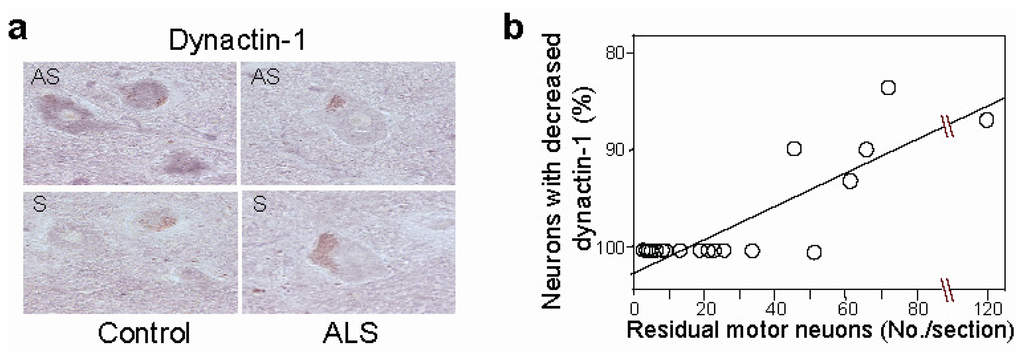

Figure 1. Dysregulation of dynactin-1 in amyotrophic lateral sclerosis (ALS). (a) In situ hybridization of antisense (AS) and sense (S) dynactin-1 probes in spinal motor neurons of control and ALS subjects; (b) Relationship between the number of residual motor neurons and the percentage of neurons with decreased dynactin-1 (Reproduced from Jiang et al. [72]).
Figure 1. Dysregulation of dynactin-1 in amyotrophic lateral sclerosis (ALS). (a) In situ hybridization of antisense (AS) and sense (S) dynactin-1 probes in spinal motor neurons of control and ALS subjects; (b) Relationship between the number of residual motor neurons and the percentage of neurons with decreased dynactin-1 (Reproduced from Jiang et al. [72]).
Ijms 13 01225f1 1024

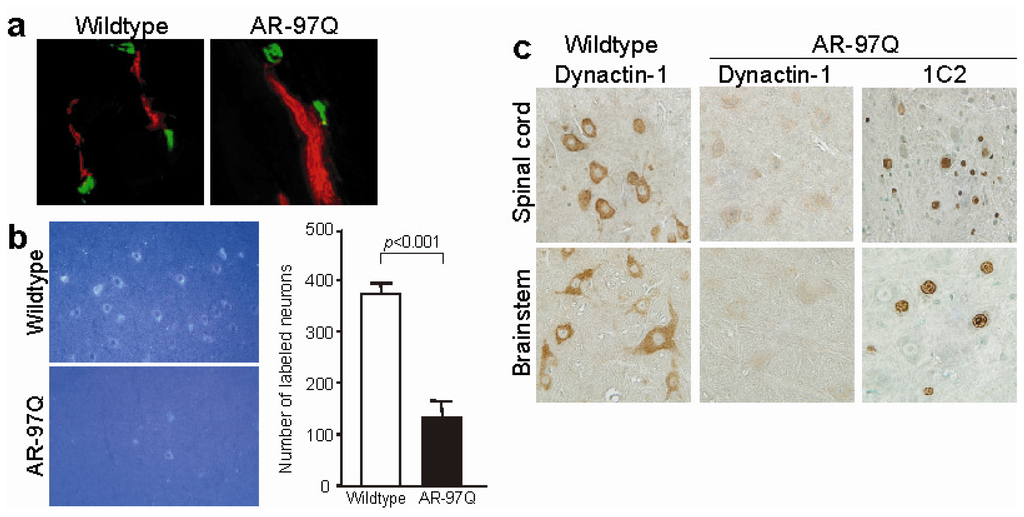

Figure 2. Disrupted retrograde axonal transport in a mouse model of spinal and bulbar muscular atrophy (SBMA). (a) Immunofluorescent anti-α-bungarotoxin (green) and anti-phospho NF-H (red) antibody staining of mouse skeletal muscle. Phosphorylated NF-H accumulates in the distal end of motor axons in the SBMA mice (AR-97Q); (b) Retrograde labeling of lumbar motor neurons by Fluoro-gold injection into the gastrocnemius muscle demonstrated decreased retrograde axonal transport in AR-97Q mice; (c) Immunohistochemistry shows decreased expression of dynactin-1 in motor neurons of spinal cord and brainstem of AR-97Q mice compared with wildtype mice. Accumulation of pathogenic AR is detected by 1C2, an anti-polyglutamine antibody (Reproduced from Katsuno et al. [62]).
Figure 2. Disrupted retrograde axonal transport in a mouse model of spinal and bulbar muscular atrophy (SBMA). (a) Immunofluorescent anti-α-bungarotoxin (green) and anti-phospho NF-H (red) antibody staining of mouse skeletal muscle. Phosphorylated NF-H accumulates in the distal end of motor axons in the SBMA mice (AR-97Q); (b) Retrograde labeling of lumbar motor neurons by Fluoro-gold injection into the gastrocnemius muscle demonstrated decreased retrograde axonal transport in AR-97Q mice; (c) Immunohistochemistry shows decreased expression of dynactin-1 in motor neurons of spinal cord and brainstem of AR-97Q mice compared with wildtype mice. Accumulation of pathogenic AR is detected by 1C2, an anti-polyglutamine antibody (Reproduced from Katsuno et al. [62]).
Ijms 13 01225f2 1024
Table 1. Gene mutations in motor neuron diseases (MNDs) affecting axonal transport.
Table 1. Gene mutations in motor neuron diseases (MNDs) affecting axonal transport.
MND typeGene symbolProteinProtein functionPhenotypeRef.
ALS1SOD1Cu/Zn superoxide dismutaseDetoxification enzymeVaries among mutations from typical ALS type to atypical ALS[57]
ALS2ALS2AlsinGuanine nucleotide exchange factor (GEF) signaling; controlling endosomal dynamicsJuvenile onset, progressive muscle weakness and paralysis[58]
ALS8 and SMAVAPBSynaptobrevin-associated membrane protein B (VAPB)Vesicular trafficking; acts during ER-Golgi transport and secretionAdult onset, slowly progressive upper and lower motor neuron disease. Phenotype varies from SMA type to ALS type[59]
Lower motor neuron diseaseDCTN1Dynactin-1 (p150glued)Retrograde axonal transportSlowly progressive lower motor neuron disease[8,18]
ALSCHMP2BCharged multivesicular body protein 2B (CHMP2B)Vesicular trafficking; acts as a component of the ESCRTIII (endosomal secretory complex required for transport) complexLower dominant motor neuron disease[60,61]
SBMAARAndrogen receptorDNA-binding transcription factorSlowly progressive lower motor neuron disease[29,62,63]
SPG3ATL1AtlastinVesicular trafficking; a member of GTPase family, essential for axon formation and elongationEarly-onset pure, slow progression HSP[64,65]
SPG4SPASTSpastinAn ATPase belonging to the AAA family acting for microtubule dynamicsMainly pure HSP with variable onset[66]
SPG10Kif5AKinesin (K1F5A)Anterograde axonal transportEarly onset progressive weakness and leg spasticity[33]
