Article

Transient Co-Expression of Post-Transcriptional Gene Silencing Suppressors for Increased in Planta Expression of a Recombinant Anthrax Receptor Fusion Protein

1
Department of Chemical Engineering and Materials Science, University of California, Davis, One Shields Ave, Davis, CA 95616, USA
2
Planet Biotechnology Inc., 25571 Clawiter Road, Hayward, CA 94545, USA
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2011, 12(8), 4975-4990; https://doi.org/10.3390/ijms12084975
Submission received: 1 April 2011 / Revised: 18 June 2011 / Accepted: 20 July 2011 / Published: 5 August 2011
(This article belongs to the Special Issue Plant-Derived Pharmaceuticals by Molecular Farming)

Abstract

:
Potential epidemics of infectious diseases and the constant threat of bioterrorism demand rapid, scalable, and cost-efficient manufacturing of therapeutic proteins. Molecular farming of tobacco plants provides an alternative for the recombinant production of therapeutics. We have developed a transient production platform that uses Agrobacterium infiltration of Nicotiana benthamiana plants to express a novel anthrax receptor decoy protein (immunoadhesin), CMG2-Fc. This chimeric fusion protein, designed to protect against the deadly anthrax toxins, is composed of the von Willebrand factor A (VWA) domain of human capillary morphogenesis 2 (CMG2), an effective anthrax toxin receptor, and the Fc region of human immunoglobulin G (IgG). We evaluated, in N. benthamiana intact plants and detached leaves, the expression of CMG2-Fc under the control of the constitutive CaMV 35S promoter, and the co-expression of CMG2-Fc with nine different viral suppressors of post-transcriptional gene silencing (PTGS): p1, p10, p19, p21, p24, p25, p38, 2b, and HCPro. Overall, transient CMG2-Fc expression was higher on intact plants than detached leaves. Maximum expression was observed with p1 co-expression at 3.5 days post-infiltration (DPI), with a level of 0.56 g CMG2-Fc per kg of leaf fresh weight and 1.5% of the total soluble protein, a ten-fold increase in expression when compared to absence of suppression. Co-expression with the p25 PTGS suppressor also significantly increased the CMG2-Fc expression level after just 3.5 DPI.

1. Introduction

Epidemics of recent emerging infectious diseases such as avian influenza, or more recently the H1N1 pandemic, demand cost-efficient and scalable manufacturing technologies that can rapidly deliver effective therapeutics into the clinical setting. The threat of bioterrorism also makes evident the need for facilitating the production of therapeutic proteins for the mitigation of potential outbreaks. Current manufacturing technologies for therapeutics, such as mammalian cell culture or chicken eggs, are ill-equipped to supply the demand such an outbreak would create, and are simply not able to produce therapeutics on a large scale in a short amount of time [1,2]. Advances in the field of molecular farming have positioned plant-made pharmaceuticals as a viable option in the market [35]. Using plants as production hosts for recombinant proteins is an attractive option because it offers important features such as cost-effectiveness, scalability, and safety. Plant-based production can replace traditional infrastructure required in the upstream portion of manufacturing facilities [6], and several acres of biomass would be sufficient to generate millions of protein doses over the course of a year [7]. Protein expression in plants is also adequate for production of human therapeutics, because plants do not harbor or propagate human viruses or pathogens, while still being able to perform protein post-translational modifications [8].
Expression of plant-made proteins in a transient fashion–DNA is transcribed and translated without integration into the plant host genome—instead of production in transgenic plants, has recently become a particularly interesting approach for biomanufacturing. Agrobacterium tumefaciens mediated transformation, utilizing agroinfiltration, can be used to rapidly enable the transient expression of a recombinant protein of interest. Transient expression offers several advantages such as: short timelines for protein production [911]; increased yields due to a burst of gene expression [12]; the capability of co-expressing multiple recombinant proteins simultaneously [13]; and the ability to use available plant biomass for large scale protein manufacturing [14]. Large scale transient expression is a contained process that does not generate transgenic plants, and therefore, it is a preferable approach to plant-made protein manufacturing because it eliminates environmental concerns about transgene release and reduces regulatory concerns [7]. Biotech companies are already researching the use of transient expression for production of therapeutic proteins, mainly for production of influenza subunit vaccines. Several of them have products for which they have performed immunization challenges in animals [15,16], shown pharmaceutical-grade production [17], or are currently undergoing clinical trials [1].
Since the 2001 anthrax mailings, anthrax has been designated as the number one biological warfare threat to the United States. Bioterrorists can isolate and purify the anthrax spores from Bacillus anthracis, which can then be grown in vitro and used as a biological weapon [18]. Anthrax infection in humans leads to the release of toxins, which are fatal if not properly treated [19]. The anthrax toxins are a complex of three proteins that work cooperatively. The first, Protective Antigen (PA), binds directly to the effective anthrax cell receptor on the cell, capillary morphogenesis protein 2 (CMG2) [20]. The other two proteins, edema factor (EF) and lethal factor (LF), bind to PA and form edema toxin and lethal toxin. Inside the cell, both toxins trigger a cascade of events that cause disruption of signal transduction pathways and culminate in necrosis [21].
Inhibiting the binding of PA to the CMG2 receptor has been a major focus of researchers seeking to develop an effective treatment for anthrax. Antitoxins based on receptor decoys are a promising alternative, because it is difficult to engineer a PA that can escape binding to the CMG2 decoy without compromising its binding to the endogenous CMG2 receptor. A soluble form of CMG2 has been shown to inhibit intoxication of cells expressing endogenous toxin receptors [20]. Further research has been performed in the creation of CMG2-Fc fusion proteins, because the immunoglobulin fragment confers CMG2 the half-life, multivalency, and potency of an antibody. The CMG2-Fc target protein of this research project is one such chimeric antibody, or immunoadhesin, that was generated by combining the Fc region of human IgG and the VWA domain of the CMG2 anthrax receptor, and has already been shown to be effective against anthrax lethal toxin in vitro [22].
In this research project, we transiently produce CMG2-Fc in Nicotiana benthamiana under the control of the CaMV 35S constitutive promoter, and test the effect of suppressing post-transcriptional gene silencing (PTGS) on the protein production kinetics. PTGS is a natural defense mechanism for plants against viruses and pathogens [23]. It is a virus-induced mechanism that relies on RNA interference, through which double stranded RNAs trigger silencing in the plant. Plant viruses evolved to counteract this antiviral mechanism, and in the process developed to encode proteins known to suppress PTGS in plants [24]. In fact, most plant viruses are expected to carry suppressors of gene silencing, presenting a variety of sequences and modes of action over the RNA interference pathway [25]. PTGS suppression has been shown to increase yields of transiently expressed reporter proteins in plants [26], and we wanted to explore this mechanism as it pertains to increasing the expression of the foreign CMG2-Fc in the plant. In this experiment, we tested the co-expression of PBI-220 with nine different viral proteins, all reported in the literature to be suppressors of PTGS (Table 1).
The goal of this research was to test the effect of the PTGS suppressors mentioned above on the expression level of CMG2-Fc in Nicotiana benthamiana. Our aim was to perform the delivery of the Agrobacterium containing the genes for the protein of interest and the suppressor proteins into the plants in a way that translates to a scaled-up industrial process. For this reason, we selected vacuum infiltration as the method for Agrobacterium delivery.
This experiment also tested two distinct transient expression approaches, because of their implications in the scalability and cost-effectiveness of protein production in plants. In the intact plant approach, we agroinfiltrated whole N. benthamiana plants and incubated them in a greenhouse for the duration of the experiment. In the detached leaf approach, we harvested the leaves immediately before agroinfiltration, and incubated them in the dark inside plastic containers with controlled temperature and humidity for the duration of the experiment.

2. Results and Discussion

2.1. Effect of PTGS Suppressor Co-Expression on CMG2-Fc Expression Level in Intact Plants

ELISA analysis was used to quantify the CMG2-Fc protein that was transiently expressed within the leaves of the N. benthamiana intact plants (Figure 1). Bradford assays were also performed to quantify the levels of total soluble protein (TSP) expressed within the N. benthamiana intact plants. Values obtained from the Bradford assays were combined with ELISA data to determine the CMG2-Fc expression level as a percentage of the TSP. The effect of co-expressing certain suppressor proteins on the CMG2-Fc expression level was dramatic, when compared to the baseline agroinfiltration in which CMG2-Fc was tested without co-expression of the PTGS suppressor. Transient expression in intact plants was observed to be higher with p1 co-expression at 3.5 days, resulting in a maximum average production of 0.56 g PBI-220 per kg of leaf fresh weight (FW) and 1.5% of the TSP. With p1, the CMG2-Fc expression level increased ten-fold when compared to the absence of suppressor co-expression, and was statistically different at a 95% confidence level. Co-expression with the p25 PTGS suppressor was also found to be significantly different from the results obtained in the absence of suppressor at 3.5 days. The rest of the suppressor proteins tested had no demonstrated effect on CMG2-Fc yield, since they showed comparable expression levels that did not statistically differ from CMG2-Fc without co-expression. As expected, the negative control consisting of wild type plants infiltrated only with buffer that did not contain Agrobacterium did not show CMG2-Fc expression.
CMG2-Fc expression in intact plants is also evident based on the Western Blot analysis (Figure 2). A major immunoblot band migrated as expected to approximately 47.2 kDa. Dimeric and trimeric bands can also be observed at approximately 94.4 kDa and 141.6 kDa, respectively. It is expected that full-length CMG2-Fc will run a bit higher on a SDS-PAGE because the protein has one N-glycosylation site. The values measured with ELISA allowed us to predict the amount of CMG2-Fc loaded in each lane for the Western analysis (Table 2). In order to compare the relative band intensities, 2000 ng of purified CMG2-Fc were loaded as a positive control, corresponding to an amount of 1 g/kg FW leaf. Western Blot analysis confirmed that CMG2-Fc expression at 3.5 days was strong when co-expressed with p1. The negative control infiltration did not result in any immunoreactive bands.

2.2. Effect of PTGS Suppressor Co-Expression on CMG2-Fc Expression Level in Detached Leaves

CMG2-Fc was also quantified from the samples obtained from N. benthamiana detached leaves using ELISA (Figure 3). In this case, the best performer was p19 co-expression at 14 DPI, which showed an average expression level of 0.39 g CMG2-Fc per kg of leaf FW, corresponding to 2% of the TSP. This is a five-fold increase when compared to the absence of suppressor co-expression, but due to the variability observed, was not found to be significantly different using a p-value of 0.05. The 2b suppressor protein slightly increased the CMG2-Fc expression level, although not at a statistically significant level. The negative control infiltration showed no CMG2-Fc expression as expected.
Western Blot analysis proved that CMG2-Fc was also expressed correctly in the N. benthamiana detached leaves (Figure 2). Immunoblot bands can be observed exclusively at the 47.2 kDa level. Western Blot also confirms that the protein of interest was expressed under p19 co-expression, and that CMG2-Fc was present in the detached leaves even at 14 DPI. We also detected CMG2-Fc expression at 3.5, 7, and 14 DPI in both intact plants and detached leaves for several of the other suppressor proteins tested (data not shown). No bands appeared on the negative control lane.
These results show that suppressing the post-transcriptional gene silencing mechanism in N. benthamiana increased the expression level of a recombinant protein expressed transiently under the control of the CaMV 35S promoter. While co-expression of certain suppressor proteins enhanced CMG2-Fc expression, other suppressor proteins had no apparent positive effect on CMG2-Fc accumulation. There have been reports in the literature in which PTGS suppression was not able to increase the expression level of a plant-made recombinant protein under the control of the CaMV 35S promoter [36]. Therefore, it is important to complete the type of screening analysis performed in this project for each new plant system and/or target product of interest, in order to determine the conditions that optimize recombinant protein yields.
Wycoff et al. [37] recently reported a high expression level of CMG2-Fc in Nicotiana benthamiana. Optimized expression enabled these researchers to obtain 0.73 g of CMG2-Fc per kg of leaf FW using the p19 gene silencing suppressor, the highest level reported for this fusion protein. Wycoff et al. evaluated different combinations of CMG2 and IgG1 to develop an improved CMG2-Fc construct. The CMG2-Fc construct utilized in the project reported here is not the current optimized construct, hence the lower expression of 0.56 g of CMG2-Fc per kg of leaf FW, even with gene silencing suppressor co-expression. Regardless, this project provides comparative data on PTGS suppressor co-expression for production of CMG2-Fc, which complements the construct optimization work of Wycoff et al. Both approaches will be important for further optimization of CMG2 production towards expression levels on the order of gram of protein per kilogram of N. benthamiana leaf tissue.
No common trends were identified for the CMG2-Fc expression kinetics using different gene silencing suppressors, which may be due to the diversity of the suppressor proteins tested. Different plant viruses evolved independently to counter the antiviral defense of the plants, as evidenced by their different modes of action against the gene silencing phenomenon. The fact that the suppressor proteins tested in this study target different steps of the RNA interference mechanism may explain the differences observed in the kinetic data. Three of the best performers in this experiment (p19, p21, and 2b) bind dsRNA, which may indicate that pathway specific effects are in play. The p19 protein from tomato bushy stunt virus is a strong silencing suppressor protein and has a unique mechanism by selectively binding to the 21-nt and 22-nt classes of siRNA. The p21 protein from Yellow Beet Virus and the 2b protein from Cucumber Mosaic Virus are both silencing suppressor proteins that can bind siRNA and longer dsRNA without a preference for 21-nt siRNAs. Meanwhile, the p1 protein from Rice Yellow Mottle Virus, which increased CMG2-Fc expression the most when compared to absence of suppressor, has a different mechanism. It inhibits the accumulation of the 24-nt siRNA, but has a less pronounced effect on the accumulation of the 21-nt siRNA [38].
Another possible explanation for the differences in the data may be the vectors used in this experiment. pBIN (11.8 kb) and pCB302 (3.5 kb) are two of the most widely used vectors for Agrobacterium-mediated plant transformation in plants. There is sequence homology between both vectors due to the fact that pCB302 was developed by removing base pairs that were deemed non-essential on pBIN. pCB302 retains all essential elements of pBIN, and its smaller size makes it more versatile for cloning [39]. Still, using two different vectors to drive the expression of the suppressors may have had an effect on the expression level of the suppressors, and therefore, on the accumulation of CMG2-Fc. In fact, the highest expression levels obtained in the experiment were from suppressors that were inserted on pBIN (p1, p19, p25, and 2b), so it is possible that pBIN could be a more suitable vector for this particular system.
During the agroinfection process in plants, the antagonistic forces of plant pathogen invasion and defense are governed by a dynamic set of biological components. There are two possibilities that may explain the observation that the expression level of a CaMV 35S driven recombinant protein is being increased by suppression of PTGS. The first possibility could be that Agrobacterium may be activating the gene silencing mechanism in the plant. Agrobacterium, acting as the plant pathogen in Nicotiana benthamiana, may be producing protein effectors that elicit the production of small RNAs in the plant. The plant might be deploying a gene silencing approach to counter the Agrobacterium infection, and co-expression of gene silencing suppressors may be counteracting the gene silencing response. Previous studies have shown that bacterial effectors can act as suppressors [40] of gene silencing, but no instance has been reported in which these proteins can act as gene silencing activators. Interestingly, a dual function of activation and suppression of gene silencing has been recently found for a viral protein previously identified as a gene silencing suppressor [41]. It has been established that infiltration with Agrobacterium elicits a distinct host response in plants, but the mechanisms are still not well understood [42].
The second possibility for explaining our observations is that the overexpression of a foreign gene is inducing the PTGS mechanism, through a quantitative effect exerted by the RNA derived from the transgene. PTGS has been identified as a plant defense mechanism for aberrant gene expression following agroinfection, such as production of excessive RNA transcripts over a threshold level [43,44]. Several groups have reported that overexpressing a transgene over a certain level causes transgene silencing through activation of PTGS [4547], including when occurring under CaMV 35S promoter control [48,49]. This evidence supports a theory that PTGS occurs due to the elevated CaMV 35S driven CMG2-Fc expression, regardless of the absence of viral RNAs. Under these conditions, CMG2-Fc expression can be increased when co-expressed with gene silencing suppressors.
It is clear that CMG2-Fc levels change over time, so the same N. benthamiana leaves were sampled along all time points post-infiltration to study the kinetics of production. For some of the transient expression experiments, a high degree of variability was observed between leaves, which is consistent with what others have observed [50]. This variability arose from the differences between the sample replicates (leaves are sampled from different plants), and not from the assays used for protein quantification. It is possible that variations in protein expression are due to the application technique, the sampling method, or protein stability issues. Due to position effects within the leaves, there is inherent variability in the expression of recombinant proteins in plants. A study by Sheludko et al. [51] evaluated sources of variability in the transient expression of a recombinant protein in Nicotiana plants, and determined that factors such as the age of the plant and the location of the leaf within the plant can cause differences in expression. Applying Agrobacterium through syringe infiltration may reduce variability compared with vacuum infiltration, although it is not a method that could be used at large scale. Variability may be reduced by sampling the entire leaf and measuring protein expression from that extract, but this approach would preclude the possibility of examining the expression kinetics. Finally, denaturation, degradation, unfolding, or cleavage of the protein could also have an impact on how much of the protein is measured, as reported for other proteins expressed transiently [52].

3. Experimental Section

3.1. Cloning of the CMG2-Fc and Gene Silencing Suppressor Constructs for Agrobacterium Infiltration

A DNA fragment encoding a chimeric human IgG1/IgG2 Fc region (include the upper and middle hinge sequences of human IgG2, followed by the lower hinge, CH2, and CH3 regions of IgG1) was codon-optimized for Nicotiana tabacum expression. Nucleotides encoding the peptide sequence SEKDEL were appended onto the 3′ end to enable accumulation in the plant’s endoplasmic reticulum. This Fc2/1-KDEL sequence was cloned into pMSP-CMG2-FcG [37] between the SacI and EcoRI sites, replacing the FcG sequence (non-chimeric IgG1 Fc). An AscI digested fragment from pMSP-CMG2-Fc2/1-KDEL was sub-cloned into the Agrobacterium binary vector pBIN+ocs [53], forming pBIN-CMG2-Fc2/1-KDEL. The final expression cassette was comprised of the CaMV 35S promoter, a short 5′ untranslated region from the Nicotiana sylvestris psaDb gene (GenBank E12115), the signal peptide of the 2S albumin storage protein of Arabidopsis thaliana (GenBank P15458) [54], Nicotiana spp. codon-optimized CMG2 gene (amino acids 34 to 220, GenBank AY233452, Fc2/1-KDEL (described above) and the agrocinopine synthase (ags) terminator (GenBank EU181145). The resultant CMG2-Fc2/1-KDEL protein contains 424 amino acids (excluding the signal peptide) having a subunit molecular mass of 47.2 kDa (dimer of 94.4 kDa). The pBIN-CMG2-Fc2/1-KDEL binary expression vector was transformed into A. tumefaciens EHA105 via electroporation [55].
Each of the plant viral suppressor sequences from p1, p19, p25, and 2b were inserted into the pBIN binary vector. Likewise, the DNA sequences of p10, p21, p24, p38, and HcPro were cloned into a mini-binary vector, pCB302 [39]. All of the gene silencing suppressors used in this study were under the control of the CaMV 35S promoter. The binary vectors containing gene silencing suppressor sequences were transformed into A. tumefaciens EHA105, with the helper plasmid (pCH32) by electroporation.

3.2. Preparation of Nicotiana benthamiana Plants

Wild type non-transgenic N. benthamiana was grown from seeds planted in soiled-filled seed trays. Seedlings were transplanted into individual 4-inch pots. A week after transplantation, Osmocote fertilizer (Scotts Miracle-Gro Company, Marysville, OH) was added to ensure optimum health throughout the growth cycle. Plants that were 4–6 weeks old were used for agroinfiltration. In the case of detached leaf agroinfiltration, upper leaves from 4–6 weeks old N. benthamiana plants were harvested immediately before agroinfiltration. All plants were grown in a greenhouse with a 16-h photoperiod and a temperature range of 18 °C (night time low) to 30 °C (day time high).

3.3. Preparation of Agrobacterium tumefaciens for Agroinfiltration

Agrobacterium cultures were started from −80 °C frozen stocks, and were grown in 5 mL of LB broth. After incubation for 24 h at 28 °C and 250 rpm, the 5 mL cultures were transferred to 250 mL Erlenmeyer flasks containing 125 mL sterile LB media. After incubating for 24 h at 28 °C and 250 rpm, the Agrobacterium cells were harvested by centrifugation at 1890 g for 10 min. Cells were resuspended in an infiltration buffer, containing 100 mM acetosyringone (3′,5′-dimethoxy-4′-hydroxyacetophenone) (Aldrich Chemicals, Milwaukee, WI), 1 mL of 1 M 2-(4-morpholino) ethanesulfonic acid (MES) buffer (pH 5.6), and 10 mM magnesium chloride. The cell density (optical density, OD600 obtained using a Milton Roy Spectronic 501 spectrophotometer) of the agroinfiltration solution was adjusted to 0.5 absorbance units for processing intact plants. For agroinfiltration of detached leaves, the agroinfiltration solution was adjusted to 1.0 absorbance units. An Agrobacterium suspension containing the CMG2-Fc construct was mixed 1:1 with an Agrobacterium suspension containing each of the gene silencing suppressor constructs. For the absence of co-expression condition, the suspension was composed solely of Agrobacterium encoding CMG2-Fc. Infiltration buffer without Agrobacterium was used as a negative control for CMG2-Fc expression. All infiltration solutions were incubated for three h in the dark at room temperature. Directly before performing the agroinfiltration, the surfactant Silwet L-77 (GE Silicones, Friendly, WV) was added at a final concentration of 0.01% to reduce the surface tension of the solution and facilitate the agroinfiltration.

3.4. Agroinfiltration

Whole N. benthamiana plants or detached N. benthamiana leaves were submerged into the bacterial suspension and subjected to a vacuum of −90 kPa for 1 min, with occasional agitation to release trapped air bubbles. After the vacuum was rapidly released, the plant material was removed from the suspension and allowed to dry. Intact plants were placed in a greenhouse, while detached leaves were placed inside plastic containers prepared as described elsewhere [56].

3.5. Sampling and CMG2-Fc Protein Extraction

Leaf discs with a diameter of 14 mm were sampled from agroinfiltrated leaves after 3.5, 7, and 14 days post-infiltration (DPI). Each sample was comprised of two discs obtained from the same leaf. For each condition tested, three individual leaves, from three different N. benthamiana plants, were used for analysis. Phosphate buffer saline (PBS) composed of 137 mM NaCl, 2.7 mM KCl, 10.1 mM Na2HPO4 and 1.8 mM KH2PO4 (pH 7.4) was used for extraction. PBS was added to the leaf discs at a ratio of 10 μL per mg of fresh weight leaf tissue. Cells were lysed on ice using a plastic pestle attached to a drill (Makita). The cell lysate was clarified by centrifugation at 4 °C and 10,600 g for 20 min. The supernatant was collected and immediately assayed for total soluble protein with the Bradford Assay. Supernatants were stored at −80 °C until required for ELISA and Western Blot analysis.

3.6. ELISA Analysis

ELISA was used to quantify the amount of plant-expressed CMG2-Fc. Microplate wells (Costar 3590) were coated with Staphylococcus aureus Protein A (Southern Biotech 7300-01S, Birmingham, AL) diluted at 50 μg/mL in PBS Buffer (pH 7.4) and incubated for 1 h at 37 °C. Blocking was achieved by a 15-min incubation with 5% nonfat dry milk (Safeway) diluted in PBS. All samples and controls were diluted in PBS and applied directly to the coated wells. For each microplate, a standard curve was generated with 5000; 1666.7; 555.6; 185.2; 61.7; 20.6; 6.9; and 2.3 ng/mL of purified CMG2-Fc (supplied by Planet Biotechnology Inc) diluted in PBS. Microplates were incubated with 50 μL of diluted samples and standards at 37 °C for 1 h. Goat anti-human IgG secondary antibody conjugated with horseradish peroxidase (Southern Biotech 2040-05, Birmingham, AL) diluted 1:3000 in PBS was added, and the microplates were incubated at 37 °C for 1 h. Detection was performed with 3,3′,5,5′-tetramethylbenzidine liquid substrate for ELISA. The reaction was stopped with 1N HCl and absorbance was measured at 450 nm. Each sample was assayed in triplicate, and CMG2-Fc concentrations were interpolated from the linear portion of the standard curve.

3.7. Bradford Protein Assay Analysis

The amount of total soluble protein present in the plant extracts was quantified using the Bradford Protein Assay [57]. Samples and controls diluted in PBS were applied directly to the microplate wells (Costar 3598). For each microplate, a standard curve was generated with 0.5, 0.4, 0.3, 0.2, 0.1, 0.05, and 0 mg/mL of bovine serum albumin diluted in PBS. After adding Bradford Protein Reagent (BioRad, Hercules, CA), the microplates were incubated at room temperature for 10 min, and absorbance was measured at 595 nm. Each sample was assayed in triplicate, and total soluble protein concentrations were interpolated from the standard curve.

3.8. Western Blot Analysis

Protein samples were denatured by heating for five min at 95 °C in sodium dodecyl sulfate (SDS) sample buffer and 1M dithiothreitol (DTT), for reduction of proteins at a final concentration of 90 mM DTT. Samples were fractionated with SDS-PAGE at 200 V for 30 min, and transferred to a 0.45 μm nitrocellulose membrane (GE Healthcare Biosciences, Pittsburgh, PA) at 120 V for 80 min. Blots were blocked with 5% nonfat dry milk diluted in PBS. Immunoblotting was performed using Staphylococcus aureus Protein A, followed by goat anti-human IgG secondary antibody conjugated with alkaline phosphatase (Southern Biotech 2040-04, Birmingham, AL). The blot was developed using the substrate BCIP/NBT (BioRad, Hercules, CA).

3.9. Statistical Analysis

Statistical analysis was performed using a two-sample t-test assuming unequal variances in Microsoft Excel.

4. Conclusions

In this study, we describe an efficient expression system for the transient production of recombinant proteins in plants. Furthermore, the usefulness of co-expressing gene silencing suppressors to overcome PTGS, which may be activated by the pathogenic effects of Agrobacterium over N. benthamiana or by the overexpression of the foreign CMG2-Fc protein, was demonstrated through qualitative and quantitative analysis. Suppressing the post-transcriptional gene silencing mechanism of N. benthamiana through the co-expression of certain suppressor proteins such as p1 and p25 effectively increased the expression level of a recombinant protein that was expressed transiently under the control of the CaMV 35S promoter.
High-level expression of CMG2-Fc was achieved using vacuum agroinfiltration of N. benthamiana, when using both intact plants and detached leaves. While the agroinfiltration of intact plants yielded higher CMG2-Fc levels than detached leaves, all expression levels were generally on the same order of magnitude. This result is significant, because a process relying on the latter approach is potentially more cost-effective to scale-up for large-scale protein production. The use of N. benthamiana detached leaves as biomass for expression eliminates the need for robotic manipulation of plants (harvested biomass can be transported via less expensive conveyor belts) as well as lighting systems for post-infiltration plant incubation; it also provides an opportunity for harvesting field grown plant tissues that would lower total capital investment and operating costs. Also, the reduced large scale cost of using detached leaves may offset the somewhat lower yields generated with this system.
The results of this project show the feasibility of producing a recombinant anthrax receptor fusion protein at high levels in plants, and provide further evidence that transient expression in N. benthamiana can be useful as a platform for the manufacturing of therapeutics. Future work will include evaluating the transient expression of CMG2-Fc under the control of a viral amplicon system [58]. It will be interesting to determine the effect that the co-expression of gene silencing suppressors will have on the viral amplicon driven expression of CMG2-Fc, compared to expression under the control of a constitutive promoter.

Acknowledgments

The authors would like to acknowledge Bryce Falk’s laboratory for providing the gene silencing suppressor sequences. This work was supported by the NSF CREATE-IGERT Research Training Grant DGE-0653984.

References

  1. Landry, N; Ward, BJ; Trépanier, S; Montomoli, E; Dargis, M; Lapini, G; Vézina, LP. Preclinical and Clinical Development of Plant-Made Virus-Like Particle Vaccine against Avian H5N1 Influenza. PLoS One 2010, 5, e15559. [Google Scholar]
  2. Hiatt, A; Pauly, M. Monoclonal antibodies from plants: A new speed record. Proc. Natl. Acad. Sci. USA 2006, 103, 14645–14646. [Google Scholar]
  3. Fischer, R; Stoger, E; Schillberg, S; Christou, P; Twyman, RM. Plant-based production of biopharmaceuticals. Curr. Opin. Plant Biol 2004, 7, 152–158. [Google Scholar]
  4. Stoger, E; Sack, M; Perrin, Y; Vaquero, C; Torres, E; Twyman, RM; Christou, P; Fischer, R. Practical considerations for pharmaceutical antibody production in different crop systems. Mol. Breed 2002, 9, 149–158. [Google Scholar]
  5. Twyman, RM; Stoger, E; Schillberg, S; Christou, P; Fischer, R. Molecular farming in plants: host systems and expression technology. Trends Biotechnol 2003, 21, 570–578. [Google Scholar]
  6. Hood, EE; Woodard, SL; Horn, ME. Monoclonal antibody manufacturing in transgenic plants—myths and realities. Curr. Opin. Biotechnol 2002, 13, 630–635. [Google Scholar]
  7. Gleba, Y; Klimyuk, V; Marillonnet, S. Magnifection—a new platform for expressing recombinant vaccines in plants. Vaccine 2005, 23, 2042–2048. [Google Scholar]
  8. Ma, JKC; Drake, PMW; Christou, P. The production of recombinant pharmaceutical proteins in plants. Nat. Rev. Genet 2003, 4, 794–805. [Google Scholar]
  9. Joh, LD; VanderGheynst, JS. Agroinfiltration of plant tissues for production of high-value recombinant proteins: An alternative to production in transgenic crops. J. Sci. Food Agric 2006, 86, 2002–2004. [Google Scholar]
  10. Kapila, J; DeRycke, R; VanMontagu, M; Angenon, G. An Agrobacterium-mediated transient gene expression system for intact leaves. Plant Sci 1997, 122, 101–108. [Google Scholar]
  11. Bendandi, M; Marillonnet, S; Kandzia, R; Thieme, F; Nickstadt, A; Herz, S; Froede, R; Inoges, S; Lopez-Diaz de Cerio, A; Soria, E; et al. Rapid, high-yield production in plants of individualized idiotype vaccines for non-Hodgkin’s lymphoma. Ann. Oncol 2010, 21, 2420–2427. [Google Scholar]
  12. Gleba, Y; Klimyuk, V; Marillonnet, S. Viral vectors for the expression of proteins in plants. Curr. Opin. Biotechnol 2007, 18, 134–141. [Google Scholar]
  13. Giritch, A; Marillonnet, S; Engler, C; van Eldik, G; Botterman, J; Klimyuk, V; Gleba, Y. Rapid high-yield expression of full-size IgG antibodies in plants coinfected with noncompeting viral vectors. Proc. Natl. Acad. Sci. USA 2006, 103, 14701–14706. [Google Scholar]
  14. Fischer, R; Vaquero-Martin, C; Sack, M; Drossard, J; Emans, N; Commandeur, U. Towards molecular farming in the future: Transient protein expression in plants. Biotechnol. Appl. Biochem 1999, 30, 113–116. [Google Scholar]
  15. Kalthoff, D; Giritch, A; Geisler, K; Bettmann, U; Klimyuk, V; Hehnen, HR; Gleba, Y; Beer, M. Immunization with plant-expressed hemagglutinin protects chickens from lethal highly pathogenic avian influenza virus H5N1 challenge infection. J. Virol 2010, 84, 12002–12010. [Google Scholar]
  16. Mett, V; Musiychuk, K; Bi, H; Farrance, CE; Horsey, A; Ugulava, N; Shoji, Y; de la Rosa, P; Palmer, GA; Rabindran, S; et al. A plant-produced influenza subunit vaccine protects ferrets against virus challenge. Influenza Other Respir. Viruses 2008, 2, 33–40. [Google Scholar]
  17. Pogue, GP; Vojdani, F; Palmer, KE; Hiatt, E; Hume, S; Phelps, J; Long, L; Bohorova, N; Kim, D; Pauly, M; et al. Production of pharmaceutical-grade recombinant aprotinin and a monoclonal antibody product using plant-based transient expression systems. Plant Biotechnol. J 2010, 8, 638–654. [Google Scholar]
  18. Inglesby, TV; O’Toole, T; Henderson, DA; Bartlett, JG; Ascher, MS; Eitzen, E; Friedlander, AM; Gerberding, J; Hauer, J; Hughes, J; et al. Anthrax as a biological weapon, 2002—Updated recommendations for management. J. Am. Med. Assoc 2002, 287, 2236–2252. [Google Scholar]
  19. Duesbery, NS; Webb, CP; Leppla, SH; Gordon, VM; Klimpel, KR; Copeland, TD; Ahn, NG; Oskarsson, MK; Fukasawa, K; Paull, KD; et al. Proteolytic inactivation of MAP-kinase-kinase by anthrax lethal factor. Science 1998, 280, 734–737. [Google Scholar]
  20. Scobie, HM; Rainey, GJA; Bradley, KA; Young, JAT. Human capillary morphogenesis protein 2 functions as an anthrax toxin receptor. Proc. Natl. Acad. Sci. USA 2003, 100, 5170–5174. [Google Scholar]
  21. Vitale, G; Pellizzari, R; Recchi, C; Napolitani, G; Mock, M; Montecucco, C. Anthrax lethal factor cleaves the N-terminus of MAPKKs and induces tyrosine/threonine phosphorylation of MAPKs in cultured macrophages. Biochem. Biophys. Res. Commun 1998, 248, 706–711. [Google Scholar]
  22. Wycoff, K. Production of Biodefense-Related Proteins in Tobacco. Proceedings of in Vitro Biology Meeting, Minneapolis, MN, USA, 3–7 June 2006; 42.
  23. Bazzini, AA; Mongelli, VC; Hopp, HE; del Vas, M; Asurmendi, S. A practical approach to the understanding and teaching of RNA silencing in plants. Electron. J. Biotechnol 2007, 10, 178–190. [Google Scholar]
  24. Rui, L; Martin-Hernandez, AM; Peart, JR; Malcuit, I; Baulcombe, DC. Virus-induced gene silencing in plants. Methods 2003, 30, 296–303. [Google Scholar]
  25. Roth, BM; Pruss, GJ; Vance, VB. Plant viral suppressors of RNA silencing. Virus Res 2004, 102, 97–108. [Google Scholar]
  26. Ma, PD; Liu, JY; He, HX; Yang, MY; Li, MN; Zhu, XJ; Wang, XZ. A Viral Suppressor P1/HC-Pro Increases the GFP Gene Expression in Agrobacterium-mediated Transient Assay. Appl. Biochem. Biotechnol 2009, 158, 243–252. [Google Scholar]
  27. Voinnet, O; Pinto, YM; Baulcombe, DC. Suppression of gene silencing: A general strategy used by diverse DNA and RNA viruses of plants. Proc. Natl. Acad. Sci. USA 1999, 96, 14147–14152. [Google Scholar]
  28. Zhou, ZS; Dell’Orco, M; Saldarelli, P; Turturo, C; Minafra, A; Martelli, GP. Identification of an RNA-silencing suppressor in the genome of Grapevine virus A. J. Gen. Virol 2006, 87, 2387–2395. [Google Scholar]
  29. Voinnet, O; Rivas, S; Mestre, P; Baulcombe, DC. An enhanced transient expression system in plants based on suppression of gene silencing by the p19 protein of tomato bushy stunt virus. Plant J 2003, 33, 949–956. [Google Scholar]
  30. Reed, JC; Kasschau, KD; Prokhnevsky, A; Gopinath, K; Pogue, GP; Carrington, JC; Dolja, VV. Suppressor of RNA silencing encoded by Beet yellows virus. Virology 2003, 306, 203–209. [Google Scholar]
  31. Chiba, M; Reed, JC; Prokhnevsky, AI; Chapman, EJ; Mawassi, M; Koonin, EV; Carrington, JC; Dolja, VV. Diverse suppressors of RNA silencing enhance agroinfection by a viral replicon. Virology 2006, 346, 7–14. [Google Scholar]
  32. Voinnet, O; Lederer, C; Baulcombe, DC. A viral movement protein prevents spread of the gene silencing signal in Nicotiana benthamiana. Cell 2000, 103, 157–167. [Google Scholar]
  33. Thomas, CL; Leh, V; Lederer, C; Maule, AJ. Turnip crinkle virus coat protein mediates suppression of RNA silencing in Nicotiana benthamiana. Virology 2003, 306, 33–41. [Google Scholar]
  34. Brigneti, G; Voinnet, O; Li, WX; Ji, LH; Ding, SW; Baulcombe, DC. Viral pathogenicity determinants are suppressors of transgene silencing in Nicotiana benthamiana. EMBO J 1998, 17, 6739–6746. [Google Scholar]
  35. Anandalakshmi, R; Pruss, GJ; Ge, X; Marathe, R; Mallory, AC; Smith, TH; Vance, VB. A viral suppressor of gene silencing in plants. Proc. Natl. Acad. Sci. USA 1998, 95, 13079–13084. [Google Scholar]
  36. Simmons, CW; VanderGheynst, JS. Transient co-expression of post-transcriptional gene silencing suppressors and β-glucuronidase in harvested lettuce leaf tissue does not improve recombinant protein accumulation in planta. Biotechnol. Lett 2007, 29, 641–645. [Google Scholar]
  37. Wycoff, KL; Belle, A; Deppe, D; Schaefer, L; Maclean, JM; Haase, S; Trilling, AK; Liu, S; Leppla, SH; Geren, IN; et al. Recombinant anthrax toxin receptor-fc fusion proteins produced in plants protect rabbits against inhalational anthrax. Antimicrob. Agents Chemother 2011, 55, 132–159. [Google Scholar]
  38. Li, F; Shou-Wei, D. Virus counterdefense: Diverse strategies for evading the RNA-silencing immunity. Annu. Rev. Microbiol 2006, 60, 503–531. [Google Scholar]
  39. Xiang, C; Han, P; Lutziger, I; Wang, K; Oliver, DJ. A mini binary vector series for plant transformation. Plant Mol. Biol 1999, 40, 711–717. [Google Scholar]
  40. Navarro, L; Jay, F; Nomura, K; He, SY; Voinnet, O. Suppression of the MicroRNA pathway by bacterial effector proteins. Science 2008, 321, 964–967. [Google Scholar]
  41. Lacombe, S; Bangratz, M; Vignols, F; Brugidou, C. The rice yellow mottle virus P1 protein exhibits dual functions to suppress and activate gene silencing. Plant J 2010, 61, 371–382. [Google Scholar]
  42. Pruss, GJ; Nester, EW; Vance, V. Infiltration with Agrobacterium tumefaciens induces host defense and development-dependent responses in the infiltrated zone. Mol. Plant-Microbe Interact 2008, 21, 1528–1538. [Google Scholar]
  43. Choi, MS; In-Soon, Y; Yong, R; Seung Kook, C; Sun-Hyung, L; So-Youn, W; Yeon-Hee, L; Hong-Soo, C; Suk-Chan, L; Kook-Hyung, K; et al. The Effect of Cucumber mosaic virus 2b Protein to Transient Expression and Transgene Silencing Mediated by Agro-infiltration. Plant Pathol. J 2008, 24, 296–304. [Google Scholar]
  44. Kasschau, KD; Carrington, JC. A Counterdefensive strategy of plant viruses: Suppression of posttranscriptional gene silencing. Cell 1998, 95, 461–470. [Google Scholar]
  45. Meins, F. RNA degradation and models for post-transcriptional gene silencing. Plant Mol. Biol 2000, 43, 261–273. [Google Scholar]
  46. Wassenegger, M; Pelissier, T. A model for RNA-mediated gene silencing in higher plants. Plant Mol. Biol 1998, 37, 349–362. [Google Scholar]
  47. Dougherty, WG; Parks, TD. Transgenes and gene suppression: telling us something new? Mol. Plant-Microbe Interact 1995, 7, 399–405. [Google Scholar]
  48. Vaucheret, H; Beclin, C; Fagard, M. Post-transcriptional gene silencing in plants. J. Cell Sci 2001, 114, 3083–3091. [Google Scholar]
  49. Schubert, D; Lechtenberg, B; Forsbach, A; Gils, M; Bahadur, S; Schmidt, R. Silencing in arabidopsis T-DNA transformants: The predominant role of a gene-specific RNA sensing mechanism versus position effects. Plant Cell 2004, 16, 2561–2572. [Google Scholar]
  50. Wroblewski, T; Tomczak, A; Michelmore, R. Optimization of Agrobacterium-mediated transient assays of gene expression in lettuce, tomato and Arabidopsis. Plant Biotechnol. J 2005, 3, 259–273. [Google Scholar]
  51. Sheludko, YV; Sindarovska, YR; Gerasymenko, IM; Bannikova, MA; Kuchuk, NV. Comparison of several Nicotiana species as hosts for high-scale Agrobacterium-mediated transient expression. Biotechnol. Bioeng 2007, 96, 608–614. [Google Scholar]
  52. Plesha, MA; Huang, TK; Dandekar, AM; Falk, BW; McDonald, KA. High-level transient production of a heterologous protein in plants by optimizing induction of a chemically inducible viral amplicon expression system. Biotechnol. Prog 2007, 23, 1277–1285. [Google Scholar]
  53. van Engelen, FA; Molthoff, JW; Conner, AJ; Nap, JP; Pereira, A; Stiekema, WJ. pBINPLUS: An improved plant transformation vector based on pBIN19. Transgenic Res 1995, 4, 288–290. [Google Scholar]
  54. Krebbers, E; Herdies, L; Declercq, A; Seurinck, J; Leemans, J; Vandamme, J; Segura, M; Gheysen, G; Vanmontagu, M; Vandekerckhove, J. Determination of the processing sites of an Arabidopsis 2S-albumin and characterization of the complete gene family. Plant Physiol 1988, 87, 859–866. [Google Scholar]
  55. Shen, WJ; Forde, BG. Efficient transformation of Agrobacterium spp. by high voltage electroporation. Nucleic Acids Res 1989, 17, 8385. [Google Scholar]
  56. Plesha, MA; Huang, TK; Dandekar, AM; Falk, BW; McDonald, KA. Optimization of the bioprocessing conditions for scale-up of transient production of a heterologous protein in plants using a chemically inducible viral amplicon expression system. Biotechnol. Prog 2009, 25, 722–734. [Google Scholar]
  57. Bradford, MM. Rapid and sensitive method for quantitation of microgram quantities of protein utilizing principle of protein-dye binding. Anal. Biochem 1976, 72, 248–254. [Google Scholar]
  58. Sudarshana, MR; Plesha, MA; Uratsu, SL; Falk, BW; Dandekar, AM; Huang, TK; McDonald, KA. A chemically inducible cucumber mosaic virus amplicon system for expression of heterologous proteins in plant tissues. Plant Biotechnol. J 2006, 4, 551–559. [Google Scholar]

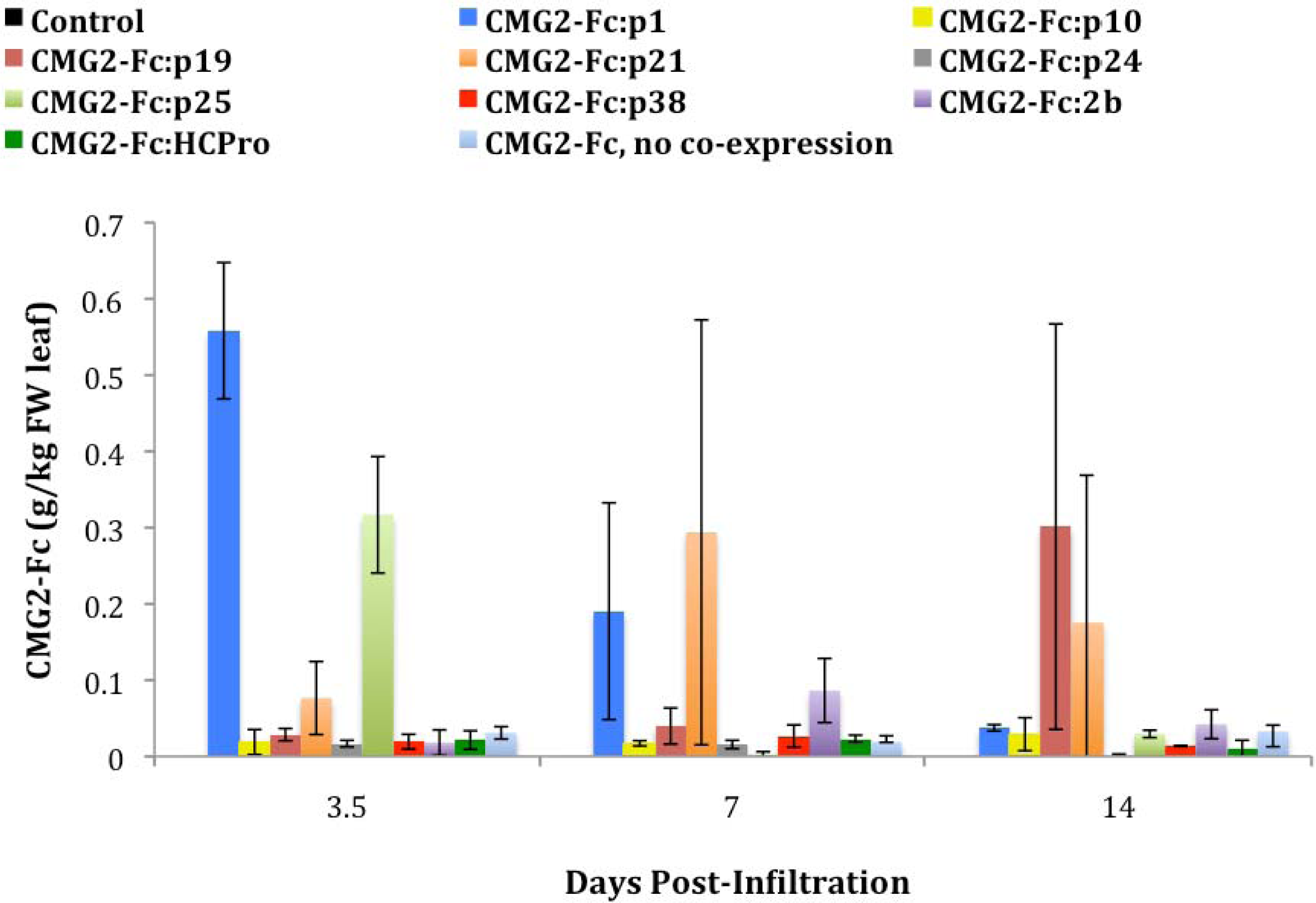

Figure 1. ELISA analysis of transiently expressed CMG2-Fc on a leaf FW basis in intact plants in which the p1, p10, p19, p21, p24, p25, p38, 2b, and HCPro PTGS suppressors were co-expressed. An infiltration of CMG2-Fc without PTGS suppressor co-expression was also performed to have a baseline for comparison. CMG2-Fc expression levels are the average of triplicate N. benthamiana leaves exposed to the same condition. Error bars are based on the propagation of errors calculated from triplicate assays performed on samples of triplicate N. benthamiana leaves from the intact plants.
Figure 1. ELISA analysis of transiently expressed CMG2-Fc on a leaf FW basis in intact plants in which the p1, p10, p19, p21, p24, p25, p38, 2b, and HCPro PTGS suppressors were co-expressed. An infiltration of CMG2-Fc without PTGS suppressor co-expression was also performed to have a baseline for comparison. CMG2-Fc expression levels are the average of triplicate N. benthamiana leaves exposed to the same condition. Error bars are based on the propagation of errors calculated from triplicate assays performed on samples of triplicate N. benthamiana leaves from the intact plants.
Ijms 12 04975f1
Figure 2. Western Blot analysis of CMG2-Fc protein from intact N. benthamiana plants reduced with 90 mM dithiothreitol (DTT). Samples shown below were obtained from plants harvested at either 3.5 or 14 days post-infiltration (DPI). Lanes 1 and 2 show CMG2-Fc expression on intact plants: CMG2-Fc co-expressed with gene silencing suppressor p1 at 3.5 DPI (lane 1); CMG2-Fc without gene silencing suppressor co-expression at 3.5 DPI (lane 2). Lanes 3 and 4 show CMG2-Fc expression on detached leaves: CMG2-Fc co-expressed with gene silencing suppressor p19 at 14 DPI (lane 3); CMG2-Fc without gene silencing suppressor co-expression at 14 DPI (lane 4). Lane M: molecular weight marker; lane WTi: control infiltration of an intact plant (without Agrobacterium); lane WTd: control infiltration of a detached leaf (without Agrobacterium); lane S: purified CMG2-Fc protein standard (2000 ng). Purified CMG2-Fc was used as a positive control to allow comparisons between the relative band intensities. Approximate sizes (kDa) of proteins are shown.
Figure 2. Western Blot analysis of CMG2-Fc protein from intact N. benthamiana plants reduced with 90 mM dithiothreitol (DTT). Samples shown below were obtained from plants harvested at either 3.5 or 14 days post-infiltration (DPI). Lanes 1 and 2 show CMG2-Fc expression on intact plants: CMG2-Fc co-expressed with gene silencing suppressor p1 at 3.5 DPI (lane 1); CMG2-Fc without gene silencing suppressor co-expression at 3.5 DPI (lane 2). Lanes 3 and 4 show CMG2-Fc expression on detached leaves: CMG2-Fc co-expressed with gene silencing suppressor p19 at 14 DPI (lane 3); CMG2-Fc without gene silencing suppressor co-expression at 14 DPI (lane 4). Lane M: molecular weight marker; lane WTi: control infiltration of an intact plant (without Agrobacterium); lane WTd: control infiltration of a detached leaf (without Agrobacterium); lane S: purified CMG2-Fc protein standard (2000 ng). Purified CMG2-Fc was used as a positive control to allow comparisons between the relative band intensities. Approximate sizes (kDa) of proteins are shown.
Ijms 12 04975f2

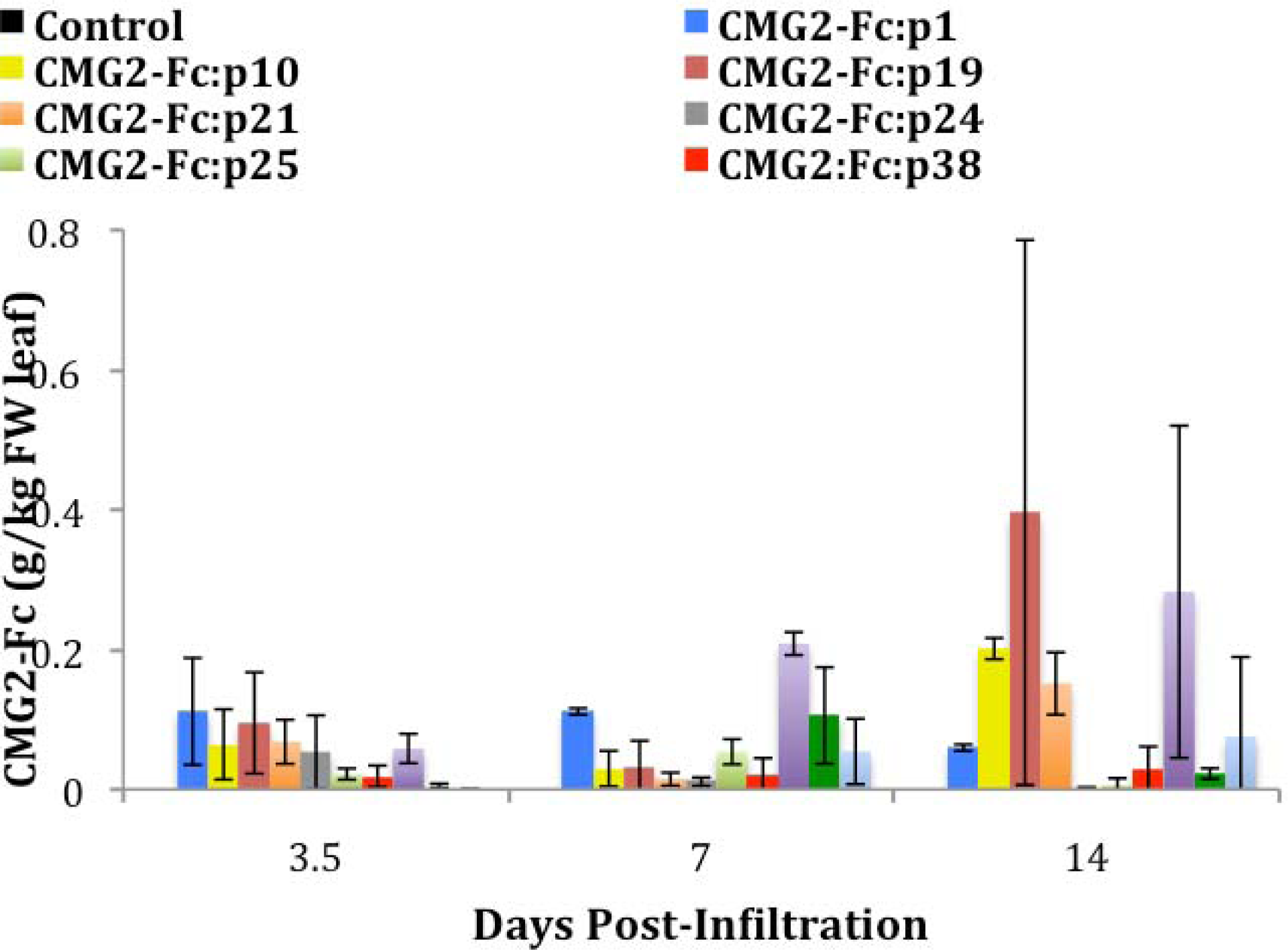

Figure 3. ELISA analysis of transiently expressed CMG2-Fc on a leaf FW basis in detached leaves co-expressed with p1, p10, p19, p21, p24, p25, p38, 2b, and HCPro PTGS suppressors. An infiltration of CMG2-Fc without PTGS suppressor co-expression was performed to have a baseline for comparison. CMG2-Fc expression levels are the average of triplicate N. benthamiana leaves exposed to the same condition. Error bars are based on the propagation of errors calculated from triplicate assays performed on samples of triplicate N. benthamiana leaves.
Figure 3. ELISA analysis of transiently expressed CMG2-Fc on a leaf FW basis in detached leaves co-expressed with p1, p10, p19, p21, p24, p25, p38, 2b, and HCPro PTGS suppressors. An infiltration of CMG2-Fc without PTGS suppressor co-expression was performed to have a baseline for comparison. CMG2-Fc expression levels are the average of triplicate N. benthamiana leaves exposed to the same condition. Error bars are based on the propagation of errors calculated from triplicate assays performed on samples of triplicate N. benthamiana leaves.
Ijms 12 04975f3
Table 1. List of the different gene silencing suppressors screened for their effect on CMG2-Fc transient expression in Nicotiana benthamiana.
Table 1. List of the different gene silencing suppressors screened for their effect on CMG2-Fc transient expression in Nicotiana benthamiana.
PTGS Suppressor ProteinPlant Virus SourceReference
p1Rice Yellow Mottle Virus[27]
p10Grapevine Virus A[28]
p19Tomato Bushy Stunt Virus[29]
p21Beet Yellow Virus[30]
p24Grapevine Leaf Roll Associated Virus[31]
p25Potato Virus X[32]
p38Turnip Crinkle Virus[33]
2bCucumber Mosaic Virus[34]
HcProTobacco Etch Virus[35]
Table 2. Conversion of expression values from ELISA to determine the amount of CMG2-Fc loaded on to each lane for Western Blot analysis.
Table 2. Conversion of expression values from ELISA to determine the amount of CMG2-Fc loaded on to each lane for Western Blot analysis.
Laneg CMG2-Fc/kg FW leaf ang CMG2-Fc loaded on gel b
10.651300
20.05100
30.39780
40.08160
aData obtained from ELISA performed on individual samples;
bConversion based on the use of 10 μL extraction buffer per mg of FW leaf tissue for sampling, and on the dilution of the sample aliquots prior to loading in the gel.
