Int. J. Mol. Sci. 2011, 12(4), 2395-2407; doi:10.3390/ijms12042395

Article
Optimization of Antibacterial Activity of Perilla frutescens var. acuta Leaf against Staphylococcus aureus Using Evolutionary Operation Factorial Design Technique
Dae-Hyun Kim 1, Young-Chan Kim 2 and Ung-Kyu Choi 1,*
1
School of Nano-Biotechnology & Chemical Engineering, Ulsan National Institute of Science and Technology, Ulsan 689–798, Korea; E-Mail: chunja2411@unist.ac.kr
2
Korea Food Research Institute, Seongnam, Kyonggi, 463–746, Korea; E-Mail: yckim@kfri.re.kr
*
Author to whom correspondence should be addressed; E-Mail: cuk8272@unist.ac.kr; Tel.: +82-52-217-2623; Fax: +82-52-217-2609.
Received: 18 January 2011; in revised form: 7 February 2011 / Accepted: 28 March 2011 /
Published: 6 April 2011

Abstract

: This study was undertaken to optimize extraction using evolutionary operation-factorial (EVOP) design technique to elicit the antibacterial activity of Perilla frutescens var. acuta leaf against Staphylococcus aureus ATCC6538. Higher antibacterial activity was achieved at higher extraction temperature and over a longer extraction time. Antibacterial activity was not affected by differentiation of the ethanol concentration in the extraction solvent. The maximum antibacterial activity of ethanolic extract of P. frutescens leaf against S. aureus was obtained at 75 °C (R = −0.7904**) extraction temperature, 24 h (R = −0.7273**) extraction time, and 45% (R = −0.0635) ethanol concentration. The population of S. aureus was decreased from 7.535 log CFU/mL in the initial set to 4.865 log CFU/mL in the third set by EVOP factorial design technique, as well as to 2.600 log CFU/mL by extraction with ethyl acetate. Further, the ethyl acetate extract revealed the highest phenolic contents (111.3 ± 8.6 mg% of dry sample) as compared to the other extracts. Also, the scanning electronic microscopic study of the ethanolic extract of P. frutescens revealed potential detrimental effect on the morphology of S. aureus.
Keywords:
Perilla frutescens var. acuta leaf; EVOP-factorial design technique; antibacterial activity; Staphylococcus aureus ATCC6538

1. Introduction

With the increase of bacterial resistance to antibiotics, there is considerable interest in investigating the antimicrobial effects of plant extracts against a range of bacteria, to develop other classes of safe and natural antimicrobials useful for infection control or for the preservation of food [1]. Staphyloccus aureus is a versatile pathogen associated with a broad spectrum of infections in human beings and food industry. S. aureus is considered to be the second most common pathogen causing outbreaks of food poisoning followed by Salmonella. Official reports from the same state mentioned that in 1997, 88 laboratory diagnosed bacterial outbreaks were reported and S. aureus was primarily the agent representing 36.3% of the total outbreaks [2]. The presence of S. aureus has also been detected in various food samples [3,4] and its possible critical control point throughout processing was recently reviewed [5].

The main advantage of the evolutionary operation (EVOP) factorial design technique [68] is to develop a more effective approach for the optimization of n variable system which hybridize EVOP methodology [9,10] including response surface methodology (RSM) derived from orthogonal polynomial fitting techniques [11,12]. The identification and evaluation of natural products with optimized levels of antimicrobial activity for the control of infectious pathogens can be considered as an important international challenge to food and medicine industries.

Perilla frutescens var. acuta L., herb belongs to the family Labiatae. P. frutescens is an edible plant frequently used as one of the most popular garnishes and food colorants in China, Japan and Korea. The leaves of P. frutescens var. acuta, shown to be detoxicant, antitussive, antibiotic, and antipyretic [13,14], are also utilized as a folk medicine for treating intestinal disorders and allergies, particularly in traditional Chinese medical practice [15]. Although the biological activity of P. frutescens var. acuta, as well as its superior safety, is well documented,, there is no report available on the optimization of antibacterial activity of P. frutescens var. acuta leaf against S. aureus ATCC6538 using evolutionary operation-factorial design technique.

In the present study, therefore, the combined effects of extraction temperature, extraction time and the ethanol concentration on the antibacterial activity of Perilla frutescens var. acuta leaf were investigated using the EVOP-factorial design to maximize the antibacterial activity of Perilla frutescens var. acuta leaf against S. aureus ATCC6538.

2. Results

2.1. Optimization of Antibacterial Activity by EVOP-fs

The experimental conditions used in the first set of experiments, the corresponding antibacterial activities of cycle I and II, their differences and average values are presented in Table 1. The extraction temperature, extraction time and ethanol concentration of central point in first set (E10, E20) were 45 °C, 12 h and 45%, respectively [16]. The error limits, effects and the change in the mean effect were calculated and the results are shown in Table 2.

In the first set, the error limits for average, effects and changes in mean were 0.1739, 0.1235 and 0.1096, respectively. The change in mean effect was −0.2115. According to the decision-making procedure, after calculating the change in the mean effect and error limit, an examination was necessary to determine whether any change in the control (search level) experimental conditions would help to improve the objective function [10]. The optimum condition was achieved when the effect was smaller than the error limit, while the change in the mean effect was large. Moreover, because the dependent variables are the population of S. aureus ATCC6538, in which growth was suppressed by addition of P. frutescens var. acuta leaf extract, the optimum point was reached when the code of mean effect was negative.

The determination of the magnitude of the change in mean effect, which is negative and large, compared to the error limit, is a requirement in order to confirm the achievement of the optimum condition. Such a situation, where some of the effects are larger in comparison to the error limit, does not ensure that the condition at the search region (E10, E20) of first set is the actual optimum and a second set of experiments is called for.

In the second set (set II), the search level (E10, E20) was fixed at the best condition of Set I, at a level of E14 in which the number of S. aureus ATCC6538 was 6.050 log CFU/mL. The extraction temperature, extraction time and ethanol concentration of central point in second set (E10, E20) were 60 °C, 18 h and 60%, respectively. The experimental conditions and the results of Set II experiments are presented in Table 3, and the effects and error limits are shown in Table 4. In the second set, the error limits for average, effects and changes in mean was 0.1739, 0.1235 and 0.1096, respectively. The change in mean effect was 0.0870. Most effective antibacterial activity (4.890 log CFU/mL) was obtained at E14. The extraction temperature, extraction time and ethanol concentration of E14 point in second set were 75 °C, 24 h and 45%, respectively. In this case, not all of the effects were smaller than error limit, and the change in mean effect was smaller compared to the error limit even though it is positive. It has been reported that if all or any of the effects are larger than the error limits, the change in the experimental conditions may yield better results [9].

Under the above conditions, a third set of experiments was designed in which the best condition of Set II (E14) was selected as the search level (E10, E20) for Set III. The experimental conditions and the results of Set III are shown in Table 5, and the calculated effects and error limits are presented in Table 6. In the EVOP-factorial design, the effects remain smaller than the error limits while the changes in the mean effect remain larger and positive so as to reach the optimum level. Thus, in the experiments of third set (set III), we were able to arrive at the proper optimum condition, in which all effects were smaller than error limit and the changes in mean effect were large and positive. As shown in Figure 1, the population of S. aureus ATCC6538 decreased from 7.535 log CFU/mL in the initial set to 4.865 log CFU/ml in the third set.

In this study, it was shown that higher antibacterial activity was achieved in a higher extraction temperature of 75 °C (R = −0.7904**) and in a longer extraction time of 24 h (R = −0.7273**). However, antibacterial activity of P. frutescens var. acuta leaf extract against S. aureus ATCC6538 was not affected by differentiation of ethanol concentration in the extraction solvent (R = 0.0635) as shown in Figure 2. Therefore, the maximum antibacterial activity of P. frutescens var. acuta leaf against S. aureus ATCC6538 determined by the EVOP-factorial technique was obtained at 75 °C extraction temperature, 24 h extraction time and 45% ethanol concentration.

P. frutescens var. acuta leaf extracted at optimum extraction condition (75 °C, 24 h, 45% ethanol concentration) was then extracted with 70% ethanol (MeOH), hexane, chloroform (CHCl3) and ethyl acetate (EtOAc) to identify in vitro antibacterial activities of P. frutescens var. acuta leaf against S. aureus ATCC6538. The effects of the P. frutescens var. acuta leaf extract on the growth of S. aureus ATCC6538 demonstrated the reduced viability. The ethyl acetate extracts exerted potential effect of antibacterial activity against S. aureus ATCC6538. The ethyl acetate extract exerted potential effect of antibacterial activity against S. aureus ATCC6538 followed by chloroform extract. More than 99% inhibition of tested pathogen was observed by the ethyl acetate extract (Figure 3A). Hexane and methanol extracts did not reveal significant effect of antibacterial activity against S. aureus ATCC6538.

Hexane extract and methanol extract did not reveal significant effect of antibacterial activity against S. aureus ATCC6538.

2.2. Total Phenolic Contents

The amount of total phenolic contents of the leaf extracts (n-hexane, chloroform, ethyl acetate and methanol) of P. frutescens var. acuta leaf was tested, and occurred in the range of 5.9–111.3 mg% dry sample (Figure 3B). The total phenolic contents of the leaf extracts of methanol, hexane, chloroform and ethyl acetate were noted to be 38.0 ± 6.7, 5.9 ± 3.2, 49.1 ± 4.3 and 111.3 ± 8.6 mg% of dry sample, respectively. These results showed that the total phenolic contents in ethyl acetate extract (111.3 ± 8.6 mg% of dry sample) were the highest as compared to the other extracts.

2.3. Scanning Electron Microscopy (SEM)

Elaborative study of SEM was carried out to visualize the effects of the ethanolic extract of P. frutescens var. acuta leaf on the morphology of S. aureus ATCC6538 and demonstrated altered cell morphology as compared to control group (Figure 4). Control cells in the absence of the extract showed a regular, smooth surface (Figure 3A). In contrast, cells inoculated with the ethanolic extract of P. frutescens var. acuta leaf revealed severe detrimental effect on the morphology of cell membrane, showing disruption and lysis of the membrane integrity (Figure 4B). Exposure of P. frutescens var. acuta leaf extract to S. aureus ATCC6538 revealed large surface collapse and wrinkled abnormalities on the morphology of the cells along with some small clefts formation (Figure 4C and D) and these findings are in strong agreement with a previous report [17]. Besides, several researchers have reported the effects of various plant extracts on the morphology of pathogenic bacteria [17,18].

3. Experimental Section

3.1. Plant Material

The leaves of P. frutescens var. acuta were obtained from Yakrung market, Daegu, Republic of Korea, in June 2009. The specimen was lyophilized for 48–72 h after storage at −70 °C. Freeze dried samples were pulverized with a blender (HJM-7000, Hanil, Korea). Extra pure grade solvents were purchased from Daemyung Scientific Co., Daegu, Republic of Korea. Chemical reagents were obtained from Sigma Co. (St. Louis, MO, USA), unless otherwise stated.

3.2. Microorganism

Staphylococcus aureus ATCC6538 was used in the antibacterial assay. The strain was obtained from the Korea Food and Drug Administration (KFDA), Daegu, Republic of Korea. Active cultures for experimental use were prepared by transferring a loopful of cells from stock cultures to flasks and inoculated in Luria-Bertani (LB) broth medium at 37 °C for 24 h. Culture of the bacterial strain was maintained on LB agar medium at 4 °C.

3.3. Preparation of Extracts

To design an experiment for establishing proper extraction conditions by EVOP-factorial design technique, 20 g of sample was hydrolyzed and extracted in a reflux extraction apparatus by differentiating the extraction temperature (30, 45, 60, 75 and 90 °C), extraction time (6, 12, 18, 24 and 30 h) and ethanol concentration (30, 45, 60 and 75%) and then freeze dried. Samples were homogenized for 30 seconds and serially diluted with peptone water (Difco, USA), as needed for the determination of microbial populations.

Leaves of P. frutescens var. acuta extracted at optimum extraction condition (75 °C, 24 h, 45% ethanol concentration) were then extracted with 70% ethanol (MeOH), hexane, chloroform (CHCl3) and ethyl acetate (EtOAc) separately at room temperature and the solvents from the combined extracts were evaporated by vacuum rotary evaporator (EYELA N1000, Japan).

3.4. EVOP-Factorial Design Technique

The EVOP-factorial design technique was applied to select the optimum conditions of three extraction factors in different experiments [8]. First, the control or search level experimental conditions (E10, E20) were selected based on the results of early investigation on the effect of individual extraction condition on the antibacterial activity of the ethanolic extract of P. frutescens var. acuta leaf. In second phase, the new experimental conditions (Ebe) were selected with lower and higher levels of inducers compared to the search level (Eb0). Antibacterial activities of P. frutescens var. acuta leaf extract were estimated following the given assay procedure and recorded for cycle I and II. Differences in the antibacterial activities between cycle I and II, and average antibacterial activities were calculated to estimate the effects and error limits. The magnitudes of effects, error limits and change in mean effect were examined as per the decision making procedure to arrive at the optimum level. When the experimental results of the first set (set I) did not reach to the satisfactory level of optimum conditions, a second set (set II) of experiments was planned, selecting the best condition of the first set as the new search level for the second set. This procedure was repeated till the optimum condition was obtained.

3.5. Assay for Antibacterial Potential

To determine the antibacterial activity of P. frutescens var. acuta leaf extract, enumeration of viable counts on LB plates was monitored as followings: 1 mL of the resuspended culture was diluted into 9 mL buffer peptone water, thereby diluting 10-fold. In total, 0.1 mL sample of each treatment was diluted and spread on the surface of LB agar. The colonies were counted after 24 h of incubation at 37 °C.

3.6. Scanning Electron Microscopic (SEM) Analysis

To determine the efficacy of the ethanolic extract of P. frutescens var. acuta leaf on the morphology of S. aureus ATCC6538, SEM study was performed using optimum concentration level of the ethanolic extract of P. frutescens var. acuta leaf. Controls were prepared without extract. The method of SEM was modified from Kockro method to observe the morphological changes [18]. The bacterial samples were washed gently with 50 mM/L phosphate buffer solution (pH 7.2), fixed with 2.5%, 100 mL glutaraldehyde and 1%, 100 mL osmic acid solutions. The specimen was dehydrated using sequential exposure per ethanol concentrations ranging from 30–100%. The ethanol was replaced by tertiary butyl alcohol. After dehydration, the specimen was dried with CO2. Finally, the specimen was sputter-coated with gold in an ion coater for 2 min, followed by microscopic examinations (S-4300; Hitachi, Japan).

3.7. Determination of Total Phenolic Contents

The amount of total phenolics was determined with the Folin–Ciocalteu reagent [20]. First, a standard curve was plotted using gallic acid as a standard. Different concentrations of samples were prepared in 80% of methanol. 100 μL of sample was dissolved in 500 μL (1/10 dilution) of the Folin–Ciocalteu reagent and 1000 μL of distilled water. The solutions were mixed and incubated at room temperature for 1 min. After 1 min, 1500 μL of 20% sodium carbonate solution was added. The final mixture was shaken and then incubated for 2 h in the dark at room temperature. The absorbance of samples was measured at 760 nm and the results were expressed in mg of gallic acid/g (GAE) of dry weight of samples.

4. Discussion

This study evaluated the optimum condition for determining the antibacterial activity of Perilla frutescens var. acuta leaf against Staphylococcus aureus using evolutionary operation factorial design technique. The optimum antibacterial activity was obtained at 75 °C extraction temperature, 24 h extraction time and 45% ethanol concentration. From the above results, it can be concluded that the application of evolutionary operation factorial design technique could serve as a potential tool to determine the optimum extraction conditions to achieve the desired levels of antibacterial activity of natural products and their extracts for their potential utilization in food industry to control food-borne pathogenic bacteria. Further, the scanning electron microscopic study showed a potential detrimental effect of the Perilla frutescens var. acuta leaf extract on the morphology of S. aureus ATCC6538. These morphological features in bacterial cells might be due to the lysis of outer membrane and the transformation by weak peptidoglycan followed by the loss of cellular electron dense material on the surface of the treated cells, resulting in the release of inner cell materials [21,22].

Moreover, the results obtained in this study support the possible use of Perilla frutescens var. acuta leaf extracts in the food industry, where pathogenic bacteria causes severe destruction by hampering the quality of food and consumer demand. We hope that natural compounds such as Perilla frutescens var. acuta leaf extract might be a suitable candidate in food industry to serve as a natural preservative to control food-borne pathogens. Besides, phenolic compounds were found to be one of the most abundant classes of constituents in ethyl acetate extract of Perilla frutescens var. acuta leaves. This is due to the presence of high bioactive compounds in ethyl acetate extract as compared to other organic extracts [22,23].

In conclusion, the population of S. aureus ATCC6538 decreased from 7.535 log CFU/mL to 4.865 log CFU/mL using EVOP factorial design technique in which three extraction conditions (extraction temperature, extraction time, ethanol concentration) were differentiated. Further, the bacterial population continued to decrease to 2.600 log CFU/mL by extraction with ethyl acetate. This is the first report of the application of evolutionary operation factorial design technique to evaluate the antibacterial activity of Perilla frutescens var. acuta leaf extracts and should prove useful in finding optimal extraction conditions for antibacterial activities.

References

  1. Careaga, M; Fernandez, E; Dorantes, L; Mota, L; Jaramillo, ME; Hernandez-Sanchez, H. Antibacterial activity of Capsicum extract against Salmonella typhimurium and Pseudomonas aeruginosa inoculated in raw beef meat. Int. J. Food Microbiol 2003, 83, 331–335.
  2. Lara, JAF; Senigalia, SWB; Oliveira, TCRM; Dutra, IS; Pinto, MF; Shimokomaki, M. Evaluation of survival of Staphylococcus aureus and Clostridium botulinum in charqui meats. Meat Sci 2003, 65, 609–613.
  3. Franco, BDGM; Landgraf, M; Shimokomaki, M; Azevedo, CHM. Condico es higie nico-sanita rias do charque comercializado em Sao Paulo, Brasil. Rev.de Microbiol 1987, 18, 98–102.
  4. Pinto, MF; Ponsano, EGH; Franco, BDGM; Shimokomaki, M. Charqui meats as fermented meat products: Role of bacteria for some sensorial properties development. Meat Sci 2002, 61, 187–191.
  5. Senigalia, SWB; Oliveira, TCR; Popper, IO; Shimokomaki, M. Implementacao doHACCP no processamento do charque visando Staphylococcus aureus. Rev. Nacional da Carne 1998, 27, 30–36.
  6. Box, GEP. Evolutionary operation: A method of increasing industrial productivity. Appl. Stat 1957, 6, 81–101.
  7. Kim, SJ; Park, SY; Kim, CW. A novel approach to the production of hyaluronic acid by Streptococcus zooepidemicus. J. Microbiol. Biotechnol 2006, 16, 1849–1855.
  8. Mukherjee, G; Banerjee, R. Evolutionary operation-factorial design technique for optimization of conversion of mixed agroproducts into gallic acid. Appl. Biochem. Biotechnol 2004, 118, 33–46.
  9. Banerjee, R; Bhattacharyya, BC. Evolutionary operation (EVOP) to optimize three-dimensional biological experiments. Biotechnol. Bioeng 1993, 41, 67–71.
  10. Tunga, R; Banerjee, R; Bhattacharyya, BC. Optimization of n variable biological experiments by evolutionary operation-factorial design technique. J. Biosci. Bioeng 1999, 87, 224–230.
  11. Chauhan, K; Trivedi, U; Patel, KC. Application of response surface methodology for optimization of lactic acid production using date juice. J. Microbiol. Biotechnol 2006, 16, 1410–1415.
  12. Kvist, T; Thyregod, P. Using evolutionary operation to improve yield in biotechnological processes. Qual. Real. Eng. Int 2005, 21, 457–463.
  13. Liu, JH; Steigel, A; Reininger, E; Bauer, R. Two new prenylated 3-benzoxepin derivatives ascyclooxygenase inhibitors from Perilla frutescens var. acuta. J. Nat. Prod 2000, 63, 403–405.
  14. Nakamura, Y; Ohto, Y; Murakami, A; Ohigashi, H. Superoxide scavenging activity of rosmarinic acid from Perilla frutescens Britton var. acuta f. Viridis. J. Agr. Food Chem 1998, 46, 4545–4550.
  15. Nakazawa, T; Ohsawa, K. Metabolites of orally administered Perilla frutescens extract in rats and humans. Biol. Pharm. Bull 2000, 23, 122–127.
  16. Choi, UK; Lee, OH; Lim, SI; Kim, YC. Optimization of antibacterial activity of Perilla frutescens var. acuta leaf against Pseudomonas aeruginosa using the evolutionary operation- factorial design technique. Int. J. Mol. Sci 2010, 11, 3922–3932.
  17. Benli, M; Kaya, I; Yigit, N. Screening antimicrobial activity of various extracts of Artemisia dracunculus L. Cell Biochem. Fun 2007, 25, 681–686.
  18. Eloff, JN. Antibacterial activity of Marula (Sclerocarya birrea (A. rich.) Hochst. subsp. caffra (Sond.) Kokwaro) (Anacardiaceae) bark and leaves. J. Ethnopharmacol 2001, 76, 305–308.
  19. Kockro, RA; Hampl, JA; Jansen, B; Peters, G; Scheihing, M; Giacomelli, R; Kunze, S; Aschoff, A. Use of scanning electron microscopy to investigate the prophylactic efficacy of rifampin-impregnated CSF shunt catheters. J. Med. Microbiol 2000, 49, 441–450.
  20. Lister, E; Wilson, P. Measurement of total phenolics and ABTS assay for antioxidant activity; Crop Research Institute: Lincoln, New Zealand. Personal communication, 2001.
  21. Shin, SY; Bajpai, VK; Kim, HR; Kang, SC. Antibacterial activity of eicosapentaenoic acid (EPA) against foodborne and food spoilage microorganisms. LWT-Food Sci. Technol 2007, 40, 1515–1519.
  22. Bajpai, VK; Sharif, MA; Choi, UK; Lee, JH; Kang, SC. Chemical composition, antibacterial and antioxidant activities of leaf essential oil and extracts of Metasequioa glyptostroboides Miki ex Hu. Food Chem. Toxicol 2009, 47, 1876–1883.
  23. Rauha, JP; Remes, S; Heinonen, M; Hopia, A; Kahkonen, M; Kujala, T; Pihlaja, K; Vuorela, H; Vuorela, P. Antimicrobial effects of Finnish plant extracts containing flavonoids and other phenolic compounds. Int. J. Food Microbiol 2000, 56, 3–12.
Ijms 12 02395f1 200
Figure 1. Comparison of antibacterial activity of Perilla frutescens var. acuta Leaf against S. aureus ATCC6538 at the central point of each set. (A) E11 of Set I (extraction temperature; 30 °C, extraction time; 6 hr, ethanol concentration; 30%); (B) central point of Set I (Extraction temperature; 45°C, extraction time; 12 hours, ethanol concentration; 45%); (C) central point of Set II (Extraction temperature; 60 °C, extraction time; 18 hours, ethanol concentration; 60%); (D) Central point of Set III (Extraction temperature; 75 °C, extraction time; 24 hours, ethanol concentration; 45%).

Click here to enlarge figure

Figure 1. Comparison of antibacterial activity of Perilla frutescens var. acuta Leaf against S. aureus ATCC6538 at the central point of each set. (A) E11 of Set I (extraction temperature; 30 °C, extraction time; 6 hr, ethanol concentration; 30%); (B) central point of Set I (Extraction temperature; 45°C, extraction time; 12 hours, ethanol concentration; 45%); (C) central point of Set II (Extraction temperature; 60 °C, extraction time; 18 hours, ethanol concentration; 60%); (D) Central point of Set III (Extraction temperature; 75 °C, extraction time; 24 hours, ethanol concentration; 45%).
Ijms 12 02395f1 1024
Ijms 12 02395f2 200

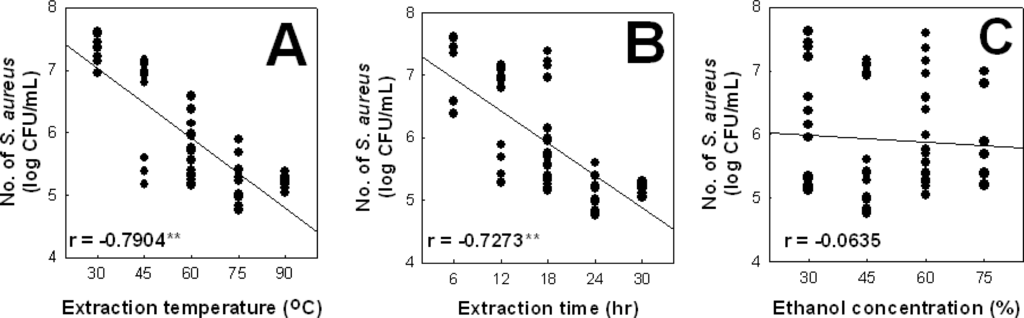

Figure 2. Main effects plot for responses against independent variables in EVOP (** p < 0.01). (A) extraction temperature; (B) extraction time; (C) ethanol concentration.

Click here to enlarge figure

Figure 2. Main effects plot for responses against independent variables in EVOP (** p < 0.01). (A) extraction temperature; (B) extraction time; (C) ethanol concentration.
Ijms 12 02395f2 1024
Ijms 12 02395f3 200
Figure 3. Antibacterial activity against S. aureus ATCC6538 and the amount of total phenolic content (mg% dry weight) of granic extracts derived from leaves of Perilla frutescens var. acuta. (A) Effect of Perilla frutescens var. acuta leaves on viability of S. aureus ATCC6538; (B) The amount of total phenolic content (mg% dry weight) of granic extracts derived from leaves of Perilla frutescens var. acuta.; MNE, methanol extract; HXE, hexane extract; CHE, chloroform extract; ETE, ethyl acetate extact.

Click here to enlarge figure

Figure 3. Antibacterial activity against S. aureus ATCC6538 and the amount of total phenolic content (mg% dry weight) of granic extracts derived from leaves of Perilla frutescens var. acuta. (A) Effect of Perilla frutescens var. acuta leaves on viability of S. aureus ATCC6538; (B) The amount of total phenolic content (mg% dry weight) of granic extracts derived from leaves of Perilla frutescens var. acuta.; MNE, methanol extract; HXE, hexane extract; CHE, chloroform extract; ETE, ethyl acetate extact.
Ijms 12 02395f3 1024
Ijms 12 02395f4 200
Figure 4. Scanning electron micrographs of S. aureus ATCC6538 at optimum concentration level of ethanolic leaf extract of Perilla frutescens var. acuta leaf. (A) Control; (B) disruption and lysis of membrane integrity; (C) wrinkled abnormalities and cleft formation; (D) abnormal breaking of cell.

Click here to enlarge figure

Figure 4. Scanning electron micrographs of S. aureus ATCC6538 at optimum concentration level of ethanolic leaf extract of Perilla frutescens var. acuta leaf. (A) Control; (B) disruption and lysis of membrane integrity; (C) wrinkled abnormalities and cleft formation; (D) abnormal breaking of cell.
Ijms 12 02395f4 1024
Table 1. Experimental design for the three inducer system of Set I.

Click here to display table

Table 1. Experimental design for the three inducer system of Set I.
Experimental conditionsE10E11E12E13E14E20E21E22E23E24
Temperature (°C)45(0)30(−)30(−)60(+)60(+)45(0)60(+)30(−)60(+)30(−)
Time (h)12(0)6(−)18(+)6(−)18(+)12(0)18(+)6(−)6(−)18(+)
Ethanol concentration (%)45(0)30(−)60(+)60(+)30(−)45(0)60(+)60(+)30(−)30(−)
Antibacterial activity (cycle I) (Log CFU/mL)6.977.457.156.586.157.175.757.356.597.22
Antibacterial activity (cycle II) (Log CFU/mL)7.127.626.966.395.956.925.997.596.377.38
Difference (cycle I − cycle II) (Log CFU/mL)−0.15−0.170.190.190.200.25−0.24−0.240.22−0.16
Average activity (Log CFU/mL)7.045 (a10)7.535 (a11)7.055 (a12)6.485 (a13)6.050 (a14)7.045 (a20)5.870 (a21)7.470 (a22)6.480 (a23)7.300 (a24)

Note: Numbers in parentheses are the coded symbols of levels of the extraction conditions.

Table 2. Effect on three-variable system, magnitude and error limits of Set I.

Click here to display table

Table 2. Effect on three-variable system, magnitude and error limits of Set I.
Effects ofCalculation of effects
Temperature1/4(a13+a14+a21+a23−a11−a12−a22−a24)0.1013
Time1/4(a12+a14+a21+a24−a11−a13−a22−a23)−0.4238
Ethanol concentration1/4(a12+a13+a21+a22−a11−a14−a23−a24)−0.1213
Temperature × Time1/4(a11+a14+a21+a22−a12−a13−a23−a24)−0.0988
Temperature × Ethanol concentration1/4(a11+a13+a21+a24−a12−a14−a22−a23)0.0338
Time × Ethanol concentration1/4(a11+a12+a21+a23−a13−a14−a22−a24)−0.0913
Temperature × Time × Ethanol concentration1/4(a21+a22+a23+a24−a11−a12−a13−a14)−0.5013
Change in mean effect1/10(a11+a12+a13+a14+a21+a22+a23+a24−4a10−4a20)−0.2115
Standard deviation (σ)1/2(σ12)=1/2(R1 × fk,n + R2 × fk,n)(1)0.1230
Error limits :For average±1.414σ (±2σ/√n)0.1739
For effects±1.004σ (±0.71 × 2σ/√n)0.1235
For change in mean±0.891σ (±0.63 × 2σ/√n)0.1096

R1: (largest difference—smallest difference) in Block 1; R2: (largest difference—smallest difference) in block 2. fk,n = constant depending on number of replication (n) and number of experiments (k) per cycle = 0.3 for n = 2 and k = 5.

Table 3. Experimental design for the three inducer system of Set II.

Click here to display table

Table 3. Experimental design for the three inducer system of Set II.
Experimental conditionsE10E11E12E13E14E20E21E22E23E24
Temperature (°C)60(0)45(−)45(−)75(+)75(+)60(0)75(+)45(−)75(+)45(−)
Time (h)18(0)12(−)24(+)12(−)24(+)18(0)24(+)12(−)12(−)24(+)
Ethanol concentration (%)60(0)45(−)75(+)75(+)45(−)60(0)75(+)75(+)45(−)45(−)
Antibacterial activity (cycle I) (Log CFU/mL)5.706.955.185.894.785.765.236.805.425.60
Antibacterial activity (cycle II) (Log CFU/mL)5.557.085.385.695.005.575.406.995.285.39
Difference (cycle I − cycle II) (Log CFU/mL)0.15−0.13−0.200.200.220.19−0.17−0.190.190.21
Average activity (Log CFU/mL)5.625 (a10)7.015 (a11)5.280 (a12)5.790 (a13)4.890 (a14)5.665 (a20)5.315 (a21)6.895 (a22)5.350 (a23)5.495 (a24)

Note: Numbers in parentheses are the coded symbols of levels of the extraction conditions.

Table 4. Effects on three-variable system, magnitude and error limits of Set II.

Click here to display table

Table 4. Effects on three-variable system, magnitude and error limits of Set II.
Effects ofCalculation of effects
Temperature−0.8350
Time−1.0175
Ethanol concentration0.1325
Temperature × Time0.5500
Temperature × EC0.3000
Time × Ethanol concentration−0.0275
Temperature × Time × EC−0.1638
Change in mean effect0.0870
Standard deviation (σ)0.1230
Error limits :For average0.1739
For effects0.1235
For change in mean0.1096

R1: (largest difference—smallest difference) in Block 1; R2: (largest difference—smallest difference) in block 2. fk,n = constant depending on number of replication (n) and number of experiments (k) per cycle = 0.3 for n = 2 and k = 5.

Table 5. Experimental design for the three inducer system of Set III.

Click here to display table

Table 5. Experimental design for the three inducer system of Set III.
Experimental conditionsE10E11E12E13E14E20E21E22E23E24
Temperature (°C)75(0)60(−)60(−)90(+)90(+)75(0)90(+)60(−)90(+)60(−)
Time (h)24(0)18(−)30(+)18(−)30(+)24(0)30(+)18(−)18(−)30(+)
Ethanol concentration (%)45(0)30(−)60(+)60(+)30(−)45(0)60(+)60(+)30(−)30(−)
Antibacterial activity (cycle I) (Log CFU/mL)4.835.155.185.385.114.765.265.255.315.30
Antibacterial activity (cycle II) (Log CFU/mL)5.025.355.305.195.214.975.055.405.185.20
Difference (cycle I − cycle II) (Log CFU/mL)−0.19−0.20−0.120.19−0.10−0.210.21−0.150.130.10
Average activity (Log CFU/mL)4.925 (a10)5.250 (a11)5.240 (a12)5.285 (a13)5.160 (a14)4.865 (a20)5.155 (a21)5.325 (a22)5.245 (a23)5.250 (a24)

Note: Numbers in parentheses are the coded symbols of levels of the extraction conditions.

Table 6. Effects on three-variable system, magnitude and error limits of Set III.

Click here to display table

Table 6. Effects on three-variable system, magnitude and error limits of Set III.
Effects ofCalculation of effects
Temperature−0.0550
Time−0.0750
Ethanol concentration0.0236
Temperature × Time−0.0325
Temperature × EC−0.0075
Time × Ethanol concentration−0.0325
Temperature × Time × EC0.0100
Change in mean effect0.2750
Standard deviation (σ)0.1215
Error limits :For average0.1718
For effects0.1299
For change in mean0.1083

R1: (largest difference—smallest difference) in Block 1; R2: (largest difference—smallest difference) in block 2. fk,n = constant depending on number of replication (n) and number of experiments (k) per cycle = 0.3 for n = 2 and k = 5.
