Int. J. Mol. Sci. 2011, 12(4), 2232-2241; doi:10.3390/ijms12042232

Article
One-Dimensional Hydrogen-Bonded Infinite Chain from Nickel(II) Tetraaza Macrocyclic Complex and 1,2-Cyclopentanedicarboxylate Ligand
In-Taek Lim and Ki-Young Choi *
Department of Chemistry Education, Kongju National University, Kongju 314-701, Korea; E-Mail: hak124@kongju.ac.kr
*
Author to whom correspondence should be addressed; E-Mail: kychoi@kongju.ac.kr; Tel.: +82-41-850-8284; Fax: +82-41-850-8347.
Received: 14 February 2011; in revised form: 24 March 2011 / Accepted: 25 March 2011 /
Published: 1 April 2011

Abstract

: The reaction of [Ni(L)]Cl2·2H2O (L = 3,14-dimethyl-2,6,13,17-tetraazatricyclo [14,4,01.18,07.12]docosane) with trans-1,2-cyclopentanedicarboxylic acid (H2-cpdc) yields a 1D hydrogen-bonded infinite chain with formula [Ni(L)(H-cpdc)2] (1). This complex has been characterized by X-ray crystallography, spectroscopy and cyclic voltammetry. The crystal structure of 1 exhibits a distorted octahedral geometry about Ni atom with four nitrogen atoms of the macrocycle and two oxygen atoms of the H-cpdc ligand at the axial position. Compound 1 crystallizes in the monoclinic system P21/c with a = 8.7429(17), b = 10.488(2), c = 18.929(4) Å, β = 91.82(2), V = 1734.8(6) Å3, Z = 2. Electronic spectrum of 1 reveals a high-spin octahedral environment. Cyclic voltammetry of 1 undergoes two waves of a one-electron transfer corresponding to NiII/NiIII and NiII/NiI processes.
Keywords:
1D hydrogen-bonded infinite chain; nickel(II) complex; tetraaza macrocycle; trans-1,2-cyclopentanedicarboxylic acid; distorted octahedral geometry

1. Introduction

The multidimensional supramolecules self-assembled by metal ions and mutidentate organic ligands have been of great interest due to specific structural features and potential applications such as catalysts, electronic conductivities, optical properties, and molecular magnets [19]. In the self-assembly of the supramolecular networks, intermolecular forces such as hydrogen bonds and π-π interactions are usually involved together with metal-ligand coordination bonds [1013]. Especially, hydrogen bonding is one of the key interactions for the process of molecular aggregation and recognition in nature, which creates novel structures of molecular assemblies [14]. In particular, self-assembly of macrocyclic complexes containing the square-planar geometry with aromatic and aliphatic polycarboxylate ligands has been proved to be good building blocks for the construction of coordination polymers and metallosupramolecules [1520]. For example, 1D nickel(II) complexes {[Ni(L)(tp)]·2H2O}n (L = 3,14-dimethyl-2,6,13,17-tetraazatricyclo[14,4,01.18,07.12]docosane; tp = terephthalate) [15] and {[Ni(L)(isotp)]·3H2O}n (isotp = isophthalate) [16] show distorted octahedral geometries and reveal weak antiferromagnetic interactions, which are assembled by square-planar nickel(II) complex [Ni(L)]Cl2·2H2O and aromatic dicarboxylate ligands. Furthermore, the reaction of [Ni(L)]Cl2·2H2O with 1,3,5-benzenetricarboxylic acid (H3-btc) yields 2D nickel(II) complex via covalent and hydrogen bonds {[Ni(L)]3[μ-btc]2·8H2O}n [15], which reveals a geometrically symmetric core with a {4/6} coordination number set. In addition, the octahedral nickel(II) complexes {[Ni(L)(oxalato)]·H2O}n [17] and [Ni(L)(malonato)]n [18] show that the nickel(II) ions in the complexes are bridged by the aliphatic dicarboxylate ligands to form 1D coordination polymers. However, the cyclo-aliphatic nickel(II) complexes [Ni(hatt)(H-chdc)2] (hatt = 1,3,10,12,16,19-hexaazatetracyclo[17,3,1,112.16,04.9]tetracosane; H2-chdc = trans-1,2-cyclohexanedicarboxylic acid) [19] and [Ni(L)(H-cbdc)2] (H2-cbdc = 1,1-cyclobutanedicarboxylic acid) [20] show the distorted octahedral geometries, which assemble in the solid state to form 1D hydrogen polymers. Therefore, the hydrogen-bonding interactions play a significant role in aligning the molecules and polymer stands in the crystalline solids.

To further investigate the coordination behavior, we attempted to self-assemble [Ni(L)]Cl2·2H2O containing the trans-1,2-cyclopentanedicarboxylic acid as building block. Herein, we report and characterize a 1D hydrogen-bonded infinite chain [Ni(L)(H-cpdc)2] (1) (L = 3,14-dimethyl-2,6,13,17-tetraazatricyclo[14,4,01.18,07.12]docosane; H2-cpdc = trans-1,2-cyclopentanedicarboxylic acid).

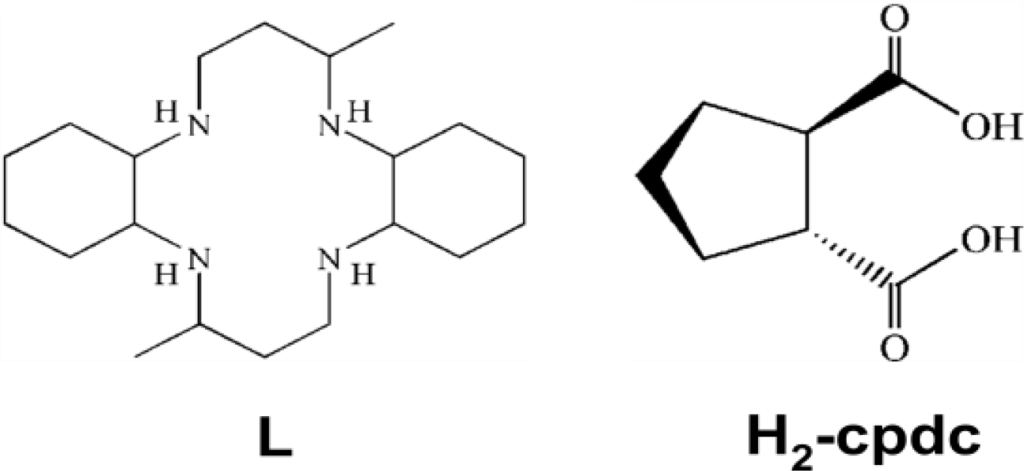

Ijms 12 02232f5 1024

2. Results and Discussion

2.1. Structural Description

An ORTEP drawing [21] of [Ni(L)(H-cpdc)2] (1) with the atomic numbering scheme is shown in Figure 1. Selected bond distances and angles are listed in Table 1. The skeleton of the macrocyclic unit in 1 adopts the classical trans-III (R,R,S,S) conformation with two chair-form six-membered and two gauche-form five-membered chelate rings. The central nickel atom is located on an inversion center. The nickel atom and the four nitrogen atoms of the macrocycle are exactly in a plane. The nickel(II) ion exhibits a distorted octahedral coordination geometry with the four secondary amine nitrogen atoms of the macrocycle and two oxygen atoms of H-cpdc ligands in axial positions. The average Ni-N distance of 2.063(4) Å is significantly longer than in the square-planar geometry of [Ni(L)]Cl2·2H2O [1.948(4) Å] [22], but is similar to those observed for high-spin octahedral nickel (II) complexes with 14-membered macrocyclic ligands [1520]. The Ni-O distance of 2.176(4) Å is similar to those previously reported values in closely related examples {[Ni(L)]3[μ-btc]2·8H2O}n (btc3− = 1,3,5-benzenetricarboxylate, 2.193(4) and 2.163(4) Å) [15], {[Ni(L)(H-chtc)]·H2O}n (chtc3− = 1,3,5-cyclohexanetricarboxylate, 2.176(6) and 2.152(6) Å) [16], in which these complexes are 2D coordination and hydrogen-bonded infinite chains. The N-Ni-N angles of the six-membered chelate rings are larger than those of the five-membered chelate rings. The dihedral angle between the plane of the carboxylate group and NiN4 plane is 67.6(5)°. The closest intermolecular Ni···Ni distance between neighboring stands is 8.743(2) Å. The Ni-O(1) linkage is bent slightly off the perpendicular to the NiN4 plane by 3.2–7.0°. The Ni-O(1)-C(11) and O(1)-C(11)-O(2) angles related to the H-cpdc ligand are 130.1(4) and 122.9(6)°, respectively. The deprotonated one among the two H-cpdc carboxylic groups is coordinated to the metal center. The secondary amines N(1) and N(2) of the macrocycle are intramolecular hydrogen bonded to the uncoordinated carboxylic oxygen O(2) and O(3) of the H-cpdc ligand [N(1)-H(17)O(2)#3 2.797(6) Å, 163(6)°; N(2)-H(18)O(3)#2 3.085(7) Å, 158(6)°; symmetry codes (#2) −x, −y + 1, −x + 1; (#3) x, y, z].

Interestingly, the protonated oxygen atom O(4) of the H-cpdc ligand forms intermolecular hydrogen bond to an adjacent uncoordinated carboxylic oxygen O(2) of the H-cpdc ligand [O(4)-H(19)O(2)#4 2.522(7) Å, 166(10)°; symmetry code (#4) −x, y − 1/2, −z + 3/2] (Figure 2 and Table 2). This interaction gives rise to a 1D hydrogen-bonded infinite chain, which is similar to that observed for the cyclo-aliphatic nickel(II) complexes [Ni(hatt)(H-chdc)2] [19] and [Ni(L)(H-cbdc)2] [20]. This fact may be due to the flexibility of the trans-1,2-cyclopentanedicarboxylate (H-cpdc) ligand as well as trans-1,2-cyclohexanedicarboxylate (H-chdc) and1,1-cyclobutanedicarboxylate (H-cbdc) ligands.

2.2. Chemical Properties

The IR spectrum of 1 shows a band at 3140 cm−1 corresponding to the ν(NH) of the coordinated secondary amines of the macrocycle. Two strong bands exhibit νas(COO) stretching frequency at 1561 cm−1 and νsym(COO) at 1396 cm−1, respectively. The value of Δν (165 cm−1) indicates that the carboxylate groups coordinated to the nickel(II) ion only as a monodentate ligand [23,24]. In addition, a sharp band at 3426 cm−1 is associated to the ν(OH) stretching vibration of the hydroxyl group in the H-cpdc ligand. The UV-Vis spectrum of 1 is listed in Table 3. The UV spectrum of 1 in the water solution shows an absorption maximum in the region 260 nm attributed to a ligand-metal charge transfer associated with the nitrogen and oxygen donors [25]. As shown in Figure 3, the solid state electronic spectrum of 1 in the visible region shows three absorption bands at 340, 530, and 694 nm assignable to the 3B1g3Egc, 3B1g3Egb, 3B1g3B2g + 3B1g3A2ga transitions, which is the characteristic spectrum expected for a high-spin d8 nickel(II) ion in a distorted octahedral environment [26,27]. However, the complex 1 dissolves in water and decomposes into the original compound [Ni(L)](ClO4)2 (459 nm) [28], which has a low-spin d8 nickel(II) ion in a square-planar environment. This fact can be understood in terms of the decomposition of the building block in water solution. The electronic spectrum for 1 clearly supports the structure determined by the X-ray diffraction study.

Cyclic voltammetric data for 1 in 0.10 M TEAP-DMSO solution are given in Table 4. Cyclic voltammogram of 1 in 0.1 M TEAP-DMSO solution is shown in Figure 4. The oxidation and reduction potentials for 1 give the irreversible and reversible one-electron processes at +0.66 and −1.23 V versus the Ag/AgCl reference electrode, assigned to the NiII/NiIII and NiII/NiI couples, respectively. This fact may be attributed to the coordination of the axial H-cpdc ligand, which is in agreement with the crystal structure of 1.

3. Experimental Section

3.1. Materials and Methods

All chemicals and solvents used in the syntheses were of reagent grade and were used without further purification. The complex [Ni(L)]Cl2·2H2O was prepared according to literature method [22]. IR spectra were recorded with a Perkin-Elmer Paragon 1000 FT-IR spectrophotometer using KBr pellets. Solution and solid electronic spectra were obtained on a JASCO Uvidec 610 spectrophotometer. Electrochemical measurements were accomplished with a three electrode potentiostat BAS-100BW system. A 3 mm Pt disk was used as the working electrode. The counter electrode was a coiled Pt wire and a Ag/AgCl electrode was used as a reference electrode. Cyclic voltammetric data were obtained in DMSO solution with 0.10 M tetraethylammonium perchlorate (TEAP) as supporting electrolyte at 20.0 ±0.1 °C. The solution was degassed with high purity N2 prior to carrying out the electrochemical measurements. Elemental analyses (C, H, N) were performed on a Perkin-Elmer CHN-2400 analyzer.

3.2. Synthesis of [Ni(L)(H-cpdc)2] (1)

To a methanol solution (20 cm3) of [Ni(L)]Cl2·2H2O (251 mg, 0.5 mmol) sodium trans-1,4-cyclohexanedicarboxylate was added (108 mg, 0.5 mmol) and the mixture was stirred for 30 min at room temperature. The solution was filtered to remove insoluble material. After the filtrate was allowed to stand at room temperature over a period of several days, violet crystals formed Crystals were collected by filtration and washed with diethyl ether. Anal. Calcd. for C34H58N4NiO8: C, 57.55; H, 8.24; N, 7.90. Found: C, 57.64; H, 8.32; N, 7.81%. IR (KBr, cm−1): 3426(m), 3191(m), 3140(m), 2931(m), 2861(s), 1630(m), 1561(s), 1448(m), 1396(s), 1308(m), 1268(w), 1155(w), 1111(s), 1076(m), 997(m), 948(m), 897(m), 786(w), 719(w), 639(w), 552(w), 537(w).

3.3. X-ray Crystallography

Single crystal X-ray diffraction measurement for 1 was carried out on an Enraf-Nonius CAD4 diffractometer using graphite-monochromated Mo-Kα radiation (λ = 0.71073 Å). Intensity data were measured at 293(2) K by ω-2θ technique. Accurate cell parameters and an orientation matrix were determined by the least-squares fit of 25 reflections. The intensity data were corrected for Lorentz and polarization effects. Empirical absorption correction was carried out using φ-scan [29]. The structure was solved by direct methods [30] and the least-squares refinement of the structure was performed by the SHELXL-97 program [31]. All non-hydrogen atoms were refined anisotropically. The hydrogen atoms were placed in calculated positions allowing them to ride on their parent C atoms with Uiso(H) = 1.2Ueq(C or N). Crystal parameters and details of the data collections and refinement are summarized in Table 4.

4. Conclusions

The reaction of [Ni(L)]Cl2·2H2O (L = 3,14-dimethyl-2,6,13,17-tetraazatricyclo[14,4,01.18,07.12]docosane) with trans-1,2-cyclopentanedicarboxylic acid (H2-cpdc) yields a 1D hydrogen-bonded infinite chain, which exhibits a distorted octahedral geometry with four nitrogen atoms of the macrocycle and two oxygen atoms of the trans-1,2-cyclopentanedicarboxylate ligand at the axial position. The hydrogen-bonding interactions of 1 play a significant role in aligning the polymer stands. Solid state electronic absorption spectrum of 1 reveals a high-spin d8 nickel(II) ion in a distorted octahedral environment. Cyclic voltammetry of 1 undergoes two waves of a one-electron transfer corresponding to NiII/NiIII and NiII/NiI processes. This complex makes the oxidation of Ni(II) to Ni(III) easier and the reduction to Ni(I) more difficult. This fact may be attributed to the coordination of the axial H-cpdc ligand, which is in agreement with the crystal structure of 1.

This work was supported by the research grant of the Kongju National University in 2010.

References

  1. Piguet, C; Bernardinelli, G; Hopfgartner, G. Helicates as versatile supramolecular complexes. Chem. Rev 1997, 97, 2005–2062. [Google Scholar]
  2. Munakata, M; Ning, GL; Kuroda-Sowa, T; Maekawa, M; Suenaga, Y; Harino, T. Construction of copper (I) coordination with zigzag sheet and porous frameworks. Inorg. Chem 1998, 37, 5651–5656. [Google Scholar]
  3. Evans, OR; Xiong, RG. Crystal engineering of acentric diamonded metal-organic coordination networks. Angew. Chem. Int. Ed 1999, 38, 536–538. [Google Scholar]
  4. Li, H; Eddaoudi, M. Design and synthesis of an exceptionally stable and highly porous meta-organic framework. Nature 1999, 402, 276–279. [Google Scholar]
  5. Liu, L; Huang, S-P; Yang, G-D; Zhang, H; Wang, X-L; Fu, Z-Y; Dai, J-C. Zn [Htma][ddm]: An interesting three-dimensional chiral nonlinear optical-active zinc-trimestate framework. Cryst. Growth Des 2010, 10, 930–936. [Google Scholar]
  6. Choi, HJ; Lee, TS; Suh, MP. Self-assembly of a molecular floral lace with one-dimensional channels and inclusion of glucose. Angew. Chem. Int. Ed 1999, 38, 1405–1408. [Google Scholar]
  7. Moulton, B; Zaworotko, MJ. From molecules to crystal engineering: Supramolecular isomerism and polymorphism in network solids. Chem. Rev 2001, 101, 1629–1658. [Google Scholar]
  8. Suh, MP; Cheon, YE; Lee, EY. Syntheses and functions of porous metallosupramolecular networks. Coord. Chem. Rev 2008, 252, 1007–1026. [Google Scholar]
  9. Eryazici, I; Moorefield, CN; Newkome, GR. Square planar Pd(II), Pt(II), and Au(III) terpyridine complexes; Their syntheses, physical properties, supramolecular constructs, and biomedical Activities. Chem. Rev 2008, 108, 1834–1895. [Google Scholar]
  10. Tominaga, M; Masu, H; Azumaya, I. Hydrogen-bonding networks of adamantane-based bisphenol molecules: Toward the preparation of molecular crystals with channels. Cryst. Growth Des 2011, 11, 542–546. [Google Scholar]
  11. Sharma, CVK; Rogers, RD. “Molecular chinese blinds”: Self-organization of tetranitrato lanthanide complexes into open, chiral hydrogen bond network. Chem. Commun 1999, 1, 83–84. [Google Scholar]
  12. Ye, B-H; Tong, M-J; Chen, X-M. Metal-organic molecular architectures with 2,2’-bipyridine-like and carboxylate ligands. Coord. Chem. Rev 2005, 249, 545–546. [Google Scholar]
  13. Zhao, X; He, H; Dai, F; Sun, D; Ke, Y. Supramolecular isomerism in honeycomb metal-organic frameworks driven by CHπ interactions: Homochiral crystallization from an achiral ligand through chiral inducement. Inorg. Chem 2010, 49, 8650–8652. [Google Scholar]
  14. Lehn, JM; Mascal, M; MeCian, A; Fisher, J. Molecular ribbons from molecular recognition directed self-assembly of self-complementary molecular components. J. Chem. Soc. Perkin Trans. 1992, 461–467. [Google Scholar]
  15. Choi, K-Y; Chun, K-M; Suh, I-H. Synthesis and characterization of one-dimensional nickel(II) macrocyclic complexes with bridging organic ligands. Polyhedron 2001, 20, 57–65. [Google Scholar]
  16. Choi, K-Y; Kim, K-J. Self-assembly of 1D coordination polymers from nickel (II) tetraaza macrocycle and carboxylate ligands. Polyhedron 2008, 27, 1311. [Google Scholar]
  17. Kim, JC; Cho, J; Lough, AJ. Syntheses, isolation, and structures of nickel (II) and copper (II) coordination polymers with tetraaza macrocyclic ligands. Inorg. Chim. Acta 2001, 317, 252–258. [Google Scholar]
  18. Choi, K-Y. Self-assembly of one-dimensional coordination polymer from nickel (II) macrocyclic complex and malonate ligand. J. Chem. Crystallogr 2010, 40, 477–481. [Google Scholar]
  19. Choi, K-Y. One-dimensional hydrogen-bonded polymer from hexaazamacrotetracyclic nickel(II) complex and trans-1,4-cyclohexanedicarboxylate ligand. J. Inorg. Organomet. Poly 2010, 20, 867–872. [Google Scholar]
  20. Choi, K-Y; Kim, K-J. Self-assembly of metal(II) tetraaza macrocyclic complexes with cyclobutane-1-carboxylic acid-1-carboxylate ligand linked by hydrogen bond. Struct. Chem 2008, 19, 741–747. [Google Scholar]
  21. Farrugia, LJ. ORTEP-3 for windows-a version of ORTEP-III with a graphical user interface (GUI). J. Appl. Cryst 1997, 30, 568. [Google Scholar]
  22. Choi, K-Y; Kim, JC; Jensen, WP; Suh, I-H; Choi, S-S. Copper (II) and nickel (II) complex with 3,14-dimethyl-2,6,13,17-tetraazatricyclo[14,4,01.18,07.12]docosane [M(C20H40N4)]Cl2·2H2O (M = CuII and NiII). Acta Cryst 1996, C52, 2166–2168. [Google Scholar]
  23. Bakalbassis, EG; Tsipis, CA; Bozopoulos, AP; Dreissing, DW; Hartl, H; Mrozinski, J. Strong ferromagnetism between copper(II) ions separated by 6.7. ANG. In a new phthalato-bridged copper(II) binuclear complex. Inorg. Chem 1991, 30, 2801–2806. [Google Scholar]
  24. Cao, R; Shi, Q; Sun, D; Hong, M; Bi, W; Zhao, Y. Syntheses and characterization of copper(II) polymeric complexes constructed from 1,2,4,5-benzenetetracarboxylic acid. Inorg. Chem 2002, 41, 6161–6168. [Google Scholar]
  25. Donlevy, TM; Gahan, LR; Hambley, TW; Hanson, GR; McMahon, KL; Stranger, R. Structure and spectroscopy of the copper(II) complex of the unsymmetric encapsulating ligand 1-methyl-8-ammonio-3,13-diothia-6,10,16,19-tetraazabicyclo[6.6.6]icosane (AMN4S2sar). Inorg. Chem 1994, 33, 5131–5137. [Google Scholar]
  26. Mochizuki, K; Kondo, T. Isolation and Vis-absorption spectrum of trans-[Ni(OH2)2(cyclam)] Cl2·4H2O. Inorg. Chem 1995, 34, 6241–6243. [Google Scholar]
  27. Kim, JC; Cho, J; Kim, H; Lough, AJ. Isolation and characterization of the first stable bicarbonato complex in a nickel (II) system: Identification of unusual monodentate coordination. Chem. Commun 2004, 16, 1796–1797. [Google Scholar]
  28. Kang, S-G; Kweon, JK; Jung, S-K. Synthesis of new tetraaza macrocyclic ligands with cyclohexane rings and their Ni(II) and Cu(II) complexes. Bull. Korean Chem. Soc 1991, 12, 483–487. [Google Scholar]
  29. North, ACT; Phillips, DC; Mathews, FS. A Semi-empirical method of absorption correction. Acta Cryst 1968, A24, 351–359. [Google Scholar]
  30. Sheldrick, GM. SHELXS 97, Program for Crystal Structure Solution; University of Göttingen: Göttingen, Germany, 1997. [Google Scholar]
  31. Sheldrick, GM. SHELXL 97, Program for Crystal Structure Refinement; University of Göttingen: Göttingen, Germany, 1997. [Google Scholar]

Supplementary Material

Crystallographic data for the structural analysis have been deposited with the Cambridge Crystallographic Data Center, CCDC No. 812214 for 1. Copies of this information may be obtained free of charge from the Director, CCDC, 12 Union Road, Cambridge, CB2, 1EZ, UK (Fax: +44-1223-336033; E-Mail: deposit@ccdc.cam.uk or http://www.ccdc.cam.ac.uk).

Ijms 12 02232f1 1024

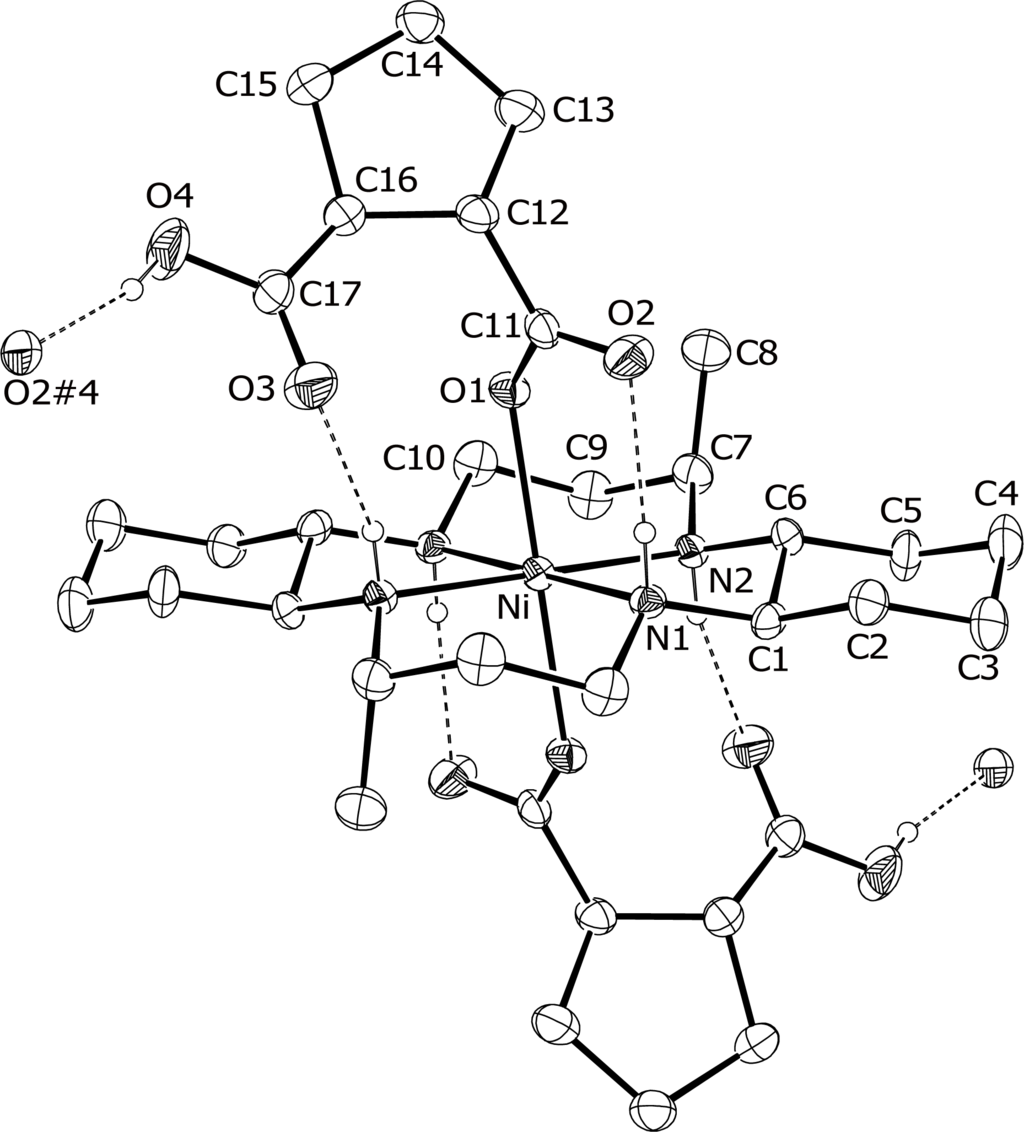

Figure 1. An ORTEP diagram of [Ni(L)(H-cpdc)2] (1) with the atomic numbering scheme (30% probability ellipsoids shown). Symmetry code: (#4) −x, y − 1/2, −z + 3/2.

Click here to enlarge figure

Figure 1. An ORTEP diagram of [Ni(L)(H-cpdc)2] (1) with the atomic numbering scheme (30% probability ellipsoids shown). Symmetry code: (#4) −x, y − 1/2, −z + 3/2.
Ijms 12 02232f1 1024
Ijms 12 02232f2 1024

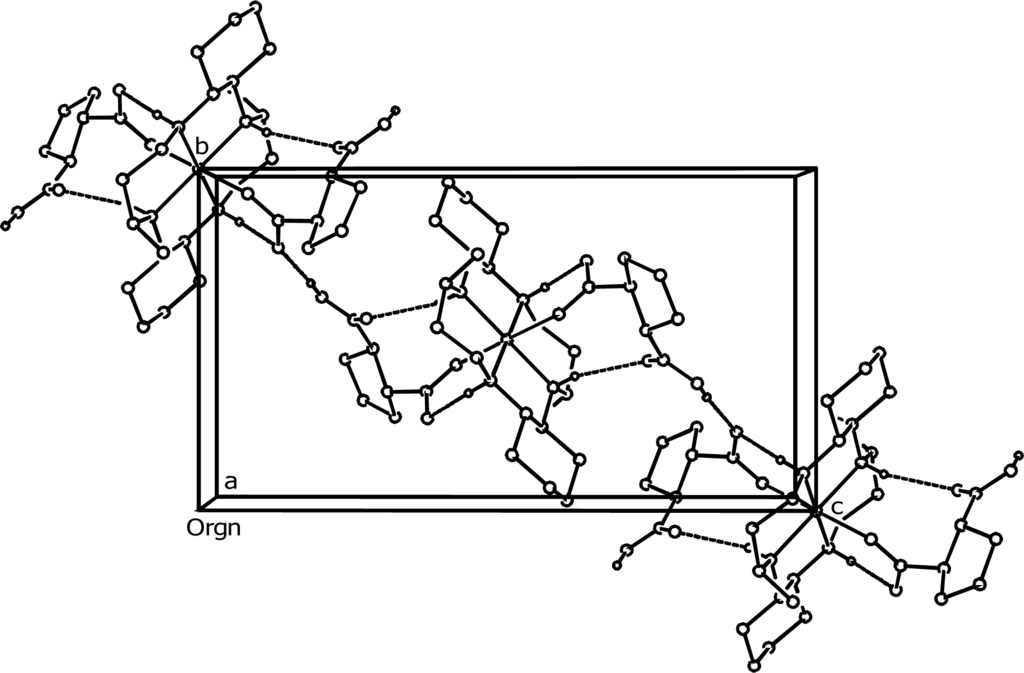

Figure 2. Crystal packing diagram of [Ni(L)(H-cpdc)2] (1), showing the intermolecular hydrogen bonds as dashed lines The hydrogen atoms other than those participating in hydrogen bonding are omitted for clarity.

Click here to enlarge figure

Figure 2. Crystal packing diagram of [Ni(L)(H-cpdc)2] (1), showing the intermolecular hydrogen bonds as dashed lines The hydrogen atoms other than those participating in hydrogen bonding are omitted for clarity.
Ijms 12 02232f2 1024
Ijms 12 02232f3 1024

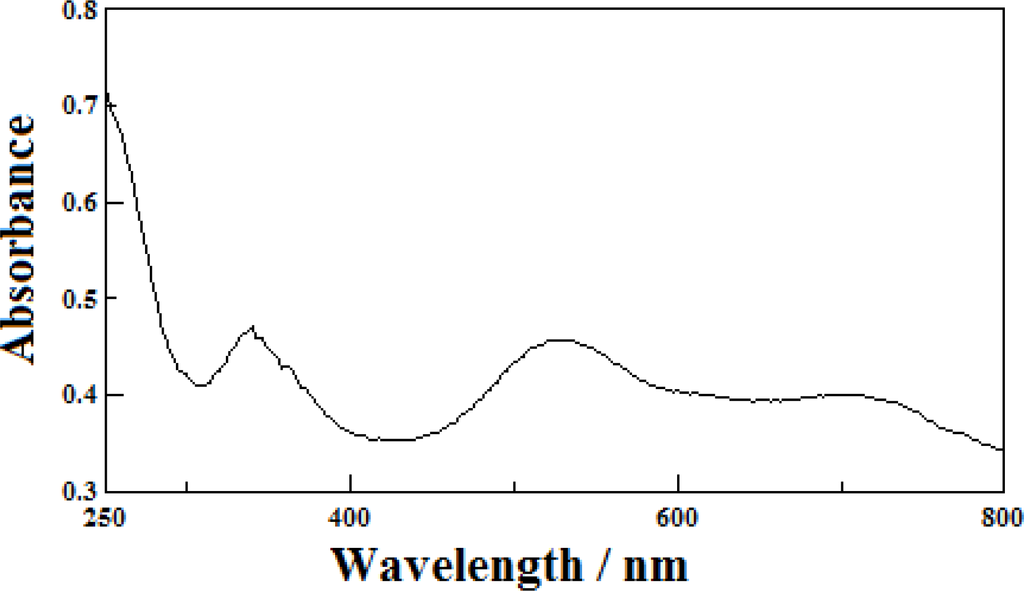

Figure 3. Solid state electronic absorption spectrum of [Ni(L)(H-cpdc)2] (1) by the diffuse reflectance method at 20.0 ± 0.1 °C.

Click here to enlarge figure

Figure 3. Solid state electronic absorption spectrum of [Ni(L)(H-cpdc)2] (1) by the diffuse reflectance method at 20.0 ± 0.1 °C.
Ijms 12 02232f3 1024
Ijms 12 02232f4 1024

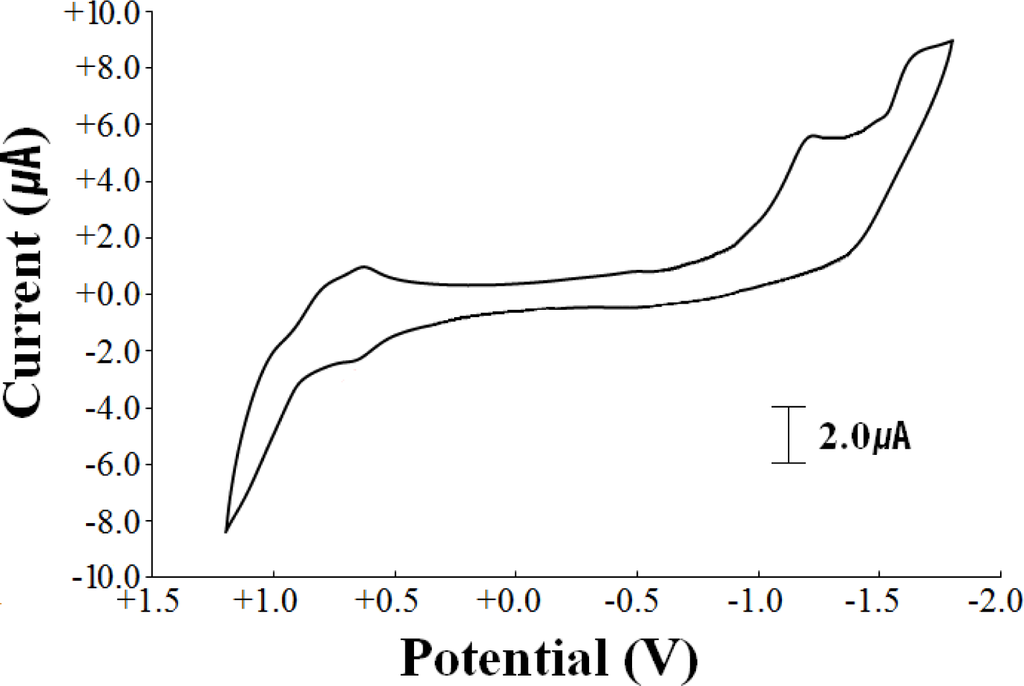

Figure 4. Cyclic voltammogram of [Ni(L)(H-cpdc)2] (1) in 0.1 M TEAP-DMSO solution at 20.0 ± 0.1 °C. The scan rate is 100 mV/s.
