Int. J. Mol. Sci. 2011, 12(3), 1625-1632; doi:10.3390/ijms12031625

Article
Photopyroelectric Spectroscopic Studies of ZnO-MnO2-Co3O4-V2O5 Ceramics
Zahid Rizwan 1, Azmi Zakaria 1,2,* and Mohd Sabri Mohd Ghazali 1
1
Department of Physics, Faculty of Science, University Putra Malaysia, 43400 UPM Serdang, Selangor, Malaysia; E-Mails: zahidrizwan64@gmail.com (Z.R.); mgm.sabri@gmail.com (M.S.M.G.)
2
Advanced Materials and Nanotechnology Laboratory, Institute of Advanced Technology, University Putra Malaysia, 43400 UPM Serdang, Selangor, Malaysia
*
Author to whom correspondence should be addressed; E-Mail: azmizak@gmail.com; Tel.: +603-89466650; Fax: +603-89454454.
Received: 4 January 2011; in revised form: 9 February 2011 / Accepted: 16 February 2011 /
Published: 3 March 2011

Abstract

: Photopyroelectric (PPE) spectroscopy is a nondestructive tool that is used to study the optical properties of the ceramics (ZnO + 0.4MnO2 + 0.4Co3O4 + xV2O5), x = 0–1 mol%. Wavelength of incident light, modulated at 10 Hz, was in the range of 300–800 nm. PPE spectrum with reference to the doping level and sintering temperature is discussed. Optical energy band-gap (Eg) was 2.11 eV for 0.3 mol% V2O5 at a sintering temperature of 1025 °C as determined from the plot (ρhυ)2 versus . With a further increase in V2O5, the value of Eg was found to be 2.59 eV. Steepness factor ‘σA’ and ‘σB’, which characterize the slope of exponential optical absorption, is discussed with reference to the variation of Eg. XRD, SEM and EDAX are also used for characterization of the ceramic. For this ceramic, the maximum relative density and grain size was observed to be 91.8% and 9.5 μm, respectively.
Keywords:
photopyroelectric spectroscopy; ZnO; V2O5; sintering; secondary phases; optical energy band-gap

1. Introduction

ZnO based ceramic semiconductors are widely used as gas sensors [1], piezoelectrics, electrodes for solar cells, phosphors, transparent conducting films and varistors [2]. Varistors possess high energy absorption capability against various surges. They are extensively used as protective devices to regulate transient voltage surges of unwanted magnitudes due to their fast response to over voltage transients. They sense and clamp transient voltage pulses in nanosecond speed [3]. The exact role of many additives in the electronic structure of ZnO based varistors is uncertain. Improving the electrical properties of ZnO based varistors is under research. The formulation of varistors that have high non-linear characteristics is the most important parameter to consider. Varistors are formed with small amounts of other metal oxides such as Al2O3, Bi2O3, Co3O4, Cr2O3, MnO, Sb2O3, TiO2, etc. Such additives are the main tools that are used to improve the non-linear response and stability of the varistor [4]. This nonlinear response can be explained by the mechanism concerning the grain boundaries and associated defect concentration gradients [5]. Electrical properties of the ceramic ZnO depend on the distribution of vacancies, impurities and their behavior. Much has been done in I–V characterization of ZnO based varistors in previous studies [4]. It is essential to obtain information on the optical absorption behavior of the ceramic ZnO doped with metal oxides for the examination of electronic states. The optical absorption behavior of ZnO doped with MnO2, Co3O4 is discussed for the different doping levels of V2O5 at different processing conditions.

2. Experimental Section

ZnO (99.9% pure, Alfa Aesar) was doped with 0.4MnO2 (99.999% pure, Alfa Aesar), 0.4Co2O3 (99.7% pure, Alfa Aesar) and xV2O5 (99.6% pure, Alfa Aesar) where x = 0–1.5 mol%. The detail of the composition is given in Table 1. Powder of all ingredients (24 hour ball milled) of each mole percent was pre-sintered at 700 °C for 90 minutes in open atmosphere at a heating and cooling rate of 5 °C/min. Samples were ground and polyvinyl alcohol (1.1 wt %) was added as a binder. The dried powder was pressed under a force of 800 kg cm−2 to form a disk of 10 mm diameter. Finally the disks were sintered at 950 and 1025 °C for 2 hours in air at a heating and cooling rate of 4 °C min−1. The disk from each sample was ground for 1 hour and granulated by sieving through a 75-mesh screen for the photopyroelectric (PPE) spectroscopy and XRD analysis. Density was calculated using geometrical method. Polished samples were thermally etched for microstructure analysis. Grain size was determined by the grain boundary crossing method. Cu Kα radiation with PANAalytical (Philips) X’Pert Pro PW1830 was used for X-ray analysis. XRD data were analyzed by X’Pert High Score software.

The measurement of PPE signal amplitude has been described elsewhere [6]. A light beam (300 to 800 nm) from one kW Xenon arc lamp, mechanically chopped at 10 Hz was used for PPE measurements. Optical absorption coefficient (β) varies with the excitation photon energy () [7]. It is given by the expression, (βhυ)2 = ( − Eg), where is the photon energy, C is constant and Eg is the optical energy band gap. PPE signal intensity (ρ) is directly proportional to β, hence (ρhυ)2 is related to linearly. From the plot of (ρhυ)2 versus , Eg is obtained by extrapolating the linear fitted region to zero.

Optical absorption edge has been observed in a variety of crystalline and amorphous materials. The optical-absorption edge has an important role in electron or exciton-phonon interactions [8]. It is found that PPE signal intensities plotted semi logarithmically vary linearly with the photon energy just lower than the fundamental absorption edge [9]. Therefore, an empirical relation for absolute measuring temperature (T) and photon energy () is given by the equation:

P = P 0 e ( σ ( h υ h υ 0 k T )
where k is the Boltzmann constant and P0, σ, υ0 are fitting parameters [10,11]. The value σ/kT determines the exponential slope, where σ is the steepness factor and is characterized in optical absorption edge. The steepness factor is found (σA in region-A and σB in region-B) from the PPE spectrum.

3. Results and Discussion

The XRD pattern of the V2O5 doped ZnO for the sintering temperature of 1025 °C can be seen in Figure 1. The samples at 0 mol% of V2O5 contain small peaks related to Co3O4 (reference code 00-042-1467) at both sintering temperatures but peaks are clearer at 1025 °C. Very small peaks related to ZnMn2O4 (reference code 01-077-0470) were also found at both sintering temperatures. Samples doped at 0.3 mol% V2O5 contain the secondary phases Zn3(VO4)2 (reference code 00-034-0378), Zn4V2O9 (reference code 01-077-1757). The same phases are also found at all higher doping levels of V2O5.

The density increases from 57.8 to 91.8% of the theoretical density at a sintering temperature of 925 °C for a 2 hour sintering time, Figure 2. The density increases with the increase of V2O5 mol% and is in accordance with the literature [12]. The density increase at 925 °C above 0.7 mol% of V2O5 indicates that the densification process is essentially completed at the sintering temperature above 900 °C [12]. It is expected that the vanadium-rich liquid phase Zn3(VO4)2 enhances the densification by a solution and re-precipitation of ZnO [13]. The density of the ceramic is increased from 62.8 to 82.4% for the sintering temperature of 1025 °C. Density increases slowly compared to at the lower sintering temperature. The density has a lower value above 0.7 mol% of V2O5 at a sintering temperature of 1025 °C than 925 °C. This lower density may be due to the volatility of V2O5 [13].

Examination of the microstructure, Figure 3, shows that the grain size of the ceramic at 0 mol% of V2O5 is 2.8 and 3.1 μm and is increased to 8.1 and 9.48 μm at the sintering temperature of 925 and 1025 °C, respectively. The grain size is increased with the increase of sintering temperature at all mol% of V2O5. Large grains have oblong shape and small grains are also found in the ceramic. Exaggerated ZnO grain growth is found in the samples, Figure 4. This is due to the high reactivity of the V-rich liquid phase during sintering, which causes abnormal grain growth [14]. The addition of V2O5 can enhance the densification and grain growth behavior. This fact can be attributed to the formation of Zn3(VO4)2, which acts as a liquid phase sintering aid [12]. EDX analysis shows that the vanadium is distributed at the grain boundaries as well as triple point junction [15]. Co and Mn are distributed in the grain boundaries and in the grain interiors [16]. The value of Eg is reduced from 3.2 eV (pure ZnO) to 2.28 and 2.54 eV at 0 mol% of V2O5 for the sintering temperatures of 1025 and 925 °C, respectively (Figure 5). This is due to 0.4 mol% of MnO2 and Co3O4 because the reduction of Eg is due to the introduction of interface states by Mn and Co ions as the ionic radius of Co and Mn is smaller than that of Zn2+. With the addition of 0.3 mol% of V2O5, the Eg decreases from 2.28 and 2.54 eV to 2.17 and 2.11 eV at 1025 and 925 °C, respectively. It is due to the introduction of the interface states.

The ionic radius of Zn2+ is 0.74 Å and the ionic radius of Vanadium is 0.59 Å, so the reduction in the value of Eg at 0.3 mol% of V2O5 is due to the limited substitution of Vanadium ions in the ZnO lattice. The value of Eg is increased with the doping level of V2O5 beyond 0.3 mol%. It is expected that this may be due to the segregation of the V2O5 forming secondary phases Zn3(VO4)2 and Zn4V2O9 and reduces the interface states. The further increase in the value of Eg may be due to the high volatility of V2O5 at the high sintering temperature of 1025 °C. The steepness factor σA, Figure 6, increased with the increase of V2O5 doping level for the both sintering temperatures 925 and 1025 °C for the 2 hour sintering time. The increase in the value of σA with the doping level indicates the decrease in the PPE signal intensity. The decrease in the PPE signal intensity corresponds to the decrease in structural disordering. This indicates the decrease in the interface states with the doping level of V2O5. Resultantly, the value of Eg increases slightly as shown in Figure 5.

Generally an exponential tail (in region-B) for crystalline semiconductors can be characterized by:

( σ B / K T ) 1 = A < U 2 > T / C o
Co is the exponential tail parameter of the order of unity and <U2>T is the thermal average of the square of the displacement of the atoms from their equilibrium positions. The term <U2>T expresses the energy of displacement of atoms [17,18].

The value of the steepness factor (σB) decreases with the increase of doping of V2O5 for sintering temperatures of 925 and 1025 °C, Figure 7. This indicates that the average thermal displacement energy of atoms is increasing. This increase indicates an increase in structural disordering. Thus, the value of Eg decreases. Above 0.3 mol%, the value of σB increases with the increase of V2O5 for both sintering temperatures of 925 and 1025 °C. This indicates that the average thermal displacement energy of atoms is decreasing, which indicates a decrease in structural disordering. Correspondingly, the value of Eg increases. This may be due to the high volatility of the V2O5 and the secondary phases developed in the ceramics.

4. Conclusions

XRD results confirm the hexagonal phase of ZnO and few peaks of the secondary phases ZnMn2O4, Zn3(VO4)2 and Zn4V2O9. The EDX analysis shows that the V, Co and Mn are distributed at the grain boundaries and grain interiors. The maximum and minimum grain size is found to be 9.48 μm for 1025 °C and 2.8 μm for the 925 °C sintering temperature, respectively. The maximum and minimum relative density is found to be 82.4 for 1025 °C and 57.9 for 925 °C sintering temperature, respectively. The optical energy band-gap is reduced to 2.11 eV for 0.3 mol% V2O5 at the sintering temperature of 1025 °C. PPE spectrometry proved to be a useful tool to study the optical absorption behavior along with the other electrical measurements of ZnO based varistors.

The authors are grateful to the Ministry of Higher Education of Malaysia for supporting this work under Fundamental Research Grant Scheme (FRGS) of project # 01-04-10-864FR.

References

  1. Lin, HM; Tzeng, SJ; Hsiau, PJ; Tsai, WL. Electrode effects on gas sensing properties of nanocrystalline zinc oxide. Nanostruct. Mater 1998, 10, 465–477.
  2. Clarke, DR. Varistor ceramics. J. Amer. Ceram. Soc 1999, 82, 485–502.
  3. Souza, FL; Gomez, JW; Bueno, PR; Cassia-Santos, MR; Araujo, AL; Leiti, ER; Longo, E; Varela, AJ. Effect of the addition of ZnO seeds on the electrical properties of ZnO-based varistors. Mater. Chem. Phys 2003, 80, 512–516.
  4. Matsuoka, M. Nonohmic properties of zinc oxide ceramics. Jpn. J. App. Phy 1971, 10, 736–746.
  5. Snow, GS; White, SS; Cooper, RA; Armijo, JR. Characterization of high field varistors in the system ZnO-CoO-PbO-Bi2O3. Am. Ceram. Soc. Bull 1980, 59, 617–622.
  6. Eda, K. Zinc oxide varistor. IEEE Elect. Insul. Mag 1989, 5, 28–41.
  7. Bai, SN; Shieh, JS; Tseng, TY. Characteristic analysis of ZnO varistors made with spherical precipitation powders. Mater. Chem. Phys 1995, 41, 104–109.
  8. Toplan, O; Gunay, V; Ozkan, OT. Grain growth in the MnO added ZnO-6 wt % Sb2O3 ceramic system. Ceram. Int 1997, 23, 251–255.
  9. Fah, CP; Wang, J. Effect of high-energy mechanical activation on the microstructure and electrical properties of ZnO-based varistors. Solid State Ionics 2000, 132, 107–117.
  10. Nahm, CW; Shin, BC. Highly stable nonlinear properties of ZnO–Pr6O11–CoO–Cr2O3–Y2O3-based varistor ceramics. Mater. Lett 2003, 57, 1322–1326.
  11. Ghoosh, AK; Som, KK; Chatterjee, S; Chaudhuri, BK. Photoacoustic spectroscopic study of energy gap, optical absorption, and thermal diffusivity of polycrystalline ZnSexTe1-x (0 <= x <= 1) alloys. Phys. Rev. B 1995, 51, 4842–4848.
  12. Zelaya-Angel, O; Alvarado-Gil, JJ; Lozada-Morales, R. Band-gap shift in CdS semiconductor by photoacoustic spectroscopy: Evidence of a cubic to hexagonal lattice transition. Appl. Phys. Lett 1994, 64, 291–293.
  13. Escobedo Morales, A; Sànchez Mora, E; Pal, U. Use of diffuse reflectance spectroscopy for optical characterization of un-supported nanostructures. Revista Mexicana De Física S 2007, 53, 18–22.
  14. Wang, JF; Su, W-B; Chen, H-C; Wang, W-X; Zang, G-Z. (Pr, Co, Nb)-doped SnO2 varistor ceramics. J. Am. Ceram. Soc 2005, 88, 331–334.
  15. Wurst, JC; Nelson, JA. Lineal intercept technique for measuring grain size in two-phase polycrystalline ceramics. J. Am. Ceram. Soc 1972, 55, 109–111.
  16. Gonzalez-Hernandez, J; Gorley, PM; Horley, PP; Vartsabyuk, OM; Vorobiev, YV. X-Ray, kinetic and optical properties of thin CuInS2 films. Thin Solid Films 2002, 403–404, 471–475.
  17. Sabri, MGM; Azmi, BZ; Rizwan, Z; Halimah, MK; Hashim, M; Sidek, HAA. Application of direct current and temperature stresses of low-voltage ZnO based varistor ceramics. Am. J. Appl. Sci 2009, 6, 1591–1595.
  18. Toyoda, T; Shimamoto, S. Effect of Bi2O3 in ceramic ZnO on photoacoustic spectra and current voltage characteristics. Jpn. J. Appl. Phys 1998, 37, 2827–2831.
Ijms 12 01625f1 200

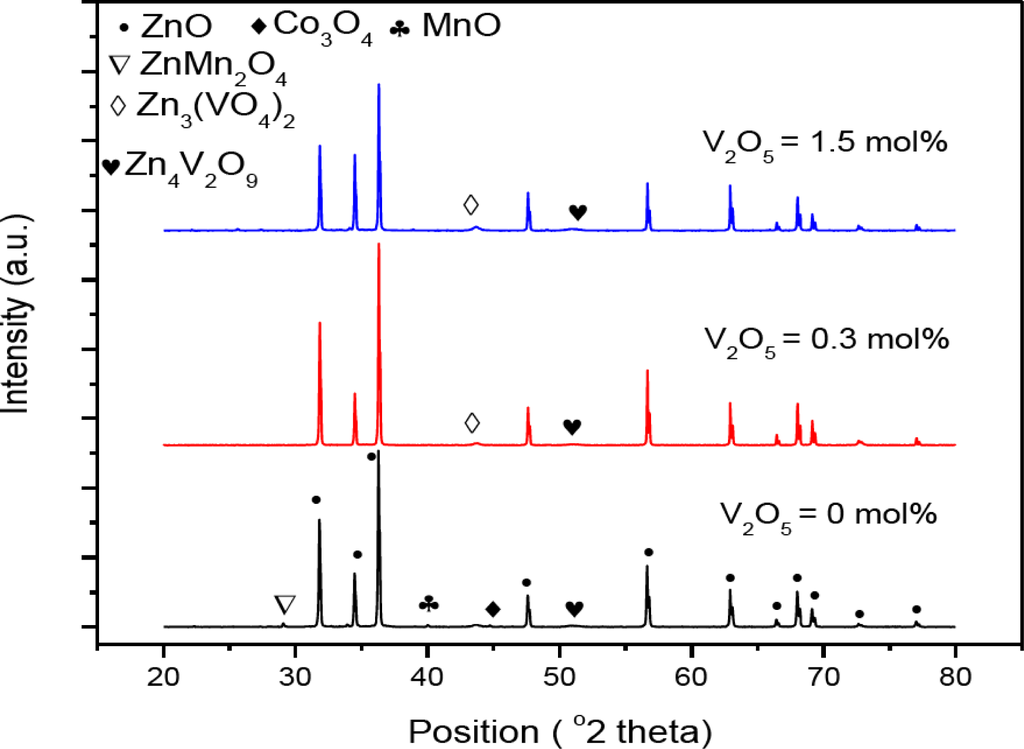

Figure 1. XRD patterns of V2O5 doped ZnO at 1025 °C.

Click here to enlarge figure

Figure 1. XRD patterns of V2O5 doped ZnO at 1025 °C.
Ijms 12 01625f1 1024
Ijms 12 01625f2 200

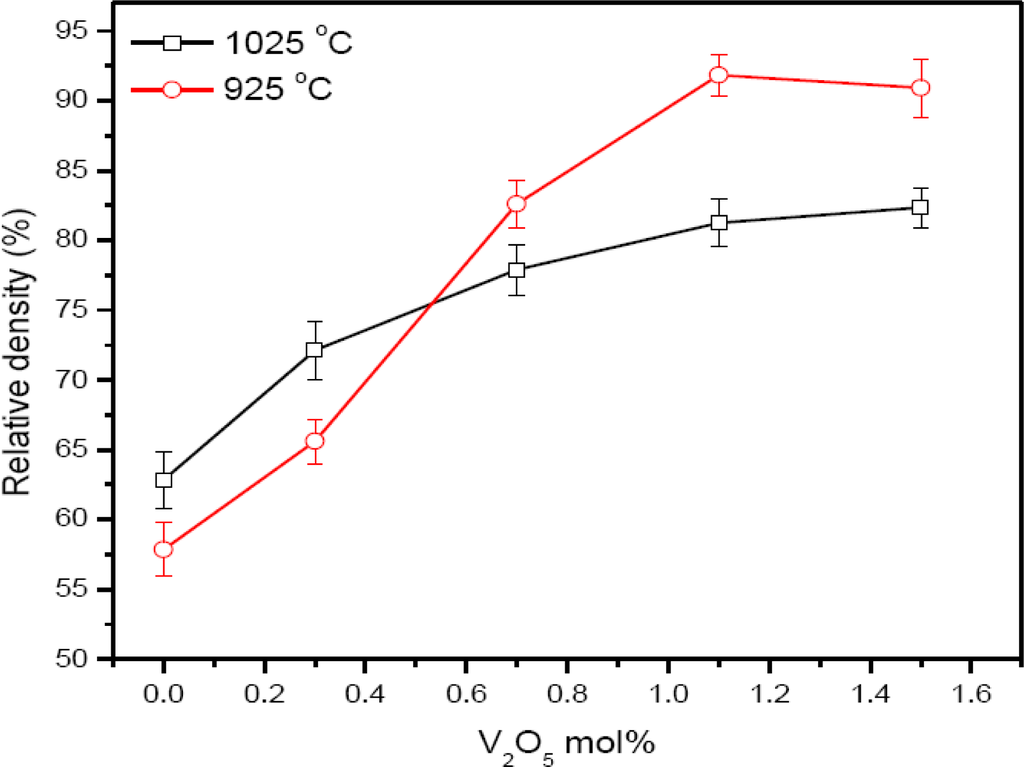

Figure 2. Density variation with V2O5 doping level.

Click here to enlarge figure

Figure 2. Density variation with V2O5 doping level.
Ijms 12 01625f2 1024
Ijms 12 01625f3 200

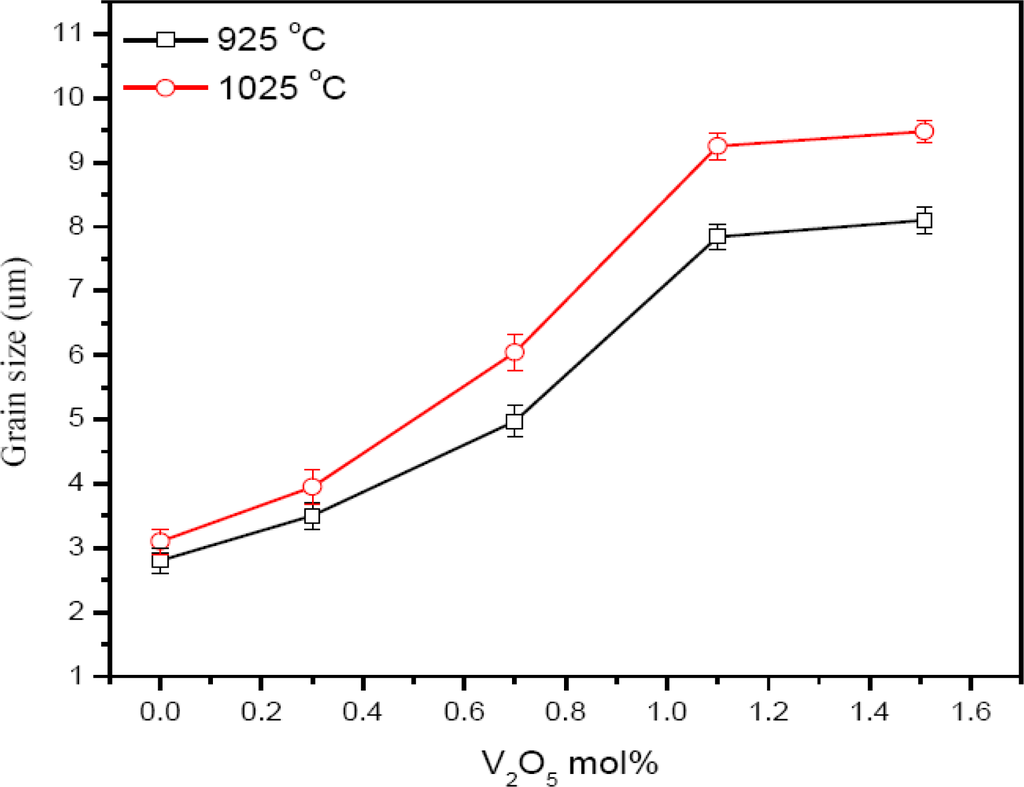

Figure 3. Grain growth behavior of the sample doped with V2O5.

Click here to enlarge figure

Figure 3. Grain growth behavior of the sample doped with V2O5.
Ijms 12 01625f3 1024
Ijms 12 01625f4 200
Figure 4. SEM images for the ceramic sintered with 1.5 mol% of V2O5 at 1025 °C for 2 hours. Two examples are shown.

Click here to enlarge figure

Figure 4. SEM images for the ceramic sintered with 1.5 mol% of V2O5 at 1025 °C for 2 hours. Two examples are shown.
Ijms 12 01625f4 1024
Ijms 12 01625f5 200
Figure 5. Dependence of Eg on V2O5 mol%.

Click here to enlarge figure

Figure 5. Dependence of Eg on V2O5 mol%.
Ijms 12 01625f5 1024
Ijms 12 01625f6 200

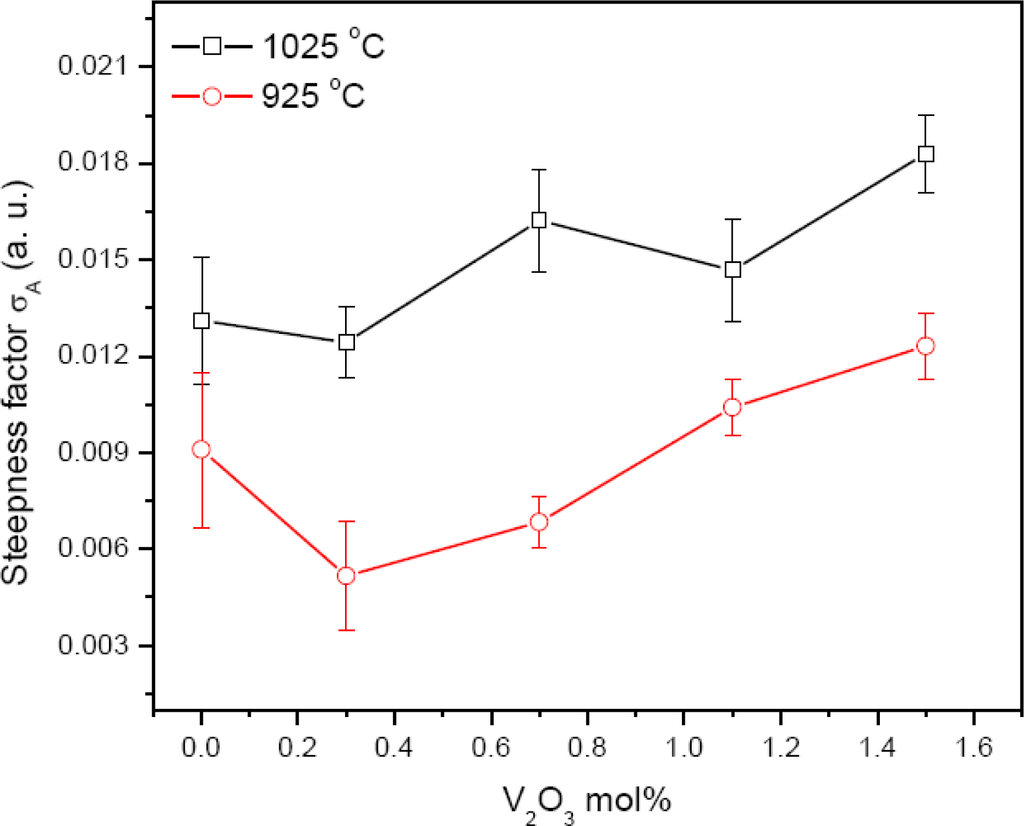

Figure 6. Variation of σA with V2O5 mol%.

Click here to enlarge figure

Figure 6. Variation of σA with V2O5 mol%.
Ijms 12 01625f6 1024
Ijms 12 01625f7 200
Figure 7. Variation of σB with V2O5 mol%.

Click here to enlarge figure

Figure 7. Variation of σB with V2O5 mol%.
Ijms 12 01625f7 1024
Table 1. Composition of each ceramic sample.

Click here to display table

Table 1. Composition of each ceramic sample.
S #ZnO (mol%)MnO2 (mol%)Co3O4 (mol%)V2O5 (mol%)
199.20.40.40
298.90.40.40.3
398.50.40.40.7
498.10.40.41.1
597.70.40.41.5
