Formation and Morphology of Zn2Ti3O8 Powders Using Hydrothermal Process without Dispersant Agent or Mineralizer
Cheng-Li Wang 1, Weng-Sing Hwang 1, Kuo-Ming Chang 2, Horng-Huey Ko 3, Chi-Shiung Hsi 4, Hong-Hsin Huang 5 and Moo-Chin Wang 3,*
1
Department of Materials Science and Engineering, National Cheng Kung University, 1 Ta-Hsueh Road, Tainan 70101, Taiwan; E-Mails: N58991223@ncku.edu.tw (C.-L.W.); wshwang@mail.ncku.edu.tw (W.-S.H.)
2
Department of Mechanical Engineering, National Kaohsiung University of Applied Sciences, 415 Chien-Kung Road, Kaohsiung 80782, Taiwan; E-Mail: koming@cc.kuas.edu.tw
3
Department of Fragrance and Cosmetics Science, Kaohsiung Medical University, 100 Shih-Chuan 1st Road, Kaohsiung 80708, Taiwan; E-Mail: hhko@kmu.edu.tw
4
Department of Materials Science and Engineering, National United University, 1 Lein-Da, Kung-Ching Li, Miao-Li 36003, Taiwan; E-Mail: chsi@nuu.edu.tw
5
Department of Electrical Engineering, Cheng Shiu University, 840, Cheng Ching Road, Niaosong, Kaohsiung 83347, Taiwan; E-Mail: funs@csu.edu.tw
*
Author to whom correspondence should be addressed; E-Mail: mcwang@cc.kmu.edu.tw; Tel.: +886-7-3121101 ext. 2366; Fax: +886-7-3210683.
Received: 16 December 2010; in revised form: 18 January 2011 / Accepted: 19 January 2011 /
Published: 28 January 2011

Abstract

: Synthesis of Zn2Ti3O8 powders for attenuating UVA using TiCl4, Zn(NO3)2·6H2O and NH4OH as precursor materials by hydrothermal process has been investigated. The X-ray diffractometry (XRD) results show the phases of ZnO, anatase TiO2 and Zn2Ti3O8 coexisted when the zinc titanate powders were calcined at 600 °C for 1 h. When calcined at 900 °C for 1 h, the XRD results reveal the existence of ZnO, Zn2TiO4, rutile TiO2 and ZnTiO3. Scanning electron microscope (SEM) observations show extensive large agglomeration in the samples. Transmission electron microscope (TEM) and electron diffraction (ED) examination results indicate that ZnTiO3 crystallites formed with a size of about 5 nm on the matrix of plate-like ZnO when calcined at 700 °C for 1 h. The calcination samples have acceptable absorbance at a wavelength of 400 nm, indicating that the zinc titanate precursor powders calcined at 700 °C for 1 h can be used as an UVA-attenuating agent.
Keywords:
Zn2Ti3O8 powders; hydrothermal; UVA-attenuating

1. Introduction

Ultraviolet (UV) radiation that reaches the earth and damages skin can be divided into three key wavelengths: (i) UVC (32–280 nm), (ii) UVB (280–320 nm) and (iii) UVA (320–400 nm). UVA radiation is a major culprit in photoaging and skin cancers. Moreover, UVB, which primarily reaches the top-most layer of skin, is thought to be responsible for acute photodamage, including sunburn and some non-melanoma skin cancers [1]. Therefore, protection against harmful UVA and UVB radiation is very important. Sheath [2] pointed out that sunscreens used for the protection of human skin against the harmful effects of solar radiation must contain UV-absorbing substances.

Fine particles of various metal oxides, such ZnO and TiO2, are extensively used as agents to attenuate (scatter and/or absorb) UV radiation, and have many attractive characteristics, such as a long history of topical use, broad spectrum absorption, high photostability and low irritancy [3]. However, an extensive literature search found that the use of ZnO-TiO2 as a sunscreen for cosmetic applications has not been fully investigated.

Dulin and Rase [4] first established the basic phase diagram of the ZnO-TiO2 system, and reported the temperature and composition ranges of stability for zinc metatitanate (ZnTiO3) and zinc orthotitanate (Zn2TiO4). Only Zn2Ti3O8, ZnTiO3 and Zn2TiO4 have been confirmed to exist in ZnO-TiO2 systems by previous researchers [47]. The compound of Zn2Ti3O8 has a cubic structure with a lattice constant of ao = 0.8390(5) nm, and has been observed to be a low-temperature form of ZnTiO3 that exists at temperatures below 820 °C [7]. ZnTiO3 has a rhombohedral structure with lattice constants of ao = 0.5078(2) and co = 1.3920(1) nm [5]. When heated between 965 and 1010 °C, ZnTiO3 decomposes and forms Zn2TiO4 and rutile TiO2 [6]. The compound of Zn2TiO4 has a face-centered cubic crystal structure with a lattice constant of ao = 0.8460(2) nm [8].

Zinc titanates, such as ZnTiO3 and Zn2TiO4, are attractive as sorbents for removing sulfur from hot coal gasification products [9,10], pigments [11], and gas sensors for ethanol, NO and CO [12]. Due to the recent progress of microwave applications in the area of mobile telephones and satellite communications, these substances can also be used as dielectric resonators and fitters [13,14]. Furthermore, Chang et al. [15,16] also found that doped and undoped ZnTiO3 have a V-type resistivity-temperature characteristic and possess typical positive thermal coefficient resistivity (PTCR) properties when above the transition point. However, the use of Zn2Ti3O8 or ZnTiO3 as UV-attenuating agents has not been reported.

The chemistry and microstructure are important factors for applications of zinc titanate powders. Hence, various methods have been adopted for the preparation of ZnTiO3 powders, including conventional solid state reaction [5] and sol-gel processes [16,17]. In addition, Zn2TiO4 powders have been obtained by solid-state reaction [8], and the ball mill method [18]. However, the solid-state reaction processes have some drawbacks, such as high reaction temperature, large particle size and limited degree of chemical homogeneity. On the other hand, Reddy et al. [19] pointed out that a single phase of Zn2Ti3O8 is produced when zinc titanyl oxalate hydrate decomposes at 650 °C for several hours. However, until now, no information is available on the synthesis and characterization of Zn2Ti3O8 powders by a hydrothermal process without the addition of a dispersant agent.

In the present study, high purity TiCl4 and Zn(NO3)2·6H2O have been used for the synthesis of Zn2Ti3O8 crystallite powders by a hydrothermal process without the addition of either a dispersant agent or mineralizer. The main purpose of the present investigation was to examine the formation and morphology of Zn2Ti3O8 nanocrystallite powders. In addition, this study (i) investigated the thermal behavior of zinc titanate precursor powders, (ii) evaluated the phase transition of zinc titanate precursor powders, and (iii) observed the morphology of zinc titanate precursor powders after calcination at various temperatures for 1 h.

2. Experimental Procedure

2.1. Sample Preparation

The Zn2Ti3O8 nanocrystallite powders were prepared by a hydrothermal process without the addition of a dispersant agent. The starting materials were prepared in a aqueous solution with reagent-grade titanium tetrachloride solution (TiCl4, purity ≥ 98.0%, supplied by Fulka, France), zinc nitrate (Zn(NO3)2·6H2O, purity ≥ 98.0%, supplied by Slfa Aersor, USA) and 25 vol% ammonia solution (NH4OH, supplied by Riedel-de Haën, Germany). 0.05 M and 1.0 vol% aqueous solutions were prepared from reagent-grade TiCl4, Zn(NO3)2·6H2O and 25 vol% NH4OH, respectively. A molar ratio of [Zn2+]/[Ti4+] was 1.0. An aqueous solution of Zn(NO3)2 was added to TiCl4 solution under an air atmosphere. The pH of the mixture was then raised to 7.0 by using NH4OH aqueous solution and stirring the resulting solution for 2 h at room temperature. Subsequently, the solution was kept in an autoclave at 150 °C for 1 h. After cooling, the precipitates obtained were filtered, and washed thoroughly three times with a large amount of deionized water and ethanol (purity ≥ 99.85%, supplied by J. J. Baker, USA) to remove Cl. The final precipitates were dried at −55 °C in a vacuum and the white zinc titanate precursor powders were thus obtained.

2.2. Sample Characterization

Differential thermal analysis (DTA, Perkin-Elmer 7 Series Thermal Analysis System, Boston, MA, USA) was conducted on 50 mg zinc titanate precursor powders at a heating rate of 10 °C/min in air with a reference material of Al2O3. The calcination temperature was determined from the DTA result.

The crystalline phase was identified using an X-ray diffractometer (XRD, Rigaku D-Max/IIIV, Tokyo, Japan) with Cu Kα radiation and Ni filter, operated at 30 kV, 20 mA and a scanning rate of 0.25°/min.

The morphology of the zinc titanate precursor powders calcined at various temperatures for 1 h were observed with a scanning electron microscope (SEM, Hitachi, S-3000N, Japan) and transmission electron microscope (TEM, Hitachi model HF-2000, Tokyo, Japan). The crystal structure of the post-calcined powders was determined by selected area electron diffraction (SAED) analysis. The TEM samples were prepared by dispersing the post-calcined powders in an ultrasonic bath and then collected on a copper grid.

3. Results and Discussion

3.1. Thermal Behavior of the Zinc Titanate Precursor Powders

The DTA curve of the zinc titanate precursor powders, produced without the addition of either a dispersant agent or mineralizer, and which was heated from 25 to 1000 °C in static air at a heating rate of 10 °C/min, is shown in Figure 1. There are four endothermic peaks at 140, 250, 800 and 940 °C in the DTA curve. The endothermic peak at 140 °C is due to the dehydration of the zinc titanate precursor powders. The second endothermic peak, at 250 °C, is attributed to the decomposition of NH2- into N2 and H2 [20]. The third endothermic peak, at 800 °C, is caused by the decomposition of Zn2Ti3O8 into ZnTiO3 and rutile TiO2. The fourth endothermic peak, at 940 °C, is due to the ZnTiO3 decomposing, which leads to the formation of Zn2TiO4 and rutile TiO2. Moreover, Figure 1 also shows two relatively small broad exothermic peaks at around 558 and 689 °C. The first exothermic peak, at 558 °C, is due to the anatase TiO2 accompanied by Zn2Ti3O8 formation. The second exothermic peak at 689 °C is caused by the ZnTiO3 accompanied with rutile TiO2 formation.

3.2. Phase Transition of Zinc Titanate Precursor Powders Calcined at Various Temperatures for 1 h

Figure 2 shows the XRD patterns of the zinc titanate precursor powders prepared without a dispersant agent or mineralizer and calcined at various temperatures for 1 h. The XRD pattern of the freeze dried precursor powders before calcination is shown in Figure 2(a), which reveals that the precursor powders still maintained the amorphous state. Figure 2(b) shows the XRD pattern of the zinc titanate precursor powders calcined at 600 °C for 1 h, and indicates that the anatase TiO2 appeared due to the reflections located (101), (110), (103), (200), (105), (211) and (220) (JCPDS Cards No.89-4203). Figure 2(b) also shows the presence of ZnO, due to the reflection peaks located at (100), (110) and (103) (JCPDS Card No.89-1397). Furthermore, the reflection peaks of Zn2Ti3O8 also appeared at (210), (220), (400), (440), and (622) (JCPDS Card No.87-1991). The XRD pattern of zinc titanate precursor powders calcined at 700 °C for 1 h are illustrated in Figure 2(c), which reveals that the crystallized phases were composed of the major phases of ZnO and Zn2Ti3O8, with rutile TiO2 as the secondary phase and the minor phases of ZnTiO3 and anatase TiO2. Figure 2(d) shows the XRD pattern of zinc titanate precursor calcined at 900 °C for 1 h. It reveals that the crystallized phase was composed of ZnO, Zn2TiO4, rutile TiO2 and ZnTiO3, but the anatase TiO2 disappeared.

Moreover, from Figure 2(c) and (d), it is seen that there is a significantly higher intensity value for the ZnO (100) reflection (I100). Golón et al. [21] have pointed out that for hydrothermal treatment systems, samples reveal an apparent preferential orientation growth in the (100) direction, leading to a significant I100 value. In fact, zinc and oxygen atoms are arranged alternatively along the c-axis, and thus as is well established, this inherent asymmetry along the c-axis results in the anisotropic growth of ZnO crystallites.

On the other hand, Bartram and Slepetys [5] pointed out that with a sample prepared at the mole ratio of ZnO:TiO2 = 2:1 and calcined at 700 and 800 °C for various times, the phase of defect-spinel type Zn2Ti3O8 with a trace amount of uncombined TiO2 is produced. This is caused by the four Ti ions that are missing from the 16-point positions of the spinel-type structure arrangement, resulting in a defective spinel-type structure. Mrázek et al. [22] reported that the TiO2 and Zn2TiO4 are decomposed from prepared ZnxTiyOz powders for various ratios of ZnO/TiO2. TiO2 exists at temperatures of 400–600 °C prepared by sol-gel method [23].

In Figure 2(b) and (c), it can be seen that although the intensity of Zn2Ti3O8 increases with the calcination temperature, a small fraction of Zn2Ti3O8 decomposes and leads to the formation of the ZnTiO3 and rutile TiO2. This reaction can be expressed as follows:

Zn 2 T 3 O 8 2 Zn TiO 3 + TiO 2 ( r ) .

Yang and Swisher [24] also pointed out that Zn2Ti3O8 is a thermodynamically stable compound up to temperatures between 700 and 800 °C. Just above this temperature, ZnTiO3 is more stable than the compound of Zn2Ti3O8. Furthermore, Yamaguchi et al. [6] also proposed using an amorphous material prepared by the simultaneous hydrolysis of zinc acetylautonate and titanium isopropoxide for synthesis of the ZnTiO3 powders. The XRD result shows the reflection peaks of the compound corresponding to Zn2Ti3O8 appeared at 600 °C [5] and the intensity of the reflection peaks increased rapidly up to 760 °C. No other compounds and free species, except for the hexagonal form of ZnTiO3, are observed up to the decomposition temperature at 965 °C. These results suggest that the compound so far denoted as Zn2Ti3O8 is a low temperature form of ZnTiO3.

On the other hand, the phase of Zn2TiO4 formed by the thermal decomposition of Zn2Ti3O8 in the range of 650–900 °C has been reported by previous studies [5,25]. Figure 2(c) shows that for the zinc titanate precursor powders calcined at 700 °C for 1 h, only a small fraction of Zn2Ti3O8 decomposed and formed the ZnTiO3 and rutile TiO2. This result was attributed to the fact that the phase of Zn2Ti3O8 at 700 °C still has thermal stability. When calcined at 900 °C for 1 h, the Zn2Ti3O8 phase disappeared and the reflection peaks of ZnTiO3 also nearly vanished, but the intensity of Zn2TiO4 and rutile TiO2 increased. This is because the Zn2Ti3O8 and ZnTiO3 phases decomposed, leading to the formation of Zn2TiO4 and rutile TiO2. These reactions can be expressed as follows:

Zn 2 Ti 3 O 8 Zn 2 TiO 4 + 2 TiO 2 ( r )
2 Zn TiO 3 Zn 2 TiO 4 + TiO 2 ( r )

3.3. Microstructure of the Zinc Titanate Precursor Powders Calcined at Various Temperatures for 1 h

The SEM microstructure of the zinc titanate precursor powders calcined at various temperatures for 1 h are shown in Figure 3. Figure 3(a) shows the morphology of the freeze-dried zinc titanate precursor powders without a dispersant agent or mineralizer agglomerates to the size of about 140 ± 70 μm. The SEM micrographs in Figure 3(b) and (d) shows the zinc titanate precursor powders calcined at 600, 700 and 900 °C for 1 h, respectively. It can be seen that the agglomerated size of the particles increases as the calcination temperature rises from 600 to 900 °C. When calcined at 900 °C for 1 h, the size increases from 140 ± 70 μm to 270 ± 170 μm. Since the zinc titanate precursor powders were prepared through the wet-chemical routes, during this process, i.e., drying and/or subsequent steps, agglomeration can occur. During calcination, the most common type of agglomeration in the conventional powders was due to solid bonds that formed between the particles.

The bright field (BF) and dark field (DF) TEM micrographs and the corresponding electron diffraction (ED) patterns of the freeze dried zinc titanate precursor powders calcined at 700 °C for 1 h are shown in Figure 4. Figure 4(a) shows the BF image, in which fine particles with size of about 5 nm and a larger particle with a length of 200 nm and width of 100 nm are observed. Aubert et al. [26] also reported the particle of TiO2 is about 5 nm. Figure 4(a) shows that the larger particles, of ZnO which cause the contact area of ZnO with anatase TiO2 to decrease, led to a decrease in the reaction of ZnO with anatase TiO2, meaning that insufficient Zn2Ti3O8 was produced. Figure 4(b),(c) shows the DF images of the fine and larger particles in Figure 4(a). In addition, Figure 4(d),(e) shows the ED patterns of the particles in Figure 3(b),(c), respectively. The ED pattern of Figure 4(d) corresponds to the phases of ZnTiO3 and rutile TiO2. On the other hand, the ED pattern of Figure 4(e) corresponds to ZnO. Figure 4(d) also shows evidence of ZnTiO3 and rutile TiO2 when calcined at 700 °C for 1 h. Moreover, the microstructure of the ZnTiO3 crystallite shows a nearly spherical morphology growing on the matrix of a plate-like phase of ZnO.

Figure 5(a),(b) shows the BF and DF images of the freeze dried zinc titanate precursor powders calcined at 900°C for 1 h, revealing that two kinds morphology coexist in the sample. One is the fine particles with a size of about 50 nm, and the other one is belt-shape particles with a length of 200 nm and width of 50 nm. The ED pattern of the Figure 5(c) belt-shaped and fine particles correspond to ZnTiO3 with a zone axis (ZA) of [110]. Figure 5(d),(e) shows the BF and DF images of the fine particles with the size of about 38 ± 18 μm. The ED pattern of Figure 5(f) corresponds to ZnTiO3 with the ZA of [ıı̄ı].

3.4. The Transmittance of Zinc Titanate Precursor Powders Calcined at 900 °C for 1 h

Figure 6 shows the relation between transmittance and wavelength range between 300 and 800 nm for freeze dried zinc precursor powders calcined at 700 °C for 1 h. It is found that the calcined sample has an acceptable transmittance at the wavelength of 400 nm. This result indicates that zinc titanate precursor powders calcined at 700 °C for 1 h can be used as an UVA-attenuating agent.

4. Conclusions

Zn2Ti3O8 powders prepared by a hydrothermal method without a dispersant agent or mineralizer for use in UVA-attenuating applications have been investigated using DTA, XRD, SEM, TEM, ED and UV/VIS. The results are summarized as follows:

  • When the zinc titanate precursor powders were prepared at pH = 7 and calcined at 600 °C for 1 h, the XRD results show that the phases of ZnO, anatase TiO2 and Zn2Ti3O8 coexisted in the sample. However, when calcined at 900 °C for 1 h, the XRD result reveals the existence of Zn2TiO4, rutile TiO2, and ZnO.

  • The SEM results reveal significant agglomeration in both the freeze-dried and post-calcined samples.

  • The TEM and ED examination indicates the existence of near spherical Zn2Ti3O8 crystallites with size of about 5 nm on larger ZnO particles with a length of 200 nm and width of 100 nm. The microstructure ZnTiO3 shows a somewhat belt-shaped morphology, with a length of 200 nm and width of 50 nm for precipitates calcined at 900 °C for 1 h.

  • The calcined samples have an acceptable transmittance when the wavelength is 400 nm. This result indicates that zinc titanate precursor powders calcined at 700 °C for 1 h can be used as an UVA-attenuating agent.

This work was supported by the National Science Council and Kaohsiung Medical University, Taiwan, under Contract No.95-2221-E-037-007 and Q 097038, respectively, which is gratefully acknowledged. In addition, the authors sincerely thank M.P Hung and M.H. Hon for the discussions and S.Y. Yau for the assistance in TEM.

References

  1. Fairhurst, D; Mitchnick, MA. Sunscreens: Development, Evaluation, and Regulatory Aspects, 2nd ed; Lowe, NJ, Shaath, NA, Pathat, MA, Eds.; Marcel Dekker: New York, NY, USA, 1997; pp. 313–352.
  2. Shaath, NA. Sunscreens: Development, Evaluation, and Regulatory Aspects, 2nd ed; Lowe, NJ, Shaath, NA, Pathat, MA, Eds.; Marcel Dekker: New York, NY, USA, 1997; pp. 3–33.
  3. Al-Hill, SM; Willamder, M. Optical propertics of zinc oxide nano-particles embedded in dielectric medium for UV region: Numberical simulation. J. Nanoparticle Res 2006, 8, 79–97.
  4. Dulin, FH; Rase, DE. Phase equilibria in the system ZnO-TiO2. J. Am. Ceram. Soc 1960, 43, 125–131.
  5. Bartram, SF; Slepetys, RA. Compound formation and crystal structure in the system ZnO-TiO2. J. Am. Ceram. Soc 1961, 44, 493–499.
  6. Yamaguchi, O; Morimi, M; Kawabata, H; Shimizu, K. Formation and transformation of ZnTiO3. J. Am. Ceram. Soc 1987, 70, 97–98.
  7. Steinike, U; Wallis, B. Formation and Strusture of Ti-Zn-Oxides. Cryst. Res. Technol 1997, 32, 187–193.
  8. Kim, HT; Kim, Y; Valant, M; Suvorov, D. Titanium incorporation in Zn2TiO4 spinel ceramics. J. Am. Ceram. Soc 2001, 84, 1081–1086.
  9. Swisher, JH; Schwerdtfeger, K. Thermodynamic analysis of sorption reactions for the removal of sulfur from hot gases. J. Mater. Eng. Preform 1992, 1, 565–571.
  10. Swisher, JH; Yang, J; Gupta, RP. Attrition-resistant zinc titanate sorbent for Sulfur. Ind. Eng. Chem 1995, 34, 4463–4471.
  11. McCord, AT; Saunder, HF.. Preparation of pigmentary materials. US Patent 23790191945.
  12. Obayashi, H; Sakurai, Y; Gejo, T. Perovskite-type oxide as ethanol sensors. J. Solid State Chem 1976, 17, 299–303.
  13. Kagata, H; Inoue, T; Kato, J; Kameyama, I; Ishizaki, T. Low-fire microwave dielectric ceramics, and maltilayer devices with silver internal electrode. Ceram. Trans 1993, 32, 81–90.
  14. Negas, T; Yeager, T; Bell, S; Coats, N; Minis, I. BaTi9O20-based ceramics resulted for modern microwave applications. Am. Ceram. Soc. Bull 1993, 72, 80–89.
  15. Chang, YS; Chang, YH; Chen, IG; Chen, GJ. Synthesis and characterization of zinc titanate doped with magnesium. Solid State Commun 2003, 128, 203–208.
  16. Chang, YS; Chang, YH; Chen, IG; Chen, GJ; Chai, YL. Synthesis and characterization of zinc titanate nano-crystal powders by sol-gel technique. J. Cryst. Growth 2002, 243, 319–326.
  17. Hosono, E; Fujihara, S; Onuki, M; Kimura, T. Low-temperature synthesis of nanocrystalline zinc titanate materials with high specific surface area. J. Am. Ceram. Soc 2004, 87, 1785–1788.
  18. Manik, SK; Bose, P; Pradhan, SK. Microstructure characterization and phase transformation kinetics of ball-milled preprared nanocrystalline Zn2TiO4 by Rietveld method. Mater. Chem. Phys 2003, 82, 837–847.
  19. Reddy, VB; Goel, SP; Mehrotra, PN. Investigation on formation of zinc titanates via thermal decomposition of zinc titanyl oxalate hydrate. Mater. Chem. Phys 1984, 10, 365–373.
  20. Kuo, CL; Wang, CL; Chen, TY; Chen, GJ; Hung, IM; Shih, CJ; Fung, KZ. Low-temperature synthesis of nanocrystalline lanthanum monoaluminate powders by chemical co-precipitation. J. Alloy. Compd 2007, 392, 367–374.
  21. Golón, G; Hidalgo, MC; Navío, JA; Melián, EP; Díaz, OG; Rodriguez, JMD. Highly photoactive ZnO by amine capping-assisted hydrothermal treatment. Appl. Catal. B Environ 2008, 83, 30–38.
  22. Krylova, G; Brioude, A; Girard, SA; Mrazek, J; Spanhel, L. Natural superhydrophilicity and photocatalytic properties of sol-gel derived ZnTiO3-ilmenite/r-TiO2 films. Phys. Chem. Chem. Phys 2010, 12, 15101–15110.
  23. Aubert, T; Grasset, F; Potel, M; Nazabal, V; Cardinal, T; Pechev, S; Saito, N; Ohashi, N; Haneda, H. Synthesis and characterization of Eu3+,Ti4+@ZnO organosols and nanocrystalline c-ZnTiO3 thin films aiming at high transparency and luminescence. Sci. Technol. Adv. Mater 2010, 11, 044401.
  24. Yang, J; Swisher, JH. The phase stability of Zn2Ti3O8. Mater. Character 1996, 37, 153–159.
  25. Aal, AA; Barakat, MA; Mohamed, RM. Electrophoreted Zn-TiO2-ZnO nanocompsite coating films for photocatalytic degradation of 2-chlorophenol. Appl. Surface Sci 2008, 254, 4577–4583.
  26. Mrázek, J; Spanhel, L; Chadeyron, G; Matêjec, V. Evolution and Eu3+ doping of sol–gel derived ternary ZnxTiyOz nanocrystals. J. Phys. Chem. C 2010, 114, 2843–2852.
Ijms 12 00935f1 200

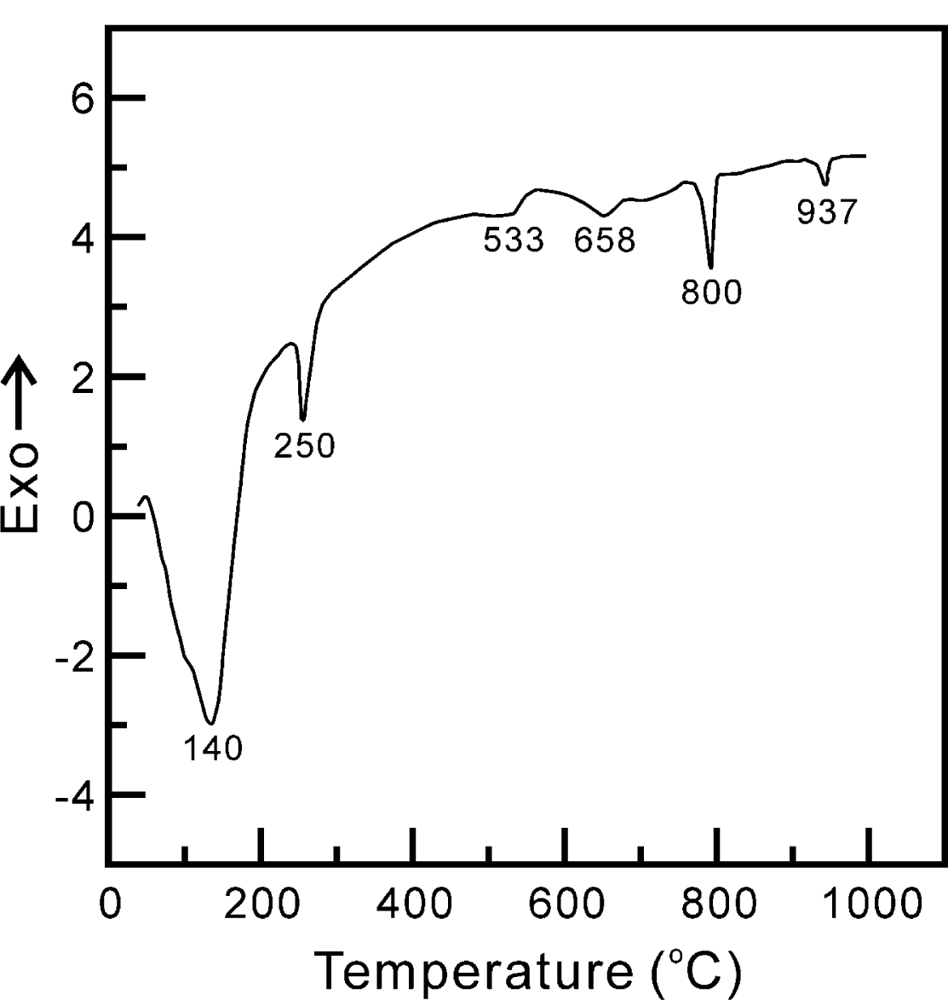

Figure 1. Differential thermal analysis (DTA) curve of zinc titanate precursor powders with a heating rate of 10 °C·min−1.

Click here to enlarge figure

Figure 1. Differential thermal analysis (DTA) curve of zinc titanate precursor powders with a heating rate of 10 °C·min−1.
Ijms 12 00935f1 1024
Ijms 12 00935f2 200

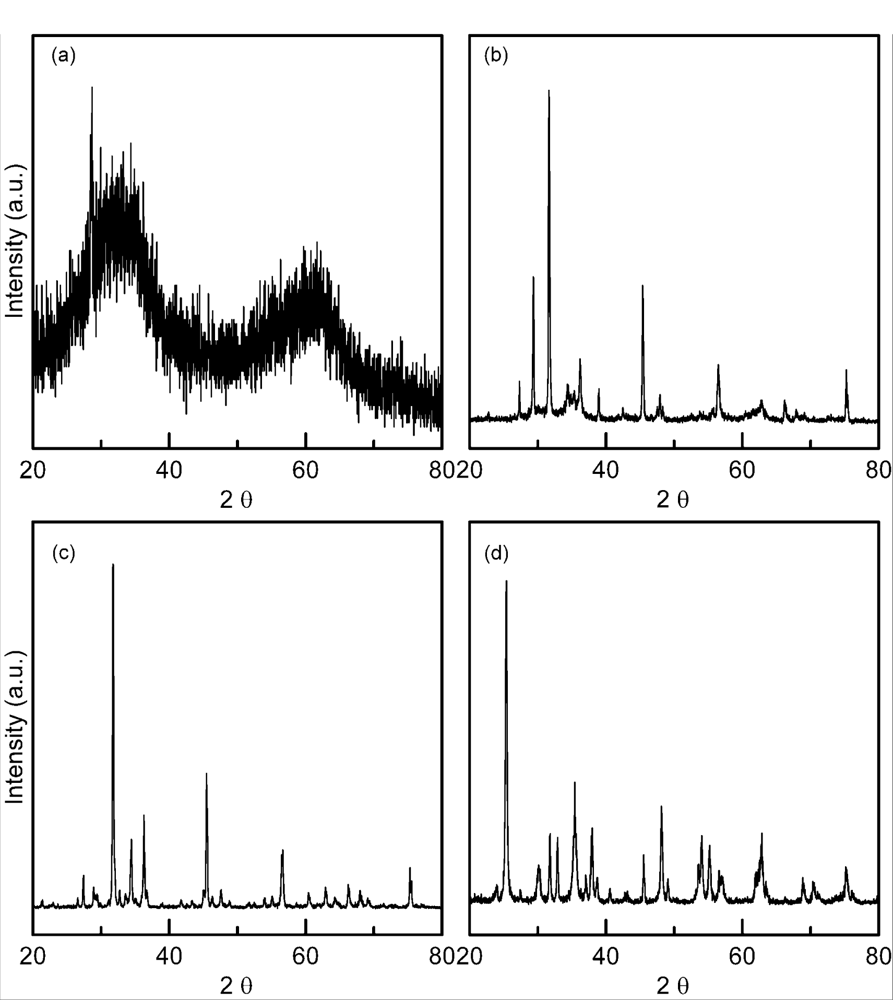

Figure 2. X-ray diffraction (XRD) patterns of ZnTiO3 precipitates calcined at various temperatures for 1 h: (a) before calcination, (b) calcined at 600 °C, (c) 700 °C, and (d) 900 °C.

Click here to enlarge figure

Figure 2. X-ray diffraction (XRD) patterns of ZnTiO3 precipitates calcined at various temperatures for 1 h: (a) before calcination, (b) calcined at 600 °C, (c) 700 °C, and (d) 900 °C.
Ijms 12 00935f2 1024
Ijms 12 00935f3 200
Figure 3. Scanning electron microscope (SEM) morphology of zinc titanate precursor powders calcined at various temperatures for 1 h: (a) before calcination, (b) calcined at 600 °C, (c) 700 °C, and (d) 900 °C.

Click here to enlarge figure

Figure 3. Scanning electron microscope (SEM) morphology of zinc titanate precursor powders calcined at various temperatures for 1 h: (a) before calcination, (b) calcined at 600 °C, (c) 700 °C, and (d) 900 °C.
Ijms 12 00935f3 1024
Ijms 12 00935f4 200

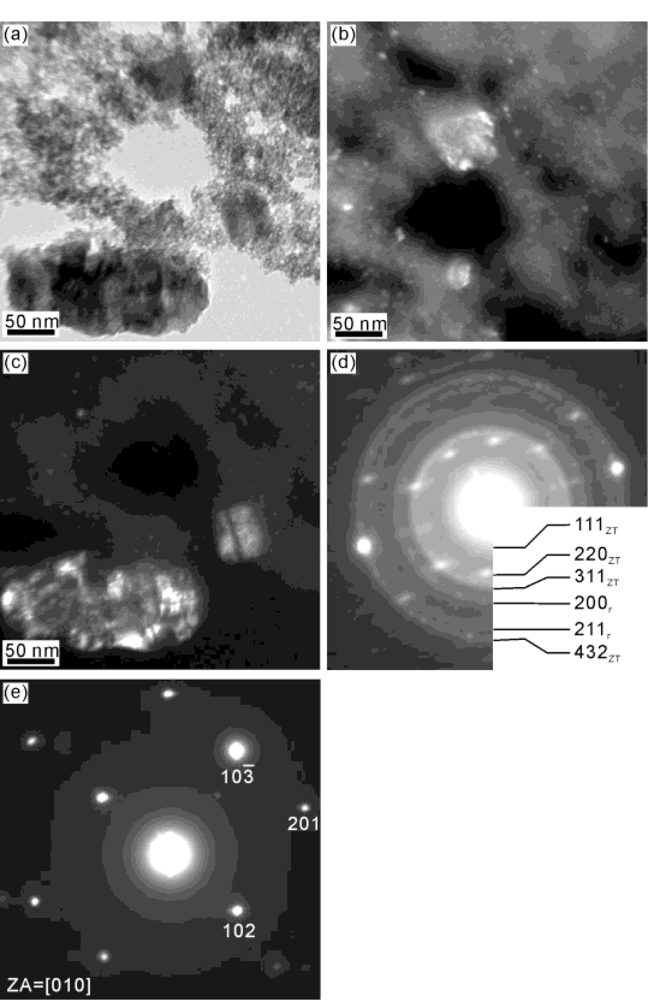

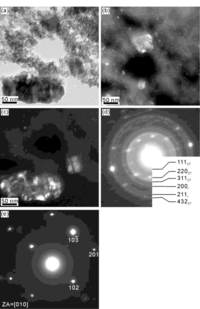

Figure 4. Transmission electron microscope (TEM) morphology and electron diffraction (ED) patterns of zinc titanate precursor powders calcined at 700 °C for 1 h: (a) bright field (BF) image, (b) dark field (DF) image by using a circle spot of (d), (c) DF image by using a circle spot of (e), (d) ED pattern corresponding to the phases of Zn2Ti3O8 (denoted by ZT) and rutile TiO2 (denoted by r), and (e) ED pattern corresponding to ZnO.

Click here to enlarge figure

Figure 4. Transmission electron microscope (TEM) morphology and electron diffraction (ED) patterns of zinc titanate precursor powders calcined at 700 °C for 1 h: (a) bright field (BF) image, (b) dark field (DF) image by using a circle spot of (d), (c) DF image by using a circle spot of (e), (d) ED pattern corresponding to the phases of Zn2Ti3O8 (denoted by ZT) and rutile TiO2 (denoted by r), and (e) ED pattern corresponding to ZnO.
Ijms 12 00935f4 1024
Ijms 12 00935f5 200

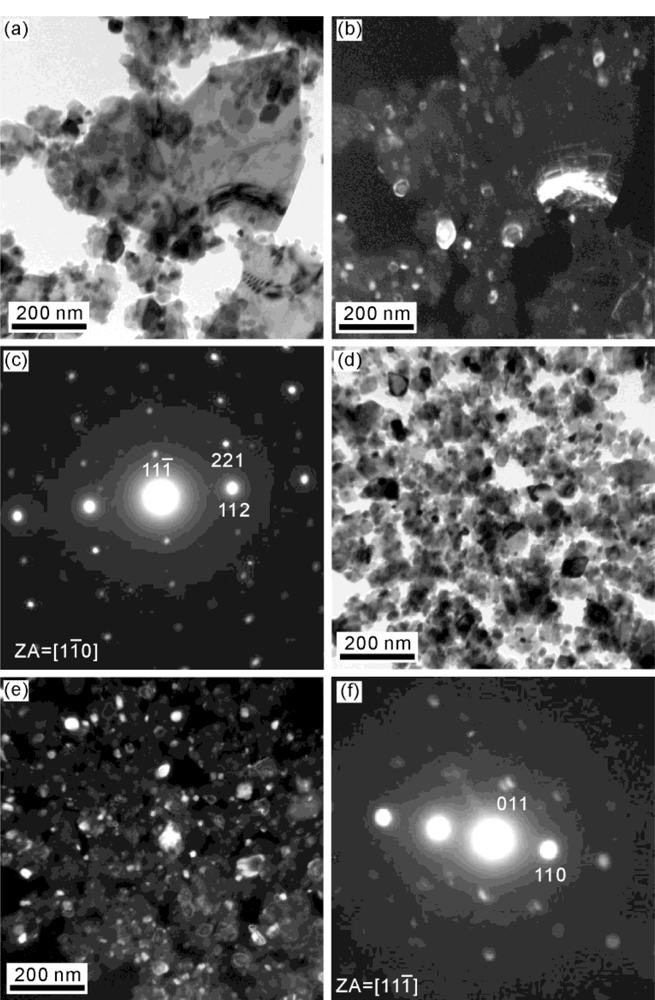

Figure 5. TEM morphology and ED patterns of zinc titanate precursor powders calcined at 900 °C for 1 h: (a) BF image, (b) DF image by using a circle spot of (c), (c) ED pattern corresponding to ZnTiO2, (d) BF image, (e) DF image by using a circle spot of (f), and (f) ED pattern corresponding to Zn2TiO3.
