Int. J. Mol. Sci. 2011, 12(2), 890-904; doi:10.3390/ijms12020890
Article

Fabrication of Porous Scaffolds with a Controllable Microstructure and Mechanical Properties by Porogen Fusion Technique

1,2,* email, 3email, 1,2email and 1email
1 Institute of Nano- and Bio-Polymeric Materials, School of Materials Science and Engineering, Tongji University, 1239 Siping Road, Shanghai 200092, China 2 Key Laboratory Advanced Civil Engineering Materials, Ministry of Education, School of Materials Science and Engineering, Tongji University, 1239 Siping Road, Shanghai 200092, China 3 Department of General Surgery, Xinhua Hospital, School of Medicine, Shanghai Jiaotong University, 1665 Kongjiang Road, Shanghai 200092, China
* Author to whom correspondence should be addressed.
Received: 2 November 2010; in revised form: 4 January 2011 / Accepted: 24 January 2011 / Published: 25 January 2011
(This article belongs to the Special Issue Composite Materials in Skeletal Engineering)
PDF Full-text Download PDF Full-Text [3353 KB, uploaded 25 January 2011 12:09 CET]

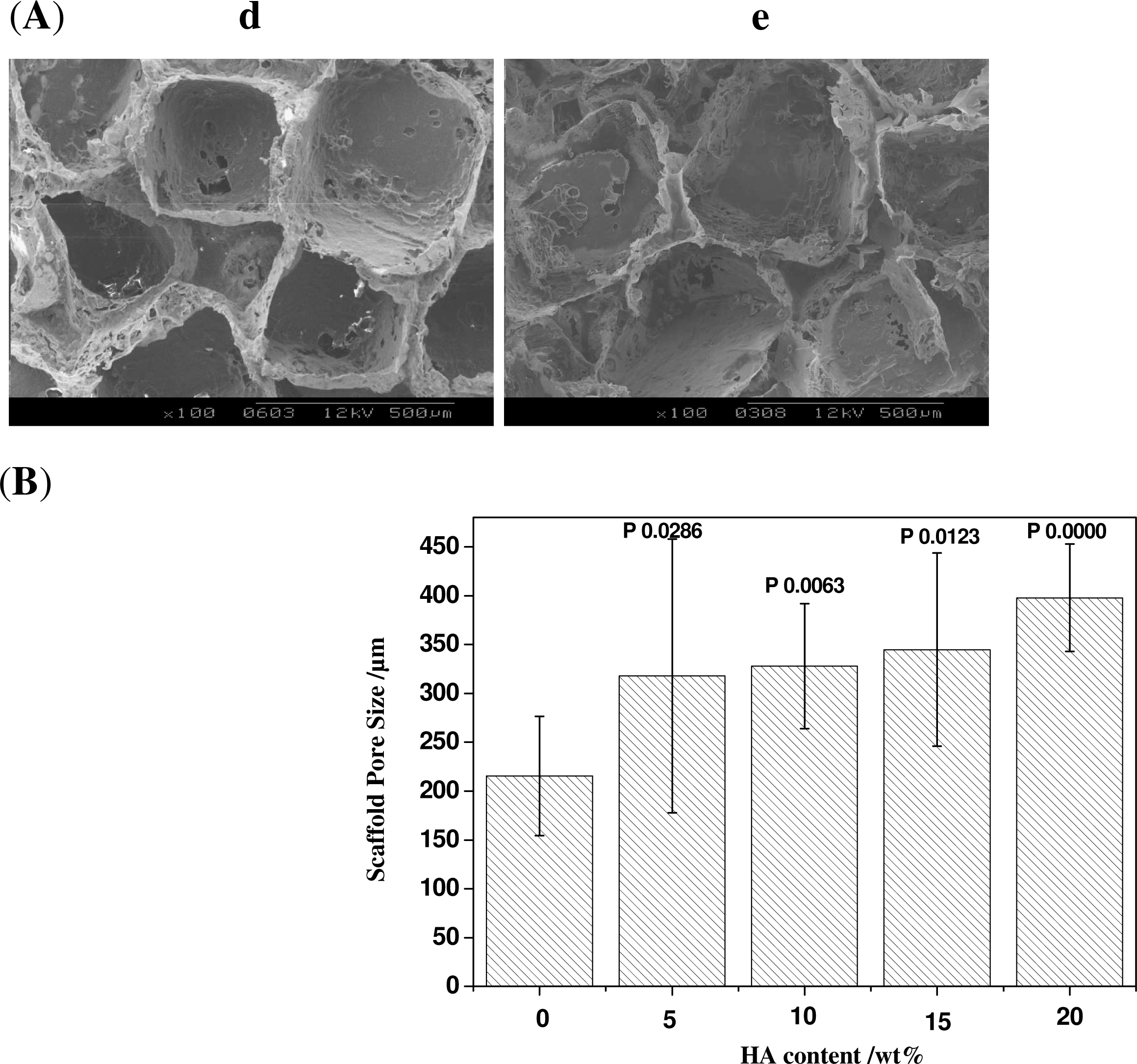

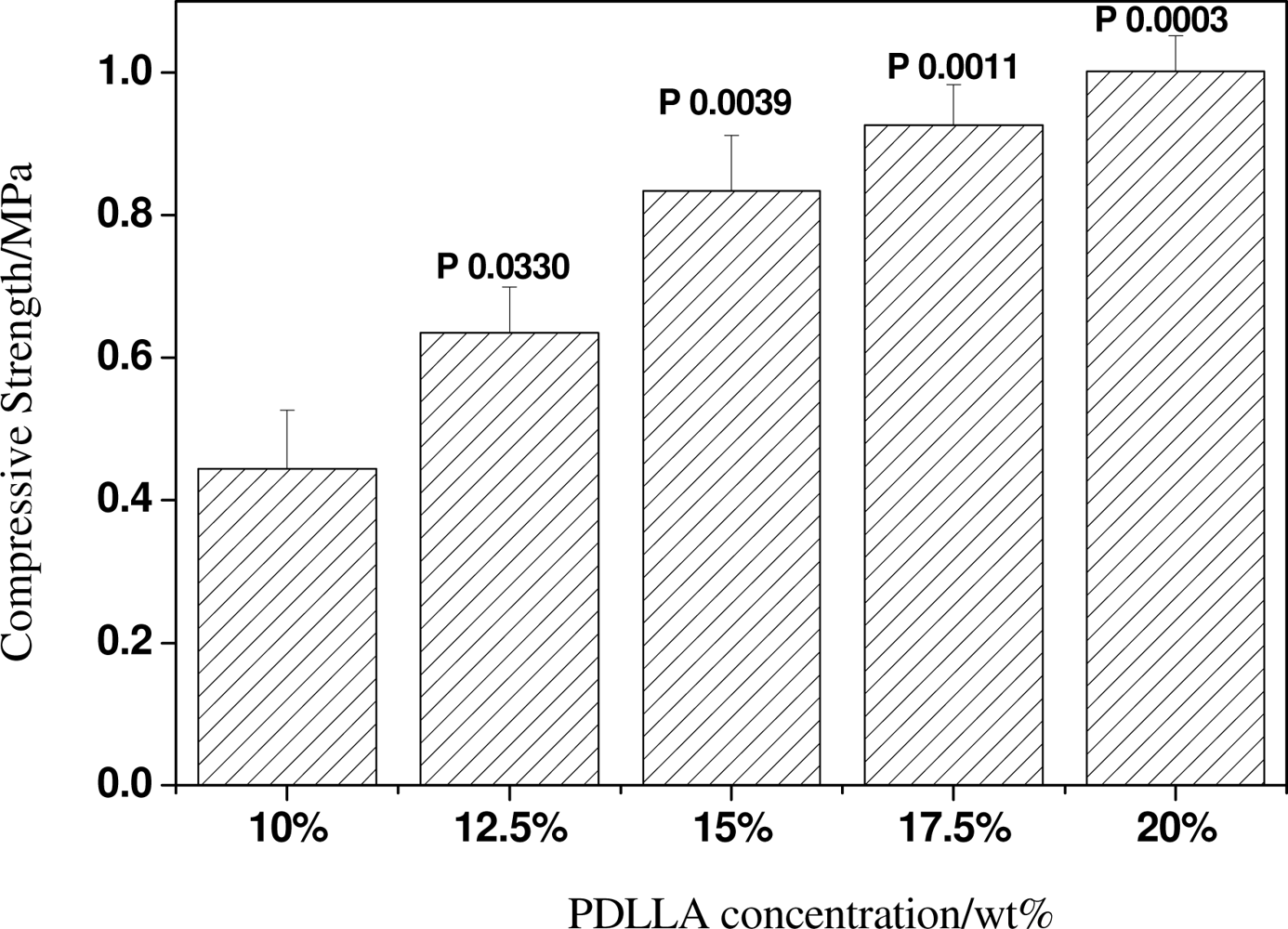

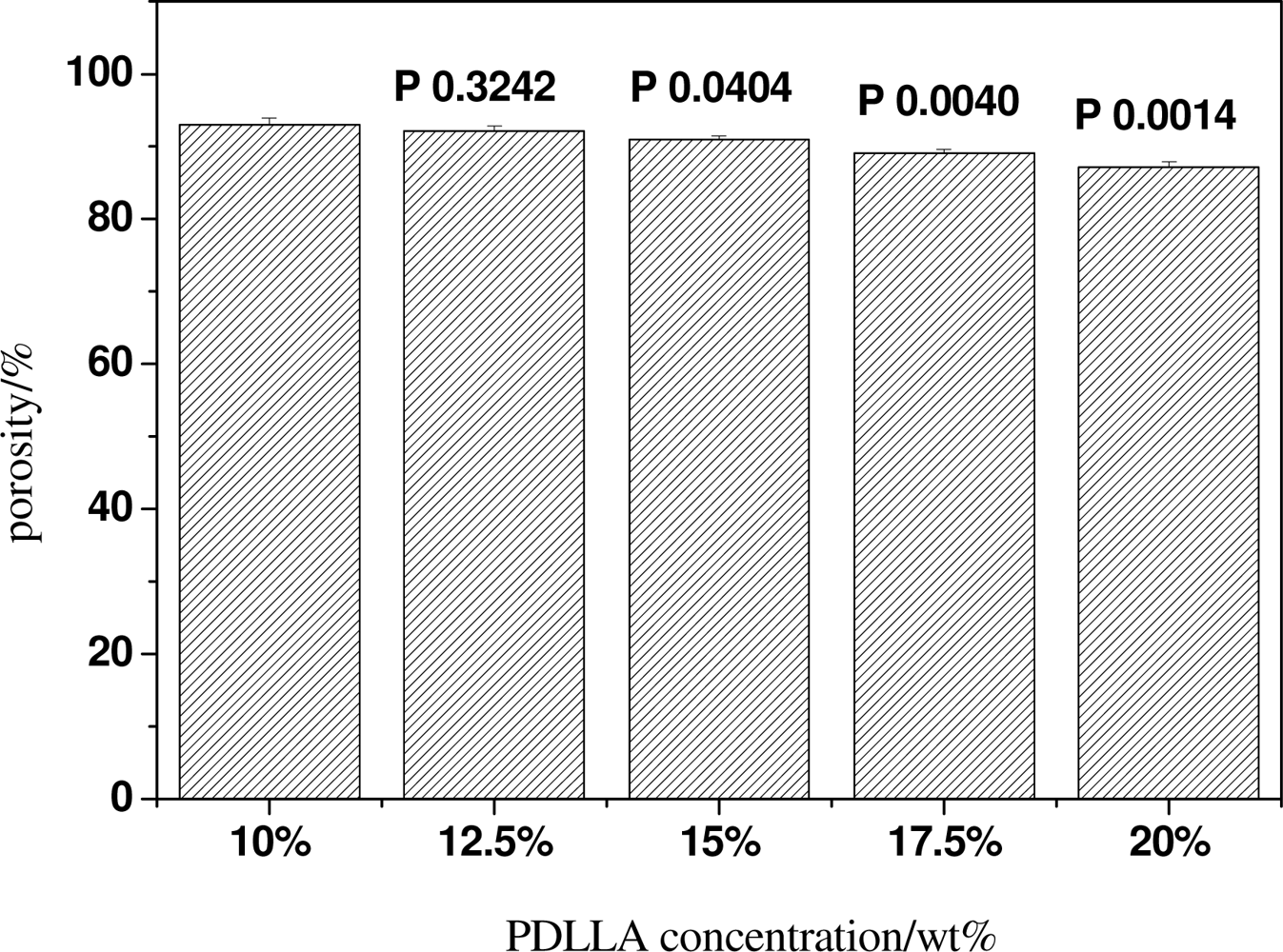

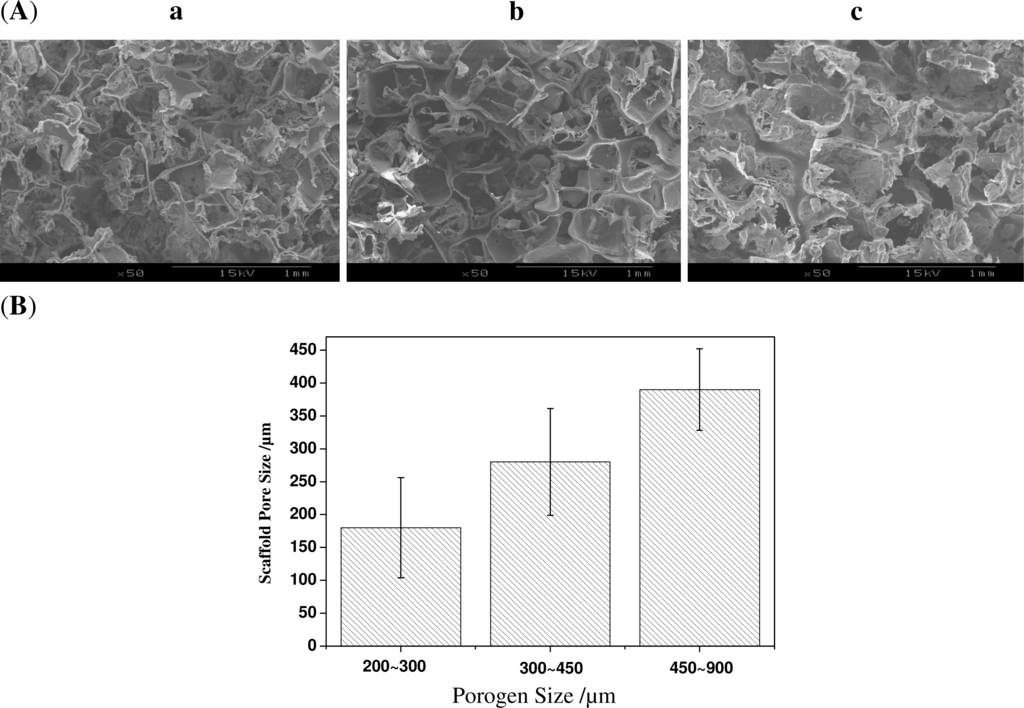

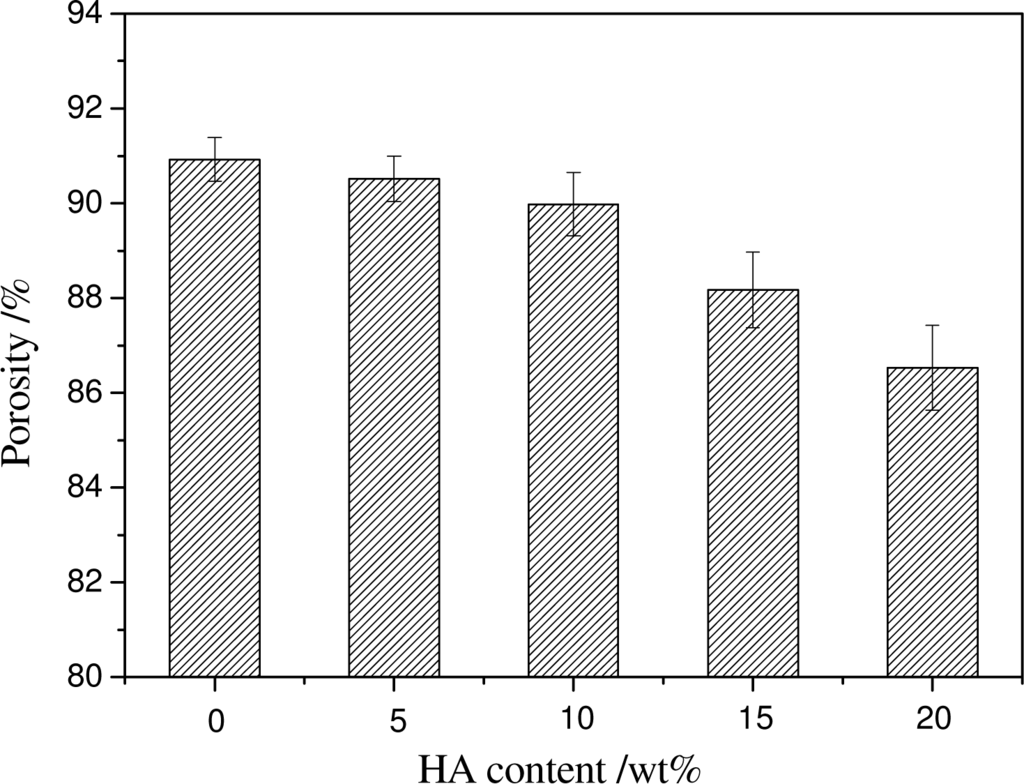

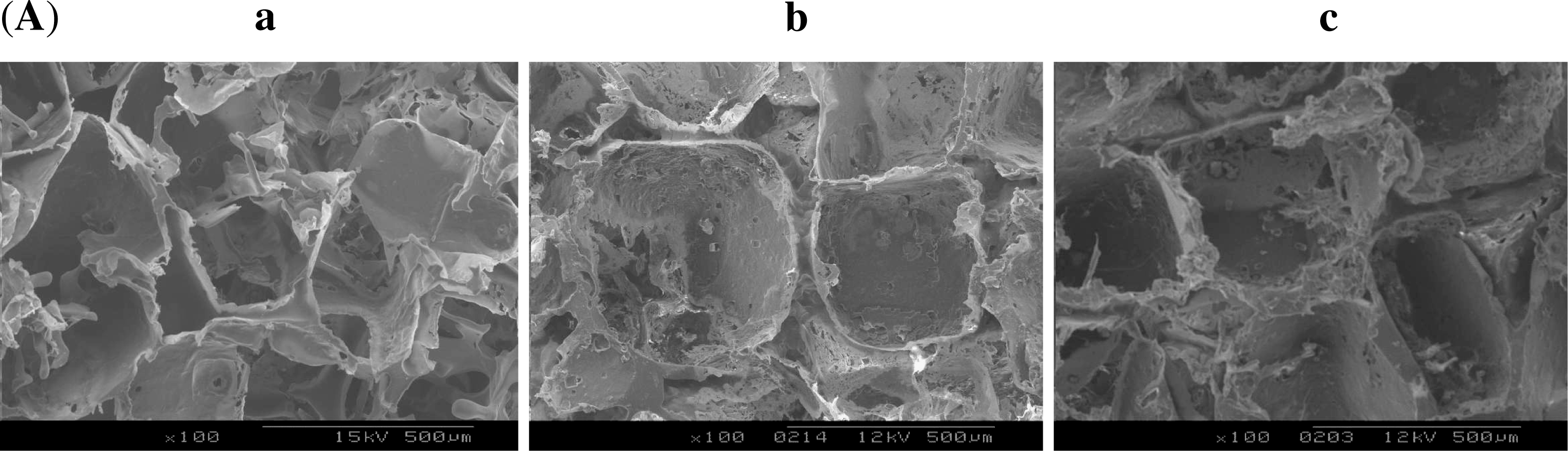

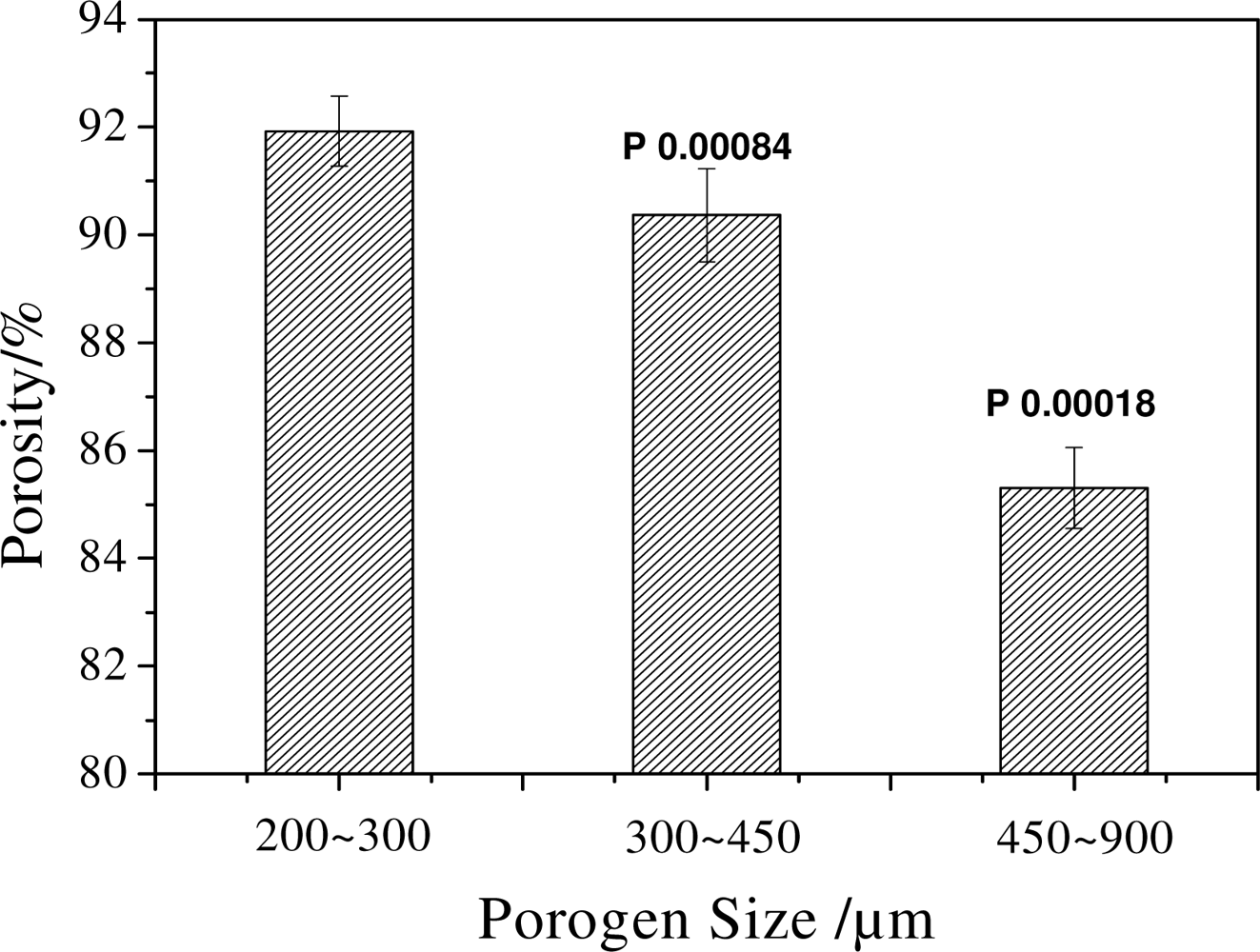

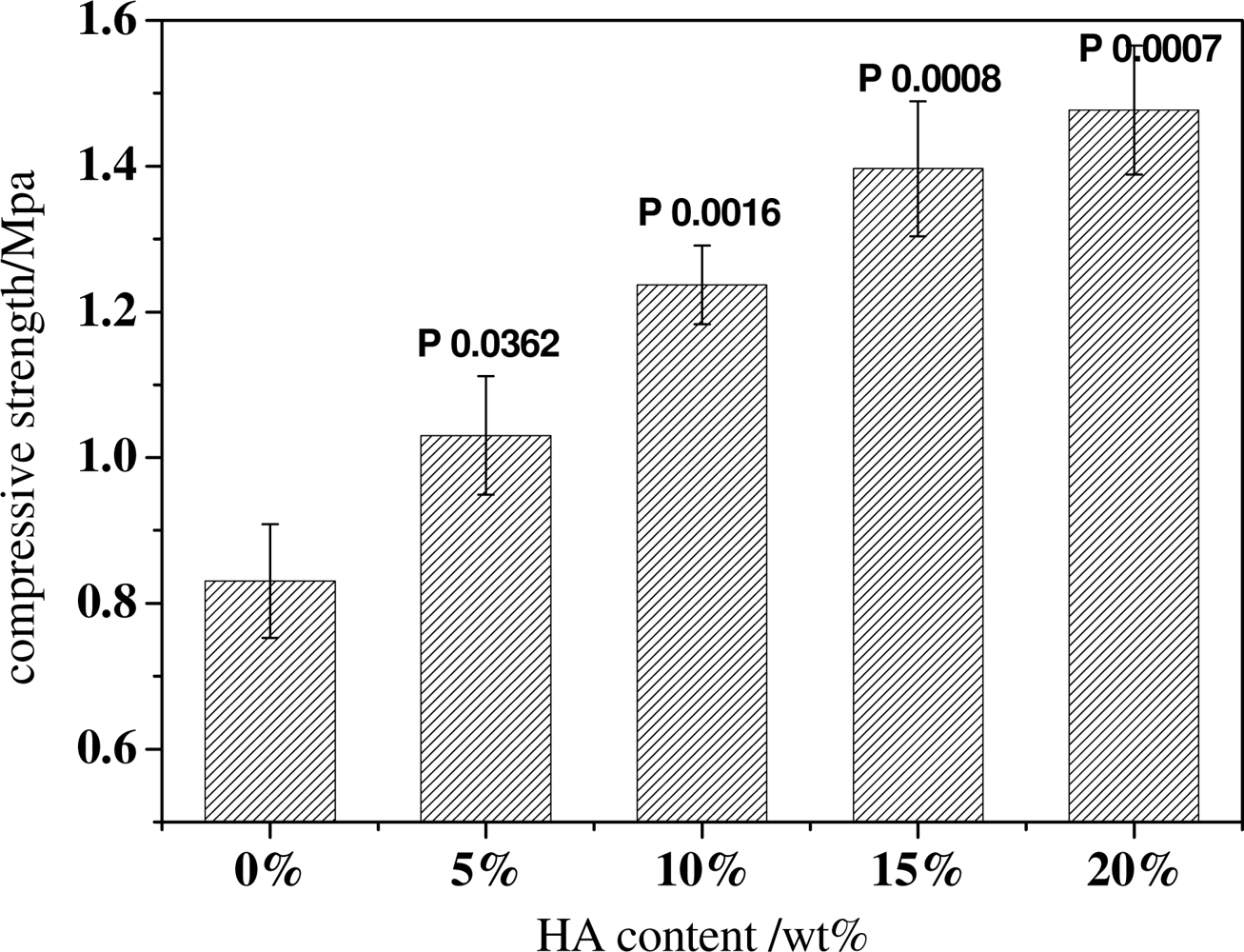

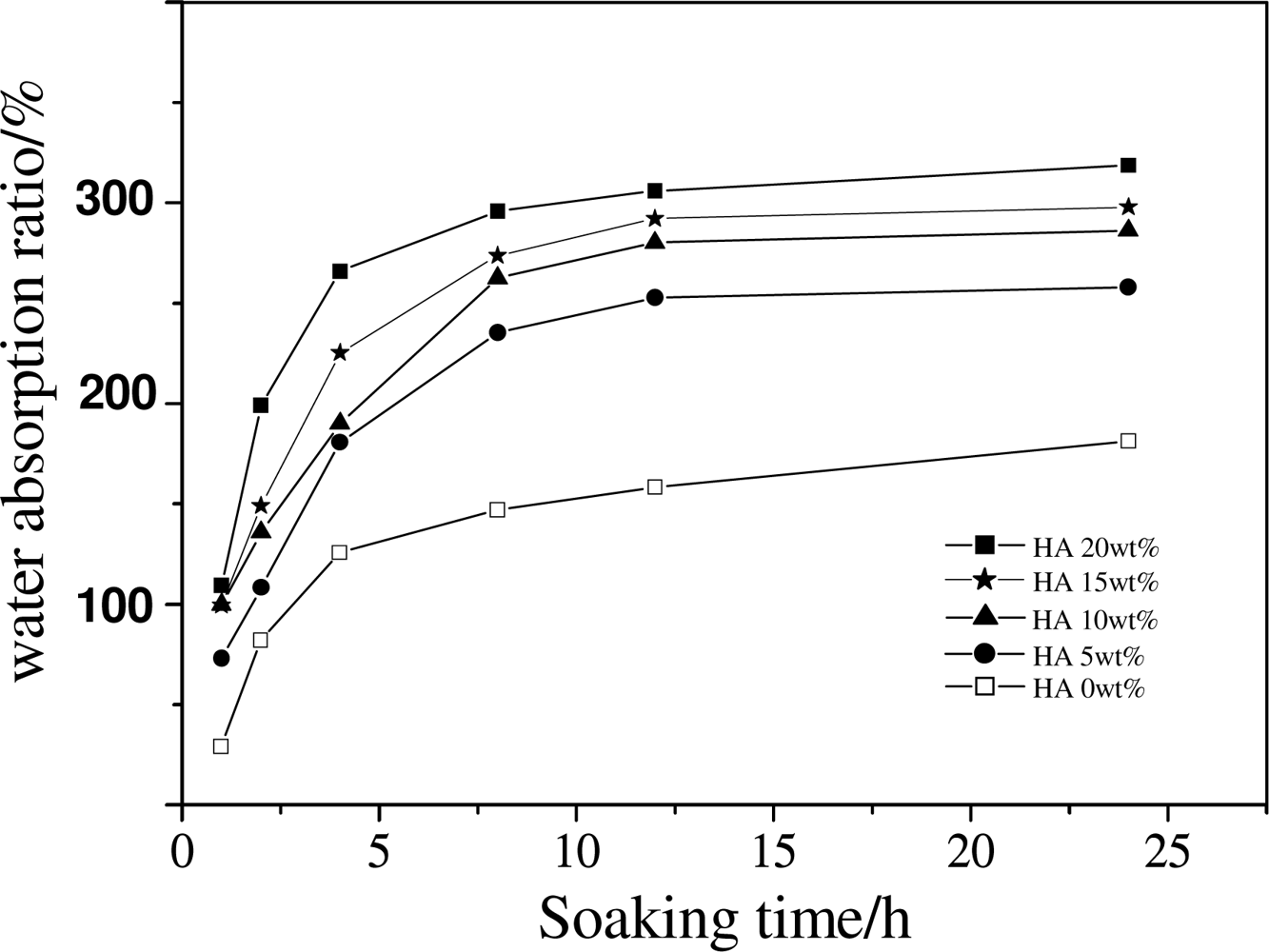

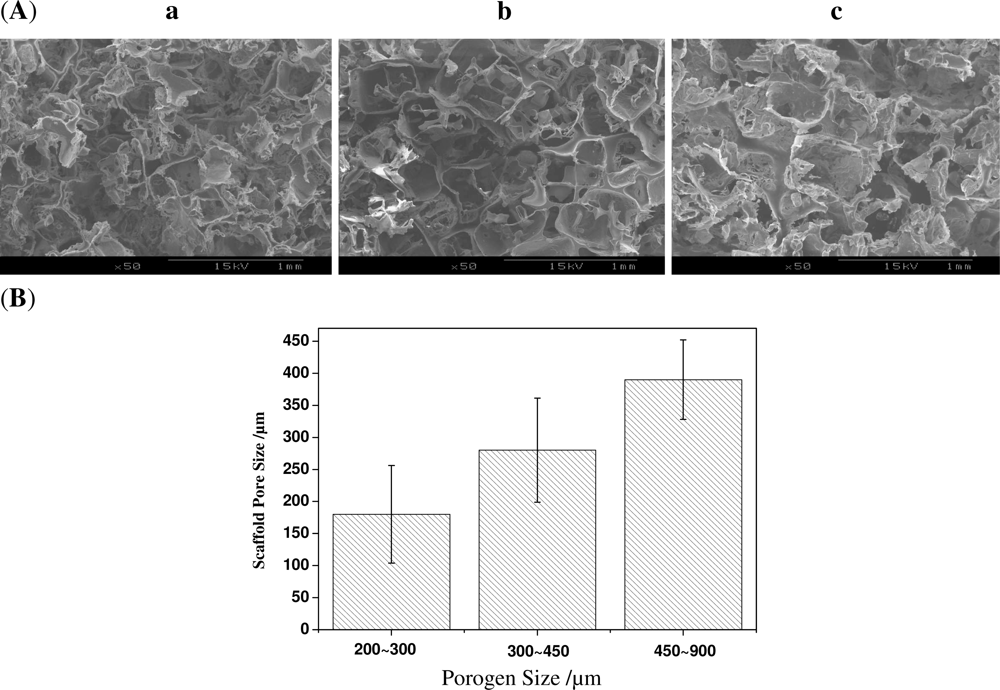

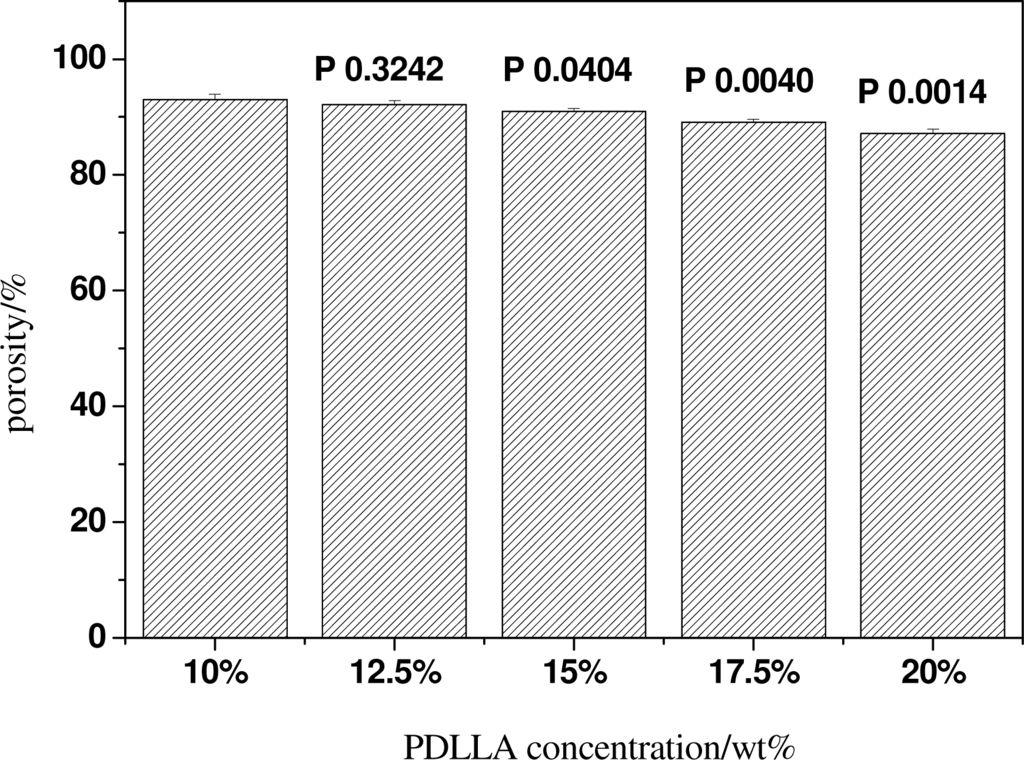

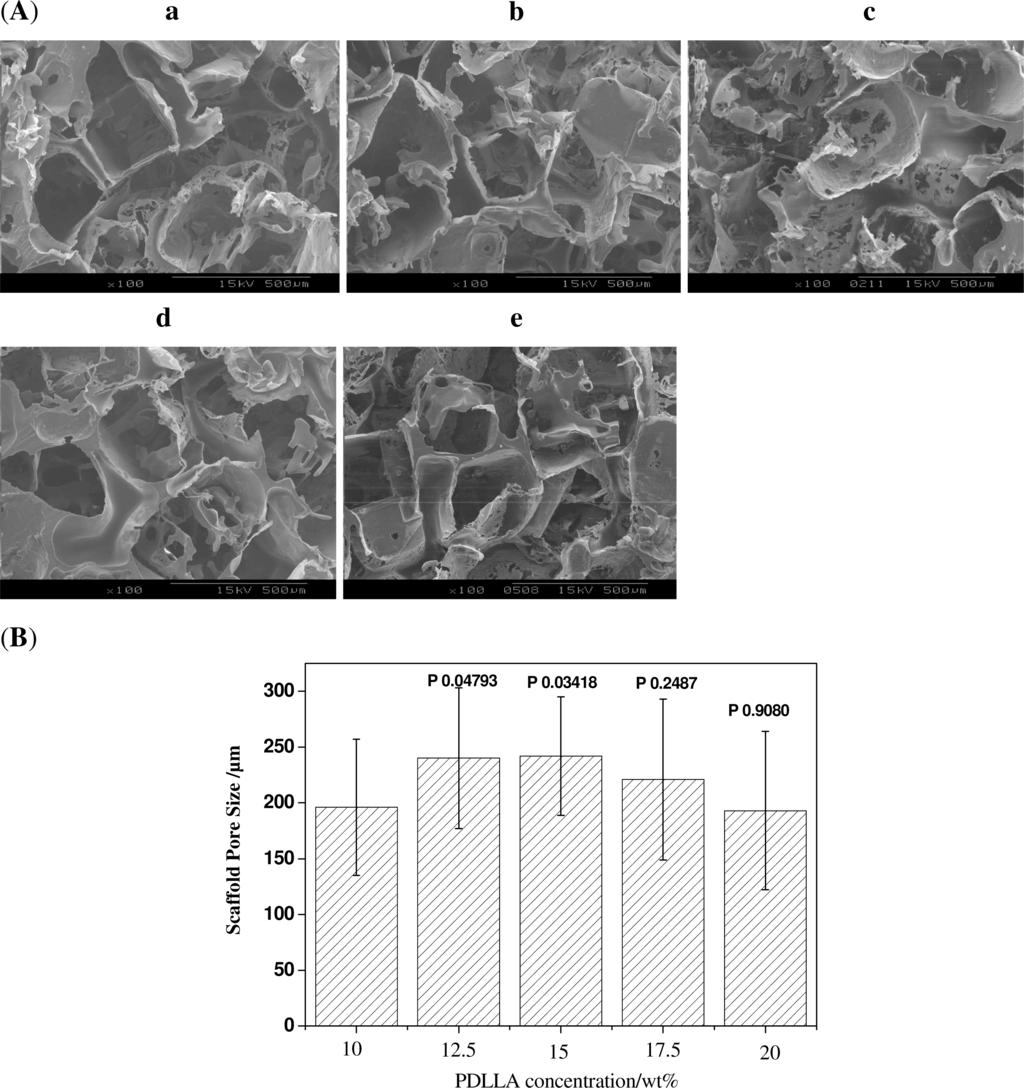

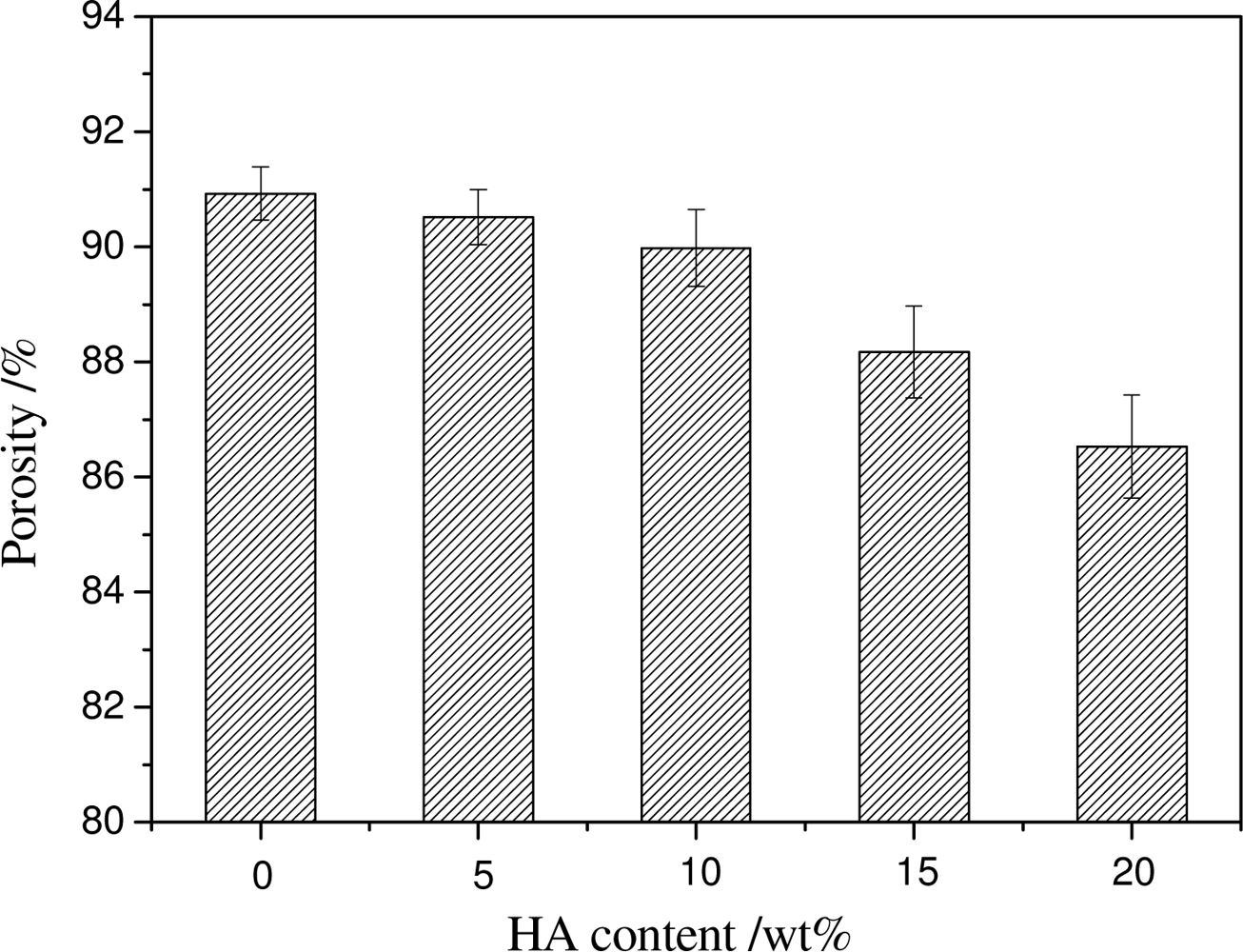

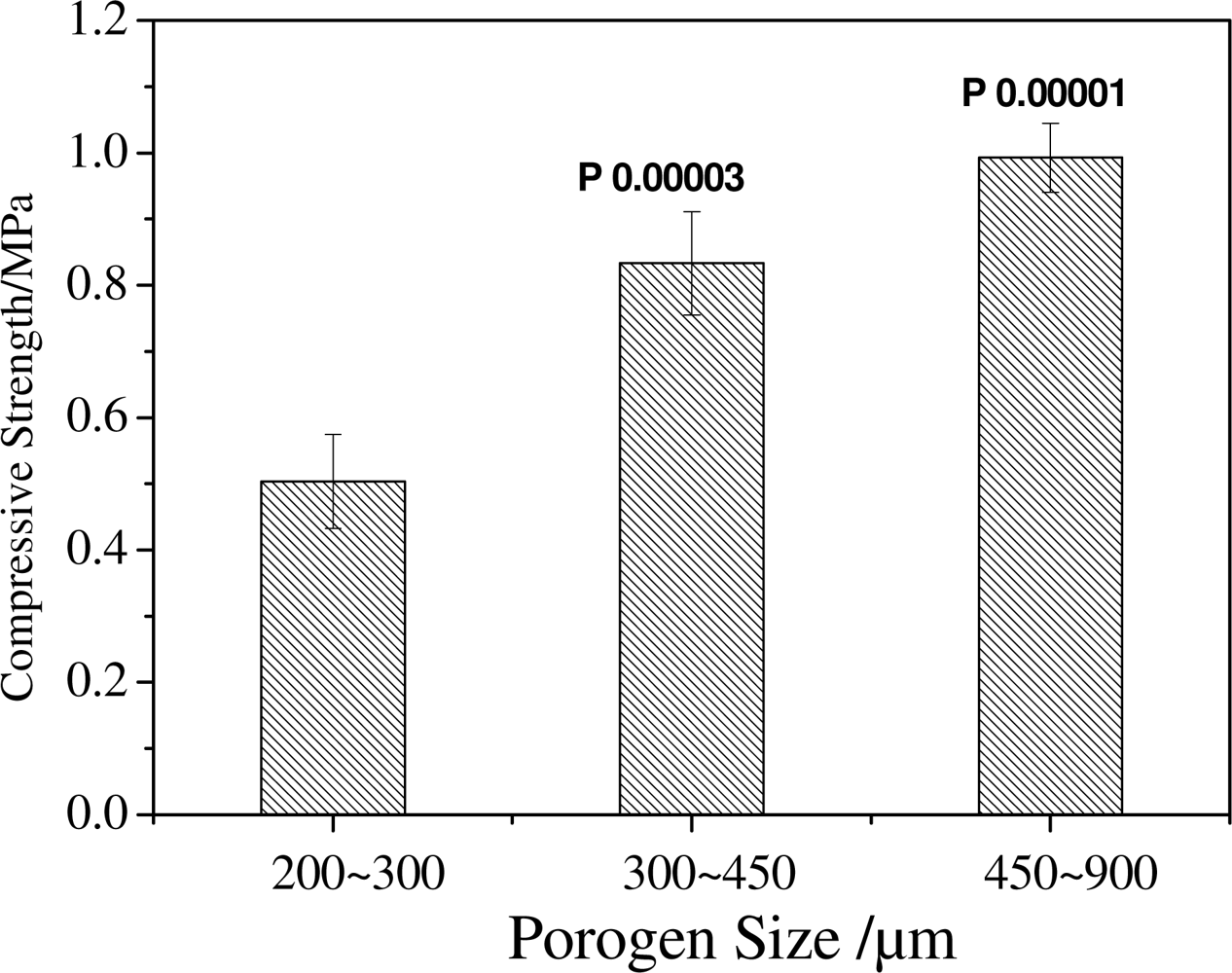

Abstract: Macroporous scaffolds with controllable pore structure and mechanical properties were fabricated by a porogen fusion technique. Biodegradable material poly (D, L-lactide) (PDLLA) was used as the scaffold matrix. The effects of porogen size, PDLLA concentration and hydroxyapatite (HA) content on the scaffold morphology, porosity and mechanical properties were investigated. High porosity (90% and above) and highly interconnected structures were easily obtained and the pore size could be adjusted by varying the porogen size. With the increasing porogen size and PDLLA concentration, the porosity of scaffolds decreases, while its mechanical properties increase. The introduction of HA greatly increases the impact on pore structure, mechanical properties and water absorption ability of scaffolds, while it has comparatively little influence on its porosity under low HA contents. These results show that by adjusting processing parameters, scaffolds could afford a controllable pore size, exhibit suitable pore structure and high porosity, as well as good mechanical properties, and may serve as an excellent substrate for bone tissue engineering.
Keywords: tissue engineering; composite scaffolds; mechanical property; porogen fusion technique

Article Statistics

Load and display the download statistics.

Citations to this Article

Cite This Article

MDPI and ACS Style

Tan, Q.; Li, S.; Ren, J.; Chen, C. Fabrication of Porous Scaffolds with a Controllable Microstructure and Mechanical Properties by Porogen Fusion Technique. Int. J. Mol. Sci. 2011, 12, 890-904.

AMA Style

Tan Q, Li S, Ren J, Chen C. Fabrication of Porous Scaffolds with a Controllable Microstructure and Mechanical Properties by Porogen Fusion Technique. International Journal of Molecular Sciences. 2011; 12(2):890-904.

Chicago/Turabian Style

Tan, Qinggang; Li, Songgang; Ren, Jie; Chen, Chu. 2011. "Fabrication of Porous Scaffolds with a Controllable Microstructure and Mechanical Properties by Porogen Fusion Technique." Int. J. Mol. Sci. 12, no. 2: 890-904.

Int. J. Mol. Sci. EISSN 1422-0067 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
