All simulations were carried out employing Born–Oppenheimer molecular dynamics simulations with Gaussian and plane waves using the program cp2k [23,24]. The temperature was set to 350 K for the ruthenium system (I) and to 300 Ryd K for the palladium systems (II,III) controlled by Nosé–Hoover chain thermostats [25–27]. A time step of 0.5 fs was chosen and the pseudopotentials of Goedecker, Teter and Hutter (GTH) described the core electrons of all atoms [28,29]. The DZVP basis set [30] represented the Kohn–Sham orbitals, and the plane wave representation was truncated with a cutoff of 300 for the ruthenium system and 280 Ryd for the palladium systems. The gradient corrected functional BLYP with dispersion corrections was used throughout the simulations [31–33]. For all simulations of the ruthenium system (I) the local spin density approximation (LSD) was applied. I was simulated in a periodic cubic box with 1223 pm box length containing 60 molecules of water (ρ = 1.17 g cm⁻³). The palladium system (II) without carbon dioxide solvent was simulated in a cubic box with 1500 pm box length without periodic boundary conditions. The palladium system (III) (ρ = 0.85 g cm⁻³) containing 60 molecules carbon dioxide was simulated in a periodic cubic box with 1800 pm box length. In order to obtain a starting structure for I and III, we performed molecular dynamics simulations in the framework of the program package GROMACS 3.3.1 [34]. The initial structures for the metadynamics simulations were pre-equilibrated with cp2k with Nosé–Hoover chain thermostats coupled to each vibronic degree of freedom for 0.8 ps (II) at 300 K and 5.5 ps (III) at 500 K. To allow relaxation both systems were equilibrated with a global Nosé–Hoover chain thermostats for 3 ps (II) and 9 ps (III) at 300 K. For each point of the thermodynamic integration for (II) and (III) a simulation with a constrained distance (∼9 ps for (II) and ∼8 ps for (III)) was conducted. The different simulations to obtain the constraint force for the thermodynamic integration were carried out without pre-equilibration. For the static calculations the program package TURBOMOLE 6.0 [46] was used to optimize all structures reported in this paper We applied the BP86 [32,35] functional where the RI approximation can be employed [36–38]. The def2-TZVPP [54] basis set, which includes a relativistic electron core potential for ruthenium, was used [39,40]. The program package SNF 4.0 was used for frequency calculations [41]. The figures were generated with Matplotlib which is a 2D plotting library for Python [42].

In the thermodynamic integration approach the FES is reconstructed by integrating the negative value of the mean force with respect to the reaction coordinate ξ along the reaction pathway. The superscript ^′ denotes that the conditional average is evaluated at ξ^′. The reaction coordinate ξ is a function of the ionic coordinates R_i. The subscript i denotes the number of the particle. (1) Δ F = ∫ ξ 0 ξ 1 〈 ∂ H ∂ ξ 〉 ξ ′ d ξ ′

For each integration point a simulation with a fixed value of ξ(R_i) is performed. The mean force can be determined from the Lagrange multiplier λ provided by molecular dynamic simulations. A general relation between the Lagrange multiplier and the conditional average is shown in Equation 2 [43]: (2) 〈 ∂ H ∂ ξ 〉 ξ ′ = 〈 Z − 1 / 2 [ − λ + k B T G ] 〉 〈 Z − 1 / 2 〉where k_B is the Boltzmann constant and T is the temperature. Z (Equation 3) is the correction factor from the blue-moon ensemble method [5] and G (Equation 4 with ξ x i x j = ∂ 2 ξ ∂ x i ∂ x j) is a factor introduced by Sprik and Ciccotti [43] to avoid the appearance of generalized coordinates. The sum in Equation 3 and Equation 4 runs over all N ionic coordinates in ξ(R_i) in Equation 4. These corrections are necessary because in the molecular dynamics simulations with a fixed ξ = ξ^′ an additional constraint is introduced namely ξ̇ = 0. The blue-moon approach corrects the additional constraint for a velocity-independent observable. Equation 2 further provides further the correct average for a velocity-dependent observable. (3) Z = ∑ i = 1 N 1 m i ( ∇ i ξ ) 2 (4) G = Z − 2 ∑ i , j = 1 N 1 m i m j ( ∇ j ξ ) T ( ξ x i x j ξ x i y j ξ x i z j ξ y i x j ξ y i y j ξ y i z j ξ z i x j ξ z i y j ξ z i z j ) ( ∇ i ξ )Equation 4 can be rewritten by introducing a 3N × 3N diagonal matrix M (Equation 5). And replacing the cutout of the Jacobian matrix in Equation 4 with the complete 3N × 3N Jacobian matrix Jξ. (5) M = diag ( 1 m 1 ,   1 m 1 ,   1 m 1 ,   1 m 2 , … 1 m n )This leads to a clearer relation (Equation 6), which is formally identical to Equation 4. (6) G = Z − 2 ( M ∇ ξ ) T J ξ ( M ∇ ξ )

As reaction coordinate we chose the distance between O1 and O2 for I and the distance between N1 and C1 for II, see Figure 1. In the case of a distance as reaction coordinate the relation is simple. In this case G becomes zero and Z is constant over all time steps and can be canceled in Equation 2. Thus, the average can be obtained directly from the Lagrange multiplier. We used cubic splines to interpolate the force between points obtained from simulations. How the error of the force and the FES was estimated, is described in Section 3.1.

Within the metadynamic approach [7] a set of collective coordinates is chosen. The collective coordinates are functions of the ionic coordinates S_m(R_i). For the selection of the variables two issues are important. Firstly, the variables should describe the reaction very well. Secondly, the reactants and products should be clearly distinguishable in the values of the collective coordinates. Each S_m(R_i) has a corresponding collective variable (CV) s_m. The idea is to explore the FES in the CV space which should describe the most important characteristics. The extended Lagrangian metadynamics method [44] was employed in this work to describe the system (Equation 7). (7) callL = callL 0 ( R 1 .. R N ,   R ˙ 1 , .. R ˙ N ) + ∑ m E 1 2 M m s ˙ m 2 − ∑ m E 1 2 k m [ S m ( R i ) − s m ] 2 + V ( t ,   s )

The sums in Equation 7 run till the total number of CVs (E). M_m denotes the mass of the mth CV, k_m the force constant for the mth CV and s the vector of all CVs. In this approach the collective variables are coupled with a harmonic term to the Lagrangian of the system. Additionally, a history dependent potential is added V(t, s). The harmonic term ensures that the value of the CV s_m stays close to the collective coordinate S_m(R_i). In our case the functional form of the history dependent potential is a sum of Gaussians along the trajectory of the CVs (Equation 8). H stands for the height of the Gaussians and Δ s m ⊥ denotes the width. P(t) stands for the upper limit of the sum of Gaussians, which is time dependent. (8) V ( t ,   s ) = ∑ j P ( t ) H ∏ m E exp { − 1 2 ( s m − s m j Δ s m ⊥ ) 2 }

Because of the history dependent potential, points which were already visited in the CVs space become less favorable. This leads to a fast exploration of the FES. The most valuable asset is the possibility to reconstruct the FES in the CV space from the Gaussian hills added continuously during the simulations. The important parameters in metadynamics simulations are: H, Δ s m ⊥, M_m, k_m and the time step τ between spanning two Gaussians. In order to achieve a reasonable MTD run, the parameters have to be adjusted to the investigated system. In the simulations we chose H = 0.788 kJ mol⁻¹ and for the time interval step τ = 0.2 ps. The parameter for the C1–N1 bond are: Δ s 1 ⊥ = 400   pm, M₁ = 100 amu and k₁ = 0.075 kJ mol⁻¹ pm⁻². For the O1–C1–O2 angle: Δ s 2 ⊥ = 0.3   rad, M₂ = 100 amu and k₂ = 2362.950 kJ mol⁻¹ rad⁻². The choice of the parameter is mainly based on the factors given in [45]. The error for the MTD runs were estimated with the help of Equation 9 [46]: (9) ɛ ¯ = C ( d ) k B T H S Δ s ⊥ τ D ( 1 + 40 τ τ s )S denotes the size of the system, C(d) is a factor depending on the dimensionality of the FES (C(1) = 0.5, C(2) = 0.3), τ s = S 2 D and D is the diffusion coefficient. How these variables are estimated is described in Section 3.3.

For system I, the reaction coordinate (RC) was set to the distance between O1–O2. We carried out constrained simulations along the RC at selected points (140, 160, 180, 190, 210, 230 and 250 pm). The convergence of the mean force value was estimated by monitoring the running average M(t) [47]. M(t) was used to filter the variability caused by vibrations of the bond. In addition the auto-correlation function (ACF) of the constrained force was calculated to demonstrate the fast relaxation time compared to the simulation time. Figure 3 shows the values calculated for a selected example (190 pm) of the O1–O2 distance. The curves calculated for the other points show approximately the same characteristics.

Additionally, we analyzed the convergence of the observable by evaluating the difference between two successive values of the running average M(t) (Equation 10). I stands for the size of the time interval between two successive values. In our case I = 0.5 fs. (10) G ( n ) = M ( I ( n + 1 ) ) − M ( I ( n ) )

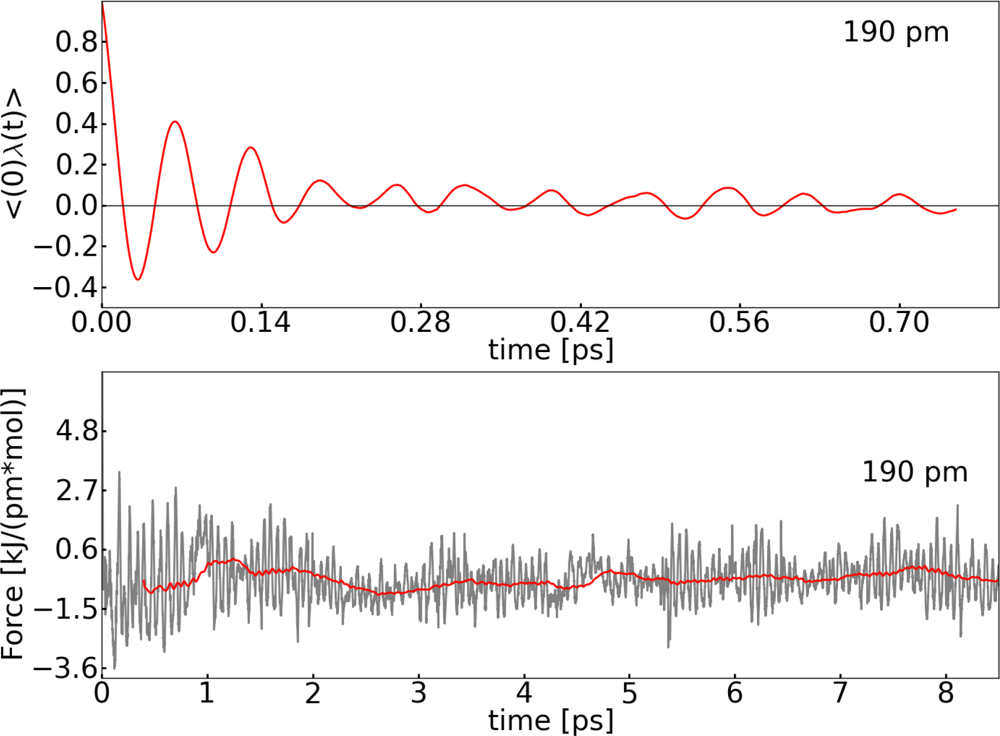

Figure 4 shows the trend of G(n) for two selected examples (140 pm and 190 pm). The value of G(n) fluctuates around zero. The deviation of the average of G(n) from zero is very small and negligible compared to the values of the mean force (Table 1). Therefore, we consider the value of G(n) as a good criterion in order to judge the convergence of the mean force. Convergence is reached if 〈G(n)〉 is below the arbitrary value of 1 × 10⁻⁴ kJ pm⁻¹ mol⁻¹ h.

The average of M(t) provides the final value for the mean force. The error bars of the constrained simulations points were estimated from the standard deviation of M(t). The standard deviation of M(t) is set as the upper and lower bound of the error. The points were interpolated with the help of cubic splines (Figure 5).

The negative of the interpolated function was integrated to obtain a value for the barrier. The error of the constructed FES was estimated by integrating the upper and lower error curves of the force and subtract them from each other. The barrier which was determined in this way is Δ F = 59.5 ± 8.5 kJ mol⁻¹. Thus the barrier is small enough that the reaction can take place at the selected conditions. To compare the order of magnitude of this barrier we carried out static quantum chemical calculations to determine the transition state of the ruthenium complex without any additional solvent molecule. We received a free energy difference of Δ F = 93.8 kJ mol⁻¹. This difference is reasonable, considering the different methods and the lack of any additional solvent effect in the static calculations. The structure of the ruthenium peroxoester (educt), the transition state and the ruthenium oxoester (product) is compared in Table 2. The transition state is located at a O1–O2 distance of approximately 192 pm. Hence the simulation at 190 pm was used to characterize the transition state. The simulations at 140 and 250 pm were used to characterize the ruthenium peroxoester and the ruthenium oxoester.

The structure of the transition state is very similar to the ruthenium peroxoester. There are no significant changes in the structure of the ruthenium complex. Another question concerning the structure of the transition state can be answered. Is there any water coordinated to the ruthenium complex in the transition state in order to lower the barrier? To answer this question the radial distribution function (RDF) of ruthenium and the oxygen atoms of the water was computed for the ruthenium peroxoester, the transition state and the ruthenium oxoester (Figure 6).

¿From the RDF it becomes clear that only negligible coordination of water to the ruthenium in the transition state is observed. This result corresponds to the fact that the transition state has almost the same structure as the ruthenium peroxoester. However, in the ruthenium oxoester water is coordinated to the ruthenium around 240 pm which implies a much stronger coordination between water and ruthenium. When changing from the peroxo to the oxorutheniumester, the formal oxidation state of Ru changes from +VI to +VIII. The minor water coordination of the peroxoester reflects that the coordination is weaker or much more hindered.

In this section, we employ the thermodynamic integration approach to investigate a reaction with a low barrier. The same reaction was investigated with the help of metadynamics (Section 3.3). System II was chosen for the TDI. We selected a distance for the reaction coordinate, namely the N1–C1 bond, see Figure 1. Constrained simulations were carried out at 165, 180, 200, 230, 250 and 290 pm. Like for the ruthenium system, we calculated the same quantities to assess convergence of the mean force. We observed the same behavior as for system I for each quantity. The ACF shows fast relaxation, G(n) fluctuates around zero and 〈G(n)〉 propagates close to a value of zero.

It should be noted that the remaining oscillation of the auto-correlation function (Figures 3 and 7) is caused by the intramolecular vibration of the bond. Additionally, the sharp peaks in the diagrams of G(n) and the mean force (Figures 3, 4 and 7) are due to Brownian motion. The FES was constructed in the same manner as mentioned above. In Figure 8 the interpolated force and the resulting FES are shown. The barrier for the addition of carbon dioxide calculated with TDI amounts to ΔF = 24.9 ± 6.7 kJ mol⁻¹. The transition state for this reaction is found at the C1–N1 distance of 259 pm. Comparing the FES in Figures 5 and 8 the different shapes of both curves stand out. This can be explained by the fact, that system I changes between two stable species (ruthenium oxoester to a peroxoester). However, in system II only a dissociation takes place and this leads to a flat decay in the FES.

We investigated the reaction for system II applying one collective variable, namely the C1–N1 distance, see Figure 1. To produce reasonable metadynamics simulations Equations 11 and 12 were used [45]. First k_m, Δ s m ⊥ and M_m were determined by simulations without a history dependent potential. Additionally the value on the left hand side of Equation 11 has to be smaller than the standard deviation of the collective coordinate. The ratio between k_m and M_m was adjusted to ensure adiabatic decoupling. Subsequently, the height was selected to be small compared to the depth of the well. Furthermore, the maximum force f m m a x due to a Gaussian was estimated with the help of Equation 12 and compared to the force F_Sm(R_i) on S_m(R_i) in simulations without a history dependent potential. (11) 〈 ( s m − S m ( R i ) ) 2 〉 = k B T k m (12) f m max = H Δ s m ⊥ exp { − 1 2 } (13) τ = 3 2 H M m k B T mτ was finally estimated with the help of Equation 13. Table 3 shows the values for the set of the parameters (set I) used in all metadynamics simulations. As an example, set I is compared to another set of parameter (set II) values for which the force constant was too low and the deviation of the CV from the collective coordinate became too large. We would like to point out that this criterion is not the only one which has to be fulfilled. For example, a too large force constant holds the CV close to the collective coordinate but destroys the adiabatic decoupling of the systems.

The FES reconstructed by the added up Gaussians, the time development of S₁(R_C1−N1), and the corresponding CV s₁ are shown in Figure 9. Around 13 ps the potential well is completely filled up with Gaussians and the C1–N1 bond breaks.

The error of the FES was estimated with Equation 9. S was set to 476 pm, which is approximately the size of the system explored within the simulation. The diffusion coefficient D was determined by integration of the ACF of the CV velocities (D = 6.610×10³ pm² ps⁻¹). Thus, we obtained a free energy difference of ΔF = 26.7 ± 2.3 kJ mol⁻¹. This value is almost 2 kJ mol⁻¹ higher compared to the TDI result. Most likely the TDI calculation underestimates the barrier, because TDI can only reproduce the right FES if the correct reaction coordinate is selected. The distance itself is a good first approximation, but it lacks some important contributions to the mean force. In contrast to calculations from the TDI with the MTD approach one tries to explore the FES with a set of limited variables. Therefore, the same choice of the geometric parameter for the reaction coordinate and the collective variable might result in different outcomes. For the carbon dioxide addition the distance itself is good enough to ensure a reasonable exploration of the FES in the MTD approach. Furthermore, we will see in the next section, that it is possible for this system to estimate satisfyingly the well depth in the FES with this one collective variable, even if there are other important variables for the reaction coordinate. An important question in the MTD approach concerns the convergence of the FES. In other words, when were enough hills added to describe the FES satisfyingly. Normally a simulation is regarded as converged if the forward and backward reaction were observed several times. There are methods like well-tempered metadynamics which avoid this problem [48]. However we will not use this method here. In Figure 9 bottom one can see that there are only very weak fluctuations of the CV after the first reaction occurred (ca. 14 ps). Since the carbon dioxide dissociates during the reaction it is difficult to observe forward and backward reactions multiple times. We explored two ways to enhance the sampling quality of the FES (Figure 10). For the first approach three points around 14 ps from the trajectory were selected. Afterwards the velocities of the atoms of the carbon dioxide were newly initialized according to the Boltzmann distribution and a MTD run was performed. The resulting free energy surfaces of the four MTD simulations were averaged. In the second approach a potential wall was used, which inverts the velocity of the CV if the distance of C1–N1 is greater than 400 pm.

With the help of the potential wall it is possible to force the backward reaction. One can observe this in Figure 10 bottom. For the free energy difference of the average FES (Figure 10 top green curve) we obtained ΔF = 29.8 kJ mol⁻¹. Simulating with the potential wall (Figure 10 top blue curve) led to a free energy difference of ΔF = 28.2 kJ mol⁻¹. The three values of the free energy differences are close together and within the error and therefore we consider the MTD as close to being converged.

The CVs should describe the reaction as good as possible, thus we try to find additional important CVs. As the angle bends itself strongly during the reaction, it seemed to be meaningful to add the O1–C1–O2 angle to our set of CVs.

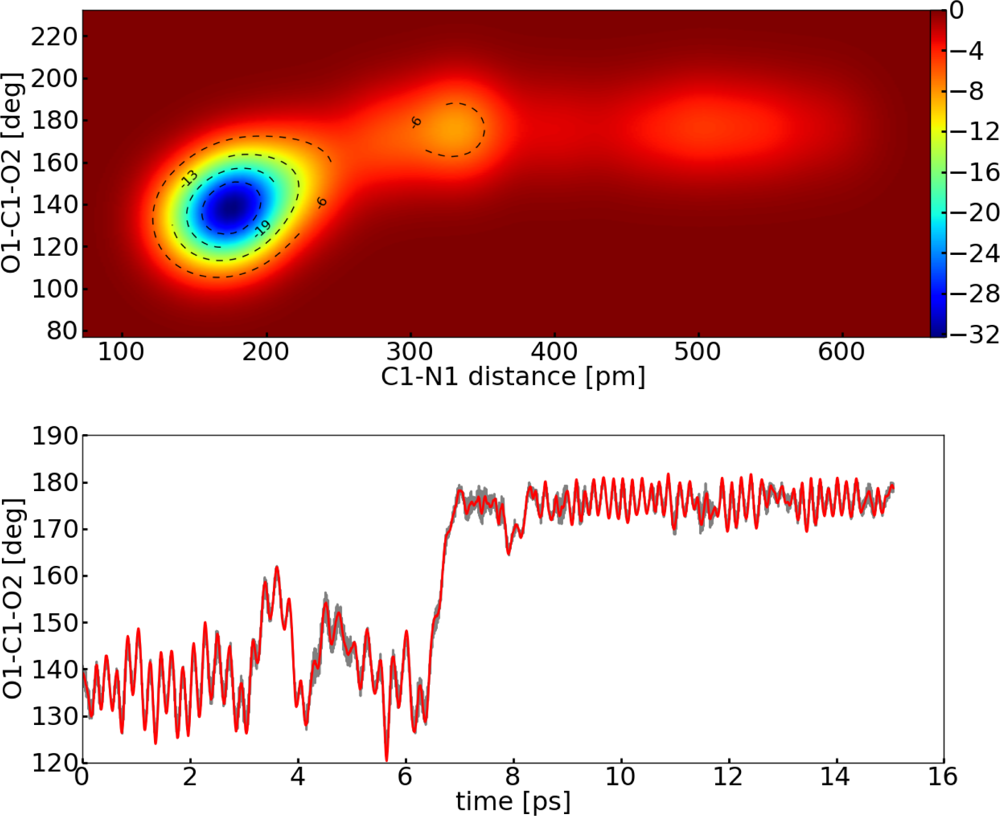

Figure 11 provides a clearer picture of the energy surface and the mechanism of the reaction. It follows that for the reaction coordinate not only the change in the distance but also the arrangement of the angle is crucial. In the minimum energy path an enlargement of the distance and simultaneously of the angle happens, see Figure 11 top. Again, the error of the FES was calculated with Equation 9. Due to the fact that we introduced two variables, the diffusion coefficient is actually a 2 × 2 tensor. Additionally, the scaling factor Δ s m ⊥ of the Gaussians is different. To use Equation 9 we estimated D, S, and Δ s m ⊥ with the help of the geometric mean (D = 12.1 rad pm ps⁻¹, S = 22 rad^−0.5 pm^−0.5 and Δ s m ⊥ = 2.5   rad − 0.5 pm − 0.5). We obtained ΔF = 27.1 ± 5.9 kJ mol⁻¹. Since only one reaction event was observed in the simulation, again an additional potential was used to improve the sampling of the FES (Figure 12). The potential wall was placed again at 400 pm.

Simulating with the potential wall, ΔF = 23.8 kJ mol⁻¹ was obtained. The multiple occurrence of the reaction leads to a better sampling of the FES and a slightly lower value was obtained. Hence the initial metadynamics run was not completely converged. However, the value is in the error range, therefore we use the first value for the discussion. A final remark should be given to the additional minima in the FES obtained from a MTD run, e.g., in Figure 10 around 320 and 400 pm. These minima are obviously artifacts of the simulations. They are simply a result of the bumpy reconstruction of the FES.

In order to evaluate solvent effects we simulated the reaction with a solvent box of carbon dioxide as well. For the metadynamics simulations the same parameters were used as in system II (with one CV). Comparing both FESs the effect of the solvent becomes obvious (Figure 13). We observe an increase in the barrier. Both enthalpic and entropic contributions of the solvent may be important for this effect. It is of course impossible to derive a quantitative statement from the total FES about the order of magnitude of these different contributions. However, one can infer, at least qualitatively, the mechanism of the stabilizing contributions.

It is obvious that additional favorable interactions with additional solvent molecules can lead to stabilizing effects. If these contributions are only occurring at the educt state or if the transition state is destabilized then the enthalpic effect from the solvent would lead to a higher reaction barrier. Additionally, if one compares II to system III, the change in entropy caused by the dissociation of the carbon dioxide becomes less important in III. In other words, the entropy might increase less, which leads to a stabilization of the palladium carbon dioxide complex. The barrier of the dissociation in the solvent amounts to ΔF = 44.9 ± 3.3 kJ mol⁻¹ (D = 5.3 × 10³ pm² ps⁻¹). The solvent effects contribute 17.8 kJ mol⁻¹ to the stabilization of the complex. This represents approximately 65% of the binding energy in vacuum. To enhance the sampling of the FES we used the same approach as in Section 3.3, i.e., and selected three points around 30 ps, initialized new velocities for the atoms of the carbon dioxide and averaged over the four FES (Figure 14). A free energy difference of ΔF = 46.6 kJ mol⁻¹ was obtained. Since both values are of the same order of magnitude, we assume that the simulation is converged.
