2.1. 1984–1993: Cloning and Characterization of the Human Coagulation Factor VIII
The human F8 gene was cloned between 1982 and 1984 [6]. At that time the gene was the largest described [6], and at approximately 187 kb, remains one of the largest (chrX:154,064,070-154,250,998, UCSC genome browser, access date 17/10/2011 [7]). Genetic mapping positioned the F8 gene in the most distal band (Xq28) of the long arm of the X-chromosome. The F8 gene contains 26 exons, which vary in length from 69 to 3,106 base pairs (bp). Intron sequences correspond to 177.9 kb, and are removed from the primary transcript product during splicing to generate a mature F8 mRNA of approximately 9 kb in length that predicts a precursor protein of 2,351 amino acids. Of the larger intron sequences, we found six that are greater than 14 kb (introns 1, 6, 13, 14, 22 and 25), with intron 22 the largest at 32.8 kb in length [6].
Levinson et al. (1990) [8] found a curious example of a gene within a gene. Looking for transcripts within a region of Xq28 associated with several neurological disorders, the authors identified a CpG island in the largest F8 intron. This CpG island was associated with a 1.8 kb transcript referred to as the A gene (F8A). The nested F8A gene was oriented in opposite direction to that of F8 and contained no intervening sequences. Computer analysis of the sequence suggested that the F8A gene encodes a protein with the complication that codon usage analysis suggested a frameshift halfway through the gene. Freije and Schlessinger (1992) [9] subsequently demonstrated that the X-chromosome contains three copies of F8A and its adjacent regions, one in intron 22 and two telomeric and approximately 500 kb upstream to the F8 gene transcription start site.
In 1992, Levinson et al. reported another transcript of 2.5 kb, F8B, that emanates from the same F8 intron 22 CpG island as F8A and transcribes in the same direction as F8. The divergent transcripts F8A and F8B originate from within 122 bases of each start point. The newly identified 5′ exon of F8B in F8 intron 22 potentially codes for eight amino acids and was spliced to F8 exons 23–26, with the F8 reading frame maintained [10].
Following these discoveries, Lakich et al. (1993) [11] pointed out that intron 22 was unusual in many respects. Containing 32.8 kb, it is the largest intron in the F8 gene. It also contains a CpG island, located about 10 kb downstream of exon 22 [11]. This CpG island appears to serve as a bidirectional promoter for the F8A and F8B genes, which are both expressed ubiquitously in different tissues [10]. In 2001, F8A gene was shown to code for a 40 kD huntingtin-associated protein, termed HAP40 [12] and is thought to be involved in the aberrant nuclear localization of the huntingtin protein in Huntington disease. The function of F8B is not known. Because there is no F8B equivalent in the mouse genome, transgenic mice that express the wild-type human F8B under the control of a cytomegalovirus promoter have been used to understand its function. Surprisingly, these F8B transgenic mice showed growth retardation, microcephaly and severe ocular defects, evidence that should encourage further studies of this protein [13].
2.2. 1993–2005: F8 Intron 22 Inversion Discovery and Detection
In 1993, two research groups—one led by Jane Gitschier in USA and the other one by Francesco Giannelli in UK—independently observed that one half of severe HA patients had no detectable mutation in the promoter, coding sequences or normal RNA processing signals of the F8 gene [11,14]. Instead they revealed a unique mRNA defect that prevents the amplification of the message across the boundary between exon 22 and 23. This feature located the defect to internal regions of intron 22 and a model was proposed based on recombination between homologous F8A sequences located in intron 22 and upstream of the F8 gene. Such event of homologous recombination would lead to an inversion of all intervening DNA and a disruption of the F8 gene. Both groups presented evidence to support this model.
Unbroken F8 gene sequences are shown as green hatched boxes and rearranged F8 sequences as orange hatched boxes; intragenic int22h-1 is shown as a closed chevron; int22h-2 and int22h-3, within the arms of a large imperfect palindrome (blue), are shown as grey and open chevrons, respectively. Chimeric int22h sequences are denoted as [/] e.g., int22h-1/-2 represents the chimera between h-1 and h-2. Each schematic displays: (a) ISPCR based approaches developed by Rossetti et al. [15,16], wherein “B” represents a Bcl I restriction site after self-end ligation; (b) Southern blot analysis as described by Lakich et al. (1993) [11], wherein dashed lines show Bcl I restriction fragment sizes (kb); and (c) LDPCR based approaches of Bagnall et al. (2006) [17] (upper) and Liu et al. (1998) [18] (lower). Please refer to text for further explanation of details, including derivation of primers with orientation marked by arrowheads.
Lakich et al. (1993) further described a Southern blot assay based on Bcl I restriction and an F8A probe for which the sizes of two of the three normal hybridization bands were characteristically altered in patients presenting intron 22 inversions (Inv22) [11] [Figure 1A-D(b)]. They suggested that this assay should permit genetic prediction of HA in approximately 45% of families with severe disease [11]. Both the USA and UK groups found that this mutation occurred at the surprising rate of approximately 4 × 10−6 per gene, per gamete, per generation [11,14].
2.2.1. First Generation: Southern Blot Analysis as the Gold Standard and Early Findings about Inv22
Southern blot analysis, as described by Lakich et al. (1993) [11], is still considered the reference method for Inv22 genotyping. These investigators showed that Inv22 can present two different band patterns named distal or type I, and proximal or type II (Inv22-1 and Inv22-2, respectively). Inv22 Southern blot analysis is defined by Bcl I enzyme restriction and a labeled probe (900 bp Eco RI-Sac I fragment of plasmid p462.6, ATCC #57203) corresponding to the F8A gene located within F8 intron 22 and therefore also the two extragenic copies. Accordingly, Southern blot analysis resolves different patterns each containing three signals per allele, i.e., no-Inv22 (normal allele) associated with signals of 21.5, 16, and 14 kb [Figure 1A(b) and 1B(b)]; Inv22-1, with signals of 20.0, 17.5 and 14.0 kb [Figure 1C(b)]; and Inv22-2, with signals of 20.0, 16.0, and 15.5 kb [Figure 1D(b)].
Southern blot analysis is technically robust, enables identification of all types of inversions (Inv22-1 and Inv22-2), and permits a semiquantitative evaluation of Inv22 heterozygous carrier mosaicism as in the case described by Oldenburg et al. (2000) [19]. However, this technique is labor-intensive requiring 8–10 days to obtain the results. Use of hazardous radiochemicals is a further disadvantage and requires authorized personnel, although use of chemiluminescence probe labeling may circumvent these potential risks.
Interestingly, Rossiter et al. (1994) [20] found that Inv22 originates predominantly from male germ cells and hypothesized that the presence of a second X chromosome in female meiosis would hinder the intrachromosomal non-allelic pairing required for Inv22. They presented convincing evidence supporting their findings using linkage analysis. This approach confirmed that, when occurring at the grandparents’ generation, the Inv22 was always associated with the grandfather germline (20 out of 20 informative families studied), whereas only one out of 50 mothers of sporadic cases with severe HA and the Inv22 were carriers. Contemporaneously, Tizzano et al. (1995) [21] observed in a Spanish population that all mothers of patients with isolated HA caused by the Inv22 resulted from carriers, also indicating that Inv22 originates in male germ cells.
Oldenburg et al. (2000) [19] reported the first instance of Inv22 presenting as somatic mosaicism in a female, affecting only about 50% of lymphocyte and fibroblast cells. Supposing a postzygotic de novo mutation as the usual cause of somatic mosaicism, the finding implies that the Inv22 mutation is not restricted to meiotic cell divisions but can also occur during mitotic cell divisions, either in germ cell precursors or in somatic cells.
Aiming to define the exact extent of the homologous sequences involved in the Inv22 crossing over event, Naylor et al. (1995) [22] studied an intragenic clone containing F8 intron 22, which contains a copy of F8A, and two extragenic clones each with a single copy of F8A located by the Xq telomere using PCR amplification, chemical cleavage of mismatch (CCM) and DNA sequencing. They precisely defined the repeated region of 9.5 kb and named it int22h-1 (intron 22 homologous region-1) (intragenic to F8), and int22h-2 and int22h-3 (both extragenic to F8). The inversion junctions were shown to represent precise exchanges between the int22h repeats without insertions or deletions, thus providing conclusive evidence for homologous recombination [22]. The three copies of int22h were compared along more than 8 kb of their length, using CCM analysis, and found to be 99.9% similar [22]. The presence of such long and almost identical inverted repeats near the Xq telomere could account for the high frequency at which the inversions occur [22].
Antonarakis et al. (1995) [23] collected data on 2,093 samples from laboratories all over the world and concluded that the common inversion mutations are found in 42% of patients with severe HA (35% of Inv22 type I, 7% of type II and 0.05% of rare variants such as types IIIa and IIIb). Whereas 98% of all mothers of patients with Inv22 were carriers, data from this study was only one de novo inversion event occurring in maternal somatic cells for every 25 mothers of sporadic cases. When the maternal grandparental origin of inversions was examined the ratio of de novo occurrences in male:female germ cells was 69:1. In Argentina, De Brasi et al. (2000) [24] found similar figures for Inv22 type I and type II, although they did not find rare types in a group of 34 patients with severe HA (i.e., 41% of total Inv22, 35% of Inv22-1 and 6% of Inv22-2). According to previous series and the evidence discussed above, the Argentine series showed that all mothers of patients with the Inv22 (and particularly those mothers of isolated cases of hemophilia) were conventional heterozygous carriers, as detected in peripheral blood DNA samples, excluding the possibility of de novo mutation in their gonads.
2.2.2. Second Generation: Long Distance-PCR Based Approaches
During the early 1990s, the Inv22 was detectable only by labor-intensive Southern blot analysis. Therefore, a simpler, more rapid and less expensive test for Inv22 genotyping was highly desirable. Steve Sommer in USA designed a single-tube PCR assay that combines overlapping PCR [25] with long distance-PCR (LD-PCR) [26] to achieve the genetic diagnosis of Inv22 causing severe HA [18]. The new method was simple, rapid and relatively inexpensive and thus became the method of choice in many laboratories worldwide.
The inversion was detected by performing LD-PCR directly from genomic DNA with four primers that differentiate the wild-type, Inv22, and carrier genotypes. Two primers, P and Q, located within the F8 at positions −1,212 bp and +1,334 bp flanking int22h-1, when combined with two different primers, A and B, flanking the two extragenic repeats int22h-2 and int22h-3 each at −167 bp and +118 bp, yield segments PQ (12 kb) and AB (10 kb) in a hemizygous individual without Inv22 and segments PB (11 kb) and AQ (11 kb) along with the 10 kb AB segment from the intact extragenic homolog in a patient with the Inv22 [Figure 1A-D(c)]. This assay does not differentiate Inv22 types I and II. Inv22 female carriers produce PQ, PB, AQ, and AB segments. In all cases, an AB segment serves as an internal control because at least one copy of int22h-2 or int22h-3 remains intact. The three long amplimers were separated by agarose gel electrophoresis 0.6% for 6–8 hours [18].
Efficient amplification of the four segments depended on three unusual modifications for LD-PCR protocols: (i) high concentrations of dimethyl-sulfoxide; (ii) addition of 7-deaza-dGTP; and (iii) high concentration of a mix of Taq and Pwo DNA polymerases [18]. However, one of the segments was amplified much more efficiently than the others under standard three-temperature cycling conditions. Consequently, to facilitate the uniform amplification of the multiple regions, subcycling-PCR was included in this protocol [27].
The accomplishment to amplify long amplimers encompassing int22h duplicons by Sommer’s group opened the possibility to investigate a highly informative restriction fragment length polymorphism (RFLP) of enzyme Xba I [28]. Notably, the contemporary reports of El-Maari et al. (1999) [29] and De Brasi et al. [30] both described methods based on hemispecific LD-PCR for Xba I RFLP genotyping, one primer targeting single copy DNA on F8 intron 22 and the second primer targeting int22h repeat sequence. By application of the same approach of hemispecific LD-PCR for int22h-1 specific amplification followed by nested PCR amplification, Bowen et al. (2000) [31] presented a new RFLP of the restriction enzyme Msp I that proved heterozygous in about 46% of females of Caucasian origin. In addition, De Brasi et al. (2003) [32] reported streamlined genotyping of the Xba I and Msp I RFLP by use of a separate LD-PCR product obtained with primers P and Q [18] to specifically amplify int22h-1 followed by nested PCR. The authors reported a combined heterozygosity of 63% in Argentine population, which is an exceptionally high figure for such linked markers (750 bp).
Contrasting with the significant virtues of LD-PCR for Inv22 genotyping, amplification of such long amplimers (>10 kb) including a tract of about 3.3 kb with 79% of CG content made this assay somewhat dependent on narrow ranges of input DNA qualities, thermocycling and reagent conditions [27]. With an objective to improve Inv22 genotyping efficiency, Bowen and Kenney (2003) [33] unleashed the multiplex LD-PCR single tube reaction [18] into four separate LD-PCR reactions for each of the primer pairs PQ, PB, AQ and AB [Figure 1A-D(c)]. This separation permitted more robust amplification for each primer pair, and results were readily interpretable using standard agarose gel electrophoresis.
2.2.3. Third Generation: Inverse Shifting-PCR Based Approaches
In order to overcome the problems associated with direct amplification of int22h duplicons, Rossetti et al. (2005) [15] designed an alternative approach for Inv22 genotyping based on a variant of the classical inverse-PCR designed by Ochman et al. (1988) [34]. Novel Inv22 inverse-PCR analysis was inspired by the typical signal shift from 21.5 to 20 kb on Southern blot autoradiograms indicative of the presence of Inv22 type I or type II [14]. This alternative inverse-PCR based protocol included three steps: (i) Bcl I restriction; (ii) self-ligation of restriction fragment ends yielding Bcl I circles; and (iii) standard multiplex PCR analysis (Figure 2). Three years later, this approach was named inverse shifting-PCR (IS-PCR) [16] because it differs from classical inverse-PCR in that primers target at short definite distances from the site of restriction/ligation and, therefore, a sequence change associated with a particular rearrangement generates a chimeric circle that is recognized by a shift in primer usage and is ultimately reflected by the predicted size of IS-PCR product (Figure 2).

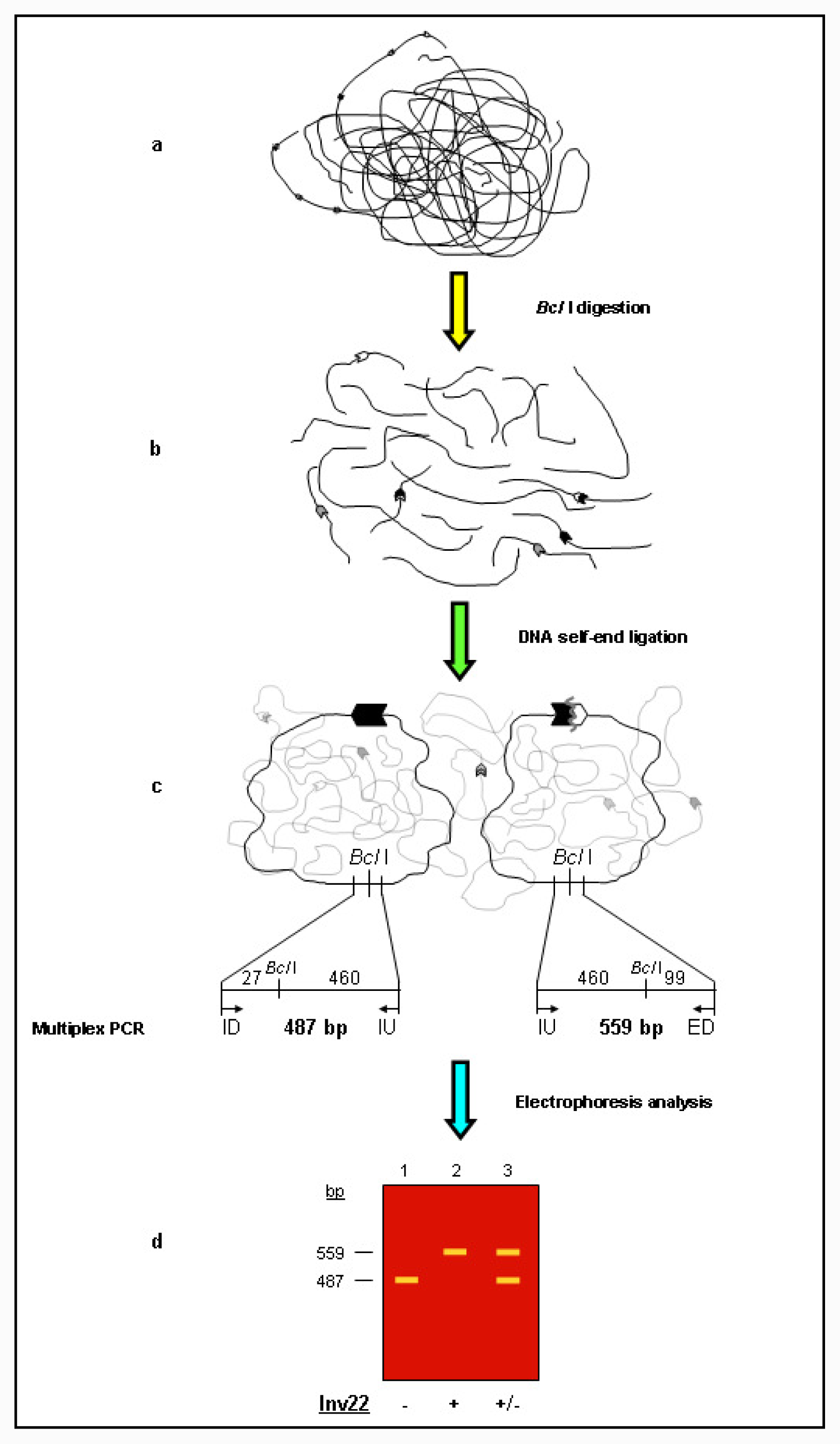

Inv22 analysis by IS-PCR was achieved using three different primers (ID, IU, ED) that yielded a 487 bp amplicon (ID/IU) for the wild-type intragenic allele and a 559 bp amplicon (ED/IU) for the Inv22 allele (Figure 2). PCR products were analyzed by standard agarose gel electrophoresis. It is important to reinforce that primers for IS-PCR were targeted to regions free of human repeats and low-complexity DNA by masking the relevant regions [15].
2.3. 2005–2011: Completion of the Human X-Chromosome Sequence and Definition of Hypothetical int22h-Mediated Rearrangements. Unraveling a Complex Picture
The traditional picture stated by Naylor et al. (1995), which reigned for a decade, proposed that both int22h-2 and int22h-3 should be in opposite orientation to int22h-1 on the X-chromosome [22]. In this scenario, intrachromosomal homologous recombination between int22h-1 and either of the two extragenic copies may result in the two varieties (types) of the recurrent inversions that cause almost half of cases of severe HA. It was believed that int22h-1 interacts with either the proximal (int22h-2), or the distal (int22h-3) extragenic copy, generating either Inv22 type II or type I, respectively. By this model, interaction between int22h-1 and int22h-3 would be favored over those between int22h-1 and int22h-2, thus explaining their relative frequencies (4:1, Inv22 type I: type II) (Naylor et al. 1995) [22].
Availability of the DNA sequence of the X-chromosome in 2005 showed that int22h-2 and int22h-3 are found within the arms of a large imperfect palindrome, and only int22h-3 should be involved in these inversions [35] (Figure 1A and 1B). The duplicated inverted sections (arms) are 50 kb-long and are separated by 67 kb of non-duplicated spacer sequence (Figure 1A and 1B). The int22h-2 and int22h-3 regions lie adjacent to the spacer sequence, and the more proximal of these (traditionally int22h-2) is in the same orientation as int22h-1. Therefore, recombination between int22h-1 and int22h-2 should lead to deletions or duplications rather than inversion [36].
Bagnall et al. (2005) suggested an attractive hypothesis to explain the relative frequencies of type I and type II inversions [36]. These investigators proposed that the large palindrome arms could recombine frequently with each other to generate an inversion of the central 67 kb segment (spacer) that expresses in the human population as a structural inversion polymorphism with frequencies of 80% and 20% for the two variants, i.e., h123 and h132, respectively (Figure 1A and 1B).
2.3.1. More on the Second and Third Generation. New Tests to Allow Comprehensive Detection of int22h-Related Rearrangements
Unfortunately, Inv22 genotyping by LD-PCR (1998) [18] and IS-PCR (2005) [15] does not permit discrimination of type I and type II Inv22 patterns (Figure 1C and 1D), nor, perhaps more importantly, do these methods allow detection of hypothesized int22h-related deletions (Del22) (Figure 1E and 1F) or duplications (Dup22) (Figure 1G). These limitations of rapid approaches for Inv22 genotyping opened up the possibility that molecular diagnosis may be misrepresented in some cases.
In a bid to overcome these limitations and to improve molecular diagnosis of Inv22, new protocols for Inv22 detection based on LD-PCR (2006) [37] and IS-PCR (2008) [16] were developed with the intention to identify all int22h rearrangements. Both of these revised protocols allow discrimination of Inv22 type I and type II patterns (Figure 1C and 1D), int22h-mediated deletions (Del22-1, Del22-2) (Figure 1E and 1F), and duplications (Dup22) (Figure 1G) by using complementary or additional diagnostics tests (Figure 1A-G(a) and 1A-G(c)).
Bagnall et al. (2006) [37] developed an LD-PCR based method for specific detection of Inv22 patterns type I and type II using a single test with four primers (named H1R, H1F, H2F and H3F) yielding a 10 kb product in normal DNA representing the intact int22h-1 region, and signals of 11.5 and 12.7 kb in DNA from patients with the Inv22 type I and type II, respectively [Figure 1C-D(c)]. These latter signals represent the more centromeric reciprocal of the int22h recombined sequences, which respectively contain part of int22h-3 and int22h-2. DNA samples from Inv22 heterozygous carriers show one of the mentioned Inv22 specific signals accompanied by the 10 kb signal seen in normal DNA that contains the non recombined copy of int22h-1 (Figure 1A-B(c)). As equally-oriented int22h-mediated duplications and/or deletions were likely to occur, it is useful to have complementary tests for detecting and distinguishing them from the inversions that cause severe HA. Consequently, Bagnall et al. (2006) [37] designed two complementary tests (Co1° and Co2°) using two combinations of primers. The test Co1° with primers H1F and H2/3R shows a signal of 9.6 kb from samples with the Inv22-1, Inv22-2 and Dup22 [Figure 1C(c), 1D(c) and 1G(c)], whereas Del22 type I or type II associates with an absence of signals; and Co2° with primers H1R, H3F and H2F shows an absence of signals from samples with Dup22, and a signal of 11.5 kb from either Inv22 or Del 22 type I alleles [Figure 1C(c) and 1E(c)] and 12.7 kb from either Inv22 or Del 22 type II alleles [Figure 1D(c) and 1F(c)].
Likewise, Rossetti et al. (2008) [16] modified their earlier reported IS-PCR protocol to resolve all Bcl I restriction fragments detected by classical Southern blot analysis [11]. This modified protocol enables detection of Inv22 type I and type II as well as Del22 type I and type II, and Dup22 [16]. Similar to its precursor, this modified IS-PCR protocol avoids direct amplification of int22h duplicons, and uses two standard PCR tests for the same substrate (Bcl I circles). The modified protocol includes two multiplex PCR assays: (i) a diagnostic test, which is pattern-sensitive and differentiates HA causative Inv22 and Del22 mutations from non-HA causative Dup22 and normal variants; and (ii) a complementary test intended to distinguish between Inv22 and Del22, and between Dup22 and normal allele. The diagnostic test applies primer ID with a set of three primers U (IU, 2U and 3U), enabling discrimination of normal/Dup22 allele, associated with a signal of 487 bp [Figure 1A-B(a) and 1G(a)], from Inv22/Del22 type I, with a signal of 333 bp [Figure 1C(a) and 1E(a)], and Inv22/Del22 type II with a signal of 385 bp [Figure 1D(a) and 1F(a)]. The complementary test applies primer ED with the same set of three primers U, and extends diagnostic test findings [16]. On the complementary test the normal allele shows two signals of 457 and 405 bp [Figure 1A-B(a)]; Dup22, three signals of 559, 457 and 405 bp [Figure 1G(a)]; Inv22 type I, two signals of 457 and 559 bp [Figure 1C(a)]; Del22 type I, only one signal of 457 bp [Figure 1E(a)]; Inv22 type II, two signals of 405 and 559 bp [Figure 1D(a)]; and Del22 type II shows only one signal of 405 bp [Figure 1F(a)].
IS-PCR based approaches for Inv22 genotyping have proved to enable detection and semi-quantitative assessment of carrier mosaicisms, and performed robustly over wide ranges of DNA qualities and procedural conditions, including for prenatal diagnosis [38]. The key step to achieve successful inverse-PCR protocols is the formation of DNA circles from restriction fragments by self-end ligation. Rossetti et al. (2008) [16] estimated the circularization efficiency range from 2–10 units of templates per circle for the formation of DNA circles of approximately 20 kb.
Despite ongoing efforts to develop technical approaches that would correctly diagnose hypothetical equally-oriented int22h-mediated rearrangements [36] (Figure 1), only recently have such genotypes been found. Notably, a recent paper of Abou-Elew et al. (2011) [39] reported three cases with signal patterns associated with Del22 (two Del22 type II and one Del22 type I) in a group of 13 Egyptian patients with HA by use of the new IS-PCR based two-test approach. This finding is somewhat unexpected taking into account that Del22 involves a loss of more than 500 kb of genomic DNA spanning a number of genes, five of which predict well characterized syndromes with specifically defined phenotypes in addition to HA [40]. In addition, Abelleyro et al. (2011) [40] presented a different practical approach to support the molecular diagnosis of Del22, by stating the absence or presence of a number of evenly spaced STS (sequence tagged sites) in order to confirm or to exclude the Del22 associated gap, respectively.
