Int. J. Mol. Sci. 2010, 11(4), 1311-1320; doi:10.3390/ijms11041311

Article
Photoinduced Surface Relief Grating Formation for a Single Crystal of 4-Aminoazobenzene
Hideyuki Nakano
Department of Applied Chemistry, Faculty of Engineering, Osaka University, Yamadaoka, Suita, Osaka 565-0871, Japan; E-Mail: nakano@chem.eng.osaka-u.ac.jp; Tel.: +81-6-6879-7365; Fax: +81-6-6879-7367
Received: 26 January 2010; in revised form: 8 March 2010 / Accepted: 11 March 2010 /
Published: 30 March 2010

Abstract

: Photoinduced surface relief grating (SRG) formation for a single crystal of 4-aminoazobenzene was investigated. It was found that SRG could be inscribed on the (001) surface of the crystal, which might suggest that the photoinduced SRG formation is a general phenomenon observed for single crystals of azobenzene-based molecules as well as for azobenzene-based amorphous systems. In addition, the dependences of the SRG formation upon the orientation of the sample crystal and upon the polarization of the writing beams were found to be different from those observed for previously reported crystalline systems.
Keywords:
photoinduced surface relief grating formation; 4-aminoazobenzene; single crystal; photochromism

1. Introduction

Patterning and relief fabrication using organic solid materials by photoirradation are key technologies for making micro- and nano-scale eletronic and photonic devices. For example, photolithography using resist materials [1] and laser ablation [2] have been investigated extensively. Photoinduced surface relief grating (SRG) formation by irradiation of the films of azobenzene-based amorphous systems, including polymers [312] and small molecules [1324], with two coherent laser beams, has also received attention as a technique of relief fabrication. Photoinduced SRG formation is believed to be caused by mass transport induced by repetition of trans–cis and cis–trans isomerizations of the azobenzene chromophores. In contrast to such top-down technologies, self-assembly phenomena observed for block copolymers have recently been attracting attention as a bottom-up technology for micro- and nano-fabrications [2529].

Since the crystallization of small organic molecules is thought to be a kind of self-assembly phenomena, elucidation of the behavior of the molecules at the surface of the crystal may provide valuable information related with the bottom-up technologies using self-assembly phenomena. In addition, it is of interest to fabricate nano-structures on the molecular crystals and to control of the surface structures of the crystals. Very recently, we have demonstrated that photoinduced SRG formation can take place on a single crystal of 4-(dimethylamino)azobenzene (DAAB) and found that the dependence of the SRG formation for the DAAB single crystal upon the polarization of the writing beams was quite different from those reported for azobenzene-based polymers and amorphous molecular materials [30,31]. In addition, the molecules existing in the convex region of the resulting SRG were suggested to be oriented according to the underlying crystal [31]. After that, we have found that SRG formation also took place on a co-crystal of 4-[bis(9,9-dimethylfluoren-2-yl)amino]-azobenzene with ethyl acetate (BFlAB-AcOEt) [32] and on a crystal of 4-[bis(9,9-dimethylfluoren-2-yl)amino]-4′-cyanoazobenzene (CN-BFlAB) [33]. It was suggested that the amorphous layer was produced by photoirradiation of these crystals due to glass-forming ability of BFlAB and CN-BFlAB. As a result, the dependences of the SRG formation for the BFlAB-AcOEt and the CN-BFlAB crystals upon the polarization of the writing beams were similar to those observed for amorphous systems.

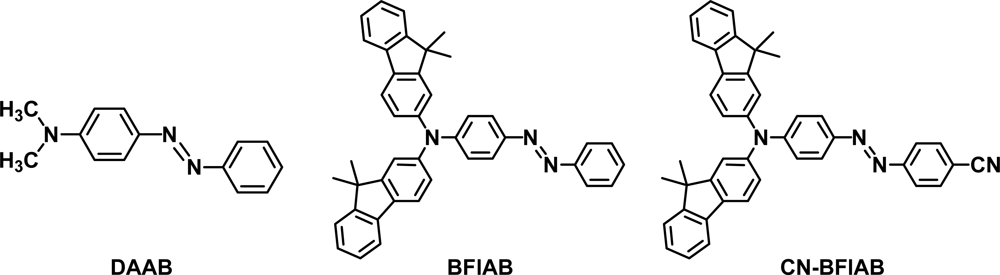

Ijms 11 01311f5 1024

Thus, the photoinduced SRG formation seemed to be a general phenomenon for the single crystals of azobenzen-based molecules as well as for azobenzene-based amorphous systems; however, the study of photoinduced SRG formation for the single crystals is still in an early stage and details regarding the mechanism of SRG formation on the single crystals have not been clear yet. Especially, only DAAB had been found to exhibit SRG formation for the single crystal among azobenzene derivatives without glass-forming ability. In order to gain further information for elucidating the effects of molecular and crystal structures upon the SRG formation and for clarifying the mechanism of the phenomenon, it is necessary to find a variety of organic crystals on which photoinduced SRG formation takes place.

In the present study, a single crystal of 4-aminoazobenzene (AAB) with a good quality for experiments was obtained and then photoinduced SRG formation was investigated using the AAB crystal. AAB has a melting point of 117 °C and no glass-forming ability, exhibiting ready crystallization even when the molten sample was cooled rapidly with liquid nitrogen.

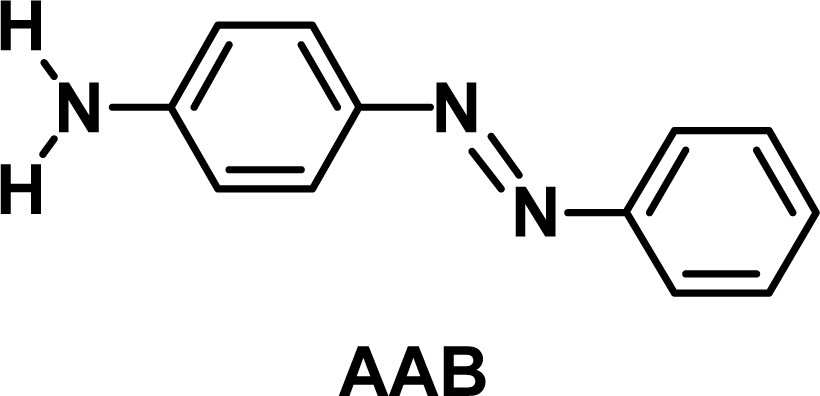

Ijms 11 01311f6 1024

2. Results and Discussion

A single crystal of AAB with a good quality was obtained as a plate by gradual evaporation of the solvent of the ethanol solution. Then, X-ray crystal structure analysis of the AAB crystal was been performed. It was confirmed that the widest face of the crystal corresponded to (001). Figure 1 shows the crystal structure of AAB, which was quite different from that of DAAB [34]. The crystal included two kinds of non-equivalent AAB molecules (A and B indicated in the Figure 1). A half of each molecule was independent, and both A and B molecules possessed the inversion centers at the centers of their N=N bonds. Thus, amino-groups were disordered, existing at either end of the azobenzene moiety. The AAB molecules were oriented in a variety of directions in the crystal, therefore the optical anisotropy of the crystal was rather small. Assuming the transition moment of the AAB molecule was parallel to the line connecting 4-carbon with 4′-carbon of the azobenzene moiety, the dichroic ratio for the (001) surface of the AAB crystal, being defined here as the ratio of the optical density for polarized light parallel to the b-axis to that parallel to the a-axis, was estimated to be circa 1.1, which was considerably smaller than those for the (001) and (100) surfaces of DAAB crystal (circa 17 and 106, respectively) [31].

The (001) surface of the AAB single crystal was found to be fairly but not completely flat. The typical structure of the surface is shown in Figure 2, showing that ridges and troughs exist with a level of circa 10–30 nm. Some other defects like holes and textured surfaces with a level of circa10–30 nm were observed in some locations. Such defects of the surface may be caused by the fragility of the surface of the AAB crystal.

Using the AAB single crystal, photoinduced SRG formation was investigated. Schematic experimental setup for photoinduced SRG formation is illustrated in Figure 3a. Two coherent laser beams (488 nm, 5 mW × 2) with either p-polarization or s-polarization were used as writing beams that irradiated the (001) surface of the crystal at room temperature. Under these conditions, the period of the interference pattern is 1.41 μm. The sample crystal was fixed on a glass substrate to be oriented as the b-axis of the crystal [35], almost parallel to the polarization plane of either p- or s-polarization of the writing laser beams, which were referred to here as H orientation or V orientation, respectively (Figure 2b).

SRG formation was found to take place on the AAB single crystal by interference irradiation with the writing beams, confirmed by atomic force microscopy (AFM) and optical microscopy. Figure 4a shows an AFM image of the surface of the H-oriented sample after irradiation with the s-polarized writing beams for 20 min. The SRG with a modulation depth of circa 150 nm was observed. As shown in Figure 4b, the optical microscopy also confirmed that the SRG was inscribed in the wide area with a interval of circa 1.4 μm, which is identical to the predicted interval of the interference pattern produced under the conditions as shown in Figure 3a. The resulting SRG was fairly stable, with no significant deformation of the resulting SRG observed at room temperature for several days.

Like previously reported crystals, photoinduced SRG formation for the AAB crystal was found to depend upon both the orientation of the sample crystal and the polarization of the writing beams. However, the dependences were different from those observed for the previously reported crystals [3032]. Table 1 summarizes the modulation depths of the SRGs inscribed on the AAB crystal by irradiation with the writing beams for 20 min under different experimental conditions. We have reported that the dependences of the SRG formation for DAAB and BFlAB-AcOEt crystals upon the orientation of the sample were due to large optical anisotropy of the sample crystal [3032]. On the other hand, the SRG formation was independent of the orientation of the sample for the CN-BFlAB crystal of which the optical anisotropy was small. In the present study; however, the SRG formation for the AAB crystal was found to depend upon the orientation of the sample crystal even though the optical anisotropy for the crystal was quite small as described above. That is, by using the p-polarized writing beams, a SRG with a larger modulation depth was obtained for the V-oriented sample (Entry No.2) than for the H-oriented sample (No.1). Similarly, the modulation depth of resulting SRG was larger for the H-oriented sample (No.3) than for the V-oriented one (No.4) when the s-polarized writing beams were used. With regard to the dependence of the SRG formation upon the polarization of the writing beams, we have reported that the s-polarized beams were preferable for the SRG formation for the DAAB single crystal relative to the p-polarized beams [30,31]. However, that is not necessarily so for the AAB crystal. That is, the p-polarized beams were preferable for the V-oriented sample whereas the s-polarized beams were preferable for the H-oriented one. Although the distribution of the modulation depth of resulting SRG seemed to be somewhat large maybe due to the fragility of the surface of the AAB crystal, the result indicated that the writing beams with the polarization direction parallel to the a-axis of the crystal (No. 2 and 3) could inscribe larger SRG than those parallel to the b-axis (No. 1 and 4).

The results seem to be due to the existence of two kinds of molecules (A and B indicated in Figure 1) in the crystal. Because of their different molecular orientations in the crystal, the absorption of the incident polarized writing beams near the surface of the crystal by the A molecules was different from that by the B molecules. Table 2 summarizes the estimated relative molar extinction coefficients of the molecules A and B in the crystal for the polarized beams traveling in the direction normal to the (001) surface, where the transition moment of the AAB molecule was assumed to be parallel to the line connecting 4-carbon with 4′-carbon of the azobenzene moiety. The result indicated that the incident beams with polarization direction parallel to the a-axis was absorbed mainly by the A molecules while the absorption of the incident beams with the polarization direction parallel to the b-axis by the A molecules was comparable to that by the B molecules. Thus, it can be assumed that the A molecules activated by absorbing the irradiated beam are mobile more effectively to inscribe SRG than the activated B molecules. That is, the A molecules were more preferentially activated by the writing beams with polarization direction parallel to a-axis (No. 2 and 3) than those parallel to b-axis (No. 1 and 4), and hence the SRG with larger modulation depth was inscribed under the conditions No. 2 and 3 than under the conditions No. 1 and 4. Figure 1 shows that the A molecules face in the different direction from the B molecules. Such a difference may cause the difference in mobility of the activated molecules. Thus, the present study revealed that the crystal structure, namely molecular orientation in the crystal, is one of the important factors for determining the SRG-forming characteristics for the single crystals.

3. Experimental Section

Single crystal of AAB was obtained by gradual evaporation of the solvent of ethanol solution of AAB. X-Ray structure analysis was performed using a single crystal with dimensions of approximately 0.40 × 0.40 × 0.50 mm3 on a Rigaku RAXIS-RAPID Imaging Plate diffractometer with graphite-monochromated Mo-Kα (0.71069 Å) radiation. A total of 21592 independent reflections was obtained of which 3245 were unique. The structure was solved by direct methods and refined by full matrix least square method. Crystallographic data were as follows: C12H11N3, M = 197.24, monoclinic, space group P21/n, a = 13.750(1), b = 5.6253(4), c = 14.023(1)Å, β = 98.400(2)°, V = 1073.1(1)Å3, Z = 4, Dc = 1.221 g cm−1, F000 = 416.0, μ(MoKα) = 0.76 cm−1, T = 25 °C, R1[I > 2σ(I)] = 0.091, wR2 = 0.221. Crystallographic data (excluding structure factors) for AAB have been deposited with the Cambridge Crystallographic Data Centre as supplementary publication nos. CCDC-761536. Copies of the data can be obtained free of charge on application to CCDC, 12 Union Road, Cambridge CB2 1EZ, UK [Fax: (internat.) +44-1223/336-033; E-Mail: deposit@ccdc.cam.ac.uk].

Photoinduced SRG formation was carried out by using a compact CW laser (488 nm: CYAN-488-50NH-W, Spectra Physics) as a source of writing beams at room temperature. The sample crystal with a thickness of 0.2–1.0 mm was fixed on a glass substrate (Micro Slide Glass, Matsunami Glass Ind., Ltd.) by an epoxy-type adhesive agent. Formation of SRG was confirmed by means of Scanning Probe Microscope (JSTM-4200D, JEOL Ltd.) with a micro cantilever (OMCL-AC160T-C2, OLYMPUS) and an Optiphot X2 (Nikon) microscope.

4. Calculation

Relative molar extinction coefficients of the molecules A and B in the crystal for the incident beams with polarization directions parallel to the a-axis (ɛrela) and the b-axis (ɛrelb) traveling in the direction normal to the (001) surface was estimated as follows. The crystal structure analysis of AAB indicated that the coordination factors of 4-carbon of azobenzene moieties were (0.2559, −0.4361, 1.1440) and (0.3683, 0.4863, 0.7591) for the molecules A and B, respectively. By symmetry operation, the factors of 4′-carbons were determined to be (−0.2559, 0.4361, 0.8560) and (0.6317, −0.4863, 1.2409). Using these values and unit cell parameters, the unit vectors parallel to the line connecting 4-carbon with 4′-carbon of the azobenzene moiety could be determined to be (0.7137, −0.5431, 0.4423) for the molecule A and (0.2904, −0.6060, 0.7405) for the molecule B. Assuming that these unit vectors were parallel to the transition moments of the corresponding molecules A and B, the values ɛrela and ɛrelb could be estimated to be squares of the x- and y-components of their unit vectors, respectively, as summarized in Table 2.

Dichroic ratio for the (001) surface of the crystal was estimated to be the ratio of the sum of the ɛrelb values for the molecules A and B to the sum of the ɛrela values for the molecules A and B.

5. Conclusions

Photoinduced SRG formation was observed to take place at the (001) surface of the AAB single crystal of AAB in the present study. This fact might suggest that the photoinduced SRG formation is a general phenomenon for single crystals of azobenzene-based molecules, as well as for azobenzene-based amorphous polymers and amorphous molecular materials. In addition, the dependences of the SRG formation for the AAB single crystal upon the orientation of the sample crystal and upon the polarization of the writing beams were different from those observed for previously reported crystalline systems. Although the detailed mechanism of the SRG formation has not been clear yet, it is suggested that the crystal structures play an important role for the photoinduced SRG formation for the single crystals.

This work was partly supported by a Grant-in-Aid for Science Research in Priority Areas “New Frontiers in Photochromism (No. 471)” from the Ministry of Education, Culture, Sports, Science and Technology (MEXT), Japan

References and Notes

  1. Reichmanis, E; Nalamasu, O; Houlihan, FM. Organic materials challenge for 193 nm imaging. Acc. Chem. Res 1999, 32, 659–667.
  2. Lippert, T. Laser application of polymers. Adv. Polym. Sci 2004, 168, 51–246.
  3. Rochon, P; Batalla, E; Natansohn, A. Optically induced surface gratings on azoaromatic polymer films. Appl. Phys. Lett 1995, 66, 136–138.
  4. Kim, DY; Tripathy, SK; Li, L; Kumar, J. Laser-induced holographic surface relief gratings on nonlinear optical polymer films. Appl. Phys. Lett 1995, 66, 1166–1168.
  5. Barret, C; Natansohn, A; Rochon, P. Mechanism of optically inscribed high-efficiency diffraction gratings in azo polymer films. J. Phys. Chem 1996, 100, 8836–8842.
  6. Kumar, J; Li, L; Jiang, XL; Kim, DY; Lee, TS; Tripathy, SK. Gradient force: The mechanism for surface relief grating formation in azobenzene functionalized polymers. Appl. Phys. Lett 1998, 72, 2096–2098.
  7. Lefin, P; Fiorini, C; Nunzi, J-M. Anisotropy of the photo-induced translation diffusion of azobenzaene dyes in polymer matrices. Pure Appl. Opt 1998, 7, 71–82.
  8. Pedersen, TG; Johansen, PM; Holme, NCR; Ramanujam, PS. Mean-field theory of photoinduced formation of surface reliefs in side-chain azobenzene polymers. Phys. Rev. Lett 1998, 80, 89–93.
  9. Viswanathan, NK; Kim, DY; Bian, S; Williams, J; Liu, W; Li, L; Samuelson, L; Kumar, J; Tripathy, SK. Surface relief structures on azo polymer films. J. Mater. Chem 1999, 9, 1941–1955.
  10. Fiorini, C; Prudhomme, N; de Veyrac, G; Maurin, I; Raimond, P; Nunzi, J-M. Molecular migration mechanism for laser induced surface relief grating formation. Synth. Met 2000, 115, 121–125.
  11. Ubukata, T; Seki, T; Ichimura, K. Surface relief gratings in host-guest supramolecular materials. Adv Mater 2000, 12, 1675–1678.
  12. Yang, K; Yang, S; Kumar, J. Formation mechanism of surface relief structures on amorphous azopolymer films. Phys Rev B 2006, 73.
  13. Nakano, H; Takahashi, T; Kadota, T; Shirota, Y. Formation of surface relief grating using a novel azobenzene-based photochromic amorphous molecular material. Adv. Mater 2002, 14, 1157–1160.
  14. Shirota, Y; Utsumi, H; Ujike, T; Yoshikawa, S; Moriwaki, K; Nagahama, D; Nakano, H. Photochromic amorphous molecular materials and their applications. Opt. Mater 2003, 21, 249–254.
  15. Ueda, H; Tanino, T; Ando, H; Nakano, H; Shirota, Y. Significant effect of molecular structure on surface relief grating formation for novel azobenzene-based photochromic amorphous molecular materials. Chem. Lett 2004, 33, 1152–1153.
  16. Takahashi, T; Tanino, T; Ando, H; Nakano, H; Shirota, Y. Surface relief grating formation using a novel azobenzene-based photochromic amorphous molecular material, tris[4-(phenylazo)phenyl]amine. Mol. Cryst. Liq. Cryat 2005, 430, 9–14.
  17. Nakano, H; Tanino, T; Takahashi, T; Ando, H; Shirota, Y. Photoinduced surface relief grating formation using azobenzene-based photochromic amorphous molecular materials. J. Mater. Chem 2008, 18, 242–246.
  18. Ando, H; Tanino, T; Nakano, H; Shirota, Y. Photoinduced surface relief grating formation using new polymers containing the same azobenzene chromophore as a photochoromic amorphous molecular material. Mater. Chem. Phys 2009, 113, 376–381.
  19. Nakano, H; Takahashi, T; Tanino, T; Shirota, Y. Synthesis and photoinduced surface relief grating formation of novel photo-responsive amorphous molecular materials, 4-[bis(9,9-dimethylfluoren-2-yl)amino]-4′-cyanoazobenzene and 4-[bis(9,9-dimethylfluoren-2-yl)amino]-4′-nitroazobenzene. Dyes Pigm 2009, 84, 102–107.
  20. Fuhrmann, T; Tsutsui, T. Synthesis and properties of a hole-conducting, photopatternable molecular glass. Chem. Mater 1999, 11, 2226–2232.
  21. Chun, C; Kim, M-J; Vak, D; Kim, DY. A. novel azobenzene-based amorphous molecular material with a spiro linked bifluorene. J. Mater. Chem 2003, 13, 2904–2909.
  22. Kim, M-J; Seo, E-M; Vak, D; Kim, D-Y. Photodynamic properties of azobenzene molecular films with triphenylamines. Chem. Mater 2003, 15, 4021–4027.
  23. Ishow, E; Lebon, B; He, Y; Wang, X; Bouteiller, L; Galmiche, L; Nakatani, K. Structural and photoisomerization cross studies of polar photochromic monomeric glasses forming surface relief gratings. Chem. Mater 2006, 18, 1261–1267.
  24. Ishow, E; Camacho-Aguilera, R; Guerin, J; Brosseau, A; Nakatani, K. Spontaneous formation of complex periodic superstructures under high interferential illumination of small-molecule-based photochromic materials. Adv. Funct. Mater 2009, 19, 796–804.
  25. Lopes, WA; Jaeger, HM. Hierarchical self-assembly of metal nanostructures on diblock copolymer scaffolds. Nature 2001, 413, 735–738.
  26. Park, M; Harrison, C; Chaikin, PM; Register, RA; Adamson, DH. Block copolymer lithography: periodic arrays of ∼1011 holes in 1 square centimeter. Science 1997, 276, 1401–1404.
  27. Stoykovich, MP; Müller, M; Kim, SO; Solak, HH; Edwards, EW; de Pablo, JJ; Nealey, PF. Directed assembly of block copolymer blends into nonregular device-oriented structure. Science 2005, 308, 1442–1446.
  28. Watanabe, R; Kamata, K; Iyoda, T. Smart block copolymer masks with molecule-transport channels for total wet nanopatterning. J. Mater. Chem 2008, 18, 5482–5491.
  29. Hirai, T; Leolukman, M; Liu, CC; Han, E; Kim, YJ; Ishida, Y; Hayakawa, T; Kakimoto, M; Nealey, PF; Gopalan, P. One-step direct-patterning template utilizing self-assembly of POSS-containing block copolymers. Adv. Mater 2009, 21, 4334–4338.
  30. Nakano, H; Tanino, T; Shirota, Y. Surface relief grating formation on a single crystal of 4-dimethylaminoazobenzene. Appl Phys Lett 2005, 87, 061910:1–061910:3.
  31. Nakano, H. Photoinduced surface relief grating formation on a (100) surface of a single crystal of 4-(dimethylamino)azobenzene. J. Phys. Chem. C 2008, 112, 16042–16045.
  32. Nakano, H. Photoinduced surface relief grating formation on a co-crystal of 4-[bis(9,9-dimethylfluoren-2-yl)amino]azobenzene and ethyl acetate. ChemPhysChem 2008, 9, 2174–2176.
  33. Nakano, H; Seki, S; Kageyama, H. Photoinduced vitrification near the surfaces of single crystals of azobenzene-based molecular materials with glass-forming ability. Phys Chem Chem Phys 2010.
  34. Whitaker, A. Crystal and molecular structure of C.I. Solvent Yellow 2, 1-phenylazo-4-(N,N-dimethylamine)-phenyl. J. Cryst. Spectr. Res 1992, 22, 151–155.
  35. Since the optical density for polarized light with polarization direction parallel to the b-axis was somewhat larger than that parallel to the a-axis, the b-axis was selected as a primary axis for determining H and V orientations of the sample crystal according to the previous works of SRG formation using single crystals [30–33].
Ijms 11 01311f1 200

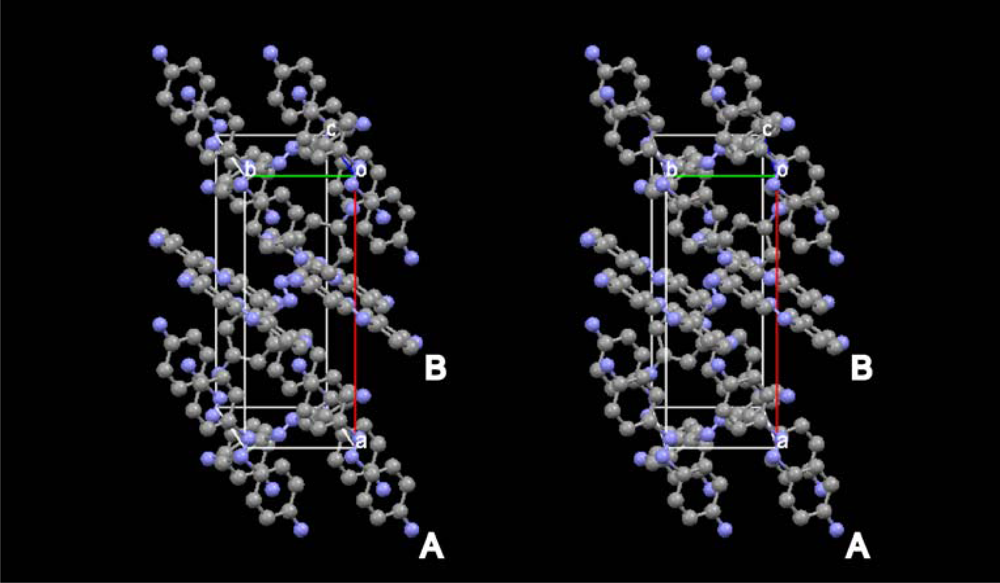

Figure 1. Crystal structure of AAB (stereo view).

Click here to enlarge figure

Figure 1. Crystal structure of AAB (stereo view).
Ijms 11 01311f1 1024
Ijms 11 01311f2 200

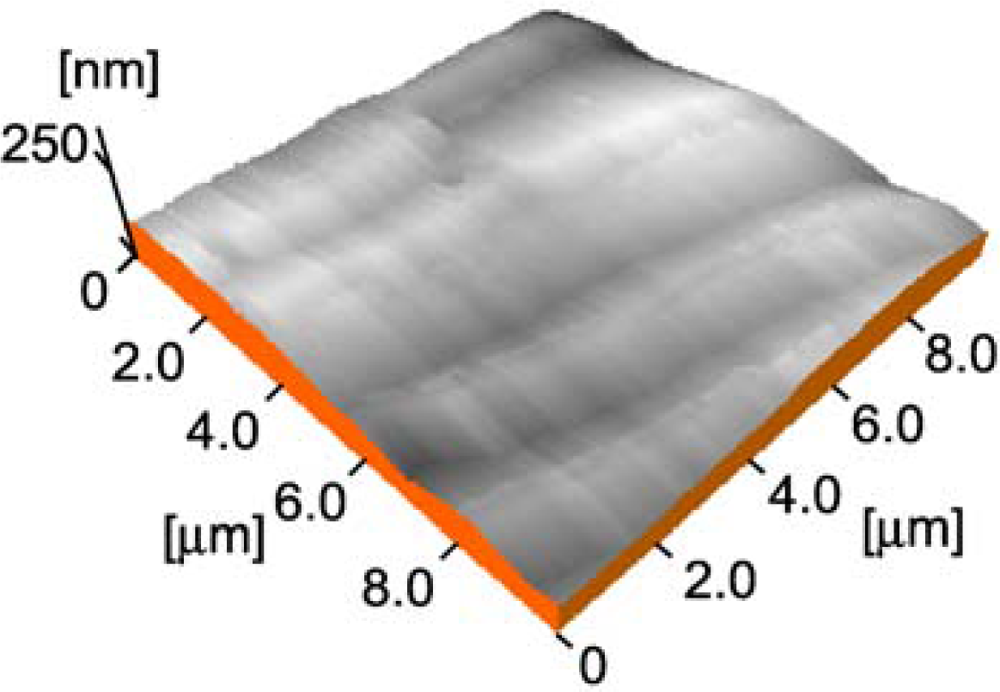

Figure 2. Typical AFM image of the (001) surface of AAB single crystal before photoirradiation.

Click here to enlarge figure

Figure 2. Typical AFM image of the (001) surface of AAB single crystal before photoirradiation.
Ijms 11 01311f2 1024
Ijms 11 01311f3 200

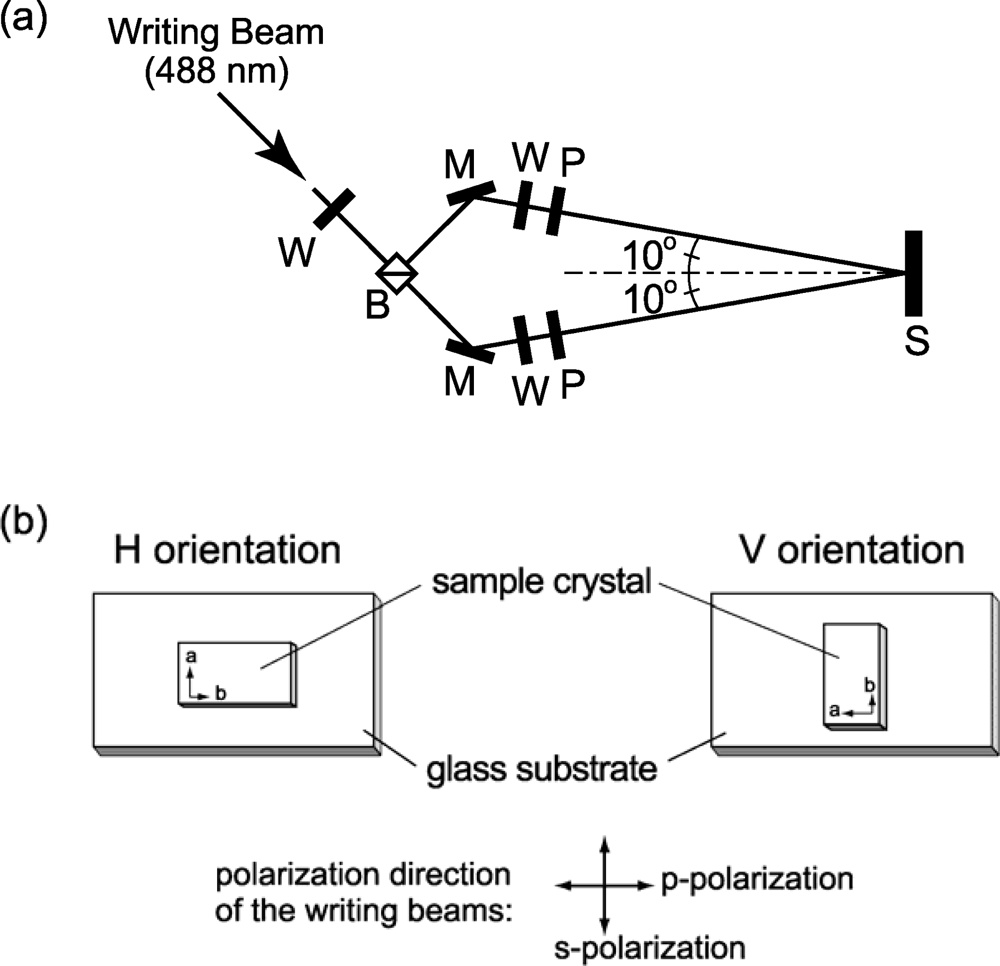

Figure 3. (a) Schematic experimental setup for photoinduced SRG formation. S: sample, P: polarizer, W: wave plate, M: mirror, B: beam splitter. (b) Schematic illustration of the sample orientation.

Click here to enlarge figure

Figure 3. (a) Schematic experimental setup for photoinduced SRG formation. S: sample, P: polarizer, W: wave plate, M: mirror, B: beam splitter. (b) Schematic illustration of the sample orientation.
Ijms 11 01311f3 1024
Ijms 11 01311f4 200

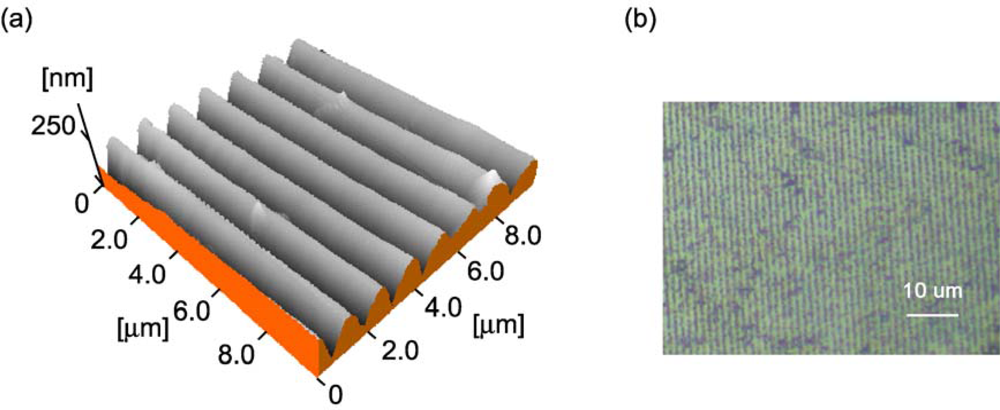

Figure 4. (a) AFM and (b) optical images of SRG inscribed on AAB single crystal.

Click here to enlarge figure

Figure 4. (a) AFM and (b) optical images of SRG inscribed on AAB single crystal.
Ijms 11 01311f4 1024
Table Table 1. Modulation depth of SRG inscribed on the AAB crystal by irradiation with writing beams (5 mW × 2) for 20 min.

Click here to display table

Table 1. Modulation depth of SRG inscribed on the AAB crystal by irradiation with writing beams (5 mW × 2) for 20 min.
EntryPolarization of the writing beamsOrientation of the sample crystalModulation depth [nm]
1pH30–70
2pV80–250
3sH100–200
4sV40–80
Table Table 2. Estimated relative molar extinction coefficients of the molecules A and B in the crystal for the incident beams with polarization directions parallel to the a-axis (ɛrela) and the b-axis (ɛrelb) traveling in the direction normal to the (001) surface.

Click here to display table

Table 2. Estimated relative molar extinction coefficients of the molecules A and B in the crystal for the incident beams with polarization directions parallel to the a-axis (ɛrela) and the b-axis (ɛrelb) traveling in the direction normal to the (001) surface.
Moleculeɛrelaɛrelb
A0.510.29
B0.080.37
