Int. J. Mol. Sci. 2010, 11, 5234-5245; doi:10.3390/ijms11125234

Article
Differential Expression of Copper-Zinc Superoxide Dismutase Gene of Polygonum sibiricum Leaves, Stems and Underground Stems, Subjected to High-Salt Stress
Chun-Pu Qu 1, Zhi-Ru Xu 2, Guan-Jun Liu 1,*, Chun Liu 1, Yang Li 1, Zhi-Gang Wei 1 and Gui-Feng Liu 1
1
The Laboratory of Forest Genetics and Breeding and Biotechnology of Ministry of Education, Northeast Forestry University, 26 Hexing Road, Harbin 150040, China; E-Mails: qcp0451@msn.com.cn (C.-P.Q.); liuchun314@yahoo.com.cn (C.L.); liyangzaixian362@163.com (Y.L.); zhigangwe@163.com (Z.-G.W.); liuguifeng@126.com (G.-F.L.)
2
Life Science College, Northeast Forestry University, Harbin 150040, China; E-Mail: xuzhiru2003@126.com
*
Author to whom correspondence should be addressed; E-Mail: liuguanjun2010@msn.com.cn; Tel.: +86-451-82190607-13; Fax: +86-451-82190607-11.
Received: 30 September 2010; in revised form: 20 November 2010 / Accepted: 29 November 2010 /
Published: 17 December 2010

Abstract

: In aerobic organisms, protection against oxidative damage involves the combined action of highly specialized antioxidant enzymes, such as copper-zinc superoxide dismutase. In this work, a cDNA clone which encodes a copper-zinc superoxide dismutase gene, named PS-CuZnSOD, has been identified from P. sibiricum Laxm. by the rapid amplification of cDNA ends method (RACE). Analysis of the nucleotide sequence reveals that the PS-CuZnSOD gene cDNA clone consists of 669 bp, containing 87 bp in the 5′ untranslated region; 459 bp in the open reading frame (ORF) encoding 152 amino acids; and 123 bp in 3′ untranslated region. The gene accession nucleotide sequence number in GenBank is GQ472846. Sequence analysis indicates that the protein, like most plant superoxide dismutases (SOD), includes two conserved ecCuZnSOD signatures that are from the amino acids 43 to 51, and from the amino acids 137 to 148, and it has a signal peptide extension in the front of the N-terminus (1–16 aa). Expression analysis by real-time quantitative PCR reveals that the PS-CuZnSOD gene is expressed in leaves, stems and underground stems. PS-CuZnSOD gene expression can be induced by 3% NaHCO3. The different mRNA levels’ expression of PS-CuZnSOD show the gene’s different expression modes in leaves, stems and underground stems under the salinity-alkalinity stress.
Keywords:
P. sibiricum Laxm.; PS-CuZnSOD; RACE; real-time PCR; gene expression

1. Introduction

Even when plants grow and develop under natural conditions, they are inevitably affected by environmental stresses due to their immobility [1]. This could lead to the production of a lot of reactive oxygen species (ROS), such as superoxide anion, hydrogen peroxide (H2O2), hydroxyl radical and singlet oxygen, which are harmful to intercellular components such as DNA, protein and membrane lipids. High active oxygen species (AOS) levels initiate signaling responses that include enzyme activation, gene expression, cell apoptosis and cellular damage [2]. Organisms employ an antioxidant defense system to protect themselves against the toxic effects caused by such a signal. Superoxide dismutases (superoxide: superoxide oxidoreductase, EC 1.15.1.1; SOD) are the first line of defense against the oxidative stresses by catalyzing reactive oxygen molecules to hydrogen peroxide that is consequently converted to water by catalase [3].

Superoxide dismutases (SODs) are important antioxidant enzymes that occur in virtually all oxygen-respiring organisms [4]. SODs catalyze the dismutation of superoxide (O2) into molecular oxygen (O2) and H2O2 [2O2 + 2H+ → O2 + H2O2]. Four types of SODs have been identified. Copper-zinc superoxide dismutase: The most important enzyme of the oxygen scavenging enzymes [5,6], which is closely related to anti-aging and resistance to stress in plants [69]. Iron SOD has been found in prokaryotes, in algae and in some higher plant chloroplasts [10]; Manganese SOD is found in prokaryotes and mitochondria; and a fourth with the coupled Ni (II/III) at the active site (Ni-SOD), which is found in the Streptomyces genus [11]. Copper-zinc superoxide dismutase can be divided into two forms; one is in cytosolic and the other is in chloroplastic isoenzymes. Copper-zinc superoxide dismutase in cytosolic is found mainly in cases of induced adverse environment [12,13].

Superoxide dismutase (SOD) was first isolated from bovine red blood cells by Mann and Keilin in 1938. Until now, copper-zinc superoxide dismutase has been cloned in several species of plants including rice, corn, and others [1321]. The transgenic plants with overexpression of SOD gene in tobacco and alfalfa could resist cold stress, and markedly enhance antioxidant capacities [2224].

Polygonum sibiricum Laxm. is a Dicotyledoneae Polygonaceae perennial herb. It grows in wetland, near the riverbank on saline and alkaline land. As one of the minority important halophytes grown in salinity-alkalinity areas, it is considered to be a promising species as a potential genetic resource of genetic transformation, and also can be employed as an experimental system for conducting research on salt resistance.

Salinity-alkalinity stress is one of the main abiotic stresses that restrict the development of agriculture worldwide. Compared to other abiotic salt stresses, there are limited studies on carbonate stress, though the main salt of soil, NaHCO3, has a severe effect on plants. The aim of the present study is to clone copper-zinc superoxide dismutase, which is located in the cytosolic in P. sibiricum Laxm., and to present the nucleotide sequence of copper-zinc superoxide dismutase, comparing its sequence with other known SODs from other species; and to evaluate this copper-zinc superoxide dismutase expression in leaves, stems and underground stems, when P. sibiricum Laxm. was induced under salinity-alkalinity stress. It is hoped to clarify the effects of PS-CuZnSOD in salinity-alkalinity resistance, forming a good basis for further study on the mechanisms of salinity-alkalinity stress tolerance in P. sibiricum Laxm.

2. Results and Discussion

2.1. cDNA Cloning, Sequencing and Bioinformatics Analysis of PS-CuZnSOD

In order to isolate cDNA encoding for copper-zinc superoxide dismutase, PCR reactions were performed using primers and total cDNA of plant leaves. Products of amplification were cloned and sequenced. Computer analysis, using the BLAST algorithm, confirmed that the selected sequence corresponded to a copper-zinc superoxide dismutase. The full-length copper-zinc superoxide dismutase cDNA fragment of P. sibiricum Laxm. was obtained by overlapping two cDNA fragments. The full-length copper-zinc superoxide dismutase cDNA comprised of 669 bp, containing 87 bp in the 5′-untranslated region (UTR); 459 bp in the open reading frame (ORF); and 123 bp in 3′-UTR without poly (A) tail (Figure 1). The ORF encodes a polypeptide of 152 amino acids. The calculated molecular mass of the mature protein (152 amino acids) is 15.3 kDa, with an estimated pI of 5.7. Two conserved CuZnSOD signatures are from the amino acids 43 to 51, and from the amino acids 137 to 148. The cDNA sequence and deduced amino acid sequence has been submitted to the NCBI GenBank as accession number GQ472846. Two cysteines (Cys56 and Cys145) form a disulfide bond for this gene.

2.2. Homology Comparison of PS-CuZnSOD

The comparison of the ORFs with other known SODs indicates that the PS-CuZnSOD shows homology: Identities = 125/136 (92%); with Melastoma malabathricum: Identities = 121/136 (89%); with Mesembryanthemum crystallinum: Identities = 122/147 (83%); with Fagus sylvatica: Identities = 122/136 (90%); with Populus suaveolens: Identities = 123/136 (91%); with Gossypium hirsutum: Identities = 122/136 (90%); with Codonopsis lanceolata: Identities = 120/136 (89%); with Ricinus communis: Identities = 117/136 (87%); with Litchi chinensis: Identities = 117/136 (87%); with Citrus limon and so it continues. PS-CuZnSOD was genetically distinct from other kinds of SOD (Figure 2). A phylogenetic tree based on evolutionary distances was constructed from amino acid sequences using the njplotWIN95 program (Figure 3). All of the bioinformatics analysis results suggested that P. sibiricum Laxm. SOD should be a plant cytoplasm copper-zinc superoxide dismutase.

2.3. Tissue Expression of PS-CuZnSOD

Copper-zinc superoxide dismutase expressed in each organ of P. sibiricum Laxm. is shown in Figure 4. In a RT-PCR study, specific primers (SOD-F: 5′-AGTGCGGGAGTTAGTGG-3′ and SOD-R: 5′-CGATGCTCGTCTTCTGG-3′) were used to amplify a 203 bp fragment with cDNA from leaves, stems and underground stems, organs using 18S as a positive control. The RT-PCR showed that the CuZnSOD was detected in leaves, stems and underground stems. In leaves, the increase of the copper-zinc superoxide dismutase mRNA expression level reached its peak in 24 hours after 3% NaHCO3 stress, and gradually decreased (Figure 4B). In stems, the increase of the copper-zinc superoxide dismutase mRNA expression reached its peak in 72 hours after salinity-alkalinity stress (Figure 4C). That is, in leaves and stems they were up-regulated and then down-regulated during 3% NaHCO3 stress. Contrastingly, the copper-zinc superoxide dismutase transcripts were fluctuated and down-regulated after 3% NaHCO3 stress in underground stems’ organs (Figure 4D).

Tissue distribution of PS-CuZnSOD mRNA was ubiquitous in all the tissues examined in this study, which is not surprising since the expression of copper-zinc superoxide dismutase in a wide range of cell types has already been found previously. Based on experimental exposures to 3% NaHCO3, P. sibiricum Laxm. SOD mRNA was apparently affected by the durations of 3% NaHCO3 stress. mRNA expression of PS-CuZnSOD was durations-dependent in general; the saturation of expression (reaching maximum level) was observed in stems at 72 h based on the RT-PCR. There were some different responses of PS-CuZnSOD to 3% NaHCO3 exposure in every organ (or tissue) from our data. We deduce that tuning expression of copper-zinc superoxide dismutase mRNA may be used to change copper-zinc superoxide dismutase activity and in turn modulate plant growth under the salinity-alkalinity stress. The different expression mode of copper-zinc superoxide dismutase in leaves, stems and underground stems might be the reason P. sibiricum Laxm. has higher efficiency and economy in antioxidant and resistance to stress in plants. However, the specific factors underlying the regulatory mechanism have not been clearly understood. Our results may provide the basis for future investigations of copper-zinc superoxide dismutase roles in salinity-alkalinity stress development in different organs.

3. Experimental Section

3.1. Plant

P. sibricum Laxm. plants (plant height 10–15 cm) were obtained from salinity-alkalinity fields in Zhaodong, Heilongjiang (pH = 8.68). As the underground stems of P. sibiricum Laxm. are used for experimental materials, the experiments of rapid propagation have been carried out and the materials are grown in phytotron at 24 °C. The samples were treated at different stages using 3% NaHCO3. A total of 210 plants (plant height 10–15 cm) were allotted into seven treatments randomly: i.e., 0 h (blank), 4 h, 8 h, 24 h, 48 h, 72 h and 144 h. Each treatment consists of six replicates with five plants of P. sibricum Laxm. each. After being harvested, all samples were immediately preserved in liquid nitrogen and kept at −80 °C until they were used for isolating the RNA.

3.2. RNA Isolation from P. sibiricum Laxm. and Reverse Transcription (RT)

Total RNA was extracted using a phenol sodium dodecyl sulfate extraction/LiCl precipitation procedure [25].

3.3. Obtaining 3′ and 5′ Regions by RACE

To isolate the complete 5′ and 3′ regions of this gene, the rapid amplification of cDNA ends (RACE) method was used. First-strand cDNA synthesis was performed using Smart™ RACE cDNA amplification kit (Clontech). Previously we obtained the PS-CuZnSOD 3′ EST sequences from the P. sibiricum Laxm. cDNA Library [26]. According to the EST, two specific primers were designed on the basis of the SOD 3′UTR for 5′-RACE. SODZnN: 3′-AGAACCAAACAGACCAAAACAAG-5′, SODZn: 3′-CTCATAACATAAGGAAAGAAAGGG-5′. The 5′ fragment PCR was then carried out according to the manufacturer’s instructions (Clontech Kit). Next, the fragments were cloned and sequenced. A pair of specific primers was designed to amplify the ORF of PS-CuZnSOD gene (SOD-A: 5′-GATTACAGCCAATTTCAATAC-3′, SOD-S: 5′-CTCTTACAACAAGGGGTTC-3′).

3.4. Subcloning

The PCR fragments were subjected to electrophoresis on 0.8% agarose gel for length differentiation, and amplified cDNA fragments were cloned into the pGEM-T Easy vector following the instructions provided (Promega, Madison, WI, U.S.). Recombinant bacteria were identified by blue/white screening and confirmed by PCR. Plasmids containing the insert were purified (Promega minipreps) and used as a template for DNA sequencing.

3.5. Nucleotide Sequence Analysis

The fragments were linked by the soft Bio-Edit CAP contig assembly program. The PS-CuZnSOD gene sequence was analyzed and compared using the BLAST P and ORF search programs with GenBank database search. The multiple sequence alignment of PS-CuZnSO gene was created by Clustal W analysis program, signal-peptide site was predicted by Signal P3.0, the SOD protein MW and pI were computed by ProtParam [27], and disulfide connectivity was predicted by SCRATCH Protein Predictor [28].

3.6. Quantification of PS-CuZnSOD Gene Expression by Real-Time RT-PCR

Total RNAs were isolated by SDS method from different tissues including stems, underground stems and leaves, at different handling stages induced by 3% NaHCO3, treat at 0 h (blank), 4 h, 8 h, 24 h, 48 h, 72 h and 144 h. The residue of DNA were removed by DNase I digesting, at 37 °C for 30 min. 4 microgram of the total RNA were used in each lane and electrophoresed in a 0.8% agarose gel, at 100 V/12 cm for 15 min. First-strand cDNA synthesis was performed using M-MLV reverse transcriptase (TaKaRa Biotechnology (Dalian) Co., Ltd. Japan) to transcribe poly (A)+ RNA with oligo-d(T)18 and random six as the primers, reaction conditions were recommended by the manufacturer’s instructions. The cDNA was used for the assay of quantitative real-time PCR. The SYBR Green I real-time RT-PCR assay was carried out in an Option-II Sequence Detection System (MJ Research, U.S.). The amplifications were performed in a 96-well plate in a 25 μL reaction volume containing 12.5 μL of 2 × SYBR Green Master Mix (TARAKA), 2.5 μL (each) SOD-F and SOD-R primers (10 mM), 1 μL of template, and 9 μL of DEPC-water. The thermal profile for SYBR Green real-time PCR was 95 °C for 2 min, followed by 45 cycles of 95 °C for 15 s and 60 °C for 30 s. In a 96-well plate, each sample was conducted in triplicate. DEPC-water for the replacement of template was used as negative control. The relative expression was calculated as 2−ΔΔCt; Ct: cycle threshold.

3.7. Statistical Analysis

A multiple comparisons (Duncan’s) test was conducted to compare significant differences in PS-CuZnSOD expression between leaves, stems and underground stems, using the SPSS software. A significant level of p = 0.05 was chosen.

4. Conclusions

In plants, several enzymes like SODs are involved in the release of AOSs. It is known that SOD catalyzes the rapid two-step dismutation of the toxic superoxide anion to molecular oxygen and hydrogen peroxide, through alternating reduction and oxidation of the active-site metal ion [29]. SODs play an important role in antioxidant defense pathways in response to oxidative stress [10]. In this work, the full length of a PS-CuZnSOD gene was isolated from P. sibiricum Laxm. by the rapid amplification of cDNA ends method. Analysis of the nucleotide sequence revealed that the PS-CuZnSOD gene cDNA clone consists of 669 bp, containing 87 bp in the 5′ untranslated region; 459 bp in the open reading frame (ORF) encoding 152 amino acids; and 123 bp in the 3′ untranslated region. The gene accession nucleotide sequence number in GenBank was GQ472846. Sequence analysis indicates that the protein, like in most others plants, CuZnSOD, includes two conserved domains from amino acid 43 to 51 and from amino acid 137 to148, which catalyzes the dismutation of superoxide (O2) into molecular oxygen (O2) and H2O2. Two cysteines (Cys56 and Cys145) form a disulfide bond for this gene. PS-CuZnSOD has a signal peptide extension in the front of the N-terminus (1–16 aa), which is markedly different compared to other plants intracellular CuZnSODs.

Expression analysis by real-time quantitative PCR revealed that PS-CuZnSOD gene is expressed in leaves, stems and underground stems. In leaves and stems it was up-regulated and then down-regulated during 3% NaHCO3 stress. On the contrary, the copper-zinc superoxide dismutase transcripts fluctuated and were down-regulated after 3% NaHCO3 stress in underground stem organs. That is, under 3% NaHCO3 stress, PS-CuZnSOD gene expression can be induced differently. It indicates that there are different express modes in leaves, stems and underground stems. We presume that PS-CuZnSOD genes in leaves and stems play important roles in the process of induction by salinity-alkalinity resistance, and the down-regulation of PS-CuZnSOD genes may be related to the effects of H2O2-products of PS-CuZnSOD. Additionally, it seems that the PS-CuZnSOD gene does not function in salinity-alkalinity resistance in underground stem organs. Currently, we do not know the exact role PS-CuZnSOD genes play in P. sibiricum Laxm. resistance to salinity-alkalinity stress. However, differential mRNA expression of some genes in P. sibiricum Laxm. seems to be either “protective” or cause “division of labor” [3034]. So far, no reports have been shown that PS-CuZnSOD genes are differentially expressed during the salinity-alkalinity stress processes. We propose that the PS-CuZnSOD “division of labor” in different organs may play an important role in P. sibiricum Laxm. resistance to salinity-alkalinity stress. Our results may provide the basis for future investigations of PS-CuZnSOD roles in P. sibiricum Laxm. resistance to salinity-alkalinity stress.

This research was funded by the Key Project of Chinese Ministry of Education (No. 109054).

References

  1. Li, B; Wei, JM; Wei, XL; Tang, K; Liang, YL; Shu, KX; Wang, BC. Effect of sound wave stress on antioxidant enzyme activities and lipid peroxidation of Dendrobium candidum. Colloids Surf. B 2008, 63, 269–275.
  2. Mackerness, SAH; Fred, JC; Jordan, B; Thomas, B. Early signaling components in ultraviolet-B responses: distinct roles for different reactive oxygen species and nitric oxide. FEBS Lett 2001, 489, 237–242.
  3. Den, HGJ; Haenen, GR; Vegt, E; Vander, VWJ; Bast, A. Superoxide dismutase: the balance between prevention and induction of oxidative damage. Chem. Biol. Interact 2003, 145, 33–39.
  4. Scandalios, JG. Oxidative Stress and the Molecular Biology of Antioxidant Defenses; Cold Spring Harbor Laboratory Press: Cold Spring Harbor, NY, USA, 1997; pp. 2–11.
  5. Wang, RG; Chen, SL; Liu, LY; Hao, ZY; Weng, HJ; Li, H; Yang, S; Duan, S. Genotypic differences in antioxidative ability and salt tolerance of three poplars under salt stress. J. Beijing For. Univ 2005, 27, 46–52.
  6. Song, FN; Yang, CP; Liu, XM; Li, GB. Effect of salt stress on activity of superoxide dismutase(SOD) in Ulmus pumila L. J. For. Res 2006, 17, 13–16.
  7. Zhang, Y; Luo, XF; Sheng, YB. Dynamic changes of anti-oxidation system in new cultvars of Rabinia pseudoacacia undergradual drought stress of soil. J. Zhejiang For. Inst 2005, 22, 166–169.
  8. Feng, CJ; Luo, XY; Sha, W; Wang, FG. Effect of low temperature stress on SOD, POD activity and proline content of alfalfa. Pratacultural Sci 2005, 22, 29–32.
  9. Guo, LH; Wu, XL; Gong, M. Roles of glutathione reductase and superoxide dismutase in heat-shock-induced cross adaptation in maize seedlings. Plant Physiol. Commun 2005, 41, 429–432.
  10. Fridovich, I. Superoxide radical and superoxide dismutases. Annu. Rev. Biochem 1995, 64, 97–112.
  11. Choudhury, SB; Lee, JW; Davidson, G; Yim, YI; Bose, K; Sharma, ML; Kang, S; Cabelli, DE; Maroney, MJ. Examination of the Nickel Site Structure and Reaction Mechanism in Streptomyces seoulensis Superoxide Dismutase. Biochemistry 1999, 38, 3744–3752.
  12. Rafael, PT; Estra, G. The tomato Cu/Zn SOD superoxide dismutase genes are developmentally regulated and respond to light and stress. Plant Mol. Biol 1991, 17, 745–760.
  13. Sheri, PK; John, GS. A comparison of the structure and function of the highly homologous maize antioxidant Cu/Zn superoxide dismutase genes, sod4 and sod4A. Genetics 1996, 144, 317–328.
  14. Sumio, K; Kozi, A. Characteristic of amino acid sequences of chloroplast and cytoplasm isozymes of Cu/Zn superoxide dismutase in spinach, rice and horsetail. Plant Cell Physiol 1990, 31, 99–112.
  15. Lin, CT; Lin, MT; Chen, YT; Shaw, JF. The gene structure of Cu/Zn-superoxide dismutase from sweet potato. Plant Physiol 1995, 108, 827–828.
  16. Bag, F; Giannino, D; Caparrini, S; Carnussi, A; Mariotti, D; Racchi, ML. Molecular cloning, characterization and expression of a manganese superoxide dismutase gene from peach (Prunus persica [L.] Batsch). Mol. Genet. Genomics 2002, 267, 321–328.
  17. Hironori, K; Shigeto, M; Hideki, Y; Takehiro, M; Kunisuke, T. Molecular cloning and characterization of a cDNA for plastidic copper/zinc superoxide dismutase in rice (Oryza sativa L.). Plant Cell Physiol 1997, 38, 65–69.
  18. Atsushi, S; Hiroyuki, O; Kunisuke, T. Nucleotide sequences of two cDNA clones encoding different Cu/Zn-superoxide dismutases expressed in developing rice seed (Oryza sativa L.). Plant Mol. Biol 1992, 19, 323–327.
  19. Lee, HS; Kim, KY; You, SH; Kwon, SY; Kwak, SS. Molecular characterization and expression of a cDNA encoding copper zinc superoxide dismutase from cultured cells of cassava (Manihot esculenta Crantz). Mol. Genet. Genomics 1999, 262, 807–814.
  20. Rafael, PT; Benedetta, N; Dvora, A; Elisha, PZ; Esra, G. Isolation of two cDNA clones from tomato containing two different superoxide dismutase sequences. Plant Mol. Biol 1988, 11, 609–623.
  21. Ronald, EC; Joseph, AW; John, GS. Cloning of cDNA for maize superoxide dismutase2 (SOD2). Proc. Natl. Acad. Sci. USA 1987, 84, 179–183.
  22. Bryan, DM; Chen, YR; Mitchel, DB; Stephen, RB; Chris, B; Dirk, I; Kathleen, DH; Johan, B. Superoxide dismutase enhances tolerance of freezing stress in transgenic alfalfa (Medicago sativa L.). Plant Physiol 1993, 103, 1155–1163.
  23. Bryan, DM; Julia, M; Kim, SJ. Iron-superoxide dismutase expression in transgenic alfalfa increases winter survival without a detectable increase in photosynthetic oxidative stress tolerance. Plant Physiol 2000, 122, 1427–1437.
  24. Wim, VC; Katelijne, C; Marc, VM; Dirk, I; Luit, S. Enhancement of Oxidative Stress Tolerance in Transgenic Tobacco Plants Overproducing Fe-Superoxide Dismutase in Chloroplasts. Plant Physiol 1996, 112, 1703–1714.
  25. Davis, KR; Schott, E; Ausubel, FM. Virulence of selected phytopathogenic pseudomonads in Arabidopsis thaliana. Mol. Plant-Microbe Interact 1991, 4, 477–488.
  26. Liu, GJ; Liu, MK; Xu, ZR; Yan, XF; Zhu, X; Yang, CP. Construction and Preliminary Analysis of Six Period Mixed Leaves cDNA Library of P. sibiricum Laxm. under Salt Stress. Plant Physiol. Commun 2008, 12, 1099–1105.
  27. ProtParam Tool; Swiss Insitutude of Bioinformatics. Available online: http://au.expasy.org/tools/protparam.html (accessed on December 17, 2010).
  28. Cheng, J; Randall, AZ; Sweredoski, MJ; Baldi, P. SCRATCH: a protein structure and structural feature prediction server. Nucleic Acids Res, 2005, 33, pp. W72–W76. Available online: http://www.ics.uci.edu/~baldig/scratch/ (accessed on 17 December 2010).
  29. Mattia, F; Peter, ON; Maria, ES; Alessandro, D. Superoxide dismutase kinetics. Methods Enzymol 2002, 349, 38–49.
  30. Li, Y; Liu, GJ; Qu, CP; Yang, CX; Wei, ZG; Liu, GF; Yang, CP. Cloning of PsLEA Gene from P. sibiricum Laxm. and its Expression under NaHCO3 Stress. Mol. Plant Breed 2010, 8, 276–282.
  31. Liu, GJ; Yang, CX; Qu, CP; Li, XZ; Liu, CC; Liu, GF; Yang, CP. Cloning and Expression Analysis of Polygalacturonase Inhibiting Proteins Gene from P. sibiricum Laxm. Chin. J. Biochem. Mol. Biol 2009, 25, 242–249.
  32. Liu, GJ; Tian, X; Liu, CC; Qu, CP; Liu, GF; Yang, CP. Cloning of Coding Sequence of Non-specific Transfer Protein from P. sibiricum Laxm. and Expression under Salinity Stress. Chin. J. Biochem. Mol. Biol 2008, 24, 1140–1145.
  33. Liu, C; Liu, GJ; Qu, CP; Wei, ZG; Liu, GF; Yang, CP. Cloning of CaM Gene from P. sibiricum Laxm. and Its Expression under Salt Stress. Plant Physiol. Commun 2010, 46, 113–119.
  34. Liu, GJ; Qu, CP; Liu, MK; Wei, ZG; Liu, GF; Yang, CP. Real-time PCR Analysis of Copper Chaperone Protein Gene Expression in P. sibiricum Laxm. Under Salt Stress. Chin. J. Biochem. Mol. Biol 2008, 24, 1034–1039.
Ijms 11 05234f1a 200Ijms 11 05234f1b 200

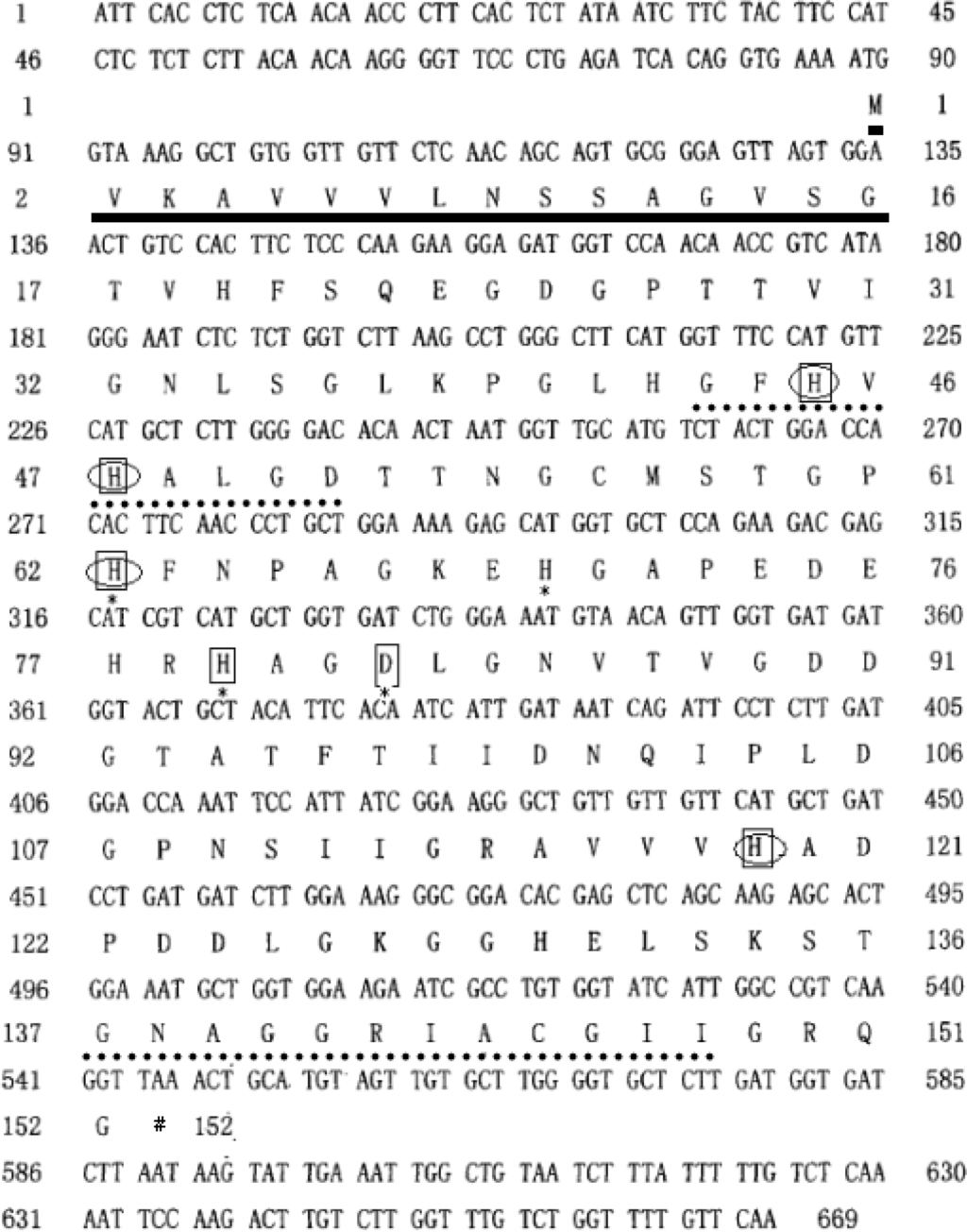

Figure 1. Nucleotide and deduce amino acid sequences of PS-CuZnSOD cDNA from P. sibiricum Laxm. The PCR products of PS-CuZnSOD cDNA were sequenced. The full length was 669 bp, with a 5′ untranslated region of 87 bp, a 3′ untranslated region of 123 bp and an open reading frame (ORF) encoding 152 amino acid (459 bp). The cDNA sequence of PS-CuZnSOD has been submitted to GenBank (accession No. GQ472846). The rectangle indicates the active site of the PS-CuZnSOD; ellipse indicates the Cu2+ binding site; * indicates the Zn2+ binding site; # indicates the stop codon. Two conserved CuZnSOD signatures are shown in broken line. The signal peptide is shown in solid line. Two cysteines (Cys56 and Cys145) form a disulfide bond for this gene.

Click here to enlarge figure

Figure 1. Nucleotide and deduce amino acid sequences of PS-CuZnSOD cDNA from P. sibiricum Laxm. The PCR products of PS-CuZnSOD cDNA were sequenced. The full length was 669 bp, with a 5′ untranslated region of 87 bp, a 3′ untranslated region of 123 bp and an open reading frame (ORF) encoding 152 amino acid (459 bp). The cDNA sequence of PS-CuZnSOD has been submitted to GenBank (accession No. GQ472846). The rectangle indicates the active site of the PS-CuZnSOD; ellipse indicates the Cu2+ binding site; * indicates the Zn2+ binding site; # indicates the stop codon. Two conserved CuZnSOD signatures are shown in broken line. The signal peptide is shown in solid line. Two cysteines (Cys56 and Cys145) form a disulfide bond for this gene.
Ijms 11 05234f1a 1024Ijms 11 05234f1b 1024
Ijms 11 05234f2 200

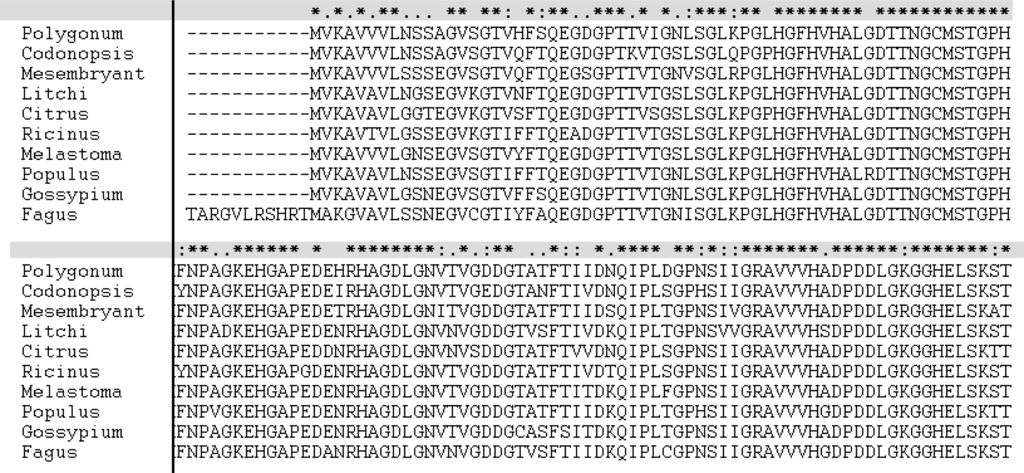

Figure 2. Alignment of the deduced amino acid sequences of PS-CuZnSOD and the known copper-zinc superoxide dismutase from GenBank. Identities compared with those from Melastoma malabathricum, Mesembryanthemum crystallinum, Fagus sylvatica, Populus suaveolens, Gossypium hirsutum, Codonopsis lanceolata, Ricinus communis, Litchi chinensis, Citrus limon were 92, 89, 83, 90, 91, 90, 89, 87 and 87 respectively.

Click here to enlarge figure

Figure 2. Alignment of the deduced amino acid sequences of PS-CuZnSOD and the known copper-zinc superoxide dismutase from GenBank. Identities compared with those from Melastoma malabathricum, Mesembryanthemum crystallinum, Fagus sylvatica, Populus suaveolens, Gossypium hirsutum, Codonopsis lanceolata, Ricinus communis, Litchi chinensis, Citrus limon were 92, 89, 83, 90, 91, 90, 89, 87 and 87 respectively.
Ijms 11 05234f2 1024
Ijms 11 05234f3 200
Figure 3. The phylogenetic tree of PS-CuZnSOD from plants and animals. Clustal W was used to establish the phylogenetic tree, and the result was displayed using Treeview software.

Click here to enlarge figure

Figure 3. The phylogenetic tree of PS-CuZnSOD from plants and animals. Clustal W was used to establish the phylogenetic tree, and the result was displayed using Treeview software.
Ijms 11 05234f3 1024
Ijms 11 05234f4 200

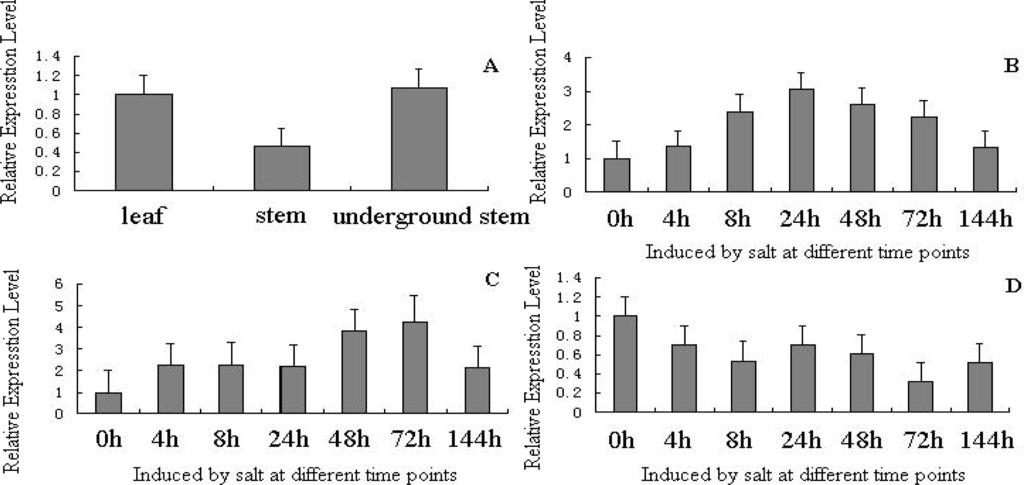

Figure 4. The change of PS-CuZnSOD after 3% NaHCO3 exposure in leaves, stems, underground stems’ organs. Total RNA was prepared using SDS reagent for all P. sibiricum Laxm. samples taken at 0, 4, 8, 24, 48, 72, 144 h, independent of 3% NaHCO3 stress condition. After digested with DNase I to eliminate the genome contamination, the cDNA was synthesized using the oligo d (T) primer and random 6 primer. Real-time PCR was performed with the DNA Engine Opticon™-II sequence detection system. SYBR green Real-time PCR mix (TaKaRa) was used for PCR. (A) The expression of PS-CuZnSOD gene in leaves, stems, underground stems’ organ without stress comparison; (B) The levels of PS-CuZnSOD mRNA in leaves tissues; (C) The level of PS-CuZnSOD mRNA in stems tissues; (D) The levels of PS-CuZnSOD mRNA in underground stems tissues. A multiple comparisons test was conducted to compare significant differences in PS-CuZnSOD expression between leaves, stems and underground stems using the SPSS software. A significant level of p = 0.05 was chosen.

Click here to enlarge figure

Figure 4. The change of PS-CuZnSOD after 3% NaHCO3 exposure in leaves, stems, underground stems’ organs. Total RNA was prepared using SDS reagent for all P. sibiricum Laxm. samples taken at 0, 4, 8, 24, 48, 72, 144 h, independent of 3% NaHCO3 stress condition. After digested with DNase I to eliminate the genome contamination, the cDNA was synthesized using the oligo d (T) primer and random 6 primer. Real-time PCR was performed with the DNA Engine Opticon™-II sequence detection system. SYBR green Real-time PCR mix (TaKaRa) was used for PCR. (A) The expression of PS-CuZnSOD gene in leaves, stems, underground stems’ organ without stress comparison; (B) The levels of PS-CuZnSOD mRNA in leaves tissues; (C) The level of PS-CuZnSOD mRNA in stems tissues; (D) The levels of PS-CuZnSOD mRNA in underground stems tissues. A multiple comparisons test was conducted to compare significant differences in PS-CuZnSOD expression between leaves, stems and underground stems using the SPSS software. A significant level of p = 0.05 was chosen.
Ijms 11 05234f4 1024
