Int. J. Mol. Sci. 2010, 11(12), 4991-5008; doi:10.3390/ijms11124991
Published: 3 December 2010
Abstract: O-glycosylation of mammalian proteins is one of the important posttranslational modifications. We applied a support vector machine (SVM) to predict whether Ser or Thr is glycosylated, in order to elucidate the O-glycosylation mechanism. O-glycosylated sites were often found clustered along the sequence, whereas other sites were located sporadically. Therefore, we developed two types of SVMs for predicting clustered and isolated sites separately. We found that the amino acid composition was effective for predicting the clustered type, whereas the site-specific algorithm was effective for the isolated type. The highest prediction accuracy for the clustered type was 74%, while that for the isolated type was 79%. The existence frequency of amino acids around the O-glycosylation sites was different in the two types: namely, Pro, Val and Ala had high existence probabilities at each specific position relative to a glycosylation site, especially for the isolated type. Independent component analyses for the amino acid sequences around O-glycosylation sites showed the position-specific existences of the identified amino acids as independent components. The O-glycosylation sites were preferentially located within intrinsically disordered regions of extracellular proteins: particularly, more than 90% of the clustered O-GalNAc glycosylation sites were observed in intrinsically disordered regions. This feature could be the key for understanding the non-conservation property of O-glycosylation, and its role in functional diversity and structural stability.
Glycan, a carbohydrate chain, is considered the third life chain after DNA and protein . Glycans bind to proteins or lipids, and more than 50% of the mammalian proteins are glycosylated  to acquire structural stability and function as well as the biodiversity of organisms. Abnormal carbohydrate chain modification occurs in several serious diseases such as familial tumoral calcinosis [3,4], Tn syndrome [5,6], IgA nephropathy [7–9], coronary artery disease [10,11], and tumor formation and metastasis [12–14].
The two major types of protein glycosylation in eukaryotes are N-linked and O-linked glycosylation. N-linked glycans are attached to the amide nitrogens of asparagine (Asn) side chains in the consensus sequences Asn-Xaa-Ser or Asn-Xaa-Thr, where Xaa represents any amino acid residue except proline (Pro) [15,16]. O-linked glycans are attached to the hydroxyl group of serine (Ser) or threonine (Thr) side chains . O-linked glycosylation (O-glycosylation) encompasses several different types of glycosylation, such as O-GalNAc, O-GlcNAc, O-Fuc, O-Glc, O-Man, and O-Xyl glycosylation. In eukaryotes, the most common O-glycosylation is O-GalNAc glycosylation, or mucin-type O-glycosylation. In the mucin-type O-glycosylation, not all Ser or Thr residues are glycosylated, and no specific consensus sequence has been identified so far. One characteristic of the mucin-type O-glycosylations is the formation of clusters within repeated amino acid sequences, termed tandem repeats, which are rich in Ser or Thr residues [18–20]. Many glycoproteins contain one or more mucin-like domains, typically rich in Pro, Ser, and Thr residues, producing discrete regions in the entire molecule that are heavily decorated with mucin-type O-glycosylations .
On the basis of statistical analysis of mucin-type O-glycosylation sites and data on GalNAc-T (N-acetylgalactosamine transferase), the following general rules apply regarding mucin-type O-glycosylation : (1) it is tissue specific (there are different GalNAc-T with overlapping but different specificities, and these GalNAc-T have different tissue-specific expression patterns); (2) it is mainly a post-translational and postfolding event (therefore, only surface-exposed Ser and Thr residues are glycosylated); and (3) it shows a primary sequence preference, which is different for Ser and Thr (Thr appears to be glycosylated more efficiently than Ser). Moreover, in a previous analysis of the structural context of mucin-type O-glycosylation sites by using the structural information on amino acid sequences of mucin-type O-glycoprotein from the Protein Data Bank (PDB) , 14 of 86 protein sequences were represented by structures in PDB. Of these 14 structures, two were represented twice in all 12 non-redundant structures. All sites were found in coil or turn regions located near the N- or C-termini of the protein, in linker regions between domains, or in coil regions connecting secondary structure elements. Ser and Thr residues annotated as mucin-type O-glycosylation are less likely to be precisely conserved among mammalian protein homologs and more likely to be surface-exposed than Ser or Thr residues without this annotation.
Regarding non-mucin-type O-glycosylation, O-GlcNAc-type glycosylation has recently attracted attention; it modifies eukaryotic nuclear and cytosolic proteins and is as dynamic and possibly as abundant as Ser or Thr phosphorylation. O-GlcNAc glycans are attached to the hydroxyl group of Ser or Thr residues. The functions of O-GlcNAc proteins are known for cytoskeletal proteins and their regulatory proteins, such as viral proteins, nuclear-pore and nuclear-oncogene proteins, RNA polymerase II catalytic subunit, and numerous transcription factors. Despite their functional diversity, all these proteins are also phosphoproteins .
Proteins with partially or fully intrinsically disordered (ID) structures have been well investigated in the past few years and are found mostly in eukaryotes. They are frequently involved in key biological processes such as cell cycle control, transcriptional and translational regulation, membrane fusion and transport, and signal transduction [25–28]. Several characteristics of ID structures have been elucidated [29,30]: (1) sequence repetitions consisting of a shorter sequence pattern are often contained in ID regions ; (2) sequence conservation is extremely poor in ID, because ID regions have higher evolution rates than structural domains ; (3) most ID regions exist in linkers connecting domains and/or in terminal tails, but some are inserted in structural domains ; (4) the frequency of intrinsically disordered proteins (IDPs) is higher in eukaryotes than in prokaryotes ; (5) most IDPs localize to the nucleus ; and (6) protein phosphorylation, another type of post-translational modification, predominantly occurs in ID regions . Currently, some of these characteristics are known to be similar to O-glycosylation.
In this study, to elucidate the O-glycosylation mechanism, we first applied a support vector machine (SVM)  to predict whether a Ser or Thr residue is glycosylated. Similar statistical machine learning approaches for the prediction of the mucin-type O-glycosylation site of have been reported [23,37]. A pioneering work by Julenius et al.  used a layered neural network for prediction. The results led to the conclusion that the bulk properties are the main factor for O-glycosylation, as bulk average properties including amino acid composition gave the best prediction. There are other reports which pointed out the position specific properties of amino acids around O-glycosylation sites: for example, high existence ratios of proline (Pro) at −1 and +3 relative to O-glycosylation sites . One of the objectives of this study was to identify the crucial properties of the protein for the sites to be O-glycosylated, based on performance of machine learning. O-glycosylated sites were often found clustered along the sequence, whereas others sites were located sporadically. Therefore, we chose the strategy to classify the O-glycosylation sites into two types, i.e., the clustered and isolated types, and to separately determine the essential properties, and see if they differ from each other. We obtained mammalian protein sequence data with O-glycosylation site information from UniProt , developed two types of SVMs for predicting clustered and isolated sites separately, and calculated the existence frequencies of amino acids around O-glycosylation sites for the two types to estimate the existence probabilities of amino acids at each position relative to the glycosylation sites. We also conducted an independent component analysis (ICA) of the amino acid sequences to elucidate whether the position-specific existences are independent. Finally, we found that O-glycosylation is preferentially located within ID regions of extracellular proteins. So far as we are aware, no reports have hitherto discussed O-glycosylation in relation to ID regions or IDPs.
2.1. Prediction by SVM
SVM was trained for each clustered or isolated type of mucin-type O-glycosylation separately. The exact definitions of the clustered and isolated types of O-glycosylations are given in Section 4.2. The input to SVM was information on a protein sequence of a fixed length including the prediction target site at the center. Two types of information were used: one was the amino acid sequence encoded by sparse coding, which distinguished all 20 types of amino acids, while the other was the amino acid composition of the sequence. Figure 1 shows the prediction accuracy obtained by using either sequence or composition information as the input to SVM for the clustered or isolated type of O-glycosylation.

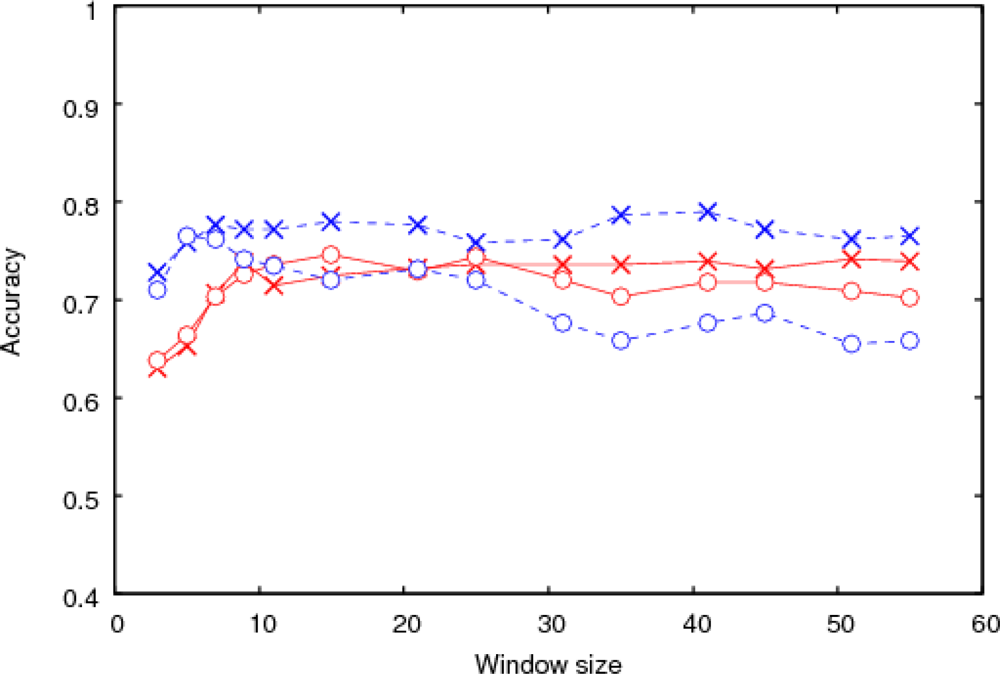

First, we focused on the results obtained by using sequence information. The prediction accuracy for the clustered type increased according to the window size (Ws) up to about Ws = 31, with the highest value 74% obtained at Ws = 51. On the other hand, for the isolated type, the accuracy remained almost constant, including at Ws = 3. The highest accuracy was 79% obtained at Ws = 41. Therefore, the sequence information up to the 15th nearest neighbor was effective for predicting clustered glycosylation, and isolated glycosylation was primarily affected by closer neighbors.
Next, we compared the results of the sequence information analysis with those obtained using composition information. For the clustered type, the accuracy and Ws dependency with the composition information were similar to those with the sequence information. However, for the isolated type, the accuracy decreased according to Ws when the input was composition.

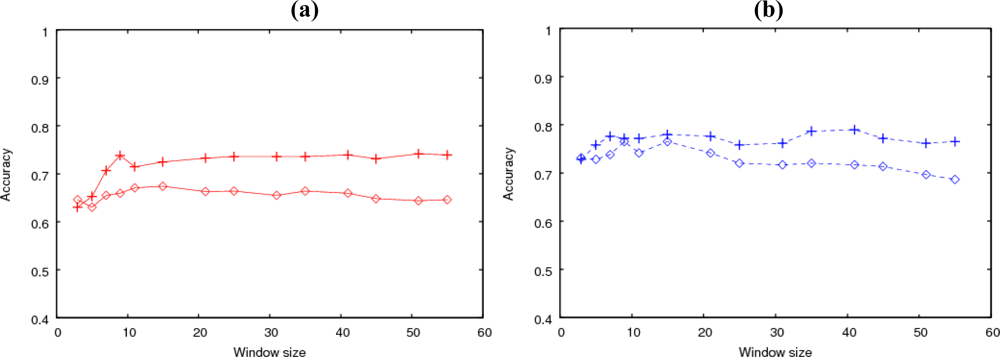

The difference between the two types of trained SVMs was demonstrated by comparing their prediction accuracies for both clustered and isolated types. Figure 2(a),(b) shows the prediction accuracies using the two SVMs for the clustered and isolated types, respectively. The input was sequence information. From the results shown in Figure 2, each SVM was specialized for the type used in the training.
These results indicated that site-specific information of the amino acid residues was effective for predicting isolated glycosylation, whereas only the gross composition up to about the 15th neighbor affected clustered glycosylation.
2.2. Existence Frequency of Amino Acids around O-Glycosylation Sites
According to the previous results, it is likely that glycosylation biosynthesis between clustered and isolated types is different, and the site-specific existence of some amino acids affects the glycosylation, especially for the isolated type. Therefore, any motif can be expected from the combination of such amino acid existences.

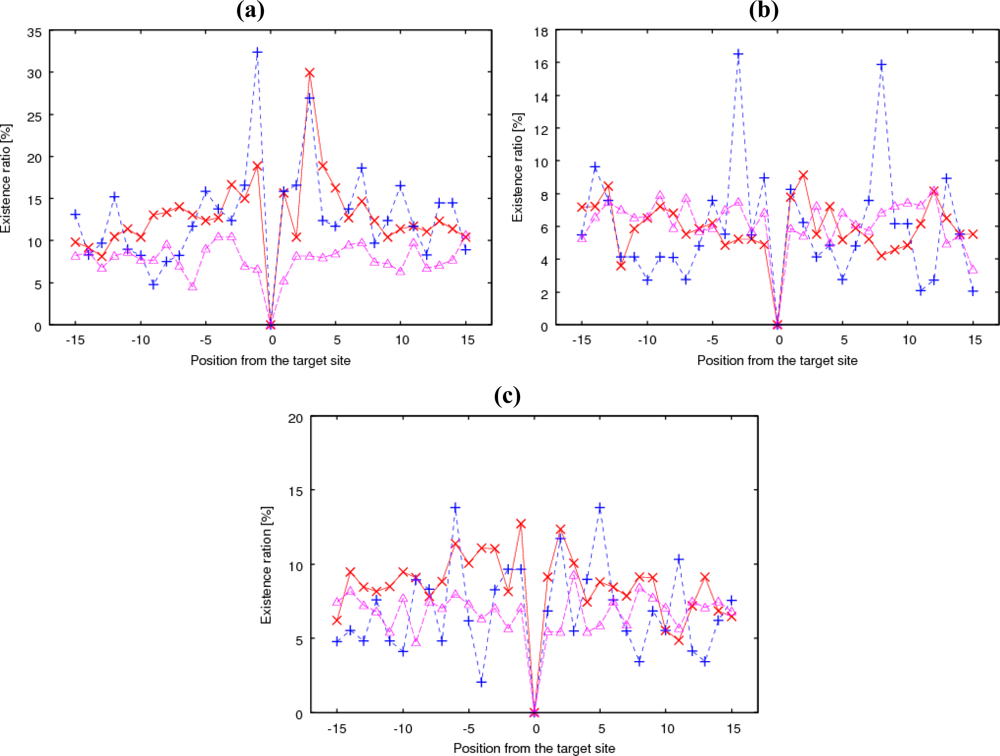

The existence ratio or probability was calculated for 20 types of amino acids at a relative position from the glycosylation site for clustered and isolated glycosylations separately. As a typical example of the results, Figure 3(a) shows the existence ratio of proline (Pro) at each relative position within Ws = 31 around the clustered positive, isolated positive, and negative Ser and Thr residues. Pro has a high ratio at −1 and +3 relative to the O-glycosylation site . In the figure, the high peak can be noted at −1 only for isolated glycosylation and at +3 for both types. The peak at −1 leads to the high prediction accuracy even at Ws = 3 for the isolated type shown in Figure 1.
Similarly, for valine (Val), Figure 3(b) shows very sharp peaks of 16% both at −3 and +8 only for isolated glycosylation. Alanine (Ala) had peaks at −6 and +5, again only for isolated glycosylation (Figure 3(c)). On the contrary, cysteine (Cys) residues were rarely observed near clustered glycosylation sites. In summary, a high site-specific existence of certain amino acids was especially observed for isolated glycosylation.
2.3. Independence of the Amino Acid Existences
ICA was applied for the amino acid sequence around a glycosylated site to elucidate whether each amino acid existence correlates with or is independent of each other. Figure 4 shows two examples of the obtained independent components for the isolated type.

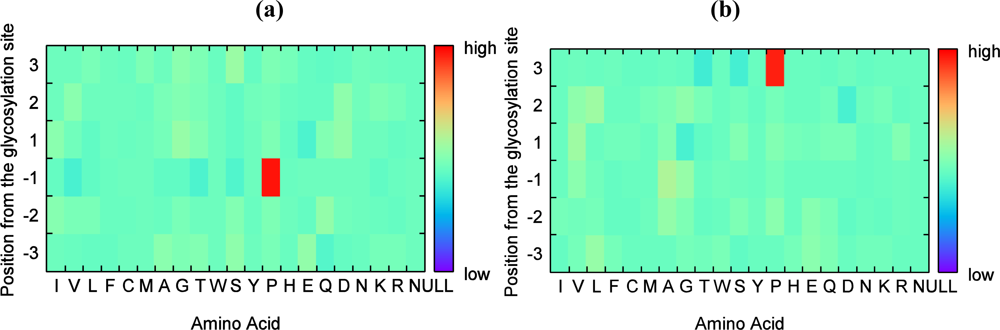

Figure 4 shows the well-known high probabilities of Pro at −1 and +3. Supplemental Figure S1 shows the newly found Val at −3 and Ala at +2 as independent components. This finding means that the amino acids exist in a certain position independently and affect isolated glycosylation. Other components also possess each high probability element. The probability of Pro was also high at +2, −2, −3, and +1 (shown in descending order of probability).
Figure S2 shows two components for the clustered glycosylation. Figure S2(a) shows that Pro at +3 had a remarkably high probability for this type as well. However, most components did not show high probability compared with those obtained for the isolated type (Figure S2(b)).
2.4. Occurrence of O-GalNAc Glycosylation in Domains or Intrinsically Disordered Regions
Structural domains and ID regions of mucin-type O-glycoproteins (O-GalNAc) were analyzed using DICHOT [40,41] to determine the relationship between O-glycosylation and ID regions. All residues were binary classified into structural domains and ID regions. Further, 107 mammalian mucin-type O-glycoproteins were taken from the UniProt database (Release 14.0). The results of DICHOT were directly downloadable for 62 human proteins, whereas those for 45 non-human proteins were newly calculated. Table 1 shows the frequencies of O-glycosylation in relation to ID regions. The total numbers of all amino acid residues in the 107 proteins and their ID regions were 45,962 and 14,028, respectively. Thus, the existence ratio of ID regions in the 107 O-glycoproteins was 30.5% (14,028/45,962). On the other hand, the numbers of all O-glycosylation sites in the 107 O-glycoproteins and O-glycosylation sites in their ID regions were 465 and 399, respectively. Thus, the existence ratio of ID regions in the O-glycosylated sites was 85.8% (399/465).
The existence ratio of O-glycosylation sites in ID regions was 2.84% (399/14,028), which was substantially higher (2.8-fold) than that of O-glycosylation sites in the 107 O-glycoproteins (465/45,962 = 1.01%). On the contrary, the existence ratio of O-glycosylation sites in structural domains was 0.21% (66/31,934).
When we calculated the O-glycosylation ratio over Ser and Thr sites as a reference, the total numbers of Ser and Thr residues in the 107 proteins and their ID regions were 7228 and 2779, respectively. Thus, the O-glycosylation ratio in ID regions was 14.4% (399/2779), which was substantially higher (2.2-fold) than that in the 107 O-glycoproteins (465/7228 = 6.43%). On the contrary, the O-glycosylation ratio in structural domains was 1.48% (66/4449).
When we distinguished between clustered and isolated O-glycosylation sites, there were 283 (2.02%) and 116 (0.83%) sites, respectively, in ID regions. The existence ratios of ID regions in clustered and isolated O-glycosylated sites were 91.0% and 75.3%, respectively.
In brief, O-glycosylation occurs more frequently in ID regions than in structural domains, and this tendency is more remarkable for clustered glycosylation.

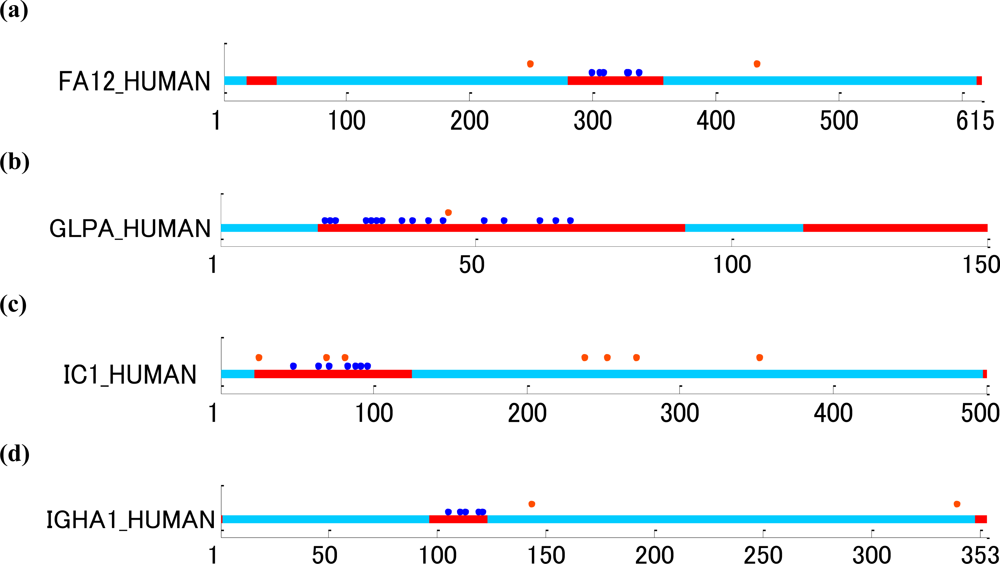

Figure 5 shows examples of mucin-type O-glycoproteins. Six sites of coagulation factor XII (UniProt ID: FA12_HUMAN) of secreted protein  were modified by mucin-type O-glycosylation. In addition, glycophorin-A (UniProt ID: GLPA_HUMAN) of cell membrane protein [43,44], plasma protease C1 inhibitor (UniProt ID: IC1_HUMAN) of secreted protein , and Ig α-1 chain C region (UniProt ID: IGHA1_HUMAN) of immunoglobulin were O-glycosylated at 16, seven, and five sites, respectively. The results of 62 human proteins are shown in Supplemental Figure S3.
These results support the hypothesis that many mucin-type O-glycoproteins are glycosylated for clustered modifications as clusters in ID regions. This is based on the examination of individual cases revealing the clustering of most mucin-type O-glycoproteins in ID regions (Figures 5 and S3) and nearly all of the small number of the clustered mucin-type O-glycosylation sites in structural domains (Figure S3) were very close to the boundary with ID regions. CSF2_HUMAN serves as an example of the latter case (Figure S3): O-GalNAc is added to 27 Thr located in a structural domain, but right next to the ID region that extends to residue 26 (Figure S3). Furthermore, most of the isolated mucin-type O-glycosylation sites also fell in ID regions (Figure S3), while a majority of those in structural domains were located in loop regions (e.g., the O-glycosylation site in APOH_HUMAN, Figure S3).
2.5. Non-Mucin-Type O-Glycosylation
Eighty-three non-mucin-type glycoproteins, including those with O-GlcNAc, O-Gal, O-Xly, O-Fuc, O-Glc, O-HexNAc, and O-Hex modifications, were collected from UniProt database 14.0. ID regions of these glycoproteins were again identified using DICHOT [40,41]. The existence ratios of O-GlcNAc (78.9%) and O-Xly (85.0%) were high in ID regions (Table 2). This high ratio was caused by the high Ser or Thr ratio in ID regions for O-GlcNAc (77.1%), whereas O-glycosylation preferentially occurred in ID regions for O-Xly, similar to that for O-GalNAc glycosylation.
Clustered O-glycosylation sites were rarely found in the non-mucin-type, compared with the mucin-type. One rare example was the clustered O-Xly glycosylation sites in SRGN_HUMAN.
The ratio of Ser or Thr residues for glycosylation was remarkably high in the mucin-type in ID regions (399/2779 = 14.4%), compared with the non-mucin-type.
According to the finding that O-GalNAc glycosylation sites often clustered along the sequence, we classified the O-glycosylation sites into clustered and isolated types using a simple criterion. The SVM prediction indicated that the amino acid composition was effective for the clustered type, whereas the site-specific algorithm was effective for the isolated type. The highest prediction accuracy of the clustered type was 74%, while that of the isolated type was 79%. Moreover, more than 90% of the clustered O-GalNAc glycosylation sites were located in ID regions. In the isolated type, some amino acid residues were observed at high frequencies at certain positions relative to O-glycosylation sites (Pro at −1 and +3, Val at −3 and +8, and Ala at −6 and +5). Addition of ID region information to the SVM input improved the prediction accuracy only slightly, implying that amino acid composition as an input to an SVM provides most information on ID propensity.
Previously , O-GalNAc glycosylation sites were predicted by using a layered neural network; this study indicated that bulk average properties including amino acid composition give the best prediction. This is the property of clustered glycosylation sites, which constitutes the majority of O-GalNAc glycosylation sites (Table 1). The non-conservation of glycosylation sites they discussed is the result of a high fraction of ID regions and generally low conservation of ID regions . In another report , O-glycosylation sites were classified into multiple and isolated types, roughly corresponding to the clustered and isolated types, respectively, in this paper. However, their criterion differed from ours: O-glycosylation sites were defined as multiple when there was at least one more glycosylation site within the tenth-nearest neighbor. They found high frequencies of Ser and Thr around multiple glycosylation sites, and proposed the use of this property for predicting the multiple type. Further, they indicated high site-specific frequencies of Pro at −1 and +3 for the isolated type, which is consistent with the present results. However, they concluded that the finding was not sufficiently useful for prediction and did not consider ID regions.
The four examples of O-GalNAc glycosylation (Figure 5) illustrate the high frequency of O-GalNAc glycosylation sites in ID regions: all of the O-linked glycosylation sites in the figure belonging to both clustered and isolated types fall in ID regions identified by the DICHOT system. In predicting the clustered type of O-GalNAc glycosylation, the amino acid composition near the sites was more effective than sequence information (Figure 1). Interestingly, this type of O-linked glycosylation is mostly located in ID regions and rarely in structural domains (Table 1). As ID regions generally have a skewed amino acid composition without specific sequence characteristics [33,46], the current finding makes sense because the characteristic amino acid composition of ID regions is likely to be a good predictor of the clustered type of O-linked glycosylation. The finding that addition of ID region information to SVM input does not drastically improve the accuracy of prediction supports this idea.
For the isolated type of O-GalNAc glycosylation, however, amino acid sequence information is a better predictor than amino acid composition (Figure 1). In this type, 75% of the sites fall into ID regions, much higher than the average fraction of ID regions in O-GalNAc glycosylated proteins (30.5%), while the remaining 25% are located in structural domains (Table 1). The small but significant fraction in structural domains partially explains the sequence finding: certain sequence characteristics are needed for this type of O-linked glycosylation site to be located at the molecular surface. The finding that Pro at −1 and +3 occur at high frequency indicates that Pro working as a breaker of α-helix and β-sheet is important for the site to accommodate O-GalNAc glycosylation. O-GalNAc glycosylation sites of the isolated type are also often found in ID regions very close to the boundary of structural domains. In such cases too, sequence characteristics in the vicinity are likely to be crucial for making the sites available to O-linked glycosylation.
In both mucin (O-GalNAc) and non-mucin types of O-linked glycosylation (O-GlcNAc and all the rest), O-glycosylation occurs post-translationally (i.e., after protein folding) . In this discussion, we first limited our attention to mucin-type and the three most prevalent non-mucin-type O-linked glycosylations, namely O-GlcNAc, O-Gal, and O-Xyl (Table 2). The table shows that ID regions are generally preferred irrespective of the types of O-linked glycosylation, consistent with the view that enzymes that add these types of O-linked glycosylation recognize structural features of proteins. Quite possibly, O-linked glycans of these types are attached to residues in ID regions to prevent protease degradation of glycosylated proteins. Increased O-GlcNAc modification of human RNA polymerase II transcription factor SP1, for instance, deters its degradation in the proteasome  and O-GalNAc modification of the human CD44 antigen inhibits cleavage of the extracellular domain by specific proteases . On the other hand, two other non-mucin types of O-glycosylations of O-Fuc and O-Glc occur in domain regions. O-Fuc and O-Glc have been found on epidermal growth factor (EGF)-protein domains and have consensus sequences. O-Fuc is attached to the Thr or Ser residue in -Cys-Xaa-Xaa-Gly-Gly-Thr/Ser-Cys- , and O-Glc is attached to the Ser residue in -Cys-Xaa-Ser-Xaa-Pro-Cys- .
The subcellular localizations and consequently cellular functions of O-GalNAc and O-GlcNAc are quite different: O-GalNAc is added to proteins sometimes in the endoplasmic reticulum, but mostly in the Golgi apparatus . The modified proteins become either extracellular proteins or plasma membrane proteins with the O-GalNAc glycosylation sites in the extracellular domains. O-GalNAc glycosylation is tissue specific, because different GalNAc-Ts with overlapping but different specificities exist and have distinct tissue-specific expression patterns . In contrast, O-GlcNAc glycosylation is a reversible modification of cytoplasmic and nuclear proteins and plays a regulatory role in competition with phosphorylation in some proteins [35,52,53]. Naturally, the biological significance of O-GalNAc glycosylation is distinct from that of O-GlcNAc. O-GalNAc modification affects extracellular processes such as cell adhesion, immunological recognition, and secretion , while O-GlcNAc modification is involved in transcription regulation, protein trafficking and turnover, among others, with a complex dynamic interplay with phosphorylation . It will be interesting to investigate how prevention of protein degradation by O-linked glycosylation in ID regions is involved in various biological functions.
4. Materials and Methods
4.1. Protein Data Sets
The experimentally validated O-glycosylated Ser and Thr residues in mammalian proteins were selected from the UniProt database (Release 12.2) for the analysis in Sections 2.1–2.3. Ninety-eight proteins were obtained by annotation of mucin-type O-glycosylation by excluding “potentially,” “probably,” and “by similarity” annotations. There were 452 annotated Ser and Thr sites, and 6004 Ser and Thr sites without annotation, which were denoted positive and negative sites, respectively. Further, there were several homologs among the 98 proteins. Therefore, as a preliminary analysis, we examined whether the existence of these homologs affects the SVM-based prediction by selecting only one protein among the homologs with a similarity threshold down to 0.2. This step did not largely change the prediction accuracy obtained by ten-fold cross validation (Section 4.3). Therefore, all 98 proteins were used in the study.
The protein data used for the analysis in Sections 2.4 and 2.5 were obtained from the UniProt database (Release 14.0). One hundred and seven proteins were obtained as showing mucin-type O-glycosylation (O-GalNAc) and 83 proteins were obtained as showing non-mucin-type O-glycosylation of O-GlcNAc, O-Gal, O-Xly, O-Fuc, O-Glc, O-HexNAc, and O-Hex (Table 2). Among the 107 proteins with mucin-type O-glycosylation, 62 were human and 45 were non-human. Among the 83 proteins with non-mucin-type O-glycosylation, 38 were human and 45 were non-human.
4.2. Clustered and Isolated O-Glycosylation Sites
Many positive sites were densely clustered, whereas others were located sporadically. We defined the two types of positive sites as follows: if the nearest neighbor Ser or Thr site on either side was glycosylated, it was termed a clustered O-glycosylation site; otherwise, it was considered isolated (Figure 6). Accordingly, among the 452 positive sites, 307 were clustered and the remaining were isolated. Glycoprotein MUCAP_PIG had the highest number of clustered sites, including 31 clustered modification sites among 1148 amino acids, and glycoprotein CEL_HUMAN had the highest number of isolated sites, including 10 isolated modification sites among 741 amino acids. These multiple isolated sites were caused by repeated segments of Thr-Gly-Asp-Ser, with glycosylated Thr and non- glycosylated Ser.
The SVM was trained for each type separately. In the predictions, all positive sites were used, and the same number of negative sites was randomly selected by uniform probability.
The input to SVM was a protein sequence including the prediction target site. A sequence of fixed length, Ws, was excised from the original protein sequence with a prediction target of a Ser or Thr residue at the center. For example, a target site and the first to third nearest-neighbor amino acid residues on both sides constitute a sequence of Ws = 7. Ws varied from three to 55 in the predictions.
Two types of information on the Ws sequence were used as the input. One type of information was the amino acid sequence encoded by a sparse coding with 21 bits, which distinguished all 20 types of amino acids and a null (outside the protein terminal). Therefore, the amino acid sequence information was expressed as a 21(Ws − 1) +2 bits binary vector. The other input information was the amino acid composition, which was expressed as a 21-dimensional real value vector.
4.3. Prediction by SVM
Radial basis function was used as an SVM kernel, which was given by the following:where γ is the kernel parameter. Another parameter was margin size, denoted by C. We used the open software package SVM-light. C varied from 0.1 to 100 and γ varied from 1.0 × 10−4 to 1.0.
Ten-fold cross-validation was used for the learning and the evaluation to utilize the limited number of data fully. In this validation, each protein was grouped into one of 10 groups. Then, all positive sites and the same number of negative sites selected from the proteins in the group were used as training and validating samples. The performance was evaluated by the prediction accuracy averaged over 10 groups, and C and γ with the best performance were selected for each Ws value.
4.4. Amino Acid Sequence for ICA
ICA was applied for an amino acid sequence of Ws = 7 around the glycosylation site for the 307 clustered and 145 isolated sites. Six amino acids except the glycosylation site, regardless of whether it was Ser or Thr, were expressed by 21-bit sparse coding to form a 126-dimensional binary vector.
Then, principal component analysis (PCA) was used to reduce the dimensional size, and only the top 10 principal components were used for the ICA. Thus, 10 independent components were obtained for each type. As the original data were encoded by sparse coding, which directly indicates the existence of each amino acid, the value of the vector element corresponded to the existence ratio of each amino acid at a certain position.
4.5. Binary Prediction of Ordered/Disordered Protein Segments by DICHOT
Binary classification of protein molecules into structural domains and ID regions was performed by using the DICHOT system , which was applied to all the 107 proteins with mucin-type O-glycosylation and the 83 proteins with non-mucin-type O-glycosylation analyzed in this study. The DICHOT system assigns structural domains with similarity to known 3D structures by the method used in the GTOP database , which is a genome wide structural assignment database. The un-assigned regions in this process were judged with a combination of pre-existing and newly developed programs to discriminate structural domains and ID regions. Among the 107 proteins with mucin-type O-glycosylation, the results of DICHOT are available for the 62 human proteins at the web site , but not for the 45 non-human proteins. In addition, the revised result was used for one human protein, CEL_HUMAN, whose sequence length was changed because of an update of UniProt.
We found that the classification of mucin-type (O-GalNAc) glycosylation into clustered and isolated types is useful in developing algorithms to accurately predict O-GalNAc glycosylation sites. Furthermore, we discovered that most O-GalNAc and O-GlcNAc glycosylation sites are in ID regions. We propose that these O-linked glycans protect the ID regions from degradation and are crucial in controlling cellular functions.
This work was supported in part by a Grant-in Aid for Scientific Research (No. 10010417) from the Ministry for Education, Culture, Sports, Science and Technology (MEXT) of Japan. We acknowledge K. Sakakibara for his help in formatting the SVM input data.
- Taylor, ME; Drickamer, K. Introduction to Glycobiology; Oxford University Press: Oxford, UK, 2003. [Google Scholar]
- Apweiler, R; Hermjakob, H; Sharon, N. On the frequency of protein glycosylation, as deduced from analysis of the SWISS-PROT database. Biochim. Biophys. Acta 1999, 1473, 4–8. [Google Scholar]
- Ichikawa, S; Guigonis, V; Imel, EA; Courouble, M; Heissat, S; Henley, JD; Sorenson, AH; Petit, B; Lienhardt, A; Econs, MJ. Novel GALNT3 mutations causing hyperostosis-hyperphosphatemia syndrome result in low intact fibroblast growth factor 23 concentrations. J. Clin. Endocrinol. Metabl 2007, 92, 1943–1947. [Google Scholar]
- Kato, K; Jeaneau, C; Tarp, MA; Benet-Pages, A; Lorenz-Depieereux, B; Bennett, EP; Mandel, U; Strom, TM; Clausen, H. Polypeptide GalNAc-transferase T3 and familial tumoral calcinosis. Secretion of fibroblast growth factor 23 requires O-glycosylation. J. Biol. Chem 2006, 281, 18370–18377. [Google Scholar]
- Ju, T; Cummings, RD. A unique molecular chaperone Cosmc required for activity of the mammalian core 1 β-3-galactosyltransferase. Proc. Natl. Acad. Sci. USA 2002, 99, 16613–16618. [Google Scholar]
- Ju, T; Cummings, RD. Protein glycosylation: Chaperone mutation in Tn syndrome. Nature 2005, 437, 1252. [Google Scholar]
- Allen, A; Bailey, EM; Brenchley, PE; Buck, KS; Barratt, J; Feehally, J. Mesangial IgA1 in IgA nephropathy exhibits aberrant O-glycosylation: Observations in three patients. Kidney Int 2001, 60, 969–973. [Google Scholar]
- Hiki, Y; Tanaka, A; Kokubo, T; Iwase, H; Nishikido, J; Hotta, K; Kobayashi, Y. Analyses of IgA nephropathy by matrix-assisted laser desorption/ionization time-of-flight mass spectrometry. J. Am. Soc. Nephrol 1998, 9, 577–582. [Google Scholar]
- Hiki, Y; Kokubo, T; Iwase, H; Masaki, Y; Sano, T; Tanaka, A; Toma, K; Hotta, K; Kobayashi, Y. Underglycosylation of IgA1 hinge plays a certain role for its glomerular deposition in IgA nephropathy. J. Am. Soc. Nephrol 1999, 10, 760–769. [Google Scholar]
- Kathiresan, S; Melander, O; Guiducci, C; Surti, A; Burtt, NP; Rieder, MJ; Cooper, GM; Roos, C; Voight, BF; Havulinna, AS; Wahlstrand, B; Hedner, T; Corella, D; Tai, ES; Ordovas, JM; Berglund, G; Vartiainen, E; Jousilahti, P; Hedblad, B; Taskinen, MR; Newton-Cheh, C; Salomaa, V; Peltonen, L; Groop, L; Altshuler, DM; Orho-Melander, M. Six new loci associated with blood low-density lipoprotein cholesterol, high-density lipoprotein cholesterol or triglycerides in humans. Nat. Genet 2008, 40, 189–197. [Google Scholar]
- Willer, CJ; Sanna, S; Jackson, AU; Scuteri, A; Bonnycastle, LL; Clarke, R; Heath, SC; Timpson, NJ; Najjar, SS; Stringham, HM; Strait, J; Duren, WL; Maschio, A; Busonero, F; Mulas, A; Albai, G; Swift, AJ; Morken, MA; Narisu, N; Bennett, D; Parish, S; Shen, H; Galan, P; Meneton, P; Hercberg, S; Zelenika, D; Chen, WM; Li, Y; Scott, LJ; Scheet, PA; Sundvall, J; Watanabe, RM; Nagaraja, R; Ebrahim, S; Lawlor, DA; Ben-Shlomo, Y; Davey-Smith, G; Shuldiner, AR; Collins, R; Bergman, RN; Uda, M; Tuomilehto, J; Cao, A; Collins, FS; Lakatta, E; Lathrop, GM; Boehnke, M; Schlessinger, D; Mohlke, KL; Abecasis, GR. Newly identified loci that influence lipid concentrations and risk of coronary artery disease. Nat. Genet 2008, 40, 161–169. [Google Scholar]
- Kim, YJ; Varki, A. Perspectives on the significance of altered glycosylation of glycoproteins in cancer. Glycoconj. J 1997, 14, 569–576. [Google Scholar]
- Ono, M; Hakomori, S. Glycosylation defining cancer cell motility and invasiveness. Glycoconj. J 2004, 20, 71–78. [Google Scholar]
- Springer, GF. Immunoreactive T and Tn epitopes in cancer diagnosis, prognosis, and immunotherapy. J. Mol. Med 1997, 75, 594–602. [Google Scholar]
- Spiro, RG. Protein glycosylation: Nature, distribution, enzymatic formation, and disease implications of glycopeptides bonds. Glycobiology 2002, 12, 43R–56R. [Google Scholar]
- Blom, N; Sicheritz-Ponten, T; Gupta, R; Gammeltofs, S; Brunak, S. Prediction of post-translational glycosylation and phosphorylation of proteins from the amino acid sequence. Proteomics 2004, 4, 1633–1649. [Google Scholar]
- Hang, HC; Bertozzi, CR. The chemistry and biology of mucin-type O-linked glycosylation. Bioorg. Med. Chem 2005, 13, 5021–5034. [Google Scholar]
- Tabak, LA. In defense of the oral cavity: Structure, biosynthesis and function of salivary mucins. Annu. Rev. Physiol 1995, 57, 547–564. [Google Scholar]
- Baldus, SE; Engelmann, K; Hanisch, FG. MUC1 and the MUCs: A family of human mucins with impact in cancer biology. Crit. Rev. Clin. Lab. Sci 2004, 41, 189–231. [Google Scholar]
- Rose, MC; Voynow, JA. Respiratory tract mucin genes and mucin glycoproteins in health disease. Physiol. Rev 2006, 86, 245–278. [Google Scholar]
- Lang, T; Hansson, GC; Samuelsson, T. Gel-forming mucins appeared early in metazoan development. Proc. Natl. Acad. Sci. USA 2007, 104, 16209–16214. [Google Scholar]
- van den Steen, P; Rudd, PM; Dwek, RA; Opdenakker, G. Concepts and principles of O-linked glycosylation. Crit. Rev. Biochem. Mol 1998, 33, 151–208. [Google Scholar]
- Julenius, K; Molgaard, A; Gupta, R; Brunak, S. Prediction, conservation analysis, and structural characterization of mammalian mucin-type O-glycosylation sites. Glycobiology 2004, 15, 153–164. [Google Scholar]
- Hart, GW. Dynamic O-linked glycosylation of nuclear and cytoskeletal proteins. Annu. Rev. Biochem 1997, 66, 315–335. [Google Scholar]
- Wright, PE; Dyson, HJ. Intrinsically unstructured proteins: Reassessing the protein structure-function paradigm. J. Mol. Biol 1999, 293, 321–331. [Google Scholar]
- Dyson, HJ; Wright, PE. Insights into the structure and dynamics of unfolded proteins from NMR. Adv. Protein Chem 2002, 62, 311–340. [Google Scholar]
- Dunker, AK; Brown, CJ; Obradovic, Z. Identification and functions of usefully disordered proteins. Adv. Protein Chem 2002, 62, 25–49. [Google Scholar]
- Uversky, VN; Oldfield, CJ; Dunker, AK. Showing your ID: Intrinsic disorder as an ID for recognition, regulation and cell signaling. J. Mol. Recognit 2005, 18, 343–384. [Google Scholar]
- Dunker, AK; Silman, I; Uversky, VN; Sussman, JL. Function and structure of inherently disordred proteins. Curr. Opon. Struct. Biol 2008, 18, 756–764. [Google Scholar]
- Nishikawa, K. Natively unfolded proteins: An overview. Biophysics 2009, 5, 53–58. [Google Scholar]
- Tompa, P. Intrinsically unstructured proteins evolve by repeat expansion. Bioessays 2003, 25, 847–855. [Google Scholar]
- Brown, CJ; Takayama, S; Campen, AM; Vise, P; Marshall, TW; Oldfield, CJ; Williams, CJ; Dunker, AK. Evolutionary rate heterogeneity in proteins with long disordered regions. J. Mol. Evol 2002, 55, 104–110. [Google Scholar]
- Fukuchi, S; Homma, K; Minezaki, Y; Nishikawa, K. Intrinsically disordered loops inserted into the structural domains of human proteins. J. Mol. Biol 2006, 355, 845–857. [Google Scholar]
- Ward, JJ; Sodhi, JS; McGuffin, LJ; Buxton, BF; Jones, DT. Prediction and functional analysis of native disorder in protein from the three kingdoms of life. J. Mol. Biol 2004, 227, 635–645. [Google Scholar]
- Iakoucheva, LM; Radivojac, P; Brown, CJ; O’Connor, TR; Sikes, JG; Obradovic, Z; Dunker, K. The importance of intrinsic disorder for protein phosphorylation. Nucleic. Acids Res 2004, 32, 1037–1049. [Google Scholar]
- Cristianini, N; Taylor, JS. An Introduction to Support Vector Machines and other kernel-based learning methods; Cambridge University Press: Cambridge, UK, 2000. [Google Scholar]
- Li, S; Liu, B; Zeng, R; Cai, Y; Li, Y. Predicting O-glycosylation sites in mammalian proteins by using SVMs. Comput. Biol. Chem. 2006, 30, 203–208. [Google Scholar]
- Wilson, I; Gavel, Y; von Heijne, G. Amino acid distributions around O-linked glycosylation sites. Biochem. J 1991, 275, 529–534. [Google Scholar]
- The UniProt Consortium. The Universal Protein Resource (UniProt) in 2010. Nucleic. Acids Res. 2010, 38, D142–D148. [Google Scholar]
- Fukuchi, S; Homma, K; Minezaki, Y; Gojobori, T; Nishikawa, K. Development of an accurate classification system of proteins into structured and unstructured regions that uncovers novel structural domains: Its application to human transcription factors. BMC Struct. Biol 2009, 9, 26. [Google Scholar]
- DICHOT database. Available online: http://spock.genes.nig.ac.jp/~genome/DICHOT/ (accessed on 25 November 2010)..
- McMullen, BA; Fujikawa, K. Amino acid sequence of the heavy chain of human alpha-factor XIIa (activated Hageman factor). J. Biol. Chem 1985, 260, 5328–5341. [Google Scholar]
- Tomita, M; Marchesi, VT. Amino-acid sequence and oligosaccharide attachment sites of human erythrocyte glycophorin. Proc. Natl. Acad. Sci. USA 1975, 72, 2964–2968. [Google Scholar]
- Pisano, A; Redmond, JW; Williams, KL; Gooley, AA. Glycosylation sites identified by solid-phase Edman degradation: O-linked glycosylation motifs on human glycophorin A. Glycobiology 1993, 3, 429–435. [Google Scholar]
- Bock, SC; Skriver, K; Nielsen, E; Thoegersen, H-C; Wiman, B; Donaldson, VH; Eddy, RL; Marrinan, J; Radziejewska, E; Huber, R; Shows, TB; Magnusson, S. Human C1 inhibitor: Primary structure, cDNA cloning, and chromosomal localization. Biochemistry 1986, 25, 4292–4301. [Google Scholar]
- Oldfield, CJ; Cheng, Y; Cortese, MS; Brown, CJ; Uversky, VN; Dunker, AK. Comparing and combining predictors of mostly disordered proteins. Biochemistry 2005, 44, 1989–2000. [Google Scholar]
- Jackson, SP; Tijan, R. O-glycosylation of eukaryotic transcription factors: Implications for mechanisms of transcriptional regulation. Cell 1988, 55, 125–133. [Google Scholar]
- Bartolazzi, A. CD44s adhesive function spontaneous and PMA-inducible CD44 cleavage are regulated at post-translational level in cells of melanocytic lineage. Melanoma Res 2003, 13, 325–337. [Google Scholar]
- Schachter, H; Brockhausen, I. The biosynthesis of branched O-glycans. Symp. Soc. Exp. Biol 1989, 43, 1–26. [Google Scholar]
- Gill, DJ; Chia, J; Senewiratne, J; Bard, F. Regulation of O-glycosylation through Golgi-to-ER relocation of initiation enzymes. J. Cell Biol 2010, 189, 843–858. [Google Scholar]
- Bennett, EP; Hassan, H; Mandel, U; Hollingsworth, MA; Akisawa, N; Ikematsu, Y; Merkx, G; van Kessel, AG; Olofsson, S; Clausen, H. Cloning and characterization of a close homologue of human UDP-N-acetyl-alpha-D-galactosamine: Polypeptide N-acetylgalactosaminyltransferase-T3, designated GalNAc-T6. Evidence for genetic but not functional redundancy. J. Biol. Chem 1999, 274, 25362–25370. [Google Scholar]
- Dong, DL; Hart, GW. Purification and characterization of an O-GlcNAc selective N-acetyl-β-D-glucosaminidase from rat spleen cytosol. J. Biol. Chem 1994, 269, 19321–19330. [Google Scholar]
- Hart, GW; Housley, MP; Slawson, C. Cycling of O-linked β-N-acetylglucosamine on nucleocytoplasmic proteins. Nature 2007, 446, 1017–1022. [Google Scholar]
- Fukuchi, S; Homma, K; Sakamoto, S; Sugawara, H; Tateno, Y; Gojobori, T; Nishikawa, K. The GTOP database in 2009: Updated content and novel features to expand and deepen insights into protein structures and functions. Nucl. Acids Res 2009, 37, D333–D337. [Google Scholar]
|Table 1. Frequencies of occurrence of O-GalNAc glycosylations at clustered, isolated, and total glycosylation sites in ID regions. The total numbers of Ser or Thr residues, and the total numbers of amino acid residues are also shown for reference. 107 proteins were taken from UniProt 14.0, and ID regions were obtained from DICHOT [40,41].|
|Number of sites in ID||Total number of sites in 107 proteins||Ratio to be in ID (%)|
|All sites in 107 proteins||14,028||45,962||30.5|
|Table 2. Frequencies of occurrence of the mucin type and non-mucin-type O-glycosylations at residue sites in ID regions. The total numbers of Ser and Thr residues are also shown for reference. 190 proteins were taken from UniProt 14.0, and ID regions were obtained from DICHOT [40,41].|
|O-linked type||Number of proteins||Number of sites in ID||Total number of sites in the proteins||Ratio to be in ID (%)|
*O-HexNAc (O-GalNAc or O-GlcNAc)**O-Hex (O-Gal or O-Glc)
