Review

Flexible Two-Dimensional Square-Grid Coordination Polymers: Structures and Functions

1
Nippon Steel Corporation, 20-1Shintomi, Futtsu, Chiba 293-8511, Japan
2
Department of Chemistry, Graduate School of Science, Chiba University, Yayoi, Inage, Chiba 263-8522, Japan
3
Collaborative Innovation Center for Nanotech FIBER (nanoFIC), Shinshu University, 3-15-1 Tokida, Ueda, Nagano 386-8567, Japan
4
Research Center for Exotic Nanocarbons, Shinshu University, Wakasato 4-17-1, Nagano-city 380-8553, Japan
*
Author to whom correspondence should be addressed.
Current address: Department of Applied Chemistry, Tokyo University of Agriculture and Technology, 2-24-16 Naka-cho, Koganei, Tokyo 184-8588, Japan.
Int. J. Mol. Sci. 2010, 11(10), 3803-3845; https://doi.org/10.3390/ijms11103803
Submission received: 21 August 2010 / Revised: 19 September 2010 / Accepted: 20 September 2010 / Published: 30 September 2010
(This article belongs to the Special Issue Metal Organic Frameworks)

Abstract

:
Coordination polymers (CPs) or metal-organic frameworks (MOFs) have attracted considerable attention because of the tunable diversity of structures and functions. A 4,4′-bipyridine molecule, which is a simple, linear, exobidentate, and rigid ligand molecule, can construct two-dimensional (2D) square grid type CPs. Only the 2D-CPs with appropriate metal cations and counter anions exhibit flexibility and adsorb gas with a gate mechanism and these 2D-CPs are called elastic layer-structured metal-organic frameworks (ELMs). Such a unique property can make it possible to overcome the dilemma of strong adsorption and easy desorption, which is one of the ideal properties for practical adsorbents.

1. Introduction

Organic synthetic chemistry has enabled us to develop various kinds of elegant synthetic methods such as C-C bond formations, condensation reactions, and functional group transformations, and has realized the synthesis of extremely complicated organic functional molecules [13]. On the other hand, supramolecule chemistry shows us that the creation of complicated structures and functions may be possible even by mere mixing of components (self-organization) when we utilize weak interactions such as coordination bond, hydrogen bonding, and π-π interaction [48].
Coordination polymers (CPs) or metal-organic frameworks (MOFs) which are synthesized from exo-multidentate ligands and metal cations through the self-organization process have attracted considerable attention because of their diversity of structures and functions with the appropriate tunability [923]. In particular, porous coordination polymers (PCPs) or porous MOFs are considered as a promising candidate for a new class of adsorbent [2426], separation material [2730], catalyst [3141], and sensors [42], because of their high sorption capacities and molecular recognition abilities by excellent tunability of the pore structure [11,43,44].
One of the characteristics of PCPs/MOFs is a softness derived from the weak interactions between counter ions and ligands, or ligands and ligands. Since traditional porous materials such as zeolite or activated carbon are ordinarily robust, adsorbed guest molecules are accommodated into the steadily constructed pores. On the other hand, some kinds of PCPs/MOFs show structural flexibility [4562]. The flexible PCPs/MOFs interact with guest molecules, showing nonporous/porous structural transformations [6366] or change the pore structures in response to external stimuli [6770]. In the case of gas adsorption phenomena on robust traditional porous materials, the adsorbed amount tends to increase gradually with the increment of gas pressure. However, flexible PCPs/MOFs, in some cases, show non-linear responses between the adsorbed amount and the gas pressure. Although such an interesting phenomenon has been extensively studied in the case of crystals of small organic molecules or a discrete complex [7178], the detailed mechanism of non-linear responses of PCPs/MOFs in gas adsorption is still unclear. In this review, we introduce the structures and functions of flexible two dimensional PCPs/MOFs, which are constructed with simple, rigid, and linear ligands, 4,4′-bipyridine (bpy), and are named “elastic layer-structured metal-organic frameworks (ELMs)”. We also discuss the advantages of flexible ELMs for practical applications.

2. Gas Adsorptivity of Elastic Layer-Structured Metal-Organic Frameworks (ELMs)

2.1. Discovery of Gate Phenomena of Coordination Polymer

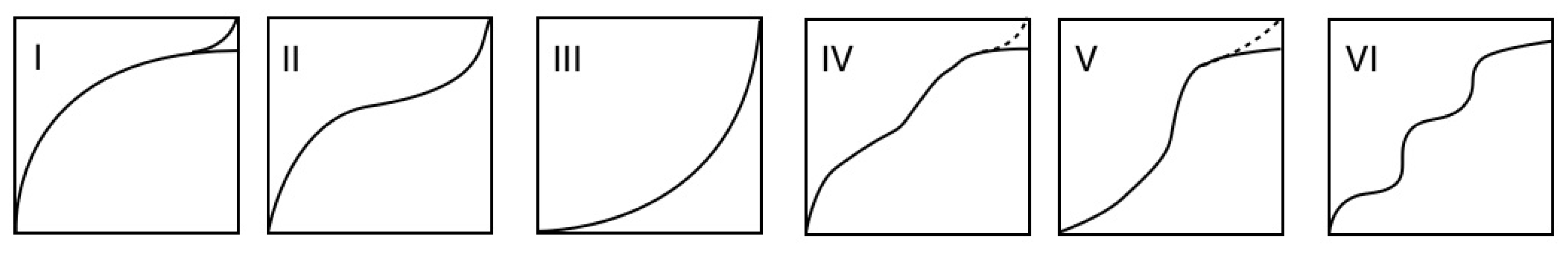

In 2001, Li and Kaneko reported interesting gas adsorption phenomena on a blue crystalline coordination polymer synthesized from bpy and Cu(BF4)2 showing sudden gas uptake at a definite gas pressure [63]. Porous and nonporous materials show that various gas adsorption isotherms depend on the surface properties, the pore diameter, and nature of the gas molecule. The adsorption isotherms for vapors are classified into six types by the IUPAC (Figure 1) [79].

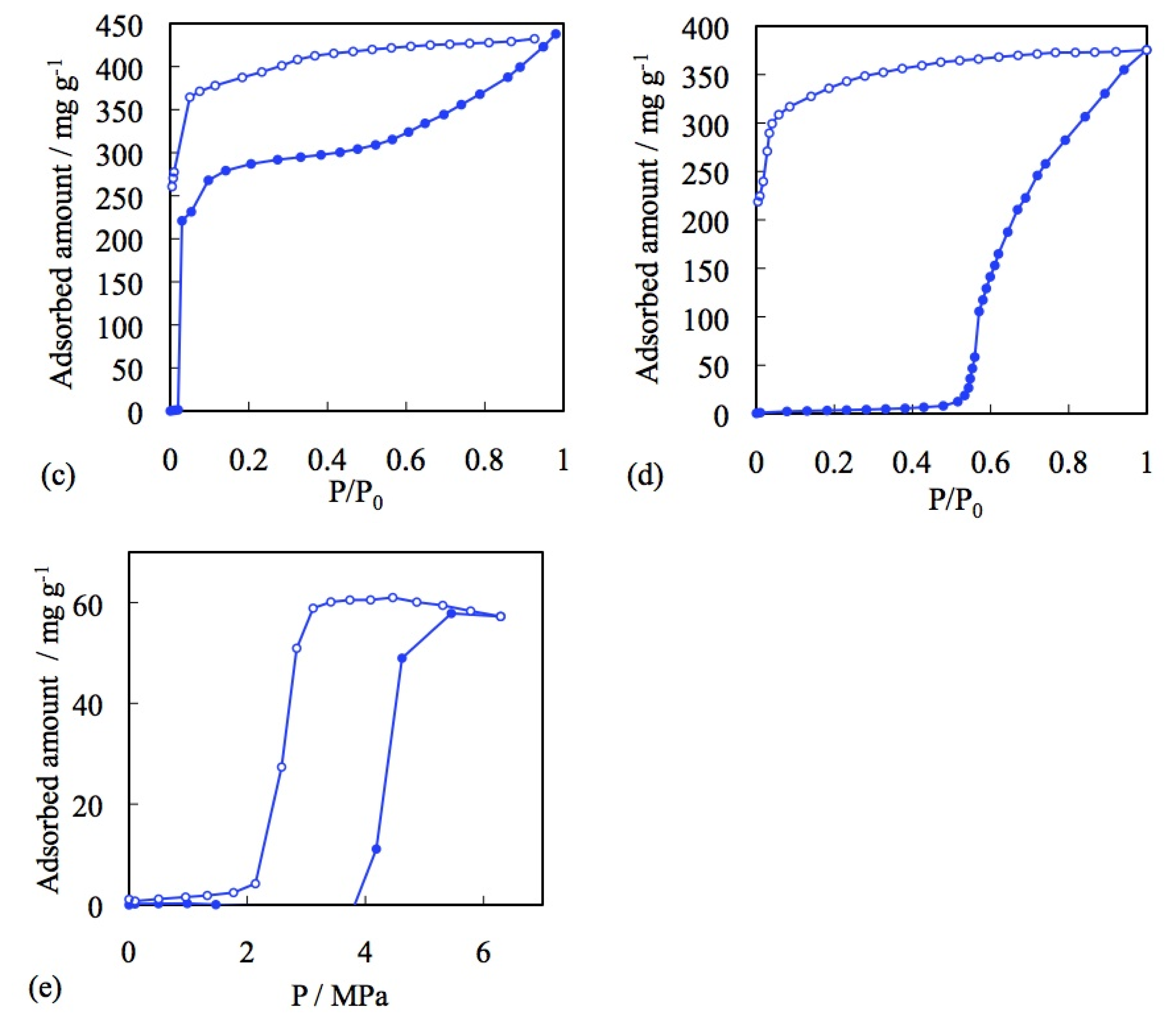

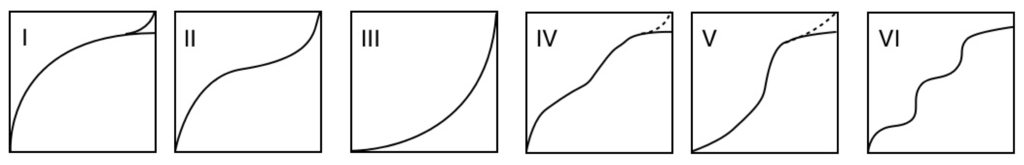

Despite the difference of the detail profile, all of the six types of adsorption isotherms show a gradual increase of the amount of gas adsorption dependent on gas pressure. Therefore, the nil gas adsorption in the low-pressure region and the sudden gas uptake profile of the “blue crystalline” CP/MOF cannot be classified by IUPAC categories. There were a number of reports on gas adsorption phenomena on PCPs/MOFs before the Li-Kaneko report in 2001. In the old example, although adsorption isotherms were not disclosed, Mori and Takamizawa reported the gas adsorption phenomena on copper complexes. Nevertheless, all of the PCPs/MOFs show traditional adsorption isotherms, which are classified by the six types of adsorption isotherms [8093]. In other words, before the Li-Kaneko report, all of the gas adsorption phenomena on PCPs/MOFs were classified into representative physisorption by porous materials and resembled such properties, which were shown by traditional adsorbents. In this context, gate adsorption was an unprecedented phenomenon. Subsequent studies revealed that the “blue crystalline” CP/MOF shows the gate phenomena not only to CO2 but also N2, O2, and Ar [94,95]. It is noteworthy that the “blue crystalline” CP/MOF also shows a gate response to supercritical CH4 at 303 K that usually shows very small interaction to adsorbent (Figure 2) [96].

2.2. Structure of Two-Dimensional Layer-Stacking Coordination Polymer

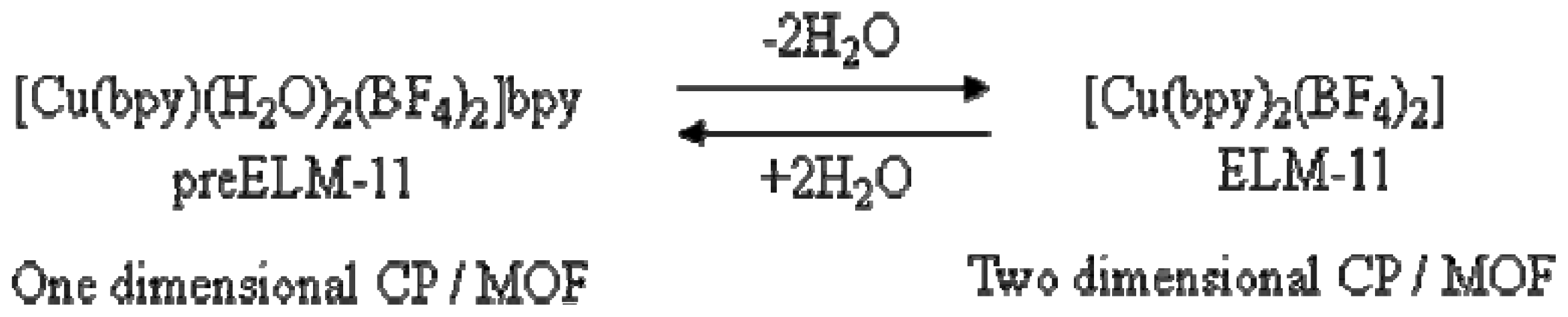

The chemical formula of the “blue crystalline” CP is [Cu(bpy)(H2O)2(BF4)2]·bpy (1), and Hubberstey et al. firstly reported its structure [97]; in which a one-dimensional main structure that is composed of Cu2+-bpy is integrated into a three-dimensional structure through hydrogen bondings among coordinated H2O, bridging guest bpy molecules, and BF4 anions. This CP shows the gate adsorption properties after heating in vacuo treatment; hence, the characteristic hydrogen bonding network was thought to play an important role in the gate phenomenon in the early stage of the study. In a detailed study by X-ray diffraction analysis, infrared spectroscopy (IR), EXAFS, and elemental analysis, it is revealed that the CP releases water molecules in a reversible fashion and changes its structure into a two-dimensional layer stacking-type architecture, and its chemical formula is [Cu(bpy)2(BF4)2] (Figure 3) [98]. This layered CP was revealed to be the real gate material and named an elastic layer-structured metal-organic framework (ELM-11). Therefore the hydrated complex 1 is named preELM-11.

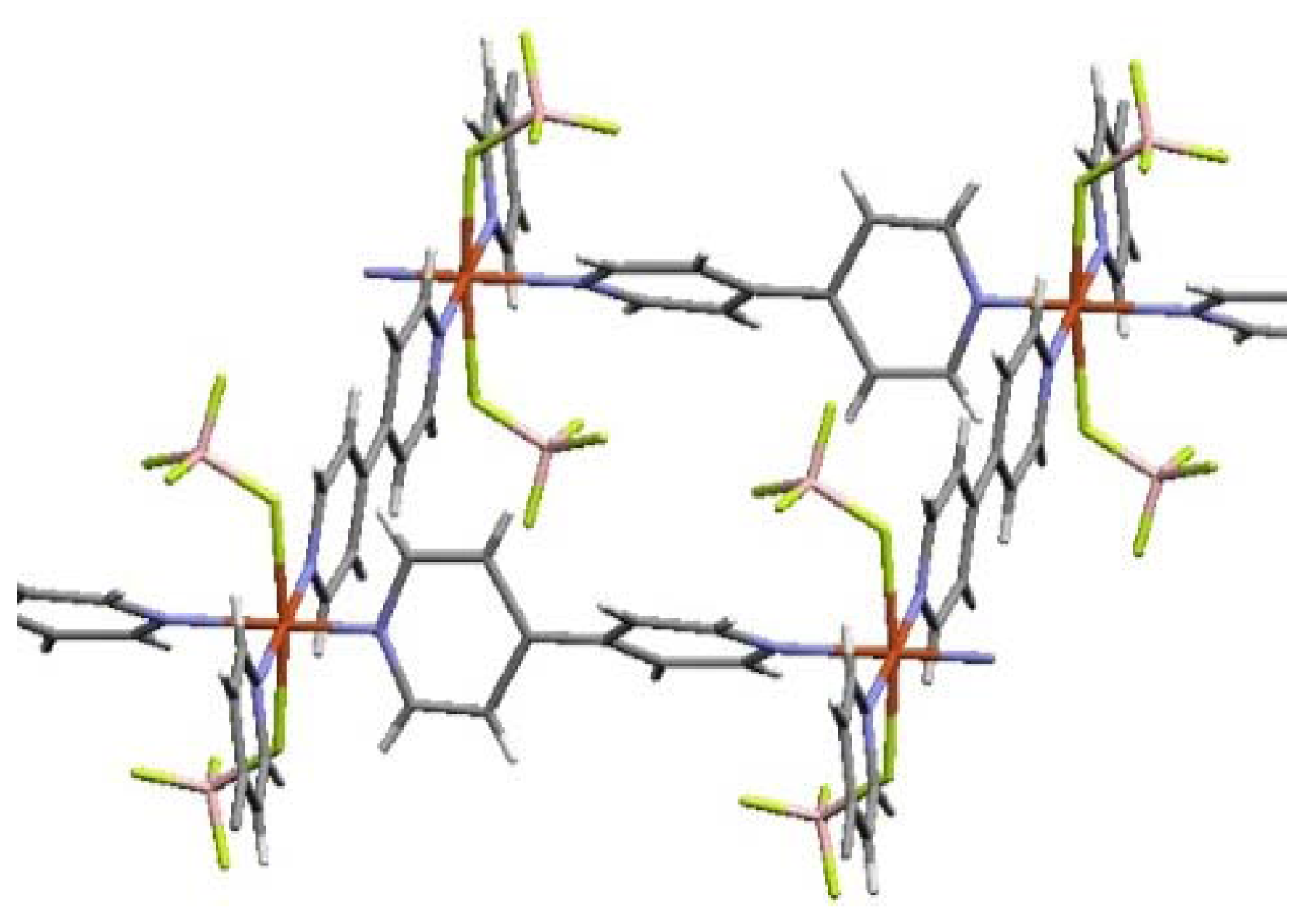

The Cu2+ ions are octahedrally coordinated by four bpy ligands at the equatorial positions to give two-dimensional, square grid sheets (Cu-Cu squares: 11.15 × 11.15 Å), while two BF4 anions occupy the transaxial positions (Figure 4) [99]. Although the square grid motif constructed by linear bidentate ligand and Cu2+ is not uncommon, BF4 anion, which has a weak coordination ability and coordinated structure, is relatively unique [100106].

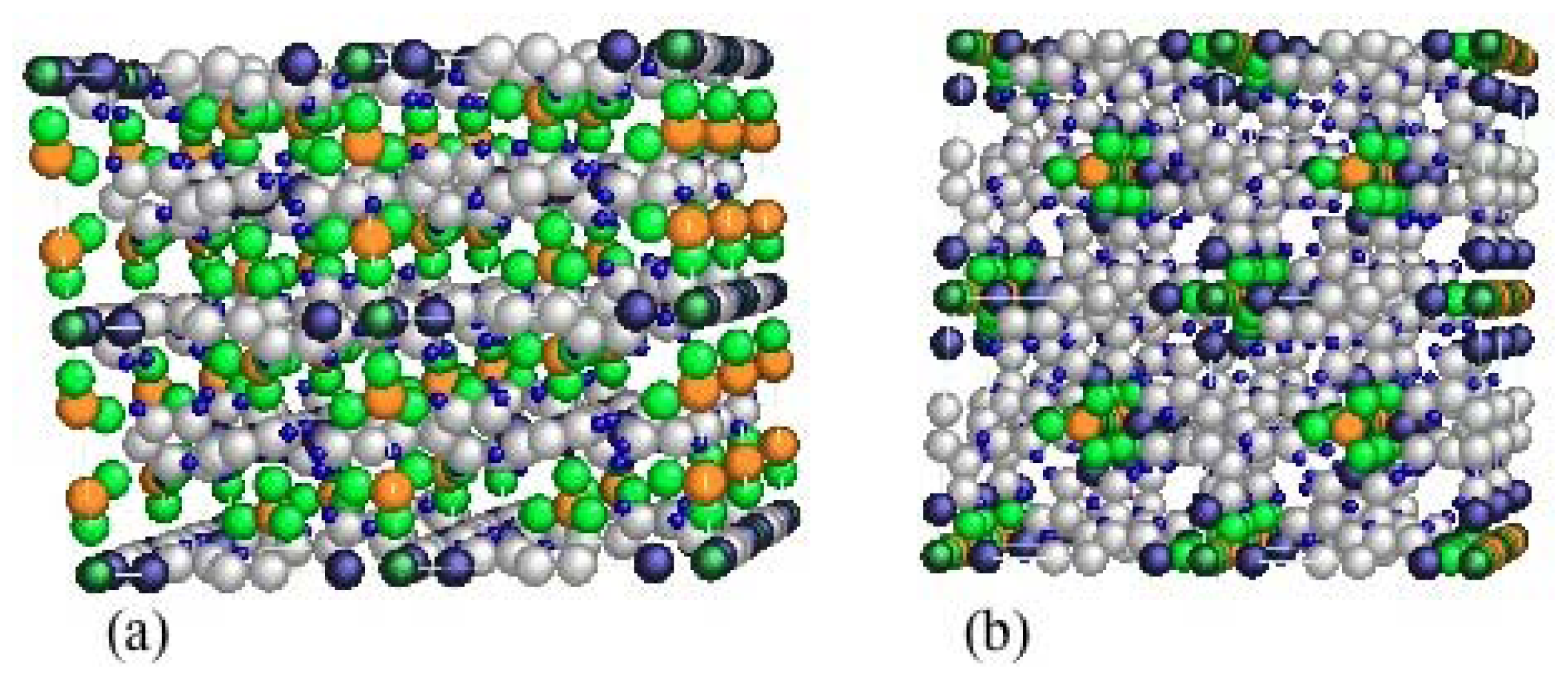

Although there are spaces for the inclusion of guest molecules in each square cavity, there is no effective pore in the stacked architecture because of the staggered stacking structure (Figure 5). The nil adsorption under the gate pressure can be understood from this structure, and Kaneko named this kind of CP a latent porous crystal, LPC [96]. Later the name of LPC was extended into a general name which covers family compounds, as given in this review.

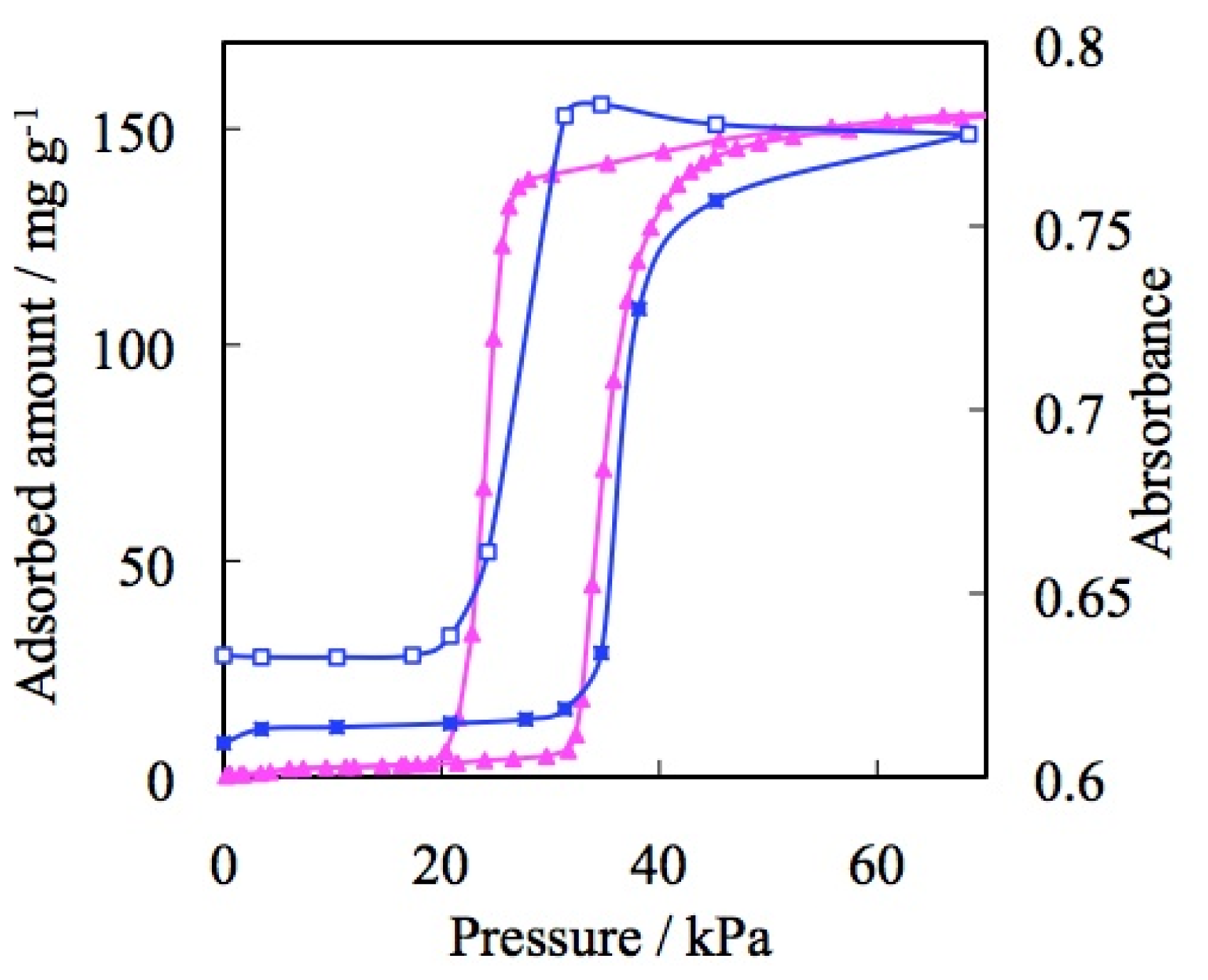

The unique gate phenomenon was clarified by detailed synchrotron radiation experiments on the CO2 adsorbed structure of the CP [99]. After CO2 adsorption, the inter-layer distance is increased by 1.20 Å (26%) from 4.58 Å to 5.78 Å, and the staggered stacking layers slide with each other, accompanying the rotation of the pyridine ring [107109]. As a consequence, spaces for the accommodation of guest molecules are generated. Such structural change was also confirmed by infrared spectroscopy (IR); the peak at 1149 cm−1, which is assigned to the BF4, immediately disappeared during CO2 adsorption, and a new peak appeared at 1170 cm−1 by way of compensation. Two isosbestic points at 1144 and 1156 cm−1 indicate that this phenomenon is a transformation between two states: The apohost and the CO2-CP clathrate (Figure 6) [96]. The IR spectral change and CO2 adsorption isotherm show relatively good correspondence (Figure 7). The gate gas adsorption and inter-layer expansion were accompanied with volume changes of powder crystalline ELM-11 (Figure 8). It is noteworthy that molecular expansion phenomena cause a macroscopic volume change irrespective of non negligible outer granular gaps.

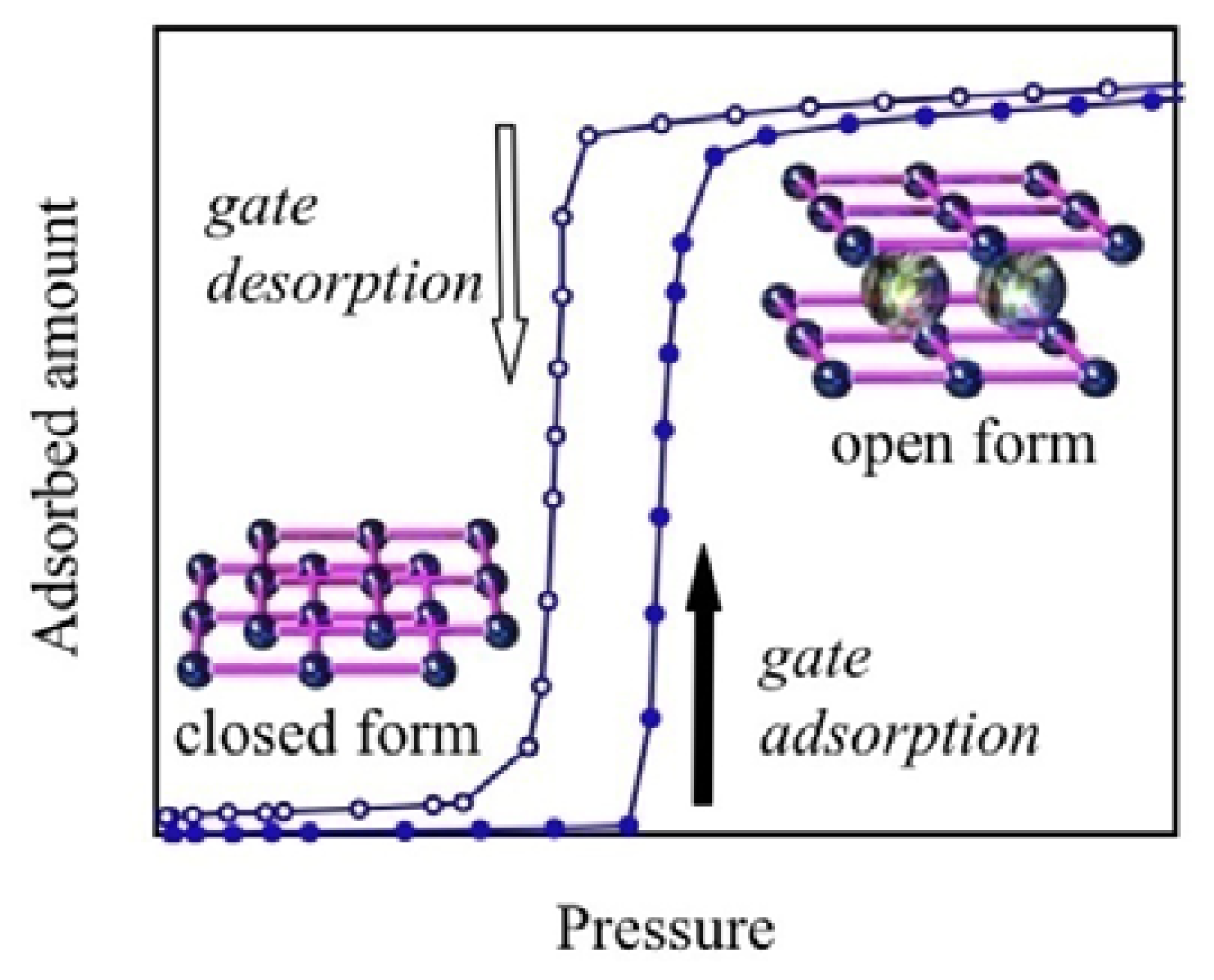

In short, the gate phenomenon of ELM-11 is summarized as follows: (1) gate adsorption and desorption processes are ascribed to expansive, and shrinking modulation of the layer-stacking structure accompanied with gas molecule accommodation and effluence, respectively [55,110]; (2) the structural change consists of a two-state transformation between the apohost and guest-apohost clathration; (3) in a microscopic sense, the structural change is induced by the molecular movement generating the accommodation space, such as layer sliding, interlayer expansion, and pyridine ring rotation, caused by guest molecule accommodation and in the macroscopic sense, powder volume enhancement caused by external stimuli [111,112].

3. Elastic Layer-Structured Metal-Organic Frameworks (ELMs)

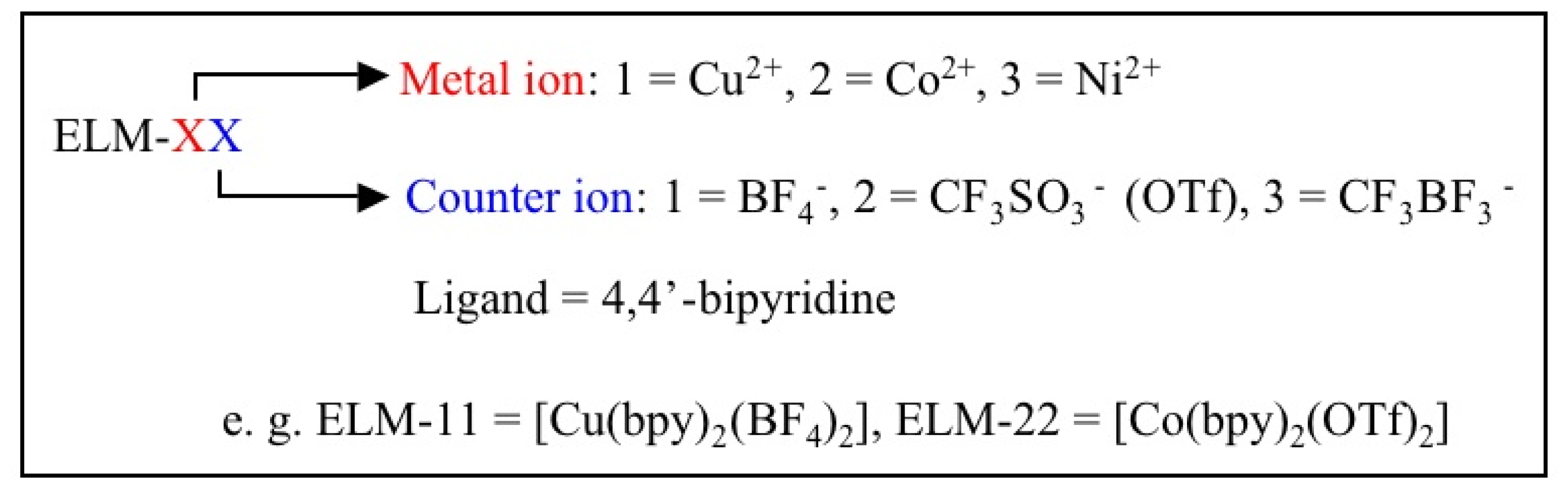

Here a detailed expansion of the name of ELMs is given. We named the expansive/shrinking flexible CP/MOF as an ELM—an elastic layer-structured metal-organic framework. A series of isostructural ELMs with various metal ions, counter ions, and ligands were developed by our group. The metal and counter ions play an essential role in the structure and property and thereby the composition is added to ELMs for a specified ELM family, with the compositions of their components shown in Figure 9.
All the ELMs show gate adsorption/desorption behavior, and comparing the results of the investigation of the phenomena has revealed the roles of each component: metal ions, counter ions, and ligands.

3.1. Role of the Counter Ions

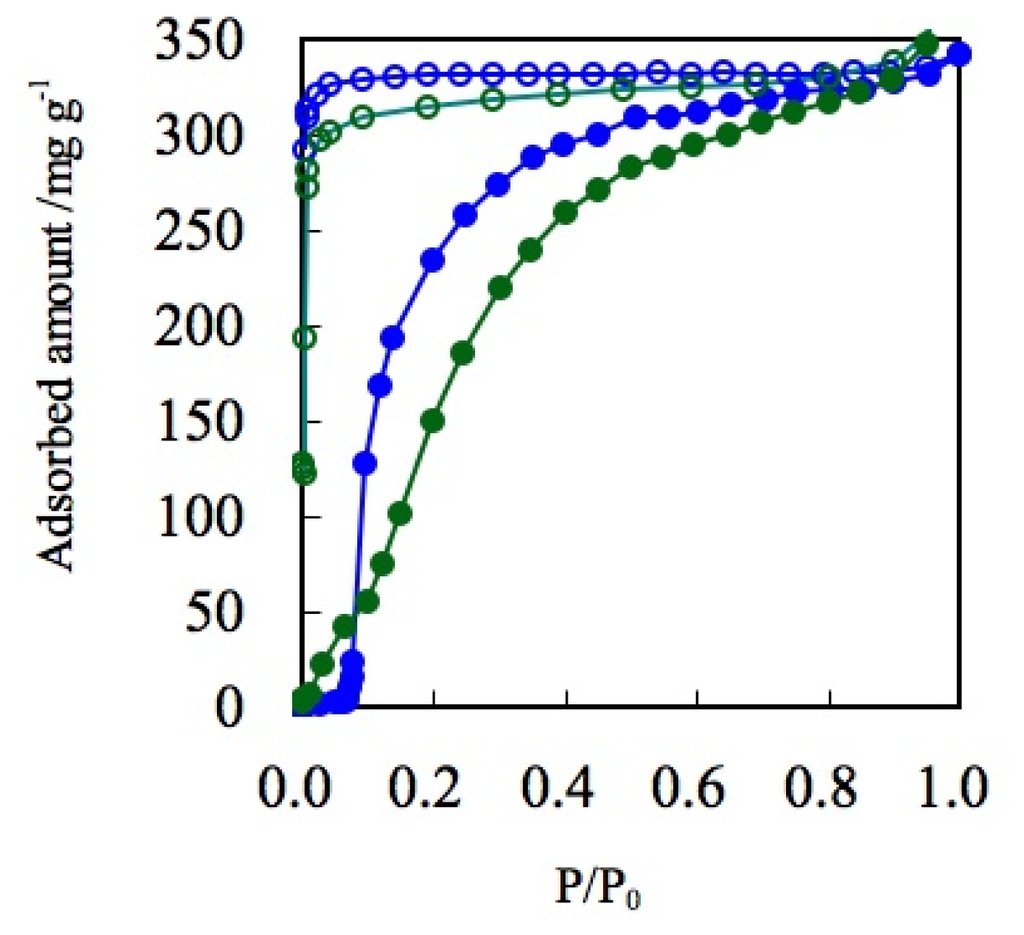

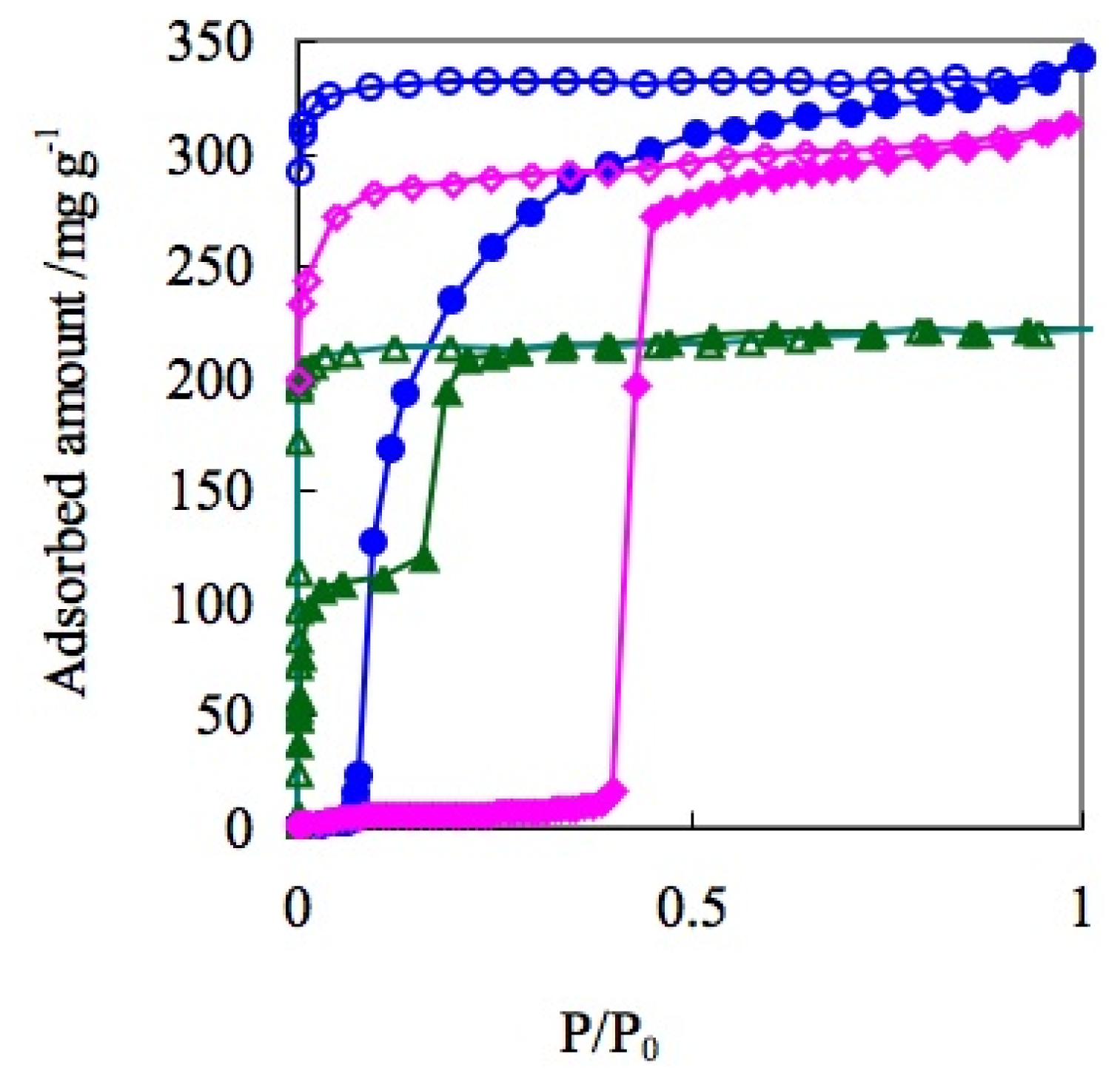

In the case of nitrogen gas adsorption at 77 K, BF4 containing ELM-11 ([Cu(bpy)2(BF4)2]) and ELM-31 ([Ni(bpy)2(BF4)2]), both show that the upward convex profile in the adsorption isotherm and the maximum amount of adsorption are almost similar (Figure 10). Although the structure of [Ni(bpy)2(BF4)2] is still unclear because of the difficulty of single crystal synthesis, the composition of the components was confirmed by elemental analysis. The similarity of ELM-11 and ELM-31 was confirmed by IR, TG, and gas adsorption experiments using several gases, such as N2, CO2, and O2. Therefore, the structure of the Ni-CP is presupposed to a two-dimensional square grid in this article.
On the other hand, ELM-12 (Cu), containing trifluoromethanesulfonate (OTf) as a counter ion, shows a definite double step adsorption isotherm, while the rising profile is almost vertical (Figure 11) [67]. From the detailed structural study using synchrotron X-ray diffraction analysis, it was revealed that the ELM-12 has open micropores at the initial stage, and the first vertical adsorption step is assigned to micropore filling in the inherent micropores. This is in marked contrast to the nonporous nature of ELM-11, in spite of the common analogous fundamental two-dimensional layer structure. This difference is derived from only slight difference in stacking structure; the layers of ELM-11 are stacked in a complete staggered form, so that the bpy molecules cover the open space of metal-organic square grids in the neighboring layers. On the other hand, the layers of ELM-12 are also stacked in zigzag fashion, but the slipped degree is smaller than that of ELM-11 hence ELM-12 affords effective micropores to accommodate gases. In addition, the slightly larger inter-layer distance of ELM-12 compared to that of ELM-11 also help generate porosity at the initial stage. Furthermore, it is also revealed that the second adsorption step is derived from layer expansion phenomena accompanied with the gas-ELM clathrate generation in a way analogous to the gate phenomena of ELM-11.
Another OTf containing ELM, ELM-22 ([Co(bpy)2(OTf)2]), accentuates the characteristics of OTf anions. Despite the differences of metal ions, both OTf containing ELMs (ELM-12 and ELM-22) indicate a similar adsorption property in the case of N2 at 77K [113]; the maximum amount of adsorption and definite double-step adsorption profile are close to each other with a slight difference in the gate pressure (Figure 12). These similar adsorption properties are apparently derived from the similarities in their fundamental structure. Counter anions regulate the structure (especially through the stacking mode) and influence the adsorption profile [114120].
Trifluoro(trifluoromethyl)borate anions, which contain a hydrophobic CF3 part like that in OTf anions, and a weakly coordinating BF3 part that is the same as those of BF4 which is also available for the construction of the ELM structures. ELM-13 was thynthesized by layering method (Cu(BF4) 2 and KCF3BF3/H2O and bpy/acetone at room temperature) and the two dimensional layer strcture was analyzed by single crystal X-ray diffraction analysis. The pretreated (at 363 K under reduced pressure) CF3BF3 containing ELM (ELM-13), [Cu(bpy)2(CF3BF3)2], shows unique gate gas adsorption properties. In the case of N2 adsorption at 77 K, ELM-13 shows a single step adsorption profile, while the maximum amount of adsorption is similar to BF4 containing ELM-11. However, the vertical rising of the adsorption isotherm at the initial stage is more marked in OTf containing ELM-12 (Figure 13).
In the case of ELMs, the role of counter anions is not only to charge compensation of metal cations, but also to regulate the interaction between the layers. In the case of ELM-12 (Cu-OTf), there exists the hydrogen bonding between the O atom of the OTf anion and the β-hydrogen atom of bpy in the neighboring layer, and the hydrogen bondings act as the tether line between the layers (Figure 14) [121].
The counter anions, BF4 and CF3BF3, have similar coordination properties (Metal-F) and both anions form the same type of hydrogen bonding (F...H). The two ELMs show a single step gate adsorption, and the maximum amount of adsorption (N2, 77 K) is almost similar. On the other hand, a double step gate-type ELM-12 contains OTf (CF3SO3) anions, which resemble the CF3BF3 anion in size, but differs in its coordination property (O...Met) and type of hydrogen bonding (S=O...H). In this context, it can therefore be presumed that the regulating factor of gate steps (single step or double steps) is not the size of the counter ion but their chemical factors, such as the coordination ability and type of hydrogen bonding. On the other hand, OTf and CF3BF3 anion-containing ELMs almost show a vertical adsorption isotherm profile, while BF4 containing ELM shows an upper convex profile. Therefore, in the case of the gate response, an important factor may be the ion size or the chemical property, such as hydrophobicity derived from a CF3 group. In any case, the ELMs, which have different counter ions but the same fundamental structure, show quite a strikingly different response to nitrogen gas, although nitrogen molecules are inert and small. Furthermore, it is also worth noting that the controlling factor for (1) gate behavior (single or double), (2) the gate profile (upper convex or vertical), and (3) the maximum amount of adsorption, are counter ions, which are just small parts attached to metal ions (Table 1).

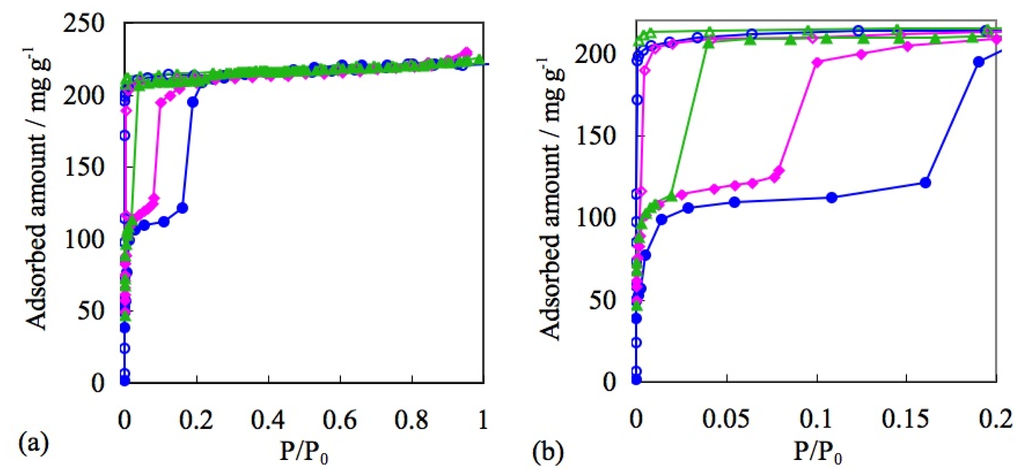

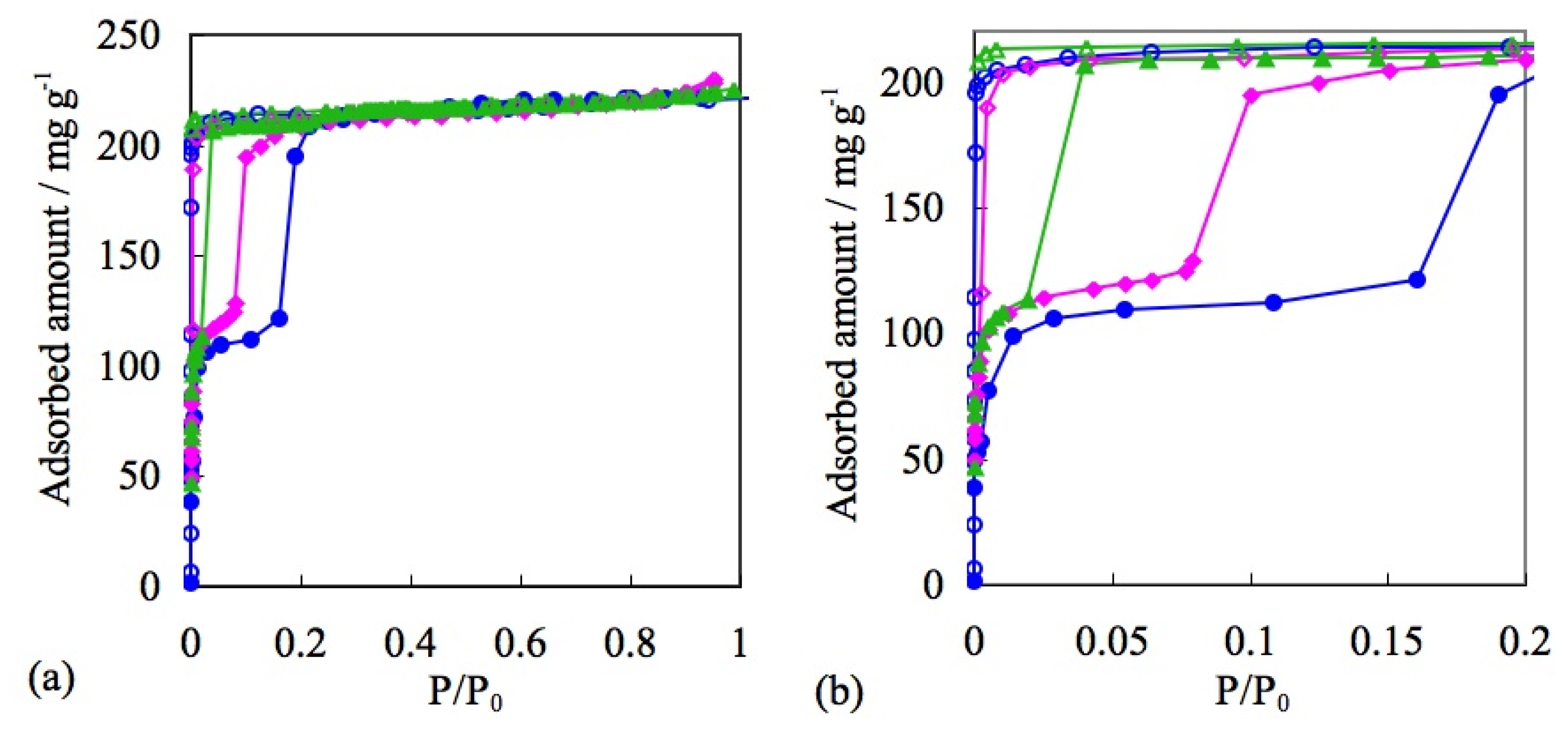

As mentioned above, ELMs which contain OTf, BF4, or CF3BF3 anions, show characteristic adsorption isotherm profile, respectively. Then, what adsorption profile does an ELM, containing two different anions show [102,122,123]: ELM-12/3 bearing both OTf and CF3BF3 was synthesized by layering of Cu(OTf)2 and KCF3BF3/H2O and bpy/ethanol (Elemental analysis as C22H16N4O3CuBF9S, which corresponds to the Cu:bpy:CF3SO3:CF3BF3 = 1:2:1:1; Calcd (%): C 39.93, H 2.44, N 8.47, Cu 9.60, B 1.63, S 4.85; found: C 41.4, H 2.30, N 8.8, Cu 9.60, B 1.20, S 4.40. The content of the two ions species are also quantitatively analyzed by ion chromatography: 1.04 equivalent of OTf for Cu2+ and 1.00 equivalent of CF3BF3 for Cu2+ were detected.). Two dimensional layer strcture of ELM-12/3 was analyzed by single crystal X-ray diffraction analysis. This ELM-12/3 shows an adsorption isotherm quite similar to that of ELM-12 containing OTf: The similarities are shown in the vertical double step profile, the adsorption amount ratio of one-step and second-step (ca. 1/1), and the maximum amount of adsorption (220 mg/g). On the one hand, the gate pressure of ELM-12/3 decreases significantly compared to ELM-12 (OTf) and ELM-13 (CF3BF3). On the other, ELM-12/3 shows the lowest gate pressure compared to ELM-12 (Cu-OTf) and ELM-22 (Co-OTf) (Figure 15).
To date, and to the best of our knowledge, ELM-12/3 is the only example of two-dimensional flexible CPs having the mixed counter anions.

3.2. Effect of Metal Cations

As mentioned above, the influence of metal ions on the adsorption profile is slight in the case of N2 adsorption at 77 K. If the counter ion is common, the slight difference of the adsorption isotherms between Cu-ELM vs. Ni-ELM and Cu-ELM vs. Co-ELM is observed only in the gate pressure. On the other hand, the kind of metal cations is quite an important factor for controlling the sorption phenomena in the case of O2 and CO2 adsorption [113]. Trifluoromethanesulfonate anion-containing ELM-12 (Cu) and ELM-22 (Co) are basically isostructures, despite the slight difference in the coordination field of metal ions derived from the Jahn-Teller effect. Therefore, the porous character of the initial structure derived from the slight zigzag stacking mode is common in both the ELMs. However, they show quite different responses to O2 and CO2 molecules. In the case of O2 adsorption at 77 K, the ELM-22 (Co) shows the same double step adsorption isotherms as those in the case of N2 adsorption, even though Cu2+ containing the ELM-12 adsorbs O2 in triple steps, and the maximum amount of adsorption is 1.6 times that of the ELM-22 (Co). Carbon dioxide molecules induce a similar response in the ELMs—the adsorption isotherms (196 K) of the ELM-22 (Co) are of a double step, while ELM-12 (Cu) shows a multi step adsorption phenomenon. Furthermore, the total amount of adsorption of ELM-12 (Cu) is 1.5 times that of ELM-22 (Co). The molecular number of that adsorbed on ELM-12 (Cu) and the physical properties of the adsorbed gas are shown in Table 2.

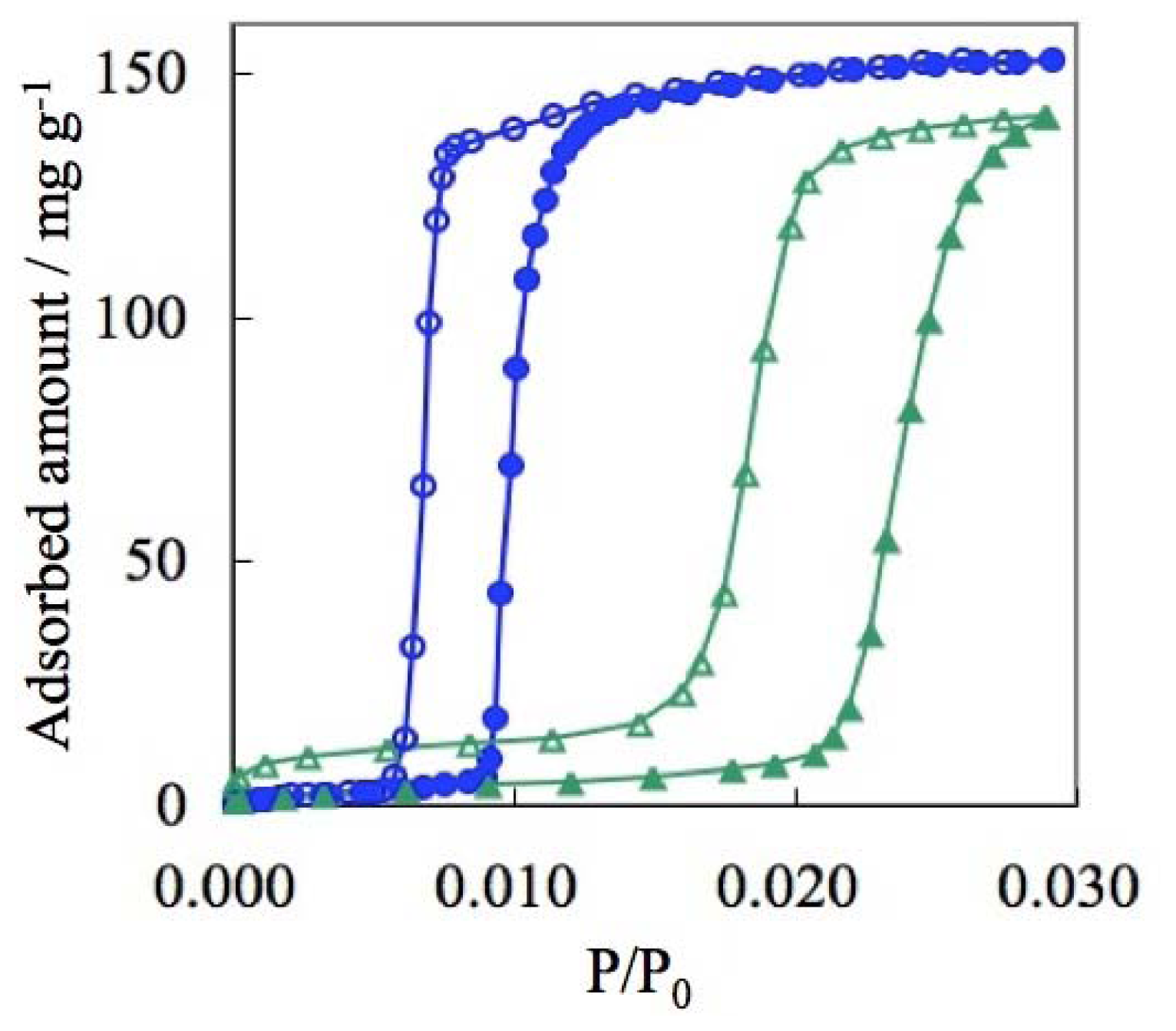

Although the molecular size of O2 is comparable to N2, the adsorbed amount of O2 is apparently larger compared to that of N2 (1.5 times). In addition, although the molecular size of CO2 is larger than N2, CO2 molecules of an amount similar to N2 can be accommodated in the flexible ELM-12 framework. Accordingly, it can be presumed that O2 and CO2 molecules have a stronger effect on the layer expansion of Cu-ELM and that such effect is less for Co-ELM. On the other hand, Ni2+ containing ELM-31 (Ni-BF4) shows simple one step gate responses to CO2 at 273 K, which is similar to the response of Cu2+ containing ELM-11 (Cu-BF4) to CO2 (Figure 16). In this case, the metal cation does not affect the gate profile but mainly the gate pressure.
It is also well known that the type of metal cation used has a strong effect on the adsorptivity of PCPs/MOFs [125128]. This effect is divided into two categories: (1) direct effect—through the interaction between metal cations and adsorbed molecules, and (2) indirect effect—through the regulation of pore structures. In the case of the PCPs/MOFs having open metal sites, it is especially well studied that adsorption control by the metal ion is based on metal-adsorbate interaction [84,129132]. Although it is also well known that isostructural PCPs/MOFs are constructed from different metal ions, the metal effects on adsorption through structural regulation have not been well studied, especially in the case of flexible coordination polymers [133136]. Férey et al. report one of a few examples discussing the effect of large quadrupole moments of CO2 on the structural transformation of flexible PCPs/MOFs [135]. The contribution of the quadrupole moment of CO2 in the interaction is still much smaller than the dispersion attractive interaction. In the case of ELMs, an important aid with the large quadrupole moment of CO2 for large amount and multi step CO2 adsorption on ELM-12 (Cu) can be considered [135,137140]. Carbon dioxide also shows specific behavior with the adsorption phenomena on the gate opening mechanism of ELM-11 (Cu-BF4). Although both N2 (77 K) and CO2 (273 K) show a single step gate adsorption on ELM-11, the number of adsorbed molecules is quite different: N2 is 7.0/unit cell (at P/P0 = 0.99, at 77 K) and CO2 is 1.9/unit cell (at P/P0 = 0.99, at 273 K), because the adsorption temperature of CO2 is close to the critical temperature as shown in Figures 13 and 16. Actually, the isosteric heat adsorption of CO2 on ELM-11 was estimated at 26 kJ/mol by the van’t Hoff equation, at the range of the number of adsorbed CO2 molecules from 0.5/unit cells (37.58 mg/g) to 1.5/unit cells (112.7 mg/g). This value is comparable to the sublimation enthalpy of CO2 (25 kJ/mol). These results imply the specific interaction of CO2 and ELM-11 at the subcritical temperature. Thus, CO2 should be highly stabilized in the lattice of ELM-11. Although Baiker et al. reported interaction between Cu2+ of (pre)ELM-11 and adsorbed acetnitrile molecule [141], metal-guest interaction of ELMs are still unclear and under investigation.

3.3. Hydrogen Adsorption

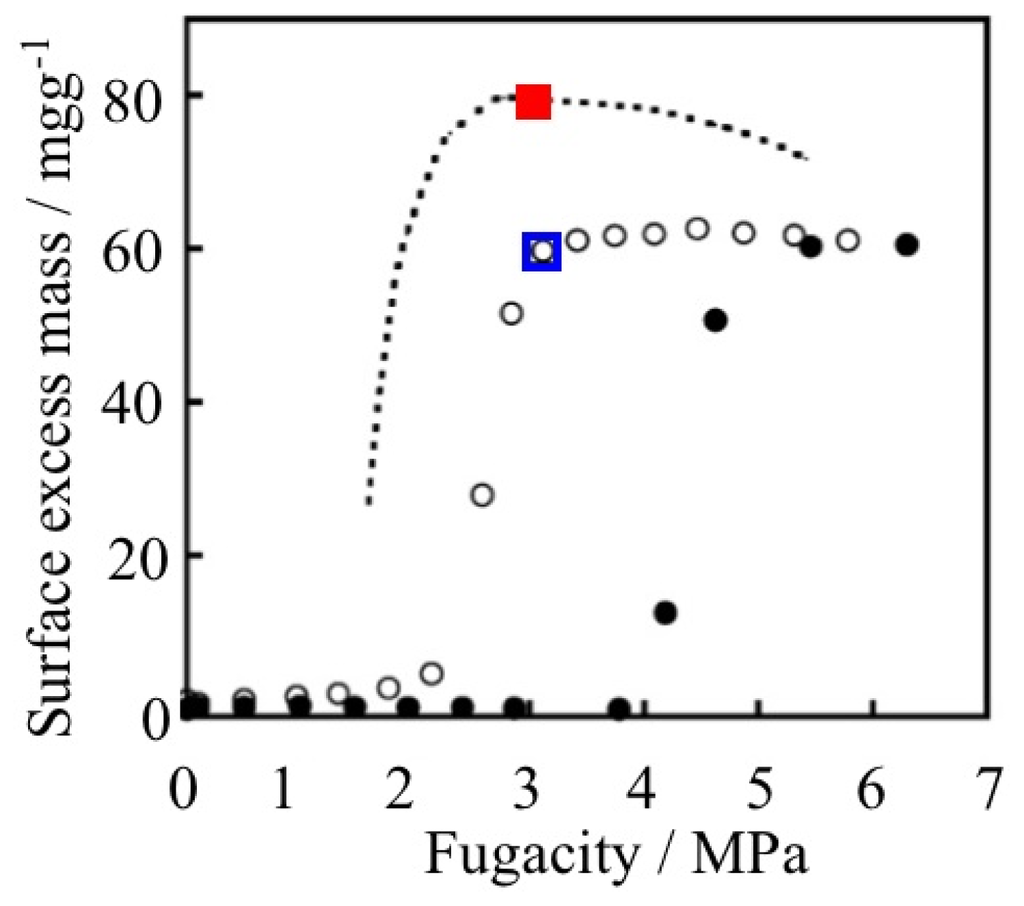

Hydrogen molecules are not adsorbed on nonporous ELM-11 under the condition of supercritical gas above 33 K. In addition, hydrogen molecules do not cause the structural transformation because of weak interaction. As both ELM-12 (Cu) and ELM-22 (Co), which contain OTf ions, are porous even at the initial stage, they adsorb slight H2 at 77 K. From the small amount of adsorbed gas and weak interaction with H2, the adsorption mechanism is considered as a quasi-micropore filling whereby super critical gas can be filled in the inherent pore sites enough to stabilize the molecules even above a critical temperature. The adsorption is not chemisorptive but reversible [142]. Although the pore parameters of ELM-12 (Cu) and ELM-22 (Co) are quite similar, the adsorbed H2 amounts differ from each other [113]. This difference is apparent especially in low pressure regions. For example, ELM-22 (Co) adsorbed more than 1.5 times that of adsorbed ELM-12 (Cu) at a low pressure region. As the difference in the dispersion interaction of Cu2+ and Co2+ ions with H2 molecules should be small, this difference is attributed to the more meandering pore structure of ELM-22 (Co) compared to ELM-12 (Cu), and the fine structural difference arises from a difference in metal cations (Table 3).
As mentioned above, in the case of ELMs, metal cations act not only as a simple connecting node for the architecture, but also as fine tuning of pore structures.

3.4. Effect of Ligand

In general, the length of ligands is a key factor to tune the coordination space of PCPs/MOFs [143150]. Yaghi’s group reported the archetype study of relationships between the length of the ligand and the amount of gas adsorption using a series of various ligands [43]. According to their studies, PCP/MOF with longer ligands apparently tend to have a large coordination space—when the ligands are changed from terephthalic acid (IRMOF-1, contains one phenyl (Ph) ring), 4,4′-biphenldicarboxylic acid (IRMOF-10, two Ph ring), to 4,4′-terphenyldicarboxylic acid (IRMOF-16 three Ph ring), the calculated percentage of free volume increases from 79.2% (one Ph), 87.0 (two Ph), to 91.1% (three Ph).
In contrast to the Yaghi’s rigid PCPs/MOFs series, flexible ELMs show a reverse tendency. Although the extended ligand, 4,4′-bis(4-pyridyl)benzene (bpb) (11.4 Å) is 63% longer than bpy (7.0 Å) [151], ELM-31b ([Ni(bpb)2(BF4)2]) shows a 40% smaller adsorbed amount (W0(N2) = 212 mg/g at 77 K) compared to that of ELM-31 ([Ni(bpy)2(BF4)2])(W0(N2) = 350 mg/g at 77 K). This reverse tendency should be understood from the unique adsorption mechanism of ELMs. In the case of “hard” PCPs/MOFs, which show type I physisorption isotherms, there is a tendency for the larger free volume to accommodate more gas. On the other hand, “flexible” ELMs adsorb gas through clathrate formation; the adsorption depends on the stability of the gas-CP/MOF clathrates. Since the clathrates of larger square grids with longer ligands (bpb ligand, 15 × 15 Å) are unstable because of the weak interaction between guests and hosts, compared to small square grids (bpy ligand, 11 × 11 Å), the amount of adsorbed gas tends to decrease for the longer ligand system. Fujita et al. reported the example of flexible two-dimensional layer stacking-type PCP/MOF with extended ligands. This PCP/MOF varies its structure with solvent exchange [152]. To our best knowledge, the ELM-31b is the only example of two-dimensional stacking PCP/MOF with extended ligands, which can change its structure by gas molecules, which interact with host framework by weaker interaction.

4. Various Two-Dimensional Square Grid Stacking-Type (2DSG) CPs/MOFs

4.1. Two-Dimensional Square Grid Stacking-Type CPs/MOFs: Structure and Functions

An aromatic compound containing nitrogen such as pyridine is one of the most popular coordinative functional groups, and hence many CPs/MOFs have been synthesized using exobidentate ligands bearing two pyridyl groups, such as bpy [153,154]. There are quite a few examples of metal-organic square networks with linear bifunctional spacer ligands [155]. To synthesize such kinds of CPs/MOFs, various ligands have been used: short or long [156161], rigid or flexible [162,163], linear or inflectional [164,165], with functional group(s) [159,166170], rotaxane-type [171], chiral-type [172], and so on. An example of a typical linear, rigid, exobidentate ligand would be 4,4′-bipyridine. A number of two-dimensional square grid stacking-type CPs/MOFs (2DSG-CP/MOF) with this ligand has been reported [173176]. Because of the neutral nature of bpy, 2DSG-CPs/MOFs necessarily contain counter anions to compensate the positive charges of metal ions, and these negatively charged counterparts increase the diversity of 2DSG-CPs/MOFs. Various 2DSG-CPs/MOFs constructed with bpy and unidentate coordination anion are listed in Table 4.
Since almost all the listed 2DSG-CPs/MOFs include guest molecules, this means the 2DSG-CPs/MOFs are potentially acting as porous materials. From the standpoint of host/guest chemistry, the synthesis of hybrid-type nonlinear optical materials was attempted with the combination of 2DSG-PCPs/MOFs host and guest molecules, such as p-nitroaniline [185]. On the other hand, there is no report on the gas adsorption or structural transformation of the CPs/MOFs listed in Table 4, except for ELMs. In addition, we cannot synthesize ELMs family with any counter anions other than BF4, OTf, and CF3BF3. If the scope of ligands widens from bpy to pyrazine, 1,4-bis(4-pyridyl)benzene, and 4,4′-bis(4-pyridyl)biphenyl, to the best of our knowledge, there is no report on the gate gas adsorption of 2DSG-CPs/MOFs or the structural transformation of 2DSG-CPs/MOFs caused by gas molecules. In the case of longer ligand, it is reported that the structural transformation of 2DSG-CPs/MOFs constructed with 4,4′-bis(4-pyridil)biphenyl ligand. However, the structural change was not caused by gas molecules but by the exchange of aromatic guest molecules [160]. The reason why all of the listed 2DSG-CPs/MOFs except the ELMs do not show the gas adsorption is considered to be as follows: (1) the cavity of the metal-organic square does not act as an open pore because of the close packing of the layers and the difficulty of structural transformation of the layers; (2) the cavity is already occupied by non-removable guest molecules and there is no space for gas adsorption; and (3) the 2DSG structure collapses when the guest is released. The necessary requirement for gas adsorption is conservation of the framework structure after the guest release. The collapse of the CP/MOF structure with the guest release can be seen as a common behavior, and in the case of 2D CP/MOFs [217], sometimes a turbostratic disorder occurs in the case of 2DSG CP/MOFs [218]. The present collapse assumption must be reconsidered, based on the fact that ELM-22 (Co) retains its 2DSG structure without any guest.
Hereafter, let us consider the role of counter anions. It is well known that these play a significant role in regulating the structure of CPs/MOFs [122,159,219221]. In addition, the counter anions sometimes play a significant role in the function of CPs/MOFs. However, in the case of flexible PCPs/MOFs [222], the role of counter anions in structural transformation is not necessarily clear. The common features of the counter anions of ELMs are: (1) monodentate; (2) mono-valent; (3) weak coordination ability; (4) occupation of the apical positions; and (5) participation of fluorine atoms. In the case of non-ELM 2DSG-CPs/MOFs, NCS, which have relatively strong interaction with metal cations, tend to occupy the apical positions. Imamoto reported the synthesis of [Ni(bpy)2(NCS)2] [188] of a fundamental structure is similar to ELM-22 (Co-OTf) having no guest and precise layer stacking. Therefore, the non-porous character of the Imamoto’s Ni-CP/MOF may be attributed not to structural friability but to the difficulty in the structural transformation for the generation of micropore. Jacobson reported the Co version of NCS-2DSG-CP/MOF, [Co(bpy)2(NCS)2]·2Et2O [179]. Although this compound easily releases two ether molecules, the non-guest state does not induce gas adsorption. In this case, the initial porous state is supposed to transform into a non-porous form (a compact layer stacking form) with the guest release. Imamoto and Jacobson did not mention the gas adsorption ability of their CPs/MOFs. From our adsorption experiment (N2 at 77 K and CO2 at 273 K, after the pretreatment at 363 K for three hours under reduced pressure), Ni-CPs/MOFs did not show any gas adsorption ability. We also checked Fujita’s [Cd(bpy)2(NO3)2], but this CP did not show N2 gas adsorption ability at 77 K.
In the case of other anions, such as NO3, ClO4, and PF6, these weak coordination anions tend to locate themselves in the square grid as guests. They occupy the apical position only if the grid accommodates aromatic guest molecules. Based on these facts, occupation of the apical positions by weak coordinating anion can be regarded as one of the key factors for the gate gas adsorption phenomena. Although the space of the grid will decrease, if the counter anion is present as a guest, there still remains room for small gas molecules, considering the small size of the counter ions compared to the size of the square grid. Therefore, the reason why the ion-accommodating 2DSG-CP/MOF does not uptake the gas molecule, may be attributed to the difficulty of interlayer sliding. In the case of ELMs, interlayer sliding is a crucial motion for the gate phenomena. Therefore, the interlayer interaction is a relatively important factor for gate adsorption. In general, ligand-ligand interaction, such as CH-π and π-π, is well known as the interlayer interaction [223,224], and ligand-counter ion interaction also sometimes have a significant function [156,225227]. In the case of ELMs, a counter ion occupies the apical positions of metal cations and acts as a terminal ligand. At the same time, the anion forms hydrogen bonds with the β-hydrogen of bpy of the neighboring layer, and the hydrogen bonding network acts as tether lines between the two-dimensional layers. These facts are strongly indicative of the key role of the counter anion in the gate phenomena.
The fact that the counter ions of ELMs (BF4, CF3SO3, and CF3BF3) necessarily bear a number of fluorine atoms does not seem to be a coincidence. Although fluorine atoms bound to the carbon atom rarely form hydrogen bonding, fluorinated ligands sometimes affect the structural transformation or the adsorption phenomena of CPs/MOFs through their unique physical properties [228234]. Fluorine atoms bound to inorganic elements have the ability to form hydrogen bonds, which sometimes play an important role in the construction of molecular structures. In addition, the largest electronegativity of the fluorine atom should influence the coordination space. However, the effect of fluorine atoms on the structural transformation of CPs/MOFs has not been systematically studied. As mentioned above, some sorts of participation of fluorine atoms on the gate phenomena can be presumed, and further study is required to clarify the accurate role of fluorine atoms.

4.2. Two-Dimensional Square Grid (2DSG) CPs/MOFs with Various Ligands Other Than bpy

As already mentioned, various 2DSG-CPs/MOFs which have a shorter ligand than bpy have been reported. Although some of them contain coordinating BF4 or OTf, to the best of our knowledge, no gate gas adsorption phenomenon or structural transformation has been reported on these CPs/MOFs. There are a few reports on CPs/MOFs with longer analogues to bpy, such as 1,4-bis(4-pyridyl)benzene and 4,4′-bis(4-pyridyl)biphenyl [235]. Fujita et al. reported that the NO3 coordinated 2DSG-CP/MOF with 4,4′-bis(4-pyridyl)biphenyl shows a reversible structural transformation, which was caused by guest exchange (mesitylene/o-dibromobenzene) with a very slow timescale in 22 hours [160]. To the best of our knowledge, this is the only report on the structural transformation of the isostructural CP/MOF of ELMs.

4.3. The Gate Phenomena of ELMs

In the case of ELMs, gate gas adsorption/desorption suddenly occurs, accompanied with the synchronous IR change [191]. From the isosbestic points of IR change, the structural transformation is understood as an equilibration between close and open forms. Strictly speaking, this phenomenon must be understood by clathrate formation through the guest molecule inclusion reaction, as already mentioned earlier [73,75,78,96]. The clathrate formation mechanism is described by a general thermodynamic expression. The application of this theory to ELM-11 is given in the following Equations (1) and (2):
ELM + n CO 2 K C ELM - ( CO 2 ) n
K C = [ ELM - ( CO 2 ) n ] [ ELM ] P CO 2 n
n shows the number of CO2 molecules accommodated in the unit cell of ELM-11 at the same time. In general, the cooperative structural transformation phenomena of oligomeric structures caused by plural effecters are well known as an allosteric effect (e.g., structural transformation of hemoglobin caused by O2 molecules). In the case of ELM-11, CO2 adsorption isotherms and the fitting results of the cooperative clathrate formation show relatively good accordance. This strongly indicates that the gate adsorption/desorption of ELM-11 stems from a clathrate formation reaction.
The gate adsorption/desorption phenomena of CPs/MOFs have been discussed both from the viewpoint of kinetics and thermodynamics [236238]. In the case of ELMs, it is confirmed that both the gate opening and closing states are in a thermal equilibrium [96]. Methane gas-pressurized ELM-11 at 303 K at 2.5 MPa is in the gate-open stage. When the sample was cooled to 273 K, the adsorption amount increased and the amount was coincident with that of the desorption branch of 273 K. When the cooled sample was, in turn, warmed to 303 K, the adsorption amount was decreased and the amount was coincident with that of the desorption branch of 303 K (Figure 17). From these experiments, it is apparent that ELM-11 at the gate-open state is a thermodynamic product. The thermal equilibrium of the gate-closed state of ELM-11 was also confirmed by CO2 adsorption experiments. Although the gas pressure was retained for 13 hours at ambient temperature at slightly under the gate opening pressure, ELM-11 did not adsorb the gas. This experiment also strongly supports the equilibrium nature of ELM-11 before the gate opening.

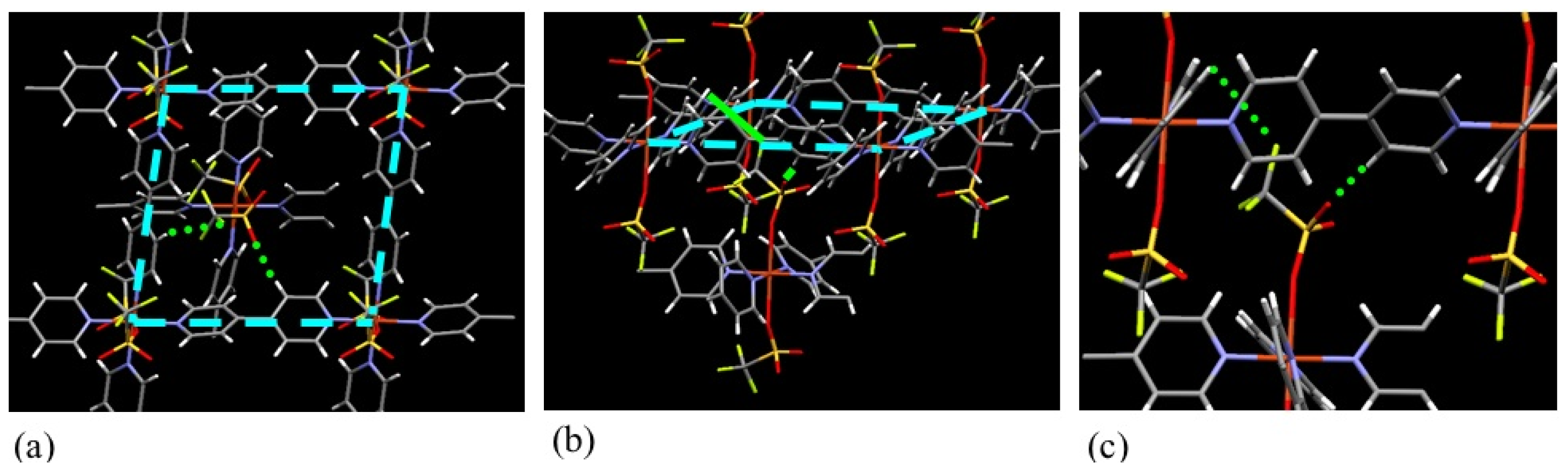

As shown in Figure 14, the presence of hydrogen bonding between the counter ion and bpy ligand in neighboring layer is confirmed by single crystal X-ray diffraction analysis. During the early stage of the study of ELMs, gate phenomena were considered to accompany the cleavage of the hydrogen bonding network. Although the modulation of hydrogen bonding during the expansion/shrinkage structural transformation was not clarified, it is confirmed that interlayer interactions, such as hydrogen bonding and π-π interactions, still remain after the structural transformation. The weak interactions work as tether lines between the layers and the structural transformation can be achieved not by the cleavage of weak interactions but by the rotation of the aromatic rings and conformational change of counter ions [239244]. The fact that the maximum adsorbed gas amount was determined by the nature of the counter ions suggests the presence of the tether line mechanism of hydrogen bonding after the structural transformation.

5. Evaluation of the Adsorptivity of ELM-11 from the Standpoint of Practical Application

5.1. Applicability of Gate Phenomena for the Energy-Saving Pressure Swing Adsorption Process

Pressure swing or temperature swing adsorption systems using porous adsorbents have been practically used in gas separation, such as that for O2/N2 and CO2/CH4 [135,245,246]. In both systems, the maximum adsorption amount is an important factor for efficiency. However, the desorption amount per pressure or temperature swing is also important and this factor is strongly influenced by the profile of the adsorption isotherm (Figure 18). An adsorbent which shows a strong affinity to an adsorbate shows a steep uprise of adsorption isotherm at the low pressure region and such kinds of adsorbent sometimes have difficulty in recovering the adsorbed gas.

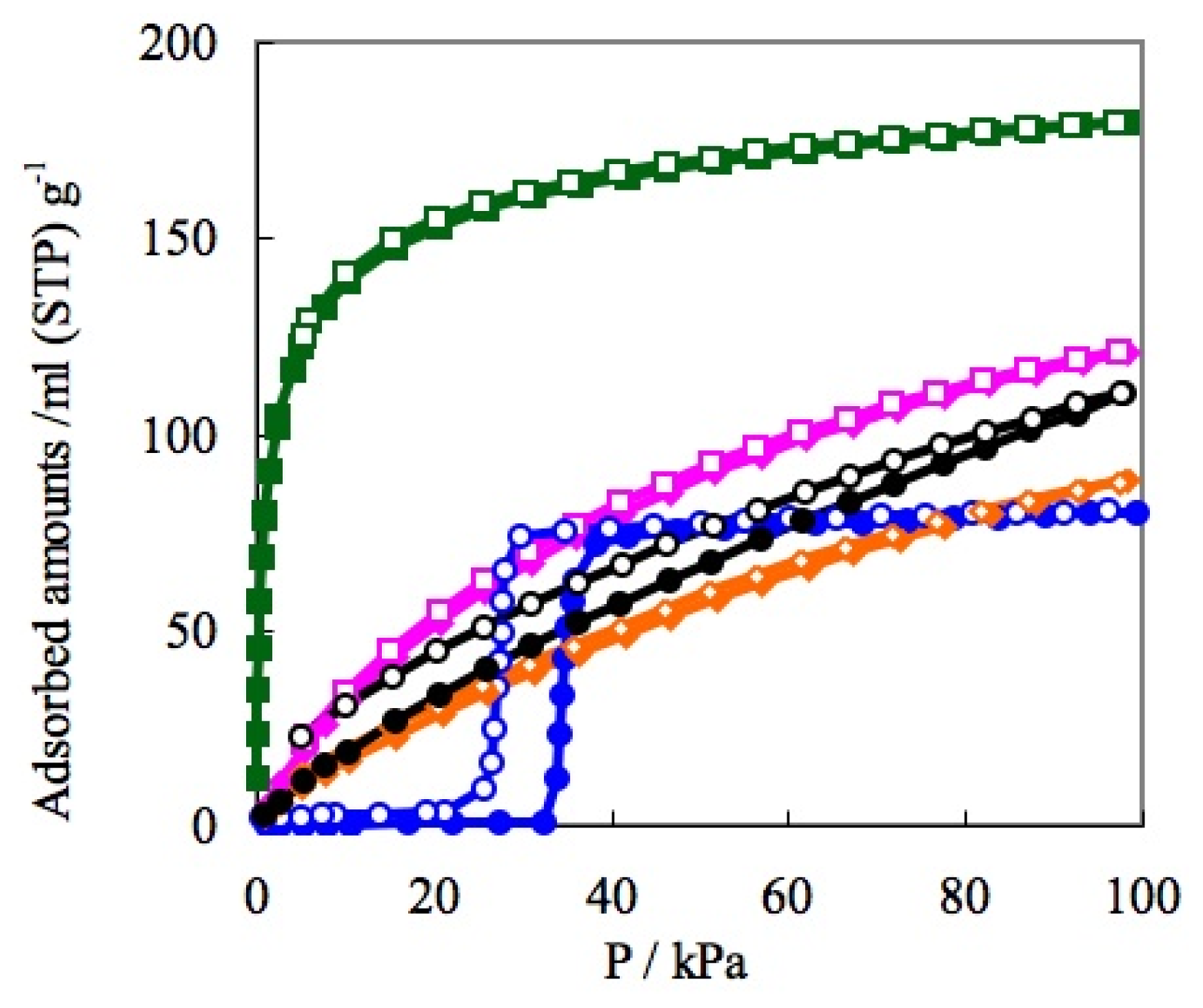

Figure 19 and Table 5 show the CO2 adsorption isotherms on various adsorbent and recovered gas amounts by the pressure swing process calculated by the adsorption isotherms. The maximum amount of adsorbed gas on ELM-11 is moderate compared to other type I isotherm adsorbents. However, the recovered gas amount from ELM-11 by the pressure swing simulation is the largest because of the specific gate profile.

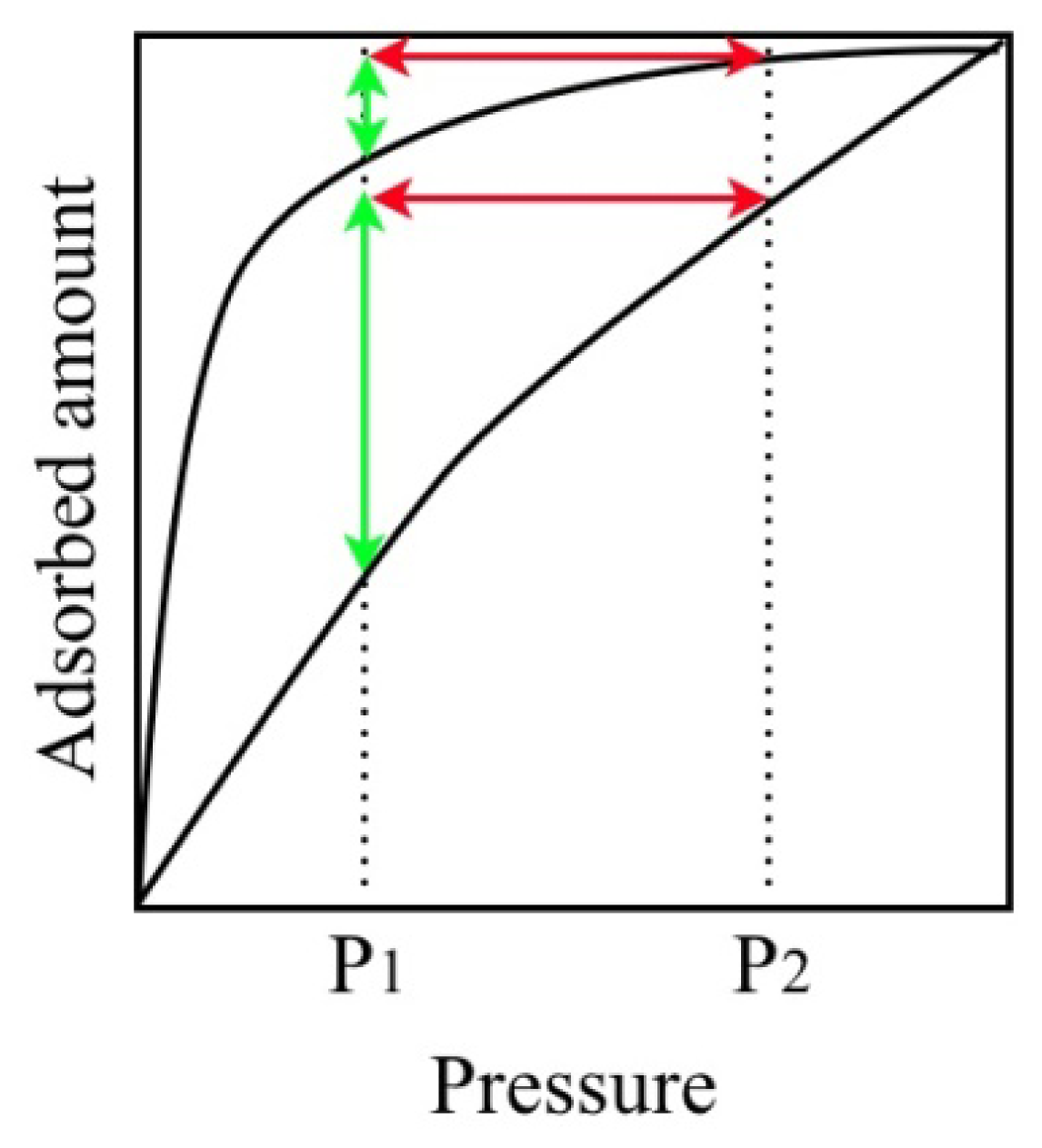

If an adsorbate has a strong affinity to CO2 molecules, type I adsorption isotherm is obtained, but the affinity is too strong for the easy release of adsorbed gas. In this way, simple type I profiles pose the dilemma of the combination of strong adsorption and easy desorption. On the other hand, living systems solve this dilemma; hemoglobin realizes the strong adsorption and easy desorption of oxygen by cooperative structural transformation and the sigmoidal oxygen association-dissociation curve [247249]. As in the case of hemoglobin, the gate profile, which is achieved by cooperative structural transformation, has the possibility to overcome the dilemma of strong adsorption and easy desorption. Therefore, the gate adsorption material has excellent potential applicability for the pressure swing adsorption process.

5.2. Carbon Dioxide Gas Selectivity of ELM-11

Around an ambient temperature and pressure, CO2 opens the gate of ELM-11 but N2 and O2 cannot open it at ambient temperature and pressure, while the gate of ELM-11 is opened by N2 and O2 at a much lower temperature or higher pressure. Therefore, it is anticipated that high CO2 separation ability form N2 and O2 at ambient conditions using ELM-11. Actually, the highly pure CO2 (>99%) was obtained from ternary mixture gas (CO2:N2:O2 = 40:47:13 mol%) using ELM-11 by the simple temperature swing operation [191]. This result shows the advantage of flexible gate materials for efficient gas separation.

5.3. Adsorption Kinetics

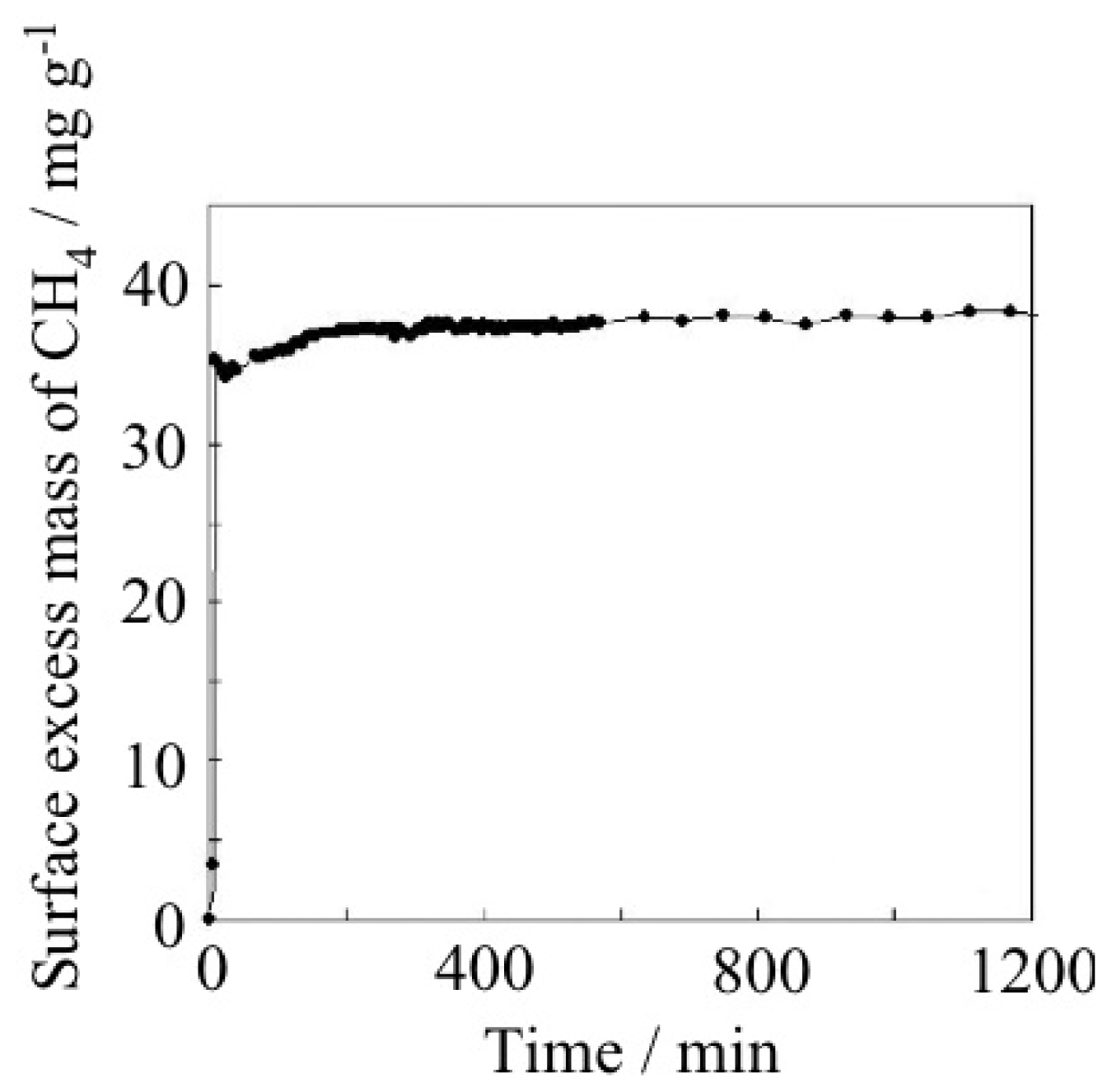

The adsorption rate is an important factor for the industrial application of adsorbents. The adsorption rate of CO2 on ELM-11 was measured by the pressure jump method. In the case of the pressure jump from 150 to 735 Torr at 273 K and from 150 to 730 Torr at 298 K, half the amount of adsorption is reached within three minutes. Further, the adsorption rate of CH4 was also examined. When the pressure of CH4 increases from 2.0 to 5.5 MPa at 298 K, the adsorption amount peaks within one minute (Figure 20). From these experiments, it is revealed that the adsorption rate of ELM-11 is sufficiently rapid for practical use.

5.4. Molding of the Powder of ELM-11

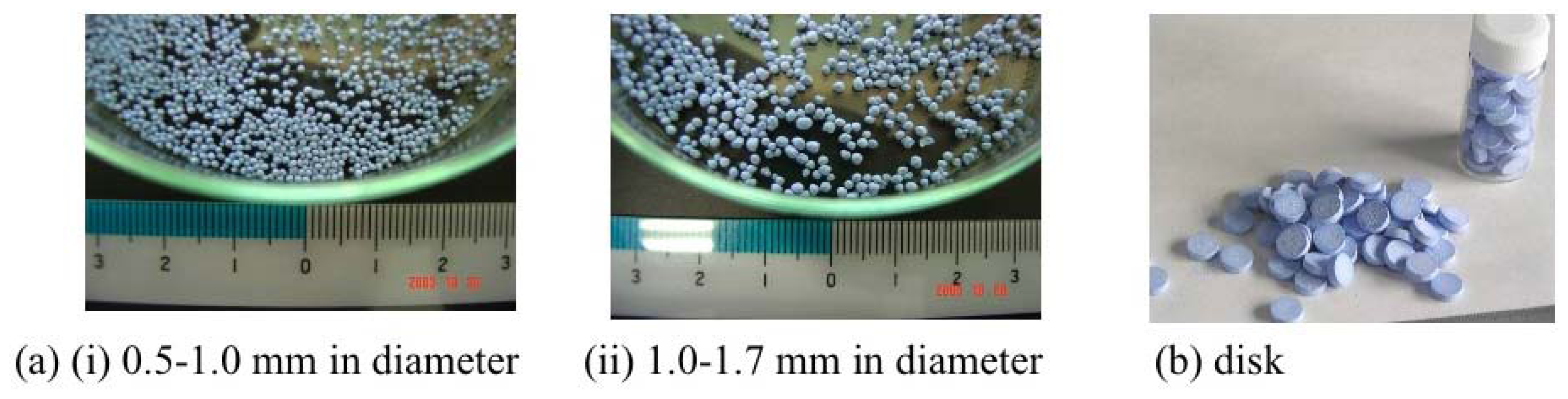

Powder adsorbents must be shape-formed for easy handling in the case of industrial application [250]. Therefore, the process for making ELM-11 pellets was studied. A certain amount of pellet samples (10 mm in diameter, 3 mm in thickness, ρ = 1.3g/cm3) were made using a continuous pressing pelletizer with magnesium stearate (10 wt%) as a lubricant. The granulation of ELM-11 was also studied. Relatively hard (bead hardness = 130 cN, 1 mm diameter, 20 beads) granules with narrow particle distribution were obtained by a commonly used carbon granulation process using sugar as a binder (Figure 21).

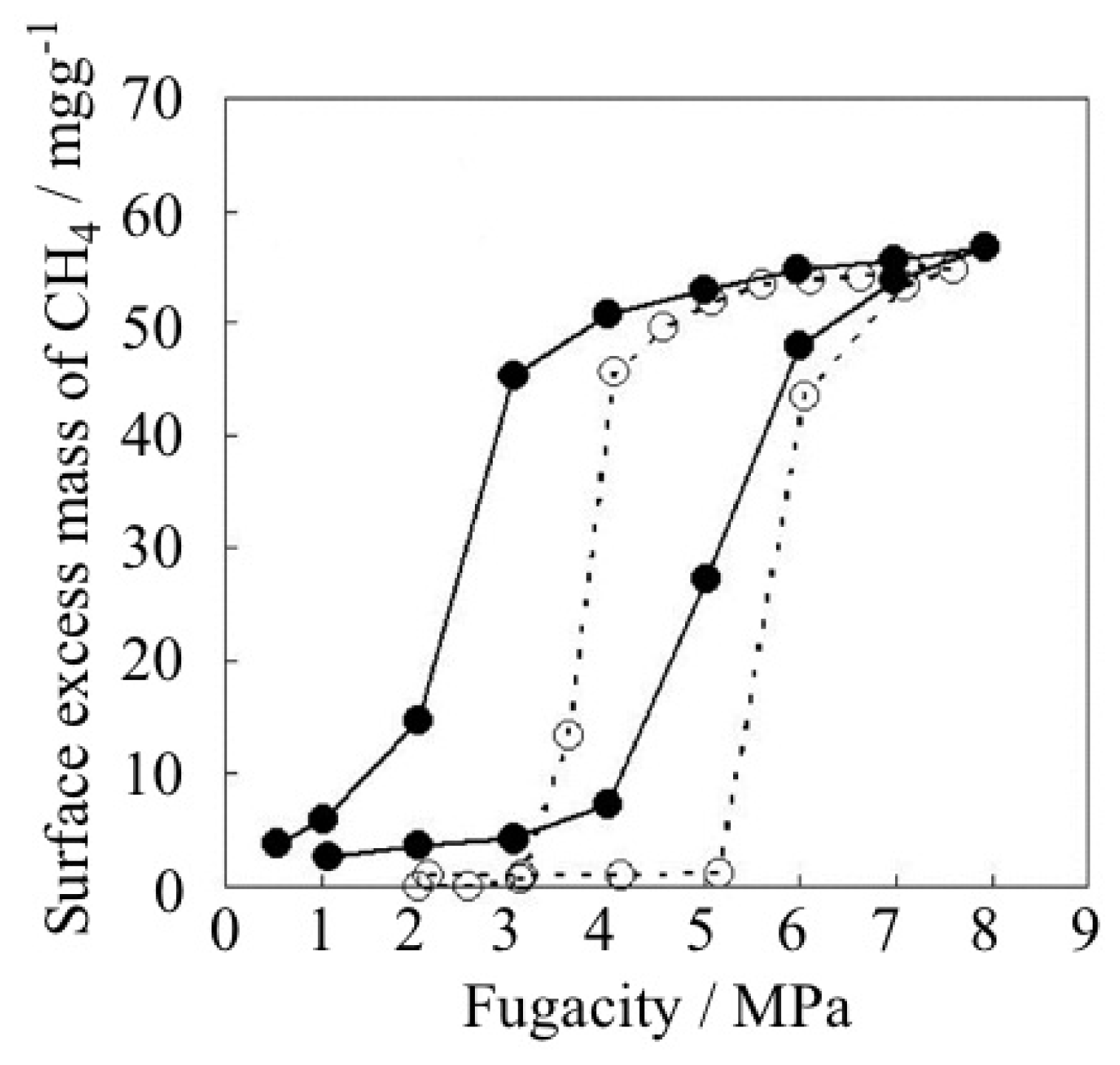

The effect of the shape forming on the gas adsorptivity was estimated by the CH4 gas adsorption on granulated ELM-11. Although there was a slight decrease of gate adsorption/desorption pressure, it retained a definite gate profile and large hysteresis, and the maximum amount of CH4 adsorption was the same as that of unprocessed powder samples (Figure 22). Hence, easily obtainable ELM-11 powders are highly promising for real applications.

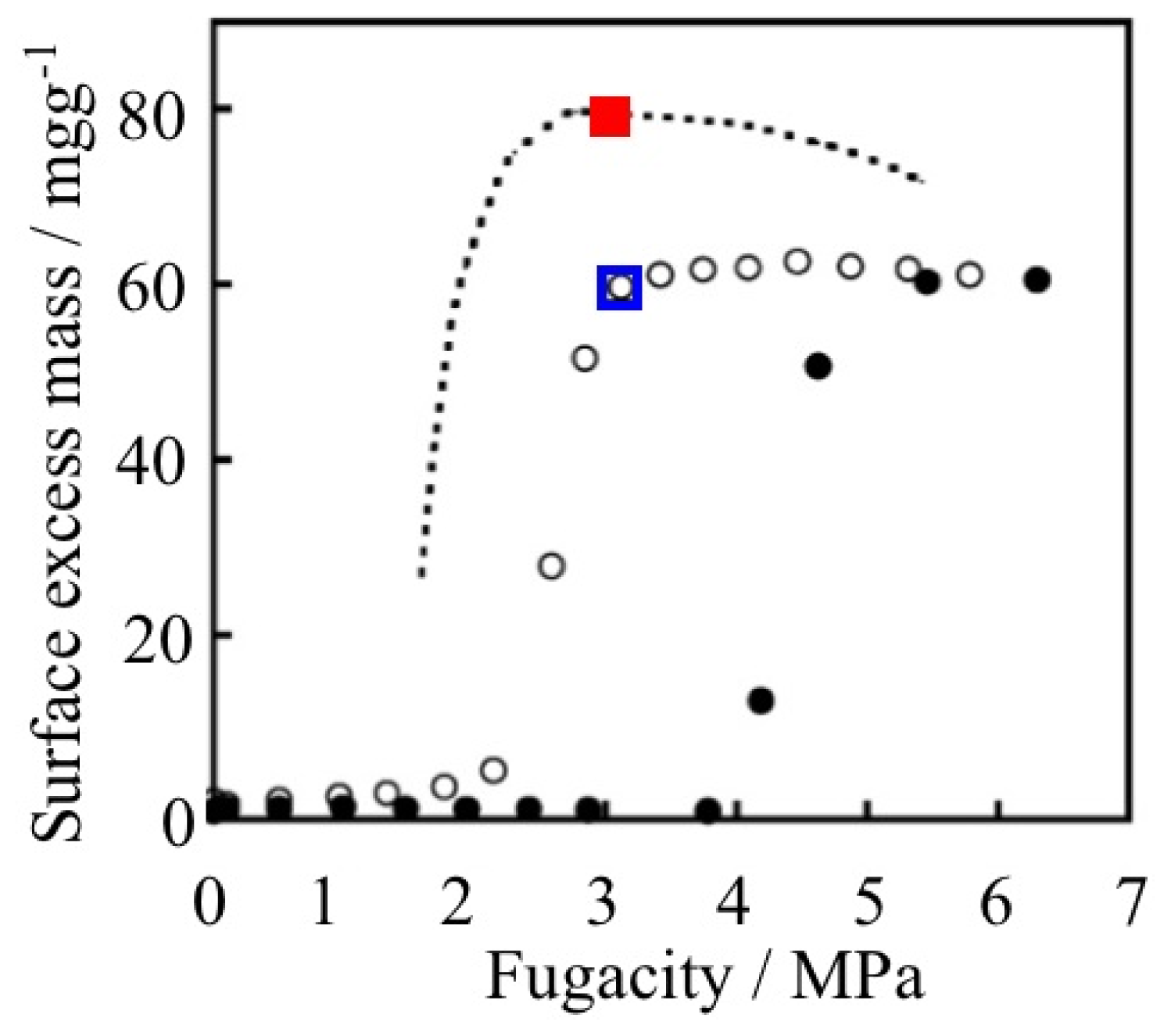

5.5. Temperature Elevation with the Gate Adsorption of CH4 on ELM-11

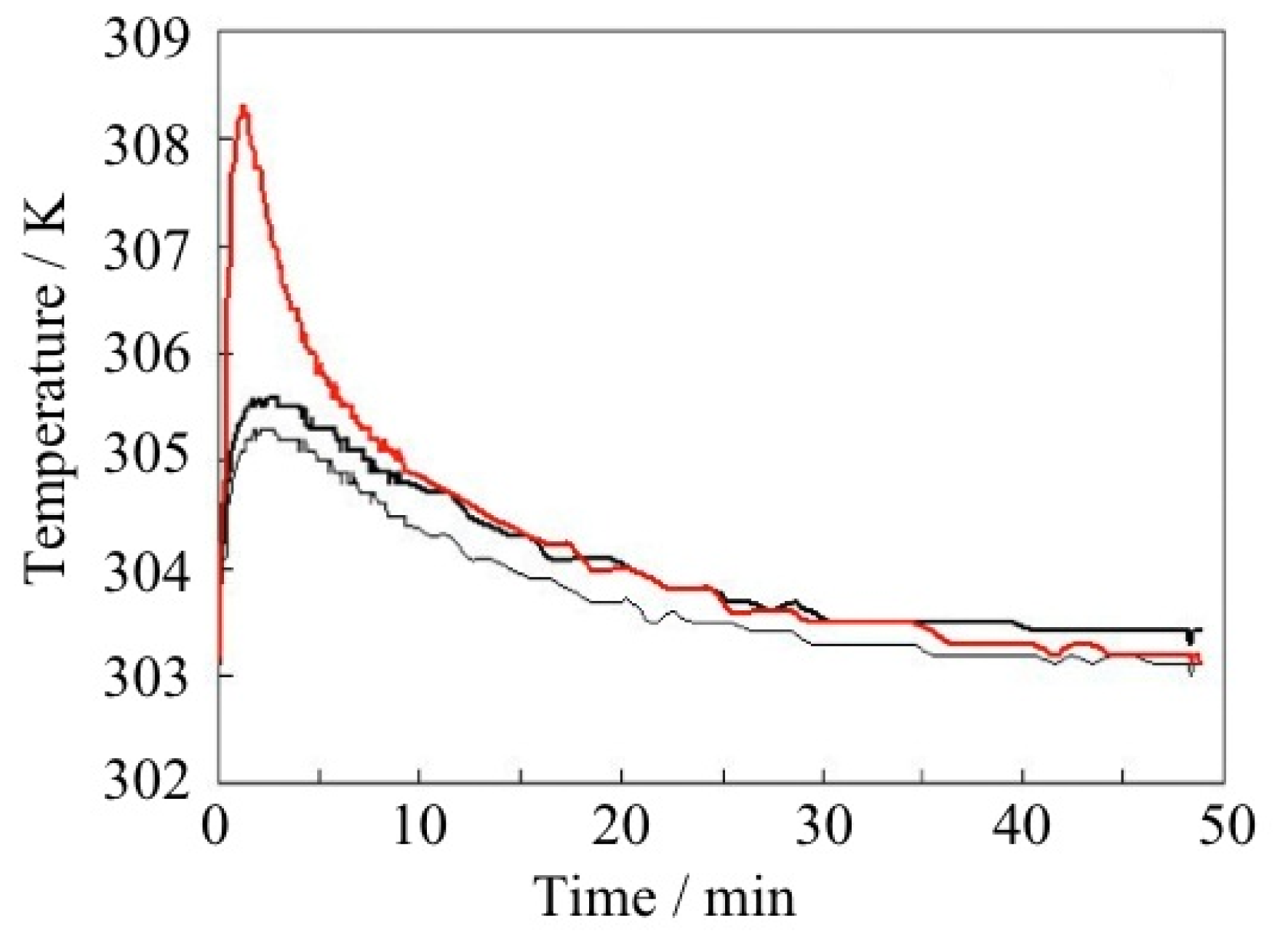

Methane gas is adsorbed on ELM-11 rapidly as mentioned above and the temperature elevation of ELM-11 with the adsorption of CH4 was examined. Fifty grams of preELM-11 was packed in a stainless steel column, and the column was heated to 393 K under reduced pressure to convert the preELM-11 to ELM-11. Next, CH4 was introduced to the column at 5.0 MPa, the pressure was increased from 5.0 to 6.0 MPa suddenly at 298 K, and the temperature of the adsorption column was monitored. The measured temperature elevation was only 3 K at the circumference of the column and only 6 K even at the center of the column (Figure 23). The maximum desorption due to the temperature rise is estimated to be less than 8%. If we mix the conductive carbon fibers with ELM-11 powder, the temperature rise should be suppressed.

5.6. Stability of ELM-11

ELM-11 is hygroscopic and varies its structure to the preELM-11 when exposed to the air. Therefore, it is convenient that ELM-11 is stored in the form of preELM-11. As mentioned above, preELM-11 is easily converted to ELM-11 by heat treatment at 393 K under reduced pressure. The precursor preELM-11 is quite stable and can be stored at room temperature. No structural and adsorption performance degradation was observed when stored as the form of preELM-11 for six years in a plastic vial at room temperature.
The stability of ELM-11 as an adsorbent was examined by repetition of CH4 adsorption-desorption experiments at 303 K. After the adsorption-desorption cycle was performed 50 times, almost no change in the maximum amount of adsorption and gate pressure (adsorption and desorption) was observed. It is noteworthy that the stacked layer architecture through weak interlayer interaction, such as hydrogen bonding and π-π interaction, shows such durability for the interlayer sliding and layer expansion/shrinkage modulation.
The heat stability of ELM-11 was examined by thermal gravimetry. The precursor preELM-11 released water molecules up to 420 K and changed its structure to ELM-11. No further weight loss was observed up to 420 K.
PreELM-11 is easily prepared according to the reported procedure [99] and commercially available from Tokyo Chemical Industry Co., Ltd. Accordingly, from both the stand points of properties and availability, ELM-11 could be applicable to an industrial separation process.

6. Catalytic Reaction of bpy Containing Two-Dimensional Layer PCPs/MOFs

Although there are a dozen reports on reactions catalyzed by PCPs/MOFs [35,38,251257], there are only a few examples of catalytic reaction using bpy containing 2DSG PCPs/MOFs. Fujita et al. reported on the cyanosilylation of aldehyde catalyzed by 2DSG-PCP/MOF, [Cd(bpy)2(NO3)2] [204]. Arai et al. reports the catalytic oxidation of ketones, and Baiker et al. reports the catalytic epoxide ring opening reaction using [Cu(bpy)(H2O)2(BF4)2]·bpy (preELM-11) [258260]. The catalyst is not 2DSG ELM-11 but the one dimensional-CP, preELM-11. But preELM-11 changes its structure in alcoholic solvent: Transformation from preELM-11 to ELM-11 by immersion in alcohol at room temperature was confirmed by IR, powder XRD, and gas adsorptivity. Baiker et al. indicate the dehydration of preELM-11 by methanol soaking [260]. Therefore there may be a possibility that the true catalytic species may be ELM-11. One of the most interesting points of ELM-11 catalysts is the effect of the flexibility on the reaction. Reports on the utilization of the flexible nature of PCPs/MOFs to improve the selectivity or reactivity of catalytic reactions will no doubt appear on the scene in the near future.

7. Conclusions

The rigid and linear exobidentate ligand, 4,4′-bipyridine (bpy) is one of the simplest ligands for the construction of PCPs/MOFs. The square grid structure constructed with bpy is one of the most fundamental motifs of the PCPs/MOFs structure. The two-dimensional square-grid layer stacking (2DSG) PCPs/MOFs, with appropriate metal cations and counter anions, only show structural transformation with the gate gas adsorption phenomena and such special 2DSG-PCPs/MOFs are called “elastic layer-structured metal-organic frameworks (ELMs)”. In this review, we show a brief survey of general 2DSG-PCPs/MOFs with bpy and also survey the structure and function of the ELMs based on study of the author’s group.
Since the gate profile can put the desorption pressure close to adsorption pressure, these unique phenomena can make it possible to overcome the dilemma of strong adsorption and easy desorption, which is one of the ideal properties for a practical adsorbent. The fact that such a unique property can be achieved through the simple 2DSG-structure and the gate property can be regulated by changing the metal cation and counter ion while retaining the fundamental structure, is attractive from both academic and industrial perspectives.
The ultimate functional organic architecture is animate beings. They have developed dexterous biological flexible structures using weak interactions. DNA and RNA store the genetic information in the hydrogen bonding between the base pairs and the enzyme’s flexible nature derived from weak bonding improves the catalytic ability [261]. The “flexible adsorbent”, hemoglobin attain the easy-adsorption and easy-desorption of oxygen. “Flexibility” should be the key factor which makes up the PCPs/MOFs as some of the ultimate artificial functional materials.

Acknowledgements

This work was supported by a Grant-in-Aid for Fundamental Scientific Research (B) (No. 19350100) by the Japan Science for the Promotion of Science and by Innovation Creative Center for Advanced Interdisciplinary Research Areas (Shinshu University) Project in Special Coordination Funds for Promoting Science and Technology of the Ministry of Education, Culture, Sports, Science and Technology, the Japanese Government.

References

  1. Nicolaou, KC; Sorensen, EJ. Classics in Total Synthesis: Targets, Atrategies, Methods; VCH Publishers Inc: New York, NY, USA, 1996. [Google Scholar]
  2. Larock, RC. Comprehensive Organic Transformations: A Guide to Functional Group Preparations, 2nd ed; John Wiley & Sons: New York, NY, USA, 1999. [Google Scholar]
  3. Tsuji, J. Transition Metal Reagents and Catalysts: Innovations in Organic Synthesis; John Wiley & Sons: West Sussex, UK, 2000. [Google Scholar]
  4. Lehn, J-M. Supramolecular chemistry-Scope and perspectives molecules, supermolecules, and molecular devices (nobel lecture). Angew. Chem. Int. Ed 1988, 27, 89–112. [Google Scholar]
  5. Lehn, J-M. Supramolecular Chemistry: Concepts and Perspectives; VCH: Weinheim, Germany, 1995. [Google Scholar]
  6. Ruben, M; Rojo, J; Romero-Salguero, FJ; Uppadine, LH; Lehn, J-M. Grid-type metal ion architectures: Functional metallosupramolecular arrays. Angew. Chem. Int. Ed 2004, 43, 3644–3662. [Google Scholar]
  7. Rebek, JJ. Simultaneous encapsulation: Molecules held at close range. Angew. Chem. Int. Ed 2005, 44, 2068–2078. [Google Scholar]
  8. Steed, JW; Atwood, JL. Supramolecular Chemistry, 2nd ed; Jhon Wiley & Sons, Inc: West Sussex, UK, 2009. [Google Scholar]
  9. Roesky, HW; Andruh, M. The interplay of coordinative, hydrogen bonding and π-π stacking interactions in sustaining supramolecular solid-state architectures.: A study case of bis(4- pyridyl)- and bis(4-pyridyl-N-oxide) tectons. Coord. Chem. Rev 2003, 236, 91–119. [Google Scholar]
  10. Rao, CNR; Natarajan, S; Vaidhyanathan, R. Metal carboxylates with open architectures. Angew. Chem. Int. Ed 2004, 43, 1466–1496. [Google Scholar]
  11. Kitaura, R; Onoyama, G; Sakamoto, H; Matsuda, R; Noro, S-I; Kitagawa, S. Immobilization of a metallo schiff base into a microporous coordination polymer. Angew. Chem. Int. Ed 2004, 43, 2684–2687. [Google Scholar]
  12. Férey, G; Mellot-Draznieks, C; Serre, C; Millange, F; Dutour, J; Surblé, S; Margiolaki, I. A chromium terephthalate-based solid with unusually large pore volumes and surface area. Science 2005, 309, 2040–2042. [Google Scholar]
  13. Maspoch, D; Ruiz-Molina, D; Veciana, J. Old materials with new tricks: Multifunctional open-framework materials. Chem. Soc. Rev 2007, 36, 770–818. [Google Scholar]
  14. Kitagawa, S; Matsuda, R. Chemistry of coordination space of porous coordination polymers. Coord. Chem. Rev 2007, 251, 2490–2509. [Google Scholar]
  15. Banerjee, R; Phan, A; Wang, B; Knobler, C; Furukawa, H; O’Keeffe, M; Yaghi, OM. High-throughput synthesis of zeolitic imidazolate frameworks and application to CO2 capture. Science 2008, 319, 939–943. [Google Scholar]
  16. Imaz, I; Hernando, J; Ruiz-Molina, D; Maspoch, D. Metal-organic spheres as functional systems for guest encapsulation. Angew. Chem. Int. Ed 2009, 48, 2325–2329. [Google Scholar]
  17. Roy, X; MacLachlan, MJ. Coordination chemistry: New routes to mesostructured materials. Chem. Eur. J 2009, 15, 6552–6559. [Google Scholar]
  18. O’Keeffe, M. Design of MOFs and intellectual content in reticular chemistry: A personal view. Chem. Soc. Rev 2009, 38, 1215–1217. [Google Scholar]
  19. Spokoyny, AM; Kim, D; Sumrein, A; Mirkin, CA. Infinite coordination polymer nano-and microparticle structures. Chem. Soc. Rev 2009, 38, 1218–1227. [Google Scholar]
  20. Wang, Z; Cohen, SM. Postsynthetic modification of metal-organic frameworks. Chem. Soc. Rev 2009, 38, 1315–1329. [Google Scholar]
  21. Kurmoo, M. Magnetic metal-organic frameworks. Chem. Soc. Rev 2009, 38, 1353–1379. [Google Scholar]
  22. Zacher, D; Shekhah, O; Wöll, C; Fischer, RA. Thin films of metal-organic frameworks. Chem. Soc. Rev 2009, 38, 1418–1429. [Google Scholar]
  23. Yamada, T; Kitagawa, H. Protection and deprotection approach for the introduction of functional groups into metal-organic frameworks. J. Am. Chem. Soc 2009, 131, 6312–6313. [Google Scholar]
  24. Britt, D; Tranchemontagne, D; Yaghi, OM. Metal-organic frameworks with high capacity and selectivity for harmful gases. Proc. Natl. Acad. Sci. USA 2008, 105, 11623–11627. [Google Scholar]
  25. Czaja, AU; Trukhan, N; Müller, U. Industrial applications of metal-organic frameworks. Chem. Soc. Rev 2009, 38, 1284–1293. [Google Scholar]
  26. Murray, LJ; Dincá, M; Long, JR. Hydrogen storage in metal-organic frameworks. Chem. Soc. Rev 2009, 38, 1294–1314. [Google Scholar]
  27. Uchida, S; Kawamoto, R; Tagami, H; Nakagawa, Y; Mizuno, N. Highly selective sorption of small unsaturated hydrocarbons by nonporous flexible framework with silver ion. J. Am. Chem. Soc 2008, 130, 12370–12376. [Google Scholar]
  28. Li, JR; Kuppler, RJ; Zhou, H-C. Selective gas adsorption and separation in metal-organic frameworks. Chem. Soc. Rev 2009, 38, 1477–1504. [Google Scholar]
  29. Lamia, N; Jorge, M; Granato, MA; Almeida Paz, FA; Chevreau, H; Rodrigues, AE. Adsorption of propane, propylene and isobutane on a metal-organic framework: Molecular simulation and experiment. Chem. Eng. Sci 2009, 64, 3246–3259. [Google Scholar]
  30. Cychosz, KA; Wong-Foy, AG; Matzger, AJ. Enabling cleaner fuels: Desulfurization by adsorption to microporous coordination polymers. J. Am. Chem. Soc 2009, 131, 14538–14543. [Google Scholar]
  31. Ohmura, T; Mori, W; Hiraga, H; Ono, M; Nishimoto, Y. Magnetic and gas-occasion properties and catalytic activity of microporous materials: Dinuclear ruthenium (II, III) dicarboxylates. Chem. Lett 2003, 32, 468–469. [Google Scholar]
  32. Zou, R-Q; Sakurai, H; Han, S; Zhong, R-Q; Xu, Q. Probing the lewis acid sites and co catalytic oxidation activity of the porous metal-organic polymer [Cu(5-methylisophthalate)]. J. Am. Chem. Soc 2007, 129, 8402–8403. [Google Scholar]
  33. Stone, MT; Moore, JS. Supramolecular chelation based on folding. J. Am. Chem. Soc 2005, 127, 5928–5935. [Google Scholar]
  34. Llabrés Xamena, F; Abad, A; Corma, A; Garcia, H. MOFs as catalysts: Activity, reusability and shape-selectivity of a Pd-containing MOF. J. Catal 2007, 250, 294–298. [Google Scholar]
  35. Horike, S; Dincá, M; Tamaki, K; Long, JR. Size-selective lewis acid catalysis in a microporous metal-organic framework with exposed Mn2+ coordination sites. J. Am. Chem. Soc 2008, 130, 5854–5855. [Google Scholar]
  36. Gascon, J; Aktay, U; Hernandez-Alonso, MD; van Klink, GPM; Kapteijn, F. Amino-based metal-organic frameworks as stable, highly active basic catalysts. J. Catal 2009, 261, 75–87. [Google Scholar]
  37. Qiu, L-G; Gu, L-N; Hu, G; Zhang, L-D. Synthesis, structural characterization and selectively catalytic properties of metal-organic frameworks with nano-sized channels: A modular design strategy. J. Solid State Chem 2009, 182, 502–508. [Google Scholar]
  38. Ma, L; Abney, C; Lin, W. Enantioselective catalysis with homochiral metal-organic frameworks. Chem. Soc. Rev 2009, 38, 1248–1256. [Google Scholar]
  39. Cheon, YE; Suh, MP. Enhanced hydrogen storage by palladium nanoparticles fabricated in a redox-active metal-organic framework. Angew. Chem. Int. Ed 2009, 48, 2899–2903. [Google Scholar]
  40. Bernini, MC; Gándara, F; Iglesias, M; Snejko, N; Gutiérrez-Puebla, E; Brusau, EV; Narda, GE; Monge, MÁ. Reversible breaking and forming of metal-ligand coordination bonds: Temperature-triggered single-crystal to single-crystal transformation in a metal-organic framework. Chem. Eur. J 2009, 15, 4896–4905. [Google Scholar]
  41. Doonan, CJ; Morris, W; Furukawa, H; Yaghi, OM. Isoreticular metalation of metal-organic frameworks. J. Am. Chem. Soc 2009, 131, 9492–9493. [Google Scholar]
  42. Allendorf, MD; Bauer, CA; Bhakta, RK; Houk, RJT. Luminescent metal–organic frameworks. Chem. Soc. Rev 2009, 38, 1330–1352. [Google Scholar]
  43. Eddaoudi, M; Kim, J; Rosi, N; Vodak, D; Wachter, J; O’Keeffe, M; Yaghi, OM. Systematic design of pore size and functionality in isoreticular MOFs and their application in methane storage. Science 2002, 295, 469–472. [Google Scholar]
  44. Koh, K; Wong-Foy, AG; Matzger, AJ. A crystalline mesoporous coordination copolymer with high microporosity. Angew. Chem. Int. Ed 2008, 47, 677–680. [Google Scholar]
  45. Mäkinen, SK; Melcer, NJ; Parvez, M; Shimizu, GKH. Highly selective guest uptake in a silver sulfonate network imparted by a tetragonal to triclinic shift in the solid state. Chem. Eur. J 2001, 7, 5176–5182. [Google Scholar]
  46. Takamizawa, S; Nakata, E-I; Yokoyama, H; Mochizuki, K; Mori, W. Carbon dioxide inclusion phases of a transformable 1D coordination polymer host [Rh2(O2CPh)4(pyz)]n. Angew. Chem. Int. Ed 2003, 42, 4331–4334. [Google Scholar]
  47. Ohmori, O; Kawano, M; Fujita, M. Crystal-to-crystal guest exchange of large organic molecules within a 3D coordination network. J. Am. Chem. Soc 2004, 126, 16292–16293. [Google Scholar]
  48. Barea, E; Navarro, JAR; Salas, JM; Masciocchi, N; Galli, S; Sironi, A. Mineralomimetic sodalite- and muscovite-type coordination frameworks. Dynamic crystal-to-crystal interconversion processes sensitive to ion pair recognition. J. Am. Chem. Soc 2004, 126, 3014–3015. [Google Scholar]
  49. Dybtsev, DN; Chun, H; Kim, K. Rigid and flexible: A highly porous metal-organic framework with unusual guest-dependent dynamic behavior. Angew. Chem. Int. Ed 2004, 43, 5033–5036. [Google Scholar]
  50. Hu, C; Englert, U. Crystal-to-crystal transformation from a chain polymer to a two-dimensional network at low temperatures. Angew. Chem. Int. Ed 2005, 44, 2281–2283. [Google Scholar]
  51. Kitagawa, S; Uemura, K. Dynamic porous properties of coordination polymers inspired by hydrogen bonds. Chem. Soc. Rev 2005, 34, 109–119. [Google Scholar]
  52. Uemura, K; Matsuda, R; Kitagawa, S. Flexible microporous coordination polymers. J. Solid State Chem 2005, 178, 2420–2429. [Google Scholar]
  53. Bradshaw, D; Claridge, JB; Cussen, EJ; Prior, TJ; Rosseinsky, MJ. Design, chirality, and flexibility in nanoporous molecule-based materials. Acc. Chem. Res 2005, 38, 273–282. [Google Scholar]
  54. Wu, C-D; Lin, W. Highly porous, homochiral metal-organic frameworks: Solvent-exchange-induced single-crystal to single-crystal transformations. Angew. Chem. Int. Ed 2005, 44, 1958–1961. [Google Scholar]
  55. Chen, C-L; Goforth, AM; Smith, MD; Su, C-Y; zur Loye, H-C. [Co2(ppca)2(H2O)(V4O12)0.5]: A framework material exhibiting reversible shrinkage and expansion through a single-crystal-to-single- crystal transformation involving a change in the cobalt coordination environment. Angew. Chem. Int. Ed 2005, 44, 6673–6677. [Google Scholar]
  56. Zhang, J-P; Lin, Y-Y; Zhang, W-X; Chen, X-M. Temperature- or guest-induced drastic single-crystal-to-single-crystal transformations of a nanoporous coordination polymer. J. Am. Chem. Soc 2005, 127, 14162–14163. [Google Scholar]
  57. Maji, TK; Mostafa, G; Matsuda, R; Kitagawa, S. Guest-induced asymmetry in a metal-organic porous solid with reversible single-crystal-to-single-crystal structural transformation. J. Am. Chem. Soc 2005, 127, 17152–17153. [Google Scholar]
  58. Culp, JT; Smith, MR; Bittner, E; Bockrath, B. Hysteresis in the physisorption of CO2 and N2 in a flexible pillared layer nickel cyanide. J. Am. Chem. Soc 2008, 130, 12427–12434. [Google Scholar]
  59. Horike, S; Shimomura, S; Kitagawa, S. Soft porous crystals. Nat. Chem 2009, 1, 695–704. [Google Scholar]
  60. Férey, G; Serre, C. Large breathing effects in three-dimensional porous hybrid matter: Facts, analyses, rules and consequences. Chem. Soc. Rev 2009, 38, 1380–1399. [Google Scholar]
  61. Spencer, EC; Angel, RJ; Ross, NL; Hanson, BE; Howard, JAK. Pressure-induced cooperative bond rearrangement in a zinc imidazolate framework: A high-pressure single-crystal X-ray diffraction study. J. Am. Chem. Soc 2009, 131, 4022–4026. [Google Scholar]
  62. Korčok, JL; Katz, MJ; Leznoff, DB. Impact of metallophilicity on “colossal” positive and negative thermal expansion in a series of isostructural dicyanometallate coordination polymers. J. Am. Chem. Soc 2009, 131, 4866–4871. [Google Scholar]
  63. Li, D; Kaneko, K. Hydrogen bond-regulated microporous nature of copper complex-assembled microcrystals. Chem. Phys. Lett 2001, 335, 50–56. [Google Scholar]
  64. Kitaura, R; Seki, K; Akiyama, G; Kitagawa, S. Porous coordination-polymer crystals with gated channels specific for supercritical gases. Angew. Chem. Int. Ed 2003, 42, 428–431. [Google Scholar]
  65. Fletcher, AJ; Cussen, EJ; Bradshaw, D; Rosseinsky, MJ; Thomas, KM. Adsorption of gases and vapors on nanoporous Ni2(4,4′-bipyridine)3(NO3)4 metal-organic framework materials templated with methanol and ethanol: Structural effects in adsorption kinetics. J. Am. Chem. Soc 2004, 126, 9750–9759. [Google Scholar]
  66. Mukherjee, PS; Lopez, N; Arif, AM; Cervantes-Lee, F; Noveron, JC. Single-crystal to single-crystal phase transitions of bis(N-phenylisonicotinamide)silver(I) nitrate reveal cooperativity properties in porous molecular materials. Chem. Commun 2007, 1433–1435. [Google Scholar]
  67. Kondo, A; Noguchi, H; Carlucci, L; Proserpio, DM; Ciani, G; Kajiro, H; Ohba, T; Kanoh, H; Kaneko, K. Double-step gas sorption of a two-dimensional metal-organic framework. J. Am. Chem. Soc 2007, 129, 12362–12363. [Google Scholar]
  68. Uemura, K; Yamasaki, Y; Komagawa, Y; Tanaka, K; Kita, H. Two-step adsorption/desorption on a jungle-gym-type porous coordination polymer. Angew. Chem. Int. Ed 2007, 46, 6662–6665. [Google Scholar]
  69. Zhang, J-P; Chen, X-M. Exceptional framework flexibility and sorption behavior of a multifunctional porous cuprous triazolate framework. J. Am. Chem. Soc 2008, 130, 6010–6017. [Google Scholar]
  70. Ma, S; Sun, D; Yuan, D; Wang, X-S; Zhou, H-C. Preparation and gas adsorption studies of three mesh-adjustable molecular sieves with a common structure. J. Am. Chem. Soc 2009, 131, 6445–6451. [Google Scholar]
  71. Soldatov, DV; Ripmeester, JA. Studies in Surface Science and Catalysis: Nanoporous Materials III; Flexible Metal-Organic Frameworks with Isomerizing Building Unit; Elsevier: Oxford, UK, 2002; Volume 141, pp. 353–362. [Google Scholar]
  72. Dewa, T; Endo, K; Aoyama, Y. Dynamic aspects of lattice inclusion complexation involving a phase change. Equilibrium, kinetics, and energetics of guest-binding to a hydrogen-bonded flexible organic network. J. Am. Chem. Soc 1998, 120, 8933–8940. [Google Scholar]
  73. Sawaki, T; Aoyama, Y. Immobilization of a soluble metal complex in an organic network. Remarkable catalytic performance of a porous dialkoxyzirconium polyphenoxide as a functional organic zeolite analogue. J. Am. Chem. Soc 1999, 121, 4793–4798. [Google Scholar]
  74. Endo, K; Ezuhara, T; Koyanagi, M; Masuda, H; Aoyama, Y. Functional self-assembly of hydrogen-bonded networks. Construction of aromatic stacks and columns and cavity-size control via flexible intercalation of 1D chains having orthogonal aromatic substituents. J. Am. Chem. Soc 1997, 119, 499–505. [Google Scholar]
  75. Soldatov, DV. Encyclopedia of Supramolecular Chemistry 2: Soft and Smart Materials; Taylor & Francis: London, UK, 2004; Volume 2, pp. 1302–1306. [Google Scholar]
  76. Gorbatchuk, VV; Tsifarkin, AG; Antipin, IS; Solomonov, BN; Konovalov, AI; Seidel, J; Baitalov, F. Thermodynamic comparison of molecular recognition of vaporous guests by solid calixarene and diol hosts. J. Chem. Soc. Perkin Trans. 2 2000, 2287–2294. [Google Scholar]
  77. Soldatov, DV. Soft supramolecular materials. J. Incl. Phenom. Macrocycl. Chem 2004, 48, 3–9. [Google Scholar]
  78. Gorbatchuk, VV; Savelyeva, LS; Ziganshin, MA; Antipin, LS; Sidoror, VA. Molecular recognition of organic guest vapor by solid adamantylcalix[4]arene. Russ. Chem. Bull., Int. Ed 2004, 53, 60–65. [Google Scholar]
  79. IUPAC Reporting physisorption data for gas/solid systems with special reference to the determination of surface area and porosity. Pure Appl. Chem 1985, 57, 603–619.
  80. Kondo, M; Yoshitomi, T; Seki, K; Matsuzaka, H; Kitagawa, S. Three-dimensional framework with channeling cavities for small molecules: {[M2(4,4′-bpy)3(NO3)4]·xH2O}n (M = Co, Ni, Zn). Angew. Chem., Int. Ed. Engl 1997, 36, 1725–1727. [Google Scholar]
  81. Li, H; Eddaoudi, M; Groy, TL; Yaghi, OM. Establishing microporosity in open metal-organic frameworks: Gas sorption isotherms for Zn(bdc) (bdc = 1,4-benzenedicarboxylate). J. Am. Chem. Soc 1998, 120, 8571–8572. [Google Scholar]
  82. Li, H; Eddaoudi, M; O’Keeffe, M; Yaghi, OM. Design and synthesis of an exceptionally stable and highly porous metal-organic framework. Nature 1999, 402, 276–279. [Google Scholar]
  83. Kondo, M; Okubo, T; Asami, A; Noro, S-I; Yoshitomi, T; Kitagawa, S; Ishii, T; Matsuzaka, H; Seki, K. Rational synthesis of stable channel-like cavities with methane gas adsorption properties: [{Cu2(pzdc)2(L)}n] (pzdc = pyrazine-2,3-dicarboxylate; L = a pillar ligand). Angew. Chem. Int. Ed 1999, 38, 140–143. [Google Scholar]
  84. Chui, SS-Y; Lo, SM-F; Charmant, JPH; Orpen, AG; Williams, D. A chemically functionalizable nanopoous material [Cu3(TMA)2(H2O)3]n. Science 1999, 283, 1148–1150. [Google Scholar]
  85. Noro, S-I; Kitagawa, S; Kondo, M; Seki, K. A new, methane adsorbent, porous coordination polymer [{CuSiF6(4,4′-bipyridine)2}n]. Angew. Chem. Int. Ed 2000, 39, 2081–2084. [Google Scholar]
  86. Seki, K; Takamizawa, S; Mori, W. Characterization of microporus copper(II) dicarboxylates (fumarate, terephthalate and trans-1,4-cyclohexanedicarboxylate) by gas adsorption. Chem. Lett 2001, 122–123. [Google Scholar]
  87. Eddaoudi, M; Moler, DB; Li, H; Chen, B; Reineke, TM; O’Keeffe, M; Yaghi, OM. Modular chemistry: Secondary building units as a basis for the design of highly porous and robust metal-organic carboxylate frameworks. Acc. Chem. Res 2001, 34, 319–330. [Google Scholar]
  88. Seki, K. Design of an adsorbent with an ideal pore structure for methane adsorption using metal complexes. Chem. Commun 2001, 1496–1497. [Google Scholar]
  89. Fletcher, AJ; Cussen, EJ; Prior, TJ; Rosseinsky, MJ; Kepert, CJ; Thomas, KM. Adsorption dynamics of gases and vapors on the nanoporous metal organic framework material Ni2(4,4′-bipyridine)3(NO3)4: Guest modification of host sorption behavior. J. Am. Chem. Soc 2001, 123, 10001–10011. [Google Scholar]
  90. Mori, W. Syntheses and magnetic susceptibilities of copper(II) dicarboxylate complexes having gas occlusion properties. 30th Annual meeting of chemical society of Japan, Higashiosaka, Japan, April, 1974; 4D05, p. 424.
  91. Mori, W. Magnetic property of copper phthalate. 26th Annual Meeting of Chemical Society of Japan, Tokyo, Japan, April 1972; 2D26, p. 365.
  92. Mori, W; Kobayasih, TC; Kurobe, J; Amaya, K; Narumi, Y; Kumada, T; Kindo, K; Katori, HA; Goto, T; Miura, N; Takamizawa, S; Ayama, H; Yamaguchi, K. Magnetic properties of oxygen physisorbed in Cu-trans-1,4-cyclohexanedicarboxylic acid. Mol. Cryst. Liq. Cryst 1997, 306, 1–7. [Google Scholar]
  93. Mori, W; Inoue, F; Yoshida, K; Takamizawa SKishita, M. Synthesis of new adsobent copper(II) terephthalate. Chem. Lett 1997, 1219–1220. [Google Scholar]
  94. Onishi, S; Ohmori, T; Ohkubo, T; Noguchi, H; Di, L; Hanzawa, Y; Kanoh, H; Kaneko, K. Hydrogen-bond change-associated gas adsorption in inorganic-organic hybrid microporous crystals. Appl. Surf. Sci 2002, 196, 81–88. [Google Scholar]
  95. Noguchi, H; Kondo, A; Hattori, Y; Kajiro, H; Kanoh, H; Kaneko, K. Evaluation of an effective gas storage amount of latent nanoporous Cu-based metal-organic framework. J. Phys. Chem. C 2007, 111, 248–254. [Google Scholar]
  96. Noguchi, H; Kondoh, A; Hattori, Y; Kanoh, H; Kajiro, H; Kaneko, K. Clathrate-formation mediated adsorption of methane on Cu-complex crystals. J. Phys. Chem. B 2005, 109, 13851–13853. [Google Scholar]
  97. Blake, AJ; Hill, SJ; Hubberstey, P; Li, WS. Rectangular grid two-dimensional sheets of copper(II) bridged by both co-ordinated and hydrogen bonded 4,4′-bipyridine (4,4′-bipy) in [Cu(μ-4,4′-bipy)(H2O)2(FBF3)2]·4,4′-bipy. J. Chem. Soc. Dalton Trans 1997, 913–914. [Google Scholar]
  98. Cheng, Y; Kondo, A; Noguchi, H; Kajiro, H; Urita, K; Ohba, T; Kaneko, K; Kanoh, H. Reversible structural change of Cu-MOF on exposure to water and its CO2 adsorptivity. Langmuir 2009, 25, 4510–4513. [Google Scholar]
  99. Kondo, A; Noguchi, H; Ohnishi, S; Kajiro, H; Tohdoh, A; Hattori, Y; Xu, W-C; Tanaka, H; Kanoh, H; Kaneko, K. Novel expansion/shrinkage modulation of 2D layered MOF triggered by clathrate formation with CO2 molecules. Nano Lett 2006, 6, 2581–2584. [Google Scholar]
  100. Rosenthal, MR. The myth of the non-coordinating anion. J. Chem. Educ 1973, 50, 331–335. [Google Scholar]
  101. Byington, AR; Bull, WE. Trifluoromethanesulfonato complexes of nickel and cobalt. Inorg. Chim. Acta 1977, 21, 239–244. [Google Scholar]
  102. Carlucci, L; Ciani, G; Proserpio, DM; Rizzato, S. Interlinked molecular squares with [Cu(2,2′-bipy)]2+ corners generating a three-dimensional network of unprecedented topological type. Chem. Commun 2001, 1198–1199. [Google Scholar]
  103. Bertelli, M; Carlucci, L; Ciani, G; Proserpio, DM; Sironi, A. Structural studies of molecular-based nanoporous materials. Novel networks of silver(I) cations assembled with the polydentate N-donor bases hexamethylenetetramine and 1,3,5-triazine. J. Mater. Chem 1997, 7, 1271–1276. [Google Scholar]
  104. Wu, HP; Janiak, C; Rheinwald, G; Lang, H. 5,5′-Dicyano-2,2′-bipyridine silver complexes: Discrete units or co-ordination polymers through a chelating and/or bridging metal-ligand interaction. J. Chem. Soc. Dalton Trans 1999, 183–190. [Google Scholar]
  105. Dong, Y-B; Smith, MD; zur Loye, H-C. Metal-containing ligands for mixed-metal polymers: Novel Cu(II)-Ag(I) Mixed-Metal Coordination Polymers Generated from [Cu(2-methylpyrazine- 5-carboxylate)2(H2O)]·3H2O and Silver(I) Salts. Inorg. Chem 2000, 39, 1943–1949. [Google Scholar]
  106. Blake, AJ; Champness, NR; Cooke, PA; Nicolson, JEB; Wilson, C. Multi-modal bridging ligands; effects of ligand functionality, anion and crystallisation solvent in silver(I) co-ordination polymers. J. Chem. Soc. Dalton Trans 2000, 3811–3819. [Google Scholar]
  107. Alberti, G; Murcia-Mascarós, S; Vivani, R. Pillared derivatives of γ-zirconium phosphate containing nonrigid alkyl chain pillars. J. Am. Chem. Soc 1998, 120, 9291–9295. [Google Scholar]
  108. Alberti, G; Brunet, E; Dionigi, C; Juanes, O; Mata, MJDL; Rodríguez-Ubis, JC; Vivani, R. Shaping solid-state supramolecular cavities: Chemically induced accordionlike movement of γ-zirconium phosphate containing polyethylenoxide pillars. Angew. Chem. Int. Ed 1999, 38, 3351–3353. [Google Scholar]
  109. Tambach, TJ; Bolhuis, PG; Smit, B. A molecular mechanism of hysteresis in clay swelling. Angew. Chem., Int. Ed 2004, 43, 2649–2652. [Google Scholar]
  110. Ohba, T; Inaguma, Y; Kondo, A; Kanoh, H; Nugichi, H; Gubbins, KE; Kajiro, H; Kaneko, K. GCMC simulations of dynamic structural change of Cu–organic crystals with nadsorption. J. Exp. Nanosci 2006, 1, 91–95. [Google Scholar]
  111. Maspoch, D; Ruiz-Molina, D; Wurst, K; Domingo, N; Cavallini, M; Biscarini, F; Tejada, J; Rovira, C; Veciana, J. A nanoporous molecular magnet with reversible solvent-induced mechanical and magnetic properties. Nat. Mater 2003, 2, 190–195. [Google Scholar]
  112. Choi, HJ; Suh, MP. Dynamic and redox active pillared bilayer open framework: Single-crystal-to- single-crystal transformations upon guest removal, guest exchange, and framework oxidation. J. Am. Chem. Soc 2004, 126, 15844–15851. [Google Scholar]
  113. Kondo, A; Chinen, A; Kajiro, H; Nakagawa, T; Kato, K; Takata, M; Hattori, Y; Okino, F; Ohba, T; Kaneko, K; Kanoh, H. Metal-ion-dependent gas sorptivity of elastic layer-structured MOFs. Chem. Eur. J 2009, 15, 7549–7553. [Google Scholar]
  114. Venkataraman, D; Lee, S; Moore, JS; Zhang, P; Hirsch, KA; Gardner, GB; Covey, AC; Prentice, CL. Coordination networks based on multitopic ligands and silver(I) salts: A study of network connectivity and topology as a function of counterion. Chem. Mater 1996, 8, 2030–2040. [Google Scholar]
  115. Munakata, M; Wu, LP; Kuroda-Sowa, T; Maekawa, M; Moriwaki, K; Kitagawa, S. Two types of new polymeric copper(I) complexes of pyrazinecarboxamide having channel and helical structures. Inorg. Chem 1997, 36, 5416–5418. [Google Scholar]
  116. Khlobystov, AN; Blake, AJ; Champness, NR; Lemenovskii, DA; Majouga, AG; Zyk, NV; Schröder, M. Supramolecular design of one-dimensional coordination polymers based on silver(I) complexes of aromatic nitrogen-donor ligands. Coord. Chem. Rev 2001, 222, 155–192. [Google Scholar]
  117. Suh, MP; Ko, JW; Choi, HJ. A metal-organic bilayer open framework with a dynamic component: Single-crystal-to-single-crystal transformations. J. Am. Chem. Soc 2002, 124, 10976–10977. [Google Scholar]
  118. Jung, O-S; Kim, YJ; Lee, Y-A; Park, K-M; Lee, SS. Subtle role of polyatomic anions in molecular construction: Structures and properties of AgX bearing 2,4′-thiobis(pyridine) (X = NO3, BF4, ClO4, PF6, CF3CO2, and CF3SO3). Inorg. Chem 2003, 42, 844–850. [Google Scholar]
  119. Maji, TK; Matsuda, R; Kitagawa, S. A flexible interpenetrating coordination framework with a bimodal porous functionality. Nat. Mater 2007, 6, 142–148. [Google Scholar]
  120. Dong, Y-B; Jiang, Y-Y; Li, J; Ma, J-P; Liu, F-L; Tang, B; Huang, R-Q; Batten, SR. Temperature-dependent synthesis of metal-organic frameworks based on a flexible tetradentate ligand with bidirectional coordination donors. J. Am. Chem. Soc 2007, 129, 4520–4521. [Google Scholar]
  121. Cussen, EJ; Claridge, JB; Rosseinsky, MJ; Kepert, CJ. Flexible sorption and transformation behavior in a microporous metal-organic framework. J. Am. Chem. Soc 2002, 124, 9574–9581. [Google Scholar]
  122. Noro, S-I; Kitaura, R; Kondo, M; Kitagawa, S; Ishii, T; Matsuzaka, H; Yamashita, M. Framework engineering by anions and porous functionalities of Cu(II)/4,4′-bpy coordination polymers. J. Am. Chem. Soc 2002, 124, 2568–2583. [Google Scholar]
  123. Huang, Y-Q; Ding, B; Song, H-B; Zhao, B; Ren, P; Cheng, P; Wang, H-G; Liao, D-Z; Yan, S-P. A novel 3D porous metal–organic framework based on trinuclear cadmium clusters as a promising luminescent material exhibiting tunable emissions between UV and visible wavelengths. Chem. Commun 2006, 47, 4906–4908. [Google Scholar]
  124. Hobza, P; Zahradnik, R. Intermolecular Complexes: The Role of van der Waals Systems in Physical Chemistry and in the Biodisciplines; Elsevier: Oxford, UK, 1988. [Google Scholar]
  125. Dincá, M; Long, JR. Hydrogen storage in microporous metal-organic frameworks with exposed metal sites. Angew. Chem. Int. Ed 2008, 47, 6766–6779. [Google Scholar]
  126. Vitillo, JG; Regli, L; Chavan, S; Ricchiardi, G; Spoto, G; Dietzel, PDC; Bordiga, S; Zecchina, A. Role of exposed metal sites in hydrogen storage in MOFs. J. Am. Chem. Soc 2008, 130, 8386–8396. [Google Scholar]
  127. Nouar, F; Eckert, J; Eubank, JF; Forster, P; Eddaoudi, M. Zeolite-like metal-organic frameworks (ZMOFs) as hydrogen storage platform: Lithium and magnesium ion-exchange and H2-(rho-ZMOF) interaction studies. J. Am. Chem. Soc 2009, 131, 2864–2870. [Google Scholar]
  128. Hamon, L; Serre, C; Devic, T; Loiseau, T; Millange, F; Férey, G; Weireld, GD. Comparative study of hydrogen sulfide adsorption in the MIL-53(Al, Cr, Fe), MIL-47(V), MIL-100(Cr), and MIL-101(Cr) Metal-Organic Frameworks at Room Temperature. J. Am. Chem. Soc 2009, 131, 8775–8777. [Google Scholar]
  129. Dincá, M; Long, JR. High-enthalpy hydrogen adsorption in cation-exchanged variants of the microporous metal-organic framework Mn3[(Mn4Cl)3(BTT)8(CH3OH)10]2. J. Am. Chem. Soc 2007, 129, 11172–11176. [Google Scholar]
  130. Caskey, SR; Wong-Foy, AG; Matzger, AJ. Dramatic tuning of carbon dioxide uptake via metal substitution in a coordination polymer with cylindrical pores. J. Am. Chem. Soc 2008, 130, 10870–10871. [Google Scholar]
  131. Zhou, W; Wu, H; Yildirim, T. Enhanced H2 adsorption in isostructural metal-organic frameworks with open metal sites: Strong dependence of the binding strength on metal ions. J. Am. Chem. Soc 2008, 130, 15268–15269. [Google Scholar]
  132. Wu, H; Zhou, W; Yildirim, T. High-capacity methane storage in metal-organic frameworks M(dhtp): The important role of open metal sites. J. Am. Chem. Soc 2009, 131, 4995–5000. [Google Scholar]
  133. Serre, C; Millange, F; Thouvenot, C; Noguès, M; Marsolier, G; Louër, D; Férey, G. Very large breathing effect in the first nanoporous cromium(III)-based solids: MIL-53 or Cr(III)(OH)·{O2C-C6H4-CO2}·{HO2C-C6H4-CO2H}x·H2Oy. J. Am. Chem. Soc 2002, 124, 13519–13526. [Google Scholar]
  134. Férey, G; Latroche, M; Serre, C; Millange, F; Loiseau, T; Percheron-Guégan, A. Hydrogen adsorption in the nanoporous metal-benzenedicarboxylate M(OH)(O2C-C6H4-CO2) (M = Al3+, Cr3+), MIL-53. Chem. Commun 2003, 2976–2977. [Google Scholar]
  135. Bourrelly, S; Llewellyn, PL; Serre, C; Millange, F; Loiseau, T; Férey, G. Different adsorption behaviors of methane and carbon dioxide in the isotypic nanoporous metal terephthalates MIL-53 and MIL-47. J. Am. Chem. Soc 2005, 127, 13519–13521. [Google Scholar]
  136. Ramsahye, NA; Maurin, G; Bourrelly, S; Llewellyn, PL; Devic, T; Serre, C; Loiseau, T; Férey, G. Adsorption of CO2 in metal organic frameworks of different metal centres: Grand canonical monte carlo simulations compared to experiments. Adsorption 2007, 13, 461–467. [Google Scholar]
  137. Buckingham, AD; Disch, RL; Dunmur, DA. Quadrupole moments of some simple molecules. J. Am. Chem. Soc 1968, 90, 3104–3107. [Google Scholar]
  138. Wang, K; Do, DD. Characterizing the micropore size distribution of activated carbon using equilibrium data of many adsorbates at various temperatures. Langmuir 1997, 13, 6226–6233. [Google Scholar]
  139. Bojan, MJ; Steele, WA. Interactions of diatomic molecules with graphite. Langmuir 1987, 3, 1123–1127. [Google Scholar]
  140. Garciía-Pérez, E; Gascón, J; Morales-Flórez, V; Castillo, JM; Kapteijn, F; Calero, S. Identification of adsorption sites in Cu-btc by experimentation and molecular simulation. Langmuir 2009, 25, 1725–1731. [Google Scholar]
  141. Jiang, Y; Huang, J; Kasumaj, B; Jeschke, G; Hunger, M; Mallat, T; Baiker, A. Adsorption-desorption induced structural changes of Cu-MOF evidenced by solid state NMR and EPR spectroscopy. J. Am. Chem. Soc 2009, 131, 2058–2059. [Google Scholar]
  142. Kaneko, K; Shimizu, K; Suzuki, T. Intrapore field-dependent micropore filling of supercritical N2 in slit-shaped micropores. J. Chem. Phys 1992, 97, 8705–8711. [Google Scholar]
  143. Yaghi, OM; O’Keeffe, M; Ockwig, NW; Chae, HK; Eddaoudi, M; Kim, J. Reticular synthesis and the design of new materials. Nature 2003, 423, 705–714. [Google Scholar]
  144. Lin, X; Jia, J; Zhao, X; Thomas, KM; Blake, AJ; Walker, GS; Champness, NR; Hubberstey, P; Schröder, M. High H2 adsorption by coordination-framework materials. Angew. Chem. Int. Ed 2006, 45, 7358–7364. [Google Scholar]
  145. Collins, DJ; Zhou, H-C. Hydrogen storage in metal-organic frameworks. J. Mater. Chem 2007, 17, 3154–3160. [Google Scholar]
  146. Wang, B; Côte, AP; Furukawa, H; O’Keeffe, M; Yaghi, OM. Colossal cages in zeolitic imidazolate frameworks as selective carbon dioxide reservoirs. Nature 2008, 453, 207–211. [Google Scholar]
  147. Wang, X-S; Ma, S; Rauch, K; Simmons, JM; Yuan, D; Wang, X; Yildirim, T; Cole, WC; López, JJ; Meijere, AD; Zhou, H-C. Metal-organic frameworks based on double-bond-coupled di-isophthalate linkers with high hydrogen and methane uptakes. Chem. Mater 2008, 20, 3145–3152. [Google Scholar]
  148. Cavka, JH; Jakobsen, S; Olsbye, U; Guillou, N; Lamberti, C; Bordiga, S; Lillerud, KP. A new zirconium inorganic building brick forming metal organic frameworks with exceptional stability. J. Am. Chem. Soc 2008, 130, 13850–13851. [Google Scholar]
  149. Banerjee, R; Furukawa, H; Britt, D; Knobler, C; O’Keeffe, M; Yaghi, OM. Control of pore size and functionality in isoreticular zeolitic imidazolate frameworks and their carbon dioxide selective capture properties. J. Am. Chem. Soc 2009, 131, 3875–3877. [Google Scholar]
  150. Yang, S; Lin, X; Dailly, A; Blake, AJ; Hubberstey, P; Champness, NR; Schröder, M. Enhancement of H2 adsorption in coordination framework materials by use of ligand curvature. Chem. Eur. J 2009, 15, 4829–4835. [Google Scholar]
  151. Steel, PJ. Aromatic nitrogen heterocycles as bridging ligands; a survey. Coord. Chem. Rev 1990, 106, 227–265. [Google Scholar]
  152. Biradha, K; Fujita, M. A ‘three-in-one’ crystal of coordination networks. Chem. Commun 2002, 8, 1866–1867. [Google Scholar]
  153. Biradha, K; Sarkar, M; Rajput, L. Crystal engineering of coordination polymers using 4,4- bipyridine as a bond between transition metal atoms. Chem. Commun 2006, 38, 4169–4179. [Google Scholar]
  154. Noro, S-I; Kitagawa, S; Akutagawa, T; Nakamura, T. Coordination polymers constructed from transition metal ions and organic N-containing heterocyclic ligands: Crystal structures and microporous properties. Prog. Polym. Sci 2009, 34, 240–279. [Google Scholar]
  155. Moulton, B; Zaworotko, MJ. From molecules to crystal engineering: Supramolecular isomerism and polymorphism in network solids. Chem. Rev 2001, 101, 1629–1658. [Google Scholar]
  156. Haynes, JS; Rettig, SJ; Sams, JR; Thompson, RC; Trotter, J. Structure and magnetic exchange in poly-bis(pyrazine)bis(methanesulfonato-o)-copper(II). One-dimensional exchange in a two-dimensional polymer. Can. J. Chem 1987, 65, 420–426. [Google Scholar]
  157. Real, JA; De Munno, G; Muñoz, MC; Julve, M. Crystal structure and magnetic properties of bis(isothiocyanato)bis(pyrazine)iron polymer, a 2D sheetlike polymer. Inorg. Chem 1991, 30, 2701–2704. [Google Scholar]
  158. Tong, ML; Chen, XM; Yu, XL; Mak, TCW. A novel two-dimensional rectangular network. Synthesis and structure of {[Cu(4,4′-bpy)(pyz)(H2O)2][PF6]2}n (4,4′-bpy = 4,4′-bipyridine, pyz = pyrazine). J. Chem. Soc. Dalton Trans 1998, 2, 5–6. [Google Scholar]
  159. Kondo, M; Shimamura, M; Noro, S-I; Minakoshi, S; Asami, A; Seki, K; Kitagawa, S. Microporous materials constructed from the interpenetrated coordination networks. Structures and methane adsorption properties. Chem. Mater 2000, 12, 1288–1299. [Google Scholar]
  160. Biradha, K; Hongo, Y; Fujita, M. Crystal-to-crystal sliding of 2D coordination layers triggered by guest exchange. Angew. Chem. Int. Ed 2002, 41, 3395–3398. [Google Scholar]
  161. Zaman, MB; Udachin, K; Ripmeester, JA; Smith, MD; zur Loye, H-C. Synthesis and characterization of diverse coordination polymers. Linear and zigzag chains involving their structural transformation via intermolecular hydrogen-bonded, interpenetrating ladders polycatenane, and noninterpenetrating square grid from long, rigid N,N′, -bidentate ligands: 1,4- bis[(X-pyridyl)ethynyl]benzene (X = 3 and 4). Inorg. Chem 2005, 44, 5047–5059. [Google Scholar]
  162. Carlucci, L; Ciani, G; Proserpio, DM. Three-dimensional architectures of intertwined planar coordination polymers: The first case of interpenetration involving two different bidimensional polymeric motifs. New J. Chem 1998, 22, 1319–1321. [Google Scholar]
  163. Maji, TK; Ohba, M; Kitagawa, S. Transformation from a 2D stacked layer to 3D interpenetrated framework by changing the spacer functionality: Synthesis, structure, adsorption, and magnetic properties. Inorg. Chem 2005, 44, 9225–9231. [Google Scholar]
  164. Du, M; Jiang, X-J; Zhao, X-J. Direction of unusual mixed-ligand metal–organic frameworks: A new type of 3-D polythreading involving 1-D and 2-D structural motifs and a 2-fold interpenetrating porous network. Chem. Commun 2005, 11, 5521–5523. [Google Scholar]
  165. Domasevitch, KV; Gural’skiy, IYA; Solntsev, PV; Rusanov, EB; Krautscheid, H; Howard, JA; Chernega, AN. 4,4-Bipyridazine: A new twist for the synthesis of coordination polymers. Dalton Trans 2007, 29, 3140–3148. [Google Scholar]
  166. Real, JA; André, E; Muñoz, MC; Julve, M; Granier, T; Bousseksou, A; Varret, F. Spin crossover in a catenane supramolecular system. Science 1995, 268, 265–267. [Google Scholar]
  167. Zhou, J-S; Cai, J; Wang, L; Ng, S-W. Reversible and selective amine interactions of [Cd(μ2- N,O-p-NH2C6H4SO3)2(H2O)2]n. Dalton Trans 2004, 9, 1493–1497. [Google Scholar]
  168. Uemura, K; Kitagawa, S; Fukui, K; Saito, K. A contrivance for a dynamic porous framework: Cooperative guest adsorption based on square grids connected by amide-amide hydrogen bonds. J. Am. Chem. Soc 2004, 126, 3817–3828. [Google Scholar]
  169. Takaoka, K; Kawano, M; Tominaga, M; Fujita, M. In situ observation of a reversible single-crystal- to-single-crystal apical-ligand-exchange reaction in a hydrogen-bonded 2D coordination network. Angew. Chem. Int. Ed 2005, 44, 2151–2154. [Google Scholar]
  170. Custelcean, R; Gorbunova, MG. A metal-organic framework functionalized with free carboxylic acid sites and its selective binding of a Cl(H2O)4 cluster. J. Am. Chem. Soc 2005, 127, 16362–16363. [Google Scholar]
  171. Davidson, GJE; Loeb, SJ. Channels and cavities lined with interlocked components: Metal-based polyrotaxanes that utilize pyridinium axles and crown ether wheels as ligands. Angew. Chem. Int. Ed 2003, 42, 74–77. [Google Scholar]
  172. Pschirer, NG; Ciurtin, DM; Smith, MD; Bunz, UHF; zur Loye, H-C. Noninterpenetrating square-grid coordination polymers with dimensions of 25 × 25 Å2 prepared by using N,N′-type ligands: The first chiral square-grid coordination polymer. Angew. Chem. Int. Ed 2002, 41, 583–585. [Google Scholar]
  173. Hagrman, D; Hammond, RP; Haushalter, R; Zubieta, J. Organic/inorganic composite materials: Hydrothermal syntheses and structures of the one-, two-, and three-dimensional copper(II) sulfate-organodiamine phases [Cu(H2O)3(4,4′-bipyridine)(SO4)]·2H2O, [Cu(bpe)2][Cu(bpe)(H2O)2(SO4)2]·2H2O, and [Cu(bpe)(H2O)(SO4)] (bpe = trans-1,2-Bis(4- pyridyl)ethylene). Chem. Mater 1998, 10, 2091–2100. [Google Scholar]
  174. Withersby, MA; Blake, AJ; Champness, NR; Cooke, PA; Hubberstey, P; Realf, AL; Teat, SJ; Schröder, M. Engineering of co-ordination polymers of trans-4,4′-azobis(pyridine) and trans-1,2-bis(pyridin-4-yl)ethene: A range of interpenetrated network motifs. J. Chem. Soc., Dalton Trans 2000, 3261–3268. [Google Scholar]
  175. Zaworotko, MJ. Superstructural diversity in two dimensions: Crystal engineering of laminated solids. Chem. Commun 2001, 1–9. [Google Scholar]
  176. Evans, OR; Lin, W. Crystal engineering of NLO materials based on metal-organic coordination networks. Acc. Chem. Res 2002, 35, 511–522. [Google Scholar]
  177. Pothiraja, R; Sathiyendiran, M; Butcher, RJ; Murugavel, R. Cobalt and manganese nets via their wires: Facile transformation in metal-diorganophosphates. Inorg. Chem 2004, 43, 7585–7587. [Google Scholar]
  178. Pothiraja, R; Sathiyendiran, M; Butcher, RJ; Murugavel, R. Non-interpenetrating transition metal diorganophosphate 2-dimensional rectangular grids from their 1-dimensional wires: Structural transformations under mild conditions. Inorg. Chem 2005, 44, 6314–6323. [Google Scholar]
  179. Lu, J; Paliwala, T; Lim, SC; Yu, C; Niu, T; Jacobson, AJ. Coordination polymers of Co(NCS)2 with pyrazine and 4,4′-bipyridine: Syntheses and structures. Inorg. Chem 1997, 36, 923–929. [Google Scholar]
  180. Reichert, WM; Holbrey, JD; Vigour, KB; Morgan, TD; Broker, GA; Rogers, RD. Approaches to crystallization from ionic liquids: Complex solvents–complex results, or, a strategy for controlled formation of new supramolecular architectures? Chem. Commun 2006, 46, 4767–4779. [Google Scholar]
  181. Lu, J; Li, H-F; Xiao, F-X; Cao, R. A new lamellar solid trapping water clusters and intercalated organosulfonate guests. Inorg. Chem. Commun 2007, 10, 614–617. [Google Scholar]
  182. Felloni, M; Blake, AJ; Champness, NR; Hubberstey, P; Wilson, C; Schröder, M. Supramolecular interactions in 4,4′-bipyridine cobalt(II) nitrate networks. J. Supramol. Chem 2002, 2, 163–174. [Google Scholar]
  183. Fu, R; Hu, S; Wu, X. Syntheses, structures, and properties of five coordination polymers containing fluorescent whitener. Inorg. Chem 2007, 46, 9630–9640. [Google Scholar]
  184. Biradha, K; Domasevitch, KV; Hogg, C; Moulton, B; Power, KN; Zaworotko, MJ. Interpenetrating covalent and noncovalent nets in the crystal structures of [M(4,4′-Bipyridine)2(NO3)2]3C10H8 (M = Co, Ni). Cryst. Eng 1999, 2, 37–45. [Google Scholar]
  185. Moulton, B; Rather, EB; Zaworotko, MJ. Interpenetration of covalent and noncovalent networks in the crystal structures of {[M(4,4′-bipyridine)2(NO3)2]·2p-nitroaniline}n where M=Co, 1, Ni, 2, Zn, 3. Cryst. Eng 2001, 4, 309–317. [Google Scholar]
  186. Biradha, K; Mondai, A; Moulton, B; Zaworotko, MJ. Coexisting covalent and non-covalent planar networks in the crystal structures of {[M(bipy)2(NO3)2]·arene} (M = Ni, 1; Co, 2; arene = chlorobenzene, o-dichlorobenzene, benzene, nitrobenzene, toluene or anisole). J. Chem. Soc. Dalton Trans 2000, 3837–3844. [Google Scholar]
  187. Biradha, K; Domasevitch, KV; Moulton, B; Seward, C; Zaworotko, MJ. Covalent and noncovalent interpenetrating planar networks in the crystal structure of {[Ni(4,4′-bipyridine)2(NO3)2·2pyrene}n. Chem. Commun 1999, 1327–1328. [Google Scholar]
  188. Zhang, Y; Jianmin, L; Nishiura, M; Imamoto, T. Spectral and structural properties of 2D network complex [Ni(4,4′-bipyridine)2(NCS)2]n. J. Mol. Struct 2000, 519, 219–224. [Google Scholar]
  189. Zhang, Y; Jianmin, L; Wei, D; Nishihara, M; Imamoto, T. The most effective packing of layers: Synthesis and structure of [Ni(4,4′-bipyridine)2(NCS)2]n. Chem. Lett 1999, 195–196. [Google Scholar]
  190. Jiang, Y-C; Lai, Y-C; Wang, S-L; Lii, K-H. [Ni(4,4′-bpy)2(H2PO4)2]·C4H9OH·H2O: A novel metal phosphate that exhibits interpenetration of 2D net into 3D framework. Inorg. Chem 2001, 40, 5320–5321. [Google Scholar]
  191. Kanoh, H; Kondo, A; Noguchi, H; Kajiro, H; Tohdoh, A; Hattori, Y; Xu, W-C; Inoue, M; Sugiura, T; Morita, K; Tanaka, H; Ohba, T; Kaneko, K. Elastic layer-structured metal organic frameworks (ELMs). J. Colloid Interface Sci 2009, 334, 1–7. [Google Scholar]
  192. Du, M; Chen, S-T; Bu, X-H; Ribas, J. Crystal structure and properties of a Cu(II) coordination polymer with 2-D grid-like host architecture for the inclusion of organic guest molecule. Inorg. Chem. Commun 2002, 5, 1003–1006. [Google Scholar]
  193. Jiana, Z; Zhao-Jia, L; Ye-Yana, Q; Yi-Hanga, W; Yaoa, K; Jian-Kaia, C; Yuan-Gena, Y. Syntheses and characterizations of two copper coordination polymers constructed by 4,4′-bipyridine. Chin. J. Struct. Chem 2004, 23, 1366–1370. [Google Scholar]
  194. Naumov, P; Jovanovski, G; Hanna, JV; Razak, IA; Chantrapromma, S; Fun, H-K; Ng, SW. Diaquabis(4,4′-bipyridine)copper(II) di(o-sulfobenzimidate) dichloromethane solvate, a two-dimensional Cu4(4,4′-C5H4NC5H4N)4 rhombic grid clathrating guest dichloromethane. Inorg. Chem. Commun 2001, 4, 766–768. [Google Scholar]
  195. Thuéry, P. Uranyl citrate dimers as guests in a copper-bipyridine framework: A novel heterometallic inorganic–organic hybrid compound. CrystEngComm 2007, 9, 358–360. [Google Scholar]
  196. Williams, PAM; Ferrer, EG; Baran, EJ. Characterization of a novel Cu(II)/4,4′-bipyridine coordination polymer containing square grids. Z. Anorg. Allg. Chem 2002, 628, 2044–2048. [Google Scholar]
  197. Niu, C; Wu, B; Zhang, H; Li, Z; Hou, H. Chiral metal-organic and supramolecular interpenetrating 3-D frameworks constructed by one angular ligand and 4,4′-dipyridine. Inorg. Chem. Commun 2008, 11, 377–380. [Google Scholar]
  198. Tong, M-L; Ye, B-H; Cai, J-W; Chen, X-M; Ng, SW. Clathration of two-dimensional coordination polymers: Synthesis and structures of [M(4,4′-bpy)2(H2O)2](ClO4)2(2,4′-bpy)2·H2O and [Cu(4,4′-bpy)2(H2O)2](ClO4)4·(4,4′-H2bpy) (M = CdII, ZnII and bpy = bipyridine). Inorg. Chem 1998, 37, 2645–2650. [Google Scholar]
  199. Tong, M-L; Zheng, S-L; Chen, X-M. Synthesis and structures of two-dimensional coordination polymers constructed by metal salts and 4,4′-bipyridine. Polyhedron 2000, 19, 1809–1814. [Google Scholar]
  200. Lian, Z-X; Cai, J; Chen, C-H. A series of metal-organic frameworks constructed with arenesulfonates and 4,4′-bipy ligands. Polyhedron 2007, 26, 2647–2654. [Google Scholar]
  201. Mi, L; Hou, H; Song, Z; Han, H; Fan, Y. Polymeric zinc ferrocenyl sulfonate as a molecular aspirator for the removal of toxic metal ions. Chem. Eur. J 2008, 14, 1814–1821. [Google Scholar]
  202. McManus, GJ; Perry, JJ; Perry, M; Wagner, BD; Zaworotko, MJ. Exciplex fluorescence as a diagnostic probe of structure in coordination polymers of Zn2+ and 4,4′-bipyridine containing intercalated pyrene and enclathrated aromatic solvent guests. J. Am. Chem. Soc 2007, 129, 9094–9101. [Google Scholar]
  203. Gable, RW; Hoskins, BF; Robson, R. A new type of interpenetration involving enmeshed independent square grid sheets. The structure of diaquabis-(4,4′-bipyridine)zinc hexafluorosilicate. J. Chem. Soc. Chem. Commun 1990, 1677–1678. [Google Scholar]
  204. Ohmori, O; Fujita, M. Heterogeneous catalysis of a coordination network: Cyanosilylation of imines catalyzed by a Cd(II)-(4,4′-bipyridine) square grid complex. Chem. Commun 2004, 10, 1586–1587. [Google Scholar]
  205. Aoyagi, M; Biradha, K; Fujita, M. Formation of two, one, and zero-dimensional coordination assemblies from Cd(II) ion and 4,4′-bipyridine. Bull. Chem. Soc. Jpn 2000, 73, 1369–1373. [Google Scholar]
  206. Fu, Z-Y; Lin, P; Du, W-X; Chen, L; Cui, C-P; Zhang, W-J; Wu, X-T. Two new coordination host frameworks for the inclusion of 4-amino-benzophenone guest molecules. Polyhedron 2001, 20, 1925–1931. [Google Scholar]
  207. Huang, SD; Lewandowski, BJ; Lro, CC; Shan, Y. [Cd(4,4′-bipy)2(NO3)2](2-nitroaniline)2, a novel two-dimensional lattice inclusioncompound. Acta. Cryst 1999, C55, 2016–2018. [Google Scholar]
  208. Liu, C-M; Xiong, R-G; You, X-Z; Chen, W. A two-dimensional square network inclusion compound incorporating guest molecules through both hydrogen bonding and nonionic electrostatic attraction. Crystal structure of [Cd(4,4′-bpy)2(H2O)2]·(ClO4)2·1.5(4,4′-bpy)·(C6H4NO3Cl)·H2O. Acta Chem. Scand 1998, 52, 1353–1358. [Google Scholar]
  209. Huang, SD; Xiong, R-G. Molecular recognition of organic chromosphores by coordination polymers: Design and construction of nonlinear optical supramolecular assemblies. Polyhedron 1997, 16, 3929–3939. [Google Scholar]
  210. Robson, R; Abrahams, BF; Batten, SR; Gable, RW; Hoskins, BF; Liu, J. Crystal Engineering of Novel Materials Composed of Infinite Two- and Three-Dimensional Frameworks. In Supramolecular Architecture; American Chemical Society: Washington, DC, USA, 1992; pp. 256–273. [Google Scholar]
  211. Liu, C-M; Xiong, R-G; You, X-Z; Chen, W; Lo, K-M. Molecular recognition of an organic molecule through a two dimensional square network inclusion complex. Synthesis and crystal structure of [Cd(4,4′-bpy)2(H2O)2](BF4)2·2(4,4′-bpy)·(C6H6N2O2)·2H2O. J. Coord. Chem 1998, 46, 211–220. [Google Scholar]
  212. Yang, E-C; Dai, P-X; Wang, X-G; Ding, B; Zhao, X-J. Three novel mixed-ligand cadmium(II) sulfonates with aza-aromatic skeltons as co-ligands. Z. Anorg. Allg. Chem 2007, 633, 615–620. [Google Scholar]
  213. Liang, FP; Chen, ZL; Hu, RX; Liang, H; Zhou, ZH. Infinite three-dimensional coordination polymers: Synthesis and structures of [Cd(4,4′-bpy)2(H2O)2]n·(pic)2n, [Zn(4,4′-bpy)2(H2O)2]n·(pic)2n(H2O)2n, and [Zn(4,4′-bpy)2(H2O)2]n·(4,4′-bpy)n(H2O)n(pic)2n. Chin. Chem. Lett 2000, 11, 369–372. [Google Scholar]
  214. Liang, F-P; Chen, Z-L; Hu, RX; Liang, H; Yu, KB; Zhou, ZH. Syntheses and crystal structures of the complexes formed by zinc and 4,4′-bipyridin. Chin. J. Inorg. Chem 2001, 17, 699–703. [Google Scholar]
  215. Liang, F-P; Chen, Z-L; Hu, RX; Liang, H; Yu, KB; Zhou, ZH. Syntheses and crystal structures of the complexes of transition metal with 4,4′-bipyridine. Acta Chim. Sinica 2001, 59, 405–412. [Google Scholar]
  216. Kwon, YJ. Infinite framework material composed of 4,4′-bipyridine: Shapeselective clathration of aromatic guests. J. Korean Fiber Soc 1996, 33, 980–984. [Google Scholar]
  217. Kitagawa, S; Kondo, M. Functional micropore chemistry of crystalline metal complex-assembled compounds. Bull. Chem. Soc. Jpn 1998, 71, 1739–1753. [Google Scholar]
  218. Fletcher, AJ; Thomas, KM; Rosseinsky, MJ. Flexibility in metal-organic framework materials: Impact on sorption properties. J. Solid State Chem 2005, 178, 2491–2510. [Google Scholar]
  219. Hirsch, KA; Venkataraman, D; Wilson, SR; Moore, JS; Lee, S. Crystallization of 4,4′-biphenyldicarbonitrile with silver(I) salts: A change in topology concomitant with a change in counterion leading to a ninefold diamondoid network. J. Chem. Soc. Chem. Commun 1995, 2199–2200. [Google Scholar]
  220. Hagrman, PJ; Hagrman, D; Zubieta, J. Organic-inorganic hybrid materials: From “simple” coordination polymers to organodiamine-templated molybdenum oxides. Angew. Chem. Int. Ed 1999, 38, 2638–2684. [Google Scholar]
  221. Maekawa, M; Nabei, A; Tominaga, T; Sugimoto, K; Minematsu, T; Okubo, T; Kuroda-Sowa, T; Munakata, M; Kitagawa, S. A unique chair-shaped hexanuclear Cu(I) metallamacrocyclic C2H4 adduct encapsulating a BF4 anion. Dalton Trans 2009, 415–417. [Google Scholar]
  222. Kim, H-J; Lee, J-H; Lee, M. Stimuli-responsive gels from reversible coordination polymers. Angew. Chem. Int. Ed 2005, 44, 5810–5814. [Google Scholar]
  223. Kobayashi, K; Asakawa, Y; Kikuchi, Y; Toi, H; Aoyama, Y. CH-π interaction as an important driving force of host-guest complexation in apolar organic media. Binding of monools and acetylated compounds to resorcinol cyclic tetramer as studied by proton NMR and circular dichroism spectroscopy. J. Am. Chem. Soc 1993, 115, 2648–2654. [Google Scholar]
  224. Janiak, C. A critical account on π-π stacking in metal complexes with aromatic nitrogen-containing ligands. J. Chem. Soc. Dalton Trans 2000, 21, 3885–3896. [Google Scholar]
  225. Tuna, F; Hamblin, J; Jackson, A; Clarkson, G; Alcock, NW; Hannon, MJ. Metallo-supramolecular libraries: Triangles, polymers and double-helicates assembled by copper(I) coordination to directly linked bis-pyridylimine ligands. Dalton Trans 2003, 2141–2148. [Google Scholar]
  226. Black, CA; Hanton, LR; Spicer, MD. A coordination polymer strategy for anion encapsulation: Anion-π interactions in (4,4) nets formed from Ag(I) salts and a flexible pyrimidine ligand. Chem. Commun 2007, 30, 3171–3173. [Google Scholar]
  227. Uemura, K; Kumamoto, Y; Kitagawa, S. Zipped-up chain-type coordination polymers: Unsymmetrical amide-containing ligands inducing beta-sheet or helical structures. Chem. Eur. J 2008, 14, 9565–9576. [Google Scholar]
  228. Shimoni, L; Camell, HL; Clusker, JP; Coombs, MM. Intermolecular effects in crystals of 11-(trifluoromethy1)-15,16-dihydrocyclopenta[α]phenanthren-17-one. J. Am. Chem. Soc 1994, 116, 8162–8168. [Google Scholar]
  229. Soldatov, DV; Ripmeester, JA; Shergina, SI; Sokolov, IE; Zanina, AS; Gromilov, SA; Dyadin, YA. α- and β-Bis(1,1,1-trifluoro-5,5-dimethyl-5-methoxyacetylacetonato)copper(II): Transforming the dense polymorph into a versatile new microporous framework. J. Am. Chem. Soc 1999, 121, 4179–4188. [Google Scholar]
  230. Adams, H; Cockroft, SL; Guardigli, C; Hunter, CA; Lawson, KR; Perkins, J; Spey, SE; Urch, CJ; Ford, R. Experimental measurement of noncovalent interactions between halogens and aromatic rings. ChemBioChem 2004, 5, 657–665. [Google Scholar]
  231. Hof, F; Scofield, DM; Schweizer, WB; Diederich, F. A weak attractive interaction between organic fluorine and an amide group. Angew. Chem. Int. Ed 2004, 43, 5056–5059. [Google Scholar]
  232. Pan, L; Olson, DH; Ciemnolonski, LR; Heddy, R; Li, J. Separation of hydrocarbons with a microporous metal-organic framework. Angew. Chem. Int. Ed 2006, 45, 616–619. [Google Scholar]
  233. Sato, S; Iida, J; Suzuki, K; Kawano, M; Ozeki, T; Fujita, M. Fluorous nanodroplets structurally confined in an organopalladium sphere. Science 2006, 313, 1273–1276. [Google Scholar]
  234. Yang, C; Wang, X; Omary, MA. Crystallographic observation of dynamic gas adsorption sites and thermal expansion in a breathable fluorous metal-organic framework. Angew. Chem. Int. Ed 2009, 48, 2500–2505. [Google Scholar]
  235. Biradha, K; Fujita, M. Co-ordination polymers containing square grids of dimension 15 × 15 Å. J. Chem. Soc. Dalton Trans 2000, 3805–3810. [Google Scholar]
  236. Zhao, X; Xiao, B; Fletcher, AJ; Thomas, KM; Bradshaw, D; Rosseinsky, MJ. Hysteretic adsorption and desorption of hydrogen by nanoporous metal-organic frameworks. Science 2004, 306, 1012–1015. [Google Scholar]
  237. Uemura, K; Saito, K; Kitagawa, S; Kita, H. Hydrogen-bonded porous coordination polymers: Structural transformation, sorption properties, and particle size from kinetic studies. J. Am. Chem. Soc 2006, 128, 16122–16130. [Google Scholar]
  238. Tanaka, D; Nakagawa, K; Higuchi, M; Horike, S; Kubota, Y; Kobayashi, TC; Takata, M; Kitagawa, S. Kinetic gate-opening process in a flexible porous coordination polymer. Angew. Chem. Int. Ed 2008, 47, 3914–3918. [Google Scholar]
  239. Wei, Q; Nieuwenhuyzen, M; Meunier, F; Hardacre, C; James, SL. Guest sorption and desorption in the metal-organic framework [Co(ina)2] (ina = isonicotinate)-evidence of intermediate phases during desorption. Dalton Trans 2004, 1807–1811. [Google Scholar]
  240. Lee, EY; Jang, SY; Suh, MP. Multifunctionality and crystal dynamics of a highly stable, porous metal-organic framework [Zn4O(ntb)2]. J. Am. Chem. Soc 2005, 127, 6374–6381. [Google Scholar]
  241. Halder, GJ; Kepert, CJ. In situ single-crystal X-ray diffraction studies of desorption and sorption in a flexible nanoporous molecular framework material. J. Am. Chem. Soc 2005, 127, 7891–7900. [Google Scholar]
  242. Horike, S; Matsuda, R; Tanaka, D; Matsubara, S; Mizuno, M; Endo, K; Kitagawa, S. Dynamic motion of building blocks in porous coordination polymers. Angew. Chem. Int. Ed 2006, 45, 7226–7230. [Google Scholar]
  243. Gould, SL; Tranchemontagne, D; Yaghi, OM; Garcia-Garibay, MA. Amphidynamic character of crystalline MOF-5: Rotational dynamics of terephthalate phenylenes in a free-volume, sterically unhindered environment. J. Am. Chem. Soc 2008, 130, 3246–3247. [Google Scholar]
  244. Seo, J; Matsuda, R; Sakamoto, H; Bonneau, C; Kitagawa, S. A pillared-layer coordination polymer with a rotatable pillar acting as a molecular gate for guest molecules. J. Am. Chem. Soc 2009, 131, 12792–12800. [Google Scholar]
  245. Ruthven, DM; Farooq, S; Knaebel, KS. Pressure Swing Adsorption; John Wiley & Sons, Inc: New York, NY, USA, 1993. [Google Scholar]
  246. Kerry, FG. Industrial Gas Handbook: Gas Separation and Purification; CRC Press: New York, NY, USA, 2007. [Google Scholar]
  247. Koshland, DE; Némethy, G; Filmer, D. Comparison of experimental binding sata and theoretical models in proteins containing subunits. Biochemistry (Mosc) 1966, 5, 365–385. [Google Scholar]
  248. Perutz, MF. Regulation of oxygen affinity of hemoglobin: Influence of structure of the globin on the heme iron. Annu. Rev. Biochem 1979, 48, 327–386. [Google Scholar]
  249. Perutz, MF; Wilkinson, AJ; Paoli, M; Dodson, GG. The stereochemical mechanism of the cooperative effects in hemoglobin revisited. Annu. Rev. Biophys. Biomol. Struct 1998, 27, 1–34. [Google Scholar]
  250. Finsy, V; Ma, L; Alaerts, L; De Vos, DE; Baron, GV; Denayer, JFM. Separation of CO2/CH4 mixtures with the MIL-53(Al) metal-organic framework. Microporous Mesoporous Mater 2009, 120, 221–227. [Google Scholar]
  251. Horike, S; Matsuda, R; Tanaka, D; Mizuno, M; Endo, K; Kitagawa, S. Immobilization of sodiumions on the pore surface of a porous coordination polymer. J. Am. Chem. Soc 2006, 128, 4222–4223. [Google Scholar]
  252. Dhakshinamoorthy, A; Alvaro, M; Garcia, H. Metal organic frameworks as efficient heterogeneous catalysts for the oxidation of benzylic compounds with t-butylhydroperoxide. J. Catal 2009, 267, 1–4. [Google Scholar]
  253. Zhang, X; Llabrés i Xamena, FX; Corma, A. Gold(III)-metal organic framework bridges the gap between homogeneous and heterogeneous gold catalysts. J. Catal 2009, 265, 155–160. [Google Scholar]
  254. Hwang, YK; Hong, D-Y; Chang, J-S; Jhung, SH; Seo, Y-K; Kim, J; Vimont, A; Daturi, M; Serre, C; Férey, G. Amine grafting on coordinatively unsaturated metal centers of MOFs: Consequences for catalysis and metal encapsulation. Angew. Chem. Int. Ed 2008, 47, 4144–4148. [Google Scholar]
  255. Lee, J; Farha, OK; Roberts, J; Scheidt, KA; Nguyen, ST; Hupp, JT. Metal-organic framework materials as catalysts. Chem. Soc. Rev 2009, 38, 1450–1459. [Google Scholar]
  256. Shultz, AM; Farha, OK; Hupp, JT; Nguyen, ST. A catalytically active, permanently microporous MOF with metalloporphyrin struts. J. Am. Chem. Soc 2009, 131, 4204–4205. [Google Scholar]
  257. Ravon, U; Savonnet, M; Aguado, S; Domine, ME; Janneau, E; Farrusseng, D. Engineering of coordination polymers for shape selective alkylation of large aromatics and the role of defects. Microporous Mesoporous Mater 2010, 129, 319–329. [Google Scholar]
  258. Arai, T; Takasugi, H; Sato, T; Noguchi, H; Kanoh, H; Kaneko, K; Yanagisawa, A. Catalytic synthesis of α-hydroxy ketones using organic–inorganic hybrid polymer. Chem. Lett 2005, 34, 1590–1591. [Google Scholar]
  259. Arai, T; Sato, T; Noguchi, H; Kanoh, H; Kaneko, K; Yanagisawa, A. Direct α-hydroxylation of ketones catalyzed by organic–inorganic hybrid polymer. Chem. Lett 2006, 35, 1094–10095. [Google Scholar]
  260. Jiang, D; Mallat, T; Krumeich, F; Baiker, A. Copper-based metal-organic framework for the facile ring-opening of epoxides. J. Catal 2008, 257, 390–395. [Google Scholar]
  261. Mandel-Gutfreund, Y; Margalit, H; Jernigan, RL; Zhurkin, VB. A role for CH...O interactions in protein-DNA recognition. J. Mol. Biol 1998, 277, 1129–1140. [Google Scholar]
Figure 1. Six types of IUPAC adsorption isotherms: X-axis is relative pressure and Y-axis is adsorption amount. Typical traditional nanoporous materials are ordinarily classified into type I adsorption isotherm.
Figure 1. Six types of IUPAC adsorption isotherms: X-axis is relative pressure and Y-axis is adsorption amount. Typical traditional nanoporous materials are ordinarily classified into type I adsorption isotherm.
Ijms 11 03803f1
Figure 2. Gate phenomena of the “blue crystalline” CP/MOF with various gases: (a) CO2 at 273 K, (b) N2 at 77 K, (c) O2 at 77 K, (d) Ar at 77 K, and (e) CH4 at 303 K.
Figure 2. Gate phenomena of the “blue crystalline” CP/MOF with various gases: (a) CO2 at 273 K, (b) N2 at 77 K, (c) O2 at 77 K, (d) Ar at 77 K, and (e) CH4 at 303 K.
Ijms 11 03803f2aIjms 11 03803f2b
Figure 3. Interconversion of preELM-11 (1) and ELM-11.
Figure 3. Interconversion of preELM-11 (1) and ELM-11.
Ijms 11 03803f3
Figure 4. The local structure of ELM-11 (orange, Cu; gray, C; pale purple, N; pink, B; yellow green, F; white, H).
Figure 4. The local structure of ELM-11 (orange, Cu; gray, C; pale purple, N; pink, B; yellow green, F; white, H).
Ijms 11 03803f4
Figure 5. Layer stacking structure of ELM-11: (a) side view and (b) top view.
Figure 5. Layer stacking structure of ELM-11: (a) side view and (b) top view.
Ijms 11 03803f5
Figure 6. Schematic representation of the gate adsorption and transformation of ELM-11 between the closed and the open form.
Figure 6. Schematic representation of the gate adsorption and transformation of ELM-11 between the closed and the open form.
Ijms 11 03803f6
Figure 7. The correspondence of CO2 adsorption isotherm and IR spectral data: Carbon dioxide adsorption/desorption (pink) on ELM-11 and IR spectra (absorbance change of the peak (BF4), blue) at 273 K.
Figure 7. The correspondence of CO2 adsorption isotherm and IR spectral data: Carbon dioxide adsorption/desorption (pink) on ELM-11 and IR spectra (absorbance change of the peak (BF4), blue) at 273 K.
Ijms 11 03803f7

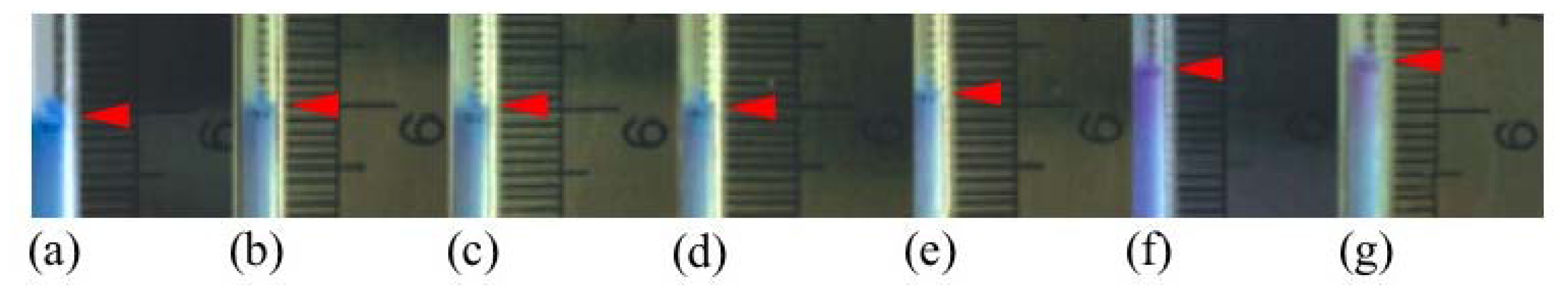

Figure 8. Volume change of ELM-11 accompanied by CO2 adsorption at 273 K: (a) before CO2 adsorption and after CO2 adsorption at (b) 6.66 kPa; (c) 13.3 kPa; (d) 26.7 kPa; (e) 34.7 kPa; (f) 45.3 kPa; (g) 101 kPa.
Figure 8. Volume change of ELM-11 accompanied by CO2 adsorption at 273 K: (a) before CO2 adsorption and after CO2 adsorption at (b) 6.66 kPa; (c) 13.3 kPa; (d) 26.7 kPa; (e) 34.7 kPa; (f) 45.3 kPa; (g) 101 kPa.
Ijms 11 03803f8
Figure 9. Nomenclature of ELMs.
Figure 9. Nomenclature of ELMs.
Ijms 11 03803f9

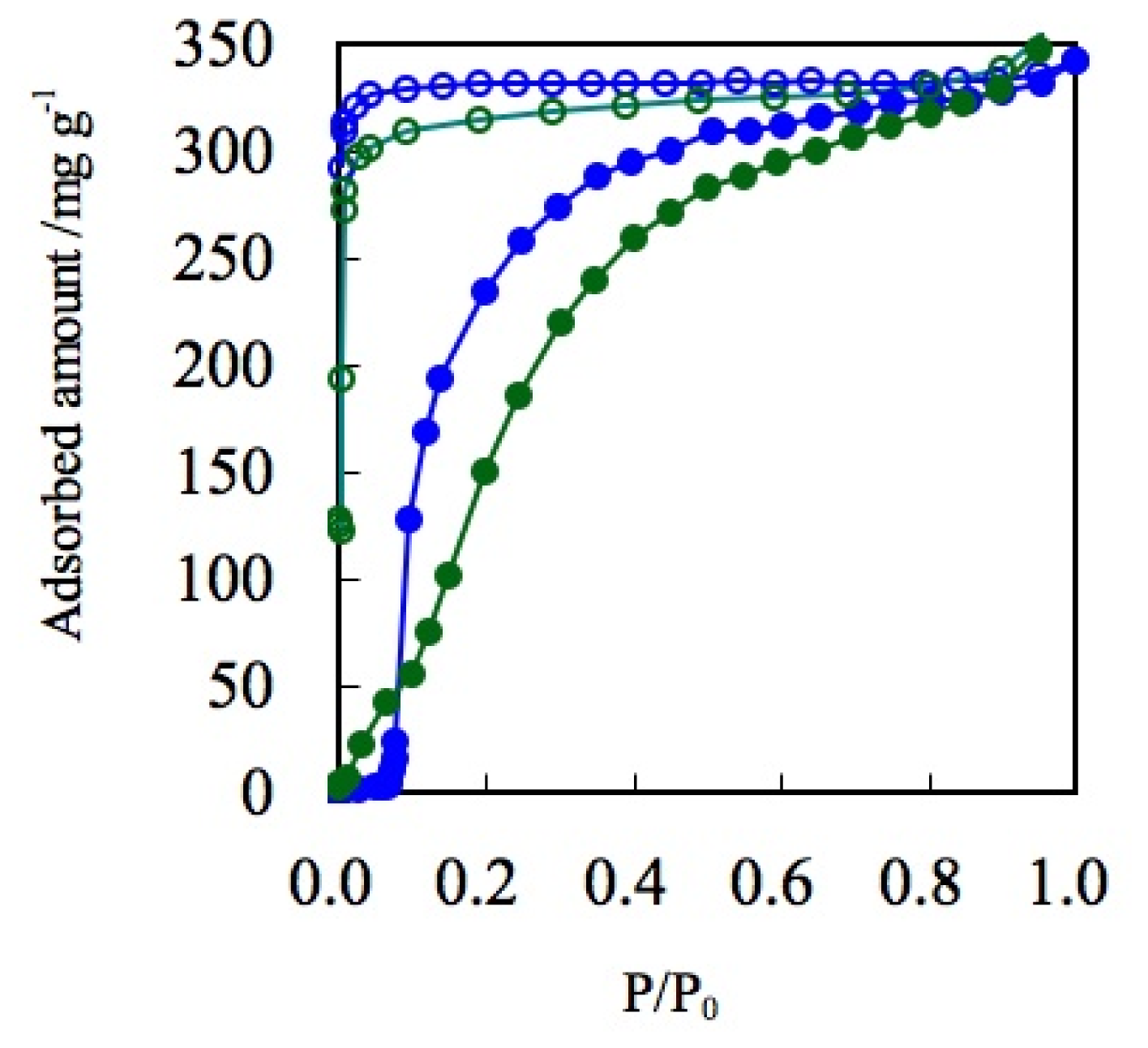

Figure 10. Adsorption isotherms of N2 on ELM-11 (Cu-BF4) (blue circles) and ELM-31 (Ni-BF4)(green circles) at 77 K. Solid and open symbols represent adsorption and desorption, respectively.
Figure 10. Adsorption isotherms of N2 on ELM-11 (Cu-BF4) (blue circles) and ELM-31 (Ni-BF4)(green circles) at 77 K. Solid and open symbols represent adsorption and desorption, respectively.
Ijms 11 03803f10

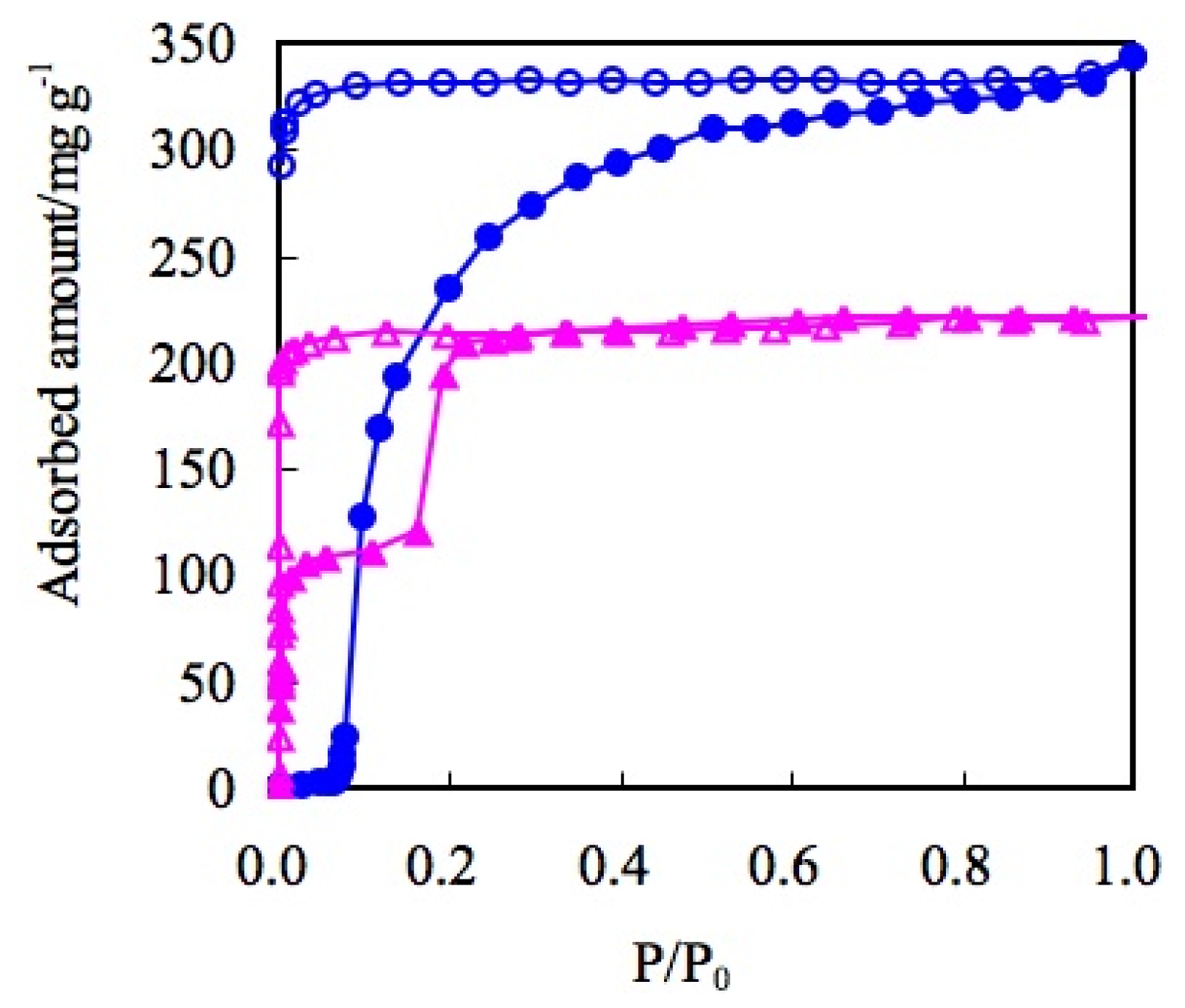

Figure 11. Adsorption isotherms of N2 on ELM-11 (Cu-BF4) (blue circles) and ELM-12 (Cu-OTf)(pink triangles) at 77 K. The solid and open symbols represent adsorption and desorption, respectively.
Figure 11. Adsorption isotherms of N2 on ELM-11 (Cu-BF4) (blue circles) and ELM-12 (Cu-OTf)(pink triangles) at 77 K. The solid and open symbols represent adsorption and desorption, respectively.
Ijms 11 03803f11

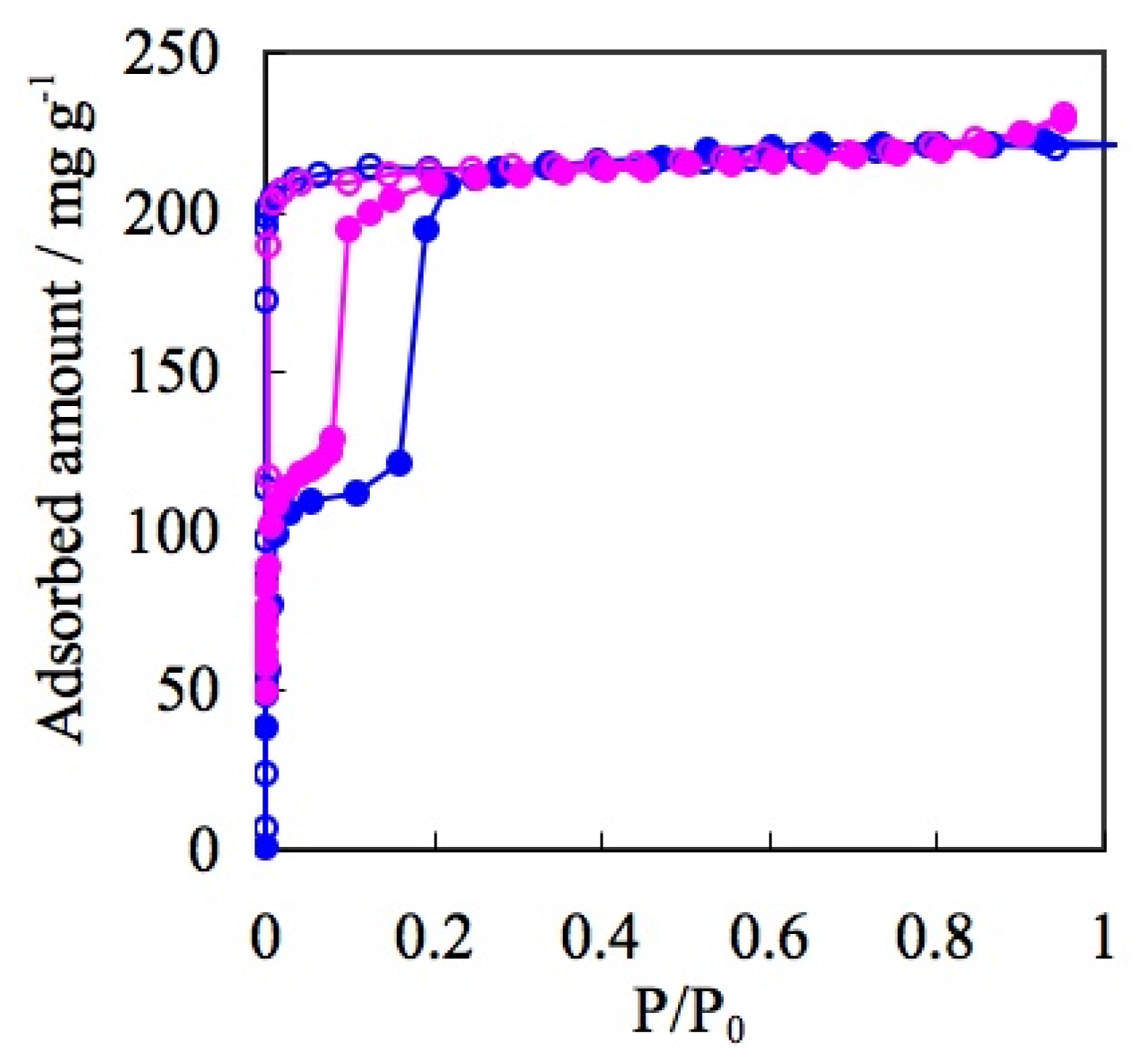

Figure 12. Adsorption isotherms of N2 on ELM-12 (Cu-OTf)(blue circles) and ELM-22 (Co-OTf)(pink circles) at 77 K. Solid and open symbols represent adsorption and desorption, respectively.
Figure 12. Adsorption isotherms of N2 on ELM-12 (Cu-OTf)(blue circles) and ELM-22 (Co-OTf)(pink circles) at 77 K. Solid and open symbols represent adsorption and desorption, respectively.
Ijms 11 03803f12
Figure 13. Adsorption isotherms of N2 on ELM-11 (Cu-BF4)(blue circles), ELM-12 (Cu-OTf)(green triangles), and ELM-13 (Cu-CF3BF3)(pink diamonds) at 77 K. Solid and open symbols represent adsorption and desorption, respectively.
Figure 13. Adsorption isotherms of N2 on ELM-11 (Cu-BF4)(blue circles), ELM-12 (Cu-OTf)(green triangles), and ELM-13 (Cu-CF3BF3)(pink diamonds) at 77 K. Solid and open symbols represent adsorption and desorption, respectively.
Ijms 11 03803f13
Figure 14. Hydrogen bonding between the counter anion and bpy of the neighboring layer (ELM-12): (a) square grid and OTf anions (top view), (b) square grid and OTf anions (side view), (c) hydrogen bonding between the OTf and the bpy.
Figure 14. Hydrogen bonding between the counter anion and bpy of the neighboring layer (ELM-12): (a) square grid and OTf anions (top view), (b) square grid and OTf anions (side view), (c) hydrogen bonding between the OTf and the bpy.
Ijms 11 03803f14
Figure 15. (a) Adsorption isotherms of N2 on ELM-12 (Cu-OTf) (blue circles), ELM-22 (Co-OTf) (pink diamonds), and ELM-12/3 (green triangles) (OTf/Cu-CF3BF3) at 77 K. (b) Close up of low-pressure region. Solid and open symbols represent adsorption and desorption, respectively.
Figure 15. (a) Adsorption isotherms of N2 on ELM-12 (Cu-OTf) (blue circles), ELM-22 (Co-OTf) (pink diamonds), and ELM-12/3 (green triangles) (OTf/Cu-CF3BF3) at 77 K. (b) Close up of low-pressure region. Solid and open symbols represent adsorption and desorption, respectively.
Ijms 11 03803f15
Figure 16. Adsorption isotherms of CO2 on ELM-11 (Cu-BF4)(blue circles) and ELM-31 (Ni-BF4)(green triangles) at 273 K. Solid and open symbols represent adsorption and desorption, respectively.
Figure 16. Adsorption isotherms of CO2 on ELM-11 (Cu-BF4)(blue circles) and ELM-31 (Ni-BF4)(green triangles) at 273 K. Solid and open symbols represent adsorption and desorption, respectively.
Ijms 11 03803f16
Figure 17. Temperature jump experiment of CH4 adsorption on ELM-11. The open and closed circle show CH4 adsorption and desorption on ELM-11 at 303 K, respectively. The temperature was dropped from the blue square (303 K) to the red square (273 K) and was then elevated from the red square to the blue square. The thin dashed line shows desorption branch at 273 K, which was measured by another experiment.
Figure 17. Temperature jump experiment of CH4 adsorption on ELM-11. The open and closed circle show CH4 adsorption and desorption on ELM-11 at 303 K, respectively. The temperature was dropped from the blue square (303 K) to the red square (273 K) and was then elevated from the red square to the blue square. The thin dashed line shows desorption branch at 273 K, which was measured by another experiment.
Ijms 11 03803f17
Figure 18. Representative example of two types of adsorption isotherm and the relationship between the pressure swing width and the amount of recoverable gas. The red arrow shows the pressure swing width and the green arrow shows the recovered gas amount by the pressure swing from P2 to P1, respectively.
Figure 18. Representative example of two types of adsorption isotherm and the relationship between the pressure swing width and the amount of recoverable gas. The red arrow shows the pressure swing width and the green arrow shows the recovered gas amount by the pressure swing from P2 to P1, respectively.
Ijms 11 03803f18
Figure 19. Carbon dioxide adsorption isotherms on various adsorbents at 273 K: green = zeolite 13X (13X APG); pink = Basolite™ C300 (HKUST-1); orange = Basolite™ A100 (MIL-53 (Al)); black = activated carbon fiber A-20; blue = ELM-11. Basolite™ C300 and Basolite™ A100 were purchased from Sigma-Aldrich Co. and were pretreated at 473 K, 3 h in vacuo before adsorption measurement. Zeolite 13X APG was purchased from Union Showa K.K. and was pretreated at 523 K, 3 h in vacuo before adsorption measurement.
Figure 19. Carbon dioxide adsorption isotherms on various adsorbents at 273 K: green = zeolite 13X (13X APG); pink = Basolite™ C300 (HKUST-1); orange = Basolite™ A100 (MIL-53 (Al)); black = activated carbon fiber A-20; blue = ELM-11. Basolite™ C300 and Basolite™ A100 were purchased from Sigma-Aldrich Co. and were pretreated at 473 K, 3 h in vacuo before adsorption measurement. Zeolite 13X APG was purchased from Union Showa K.K. and was pretreated at 523 K, 3 h in vacuo before adsorption measurement.
Ijms 11 03803f19
Figure 20. Adsorption speed of CH4 on ELM-11 at 6.0 MPa at 298 K.
Figure 20. Adsorption speed of CH4 on ELM-11 at 6.0 MPa at 298 K.
Ijms 11 03803f20
Figure 21. Shape forming of ELM-11: (a) pellet and (b) disk.
Figure 21. Shape forming of ELM-11: (a) pellet and (b) disk.
Ijms 11 03803f21
Figure 22. Effect of shape forming on the gas adsorption property at 298 K: Powder sample (dashed line, open circle) and pelletized sample (0.5–1.0 mm in diameter; solid line, closed circle).
Figure 22. Effect of shape forming on the gas adsorption property at 298 K: Powder sample (dashed line, open circle) and pelletized sample (0.5–1.0 mm in diameter; solid line, closed circle).
Ijms 11 03803f22
Figure 23. Rapid CH4 adsorption on ELM-11: The temperature was measured at the center of the sample (red line) and at the circumference (two positions: rigid line and thin line).
Figure 23. Rapid CH4 adsorption on ELM-11: The temperature was measured at the center of the sample (red line) and at the circumference (two positions: rigid line and thin line).
Ijms 11 03803f23
Table 1. Counter ions and adsorption properties of ELMs.
Table 1. Counter ions and adsorption properties of ELMs.
ELM-Counter IonCoordination BondHydrogen BondGate TypeAmount of Gas Adsorptiona/mg g−1
11BF4F-MetF-Hone step340
12OTfO-MetS=O-Htwo steps220
13CF3BF3F-MetF-Hone step314
aNitrogen adsorption at 77 K.
Table 2. Adsorbed molecular numbers per one copper atom of ELM-12 and parameters of gas molecules a,b.
Table 2. Adsorbed molecular numbers per one copper atom of ELM-12 and parameters of gas molecules a,b.
ParametersN2O2CO2
Adsorbed molecular numbers per one copper atom of ELM-125.37.85.6
Quadrupole moment (10−40 Cm2)−4.9−1.33−14.9
Lennard-Jones potential (e/kB/K)104.2126.3245.3
aNitrogen and O2 adsorption was measured at 77 K and CO2 was at 196K.
bReferences for the parameters: [124,129,137,138].
Table 3. Adsorption amount of H2 and pore parametersa of ELM-12 (Cu-OTf) and ELM-22 (Co-OTf).
Table 3. Adsorption amount of H2 and pore parametersa of ELM-12 (Cu-OTf) and ELM-22 (Co-OTf).
ELM-12 (Cu-OTf)ELM-22 (Co-OTf)
H2 adsorption amount [mg g−1, 1 atm at 77 K]5.96.8
surface area [m2 g−1]390400
micropore volume [mL g−1]0.140.15
adsorption capacity [mg g−1]118125
total pore volume [mL g−1]0.270.28
isosteric heat of adsorption [kJ mol−1]12.213.0
aAll pore parameters were estimated from N2 adsorption isotherms measured at 77 K by using Dubinin-Radushkevich equation and/or liquid nitrogen density.
Table 4. Two-dimensional square grid stacking type CPs/MOFs constructed with bpy and unidentate coordination anion.
Table 4. Two-dimensional square grid stacking type CPs/MOFs constructed with bpy and unidentate coordination anion.
CompoundaFunctionbApical LigandCounter IonReferences
[M(bpy)2(dtbp)2]·2H2O (M = Mn, Co, Cd)GIH2Odtbp[177,178]
[Co(bpy)2(NCS)2]·2Et2OGINCSNCS[179]
[Co(bpy)2(H2O)2]·3NTf2·mimGIH2ONTf2[180]
[Co(bpy)2(H2O)2]·2ps·10H2OGIH2Ops[181]
[Co(bpy)2(H2O)2]·2NO3·2bpy·2H2OGIH2ONO3[182]
[Co(bpy)2(H2O)2]·bpy·bsbGIH2Obsb[183]
[Co(bpy)2(OTf)2] (ELM-22)GAOTfOTf[113]
[M(bpy)2(NO3)2]·3np (M = Co, Ni)GIH2ONO3[184]
[M(bpy)2(NO3)2](na)2 (M = Co, Ni, Zn)GINO3NO3[185]
[M(bpy)2(NO3)2]·arenes (M = Co, Ni)GINO3NO3[186]
[Ni(bpy)2(BF4)2] (ELM-31)GABF4BF4[113]
[Ni(bpy)2(NO3)2]·2pyreneGINO3NO3[187]
[Ni(bpy)2(NCS)2]-NCSNCS[188,189]
[Ni(bpy)2(H2PO4)2]·G G = n-BuOH·H2O, 2bpy·3H2O, or 2bpy·ethylene glycol·H2OGIH2PO4H2PO4[190]
[Cu(bpy)2(BF4)2] (ELM-11)GABF4BF4[99]
[Cu(bpy)2(OTf)2] (ELM-12)GAOTfOTf[67]
[Cu(bpy)2(CF3BF3)2] (ELM-13)GACF3BF3CF3BF3[99]
[Cu(bpy)2(OTf)(CF3BF3)] (ELM-12/3)GACF3BF3, OTfCF3BF3OTf[191]
[Cu(bpy)2(H2O)2]·2ClO4·bpo·3H2OGIH2OClO4[192]
[Cu(bpy)2(H2O)2]·2ClO4·H2OGIH2OClO4[193]
[Cu(bpy)2(H2O)]·2sac·CH2Cl2GIH2Osac[194]
[Cu(PF6)(bpy)2(CH3CN)]·PF6·2CH3CNGIPF6, CH3CNPF6[122]
[Cu(bpy)2(H2O)2]·PF6·BF4GIH2OPF6·BF4[122]
[Cu(bpy)2(H2O)2]·2PF6GIH2OPF6[122]
[Cu(bpy)2(H2O)2]·(UO2·Hcit)2·7H2OGIH2OUO2·Hcit[195]
[Cu(bpy)2(H2O)2]·2sac·DMFGIH2Osac[196]
[Cu(bpy)2(H2O)2]·2PF6·2H2O·2tdpGIH2OPF6[197]
[Cu(bpy)2(H2O)2]·4ClO4·H2bpyGIH2OClO4[198]
[M(bpy)2(H2O)2]·2ClO4·(2,4′-bpy)2·H2O (M = Zn, Cd)GIH2OClO4[198]
[Cu(bpy)2(NO3)2]·3pabaGINO3NO3[199]
[Cd(bpy)2(H2O)2]·2NO3·4H2OGIH2ONO3[199]
[Zn(bpy)2(H2O)2]·bpy·bsGIH2Obs[200]
[Zn(bpy)2(fcph)2]MEfcphfcph[201]
[Zn(bpy)2(NO3)2]·2dcb·pyreneGINO3NO3[202]
[Cd(bpy)2]·2NO3Cat-NO3[203]
[Cd(bpy)2(NO3)2]·2dbbGINO3NO3[203]
[Cd(bpy)2(H2O)2]·2NO3·4H2OCat, GIH2ONO3[204]
[Cd(bpy)2]·2NO3·2dbbGI-NO3[205]
[Cd(bpy)2(H2O)2]·2NO3·4H2OGIH2ONO3[206]
[Cd(bpy)2(NO3)(H2O)]·NO3·2abpGIH2O, NO3NO3[206]
[Cd(bpy)2(NO3)2]·2naGINO3NO3[207]
[Cd(bpy)2(H2O)2]·2ClO4·1.5bpy·cnp·4H2OGIH2OClO4[208]
[Cd(bpy)2(H2O)2]·bpy·2nan·2ClO4·H2OGIH2OClO4[209]
[Cd(bpy)2(ClO4)2]·2mnaGIClO4ClO4[209]
[Cd(bpy)2(H2O)2]·2PF6·2bpy·4H2OGIH2OPF6[210]
[Cd(bpy)2(H2O)(OH)]·PF6GIH2O, OHPF6, OH[210]
[Cd(bpy)2(H2O)2]·2BF4·2bpy·nab·2H2OGIH2OBF4[211]
[Cd(ans)2(bpy)2]GIansans[212]
[Cd(bpy)2(H2O)2]·2picGIH2Opic[213]
[Zn(bpy)2(H2O)2]·2pic·2H2OGIH2Opic[214]
[Zn(bpy)2(H2O)2]·bpy·2pic·H2OGIH2Opic[215]
[Cd(bpy)2(NO3)2]·G; G = chlorobenzene, dbb, or p-chlorobenzeneGINO3NO3[216]
aAbbreviations: Et2O = diethylether; dtbp = di-tert-butyl phosphate; mim = 1-butyl-3- methylimidazolium; NTf = bis(trifluoromethanesulfonyl)imide; ps = pyridine-4-sulfonic acid; bsb = 4,4′-bis(sulfonatostiryl)biphenyl; np = naphthalene; na = p-nitroaniline; arenes =chlorobenzene, o-dichlorobenzene, benzene, nitrobenzene, toluene, or anisole; bpo = 2,5-bis(3-pyridyl)-1,3,4-oxadiazole; sac = o-sulfobenzimidate; UO2·Hcit = uranyl citrate; tdp = 1,3,4-thiadiazole-2,5-di-4-pyridyl; paba = 4-aminobenzic acid; bs = benzenesulfonate; FcphSO3 = m-ferrocenyl benzenesulfonate; dcb = o-dichlorobenzene; dbb = o-dibromobenzen; abp = 4-amino-benezopheone; na = 2-nitroaniline; cnp = 4-chloro-2-nitrophenol; nan = o-nitroaniline; mna = N-methyl-2-nitroaniline; nab = o-nitroaminobenzene; ans = 2-aminonaphthalene-1-sulfonate; pic = picrate
bGI = guest inclusion, GA = gate adsorption, ME = metal ion exchange; Cat = catalysis.
Table 5. Maximum amount of adsorbed CO2 on various adsorbents and recovered gas amount by pressure swing at 273 K.
Table 5. Maximum amount of adsorbed CO2 on various adsorbents and recovered gas amount by pressure swing at 273 K.
AdsorbentMaximum amount of adsorbed gas/ml g−1aRecovered gas amount by pressure swing (45→20 kPa)/ml g−1b
ELM-118071
C30012130
A1008822
13X APG17913
A2011017
aMeasured by BELSORP-miniII (BELL Japan INC).
bCalculated from the isotherms.

Share and Cite

MDPI and ACS Style

Kajiro, H.; Kondo, A.; Kaneko, K.; Kanoh, H. Flexible Two-Dimensional Square-Grid Coordination Polymers: Structures and Functions. Int. J. Mol. Sci. 2010, 11, 3803-3845. https://doi.org/10.3390/ijms11103803

AMA Style

Kajiro H, Kondo A, Kaneko K, Kanoh H. Flexible Two-Dimensional Square-Grid Coordination Polymers: Structures and Functions. International Journal of Molecular Sciences. 2010; 11(10):3803-3845. https://doi.org/10.3390/ijms11103803

Chicago/Turabian Style

Kajiro, Hiroshi, Atsushi Kondo, Katsumi Kaneko, and Hirofumi Kanoh. 2010. "Flexible Two-Dimensional Square-Grid Coordination Polymers: Structures and Functions" International Journal of Molecular Sciences 11, no. 10: 3803-3845. https://doi.org/10.3390/ijms11103803

Article Metrics

Back to TopTop
