Int. J. Mol. Sci. 2010, 11(1), 173-188; doi:10.3390/ijms11010173

Article
Host-Guest Complexation Studied by Fluorescence Correlation Spectroscopy: Adamantane–Cyclodextrin Inclusion
Daniel Granadero 1, Jorge Bordello 1, Maria Jesus Pérez-Alvite 2, Mercedes Novo 1 and Wajih Al-Soufi 1,*
1
Departamento de Química Física, Facultade de Ciencias, Universidade de Santiago de Compostela, E-27002 Lugo, Spain; E-Mails: daniel.granadero@usc.es (D.G.); jorge.bordello@usc.es (J.B.); m.novo@usc.es (M.N.)
2
Departamento de Química Orgánica, Facultade de Química, Universidade de Santiago de Compostela, E-15782 Santiago de Compostela, Spain; E-Mail: mj.perez.alvite@usc.es (M.J.P-A.)
*
Author to whom correspondence should be addressed; E-Mail: wajih.al-soufi@usc.es; Tel.: +34-982-285-900; Fax: +34-982-285-872.
Received: 1 December 2009; in revised form: 31 December 2009 / Accepted: 4 January 2010 /
Published: 12 January 2010

Abstract

: The host-guest complexation between an Alexa 488 labelled adamantane derivative and β-cyclodextrin is studied by Fluorescence Correlation Spectroscopy (FCS). A 1:1 complex stoichiometry and a high association equilibrium constant of K = 5.2 × 104 M−1 are obtained in aqueous solution at 25 °C and pH = 6. The necessary experimental conditions are discussed. FCS proves to be an excellent method for the determination of stoichiometry and association equilibrium constant of this type of complexes, where both host and guest are nonfluorescent and which are therefore not easily amenable to standard fluorescence spectroscopic methods.
Keywords:
fluorescence correlation spectroscopy; host-guest chemistry; adamantane; cyclodextrin

1. Introduction

Supramolecular host-guest chemistry describes the formation of molecular complexes composed of small molecules (guests) noncovalently bound to larger molecules (hosts) in a unique structural relationship [1]. Host-guest complexes are of great technological importance and have been extensively studied [2]. Several techniques such as calorimetry, conductivity, pH potentiometry, capillary electrophoresis, and absorption or fluorescence spectroscopy are used to determine their stoichiometry and stability. Among these, fluorescence spectroscopy is widely used, because it is a sensitive and relatively straightforward technique. Standard fluorescence spectroscopy analyzes the variation of a spectroscopic property (quantum yield, spectral shift, lifetime, or anisotropy) of a fluorescent guest or host due to the complexation. A significant variation of any of these parameters requires an intimate participation of the fluorophore in the complexation process, which limits the use of this technique to cases where the fluorophore itself is included as guest (Figure 1a) or is expulsed from the interior of the host by a nonfluorescent guest in a competitive process or where some specific interactions take place. Most technologically interesting host-guest complexes are themselves nonfluorescent and the attachment of a fluorescent label in order to use them in standard fluorescence spectroscopy leads to a dilemma: on one hand, the fluorophore should not interfere in the host-guest complexation under study, but on the other hand a sufficiently strong interaction between fluorophore and host or guest is necessary in order to detect a change in the spectral properties upon complexation. Although many specific solutions have been found, the study of fluorescently labelled host-guest systems by standard fluorescence spectroscopy is still challenging.

Fluorescence Correlation Spectroscopy (FCS) can solve the described problem in a more general way. Instead of the change in the spectral properties FCS analyses the variation in the diffusion coefficient of a fluorophore attached to guest or host due to the increase in the molecular weight upon complexation (see Figures 1b,c) The fluorophore itself need not to interact directly with the host-guest complex except for a common diffusive movement. This relaxes the conditions imposed on the fluorophore which can be selected independently of the specific host-guest system, so that bright and photostable dyes can be attached at convenient positions in guest or host.

FCS is a well established fluctuation correlation method that extracts information about the dynamics of molecular processes from the small changes in molecular concentration or chemical states that arise from spontaneous fluctuations around equilibrium [3]. FCS allows one to study dynamic and photophysical processes that take place in a wide time scale in one and the same experiment. It is a single molecule technique which uses very small sample volumes determined by a confocal setup and nanomolar fluorophore concentrations. FCS is used in a wide range of fields, but surprisingly few applications to the study of host-guest complexation can be found. We studied recently by FCS host-guest dynamics and determined the fast entry/exit rate constants of fluorescent dyes within cyclodextrins [4,5]. In this contribution we will study by FCS the stoichiometry and the stability of the inclusion complex formed between the host β-cyclodextrin (βCD) and the nonfluorescent guest adamantane labelled with Alexa 488 as fluorescent probe (see Figure 2).

Cyclodextrins (CD) are naturally occurring water-soluble toroidally shaped polysaccharides with a highly hydrophobic central cavity that have the ability to form inclusion complexes with a variety of organic and inorganic substrates [612]. The three major natural cyclodextrins are α–, β– and γ–CD built up from 6, 7 and 8 glucopyranose units, respectively. CDs are often found as building blocks of supramolecular systems, self-assemblies or chemical sensors [1318]. The ability of CDs to form inclusion complexes, in which the physicochemical properties of the guest molecules change with respect to the free molecules, has led to a variety of applications [1925].

Adamantane (tricyclo[3.3.1.1(3,7)]decane, C10H16) is formed by four cyclohexanes fused to each other in chair conformations achieving a strain free and highly symmetrical stable structure. The adamantyl group is a spherical group with a diameter of 7 Å which perfectly matches the cavity diameter of βCD. Adamantane derivatives form therefore 1:1 inclusion complexes with βCD with high values of the association equilibrium constant, typically between 104–105 M−1 [2631]. Due to their high stability βCD-adamantane complexes have found several important applications both in supramolecular chemistry and in biomedical applications, such as hydrogels [32], affinity biosensors [33], surface-mediated gene delivery [34], cyclodextrin polymer-based particles [35, or supramolecular polymers [36,37].

In this work we demonstrate how FCS can be used to study the inclusion complex formation between βCD and adamantane labelled with the fluorescent probe Alexa 488 (Ada-A488 as shown in Figure 2). We discuss the necessary experimental conditions, determine the stoichiometry and the equilibrium constant and compare the results with those published for similar guests obtained with other methods.

2. Theory

2.1. Mechanism

The association of the fluorescent guest A and the nonfluorescent host H yielding a fluorescent complex B is treated as a reversible chemical reaction with (association) equilibrium constant K:

A + H K B

The equilibrium constant K is related to the entry (association) (k+) and exit (dissociation) (k) rate constants as follows:

K = k + k

Under conditions where the host concentration [H] is always much higher than that of the fluorescent guest, this concentration coincides with the initial host concentration [H]0, and the complexation “reaction” is pseudo-first-order with the relaxation (“reaction”) time τR given by:

τ R = ( k + [ H ] 0 + k ) 1

2.2. FCS

FCS analyzes the fluorescence intensity fluctuations that are caused by the spontaneous variations in the number of fluorescent molecules in the confocal sample volume due to translational diffusion [5,3840]. The observed fluorescence intensity fluctuates at a time scale given by the mean residence time of a fluorophore in the sample volume. The intensity fluctuations δF(t) = F(t) – <F> are analyzed by the normalized temporal autocorrelation function G(t) as function of the correlation time τ as given in Equation (4):

G ( τ ) = δ F ( t )   ·   δ F ( t + τ ) F ( t ) 2

The time dependent part of the correlation function describing pure translational diffusion of a single fluorescent species in and out of a sample volume GD is given in Equation (5):

G D ( τ ) = 1 N ( 1 + τ τ D ) 1 ( 1 + ( w xy w z ) 2 τ τ D ) 1 2
Here a three-dimensional Gaussian sample volume is assumed with radial and axial i/e2 radii wxy and wz, respectively. N is the mean number of fluorescent molecules within the sample volume and τD is the translational diffusion (transit) time of the molecules across the sample volume, which is related to the translational diffusion coefficient D by Equation (6) [3,41]. The radius of the sampling volume, wxy, is determined from a calibration measurement with a reference dye with known diffusion coefficient (in this case rhodamine 123) as described in the Experimental section.
D = w xy 2 4 τ D

At higher excitation power the dark triplet state of the dye may be significantly populated and a superimposed fast flickering of the fluorescence intensity may be observed with amplitude AT and a time constant τT given by the triplet lifetime of the fluorophore. This leads to an additional exponential term in the correlation function as described in Equation (7):

G DT ( τ ) = G D ( τ ) · ( 1 + A T   e τ / τ T )

In the case that the exchange of the fluorophore between free and bound states is much faster than the typical transit time of the fluorophore across the sample volume (τR ≪ τD) these states of the fluorophore will not be seen by FCS as two distinct species, but as a single one with a mean diffusion time τ̄D. The value of τ̄D depends then on the individual diffusion coefficients Df and Db of free and bound fluorophore and on the molar fractions Xx = Nx/(Nf + Nb) of these species:

τ ¯ D = w xy 2 4 ( X f D f + X b D b ) = ( X f ( τ f ) 1 + X b ( τ b ) 1 ) 1

The full correlation curve describing translational diffusion of two fluorescent species in fast exchange and a common triplet term is given in Equation (9) where the diffusion term is defined by the mean diffusion time τ̄D:

G DT ( τ ) = 1 N ( 1 + τ τ ¯ D ) 1 ( 1 + ( w xy w z ) 2 τ τ ¯ D ) 1 2 · ( 1 + A T   e τ / τ T )

In the case of a fluorescent guest, a 1:1 stoichiometry, and under the conditions that the free host concentration is always much higher than that of the guest, [A] ≪ [H], the mean diffusion time τ̄D can be expressed as function of the total host concentration [H]0, the equilibrium association constant K and the limiting values of the diffusion times of free and bound dye, τf and τb, respectively:

τ ¯ D = τ f ( 1 + K [ M ] 0 ) 1 + τ f τ b K [ M ] 0

The equilibrium association constant K can then be determined from a fit to a series of mean diffusion times measured at different host concentrations or directly from a global fit to the series of correlation curves.

3. Results and Discussion

The determination of absolute diffusion coefficients with standard FCS can be affected by several experimental errors [42]. For the determination of the equilibrium constant and the stoichiometry of the complexation only relative values of the diffusion times are needed, but even these may be distorted at high excitation irradiance due to saturation or photodestruction of the fluorophore. The residence time of the complex in the focal volume is longer than that of the free fluorophore, which may increase the photobleaching probability and thus shorten the apparent diffusion times. This in turn flattens the titration curve and leads to an underestimation of the equilibrium constant. Therefore, as a first step the irradiance dependence of the fluorescence count rate and of the diffusion coefficient of free and complexed Ada-A488 has been studied. Figure 3 shows that the registered fluorescence count rate per Ada-A488 molecule (the molecular brightness) (filled black squares) increases linearly at low irradiance but levels off slightly at higher values. The presence of βCD ([βCD] = 6.4 × 10−3 mol dm−3) has only small influence on the brightness of the fluorophore, with a reduction of about 5% at low and about 25% at highest irradiance. This change may be due to different photobleaching probabilities of free and complexed dye, to polarisation effects in the detection optics, to a change of the refractive index of the solution, or to increased scattering, but it may also be due to some direct interaction between the Alexa 488 chromophore and the adamantane-cyclodextrin complex. However, the Alexa 488 fluorophore is too big to be included into the βCD cavity and no efficient competition with the adamantane inclusion is to be expected.

The diffusion time of Ada-A488 (open squares in Figure 3), increases significantly on the addition of βCD (open circles). At highest irradiance a very similar slight decrease of the diffusion times (of about 5%) is observed in both cases, probably due to some saturation effect. For the titration measurements an irradiance of I0/2 = 27 kW cm−2 was chosen, which is at the upper end of the linear increase of the brightness.

The normalized fluorescence intensity correlation curves G(τ) of Ada-A488 in water at different βCD concentrations are shown as grey lines in Figure 4. The detected fluorescence intensity is strongly correlated at very short correlation times, but then two decorrelation terms are observed at around 5 μs and 200 μs. The amplitude of the first term increases strongly at higher irradiance (not shown) but is independent of the βCD concentration. It can therefore be safely assigned to the population of the triplet state of Alexa 488. The second term shifts to longer correlation times at increasing βCD concentration and is assigned to the diffusion of the fluorophore in and out of the sample volume. All correlation curves can be well fitted with correlation function GDT [Equation (9)] yielding the diffusion times τD shown in the inset of Figure 4a.

The strong increase of τD already at very low βCD concentration can not be explained by an increase of the solvent viscosity, which is not significant at these low cyclodextrin concentrations [43]. We interpret these values of τD as mean diffusion times τ̄D of the fluorophore in fast exchange between free and bound states as described by Equations (8)(10). The fit of these mean diffusion times τ̄D by the model of a complexation with stoichiometry 1:1 [Equation (10)] is very satisfactory as shown in Figure 5. More precise values of the parameters are obtained by a direct global target fit of the correlation curves by Equations (9) and (10) as shown in Figure 4. The results of this global fit are listed in Table 1, together with calculated values of the diffusion coefficients and the hydrodynamic radii of free dye and the complex.

The limiting diffusion times obtained from the fits to the series of correlation curves were converted to translational diffusion coefficients D using Equation (6) with the radial 1/e2 radius of the sample volume obtained from a calibration with Rhodamine 123 as reference (see experimental section). The uncertainty in this calibration and other systematic errors are not included in the indicated standard deviations. The hydrodynamic radii Rh of free Ada-A488 and of the complex Ada-A488:βCD were estimated applying the Stokes-Einstein relation [Equation (11)] with the viscosity of water η (25 °C) = 0.8905 cP:

R h = k T 6 π η D

As expected, the free guest Ada-A488 has a higher diffusion coefficient than the complex Ada-A488:βCD. The diffusion coefficient of homogeneous spherical particles is expected to change with the inverse of the cubic root of their molar mass D~Rh−1~M−1/3. As shown previously this is well fulfilled for small globular molecules and for inclusion complexes of different cyclodextrins [4]. In this case the ratio between the diffusion coefficients Db/Df = 0.74 coincides perfectly with that expected from the ratio of their molar masses (Mb/Mf)−1/3 = (2.37)−1/3 = 0.75. The absolute values of the diffusion coefficients compare very well with those obtained before for complexes between pyronines and βCD and γCD [4,5].

As can be deduced from the residuals in Figure 5, the precision in the measurement of the diffusion times in these experiments is about σ(τD)/τD ≈ 2%. This translates to a minimal detectable relative change of the molar mass of the fluorophore from this data of about 20%.

The very high value of the association equilibrium constant K = 5.2 × 104 M−1 agrees well with that given in the literature for the inclusion of different adamantane derivatives into βCD with values of K = 1–10 × 104 M−1 [2631,44].

Finally, the fact that in spite of the high association equilibrium constant a fast exchange of Ada-A488 between free and complexed state is observed indicates that the association rate constant must be similar or even slightly higher than that observed for the dynamics of the association of pyronines to βCD [4,5]. An additional correlation term due to the exchange itself is not observed as the fluorophore does not change its brightness upon complexation.

4. Experimental Section

4.1. Materials

βCD (Sigma-Aldrich) (M = 1134.98 g mol−1) was used as delivered. βCD was checked for fluorescence impurities and was found to be clean enough for classical fluorescence measurements and for FCS experiments. Water was purified with a Milli-Q system. The synthesis of the Ada-A488 compound (M = 825.88 g mol−1) is described in Section 4.4.

4.2. Sample Preparation

Stock aqueous solutions of βCD were freshly prepared with a concentration of about 8 × 10−3 mol dm−3. Stock solutions of Ada-A488 were prepared as follows: the solid compound Ada-A488 was first dissolved in ethanol in order to facilitate its solubilisation. Then, an aliquot of this solution was diluted 1,000 times in 0.1 mol dm−3 phosphate buffer to adjust the pH at 6. The concentrations of Ada-A488 in these stock solutions were still 25-fold higher than that necessary for the FCS measurements (approximately 10−9 mol dm−3). The FCS samples were finally prepared by dilution of a constant volume of the corresponding Ada-A488 stock together with different volumes of the βCD stock solution and addition of water to adjust to a certain total volume. All these volumes were weighed so that concentration corrections could be performed. Special care was taken in order to avoid any possible contamination of the samples with fluorescent impurities. At the highest βCD concentrations a slight turbidity was observed in the samples, which explains an additional small very slow term in the correlation curves.

4.3. FCS Measurements

The confocal epi-illuminated setup used for the FCS measurements is similar to that described elsewhere [4,45]. A 40 μL drop of each sample was deposited on a borosilicate coverslip (Menzel Gläser, NO. 1 DE). The samples were excited by the continuous linearly polarized light of a 489 nm laser diode (Becker&Hickl, BDL-485-SMC, DE) coupled to a monomode optical fiber (Point-Source, kineFLEX-P-1-S-405-0.7, UK). The light output of the fiber was collimated (Schäfter&Kirchhoff, 60FC-4-6,2-01-DI, DE), spectrally cleaned (Semrock, Brightline HC 482/18, US), redirected by a dichroic mirror (Semrock, Brightline BS R488, US) and focused into the sample by a high aperture microscope objective (Olympus, UPLSAPO 60xW/1.20, water immersion) mounted in an inverted microscope (Olympus, IX-71). The fluorescence was collected by the same objective and then refocused through the dichroic mirror onto a pinhole (Thorlabs, ∅ = 50 μm, US) in the image plane. The light passing the pinhole was collimated, then split into two beams by a nonpolarizing beamsplitter cube (Newport, 05BC17MB.1, US) and each focused onto avalanche photodiodes (MPD50CTC APD, ∅ = 50 μm, MPD, Italy). Band-pass filters (Semrock, Brightline HC 525/45, US) in front of the detectors discriminated fluorescence from scattered laser light. Both output signals were processed and stored by TCSPC-modules (SPC 132, Becker & Hickl GmbH, Berlin, Germany). Correlation curves were calculated with a fast home-built routine that runs under LabVIEW (National Instruments) [45]. Typically 20 million photons were collected for each correlation curve with count rates around 50 kHz. All measurements were made at stabilized temperature, 25.0 ± 0.5 °C. The excitation power as measured in the focus of the microscope objective by a power meter (Thorlabs, PM30-120, US) was typically 240 μW, corresponding to a mean irradiance of I0/2 = P/(π·ωxy2) = 27 kW cm−2, assuming a Gaussian intensity distribution along the optical axis. P is the excitation power in the sample) [46].

The focal area and the detection volume were calibrated with Rhodamine 123 in aqueous solution at low irradiance yielding a radial 1/e2 radius of ωxy = 0.53 μm. The value of DR123 = (4.6 ± 0.4) × 10−10 m2s−1 is estimated from recent PFG-NMR [47] and dual-focus FCS [48] data. The diffusion coefficients are given for 25 °C. All given uncertainties correspond to one standard deviation from the fits and do not include calibration errors.

Series of FCS curves measured at different host concentrations were analyzed by global “target” analysis programmed in OriginPro 8.0 (OriginLab Corporation, US). An empirical weighting function was used in order to take into account the strong variation of the noise in the FCS curves.

4.4. Synthesis of the Ada-A488 Compound

Preparation of compound 1 (see Scheme 1)

1-adamantanemethylamine (85.8 mg, 0.52 mmols) was dissolved in dry DCM (10.4 mL) and Fmoc 8-amino-3,6-dioxaoctanoic acid (200mg, 0.52 mmols), HATU (217 mg, 0.57 mmols) and DIEA (546 mL, 3.12 mmols) were successively added.

After 1 h stirring at rt, the solution was poured into a separation funnel and washed with HCl (5%) and NaHCO3 (sat). The organic layers were dried over Na2SO4, filtered and concentrated under reduce pressure, providing a yellow oil that when purified by flash chromatography (2–4% MeOH in DCM) gave (1, 222 mg) of the compound as a white foam [80%, Rf = 0.5 (5% MeOH in DCM)].

Preparation of compound 2

A solution of Fmoc 8-amino-3,6-dioxaocta-methyladamantane amide (1, 25 mg, 0.047 mmols) in piperidine-DCM mixture (1:4, 0.5 mL) was stirred at rt for 20 min, the solvent was removed in vacuo, and the residue was dissolved in DCM. This solution was washed with NaOH (1M). The organic phase was concentrated and dissolved in H2O. The resulted solution was centrifugated and the supernatant was liofilized giving 8-amino-3,6-dioxaocta-methyladamantane amide (2, 11 mg) as a yellow oil which was used without further purification [75%, Rt = 15.3 min (Eclipse Inertsil analitic column, 50–80 % MeOH 0.1%TFA in H2O 0.1%TFA in 19 min)].

1H NMR (CD3CN, 250.13 MHz, d): 7.04–6.85 (m, 2H, NH2), 3.9 (s, 2H, CH2 ester), 3.65–3.52 (m, 6H, CH2 ether), 3.01–2.89 (bs, 2H, CH2 amine), 2.83 (d, J = 6.57 Hz, 2H, CH2 amide), 1.72–1.47 (m, 7H, CH and CH2 Ad), 1.4 (s, 6H, CH2 Ad).

Preparation of compound 4

8-amino-3,6-dioxaocta-methyladamantane amide (2, 0.35 mg, 1.12 mmols) and Alexa Fluor 488 carboxylic acid succinimidyl ester (mixed isomers) (3, 0.2 mg, 0.31 mmols) were dissolved in dry DCM (500 mL) and dry DMF (20 mL), DIEA (1 mL, 5.5 mmols) was added and the mixture was stirred under argon for 1 h. The crude was purified by HPLC, affording (4, 0.15 mg) of compound as a pink solid [58%, Rt = 15 min and 16min for 2 isomers (Eclipse Inertsil analitic column, 50–80% MeOH 0.1%TFA in H2O 0.1%TFA in 19 min)].

MS (MALDI-TOF) [m/z (%)]: 825 ([M], 100), 779.4 (8), 604.2 (16).

Abbreviations Used

CD3CN: Deuterated acetonitrile; DCM: Dichloromethane; DIEA: Diisopropylethylamine; DMF: dimethylformamide; Fmoc: Fluorenylmethoxycarbonyl; HATU:O-(7-azabenzotriazol-1-yl)-1,1,3,3-tetramethyluronium hexafluorophosphate; 1H NMR: Proton nuclear magnetic resonance; HPLC: High Performance Liquid Chromatography; MALDI-TOF: Mass Spectrometry of Laser Desorption/Ionization-Time of Flight; bs: broad singlet; d: doublet; m: multiplet; s: singlet; rt: room temperature.

Suppliers

Fmoc 8-amino-3,6-dioxaoctanoic acid: Commercially available from Bachem; Alexa Fluor 488 carboxylic acid succinimidyl ester (mixed isomers): Commercially available from Molecular Probes.

5. Conclusions

Fluorescence correlation spectroscopy has been proved to be an excellent method for the determination of the stoichiometry and the association equilibrium constant of host-guest complexes with fluorescently labelled guests. FCS requires only that guest or host can be fluorescently labelled and that the complexation increases sufficiently the molar mass of the fluorescent species. FCS needs only minimal amounts of host and guest, is fast and relatively straightforward, as long as the experimental conditions are carefully selected. All commercially available systems allow this type of measurements.

A very high value of the association equilibrium constant between Ada-A488 and βCD was determined, which agrees well with that given in the literature for the inclusion of similar adamantane derivatives into βCD.

J.B. thanks the Ministerio de Ciencia e Innovación for a research scholarship. M.J.P.A thanks the Spanish MICINN for her FPI Fellowship. M.N. and W.A. thank the Ministerio de Ciencia e Innovación and the Xunta de Galicia for financial support (CTQ2004-07683-C02-02, INCITE07PXI209034ES, INCITE08E1R209060ES).

References and Notes

  1. Turro, NJ. Supramolecular structure and dynamics special feature: Molecular structure as a blueprint for supramolecular structure chemistry in confined spaces. Proc. Nat. Acad. Sci. USA 2005, 102, 10766–10770. [Google Scholar]
  2. Dodziuk, H. Introduction to Supramolecular Chemistry;; Springer: Dordrecht, The Netherlands, 2002. [Google Scholar]
  3. Rigler, R; Elson, ES. Fluorescence Correlation Spectroscopy: Theory and Applications; Springer: Berlin, Germany, 2001. [Google Scholar]
  4. Al-Soufi, W; Reija, B; Novo, M; Felekyan, S; Kühnemuth, R; Seidel, CAM. Fluorescence correlation spectroscopy, a tool to investigate supramolecular dynamics: Inclusion complexes of pyronines with cyclodextrin. J. Am. Chem. Soc 2005, 127, 8775–8784. [Google Scholar]
  5. Al-Soufi, W; Reija, B; Felekyan, S; Seidel, CA; Novo, M. Dynamics of supramolecular association monitored by fluorescence correlation spectroscopy. Chemphyschem 2008, 9, 1819–1827. [Google Scholar]
  6. Cramer, F; Hettler, H. Inclusion compounds of cyclodextrins. Naturwissenschaften 1967, 54, 625–32. [Google Scholar]
  7. Szejtli, J. Introduction and general overview of cyclodextrin chemistry. Chem. Rev 1998, 98, 1743–1754. [Google Scholar]
  8. Dodziuk, H. Cyclodextrins and Their Complexes: Chemistry, Analytical Methods, Applications; Wiley: Weinheim, Germany, 2006. [Google Scholar]
  9. Carrazana, J; Reija, B; Ramos Cabrer, P; Al-Soufi, W; Novo, M; Vázquez Tato, J. Complexation of methyl orange with beta-cyclodextrin: Detailed analysis and application to quantification of polymer-bound cyclodextrin. Supramol. Chem 2004, 16, 549–559. [Google Scholar]
  10. Bordello, J; Reija, B; Al-Soufi, W; Novo, M. Host-assisted guest self-assembly: Enhancement of the dimerization of pyronines Y and B by gamma-cyclodextrin. Chemphyschem 2009, 10, 931–939. [Google Scholar]
  11. Reija, B; Al-Soufi, W; Novo, M; Vázquez Tato, J. Specific interactions in the inclusion complexes of Pyronines Y and B with beta-cyclodextrin. J. Phys. Chem. B 2005, 109, 1364–1370. [Google Scholar]
  12. Bohne, C. Supramolecular dynamics of guest complexation to cyclodextrins. Spectrum 2000, 13, 14–19. [Google Scholar]
  13. Harada, A; Li, J; Kamachi, M. Synthesis of a tubular polymer from threaded cyclodextrins. Nature 1993, 364, 516. [Google Scholar]
  14. Lehn, JM. Supramolecular Chemistry; VCH: Weinheim, Germany, 1995. [Google Scholar]
  15. Nepogodiev, SA; Stoddart, JF. Cyclodextrin-based catenanes and rotaxanes. Chem. Rev 1998, 98, 1959–1976. [Google Scholar]
  16. Alvarez Parrilla, E; Ramos Cabrer, P; Al-Soufi, W; Meijide del Río, F; Rodríguez Núñez, EA; Vázquez Tato, J. Dendritic growth of a supramolecular complex. Angew. Chem. Int. Ed. Engl 2000, 39, 2856–2858. [Google Scholar]
  17. Ogoshi, T; Harada, A. Chemical sensors based on cyclodextrin derivatives. Sensors 2008, 8, 4961–4982. [Google Scholar]
  18. Hennig, A; Bakirci, H; Nau, WM. Label-free continuous enzyme assays with macrocycle-fluorescent dye complexes. Nat. Methods 2007, 4, 629–632. [Google Scholar]
  19. Breslow, R; Belvedere, S; Gershell, L; Leung, D. The chelate effect in binding, catalysis, and chemotherapy. Pure Appl. Chem 2000, 72, 333–342. [Google Scholar]
  20. Loftsson, T; Brewster, ME. Pharmaceutical applications of cyclodextrins. 1. Drug solubilization and stabilization. J. Pharm. Sci 1996, 85, 1017–1025. [Google Scholar]
  21. Uekama, K; Hirayama, F; Irie, T. Cyclodextrin drug carrier systems. Chem. Rev 1998, 98, 2045–2076. [Google Scholar]
  22. Hirayama, F; Uekama, K. Cyclodextrin-based controlled drug release system. Adv. Drug Deliv. Rev 1999, 36, 125–141. [Google Scholar]
  23. Lezcano, M; Al-Soufi, W; Novo, M; Rodríguez-Núñez, E; Vázquez Tato, J. Complexation of several benzimidazole-type fungicides with alpha- and beta-cyclodextrins. J. Agric. Food Chem 2002, 50, 108–112. [Google Scholar]
  24. Ritter, H; Tabatabai, M. Cyclodextrin in polymer synthesis: A green way to polymers. Progr. Polym. Sci 2002, 27, 1713–1720. [Google Scholar]
  25. Davis, ME; Brewster, ME. Cyclodextrin-based pharmaceutics: Past, present and future. Nat. Rev. Drug Discov 2004, 3, 1023–1035. [Google Scholar]
  26. Eftink, MR; Andy, ML; Bystrom, K; Perlmutter, HD; Kristol, DSJ. Cyclodextrin inclusion complexes: Studies of the variation in the size of alicyclic guests. J. Am. Chem. Soc 1989, 111, 6765–6772. [Google Scholar]
  27. Cromwell, WC; Bystrom, K; Eftink, MR. Cyclodextrin-adamantanecarboxylate inclusion complexes: Studies of the variation in cavity size. J. Phys. Chem 1985, 89, 326–332. [Google Scholar]
  28. Gelb, RI; Schwartz, LM. Complexation of admantane-ammonium substrates by beta-cyclodextrin and its O-methylated derivatives. J. Incl. Phenom. Mol. Recogn. Chem 1989, 7, 537–543. [Google Scholar]
  29. Palepu, R; Reinsborough, VC. β-cyclodextrin inclusion of adamantane derivatives in solution. Aust. J. Chem 1990, 43, 2119–2123. [Google Scholar]
  30. Kwak, ES; Gomez, FA. Determination of the binding of β-cyclodextrin derivatives to adamantane carboxylic acids using capillary electrophoresis. Chromatographia 1996, 43, 659–662. [Google Scholar]
  31. Harries, D; Rau, DC; Parsegian, VA. Solutes probe hydration in specific association of cyclodextrin and adamantane. J. Am. Chem. Soc 2005, 127, 2184–2190. [Google Scholar]
  32. Koopmans, C; Ritter, H. Formation of physical hydrogels via host-guest interactions of b-cyclodextrin polymers and copolymers bearing adamantyl groups. Macromolecules 2008, 41, 7418–7422. [Google Scholar]
  33. Holzinger, M; Bouffier, L; Villalonga, R; Cosnier, S. Adamantane/β-cyclodextrin affinity biosensors based on single-walled carbon nanotubes. Biosens. Bioelectron 2009, 24, 1128–1134. [Google Scholar]
  34. Park, I; von Recum, HA; Jiang, S; Pun, SH. Spatially-controlled delivery of cyclodextrin-based polyplexes from solid surfaces. Mol. Ther 2006, 13, S67–S67. [Google Scholar]
  35. Bellocq, NC; Pun, SH; Jensen, GS; Davis, ME. Transferrin-containing, cyclodextrin polymer-based particles for tumor-targeted gene delivery. Bioconjug. Chem 2003, 14, 1122–1132. [Google Scholar]
  36. Munteanu, M; Choi, S; Ritter, H. Cyclodextrin-click-cucurbit[6]uril: Combi-receptor for supramolecular polymer systems in water. Macromolecules 2009, 42, 3887–3891. [Google Scholar]
  37. Soto Tellini, VH; Jover, A; Carrazana Garcia, J; Galantini, L; Meijide, F; Vázquez Tato, J. Thermodynamics of formation of host-guest supramolecular polymers. J. Am. Chem. Soc 2006, 128, 5728–5734. [Google Scholar]
  38. Widengren, J; Rigler, R. Fluorescence correlation spectroscopy as a tool to investigate chemical reactions in solutions and on cell surfaces. Cell Mol. Biol 1998, 44, 857–879. [Google Scholar]
  39. Widengren, J. Photophysical aspects of FCS Measurements; Rigler, R, Elson, ES, Eds.; Springer Verlag: Berlin, Germany, 2001; p. 276. [Google Scholar]
  40. Haustein, E; Schwille, P. Fluorescence Correlation Spectroscopy in Vitro and in Vivo; Selvin, PR, Ha, T, Eds.; Cold Spring Harbor Laboratory Press: New York, NY, USA, 2008; p. 259. [Google Scholar]
  41. Elson, EL; Magde, D. Fluorescence correlation spectroscopy. I. Conceptual basis and theory. Biopolymers 1974, 13, 1–27. [Google Scholar]
  42. Enderlein, J; Gregor, I; Patra, D; Dertinger, T; Kaupp, UB. Performance of fluorescence correlation spectroscopy for measuring diffusion and concentration. Chemphyschem 2005, 6, 2324–2336. [Google Scholar]
  43. Alcor, D; Allemand, JF; Cogne-Laage, E; Croquette, V; Ferrage, F; Jullien, L; Kononov, A; Lemarchand, A. Stochastic resonance to control diffusive motion in chemistry. J. Phys. Chem. B 2005, 109, 1318–1328. [Google Scholar]
  44. Carrazana, J; Jover, A; Meijide, F; Soto, VH; Vázquez Tato, J. Complexation of adamantyl compounds by beta-cyclodextrin and monoaminoderivatives. J. Phys. Chem. B 2005, 109, 9719–9726. [Google Scholar]
  45. Felekyan, S; Kuhnemuth, R; Kudryavtsev, V; Sandhagen, C; Becker, W; Seidel, CAM. Full correlation from picoseconds to seconds by time-resolved and time-correlated single photon detection. Rev Sci Instrum 2005, 76, 083104:1–083104:14. [Google Scholar]
  46. Eggeling, C; Widengren, J; Rigler, R; Seidel, CAM. Photobleaching of fluorescent dyes under conditions used for single-molecule detection: Evidence of two-step photolysis. Anal. Chem 1998, 70, 2651–2659. [Google Scholar]
  47. Gendron, PO; Avaltroni, F; Wilkinson, KJ. Diffusion coefficients of several rhodamine derivatives as determined by pulsed field gradient-nuclear magnetic resonance and fluorescence correlation spectroscopy. J. Fluoresc 2008, 18, 1093–1101. [Google Scholar]
  48. Muller, C; Loman, A; Pacheco, V; Koberling, F; Willbold, D; Richtering, W. Precise measurement of diffusion by multi-color dual-focus fluorescence correlation spectroscopy. Europhys Lett 2008, 83, 46001:1–46001:6. [Google Scholar]
Ijms 11 00173f1 1024

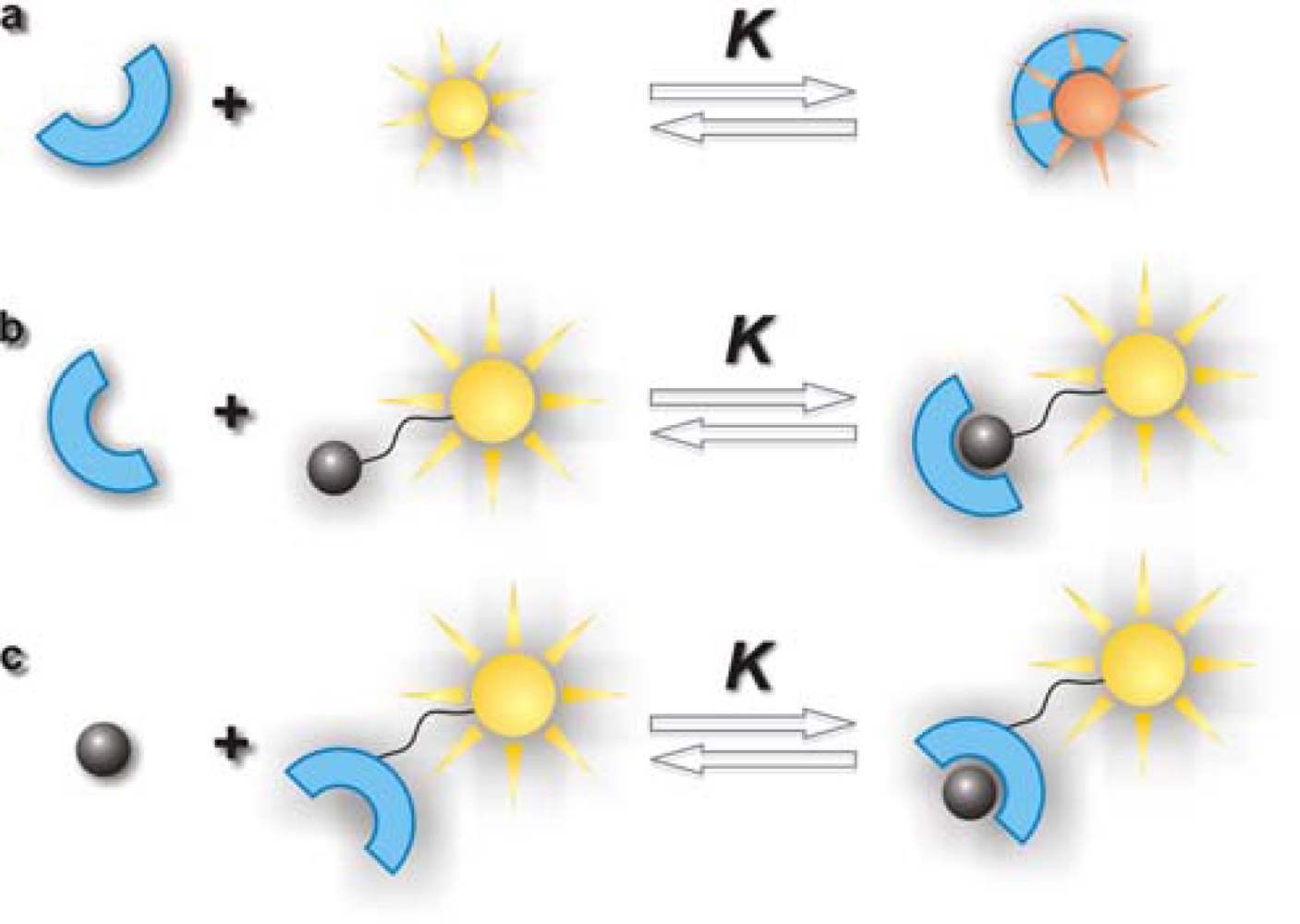

Figure 1. Fluorescent labelling of a host-guest complex (a) inclusion of a fluorescent guest (b) guest with attached fluorophore (c) host with attached fluorophore.

Click here to enlarge figure

Figure 1. Fluorescent labelling of a host-guest complex (a) inclusion of a fluorescent guest (b) guest with attached fluorophore (c) host with attached fluorophore.
Ijms 11 00173f1 1024
Ijms 11 00173f2 1024

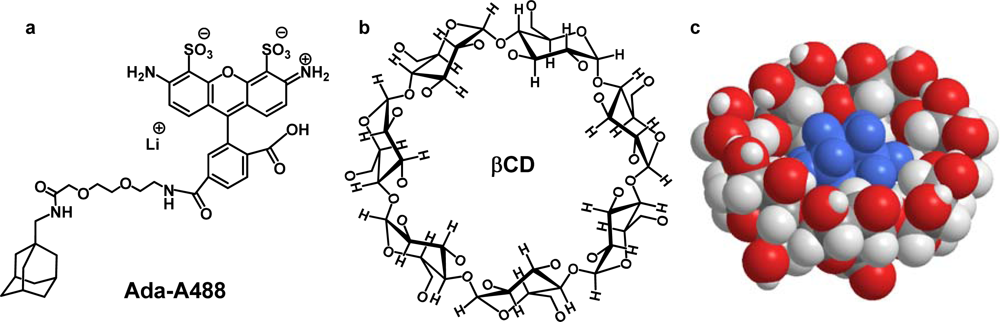

Figure 2. (a) Structure of Ada-A488 (b) Structure of βCD. (c) Sketch of an adamantane-βCD inclusion complex.

Click here to enlarge figure

Figure 2. (a) Structure of Ada-A488 (b) Structure of βCD. (c) Sketch of an adamantane-βCD inclusion complex.
Ijms 11 00173f2 1024
Ijms 11 00173f3 1024
Figure 3. Power series of the FCS signal of Ada-A488 in aqueous solution (squares, [βCD]0 = 0 mol dm−3) and at high concentration of βCD (circles, [βCD]0 = 6.4 × 10−3 mol dm−3). [Ada-A488] ≈ 10−9 mol dm−3). Left scale, filled symbols: count rate per single Ada-A488 molecule. Right scale, open symbols: diffusion time of Ada-A488. All data obtained from FCS correlation curves similar to those shown in Figure 4 at different excitation irradiances. Counts per molecule (cpm) is the total detected fluorescence count rate divided by the mean number of molecules in the focus N.

Click here to enlarge figure

Figure 3. Power series of the FCS signal of Ada-A488 in aqueous solution (squares, [βCD]0 = 0 mol dm−3) and at high concentration of βCD (circles, [βCD]0 = 6.4 × 10−3 mol dm−3). [Ada-A488] ≈ 10−9 mol dm−3). Left scale, filled symbols: count rate per single Ada-A488 molecule. Right scale, open symbols: diffusion time of Ada-A488. All data obtained from FCS correlation curves similar to those shown in Figure 4 at different excitation irradiances. Counts per molecule (cpm) is the total detected fluorescence count rate divided by the mean number of molecules in the focus N.
Ijms 11 00173f3 1024
Ijms 11 00173f4 1024

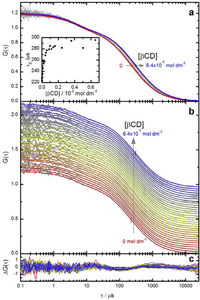

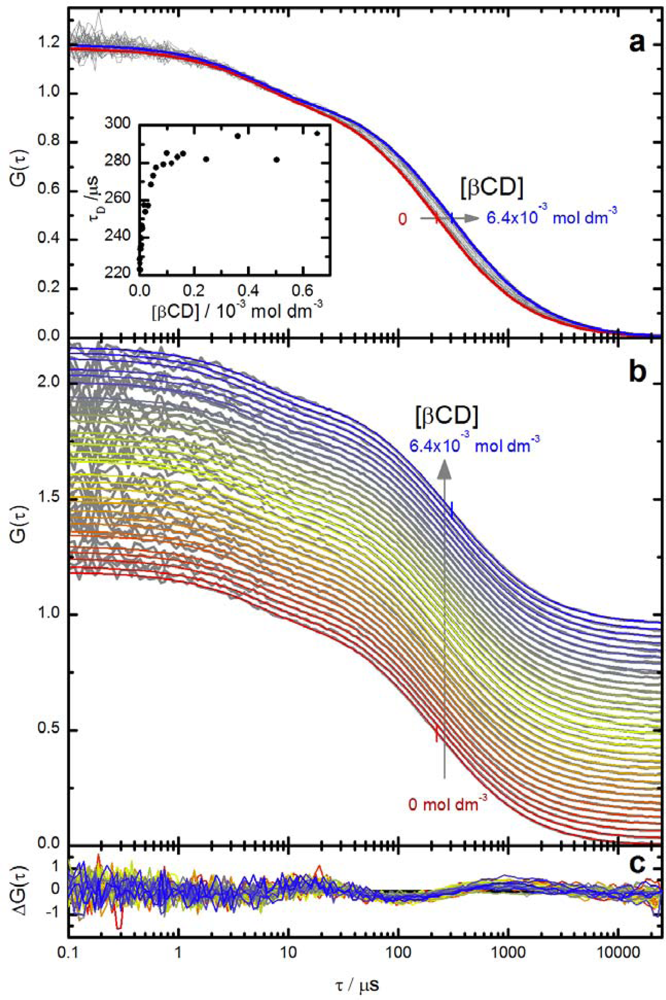

Figure 4. Fluorescence intensity correlation curves G(τ) of Ada-A488 in the presence of increasing concentrations of βCD ([βCD] = 0 mol dm−3 to 6.4 × 10−3 mol dm−3) in aqueous solution. ([Ada-A488] ≈ 10−9 mol dm−3). Panel a: normalized experimental correlation curves at increasing βCD concentration (grey curves) and two representative curves from the global fit of Equations. (9) and (10) at [βCD] = 0 mol dm−3 (red curve) and [βCD] = 6.4 × 10−3 mol dm−3 (blue curve) to the correlation curves. The intermediate fit curves are not shown for clarity. Small vertical bars indicate the diffusion time obtained from the fit. Inset: mean diffusion times τ̄D as function of βCD concentration determined from individual fits of the Equation (9) to the correlation curves. The highest concentrations are not shown. See also Figure 5. Panel b: stacked representation of the same correlation curves as in panel a. Panel c: weighted residuals from the global fit (vertical scale is arbitrary).

Click here to enlarge figure

Figure 4. Fluorescence intensity correlation curves G(τ) of Ada-A488 in the presence of increasing concentrations of βCD ([βCD] = 0 mol dm−3 to 6.4 × 10−3 mol dm−3) in aqueous solution. ([Ada-A488] ≈ 10−9 mol dm−3). Panel a: normalized experimental correlation curves at increasing βCD concentration (grey curves) and two representative curves from the global fit of Equations. (9) and (10) at [βCD] = 0 mol dm−3 (red curve) and [βCD] = 6.4 × 10−3 mol dm−3 (blue curve) to the correlation curves. The intermediate fit curves are not shown for clarity. Small vertical bars indicate the diffusion time obtained from the fit. Inset: mean diffusion times τ̄D as function of βCD concentration determined from individual fits of the Equation (9) to the correlation curves. The highest concentrations are not shown. See also Figure 5. Panel b: stacked representation of the same correlation curves as in panel a. Panel c: weighted residuals from the global fit (vertical scale is arbitrary).
Ijms 11 00173f4 1024
Ijms 11 00173f5 1024

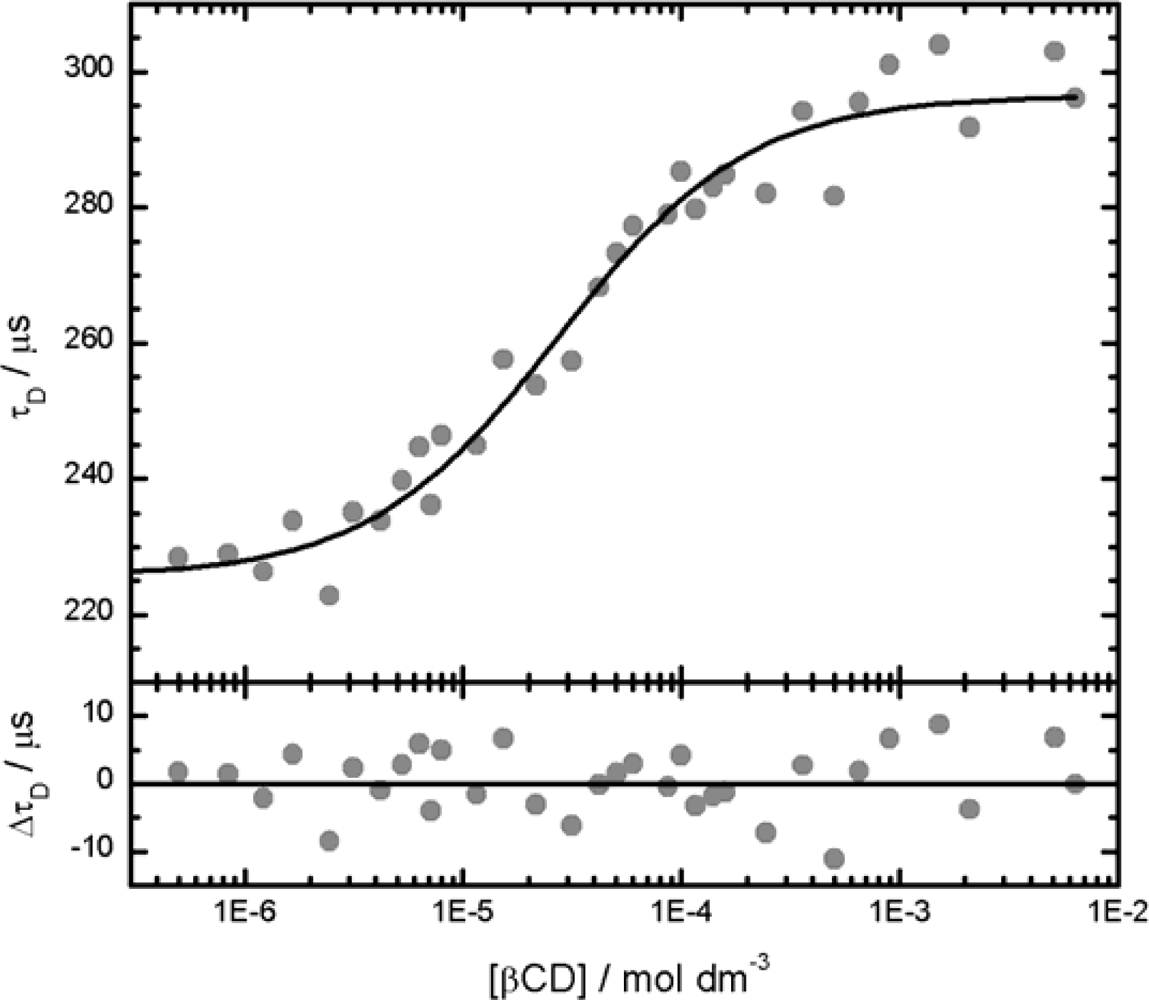

Figure 5. Upper panel: Mean diffusion times τ̄D as function of βCD concentration determined from individual fits of correlation function GDT [Equation (9)] to the normalized correlation curves of Figure 4. Parameter of the fit as given in the text. The black curve represents the best fit of Equation (10) to τ̄D with the parameter τf = 225 ± 2 μs, τb = 297 ± 2 μs, and K = (48 ± 7) × 103 mol−1dm3. Note that due to the logarithmic concentration scale the values at [βCD] = 0 M are not visible in the figure, although they are included in the fit. Lower panel: residuals of the fit.

Click here to enlarge figure

Figure 5. Upper panel: Mean diffusion times τ̄D as function of βCD concentration determined from individual fits of correlation function GDT [Equation (9)] to the normalized correlation curves of Figure 4. Parameter of the fit as given in the text. The black curve represents the best fit of Equation (10) to τ̄D with the parameter τf = 225 ± 2 μs, τb = 297 ± 2 μs, and K = (48 ± 7) × 103 mol−1dm3. Note that due to the logarithmic concentration scale the values at [βCD] = 0 M are not visible in the figure, although they are included in the fit. Lower panel: residuals of the fit.
Ijms 11 00173f5 1024
Ijms 11 00173f6 1024
Scheme 1. Synthesis of the Ada-A488 compound (4).

Click here to enlarge figure

Scheme 1. Synthesis of the Ada-A488 compound (4).
Ijms 11 00173f6 1024
Table Table 1. Results of the global target fit of Equations (9) and (10) to the correlation curves shown in Figure 4 and calculated values. All values at 25.0 ± 0.5 °C.

Click here to display table

Table 1. Results of the global target fit of Equations (9) and (10) to the correlation curves shown in Figure 4 and calculated values. All values at 25.0 ± 0.5 °C.
Ada-A488 + βCD
K/103 M−152 ± 2
τf/ms0.222 ± 0.002
τb/ms0.300 ± 0.002
AT0.20
τT/μs4.8

Df/10−10 m2s−13.15 ± 0.30
Db/10−10 m2s−12.33 ± 0.20
Rh,f7.8 ± 0.7
Rh,b10.5 ± 0.9
