Int. J. Mol. Sci. 2009, 10(3), 929-941; doi:10.3390/ijms10030929

Article
Corrrelation of the Specific Rates of Solvolysis of Ethyl Fluoroformate Using the Extended Grunwald-Winstein Equation
Mi Hye Seong 1, Jin Burm Kyong 1,*, Young Hoon Lee 2 and Dennis N. Kevill 3,*
1
Department of Chemistry and Applied Chemistry, Hanyang University, Ansan-si, Gyeonggi-do 426-791, Korea
2
Department of Food and Biotechnology, Hanseo University, Seosan, ChungNam, 356-706, Korea; E-Mail: chemtec@hanseo.ac.kr
3
Department of Chemistry and Biochemistry, Northern Illinois University, DeKalb, Illinois 60115-2862, USA
*
Authors to whom correspondence should be addressed; E-Mails: jbkyong@hanyang.ac.kr (J.B.K.); dkevill@niu.edu (D.N.K.)
Received: 15 February 2009 / Accepted: 27 February 2009 / Published: 2 March 2009

Abstract

: The specific rates of solvolysis of ethyl fluoroformate have been measured at 24.2 °C in 21 pure and binary solvents. These give a satisfactory correlation over the full range of solvents when the extended Grunwald-Winstein equation is applied. The sensitivities to changes in the NT solvent nucleophilicity scale and the YCl solvent ionizing power scale, and the kF/kCl values are very similar to those for solvolyses of n-octyl fluoroformate, consistent with the addition step of an addition-elimination pathway being rate-determining. For methanolysis, a solvent deuterium isotope effect of 3.10 is compatible with the incorporation of general-base catalysis into the substitution process. For five representative solvents, studies were made at several temperatures and activation parameters determined. The results are also compared with those reported earlier for ethyl chloroformate and mechanistic conclusions are drawn.
Keywords:
Ethyl fluoroformate; addition–elimination; Grunwald–Winstein equation; solvent isotope effect

1. Introduction

The extended Grunwald-Winstein Equation (1) can give information which is very helpful in assessing the mechanism of solvolysis reactions [14]. In Equation (1), k and ko are the specific rates of solvolysis of a substrate in a given solvent and in 80% ethanol, respectively; l is the sensitivity towards changes in NT, a scale of solvent nucleophilicity based on the specific rates of solvolysis of the S-methyldibenzothiophenium ion; and m is the sensitivity towards changes in YCl, a scale of solvent ionizing power based on the specific rates of solvolysis of 1-adamantyl chloride.

log ( k / k o ) = l N T + m Y Cl + c

Although both the NT and YCl scales are based on standard systems involving substitution reaction at an sp3-hybridized carbon [3,4], the scales have also been used with considerable success in the correlation analyses of solvolysis reactions of substrates which have attack at the sp2-hybridized carbon of acyl halides [57] and chloroformate esters [815], and at the sulfur atom of sulfonyl halides [16].

Alkyl halogenoformate esters are important reagents which are widely used in physiological and biological studies [17,18]. A recently published study of the solvolysis of ethyl chloroformate (EtOCOCl) [19] is extended to ethyl fluoroformate (EtOCOF). Although the solvolyses of alkyl and aryl haloformates have been extensively studied kinetically, less is known about the kinetics and mechanism of the solvolyses of fluoroformates. Accordingly, a study of the mechanism of the reactions of fluoroformates under solvolytic conditions is of continuing interest.

We reported that the specific rates of solvolysis of ethyl chloroformate (EtOCOCl) [19] can be very well correlated, after division into two solvent groups, using the extended Grunwald-Winstein equation [Equation (1)], with an l-value of 1.56±0.09 and m-value of 0.55±0.03 (correlation coefficient of 0.967) in the less ionizing and more nucleophilic solvents, and with an l-value of 0.69±0.13 and m-value of 0.82±0.16 (correlation coefficient of 0.946) in the more ionizing and least nucleophilic solvents (HCO2H, 100% and 97% TFE and 97% ~50%HFIP).

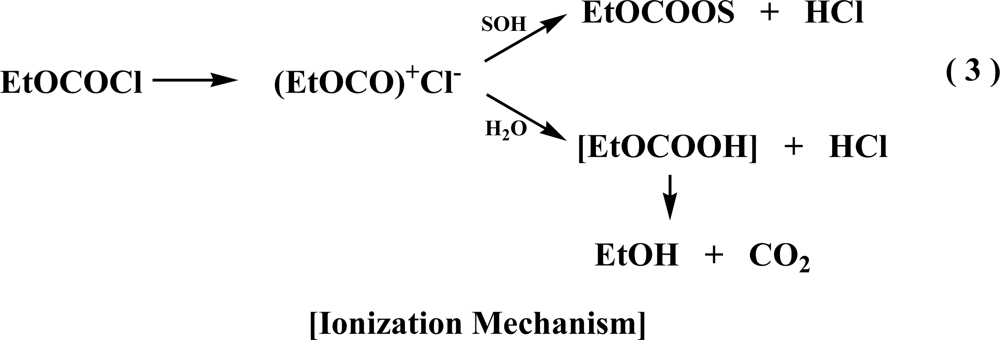

EtOCOCl + 2 SOH EtOCOOS + SO H 2 + + C l EtOCOOH EtOH + C O 2 ( when S = H ) [ Addition-Elimination Mechanism ]
Ijms 10 00929f3 1024

The solvolyses of ethyl chloroformate can be expressed according to Equations (2) and (3), with an addition-elimination mechanism [Equation (2)] involving substitution at the acyl carbon in the less ionizing and more nucleophilic solvents and an ionization mechanism [Equation (3)] in the more ionizing and least nucleophilic solvents.

Previous work concerning the solvolyses of n-octyl haloformates [20] found the kF/kCl ratio to be only slightly less than unity in 100% ethanol and 100% methanol and to be somewhat above unity for solvolyses in mixtures of water with ethanol, acetone, dioxane, or 2,2,2-trifluoroethanol (TFE). These ratios were considered to be consistent with the addition step of an addition-elimination mechanism being rate determining. For solvolyses of ethyl haloformates, kF/kCl ratios of 5.46 for 70% acetone at 30.1 °C [21] and of 1.1 for 100% ethanol at 25.1 °C [22] have been reported.

In the present study, we report on the specific rates for solvolyses of ethyl fluoroformate in a wide range of solvent types. Mechanistic conclusions are then drawn from a consideration of the analyses using the extended Grunwald-Winstein equation, including a comparison with the l and m-values previously determined from kinetic studies of other haloformate esters. In addition to a detailed extended Grunwald-Winstein equation treatment of the specific rates, the influence of temperature on the specific rate (for three and four solvents) allows enthalpies and entropies of activation to be calculated and a measurement in methanol-d allows a determination of the solvent deuterium isotope effect. These analyses are also combined with a consideration of leaving-group effects to arrive at a reasonable mechanism.

2. Results

The specific rates of solvolysis of ethyl fluoroformate at 24.2 °C are reported in Table 1. The solvents consisted of ethanol, methanol, binary mixtures of water with ethanol, methanol, 2,2,2-trifluoroethanol (TFE), acetone, and 1,1,1,3,3,3-hexafluoro-2-propanol (HFIP) and four binary mixtures of TFE and ethanol. The required NT and YCl values are also reported in Table 1, together with the kF/kCl ratios. A determination was also made in methanol-d (MeOD). In methanol, ethanol, 80% ethanol, 70% TFE, and 70% HFIP, specific rates of solvolysis of ethyl fluoroformate and chloroformate were determined at two and three additional temperatures, and these values, together with calculated enthalpies and entropies of activation, are reported in Table 2.

3. Discussion

The variance of kF/kCl ratios has suggested [23] differences in mechanism and a useful additional probe will be to apply the extended Grunwald-Winstein equation (Equation 1) and compare the l and m values with those previously obtained for alkyl fluoroformates. Although some authors [24,25] claim that leaving group effects in solvolytic reactions are not very sensitive to mechanistic changes, the consideration of these effects in nucleophilic substitution reactions has long been recognized as a useful tool in studying the reaction mechanism [26].

For SN1 reaction, a value as low as 10−7 was observed in 4-(N,N-dimethylamino)benzoyl halide solvolyses [27] and a low value of 1.3×10−4 was also observed for acetyl halide solvolyses in 75% acetone [26]. These values reflect an appreciable ground-state stabilization for the fluoride [28] and the need to break a strong carbon–fluorine bond in the rate determining step. In contrast, if the addition step is rate-determining, values of close to unity (and frequently above it), reflecting a large electron deficiency at the carbonyl carbon of a haloformate incorporating fluorine [7], are frequently observed. This situation has recently been discussed in a consideration of n-octyl haloformate solvolyses [20], where kF/kCl specific rate ratios of 0.6 to 15 were observed. Similar ratios of kF/kCl specific rates have been observed previously for the solvolyses of other haloformate esters [14,20,29,30]. For other haloformate esters, kF/kCl ratios of 1.09 to 7.16 for solvolyses in 70% aqueous acetone at 30.1°C have been reported [21].

The leaving group specific rate ratios (kF/kCl) determined in the present study for ethyl haloformate are compared with the specific rate ratios for the same leaving groups observed in the bimolecular pathway of n-propyl, i-propyl, n-octyl, benzyl, and 1- and 2-adamantyl haloformates in various solvents [20,3133] (Table 3). The specific rate ratios (kF/kCl) for the solvolyses of ethyl fluoroformate and chloroformate are similar to the values for all the other primary and secondary substrates but significantly larger than the analogous specific rate ratios for the partially solvolysis-decomposition reaction (ionization pathway) of 1-adamantyl fluoroformate relative to the chloroformate in methanol, ethanol, and 80% ethanol. In these solvents, essentially all the reaction of 1-adamantyl chloroformate is by the ionization pathway.

The solvent deuterium isotope effect value (footnote to Table 1) for methanolysis of ethyl fluoroformate of kMeOH/kMeOD = 3.10±0.24 at 24.2 °C is of a magnitude usually taken to indicate that nucleophilic attack by a methanol molecule is assisted by general-base catalysis by a second methanol molecule [13, 34, 35]. The solvent deuterium isotope effect value of ethyl fluoroformate is higher than for the methanolysis of ethyl chloroformate (kMeOH/kMeOD = 2.22±0.24 at 45.0 °C) or for the ethanolysis of a series of para-substituted phenyl chloroformates, where values in the range of 2.1~2.5 were obtained [36, 37]. The higher value gives further support for the proposal that bond formation is more advanced at the transition state for addition to fluoroformates than for chloroformates.

For five solvents, the values of the enthalpy and the entropy of activation for the solvolysis of ethyl fluoroformate are 9.4 ~ 14.0 Kcal/mol and −27.9 ~ −41.5 cal/mol·K, and the values for the solvolysis of ethyl chloroformate are 13.6 ~ 18.4 Kcal/mol and −20.4 ~ −31.8 cal/mol·K, respectively (Table 2). The very negative entropies of activation are consistent with the bimolecular nature of the proposed rate-determining step. While a bimolecular mechanism for the solvolyses is strongly indicated by the much slower reactions in TFE-rich solvents and by the appreciably negative entropies of activation, it is not established whether the process involves a stepwise addition-elimination (association-dissociation) or a concerted (SN2) pathway. A powerful test in considering detailed mechanisms of solvolysis is to carry out a correlation analysis using the extended Grunwald-Winstein equation (Equation 1).

The specific rates of solvolysis of ethyl fluoroformate were studies in a wide variety of pure and binary solvents, including the TFE- and HFIP-containing systems, which are important components of the extended Grunwald-Winstein correlations.

To see the effect of including fluoroalcohol-containing solvents in the correlation of the specific rates of solvolysis of ethyl fluoroformate, we have included 9 solvents with a fluoroalcohol (TFE or HFIP) component. As can be seen in Figure 1, there are appreciable deviations from the plot for the solvolytic data in TFE-ethanol mixtures with the largest deviations for the 80% TFE-20% ethanol and 60%TFE-40% ethanol points. Also in earlier correlations of other haloformate esters, it was found that the data points for these solvent systems usually lay below the correlation line [10,14,30,38].

Correlations were carried out both with and without the TFE-ethanol data. An analysis of the data using the extended Grunwald-Winstein equation to the specific rates of solvolysis of ethyl fluoro-formate leads to a poor linear correlation with values of 1.51 ± 0.20 for l, 0.85 ± 0.11 for m, −0.14 ± 0.14 for c, and 0.883 for the correlation coefficient. Recalculation with omission of the four data points in TFE-ethanol mixtures led to values of 1.34±0.14 for l, 0.77±0.07 for m, −0.06±0.10 for c, and 0.942 for the correlation coefficient. When the TFE-ethanol points are omitted from the correlation, the l and m values are only slightly reduced but a considerably improved value for correlation coefficient (0.942 relative to 0.883) is observed. The results of the correlation are reported in Table 4, together with the corresponding parameters obtained in the analyses of earlier studied substrates. The higher m-values for the solvolyses of fluoroformates, relative to chloroformates, may reflect the kinetically favorable influence of increased solvation of the developing negative charge on the carbonyl oxygen in the presence of the more electronegative fluorine attached at the carbonyl carbon.

The l/m ratio has been suggested as a useful mechanistic criterion and the values of Table 4 divide nicely into two classes with values of 1.8 to 2.8 for those entries postulated to represent addition-elimination (A-E) and 0.54 to 0.84 for those believed to represent ionization (I).

The l and m values of ethyl fluoroformate in Table 4 are very similar to those for the earlier studied substrates (n-propyl-, i-propyl-, and n-octyl fluoroformates), which have been shown to solvolyze with the addition step of an addition-elimination pathway being rate determining.

To prove further the similarity between solvent effects upon the specific rates of solvolysis of ethyl-and n-octyl fluoroformates, we have carried out a direct comparison of the log (k/ko) values for ethyl fluoroformate against those for n-octyl fluoroformate for the 18 solvents for which data in available for both substrates. A good linear plot (Figure 2) was obtained, with a slope of 0.94 ± 0.06, intercept of 0.10± 0.09, and correlation coefficient of 0.977.

4. Conclusions

The solvolyses of ethyl fluoroformate give a satisfactory extended Grunwald-Winstein correlation [Equation (1)] over wide range of NT and YCl values. The sensitivities to changes in NT and YCl (l=1.34 and m=0.77) are very similar to those for the several fluoroformate esters (Table 4), which are shown to solvolyze with the addition step of an association-dissociation (addition-elimination) pathway being rate determining.

The kF/kCl values obtained in a comparison with the corresponding solvolysis of ethyl chloroformate are very similar to those for solvolyses of n-octyl fluoroformate, consistent with a bimolecular addition-elimination mechanism, proceeding through a tetrahedral intermediate.

The solvent deuterium isotope effect value for methanolysis (kMeOH/kMeOD) of 3.10 is of a magnitude usually taken to indicate that nucleophilic attack by a methanol molecule is assisted by general-base catalysis by a second methanol molecule.

The entropies of activation (−27.9 ~ −41.5 cal/mol·K) for ethyl fluoroformate solvolyses believed to involve rate-determining attack at acyl carbon are considerably more negative than the values for solvolyses believed to proceed by the ionization pathway (the entropies of activation are for 1-adamantyl chloroformate +3.3 ~ +6.7 cal/mol·K [29] and for 1-adamantyl fluoroformate −8.0 ~ −14.7 cal/mol·K [30]). The more negative entropy of activation values for the ethyl fluoroformate reaction are consistent with the bimolecular nature of the rate-determining step.

In the present study, unlike the solvolyses of ethyl chloroformate [Equations (2) and (3)], where the two reaction channels (addition-elimination and ionization pathways) were observed, the solvolyses of ethyl fluoroformate have a pathway involving bimolecular attack by solvent at acyl carbon, with what is suggested to be the addition step of an addition-elimination pathway being rate determining [Equation (2)].

5. Experimental

The ethyl chloroformate (Aldrich) was purified by fractional distillation under reduced pressure. The ethyl chloroformate (22.7g, 0.209 mol) was syringed into a three-neck flask (200 mL) containing dried KF (15.9g, 0.274 mol) and 18-crown-6 (1.95g, 0.00736 mol) and fitted with a Teflon stirring bar, a condenser topped by an Ar gas inlet, a septum cap, and a ground glass stopper, as described earlier [40]. The mixture then was stirred efficiently at room temperature until FT-IR (Bio-Rad FTS 6000) analysis of an aliquot indicated that no chloroformate remained (C=O stretch at 1777 cm−1; fluoroformate C=O stretch at 1837 cm−1). After a reaction time of 68 hours, the product fluoroformate was isolated directly from the reaction apparatus by simple distillation at a reaction temperature of 56–57 °C (lit. [41] 55–57 °C).

Solvents were purified as previously described [31]. The kinetic procedures were as described earlier [30, 31], using a substrate concentration of about 5.86 × 10−3 M and with 5 mL aliquots removed for titration. The l and m values were calculated using multiple regression analysis.

This work was supported by the research fund of Hanseo University made in program year 2008.

References

  1. Grunwald, E; Winstein, S; Jones, HW. The Correlation of Solvolyses Rates and the Classification of Solvolysis Reactions into Mechanistic Categories. J. Am. Chem. Soc 1951, 73, 2700–2707. [Google Scholar]
  2. Schadt, FL; Bentley, TW; Schleyer, PvR. The SN2-SN1 Spectrum 2. Quantitative Treatments of Nucleophilic Solvent Assistance. A Scale of Solvent Nucleophilicities. J. Am. Chem. Soc 1976, 98, 7667–7674. [Google Scholar]
  3. Kevill, DN. Development and Uses of Scales of Solvent Nucleophilicity. In Advances in Quantitative Structure-Property Relationships; Charton, M, Ed.; JAI Press: Greenwich, CT, 1996; Volume 1, pp. 81–115. [Google Scholar]
  4. Bentley, TW; Llewellyn, G. Yx Scales of Solvent Ionizing Power. Prog. Phys. Org. Chem 1990, 17, 121. [Google Scholar]
  5. Kevill, DN; D’Souza, MJ. Correlation of the Rates of Solvolysis of Benzoyl Chloride and Derivatives Using Extended Forms of the Gunwald-Winstein Equation. J. Phys. Org. Chem 2002, 15, 881–888. [Google Scholar]
  6. D’Souza, MJ; Stant-Boggs, ME; White, R; Kevill, DN. Correlation of the Rates of Solvolysis of 2-Thiophenecarbonyl Chloride. J. Chem. Res., Synop 2003, 775–777. [Google Scholar]
  7. Kevill, DN; D’Souza, MJ. Correlation of the Rates of Solvolysis of Benzoyl Fluoride and a Consideration of Leaving-Group Effects. J. Org. Chem 2004, 69, 7044–7050. [Google Scholar]
  8. Kevill, DN; D’Souza, MJ. Correlation of the Rates of Solvolysis of Phenyl Chloroformate. J Chem Soc, Perkin Trans 1997, 2, 1721–1724. [Google Scholar]
  9. Kevill, DN; Bond, MW; D’Souza, MJ. Dual Pathways in the Solvolyses of Phenyl Chlorothioformate. J. Org. Chem 1997, 62, 7869–7871. [Google Scholar]
  10. Park, KH; Kyong, JB; Kevill, DN. Nucleophilic Substution Reactions of p-Nitrobenzyl Chloroformate. Bull. Korean Chem. Soc 2000, 21, 1267–1270. [Google Scholar]
  11. Kevill, DN; Kim, JC; Kyong, JB. Correlation of the Rates of Solvolysis of Methyl Chloroformate with Solvent Properties. J Chem Res, Synop 1999, 150–151. [Google Scholar]
  12. Kevill, DN; D’Souza, MJ. Correlation of the Rates of Solvolysis of Phenyl Chlorothioformate and Phenyl Chlorodithioformate. Can. J. Chem 1999, 77, 1118–3291. [Google Scholar]
  13. Kyong, JB; Park, BC; Kim, CB; Kevill, DN. Rate and Product Studies with Benzyl and p-Nitrobenzyl Chloroformates Under Sovolytic Conditions. J. Org. Chem 2000, 65, 8051–8058. [Google Scholar]
  14. Kyong, JB; Kim, YG; Kim, DK; Kevill, DN. Dual Pathways in the Solvolyses of Isopropyl Chloroformate. Bull. Korean Chem. Soc 2000, 21, 662–664. [Google Scholar]
  15. Kyong, JB; Yoo, JS; Kevill, DN. Solvolysis-Decomposition of 2-Adamantyl Chloroformate: Evidence for Two Reaction Pathway. J. Org. Chem 2003, 68, 3425–3432. [Google Scholar]
  16. Kevill, DN; D’Souza, MJ. Application of the NT Solvent Nucleophilicity Scale to Attack at Sulfur: Solvolyses of Benzenesulfonyl Chlorides. Collect Czech Chem Commun 1999, 64, 1790–1796. [Google Scholar]
  17. Villas-Boas, SG; Delicado, DG; Akesson, M; Nielson, J. Simultaneous Analysis of Amino and Nonamino Organic Acids as Methyl Chloroformate Derivatives Using Gas Chromatography-Mass Spectrometry. Anal. Biochem 2003, 322, 134–138. [Google Scholar]
  18. Biermann, U; Metzger, JO. Alkylation of Alkenes: Ethylaluminum Sesquichloride-Mediated Hydro-Alkyl Addition with Alkyl Chloroformates and Di-tert-butylpyrocarbonate. J. Am. Chem. Soc 2004, 126, 10319–10330. [Google Scholar]
  19. Kevill, DN; D’Souza, MJ. Concerning the Two Reaction Channels for the Solvolyses of Ethyl Chloroformate and Ethyl Chlorothioformate. J. Org. Chem 1998, 63, 2120–2124. [Google Scholar]
  20. Kevill, DN; D’Souza, MJ. Correlation of the Rates of Solvolysis of n-Octyl Fluoroformate and a Comparison with n-Octyl Chloroformate Solvolysis. J Chem Soc, Perkin Trans 2002, 2, 240–243. [Google Scholar]
  21. Queen, A; Nour, TA. Kinetics and Mechanism of the Acetate Catalyzed Hydrolysis of 4-Methoxyphenyl Chloroformate and 4-Methoxyphenyl Fluoroformate in Aqueous Dioxane. J Chem Soc, Perkin Trans 1976, 2, 935–939. [Google Scholar]
  22. Orlov, SI; Chimishkyan, AL; Grabarnik, MS. Kinetic Relationships Governing the Ethanolysis of Halogenoformates. J. Org. Chem. USSR (Engl Transl) 1983, 19, 1981–1987. [Google Scholar]
  23. Kevill, DN. The Chemistry of the Functional Groups: The Chemistry of Acyl Halides; Patai, S, Ed.; Wiley: New York, 1972. [Google Scholar]
  24. Harris, JM; Shafer, SG; Moffatt, JR; Becker, AR. Prediction of SN2 Transition State Variation by the Use of More O’Ferrall Plots. J. Am. Chem. Soc 1979, 101, 3295–3300. [Google Scholar]
  25. Bentley, TW; Bowen, CT; Parker, W; Watt, CIF. Evidence against Appreciable Internal Ion Pair Return in the Solvolyses of Tertiary Aliphatic Halides. Measurement of α-Methyl/Hydrogen Rate ratios in Hexafluoropropan-2-ol-Water. J Chem Soc, Perkin Trans 1980, 2, 1244–1252. [Google Scholar]
  26. Swain, CG; Scott, CB. Rates of Solvolysis of Some Alkyl Fluorides and Chlorides. J. Am. Chem. Soc 1953, 75, 246–248. [Google Scholar]
  27. Song, BD; Jencks, WP. Mechaism of Solvolysis of Substituted Benzoyl Halides. J. Am. Chem. Soc 1989, 111, 8470–8479. [Google Scholar]
  28. Wiberg, KB; Rablen, PR. Substituent Effects. 7. Phenyl Derivatives. When is a Fluorine a π-Donor? J. Org. Chem 1998, 63, 3722–3730. [Google Scholar]
  29. Kevill, DN; Kyong, JB; Weitl, FL. Solvolysis-Decomposition of 1-Adamantyl Chloroformate: Evidence for Ion Pair Return in 1-Adamantyl Chloride Solvolysis. J. Org. Chem 1990, 55, 4304–4311. [Google Scholar]
  30. Kevill, DN; Kyong, JB. Multiple Pathways in the Solvolysis of 1-Adamantyl Fluoroformate. J. Org. Chem 1992, 57, 258–265. [Google Scholar]
  31. Seong, MH; Kyong, JB; Kim, DK; Kevill, DN. Application of the Extended Grunwald-Winstein Equation to Solvolyses of n-Propyl Fluoroformate and a Consideration of Leaving Group Effects. Bull. Korean Chem. Soc 2008, 29, 1747–1751. [Google Scholar]
  32. Kyong, JB; Ryu, SH; Kevill, DN. Rate and Product Studies of the Solvolyses of Benzyl Fluoroformate. Int. J. Mol. Sci 2006, 7, 186–196. [Google Scholar]
  33. Kyong, JB; Rhu, CJ; Kim, YG; Kevill, DN. Rate and Product Studies with 2-Adamantyl Fluoroformate under Solvolytic Conditions. J. Phys. Org. Chem 2007, 20, 525–531. [Google Scholar]
  34. Ryu, ZH; Shin, SH; Lee, JP; Lim, GT; Bentley, TW. Kinetic Solvent Isotope Effects and Correlations of Rates of Solvolyses for α-Methylthio and Other Substituted Acetyl Chlorides. J. Chem. Soc., Perkin Trans 2002, 2, 1283–1287. [Google Scholar]
  35. Oh, YH; Jang, GG; Lim, GT; Ryu, ZH. Marked Difference in Solvation Effects and Mechanism between Solvolyses of Substituted Acetyl Chloride with Alkyl Groups and with Aromatic Rings in Aqueous Fluorinated Alcohol and in 2,2,2-Trifluoroethanol-Ethanol Solvent Systems. Bull. Korean Chem. Soc 2002, 23, 1083–1096. [Google Scholar]
  36. Yew, KH; Koh, HJ; Lee, HW; Lee, I. Nucleophilic Substitution Reactions of Phenyl Chloroformates. J. Chem. Soc., Perkin. Trans 1995, 2, 2263–2268. [Google Scholar]
  37. Koo, IS; Yang, K; Kang, K; Lee, I. Transition-State Variation in the Solvolyses of para-Substituted Phenyl Chloroformates in Alcohol-Water Mixtures. Bull. Korean Chem. Soc 1998, 19, 968–973. [Google Scholar]
  38. Kevill, DN; Miller, B. Application of the NT Solvent Nucleophilicity Scale to Attack at Phosphorus: Solvolyses of N,N,N’,N’-Tetramethyldiamidophosphorochloridate. J. Org. Chem 2002, 67, 7399–7406. [Google Scholar]
  39. Kyong, JB; Won, H; Kevill, DN. Application of the Extended Grunwald-Winstein Equation to Solvolyses of n-Propyl Chloroformate. Int. J. Mol. Sci 2005, 6, 87–96. [Google Scholar]
  40. Lee, SH; Rhu, CJ; Kyong, JB; Kim, DK; Kevill, DN. Correlation of the Rates of Solvolysis of Isopropyl Fluoroformate Using the Extended Grunwald-Winstein Equation. Bull. Korean Chem. Soc 2007, 28, 657–661. [Google Scholar]
  41. Charles, SW; Jones, GIL; Owen, NL; West, LA. Infrared Spectra and Rotational Isomerism of Ethyl Fluoroformate and Ethyl Propiolate. J. Molecular Structure 1975, 26, 249–257. [Google Scholar]
Ijms 10 00929f1 1024
Figure 1. Plot of log (k/ko) for solvolyses of ethyl fluoroformate at 24.2°C against (1.34NT + 0.77YCl). The data points for TFE-ethanol mixtures are not included in the correlation.

Click here to enlarge figure

Figure 1. Plot of log (k/ko) for solvolyses of ethyl fluoroformate at 24.2°C against (1.34NT + 0.77YCl). The data points for TFE-ethanol mixtures are not included in the correlation.
Ijms 10 00929f1 1024
Ijms 10 00929f2 1024

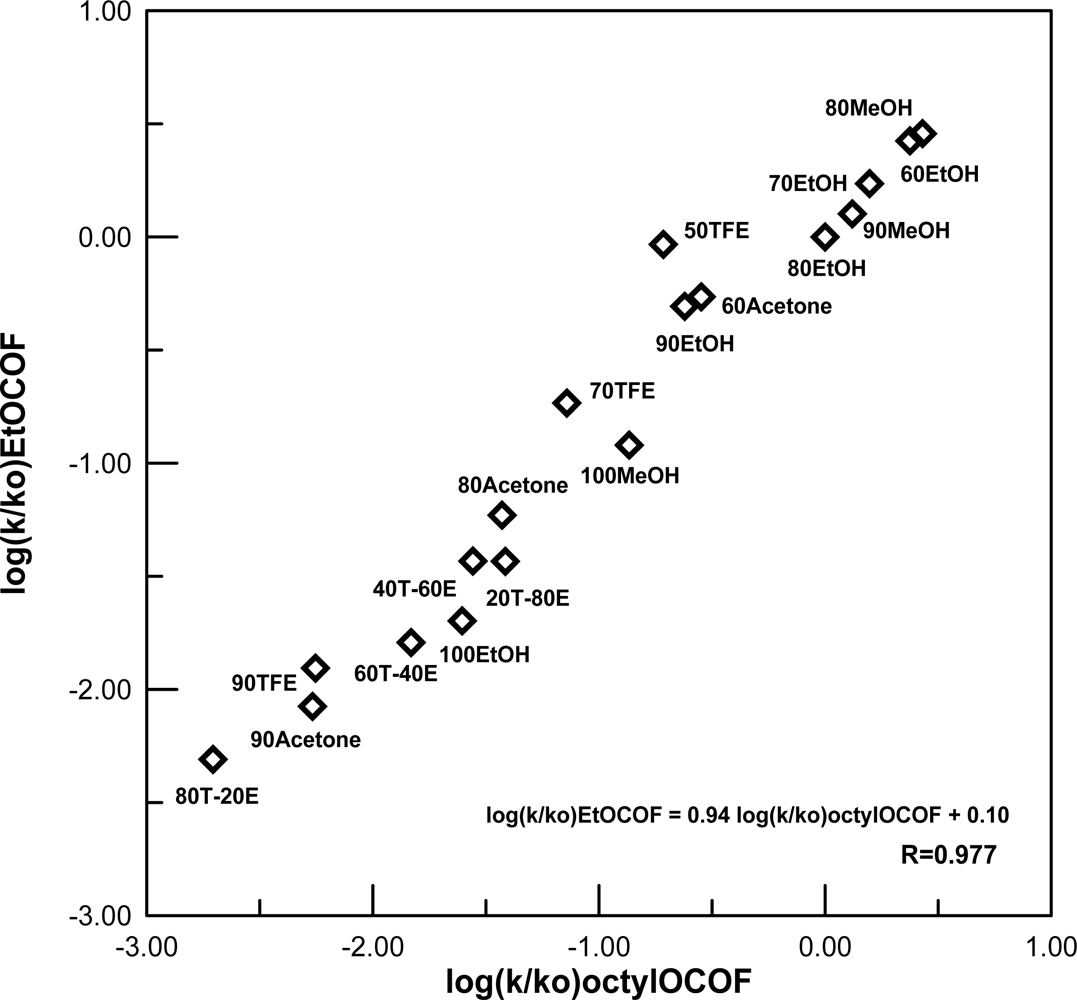

Figure 2. Plot of log (k/ko) for solvolyses of ethyl fluoroformate against log (k/ko) for solvolyses of n-octyl fluoroformate at 24.2 °C.

Click here to enlarge figure

Figure 2. Plot of log (k/ko) for solvolyses of ethyl fluoroformate against log (k/ko) for solvolyses of n-octyl fluoroformate at 24.2 °C.
Ijms 10 00929f2 1024
Table Table 1. Specific rates of solvolysis (with standard deviation) of ethyl fluoroformate a in pure and binary solvents at 24.2 °C together with the appropriate solvent nucleophilicity (NT) and solvent ionizing power (YCl) values and the specific rate ratio relative to ethyl chloroformate (kF / kCl).

Click here to display table

Table 1. Specific rates of solvolysis (with standard deviation) of ethyl fluoroformate a in pure and binary solvents at 24.2 °C together with the appropriate solvent nucleophilicity (NT) and solvent ionizing power (YCl) values and the specific rate ratio relative to ethyl chloroformate (kF / kCl).
Solvent(%)b104 k, s−1NTcYCldkF /kCle
100 MeOH f0.769±0.0400.17−1.170.93
90 MeOH8.09±0.47−0.01−0.184.82
80 MeOH18.3±0.8−0.060.677.43
60 MeOH44.2±3.1−0.542.0711.1
100 EtOH0.128±0.0100.37−2.520.57
90 EtOH3.15±0.090.16−0.945.77
80 EtOH6.39±0.060.000.008.74
70 EtOH11.0±0.7−0.200.7811.1
60 EtOH17.0±0.4−0.381.3814.0
90Me2CO0.0536±0.0023−0.35−2.221.80
80 Me2CO0.376±0.022−0.37−0.833.90
60 Me2CO3.47±0.22−0.520.959.44
90TFEg0.0794±0.0016−2.552.8513.3
70 TFEg1.18±0.04−1.982.9619.3
50 TFEg5.92±0.56−1.733.1628.1
80T-20Eh0.0313±0.0010−1.761.895.03
60T-40Eh0.103±0.008−0.940.633.47
40T-60Eh0.236±0.023−0.34−0.482.85
20T-80Eh0.235±0.0190.08−1.421.65
70HFIPg2.38±0.19−2.943.8353.6
50HFIPg4.55±0.35−2.493.8033.2

aSubstrate concentration of 5.86×10−3 mol dm−3 .bUnless otherwise indicated, on a volume/volume basis, at 25.0 °C, with the other component water.cValues from ref. [3].dValues from ref. [4].eValues relative to those for the corresponding solvolysis of ethyl chloroformate (values from ref. [19]).fValue in 100% MeOD of 0.248(±0.014)×10−4 s−1, leading to a kMeOH/kMeOD value of 3.10±0.24, and specific rates of solvolysis of ethyl chloroformate in 100% MeOH and MeOD at 45.0 °C is (4.59±0.16)MeOH×10−4 s−1 and (2.07±0.01)MeOD×10−4 s−1, respectively and kMeOH/kMeOD value of solvolysis of ethyl chloroformate is 2.22±0.09.gSolvent prepared on weight/weight basis.hT–E represents 2,2,2-trifluoroethanol–ethanol mixtures.

Table Table 2. Specific rates for solvolysis of ethyl fluoroformate (EtOCOF)a and ethyl chloroformate (EtOCOCl)b at various temperatures, and enthalpies (ΔH, kcal mol−1) and entropies (ΔS, cal mol−1 K−1) of activation.

Click here to display table

Table 2. Specific rates for solvolysis of ethyl fluoroformate (EtOCOF)a and ethyl chloroformate (EtOCOCl)b at various temperatures, and enthalpies (ΔH, kcal mol−1) and entropies (ΔS, cal mol−1 K−1) of activation.
Solventc (%)Temp.(°C)104 kF (sec−1)EtOCOF
ΔS297.4°Cd104 kCl (sec−1)EtOCOCl
ΔS297.4°Cd
ΔH297.4°CdΔH297.4°Cd
100MeOH24.20.769±0.04012.0±0.4−36.9±1.40.824±0.009e14.8±0.2−27.5±0.8
35.01.74±0.162.16±0.01
45.04.59±0.17
55.05.78±0.089.59±0.23

100EtOH24.20.128±0.01012.6±0.1−38.5±0.50.226±0.005e14.6±0.3−30.7±1.1
35.00.528±0.028
45.00.544±0.0201.15±0.01
55.01.05±0.032.54±0.08

80EtOH24.26.39±0.49.4±0.6−41.5±2.00.731±0.006e13.6±0.2−31.8±0.5
35.010.8±0.31.75±0.03
40.014.3±0.2
45.019.6±0.33.72±0.05
55.07.21±0.24

70TFE24.21.18±0.0413.3±0.5−31.7±1.50.0611±0.002e18.5±0.2−20.4±0.7
45.04.47±0.190.503±0.005
50.07.78±0.13
55.01.30± 0.02
60.01.90±0.05

70HFIP24.22.38±0.1914.0±0.4−27.9±1.5
35.05.52±0.07
40.08.40±0.07

aSubstrate concentration of 5.86×10−3 mol dm−3.bSubstrate concentration of 5.12×10−3 mol dm−3.c80% EtOH prepared on a volume/volume basis, at 25.0 °C and 70% TFE and 70% HFIP prepared on a weight/weight basis.d With associated standard error.eValues from ref. [19].

Table Table 3. The specific rate ratios (kF/kCl) of solvolyses of alkyl haloformates in pure and binary solvents at various temperatures.

Click here to display table

Table 3. The specific rate ratios (kF/kCl) of solvolyses of alkyl haloformates in pure and binary solvents at various temperatures.
Solvent(%)aethylcn-propyldi-propylen-octylfbenzylg1-adamantylh2-adamantyli
100EtOH0.570.570.180.621.191.31×10−170.37
80EtOH8.745.622.118.0911.51.25×10 −33.48
60EtOH14.01.7915.114.6l3.01
100MeOH0.930.750.390.951.785.91×10−110.42
90MeOH4.82-1.76-7.18-2.40
80Me2CO3.904.24j0.532.865.89-0.65
70TFEb19.37.720.06710.2k6.36-0.011

aUnless otherwise indicated, on a volume/volume basis, at 25.0 °C, with the other component water.bSolvent prepared on weight/weight basis.CAt 24.2 °C (this study).dAt 40.0 °C [31].eAt 40.0 °C [40].fAt 24.2 °C [20].gAt 25.0 °C [32].hAt 50.0 °C [30].iAt 25.0 °C [33].jFor 70% acetone.k For 80% TFE.l For 70% ethanol.

Table Table 4. Correlation of the specific rates of solvolysis of ethyl fluoroformate and a comparison with the corresponding values for the solvolyses of other halogenoformate esters using the extended Grunwald-Winstein equation.

Click here to display table

Table 4. Correlation of the specific rates of solvolysis of ethyl fluoroformate and a comparison with the corresponding values for the solvolyses of other halogenoformate esters using the extended Grunwald-Winstein equation.
SubstrateMech.anblcmcccRdl/m
EtOCOFA-E211.51±0.200.85±0.11−0.14±0.140.8831.78
EtOCOFA-E17e1.34±0.140.77±0.07−0.06±0.100.9421.74
EtOCOClfA-E281.56±0.090.55±0.030.19±0.240.9672.84
EtOCOClfI70.69±0.130.82±0.16−2.40±0.270.9460.84
n-PrOCOFgA-E191.80±0.170.96±0.10−0.01±0.110.9401.88
n-PrOCOClhA-E221.57±0.120.56±0.060.15±0.080.9472.79
n-PrOCOClhI60.40±0.120.64±0.13−2.45±0.470.9420.63
i-PrOCOFiA-E201.59±0.160.80±0.06−0.12±0.050.9571.99
i-PrOCOCljI200.28±0.050.52±0.03−0.12±0.050.9790.54
n-OctOCOFkA-E231.80±0.130.79±0.060.13±0.340.9592.28
BzOCOFlA-E161.57±0.200.76±0.08−0.13±0.270.9742.04
1-AdOCOFmA-E102.78±0.211.01±0.060.09±0.160.9872.78
1-AdOCOFmI16~00.70±0.01−0.02±0.050.999~0
2-AdOCOFnA-E171.92±0.150.84±0.06−0.02±0.060.9682.28

aAddition-elimination (A-E) and ionization (I).bNumber of solvent systems included in the correlation.cUsing equation (1), with standard errors for l and m values and with the standard errors of the estimate accompanying the c values.dCorrelation coeffient.eOmitting the four TFE-ethanol solvents.f Values from ref. [19].g Values from ref. [31].h Values from ref. [39].i Values from ref. [40].j Values from ref. [14].k Values from ref. [20].l Values from ref. [32].m Values from ref. [30].n Values from ref. [33].
