Structures and Chemical Equilibria of Some N-Heterocycles Containing Amide Linkages

Department of Chemistry, Faculty of Science, Alexandria University, Ibrahimia, P.O. Box 426, Alexandria 21321, Egypt
*
Author to whom correspondence should be addressed.
Molecules 2003, 8(5), 430-438; https://doi.org/10.3390/80500430
Submission received: 3 July 2002 / Revised: 12 January 2003 / Accepted: 15 April 2003 / Published: 31 May 2003

Abstract

:
Structures and chemical equilibria of 5-carboxy-2-thiouracil (1), 5,6-diphenyl-3-hydroxy-1,2,4-triazine (2),  1-phenyl-3-methyl-5-pyrazolone (3) and 2-mercapto-4,6-dimethylpyrimidine hydrochloride (4) are reported. Their electronic transitions are assigned and pK values are evaluated and discussed.

Introduction

Nucleic acid and nucleic acid derivatives are multisite ligands. The interaction of these molecules with both natural and foreign metal species has stimulated great interest [1]. These biomolecules are of importance in enzyme reactions that require or act on nucleic acid constituents and the structures of nucleic acid-protein complexes [2]. There are several conformational aspects of the geometry of the nucleosides and nucleotides where the possibility that the bases will stack and hydrogen bonding interactions dominate [3,4]. Some of these compounds inhibited the replication of bacterial DNA selectively, completely and reversibly [5,6]. Some of these are used as anti-cancer agents [7].
In our laboratory, Masoud et al. have published a series of papers that throw light on the chemistry of pyrimidine compounds and their complexes [8,9,10,11,12,13,14,15,16,17]. The aim of this paper is to study the structural chemistry and the chemical equilibria of the compounds 5-carboxy-2-thiouracil (1), 5,6-diphenyl-3-hydroxy-1,2,4-triazine(2),1-phenyl-3-methyl-5-pyrazolone (3) and 2-mercapto-4,6-dimethylpyrimidine hydrochloride (4). Uracils are studied from different structural chemistry points of view. The most important recent reviews are given [18,19,20,21].

Results and Discussion

Effect of pH on the Electronic Absorption Spectra of the Studied N-Heterocycles

This study is undertaken to gain some insight about the species that might be formed in solutions of different pHs, to explain the mechanism of ionization of such compounds and to evaluate their dissociation constants. The latter are readily obtained from the absorbance-pH curves by application of the half height [22], modified limiting absorption [23] and Colleter methods [24].
The electronic absorption spectra of orotic acid gave two bands at 210 and 280 nm with a pKa of 9.3 and an isobestic point at 286 nm. Both bands are due to π-π* and n-π* electronic transitions, respectively.
Also, the UV spectrum of thiouracil gave two bands at 210 and 270 nm in the pH range 2-7 due to the π-π* transition, and a new band at 255 nm in the pH range 9-12. The position and intensity of this band is almost pH independent. The spectra gave a pKa value of 8.2 with the liberation of one proton due to the ionization of SH group.
Orotic acid has three potentially dissociable groups as indicated by conductometric titration [25] with pK values as follows: pK1~ 2.8, pK2~ 9.45 and pK3>13 [26, 27]. The first ionization is due to the carboxylic group and the second is obtained by elimination of a second proton from N(1)-H or N(3)-H.
In the electronic absorption spectra of 1x10-4M 5-carboxy-2-thiouracil (1), in the pH range 2.03-11.03 three characteristic bands are observed at 210, 270 and 308 nm, with ε values that lie in the ranges 6900 – 18500, 9300 – 12700 and 12600 – 16500, respectively. The first band is probably due to a π-π* of the two sp2 hybridized carbons of the exocyclic band in heterocyclic ring. The second band is assigned to the coupled π-π* of the two carbonyl and thiocarbonyl groups in the β-position [28], and may be considered to be due to intramolecular hydrogen bond formation between N(3)-H with C=O and N(1)-H with C=S [29]. The position of the first band is pH independent while its intensity increases up to pH 7.99 then decreases. The second band is more intense in acidic solutions and becomes less intense in neutral and basic solutions. The position of this band is independent of the pH over the range studied (2.03-7.01). In basic medium, this band is slightly shifted and decreased in intensity probably due to the formation of a protonated species overlapped with the π-π* electronic transition of uracil ring. However, the third band, due to presence of COOH group, is blue shifted in the pH range 2.03-7.01 but with the same intensity. This behavior suggests a tautomerism between the thione and thiol structures. When the pH is increased the band is strongly red shifted as a result of proton elimination. In addition to the former three bands, a new band appeared in the pH range 7.99-11.03 at 229 nm with ε values 6300-9800, representing the shift of the tautomeric equilibrium towards the enol form in basic solutions. The intensity of this band decreases as the pH increases. Three well-defined isobestic points appeared at 219, 306 and 324 nm. The first covers the pH values 3.13-4.99, 9.01, 10.02, the second covers the pH values 3.13-4.99, 7.01-10.02 and the third one is for the pH values 2.03-4.03, 7.99, 9.01. The isobestic points assign the presence of different absorbing species in equilibrium to each other [30], i.e., the HN(1)C=S and HN(3)C=O groups are subjected to simultaneous ionization.

Methods Applied to Calculate the pK -values from the Absorbance – pH Relationship:

a) Half Height Method [22]

At a constant wavelength, the pK value of the compound can be evaluated (where half of the compound exists in the ionized form and the other half in the nonionized). It is known that:
Molecules 08 00430 i001
(γ = activity coefficient term and controlled by ionic strength of a supporting electrolyte), i.e., at half height of the As-pH curves, the pK-values data are collected in Table 1.

b) Modified Limiting Absorption Method [23]:

For an organic compound of formula HnA, the first ionization for the ligand takes place as follows:
Molecules 08 00430 i002
When plotting the log absorbance ratio term versus pH, a straight line is obtained. The pK1 value is computed when the log absorbance ratio value equals zero. The data are collected in Table 1. The slope (n) of such line gives the number of the ionized protons.

c) Colleter Method [24]:

This method is widely recognized for evaluation of the pK values of different classes of compounds. The calculation is applied on the basis that, for three values of absorbance at different H+, the following equation is applied:
Molecules 08 00430 i003
Where:
Molecules 08 00430 i004
The absorbance values used in the calculations are selected from As-pH plots. The data are collected in Table 1.
Table 1. Dissociation Constants (pKa) of the Organic Compounds at λ = 335 nm.
Table 1. Dissociation Constants (pKa) of the Organic Compounds at λ = 335 nm.
CompoundHalf HeightModified LimitingColletern
5-Carboxy-2-thiouracil (1)4.7
7.7
4.7
7.9
4.8
8.0
1.0
1.0
5,6-Diphenyl-3-hydroxy-1,2,4-triazine (2)4.3
7.6
4.4
7.5
4.1
7.5
0.5
1.0
1-Phenyl-3-methyl-5-pyrazolone (3)8.17.98.11.0
2-Mercapto-4,6-dimethylpyrimidine hydrochloride (4)3.6
8.1
3.6
8.3
3.5
8.3
1.0
1.0
For 5-carboxy-2-thiouracil (1) two pKa values were evaluated at 335 nm. The pKa1 of 4.7 with the liberation of one proton through ionization is probably due to the removal of a proton from the –COOH group [31]. The pKa2 value of 7.8 with the liberation of a proton may be from the 2-SH group or the 4-OH group, where two modes of ionization could be represented:
Molecules 08 00430 i005
The negative ferric chloride test for phenolic-OH and the pKa value lower than that reported for phenolic compounds [32] lead us to argue that the mode of ionization (i) is more acceptable than (ii). Thus the ionization process is assumed to proceed as indicated in Scheme 1.
Similarly, in the electronic absorption spectra of 1x10-4M 5,6-diphenyl-3-hydroxy-1,2,4-triazine (2) in solutions within the pH range 3.13 – 11.03, three electronic absorption bands appear at 216, 250 (both are intense) and 341 nm (broad) with ε values 6700–12600, 5300–12600 and 1600–4800, respectively. The first two bands are probably due to the π-π* transition while the third band may be due to intramolecular hydrogen bond between N (2)-H or N(4)-H with C=O [29] .
When the pH increases in the 2.03–6.19 range, the intensity of the two bands at 216 and 250 nm decreases while the third one becomes more intense. However, the positions of these bands are pH independent. With a further increase of the pH to 11.02, the three bands become more intense with a slight red shift in the second and third bands.

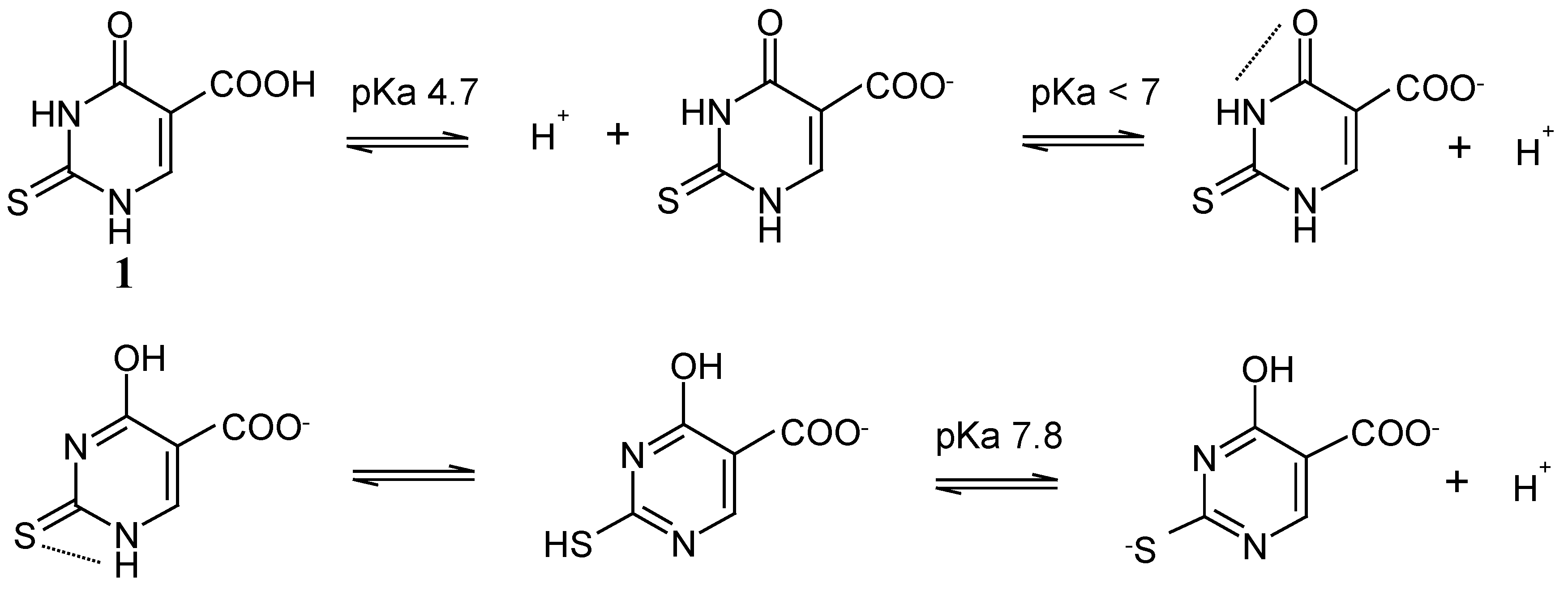

Scheme 1.
Scheme 1.
Molecules 08 00430 g001
Two isobestic points are seen at 288 and 318 nm. The first covers the pH values 4.03, 7.99–11.03 and the second one covers the pH values 7.99–11.03, indicating the presence of an equilibrium between different species in the basic media. Two pKa values were evaluated (4.3 and 7.6) at λ= 355 nm with the liberation of one proton in each step. The first one is due to the associated species H2L2 with n value of 0.5. The negative ferric chloride test reaction and the lower pKa value (7.6) than that of the reported for phenolic compounds [32] assumed that the second proton is liberated from 4-NH or 2-NH groups and not from 3-OH group. The following mechanism of ionization is suggested:

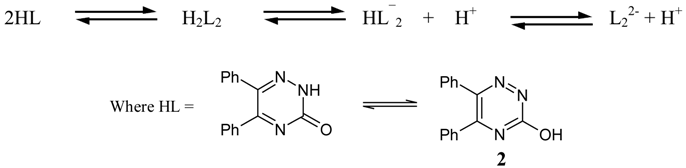

Molecules 08 00430 i006
On the other hand, in the electronic absorption spectra of 1x10-4 M 1-phenyl-3-methyl-5-pyrazolone (3), in solutions within the pH range 2.01 – 7.37, one electronic absorption band appeared at 245 nm with ε values in the range 13900–16600, which is pH independent both in intensity and in position. On increasing the pH up to 9.12, two more bands appeared at 209 and 344 nm with ε values 1300–13900 and 1000–3400, respectively. The two bands at 209 and 245 nm become less intense on going from pH 8.13 to 9.12 while the 344 nm band becomes more intense. At the pHs 10.06 and 11.01, the first band disappeared, the second one becomes slightly more intense while the third band becomes less intense and broader. Accordingly, 1-phenyl-3-methyl-5-pyrazolone (3) exists in the keto form in acidic, neutral and strong basic solutions, however, it exists in the enol form only in solutions with 7.37 < pH <10.06.
Two well-defined isobestic points appeared at 242 nm (covering the pH’s 3.58, 9.12, 10.06) and 275 nm (covering the pH’s 3.58, 7.37, 8.13, 9.12) to indicate the presence of different absorbing species in equilibrium. One pKa value of 8.1 was evaluated at 335 nm in the basic medium (7.37 < pH < 10.06) with the liberation of one proton which may be (a) from the 2-NH group, or (b), the 5-OH group, where two modes of ionization could be presented (Scheme 2).

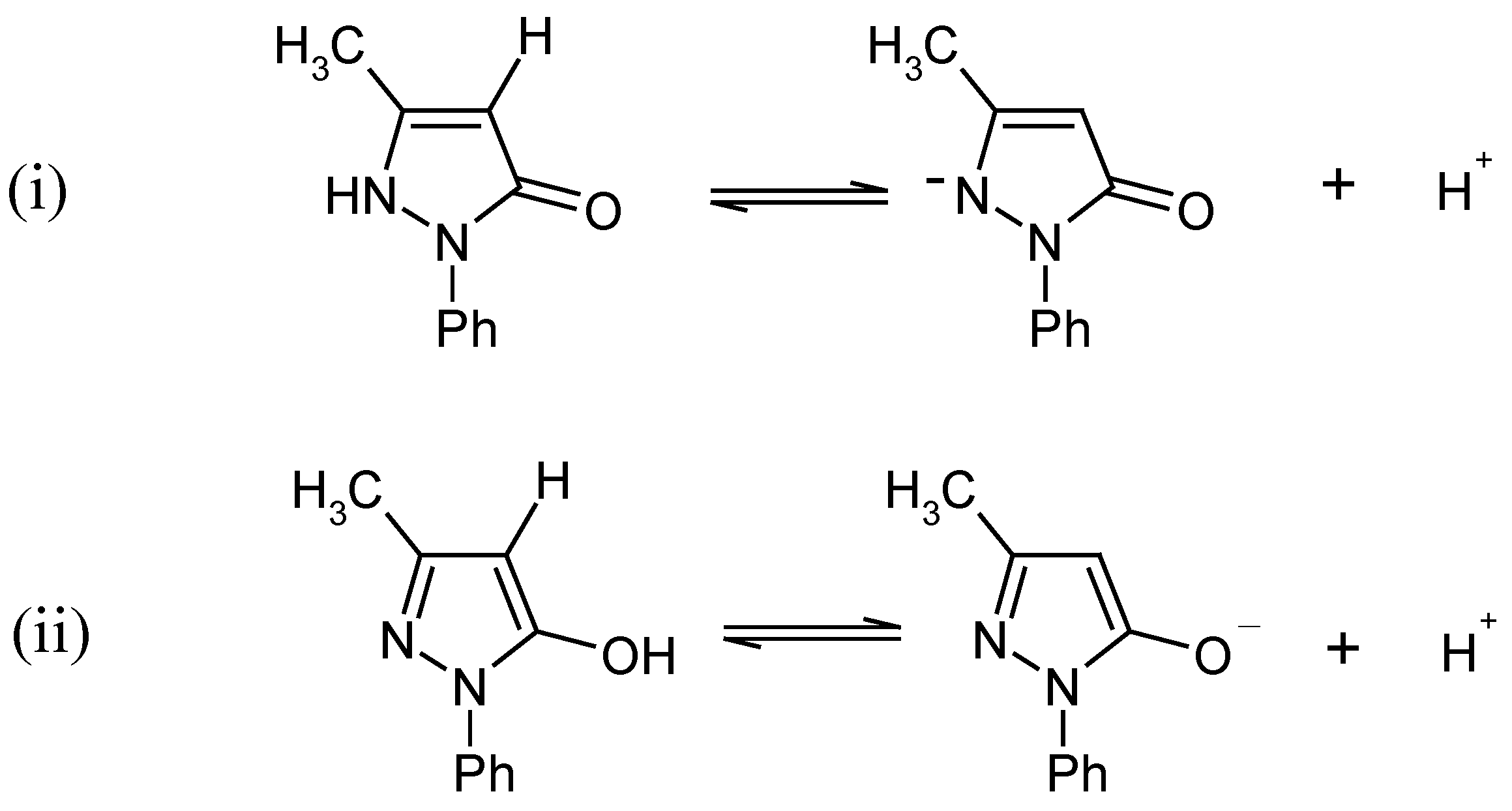

Scheme 2.
Scheme 2.
Molecules 08 00430 g002
The positive ferric chloride test reaction for phenolic-OH and the closeness of the pKa value to that reported for phenolic compounds [32] lead us to propose that the mode of ionization (ii) is more acceptable than (i). Therefore the ionization process is assumed to proceed as indicated in Scheme 3:

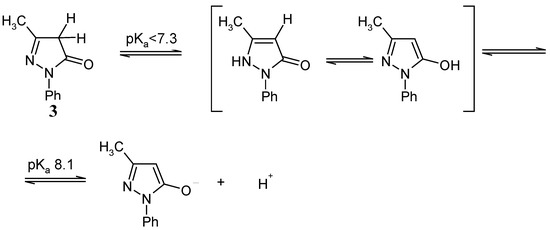

Scheme 3.
Scheme 3.
Molecules 08 00430 g003
The electronic absorption spectra of 1x10-4M 2-mercapto-4,6-dimethylpyrimidine hydrochloride (4), in the 2.00–11.03 pH range displayed three electronic absorption bands at 216, 274 and 331 nm with ε values amount 3200–10400, 16700–20800 and 1600– 5100, respectively. In the pH 2.00– 4.99 range, the first band becomes more intense and as the pH increases, it becomes broad and less intense. However, in the pH 2.00–7.37 range, the second one is pH independent, both in intensity or in position, while it becomes less intense with a slight blue shift in the pH 8.13–11.01 range. Meanwhile, the intensity of the third band increases in the pH 2.00–4.99 range, then decreases as the pH increases stepwise, until it completely vanishes in strong basic media. Two isobestic points appear at 268 and 272 nm. The first covered all the pH range, while the second one covers the pH values 2.00–7.37, 11.01. However, two pKa values were evaluated (3.5 and 8.1), with the liberation of one proton in each step. The ionization mechanism seen in Scheme 4 is proposed:

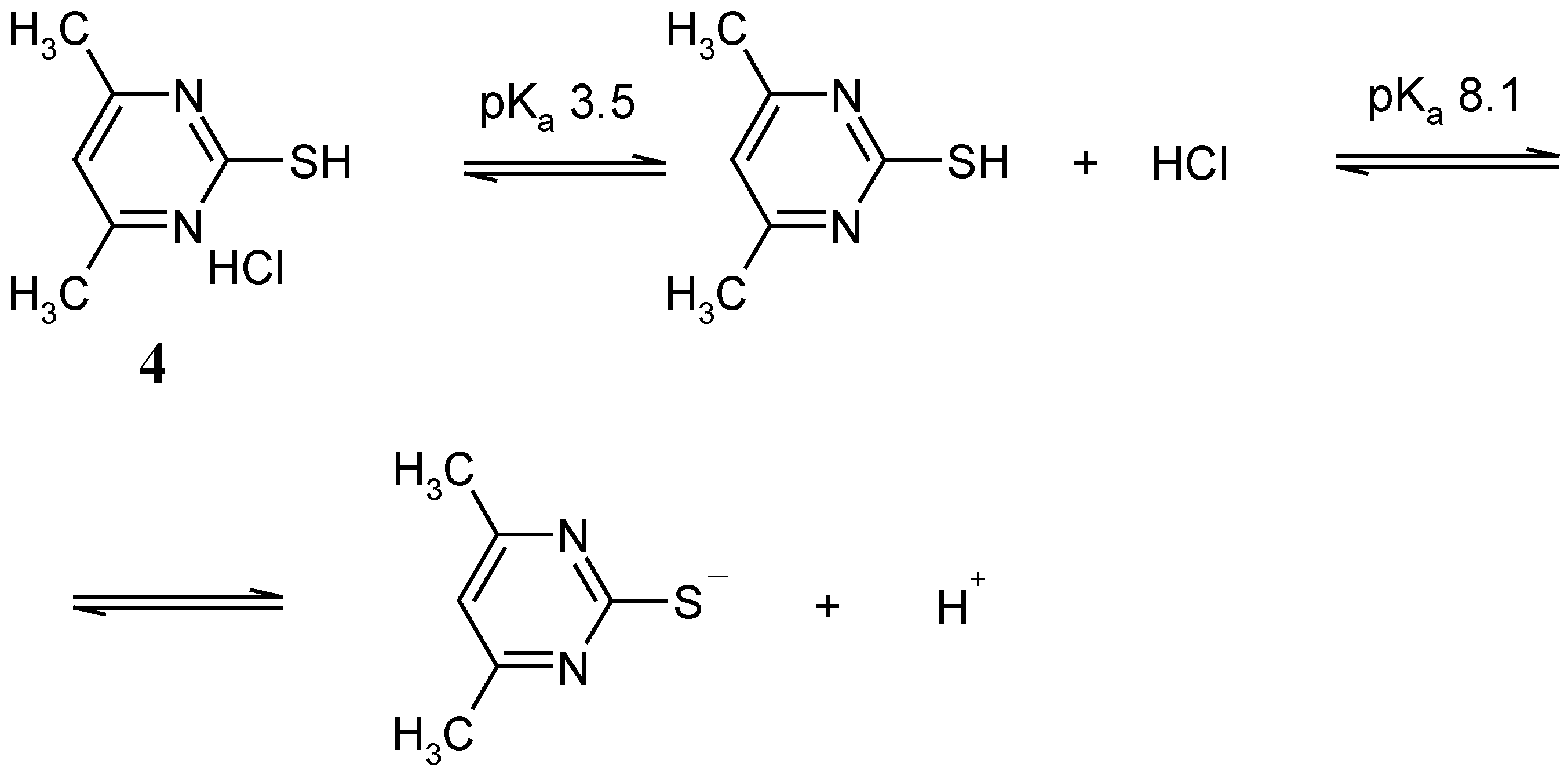

Scheme 4.
Scheme 4.
Molecules 08 00430 g004

Conclusions

We have studied structures and chemical equlibria of 5-carboxy-2-thiouracil (1), 5,6-diphenyl-3-hydroxy-1,2,4-triazine (2), 1-phenyl-3-methyl-5-pyrazolone (3) and 2-mercapto-4,6-dimethyl-pyrimidine hydrochloride (4). The pKa values of such compounds were determined by different methods and their different modes of ionization were determined.

Experimental

General

Ultraviolet and visible spectra were recorded using a Perkin-Elmer Model Lambda 4B spectrophotometer covering the wavelength range 190-900 nm. Infrared spectra (KBr disks) were made using a Perkin-Elmer Model 1430 Spectrophotometer covering the frequency 200–4000 cm-1. Uracil and 2-thiouracil were purchased from BDH, while 5-carboxy-2-thiouracil was from SIGMA. These highly purified compounds were used without further purification. Their purity was checked by m.p. and comparison of some of their physical properties, e.g., solubility and colour. Universal buffer solution was prepared by taking 0.04 M each of H3BO3, H3PO4 and CH3COOH acids and adding the required volume of 0.2 M-NaOH to give the desired pH [36]. The pH was checked by using a Jenuay 3015 pH-meter, previously calibrated with standard buffer solutions of pH 4.00, 7.02 and 9.18. KCl solution (0.10 M) was prepared and used to adjust the ionic strength of the solutions. Carbon, hydrogen, nitrogen and sulphur contents of all the synthesized products were analyzed at the Central Laboratory, Faculty of Science, Alexandria University, Alexandria - Egypt, and all compounds gave satisfactory elemental analysis.

Syntheses of the Compounds Studied

5,6-Diphenyl-3-hydroxy-1,2,4-triazine (2). A mixture of benzil (10.5g) in acetic acid (100 mL) and semicarbazide hydrochloride (7 g) in water (20 mL) was heated under reflux for 3 h. The reaction mixture was poured onto cold water with stirring and the product obtained was filtered off, washed with water and dried to give 9 g of crude product, which was recrystallized from ethanol to give needles of pure material having m.p. 225 °C (lit. [33] 224 – 225 ° C).
1-Phenyl-3-methyl-5-pyrazolone (3). A mixture of ethyl acetoacetate (13 mL, 0.1 mole), phenyl-hydrazine (10.8 mL, 0.1 mole) and glacial acetic acid (25 mL) was heated under reflux for 6 h. The reaction mixture was concentrated under vacuum whereupon a yellow precipitate (13 g) was formed. It was recrystallized from hot water to give yellowish prisms of the title compound, m.p. 126 – 128°C (lit. [34] 127° C)
2-Mercapto-4,6-dimethylpyrimidine hydrochloride (4) [35]. Concentrated hydrochloric acid (25 mL) was added to a suspension of finely-powdered thiourea (7.6 g, 0.1 mole) in acetylacetone (12 g, 0.12 mole) and ethanol (250 mL). The mixture was boiled under reflux for 2 h. After cooling, the yellow needles of the title compound were collected, m.p. 190 – 195°C.

References:

  1. Berliner, L. J.; Wong, S. S. Biochem. 1975, 14, 4977. [CrossRef]
  2. Lungquist, S.; Lindahl, T. J. Biol. Chem. 1974, 249, 1530.
  3. Chang, C. H.; Marzilli, L. G. J. Am. Chem. Soc. 1967, 96, 3656.
  4. Gould, I.R.I.; Hillier, I. H. J. Chem. Soc. Perkin Trans. II 1990, 329.
  5. Brown, C. N. J. Mol. Biol. 1971, 59, 1.
  6. Brown, C. N.; Wisseman, L. C. Nature. 1972, 237, 72. [CrossRef]
  7. Urena, F. H.; Carretero, M.N.M.; Peregrin, J.M.S.; Lopez, G.A.C. Trans. Met. Chem. 1995, 20, 262.
  8. Masoud, M.S.; Zaki, Z. M.; Ismail, F. M.; Mohamed, A.K. Z. Für Phys. Chem. (N.F.) 1994, 185, 223.
  9. Masoud, M.S.; Abd El-Hamid, O. H.; Zaki, Z. M. Trans. Met. Chem. 1994, 19, 21. [CrossRef]
  10. Masoud, M.S.; Haggag, S. S.; Zaki, Z. M.; El-Shabasy, M. Spectroscopy Letter. 1994, 27, 775.
  11. Masoud, M.S.; El-Nahas, H. M.; Haggag, S.S. Pak. J. Sci. Ind. Res. 1995, 38, 108.
  12. Masoud, M.S.; Haggag, S.S.; Abd El Hamid, O. H. Rev. Roum. Chim. 1996, 41, 21.
  13. Masoud, M.S.; Hasanien, A. A.; Ghonaim, A. K.; Khalil, E. A.; Mahmoud, A. A. Z. Für Phys. Chemie, Bd. 1999, 209. S, 223.
  14. Masoud, M.S.; Hindawy, A. M.; Ahmed, R. H. Pak. J. Sci. Ind. Res. 1999, 42, 11.
  15. Masoud, M.S.; Khalil, E. A.; Ibrahim, A. A.; Marghany, A. A. Z. Für Phys.Chemie. 1999, 211, 13.
  16. Masoud, M.S.; Hammud, H. H. Ultra Sci. Phys. Sci. 2000, 12, 12.
  17. Masoud, M.S.; Ghonaim, A. K.; Ahmed, R. H.; Abou El-Enein, S. A.; Mahmoud, A. A. J. Coord. Chem. 2002, 55, 79.
  18. Ahmed, Z.A. Delta, J. Sci. 1994, 18, 55, [Chem. Abst. 1997, 127, 99652 q].
  19. Arora, C.B.; Rastogi, R.; Awasthi, U.; Krishna. Asian J. Phys. 1996, 5, 231, [Chem. Abst. 1997, 126, 258042 p].
  20. Gupta, J.K.; Kumar, S.; Kumar, S.; Kaushik, S.D. Asian J. Phys. 1996, 5, 245, [Chem. Abst. 1997, 126, 271398 d].
  21. Khan, B.T.; Khan, S.R.A.; Annapoorna, K. Indian J. Chem. Sect. A; Inorg. Bioinorg., Phys., Theor. Anal. Chem. 1995, 34A, 878, [Chem. Abst. 1995, 123, 357535 w].
  22. Issa, R. M. J. Chem. U. A. R. 1971, 14, 113.
  23. Muck, A. A.; Pravico, M. B. Anal. Chim. Acta. 1969, 45, 534.
  24. Colleter, J. C. Ann. Chim. 1960, 5, 415.
  25. Bachstetz, M. Ber. 1930, 63B, 1000, [Chem. Abst. 1930, 24, 3760].
  26. Shugar, D.; Jack, J. F. Biochem. Biophys. Acta. 1952, 9, 199. [CrossRef]
  27. Chargaff, E.; Davidson, J. N. The Nucleic Acids 1; Academic Press, Inc.: New York, N.Y, 1955; p. 113. [Google Scholar]
  28. Woodward, R. B. J. Amer. Chem. Soc. 1942, 64, 72. [CrossRef]
  29. Petel, D. R.; Choxi, C. S.; Petel, S. P. Can. J. Chem. 1969, 47, 105.
  30. Cohen, M. D.; Fisher, E. J. Chem. Soc. 1962, 3044. [CrossRef]
  31. Masoud, M.S.; El Dessoukey, M.A.; Haggag, S.S. Spectroscopy Lett. 1985, 18, 251.
  32. Katritzky, A. R.; Maine, F. W. Tetrahedron 1964, 20, 299.
  33. Bitz, H. Berichte 1905, 38, 1418.
  34. Krouth, W. Bericht über Patente. 1896, 77.
  35. Hunt, R. R.; McOmie, J. F. W.; Sayer, E. R. J. Chem. Soc. 1959, 527.
  36. Britton, T. S. Hydrogen Ions; Chapman and Hall Ltd: London, 1955. [Google Scholar]
  • Sample Availability: Samples are available from the authors.
