Article

Synthesis, Structure and Antitumor Activity of Dibutyltin Oxide Complexes with 5-Fluorouracil Derivatives. Crystal Structure of [(5-Fluorouracil)-1-CH2CH2COOSn(n-Bu) 2]4O2

1
Marine Drug and Food Institute, Ocean University of Qingdao, Qingdao, China
2
Key Laboratory of Inorganic Synthesis and Preparative Chemistry, Jilin University, Changchun, China
*
Author to whom correspondence should be addressed.
Molecules 2001, 6(8), 647-654; https://doi.org/10.3390/60800647
Submission received: 19 March 2001 / Revised: 20 March 2001 / Accepted: 2 May 2001 / Published: 31 July 2001

Abstract

:
Dibutyltin (IV) oxide complex reacts with the fluorouracil compounds 5-fluorouracil-1-propanonic or 5-fluorouracil-1-acetic acid (Fu) to give the complexes [(5-Fu)-1-(CH2)nCOOSn(n-Bu)2]4O2 (I, n=2; II, n=1) which were characterized by IR and 1H-NMR. The crystal structure of complex I shows that the molecular is a dimer, in which two [(5-Fu)-1-CH2CH2COOSn(n-Bu)2]2O units are linked by a bridging oxygen atom, and the tin atoms adopt distorted trigonal bipyramids via two carbons from a dibutyl moiety and three oxygen atoms from 5-Fu and bridging oxygen. These complexes have potential anti-tumour activity: in vitro tests showed that complexes I and II exhibit high cytotoxicity against OVCAR-3 and PC-14.

Introduction

Many groups have reported the chemotherapeutic properties of tin compounds possessing anti-tumor activity [1,2,3,4,5]. Since then intense interest has developed in this field and a large number of organotin compounds have been synthesized and tested [6,7]. Among these compounds dibutyltin derivatives have displayed both higher activity and relatively low toxicity [8]. On the other hand, the cycle-specific schedule dependent antimetabolite 5-fluorouracil (5-Fu) has been in clinical use for 40 years and has evolved as an important agent in the treatment of a large spectrum of tumors, including all gastrointestinal cancers and breast cancer. While attempting to study organotin (IV) complexes as possible candidates for anti-tumor agents and the structure-activity relationships of these complexes, we successfully prepared two kinds of new 5-Fu dibutylorganotin (IV) derivatives and determined the X-ray crystal structure of one of them. At the same time, their anticancer activity was also tested. We report these results herein.

Results and Discussion

Synthesis

The [(5-fluorouracil)-1-(CH2)nCOOSn(n-Bu)2]4O2 compounds I (n=2) and II (n=1) were synthesized by the reaction of (Bu)2SnO with (5-fluorouracil)-1-(CH2)nCOOH (n = 2,1) in the appropriate molar ratio of 1:1. A possible mechanism for the formation of compounds I and II is shown in Scheme 1

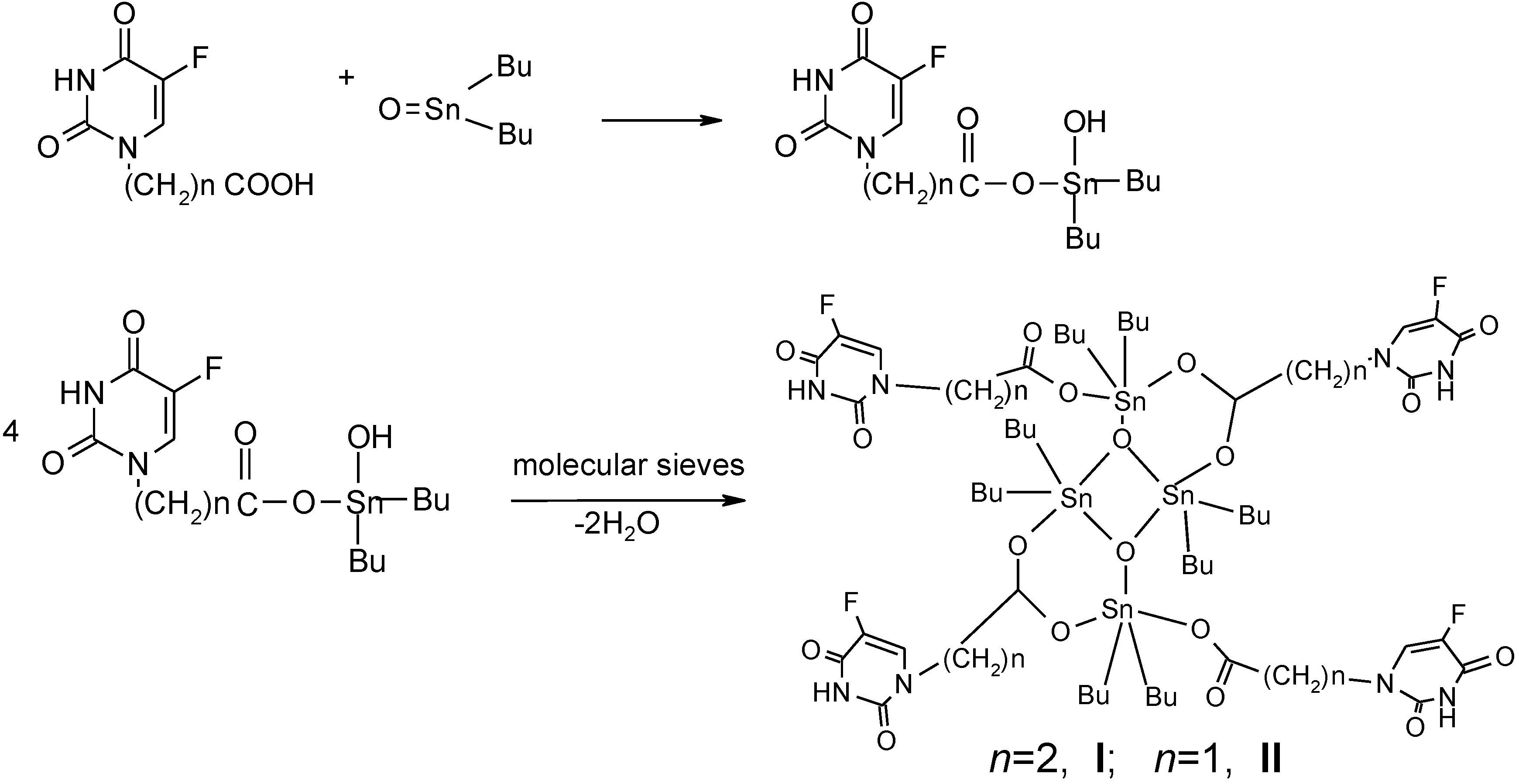

Scheme 1. The synthesis of [(5-Fu)-1-(CH2)2COOSn(n-Bu)2]4O2
Scheme 1. The synthesis of [(5-Fu)-1-(CH2)2COOSn(n-Bu)2]4O2
Molecules 06 00647 g004
The (5-fluorouracil)-1-(CH2)nCOOH (n = 2, 1) staring materials were obtained by the reaction of 5-fluorouracil with CH2=CHCN (n = 2) or ClCH2COOH (n = 1) in NaOH solution. 4Å molecular sieves were used as the catalyst for the dehydration reaction. If the reaction temperature were raised to 80˚C, the 2:1 molar ratio (5-Fu:Sn) complexes would be formed. The resulting complexes I and II are stable in the air and are difficult to dissolve in aromatic or ether solvents, but can be easily dissolved in methanol or H2O when heated.

Molecular structure

The IR and 1H-NMR spectroscopic spectra supported the fact that the complexes I and II contain the expected 5-Fu and butyl moieties. In order to confirm their molecular structure, the X-ray crystal structure of I was also determined. Its molecular structure and the unit cell are shown in Figure 1 and Figure 2, and selected interatomic bond distances (Å) and angles (°) are listed in Table 1.

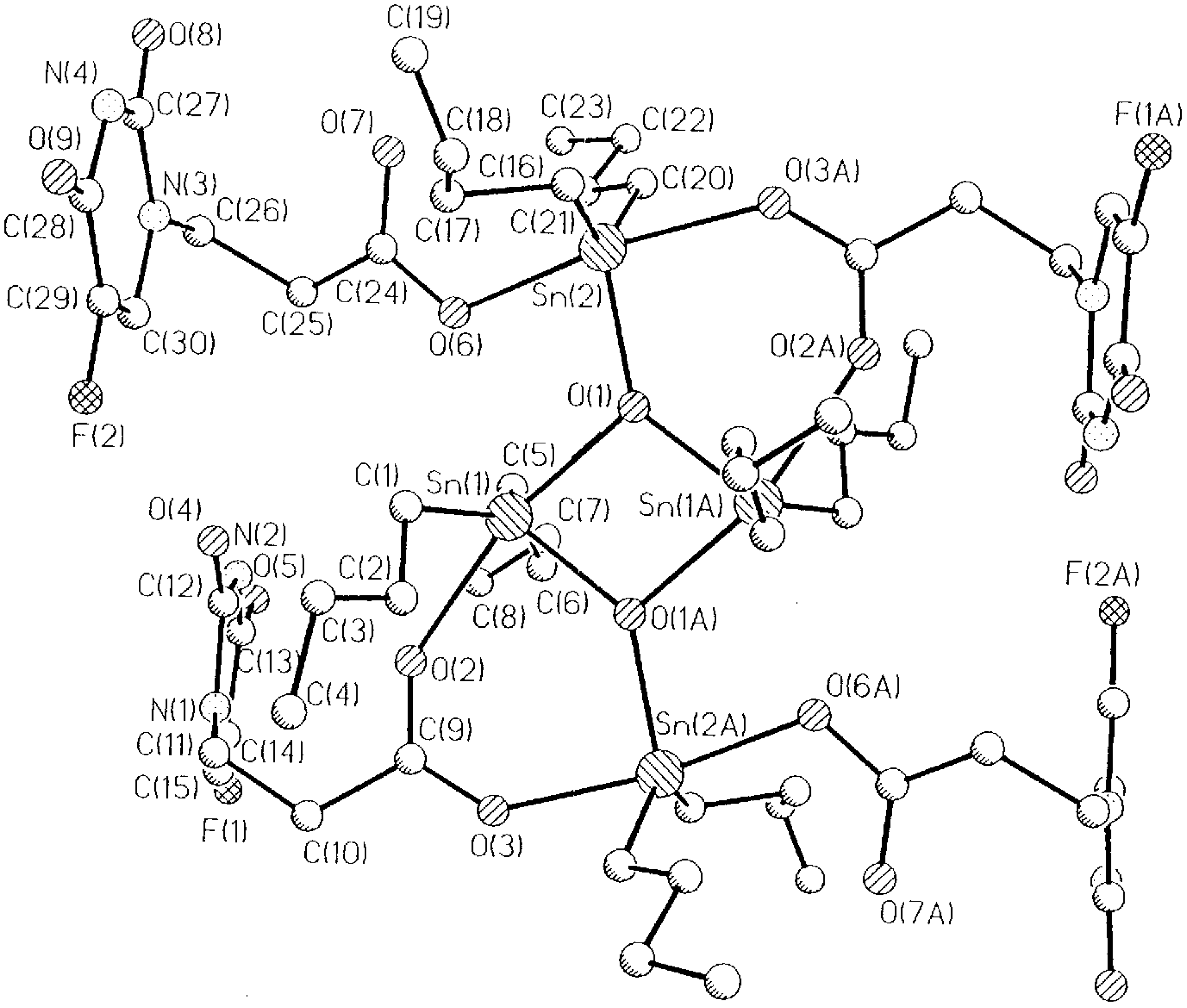

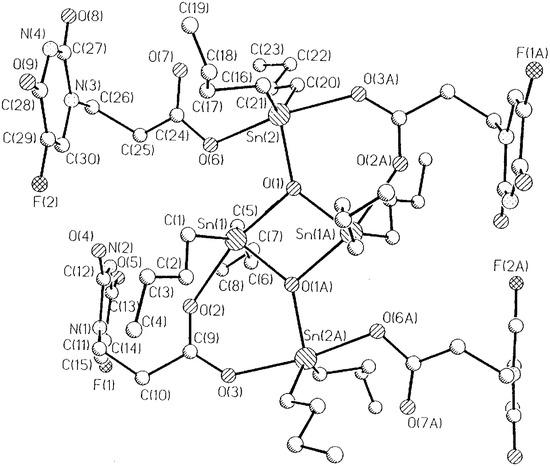

Figure 1. Molecular structure and atomic numbering system for [5-fluorouracil-1-(CH2)2COOSn(n-Bu)2]4O2
Figure 1. Molecular structure and atomic numbering system for [5-fluorouracil-1-(CH2)2COOSn(n-Bu)2]4O2
Molecules 06 00647 g001

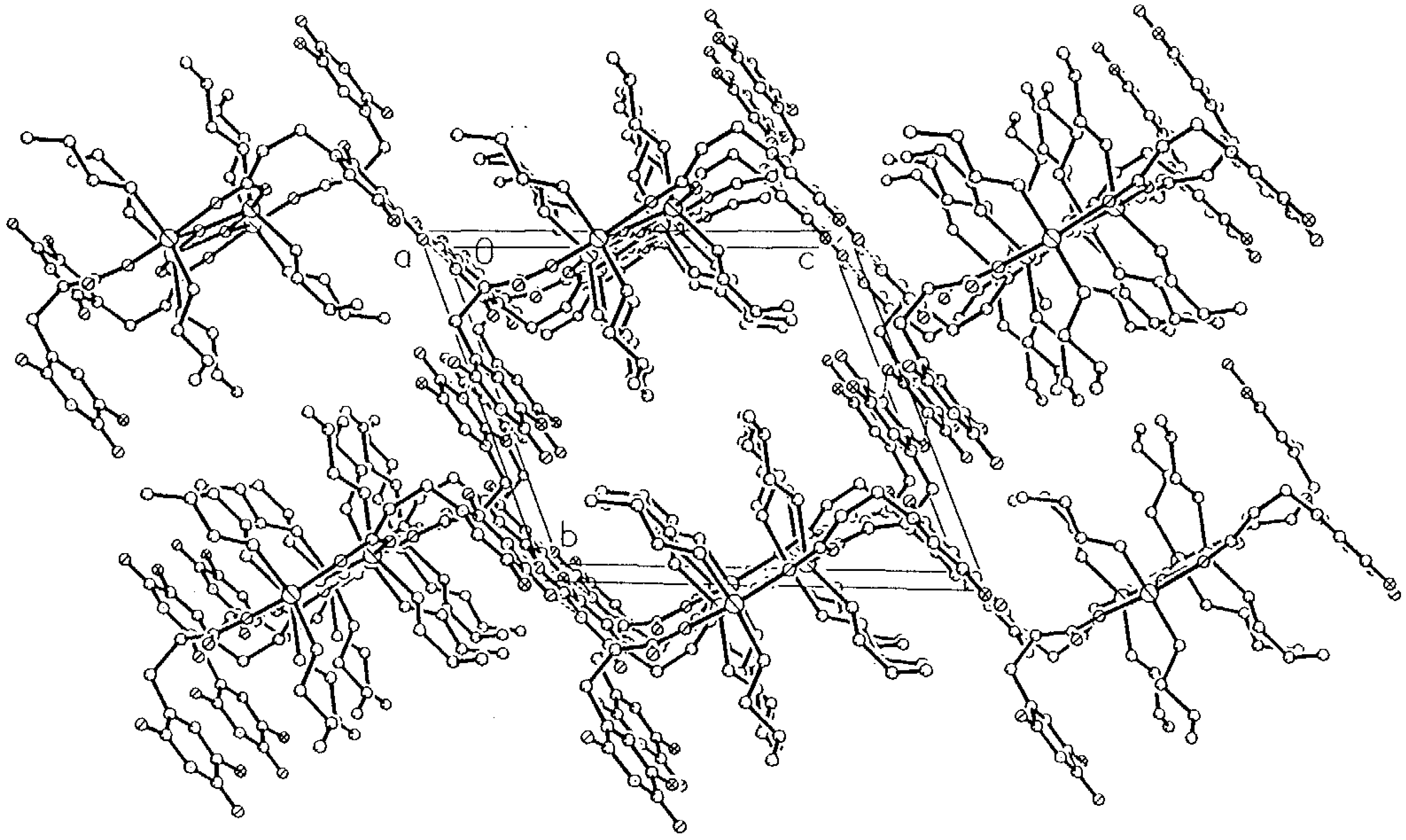

Figure 2. Unit cell of [5-fluorouracil-1-(CH2)2COOSn(n-Bu)2]4O2
Figure 2. Unit cell of [5-fluorouracil-1-(CH2)2COOSn(n-Bu)2]4O2
Molecules 06 00647 g002
Table 1. Selected Bond lengths [Å] and angles [°] for (I)
Table 1. Selected Bond lengths [Å] and angles [°] for (I)
Bond lengths
Sn(1)-O(1A)2.037(8)Sn(2)-C(20)2.1432)
Sn(1)-C(1)2.083(17)Sn(2)-O(6)2.151(9)
Sn(1)-C(5)2.086(15)Sn(2)-O(3A)2.251(10)
Sn(1)-O(1)2.183(8)O(1)-Sn(1A)2.037(8)
Sn(1)-O(2)2.269(8)O(2)-C(9)1.258(14)
Sn(2)-O(1)2.043(7)O(3)-C(9)1.261(14)
Sn(2)-C(16)2.119(19)O(3)-Sn(2A)2.251(10)
Bond angles
O(1A) -Sn(1)-C(1)106.6(5)C(5)-Sn(1)-O(2)87.0(4)
O(1A)-Sn(1)-C(5)110.6(4)O(1)-Sn(1)-O(2)165.6(3)
C(1)-Sn(1)-C(5)141.4(6)O(1)-Sn(2)-C(16)109.0(5)
O(1A)-Sn(1)-O(1)76.4(3)O(1)-Sn(2)-C(20)113.1(6)
C(1)-Sn(1)-O(1)100.0(5)C(16)-Sn(2)-C(20)136.4(7)
C(5)-Sn(1)-O(1)98.2(4)O(1)-Sn(2)-O(6)79.6(3)
O(1A)-Sn(1)-O(2)89.2(3)C(16)-Sn(2)-O(6)102.5(6)
C(1)-Sn(1)-O(2)83.7(5)C(20)-Sn(2)-O(6)95.8(6)
O(1)-Sn(2)-O(3A)91.9(4)Sn(1A)-O(1)-Sn(1)103.6(3)
C(16)-Sn(2)-O(3A)84.6(6)Sn(2)-O(1)-Sn(1)118.9(4)
C(20)-Sn(2)-O(3A)83.1(6)C(9)-O(2)-Sn(1)138.2(8)
O(6)-Sn(2)-O(3A)170.4(3)C(9)-O(3)-Sn(2A)135.4(9)
Sn(1A)-O(1)-Sn(2)137.4(4)C(24)-O(6)-Sn(2)118.5(8)
O(2)-C(9)-O(3)123.1(12)
This complex is a dimeric compound in which the [(5-Fu)-1-CH2CH2COOSn(n-Bu)2]2O units are linked by bridging oxygen atoms thus increasing coordinative saturation. The tin atom is pentacoordinated. The geometry about the four tin atoms are based on the trigonal bipyramids with the trigonal planes defined by the C (1), C(5), O(1A) atoms for Sn (1); C(16),C(20), O(1) for Sn(2); C(1A), C(5A), O(1) for Sn(1A) and C(16), C (20A), O(1A) for Sn(2A), while the O(1) and O(2), O(3A) and O(6), O(2A) and O(1A), O(6A) and O(3) are in the axial position for Sn(1), Sn(2), Sn(1A) and Sn(2A) respectively. The bonding of the bridging ligands is asymmetric with a Sn(1)-O(1A ) bond length of 2.037(8) Å and a Sn(1)-O(1) contact of 2.183 (8)Å, which forms a parallelogram. The complex also contains two five-member chelate rings, formed via carbonyl oxygen to tin coordination. The bond distances Sn(1)-O(2) (2.269(8)Å), Sn(2A)-O(3) (2.251 (10)Å) are longer than the bond distance of Sn(2)-O(6) or Sn(2A)-O(6A) ( 2.151(9)Å) , and the bond distances of C(9)-O(2) (1.258(14)Å), C(9)-O(3) (1.261(14)Å) are almost equal and both are between the length of C=O double bond (1.212Å) and C-O single bond (1.291Å) in the model complex shown in Figure 3 below [12]. This indicates that the coordination of two of the circular-linked 5-Fu ligand oxygen atoms to tin atoms is weaker than that of the other oxygen atom of the linearly-linked 5-Fu ligand.

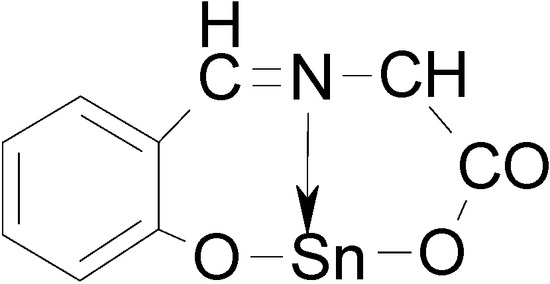

Figure 3.
Figure 3.
Molecules 06 00647 g003

Biological activity

The MTT method was used for a preliminary estimation of the in vitro tumor-inhibiting activity of complexes I and II. The data summarized in Table 2 shows that complexes I and II possess rather high cytotoxicity towards tumor cells of OVCAR-3 and PC-14 and the dibutyltin 5-fluorouracil-1-propanonic acid derivative is more active than the dibutyltin 5-fluorouracil-1-propanonic acid derivative.
Table 2. Inhibitory effect of the complexes on tumor cells of OVCAR-3 and PC-14 (MTT)
Table 2. Inhibitory effect of the complexes on tumor cells of OVCAR-3 and PC-14 (MTT)
Tumor cellComplexConcentration of complex (μg/mL)Inhibitory Rate (%)
OVCAR-3I1-
1072.99
10097.8
II1-
1020.51
10095.30
PC-14I1-
1064.93
10098.1
II1-
1031.98
10092.71

Experimental:

General Methods

IR spectra were recorded using KBr pellets on a Nicolet NEXUS 470 FT-IR. 1H-NMR spectra were recorded at 298K for CDCl3 solutions with TMS as the internal reference using a Unity-400MHz-NMR spectrometer. The elemental analyses were determined on a GmhH Varin EL analyzer. Tin was determined using complexometric titration with EDTA and lead nitrate as the volumetric solution. Toluene was dried over Na and distilled prior to use under N2. Dibutyltin oxide was synthesized following the literature method [9]. 5-Fluorouracil-1-acetic acid and 5-fluorouracil-1-propanoic acids were prepared according to the literature methods [10,11]. 5-Fluorouracil was a gift from Rudong Pharmaceutical Factory of Jiangsu.
The tumor inhibiting effect of complex 1 and 2 was tested in vitro using the human ovarian carcinoma cell line OVCAR-3 and lung carcinoma cell line PC-14 by the MTT method.

General preparation of the complexes of dibutyltin oxide and 5-fluorouracil -1-propanonic acids

Both complexes were prepared in a similar fashion and therefore, only the synthesis of one of them, namely [(5-fluorouracil)-1-CH2CH2COOSn(n-Bu)2]4O2 (I) is described in detail herein. 5-Fluorouracil-1-propanonic acid (0.404g, 2mmol) was added to the solution of dibutyltin oxide (0.498g, 2mmol) in toluene (15mL) containing a few 4Å molecular sieves. The mixture was stirred under N2 for 8 hours at a temperature of 50˚C. After cooling down and filtration, the residue was extracted three times with methanol. Concentration of the resulting solution gave colorless needle-shaped crystals of [(5-fluorouracil)-1-CH2CH2COOSn (n-Bu)2]4O2 (I).Yield: 0.5613g (62%); m.p. 168-170˚C (from methanol); 1H-NMR: δ: 0.908 (6H, t, J1=5.6Hz, J2=4.8Hz, CH3), 1.243-1.370 (8H, m, CH2CH2), 1.642 (2H, m, Sn-CH2), 2.799 (2H, t, J1=6.0Hz, J2=5.6Hz, CH2CH2CO), 3.963 (2H, t, J1= 6.0Hz, J2=5.6Hz, N-CH2-CH2), 7.527 (1H, d, J=5.6Hz, =CH), 8.210 (b, NH); IR (cm-1): ν(N-H) 3412, ν(=C-H) 3168, ν(CH3) 3064, 2929, ν(CH2) 2959, 2868, ν(C=O) 1770 (-O-C=O), ν(C=O) 1693(-N-C=O), ν(C=C) 1576, ν(CH) 1339, ν(C-C) 1238, ν(Sn-O) 682, 543; Anal Calcd for C30H46F2N4O9Sn2: C 40.81, H 7.66, N 6.45, Sn 26.91; Found C 40.56, H 7.97, N 6.28, Sn 26.91.
Complex II was similarly prepared. Yield: 63.7%; m.p 176-178°C (from methanol); 1H-NMR: δ: 0.881 (6H, t, J1=5.6Hz, J2=4.8Hz, CH3), 1.254-1.341 (8H, m, CH2CH2), 1.647 (2H, m, Sn-CH2), 4.448 (2H, s, N-CH2-CO), 7.521 (1H, s, =CH), 8.184 (b, NH); IR (cm-1): ν(N-H) 3420, ν(=C-H) 3187, ν(CH3) 3071, 2929, ν(CH2) 2956, 2866, ν(C=O) 1693(-O-C=O), ν(C=O) 1680(-N-C=O), ν(C=C) 1599, ν(CH) 1465, ν(CH) 1321, ν(C-C) 1241, ν(Sn-O) 685, 588. Anal Calcd for. C26H38F2N4O9Sn2: C 39.52, H 5.26, N 6.34, Sn 27.98; Found: C 39.28, H 5.18, N 6.54, Sn 27.73..

Crystal structure determination of I

A single crystal of 0.34x0.20x0.04mm was placed in a Siemens SMART CCT four-circle diffractometer with MoKα (λ=0.71073Å) and a scan range 1.83≤θ≤23.28 at room temperature. Of the 9452 reflections collected, 5491 reflections with I>2σ(I) were considered to have been observed. The structure was solved by the heavy-atom method and refined by Full-matrix least-squares on F2 by the use of SHELXL Version 5.1 program. The final agreement factor was R=0.0693. Crystal data: C30H46F2N4O9Sn2, Fw=882.09, Triclinic, P1, a=11.423(3)Å, b=12.843(3)Å, c=14.770(4)Å, α=66.711(6)deg, β=79.319(6)deg, γ=78.172(7)deg, V=1935.0(8)Å3, Z=2, F(000)=888, Dc=1.514 mg/m3.

Acknowledgements

This project was supported by the Foundation for University Key Teachers of the Chinese Ministry of Education and the Foundation of the Key Laboratory of Inorganic Synthesis and Preparative Chemistry, Chinese Ministry of Education.

References

  1. Crown, A. J. Drugs of the Future 1987, 12, 40.
  2. Biddle, B.N.; Grey, J. S. Appl. Organomet. Chem. 1991, 5, 43.
  3. Keppler, B.H. Metal Complexes in Cancer Chemotherapy; VCH Publishers: Weinheim, 1993. [Google Scholar]
  4. (a) Guli, G.; Gennaro, G.; Pellerito, L.; Stocco, G. C. Appl. Organomet. Chem. 1993, 7, 407. (b) Huber, F.; Vornefeld, M.; Preut, H.; Angerer, E.; Ruisi, G. Appl. Organomet. Chem. 1992, 6, 597.
  5. Wang, J. T. Progress in Natural Science 1998, 8, 180.
  6. Li, Z. F.; Fu, F. X.; Pan, H. D.; Xing, Y.; Lin, Y. H. Acta Chimica Sinica 1999, 57, 820.
  7. Tian, L. J.; Zhou, Z. Y.; Zhao, B.; Yu, W. T. Polyhedron 1998, 17, 1275.
  8. Pettina, C.; Pellei, M.; Marchetti, F.; Santini, C.; Miliani, M. Polyhedron 1998, 17, 561.
  9. Hu, C.; Wang, S.; Zhao, S. Chin. J. Med. Chem. 1994, 4, 32. (in Chinese).
  10. Masao, T. Bullet. Chem. Soc. Jap. 1975, 48, 3427.
  11. Zhou, R. X.; Fan, C. L.; Zhao, R. L. Chem. J. Chinese Univ. 1986, 7, 508.
  12. Wang, J. T.; Zhang, Y. W.; Xu, Y. M.; Yang, Z. W. Youji Huaxue (Chinese J. Org. Chem.) 1993, 13, 289.
  • Sample Availability: Available from the authors.
