Article

Novel Alkylimidazolium Ionic Liquids as an Antibacterial Alternative to Pathogens of the Skin and Soft Tissue Infections

by
Oscar Forero Doria
1,
Ricardo Castro
2,3,
Margarita Gutierrez
1,
Diego Gonzalez Valenzuela
4,
Leonardo Santos
1,
David Ramirez
5 and
Luis Guzman
6,*
1
Instituto de Química de Recursos Naturales, Universidad de Talca, P.O. Box 747, Talca 3460000, Chile
2
Multidisciplinary Agroindustry Research Laboratory, Universidad Autónoma de Chile, Talca 3460000, Chile
3
Carrera de Ingeniería en Construcción e Instituto de Ciencias Químicas Aplicadas, Universidad Autónoma de Chile, Talca 3460000, Chile
4
Departamento de Salud Municipal de Hualañe, Maule 3530000, Chile
5
Instituto de Ciencias Biomédicas, Universidad Autónoma de Chile, Talca 3460000, Chile
6
Departamento de Bioquímica Clínica e Inmunohematología, Facultad de Ciencias de la Salud, Universidad de Talca, P.O. Box 747, Talca 3460000, Chile
*
Author to whom correspondence should be addressed.
Molecules 2018, 23(9), 2354; https://doi.org/10.3390/molecules23092354
Submission received: 13 July 2018 / Revised: 3 September 2018 / Accepted: 10 September 2018 / Published: 14 September 2018
(This article belongs to the Collection Ionic Liquids)
Browse Figures
Versions Notes

Abstract

:
Keeping in mind the concept of green chemistry, this research aims to synthesize and characterize new ionic liquids (ILs) derived from N-cinnamyl imidazole with different sizes of alkyl chains (1, 6, 8, and 10 carbon atoms), and evaluate their antibacterial activity against Skin and soft tissue infections (SSTIs) causative bacteria. The antibacterial screening was carried out by agar well diffusion and the Minimum Inhibitory Concentration (MIC) and Half Maximum Inhibitory Concentration (IC50) of the different ILs were determined by microdilution in broth, also Molecular dynamics simulations were performed to study the interaction mechanism between ILs and membranes. The MIC value in Gram-positive bacteria showed that as the hydrocarbon chain increases, the MIC value decreases with a dose-dependent effect. Furthermore, Gram-negative bacteria showed high MIC values, which were also evidenced in the antibacterial screening. The molecular dynamics showed an incorporation of the ILs with the longer chain (10 C), corresponding to a passive diffusion towards the membrane surface, for its part, the ILs with the shorter chain due to its lack of hydrophobicity was not incorporated into the bilayer. Finally, the new ILs synthesized could be an alternative for the treatment of Gram-positive bacteria causative of SSTIs.

Graphical Abstract

1. Introduction

Skin and soft tissue infections (SSTIs) are a worldwide public health problem considered as an important cause of absenteeism; having thus unfavorable consequences for companies, workers, and families [1]. SSTIs must be dealt with during illness because carriers often require hospitalization, leading to a non-negligible morbidity [2].
As reported by health services, the main SSTIs etiological agents are Escherichia coli, enterobacterias Pseudomonas aeruginosa (macerated ulcers), Staphylococcus aureus (methicillin-resistant S. aureus in previously treated ulcers), Streptococcus pyogenes, and Staphylococcus spp. coagulase negative (Staphylococcus epidermidis in immunosuppressed patients). It has been stated that one out of three SSTIs is caused by a Gram-positive cocci, while the rest are mainly caused by E. coli and P. aeruginosa [3].
The World Health Organization of the United Nations (WHO-UN) has reported an increase in bacterial resistance in SSTIs. Nowadays, this organization has alerted and kept surveillance over these resistances to control them. The most substantial reports of this phenomenon are regarding Gram-negative pathogens such as E. coli and Klebsiella pneumoniae [4,5].
Hence, it is critical to generate new antibacterial alternatives against SSTIs agents. Among some of the most innovative compounds of our times are Ionic Liquids (ILs). These compounds are salts based on complex ions, whose phase is liquid at room temperature. Their physicochemical properties deliver low vapor pressure characteristics, along with the generation of multiple solvation layers; allowing thus the interaction between organic and inorganic molecules [6]. These compounds also exhibit excellent thermochemical stability and electrochemical conductivity [7].
Furthermore, properties such as viscosity, hydrophobicity, and density can be managed by modifying their nuclei and their solubility can be altered by combining hydrophobic chains or hydrophilic functional groups [8]. The solubility can be changed dramatically by the choice of anions, such as halide (Cl−, Br−, I−), nitrate (NO3−), acetate (CH3CO2−), tetrafluoroborate (BF4−), triflate (CF3SO3−) bis (trifluoromethylsulfonyl) imide (CF3SO2)2N− and hexafluorophosphate (PF6−), among others. Seddon et al., 2000 [9], reported some general guidelines about the effect of the anion in the miscibility of the ILs and water, showing that imidazolium salts with halide, acetate, nitrate and trifluoroacetate anions are totally miscible in water, while imidazolium salts containing PF6− and (CF3SO2)2N− anions are immiscible in water. On the other hand, imidazolium salts with BF4− and CF3SO3− anions can be totally miscible or immiscible depending on the substituents on the cation.
Besides the great structural diversity that can be achieved, nowadays it is also necessary to consider the toxicity, biodegradation, and bioaccumulation of these molecules to determine the potential environmental impact. Preliminary toxicity data are advisable and biodegradation studies can determine the possible toxicity of the IL and/or their metabolite(s); these results are very important since an IL that does not pass the biodegradation test has the potential to bioaccumulate. To ensure that an IL and its metabolites will not persist in nature, its recommendable to afford biodegradation, mineralization, and bioaccumulation studies [10,11].
In the 90’s, ILs were produced using techniques such as metathesis, acid-base neutralization or by a direct combination. Nowadays, nature and environmental conservation are a matter of concern for the chemical sciences. Therefore, the use of microwaves appears to be an important tool determined to reduce the environmental impact and to enhance people’s health; leading to the international concept of “green chemistry” [12,13]. Synthetic chemistry seeks to standardize conditions and replicate methods over time; therefore the use of microwaves (when controlled) as a method for delivering stable temperatures to the system, reducing reaction time, and eliminating or reducing highly toxic organic solvents used by operators, which would also end up endangering the environment [14,15], are important methods to implement.
Bottom line, the obtention of novel antibacterial alternatives for agents causing SSTIs is crucial. Keeping in mind the concept of green chemistry, this research project aims to synthesize, characterize, and evaluate new water-soluble ILs as antibacterial agents against SSTIs causative bacteria.

2. Results

2.1. Chemistry

Conventional methods of ILs construction by heating generally involve several hours of reaction, high-energy consumption, and require a large excess of organic solvents. Motivated by safe and eco-friendly protocols to obtain the ionic liquids, here we report on the construction of different N-cinnamylimidazolium salts employing microwave (MW) radiation under a solvent-free condition as a Green chemistry approach. In this sense, the construction of N-cinnamylmidazolium salts with different alkyl size chains (1, 6, 8, and 10 carbon atoms) was synthesized by reacting cinnamyl chloride with different alkylimidazoles (MIM, HIM, OIM, and DIM) (Scheme 1). Resulting ILs were then cooled to room temperature and their solubility was tested in EtOAc, MeOH, and H2O. N-cinnamylimidazolium salts were soluble in MeOH and H2O; thereupon, they were rinsed with EtOAc to remove the starting reagents, and finally concentrated under high vacuum to afford [CMIM]Cl (6), [CHIM]Cl (7), [COIM]Cl (8), and [CDIM]Cl (9).

2.2. Fourier-Transform Infrared Spectroscopy (FT-IR)

IR spectra (Figure 1) for all synthesized N-cinnamylimidazolium salts showed a band at 3300–3600 cm−1 assigned to the bending and stretching modes of absorbed water, stretching absorption bands at 3100–3060 cm−1, 2960–2930 cm−1 [16], 1630–1570 cm−1 [17] and 1289–774 cm−1 attributed to (C-H) Aromatic, (C-H) Aliphatic, (C=N), and (C=C) Aromatic (ring-breathing modes) [18], respectively. It is worthwhile to highlight that the absorption band at 2960–2930 cm−1 (characteristic of the methylene group (-CH2-)) is more intense as the alkyl chain grows. Thus, the signal intensity in increasing order for the different N-cinnamylimidazolium ILs was [CMIM]Cl < [CHIM]Cl < [COIM]Cl < [CDIM]Cl.

2.3. Thermal Stability

To study the thermal stability of the different ILs presented here, thermal analyses were undertaken in an interval of 20–700 °C. The mass loss curve (TG) is presented in Figure 2. The observed thermal behavior is very similar in all ILs synthesized and their onset temperature (Tonset/°C: Degradation start temperature) was very low (Table 1). Moreover, an increase in thermal stability was observed as the carbon chain length grew, being [CDIM]Cl the most stable at Tonset/°C of 106 °C, and [CMIM]Cl the least stable.

2.4. Antibacterial Screening

All ILs were tested for their antibacterial activity using the agar well diffusion qualitative method. As an example, Figure 3 shows the inhibition halos results of S. aureus bacterial growth. The entire outcomes are shown in Table 2. As the chain length increases, the bacterial sensitivity also increases; this phenomenon is clearly seen in Gram-positive cocaceae, where all were inhibited in at least three concentrations of N-cinnamylalkylimidazolium ILs. Likewise, the same phenomenon but to a lesser extent was observed in E. coli and A. baumannii.

2.5. Determination of Minimum Inhibitory Concentration (MIC) and Mean Inhibition of Bacterial Viability (IC50)

Minimal inhibitory concentrations (MIC) were determined by colorimetric assays and reported as the last dilution where the pathogen generates metabolic activity. MIC value in Gram-positive cocaceas (Table 3) range from 31.25 μM to 250 μM, showing that, as the hydrocarbon chain increases, the MIC value decreases with a dose-dependent effect. Furthermore, Gram-negative bacteria showed high MIC values (Table 3), which were also evidenced in the previous antibacterial screening. Only P. aeruginosa presents resistance to ILs out of all Gram-negative bacteria studied, whereas E. coli had MIC values of 250 μM and A. baumannii of 1000 μM. Besides, an effect based on the chain length and the ILs concentration was observed in Gram-positive bacteria.
IC50’s (Table 3) data were obtained from the log graphs of the ILs concentration versus the inhibition percentage measured at 12 h. Obtained graphs correspond to a statistical normalization of a dose-response effect. The salts inhibitory activity derived from N-Cinnamyl imidazole against bacteria S. aureus, S. pyogenes, S. epidermidis, E. coli, and A. baumannii was determined; however, it was not possible to calculate the IC50 for P. aeruginosa given the resistance previously indicated.
For each case, an inhibition of the bacterial viability in a dose-dependent manner was observed, since the increasing of ILs concentration also increases the percentage of bacterial inhibition. It was evidenced that the Gram-positive bacteria were more sensitive to these ILs since the graph’s point of inflection was at a lower concentration than the Gram-negative species.

2.6. Molecular Dynamics Simulations (MDs) and ADME Properties

MDs for ILs in a DOPC bilayer were performed to study their incorporation into the lipid phase. According to the antibacterial screening and biological activity determinations, ILs with longer aliphatic chains are expected to be incorporated into the lipid bilayer. Ligands were immersed in bulk water by setting at 30 Å the distance between the ligand and the lipid center of mass. [CDIM]Cl was incorporated into the bilayer and remained within the membrane for the rest of the simulation time after 8 ns; this phenomenon corresponds to the passive diffusion of [CDIM]Cl towards the membrane surface. [CMIM]Cl interacted with the membrane polar head groups along with the 50 ns of MDs, but due to its lack of hydrophobicity the compound was not incorporated into the bilayer (Figure 4). Following the [CDIM]Cl incorporation into the membrane, the imidazole polar ring (Figure 5) interacted (at membrane’s glycerol level) with the aliphatic moieties interrelating with the lipid alkyl chains (Figure 5 and Supplemental Movie S1).
ADME properties were predicted (Table 4 and Table 5), and results suggested that there are no significant violations of Lipinski’s rule since all calculated physicochemical descriptors and pharmacokinetics properties are within the expected thresholds (molecular weight (g/mol) = 200–326; Log P = 1.859–4.523; HB acceptors = 4 and HB donors = 0). Additionally, PSA and water solubility (log S) parameters, which are important in the membrane penetration, were analyzed and the results were within the acceptable range established for human use [19].

3. Discussion

Regarding ILs thermal characterization, it is important to highlight that the counter ion plays a very important role in the thermal stability of an ionic liquid. Erdmenger et al. [20] demonstrated that imidazolium chloride ILs present a low decomposition with Tonset/°C values in the range of 48–80 °C. In contrast, the change of the counter ion for others of a different nature as tetrafluoroborate (BF4−) increases the thermal stability. These results are like the values (Tonset: 61–106 °C) reported here for N-cinnamylimidazolium ILs, which could be due to the presence of unsaturated groups in its structure. Similar observations were reported by Anderson et al. [21], their results show that Imidazolium and Benzylimidazolium geminal dicationic ILs, incorporating unsaturated side groups showed lower thermal stability than their fully saturated analogues; also, Al-Mohammed et al. [22] observed these variations in the decomposition temperatures. Additionally, the thermal analysis of the synthesized ILs showed that when more asymmetrical is its structure, the decomposition temperatures are much lower and it is more stable when it presents a side chain of 10 carbon atoms, which is probably explained by the force of the interaction between the cation and anion, being this interaction is much weaker when its structure is more asymmetrical, hence its decomposition temperatures are much lower [23].
Conversely, Tröger-Müller et al. [24] determined the correlation between different counter ions and the thermal stability of an ionic liquid. Thus, the decreasing order of ILs thermal behavior based on the counter ion was tetrafluoroborate > hexafluorophosphate > chloride > organic acids. Moreover, alkyl chains length play a fundamental role in the thermal stability of an ionic liquid, observing that by increasing the chain size, its maximum temperature of degradation also increases. In this sense, for the N-cinnamylimidazolium ILs reported here, the thermal stability increasing order was as follows [CMIM]Cl < [CHIM]Cl < [COIM]Cl < [CDIM]Cl. This behavior can be observed at T10/°C and T50/°C mass loss temperature of the different N-cinnamylimidazolium ILs, realizing that the temperature increases in the range of 118–193 and 245–257 °C, respectively.
Antibacterial screening against the Gram-positive cocaceae is similar to other salts derived from imidazole. Studies were carried out using ILs with structural similarity than those from Anvari et al., who described an antibacterial activity with inhibition halos over 20 mm for S. aureus and E. coli [25]. Busetti et al. reported antibacterial activities of 1-alkyl-quinoline ([Cnquin]Br), a structure-like IL similar to derivatives of N-acetylimidazole with chain lengths of 8, 10, 12, 14, 16 and 18 carbons, indicates that the chain length increasing would also increase the antimicrobial activity [26]. Researchers reported a MIC of 121.2 μM for S. aureus with a chain length of 10 carbon atoms; for the same bacteria, the synthesized IL [CDIM]Cl showed a MIC of 31.25 μM. Meanwhile, Cornellas et al. reported activities of 1-alkylpyridine bromide (CnPyrBr) against S. epidermidis, with a MIC = 940 μM [27]. In this study, we are reporting an antibacterial activity of MIC = 250 μM in the derivative [CMIM]Cl (shorter chain) against S. epidermidis, proving that the chain length is not the only feature important for antibacterial activity. Regarding this statement, Luczak et al., have estimated that chains of 10 carbon atoms or more would induce a lower tolerance of human cells due to the surface tension generated by the ILs, which would affect its viability by causing a membrane shock [28].
Ferraz et al., reported ILs antibacterial activity against S. epidermidis and S. aureus. The study revealed that the MICs were able to decrease when the ILs were combined with antibiotics ([C16Pyr] [Cl] with a MIC value of 0.5 mM for S. aureus and [C16Pyr] [Amp] (ampicillin-coupled LI) with a MIC value of 0.005 mM [29]. These results are coherent with several investigations where ILs were used as carriers for proteins or another molecule in plasma [30,31]. ILs physical and chemical characteristics that are assessed in this work could help in the solubility of improving antibiotics with a hydrophobic nature since hydrocarbon chains provide the lipophilia property.
Results obtained for Gram-positive bacteria are promising since the bacterial viability IC50 was about 25–140 μM; being lower than that reported by other authors [25,29,32]. Conversely, results for Gram-negative bacteria were less promising with a higher MIC and IC50 values. However, these results are consistent with the ones reported about the natural resistance of Gram-negative bacteria to ILs [25,29,32,33]. Gram-negative bacteria resistance is expressed by multiple factors affecting not only the ILs but also the antibiotics used for the treatment of infections [34]. These bacteria can express molecular expulsion pumps and modify their target sites to block drugs; besides, they can also express hydrolytic enzymes and membrane proteins that would give resistance to osmotic shock [35,36]. Ferraz et al., coupled ILs to antibiotics for Gram-positive bacteria, revealing a substantial antibiotic improvement in the antibacterial activity against S. aureus with a MIC value of 100-fold lower (compared to the unconjugated antibiotic). These results were not extrapolated to Gram-negative bacteria [29].
Despite the eco-friendly synthesis, there are still are other concerns to be considered on further studies regarding the possible ecological effects of these molecules. ILs have the potential to affect ecosystems through different mechanisms, among them the mortality of individual organisms, altered biogeochemical processes, or bioaccumulation in higher trophic levels. Studies of the acute and chronic toxicities of imidazolium-based ILs to the water flea Daphnia magna have showed that the most toxic IL (acute toxicity) was the 1-butyl-3-methylimidazolium bromide ([bmim]Br) with a LC50 of 8.03 mg L−1, because the lethal concentrations are much lower for ILs with imidazolium as the cation than for salts with Na as the cation, for its part, the 1-butyl-3-methylimidazolium chloride ([bmim]Cl) showed an intermediate toxicity with a LC50 of 14.80 mg L−1, suggesting that the toxicity was related to the imidazolium cation and not to the anions tested [37]. Mohedano et al., using respiration inhibition assays with activated sludge, found in most of the cases a well-fitting linear correlation between the toxicity (logEC50) and the length of the alkyl chain (C4–C10) of imidazolium ILs; the toxicity increases significantly with the chain length, which can be related to the loss of IL polarity or their lipophilic character. The bis (trifluoromethanesulfonyl) imide (NTf2−) anion was more toxic than tetrafluoroborate (BF4-) or chloride (Cl), but its relative impact on toxicity is reduced for ILs with long alkyl side chain (>6 C atoms) [38]. At the same time, Wang et al., using different imidazole nitrate ILs at concentrations of 5, 10, 20, and 40 mg kg−1 of ILs, showed that all of them caused oxidative stress and oxidative damage in earthworms (Eisenia fetida), evidenced in the level of biomarkers as reactive oxygen species (ROS) and malondialdehyde (MDA) content. Nevertheless, the toxicity of these five ILs did not correlate with the chain length, showing an order of toxicity of [C10mim]NO3 < [C12mim]NO3 < [C4mim]NO3 < [C6mim]NO3 < [C8mim]NO3 [39]. In our case, the functionalization of the ILs with a cinnamyl group could lead to an improvement in the MIC and IC values as discussed previously, also the presence of this cinnamic acid derivate could prevent some of the deleterious effects (e.g., oxidative stress) observed in other imidazolium ILs, which only have a methyl group.
Molecular dynamics simulation results of the ILs insertion in a DOPC double layer indicate that the substituted imidazole moiety interacts with the glycerol moieties at the membrane surface. While the [CDIM]Cl aliphatic chain extends to the interior of the membrane, the [CMIM]Cl lacking hydrophobic makes it more difficult to interact with the membrane for a subsequent diffusion to the intracellular space. These results confirm the hypothesis where the greater the ILs apolar chain is, the better the interaction with the membrane will be, thus giving a better antimicrobial activity. All physical and pharmaceutical properties calculated for the ILs studied here are within the acceptable range defined for human use, indicating thereby, their potential use as new antibacterial alternatives against SSTIs agents. ILs computational analysis confirms that the lipophilicity is crucial for drug-membrane interaction [40]. This property is one of the most important drug-like properties with a great impact in physicochemical and pharmacokinetic processes.

4. Material and Methods

4.1. General Information

Reagents for synthesis were obtained from Sigma-Aldrich (St. Louis, MO, USA). 1H and 13C-NMR spectra (400 MHz for proton and 100 MHz for carbon) were recorded on an AM-400 spectrometer (Bruker, Rheinstetten, Germany); IR spectra (KBr pellets, 500–4000 cm−1) were recorded on a NEXUS 670 FT-IR spectrophotometer (Thermo Nicolet, Madison, WI, USA). Mass spectrometry was conducted in a High resolution mass spectrometer Exactive™ Plus Orbitrap (ThermoFisher Scientific, Bremen, Germany), Scan parameters: Resolution: 140,000, AGC target: 3e6, Max. inject time: 200, HESI source: Sheath gas flow: 10, Aux gas flow rate: 3, Sweep gas flow rate: 0, Capillary temp.: 250 °C, S-lens RF level: 0, Heater temp: 50 °C.

4.2. Chemistry

4.2.1. General Procedure for Alkylimidazoles Synthesis

Briefly, a mixture of imidazole (100 mmol), alkyl bromide (100 mmol) and K2CO3 (200 mmol) in acetone (200 mL) was refluxed overnight. Upon filtration and solvent removal, the remaining residue was subjected to flash chromatography with ethyl acetate to produce >90% yield.

4.2.2. General Procedure for the Construction of Different N-Cinnamylimidazolium Ionic Liquids

Briefly, a mixture of alkylimidazoles such as 1-methyl-1H-imidazole (MIM), 1-hexyl-1H-imidazole (HIM), 1-octyl-1H-imidazole (OIM), and 1-decyl-1H-imidazole (DIM) (1 mmol), as well as cinnamyl chloride (1 mmol) solvent-free were microwaved to 200 MW at 80 °C for 5 min (optimum reaction condition). Reaction completion was marked by separation of dense IL. Products such as 1-methyl-3-cinnamylimidazolium chloride [CMIM]Cl, 1-hexyl-3-cinnamylimidazolium chloride [CHIM]Cl, 1-octyl-3-cinnamylimidazolium chloride [COIM]Cl, and 1-decyl-3-cinnamylimidazolium chloride [CDIM]Cl were isolated by decanting toluene to remove any unreacted starting materials and solvents. Subsequently, ILs were rinsed with diethyl ether (4 × 10 mL) separating afterward this latter layer by decantation. In each case, ILs were finally dried under reduced pressure to get rid of the volatile organic compounds.
1-Methyl-1 H-imidazole (MIM) (2). 90% yield. 1H NMR (400 MHz, CDCl3) δ 7.60 (s, 1H), 7.21 (s, 1H), 7.06 (s, 1H), 3.84 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 137.5, 128.9, 120.0, 33.0.
1-Hexyl-1 H-imidazole (HIM) (3). 85% yield. 1H NMR (400 MHz, CDCl3) δ 7.67 (s, 1H), 7.26 (s, 1H), 7.12 (s, 1H), 4.14 (t, J = 7.1 Hz, 2H), 2.09–1.87 (m, 2H), 1.50 (d, J = 10.0 Hz, 7H), 1.10 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 136.6, 128.4, 118.4, 46.6, 30.8, 30.6, 25.8, 22.0, 13.5.
1-Octyl-1 H-imidazole (OIM) (4). 80% yield. 1H NMR (400 MHz, CDCl3) δ 7.67 (s, 1H), 7.26 (s, 1H), 7.12 (s, 1H), 4.13 (t, J = 7.1 Hz, 2H), 2.06–1.86 (m, 2H), 1.50 (d, J = 9.6 Hz, 10H), 1.10 (s, 3H); 13C NMR (100 MHz, CDCl3) δ 136.7, 128.9, 118.5, 46.7, 31.4, 30.8, 28.8, 28.7, 26.2, 22.3, 13.7.
1-Decyl-1 H-imidazole (DIM) (5). 70% yield. 1H NMR (400 MHz, CDCl3) δ 7.67 (s, 1H), 7.26 (s, 1H), 7.12 (s, 1H), 4.13 (t, J = 7.1 Hz, 2H), 2.09–1.86 (m, 2H), 1.49 (d, J = 11.9 Hz, 14H), 1.09 (t, J = 6.4 Hz, 3H); 13C NMR (100 MHz, CDCl3) δ 137.0, 129.3, 118.8, 47.0, 31.8, 31.1, 29.5, 29.4, 29.2, 29.1, 26.5, 22.6, 14.1.
1-Methyl-3-cinnamylimidazolium chloride (6). 90% yield. 1H NMR (400 MHz, MeOD) δ 9.03, 8.62 (s, each 0.5H), 7.63 (m, 2H), 7.50–7.20 (m, 5H), 6.86 (d, J = 15.8 Hz, 1H), 6.53–6.38 (m, 1H), 5.09–4.93 (m, 2H), 3.94 (s, 3H); 13C NMR (100 MHz, MeOD) δ 138.1, 138.0, 137.0, 129.8, 129.7, 128.0, 127.85, 122.2, 52.6, 52.5, 51.5, 36.6, 35.7. HRMS (HESI/Orbitrap) m/z calculated for C13H15ClN2 [CMIM]+: 199.1230, found 199.1230.
1-Hexyl-3-cinnamylimidazolium chloride (7). 95% yield. 1H NMR (400 MHz, MeOD) δ 9.13, 8.95 (s, each 0.5H), 7.68 (s, 2H), 7.55–7.03 (m, 5H), 6.85 (dt, J = 15.3, 7.6 Hz, 1H), 6.45 (dd, J = 15.2, 6.8 Hz, 1H), 5.02 (d, J = 6.3 Hz, 2H), 4.37–3.95 (m, 2H), 1.89 (s, 2H), 1.34 (s, 6H), 0.90 (s, 3H); 13C NMR (100 MHz, MeOD) δ 138.0, 137.2, 136.9, 129.8, 128.0, 123.2, 122.2, 121.4, 52.6, 51.0, 50.9, 50.5, 32.2, 31.2, 31.1, 26.9, 23.4, 14.3. HRMS (HESI/Orbitrap) m/z calculated for C18H25ClN2 [CHIM]+: 269.2018, found 269.2012.
1-Octyl-3-cinnamylimidazolium chloride (8). 85% yield. 1H NMR (400 MHz, MeOD) δ 9.17, 8.42 (s, each 0.5 H), 7.73 (s, 2H), 7.55–7.29 (m, 5H), 6.89 (d, J = 15.8 Hz, 1H), 6.62–6.36 (m, 1H), 5.06 (d, J = 6.7 Hz, 2H), 4.27 (t, J = 7.2 Hz, 2H), 1.93 (s, 2H), 1.38 (s, 7H), 0.93 (s, 3H); 13C NMR (100 MHz, MeOD) δ 138.0, 137.1, 136.8, 129.8, 129.6, 127.9, 124.5, 123.8, 123.6, 122.1, 122.0, 52.4, 50.8, 32.1, 31.4, 31.0, 26.9, 26.8, 23.4, 14.2. HRMS (HESI/Orbitrap) m/z calculated for C20H29ClN2 [COIM]+: 297.2325, found 297.2321.
1-Decyl-3-cinnamylimidazolium chloride (9). 90% yield. 1H NMR (400 MHz, MeOD) δ 9.14 (s, 1H), 7.71 (s, 2H), 7.53–7.26 (m, 5H), 6.87 (d, J = 15.8 Hz, 1H), 6.61–6.29 (m, 1H), 5.04 (d, J = 6.5 Hz, 2H), 4.26 (t, J = 7.4 Hz, 2H), 1.99–1.81 (m, 2H), 1.34 (m, 14H), 0.90 (s, 3H); 13C NMR (100 MHz, MeOD) δ 138.0, 137.2, 136.9, 129.8, 128.0, 123.9, 123.7, 122.2, 58.3, 52.6, 51.0, 33.0, 31.1, 30.6, 30.5, 30.4, 30.1, 27.3, 23.7, 20.5, 18.4, 14.4. HRMS (HESI/Orbitrap) m/z calculated for C22H33ClN2 [CDIM]+: 325.2644, found 325.2638.

4.3. Growth Conditions and Strains

Bacterial strains were kept frozen in glycerol-lactose medium at −20 °C. Strains used were Acinetobacter baumannii (ATCC 19606), Escherichia coli (ATCC 25922), Pseudomonas aeruginosa (ATCC 27853), Staphylococcus aureus (ATCC 25923), Staphylococcus epidermidis (ATCC 14990), and Streptococcus pyogenes (ATCC 19615). Prior to the assay, they were seeded in BHI medium, incubated at 37 °C and spiked for 24 h for their metabolic activation.

4.4. Antibacterial Screening

The technique was performed by agar well diffusion (modified Kirby–Bauer) [41]. Briefly, 100 mm diameter plates were prepared with Mueller-Hinton agar (4 mm thick), mixed with 100 μL of a 0.5 McFarland standard of each bacterium under study (per plate), at an approximated temperature of 40 °C (prior solidification). Once the plates were solid, perforations of 8 mm diameter were made with a sterile material. Subsequently, 150 μL of the IL (solubilized in sterile water) were placed on each well at 0.125 mM, 0.25 mM, 0.5 mM, 1.0 mM, and 2.0 mM concentrations. A reference antibiotic was added as a positive control in the form of a Sensi-Disc to demonstrate the strain sensitivity (Mupirocin 5.0 μg, Clindamycin 2.0 μg, and Ceftazidime 30 μg), and sterile water was added as a negative control. Plates were incubated for 24 h at 37 °C in a bacteriological stove (DH4000 B II HILAB). Finally, the inhibition halo was read by a rule millimeter.

4.5. Determination of Minimum Inhibitory Concentration (MIC) and Half Maximum Inhibitory Concentration (IC50) by 96-Well Plate Microdilution

ILs antibacterial activity was assessed with a 96-well plate microdilution assay, a technique adapted from the methodology described by Eloff et al. [42]. The bacterial inoculum was obtained by incubating microorganisms in Mueller-Hinton broth for 24 h, adjusting it to a final concentration of 104–105 CFU / mL. ILs were solubilized in sterile water and the final concentrations for each IL was as follows 0.01562 mM, 0.03125 mM, 0.0625 mM, 0.125 mM, 0.25 mM, 0.5 mM, 1.0 mM and 2.0 mM. Each plate included bacterial growth (positive control) and culture medium (negative control) for 12 h at 37 °C. Microorganisms viability was determined by adding 20 μL of 3-[4,5-Dimethylthiazol-2-yl]-2,5Diphenyl-tetrazolium (MTT) dye at 0.5 mg/mL concentration for each well, and subsequently incubated for 3–4 h at 37 °C. Then, the formed crystals were solubilized with isopropanol buffer (10% Triton X-100 plus 0.1 N HCl in anhydrous isopropanol) obtaining the absorbance at 570 nm in a multi-plate reader. Results obtained from three independent experiments reported the lowest concentration of an IL, which prevents the microorganism’s visible growth (MIC), as well as the concentration inhibiting 50% of the growth (IC50).

4.6. Molecular Dynamics Simulations (MDs)

Molecular dynamics simulations (MDs) were performed to study the interaction mechanism between ILs and membranes. ILs [CMIM]Cl and [CDIM]Cl were selected for computational studies since they exhibit the worst and best biological activity, respectively. ILs were placed in a periodically repeating box containing explicit TIP3P [43], water molecules with a pre-equilibrated DOPC (1,2-Dioleoyl-sn-glycero-3-phosphocholine), and a lipid bilayer. Simulations were performed using the CHARMM force field [44] within the NAMD v2.12 software [45]. Force field parameters for [CMIM]Cl and [CDIM]Cl were assigned using the CGenFF force field [46] and the ParamChem website (https://www.paramchem.org/). The DOPC lipid bilayer, composed of 80 lipids (40 per monolayer), was hydrated on each side by 20 Å water slabs. Ligands were immersed in the TIP3P water by placing each ILs center of mass (com) at 30 Å from the lipid bilayer com. Systems were energy minimized (5000 steps), equilibrated for 1 ns, and simulated for 50 ns. Integration of the equations of motion was performed by using a NPT ensemble with a time step of 2 fs. Periodic boundary conditions were implemented in both systems. The SHAKE algorithm was applied to all hydrogen atoms; the van der Waals (VDW) cutoff was set to 9 Å. NoséeHoover Langevin piston was used to control the pressure at 1 atm. Overall, water, lipids, and ILs temperature were kept constant, coupling each group of molecules independently at 323 K, employing the NoséeHoover thermostat method with a relaxation time of 1 ps. Long-range electrostatic forces were considered by the particle-mesh Ewald (PME) approach. Data were collected every 1 ps during the MDs. VMD software [47] was used for molecular visualization and MD trajectories analysis.

4.7. ADME Properties Prediction

ILs ADME properties (absorption, distribution, metabolism, and excretion) were calculated using QikProp [48] to predict some physicochemical and pharmaceutical properties. Briefly, 44 descriptors were predicted for ILs, including molecular weight, van der Waals, surface areas of polar nitrogen, molecular volume, H-bond acceptors, H-bond donors, rotatable bonds, Log P (octanol/water), among others. From these descriptors, QikProp also assessed the compounds acceptability based on Lipinski’s rules [49].

5. Conclusions

A series of novel ILs derived from N-cinnamyl imidazole with different chain lengths under solvent-free conditions were synthesized. From the different compounds obtained were observed an increase in thermal stability as the alkyl chain length increased; the most effective against the Gram-positive bacteria studied was the IL longer alkyl chain ([CDIM]Cl) with a MIC value of 31.25 μM, nevertheless, this antibacterial activity was not evidenced against the Gram-negative bacteria studied. Molecular dynamics studies revealed a better interaction of the IL with the longer chain ([CDIM]Cl) with the lipid membrane surface, showing a passive diffusion mechanism towards the surface, which was not evidenced in the synthesized IL with the shorter chain [CMIM]Cl due to its lack of hydrophobicity. These findings along with the evidenced ADME properties, suggest that the novel IL 1-decyl-3-cinnamylimidazolium chloride are in the acceptable range established for human use and could be considered as a potent agent for the treatment of Gram-positive bacteria causative of SSTIs

Supplementary Materials

The following are available online at https://www.mdpi.com/1420-3049/23/9/2354/s1, Figures S1–S5, S7, S9, S11 are 1H NMR spectrums (400 MHz, CDCl3) of compound 2–9; Figures S6, S8, S10, S12 are 13C NMR spectrums (100 MHz, MeOD) of compound 6–9; Figures S13–S16 are HRMS spectrum of compound 6–9.

Author Contributions

L.G. and O.F.D. conceived, designed the experiments, and wrote first draft of manuscript. M.G. and L.S. supervised the study and reviewed manuscript. R.C. and D.G.V. contributed by conducting the experiments and D.R. performed the molecular dynamics simulations. All authors analyzed and interpreted data, drafted the paper, read, and approved the final manuscript.

Funding

FONDECYT Initiation Nº 11150390; FONDECYT Post-Doctoral Fellowship Nº 3170757; FONDECYT Regular 1180084.

Acknowledgments

FONDECYT is great acknowledged by Luis Guzmán (FONDECYT Initiation Nº 11150390), Oscar Forero-Doria (FONDECYT Post-Doctoral Fellowship Nº 3170757) and Leonardo S. Santos (FONDECYT Regular 1180084). Authors would also like to express their sincere gratitude to M.A. Claudia Daza Botero for assistance with manuscript editing and to Conrado Camilo Manriquez of the Dirección de Investigaciones Científicas y Tecnológicas de la Pontificia (DICTUC), Center of Aromas and Flavors of the Pontificia Universidad Católica de Chile for the realization and analysis of the mass spectra. David Ramirez would like to express his gratitude to the Center for Bioinformatics and Molecular Simulation (CBSM) at Universidad de Talca for allowing the use of its computational resources to perform molecular simulations.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Esposito, S.; Bassetti, M.; Bonnet, E.; Bouza, E.; Chan, M.; De Simone, G.; Dryden, M.; Gould, I.; Lye, D.C.; Saeed, K.; et al. Hot topics in the diagnosis and management of skin and soft-tissue infections. Int. J. Antimicrob. Agents 2016, 48, 19–26. [Google Scholar] [CrossRef] [PubMed]
  2. Moffarah, A.; Al Mohajer, M.; Hurwitz, B.; Armstrong, D. Skin and soft tissue infections. Microbiol. Spectrum 2016, 4, 16. [Google Scholar]
  3. Robineau, O.; Nguyen, S.; Senneville, E. Optimising the quality and outcomes of treatments for diabetic foot infections. Expert Rev. Anti-Infect. Ther. 2016, 14, 817–827. [Google Scholar] [CrossRef] [PubMed]
  4. Hackel, M.; Kazmierczak, K.M.; Hoban, D.J.; Biedenbach, D.J.; Bouchillon, S.K.; de Jonge, B.L.; Stone, G.G. Assessment of the in vitro activity of ceftazidime-avibactam against multidrug-resistant Klebsiella spp. Collected in the inform global surveillance study, 2012 to 2014. Antimicrob. Agents Chemother. 2016, 60, 4677–4683. [Google Scholar] [CrossRef] [PubMed]
  5. Prestinaci, F.; Pezzotti, P.; Pantosti, A. Antimicrobial resistance: A global multifaceted phenomenon. Pathog. Glob. Health 2015, 109, 309–318. [Google Scholar] [CrossRef] [PubMed]
  6. Guibal, E.; Vincent, T.; Jouannin, C. Immobilization of extractants in biopolymer capsules for the synthesis of new resins: A focus on the encapsulation of tetraalkyl phosphonium ionic liquids. J. Mater. Chem. 2009, 19, 8515–8527. [Google Scholar] [CrossRef]
  7. Bahrami, K.; Saleh, S. [BTBA]Cl-FeCl3 as an efficient lewis acid ionic liquid for the synthesis of perimidine derivatives. Synth. React. Inorg. Met.-Org. Chem. 2016, 46, 852–856. [Google Scholar] [CrossRef]
  8. Sivapragasam, M.; Moniruzzaman, M.; Goto, M. Recent advances in exploiting ionic liquids for biomolecules: Solubility, stability and applications. Biotechnol. J. 2016, 11, 1000–1013. [Google Scholar] [CrossRef] [PubMed]
  9. Seddon, K.R.; Stark, A.; Torres, M.J. Influence of chloride, water, and organic solvents on the physical properties of ionic liquids. Pure Appl. Chem. 2000, 72, 2275. [Google Scholar] [CrossRef]
  10. Coleman, D.; Gathergood, N. Biodegradation studies of ionic liquids. Chem. Soc. Rev. 2010, 39, 600–637. [Google Scholar] [CrossRef] [PubMed]
  11. Jordan, A.; Gathergood, N. Biodegradation of ionic liquids—A critical review. Chem. Soc. Rev. 2015, 44, 8200–8237. [Google Scholar] [CrossRef] [PubMed]
  12. Aher, S.; Bhagat, P. Convenient synthesis of imidazolium based dicationic ionic liquids. Res. Chem. Intermed. 2016, 42, 5587–5596. [Google Scholar] [CrossRef]
  13. Draye, M.; Kardos, N. Advances in green organic sonochemistry. Top. Curr. Chem. 2016, 374, 74. [Google Scholar] [CrossRef] [PubMed]
  14. Patil, S.A.; Patil, R. Microwave-assisted synthesis of chromenes: Biological and chemical importance. Future Med. Chem. 2015, 7, 893–909. [Google Scholar] [CrossRef] [PubMed]
  15. Tarasova, N.; Zanin, A.; Burdakov, K.; Sobolev, P. Ionic liquids and microwave irradiation in polymer synthesis: Ionic liquids and microwave irradiation in polymer synthesis. Polym. Adv. Technol. 2015, 26, 687–695. [Google Scholar] [CrossRef]
  16. Awad, W.H.; Gilman, J.W.; Nyden, M.; Harris, R.H.; Sutto, T.E.; Callahan, J.; Trulove, P.C.; DeLong, H.C.; Fox, D.M. Thermal degradation studies of alkyl-imidazolium salts and their application in nanocomposites. Thermochim. Acta 2004, 409, 3–11. [Google Scholar] [CrossRef]
  17. Ding, Y.S.; Zha, M.; Zhang, J.; Wang, S.S. Synthesis of a kind of geminal imidazolium ionic liquid with long aliphatic chains. Chin. Chem. Lett. 2007, 18, 48–50. [Google Scholar] [CrossRef]
  18. Ding, Y.-S.; Zha, M.; Zhang, J.; Wang, S.-S. Synthesis, characterization and properties of geminal imidazolium ionic liquids. Colloids Surf. A Physicochem. Eng. Aspects 2007, 298, 201–205. [Google Scholar] [CrossRef]
  19. Singh, K.D.; Kirubakaran, P.; Nagarajan, S.; Sakkiah, S.; Muthusamy, K.; Velmurgan, D.; Jeyakanthan, J. Homology modeling, molecular dynamics, e-pharmacophore mapping and docking study of chikungunya virus nsp2 protease. J. Mol. Model. 2012, 18, 39–51. [Google Scholar] [CrossRef] [PubMed]
  20. Erdmenger, T.; Vitz, J.; Wiesbrock, F.; Schubert, U.S. Influence of different branched alkyl side chains on the properties of imidazolium-based ionic liquids. J. Mater. Chem. 2008, 18, 5267–5273. [Google Scholar] [CrossRef]
  21. Anderson, J.L.; Ding, R.; Ellern, A.; Armstrong, D.W. Structure and properties of high stability geminal dicationic ionic liquids. JACS 2005, 127, 593–604. [Google Scholar] [CrossRef] [PubMed]
  22. Al-Mohammed, N.N.; Alias, Y.; Abdullah, Z. Bis-imidazolium and benzimidazolium based gemini-type ionic liquids structure: Synthesis and antibacterial evaluation. RSC Adv. 2015, 5, 92602–92617. [Google Scholar] [CrossRef]
  23. Palchowdhury, S.; Bhargava, B.L. Effect of spacer chain length on the liquid structure of aqueous dicationic ionic liquid solutions: Molecular dynamics studies. PCCP 2015, 17, 11627–11637. [Google Scholar] [CrossRef] [PubMed]
  24. Tröger-Müller, S.; Brandt, J.; Antonietti, M.; Liedel, C. Green imidazolium ionics—from truly sustainable reagents to highly functional ionic liquids. Chemistry 2017, 23, 11810–11817. [Google Scholar] [CrossRef] [PubMed]
  25. Anvari, S.; Hajfarajollah, H.; Mokhtarani, B.; Enayati, M.; Sharifi, A.; Mirzaei, M. Antibacterial and anti-adhesive properties of ionic liquids with various cationic and anionic heads toward pathogenic bacteria. J. Mol. Liq. 2016, 221, 685–690. [Google Scholar] [CrossRef]
  26. Busetti, A.; Crawford, D.E.; Earle, M.J.; Gilea, M.A.; Gilmore, B.F.; Gorman, S.P.; Laverty, G.; Lowry, A.F.; McLaughlin, M.; Seddon, K.R. Antimicrobial and antibiofilm activities of 1-alkylquinolinium bromide ionic liquids. Green Chem. 2010, 12, 420–425. [Google Scholar] [CrossRef]
  27. Cornellas, A.; Perez, L.; Comelles, F.; Ribosa, I.; Manresa, A.; Garcia, M.T. Self-aggregation and antimicrobial activity of imidazolium and pyridinium based ionic liquids in aqueous solution. J. Colloid Interface Sci. 2011, 355, 164–171. [Google Scholar] [CrossRef] [PubMed]
  28. Luczak, J.; Jungnickel, C.; Lacka, I.; Stolte, S.; Hupka, J. Antimicrobial and surface activity of 1-alkyl-3-methylimidazolium derivatives. Green Chem. 2010, 12, 593–601. [Google Scholar] [CrossRef]
  29. Ferraz, R.; Teixeira, V.; Rodrigues, D.; Fernandes, R.; Prudencio, C.; Noronha, J.P.; Petrovski, Z.; Branco, L.C. Antibacterial activity of ionic liquids based on ampicillin against resistant bacteria. RSC Adv. 2014, 4, 4301–4307. [Google Scholar] [CrossRef]
  30. Pernak, J.; Smiglak, M.; Griffin, S.T.; Hough, W.L.; Wilson, T.B.; Pernak, A.; Zabielska-Matejuk, J.; Fojutowski, A.; Kita, K.; Rogers, R.D. Long alkyl chain quaternary ammonium-based ionic liquids and potential applications. Green Chem. 2006, 8, 798–806. [Google Scholar] [CrossRef]
  31. Patel, R.; Kumari, M.; Khan, A.B. Recent advances in the applications of ionic liquids in protein stability and activity: A review. Appl. Biochem. Biotechnol. 2014, 172, 3701–3720. [Google Scholar] [CrossRef] [PubMed]
  32. Saadeh, S.M.; Yasseen, Z.; Sharif, F.A.; Abu Shawish, H.M. New room temperature ionic liquids with interesting ecotoxicological and antimicrobial properties. Ecotoxicol. Environ. Saf. 2009, 72, 1805–1809. [Google Scholar] [CrossRef] [PubMed]
  33. Hajfarajollah, H.; Mokhtarani, B.; Noghabi, K.A.; Sharifi, A.; Mirzaei, M. Antibacterial and antiadhesive properties of butyl-methylimidazolium ionic liquids toward pathogenic bacteria. RSC Adv. 2014, 4, 42751–42757. [Google Scholar] [CrossRef]
  34. Villablanca, M.; Zenelman, R.; Montoya, R. Plasmid-mediated resistance towards aminoglycoside antibiotics in some strains of gram-negative bacilli. Exp. Biol. Med. 1982, 15, R176. [Google Scholar]
  35. Logan, L.K.; Weinstein, R.A. The epidemiology of carbapenem-resistant enterobacteriaceae: The impact and evolution of a global menace. J. Infect. Dis. 2017, 215, S283–S286. [Google Scholar] [CrossRef] [PubMed]
  36. Ramaswamy, V.K.; Cacciotto, P.; Malloci, G.; Vargiu, A.V.; Ruggerone, P. Computational modelling of efflux pumps and their inhibitors. Essays Biochem. 2017, 61, 141–156. [Google Scholar] [CrossRef] [PubMed]
  37. Bernot, R.J.; Brueseke, M.A.; Evans-White, M.A.; Lamberti, G.A. Acute and chronic toxicity of imidazolium-based ionic liquids on daphnia magna. Environ. Toxicol. Chem. 2009, 24, 87–92. [Google Scholar] [CrossRef]
  38. Diaz, E.; Monsalvo, V.M.; Lopez, J.; Mena, I.F.; Palomar, J.; Rodriguez, J.J.; Mohedano, A.F. Assessment the ecotoxicity and inhibition of imidazolium ionic liquids by respiration inhibition assays. Ecotoxicol. Environ. Saf. 2018, 162, 29–34. [Google Scholar] [CrossRef] [PubMed]
  39. Shao, Y.; Wang, J.; Du, Z.; Li, B.; Zhu, L. Toxicity of 1-alkyl-3-methyl imidazolium nitrate ionic liquids to earthworms: The effects of carbon chains of different lengths. Chemosphere 2018, 206, 302–309. [Google Scholar] [CrossRef] [PubMed]
  40. Santos, Á.; Soares, J.X.; Cravo, S.; Tiritan, M.E.; Reis, S.; Afonso, C.; Fernandes, C.; Pinto, M.M. Lipophilicity assessement in drug discovery: Experimental and theoretical methods applied to xanthone derivatives. J. Chromatogr. B 2018, 1072, 182–192. [Google Scholar] [CrossRef] [PubMed]
  41. Biemer, J.J. Antimicrobial susceptibility testing by the Kirby-Bauer disc diffusion method. Ann. Clin. Lab. Sci. 1973, 3, 135–140. [Google Scholar] [PubMed]
  42. Eloff, J.N. A sensitive and quick microplate method to determine the minimal inhibitory concentration of plant extracts for bacteria. Planta Med. 1998, 64, 711–713. [Google Scholar] [CrossRef] [PubMed]
  43. Neria, E.; Fischer, S.; Karplus, M. Simulation of activation free energies in molecular systems. J. Chem. Phys. 1996, 105, 1902–1921. [Google Scholar] [CrossRef]
  44. Vanommeslaeghe, K.; Hatcher, E.; Acharya, C.; Kundu, S.; Zhong, S.; Shim, J.; Darian, E.; Guvench, O.; Lopes, P.; Vorobyov, I.; et al. CHARMM general force field: A force field for drug-like molecules compatible with the CHARMM all-atom additive biological force fields. J. Comput. Chem. 2010, 31, 671–690. [Google Scholar] [CrossRef] [PubMed]
  45. Phillips, J.C.; Braun, R.; Wang, W.; Gumbart, J.; Tajkhorshid, E.; Villa, E.; Chipot, C.; Skeel, R.D.; Kalé, L.; Schulten, K. Scalable molecular dynamics with NAMD. J. Comput. Chem. 2005, 26, 1781–1802. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Vanommeslaeghe, K.; Raman, E.P.; MacKerell, A.D. Automation of the CHARMM General Force Field (CGenFF) II: Assignment of Bonded Parameters and Partial Atomic Charges. J. Chem. Inf. Model. 2012, 52, 3155–3168. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Humphrey, W.; Dalke, A.; Schulten, K. Vmd: Visual molecular dynamics. J. Mol. Graph. 1996, 14, 33–38. [Google Scholar] [CrossRef]
  48. Caporuscio, F.; Rastelli, G.; Imbriano, C.; Del Rio, A. Structure-based design of potent aromatase inhibitors by high-throughput docking. J. Med. Chem. 2011, 54, 4006–4017. [Google Scholar] [CrossRef] [PubMed]
  49. Lipinski, C.A.; Lombardo, F.; Dominy, B.W.; Feeney, P.J. Experimental and computational approaches to estimate solubility and permeability in drug discovery and development settings. Adv. Drug Deliv. Rev. 2001, 46, 3–26. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are not available from the authors.
Molecules 23 02354 sch001 550

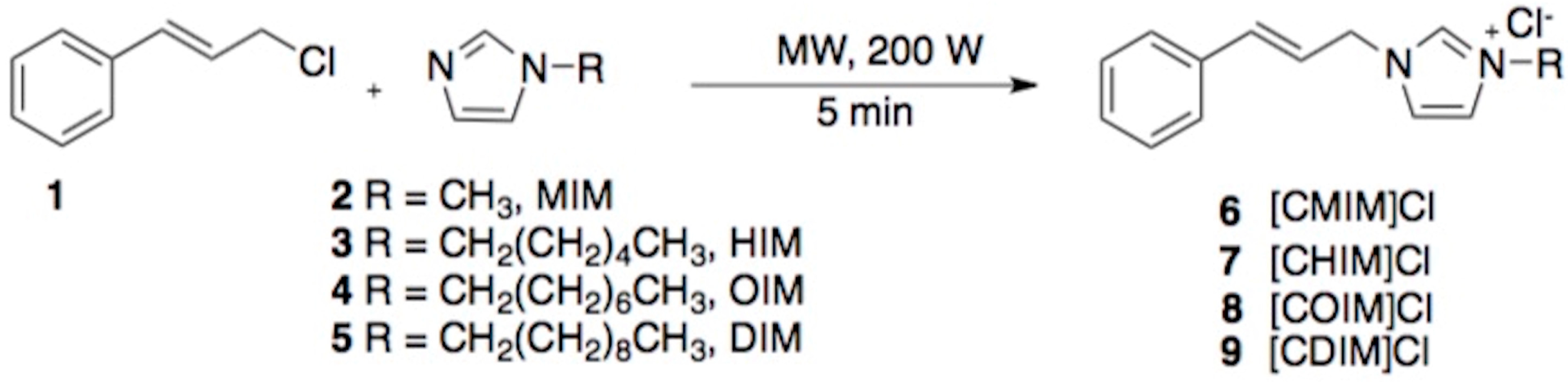

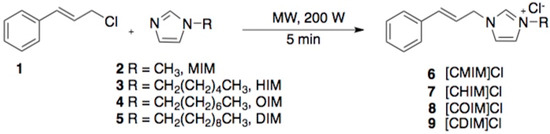

Scheme 1. Synthesis of different ILs derived from cinnamyl with different chain lengths.
Scheme 1. Synthesis of different ILs derived from cinnamyl with different chain lengths.
Molecules 23 02354 sch001
Molecules 23 02354 g001 550

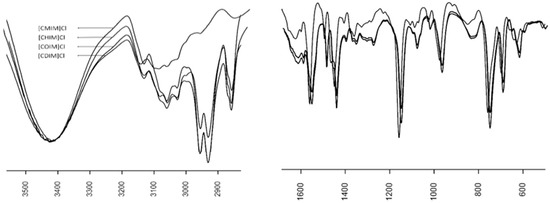

Figure 1. IR spectra of the different N-cinnamylimidazolium ILs.
Figure 1. IR spectra of the different N-cinnamylimidazolium ILs.
Molecules 23 02354 g001
Molecules 23 02354 g002 550

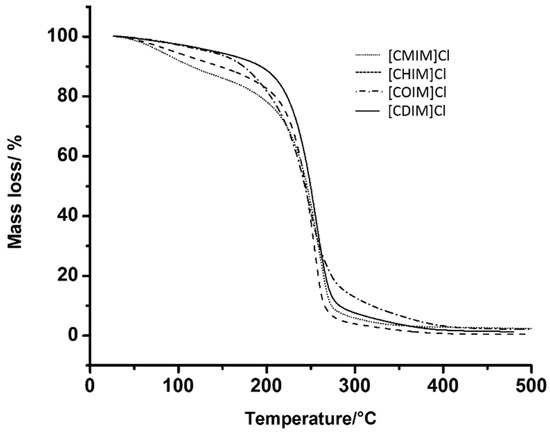

Figure 2. TG curve of different N-cinnamylimidazolium ILs.
Figure 2. TG curve of different N-cinnamylimidazolium ILs.
Molecules 23 02354 g002
Molecules 23 02354 g003 550

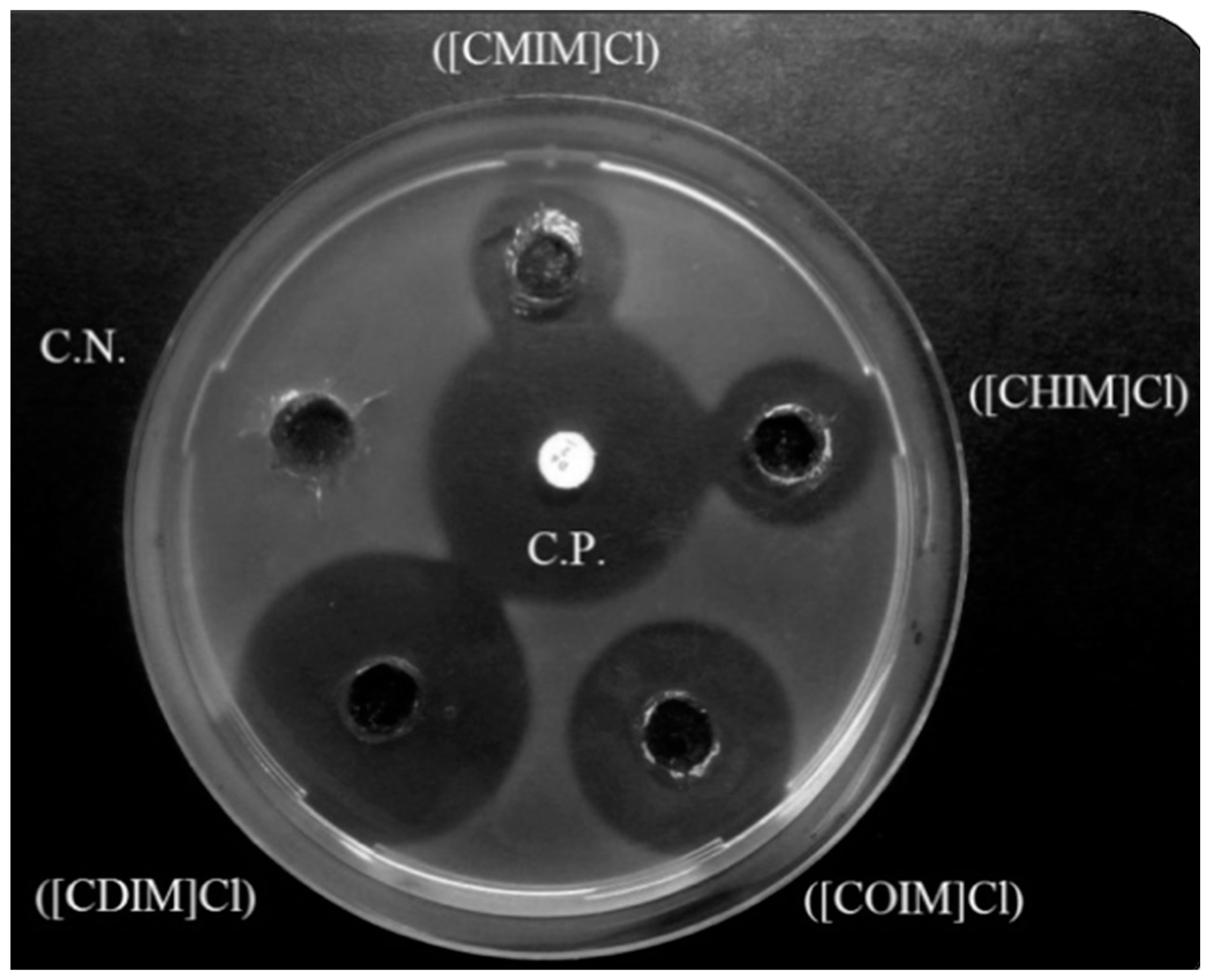

Figure 3. S. aureus growth inhibition halos in the presence of ILs with different chain lengths. C.P. positive control (mupirocin 5 μg), C.N. negative control.
Figure 3. S. aureus growth inhibition halos in the presence of ILs with different chain lengths. C.P. positive control (mupirocin 5 μg), C.N. negative control.
Molecules 23 02354 g003
Molecules 23 02354 g004 550

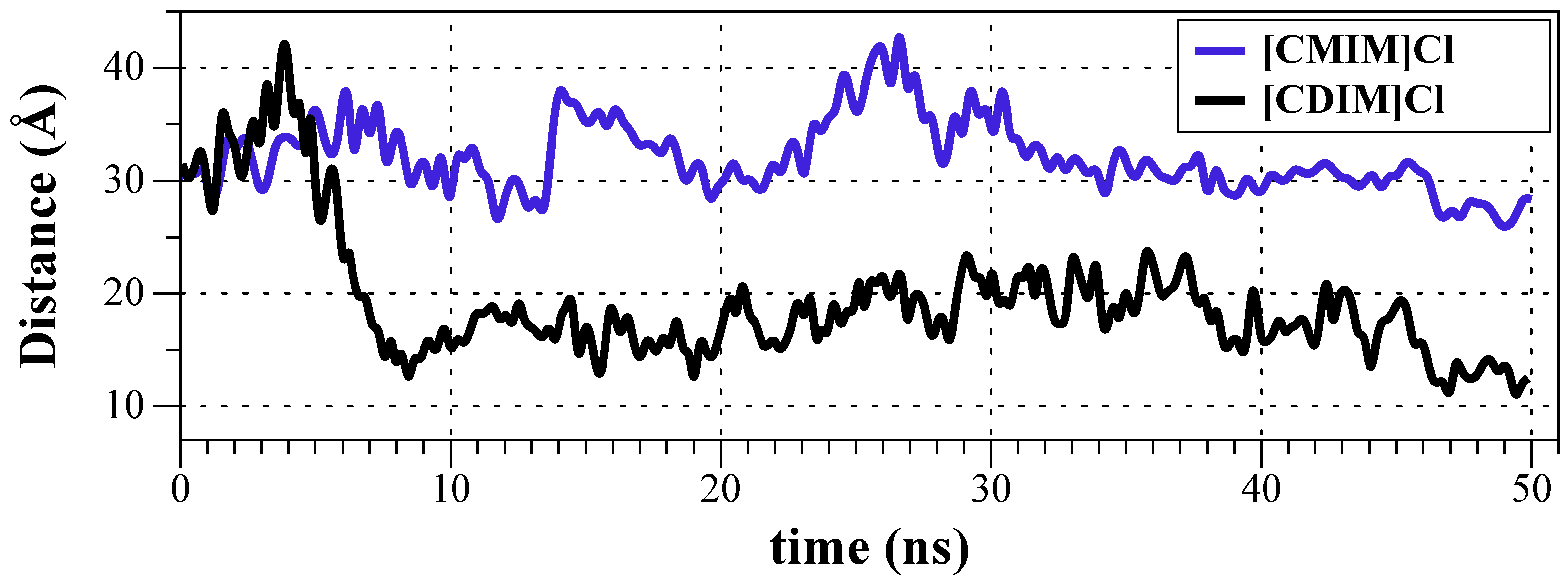

Figure 4. Distances between ILs [CDIM]Cl (black) and [CMIM]Cl (blue) and membrane center of masses (COMs) as a function of simulation time.
Figure 4. Distances between ILs [CDIM]Cl (black) and [CMIM]Cl (blue) and membrane center of masses (COMs) as a function of simulation time.
Molecules 23 02354 g004
Molecules 23 02354 g005 550

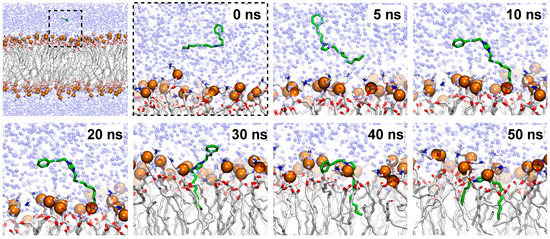

Figure 5. Incorporation of [CDIM]Cl into the membrane along with the 50 ns MDs.
Figure 5. Incorporation of [CDIM]Cl into the membrane along with the 50 ns MDs.
Molecules 23 02354 g005
Table
Table 1. Thermal decomposition temperatures (Tonset) of the N-cinnamylalkylimidazolium ILs.
Table 1. Thermal decomposition temperatures (Tonset) of the N-cinnamylalkylimidazolium ILs.
Ionic LiquidsTemperature (°C) Corresponding to
Tonset/°C aT10/°C bT50/°C c
[CMIM]Cl61118245
[CHIM]Cl76148251
[COIM]Cl91176251
[CDIM]Cl106193257
Decomposition temperatures (°C): a onset decomposition, b at 10% mass loss, c at 50% mass loss.
Table
Table 2. Bacterial growth inhibition halos (mm) at different ILs concentrations in agar well diffusion assay.
Table 2. Bacterial growth inhibition halos (mm) at different ILs concentrations in agar well diffusion assay.
Gram-Positive Bacteria
S. aureusS. pyogenesS. epidermidis
mM0.1250.250.5120.1250.250.5120.1250.250.512
Imidazole−−−−−−−−−−−−−−−
[CMIM]Cl−−+++++−+++++++−−+++++
[CHIM]Cl−−++++++−++++++++−−++++++
[COIM]Cl−++++++++−+++++++++++++++++
[CDIM]Cl−+++++++++−+++++++++++++++++++
Gram-Negative Bacteria
E. coliP. aeruginosaA. baumannii
mM0.1250.250.5120.1250.250.5120.1250.250.512
Imidazole−−−−−−−−-−−−−−−
[CMIM]Cl−−−−++−−−-−−−−−+
[CHIM]Cl−−++++++−−−−−−−−−+
[COIM]Cl−−++++++−−−−−−−−+++
[CDIM]Cl−−++++++−−−−−−−−++++
n = 3 (three independent experiments). (−), no inhibition; (+), < 15 mm; (++) 15–25 mm; (+++) > 25 mm.
Table
Table 3. Minimum inhibitory concentration (MIC) and calculation of mean viability inhibition (IC50) of Gram-positive and Gram-negative bacteria.
Table 3. Minimum inhibitory concentration (MIC) and calculation of mean viability inhibition (IC50) of Gram-positive and Gram-negative bacteria.
MIC (μM)
[CMIM]Cl[CHIM]Cl[COIM]Cl[CDIM]Cl
S. aureus25012562.531.25
S. pyogenes12562.562.531.25
S. epidermidis25012562.531.25
E. coli2000500500250
P. aeruginosa>2000> 2000> 2000> 2000
A. baumannii2000100010001000
IC50 (μM)
[CMIM]Cl[CHIM]Cl[COIM]Cl[CDIM]Cl
S. aureus13710632.927.3
S. pyogenes41.638.12519.4
S. epidermidis14955.738.531.2
E. coli1380340290210
P. aeruginosa>2000>2000>2000>2000
A. baumannii1870570480465
n = 3 (three independent experiments).
Table
Table 4. Physicochemical descriptor calculated by QikProp simulation.
Table 4. Physicochemical descriptor calculated by QikProp simulation.
LigandsMW (g/mol) aHB-D bHB-A cRotable BondsTotal SASA dMV (Å3) ePSA f
[CMIM]Cl200.283043491.174799.1375.203
[CHIM]Cl270.417048587.9381055.3864.991
[COIM]Cl298.4700410607.7541137.9214.991
[CDIM]Cl326.5240412630.8151217.3974.991
a Molecular Weight. 95% Drugs range (130.0–725.0); b Estimated number of H-Bonds that would be donated by the solute to water molecules in an aqueous solution. Values are averages that take over several conformations, so they can be non-integer. 95% Drugs range (0.0–6.0); c Estimated number of H-Bonds that would be accepted by the solute to water molecules in an aqueous solution. Values are averages that take over several conformations, so they can be non-integer. 95% Drugs range (2.0–20.0); d Total Solvent Accessible Surface Area (SASA). 95% Drugs range (300.0–1000.0); e Total solvent-accessible volume in cubic Å3 using a probe with 1.4 Å of radius. 95% Drugs range (500.0–2000.0); f Van de Waals surface area of polar nitrogen and oxygen atoms. 95% Drugs range (5.0–200.0). All predictions are based in a data set of 1712 drugs.
Table
Table 5. Pharmacokinetics properties predicted by QikProp simulation.
Table 5. Pharmacokinetics properties predicted by QikProp simulation.
Lead LigandsQP log P (o/w) aQP log S bQP log HERG c QP log Kp d% HOA in GI eQual HOA Model fLipinski’s Rule of 5 Violations g
[CMIM]Cl1.859−0.503−6.903−4.29588HIGH0
[CHIM]Cl3.511−1.523−6.728−3.877100HIGH0
[COIM]Cl4.028−1.573−6.404−3.748100HIGH0
[CDIM]Cl4.523 −1.684−6.197−3.628100HIGH0
a QP log P for octanol/water. 95% Drugs range (−2.0–6.5); b Predicted aqueous solubility. Log S, S in dm3 is the solute concentration in a saturated solution in equilibrium with the crystalline solid. (−6.5–0.5); c HERG K+ channel blockage; log IC50. Concern below −5.000; d QP log Kp for skin permeability. Kp in cm/h; e % model for Human Oral Absorption in Gastro Intestinal System. <20% in poor; f Quality of model for Human Oral Absorption in Gastro Intestinal System. >80% in high; g Maximum is 4.

Share and Cite

MDPI and ACS Style

Forero Doria, O.; Castro, R.; Gutierrez, M.; Gonzalez Valenzuela, D.; Santos, L.; Ramirez, D.; Guzman, L. Novel Alkylimidazolium Ionic Liquids as an Antibacterial Alternative to Pathogens of the Skin and Soft Tissue Infections. Molecules 2018, 23, 2354. https://doi.org/10.3390/molecules23092354

AMA Style

Forero Doria O, Castro R, Gutierrez M, Gonzalez Valenzuela D, Santos L, Ramirez D, Guzman L. Novel Alkylimidazolium Ionic Liquids as an Antibacterial Alternative to Pathogens of the Skin and Soft Tissue Infections. Molecules. 2018; 23(9):2354. https://doi.org/10.3390/molecules23092354

Chicago/Turabian Style

Forero Doria, Oscar, Ricardo Castro, Margarita Gutierrez, Diego Gonzalez Valenzuela, Leonardo Santos, David Ramirez, and Luis Guzman. 2018. "Novel Alkylimidazolium Ionic Liquids as an Antibacterial Alternative to Pathogens of the Skin and Soft Tissue Infections" Molecules 23, no. 9: 2354. https://doi.org/10.3390/molecules23092354

Article Metrics

Back to TopTop
