Molecules 2018, 23(3), 683; doi:10.3390/molecules23030683

Article
Hyperjaponol H, A New Bioactive Filicinic Acid-Based Meroterpenoid from Hypericum japonicum Thunb. ex Murray
1
National & Local Joint Engineering Research Center of High-throughput Drug Screening Technology, Hubei Key Laboratory of Biotechnology of Chinese Traditional Medicine, School of Life Science, Hubei University, Wuhan 430062, China
2
Wuhan Rayson School, Wuhan 430040, China
3
Hubei Key Laboratory of Natural Medicinal Chemistry and Resource Evaluation, School of Pharmacy, Tongji Medical College, Huazhong University of Science and Technology, Wuhan 430030, China
*
Correspondence: linzhenhu@hubu.edu.cn; Tel.: +86-27-88663882
These authors contributed equally to this work.
Academic Editor: Isabel C. F. R. Ferreira
Received: 18 February 2018 / Accepted: 16 March 2018 / Published: 18 March 2018

Abstract

:
Hyperjaponol H (1), a new filicinic acid-based meroterpenoid, with a 6/6/10 ring system trans-fused by hetero-Diels–Alder cycloaddition between a germacrane sesquiterpenoid and a filicinic acid moiety, was isolated from aerial parts of Hypericum japonicum. The elucidation of its structure and absolute configuration were accomplished by the analyses of extensive spectroscopic data and the comparison of Cotton effects of electron circular dichroism (ECD) with previously reported ones. The bioactivity assay showed that hyperjaponol H exhibited a moderate inhibitory efficacy on lytic Epstein-Barr virus (EBV) DNA replication in B95-8 cells.
Keywords:
Hypericum japonicum; meroterpenoid; Epstein-Barr virus

1. Introduction

Natural products are widely known to be a considerable resource of biologically active compounds that involve manifold and unusual scaffolds. Most secondary metabolites from plants of Guttiferae are mainly found to be phloroglucinol derivatives with complex architectures and appealing therapeutical properties [1,2,3]. Hypericum japonicum Thunb. ex Murray, as a member of Guttiferae family, also termed as Tianjihuang in China, is widespread chiefly in temperate regions of North America, Oceania, and Asia [4,5]. Also as a type of traditional Chinese medicine, H. japonicum has been extensively utilized for the medical treatment of the hemostasis, detumescence, dysentery, and hepatitis [4]. In recent years, literatures reported that various ranges of chemical constituents such as aliphatic compounds, terpenoids, flavonoids, xanthonoids, lactones, and phloroglucinol derivatives had been discovered from this herb [5,6,7,8,9,10,11].
In our on-going research on the genus Hypericum for structurally fascinating and biologically appealing metabolites, we have reported some meroterpenoids of polycyclic prenylated acylphloroglucinols (PPAPs) from H. sampsonii, H. ascyron, H. attenuatum, and H. perforatum [12,13,14,15] as well as a series of filicinic acid-based meroterpenoids (Hyperjaponols A–G) from H. japonicum [16]. In the present study, the isolation, structural confirmation, and anti-EBV assay of compound 1, named hyperjaponol H, a metabolite of H. japonicum, are illustrated in detail.

2. Results and Discussion

A crude extract (300 g) produced from the dried herbs of H. japonicum (4 kg) was subjected to the silica gel column chromatography (silica gel CC) eluted successively with the gradient mobile phases of petroleum ether, chloroform, and ethyl acetate. The fraction of petroleum ether was sequentially chromatographed by MCI gel column, ODS Middle Pressure Liquid Chromatography (MPLC), Sephadex LH-20, and High Performance Liquid Chromatography (HPLC) to give a new filicinic acid-based meroterpenoid (1) as drawn in Figure 1, which was named as hyperjaponol H.
Hyperjaponol H (1), white amorphous powder {[α] D 20 +16.4 (c 0.06, CHCl3)}, with the molecular formula C28H42O5, was manifested by the high-resolution electrospray ionization mass spectra (HRESIMS) quasi-molecular peak ion at m/z 459.3119 [M + H]+, calculated for C28H43O5 459.3110 (Supplementary Materials Figure S1). The analyses of IR absorption bands (3455, 1654, and 1612 cm−1, Supplementary Materials Figure S9) demonstrated the characteristic scaffold of an enolic 1,3-diketo system, viz. acylated filicinic acid parent core [10,11,17,18]. Comparison of NMR data between 1 with hyperjaponols A–G [16] indicated that 1 was constructed via the incorporation of the same sesquiterpene unit as hyperjaponol G to the same acylated filicinic acid entity as hyperjaponols A–F. Accomplished by meticulous examination of HSQC, HMBC, and 1H-1H COSY spectra (Supplementary Materials Figures S4–S6), all 1H- and 13C-NMR data of 1 were unequivocally assigned as shown in Table 1. The 1H-NMR (600 MHz) spectrum (Supplementary Materials Figure S2) displayed resonances for eight methyls [δH, 1.29 (s), 1.24 (s), 1.20 (s), 1.19 (s), 1.02 (s), 1.11 (d, J = 6.7 Hz), 1.10 (d, J = 6.7 Hz), 1.00 (d, J = 7.0 Hz)], and two olefinic methine protons [δH, 5.59 (dd, J = 16.2, 4.7 Hz), 5.47 (dd, J = 16.2, 8.0 Hz)]. The 13C-NMR (150 MHz) spectrum (Supplementary Materials Figure S3) denoted 28 carbon resonances consisting of one quaternary carbon, one carbonyl, two oxygenated, and five enolic or olefinic carbons, five methylenes, six methines (four aliphatic, and two olefinic carbons), and eight methyls. Taking the aforementioned analyses and its eight indices of proton deficiency into consideration, compound 1 contains a tricyclic system.
The planar construction of 1 was established according to the HMBC and 1H-1H COSY experiments (Figure 2). In ring C, the 2-hydroxyisoisopropyl residue was connected at position 8 due to the HMBC correlations from Me-12/Me-13 to C-11 and C-8, while the HMBC cross-peaks between Me-15 with C-1, C-2, and C-10 as well as the cross-peaks between Me-14 with C-4, C-5, and C-6 suggested Me-15 and Me-14 was located at positions 1 and 5, respectively. Meanwhile, the clear 1H-1H COSY spin systems of H-2/H-3/H-4/H-5/H-6/H-7/H-8/H-9/H-10 supported the structural profile of ring C, a germacrane unit. Regarding to the ring A, a filicinic acid core, was confirmed by the HMBC correlations of Me-12′/Me-13′ with C-3′, C-4′, and C-5′, H-7′ with C-1′, C-5′, and C-6′ along with an unassigned olefinic carbon (δC 104.6) referring to literatures [10,11,17,18]. In addition, the isobutyryl functionality positioned at C-2′ was illustrated by HMBC correlations from Me-10′/Me-11′ to C-8′ and C-9′. Definitively, the combination of the filicinic acid (ring A) and the germacrane (ring C) via C-7′ was established by the 1H-1H COSY spin system of H-2/H-7′, and ring B formed to fit the unsaturation degrees of 1.
According to the 2D NOESY spectrum (Supplementary Materials Figure S7) and 1H-1H coupling constant, the relative configurations of the chiral centers of 1 were revealed. In light of a large coupling constant value of H-6/H-7 (J = 16.2 Hz), an E geometry of the olefinic bond (∆6,7) was ascertained. NOE correlations between Me-14/H-7, H-7/H-10b (δH 2.03), H-10b/Me-15, and Me-15/H-7′b (δH 1.69) suggested that these protons should be assigned as the same side named β orientation. Analogously, the observed NOE cross-peaks between H-7′a (δH 2.74)/H-2, H-6/H-5, and H-6/H-8 as well as the absence of a key NOESY correlation between H-2/Me-15, indicated H-2, H-5, H-6, and H-8 should be placed at α orientation (Figure 2). Furthermore, the value of 3JH-7′bH-2 (J 11.3 Hz) suggested that a dihedral angle 180 between H-7′b and H-2 assigned these two protons as trans-stereochemistry. Thus, a 6/6/10 ring system was incorporated by the sesquiterpenoid germacrane entity trans-fused into the acylfilicinic acid motif, which possessed a 1R*,2S*,5S*,8R* relative configuration.
As confirmation, the absolute stereocenters of C-1, C-2, C-5, and C-8 in 1 were assigned by means of the cautious comparison of electronic circular dichroism (ECD) data between 1 and its homologues, i.e., hyperjaponols D–G, with the identical sesquiterpenoid germacrane. The ECD spectra exhibited positive Cotton effects at 226–231 nm (ECD (CH3OH) λ (Δε): 1, 231 (+10.34) (Figure 3); hyperjaponol D, 227 (+3.23); hyperjaponol E, 227 (+5.28); hyperjaponol F, 229 (+4.48); hyperjaponol G, 226 (+13.74)] together with the dextrorotatory optical activities of compound 1 and hyperjaponols D–G, which designated the stereochemistry of 1 as 1R,2S,5S,8R.
Epstein-Barr virus (EBV, Lymphocryptovirus), a large DNA virus of the γ-herpes virus family, preferentially infects human B cells of at least 90% of the worldwide population in a latent state [19]. EBV is generally linked to a group of autoimmune ailments, such as systemic lupus erythematosus [20], multiple sclerosis [21], and rheumatoid arthritis [22]. Currently, anti-EBV drugs like ganciclovir and aciclovir, have efficacy against EBV lytic infections, while the increasing emergence of drug-related toxicity, cross-resistance, and side effects also limit their clinical application [23,24,25]. As a successive biochemical research on this herb, compound 1 was carried out an inhibition assay on lytic DNA replication of EBV in B95-8 cells in terms of our previous procedure [16]. Comparing the results with the reported compounds (hyperjaponols A–G), 1 exhibited a moderate effect with EC50 25.00 μM, and the value of a CC50 higher than 50 µM (Figure 4 and Table 2).

3. Materials and Methods

3.1. General Experiments

Optical rotation was recorded on a JASCO P-2200 digital polarimeter (JASCO, Tokyo, Japan). IR, UV, and ECD spectra were measured by Bruker Vertex 70 (Brucker Co., Karlsruhe, Germany), Varian Cary 50 (Varian Medical Systems, Salt Lake City, UT, USA), and JASCO J-1700 (JASCO, Tokyo, Japan) apparatuses, respectively. HRESIMS was carried out on Agilent 6530 Accurate-Mass Q-TOF LC/MS spectrometer (Agilent Technologies, California, CA, USA) employed with positive ion mode with nebulizer pressure at 2.0 bar, dry gas temperature at 593 K, and assembled with Agilent Extend-C18 column (50 mm × 2.1 mm, 1.8 μm) under the mobile phase (MeOH/H2O, 90/10 (V/V)) with a flow rate of 0.5 mL/min. NMR spectra were run on a Bruker AM-600 spectrometer (Brucker Co., Karlsruhe, Germany), 1H-NMR (600 MHz), 13C-NMR (150 MHz), using TMS as the internal standard. Chemical shifts of 1H and 13C-NMR were reported in ppm relative to the solvent peaks of CDCl3H 7.24 ppm; δC 77.23 ppm). DEPT 135, HSQC (acquired size 512, 256; spectral size 1024, 1024), HMBC (acquired size 1024, 128; spectral size 2048, 1024), 1H-1H COSY (acquired size 1024, 128; spectral size 1024, 1024), NOESY (acquired size 1024, 128; spectral size 1024, 1024) experiments were performed. Silica gel (0.12–0.2 and 0.2–0.3 mm, Yantai Chemical Co. Ltd., Yantai, China), MCI gel (Mitsubishi Chemical Co., Tokyo, Japan), ODS (YMC Co., Tokyo, Japan), and Sephadex LH-20 (Mitsubishi Chemical Co., Tokyo, Japan) were used for column chromatography. Thin-layer chromatography (GF 254, Yantai Chemical Co. Ltd., Yantai, China) was performed for monitoring isolates under an ultraviolet-visible detector with λ 254 nm. Semi-preparative high performance liquid chromatography (HPLC) was carried out by a LC 3050 analysis of HPLC system (CXTH, Beijing, China) with a RP-C18 column (5 μm, 10 × 250 mm, Welchrom®, Shanghai, China).

3.2. Plant Material

The aerial parts of herbs (H. japonicum) were collected from Da-Bie Mountain area, Qichun County, Hubei Province, P. R. China, in October 2016, and were authenticated by Professor Jianping Wang, Huazhong University of Science and Technology. A voucher specimen (no. 2016-1011) was deposited at the Herbarium of Hubei Key Laboratory of Biotechnology of Chinese Traditional Medicine, School of Life Science, Hubei University, Wuhan, P. R. China.

3.3. Extraction and Isolation

The air-dried aerial parts of herbs (H. japonicum) (4 kg) were percolated with 95% aqueous EtOH (10 L) at 40 °C for 72 h to produce a crude extract (300 g), which was subjected to silica gel column (silica gel, 0.12–0.2 mm, 1.5 kg; column, 10 × 75 cm) chromatography (silica gel CC) eluted successively with the gradient mobile phases of petroleum ether (12 L), chloroform (8 L), and ethyl acetate (8 L). The petroleum ether fraction was subjected to silica gel column chromatography (petroleum ether/acetone, 100:1 to 5:1) to produce seven fractions (Fractions 1–7). With the aid of TLC analyses, fraction 3 was chosen and subjected on silica gel column (petroleum ether/acetone, 50:1 to 5:1) to yield four subfractions (fractions 3.1–3.4). Fraction 3.2 was purified using an ODS column with a gradient elution (MeOH–H2O (50:50 to 100:0), to produce four subfractions (fractions 3.2.1–3.2.4). Fraction 3.2.3 was further repurified by semi-preparative HPLC (MeOH–H2O, 85:15; flow rate, 2.0 mL/min; tR, 37.5 min) to afford 1 (2.1 mg).
Hyperjaponol H (1): white amorphous powder; [α] D 20 +16.4 (c 0.06, CHCl3); UV (CH3OH) λmax (log ε) 243 (3.71) (Supplementary Materials Figure S8), 329 (3.90) nm; IR (KBr) νmax 3455, 2966, 2932, 2874, 1654, 1612, 1523, 1464 cm−1; ECD λmax (∆ε) 231 (+10.34), 352 (−0.79) nm; 1H and 13C-NMR data, see Table 1; HRESIMS: m/z 459.3119 [M + H]+ (calcd for C28H43O5 459.3110) (Supplementary Materials Figure S1).

3.4. Anti-EBV Assay

Regarding the pathogenicity of EBV infection, viral replication plays a critical role, and the inhibition of viral replication is a crucial parameter used to assess anti-virus activity of drugs. Hence the inhibitory activity on EBV DNA replication of compound 1 was investigated using previous procedures [26,27,28,29]. The cytotoxicity of compound 1 towards B95-8 cells was assessed by the AlamarBlue® cell viability assay (Thermo Fisher Scientific, Waltham, MA, USA) according to the manufacturer′s protocol. Thereupon, the antiviral activity of compound 1 against the lytic replication of EBV in B95-8 cells was measured using a qPCR assay to assess the intracellular viral DNA copy number, an accurate and rapid assessment of the efficacy of EBV DNA inhibitors as reported [26]. Extraction of the EBV genomic DNA, determination of the viral DNA copy number, and evaluation of the intracellular viral genomic DNA were undertaken referring to our previously described method [16].

4. Conclusions

Hyperjaponols H (1), a new filicinic acid-based meroterpenoid, with a 6/6/10 ring system trans-fused by hetero-Diels–Alder cycloaddition between a germacrane sesquiterpenoid and a filicinic acid moiety, was discovered from Hypericum japonicum. The structure and absolute stereocenters were attributed to the analyses of extensive spectroscopic data and the Cotton effect of ECD undergoing a comparison with previously reported ones. Primary bioactivity screening suggested that 1 had a moderate inhibitory effect on lytic EBV DNA replication with the EC50 value of 25.00 μm.

Supplementary Materials

HRESIMS, NMR, UV, and IR spectra of compound 1 are available online.

Acknowledgments

This work was financially supported by the Program for New Century Excellent Talents in University, the State Education Ministry of China (2008-0224), and the National Natural Science Foundation of China (nos. 81573316, 31770379, 81641129, 21502057, and 31700298).

Author Contributions

Linzhen Hu conceived and designed the experiments; Rongrong Wu and Zijun Le carried out the experiments, analyzed the data, and wrote the manuscript; Zhenzhen Wang and Shuying Tian performed the biological assay; Yong Chen contributed reagents, materials, and analysis tools; Yongbo Xue and Yonghui Zhang modified the manuscript. All authors reviewed the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Singh, I.P.; Sidana, J.; Bansal, P.; Foley, W.J. Phloroglucinol compounds of therapeutic interest: Global patent and technology status. Expert Opin. Ther. Pat. 2009, 19, 847–866. [Google Scholar] [CrossRef] [PubMed]
  2. Grenning, A.J.; Boyce, J.H.; Porco, J.A., Jr. Rapid synthesis of polyprenylated acylphloroglucinol analogs via dearomative conjunctive allylic annulation. J. Am. Chem. Soc. 2014, 136, 11799–11804. [Google Scholar] [CrossRef] [PubMed]
  3. Singh, I.P.; Sidana, J.; Bharate, S.B.; Foley, W.J. Phloroglucinol compounds of natural origin: Synthetic aspects. Nat. Prod. Rep. 2010, 27, 393–416. [Google Scholar] [CrossRef] [PubMed]
  4. Pang, Q.; Tian, Y.; Mi, J.; Wang, J.; Xu, Y. Simultaneous determination and pharmacokinetic study of eight components in rat plasma by UHPLC-MS/MS after oral administration of Hypericum japonicum Thunb extract. J. Pharm. Biomed. Anal. 2016, 118, 228–234. [Google Scholar] [CrossRef] [PubMed]
  5. Liu, L.S.; Liu, M.H.; He, J.Y. Hypericum japonicum Thunb. ex Murray: phytochemistry, pharmacology, quality control and pharmacokinetics of an important herbal medicine. Molecules 2014, 19, 10733–10754. [Google Scholar] [CrossRef] [PubMed]
  6. Wu, Q.L.; Wang, S.P.; Zhang, S.M.; Yang, J.S.; Xiao, P.G. Chromone glycosides and flavonoids from Hypericum japonicum. Phytochemistry 1998, 49, 1417–1420. [Google Scholar] [CrossRef]
  7. Zhang, W.D.; Fu, P.; Liu, R.H.; Li, T.Z.; Li, H.L.; Zhang, W.; Chen, H.S. A new bisxanthone from Hypericum japonicum. Fitoterapia 2007, 78, 74–75. [Google Scholar] [CrossRef] [PubMed]
  8. Verma, R.S.; Padalia, R.C.; Chauhan, A.; Chanotiya, C.S.; Yadav, A. Chemical composition of the aliphatic compounds rich essential oil of Hypericum japonicum Thunb. ex Murray from India. J. Essent. Oil. Res. 2012, 24, 501–505. [Google Scholar] [CrossRef]
  9. Wang, X.W.; Mao, Y.; Wang, N.L.; Yao, X.S. A new phloroglucinol diglycoside derivative from Hypericum japonicum Thunb. Molecules 2008, 13, 2796–2803. [Google Scholar] [CrossRef] [PubMed]
  10. Ishiguro, K.; Nagata, S.; Fukumoto, H.; Yamaki, M.; Isoi, K. Phloroglucinol derivatives from Hypericum japonicum. Phytochemistry 1994, 35, 469–471. [Google Scholar] [CrossRef]
  11. Hu, L.H.; Khoo, C.W.; Vittal, J.J.; Sim, K.Y. Phloroglucinol derivatives from Hypericum japonicum. Phytochemistry 2000, 53, 705–709. [Google Scholar] [CrossRef]
  12. Zhu, H.; Chen, C.; Yang, J.; Li, X.N.; Liu, J.; Sun, B.; Huang, S.X.; Li, D.; Yao, G.; Luo, Z.; et al. Bioactive acylphloroglucinols with adamantyl skeleton from Hypericum sampsonii. Org. Lett. 2014, 16, 6322–6325. [Google Scholar] [CrossRef] [PubMed]
  13. Zhu, H.; Chen, C.; Liu, J.; Sun, B.; Wei, G.; Li, Y.; Zhang, J.; Yao, G.; Luo, Z.; Xue, Y.; et al. Hyperascyrones A–H, polyprenylated spirocyclic acylphloroglucinol derivatives from Hypericum ascyron Linn. Phytochemistry 2015, 115, 222–230. [Google Scholar] [CrossRef] [PubMed]
  14. Li, D.; Xue, Y.; Zhu, H.; Li, Y.; Sun, B.; Liu, J.; Yao, G.; Zhang, J.; Du, G.; Zhang, Y. Hyperattenins A–I, bioactive polyprenylated acylphloroglucinols from Hypericum attenuatum Choisy. RSC. Adv. 2015, 5, 5277–5287. [Google Scholar] [CrossRef]
  15. Guo, Y.; Zhang, N.; Chen, C.; Huang, J.; Li, X.N.; Liu, J.; Zhu, H.; Tong, Q.; Zhang, J.; Luo, Z.; et al. Tricyclic polyprenylated acylphloroglucinols from St John′s Wort, Hypericum perforatum. J. Nat. Prod. 2017, 80, 1493–1504. [Google Scholar] [CrossRef] [PubMed]
  16. Hu, L.; Zhang, Y.; Zhu, H.; Liu, J.; Li, H.; Li, X.N.; Sun, W.; Zeng, J.; Xue, Y.; Zhang, Y. Filicinic acid-based meroterpenoids with anti-Epstein-Barr virus activities from Hypericum japonicum. Org. Lett. 2016, 18, 2272–2275. [Google Scholar] [CrossRef] [PubMed]
  17. Ishiguro, K.; Yamaki, M.; Takagi, S.; Yamaga, Y.; Tomita, K. X-ray crystal structure of sarothralin, a novel antibiotic compound from Hypericum japonicum. J. Chem. Soc. Chem. Commun. 1985, 26–27. [Google Scholar] [CrossRef]
  18. Ishiguro, K.; Yamaki, M.; Kashihara, M.; Takagi, S. Sarothralen A and B from H. japomicum. Planta Med. 1986, 288–290. [Google Scholar] [CrossRef] [PubMed]
  19. Wang, H.B.; Zhang, H.; Zhang, J.P.; Li, Y.; Zhao, B.; Feng, G.K.; Du, Y.; Xiong, D.; Zhong, Q.; Liu, W.L.; Du, H.; Li, M.Z.; Huang, W.L.; Tsao, S.W.; Hutt Fletcher, L.; Zeng, Y.X.; Kieff, E.; Zeng, M.S. Neuropilin 1 is an entry factor that promotes EBV infection of nasopharyngeal epithelial cells. Nat. Commun. 2015, 6, 6240–6252. [Google Scholar] [CrossRef] [PubMed]
  20. Ribeiro, F.M.; Gomez, V.E.; Albuquerque, E.M.; Klumb, E.M.; Shoenfeld, Y. Lupus and leprosy: Beyond the coincidence. Immunol. Res. 2015, 61, 160–163. [Google Scholar] [CrossRef] [PubMed]
  21. Serafini, B.; Rosicarelli, B.; Franciotta, D.; Magliozzi, R.; Reynolds, R.; Cinque, P.; Andreoni, L.; Trivedi, P.; Salvetti, M.; Faggioni, A.; et al. Dysregulated Epstein-Barr virus infection in the multiple sclerosis brain. J. Exp. Med. 2007, 204, 2899–2912. [Google Scholar] [CrossRef] [PubMed]
  22. Balandraud, N.; Roudier, J.; Roudier, C. Epstein-Barr virus and rheumatoid arthritis. Autoimmun. Rev. 2004, 3, 362–367. [Google Scholar] [CrossRef] [PubMed]
  23. Billaud, G.; Thouvenot, D.; Morfin, F. Drug targets in herpes simplex and Epstein Barr virus infections. Infect. Disord. Drug Targets 2009, 9, 117–125. [Google Scholar] [CrossRef] [PubMed]
  24. Coen, D.M.; Schaffer, P.A. Antiherpesvirus drugs: a promising spectrum of new drugs and drug targets. Nat. Rev. Drug Discov. 2003, 2, 278–288. [Google Scholar] [CrossRef] [PubMed]
  25. Shi, W.J.; Sun, H.X.; Mo, X.M.; Li, S.Y.; Li, X.Y.; Zhang, G.; Liu, H.A. Development of a broad-spectrum antiviral agent with activity against herpesvirus replication and gene expression. Trop. J. Pharm. Res. 2013, 12, 541–547. [Google Scholar] [CrossRef]
  26. Ballout, M.; Germi, R.; Fafi-Kremer, S.; Guimet, J.; Bargues, G.; Seigneurin, J.M.; Morand, P. Real-time quantitative PCR for assessment of antiviral drug effects against Epstein-Barr virus replication and EBV late mRNA expression. J. Virol. Methods 2007, 143, 38–44. [Google Scholar] [CrossRef] [PubMed]
  27. Wiedmer, A.; Wang, P.; Zhou, J.; Rennekamp, A.J.; Tiranti, V.; Zeviani, M.; Lieberman, P.M. Epstein-Barr virus immediate-early protein Zta co-opts mitochondrial single-stranded DNA binding protein to promote viral and inhibit mitochondrial DNA replication. J. Virol. 2008, 82, 4647–4655. [Google Scholar] [CrossRef] [PubMed]
  28. Stevens, S.J.; Vervoort, M.B.; van den Brule, A.J.; Meenhorst, P.L.; Meijer, C.J.; Middeldorp, J.M. Monitoring of Epstein-Barr virus DNA load in peripheral blood by quantitative competitive PCR. J. Clin. Microbiol. 1999, 37, 2852–2857. [Google Scholar] [PubMed]
  29. Asahi Ozaki, Y.; Sato, Y.; Kanno, T.; Sata, T.; Katano, H. Quantitative analysis of Kaposi Sarcoma–Associated Herpesvirus (KSHV) in KSHV-associated diseases. J. Infect. Dis. 2006, 193, 773–782. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Samples of the compound 1 are available from the authors.
Figure 1. Structure of compound 1.
Figure 1. Structure of compound 1.
Molecules 23 00683 g001

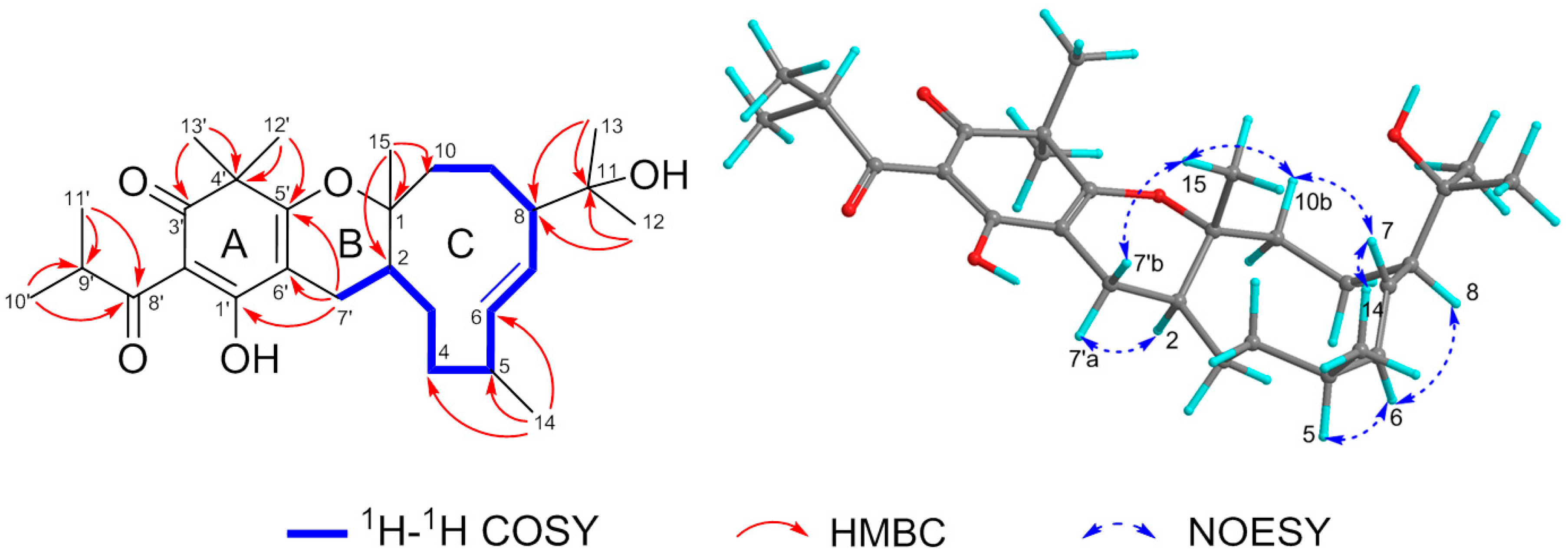

Figure 2. Key 2D NMR correlations of compound 1.
Figure 2. Key 2D NMR correlations of compound 1.
Molecules 23 00683 g002

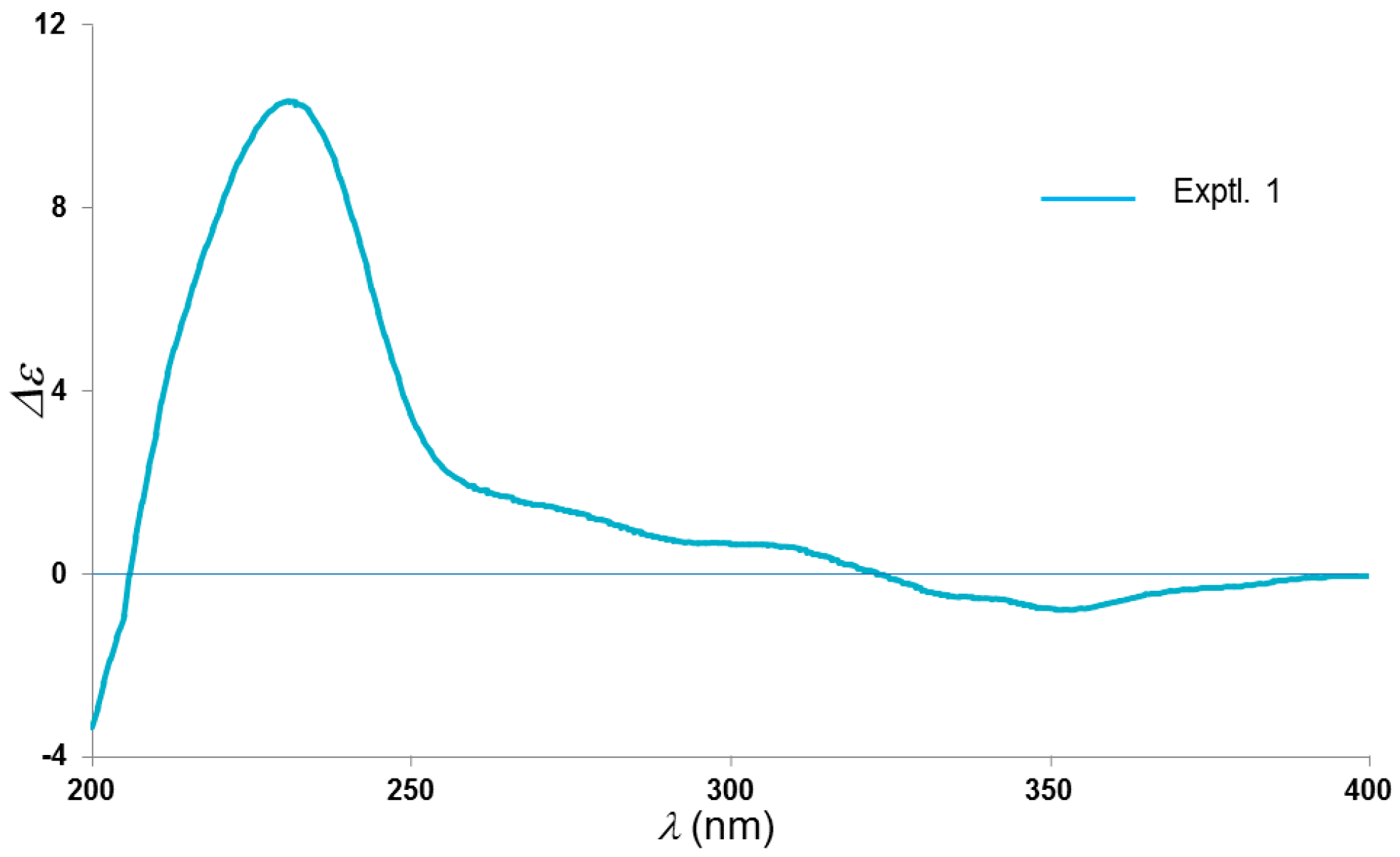

Figure 3. Experimental ECD spectrum of 1 (in CH3OH).
Figure 3. Experimental ECD spectrum of 1 (in CH3OH).
Molecules 23 00683 g003

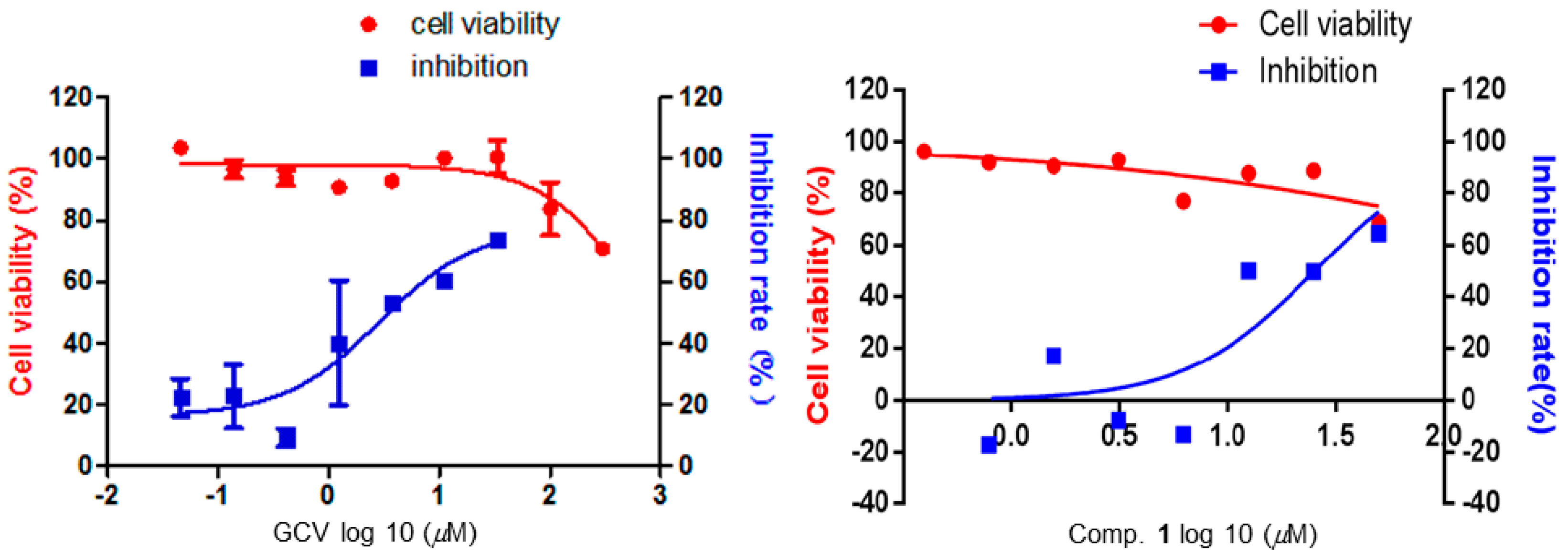

Figure 4. Effects on B95-8 cells viabilities and inhibition on lytic EBV replication of compound 1 was measured using GCV as positive control in vitro. B95-8 cells (5 × 105/well) were cultivated with designated concentrations of compounds in present of 12-O-tetradecanoyl-phorbol-13-acetate (TPA). The 50% cytotoxic concentration (CC50) of 1 was calculated from the dose-response curve by Graphpad5.0 Prism. The 50% effective concentration (EC50) value correspond to compound concentrations required to reduce quantitative expression of the copy number of intracellular viral genomic DNA by 50%. Both values of CC50 and EC50 were obtained as mean values with standard deviations (n = 3).
Figure 4. Effects on B95-8 cells viabilities and inhibition on lytic EBV replication of compound 1 was measured using GCV as positive control in vitro. B95-8 cells (5 × 105/well) were cultivated with designated concentrations of compounds in present of 12-O-tetradecanoyl-phorbol-13-acetate (TPA). The 50% cytotoxic concentration (CC50) of 1 was calculated from the dose-response curve by Graphpad5.0 Prism. The 50% effective concentration (EC50) value correspond to compound concentrations required to reduce quantitative expression of the copy number of intracellular viral genomic DNA by 50%. Both values of CC50 and EC50 were obtained as mean values with standard deviations (n = 3).
Molecules 23 00683 g004
Table 1. 1H-NMR (600 MHz) and 13C-NMR (150 MHz) spectral data of compound 1 in CDCl3 (δ in ppm, J in Hz).
Table 1. 1H-NMR (600 MHz) and 13C-NMR (150 MHz) spectral data of compound 1 in CDCl3 (δ in ppm, J in Hz).
PositionδH (J)δCPositionδH (J)δC
184.9141.00 d (7.0)16.4
21.47 m36.1151.02 s21.3
30.91 m25.21′188.7
1.32 m2′104.6
41.58 m31.43′197.1
1.51 m4′48.5
52.65 m33.95′173.1
65.59 dd (16.2, 4.7)136.86′101.9
75.47 d (16.2, 8.0)127.57′2.74 dd (16.6, 5.2)21.8
82.31 t (7.0)50.01.69 dd (16.6, 11.3)
91.90 m24.78′207.9
1.43 m9′3.93 sept (13.5, 6.7)35.5
101.79 ddd (14.7, 10.0, 4.5)32.110′1.10 d (6.7)19.15
2.03 dt (14.8, 3.9)11′1.11 d (6.7)19.24
1173.012′1.24 s24.1
121.19 s27.913′1.29 s25.4
131.20 s28.7
Table 2. Anti-EBV activities of positive control ganciclovir (GCV), 1, and the reported compounds (hyperjaponols AG) (µM).
Table 2. Anti-EBV activities of positive control ganciclovir (GCV), 1, and the reported compounds (hyperjaponols AG) (µM).
CompoundsCC50 aEC50 bSelectivity Index (CC50/EC50)
GCV>3002.86>104.50
1>5025.00>2
(+)-hyperjaponol A>41.3510.33>4.00
(−)-hyperjaponol A>300119.4>2.50
(+)-hyperjaponol B>300.57>52.63
(−)-hyperjaponol B>1206.60>18.18
(+)-hyperjaponol C31.75
(−)-hyperjaponol C17.78
hyperjaponol D48.050.49106.78
hyperjaponol E60.4917.533.45
hyperjaponol F41.6214.472.87
hyperjaponol G>300>300
a: 50% cytotoxic concentration; b: 50% effective concentration.
