Molecules 2018, 23(2), 371; doi:10.3390/molecules23020371

Article
Synthesis and Magnetic Properties of Stable Radical Derivatives Carrying a Phenylacetylene Unit
Shogo Miyashiro, Tomoaki Ishii, Youhei Miura and Naoki Yoshioka *Orcid
Department of Applied Chemistry, Faculty of Science and Technology, Keio University, Yokohama 223-8522, Japan
*
Correspondence: yoshioka@applc.keio.ac.jp; Tel.: +81-45-566-1585
Received: 6 January 2018 / Accepted: 7 February 2018 / Published: 9 February 2018

Abstract

:
A nitronyl nitroxide derivative, 2-phenylethynyl-4,4,5,5-tetramethyl-4,5-dihydro-1H-imidazol-1-oxyl-3-oxide (1), and two verdazyl derivatives carrying a phenylacetylene unit, 1,5-diphenyl-3-phenylethynyl-6-oxo-1,2,4,5-tetrazin-2-yl (2) and 1,5-diisopropyl-3-phenylethynyl-6-oxo-1,2,4,5-tetrazin-2-yl (3), were synthesized and their packing structures were studied by X-ray crystallographic analysis and magnetically characterized in the solid state. While 1 and 3 had an isolated doublet spin state, 2 formed an antiferromagnetically coupled pair (2J/kB = −118 K). Density functional theory (DFT) calculations reveal that the spin density polarized in the phenyl group decreases as the dihedral angle between the phenyl ring and radical plane increases.
Keywords:
stable radical; phenylacetylene; nitronyl nitroxide; verdazyl; magnetic property; computational analysis

1. Introduction

The study of stable organic radicals has attracted a great deal of attention because of their wide applicability for spin probes, molecule-based magnets, and molecular conductors [1,2,3,4,5,6,7,8]. To assess the magnetic properties of organic radical solids, it is important to investigate the correlation between molecular arrangement and magnetic properties based on crystal engineering strategies [9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27]. For the purpose of inducing the formation of magnetic molecular self-assemblies, van der Waals interactions [9,10,12,13,14,18], hydrogen bonds [16,17,19,20,21,22,23,25,26], and aromatic stackings [11,15,24,27] have been introduced to various stable radical derivatives such as phenoxyl, nitroxyl, etc. and their effects have been examined. As for verdazyl radical derivatives, strong intermolecular magnetic interactions induced by aromatic stackings have been reported [28,29,30,31,32,33,34,35]. In addition to the control of intermolecular interactions, introduction of specific substituents is also a useful tool for design of molecular packing. The ethynyl group has a rigid linker, and it can also propagate magnetic interaction through the conjugate system and freely rotate around the bond. In the field of crystal engineering, the free rotation of ethynyl group is widely used for the construction of a supramolecular architecture [36,37]. Although the synthetic study [38,39,40,41,42] and computational study [43,44,45] of ethynyl-substituted derivatives were reported, a limited number of papers have discussed their magneto-structural correlation [33,34,42]. We synthesized three derivatives, 2-phenylethynyl-4,4,5,5-tetramethyl-4,5-dihydro-1H-imidazol-1-oxyl-3-oxide (1), 1,5-diphenyl-3-phenylethynyl-6-oxo-1,2,4,5-tetrazin-2-yl (2), and 1,5-diisopropyl-3-phenylethynyl-6-oxo-1,2,4,5-tetrazin-2-yl (3) (Chart 1). While the synthesis of 1 has already been reported [38], structural analysis and solid-state magnetic characterization were not conducted. In this paper, we described the crystal structures and magnetic properties of 1, 2 and 3. To elucidate the effect of a directly substituted ethynyl group, the spin densities of 1, 2 and 3 were estimated using a computational method.

2. Results

2.1. Synthesis and Electron Paramagnetic Resonance Spectra

The syntheses of compounds 13 are summarized in Scheme 1. Typically, 2,3-bis(hydroxyamino)-2,3-dimethylbutane sulfate reacts with an aldehyde and the precursor of nitronyl nitroxide (NN) is obtained, but this method did not lead to 1 due to the reaction between ethynyl and the hydroxy group [40]. Therefore, the synthesis route of 1 was basically followed by Ullman’s route through alkene and dehydrobromide compounds [38]. To obtain the verdazyl (VZ) derivatives 2 and 3, the hydrazine derivatives protected by Boc, 8 and 10 [46,47,48] were synthesized from 6 [49] and 9 [50], respectively. They were combined with the aldehyde derivative [51,52] and 2 and 3 were synthesized by the oxidation of 11 and 12, respectively.
The solution electron paramagnetic resonance (EPR) spectra of these radicals exhibited typical patterns for NN and VZ derivatives (Figure S5). The hyperfine coupling constants (hfcc) and g value of compounds 13 are summarized in Table 1.

2.2. X-ray Structural Analysis

The single crystal of 1 was obtained by slow evaporation of the solvent (dichloromethane:n-hexane = 5:3) and it was a blue plate-like crystal. The X-ray structure analysis of 1 revealed that the crystal system was monoclinic and the space group was Cc (Table S1) [53]. Figure 1 shows an ORTEP drawing of 1 and the dihedral angle of the phenyl ring to the NN group was determined to be 77.81(12)°, which is a very big torsion. Three types of intermolecular close arrangements were confirmed, labeled Pair I, Pair II, and Pair III (Figure 2). In Pair I, the O atom of NN and two H atoms of the methyl group were the closest sites. On the other hand, the O atom of NN and H atom of the phenyl group were the closest to Pair II and Pair III, respectively.
The slow evaporation of a mixed solvent (ethyl acetate:n-hexane = 1:1) formed the single crystal of 2 as a dark red plate-like crystal. The crystal system and space group were triclinic and P-1, respectively (Table S1) [53]. Figure 3 shows the ORTEP drawing of 2. The dihedral angle between the VZ ring and phenyl group at positions 1 and 5 were 41.68(9)° and 50.08(6)°, respectively, but for the phenyl group at position 3, it was 8.26(11)°. 2 had an antiparallel stacking and two intermolecular contacts (Figure 4). The intermolecular distances of Pair IV and Pair V were 3.343(2) Å for dN1-N4’ and 3.710(3) Å for dC15-C16’.
The single crystal of 3 was obtained by slow evaporation of a mixed solvent (dichloromethane:n-hexane = 1:2) as orange needles. The crystal system and space group were monoclinic and P21/n, respectively [53]. Details of the crystallographic data are listed in Table S1. The crystal packing of 3 was composed of three different molecules labeled A, B, and C in Figure 5. Dihedral angles between the phenyl group and VZ unit were 7.42(25)° (A), 3.88(25)° (B), and 46.02(13)° (C). There was linear stacking between the same structural molecules; A, B, and C made Pair VI, Pair VII, and Pair VIII (Figure 6), respectively. The intermolecular distances were 3.701(5) Å for dC2-C11’, 3.681(6) Å for dC18-C27’, and 4.171(6) Å for dC34-C43’ in Pair VI, Pair VII, and Pair VIII, respectively.

2.3. Magnetic Properties

The solid-state magnetic susceptibility measurements of 1, 2, and 3 were carried out by a SQUID magnetometer in the temperature region of 1.8–300 K. The χmT-T and χm-T plots for 1 and 3 (Figure 7) exhibit a similar pattern. Cooling did not cause any remarkable changes in the χmT values, which indicated that they were in an isolated doublet-state. The χm−1-T plots of 1 and 3 showed that their Weiss temperatures were −0.13 K and −1.0 K, respectively. However, the χm value of 2 had a maximum at 80 K and the minimum at 15 K, and the χmT value decreased with cooling, meaning that the antiferromagnetic interaction was dominant. Fitting with the antiferromagnetic dimer model revealed that the magnetic interaction, 2J/kB, of 2 was −118 K, containing 0.5% of the isolated component.
Antiferromagnetic dimer model equation
χ m = N A g 2 μ B 2 k B T ( 1 3 + exp ( 2 J k B T ) ( 1 ρ ) + 1 4 ρ )
χm: magnetic susceptibility; NA: Avogadro constant; g: g factor; μB: Bohr magneton;
kB: Boltzmann constant; ρ: isolated component.

3. Discussion

The magnetic interactions of the abovementioned pairs were calculated by DFT at the UB3LYP/6-31G* level, and the calculation results are substituted into Yamaguchi’s equation [54] (Table 2). In 1 and 3, the value of J/kB for all the pairs was nearly zero; these results agreed with the SQUID measurement. In these pairs, the C, N, and O atoms of the radical ring that have a large spin density were not close to the C, N, and O atoms of the neighboring radical ring. However, Pair V had a low value of J/kB, and Pair IV had a large negative value that was thought to cause the antiferromagnetic behavior of the SQUID measurement. It was suggested that the antiferromagnetic interaction was caused by the intermolecular interaction between the N1 and N4 atoms (x, y, z) that have large spin density and the N1’ and N4’ atoms of neighboring molecules (1−x, 1−y, 1−z). The values of the spin density of the atoms that form the six-membered ring and phenylacetylene group of 13 are shown in Tables S2–S6, respectively.
To estimate the influence of the rotation of the ethynyl group on the extent of the spin density, the molecules that were based on the crystal structures and rotated between the phenyl group and radical ring at 15-degree intervals (0–90°) were calculated by DFT. The sum of the spin density that was taken as an absolute value was used in the plots of Figure 8. The spin density of the radical group and the ethynyl group remained almost constant; however, that of the phenyl group decreased with rotation. This result indicated that the spin density was difficult to expand at the higher dihedral angle of ethynyl like other conjugated systems.

4. Experimental

Compounds 1, 4, and 5 [38], 6 [49], 9 and 10 [50], phenylpropargylaldehyde [48] were synthesized with reference to the respective papers. The details of the methods for synthesizing the other compounds are summarized in the Supplementary Materials.
The NMR spectra were measured by JEOL JNM-LA300 (Tokyo, Japan) (tetramethylsilane was used as the reference). Mass spectroscopy was carried out using a Bruker Ultraflex II (MALDI-TOF, with sinapic acid used as the matrix) (Billerica, MA, USA). The IR spectra were measured using a JASCO FT/IR-4100 (Tokyo, Japan). The crystal data were collected using a Bruker D8 Venture with Mo–Kα radiation (0.71073 Å). The structures were solved by the direct method using SHELXT-2013 (Göttingen, Germany) [55] and refined by F2 full matrix least squares using SHELXL-2014 (Göttingen, Germany) [56] in the Bruker APEX-II program package. The magnetic susceptibility measurement was carried out using a Quantum Design MPMS-XL SQUID (San Diego, CA, USA) magnetometer in the temperature range of 1.8–300 K under the applied field of 10000 Oe (1 and 2) or 5000 Oe (3). The EPR spectra were recorded using a Bruker E500 spectrometer (Billerica, MA, USA) at room temperature. The EPR data were simulated by the Winsim ver. 0.96 program (Bethesda, MD, USA) [57]. The DFT calculation was carried out using the Gaussian 09 program (Wallingford, CT, USA) [58].

5. Conclusions

As stable organic radicals carrying an ethynyl group, the nitronyl nitroxide derivative 1 and verdazyl derivatives 2 and 3 were synthesized. X-ray crystal analysis revealed their packing structures, and 13 had several types of close intermolecular contacts. The magnetic susceptibility measurement revealed that 1 and 3 had an isolated doublet-state and 2 was an antiferromagnetic compound that fitted with 2J/kB = −118 K containing 0.5% of the isolated component. DFT calculations of 1, 2, and 3 agreed with the results of the magnetic susceptibility measurements, and indicated that the spin density of the phenyl group decreased due to the free rotation of the acetylene unit.

Supplementary Materials

The Supplementary Materials are available online: supplementary materials contain synthetic procedure, EPR spectra, crystallographic parameter, and distributions of SOMO and spin density.

Acknowledgments

This work was partly supported by the MEXT Supported Program for the Strategic Research Foundation at Private Universities, 2012–2016.

Author Contributions

Shogo Miyashiro wrote the draft. He and Tomoaki Ishii contributed to the synthesis of the radical derivatives and X-ray diffraction analyses and physicochemical characterizations. Youhei Miura contributed support to syntheses and characterizations. Naoki Yoshioka contributed to the conception and revision of the submitted manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lahti, P.M. (Ed.) Magnetic Properties of Organic Materials; Marcel Dekker: New York, NY, USA, 1999; ISBN 9780824719760. [Google Scholar]
  2. Miller, J.S.; Drillon, M. (Eds.) Magnetism: Molecules to Materials; Wiley–VCH: Weinheim, Germany, 2005; Volume I–V. [Google Scholar] [CrossRef]
  3. Hicks, R.G. (Ed.) Stable Radicals: Fundamentals and Applied Aspects of Odd-Electron Compounds; Wiley: Chichester, UK, 2010; ISBN 978-0-470-77083-2. [Google Scholar]
  4. Chatgilialoglu, C.; Studer, A. (Eds.) Encyclopedia of Radicals in Chemistry, Biology and Materials; Wiley: Hoboken, NJ, USA, 2012. [Google Scholar]
  5. Koivisto, B.D.; Hicks, R.G. The magnetochemistry of verdazyl radical-based materials. Coord. Chem. Rev. 2005, 249, 2612–2630. [Google Scholar] [CrossRef]
  6. Vostrikova, K.E. High-spin molecules based on metal complexes of organic free radicals. Coord. Chem. Rev. 2008, 252, 1409–1419. [Google Scholar] [CrossRef]
  7. Retera, I.; Veciana, J. Playing with organic radicals as building blocks for functional molecular materials. Chem. Soc. Rev. 2012, 41, 303–349. [Google Scholar] [CrossRef] [PubMed]
  8. Lipunova, G.N.; Fedorchenko, T.G.; Chupakhin, O.N. Verdazyls: Synthesis, properties, application. Russ. Chem. Rev. 2013, 82, 701–734. [Google Scholar] [CrossRef]
  9. Mukai, K. Anomalous magnetic properties of stable crystalline phenoxyl radicals. Bull. Chem. Soc. Jpn. 1969, 42, 40–46. [Google Scholar] [CrossRef]
  10. Chouteau, G.; Veyret-Jeandey, C. Metamagnetism in tanol suberate. J. Phys. Paris 1981, 42, 1441–1444. [Google Scholar] [CrossRef]
  11. Sugawara, T.; Murata, S.; Kimura, K.; Iwamura, H.; Sugawara, Y.; Iwasaki, H. Design of molecular assembly of diphenylcarbenes having ferromagnetic intermolecular interactions. J. Am. Chem. Soc. 1985, 107, 5293–5294. [Google Scholar] [CrossRef]
  12. Awaga, K.; Sugano, T.; Kinoshita, M. Ferromagnetic intermolecular interactions in a series of organic mixed crystals of galvinoxyl radical and its precursory closed shell compound. J. Chem. Phys. 1986, 85, 2211–2218. [Google Scholar] [CrossRef]
  13. Tamura, M.; Nakazawa, Y.; Shiomi, D.; Nozawa, K.; Hosokoshi, Y.; Ishikawa, M.; Takahashi, M.; Kinoshita, M. Bulk ferromagnetism in the β-phase crystal of the p-nitrophenyl nitronyl nitroxide radical. Chem. Phys. Lett. 1991, 186, 401–404. [Google Scholar] [CrossRef]
  14. Chiarelli, R.; Novak, M.A.; Rassat, A.; Tholence, J.L. A ferromagnetic transition at 1.48 K in an organic nitroxide. Nature 1993, 363, 147–149. [Google Scholar] [CrossRef]
  15. Lanfranc de Panthou, F.; Luneau, D.; Laugier, J.; Rey, P. Crystal structures and magnetic properties of a nitronyl nitroxide and of its imino analog. Crystal packing and spin distribution dependence of ferromagnetic intermolecular interactions. J. Am. Chem. Soc. 1993, 115, 9095–9100. [Google Scholar] [CrossRef]
  16. Pei, Y.; Kahn, O.; Aebersold, M.A.; Ouahab, L.; Le Berre, F.; Pardi, L.; Jean Louis, T. Synthesis, Crystal Structure, Magnetic Properties, and Spin Densities of a Triazole-Nitronyl Nitroxide Radical. Adv. Mater. 1994, 6, 681–683. [Google Scholar] [CrossRef]
  17. Cirujeda, J.; Mas, M.; Molins, E.; Lanfranc de Panthou, F.; Laugier, J.; Park, J.G.; Paulsen, C.; Rey, P.; Rovira, C.; Veciana, J. Control of the structural dimensionality in hydrogen-bonded self-assemblies of open-shell molecules. Extension of intermolecular ferromagnetic interactions in α-phenyl nitronyl nitroxide radicals into three dimensions. J. Chem. Soc. Chem. Commun. 1995, 709–710. [Google Scholar] [CrossRef]
  18. Lang, A.; Pei, Y.; Ouahab, L.; Kahn, O. Synthesis, crystal structure, and magnetic properties of 5-methyl-1,2,4-triazole-nitronyl nitroxide: A one-dimensional compound with unusually large ferromagnetic intermolecular interactions. Adv. Mater. 1996, 8, 60–62. [Google Scholar] [CrossRef]
  19. Matsushita, M.M.; Izuoka, A.; Sugawara, T.; Kobayashi, T.; Wada, N.; Takeda, N.; Ishikawa, M. Hydrogen-Bonded Organic Ferromagnet. J. Am. Chem. Soc. 1997, 119, 4369–4379. [Google Scholar] [CrossRef]
  20. Yoshioka, N.; Irisawa, M.; Mochizuki, Y.; Kato, T.; Inoue, H.; Ohba, S. Unusually Large Magnetic Interactions Observed in Hydrogen-Bonded Nitronyl Nitroxides. Chem. Lett. 1997, 26, 251–257. [Google Scholar] [CrossRef]
  21. Nagashima, H.; Hashimoto, N.; Inoue, H.; Yoshioka, N. Coexistence of an antiferromagnetically coupled dimer and isolated paramagnetic spin in 4-azaindol-2-yl nitronyl nitroxide crystal. New J. Chem. 2003, 27, 805–810. [Google Scholar] [CrossRef]
  22. Nagashima, H.; Inoue, H.; Yoshioka, N. An ideal one-dimensional antiferromagnetic spin system observed in hydrogen-bonded naphth[2,3-d]imidazol-2-yl nitronyl nitroxide crystal: The role of the hydrogen bond. J. Phys. Chem. B 2004, 108, 6144–6151. [Google Scholar] [CrossRef] [PubMed]
  23. Nagashima, H.; Fujita, S.Y.; Inoue, H.; Yoshioka, N. Metamagnetic Behavior Observed in Purely Organic 5-Azaindol-2-yl Nitronyl Nitroxide Brick-Wall Architecture. Cryst. Growth Des. 2004, 4, 19–21. [Google Scholar] [CrossRef]
  24. Yao, M.; Asakura, S.; Abe, M.; Inoue, H.; Yoshioka, N. Formation of a One-Dimensional Stacking Structure of π-Conjugated Nitroxyl Radical Bearing a 1,2,5-Thiadiazole Ring and Its Magnetic Property. Cryst. Growth Des. 2005, 5, 413–417. [Google Scholar] [CrossRef]
  25. Murata, H.; Mague, J.T.; Aboaku, S.; Yoshioka, N.; Lahti, P.M. An Organic Radical Solid Solution with Strong Ferromagnetic Exchange. Chem. Mater. 2007, 19, 4111–4113. [Google Scholar] [CrossRef]
  26. Murata, H.; Miyazaki, Y.; Inaba, A.; Paduan-Filho, A.; Bindilatti, V.; Oliveira, N.F., Jr.; Delen, Z.; Lahti, P.M. 2-(4,5,6,7-Tetrafluorobenzimidazol-2-yl)-4,4,5,5-tetramethyl-4,5-dihydro-1-H-imidazole-3-oxide-1-oxyl, A Hydrogen-Bonded Organic Quasi-1D Ferromagnet. J. Am. Chem. Soc. 2008, 130, 186–194. [Google Scholar] [CrossRef] [PubMed]
  27. Takahashi, Y.; Miura, Y.; Yoshioka, N. Synthesis and properties of the 3-tert-butyl-7-trifluoromethyl-1,4-dihydro-1-phenyl-1,2,4-benzotriazin-4-yl radical. New J. Chem. 2015, 39, 4783–4789. [Google Scholar] [CrossRef]
  28. Azuma, N.; Yamauchi, J.; Mukai, K.; Ohya, H.N.; Deguchi, Y. The Magnetic Properties of Verdazyl Free Radicals. III. The Anomalous Magnetic Behavior of Symmetrical Triphenylverdazyl. Bull. Chem. Soc. Jpn. 1973, 46, 2728–2734. [Google Scholar] [CrossRef]
  29. Allemand, P.M.; Srdanov, G.; Fred, F. Molecular engineering in the design of short-range ferromagnetic exchange in organic solids: The 1,3,5-triphenylverdazyl system. J. Am. Chem. Soc. 1990, 112, 9391–9392. [Google Scholar] [CrossRef]
  30. Mito, M.; Takeda, K.; Mukai, K.; Azuma, N.; Gleiter, M.R.; Krieger, C.; Neugebauer, F.A. Magnetic Properties and Crystal Structures of 1,5-Diphenylverdazyls with Electron Acceptor Groups in the 3-Position. J. Phys. Chem. B 1997, 101, 9517–9524. [Google Scholar] [CrossRef]
  31. Hicks, R.G.; Lemaire, M.T.; Oehrstroem, L.; Richardson, J.F.; Thompson, L.K.; Xu, Z. Strong Supramolecular-Based Magnetic Exchange in π-Stacked Radicals. Structure and Magnetism of a Hydrogen-Bonded Verdazyl Radical: Hydroquinone Molecular Solid. J. Am. Chem. Soc. 2001, 123, 7154–7159. [Google Scholar] [CrossRef] [PubMed]
  32. Mukai, K.; Matsubara, M.; Hisatou, H.; Hosokoshi, Y.; Inoue, K.; Azuma, N. Anomalous Magnetic Behavior in Three Kinds of 3-(Aryl-substituted)-1,5-diphenylverdazyl Radical Crystals (p-FPDV, p-PyDV and m-PyDV) Induced by Frustrated Spin Interaction. J. Phys. Chem. B 2002, 106, 8632–8638. [Google Scholar] [CrossRef]
  33. Merhi, A.; Roisnel, T.; Rigaut, S.; Train, C.; Norel, L. Ferromagnetic intermolecular exchange interaction in ethynyl-verdazyl radical crystals. Cryst. Eng. Comm. 2014, 16, 9783–9787. [Google Scholar] [CrossRef]
  34. Eusterwiemann, S.; Dresselhaus, T.; Doerenkamp, C.; Janka, O.; Niehaus, O.; Massolle, A.; Daniliuc, C.G.; Eckert, H.; Poettgen, R.; Neugebauer, J.; et al. Cooperative Magnetism in Crystalline N-Aryl-Substituted Verdazyl Radicals: First-Principles Predictions and Experimental Results. Chem. Eur. J. 2017, 23, 6069–6082. [Google Scholar] [CrossRef] [PubMed]
  35. Eusterwiemann, S.; Doerenkamp, C.; Dresselhaus, T.; Janka, O.; de Oliveira, M., Jr.; Daniliuc, C.G.; Eckert, H.; Neugebauer, J.; Poettgen, R.; Studer, A. Strong intermolecular antiferromagnetic verdazyl-verdazyl coupling in the solid state. Phys. Chem. Chem. Phys. 2017, 19, 15681–15685. [Google Scholar] [CrossRef] [PubMed]
  36. Ducharme, Y.; Wuest, J.D. Use of Hydrogen Bonds to Control Molecular Aggregation. Extensive, Self-complementary Arrays of Donors and Acceptors. J. Org. Chem. 1988, 53, 5787–5789. [Google Scholar] [CrossRef]
  37. Simard, M.; Su, D.; Wuest, J.D. Use of Hydrogen Bonds to Control Molecular Aggregation. Self-Assembly of Three-Dimensional Networks with Large Chambers. J. Am. Chem. Soc. 1991, 113, 4696–4698. [Google Scholar] [CrossRef]
  38. Ullman, E.F.; Osiecki, J.H.; Boocock, D.G.B.; Darcy, R. Stable free radicals. X. Nitronyl nitroxide monoradicals and biradicals as possible small molecule spin labels. J. Am. Chem. Soc. 1972, 94, 7049–7059. [Google Scholar] [CrossRef]
  39. Dulog, L.; Kim, J.S. Stable free radical paramagnetic monomers containing aminoxylamine oxide moieties. An intermediate step toward organic ferromagnetic polyradicals. Makromol. Chem. 1989, 190, 2604–2614. [Google Scholar] [CrossRef]
  40. Tretyakov, E.V.; Romanenko, G.V.; Podoplelov, A.; Ovcharenko, V. Synthesis of alkynyl-substituted nitronyl nitroxides through an organosilicon derivative. Eur. J. Org. Chem. 2006, 2695–2702. [Google Scholar] [CrossRef]
  41. Tretyakov, E.V.; Romanenko, G.V.; Ovcharenko, V.I. Alkynyl-substituted nitronyl nitroxide. Russ. Chem. Bull. 2006, 55, 591–592. [Google Scholar] [CrossRef]
  42. Tretyakov, E.V.; Tolstikov, S.E.; Romanenko, G.V.; Bogomyakov, A.S.; Stass, D.V.; Kadirov, M.K.; Holin, K.V.; Sinyashin, O.G.; Ovcharenko, V.I. Synthesis, structure, and magnetic properties of 2,2′-(buta-1,3-diyne-1,4-diyl)bis(4,4,5,5-tetramethyl-4,5-dihydro-1H-imidazole 3-oxide 1-oxyl). Polyhedron 2011, 30, 3232–3237. [Google Scholar] [CrossRef]
  43. Ko, K.C.; Cho, D.; Lee, J.Y. Systematic Approach to Design Organic Magnetic Molecules: Strongly Coupled Diradicals with Ethylene Coupler. J. Phys. Chem. A 2012, 116, 6837–6844. [Google Scholar] [CrossRef] [PubMed]
  44. Sarbadhikary, P.; Shil, S.; Panda, A.; Misra, A. A Perspective on Designing Chiral Organic Magnetic Molecules with Unusual Behavior in Magnetic Exchange Coupling. J. Org. Chem. 2016, 81, 5623–5630. [Google Scholar] [CrossRef] [PubMed]
  45. Steenbock, T.; Shultz, D.A.; Kirk, M.L.; Herrmann, C. Influence of Radical Bridges on Electron Spin Coupling. J. Phys. Chem. A 2017, 121, 216–225. [Google Scholar] [CrossRef] [PubMed]
  46. Neugebauer, F.A.; Fischer, H.; Krieger, C. Verdazyls. Part 33. EPR and ENDOR studies of 6-oxo- and 6-thioxoverdazyls. X-Ray molecular structure of 1,3,5-triphenyl-6-oxoverdazyl and 3-tert-butyl-1,5-diphenyl-6-thioxoverdazyl. J. Chem. Soc. Perkin Trans. 1993, 2, 535–544. [Google Scholar] [CrossRef]
  47. Milcent, R.; Barbier, G.; Capelle, S.; Catteau, J.P. New general synthesis of tetrahydro-1,2,4,5-tetrazin-3(2H)-one derivatives and stable 3,4-dihydro-3-oxo-1,2,4,5-tetrazin-1(2H)-yl radical derivatives. J. Heterocycl. Chem. 1994, 31, 319–324. [Google Scholar] [CrossRef]
  48. Paré, E.C.; Brook, D.J.R.; Brieger, A.; Badik, M.; Schinke, M. Synthesis of 1,5-diisopropyl substituted 6-oxoverdazyls. Org. Biomol. Chem. 2005, 3, 4258–4261. [Google Scholar] [CrossRef] [PubMed]
  49. Tayama, E.; Kobayashi, Y.; Toma, Y. Diaza [1,4] Wittig-type rearrangement of N-allylicN-Boc-hydrazines into γ-amino-N-Boc-enamines. Chem. Commun. 2016, 52, 10570–10573. [Google Scholar] [CrossRef] [PubMed]
  50. Melendez, R.E.; Lubell, W.D. Aza-Amino Acid Scan for Rapid Identification of Secondary Structure Based on the Application of N-Boc-Aza1-Dipeptides in Peptide Synthesis. J. Am. Chem. Soc. 2004, 126, 6759–6764. [Google Scholar] [CrossRef] [PubMed]
  51. Kuroda, H.; Hanaki, E.; Izawa, H.; Kano, M.; Itahashi, H. A convenient method for the preparation of α-vinylfurans by phosphine-initiated reactions of various substituted enynes bearing a carbonyl group with aldehydes. Tetrahedron 2004, 60, 1913–1920. [Google Scholar] [CrossRef]
  52. Masuda, Y.; Kuratsu, M.; Suzuki, S.; Kozaki, M.; Shiomi, D.; Sato, K.; Takui, T.; Okada, K. Preparation and magnetic properties of verdazyl-substituted dihydrophenazine radical cation tetrachloroferrate salts. Polyhedron 2009, 28, 1950–1954. [Google Scholar] [CrossRef]
  53. CCDC 1587567, 1587568 and 1587569 for 1, 2, and 3, Respectively, Contain the Supplementary Crystallographic Data for This Paper. Available online: http://www.ccdc.cam.ac.uk/conts/retrieving.html (11 November 2017).
  54. Yamaguchi, K.; Fukui, H.; Fueno, T. Molecular orbital (MO) theory for magnetically interacting organic compounds ab-initio MO calculations of the effective exchange integrals for cyclophane-type carbene dimers. Chem. Lett. 1986, 625–628. [Google Scholar] [CrossRef]
  55. Sheldrick, G.M. SHELXT-Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. A 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  56. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  57. O’Brien, D.A.; Duling, D.R.; Fann, Y.C. Winsim v.0.96, EPR Spectral Simulation for MS-Windows; Public EPR Software Tools; NIEHS: Bethesda, MD, USA.
  58. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09 (Revision D.01); Gaussian, Inc.: Wallingford, CT, USA, 2013. [Google Scholar]
  • Sample Availability: Samples of the compounds 1, 2 and 3 are available from the authors.

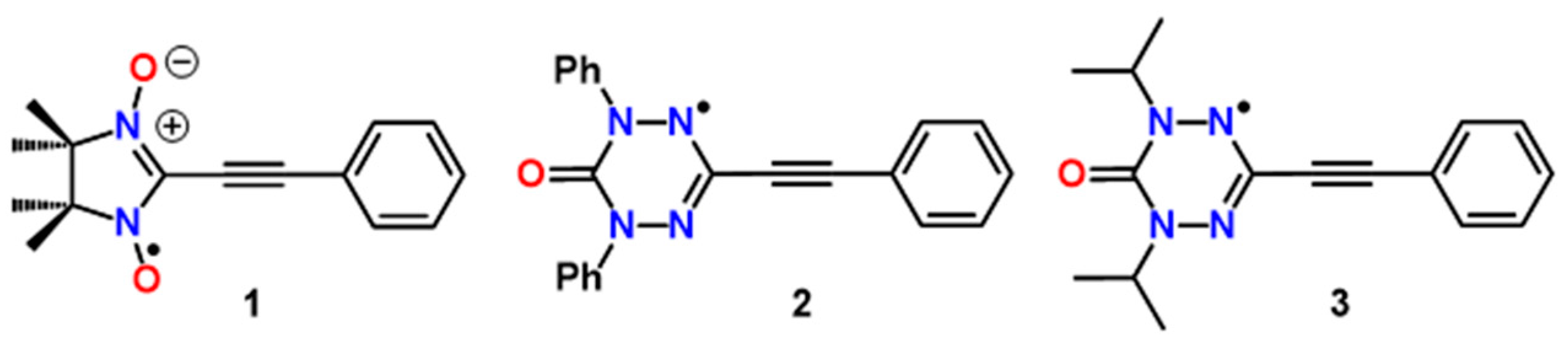

Chart 1. The chemical structures of 1, 2 and 3.
Chart 1. The chemical structures of 1, 2 and 3.
Molecules 23 00371 ch001

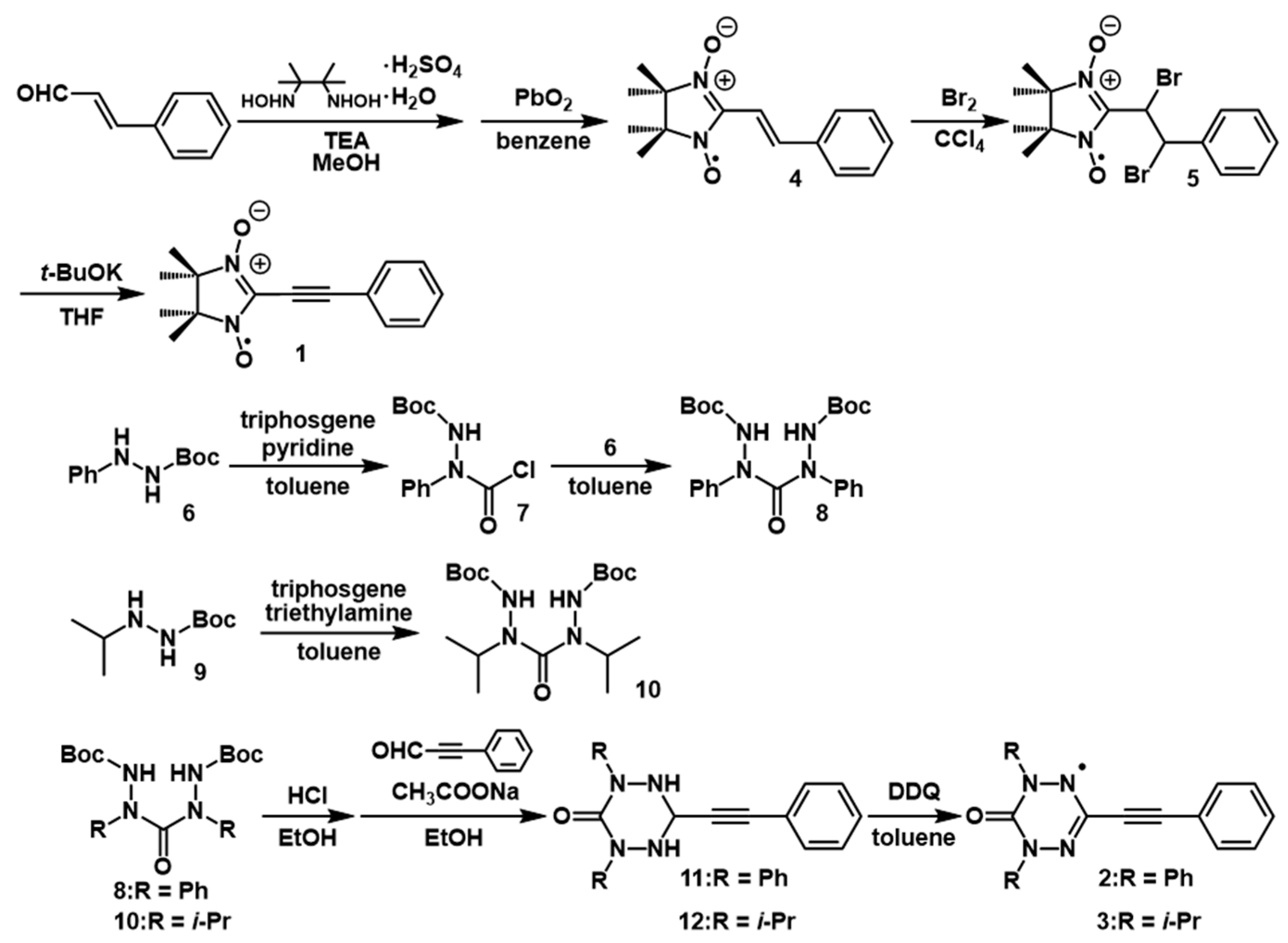

Scheme 1. Synthesis of 1, 2, and 3.
Scheme 1. Synthesis of 1, 2, and 3.
Molecules 23 00371 sch001
Figure 1. ORTEP drawing of 1. Thermal ellipsoids are shown as 50% probability.
Figure 1. ORTEP drawing of 1. Thermal ellipsoids are shown as 50% probability.
Molecules 23 00371 g001

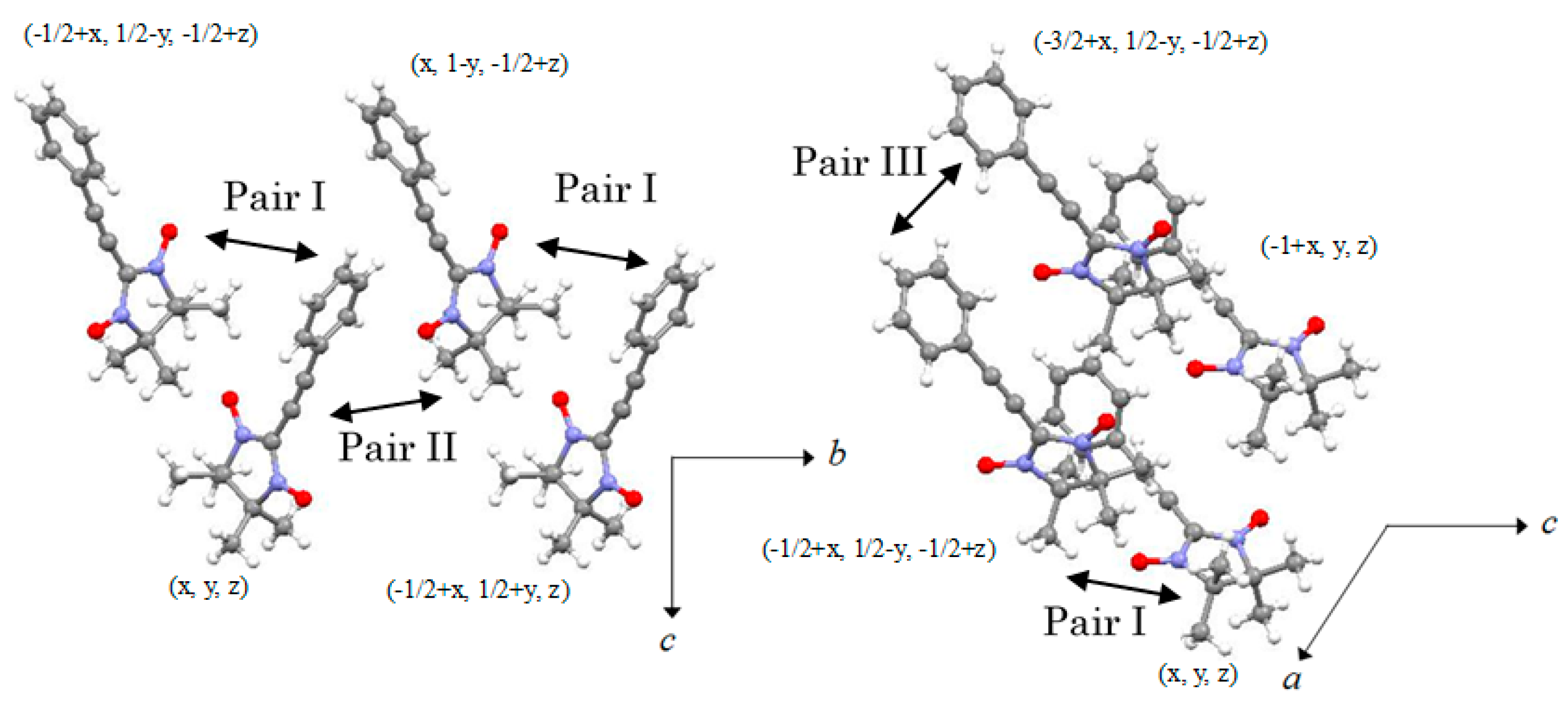

Figure 2. Crystal structure of 1.
Figure 2. Crystal structure of 1.
Molecules 23 00371 g002

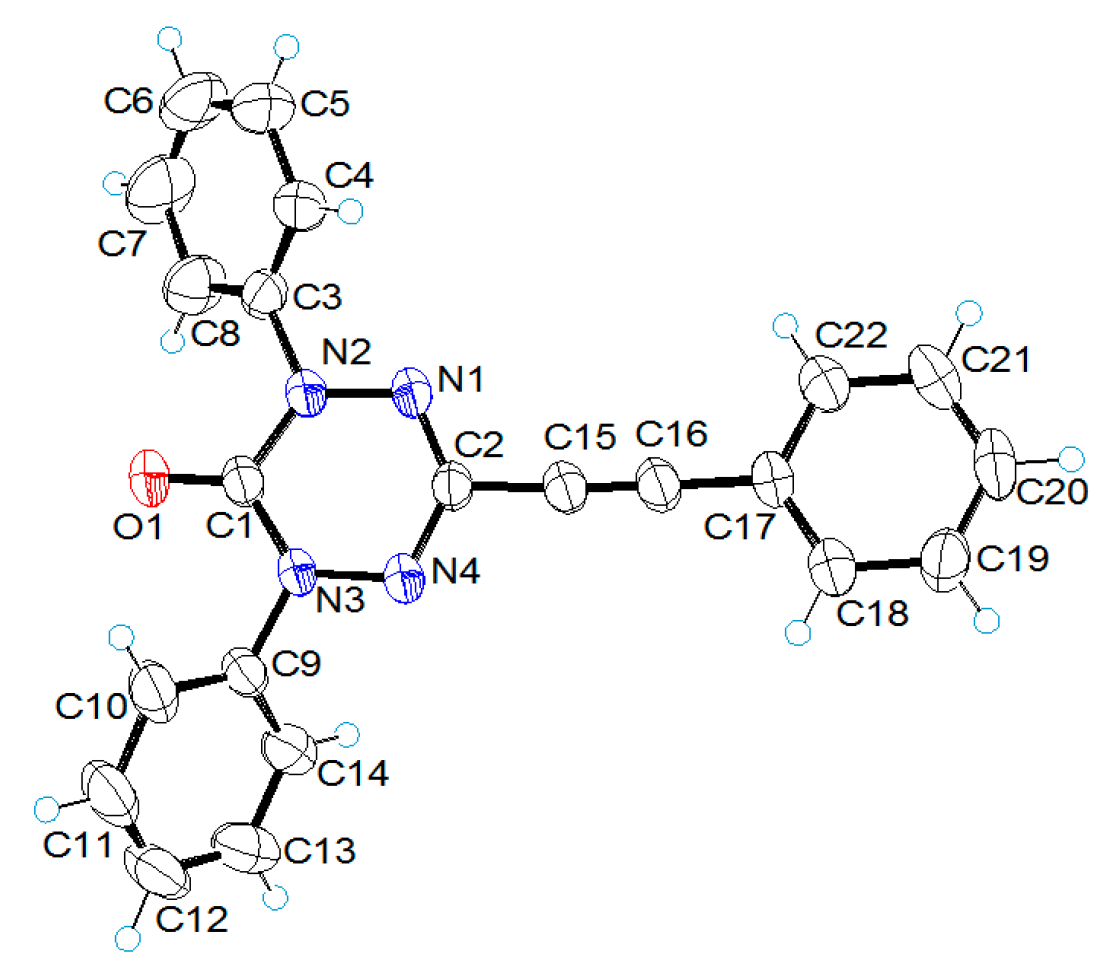

Figure 3. ORTEP drawing of 2. Thermal ellipsoids are shown as 50% probability.
Figure 3. ORTEP drawing of 2. Thermal ellipsoids are shown as 50% probability.
Molecules 23 00371 g003

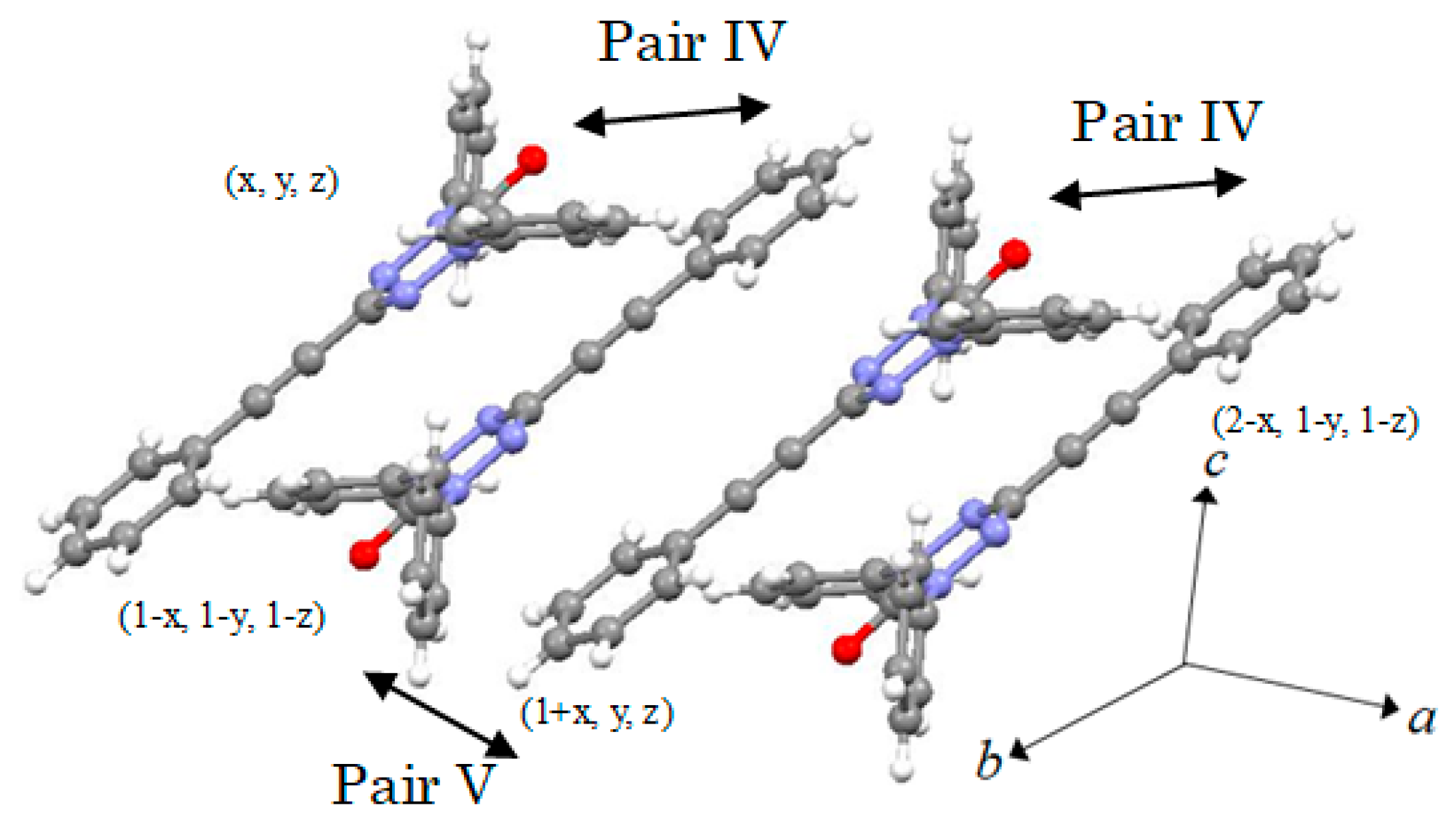

Figure 4. Crystal structure of 2.
Figure 4. Crystal structure of 2.
Molecules 23 00371 g004

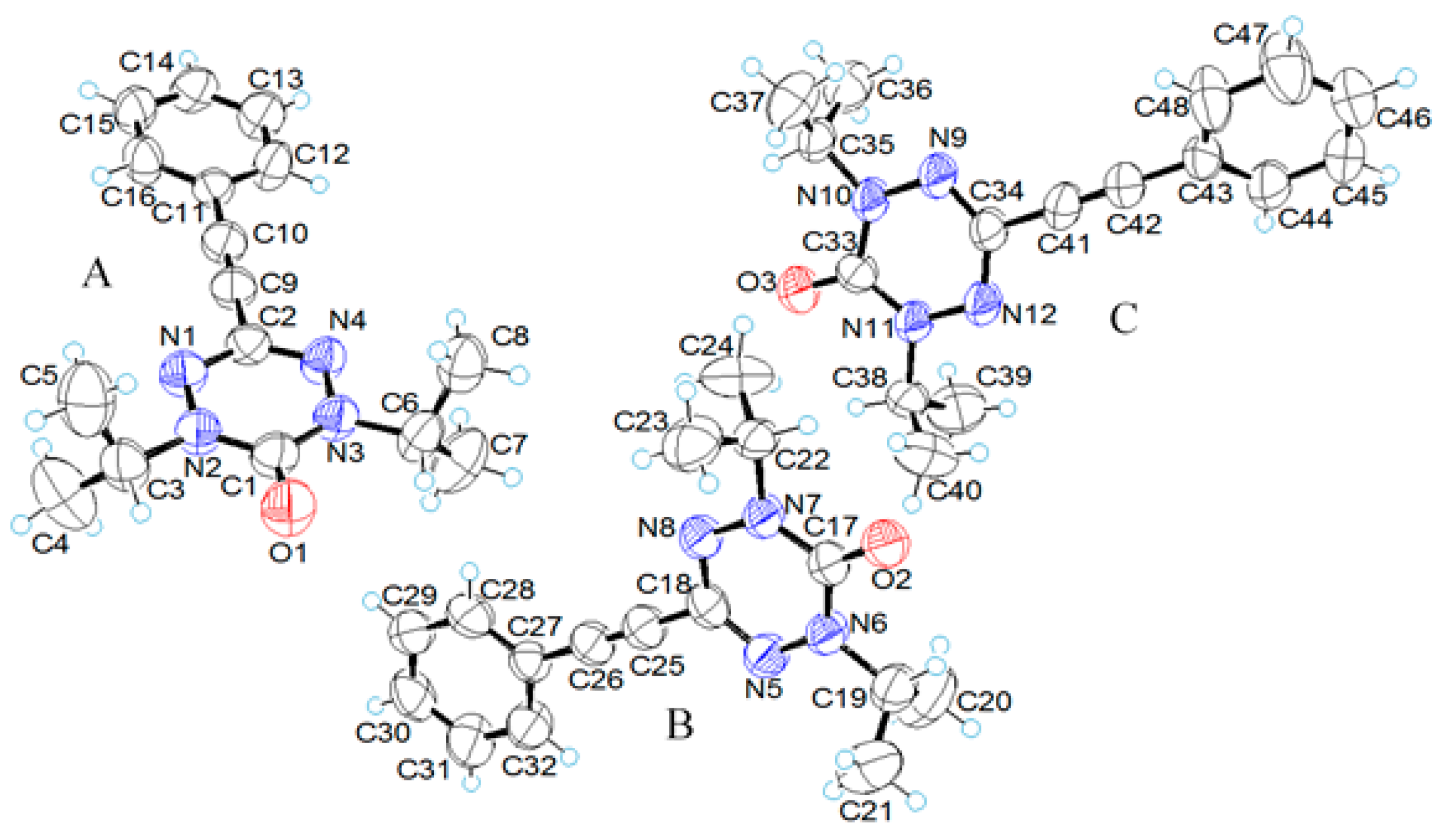

Figure 5. ORTEP drawing of 3. Thermal ellipsoids are shown as 50% probability.
Figure 5. ORTEP drawing of 3. Thermal ellipsoids are shown as 50% probability.
Molecules 23 00371 g005
Figure 6. Crystal structure of 3.
Figure 6. Crystal structure of 3.
Molecules 23 00371 g006

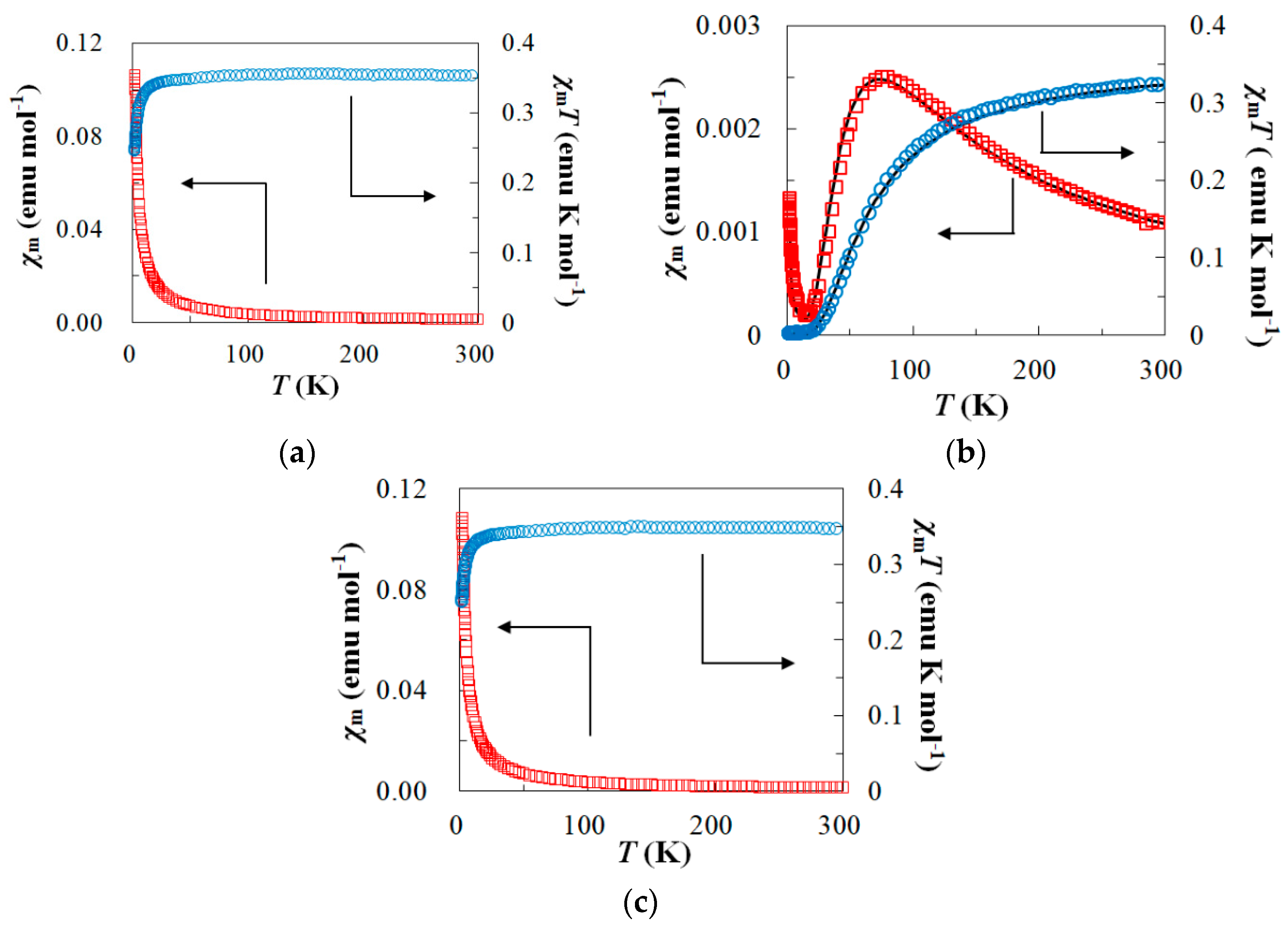

Figure 7. Temperature dependence of χmT () and χm () for 1(a), 2(b) and 3(c) under the applied field of 10000 Oe (1 and 2) or 5000 Oe (3) (1.8–300 K).
Figure 7. Temperature dependence of χmT () and χm () for 1(a), 2(b) and 3(c) under the applied field of 10000 Oe (1 and 2) or 5000 Oe (3) (1.8–300 K).
Molecules 23 00371 g007

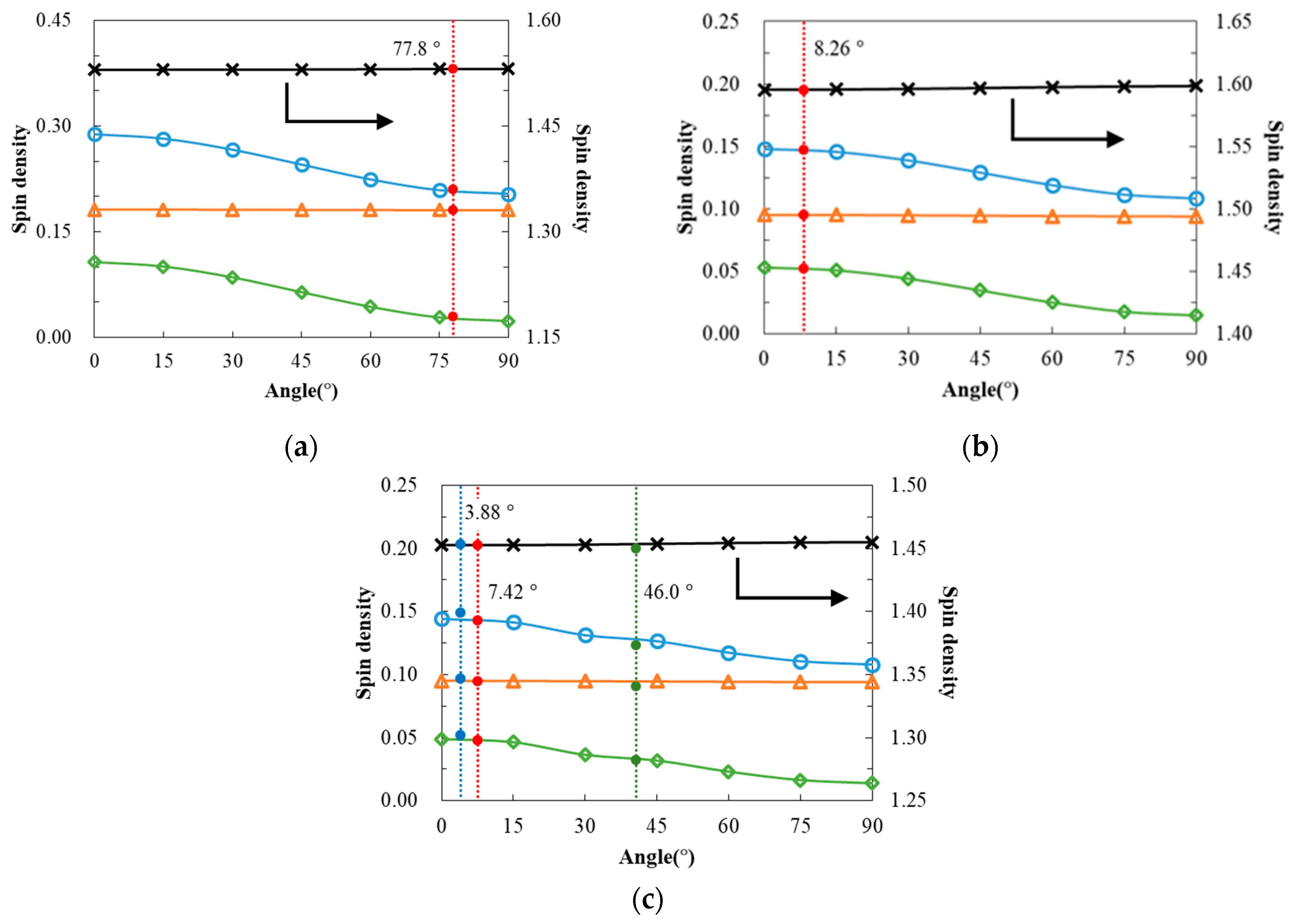

Figure 8. Correlation between dihedral angle and spin density of 1(a), 2(b) and 3(c); Radical group(×), the sum of the ethynyl and phenyl(), ethynyl(), phenyl() and experimental data(, and ).
Figure 8. Correlation between dihedral angle and spin density of 1(a), 2(b) and 3(c); Radical group(×), the sum of the ethynyl and phenyl(), ethynyl(), phenyl() and experimental data(, and ).
Molecules 23 00371 g008
Table 1. EPR parameters of 1, 2 and 3 in toluene.
Table 1. EPR parameters of 1, 2 and 3 in toluene.
αN(G)g
17.32, 7.352.0062
24.62, 4.64, 6.39, 6.402.0033
35.29, 5.61, 6.52, 6.562.0031
Table 2. Estimation of intermolecular magnetic interactions of 1, 2, and 3.
Table 2. Estimation of intermolecular magnetic interactions of 1, 2, and 3.
123
Pair IPair IIPair IIIPair IVPair VPair VIPair VIIPair VIII
2J/kB (K)0.1900.190−0.0632−79.4−1.58−1.26−2.91−0.948
