Molecules 2018, 23(2), 363; doi:10.3390/molecules23020363

Article
Coordination-Enhanced Luminescence on Tetra-Phenylethylene-Based Supramolecular Assemblies
1
College of Chemistry, Fuzhou University, Fuzhou 350108, China
2
State Key Laboratory of Structural Chemistry, Fujian Institute of Research on the Structure of Matter, Chinese Academy of Sciences, Fuzhou 350002, China
*
Author to whom correspondence should be addressed.
Received: 14 January 2018 / Accepted: 5 February 2018 / Published: 9 February 2018

Abstract

:
Materials with aggregation-induced emission (AIE) properties have received increased attention recently due to their potential applications in light-emitting devices, chemo/biosensors and biomedical diagnostics. In general, AIE requires the forced aggregation of the AIEgens induced by the poor solvent or close arrangement of AIEgens covalently attached to polymer chains. Here, we report two coordination-enhanced fluorescent supramolecular complexes featuring hierarchically restricted intramolecular motions via the self-assembly of tetraphenylethylene (TPE)-based tetra-dentate (La) and bidentate (Lb) ligands and the cis-Pd(en)(NO3)2 (en = ethylenediamine) unit. While the free ligands are non-emissive in dilute solution and show typical AIE properties in both mixed solvent system and the solid state, the self-assembled complexes maintain their fluorescent nature in the solution state. In particular, the Pd4(La)2 complex shows remarkable 6-fold fluorescent enhancement over La in dilute solution. We anticipate that these kinds of coordination-enhanced emissive supramolecules will find applications in biomedical sensing or labeling.
Keywords:
tetraphenylethylene; coordination self-assembly; fluorescence enhancement; AIE

1. Introduction

Aggregation-caused quenching (ACQ) phenomena of luminescent materials are well known, and hinder many of their applications, such as OLED, chemo- or bio-labeling and sensing. Contrary to ACQ, aggregation-induced emission (AIE) materials, which were first introduced by Tang and coworkers in 2001 [1,2], are non-emissive in dilute solutions, but become highly luminescent in their aggregated state. Molecules with AIE properties are called AIEgens, from which a variety of functional materials, such as metal-organic frameworks (MOFs) [3,4], covalent-organic frameworks (COFs) [5], and co-polymers [6,7] have been designed. Luminescent properties of these materials have shown rich stimuli-responsiveness towards light, aggregation, chemicals, heat, mechanical forces, etc. However, most of the known AIE materials rely on the high local concentration of the AIEgens. It is thus necessary to search for efficient strategies to “turn on” the AIE at low concentrations. To achieve this, tight covalent bonding of AIE chromophores into one molecule has been shown to be an effective strategy, but this usually requires multi-step and/or low-yield covalent synthesis.
Tetraphenylethylene (TPE) is a popular AIE-active fluorophore, whose fluorescence can be induced by restricting C=C bond twist and phenyl-ring rotation [8,9]. Many strategies, including covalent modifications, host-guest chemistry, anion coordination, π-π stacking, electrostatic interactions and embedding into MOFs, have been developed to “turn on” the emission [10,11]. In particular, construction of MOFs by anchoring TPE chromophores to metal ions within a rigid matrix has been shown to be an effective alternative strategy to get strongly luminescent nanoparticles [12,13]. However, the insolubility of MOFs poses inherent problems for their fabrication.
Recently, coordination-directed self-assembly has been proven to be a powerful supramolecular approach to organize multiple AIE chromophores onto the discrete supramolecular coordination complexes (SCCs). For example, Stang and coworkers have reported a series of light-emitting tetraphenylethylene (TPE)-based supramolecular platforms and their multifaceted applications in sensor devices and advanced optoelectronic materials [14]. The Su group has reported a tetraphenylethylene (TPE)-based tetragonal Ag4L2 cage with luminescent behavior that is significantly different from that of both AIE and ACQ mechanisms [15]. Luminescent SCCs materials have many advantages compared to MOFs, such as the circumvention of synthetic steps, inherent error-correction and defect-free assembly, facile and fast formation, increased solubility and so on. In addition, the finite nature of SCC structures facilitates convenient solution-based characterization/fabrication methods.
Although several light-emitting TPE-based discrete organoplatinum metallacages and metallacycles have been reported [16,17,18,19,20], AIE-active organopalladium SCCs have rarely been explored [21,22], even though palladium has a lower cost than platinum. Pd2+ is a well-known fluorescence quencher due to heavy atom effects and its 4d8 electronic configuration, the photo induced electron transfer and photo induced energy transfer may both exist through the interactions between fluorophore and Pd2+ [23]. Lots of fluorescence probes for detecting Pd2+ based on Pd2+ coordination-induced fluorescence quenching have been designed [24,25]. Herein, we report the coordination-driven self-assembly and the luminescent studies of two SCCs (1, 2) from the TPE-based polypyridine ligands (La and Lb) and the (en)Pd(NO3)2 (en = ethylenediamine) clipping units (Scheme 1). While the free ligands are non-emissive in dilute solution and show typical AIE properties in the aggregated states, the self-assembled complexes maintain their fluorescent nature in dilute solution. Such a coordination-enhanced emission behavior has been clearly confirmed by comparison of the two SCCS featuring hierarchically restricted intramolecular motions. In particular, complex 1 shows a remarkable 6-fold fluorescent enhancement over La in dilute solution.

2. Results and Discussion

For comparison purposes, ligands La and Lb, with four and two pyridine coordination sites, respectively, were synthesized in two steps starting from the TPE precursor by following the reported procedures [26,27,28]. Both were fully characterized by multi-dimensional NMR and high-resolution ESI-TOF-MS spectroscopy (See SI for details). Coordination complex 1·NO3 was obtained quantitatively by reacting ligand La with two equiv. of cis-(en)Pd(NO3)2 in a H2O and acetone (v:v = 1:1) mixture at 50 °C for 3 h with continuous stirring. With the progression of the self-assembly, the suspension of the ligand gradually turned into a clear yellow solution. 1H-NMR first confirmed the quantitative formation of a highly symmetrical complex with the observation of a single set of ligand signals (Figure 1B and Figure S8), which could be fully assigned based on a 1H-1H COSY experiment (Figures S6 and S9). The diffusion-ordered spectroscopy (DOSY) NMR spectrum (Figure 1C) [29] suggests the formation of a single product with a single diffusion coefficient of 1.77 × 10−10 m2·s−1, with an estimated diameter of 2.1 nm for the complex in solution.
In order to facilitate mass spectra measurement, 1·NO3 was transformed into its tetrafluoroborate salt (1·BF4) by precipitation with excess amount of NaBF4 (See SI for details). The composition of complex 1·BF4 as (en)4Pd4La2(BF4)8 was then clearly provided by electro-spray-ionization time-of-flight mass-spectroscopy (ESI-TOF-MS) measurements. The prominent peaks observed at m/z = 1234.2355, 793.8219, 573.6167, correspond to [M − (BF4)n]n+ (n = 2–4). Moreover, the isotopic patterns of each peak were in good agreement with the calculated values, which further confirmed the molecular formula. Similarly, reacting ligand Lb with an equimolar amount of cis-(en)Pd(NO3)2 followed by counter-ion exchange with NaBF4 lead to the quantitative formation of the Pd2Lb2 complex (2·BF4), which was fully characterized by multi-dimensional NMR and ESI-TOF-MS (see SI for details).
Unfortunately, efforts to grow high-quality single crystals for both compounds were failed. Therefore, molecular-mechanical simulations were performed to get an overview of the structures for complexes 1 and 2 (Figure 2). In complex 1, as all the four pyridine arms are clipped together by the (en)Pd units, the two PTE fluorophores are forced to stack to each other, with an approximate 6.06 Å separation between the ethene groups (defined by the closest C-C distance). In contrast, the two ethene groups on the two ligands of Lb in the optimized structure of complex 2 are more separated (9.51 Å apart). Such a gradual coordination-driven proximity of the TPE groups on these complexes persuaded us to investigate their differences in photoluminescent properties.
UV-Vis absorption spectra for both La and Lb (DMSO solution, 50.00 µM) were first measured, and showed broad intense band for the π-π * transitions from 270 to 400 nm (λmax of La at 286 nm, with molar absorptivity up to 4.55 × 104 M−1⋅cm−1; λmax of Lb at 301 nm, with molar absorptivity up to 3.09 × 104 M−1⋅cm−1). Significant red-shifting in the absorption spectra of complexes 1 and 2 was noticed, as a result of coordination to the (en)Pd units (Figure S15).
Photoluminescence study on the ligands (Figure 3) confirmed their AIE nature. In both cases, negligible emissions have been measured in dilute DMSO solution (50.00 µM). However, when water was introduced, the emission intensity for both ligands showed great enhancement. Meanwhile, the quantum yield of La exhibited a low value (ΦF = 0.74%) and increased remarkably to 84.2% in the solid state. Similarly, the quantum yield of Lb was too low to be measured under dilute conditions, but increased to 74.1% in the solid state.
Coordination-enhanced emission was confirmed after assembling La with the (en)Pd(NO3)2 clips (Figure 4). Compared to La, the four arms on the TPE units of 1 are fixed by the (en)Pd(NO3)2 units, which forces the two ligands to stack together, thus fully restricting the intramolecular rotations. Though palladium is a well-known fluorescence quencher, such a forced aggregation state induced a remarkable 6-fold fluorescence enhancement over La for complex 1 in dilute solution. The ligands on complex 1 are more distorted than its free extended state and the perpendicular conformation decreased the conjugation, resulting that the emission maximum undergoing a blue shift from 528 to 488 nm. These results imply that a coordination-driven self-assembly approach is effective for restricting the intermolecular rotations of the TPE units, thus attenuating the non-radiative decay pathway and turning on the fluorescence. However, ligand Lb has two dangling phenyl rings that remain unrestricted even after assembling with (en)Pd(NO3)2. The assembled complex 2 shows lower emission intensity than Lb in dilute solution, probably due to the intramolecular motion [30] and the emission quenching effect of the palladium centers.
To examine whether the complexes 1 and 2 are still AIE active, the emission spectra of the assemblies were measured in H2O/acetone/1,4-dioxane mixed solvent systems (Figure 5), in which H2O/acetone(v:v = 1:1) is good solvent and 1,4-dioxane is poor solvent. For complex 2, the emission intensity remains low in H2O/acetone solution with no quantum yield detectable, which indicates that free rotation on the TPE units is still possible on the assembly in solution state. With the addition of 1,4-dioxane, the emission intensity gradually increased. Upon increasing the 1,4-dioxane fraction to 99%, remarkably enhanced fluorescence was observed, with a quantum yield determined to be 4.13%. In clear contrast, complex 1 remains strongly emissive in dilute solution, with low responsiveness to the fraction of 1,4-dioxane. Quantum yield (Φ) for 1 was determined to be 4.22% in dilute solution (Figure S25) and increased to 6.57% in solid state. These results clearly confirmed the forced AIE properties by coordination self-assembly.

3. Materials and Methods

3.1. General

Unless otherwise noted, all chemicals and solvents were purchased from commercial corporations and used without further purification. Deuterated solvents were purchased from Admas (Shanghai, China) and J&K scientific Co. (Beijing, China). 1D- and 2D-NMR spectra were measured on a Bruker Biospin Avance III (400 MHz) spectrometer (Bruker Biospin, Rheinstetten, Germany). 1H-NMR chemical shifts were determined with respect to residual solvent signals of the deuterated solvents used. ESI-TOF mass spectra were recorded on an Impact II UHR-TOF mass spectrometry from Bruker (Bruker Biospin, Rheinstetten, Germany). Data analyses and simulation of ESI-TOF mass spectra were processed on a Bruker Data Analysis software (Version 4.3). Molecular modelings were performed on Marerials Studio 6.0 (Accelrys Co., San Diego, CA, USA). UV-Visible absorption spectra were measured on a UV-2700 spectrophotometer (SHIMADZU, Kyoto, Japan). Fluorescent spectra were measured on a FS5 spectrofluorometer (Edinburgh Instruments Ltd., Livingston, UK). The emission quantum yields in solution and solid state were measured by FS5 Spectra Fluorometer (Edinburgh Instruments Ltd., Livingston, UK) with integrating sphere.

3.2. Synthesis Procedure

3.2.1. Synthesis of Ligand La

4Br-TPE was prepared using reported literature procedures (Scheme 2) [26]. Tetraphenylethene (5 g, 10 mmol) was treated with bromine (7.5 mL, 0.15 mol) and the mixture was kept for 16 h at room temperature. The resulting solid was dissolved in hot toluene (120 mL), then concentrated to 20 mL. The precipitate was filtered and washed with hexane. The product was further purified by chromatography on SiO2 (Hexanes/CH2Cl2, v/v = 20/1). 5.94 g (9.17 mmol, Yield: 61%) of a colorless solid was obtained. 1H-NMR (400 MHz, DMSO-d6): δ 7.39 (d, J = 8.3 Hz, 8H), 6.92 (d, J = 8.3 Hz, 8H). 13C-NMR (100 MHz, DMSO-d6) δ 141.50 (s), 139.38 (s), 132.79 (s), 131.19 (s), 120.48 (s).
La was prepared using reported literature procedures [27,28]. 4Br-TPE (161 mg, 0.25 mmol), 3-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)pyridine (246 mg, 1.2 mmol), Pd(PPh3)4 (40 mg, 0.035 mmol) and K3PO4 (1.1 g, 5.18 mmol) were added into a 100 mL three-necked flask. Under N2 atmosphere, 1,4-dioxane (50 mL) was added. The suspension was stirred at 100 °C for 3 d. The mixture was evaporated and extracted with chloroform and water. The organic phase was collected and dried over MgSO4 and evaporated. The crude product was purified by silica gel column chromatography (CH2Cl2:CH3OH = 100:1). 64 mg (0.1 mmol, Yield: 40%) of a yellow green powder was obtained. 1H-NMR (400 MHz, CDCl3): δ 8.83 (d, J = 1.5 Hz, 4H), 8.56 (d, J = 3.4 Hz, 4H), 7.85 (d, J = 7.9 Hz, 4H), 7.42 (d, J = 8.2 Hz, 8H), 7.33 (dd, J = 7.8, 4.8 Hz, 4H), 7.23 (d, J = 8.2 Hz, 8H). 13C-NMR (100 MHz, CDCl3) δ 148.52 (s), 148.18 (s), 143.26 (s), 140.60 (s), 136.11 (s), 135.95 (s), 134.10 (s), 132.16 (s), 126.57 (s), 123.54 (s).

3.2.2. Synthesis of Assembly 1

Ligand La (4.72 mg, 7.36 μmol) was treated with (en)Pd(NO3)2 (4.7 mg,16.2 μmol) in a mixture solution of H2O and acetone (v:v = 1:1) and stirred at 50 °C for 3 h. 1·NO3 was obtained. 1H-NMR (400 MHz, D2O:acetone-d6 = 1:1): δ 9.65 (s, 4H), 9.03 (s, 4H), 8.41 (s, 4H), 7.84 (s, 4H), 7.72 (s, 8H), 7.42 (s, 8H), 3.12 (s, 8H). 13C-NMR (100 MHz, D2O:acetone-d6 = 1:1): δ 213.88 (s), 151.20 (s), 149.24 (s), 144.23 (s), 141.47 (s), 139.20 (s), 138.65 (s), 134.48 (s), 132.34 (s), 127.80 (s), 127.14 (s), 47.30 (s).
To the solution of 1·NO3 was added excess NaBF4 aqueous solution and stirred for ten minutes. The precipitate was filtered and washed with water. 1·BF4 was obtained and characterized by ESI-TOF-MS: m/z 573.6163 {[(en)4Pd4La2(BF4)4]4+}, 793.8219 {[(en)4Pd4La2(BF4)5]3+}, 1234.2355 {[(en)4Pd4La2(BF4)6]2+}.

3.2.3. Synthesis of Ligand Lb and Assembly 2

The preparation of Lb followed the literature procedure (Scheme 3) [21] and the assembly of Lb with (en)Pd(NO3)2 under the similar procedure above gave complex 2·BF4. 1H-NMR (400 MHz, CD3CN): δ 9.12 (s, 2H), 8.75 (d, J = 5.0 Hz, 2H), 8.12 (d, J = 8.0 Hz, 2H), 7.77–7.55 (m, 2H), 7.48 (d, J = 8.0 Hz, 4H), 7.22 (d, J = 8.0 Hz, 4H), 7.15 (s, 6H), 7.09 (d, J = 6.8 Hz, 4H), 4.14 (s, 4H), 2.81 (s, 4H). 13C-NMR (100 MHz, CD3CN) δ 150.785 (s), 150.741(s), 145.69 (s), 144.27 (s), 144.13 (s), 140.08 (s), 139.61 (s), 138.98 (s), 133.99 (s), 133.09 (s), 131.81 (s), 128.95 (s), 127.98 (s), 127.71 (s), 127.46 (s), 47.62 (s). ESI-TOF-MS: m/z 326.5877 {[(en)2Pd2Lb2]4+}, 464.4514 {[(en)2Pd2Lb2(BF4)1]3+}, 740.1784 {[(en)2Pd2Lb2(BF4)2]2+}.

4. Conclusions

In summary, fluorescent supramolecular coordination complexes have been self-assembled from TPE-based polypyridine ligands and cis-blocked Pd2+ corners. Distinctively, when the four arms of the TPE units are fixed, the assembly remains strongly emissive not only in dilute solution but also in the aggregated state. We envisage that this coordination-enhanced emissive supramolecule may find applications in palladium sensors, biomedical sensing, or labeling.

Supplementary Materials

The following supplementary materials are available online: synthesis, NMR spectra, ESI-TOF-MS, UV-Vis spectra and fluorescence spectra of ligands and assemblies.

Acknowledgments

This work was supported by the National Natural Science Foundation of China (Grant Nos. 21471150, 21521061, 21601183), Natural Science Foundation of Fujian Province (Grant Nos. 2016J06005, 2016J05051), the Strategic Priority Research Program of the Chinese Academy of Sciences (Grant No. XDB20000000). Qing-Fu Sun is grateful for the award from ‘The Recruitment Program of Global Youth Experts’.

Author Contributions

All the experiments were conducted by Qian-Qian Yan, Guang-Lu Zhang, Shao-Jun Hu and Ting Zhang under the supervision of Qing-Fu Sun; Li-Peng Zhou contributed to the analysis of the data; The manuscript was written jointly by Qian-Qian Yan and Qing-Fu Sun.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Luo, J.; Xie, Z.; Lam, J.W.Y.; Cheng, L.; Chen, H.; Qiu, C.; Kwok, H.S.; Zhan, X.; Liu, Y.; Zhu, D.; et al. Aggregation-induced emission of 1-methyl-1,2,3,4,5-pentaphenylsilole. Chem. Commun. 2001, 0, 1740–1741. [Google Scholar] [CrossRef]
  2. Hong, Y.; Lam, J.W.Y.; Tang, B.Z. Aggregation-induced emission. Chem. Soc. Rev. 2011, 40, 5361–5388. [Google Scholar] [CrossRef] [PubMed]
  3. Shustova, N.B.; McCarthy, B.D.; Dincă, M. Turn-On Fluorescence in Tetraphenylethylene-Based Metal–Organic Frameworks: An Alternative to Aggregation-Induced Emission. J. Am. Chem. Soc. 2011, 133, 20126–20129. [Google Scholar] [CrossRef] [PubMed]
  4. Shustova, N.B.; Ong, T.C.; Cozzolino, A.F.; Michaelis, V.K.; Griffin, R.G.; Dinca, M. Phenyl ring dynamics in a tetraphenylethylene-bridged metal-organic framework: Implications for the mechanism of aggregation-induced emission. J. Am. Chem. Soc. 2012, 134, 15061–15070. [Google Scholar] [CrossRef] [PubMed]
  5. Xu, S.Q.; Zhang, X.; Nie, C.B.; Pang, Z.F.; Xu, X.N.; Zhao, X. The construction of a two-dimensional supramolecular organic framework with parallelogram pores and stepwise fluorescence enhancement. Chem. Commun. 2015, 51, 16417–16420. [Google Scholar] [CrossRef] [PubMed]
  6. Hu, R.; Leung, N.L.C.; Tang, B.Z. AIE macromolecules: Syntheses, structures and functionalities. Chem. Soc. Rev. 2014, 43, 4494–4562. [Google Scholar] [CrossRef] [PubMed]
  7. Dong, J.; Zhang, K.; Li, X.; Qian, Y.; Zhu, H.; Yuan, D.; Xu, Q.H.; Jiang, J.; Zhao, D. Ultrathin two-dimensional porous organic nanosheets with molecular rotors for chemical sensing. Nat. Commun. 2017, 8, 1142. [Google Scholar] [CrossRef] [PubMed]
  8. Zhao, Z.; Lam, J.W.Y.; Tang, B.Z. Tetraphenylethene: A versatile AIE building block for the construction of efficient luminescent materials for organic light-emitting diodes. J. Mater. Chem. 2012, 22, 23726–23740. [Google Scholar] [CrossRef]
  9. Ding, D.; Li, K.; Liu, B.; Tang, B.Z. Bioprobes Based on AIE Fluorogens. Acc. Chem. Res. 2013, 46, 2441–2453. [Google Scholar] [CrossRef] [PubMed]
  10. Zhao, J.; Yang, D.; Zhao, Y.; Yang, X.J.; Wang, Y.Y.; Wu, B. Anion-coordination-induced turn-on fluorescence of an oligourea-functionalized tetraphenylethene in a wide concentration range. Angew. Chem. Int. Ed. Engl. 2014, 53, 6632–6636. [Google Scholar] [CrossRef] [PubMed]
  11. August, D.P.; Nichol, G.S.; Lusby, P.J. Maximizing Coordination Capsule–Guest Polar Interactions in Apolar Solvents Reveals Significant Binding. Angew. Chem. 2016, 128, 15246–15250. [Google Scholar] [CrossRef]
  12. Wei, Z.; Gu, Z.Y.; Arvapally, R.K.; Chen, Y.P.; McDougald, R.N., Jr.; Ivy, J.F.; Yakovenko, A.A.; Feng, D.; Omary, M.A.; Zhou, H.C. Rigidifying fluorescent linkers by metal-organic framework formation for fluorescence blue shift and quantum yield enhancement. J. Am. Chem. Soc. 2014, 136, 8269–8276. [Google Scholar] [CrossRef] [PubMed]
  13. Zhang, Q.; Su, J.; Feng, D.; Wei, Z.; Zou, X.; Zhou, H. Piezofluorochromic Metal-Organic Framework: A Micro-Scissor Lift. J. Am. Chem. Soc. 2015, 137, 10064–10067. [Google Scholar] [CrossRef] [PubMed]
  14. Yan, X.; Wang, M.; Cook, T.R.; Zhang, M.; Saha, M.L.; Zhou, Z.; Li, X.; Huang, F.; Stang, P.J. Light-Emitting Superstructures with Anion Effect: Coordination-Driven Self-Assembly of Pure Tetraphenylethylene Metallacycles and Metallacages. J. Am. Chem. Soc. 2016, 138, 4580–4588. [Google Scholar] [CrossRef] [PubMed]
  15. Feng, J.; Yao, L.; Zhang, J.; Mu, Y.; Chi, Z.; Su, C.-Y. A luminescent silver-phosphine tetragonal cage based on tetraphenylethylene. Dalton Trans. 2016, 45, 1668–1673. [Google Scholar] [CrossRef] [PubMed]
  16. Xu, L.; Wang, Y.-X.; Chen, L.-J.; Yang, H.-B. Construction of multiferrocenyl metallacycles and metallacages via coordination-driven self-assembly: From structure to functions. Chem. Soc. Rev. 2015, 44, 2148–2167. [Google Scholar] [CrossRef] [PubMed]
  17. Yan, X.; Cook, T.R.; Wang, P.; Huang, F.; Stang, P.J. Highly emissive platinum(II) metallacages. Nat. Chem. 2015, 7, 342–348. [Google Scholar] [CrossRef] [PubMed]
  18. Yan, X.; Wang, H.; Hauke, C.E.; Cook, T.R.; Wang, M.; Saha, M.L.; Zhou, Z.; Zhang, M.; Li, X.; Huang, F.; et al. A Suite of Tetraphenylethylene-Based Discrete Organoplatinum(II) Metallacycles: Controllable Structure and Stoichiometry, Aggregation-Induced Emission, and Nitroaromatics Sensing. J. Am. Chem. Soc. 2015, 137, 15276–15286. [Google Scholar] [CrossRef] [PubMed]
  19. Chen, L.-J.; Ren, Y.-Y.; Wu, N.-W.; Sun, B.; Ma, J.-Q.; Zhang, L.; Tan, H.; Liu, M.; Li, X.; Yang, H.-B. Hierarchical Self-Assembly of Discrete Organoplatinum(II) Metallacycles with Polysaccharide via Electrostatic Interactions and Their Application for Heparin Detection. J. Am. Chem. Soc. 2015, 137, 11725–11735. [Google Scholar] [CrossRef] [PubMed]
  20. Zhang, C.; Wang, Z.; Tan, L.; Zhai, T.-L.; Wang, S.; Tan, B.; Zheng, Y.-S.; Yang, X.-L.; Xu, H.-B. A Porous Tricyclooxacalixarene Cage Based on Tetraphenylethylene. Angew. Chem. Int. Ed. 2015, 54, 9244–9248. [Google Scholar] [CrossRef] [PubMed]
  21. Zhang, T.; Zhang, G.L.; Yan, Q.Q.; Zhou, L.P.; Cai, L.X.; Guo, X.Q.; Sun, Q.F. Self-Assembly of a Tetraphenylethylene-Based Capsule Showing Both Aggregation- and Encapsulation-Induced Emission Properties. Inorg. Chem. 2017. [Google Scholar] [CrossRef] [PubMed]
  22. Das, P.; Kumar, A.; Howlader, P.; Mukherjee, P.S. A Self-Assembled Trigonal Prismatic Molecular Vessel for Catalytic Dehydration Reactions in Water. Chem. Eur. J. 2017, 23, 12565–12574. [Google Scholar] [CrossRef] [PubMed]
  23. Fabbrizzi, L.; Licchelli, M.; Pallavicini, P.; Perotti, A.; Taglietti, A.; Sacchi, D. Fluorescent Sensors for Transition Metals Based on Electron-Transfer and Energy-Transfer Mechanisms. Chem. Eur. J. 1996, 2, 75–82. [Google Scholar] [CrossRef]
  24. Li, H.; Fan, J.; Peng, X. Colourimetric and fluorescent probes for the optical detection of palladium ions. Chem. Soc. Rev. 2013, 42, 7943–7962. [Google Scholar] [CrossRef] [PubMed]
  25. Duan, L.; Xu, Y.; Qian, X. Highly sensitive and selective Pd2+ sensor of naphthalimide derivative based on complexation with alkynes and thio-heterocycle. Chem. Commun. 2008, 6339–6341. [Google Scholar] [CrossRef] [PubMed]
  26. Schultz, A.; Laschat, S.; Diele, S.; Nimtz, M. Tetraphenylethene-Derived Columnar Liquid Crystals and Their Oxidative Photocyclization. Eur. J. Org. Chem. 2003, 2829–2839. [Google Scholar] [CrossRef]
  27. De, S.; Mahata, K.; Schmittel, M. Metal-coordination-driven dynamic heteroleptic architectures. Chem. Soc. Rev. 2010, 39, 1555–1575. [Google Scholar] [CrossRef] [PubMed]
  28. Kapadia, P.P.; Widen, J.C.; Magnus, M.A.; Swenson, D.C.; Pigge, F.C. Tetrapyridyl tetraphenylethylenes: Supramolecular building blocks with aggregation-induced emission properties. Tetrahedron Lett. 2011, 52, 2519–2522. [Google Scholar] [CrossRef]
  29. Cohen, Y.; Avram, L.; Frish, L. Diffusion NMR Spectroscopy in Supramolecular and Combinatorial Chemistry: An Old Parameter—New Insights. Angew. Chem. Int. Ed. 2005, 44, 520–554. [Google Scholar] [CrossRef] [PubMed]
  30. Zhang, M.; Feng, G.; Song, Z.; Zhou, Y.-P.; Chao, H.-Y.; Yuan, D.; Tan, T.T.Y.; Guo, Z.; Hu, Z.; Tang, B.Z.; et al. Two-Dimensional Metal–Organic Framework with Wide Channels and Responsive Turn-On Fluorescence for the Chemical Sensing of Volatile Organic Compounds. J. Am. Chem. Soc. 2014, 136, 7241–7244. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Samples of the compounds are available from the authors.
Scheme 1. Coordination-driven self-assembly of supramolecular complexes 1 and 2 from two TPE-based ligands La,b and the cis-blocked (en)Pd(NO3)2 clips.
Scheme 1. Coordination-driven self-assembly of supramolecular complexes 1 and 2 from two TPE-based ligands La,b and the cis-blocked (en)Pd(NO3)2 clips.
Molecules 23 00363 sch001

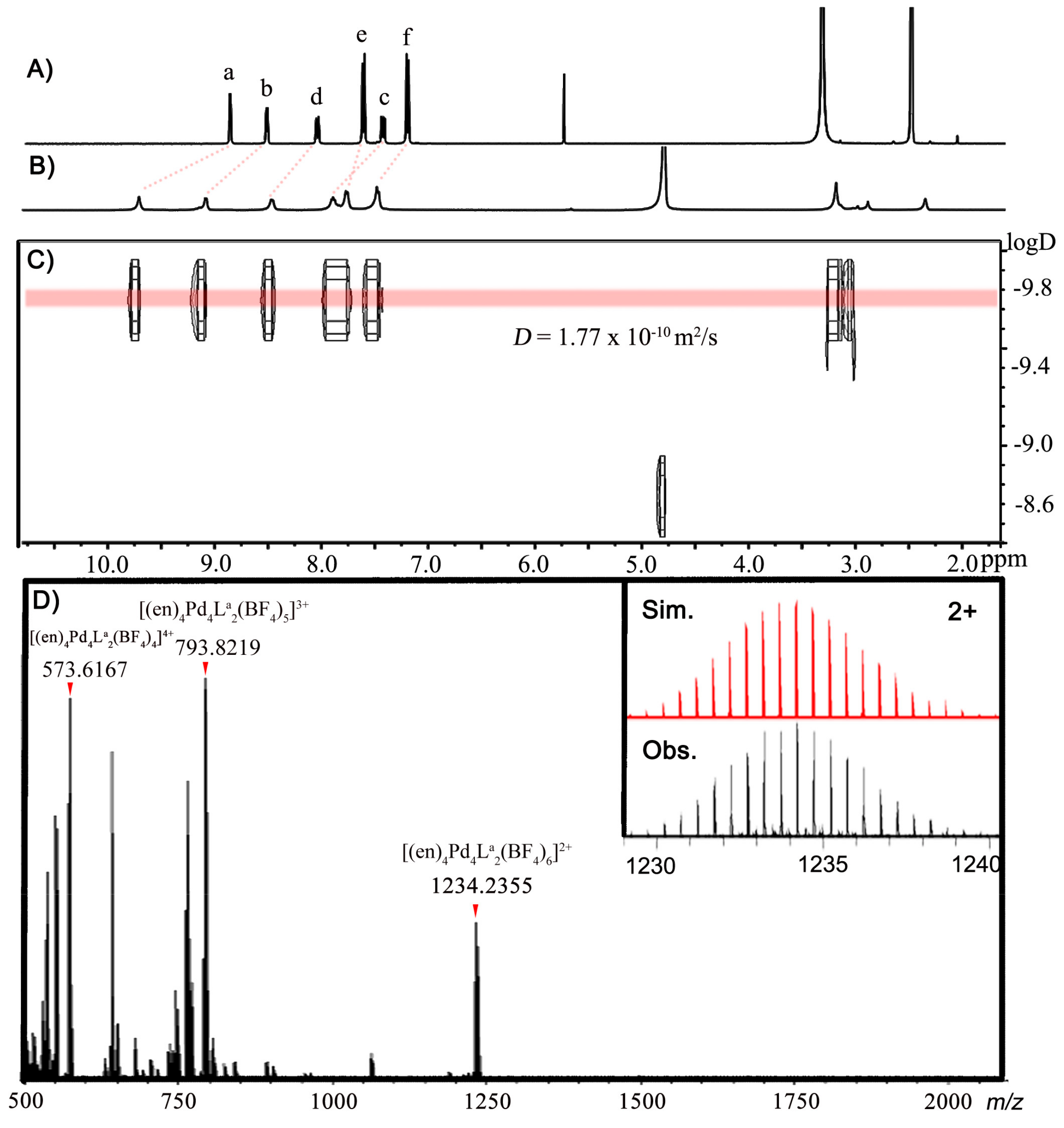

Figure 1. 1H-NMR spectra of (A) ligand La (400 MHz, DMSO-d6, 298 K), (B) complex 1 (400 MHz, D2O:Acetone-d6 = 1:1, 298 K); (C) 1H DOSY spectrum and (D) ESI-TOF-MS of complex 1 with insets showing the observed (Obs.) and simulated (Sim.) isotopic patterns of the 2+ peak.
Figure 1. 1H-NMR spectra of (A) ligand La (400 MHz, DMSO-d6, 298 K), (B) complex 1 (400 MHz, D2O:Acetone-d6 = 1:1, 298 K); (C) 1H DOSY spectrum and (D) ESI-TOF-MS of complex 1 with insets showing the observed (Obs.) and simulated (Sim.) isotopic patterns of the 2+ peak.
Molecules 23 00363 g001
Figure 2. Simulated molecular structure models for complexes 1 (A,B) and 2 (C,D). Color scheme: C, slate sticks; H, white sticks; N, blue sticks; Pd, yellow spheres.
Figure 2. Simulated molecular structure models for complexes 1 (A,B) and 2 (C,D). Color scheme: C, slate sticks; H, white sticks; N, blue sticks; Pd, yellow spheres.
Molecules 23 00363 g002

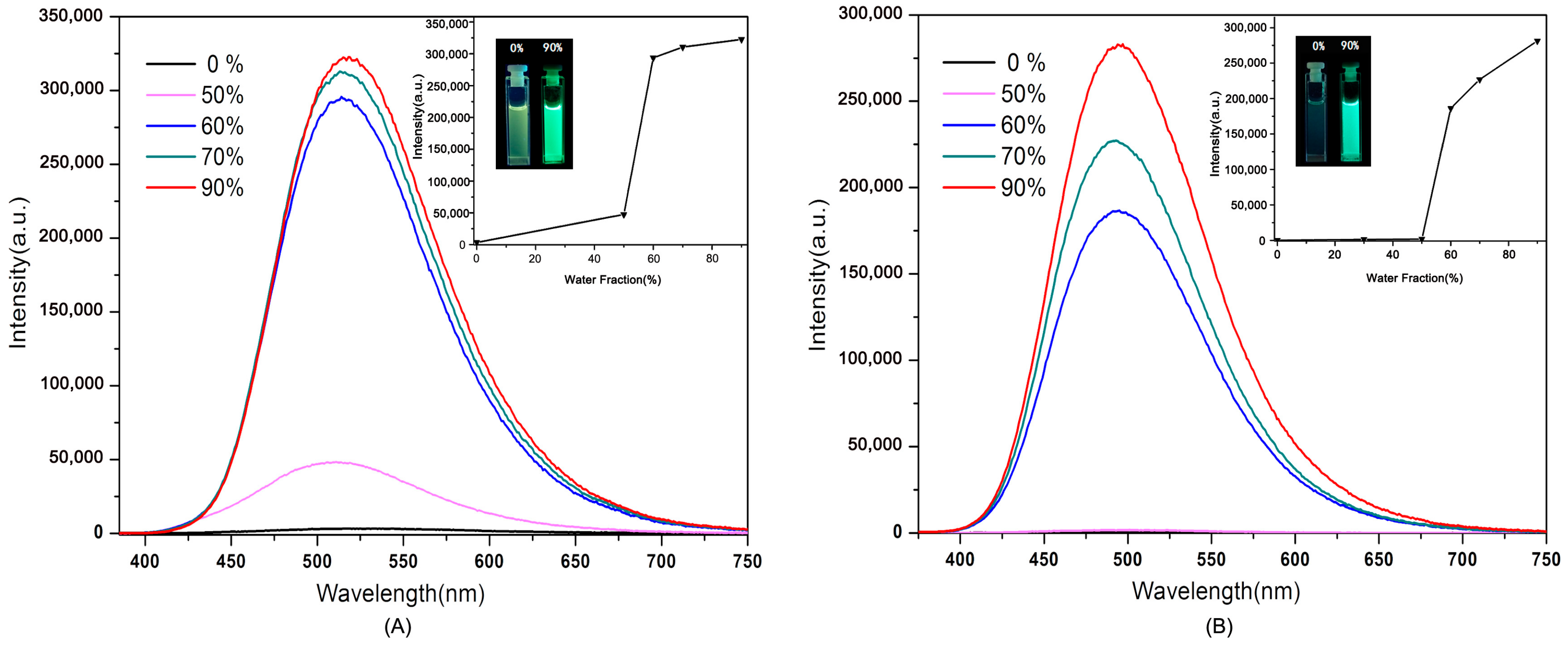

Figure 3. Fluorescence emission spectra of (A) Laex = 365 nm); (B) Lbex = 343 nm) with inserts showing the plots of maximum emission intensity of ligands versus H2O fraction in H2O/DMSO mixtures and photographs of assemblies in pure DMSO and 90% H2O fractions mixture solution upon excitation at 365 nm using an UV lamp. cL = 50.00 µM.
Figure 3. Fluorescence emission spectra of (A) Laex = 365 nm); (B) Lbex = 343 nm) with inserts showing the plots of maximum emission intensity of ligands versus H2O fraction in H2O/DMSO mixtures and photographs of assemblies in pure DMSO and 90% H2O fractions mixture solution upon excitation at 365 nm using an UV lamp. cL = 50.00 µM.
Molecules 23 00363 g003

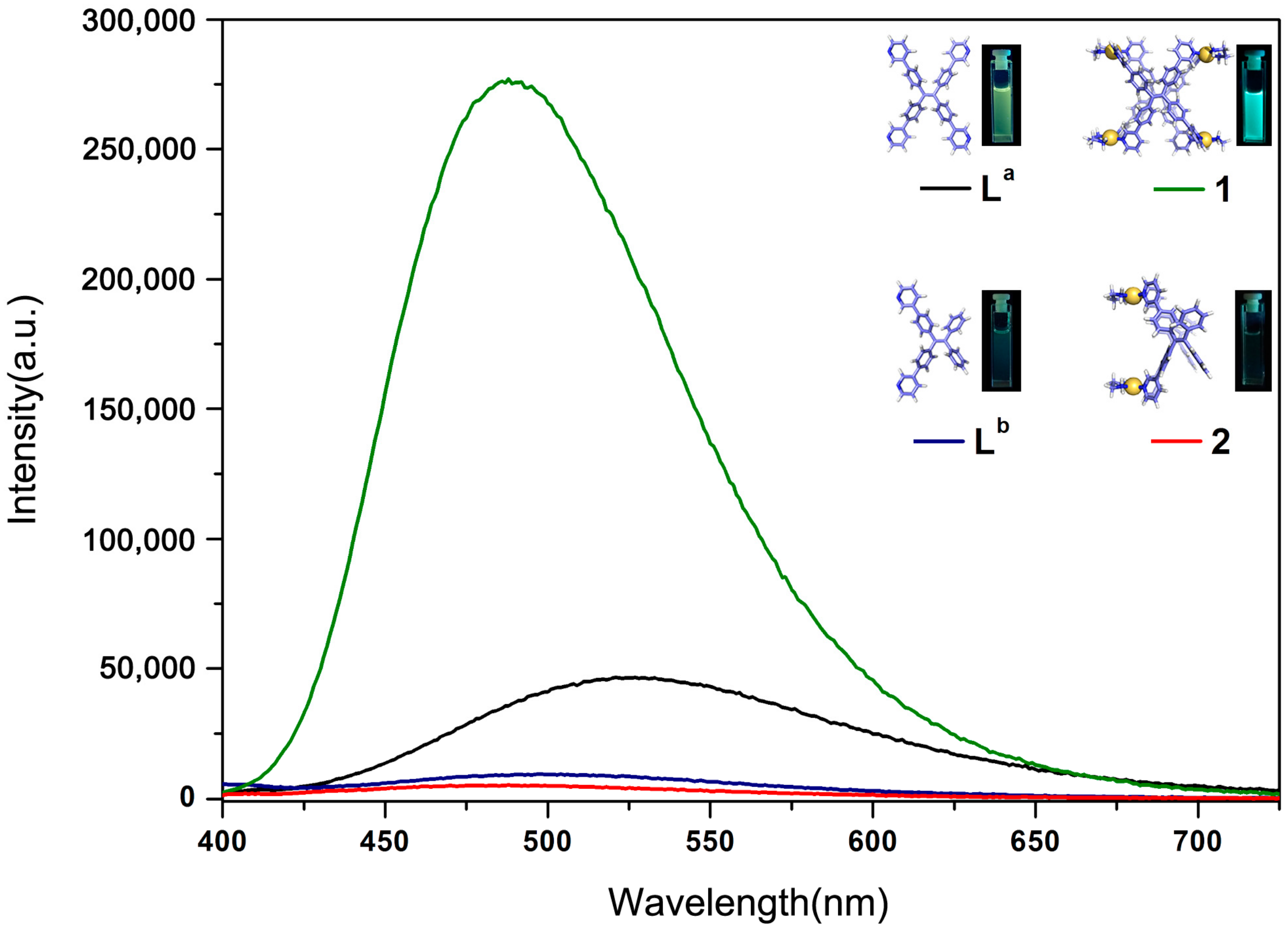

Figure 4. Fluorescence emission spectra of ligand Laex = 365 nm), Lbex = 343 nm) and assemblies 1ex = 372 nm) and 2ex = 358 nm) in H2O/acetone (v:v = 1:1) at the same ligand concentration of 50 µM.
Figure 4. Fluorescence emission spectra of ligand Laex = 365 nm), Lbex = 343 nm) and assemblies 1ex = 372 nm) and 2ex = 358 nm) in H2O/acetone (v:v = 1:1) at the same ligand concentration of 50 µM.
Molecules 23 00363 g004

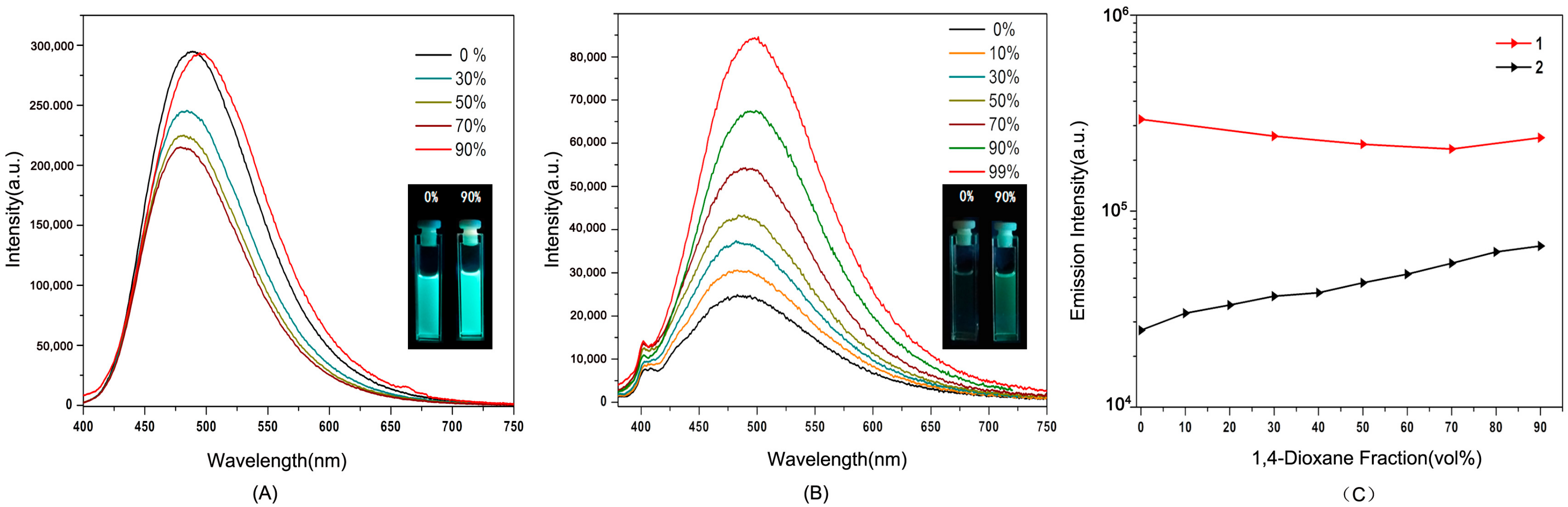

Figure 5. Fluorescence emission spectra of (A) 1, λex = 372 nm, (B) 2, λex = 358 nm, and (C) the plots of maximum emission intensity of assemblies 1, 2 versus 1,4-dioxane fraction in H2O/acetone/1,4-dioxane mixtures. Insert: photographs of assemblies in H2O/acetone (v:v = 1:1) and 90% 1,4-dioxane fractions mixture solution upon excitation at 365 nm using an UV lamp. cL = 50.00 μM.
Figure 5. Fluorescence emission spectra of (A) 1, λex = 372 nm, (B) 2, λex = 358 nm, and (C) the plots of maximum emission intensity of assemblies 1, 2 versus 1,4-dioxane fraction in H2O/acetone/1,4-dioxane mixtures. Insert: photographs of assemblies in H2O/acetone (v:v = 1:1) and 90% 1,4-dioxane fractions mixture solution upon excitation at 365 nm using an UV lamp. cL = 50.00 μM.
Molecules 23 00363 g005

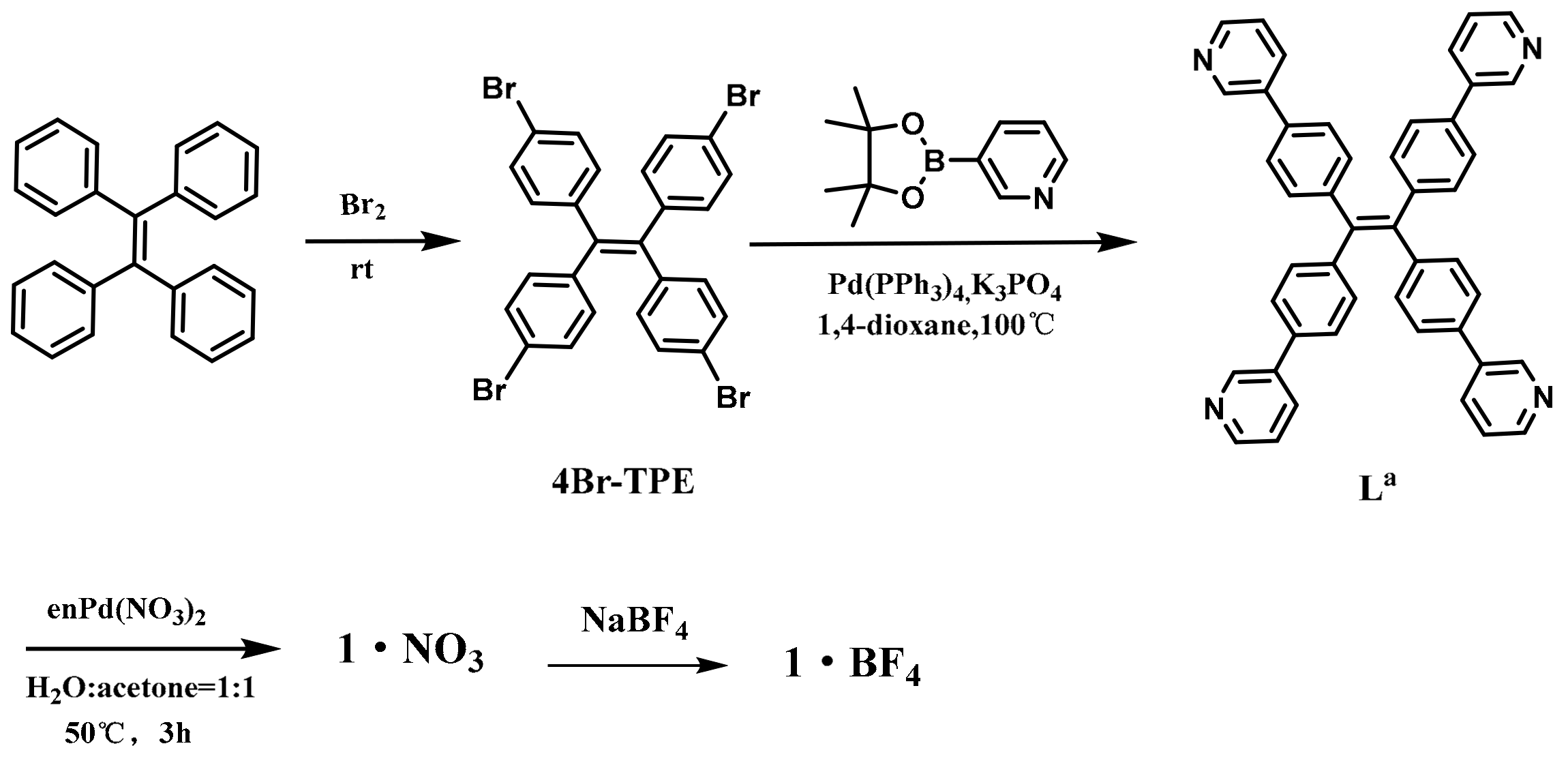

Scheme 2. Synthetic procedures of ligand La and assembly 1.
