Molecules 2018, 23(2), 343; doi:10.3390/molecules23020343

Article
Efficacy of Compounds Isolated from the Essential Oil of Artemisia lavandulaefolia in Control of the Cigarette Beetle, Lasioderma serricorne
Jun Zhou 1, Kexing Zou 1, Wenjuan Zhang 2, Shanshan Guo 2, Hong Liu 1, Jiansheng Sun 1, Jigang Li 1, Dongye Huang 1, Yan Wu 1, Shushan Du 2,* and Almaz Borjigidai 3,*
1
Technical Center of China Tobacco Guangxi Industrial Co., Ltd., Nanning 530001, Guangxi, China
2
Beijing Key Laboratory of Traditional Chinese Medicine Protection and Utilization, Faculty of Geographical Science, Beijing Normal University, No. 19 Xinjiekouwai Street, Beijing 100875, China
3
College of Pharmacy, Minzu University of China, No. 27 Zhongguancun South Street, Beijing 100081, China
*
Correspondence: dushushan@bnu.edu.cn (S.D.); almaz_b@muc.edu.cn (A.B.); Tel.: +86-10-6220-8022 (S.D.); +86-10-6893-9905 (A.B.)
Received: 26 December 2017 / Accepted: 6 February 2018 / Published: 7 February 2018

Abstract

:
To develop natural product resources to control cigarette beetles (Lasioderma serricorne), the essential oil from Artemisia lavandulaefolia (Compositae) was investigated. Oil was extracted by hydrodistillation of the above-ground portion of A. lavandulaefolia and analyzed using gas chromatography-mass spectrometer (GC-MS). Extracted essential oil and three compounds isolated from the oil were then evaluated in laboratory assays to determine the fumigant, contact, and repellent efficacy against the stored-products’ pest, L. serricorne. The bioactive constituents from the oil extracts were identified as chamazulene (40.4%), 1,8-cineole (16.0%), and β-caryophyllene (11.5%). In the insecticidal activity assay, the adults of L. serricorne were susceptible to fumigant action of the essential oil and 1,8-cineole, with LC50 values of 31.81 and 5.18 mg/L air. The essential oil, 1,8-cineole, chamazulene, and β-caryophyllene exhibited contact toxicity with LD50 values of 13.51, 15.58, 15.18 and 35.52 μg/adult, respectively. During the repellency test, the essential oil and chamazulene had repellency approximating the positive control. The results indicated that chamazulene was abundant in A. lavandulaefolia essential oil and was toxic to cigarette beetles.
Keywords:
natural products; chamazulene; fumigant toxicity; contact toxicity; repellency; tobacco storage

1. Introduction

As a cosmopolitan pest of stored-products, the cigarette beetle Lasioderma serricorne (Fabricius) (Coleoptera: Ptinidae), occurs widely in the tropical and subtropical regions of the world [1]. It causes serious damage and economic loss to stored animal and plant materials, particularly raw tobacco and tobacco products [2,3]. Adult cigarette beetles chew holes and excavate tunnels in these materials to mate and lay eggs [4]. After the eggs hatch, larvae consume large quantities of food materials, and are responsible for causing significant damage or economic loss [5].
Pest control measures used to protect cured tobacco and tobacco products from infestation by L. serricorne commonly rely on the use of pyrethroid and phosphine insecticides, which raise many health and environmental issues [6]. These problems have induced a search for alternative ecologically-safe pest control methods [7]. The application of essential oils or their constituents with low toxicity to non-target organisms is one possible method for effectively preventing insect pests in tobacco warehouses [8]. Numerous essential oils and their constituents isolated from plants (including medicinal herbs, spices, and fruits) have been evaluated successfully for insecticidal or repellent activity against stored product insects, and some are even considered to be more effective than traditionally-used pesticides [9,10,11,12,13,14,15,16,17,18].
Compositae is the most evolved family within the Angiospermae and has the highest diversity of species. Amongst the botanical families recognized by the insecticidal properties of its secondary metabolites, Compositae is one of the most important [19,20]. Within this family, Artemisia spp. occur in temperate, cold, and subtropical zones of the northern hemisphere, and is comprised of over 180 species in China [21,22,23]. Many of these species have long been considered to have medicinal value, such as A. annua, A. capillaris, and A. argyi. Furthermore, according to some traditional Chinese medicinal materials, conservation methods, and global modern investigations, some Artemisia plants were considered to have effects against various stored-product insects [24,25,26,27,28,29,30,31]. However, few documents examine the toxicity of active compounds from Artemisia spp. against L. serricorne, despite the known insecticidal properties of this genus [27,28,29,30,31].
Artemisia lavandulaefolia DC is a perennial herbaceous plant. Reviewing the literature, the essential oil from the fresh above-ground portion of A. lavandulaefolia has been reported to show insecticidal activity against some pests [24,32,33,34,35]. However, only two stored-product insects (maize weevil, Sitophilus zeamais, and adzuki bean weevil, Callosobruchus chinensis) were examined [24,34,35], and the effectiveness of the various components was not evaluated. In recent years, the reports about the chemical composition of essential oil extracted from A. lavandulaefolia in China has increased [24,32,34,35], contributing to speculation of their characteristics of chemical components and finding relations between the activities. Taking the significance of this plant’s resources into consideration, we investigate the repellent and insecticidal activity of the chemical constituents of this essential oil against L. serricorne.

2. Results

2.1. Composition Analysis

Essential oil from A. lavandulaefolia was dark blue with a yield of 0.14% (v/w) and a density of 0.89 g/mL. The results revealed that the oil was mainly constituted of 20 components (accounting for 92.6%). The four main components in the essential oil are chamazulene (40.4%), 1,8-cineole (16.0%), β-caryophyllene (11.5%), and β-farnesene (5.3%). The first three compounds were isolated by silica gel column chromatogram and identified by NMR, which were in accordance with the compounds given by GC-MS (Table 1).

2.2. Isolated Compounds

Three compounds were isolated from the A. lavandulaefolia for the first time. They were identified as 1,8-cineole, chamazulene, and β-caryophyllene by comparison of their spectral data with those of the literature (1H-, 13C-NMR, and mass spectra) [36,37,38]. 1,8-Cineole is an oxygenated monoterpenoid. Chamazulene and β-caryophyllene are sesquiterpenes. Their structures are shown in Figure 1.

2.3. Bioactivity Analysis

2.3.1. Fumigant and Contact Toxicity

The essential oil and the main compounds exhibited fumigant and contact toxicity. In addition to the three isolated compounds, some existing data for the other three monoterpenoids (4-terpineol, α-terpineol, and γ-terpinene) that we identified in this essential oil were also listed here to compare their effects to control L. serricorne adults. Their structures are shown in Figure 2. Thus, the data of the six compounds and the essential oil, as well as the positive controls, are shown in Table 2.
Although 1,8-cineole showed considerably less fumigant toxicity (LC50 = 5.18 mg/L air) than the positive control (phosphine, LC50 = 9.23 × 10−3 mg/L air), it showed considerable fumigant toxicity against L. serricorne adults. The three monoterpenoids all had stronger fumigant activity than the essential oil, particularly α-terpineol had the lowest LC50 value against the pest. The four monoterpenoids (4-terpineol, α-terpineol, γ-terpinene and 1,8-cineole) were more effective than the two sesquiterpenoids (chamazulene and β-caryophyllene).
The essential oil of A. lavandulaefolia exhibited contact toxicity against L. serricorne adults (LD50 = 13.51 μg/adult) and it demonstrated less toxicity than the positive control, pyrethrins (LD50 = 0.24 µg/adult). Three isolated compounds, chamazulene, 1,8-cineole and β-caryophyllene were also toxic to L. serricorne adults, with LD50 values of 15.18, 15.58, and 35.52 μg/adult, respectively (Table 2). Moreover, chamazulene possessed almost two times more toxicity than β-caryophyllene.

2.3.2. Repellent Activity

Artemisia lavandulaefolia essential oil and the six constituents repelled L. serricorne adults at the first four concentrations. The results are presented in Figure 3 and Table A1 in Appendix A. Data showed that at doses of 78.63, 15.83, 3.15, and 0.63 nL/cm2, the crude essential oil showed the same level of repellency (p > 0.05) against L. serricorne adults at 2 h after exposure. Moreover, at 4 h after exposure, the essential oil showed the same level of repellency (p > 0.05) against L. serricorne adults at 78.63 and 15.83 nL/cm2. At tested concentration of 78.63 nL/cm2, the main ingredient chamazulene repelled L. serricorne adults effectively (PR > 80%), however, the effect reduced greatly (PR < 50%) when the concentration diluted. The repellent activity of β-caryophyllene was relatively weak (PR < 60%) at all concentrations. It even exhibited an attracting action at the concentration of 0.13 nL/cm2.
As for the four monoterpenoids, the three oxygenated ones (4-terpineol, α-terpineol, and 1,8-cineole) showed the same or better efficiency than γ-terpinene. α-Terpineol possessed a better effect than both 4-terpineol and 1,8-cineole at the doses of 78.63, 15.83, 3.15, and 0.63 nL/cm2. At the lowest tested concentration (0.13 nL/cm2), 1,8-cineole showed much stronger repellency (76%) than the positive control, DEET (N,N-diethyl-3-methyl-benzamide, PR = 46%), at 4 h after exposure.

3. Discussion

3.1. Composition of the Essential Oil

The chemical composition of the essential oil of A. lavandulaefolia in the present study was different from previous reports. For example, β-caryophyllene (15.5%), β-thujone (13.6%), 1,8-cineole (13.1%), and β-farnesene (12.3%) were the main volatile components of this plant from Beijing, China [24]. Extracted by the same method, 1,8-cineole (10.7%), α-terpineol (5.3%), 4-carene (4.0%), 4-methyl-1-(1-methylethyl)-bicyclo[3.1.0]hexan-3-one (3.6%), caryophyllene oxide (2.6%), and β-caryophyllene (2.2%) were the dominant compounds in the sample from Changchun, China [34]. However, the major compounds in the samples collected in Mt. Unnamsan in Korea were β-caryophyllene (16.1%), cis-chrysanthenol (7.0%), 1,8-cineole (5.6%), borneol (5.3%), and β-farnesene (5.1%) [41]. It can be deduced from these results that 1,8-cineole and β-caryophyllene were common constituents in A. lavandulaefolia [24,34,41,42]. Nevertheless, chamazulene had not been previously identified as a main component in this plant, which perhaps suggested a new chamazulene chemotype, but more evidence is needed to confirm this idea. In addition, we have not identified cis-chrysanthenol in the samples collected in China [24,34]. Some literature analyses showed that A. absinthium harvested from June to November contained varying amounts of cis-chrysanthenol, which might suggest that the geographical environment and harvest time are the important factors in this plant [43].
It is important to point out that, our work also found that the species and content of the chemical compounds according to the relation of essential oils in yarrow or milfoil (Achillea millefolium L., Asteraceae or Compositae). That is, a strong negative correlation between the amounts of β-pinene and β-caryophyllene, β-pinene, and 1,8-cineole, as well as germacrene D and β-caryophyllene. Additionally, the strong negative correlation between the amounts of chamazulene and (E)-nerolidol, and a moderate negative correlation between the amounts of chamazulene and sabinene were also verified partly in this paper, because there were neither (E)-nerolidol nor sabinene found in this essential oil [44]. Further research is needed to obtain more samples and to find more evidence.

3.2. Structure-Bioactivity Relationship of the Four Monoterpenoids

Three compounds we isolated in this work are common components in essential oils. In our previous research, the essential oil of Dendranthema indicum were extracted, and then the same three isolated compounds (1,8-cineole, chamazulene, and β-caryophyllene) were also isolated [45]. In this essential oil, monoterpenoids accounting for over 20%, and the proportion of the other three listed monocyclic ones (4-terpineol, α-terpineol, and γ-terpinene) were nearly 7%.
By comparing the structures with their bio-effects, the structure-bioactivity relationships were apparent. The four monoterpenoids shared the same basic parent structure (monoterpenoid skeleton) but with different substitution patterns. As for the fumigant activity, the molecules with oxygen bridges between the ring and the substituent group (1,8-cineole) had less fumigant toxicity than the one branched chain oxygenous groups (α-terpineol), but more effective than the compounds that had oxygenous groups linked to the saturated carbon ring directly (4-terpineol). However, for 1,8-cineole, the compounds with oxygen bridges had the weakest contact toxicity than the other monoterpenoids. 4-Terpineol had oxygenous groups linked to the saturated carbon ring directly, which possessed the highest contact toxity. For the repellent activities against L. serricorne adults, the monoterpenoid without the substitutional group (γ-terpinene) had the relatively weakest effects. Overall, the activities of the monoterpenoids might depend on the number and position of the oxygenous groups. This result may have implications for the chemical structural modification of leading compounds.

3.3. Characteristics of Chamazulene

Among the three isolated compounds, chamazulene is a quite special one. Converted by nonvolatile sesquiterpene lactone matricin, this compound is formed during distillation. It is a bicyclic C14 aromatic hydrocarbon with system of conjugated double bonds, which the essential oil appears as a deep blue color [46].
Chamazulene has a variety of pharmacological activities, such as an anti-inflammatory and antioxidant [46,47]. Its insecticide activity was also proven in our earlier study, which had contact activity against Stegobium paniceum and Tribolium castaneum (LD50 = 4.30 and 29.52 µg/adult), respectively [45]. Its fumigant, contact, and repellent effects against the cigarette beetle are found for the first time. Furthermore, chamazulene is a characteristic composition from German chamomile and some chemotypes of yarrow [46]. However, there were few records about this compound in Artemisia in China. Here, the chamazulene accounts for over 40% of the essential oil, which suggests A. lavandulaefolia is a valuable plant resource.
As early as 2010, Dr. Yuan had already analyzed the bioactivity, mechanism, and security of the essential oil from A. lavandulaefolia systematically, and demonstrated the prospects of this plant’s resource development [48]. This work finds the essential oil of the above-ground portion of A. lavandulaefolia and its main compounds had toxic effects to L. serricorne adults. Further studies will continue to explore more chemical constituents in this plant.

4. Materials and Methods

4.1. Material

4.1.1. Chemicals

Silica gel (160–200 or 200–300 mesh, Qingdao Marine Chemical Plant, Qingdao, China), were used for column chromatography (CC), and silica gel G (Qingdao Marine Chemical Plant, China) was used for TLC. DEET (positive control in repellent test) and C5–C36 n-alkanes were purchased from Innochem, China. Fluon (Beijing Sino-Rich Co., Beijing, China) was used as an escape-proof coating.

4.1.2. Plants

Artemisia lavandulaefolia were grown in Jining City (35.23° N latitude and 116.33° E longitude), Shandong Province, China. Its above-ground portion (10.0 kg) of collected in October 2013. The sample were air-dried for one week.

4.1.3. Insects

Lasioderma serricorne were reared in jars containing diets (wheat feed/yeast, 10:1, w/w) in incubators in the dark (29 ± 1 °C, 70–80% r.h.). All the insects used in all the experiments were about 5 ± 2 days old regardless of gender.

4.3. Extraction and Analysis of the Essential Oil

The oil was hydrodistilled for 6 h using a modified Clevenger-type apparatus and then stored in an airtight container in a refrigerator at 4 °C. Analysis of the essential oil by Gas Chromatography-Mass Spectrometer (GC-MS) and Gas Chromatography-Flame Ionization Detector (GC-FID) was conducted on a Thermo Finnigan Trace DSQ instrument (Waltham, MA, USA) equipped with a flame ionization detector and an HP-5MS capillary column (30 m × 0.25 mm × 0.25 μm). The carrier gas was helium and the flow rate was 1.0 mL/min. The injector temperature was maintained at 250 °C. The essential oils were diluted to 1% with n-hexane and 1 µL was injected into the gas chromatograph. Spectra were scanned from 50 to 550 m/z. Most constituents was identified by comparison of their mass spectra with those stored in libraries (NIST 05, Standard Reference Data, Gaithersburg, MD, USA and Wiley 275, Wiley, New York, NY, USA) [49]. Further identification were identified by comparison of their retention indices with those reported in the literature. The retention indices were determined in relation to a homologous series of n-alkanes (C5–C36) under the same operating conditions. Relative percentages of each oil component were determined by GC-FID via the percentage peak area calculations.

4.4. Purification of Three Compounds

The essential oil (10 mL) was chromatographed on a silica gel column (50 × 500 mm) by eluting with petroleum ether first, then with petroleum ether-ethyl acetate, and last with ethyl acetate. Fractions (200 mL) were collected, and fractions’ profiles were combined to yield 38 fractions on the basis of Thin Layer Chromatography (TLC) analysis. Three fractions (3–8, 10–15, 20–26) were further purified until the pure compounds for determining structure as chamazulene (2.42 g), 1,8-cineole (0.95 g), and β-caryophyllene (0.63 g) were obtained. The isolated compounds were elucidated based on NMR. 1H- and 13C-NMR spectra were recorded on Bruker Avance DRX 500 instruments using CDCl3 as the solvent, with tetramethylsilane (TMS) as the internal standard.

4.5. Bioactivity Assay

4.5.1. Fumigant Toxicity

The fumigant activity assay references the testing method of Liu and Ho [50]. The essential oil and chamazulene were tested in this work. The data of other compounds were not. They were obtained from other papers by our research group. A Whatman filter paper (diameter 2.0 cm) was put inside of the screw cap of a glass vial (diameter 2.5 cm, height 5.5 cm, volume 25 mL). Each paper was impregnated with a 10 μL dilution (serial diluted to five concentrations by n-hexane). Then the cap was placed tightly on the glass vial (contained 10 insects). n-Hexane was used as a control. Five replicates were carried out for all treatments and controls. The insects were considered dead if their appendages did not move when probed with a camel brush after 24 h. The LC50 values were calculated using Probit analysis [51].

4.5.2. Contact Toxicity

The contact toxicity was also measured as topical application method proposed by Liu and Ho [50]. Serial dilutions of the essential oil and chamazulene (five concentrations) were prepared in n-hexane. Dilutions (aliquots of 0.5 μL) were applied topically to the dorsal thorax of the insects. Five replicates were carried out for all treatments and controls (using n-hexane). Fifty adults in replicates with ten insects per replication were treated for the control and for each concentration of the samples. Mortality was recorded after 24 h and the LD50 values were calculated using Probit analysis [51]. The contact toxicity of other compounds were quoted from other works by our research team.

4.5.3. Repellency Tests

The area preference method were using to test the repellent activity [52]. Five solutions (78.63, 15.83, 3.15, 0.63, and 0.13 nL/cm2) were prepared by diluting the essential oil and the six comstituents with n-hexane. Each solution was applied to half a filter-paper disc as uniformly as possible with a micropipette. Petri dishes (9 cm in diameter) were used to confine cigarette beetles during the experiment. Filter paper (9 cm in diameter) was cut in half. The other half (control) was treated with 500 μL n-hexane. Both the two halves were then air-dried to evaporate the solvent completely. The tested and control halves were attached with solid glue to carefully remake a full disk . Twenty adult beetles of mixed sex were released separately at the center of each filter paper disc. The dishes were then covered and transferred to an incubator at room temperature. Ten replications were used for each concentration. After twenty insects were released on the center of each filter paper disk, the dishes were then covered and transferred to the incubator. The experiment was repeated three times. Observations on the number of insects present on both the treated (Nt) and untreated (Nc) halves were recorded after 2 and 4 h. The percent repellency (PR) was then calculated using the formula:
PR (%) = [(Nc − Nt)/(Nc + Nt)] × 100
The percentage was subjected to an arcsine square-root transformation. By using SPSS 20.0 (IBM, New York, NY, USA), analysis of variance (One-Way ANOVA) and Tukey’s test were conducted.

5. Conclusions

In this paper, we reported three isolated compounds from the essential oil of the above-ground portion of A. lavandulaefolia and their activities against cigarette beetles for the first time. Our work finds chamazulene was abundant in A. lavandulaefolia essential oil and exhibited contact and repellent effects. As valuable resources, A. lavandulaefolia and chamazulene deserves further development.

Acknowledgments

This project was supported by Guangxi Science and Technology Development Plan (No. 15118004) and Guangxi Technical Innovation Project (No. [2017]271). The authors thank Liu, Q.R. (College of Life Sciences, Beijing Normal University, Beijing, China) for identifying the plant.

Author Contributions

J.Z., S.D., and K.Z. conceived and designed the experiments; W.Z. and Y.W. performed the experiments; S.G., H.L., and J.S. analyzed the data; A.B. and J.L. contributed materials and analysis tools; W.Z. and S.G. wrote the paper; and D.H. revised the whole passage.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. Percentage repellency (PR) after two exposure times (2 h and 4 h) for the essential oil and its constituents against L. serricorne adults a.
Table A1. Percentage repellency (PR) after two exposure times (2 h and 4 h) for the essential oil and its constituents against L. serricorne adults a.
TimesTreatmentsConcentrations (nL/cm2)
78.6315.833.150.630.13
2 hA. lavandulaefolia82 ± 15 c48 ± 11 abc22 ± 18 a16 ± 19 ab−8 ± 9 a
4-Terpineol88± 7 c36 ± 11ab46 ± 19 ab6 ± 9 a−12 ± 16 a
α-Terpineol78 ± 2 bc82 ± 14 c72 ± 11 b50 ± 9 bc22 ± 9 b
γ-Terpinene24 ± 7 a20 ± 13 a20 ± 13 a18 ± 16 abc16 ± 11 b
1,8-Cineole60 ± 12 abc80 ± 13 c28 ± 11 ab62 ± 13 c46 ± 12 b
Chamazulene68 ± 13 bc50 ± 12 abc20 ± 12 a34 ± 14 abc26 ± 21 b
β-Caryophyllene42 ± 17 ab22 ± 15 a20 ± 17 a36 ± 16 abc−20 ± 10 b
DEET88 ± 7 c76 ± 14 bc28 ± 7 ab20 ± 14 abc16 ± 7 b
4 hA. lavandulaefolia92 ± 6 c54 ± 15 ab10 ± 18 a6 ± 20 a16 ± 12 a
4-Terpineol78 ± 13 c26 ± 20 a44 ± 15 bc42 ± 18 b34 ± 17 a
α-Terpineol80 ± 12 c76 ± 12 b66 ± 12 c52 ± 19 b30 ± 13 a
γ-Terpinene32 ± 4 ab40 ± 13 ab46 ± 9 bc36 ± 15 ab20 ± 14 a
1,8-Cineole82 ± 9 c60 ± 12 ab36 ± 12 bc50 ± 10 b76 ± 9b
Chamazulene74 ± 12 bc34 ± 16 a42 ± 19 ab36 ± 17 bc44 ± 20 ab
β-Caryophyllene34 ± 10 a22 ± 14 a20 ± 9 ab56 ± 20 b−22 ± 12 a
DEET98 ± 4 c78 ± 9 b58 ± 16 bc56 ± 14 b46 ± 7 ab
a Means in the same column (2 h and 4 h, respectively) followed by the same letters do not differ significantly (p > 0.05) in ANOVA and Tukey’s tests. PR was subjected to an arcsine square-root transformation before ANOVA and Tukey’s tests.

References

  1. Kim, M.; Yang, J.; Lee, H. Phototactic behavior: Repellent effects of cigarette beetle, Lasioderma serricorne (Coleoptera: Anobiidae), to light-emitting diodes. J. Korean Soc. Appl. Biol. Chem. 2013, 56, 331–333. [Google Scholar] [CrossRef]
  2. Hill, D.S. Pests of Stored Products and Their Control; Belhaven Press: London, UK, 1990; p. 274. [Google Scholar]
  3. Hori, M. Repellency of essential oils against the cigarette beetle, Lasioderma serricorne (Fabricius) (Coleoptera: Anobiidae). Appl. Entomol. Zool. 2003, 38, 467–473. [Google Scholar] [CrossRef]
  4. Baur, F.J. Chemical methods to control insect pests of processed foods. In Ecology and Management of Food Industry Pests; Gorham, J.R., Ed.; FDA Technical Bulletin; Association of Official Analytical Chemists: Gaithersburg, MD, USA, 1991; Volume 4, pp. 1–2. [Google Scholar]
  5. Reed, W.D.; Vinzant, J.P. Control of insects attacking stored tobacco and tobacco products. United States department of agriculture, division of truck crop and garden insect investigations. Bureau of entomology and plant quarantine. Circular 1942, 635, 5–6. [Google Scholar]
  6. Phillips, T.W.; Throne, J.E. Bioragional approaches to managing stored-product insects. Annu. Rev. Entomol. 2010, 55, 375–397. [Google Scholar] [CrossRef] [PubMed]
  7. Isman, M.B. Botanical insecticides, deterrents, and repellents in modern agriculture and an increasingly regulated world. Annu. Rev. Entomol. 2006, 51, 45–66. [Google Scholar] [CrossRef] [PubMed]
  8. Rajendran, S.; Sriranjini, V. Plant products as fumigants for stored-product insect control. J. Stored Prod. Res. 2008, 44, 126–135. [Google Scholar] [CrossRef]
  9. Ahmadi, M.; Abd-alla, A.M.M.; Moharramipour, S. Combination of gamma radiation and essential oils from medicinal plants in managing Tribolium castaneum contamination of stored products. Appl. Radiat. Isot. 2013, 78, 16–20. [Google Scholar] [CrossRef] [PubMed]
  10. Becnel, J.J.; Tsikolia, M.; Bernier, U.R.; Tabanca, N.; Baser, K.H.; Wedge, D.E.; Agramonte, N.M.; Sakhanokho, H.F.; Sampson, B.J.; Demirci, B. Chemical composition, antifungal and insecticidal activities of Hedychium essential Oils. Molecules 2013, 18, 4308–4327. [Google Scholar]
  11. Chu, S.S.; Liu, S.L.; Liu, Q.Z.; Jiang, G.H.; Liu, Z.L. Chemical composition and insecticidal activities of the essential oil of the flowering aerial parts of Aster ageratoides. J. Serbian Chem. Soc. 2013, 78, 209–216. [Google Scholar] [CrossRef]
  12. Fang, R.; Jiang, C.H.; Wang, X.Y.; Zhang, H.M.; Liu, Z.M.; Zhou, L.; Du, S.S.; Deng, Z.W. Insecticidal activity of essential oil of Carum carvi fruits from China and its main components against two grain storage insects. Molecules 2010, 15, 9391–9402. [Google Scholar] [CrossRef] [PubMed]
  13. Liang, Y.; Li, J.L.; Xu, S.; Zhao, N.N.; Zhou, L.; Cheng, J.; Liu, Z.L. Evaluation of repellency of some Chinese medicinal herbs essential oils against Liposcelis bostrychophila (Psocoptera: Liposcelidae) and Tribolium castaneum (Coleoptera: Tenebrionidae). J. Econ. Entomol. 2013, 106, 513–519. [Google Scholar] [CrossRef] [PubMed]
  14. Liu, Z.L.; Du, S.S. Fumigant components from the essential oil of Evodia rutaecarpa Hort unripe fruits. Eur. J. Chem. 2011, 8, 1937–1943. [Google Scholar]
  15. Liu, Z.L.; Zhao, N.N.; Liu, C.M.; Zhou, L.; Du, S.S. Identification of insecticidal constituents of the essential oil of Curcuma wenyujin rhizomes active against Liposcelis bostrychophila Badonnel. Molecules 2012, 17, 12049–12060. [Google Scholar] [CrossRef] [PubMed]
  16. Liu, Z.L.; Liu, S.L.; Yang, K.; Chu, S.S.; Liu, Q.Z.; Du, S.S. Chemical composition and toxicity of essential oil of Boenninghausenia sessilicarpa (Rutaceae) against two grain storage insects. J. Med. Plants Res. 2014, 6, 2920–2924. [Google Scholar]
  17. Lu, J.; Su, X.; Zhong, J. Fumigant activity of Elsholtzia stauntonii extract against Lasioderma serricorne: Research letter. S. Afr. J. Sci. 2012, 108, 77–79. [Google Scholar] [CrossRef]
  18. Zhang, J.S.; Zhao, N.N.; Liu, Q.Z.; Liu, Z.L.; Du, S.S.; Zhou, L.; Deng, Z.W. Repellent constituents of essential oil of Cymbopogon distans aerial parts against two stored-product insects. J. Agric. Food Chem. 2011, 59, 9910–9915. [Google Scholar] [CrossRef] [PubMed]
  19. Zhou, Q. General Biology; Central China Normal University Press: Wuhan, China, 2006. [Google Scholar]
  20. Wang, Y.; Li, X.; Jiang, Q.; Sun, H.; Jiang, J.; Chen, S.; Guan, Z.; Fang, W.; Chen, F. GC-MS Analysis of the volatile constituents in the leaves of 14 Compositae plants. Molecules 2018, 23, E166. [Google Scholar] [CrossRef] [PubMed]
  21. Abad, M.J.; Bedoya, L.M.; Apaza, L.; Bermejo, P. The Artemisia L. genus: A review of bioactive essential oils. Molecules 2012, 17, 2542–2566. [Google Scholar] [CrossRef] [PubMed]
  22. Bora, K.S.; Sharma, A. The genus Artemisia: A comprehensive review. Pharm. Biol. 2011, 49, 101–109. [Google Scholar] [CrossRef] [PubMed]
  23. Borjigidai, A.; Zhuang, L.; Li, Y.W.; Xi, Y.; Pang, Z.R.; Liu, T.X.; Cui, J. Investigation and application of Artemisia plant resources for Chinese medicine and Mongolian medicine in inner Mongolia. Liaoning Tradit. Chin. Med. J. 2013, 40, 770–774. [Google Scholar]
  24. Liu, Z.L.; Liu, Q.R.; Chu, S.S.; Jiang, G.H. Insecticidal activity and chemical composition of the essential oils of Artemisia lavandulaefolia and Artemisia sieversiana from China. Chem. Biodivers. 2010, 7, 2040–2045. [Google Scholar] [CrossRef] [PubMed]
  25. Liu, Z.L.; Chu, S.S.; Liu, Q.R. Chemical composition and insecticidal activity against Sitophilus zeamais of the essential oils of Artemisia capillaris and Artemisia mongolica. Molecules 2010, 15, 2600–2608. [Google Scholar] [CrossRef] [PubMed]
  26. Chu, S.S.; Liu, Z.L.; Du, S.S.; Deng, Z.W. Chemical composition and insecticidal activity against Sitophilus zeamais of the essential oils derived from Artemisia giraldii and Artemisia subdigitata. Nat. Prod. Commun. 2012, 17, 7255–7265. [Google Scholar] [CrossRef] [PubMed]
  27. You, C.X.; Guo, S.S.; Zhang, W.J.; Yang, K.; Geng, Z.F.; Du, S.S.; Wang, C.F.; Deng, Z.W. Identification of repellent and insecticidal constituents from Artemisia mongolica essential oil against Lasioderma serricorne. J. Chem. 2015, 2015, 1–7. [Google Scholar]
  28. Liang, J.Y.; Wang, W.T.; Zheng, Y.F.; Zhang, D.; Wang, J.L.; Guo, S.S.; Zhang, W.J.; Du, S.S.; Zhang, J. Bioactivities and chemical constituents of essential oil extracted from Artemisia anethoides against two stored product insects. J. Oleo Sci. 2017, 66, 71–76. [Google Scholar] [CrossRef] [PubMed]
  29. Tripathi, A.K.; Prajapati, V.; Aggarwal, K.K.; Khanuja, S.P.S.; Kumar, S. Repellency and toxicity of oil from Artemisia annua to certain stored-product beetles. J. Econ. Entomol. 2000, 93, 43–47. [Google Scholar] [CrossRef] [PubMed]
  30. Zhang, W.J.; Yang, K.; You, C.X.; Wang, Y.; Wang, C.F.; Wu, Y.; Geng, Z.F.; Su, Y.; Du, S.S.; Deng, Z.W. Bioactivity of essential oil from Artemisia stolonifera (Maxim.) Komar. and its main compounds against two stored-product insects. J. Oleo Sci. 2015, 64, 299–307. [Google Scholar] [CrossRef] [PubMed]
  31. Zhang, W.J.; You, C.X.; Yang, K.; Chen, R.; Wang, Y.; Wu, Y.; Geng, Z.F.; Chen, H.P.; Jiang, H.Y.; Su, Y.; et al. Bioactivity of essential oil of Artemisia argyi Lévl. et Van. and its main compounds against Lasioderma serricorne. J. Oleo Sci. 2014, 63, 829–837. [Google Scholar] [CrossRef] [PubMed]
  32. Yuan, H.B.; Liu, Y.; Ding, Y.J.; Wang, J.; Li, Y.S. Effects of essential oil from Artemisia lavandulaefolia DC. on fumigation activity and several enzymes activities of Monolepta hieroglyphica (Motschulsky) Adults. J. Jilin Agric. Univ. 2014, 36, 30–35. [Google Scholar]
  33. Han, X.B.; Xie, X.K.; Qiao, R.X. Toxicity test for Lymantria dispar from five Artenisia species. Forest. By-Prod. Spec. China 2011, 12, 14–17. [Google Scholar]
  34. Yuan, H.B.; Shang, L.N.; Wei, C.Y.; Ren, B.Z. Comparison of constituents and insecticidal activities of essential oil from Artemisia lavandulaefolia by steam distillation and supercritical-CO2 Fluid Extraction. Chem. Res. Chin. Univ. 2010, 26, 888–892. [Google Scholar]
  35. Wang, X.S. Study on the Fumigation Activity of Three Plant Essential Oils of Artemisia and Ethyl Formate against Two Stored Grain Insects. Master’s Thesis, Northeast Normal University, Changchun, China, 2012. [Google Scholar]
  36. Adam, K.P.; Zapp, J. Biosynthesis of the isoprene units of chamomile sesquiterpenes. Phytochem. 1998, 48, 953–959. [Google Scholar] [CrossRef]
  37. Ragasa, C.Y.; Espineli, D.L.; Agoo, E.; Del Fierro, R.S. Chemical constituents of Cinnamomum cebuense. Chin. J. Nat. Med. 2013, 11, 264–268. [Google Scholar] [CrossRef]
  38. Ashnagar, A.; Naseri, N.G.; Bayemani, A. Isolation and determination of the major chemical compounds present in essential oil of the leaves of Myrtus plant grown in Khuzestan Province of Iran. Asian J. Chem. 2009, 21, 4969–4975. [Google Scholar]
  39. Wang, Y.; You, C.X.; Yang, K.; Wu, Y.; Chen, R.; Zhang, W.J.; Liu, Z.L.; Du, S.S.; Deng, Z.W.; Geng, Z.F.; et al. Bioactivity of essential oil of Zingiber purpureum rhizomes and its main compounds against two stored product insects. J. Econ. Entomol. 2015, 108, 925–932. [Google Scholar] [CrossRef] [PubMed]
  40. Yang, K.; Wang, C.F.; You, C.X.; Geng, Z.F.; Sun, R.Q.; Guo, S.S.; Du, S.S.; Liu, Z.L.; Deng, Z.W. Bioactivity of essential oil of Litsea cubeba from China and its main compounds against two stored product insects. J. Asia-Pac. Entomol. 2014, 17, 459–466. [Google Scholar] [CrossRef]
  41. Cha, J.D.; Jeong, M.R.; Choi, H.J.; Jeong, S.I.; Moon, S.E.; Yun, S.I.; Kim, Y.H.; Kil, B.S.; Song, Y.H. Chemical composition and antimicrobial activity of the essential oil of Artemisia lavandulaefolia. Planta Medica 2005, 71, 575–577. [Google Scholar] [CrossRef] [PubMed]
  42. Suleimenov, E.M.; Ozek, T.; Demirci, B.; Baser, K.H.C.; Adekenov, S.M. Component composition of essential oils of Artemisia lercheana and A. sieversiana of the flora of Kazakhstan. Antimicrobial activity of A. sieversiana essential oil. Chem. Nat. Compd. 2009, 45, 120–123. [Google Scholar] [CrossRef]
  43. Carnat, A.P.; Madesclaire, M.; Chavignon, O.; Lamaison, J.L. cis-Chrysanthenol, a main component in essential oil of Artemisia absinthium L. growing in Auvergne (Massif Central), France. J. Essent. Oil Res. 1992, 4, 487–490. [Google Scholar] [CrossRef]
  44. Raal, A.; Orav, A.; Arak, E. Essential oil content and composition in commercial Achillea millefolium L. herbs from different countries. J. Essent. Oil Bear. Plants. 2012, 15, 22–31. [Google Scholar] [CrossRef]
  45. Zhang, W.J.; You, C.X.; Yang, K.; Wang, Y.; Su, Y.; Geng, Z.F.; Du, S.S.; Wang, C.F.; Deng, Z.W.; Wang, Y.Y. Bioactivity and chemical constituents of the essential oil from Dendranthema indicum (L.) Des moul. against two stored insects. J. Oleo Sci. 2015, 64, 553–560. [Google Scholar] [CrossRef] [PubMed]
  46. Chizzola, R. Regular Monoterpenes and Sesquiterpenes (Essential Oils); Springer: Berlin/Heidelberg, Germany, 2013. [Google Scholar]
  47. Capuzzo, A.; Occhipinti, A.; Maffei, M.E. Antioxidant and radical scavenging activities of chamazulene. Nat. Prod. Res. 2014, 28, 2321–2323. [Google Scholar] [CrossRef] [PubMed]
  48. Yuan, H.B. Biology Activity, Mechanism and Security of Essential Oil from Artemisia lavandulaefolia DC. Ph.D. Thesis, Northeast Normal University, Changchun, China, 2010. [Google Scholar]
  49. Adam, R.P. Identification of essential oil components by gas chromatography/quadrupole mass spectrometry. J. Am. Soc. Mass Spectrom. 2005, 16, 1902–1903. [Google Scholar]
  50. Liu, Z.L.; Ho, S.H. Bioactivity of the essential oil extracted from Evodia rutaecarpa Hook f. et Thomas against the grain storage insects, Sitophilus zeamais Motsch and Tribolium castaneum (Herbst). J. Stored Prod. Res. 1999, 35, 317–328. [Google Scholar] [CrossRef]
  51. Sakuma, M. Probit analysis of preference data. Appl. Entomol. Zool. 1998, 33, 339–348. [Google Scholar] [CrossRef]
  52. Nerio, L.S.; Olivero-Verbel, J.; Stashenko, E. Repellent activity of essential oils: A review. Bioresour. Technol. 2010, 101, 372–378. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Not available.

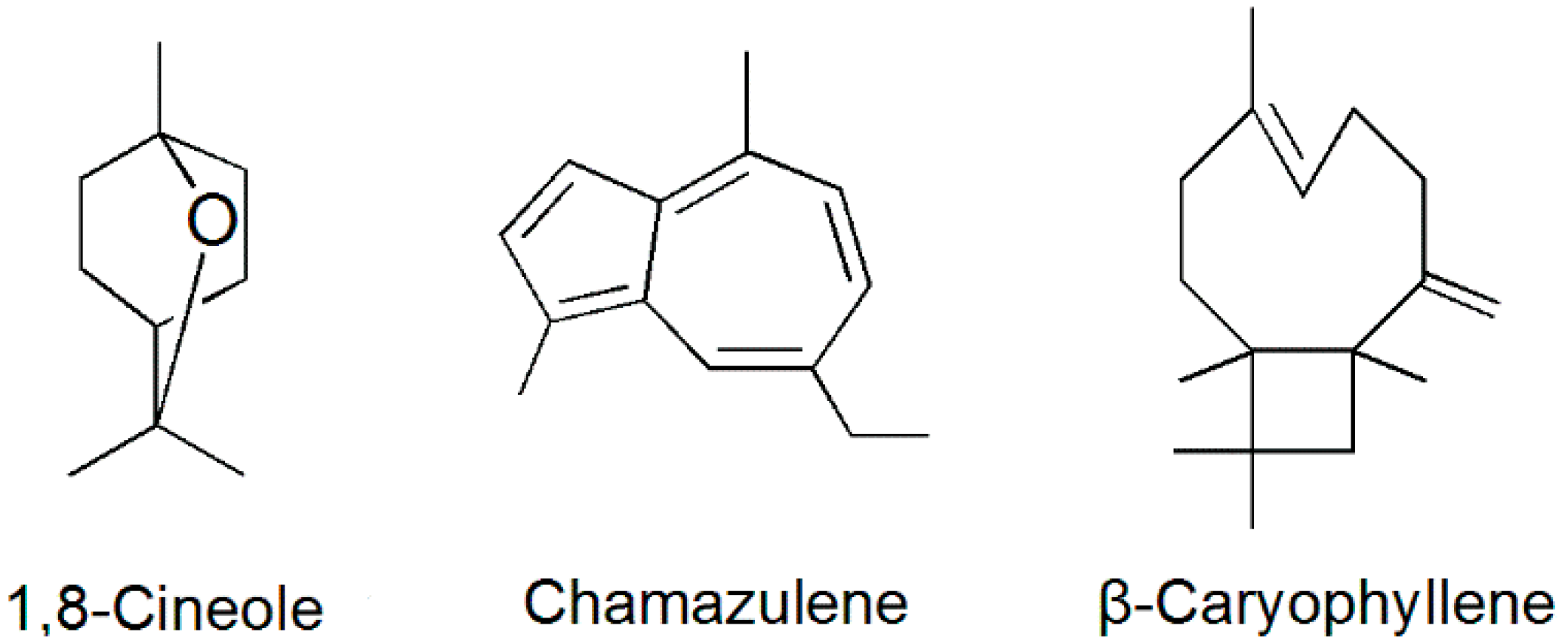

Figure 1. Chemical structures of the three most abundant compounds isolated from the essential oil.
Figure 1. Chemical structures of the three most abundant compounds isolated from the essential oil.
Molecules 23 00343 g001

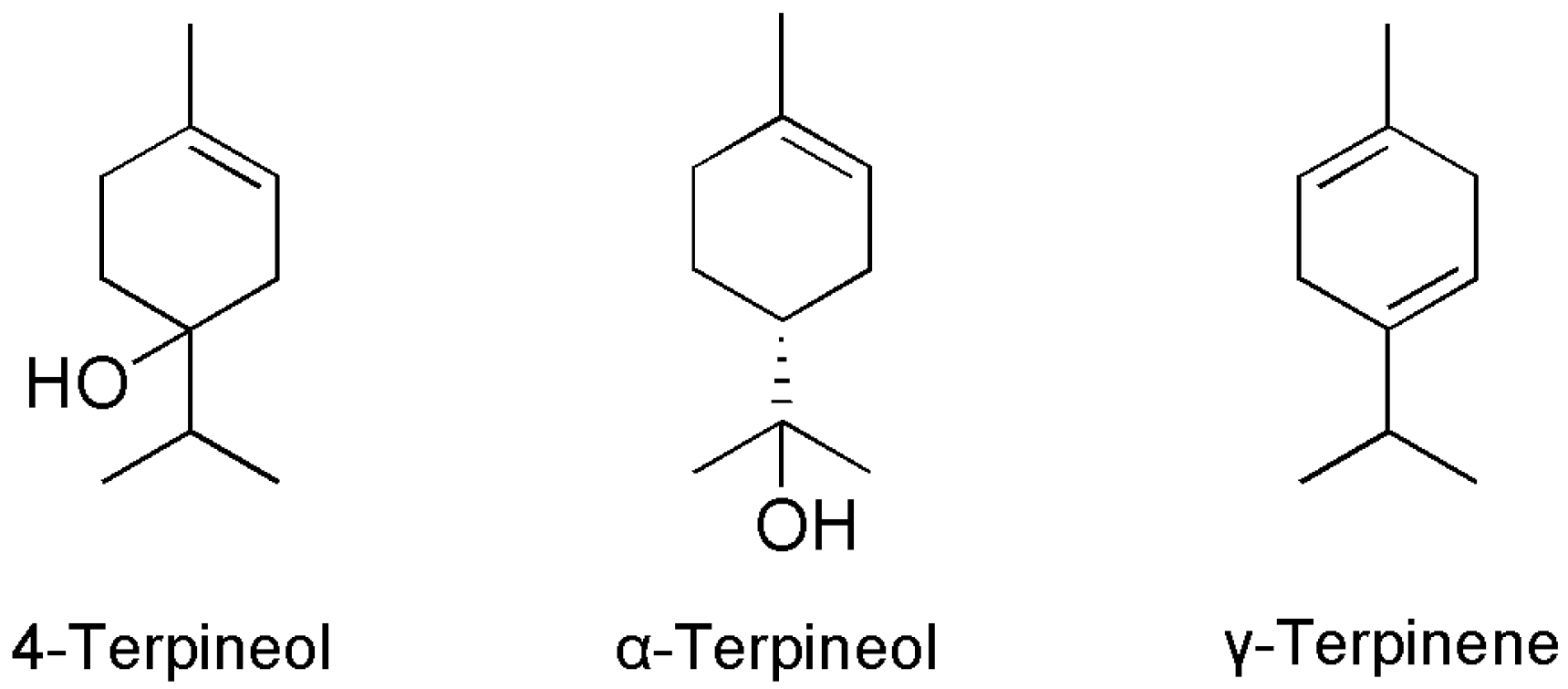

Figure 2. The other three monoterpenoids from the essential oil of A. lavandulaefolia.
Figure 2. The other three monoterpenoids from the essential oil of A. lavandulaefolia.
Molecules 23 00343 g002

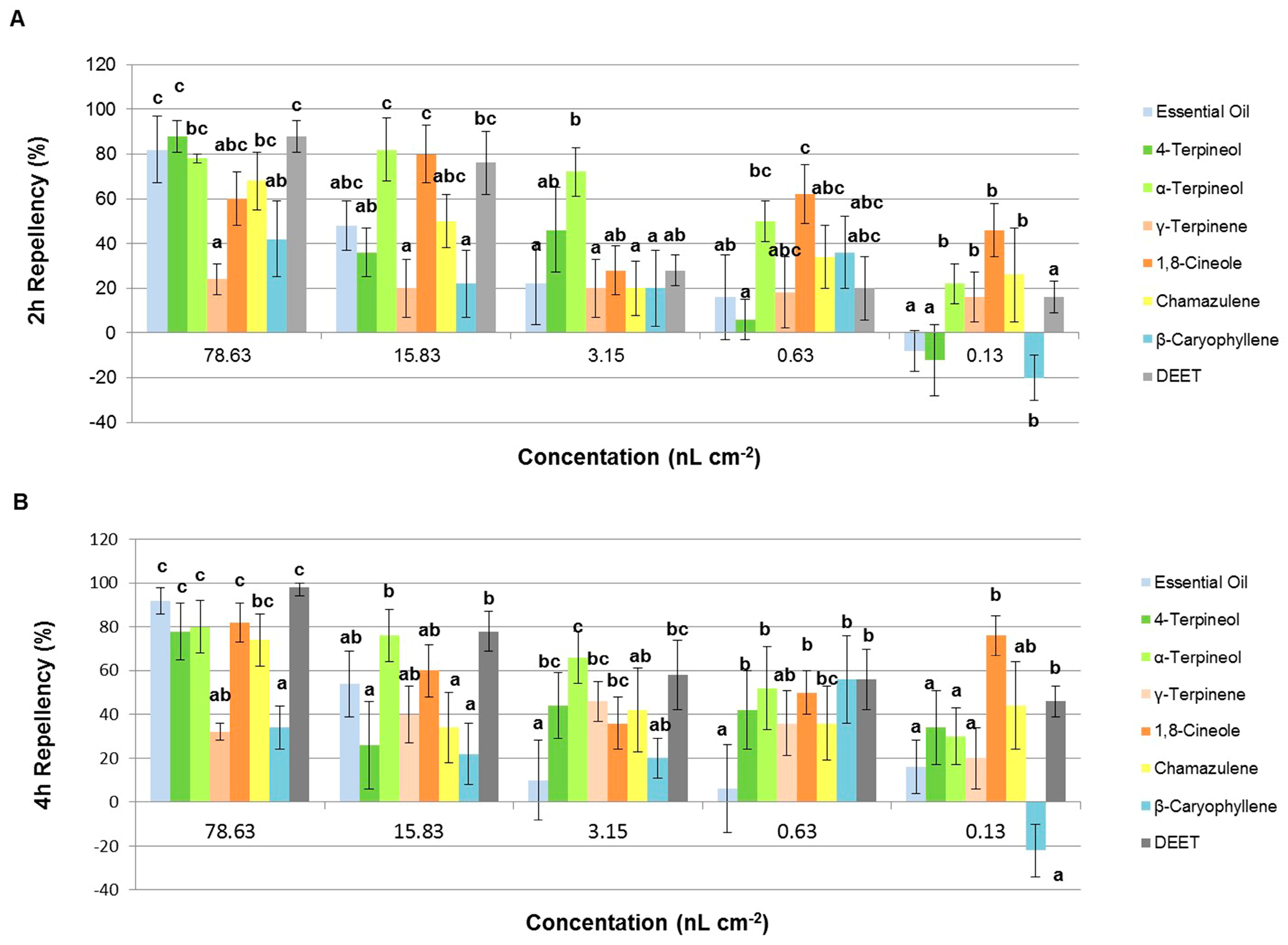

Figure 3. Percentage repellency (PR) of the essential oil and its main constituents against L. serricorne after 2 h (A) and 4 h (B) treatment. Means in the same column followed by the same letters do not differ significantly (p > 0.05) in ANOVA and Tukey’s tests. PR was subjected to an arcsine square-root transformation before ANOVA and Tukey’s tests.
Figure 3. Percentage repellency (PR) of the essential oil and its main constituents against L. serricorne after 2 h (A) and 4 h (B) treatment. Means in the same column followed by the same letters do not differ significantly (p > 0.05) in ANOVA and Tukey’s tests. PR was subjected to an arcsine square-root transformation before ANOVA and Tukey’s tests.
Molecules 23 00343 g003
Table 1. Results of chemical composition of the essential oil.
Table 1. Results of chemical composition of the essential oil.
Peak No.ComponentsRI aRA b (%)Identification Methods c
1p-Xylene8600.6MS, RI
2Santolina triene9001.9MS, RI
3β-Pinene9741.5MS, RI
4o-Cymene10140.1MS, RI
51,8-Cineole103116.0MS, RI, NMR
6γ-Terpinene10560.6MS, RI, Co
7Sabinenehydrate10711.1MS, RI
8Isoterpinolene10850.1MS, RI
9Camphor11430.3MS, RI
104-Terpineol11754.0MS, RI, Co
11α-Terpineol11882.0MS, RI, Co
12γ-Elemene13970.8MS, RI
13β-Caryophyllene145111.5MS, RI, NMR
14α-Caryophyllene14540.9MS, RI, Co
15β-Farnesene14575.3MS, RI
16Germacrene D14792.7MS, RI
17Valencene 15041.3MS, RI
18Spathulenol15231.1MS, RI
19Caryophylladienol II16440.4MS, RI
20Chamazulene173540.4MS, RI, NMR
Total 92.6
a Retention index (RI) relative to the homologous series of n-hydrocarbons on the HP-5 MS capillary column; b Relative area (peak area relative to the total peak area); c MS = mass spectrum. Co = co-injection with standard compound. NMR = nuclear magnetic resonance.
Table 2. Results of insecticidal effects of essential oil and its main components against L. serricorne adults.
Table 2. Results of insecticidal effects of essential oil and its main components against L. serricorne adults.
ToxicitiesTreatmentsConcentrations (%)LC50 e (μg/mL Air); LD50 f (μg/adult)95% FL g (μg/mL Air); (μg/Adult)χ2p-Value
FumigantA. lavandulaefolia3.95–20.0031.8128.17–35.926.460.985
4-Terpineol a1.98–10.006.906.04–7.8424.840.963
α-Terpineol a1.98–10.003.273.17–3.388.390.998
γ-Terpinene b1.98–10.0011.9310.54–13.518.340.998
1,8-Cineole c0.99–5.005.184.63–5.7016.790.951
Chamazulene0–50.00
β-Caryophyllene c0–50.00
Phosphine d7.20 × 10−3–11.12 × 10−39.23 × 10−37.13 × 10−3–11.37 × 10−311.960.971
ContactA. lavandulaefolia1.98–10.0013.5111.51–15.405.780.982
4-Terpineol a0.99–5.008.627.38–9.8512.650.976
α-Terpineol a0.59–3.0011.9910.42–13.4218.960.703
γ-Terpinene b1.98–10.0014.1311.82–16.3913.360.944
1,8-Cineole c1.98–10.0015.5812.88–18.0215.180.935
Chamazulene1.98–10.0015.1813.31–17.026.390.961
β-Caryophyllene c3.95–20.0035.5231.89–39.5415.410.927
Pyrethrins d0.01–0.400.240.16–0.3517.360.791
a Data from You et al. [27]; b Data from Wang et al. [39]; c Data from Zhang et al. [31]; d Data from Yang et al. [40]; e 50% of Lethal Concentration; f 50% of Lethal Dose; g Fiducial Limits.

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
