Rapid Characterization and Identification of Chemical Constituents in Gentiana radix before and after Wine-Processed by UHPLC-LTQ-Orbitrap MSn

by
Xin Lv
,
Jian-Zhi Sun
,
Shi-Zhao Xu
,
Qian Cai
* and
Yu-Qiang Liu
Department of Medicine, Liaoning University of Traditional Chinese Medicine, Dalian 116600, China
*
Author to whom correspondence should be addressed.
Molecules 2018, 23(12), 3222; https://doi.org/10.3390/molecules23123222
Submission received: 8 November 2018 / Revised: 2 December 2018 / Accepted: 3 December 2018 / Published: 6 December 2018
(This article belongs to the Special Issue Biological Sample Analysis by Liquid Chromatography)
Browse Figures
Versions Notes

Abstract

:
Gentiana radix is used in traditional Chinese medicine and has functions of clearing heat and drying dampness, as well as purging liver and gallbladder fire. A highly sensitive and effective strategy for rapid screening and identification of target constituents has been developed by using ultra high-performance liquid chromatography coupled with linear ion trap-Orbitrap mass spectrometry (UHPLC-LTQ-Orbitrap) in crude and wine-processed Gentiana radix. Based on the accurate mass measurement (<5 ppm), retention times, and MS fragmentation ions, 52 constituents were unambiguously or tentatively characterized from Gentiana radix, including 21 iridoids, 11 flavonoids, 19 xanthones, and a triterpenoid. This study demonstrated that the established method could be a rapid, effective analytical tool for screening and characterization of compounds in the complex systems of Gentiana radix. By comparing the structure and peak areas of chemical constituents in crude and wine-processed Gentiana radix, we found that some compounds in crude and wine-processed Gentiana radix were significantly different.

1. Introduction

Gentiana radix is the dried root and rhizome of Gentiana manshurica Kitag., Gentiana radix Bge., Gentiana triflora Pall. and Gentiana rigescens Franch. [1]. Gentiana radix is mainly distributed in Heilongjiang, Jilin, Liaoning, Nei Monggol, Zhejiang, Jiangsu, Guangdong, Yunnan, Xinjiang, etc. [2]. Gentiana radix is commonly employed to treat various diseases. For instance, Gentiana radix could be used for treating heat jaundice, pruritus and swells of vulvaered, morbid leucorrhea, eczema, tinnitus, epicophosis, hypochondriac pain, invigorating stomach and convulsions. Modern pharmacological studies have demonstrated that Gentiana radix possesses various biological activities, including anti-inflammatory, anti-oxidative and antiviral [3,4]. Gentiana radix has complicated chemical constituents, including iridoid glycoside, flavonoid glycoside, xanthones, triterpenoids, alkaloids, and so on. Among them, iridoid glycoside, flavonoid glycoside and xanthones are considered the main constituents [5]. There are many processing methods involving Gentiana radix recorded in history, such as wine-processing, bile-processing, honey-processing and ginger-processing [6,7,8]. And now crude and wine-processed Gentiana radix is widely used in clinical practice. According to traditional theory, wine-processing could make the function of the drug move upward, and wine-processing alleviated the bitterness and coldness of crude Gentiana radix. Physical and chemical changes have taken place in the medicinal materials after being wine-processed so that it would lead to changes in the content and types of chemical constituents [9].
In recent years, high-resolution mass spectrometry (HRMS) and linear ion trap-Orbitrap mass spectrometer (LTQ-Orbitrap) have been exhibiting excellent (i.e. fast and sensitive) performance in traditional Chinese medicines (TCMs) extracts [10,11]. The hybrid linear ion trap-Orbitrap mass spectrometer (LTQ-Orbitrap) has high quality resolution and mass accuracy (within 5 ppm), it combines the high trapping capability with MSn and scanning capability of a linear ion trap [12,13]. LTQ-Orbitrap allows the effective detection of a large amount of data about chemical constituents, and it includes exact mass, elemental compositions, fragmentation pathways, etc. [14]. These capabilities play a vital role in effectively identifying and analyzing the complicated constituents of TCMs. In this paper, a method with UHPLC-LTQ-Orbitrap was established to comprehensively analyze the constituents in Gentiana radix, and this method is applied to the comparative study of the constituents in crude and wine-processed Gentiana radix. Fifty-two constituents were identified, the similarities and differences of the constituents in Gentiana before and after wine processing were determined.

2. Results and Discussion

2.1. Identification of the Constituents by UHPLC-LTQ-Orbitrap MSn

UHPLC-ESI-LTQ-Orbitrap was employed for comprehensive analysis in positive and negative modes to identify the chemical constituents in Gentiana radix. In order to determine the molecular formula of compounds, it was necessary to compare it with the HRMS molecular formula database built in-home, the high-accuracy protonated precursors with errors less than 5 ppm and related literature. As a result, a total of 52 compounds (Table 1, Figure 1) were screened and identified from Gentiana radix extract, including 21 iridoids, 11 flavonoids, 19 xanthones and a triterpenoid. By comparing the constituents in crude and wine-processed Gentiana radix, the results showed that there were 34 identical chemical constituents in them, 10 constituents characteristic of crude Gentiana radix, and 8 constituents characteristic of wine-processed Gentiana radix. And the peak area of some constituents increased or decreased after Gentiana radix was processed with wine. A typical total ion chromatogram (TIC) of crude and wine-processed Gentiana radix in positive and negative ion mode is showed in Figure 2.

2.1.1. Structural Characterization and Identification of Iridoid

Compound 1 produced the [M + H]+ ion at m/z 229.10652 and 229.10654 (C11H17O5, mass error = 2.314 ppm and 2.227 ppm). In the MS2 spectrum, they all produced ions at m/z 211 [M + H − H2O]+, m/z 193 [M + H − H2O − H2O]+, suggesting the presence of two hydroxyl groups, m/z 211 was identified as the base peak. In addition, all of them produced [M + H − CH3OH]+ and [M + H − CH3OH − CO]+ions at m/z 197 and m/z 169, suggested the presence of carbomethoxy [40]. It yielded a series of ions at m/z 179 [M + H − H2O − CH3OH]+, m/z 151 [M + H − H2O − CH3OH − CO]+, m/z 161 [M + H − H2O − H2O − CH3OH]+, m/z 133 [M + H − H2O − H2O − CH3OH − CO]+. By comparison with the reference standard, compound 1 was predicatively annotated as loganetin.
Compound 2 showed the [M + H]+ ion at m/z 391.12317 and 391.12280 (C16H23O11, mass error = 0.813 ppm and 1.759 ppm). In the MS2 spectrum, m/z 229 [M + H − Glc]+ was identified as the base peak. Other product ions like m/z 373 [M + H − H2O]+, m/z 211 [M + H − H2O − Glc]+ and m/z 193 [M + H − H2O – Glc − H2O]+. The ion at m/z 125 [M − 266]+ was yielded by RDA cleavage fragmentation at 5-position of the O-ring and 7-position of the C-ring. By comparison with the literature data, compound 2 was tentatively identified as eustomoside.
Compound 4 showed the [M + H]+ ion at m/z 405.13898 and 405.13864 (C17H25O11, mass error = 0.390 ppm and 1.229 ppm). It generated a serial of ions at m/z 387 [M + H − H2O]+, m/z 373 [M + H − CH3OH]+, m/z 345 [M + H − CH3OH − CO]+, m/z 243 [M + H − Glc]+, m/z 225 [M + H − Glc − H2O]+, m/z 211 [M + H − Glc − CH3OH]+, m/z 193 [M + H − Glc − CH3OH − H2O]+, m/z 175 [M + H − Glc − CH3OH − H2O − H2O]+ and m/z 165 [M + H − Glc − H2O − CH3OH − CO]+. Thus, compound 4 was tentatively determined as methyl (1S)-1-(d-glucopyranosyloxy)-6,7-dihydroxy-7-methyl-1,6,7,7a-tetrahydrocyclopenta[c]pyran-4-carboxylate.
Compound 5 yielded its quasi-molecular ions [M − H]− at m/z 375.13019 and m/z 375.13022 (mass error = 4.310 ppm and mass error = 4.390 ppm) (C16H23O10), respectively. Both of them generated the same ESI-MS2 ions at m/z 213 [M − H − Glc]−, m/z 195 [M − H − Glc − H2O]−, m/z 169 [M − H − Glc − CO2]−, 151 [M − H − Glc − H2O − CO2]− and m/z 125 [M − H − Glc − 2CO2]− [41]. The proposed spectra of chromatograms of fragmentation MSn of compound 5 is shown in Figure 3, and the proposed fragmentation pathway of compound 5 is shown in Figure 4. So, compound 5 was tentatively determined as loganic acid [42].
Compound 6 showed the [M + Na]+ at m/z 385.14673 and m/z 385.14664 (C16H26O9Na, mass error = 0.450 ppm and mass error = 0.684 ppm). It generated a serial of ions at m/z 367 [M + Na − H2O]+, m/z 357 [M + Na − CO]+, m/z 339 [M + Na − CO − H2O]+, m/z 355 [M + Na − HCOH]+, m/z 223 [M + Na − Glc]+ and m/z 205 [M + H − Glc − H2O]+. By comparison with the reference standard, compound 6 was predicatively annotated as 1-O-d-Glucopyransylampexine.
Compounds 8, 14, and 21 produced their [M − H + HCOOH]− ions at m/z 581.17352 and 581.17328 (C23H33O17, mass error = 3.948 ppm and mass error = 3.535 ppm), 419.11990 and 419.11984 (C17H23O12, mass error = 3.573 ppm and mass error = 3.430 ppm), and 403.12506 and 403.12488 (C17H23O11, mass error = 1.5723 ppm and mass error=1.392 ppm), respectively. All of them generated [M − H]− and [M − H − H2O]− ion at m/z 535, m/z 373, m/z 357, m/z 517, m/z 355, m/z 339, respectively. Compounds 8 and 14 also generated the [M − H − Glc − H2O − CH2]− ion at m/z 341, m/z 179. Compounds 14 and 21 also generated the [M − H − Glc]−, [M − H − Glc − H2O]− and [M − H − neutral molecule]− (RDA) ion at m/z 211, m/z 195, m/z 193, m/z 177, m/z 151, m/z 141, m/z 125. The MS2 ions at m/z 193 (C10H11O5) were generated by cleavage fragmentation from 1-position of quasi-molecular ions in compounds 8 and 14. Compound 8 generated [M − H + HCOOH − H2O]−, [M − H + HCOOH − H2O − H2O]− and [M − H − H2O − H2O]− ions at m/z 563, m/z 545 and m/z 499. The fragmentation pathways were consistent with deduced of compounds 8, 14 and 21, which further proved the validity of the results (Figure 5 and Figure 6). Therefore, compound 8 was tentatively deduced as 6′-O-β-d-glucosyl swertiamarin, compared with the tR values and mass spectra with the reference standard, 14 and 21 were tentatively annotated as swertiamarin and sweroside [43].
Compound 11 generated [M − H]− ion at m/z 389.14285 and 389.14258 (C17H25O10, mass error = 3.529 ppm and mass error = 4.223 ppm).The [M − H]− ion produced the ions at m/z 371, m/z 345 and m/z 209 in the MS2 spectrum, which originated from the neutral loss of H2O, CO2 and a glucose. In addition, the molecular ion also produced the minor ion at m/z 191 [M − H − Glc − H2O − H2O]− and m/z 163 [M − H − Glc − H2O − H2O − CO]−. Thus, compound 11 was tentatively determined as secologanol.
Compounds 12 and 45 produced the [M + H]+ ions at m/z 405.13895 and m/z 405.13858 (C17H25O11, mass error = 0.188 ppm and mass error = 0.558 ppm), m/z 407.15421 and m/z 407.15466 (C17H27O11, mass error = 1.125 ppm and mass error = 0.314 ppm). Its MS2 spectrum produced ions at m/z 387, m/z 369, m/z 389 and m/z 371, which involved the loss of one and two molecules of H2O, respectively. In addition, compounds 12 and 45 also produced a serial of ions at m/z 243 and 245 [M + H − Glc]+, m/z 225 and 227 [M + H − Glc − H2O]+, m/z 193 and 195 [M + H − Glc − H2O − CH3OH]+, m/z 183 and 185 [M + H − Glc − CH3OH − CO]+, m/z 165 and 167 [M + H − Glc − H2O − CH3OH − CO]+ [44]. Compound 50 produced the [M + H − Glc − CH3OH]+ ions at m/z 211. So, compounds 12 and 45 were tentatively determined as kingiside and morroniside.
Compounds 15 and 20 generated their [M − H + HCOOH]− ions at m/z 563.16193 and m/z 563.16144 (C23H31O16, mass error = 2.168 ppm and mass error = 2.048 ppm), m/z 401.10907and m/z 401.10892 (C17H21O11, mass error=1.232 ppm and mass error = 1.082), respectively. Both of their deprotonated molecular ions produced [M − H]−, [M − H − Glc]−, [M − H − Glc − CO]−, [M − H − Glc − CO − H2O]− and [Glu − H]− ions at m/z 517, m/z 355, m/z 355, m/z 193, m/z 327, m/z 165, m/z 309, m/z 149, m/z 341, and m/z 179, respectively [45]. In addition, compound 20 could generate the ion at m/z 175 by losing of H2O and a glucose. However, compound 15 produced ions at m/z 193 [M − H − Glc − Glc]−, m/z 165 [M − H − Glc − Glc − CO]−, m/z 323 [M − H − Glc − H2O − CH2]− and m/z 305 [M − H − Glc − H2O − CH2 − H2O]−. So, compound 15 was tentatively ascertained as 6′-O-β-d-glucosyl gentiopicroside, compared with the tR values and mass spectra with the reference standard, compound 20 was tentatively ascertained as gentiopicroside.
Compound 22 generated their [M − H + HCOOH]− ion at m/z 435.15146 (C18H27O12, mass error = 4.039 ppm), respectively. Compound 22 could generate ions at m/z 389 [M − H]−, m/z 371 [M − H − H2O]−, m/z 227 [M − H − Glc]−, m/z 209 [M − H − Glc − H2O]− and m/z 127 (C7H11O2, RDA ). So, compound 22 was tentatively ascertained as loganin.
Compounds 26, 50, and 51 generated their [M − H]− ions at m/z 655.18951 and 655.18927 (C29H35O17, mass error = 4.020 ppm and mass error = 3.654 ppm), m/z 797.21667 and 797.21637 (C35H41O21, mass error = 3.996 ppm and mass error = 3.620 ), m/z 875.22638 and 875.22614 (C40H43O22, mass error = 2.663 ppm and mass error = 3.413ppm), respectively. The ions at m/z 315 (C15H19O10) were generated by α-cleavage fragmentation of [M − H]− ion and loss a neutral molecule (C2H2O, m/z 42). Both of their deprotonated molecular ions produced [M − H − H2O]− and [M − H − Glc]− ions at m/z 637, m/z 779, m/z 857, m/z 493, m/z 635, m/z 713. Compounds 26 and 51 also generated the [M − H − R1′]−, ions at m/z 577, m/z 357. And compounds 50 and 51 generated the [M – H − CH3OH − CO]− and [M − H − CH3OH − CO − Glc]− ions at m/z 815, m/z 737, m/z 653, m/z 575. Compounds 26 and 50 generated the [M − H− Glc − H2O]− ions at m/z 475, m/z 617 [46]. In addition, compound 26 also produced the minor ion at m/z 195 [M − H − R1′ − Glc]−. Compound 50 produced [M − H − 2H2O]−, [M − H − CH3OH]−, [M − H − 2CH3OH − 2CO]−, [M − H − 3CH3OH − 3CO]−, [M − H − CH3OH − Glc]−, [M − H − 2CH3OH − 2CO − Glc]− and [M − H − 3CH3OH − 3CO − Glc]− ions at m/z 761, m/z 755, m/z 677, m/z 617, m/z 593, m/z 617, m/z 475, m/z 515, m/z 455. Compound 51 produced [M − H − R2′]−, [M − H − R2′− CH3OH − CO]− [M − H − R2′ − CH3OH − CO − Glc]− and [M − H − R2′ − R1′]− ions at m/z 739, m/z 679, m/z 517, m/z 441. Compounds 26, 50 and 51 were predicatively annotated as gentiotrifloroside, rindoside, macrophylloside A.
Compound 31 produced its [M + H]+ ion at m/z 567.20477 (C27H35O13, mass error = 2.447 ppm). It generated a series of ions at m/z 549 [M + H − H2O]+, m/z 471 [M + H − H2O − CH3OH − CO]+, m/z 453 [M + H − 2H2O − CH3OH−CO]+, m/z 453 [M + H − 3H2O − CH3OH − CO]+, m/z 229 [M + H – Glc − C10H8O3]+ and m/z 211 [M + H − Glc − C10H8O3 − H2O]+. Therefore, it was tentatively identified as 2′-feruloy loganin.
Compound 41 generated its [M + H]+ ion at m/z 401.14362 and m/z 401.14392(C18H25O11, mass error = 1.504 ppm and mass error = 1.504 ppm). It generated a serial of ions at m/z 383 [M + H − H2O]+, m/z 365 [M + H − 2H2O]+, m/z 341 [M + H − CH3OH − CO]+, m/z 197 [M + H − C8H12O6]+, m/z 179 [M + H − C8H12O6 − H2O]+, m/z 151 [M + H − C8H12O6 − H2O − CO]+and m/z 127 (C6H6O3, RDA). Therefore, compound 41 was tentatively annotated as 3′-acetyl swerside.
Compound 48 generated [M + Na]+ ion at m/z 579.26117 (C24H44O14Na, mass error = 1.997 ppm). The [M + Na]+ ion produced the ions at m/z 561 and m/z 543 in the MS2 spectrum, which involved the loss of one and two molecules of H2O. In addition, it produced m/z 417 [M + Na − Glc]+, m/z 399 [M + Na − Glc − H2O]+, m/z 255 [M + Na − 2Glc]+, m/z 237 [M + Na − 2Glc − H2O]+ and m/z 383 [M + Na − Glc − CO − CH4]+. Thus, compound 48 was tentatively determined as gentianaside.
Compound 49 produced the [M − H]− ion at m/z 841.26135(mass error = 1.356 ppm) (C34H49O24 ). The molecular ions yield [M − H]−, [M – H − Glc]−, [M − H − 2Glc]−, [M − H − 2Glc − C2H4]−, [M − H − 2Glc − C2H4 − 4H2O]− and [M − H − 3Glc − C2H4]−, m/z 841, m/z 679, m/z 517, m/z 489, m/z 477 and m/z 337. According to the literature data, compound 49 was tentatively annotated as scabran G4.
Compound 52 generated [M − H]− ion at m/z 781.22137 and m/z 781.22119 (C35H41O20, mass error = 3.578 ppm and 3.365 ppm). The ions at m/z 619 and m/z 601 were yielded by neutral loss one molecule of glucosyl and glucose, respectively. Moreover, the molecular ion generated ions at m/z 655 [M − H − C6H6O3]−, m/z 493 [M − H − C6H6O3 − Glc]− and m/z 339 [M − H − C6H6O3 − 2Glc − H2O]−. According to the literature data, compound 52 was ascertained as depressoside.

2.1.2. Structural Characterization and Identification of Flavonoid

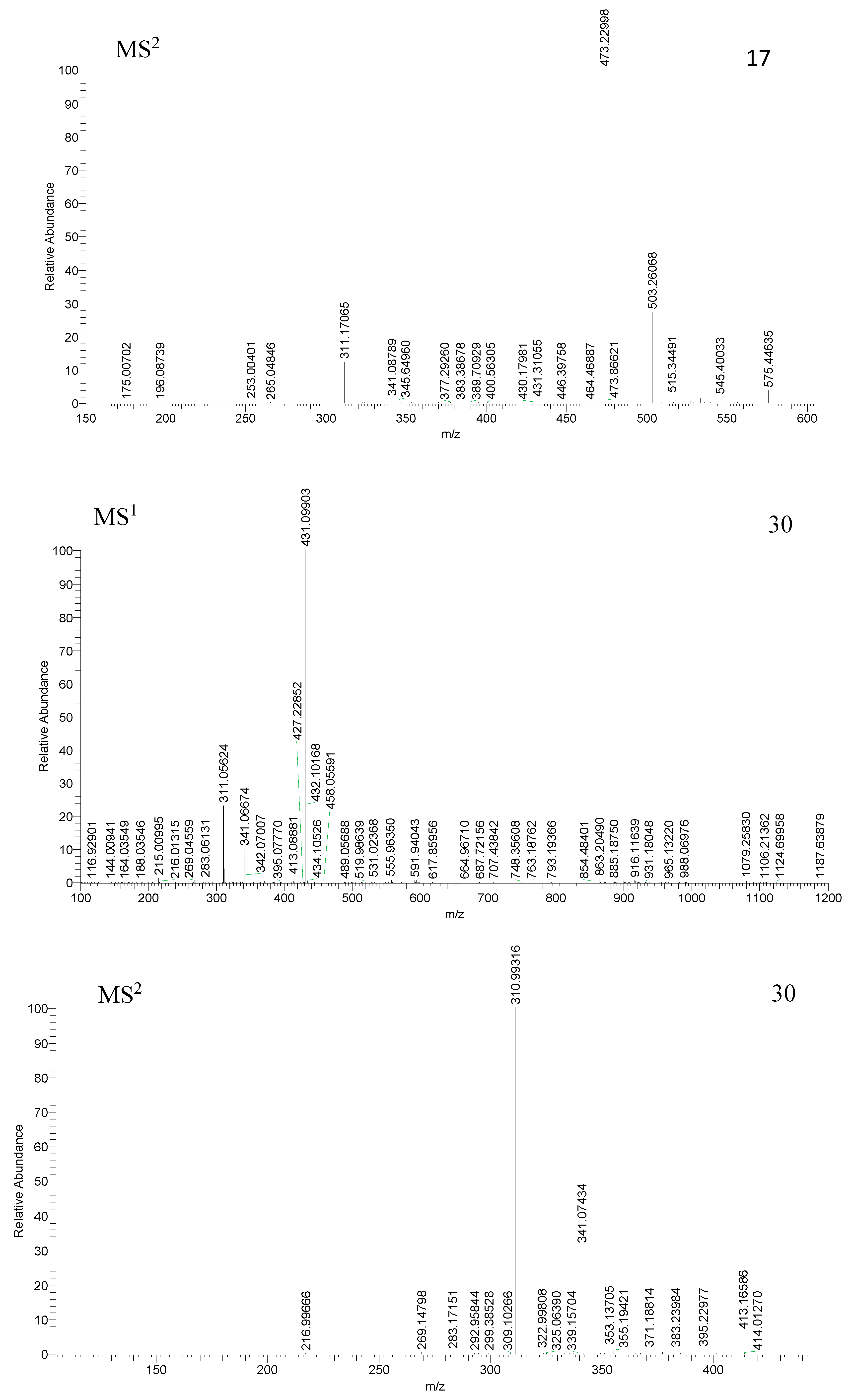

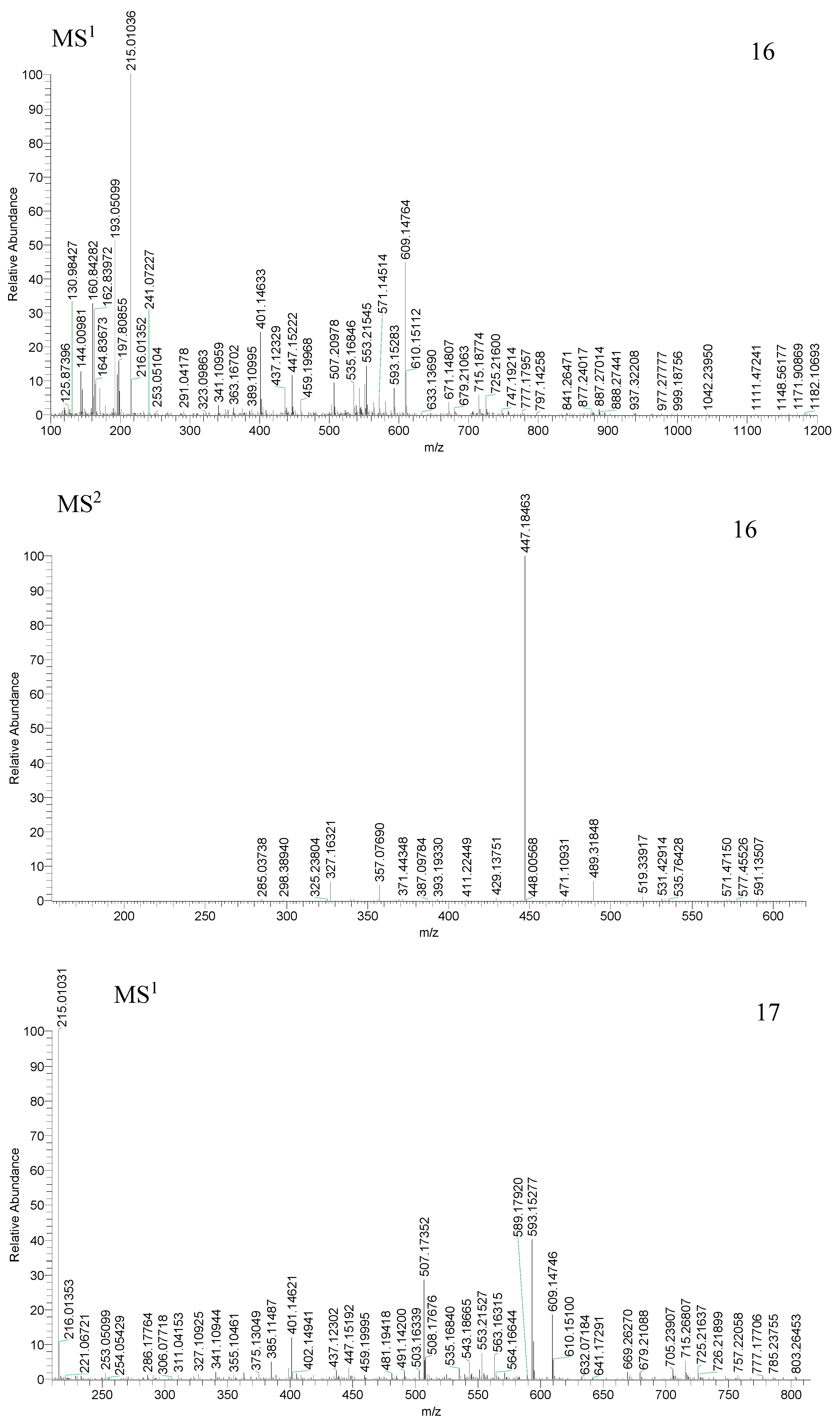

Compounds 16, 17, 30 and 38 generated their [M − H]− ions at m/z 609.14783 and 609.14764 (C27H29O16, mass error = 4.628 ppm and mass error = 4.316 ppm), m/z 593.15302 and 593.15277 (C27H29O15, mass error = 4.929 ppm and mass error = 4.507 ppm), m/z 431.09903 (C21H19O10, mass error = 4.075 ppm), m/z 653.17395 and m/z 653.17328 (C29H33O17, mass error = 2.724 ppm and mass error = 2.050 ppm), respectively. All of them produced [M − H − H2O]− ions at m/z 591, m/z 575, m/z 413 and m/z 635, respectively. Compounds 16, 17 and 30 also generated the [M − H − 2H2O]−, [M − H − C3H6O3]− and [M − H − C4H8O4]− [47], ions at m/z 573, m/z 557, m/z 395, m/z 519, m/z 503, m/z 341, m/z 489, m/z 473, m/z 311. Compounds 16, 17 and 38 generated the [M − H − Glc]− ions at m/z 447, m/z 431, m/z 491. Compounds 16 and 17 generated the [M − H − Glc − C4H8O4]− ions at m/z 327, m/z 311. Moreover, compounds 16 generated ions at m/z 429 [M − H − Glc − H2O]− and m/z 411 [M − H − Glc − 2H2O]−.Compound 30 ion generated ions at m/z 281 [M − H − C5H10O5]− and m/z 283 [M − H − Glc − C4H8O4 − CO]−. In addition, compound 38 ion generated ions at m/z 477 [M − H − Glc − CH2]−, m/z 357 [M − H − Glc − C4H8O4 − CO]− and m/z 315 [M − H − Glc − C4H8O4 − CO − 2CH2]− [48]. The fragmentation pathways were consistent with deduced of compounds 16, 17, 30 and 38, which further proved the validity of the results (Figure 7 and Figure 8). Therefore, combined with bibliography data and fragmentation pathways, these four compounds were tentatively identified as isovitexin-2′′-O-B-d-glucosyle, saponarin, isovitexin, isopyrenine-7-O-glucosyle.
Compounds 25 and 28 produced their [M − H + HCOOH]− ions at m/z 801.21179 and 801.21118 (C34H41O22, mass error = 3.391 ppm and mass error = 2.781 ppm), m/z 639.15826 and 639.15808401.10892 (C28H31O17, mass error = 2.684 ppm and mass error = 2.504), respectively. Both of them produced [M − H]− and [M − H + HCOOH − Glc]− ions at m/z 755, m/z 593, m/z 639 and m/z 477. Compound 25 generated a serial of ions at m/z 621 [M − H + HCOOH − Glc − H2O]−, m/z 477 [M − H + HCOOH − 2Glc]−, m/z 681 [M − H + HCOOH − C4H8O4]− and m/z 635 [M − H − C4H8O4]− [49]. Compound 28 could produce [M – H − Glc]−, [M − H + HCOOH − Glc − C4H8O4]−, [M − H − C4H8O4]− and [M − H − C5H10O5]− at m/z 431, m/z 357, m/z 311 and m/z 281, respectively. Therefore, according to the fragmentation pathways and literature data, compounds 25 and 28 were isovitexin-2′′-4′-O-B-d-glucosyle, isovitexin-2′′-O-B-d-glucosyle.
Compounds 27 and 36 yielded their [M + H]+ ions at m/z 449.10727 and 449.10684 (C21H21O11, mass error = 0.568 ppm and 0.998 ppm), m/z 493.13306 and 493.13287 (C23H25O12, mass error = 2.013 ppm and 2.398 ppm), respectively. Both of them generated [M + H − H2O]+ and ions [M + H − 2H2O]+ at m/z 431, m/z 475, m/z 413 and m/z 457, respectively. Compound 27 could generate a series of ions at m/z 395 [M + H − 3H2O]+, m/z 329 [M + H − C4H8O4]+ and m/z 299 [M + H − C5H10O5]+ [50,51]. Compound 36 displayed fragment ions at m/z 315, m/z 313 and m/z 195 corresponding to [M + H − C10H10O3]+, [M + H − C5H10O5 − HCHO]+ and [M + H − C5H10O5 − C10H10O3]+ respectively. By comparing with the literature data, compounds 27 and 36 were tentatively annotated as isoorientin and 6-C-B-d-glucospranosyltricine (isopyrenine).
Compounds 39 and 46 produced their [M − H + CH3COOH]− ions at m/z 683.18146 (C30H35O18, mass error = 0.484 ppm) and m/z 521.12724 (C24H25O13, mass error = 1.653 ppm). Both of the deprotonated molecular ions yield [M − H + CH3COOH − H2O]− at m/z 503 and m/z 665. Compound 39 produced their [M − H + CH3COOH − 2H2O]−, [M − H − CH2]−, [M − H − Glc − CO]−, [M − H − Glc − C5H10O5]− and [M − H − Glc − C5H10O5 − CH2]− ions at m/z 647, m/z 609, m/z 433, m/z 311 and m/z 297 [52]. Compound 46 produced their [M − H + CH3COOH − CO2]−, [M − H − C4H8O4]−, [M − H − C5H10O5 − CH2]− and [M − H − C5H10O5 − C9H8O2]− ions at m/z 477, m/z 341, m/z 297 and m/z 163. According to the literature data, compounds 39 and 46 were tentatively annotated as ioscoparine-7-O-B-d-glucosyle and isoscoparine.
Compound 42 produced the [M − H + CH3COOH]− ion at m/z 1009.24139 (C44H49O27, mass error = 4.144 ppm). It generated a serial of ions at m/z 991 [M − H + CH3COOH − H2O]−, m/z 973 [M − H + CH3COOH − 2H2O]−, m/z 949 [M − H]−, m/z 931 [M − H − H2O]−, m/z 847 [M − H + CH3COOH − Glc]−, m/z 846 [M − H + CH3COOH − Glc − H]−, m/z 489 [M − H − C15H16O9 − C4H8O4]− and m/z 489 [M − H + CH3COOH − C15H16O9 − C5H10O5]−. According to the literature data, compound 42 was ascertained as 4′-O-B-d-glucospranosyl-2′′-O-[1-O-B-d-glucosyl-2,4,4-trihydroxy-(E)-cinnamoyl]-2′′-isoorientin.

2.1.3. Structural Characterization and Identification of Xanthones

Compound 3 showed [M − H + HCOOH]− ion at m/z 449.10971 and 449.40989 (C21H21O11, mass error = 4.169 ppm and 4.569 ppm). Its ESI-MS2 base peak ion at m/z 359 was generated by losing C3H6O3. In addition, the major ions at m/z 329 and m/z 299 were produced by neutral loss of C4H10O4 and C5H10O5, respectively. Moreover, the molecular ion also yielded ions at m/z 283 [M − H − C4H10O4]−, m/z 253[M − H − C5H10O5]− and m/z 179 [Glu − H]− [53]. By comparing with the literature data, compound 3 was tentatively identified as 2-C-β-d-glucospranosyl-glucopyranosyl-1-hydroxy-7-methoxyxanthone.
Compounds 7 and 24 produced its [M − H + HCOOH]− ion at m/z 451.14664 (C20H19O12, mass error = 4.850 ppm), m/z 377.08716 and 377.08698 (C18H17O9, mass error = 1.197 ppm and 0.720 ppm). Both of the deprotonated molecular ions at m/z 405 and 331 [M − H]−. Compound 7 generated a series of ions m/z 433 [M − H + HCOOH − H2O]−, m/z 415 [M − H + HCOOH − 2H2O]−, m/z 243 [M − H − Glc]− and m/z 269 [M − H − C7H4O3]−. Compound 24 generated ions m/z 347 [M − H + HCOOH − HCHO]−, m/z 197 [M − H − C8H6O2]−, m/z 119 [M − H − C9H10O4]−, m/z 153 [M − H + HCOOH − HCHO − C8H6O2]− and m/z 179 [M − H − C7H6O2 − HCHO]− [54]. Therefore, compounds 7 and 24 were tentatively identified as 2-O-β-d-glucospranosyl-1,6-dihydroxyxanthone and 1-hydroxy-2,3,4,7-tetramethoxy xanthone.
Compounds 9 and 29 produced [M − H + CH3COOH]− ions at m/z 375.10927 (C19H19O8, mass error = 4.895 ppm), m/z 523.14722 and 523.14703 (C24H27O13, mass error = 4.975 ppm and 4.612 ppm). Both of the deprotonated molecular ion yield [M − H + CH3COOH − C9H8O4]− at m/z 195 and at m/z 343. Compound 9 produced a serial of ions at m/z 357 [M – H + CH3COOH − H2O]−, m/z 287 [M − H − CO]−, m/z 255 [M − H − 2HCHO]−, m/z 179 [M − H − C8H8O2]−, m/z 151 [M − H − C9H8O3]− and m/z 121 [M − H − C9H8O3 − HCHO]−. Compound 29 generated [M − H + CH3COOH − 2H2O]−, [M − H + CH3COOH − 4H2O]−, [M − H + CH3COOH − Glc]−, [M − H + CH3COOH − C8H8O3]−, [M − H + CH3COOH − C9H8O3]−, [M − H − C9H8O3]−, [M − H – Glc − 2HCOH]− and [M − H – Glc − C8H8O2]− at m/z 487, m/z 451, m/z 361, m/z 371, m/z 359, m/z 299, m/z 241 and m/z 165, respectively. According to the literature data, compounds 9 and 29 were tentatively determined as tetramethoxy-1,3,7,8-xanthone and glucosyl-1-decussatin.
Compounds 10, 13 and 54 generated their [M − H]− ions at m/z 581.14722 (C26H29O15, mass error = 4.950 ppm), m/z 449.10965 (C21H21O11, mass error = 4.035 ppm), m/z 595.16437 (C27H31O15, mass error = 2.313 ppm), respectively. Compounds 10 and 54 produced [M − H − CO − H2O ]− ion at m/z 534 and m/z 549. Compounds 13 and 54 also generated the [M − H − H2O]− and [M − H − 2H2O]− ions at m/z 431, m/z 577, m/z 413 and m/z 559. Compound 10 generated [M − H − 2HCHO]−, [M − H − CO − 2H2O]−, [M − H − CO − 3H2O]−, [M − H − CO − Primeverosyl]− and [M − H − HCHO − Primeverosyl]−, ions at m/z 521, m/z 517, m/z 499, m/z 249 and m/z 247. Compound 13 generated the [M − H − CO − H2O]−, [M − H − C7H6O2]−, [M − H − C8H6O4]− and [M − H − Glc − CO − H2O]−, ions at m/z 403, m/z 327, m/z 283 and m/z 241. Moreover, compound 54 generated ions at m/z 495 [M − H − CO − 4H2O]−, m/z 477 [M − H − CO − 5H2O]−, m/z 417 [M − H − CO − C5H8O5]−, m/z 415 [M − H − C9H8O4]− and m/z 279 [M − H − C5H8O4 − C8H8O2]−. Therefore, combined with bibliography data and fragmentation pathways, these three compounds were tentatively identified as gentiabavaroside, glucosyl-1-gentiacaulein, primeverosyl-1-decussatin.
Compound 18 produced its [M − H + HCOOH]− ion at m/z 481.09833 (C21H21O13, mass error = 1.378 ppm). The [M − H + HCOOH]− ion of compound 18 produced the aglycone ion at m/z 273 in the MS2 spectrum, which originated from the neutral loss of an glucose moiety (162 Da). It also generated a series of ions at m/z 435 [M − H]−, m/z 445 [M − H + HCOOH − 2H2O]−, m/z 403 [M − H − CH2 − H2O]−, m/z 359 [M − H − C7H6O2 ]− and m/z 241 [M − H − Glc − 2H2O]−. Therefore, it was tentatively identified as glucosyl-8-swertianin.

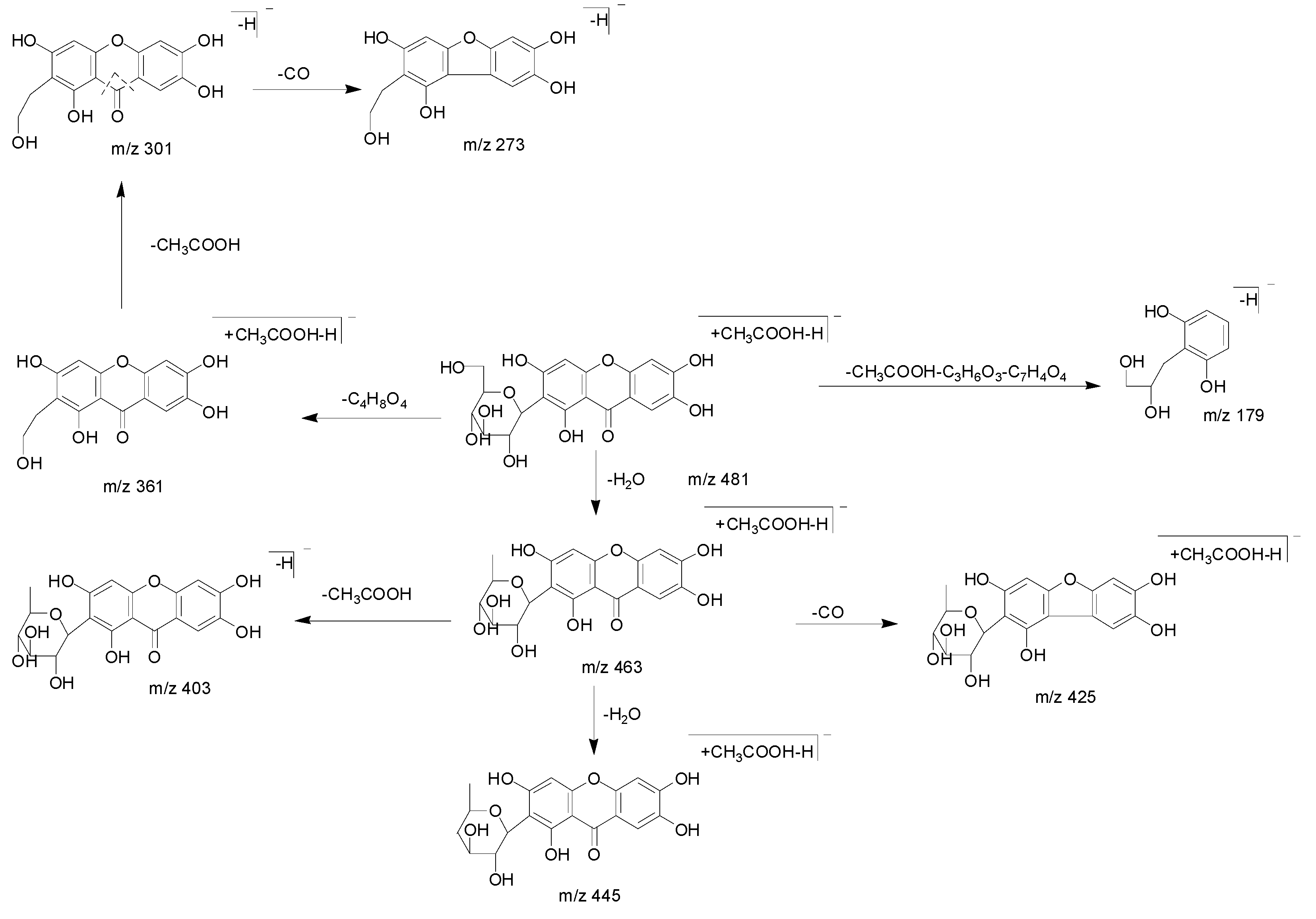

Compound 19 produced the [M − H + CH3COOH]− ion at m/z 481.09711 (C21H21O13, mass error = 1.158 ppm). It generated a serial of ions at m/z 463 [M − H + CH3COOH − H2O]−, m/z 445 [M − H + CH3COOH − 2H2O]−, m/z 435 [M − H + CH3COOH − H2O − CO]−, m/z 403 [M − H − H2O]−, m/z 361 M − H + CH3COOH − C4H8O4]−, m/z 301 [M − H − C4H8O4]−, m/z 273 [M − H − C4H8O4 − CO]− and m/z 179 [M − H − C4H8O4 − C7H4O4]−. The fragmentation pathway was consistent with deduced of compound 19, which further proved the validity of the results (Figure 9 and Figure 10). Compared with the tR values and mass spectra with the reference standard, compound 19 was ascertained as mangiferin [55,56,57].
Compound 23 produced the [M − H + CH3COOH]− ion at m/z 377.08704and 377.08734 (C18H17O9, mass error = 0.879 ppm and 1.657 ppm). It generated [M − H + CH3COOH − CH3]−, [M − H + CH3COOH − H2O]−, [M − H + CH3COOH − HCHO]−, [M − H + CH3COOH − C9H8O4]−, [M − H − C7H6O3]− and [M − H − C7H6O3 − H2O − CO2]− ions at m/z 362, m/z 359, m/z 347, m/z 197, m/z 179 and m/z 153. Compound 23 was ascertained as 2-methylcorymbiferin.
Compounds 32, 33 and 44 gave their [M + NH4]+ ions at m/z 570.18396 (C25H28O14N, mass error = 3.909 ppm), m/z 570.18060 and 570.18390 (C25H32O14N, mass error = 1.984 ppm and 3.804 ppm), m/z 570.18390 and 570.18054 (C25H32O14, mass error = 3.804 ppm and 2.089 ppm), so they were isomers. They all produced the [M + H − CO]+ and ions at m/z 525. Besides, compounds 32 and 33 gave [M + H − CO − H2O]+ ion at m/z 507. Compounds 32 and 44 could generate [M + H]+ ion at m/z 553. In addition, compound 32 could generate [M − C7H6O2 − C5H8O4 − CH3]+, [M + H − C7H6O − C5H8O4]+ and [M + H − C5H8O5 − C8H6O3]+ at m/z 283, m/z 287 and m/z 253. Compound 33 generated [M + H − CO − 2H2O]+, [M + H − C5H8O4 − C7H6O3]+ and [M + H − C7H6O3 − C5H8O4]+ at m/z 489, m/z 283 and m/z 265. Compound 44 generated [M + H − C5H8O4 − C7H4O2]+, [M + H − C5H8O4 − C6H4O2 − CO]+, [M + H − C11H19O9]+, [M + H − C11H19O9 − CO]+ and [M + H − C5H8O4 − C7H4O2 − CO]+ at m/z 283, m/z 265, m/z 259, m/z 229 and m/z 219. Therefore, compounds 32, 33 and 44 were tentatively ascertained as gentioside, 1-hydroxy-2-methoxy-7-O-primeveroylxanthone and 7-hydroxy-2-methoxy-1-O-primeveroyl xanthone.
Compounds 34 and 35 produced [M + K]+ ions at m/z 298.99619 (C13H8O6K, mass error = 0.944 ppm) and m/z 298.99518 (C13H8O6K, mass error = 0.565 ppm). Compounds 34 and 35 produced a serial of ions at m/z 299 [M + K]+, m/z 271 [M + K − CO]+, m/z 255 [M + K − CO − H2O]+ and m/z 155 [M + K − C6H8O2 − 2H2O]+ and m/z 136 [M − C6H4O3 + H]+ [58]. According to the literature data, compound 34 and 35 were tentatively determined as desmethylbellidifolin and norswertianin.
Compounds 37 and 43 gave their [M + NH4]+ ions at m/z 586.17798 and 586.17841 (C25H32O15N, mass error = 2.277 and 3.070 ppm), m/z 444.15210 (C19H26O11N, mass error = 4.654 ppm). Both of them produced [M + H]+ and [M + H − CO]+ ions at m/z 569, m/z 427, m/z 541 and m/z 399. Compound 37 showed [M + H − H2O]+, [M + H − HCHO]+, [M + H − C5H8O4 − C7H6O3]+ and [M + H − C5H8O4 − C8H6O4 − CO]+ ions at m/z 551, m/z 539, m/z 299 and m/z 243. Compound 43 generated [M + NH4 − H2O]+, [M + H − CO − H2O]+. [M + H − Glc − CO]+ and [M + H − Glc − CO − H2O]+ at m/z 426, m/z 381, m/z 237 and m/z 219. Compounds 37 and 43 were tentatively determined as gentiakochianoside and 1,3,4-trihydroxy-8-β-d-glucospranosyl-5,6,7,8-tetrahydroxanthone.
Compound 40 showed [M − H + HCOOH]− ion at m/z 511.10571 and 511.10580 (C21H21O11, mass error = 4.934 and 4.758 ppm). In ESI-MS2, its ions at m/z 493 [M − H + HCOOH − H2O]−, m/z 475 [M − H + HCOOH − 2H2O]−, m/z 467 [M − H + HCOOH − CO2]−, m/z 465 [M − H]−, m/z 349 [M − H + HCOOH − Glc]−, m/z 305 [M − H + HCOOH − Glc − CO2]−, m/z 297 [M − H − H2O − C8H6O3]− and m/z 153 [M − H − Glc − C8H6O3]−. By comparing with the literature data, compound 40 was tentatively identified as 1-O-glucosyl corymbiferi.
Compound 47 generated its [M + Na]+ ion at m/z 443.09613 (C20H20O10Na, mass error = 2.848 ppm). It produced the [M + Na − H2O]+, [M + Na − 2H2O]+and [M + Na − 3H2O]+ ions at m/z 425, m/z 407 and m/z 389. The [M + Na]+ ion produced the ions at m/z 281, m/z 263 and m/z 247 in the MS2 spectrum, which originated from the neutral loss of glucose, H2O and CH4. Therefore, compound 47 was tentatively deduced as 8-O-glucosyl bellidifolin.

2.1.4. Structural Characterization and Identification of Other

Compound 53 produced the [M − H]− ion at m/z 455.35406 and 455.35413 (mass error = 2.784 and 2.812 ppm) (C30H47O3). The molecular ions yield [M − H − H2O]−, [M − H − CO2]−, [M − H − HCOOH]−, [M − H − C15H26O]−, [M − H − C15H22O2]−, [M − H − C15H26O − CO2]− and [M − H − C15H26O − CO2 − CH2]− at m/z 437, m/z 411, m/z 409, m/z 233, m/z 221, m/z 189 and m/z 175. According to the literature data, compound 53 was tentatively deduced as oleanolic acid.

3. Materials and Methods

3.1. Materials and Chemicals

Gentiana radix was purchased from Anguo herbs market (Anguo, Hebei, China) and was identified as the dry root and rhizome of Gentiana scabra Bge. by professor Li Feng of Liaoning University of Traditional Chinese Medicine. Wine-processed Gentiana radix is made by reference to the Chinese pharmacopoeia (2015). Gentiopicroside, swertiamarin, sweroside, loganin, isovitexin, and mangiferin were purchased from Jiangsu Yongjian Pharmaceutical Technology CO., Ltd. (Taizhou, Jiangsu, China). Formic acid, methanol and acetonitrile (HPLC grade) were purchased from Fisher Scientific (Fair Lawn, NJ, USA). Ultrapure water was purchased from Hangzhou Wahaha Group Co., Ltd. (Hangzhou, Zhejiang, China). Yellow rice wine was purchased from Zhejiang Tapai Shaoxing Liquor Co., Ltd. (Shaoxing, Zhejiang, China). Preparation of wine-processed Gentiana radix: After diluting the yellow rice wine with water, mix it with raw Gentiana radix. (raw Gentiana radix: yellow rice wine: water = 10:1:1.5). After moistening for 30 min, stir it in a stir-frying container and keep it stir-frying for 4 min at 100 °C, stirring 100 times per minute. When the raw Gentiana radix is dark yellow on the surface and slightly fragrant with wine, take it out and cool it, resulting in wine-processed Gentiana radix.

3.2. Sample and Standards Preparation

The standard solutions of gentiopicroside, swertiamarin, sweroside, loganin, isovitexin, and mangiferinwere prepared in methanol at appropriate concentrations. The powders of crude and wine-processed Gentiana radix were weighed precisely (0.50 g); the powders were placed into 20 mL of methanol and the quality was recorded, and then ultrasonically extracted at room temperature for 0.5 h. The extracts were cooled to room temperature and filtered to a 25-mL volumetric flask, then methanol supplemented to 25 mL. Methanol extracts were filtered through a 0.22-µm membrane for analysis. All of the solutions were stored at 4 °C and brought to room temperature before analysis.

3.3. Instrumentation and Condition

UHPLC analysis was performed on DIONEX Ultimate 3000 UHPLC system (Thermo Fisher Scientific, Waltham, MA, USA) with a binary pump and an autosampler. Samples were separated on a BEH C18 (2.1 × 100 mm, 1.7 µm, Acquity Corporation, Ireland, MA, USA) at room temperature. The mobile phase consisted of 0.1% (v/v) formic acid and acetonitrile (B). A gradient program was adopted as follows: 0–2 min, 2% B; 2–20 min, 2–22% B; 20–24 min, 22–80%; 24–26min, 80% B; 26–27 min, 80–2% B; 27–30 min, 2% B. The flow rate was set as 0.3 mL/min.
A LTQ-Orbitrap XL mass spectrometer (Thermo Scientific, Bremen, Germany) was connected to the UHPLC system via an electrospray ionization (ESI) interface. The effluent was introduced into the ESI source in a post-column splitting ratio of 1:4. The analysis was performed in both negative and positive ion mode with a mass range of m/z 100–200.
The analysis was performed in both negative and positive ion mode with a mass range of m/z 100–1500. The optimized ESI parameters in negative ion mode were set as follows: capillary temperature of 350 °C; sheath gas (nitrogen) flow of 30 arb.; auxiliary gas (nitrogen) flow of 10 arb.; source voltage of 3.0 kV; capillary voltage of −35 V; tube lens voltage of −110 V. The capillary voltage was 25 V, source voltage of 4.0 kV and tube lens voltage was 110 V in positive ion mode; and other parameters were same as those of negative ion mode. The resolution of the orbitrap mass analyzer was set at 30,000. The isolation width was 2 amu, and the normalized collision energy (CE) was set to 35%. Collision-induced dissociation (CID) was conducted in LTQ with an activation q of 0.25 and activation time of 30 ms. All instruments were controlled by the Xcalibur data system, and the data acquisition was carried out by analyst software Xcalibur (version 2.1) from Thermo Electron Corp (Waltham, MA, USA).

4. Conclusions

In this study, an effective and sensitive analytical method by UHPLC-LTQ-Orbitrap-MSn was established for systematically characterizing constituents in crude and wine-processed Gentiana radix. By this method, the structure of constituents could be identified and the peak area of constituents could be determined. The wine-processing would change the structure of chemical constituents of Gentiana scabra, which resulted in partial loss and abscission of unstable chemical groups (hydroxyl, glucosyle, carboxyl, etc.), and carbon–carbon double bond would be displaced or broken in the structure of some constituents.
The results showed that there were 10 characteristic components in the crude Gentiana radix, which were 2-O-β-d-glucospranosyl-1,6-dihydroxyxanthone, tetramethoxy-1,3,7,8-xanthone, glucosyl-8-swertianin, mangiferin, 2′-feruloy loganin, isoscoparine-7-O-B-d-glucosyle, 4′-O-B-d-glucospranosyl-2′′-O-[1-O-B-d-glucosyl-2,4,4-trihydroxy-(E)-cinnamoyl]-2′-isoorientin, 8-O-glucosyl bellidifolin, gentianaside, scabran G4. And 8 characteristic constituents in wine-processed Gentiana radix, which are gentiabavaroside, glucosyl-1-gentiacaulein, gentioside, desmethylfoidilin, norswertianin, 1,3,4-trihydroxy-8-β-d-glucospranosyl-5,6,7,8-tetrahydroxanthone, isoscoparine, primeverosyl-1-decussatin.
Since the sampling amounts of crude and wine-processed Gentiana radix are the same, by comparing the peak area of their chemical constituents, it can be seen that the contents of some chemical constituents change in Gentiana radix after being wine-processed. Among the constituents, 2-C-β-d-glucospranosyl-glucopyranosyl-1-hydroxy-7-methoxyxanthone, methyl (1S)-1-(d-glucopyranosyloxy)-6,7-dihydroxy-7-methyl-1,6,7,7a-tetrahydrocyclopenta[c]pyran-4-carboxylate, glucosyl-1-decussatin, gentiakochianoside, 1-O-glucosyl corymbiferin, macrophylloside A and oleanolic acid increased significantly after being wine-processed. While 2-methylcorymbiferin, 1-hydroxy-2,3,4,7-tetramethoxy xanthone, 1-hydroxy-2-methoxy-7-O-primeveroylxanthone and morroniside decreased significantly after being wine-processed.
By comparing the structure and peak area of the constituents, we could see that there are differences between crude and wine-processed Gentiana radix, which showed wine-processing can change the structure and contents of some constituents in Gentiana radix. The result of this paper can be used to explain the processing principles of Gentiana radix to some extent.

Author Contributions

Q.C. designed the experiments; X.L., J.-Z.S. and Y.-Q.L. contribute to the data collection and analysis; Q.C. and Y.-Q.L. contributed reagents/materials/analysis tools; X.L., J.-Z.S., S.-Z.X. and Q.C. wrote the paper.

Funding

This work was financially supported by the National Standardization Project of Traditional Chinese Medicine—“Standardization Construction of Six Kinds of Chinese Herbal Medicines, such as Scutellaria” (ZYBZH-Y-TJ-43), and Liaoning Province’s Innovative Talents Support Scheme (LR2016037).

Acknowledgments

This work was financially supported by the National Standardization Project of Traditional Chinese Medicine—"Standardization Construction of Six Kinds of Chinese Herbal Medicines, such as Scutellaria” (ZYBZH-Y-TJ-43), and Liaoning Province’s Innovative Talents Support Scheme (LR2016037). We also thank Prof. Jiayu Zhang for her technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chinese Pharmacopeia Commission. Pharmacopeia of the People’s Republic of China, 10th ed.; China Medical Science Press: Beijing, China, 2015; p. 96. [Google Scholar]
  2. Cao, F.H.; Li, C. New advances in research of chemical constituents and pharmacological activities of genus Gentiana. Chin. J. New Drugs 2008, 17, 27–29. [Google Scholar]
  3. Cheng, Z.Y.; Yu, L.Y.; Ji, H.J.; Han, D.D.; Shen, Q.H.; Lv, Y.; Yang, Y.J. Study on different extraction technology of polysaccharides form Gentiana scabra and its antioxidation. J. Henan Univ. Technol. 2016, 37, 81–86. [Google Scholar] [CrossRef]
  4. Ning, Y.; Cheng, Y.P.; Ma, A.P.; Li, T.C.; Wang, H.Y. Latest progress on the pharmacological activity of Gentiana scabra Bunge. Chem. Eng. 2017, 31, 47–49. [Google Scholar] [CrossRef]
  5. Shen, T.; Jin, H.; Wang, Y.Z.; Yuan, T.J.; Yang, W.Z.; Zhao, Z.L.; Yang, T. Research progress in the chemical constituents of Radix Gentianae. J. Anhui Agri. Sci. 2010, 38, 16868–16874. [Google Scholar] [CrossRef]
  6. Lei, X. Lei Gong’s Firing Theory; Shanghai College of traditional Chinese Medicine Press: Shanghai, China, 1955; p. 19. [Google Scholar]
  7. Yang, S.T. Materia medica structural element; Science and Technology Publishing House: Shanghai, China, 1958; pp. 145–146. [Google Scholar]
  8. Chinese Materia Medica Editorial Committee. Chinese Materia Medica; Shanghai Science and Technology Publishing House: Shanghai, China, 1999; p. 6. [Google Scholar]
  9. Shen, T.; Yang, M.Q.; Zhao, Z.L.; Zhang, Z.H.; Wang, Y.Z.; Jin, H.; Zhang, J.Y.; Wang, Y.H. Dynamic changes in terpenoid contents in Gentiana rigescens. Chin. Bull. Bot. 2011, 46, 652–657. [Google Scholar]
  10. Zhang, J.; Xu, X.J.; Xu, W.; Huang, J.; Zhu, D.Y.; Qiu, X.H. Rapid characterization and identification of flavonoids in Radix astragali by ultra-high-pressure liquid chromatography coupled with linear ion trap-Orbitrap mass spectrometry. J. Chromatogr. Sci. 2015, 53, 945–952. [Google Scholar] [CrossRef] [PubMed]
  11. Yu, X.J.; Zhang, J.Y.; Liu, Q.Q.; Wu, Z.S.; Liu, S.S.; Shi, H.; Ma, Q. Chemical profiling of fifty constituentsin Qi-gui-yin granule (QGY) by on-line high-performance liquid chromatography coupled with ESI-LTQ-Orbitrap mass spectrometer. Res. J. Chem. Environ. 2013, 17, 16–27. [Google Scholar]
  12. Li, Y.; Liu, Y.; Liu, R.R.; Liu, S.Y.; Zhang, X.P.; Wang, Z.J.; Lu, J.Q. HPLC-LTQ-orbitrap MSn profiling method to comprehensively characterize multiple chemical constituents in xiao-er-qing-jie granules. Anal. Methods 2015, 7, 7511–7526. [Google Scholar] [CrossRef]
  13. Zhang, Q.Q.; Dong, X.; Liu, X.G.; Gao, W.; Li, P.; Yang, H. Rapid separation and identification of multiple constituents in Danhong injection by ultra-high performance liquid chromatography coupled to electrospray ionization quadrupole time-of-flight tandem mass spectrometry. Chin. J. Nat. Med. 2016, 14, 147–160. [Google Scholar] [CrossRef]
  14. Dunn, W.B.; Broadhurst, D.; Brown, M.; Baker, P.N.; Redman, C.W.G.; Kenny, L.C.; Kell, D.B. Metabolic profiling of serum using ultra performance liquid chromatography and the LTQ-Orbitrap mass spectrometry system. J. Chromatogr. B Anal. Technol. Biomed. Life Sci. 2008, 871, 288–298. [Google Scholar] [CrossRef]
  15. Mpondo, M.E.; Chulia, A.J. Iridoids from Gentiana verna. Phytochemistry 1981, 28, 2502–2504. [Google Scholar] [CrossRef]
  16. Mpondo, M.E.; Garcia, J.; Chulia, A.J. Secoiridoid glucosyles from Gentiana Campestris. Phytochemistry 1992, 29, 1687–1688. [Google Scholar] [CrossRef]
  17. Tian, X.; Xu, X.Z.; Zhan, H.Y. Two new O-and C-glycosylxanthones from Gentiana tizuensis Franch. Indian J. Chem. 2003, 42, 950–952. [Google Scholar]
  18. Do, T.; Popov, S.; Marekov, N.A. Iridoids from gentianaceae plants growing in bullgaria. Planta Med. 1987, 53, 580. [Google Scholar] [CrossRef] [PubMed]
  19. Kikuchi, M.; Kakuda, R.; Kikuchi, M. Secoiridoid glycosides from Gentiana scabra. J. Nat. Prod. 2005, 68, 751–753. [Google Scholar] [CrossRef]
  20. Mpondo, M.E.; Garcia, J.; Cartier, G. 6′-O-β-d-glucosylswertiamarine: A new secoiridoid from Gentiana alpna. Planta Med. 1990, 56, 334. [Google Scholar] [CrossRef] [PubMed]
  21. Goetz, M.; Maniliho, F.; Jacot, G.A. Etude des composes flavoniques et xanthoniques dans les feuilles de Gentiana ciliata L. Helv. Chim. Acta 1977, 61, 1549–1550. [Google Scholar] [CrossRef]
  22. Mpondo, M.E.; Garcia, J. New secoiridoid glycosides from Gentiana verna. J. Nat. Prod. 1989, 52, 1146–1149. [Google Scholar] [CrossRef]
  23. Garcia, J.; Mpondo, M.E.; Kaouadji, M. Kingside and derivative from Gentiana pyrenaica. Phytochemistry 1990, 29, 3353–3355. [Google Scholar] [CrossRef]
  24. Mpondo, M.E.; Chulia, A.J. 6′-O-β-d-glucosyl gentiopicroside: A new secoiridoid from Gentiana asclepiadea. Planta Med. 1988, 54, 184–186. [Google Scholar] [CrossRef]
  25. Luong, M.D.; Fombasso, P.; Jacot, G.A. Contribution à la phytochinie du genre Gentiana XXV 1) Etude des composes flavoniques et xanthoniques dans les feuilles de Gentiana X marcailhouana RY. Nouveaux cinnamoyl-C-glucosylesss flavoniques. Helv. Chim. Acta 1980, 63, 243–249. [Google Scholar] [CrossRef]
  26. Goetz, M.; Jacot, G.A. Contribution à la phytochimie du genre Gentiana. XXII 1). Identification de nouveaux O-glucosyles de la mangiferine dans Gentiana asclepiadea L. Helv. Chim. Acta 1977, 60, 2103–2106. [Google Scholar]
  27. Massias, M.; Carbonnier, J.; Molho, D. Xanthones and C-glucosylflavones from Gentiana corymbifera. Phytochemistry 1981, 20, 1577–1578. [Google Scholar] [CrossRef]
  28. Yang, H.P.; Liu, X.; Shi, Y.P. Xanthone constituents in Gentiana panthaica. Chin. Traditional Herb. Drugs 2007, 38, 343–346. [Google Scholar]
  29. Goetz, M.; Jacot, G.A. Contribution à la phytochimie du genre Gentiana XX 1). Identification de nouveaux O-glucosyles de la mangiferine dans Gentiana asclepiadea L. Helv. Chim. Acta 1977, 60, 1321–1324. [Google Scholar] [CrossRef]
  30. Jian, R.W.; Wong, K.L.; Chan, Y.M. Isolation of iridoid and secoiridoid glycosides and comparative study on radix gentianae and related adulterants by HPLC analysis. Phytochemistry 2005, 66, 2873–28680. [Google Scholar] [CrossRef]
  31. Garcia, J.; Chulia, A.J. Loganin and new iridoid glucosyles in Gentiana pedicellata. Planta Med. 1986, 56, 327–329. [Google Scholar] [CrossRef]
  32. Hayashi, T.; Yamagishi, T. Two xanthone glycosides from Gentiana lutea. Phytochemistry 1988, 27, 3696–3699. [Google Scholar] [CrossRef]
  33. Maryse, H.K.; Kurt, H.; Otto, S. Xanthones, flavones and secoiridoids of american Gentiana species. Phytochemistry 1981, 20, 442–446. [Google Scholar]
  34. Hostettmann, K.; Jacot, G.A. Xanthones et C-glucosylflavones du genre gentiana (section Cyclostigmal). Phytochemistry 1977, 16, 481–482. [Google Scholar] [CrossRef]
  35. Chung, M.I.; Lin, C.N. A new acylated secoiridoid from Gentiana Formosana. J. Nat. Prod. 1993, 56, 981–983. [Google Scholar] [CrossRef]
  36. Luong, M.D.; Saeby, J.; Fombasso, P. Contribution à la phytochimie du genre Gentiana *. V. Identification d’un nouveau O-glucoside de C-glucoside flavonique dans les feuilles de Gentiana nivalis L. Helv. Chim. Acta 1981, 64, 2741–2745. [Google Scholar] [CrossRef]
  37. Kaldas, M.; Miura, I.; Hostettmann, K. Campestroside, a new tetrahydroxanthone glucosyle from Gentiana Campestris. Phytochemistry 1978, 17, 294–297. [Google Scholar] [CrossRef]
  38. Garcia, J.; Mpondo, M.E.; Cartier, G. Secoiridoids and a phenolic glucosyle from Gentiana pyrenaica. J. Nat. Prod. 1989, 52, 996–1002. [Google Scholar] [CrossRef]
  39. Chulia, A.J.; Kaouadji, M. Depressoside, nouvel iridoude isole de Gentiana depressa. J. Nat. Prod. 1985, 48, 53–58. [Google Scholar] [CrossRef]
  40. Li, C.M.; Liang, X.M.; Xue, X.Y. Electrospray ionization quadrupole time-of-flight Tandem Mass Spectrometry of iridoid glucosyles in positive ion mode. Chem. J. Chin. Univ. 2013, 34, 567–572. [Google Scholar] [CrossRef]
  41. Zhao, X.S.; Yang, M.H.; Wu, H.F.; Shu, X.Y. Fragmentation behavior for iridoid glucosyles and anthraquinonesn morinda of ficinalis by ESF-Q-TOF MS/MS in negative ion mode. J. Chin. Mass Spectrom. Soc. 2018, 39, 342–350. [Google Scholar] [CrossRef]
  42. He, D.D.; Fan, J.T.; You, R.R.; Chen, X.Q.; Li, Z.L.; Ju, M.J.; Zeng, B.L. Identification of chemical constituents in swertia chiravita by UPLC-ESFQ-TOF MS. J. Chin. Mass Spectrom. Soc. 2017, 38, 138–145. [Google Scholar]
  43. Luo, J.; Zhao, L.J.; Bao, J.P.; Zhu, D.; Tian, J.H.; Yu, J.; Yin, S.W. Analysis of chemical compositions in Gentiana rhodantha by UPLC-Q-TOF-MS. Chin. J. Exp. Traditional Med. Formul. 2018, 24, 89–94. [Google Scholar] [CrossRef]
  44. Li, C.M.; Luo, Y.W.; Tian, B.Y. Research progress on mass spectral fragmentation of iridoids. J. Hebei Normal Univ. 2015, 39, 522–526. [Google Scholar] [CrossRef]
  45. Gao, Z.P.; Ali, Z.; Khan, I. Glycerogalactolipids from the fruit of Lycium barbarum. Phytochemistry 2008, 69, 2856–2861. [Google Scholar] [CrossRef] [PubMed]
  46. Ni, Y.J.; Liu, Y.X.; Ruan, J.Y.; Han, L.F.; Wang, T.; Zhang, Y. Isolation and identification of iridoidal glycosides from the whole plant of Gentianella acuta (II). Chin. J. Med. Chem. 2017, 27, 133–137. [Google Scholar] [CrossRef]
  47. Ren, X.L.; Huo, J.H.; Sun, G.D.; Wei, W.F.; Wang, W.M. Analysis on chemical constituents from flowers of Trollius ledebouri by UPLC-Q-TOF-MS. Chin. Traditional Herbal Drugs 2015, 23, 3475–3481. [Google Scholar] [CrossRef]
  48. Jin, H.H.; Xiao, W.D.; Guo, D.S.; Wen, T.D.; Wei, M.W. Identification and characterization of major constituents in Juglans mandshurica using ultra performance liquid chromatography coupled with time-of-flight mass spectrometry (UPLC-ESI-Q-TOF/MS). Chin. J. Nat. Med. 2018, 16, 525–545. [Google Scholar] [CrossRef]
  49. Li, S.Z.; Liu, S.; Liu, Z.Q.; Pi, Z.F.; Song, F.R.; Jin, Y.R. A target-group-change strategy based on the UPLC-Q-TOF-MSE method for the metabolites identification of Fufang-Xialian-Capsule in rat’s plasma. J. Chromatogr. B Analyt. Technol. Biomed. Life Sci. 2018, 1085, 24–53. [Google Scholar] [CrossRef]
  50. Zhong, Y.M.; Feng, Y.F.; Tan, L.Z. Rapid analysis and identification for the alkaloids from Ranunculus japonicus by UPLC/Q-TOF-MS. J. Meas. Sci. Instrum. 2014, 5, 87–93. [Google Scholar]
  51. Huang, J.; Liao, J.Z.; Liu, W.P.; Liao, S.Y.; Feng, Y.F.; Chen, H.Y.; Rui, W. Establishment of determination method for three main active ingredients of honey-processed Astragalus in rat urine based on UPLC/Q-TOF-MS. Lishizhen Med. Mater. Med. Res. 2017, 28, 2564–2567. [Google Scholar] [CrossRef]
  52. Wang, X.; Qin, Y.; Li, G.Q.; Cheng, S.; Ma, J.Q.; Guo, Y.L.; Luo, W.Z. Study on Chemical Constituents in Polygoni Cuspidati Folium and its preparation by UPLC-ESI-Q-TOF-MS/MS. J. Chromatogr. Sci. 2018, 56, 425–435. [Google Scholar] [CrossRef]
  53. Zeng, M.L.; Shen, N.T.; Wu, S.W.; Li, Q. Analysis on chemical constituents in Tetrastigma hemsleyanum by UPLC-Triple-TOF/MS. Chin. Traditional Herb. Drugs 2017, 48, 874–883. [Google Scholar] [CrossRef]
  54. Zhang, D.Y.; Chen, L.J.; Li, J. Simultaneous determination of five xanthones in Swertia chirayita by HPLC-ESI-MS. Chin. Pharm. 2016, 27, 2579–2582. [Google Scholar]
  55. Beelders, T.; Beer, D.D.; Stander, M.A.; Joubert, E. Comprehensive phenolic profiling of Cyclopia genistoides (L.) Vent. by LC-DAD-MS and -MS/MS reveals novel xanthone and benzophenone constituents. Molecules 2014, 19, 11760–11790. [Google Scholar] [CrossRef] [PubMed]
  56. Nie, Y.; Hou, Y.Y.; Li, Y.J.; Hou, X.T.; Bai, G.; Deng, J.G. Screening of anti-inflammatory components in Mangiferae Indicae Semen based on bioactivity-integrated UPLC-Q/TOF analysis. Chin. Traditional Herb. Drugs 2015, 48, 2743–2749. [Google Scholar]
  57. Suryawanshi, S.; Asthana, R.K.; Gupta, R.C. Simultaneous estimation of mangiferin and four secoiridoid glycosides in rat plasma using liquid chromatography tandem mass spectrometry and its application to pharmacokinetic study of herbal preparation. J. Chromatogr. B Analyt. Technol. Biomed. Life Sci. 2007, 858, 211–219. [Google Scholar] [CrossRef]
  58. Wang, Z.B.; Wu, Q.; Yu, Y.; Yang, C.J.; Jiang, H.; Wu, Q.H.; Yang, B.Y.; Kuang, H.X. Determination and pharmacokinetic study of four xanthones in rat plasma after oral administration of Gentianella acuta extract by UHPLC-ESI-MS/MS. J. Ethnopharmacol. 2015, 1–27. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds are not available from the authors.
Molecules 23 03222 g001a 550Molecules 23 03222 g001b 550

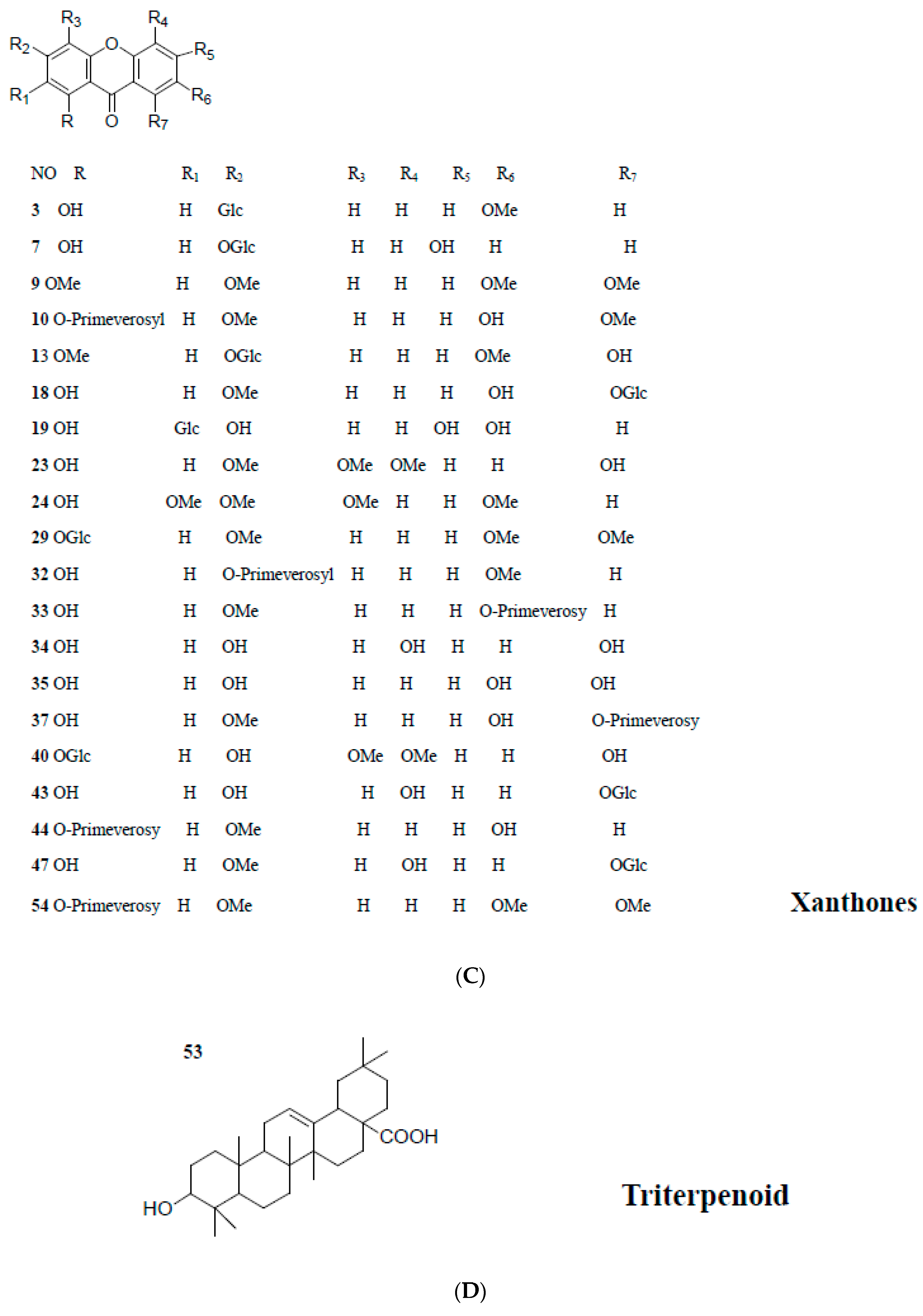

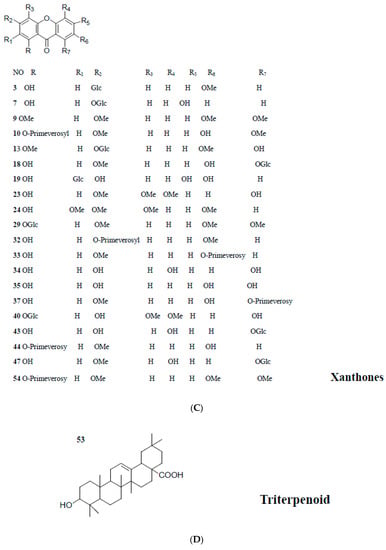

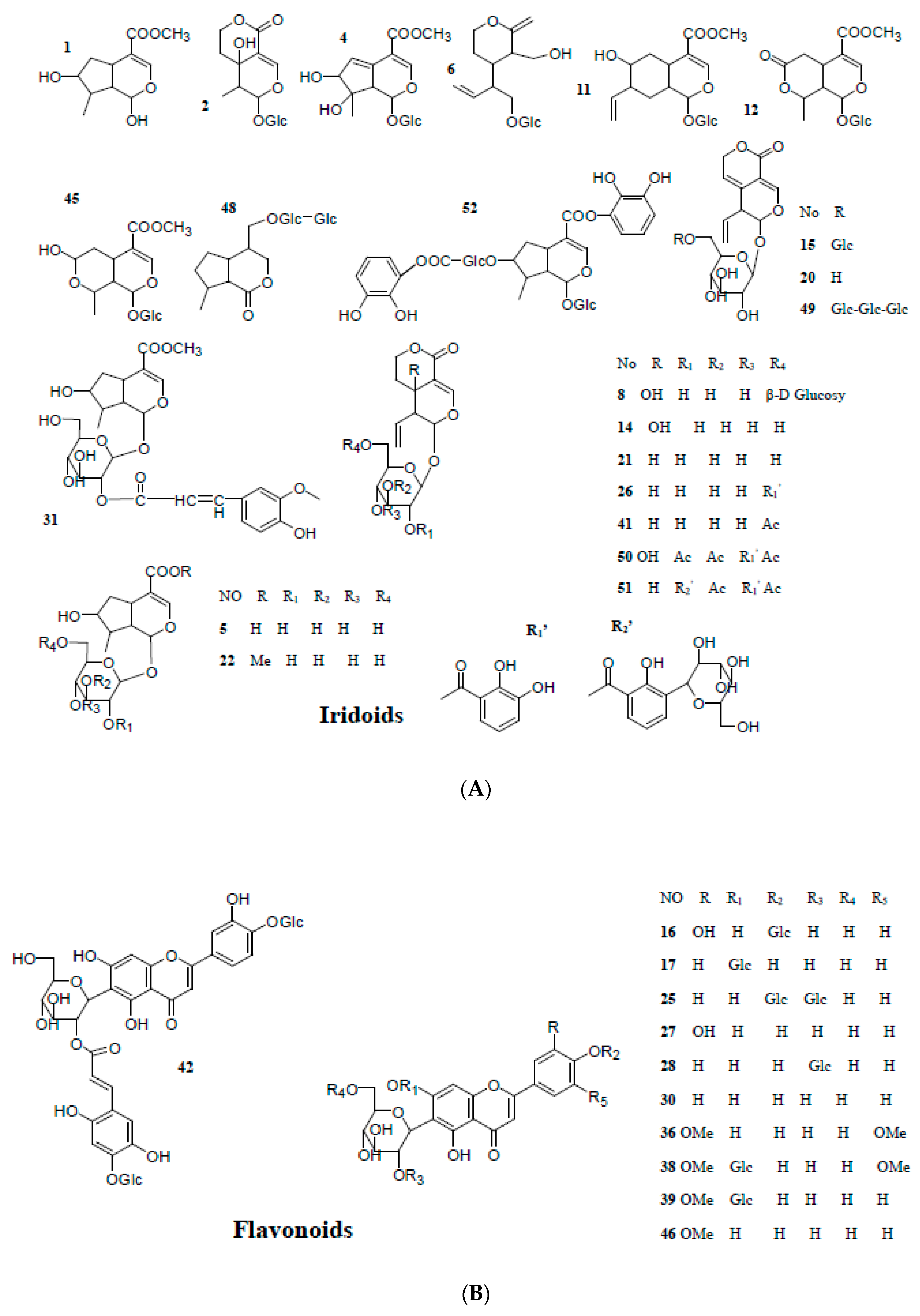

Figure 1. The structures of compounds identified in crude and wine-processed Gentiana radix: (A) iridoids; (B) flavonoids; (C) xanthones; (D) triterpenoid.
Figure 1. The structures of compounds identified in crude and wine-processed Gentiana radix: (A) iridoids; (B) flavonoids; (C) xanthones; (D) triterpenoid.
Molecules 23 03222 g001aMolecules 23 03222 g001b
Molecules 23 03222 g002a 550Molecules 23 03222 g002b 550Molecules 23 03222 g002c 550

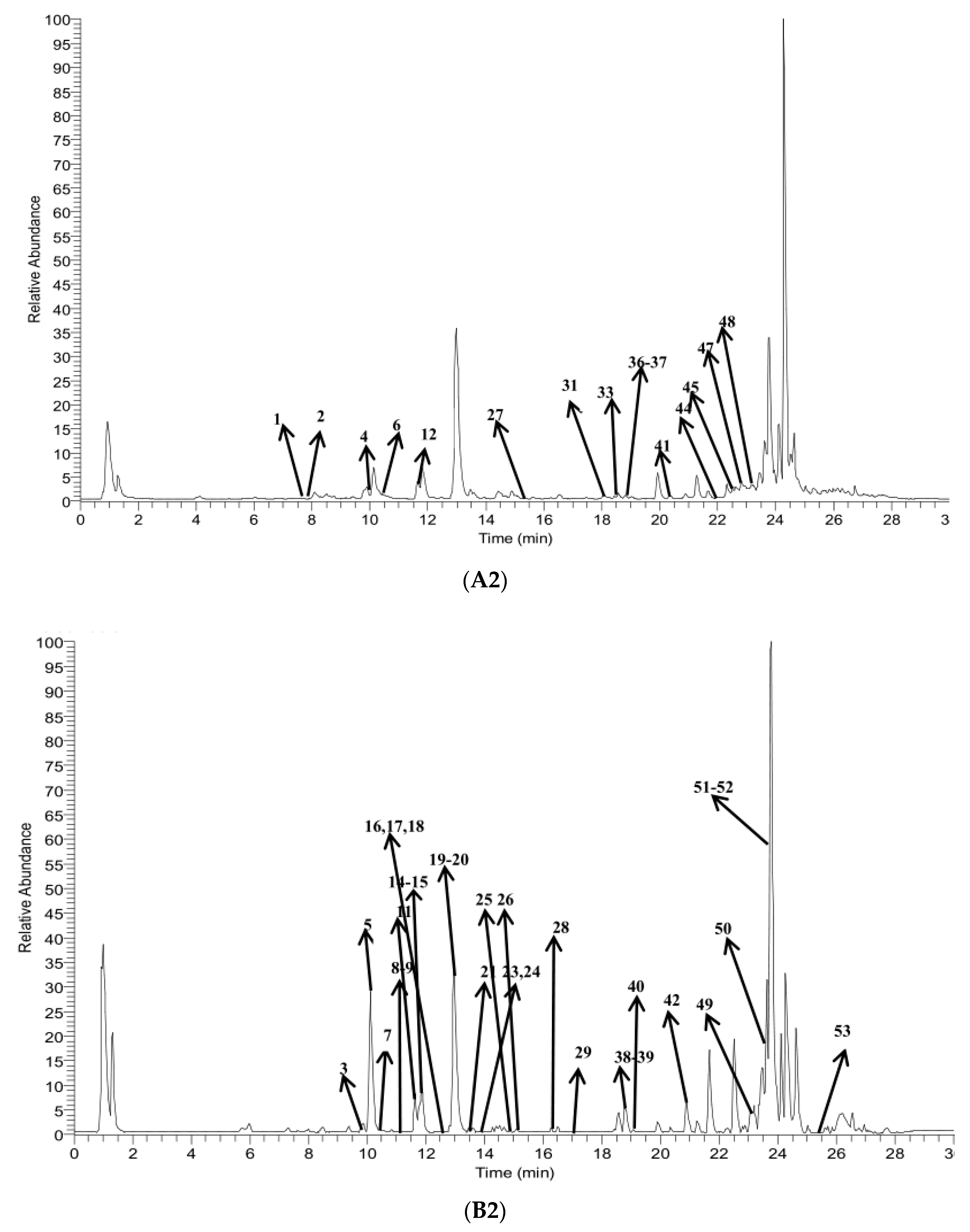

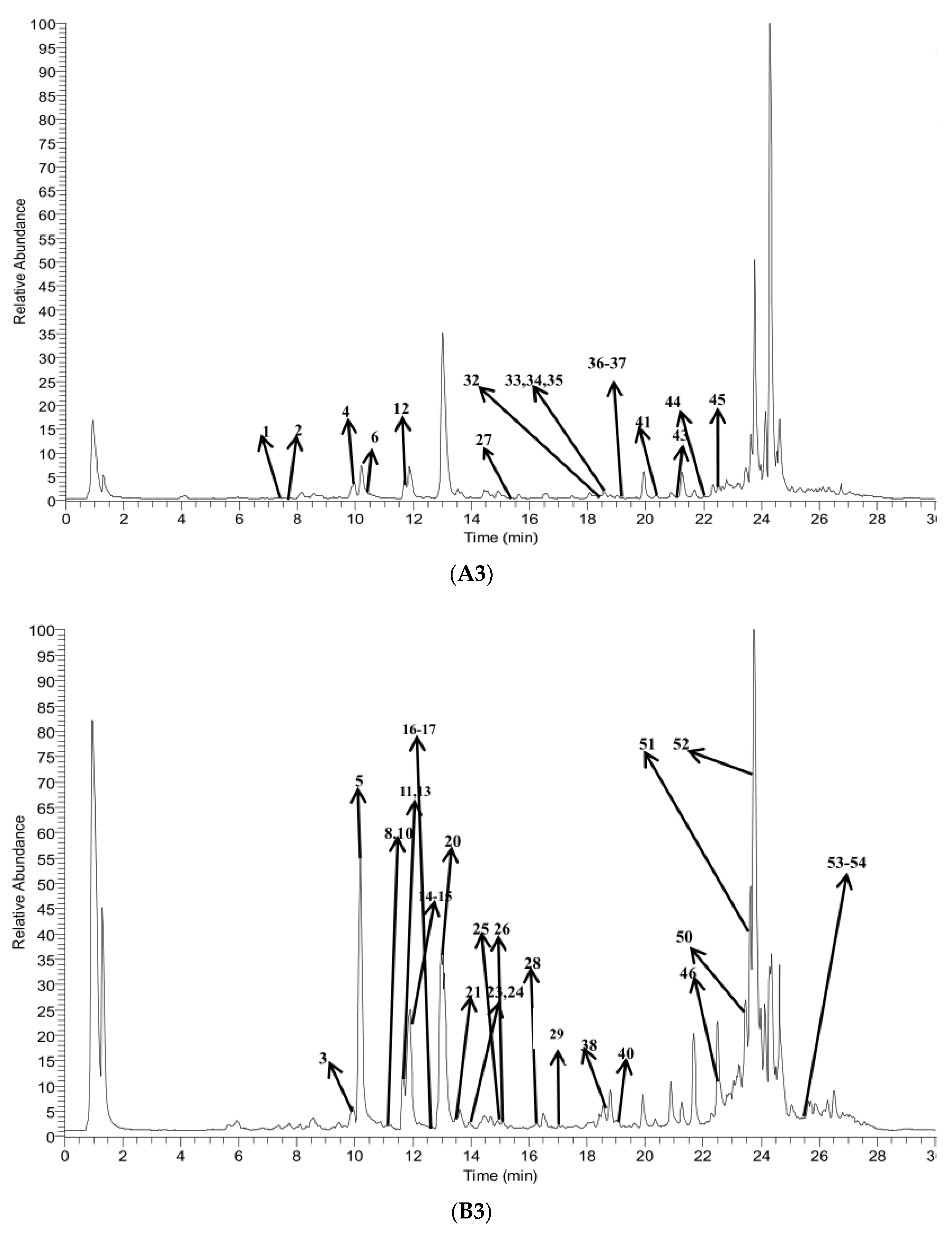

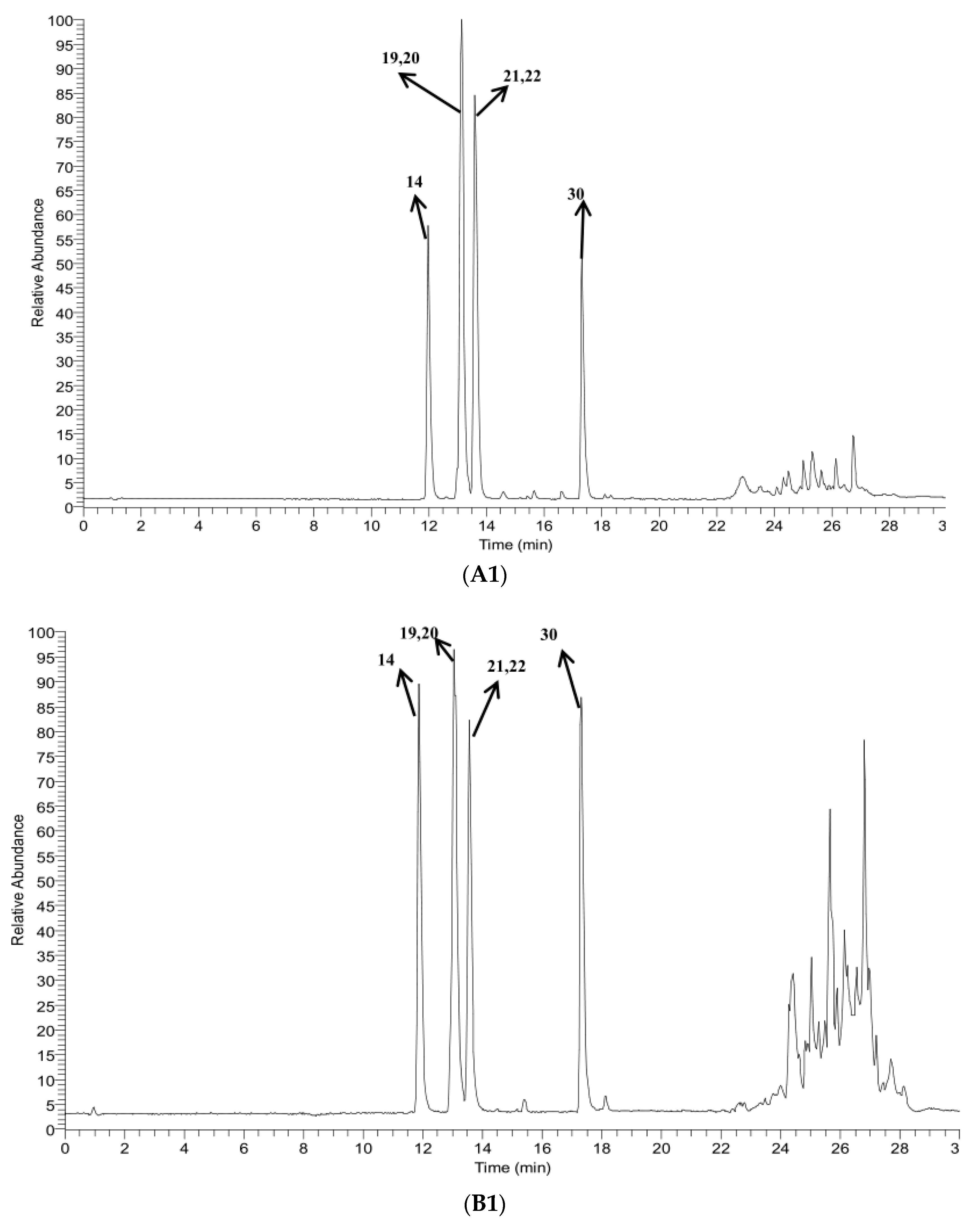

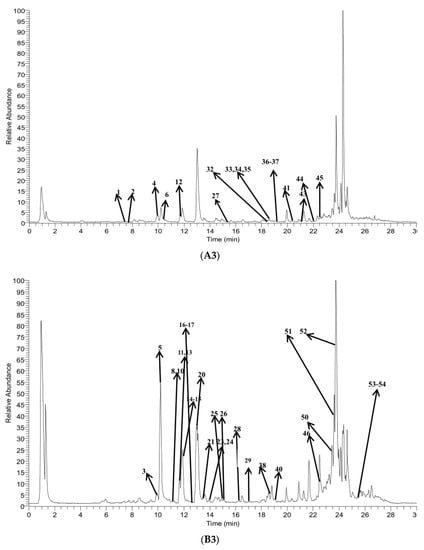

Figure 2. TIC chromatogram of standards, crude and wine-processed Gentiana radix: (A) positive ion mode; (B) negative ion mode; (1) standards; (2) crude Gentiana radix; (3) wine-processed Gentiana radix.
Figure 2. TIC chromatogram of standards, crude and wine-processed Gentiana radix: (A) positive ion mode; (B) negative ion mode; (1) standards; (2) crude Gentiana radix; (3) wine-processed Gentiana radix.
Molecules 23 03222 g002aMolecules 23 03222 g002bMolecules 23 03222 g002c
Molecules 23 03222 g003a 550Molecules 23 03222 g003b 550

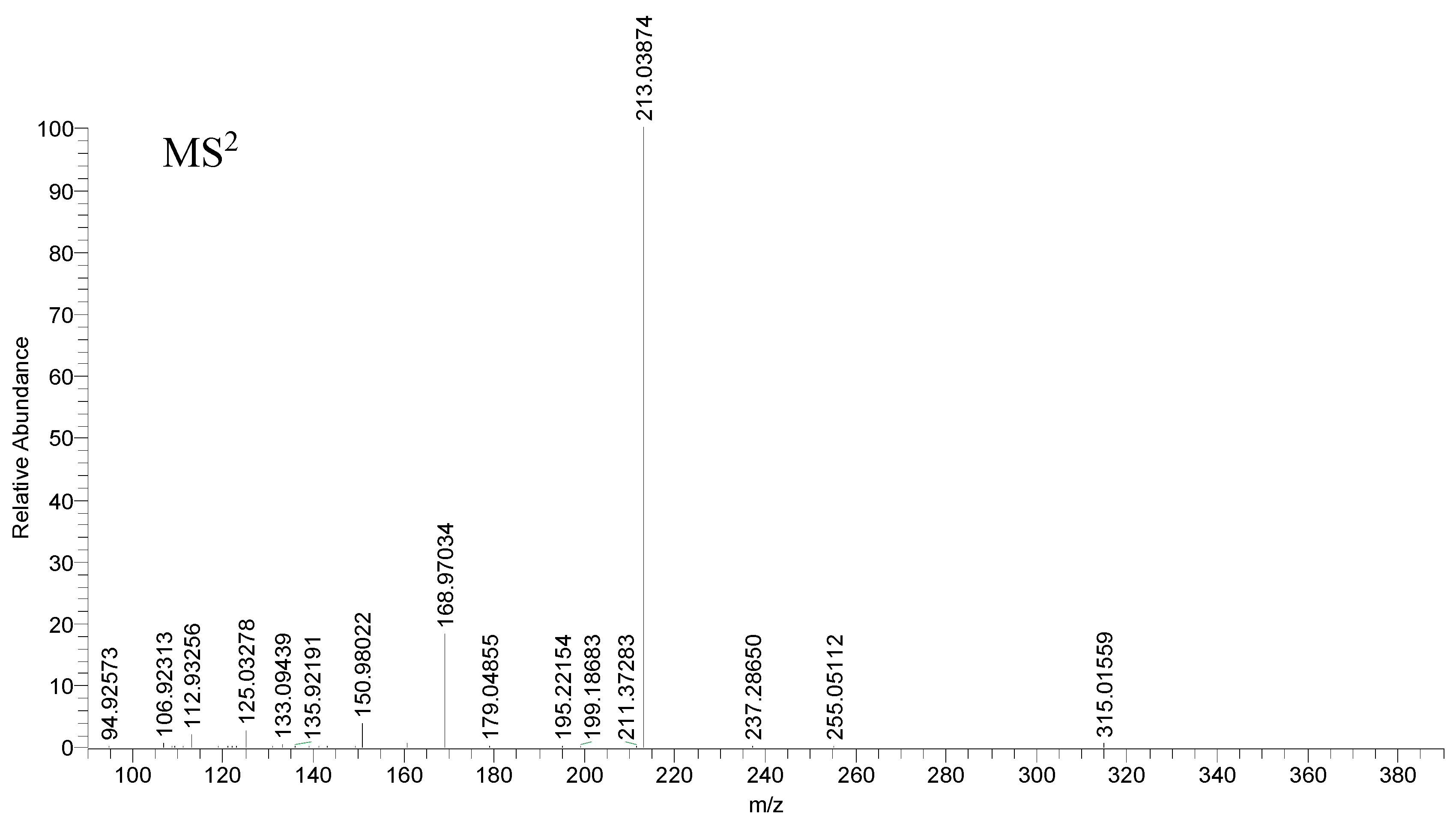

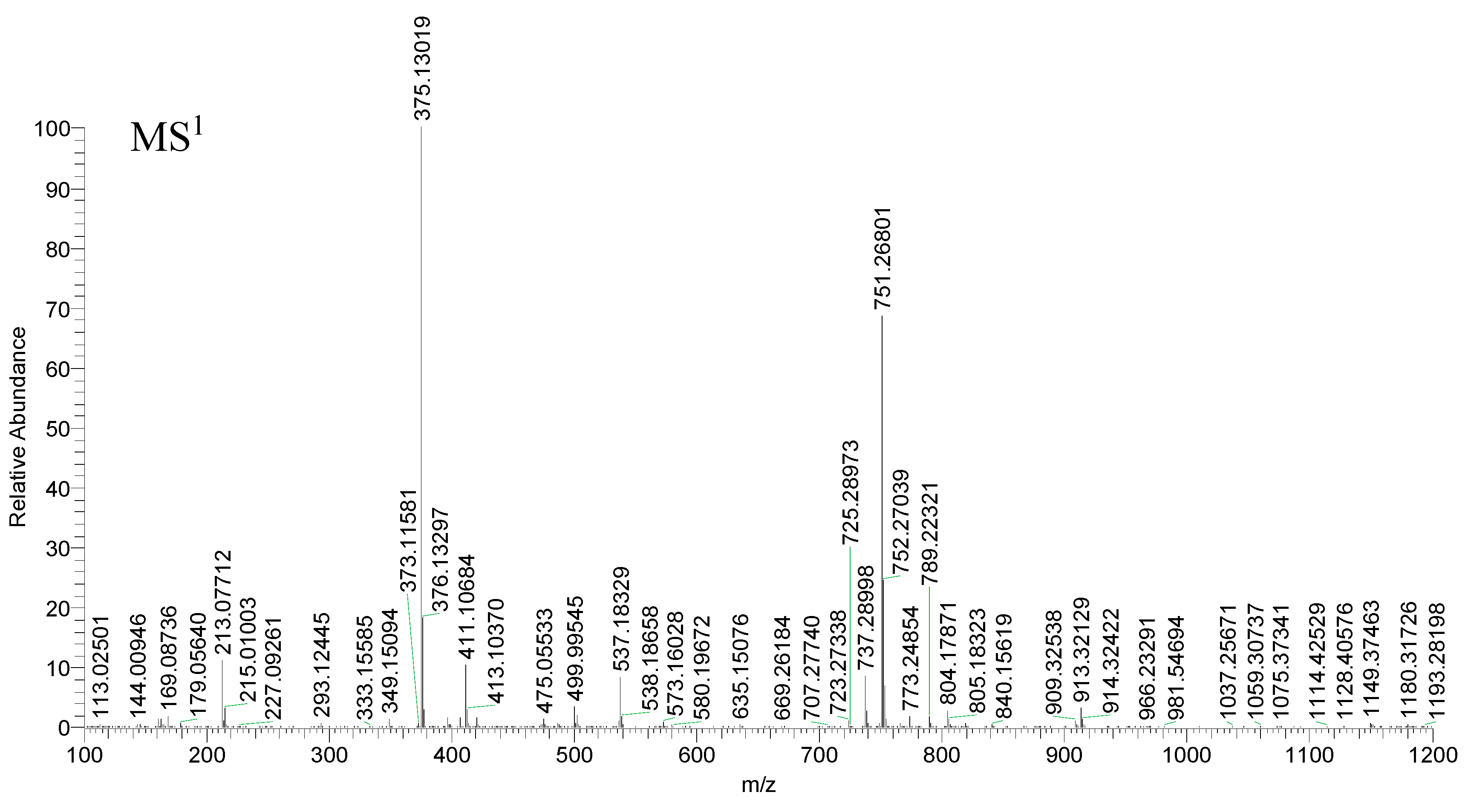

Figure 3. Spectra of ion fragments in MSn analysis of loganic acid in negative ion mode.
Figure 3. Spectra of ion fragments in MSn analysis of loganic acid in negative ion mode.
Molecules 23 03222 g003aMolecules 23 03222 g003b
Molecules 23 03222 g004 550

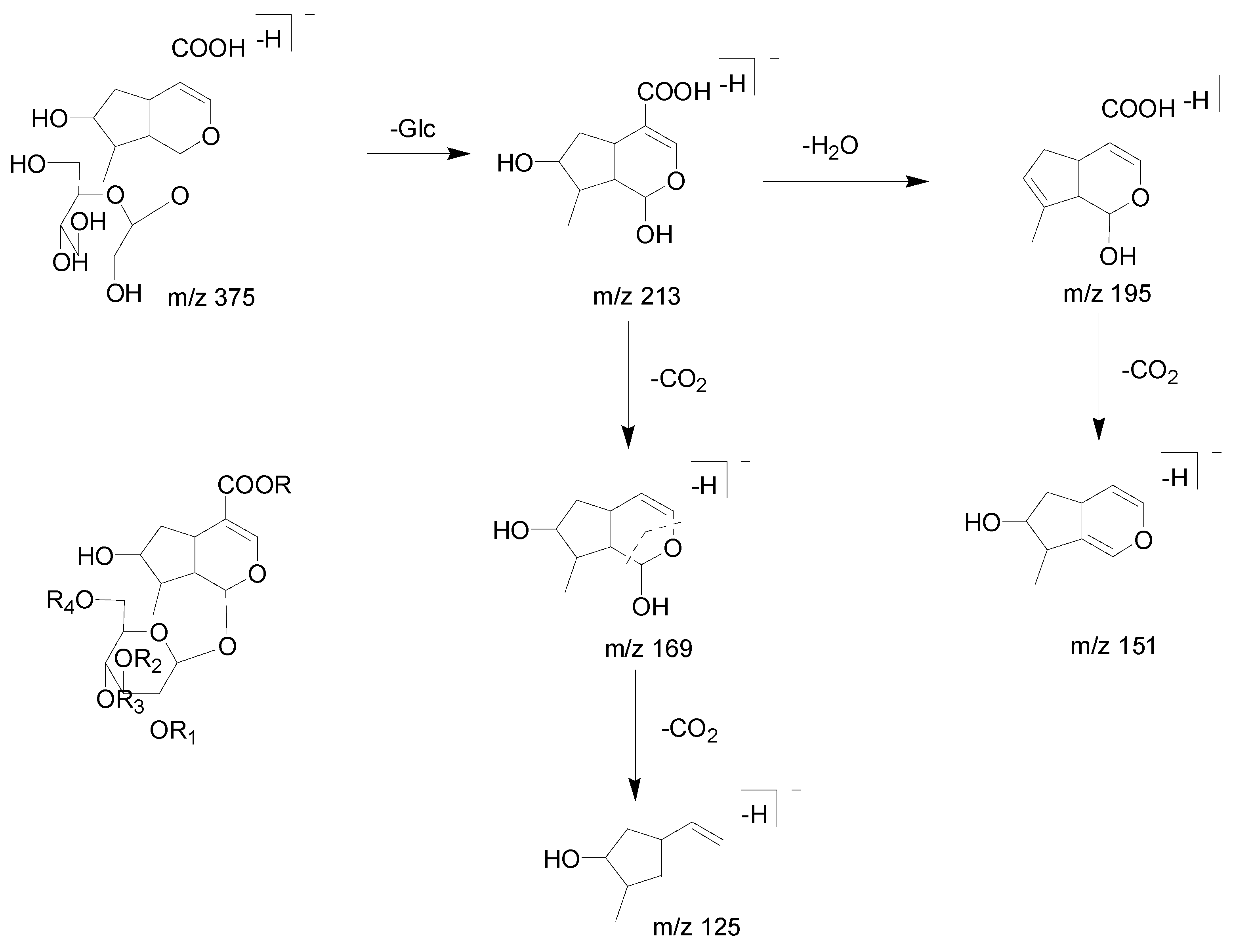

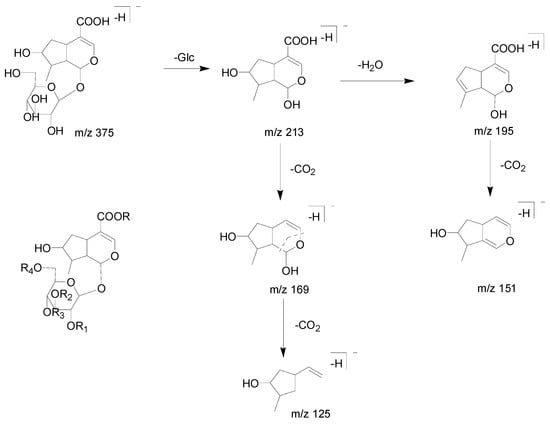

Figure 4. The proposed fragmentation pathway of loganic acid.
Figure 4. The proposed fragmentation pathway of loganic acid.
Molecules 23 03222 g004
Molecules 23 03222 g005a 550Molecules 23 03222 g005b 550Molecules 23 03222 g005c 550

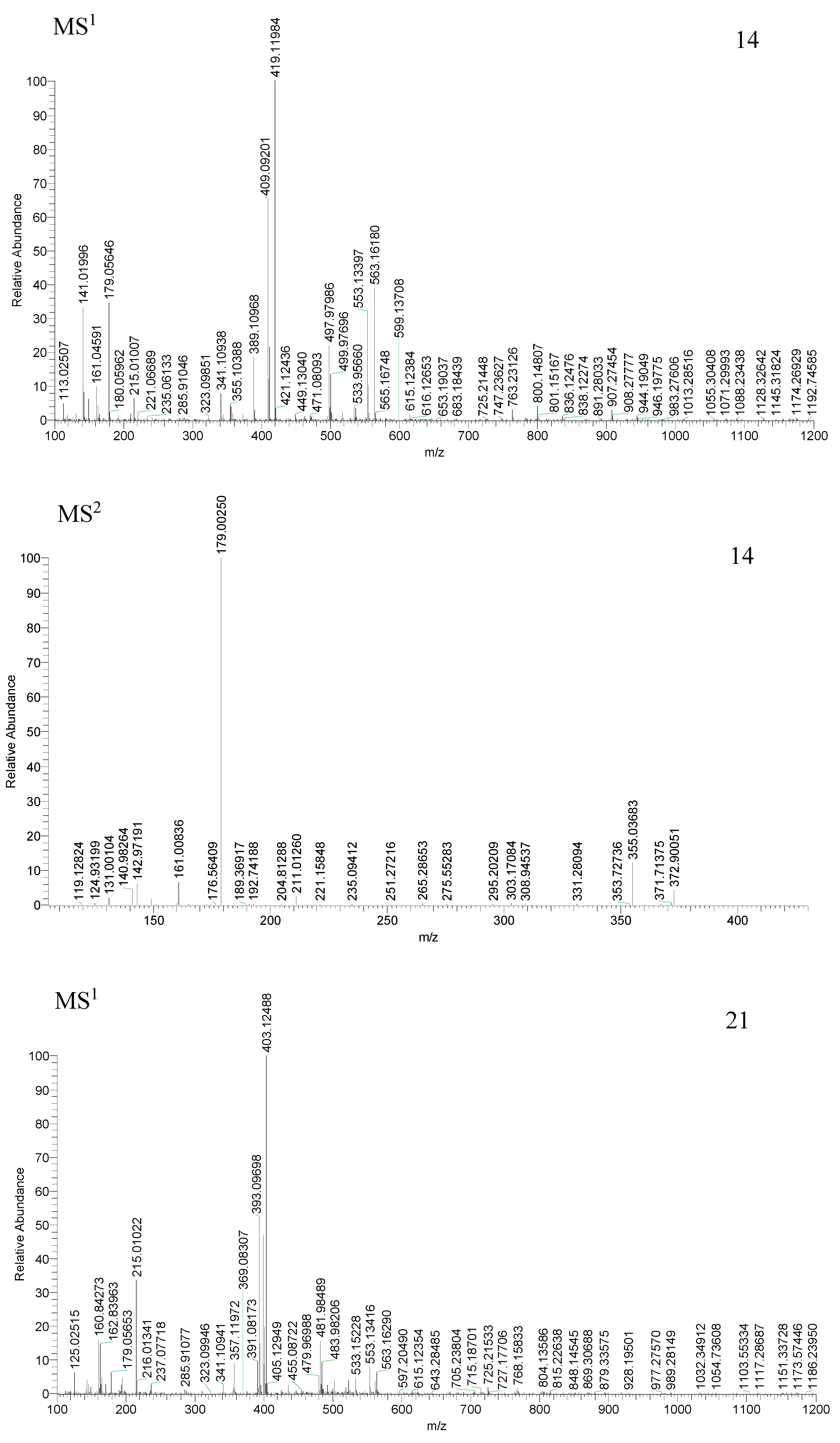

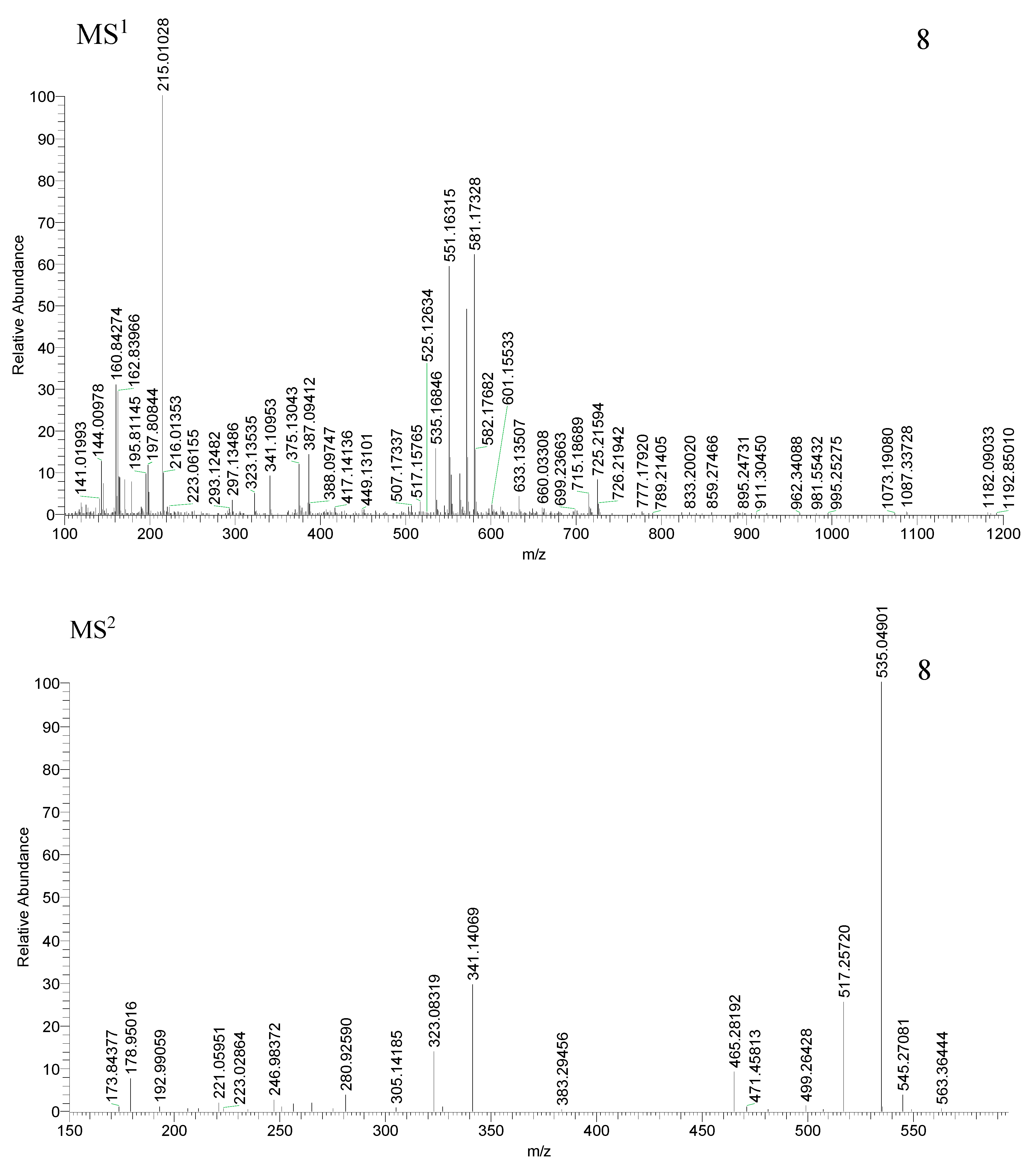

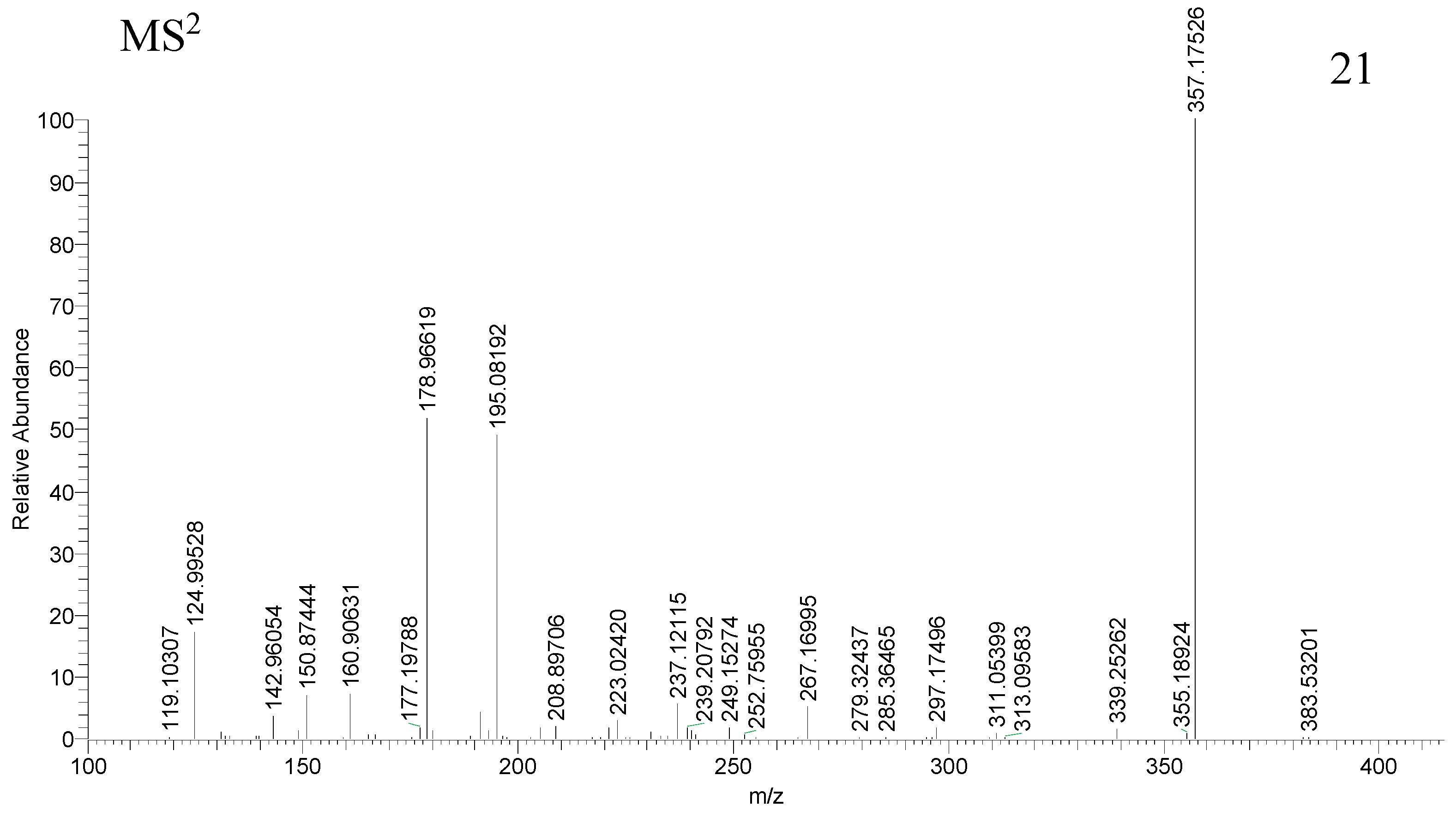

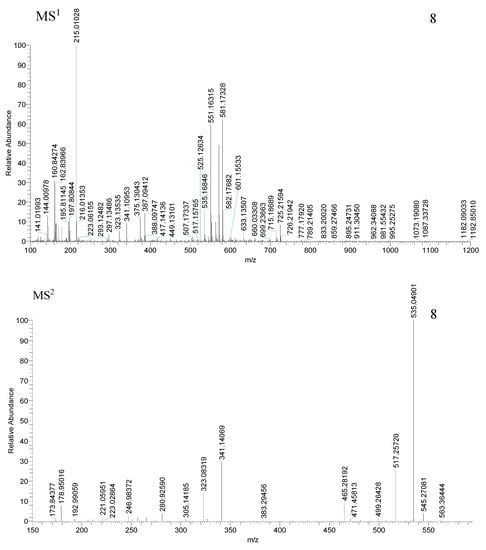

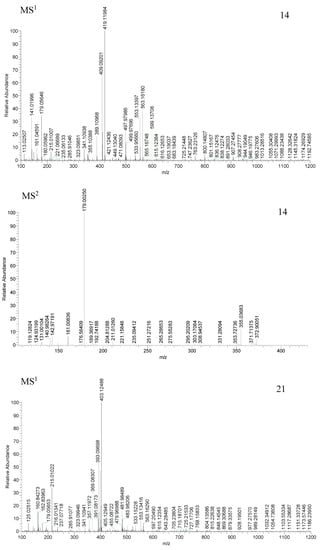

Figure 5. Spectra of ion fragments in MSn analysis of 6′-O-β-d-glucosyl swertiamarin (8), swertiamarin (14), sweroside (21) in negative ion mode.
Figure 5. Spectra of ion fragments in MSn analysis of 6′-O-β-d-glucosyl swertiamarin (8), swertiamarin (14), sweroside (21) in negative ion mode.
Molecules 23 03222 g005aMolecules 23 03222 g005bMolecules 23 03222 g005c
Molecules 23 03222 g006 550

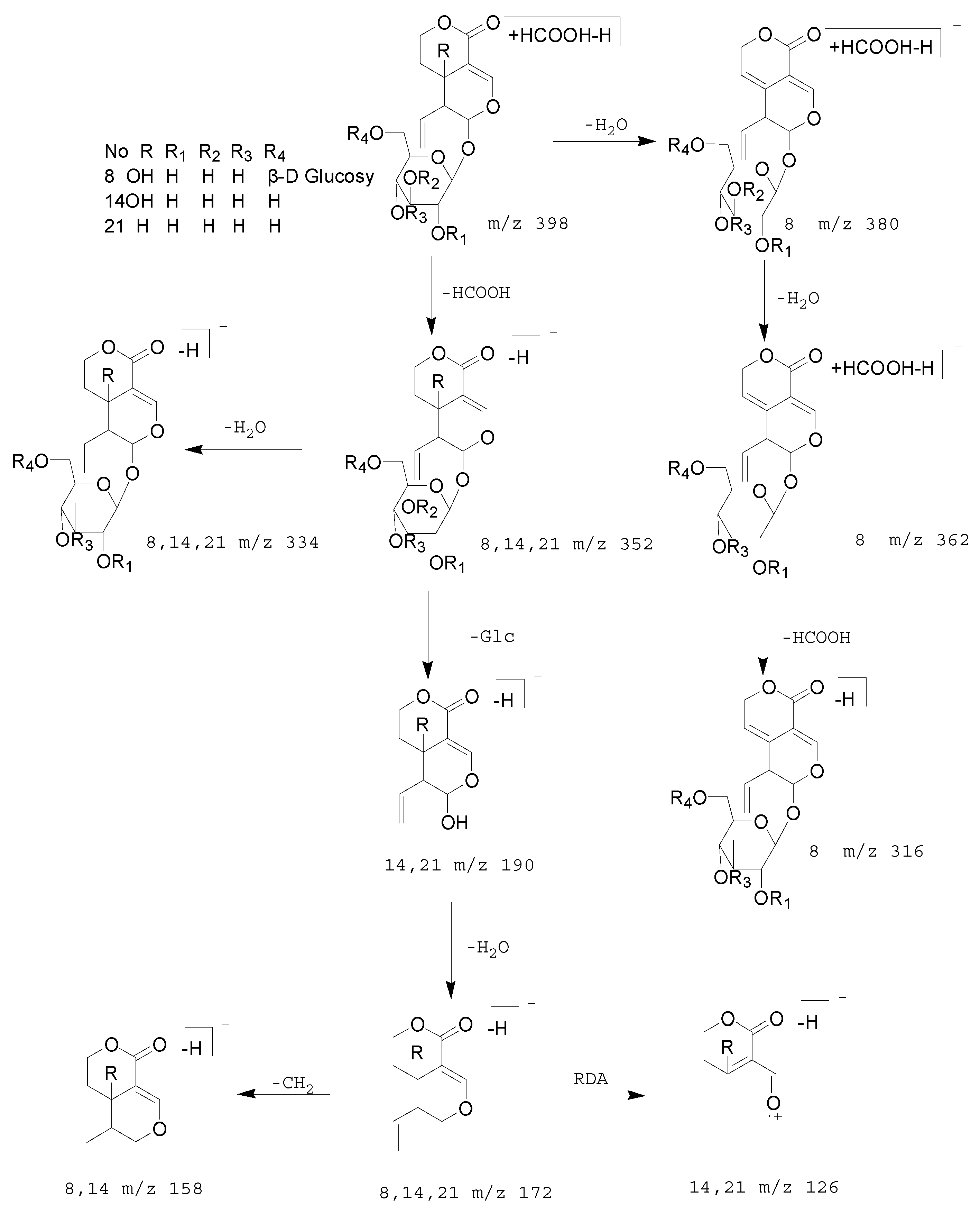

Figure 6. The proposed fragmentation pathway of 6′-O-β-d-glucosyl swertiamarin, swertiamarin, sweroside.
Figure 6. The proposed fragmentation pathway of 6′-O-β-d-glucosyl swertiamarin, swertiamarin, sweroside.
Molecules 23 03222 g006
Molecules 23 03222 g007a 550Molecules 23 03222 g007b 550Molecules 23 03222 g007c 550

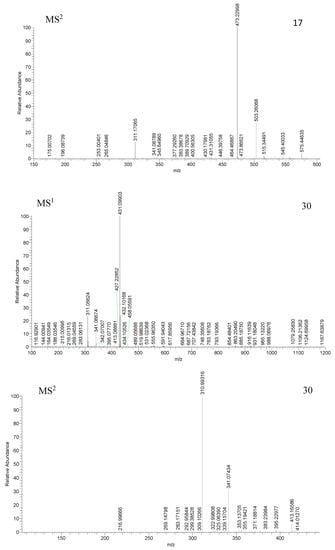

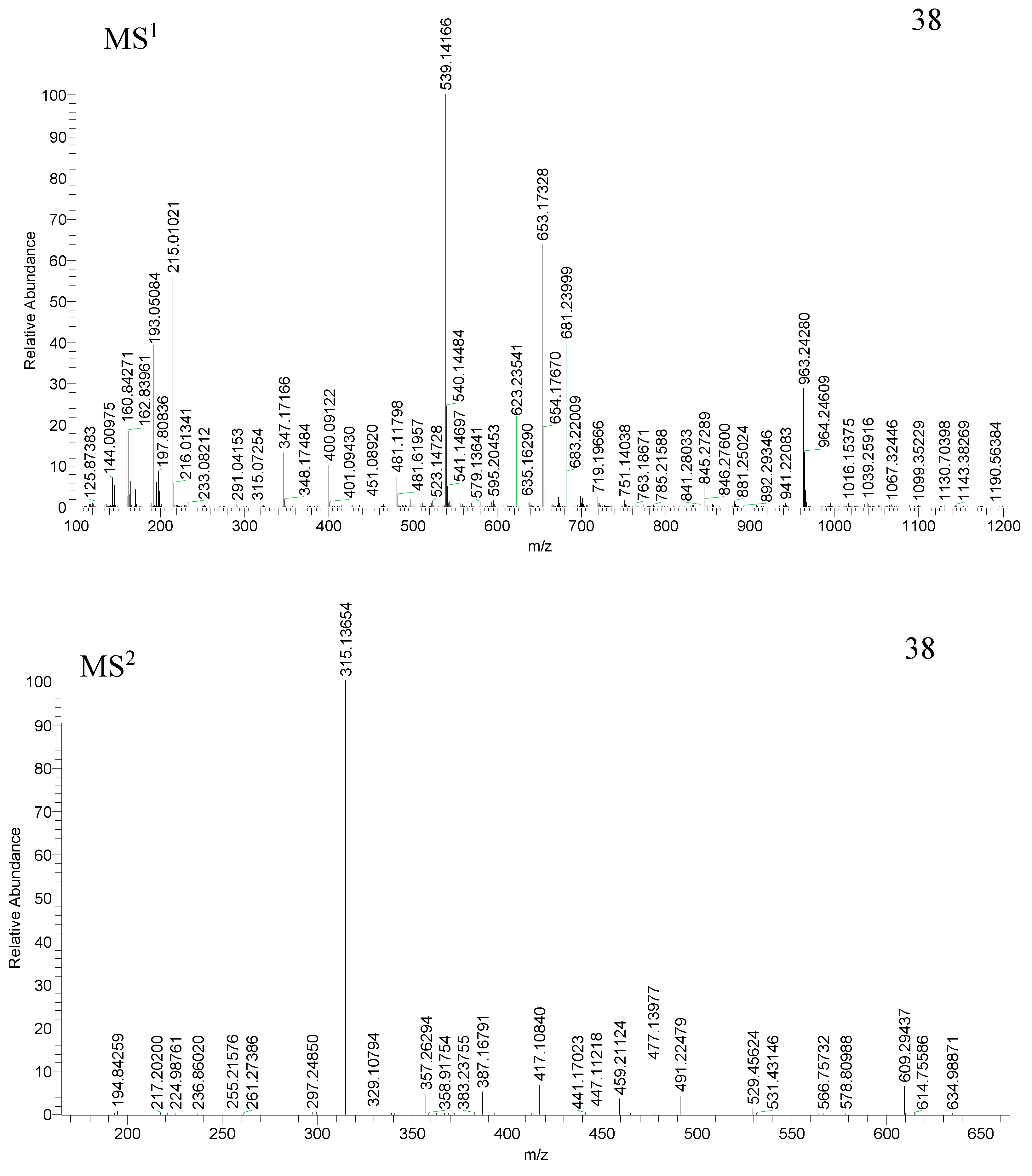

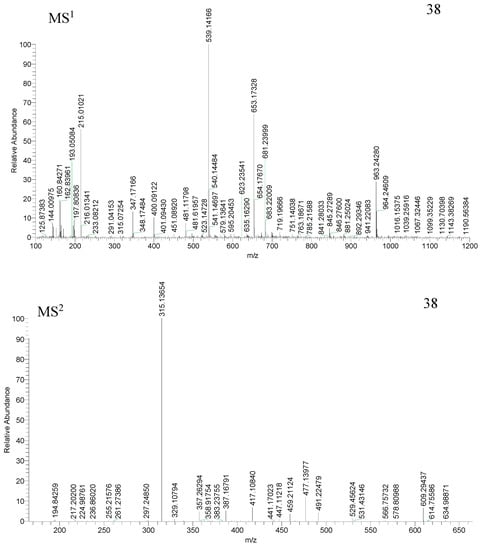

Figure 7. Spectra of ion fragments in MSn analysis of isovitexin-2′′-O-B-d-glucosyle (16), saponarin (17), isovitexin, isopyrenine-7-O-glucosyle (38) in negative ion mode.
Figure 7. Spectra of ion fragments in MSn analysis of isovitexin-2′′-O-B-d-glucosyle (16), saponarin (17), isovitexin, isopyrenine-7-O-glucosyle (38) in negative ion mode.
Molecules 23 03222 g007aMolecules 23 03222 g007bMolecules 23 03222 g007c
Molecules 23 03222 g008 550

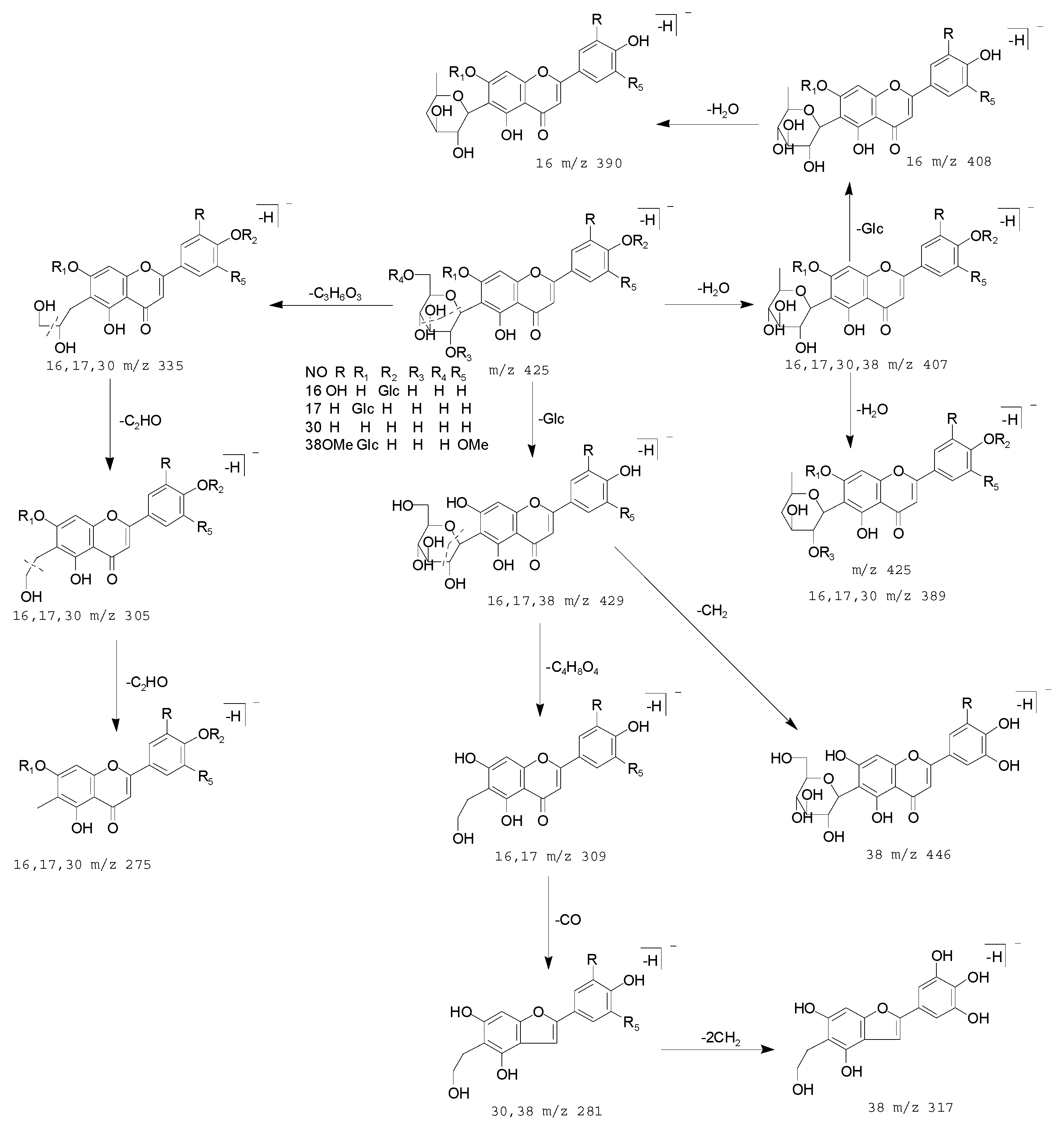

Figure 8. The proposed fragmentation pathway of saponarin, isovitexin-2′′-O-B-d-glucosyle, isovitexin, isopyrenine-7-O-glucosyle, 4′-O-B-d-glucospranosyl-2′’-O-[1-O-B-d-glucosyl-2,4,4-trihydroxy-(E)-cinnamoyl]-2′′-isoorientin.
Figure 8. The proposed fragmentation pathway of saponarin, isovitexin-2′′-O-B-d-glucosyle, isovitexin, isopyrenine-7-O-glucosyle, 4′-O-B-d-glucospranosyl-2′’-O-[1-O-B-d-glucosyl-2,4,4-trihydroxy-(E)-cinnamoyl]-2′′-isoorientin.
Molecules 23 03222 g008
Molecules 23 03222 g009 550

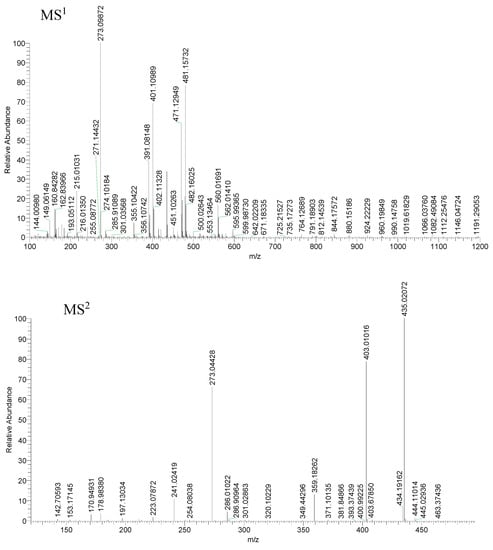

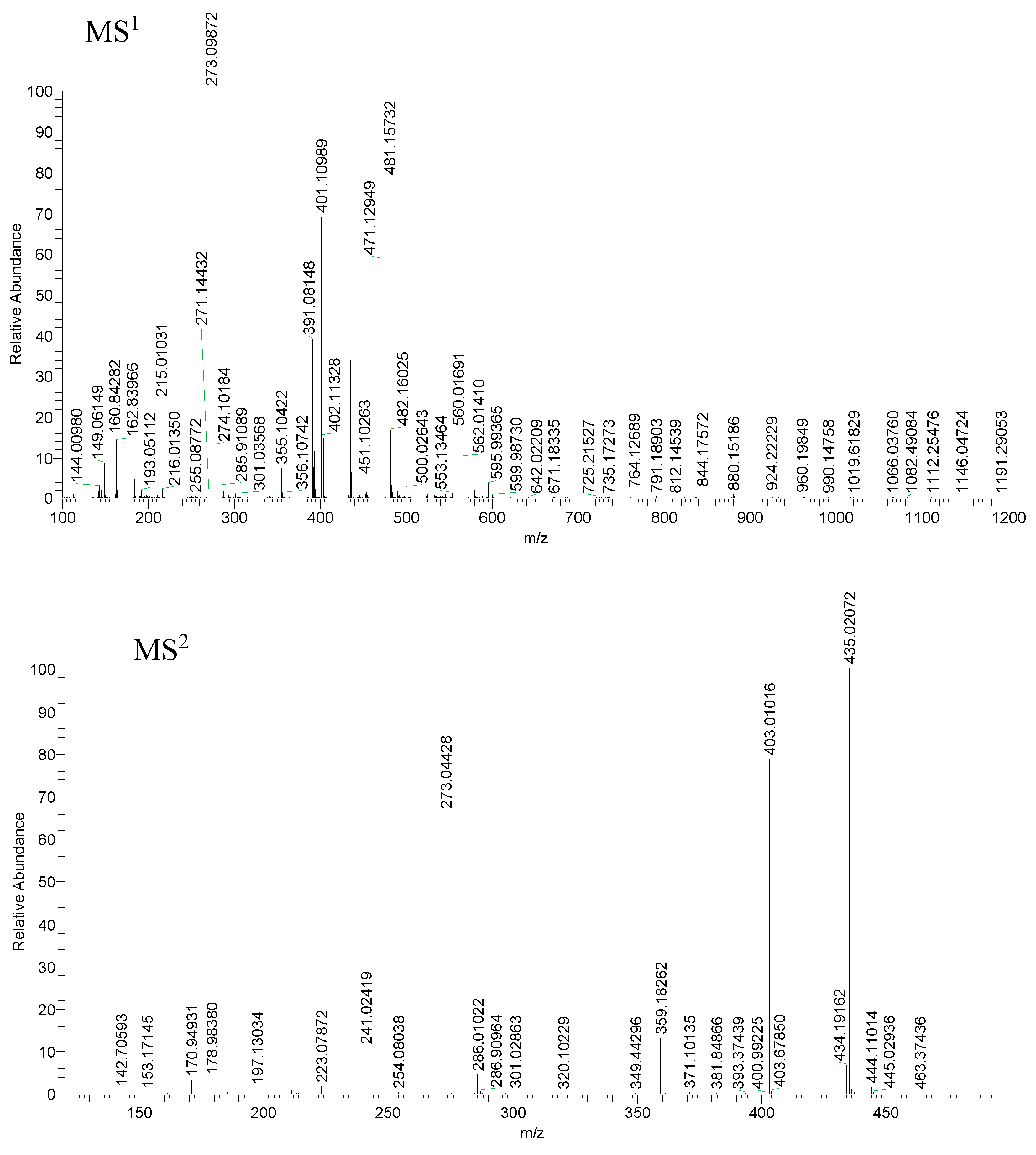

Figure 9. Spectra of ion fragments in MSn analysis of mangiferin in negative ion modea.
Figure 9. Spectra of ion fragments in MSn analysis of mangiferin in negative ion modea.
Molecules 23 03222 g009
Molecules 23 03222 g010 550

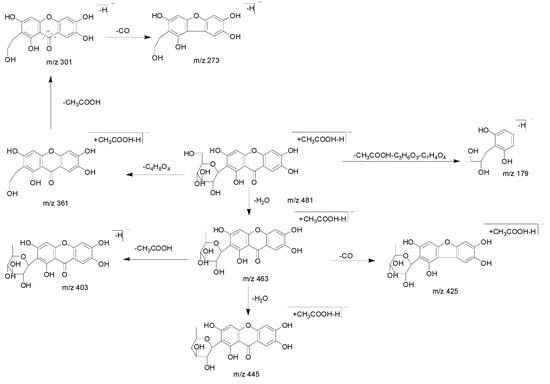

Figure 10. The proposed fragmentation pathway of mangiferin.
Figure 10. The proposed fragmentation pathway of mangiferin.
Molecules 23 03222 g010
Table
Table 1. Identification of chemical constituents of crude and wine-processed Gentiana radix by UHPLC-LTQ-Orbitrap.
Table 1. Identification of chemical constituents of crude and wine-processed Gentiana radix by UHPLC-LTQ-Orbitrap.
No.tR/minIdentificationEmpirical FormulaProposal IonsTheoretical Mass m/zExperimental Mass m/zMass Error (ppm)MS2 Data (Measured)Chromatographic Peak Area Ratio (Crude: Wine)
CrudeWineCrudeWineCrudeWineCrudeWine
17.507.51Loganetin a,b [15]C11H17O5[M + H]+229.10705229.10652229.106542.3142.227211(100), 193(2.73), 197(0.95), 169(1.45), 179(2.72), 151(1.47), 161(0.09), 133(0.31)211(100), 193(0.42), 197(1), 169(0.31), 179(1.21), 151(2.35), 161(0.22)1.11
27.707.71Eustomoside a,b [16]C16H23O11[M + H]+391.12349391.12317391.122800.8131.759373(0.35), 229(100), 211(37.5), 193(0.39), 125(0.98)373(0.35), 229(100), 211(37.5), 193(0.39), 125(0.98)0.91
39.759.742-C-β-d-glucospranosyl-glucopyranosyl-1-hydroxy-7-methoxyxanthone a,b [17]C21H21O11[M − H + HCOOH]−449.10784449.10971449.409894.1694.569359(100), 329(0.13), 283(0.47), 327(0.06), 241(43.13), 179(17.1)359(100), 329(0.22), 283(0.33), 253(0.04), 299(0.15), 179(27.08)0.32
49.889.90Methyl (1S)-1-(d-glucopyranosyloxy)-6,7-dihydroxy-7-methyl-1,6,7,7a-tetrahydrocyclopenta[c]pyran-4-carboxylate a,b [18]C17H25O11[M + H]+405.13914405.13898405.138640.3901.229387(1.33), 373(0.06), 345(0.16), 243(100), 225(0.26), 211(38.42), 193(0.27), 175(0.35), 165(0.51)387(0.24), 373(0.09), 345(0.06), 243(100), 225(0.23), 211(38.3), 193(0.73), 175(0.1), 165(0.25)0.75
510.1710.20Loganic acid a,bC16H23O10[M − H]−375.12857375.13019375.130224.3104.390213(100), 195(0.27), 169(17.87), 113(1.83), 151(3.61), 125(2.48)213(100), 195(0.16), 169(18.11), 113(1.94), 151(3.66), 125(2.69)0.91
610.2910.311-O-d-glucopyransylampexine a,b [19]C16H26O9Na[M + Na]+385.14690385.14673385.146640.4500.684367(0.46), 355(100), 357(0.02), 223(4.06), 205(0.13),367(0.41), 355(100), 357(0.05), 339(0.13), 223(4.06), 205(0.04),1.11
710.38-2-O-β-d-glucospranosyl-1,6-dihydroxyxanthone a [17]C20H19O12[M − H + HCOOH]−451.08710451.14664-4.850 405(100), 433(0.57), 415(0.63), 243(29.91), 269(0.28)--
811.0211.076′-O-β-d-glucosyl swertiamarin a,b [20]C23H33O17[M − H + HCOOH]−581.17123581.17352581.173283.9483.535563(1.04), 545(4.78), 535(100), 517(17.57), 499(1.93), 341(36.38), 323(15.84), 193(1.11)563(0.56), 545(3.64), 535(100), 517(25.37), 499(1.23), 341(29.58), 323(14), 193(0.96)1.11
911.07-Tetramethoxy-1,3,7,8-xanthone a [21]C19H19O8[M − H + CH3COOH]−375.10744375.10927-4.895-357(2.16), 287(0.87), 255(0.71), 195(100), 179(5.46), 151(84.67), 121(22.05)--
10-11.10Gentiabavaroside b [21]C26H29O15[M − H]−581.15010-581.14722-4.950 535(100), 521(1.15), 517(31.95), 499(4.9), 521(1.15), 249(0.4), 247(1.44)-
1111.6311.65Secologano a,b [22]C17H25O10[M − H]−389.14422389.14285389.142583.5294.223371(4.98), 345(100), 209(30.88), 191(0.33), 163(0.35), 149(1.17)371(3.63), 345(100), 311(0.2), 209(33.11), 191(0.44), 163(0.37), 149(1.9)0.91
1211.6511.68Kingiside a,b [23]C17H25O11[M + H]+405.13914405.13895405.138580.1880.558387(0.07), 369(0.04), 243(100), 211(34.33), 207(0.02), 193(0.24), 183(0.13), 165(0.44)387(0.07), 369(0.04), 243(100), 211(37.23), 207(0.01), 193(0.25), 183(0.13), 165(0.32)0.86
13-11.69Glucosyl-1-gentiacaulein b [21]C21H21O11[M − H]−449.10784-449.10965-4.035-431(0.52), 403(4.87), 413(0.06), 241(100), 327(0.06), 283(0.06), 165(1.89)-
1411.8011.82Swertiamarin a,b,*C17H23O12[M − H + HCOOH]−419.11840419.11990419.119843.5733.430373(4.23), 355(12.27), 211(3.06), 193(0.1), 179(100), 161(5.74), 149(1.53)373(4.22), 355(12.04), 211(2.43), 193(0.11), 179(100), 161(6.37), 149(1.6)0.87
1511.8711.906′-O-β-d-glucosyl gentiopicroside a,b [24]C23H31O16[M − H + HCOOH]−563.16066563.16193563.161442.1682.048517(31.74), 355(0.16), 499(1.98), 341(100), 323(13.4), 327(0.29), 305(1.5), 309(0.26), 193(1.63), 179(46.29), 165(0.03)517(38.51), 355(0.05), 499(2.88), 341(100), 323(16), 305(1.26), 309(0.1), 193(3.28), 179(45.22), 175(0.14), 165(0.35)0.91
1612.5112.53Isoorientin-4′-O-β-d-glucosyle a,b [25]C27H29O16[M − H]−609.14501609.14783609.147644.6284.316591(0.19), 573(0.21), 519(2.06), 447(100), 489(4.3), 327(5.65), 429(1.63), 411(0.45)591(0.29), 573(0.14), 519(1.56), 447(100), 489(5.61), 327(5.35), 429(0.66), 411(0.07)0.9
1712.5912.59Saponarin a,b [26]C27H29O15[M − H]−593.15010593.15302593.152774.9294.507575(3.67), 557(0.81), 503(27.18), 473(100), 431(0.98), 311(12.43)575(4.38), 557(1.49), 503(26.83), 473(100), 431(1.1), 311(9.15)1.17
1812.79-Glucosyl-8-swertianin a [21]C21H21O13[M – H + HCOOH]−481.09767481.09833-1.378-445(0.28), 435(100), 273(49.56), 241(10.58), 403(69.94), 359(17.44)--
1912.86-Mangiferin a,*C21H21O13[M − H + CH3COOH]−481.09767481.09711-1.158-463(0.13), 445(0.28), 435(100), 361(0.05), 301(0.34), 403(0.53), 273(66.13), 179(3.46)--
2012.9612.98Gentiopicroside a,b,*C17H21O11[M − H + HCOOH]−401.10784401.10907401.108921.2321.082355(78.18), 193(9.39), 179(100), 175(0.48), 149(14.29), 165(1.54)355(78.98), 193(11.62), 179(100), 175(0.29), 149(19.9), 165(0.87)1.04
2113.4713.48Sweroside a,b,*C17H23O11[M − H + HCOOH]−403.12349403.12506403.124881.5721.392357(100), 339(1.06), 283(0.21), 267(4.96), 195(45.04), 177(0.50), 180(2.67), 151(8.32), 125(16.99)357(100), 339(1.39), 267(5), 195(48.96), 177(1.76), 180(1.24), 151(6.9), 125(17.08), 119(0.19)0.99
2213.57Loganin *C18H27O12[M − H + HCOOH]−435.14970435.151464.039389(12.53), 227(100), 371(0.25), 209(0.27), 127(0.31); (Standard)-
2313.8713.90Methylcorymbiferin a,b [27]C18H17O9[M − H + CH3COOH]−377.08671377.08704377.087340.8791.675362(0.1), 347(0.22), 197(100), 179(0.61), 153(17.46)359(0.11), 347(0.6), 197(100), 179(0.41), 153(23.02)1.92
2413.9213.961-hydroxy-2,3,4,7-tetramethoxy xanthone a,b [28]C18H17O9[M − H + HCOOH]−377.08671377.08716377.086981.1970.720347(0.48), 331(0.03), 197(100), 179(0.03), 153(20.32), 119(0.06)347(1.46), 331(0.06), 197(100), 179(0.45), 153(21.29)2.07
2514.8514.85Isovitexin-2′′-4′-O-B-d-glucosyle a,b [29]C34H41O22[M − H + HCOOH]−801.20840801.21179801.211183.3912.781765(0.69), 755(0.2), 681(0.85), 639(100), 635(0.13), 621(0.2), 477(42.58)765(0.17), 755(0.45), 681(1.49), 639(100), 621(3.91), 477(45)0.82
2615.1115.11Gentiotrifloroside a,b [30]C29H35O17[M − H]−655.18688655.18951655.189274.0203.654637(0.19), 493(67.72), 475(0.02), 315(100), 195(0.14)637(0.05), 493(65.72), 475(0.22), 315(100), 339(0.23)0.85
2715.3815.38Isoorientin a,bC21H21O11[M + H]+449.10784449.10727449.106840.5680.998431(100), 413(25.4), 395(19.26), 329(27.53), 299(2.14)431(100), 413(21.6), 395(18.98), 329(26.97), 299(3.35)1.03
2816.2616.27Isovitexin-2′′-O-B-d-glucosyle a,b [29]C28H31O17[M − H + HCOOH]−639.15558639.15826639.158082.6842.504593(0.07), 431(0.03), 477(100), 357(0.2), 311(0.1), 281(0.04)593(0.01), 431(0.01), 477(100), 357(0.12), 387(0.04)1.05
2917.0317.01Glucosyl-1-decussatin a,b [21]C24H27O13[M − H + CH3COOH]−523.14462523.14722523.147034.9754.612487(0.37), 451(1.73), 371(1.12), 359(4.1), 361(74.13), 343(1.29), 299(0.3), 241(100), 165(6.39)505(1.55), 371(1.39), 359(0.89), 361(65.37), 343(0.96), 299(1.23), 241(100), 165(8.09)0.13
3017.30Isovitexin *C21H19O10[M − H]−431.09727431.099034.075413(6.31), 395(1.19), 311(100), 281(0.06), 283(0.49) (Standard)-
3118.06-2′-feruloy loganin a [31]C27H35O13[M + H]+567.20722567.20477-2.447-549(100), 471(0.03), 453(7.21), 435(44.55), 229(0.13), 211(0.04)--
32-18.42Gentioside b [25]C25H28O14N[M + NH4]+570.18173-570.18396-3.909-553(0.82), 525(0.22), 507(0.35), 287(0.37), 283(100), 253(0.2)-
3318.4918.501-hydroxy-2-methoxy-7-O-primeveroylxanthone a,b [32]C25H32O14N[M + NH4]+570.18173570.18060570.183901.9843.804525(2.02), 507(2.16), 489(0.79), 283(100), 265(8.27)569(0.4), 525(3.53), 507(0.47), 283(100), 281(1.21), 265(9.85)4.49
34-18.53Desmethylbellidifolin b [33]C13H8O6K[M + K]+298.99525-298.99619-0.944-299(0.08), 271(0.18), 255(0.47), 155(100), 137(97.69)-
35-18.61Norswertianin b [34]C13H8O6K[M + K]+298.99525 298.99518-0.546 299(0.13), 271(0.26), 255(0.3), 155(100), 137(90.32)-
3618.7018.676-C-B-d-glucospranosyltricine (isopyrenine) a,b [29]C23H25O12[M + H]+493.13405493.13306493.132872.0132.398475(13.75), 457(3.99), 313(2.4), 315(0.49), 195(100)475(23.34), 457(8.67), 313(5.05), 315(0.61), 195(100)0.83
3718.7018.67Gentiakochianoside a,b [21]C25H32O15N[M + NH4]+586.17665586.17798586.178412.2773.070569(6.04), 551(1.89), 541(19.3), 539(8.52), 299(100), 243(24.99)569(4.57), 551(1.81), 541(19.98), 523(1.11), 299(100), 243(51.24)0.27
3818.7118.70Isopyrenine-7-O-glucosyle a,b [29]C29H33O17[M − H]−653.17123653.17395653.173282.7242.050491(8.45), 477(13.82), 371(0.06), 357(3.86), 315(100)635(0.02), 491(4.23), 477(11.71), 371(0.05), 357(4.73), 315(100)0.85
3918.74-Isoscoparine-7-O-B-d-
glucosyle a		C30H35O18[M − H + CH3COOH]−683.18179683.18146-0.484-655(0.06), 647(0.04), 609(0.04), 521(100), 503(0.22), 433(0.82), 311(0.4), 297(0.04)--
4019.0019.011-O-glucosyl corymbiferin a,b [27]C22H23O14[M − H + HCOOH]−511.10823511.10571511.105804.9344.758467(6.46), 465(4.78), 305(1.05), 297(6.36), 153(100)493(0.3), 475(0.5), 467(4.07), 465(9.51), 349(0.31), 305(0.47), 297(5.73), 153(100)0.62
4120.3120.323′-acetyl swerside a,b [35]C18H25O11[M + H]+401.14422401.14362401.143921.5040.756383(4.28), 365(0.24), 341(0.44), 197(100), 179(9.18), 151(2.36), 127(7.14)383(7.53), 365(0.5), 341(0.87), 197(100), 179(9.83), 151(2.24), 127(8.11)1.20
4220.89-4′-O-B-d-glucospranosyl-2′′-O-[1-O-B-d-glucosyl-2,4,4-trihydroxy-(E)-cinnamoyl]-2′′-isoorientin a [36]C44H49O27[M − H + CH3COOH]−1009.245571009.24139-4.144-991(0.26), 973(0.02), 949(0.01), 931(0.01), 847(3.35), 846(100), 489(0.02),459(0.01), 357(0.12)--
43-21.091,3,4-trihydroxy-8-β-d-glucospranosyl-5,6,7,8-tetrahydroxanthone b [37]C19H26O11N[M + NH4]+444.15004-444.15210-4.654-427(0.61), 426(0.39), 399(1.64), 381(0.3), 219(100), 237(6.86)-
4421.9922.007-hydroxy-2-methoxy-1-O-primeveroyl xanthone a,b [32]C25H32O14N[M + NH4]+570.18173570.18390570.180543.8042.089553(1.52), 525(100), 283(38.75), 265(18.89), 229(0.71), 243(12.78)553(0.08), 525(100), 283(33.52), 265(21.99), 229(0.22), 243(17.04)1.03
4522.5322.55Morroniside a,b [38]C17H27O11[M + H]+407.15429407.15421407.154661.1250.314389(100), 371(0.01), 329(0.02), 245(0.39), 227(0.05), 185(0.23), 167(0.01)389(100), 371(0.03),329(0.01), 245(0.24), 227(0.09), 185(0.32), 167(0.01)3.05
46-22.71IsoscoparineC24H25O13[M − H + CH3COOH]−521.12897-521.12724-1.653-503(0.37), 485(0.77), 477(2.69), 447(0.05), 341(0.21), 315(100, 297(4.59), 195(4.36), 163(6.76)-
4722.93-8-O-glucosyl bellidifolin a [27]C20H20O10Na[M + Na]+443.09487443.09613-2.848-425(16.51), 407(0.4), 389(1.14), 281(1.04), 263(0.36), 247(100)--
4823.21-Gentianaside a [15]C24H44O14Na[M + Na]+579.26232579.26117-1.997-561(17.21), 543(0.09), 417(4.89), 399(0.31), 383(100), 255(0.08), 237(0.44)--
4923.36-Scabran G4 a [19]C34H49O24[M − H]−841.26083841.26135-1.356-841(11.54), 679(0.71), 517(4.48), 489(0.08), 477(100), 337(0.13)--
5023.6023.59Rindoside a,b [19]C35H41O21[M − H]−797.21348797.21667797.216373.9963.620779(0.07), 761(0.02), 755(93.15), 737(7.59), 677(0.15), 635(100), 593(50.8), 575(3.7), 515(0.6), 455(0.84), 357(0.16), 315(33.53)779(0.27), 761(0.14), 755(97.62), 737(7.45), 677(0.28), 635(100), 593(49.99), 575(4.07), 515(0.6), 455(0.54), 357(0.03), 315(34.36)0.92
5123.7223.72Macrophylloside A a,b [24]C40H43O22[M − H]−875.22405875.22638875.226142.6633.413857(0.06), 815(0.1), 739(100), 713(0.1), 679(1.07), 653(0.36), 577(39.22), 517(1.57), 441(0.02), 315(2.68)815(0.77), 739(100), 713(0.01), 679(1.11), 653(0.37), 577(39.1), 517(1.78), 315(3.68)0.77
5223.7823.78Depressoside a,b [39]C35H41O20[M − H]−781.21857781.22137781.221193.5783.365619(100), 601(0.17), 655(8.23), 493(3.59), 313(0.02)619(100), 601(0.15), 655(7.98), 493(3.13), 313(0.1)0.89
5325.4325.40Oleanolic acid a,bC30H47O3[M − H]−455.35197455.35406455.354132.7842.812455(0.3), 437(13.83), 411(1.7), 409(0.76), 233(0.85), 221(28.05), 189(100), 75(1.12)437(9.56), 411(1.28), 409(0.68), 233(0.57), 221(27.31), 189(100), 75(1.57)0.57
54-25.48Primeverosyl-1-
decussatin b [21]		C27H31O15[M − H]−595.16575-595.16437-2.313-577(1.62), 559(0.6), 549(2.54), 495(0.43), 417(0.43), 415(29.63), 279(100)-
Note: a identified as compound in crude Gentiana radix; b identified as compound in wine-processed Gentiana radix; * identified as compound in standards.

Share and Cite

MDPI and ACS Style

Lv, X.; Sun, J.-Z.; Xu, S.-Z.; Cai, Q.; Liu, Y.-Q. Rapid Characterization and Identification of Chemical Constituents in Gentiana radix before and after Wine-Processed by UHPLC-LTQ-Orbitrap MSn. Molecules 2018, 23, 3222. https://doi.org/10.3390/molecules23123222

AMA Style

Lv X, Sun J-Z, Xu S-Z, Cai Q, Liu Y-Q. Rapid Characterization and Identification of Chemical Constituents in Gentiana radix before and after Wine-Processed by UHPLC-LTQ-Orbitrap MSn. Molecules. 2018; 23(12):3222. https://doi.org/10.3390/molecules23123222

Chicago/Turabian Style

Lv, Xin, Jian-Zhi Sun, Shi-Zhao Xu, Qian Cai, and Yu-Qiang Liu. 2018. "Rapid Characterization and Identification of Chemical Constituents in Gentiana radix before and after Wine-Processed by UHPLC-LTQ-Orbitrap MSn" Molecules 23, no. 12: 3222. https://doi.org/10.3390/molecules23123222

Article Metrics

Back to TopTop
