Molecules 2017, 22(9), 1442; doi:10.3390/molecules22091442

Article
Voltammetric Study of Some 3-Aryl-quinoxaline-2-carbonitrile 1,4-di-N-oxide Derivatives with Anti-Tumor Activities
Eric M. Miller 1,, Qing Xia 2,, Mariah E. Cella 1, Austin W. Nenninger 1, Monica N. Mruzik 1, Krystina A. Brillos-Monia 1, Yong Zhou Hu 3, Rong Sheng 3, Christina M. Ragain 1 and Philip W. Crawford 1,*
1
Department of Chemistry, Southeast Missouri State University, Cape Girardeau, MO 63701, USA
2
Department of Pharmacology, Ningbo College of Health Sciences, No. 51, Xuefu Road, Yinzhou, Ningbo 315000, China
3
College of Pharmaceutical Sciences, Zhejiang University, Hangzhou 310058, China
*
Correspondence: Tel.: +1-573-651-2166
These authors contributed equally to this work.
Received: 9 August 2017 / Accepted: 29 August 2017 / Published: 31 August 2017

Abstract

:
The electrochemical properties of twenty 3-aryl-quinoxaline-2-carbonitrile 1,4-di-N-oxide derivatives with varying degrees of cytotoxic activity were investigated in dimethylformamide (DMF) using cyclic voltammetry and first derivative cyclic voltammetry. With one exception, the first reduction of these compounds was found to be reversible or quasireversible and is attributed to reduction of the N-oxide moiety to form a radical anion. The second reduction of the diazine ring was found to be irreversible. Compounds containing a nitro group on the 3-phenyl ring also exhibited a reduction process that may be attributed to that group. There was good correlation between molecular structure and reduction potential, with reduction being facilitated by an enhanced net positive charge at the electroactive site created by electron withdrawing substituents. Additionally, the reduction potential was calculated using two common basis sets, 6-31g and lanl2dz, for five of the test molecules. There was a strong correlation between the computational data and the experimental data, with the exception of the derivative containing the nitro functionality. No relationship between the experimentally measured reduction potentials and reported cytotoxic activities was evident upon comparison of the data.
Keywords:
quinoxaline-di-N-oxide derivatives; voltammetry; anti-tumor; reduction potential; experimental and computational

1. Introduction

Quinoxaline 1,4-di-N-oxide derivatives have been the subject of worldwide interest in medicinal chemistry for a number of years due to their broad range of biological properties [1,2,3], as a variety of quinoxaline 1,4-dioxide derivatives have been reported to possess varying degrees of antibacterial [4,5], antimycobacterial [6], antitrypanocidal [7], antimalarial [8], anti-Chagas [9,10], antifungal [5,11], antioxidant/anti-inflammatory [12], and anticancer [13,14,15] activities. As a result, a large number of new quinoxaline 1,4-dioxides are being synthesized and their biological properties tested each year. One important feature for their biological activities is the presence of both N-oxide functional groups in the pyrazine ring of the basic quinoxaline structure. N-oxidation generally enhances the scope and level of their biological properties [1,2,16], and may be important for bioreduction [10]. It is well-known that some quinoxaline 1,4-di-N-oxide derivatives undergo bioreduction under hypoxic conditions, leading to the formation of a radical capable of cleaving DNA [2,3]. The latter may occur via direct abstraction of hydrogen atoms from DNA or production of DNA-cleaving hydroxyl radicals, both mechanisms introducing oxidative stress within the target cells.
Likewise, N-oxidation enhances the ease of reduction of the quinoxaline ring [17]. Previous studies have shown that there is a relationship in some cases between the ease of reduction for certain homologous series of quinoxaline 1,4-di-N-oxides and their reported biological activities [10,17,18,19,20].
Because their redox properties can influence their biological activities, electrochemical studies of quinoxaline 1,4-di-N-oxide systems may help in understanding their mechanisms of action, as well as in the design of new drugs. Recently, a series of 3-aryl-quinoxaline-2-carbonitrile 1,4-di-N-oxide derivatives (Table 1) were synthesized and evaluated for their cytotoxic activities [21]. Many of these compounds displayed more potent hypoxic cytotoxic activity than 3-aminobenzotriazine-1,4-dioxide (TPZ) and 3-amino-2-quinoxalinecarbonitrile 1,4-di-N-oxide (TX-402), both of which display promising anticancer activities. TPZ has been shown to undergo bioreductive activation leading to the formation of radical species that cause DNA damage [21]. The goal of this present work was to study the general electrochemical characteristics of these 3-aryl-quinoxaline-2-carbonitrile 1,4-di-N-oxide derivatives under nonaqueous conditions and to investigate potential relationships between their redox properties, structures, and reported biological activities. In addition, we investigated the ability to calculate the reduction potential for five test molecules (compounds 1a1e) using standard computational methods and basis sets. Computational chemistry may provide a way to screen potential future molecules in order to direct synthesis of new and novel derivatives [22].

2. Results and Discussion

2.1. Electrochemical Behavior

The compounds included in this study are 3-aryl-quinoxaline-2-carbonitrile 1,4-di-N-oxide derivatives (Table 1) that have been evaluated for their biological activities as hypoxic selective anti-tumor agents [21]. The derivatives possess varying substituents in the 3 and 7 positions of the basic quinoxaline structure. The redox properties of these substances were investigated via cyclic voltammetry and first derivative cyclic voltammetry in DMF using a platinum disc-working electrode. The reductions observed for these compounds were found to be diffusion controlled based on current functions that were relatively independent of scan rate and linearity in the plots of cathodic peak current versus the square root of scan rate [23,24]. Electrochemical data for scans obtained at 100 mV/s are summarized in Table 2 and Table 3, and representative voltammograms are shown in Figure 1 and Figure 2. All redox potentials reported in this study are relative to the (Fc/Fc+) redox couple.
The electrochemical characteristics of a number of quinoxaline di-N-oxide derivatives have been reported previously [10,17,18,19,20,25,26,27]. The first voltammetric wave observed, representing the reduction of a N-oxide functionality to form a radical anion [27], was reversible or quasireversible for all derivatives studied, with the exception of 3c. (Figure 3) E1/2 values for this reduction process ranged from −1.154 V to −1.333 V. Values of ΔEp and Epc − E1/2 for this wave were typically greater than the theoretical values of 57 mV and −28.5 mV [23,24], respectively, for a reversible, one electron reduction. Estimates of the number of electrons involved in this reduction process based on the observed values for ΔEp and Epc − E1/2 verify the one electron nature of this reduction. Likewise, calculated ipa/ipc ratios for derivatives 1a, 1c, 1d, 2a2d, 3a, 3b, 3d and 4a4d were close to one at all scan rates, indicating that relatively stable reduction products were formed within the time frame of the experiment [23]. For compounds 1b, 1e, 2e, 3e and 4e, current ratios were significantly less than one, i.e., 0.2 to 0.3, indicating kinetic or other complications [23]. For compound 3c, the first reduction process was irreversible with Epc = −1.401 V. Although the first reduction for quinoxaline di-N-oxide derivatives is typically reversible or quasireversible in aprotic solvents, examples of irreversibility in this process for some quinoxaline di-N-oxides has been noted previously under conditions similar to those used in this study, i.e., voltammetry at a platinum working electrode in DMF [17].
The relationship between quinoxaline structure and reduction potential may be observed via examination of the data in Table 2 and Table 3. Replacement of a H atom in the 3-/4-position of the 3-aryl group or 7-position of the quinoxaline ring with an electron donating group which increases the electron density in the conjugated system generally resulted in a negative shift in potential (E1/2 or Epc), making the reduction more difficult (cf. 1a vs. 1b, 1a vs. 2a, 1a vs. 3a). Replacement of a H atom in those same positions with an electron withdrawing group which removes electron density from the conjugated system resulted in a more facile reduction by shifting the potential in the positive direction (cf. 1a vs. 1c, 1a vs. 1d, 1a vs. 1e, and 1a vs. 4a). Thus, the change in electron density that occurs with a change in substituent is transmitted through the conjugated system to the electroactive heterocyclic ring.
The 20 compounds studied can be broken down into different analogues based on structure, as evident from Table 1. The reduction potentials for the various derivatives within each analogous series fit the modified Hammett equation, ΔE1/2 = ρπ,Rσx [28] with correlation coefficients that ranged from 0.92 to 0.99. In this equation, ρπ,R is a measure of the extent to which the electrode reaction is affected by the polar effects of the substituents, whereas σx is a measure of the electronic effect that a substituent has on a molecule, and thus the redox potential in this case. The average of the sum of σm−x and σp−x [29], i.e., (σm−x + σp−x)/2, was used in place of the total polar substituent constant σx in the Hammett plots, as recommended for the quinoxaline system [30] (Figure 4). The results observed are consistent with facilitation of reduction by a positive charge at the electroactive site [28], and are in agreement with previous studies of the electrochemical properties of quinoxaline-di-N-oxides [10,17,18,19,25,26,28].
A voltammetric wave representing the reduction of the second N-oxide functionality was observed for all derivatives studied, with the exception of 3c, at potentials between −1.97 and −2.6 V. This process was irreversible for each of the quinoxaline derivatives. Additional irreversible reduction waves were observed at more negative potentials for compound 1a at −2.5 (sh), −2.7 (sh), and −2.829 V. The last reduction observed appeared close to background reduction. The currents for these processes would indicate one-electron reductions in each case. However, these processes were not studied in further detail.
Compounds 1e, 2e, 3e and 4e possess a nitro group in the para position of the 3-aryl group. In each case, a quasireversible reduction process was observed between the two voltammetric waves representing the reductions of the N-oxide moieties, with half-wave potentials ranging from −1.516 to −1.563 V. ΔEp and Epc − E1/2 values at 100 mV/s for this wave ranged from 0.063 to 0.096 V and −0.031 to −0.048 V, respectively. In addition, the ipa/ipc ratios for these derivatives at 100 mV/s were between 0.6 and 0.7. Comparison of cathodic peak currents for this process to those for the first N-oxide reduction, as well as using ΔEp and Epc − E1/2 for estimates, indicates that this process involves one electron. This wave may be attributed to reduction of the nitro group. Previous investigations into the electrochemical properties of the nitro group have shown that this functional group undergoes one electron reduction to form a radical anion in aprotic media [31,32,33,34]. It seems reasonable to assume that a nitro radical anion was formed during the reductions of these derivatives as well.

2.2. Preliminary Computational Study

The computational half-cell potentials for molecules 1a1e from Table 1 were calculated using Guassian 09 and are listed in Table 4.
The optimization energy, thermal correction factor, and solvation energy were calculated for the first wave with the extra electron of the radical anion on both the carbon attached to the benzene ring and the carbon attached to the cyano group. The energies and thermal correction factors were found to be identical regardless of which of these carbon atoms the radical was located on (results not shown, manuscript in preparation). This result seems to indicate that the extra electron isn’t isolated to a single carbon, but instead is in some sort of resonance, as shown in Figure 3. Future computational work will investigate this observation further. For the remainder of this paper, we will only present the calculations with the radical on the carbon neighboring the cyano group. In Table 5, the computational half-cell potentials are compared to the ferrocene/ferrocinium (Fc/Fc+) redox couple, firstly with the standard hydrogen half-cell potential set to zero, and secondly with the ferrocene/ferrocinium reduction potential set to zero. These half-cell potentials are analyzed relative to ferrocene to provide a direct comparison to the experimental half wave potentials (E1/2). For derivatives 1a1d, while the computational and experimental values do not agree quantitatively, they have a strong qualitative agreement for the first and second reduction waves. Figure 5a compares the two computational basis set calculations, lanld2z (black) and 6-31g (red), to the experimental reduction potentials (E1/2) for wave 1. For both basis sets, there is a strong positive correlation. Figure 5b shows the comparison of the two computational basis set calculations, lanl2dz (black) and 6-31g (red), compared to the experimental peak potentials (Epc) for wave 2. While there is still good qualitative agreement, the correlation between the computational and experimental data decreased compared to wave 1. For the second wave, the computational values could demonstrate more accurate predictions than those generated electrochemically since this wave was found to be irreversible for all derivatives.
Molecule 1e was not included in Figure 5. This nitro group-containing derivative displayed drastically different calculated potentials from those of derivatives 1a1d and from the experimental value. The origin of these differences will be investigated in future computational research.

2.3. Reduction Potentials versus Cytotoxicity

Previous studies of substituted quinoxaline di-N-oxides have demonstrated a link between reduction potential and certain biological activities, i.e., the compounds with higher activities generally have less negative reduction potentials and are easier to reduce [10,17,18,19]. Thus, possible links between reduction potential and anti-tumor activity were investigated for the current series of compounds. Comparison of their reported cytotoxicity against cancer cell lines in hypoxia and normoxia [21] versus their measured E1/2 values as a whole does not show a clear and direct correlation between activity and reduction potential (Figure 6). Plots of reduction potential versus cytotoxicity as a whole show no clear patterns. Comparison of smaller subsets within the data also is inconclusive. For example, derivatives 4a and 4b were shown to possess better hypoxic activity against cancer cell lines than the un-substituted derivatives 1a and 1b [21]. And the former are also more easily reduced by over 100 mV. However, derivatives 1e and 2e are more easily reduced than derivatives 1c and 2c, respectively, but have lower hypoxic activities. In addition, the most potent compound with the highest reported activities, 2c, was not the most easily reduced derivative. These results do not rule out bioreduction in the mechanism of action of these compounds against cancer cells. However, they indicate that other factors besides bioreduction may play a more important role for the in vivo mechanism of action of these compounds, such as metabolism, stereochemistry, membrane permeability, bioactivation, DNA binding, and diffusion [35,36].

3. Materials and Methods

3.1. Chemical Synthesis

The quinoxaline derivatives studied in this paper were prepared and characterized as reported previously [21]. The structures of these test compounds are shown in Table 1.

3.2. Electrochemistry

All reagents used in this study were obtained in the highest purity available commercially and used as received. All solutions were prepared in dimethylformamide (DMF, Fisher Scientific, Waltham, MA, USA) with tetrabutylammonium perchlorate (TBAP, Aldrich Chemical Company, Milwaukee, WI, USA) serving as the supporting electrolyte. Test solutions contained 1.0 mM of the corresponding quinoxaline derivative and 0.1 M TBAP. Ferrocene (Fc, Sigma Aldrich, St. Louis, MO, USA) was added to each test solution following completion of the electrochemical measurements of the test compound, and used as an internal reference redox system [37] in order to account for daily variations in the reference electrode and liquid junction potentials. All potentials in this study are reported versus the ferrocene/ferrocinium (Fc/Fc+) redox couple:
Epc,SRE − E1/2,Fc/Fc + or E1/2,SRE − E1/2,Fc/Fc+
Half-Wave potentials (E1/2) for ferrocene ranged from 0.0155 V to 0.0265 V during the course of this study. Cyclic voltammetric experiments were carried out at room temperature under an inert dinitrogen atmosphere (prepurified, Air Gas Mid-America Region, Bowling Green, KY, USA). Test solutions were deaerated for 15 min prior to obtaining the electrochemical data. A 620 Electrochemistry Analyzer (CH Instruments, Austin, TX, USA) was used for all electrochemical measurements. Solution resistance was uncompensated. A standard three electrode cell, consisting of a Pt-disk (1.6 mm diameter) working electrode, a Pt-wire auxilliary electrode, and a Ag/AgNO3 (0.1 M in acetonitrile) reference electrode, was used. Scan rates ranged from 0.05 V/s to 1 V/s. Half-Wave potentials were calculated using the following equation [24]: E1/2 = (Epa + Epc)/2. For the first derivative cyclic voltammograms, Ep values were measured at the points where the derivative curves crossed the baseline [24]. Peak currents were measured from the extrapolated baselines for both the cathodic and anodic processes [23].

3.3. Computational Chemistry

Gaussian 9.0 was used to model the 3-aryl-quinoxaline-2-carbonitrile 1,4-di-N-oxide derivatives 1a1e (Table 1) [38]. For 1a1d, the neutral molecule, the radical anion and dianion structures were drawn in GaussView 5 [39]. Figure 7 shows the neutral molecule, two possible radical anions and the dianion structures used for molecule 1a. For molecule 1e, the neutral molecule, the anion with the radical on the carbon attached to the cyano group, the dianion with radicals on the carbon attached to the cyano group and on the nitro group and trianion structures are shown in Figure 8. Each structure was optimized using two common basis sets, lanl2dz and 6-31g, to determine the lowest energy conformation. Next, a frequency calculation was performed to correct for thermal artifacts present in the program. The energy of each structure was found by summing the optimization energy and the thermal correction factor. The change in Gibbs Free Energy from the addition of an electron was calculated by subtracting the free energy of the appropriate structures. Lastly, an energy calculation was used to obtain an energy of each molecule solvated in N,N-dimethylformamide. The change in Gibbs Free Energy of solvation (ΔGsolv) was found by subtracting the energy of the molecule from the solvated energy of the molecule [22,40].
Figure 9 shows the thermodynamical cycles used to calculate the change in Gibbs Free Energy associated with the reduction of wave 1 and wave 2, ΔGred,wave 1(solv) and ΔGred,wave 2(solv), respectively. For wave 1:
ΔGred,wave 1(solv) = −ΔGsolv,n + ΔGred,wave 1(g) + −ΔGsolv,r
where ΔGsolv,n is the change in Gibbs Free Energy of solvation of the neutral molecule, ΔGred,wave 1(g) is the change in Gibbs Free Energy of the reduction in the gas phase, and ΔGsolv,r is the change in Gibbs Free Energy of solvation for the radical anion.
The ΔGred values were used to calculate the half-cell reduction potentials for comparison to the experimental data. The half-cell potentials were referenced to the ferrocene/ferrocinium half-cell.

Acknowledgments

This work was supported by two grants funded by Southeast Missouri State University’s Grants and Research Funding Committee. The authors acknowledge Victor Batista from Yale University for his guidance on the computational component of this research.

Author Contributions

C.M.R. and P.W.C. conceived and designed the experiments; Q.X., Y.Z.H. and R.S. synthesized and provided the quinoxaline 1,4-di-N-oxide derivatives; M.E.C. and P.W.C. performed the electrochemical experiments; E.M.M., M.N.M., K.A.B.-M., A.W.N. and C.M.R. performed the computational experiments; E.M.M., C.M.R. and P.W.C. analyzed the experimental data; E.M.M., C.M.R. and P.W.C. wrote the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

DimethylformamideDMF
half-wave potentialE1/2
anodic peak potentialEpa
cathodic peak potentialEpc
difference in peak potentialsΔEp
anodic peak currentipa
cathodic peak currentipc
ratio of peak currentsipa/ipc
reaction constantρπ,R
total polar substituent constantσx
substituent constant for meta substituentσm−x
substituent constant for para substituentσp−x

References

  1. Gonzalez, M.; Cerecetto, H.; Monge, A. Quinoxaline 1,4-dioxide and phenazine 5,10-dioxide chemistry and biology. Top. Heterocycl. Chem. 2007, 11, 179–211. [Google Scholar]
  2. Carta, A.; Corona, P.; Loriga, M. Quinoxaline 1,4-dioxide: A versatile scaffold endowed with manifold activities. Curr. Med. Chem. 2005, 12, 2259–2272. [Google Scholar] [CrossRef] [PubMed]
  3. Cheng, G.; Sa, W.; Cao, C.; Guo, L.; Hao, H.; Liu, Z.; Wang, X.; Yuan, Z. Quinoxaline 1,4-di-N-oxides: Biological activities and mechanisms of action. Front. Pharmacol. 2016, 7, 1–21. [Google Scholar] [CrossRef] [PubMed]
  4. Suter, W.; Rosselet, A.; Knusel, F. Mode of action of quindoxin and substituted quinoxaline-di-N-oxides on escherichia coli. Antimicrob. Agents Chemother. 1978, 13, 770–783. [Google Scholar] [CrossRef] [PubMed]
  5. Soliman, D.H. Anti-bacterial and anti-fungal activities of new quinoxaline 1,4-di-N-oxide derivatives. Int. J. Organ. Chem. 2013, 3, 65–72. [Google Scholar] [CrossRef]
  6. Vicente, E.; Pérez-Silanes, S.; Lima, L.M.; Ancizu, S.; Burguete, A.; Solano, B.; Villar, R.; Aldana, I.; Monge, A. Selective activity against mycobacterium tuberculosis of new quinoxaline 1,4-di-N-oxides. Biorgan. Med. Chem. 2009, 17, 385–389. [Google Scholar] [CrossRef] [PubMed]
  7. Estevez, T.; Quilano, M.; Burguete, A.; Cabanillas, B.; Zimic, M.; Malaga, E.; Verastegui, M.; Pérez-Silanes, S.; Aldana, I.; Monge, A. Trypanocidal properties, structure-activity relationship and computational studies of quinoxaline 1,4-di-N-oxide derivatives. Exp. Parasitol. 2011, 127, 745–751. [Google Scholar] [CrossRef] [PubMed]
  8. Gil, A.; Pabón, A.; Galiano, S.; Burguete, A.; Pérez-Silanes, S.; Deharo, E.; Monge, A.; Aldana, I. Synthesis, biological evaluation and structure-activity relationships of new quinoxaline derivatives as anti-plasmodium falciparum agents. Molecules 2014, 19, 2166–2180. [Google Scholar] [CrossRef] [PubMed]
  9. Ancizu, S.; Moreno, E.; Torres, E.; Burguete, A.; Pérez-Silanes, S.; Benítez, D.; Villar, R.; Solano, B.; Marín, A.; Aldana, I.; et al. Heterocyclic-2-carboxylic acid (3-cyano-1,4-di-N-oxidequinoxalin-2-yl)amide derivatives as hits for the development of neglected disease drugs. Molecules 2009, 14, 2256–2272. [Google Scholar] [CrossRef] [PubMed]
  10. Torres, E.; Moreno-Viguri, E.; Galiano, S.; Devarapally, G.; Crawford, P.W.; Azqueta, A.; Arbillaga, L.; Varela, J.; Birriel, E.; Di Maio, R.; et al. Novel quinoxaline 1,4-di-N-oxide derivatives as new potential antichagasic agents. Eur. J. Med. Chem. 2013, 66, 324–334. [Google Scholar] [CrossRef] [PubMed]
  11. Carta, A.; Paglietta, G.; Nikookar, M.E.R.; Sanna, P.; Sechi, L.; Zanetti, S. Novel substituted quinoxaline 1,4-dioxides with in vitro antimycobacterial and anticandida activity. Eur. J. Med. Chem. 2002, 37, 355–366. [Google Scholar] [CrossRef]
  12. Burguete, A.; Pontiki, E.; Hadjipavlou-Litina, D.; Ancizu, S.; Villar, R.; Solano, B.; Moreno, E.; Torres, E.; Perez, S.; Aldana, I.; et al. Synthesis and biological evaluation of new quinoxaline derivatives as antioxidant and anti-inflammatory agents. Chem. Biol. Drug Des. 2011, 77, 255–267. [Google Scholar] [CrossRef] [PubMed]
  13. Anderson, R.F.; Yadav, P.; Shinde, S.S.; Hong, C.R.; Pullen, S.M.; Reynisson, J.; Wilson, W.R.; Hay, M.P. Radical chemistry and cytotoxicity of bioreductive 3-substituted quinoxaline di-N-oxides. Chem. Res. Toxicol. 2016, 29, 1310–1324. [Google Scholar] [CrossRef] [PubMed]
  14. Zarranz, B.; Jaso, A.; Aldana, I.; Monge, A. Synthesis and anticancer activity evaluation of new 2-alkylcarbonyl and 2-benzoyl-3-trifluoromethyl-quinoxaline 1,4-di-N-oxide derivatives. Biorgan. Med. Chem. 2004, 12, 3711–3721. [Google Scholar] [CrossRef] [PubMed]
  15. Amin, K.M.; Ismail, M.F.; Noaman, D.; Soliman, D.H.; Ammar, Y.A. New quinoxaline 1,4-di-N-oxides. Part 1: Hypoxia-selective cytotoxins and anticancer agents derived from quinoxaline 1,4-di-N-oxides. Bioorgan. Med. Chem. 2006, 14, 6917–6923. [Google Scholar] [CrossRef] [PubMed]
  16. Moreno-Viguri, E.; Pérez-Silanes, S. Quinoxaline 1,4-di-N-oxide derivatives: Interest in the treatment of chagas disease. Rev. Virtual Quím. 2013, 5, 1101–1119. [Google Scholar] [CrossRef]
  17. Crawford, P.W.; Scamehorn, R.G.; Hollstein, U.; Ryan, M.D.; Kovacic, P. Cyclic voltammetry of phenazines and quinoxalines including mono- and di-N-oxides. Relation to structure and antimicrobial activity. Chemico-Biol. Interact. 1986, 60, 67–84. [Google Scholar] [CrossRef]
  18. Perez-Silanes, S.; Devarapally, G.; Torres, E.; Moreno, E.; Aldana, I.; Monge, A.; Crawford, P.W. Cyclic voltammetric study of some anti-chagas active quinoxaline 1,4-di-N-oxide-2-ketone derivatives. Helv. Chim. Acta 2013, 96, 217–227. [Google Scholar] [CrossRef]
  19. Moreno, E.; Pérez-Silanes, S.; Gouravaram, S.; Macharam, A.; Ancizu, S.; Torres, E.; Aldana, I.; Monge, A.; Crawford, P.W. 1,4-Di-N-oxide quinoxaline-2-carboxamide: Cyclic voltammetry and relationship between electrochemical behavior, structure, and anti-tuberculosis activity. Electrochim. Acta 2011, 56, 3270–3275. [Google Scholar] [CrossRef]
  20. Ryan, M.D.; Scamehorn, R.G.; Kovacic, P. Charge transfer in the mechanism of drug action involving quinoxaline di-N-oxides. J. Pharm. Sci. 1985, 74, 492–495. [Google Scholar] [CrossRef] [PubMed]
  21. Hu, Y.; Xia, Q.; Shangguan, S.; Liu, X.; Hu, Y.; Sheng, R. Synthesis and biological evaluation of 3-aryl-quinoxaline-2-carbonitrile 1,4-di-N-oxide derivatives as hypoxic selective anti-tumor agents. Molecules 2012, 17, 9683–9696. [Google Scholar] [CrossRef] [PubMed]
  22. Karlsson, C.; Jämstorp, E.; Strømme, M.; Sjödin, M. Computational electrochemistry study of 16 isoindole-4,7-diones as candidates for organic cathode materials. J. Phys. Chem. C 2012, 116, 3793–3801. [Google Scholar] [CrossRef]
  23. Bard, A.J.; Faulkner, L.R. Electrochemical Methods: Fundamentals and Applications, 2nd ed.; Wiley: New York, NY, USA, 2001. [Google Scholar]
  24. Rieger, P.H. Electrochemistry, 2nd ed.; Chapman and Hall: New York, NY, USA, 1994. [Google Scholar]
  25. Ames, J.R.; Houghtaling, M.A.; Terrian, D.L. Cyclic voltammetry of some quinoxaline di-N-oxides and quinoxalines in dimethylformamide. Electrochim. Acta 1992, 37, 1433–1436. [Google Scholar] [CrossRef]
  26. Barqawi, K.R.; Atfah, M.A. A cyclic voltammetric study of some quinoxaline di-N-oxides and quinoxalines in acetonitrile: Substituent effect on the cathodic reduction. Electrochimim. Acta 1987, 32, 597–599. [Google Scholar] [CrossRef]
  27. Miyazaki, H.; Matsuhisa, Y.; Kubota, T. Cyclic voltammetry of aromatic amine n-oxides in nonaqueous solvents and the stability of the free radicals produced. Bull. Chem. Soc. Jpn. 1981, 54, 3850–3853. [Google Scholar] [CrossRef]
  28. Zuman, P. Substituent Effects in Organic Polarography; Plenum Press: New York, NY, USA, 1967. [Google Scholar]
  29. Hansch, C.; Leo, A.; Taft, R.W. A survey of hammett substituent constants and resonance and field parameters. Chem. Rev. 1991, 91, 165–195. [Google Scholar] [CrossRef]
  30. Strier, M.P.; Cavagnol, J.C. The polarography of quinoxaline. II. 6-substituted derivatives. J. Am. Chem. Soc. 1958, 80, 1565–1568. [Google Scholar] [CrossRef]
  31. Tocher, J.H.; Edwards, D.I. Electrochemical characteristics of nitroheterocyclic compounds of biological interest: I. The influence of solvent. Free Radic. Res. Commun. 1988, 4, 269–276. [Google Scholar] [CrossRef] [PubMed]
  32. Tocher, J.H.; Edwards, D.I. Electrochemical characteristics of nitro-heterocyclic compounds of biological interest: IV. Lifetime of the metronidazole radical anion. Free Radic. Res. Commun. 1989, 6, 39–45. [Google Scholar] [CrossRef] [PubMed]
  33. Tocher, J.H.; Edwards, D.I. Electrochemical characteristics of nitroheterocyclic compounds of biological interest: VIII. Stability of nitro radical anions from cyclic voltammetric studies. Free Radic. Res. Commun. 1992, 16, 19–25. [Google Scholar] [CrossRef] [PubMed]
  34. Bollo, S.; Nunez-Vergara, L.J.; Martinez, C.; Chauviere, G.; Perie, J.; Squella, J.A. Voltammetric study of nitro radical anion generated from some nitrofuran compounds of pharmacological significance. Electroanalysis 2003, 15, 19–25. [Google Scholar] [CrossRef]
  35. Kunz, K.R.; Iyengar, B.S.; Dorr, R.T.; Alberts, D.S.; Remers, W.A. Structure activity relationship for mitomycin c and mitomycin a analogs. J. Med. Chem. 1991, 34, 2281–2286. [Google Scholar] [CrossRef] [PubMed]
  36. Hansch, C.; Leo, A.; Hoekman, D. Exploring Qsar: Fundamentals and Applications in Chemistry and Biology; American Chemical Society: Washington, DC, USA, 1995. [Google Scholar]
  37. Gritzner, G.; Kuta, J. Recommendations on reporting electrode potentials in nonaqueous solvents. Pure Appl. Chem. 1984, 56, 461–466. [Google Scholar] [CrossRef]
  38. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 09; Revision 5.0.9; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  39. Dennington, R.; Keith, T.A.; Millam, J.M. Gaussview; Version 5; Semichem Inc.: Shawnee Mission, KS, USA, 2016. [Google Scholar]
  40. Palma, J.L.; Batista, V.S. Tutorial on ab Initio Redox Potential Calculations; Department of Chemistry, Yale University: New Haven, CT, USA, 2016. [Google Scholar]
  • Sample Availability: Not available.

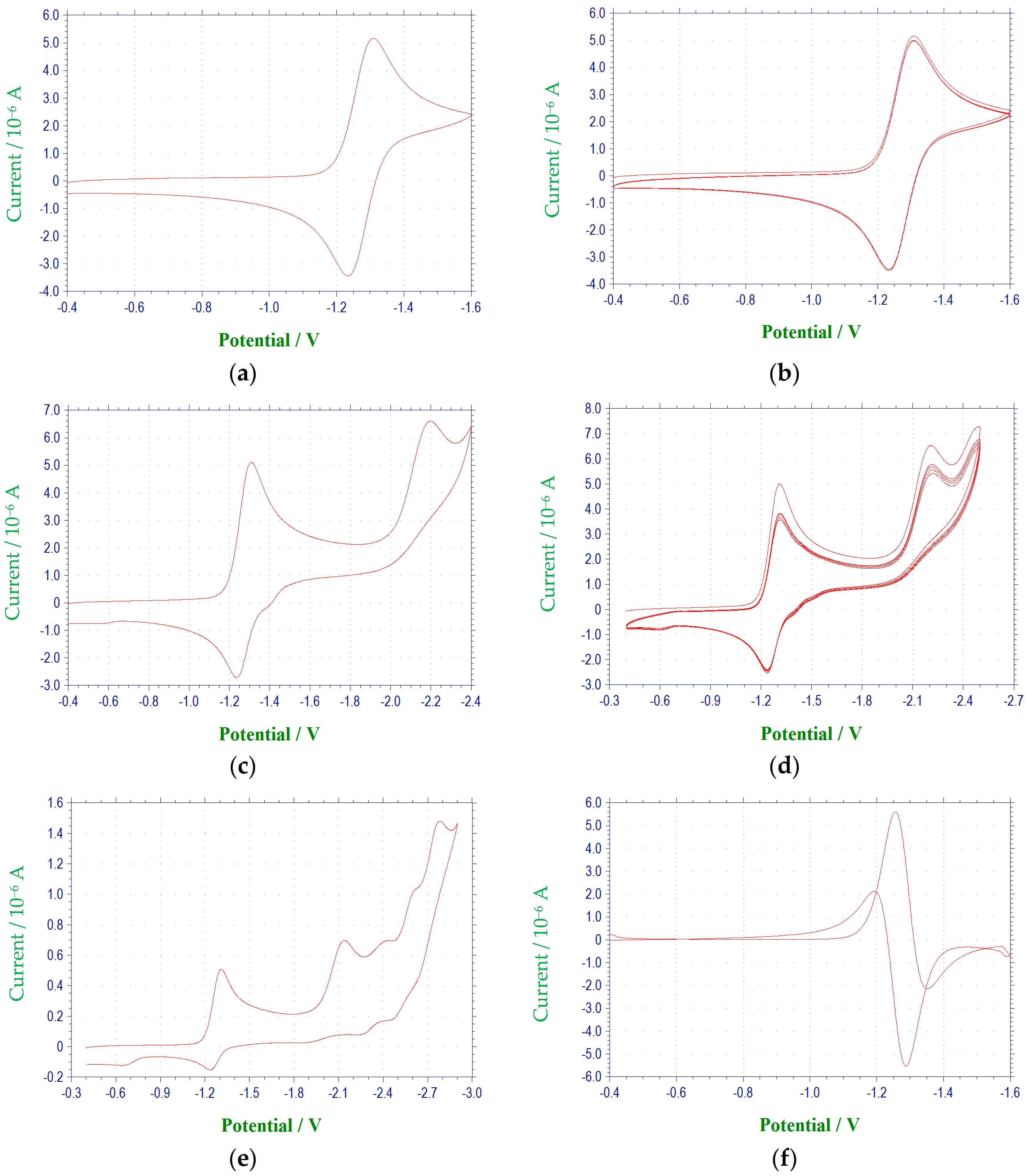

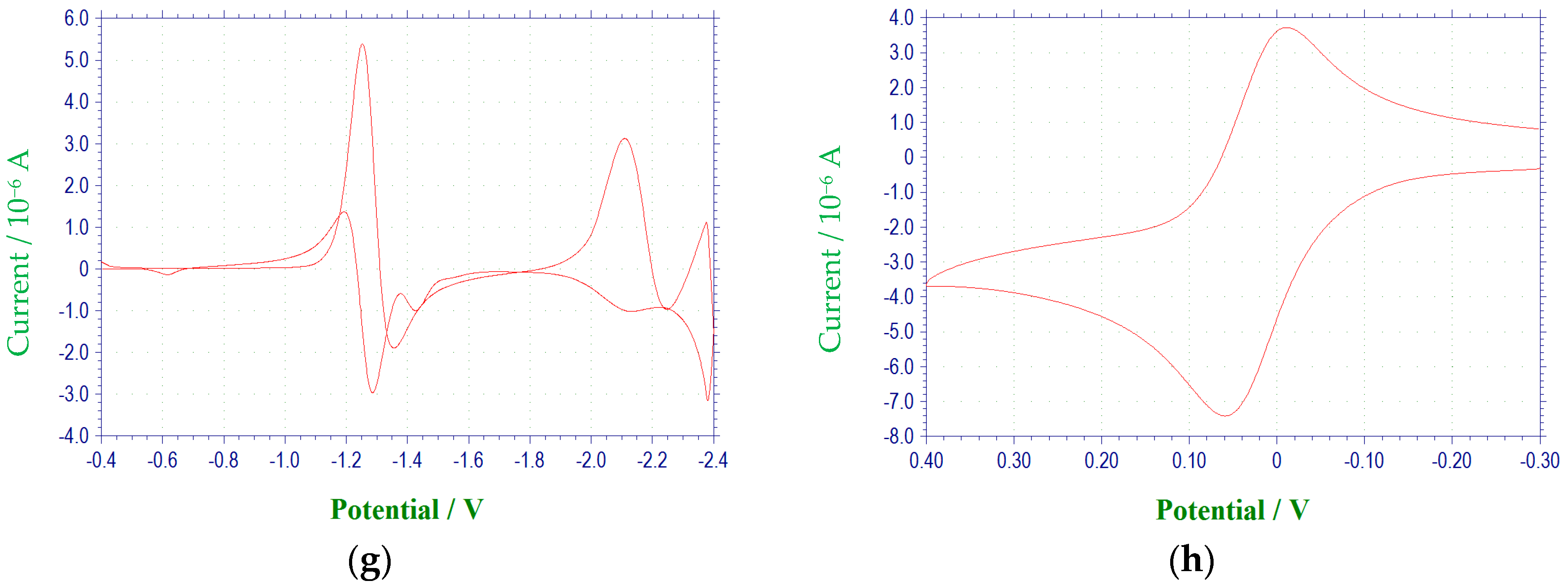

Figure 1. Cyclic voltammetric reduction of compound 1a in DMF at 100 mV/s (E vs. (Ag/AgNO3)/V): (a) single scan between −0.4 and −1.6 V; (b) multiple scans between −0.4 and −1.6 V; (c) single scan between −0.4 to −2.4 V; (d) multiple scans between −0.4 and −2.4 V; (e) single scan between −0.4 and −2.9 V; (f) first derivative cyclic voltammogram between −0.4 and −1.6 V; (g) first derivative cyclic voltammogram between −0.4 and −2.4 V; (h) Cyclic voltammogram for the ferrocene redox couple used as a reference for reporting peak potentials.
Figure 1. Cyclic voltammetric reduction of compound 1a in DMF at 100 mV/s (E vs. (Ag/AgNO3)/V): (a) single scan between −0.4 and −1.6 V; (b) multiple scans between −0.4 and −1.6 V; (c) single scan between −0.4 to −2.4 V; (d) multiple scans between −0.4 and −2.4 V; (e) single scan between −0.4 and −2.9 V; (f) first derivative cyclic voltammogram between −0.4 and −1.6 V; (g) first derivative cyclic voltammogram between −0.4 and −2.4 V; (h) Cyclic voltammogram for the ferrocene redox couple used as a reference for reporting peak potentials.
Molecules 22 01442 g001aMolecules 22 01442 g001b

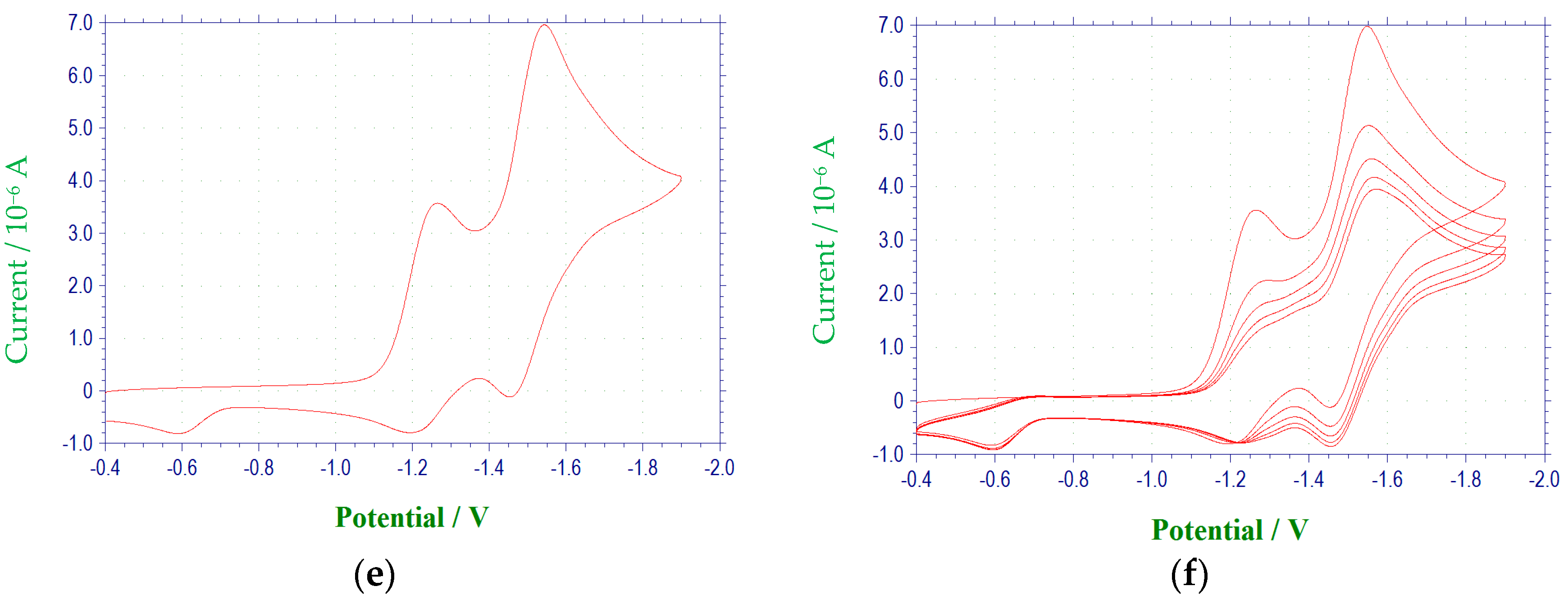

Figure 2. Cyclic voltammetric reduction of compound 1e in DMF at 100 mV/s (E vs. (Ag/AgNO3)/V): (a) single scan between −0.4 and −1.4 V; (b) multiple scans between −0.4 and −1.4 V; (c) single scan between −0.4 and −2.5 V; (d) multiple scans between −0.4 and −2.5 V; (e) single scan between −0.4 to −1.9 V, (f) multiple scans between −0.4 and −1.9 V.
Figure 2. Cyclic voltammetric reduction of compound 1e in DMF at 100 mV/s (E vs. (Ag/AgNO3)/V): (a) single scan between −0.4 and −1.4 V; (b) multiple scans between −0.4 and −1.4 V; (c) single scan between −0.4 and −2.5 V; (d) multiple scans between −0.4 and −2.5 V; (e) single scan between −0.4 to −1.9 V, (f) multiple scans between −0.4 and −1.9 V.
Molecules 22 01442 g002aMolecules 22 01442 g002b
Figure 3. One electron reduction of the di-N-oxide structure to a radical anion.
Figure 3. One electron reduction of the di-N-oxide structure to a radical anion.
Molecules 22 01442 g003
Figure 4. Plot of (a) (σm−x + σp−x)/2 for substituent group R2 versus half-wave potential (E1/2 vs. Fc/Fc+) for compounds 1a1e, and (b) (σm−x + σp−x)/2 for substituent group R1 versus half-wave potential (E1/2 vs. Fc/Fc+) for compounds 1d, 2d, 3d, and 4d. Hammett substituent constant values are taken from reference [29].
Figure 4. Plot of (a) (σm−x + σp−x)/2 for substituent group R2 versus half-wave potential (E1/2 vs. Fc/Fc+) for compounds 1a1e, and (b) (σm−x + σp−x)/2 for substituent group R1 versus half-wave potential (E1/2 vs. Fc/Fc+) for compounds 1d, 2d, 3d, and 4d. Hammett substituent constant values are taken from reference [29].
Molecules 22 01442 g004

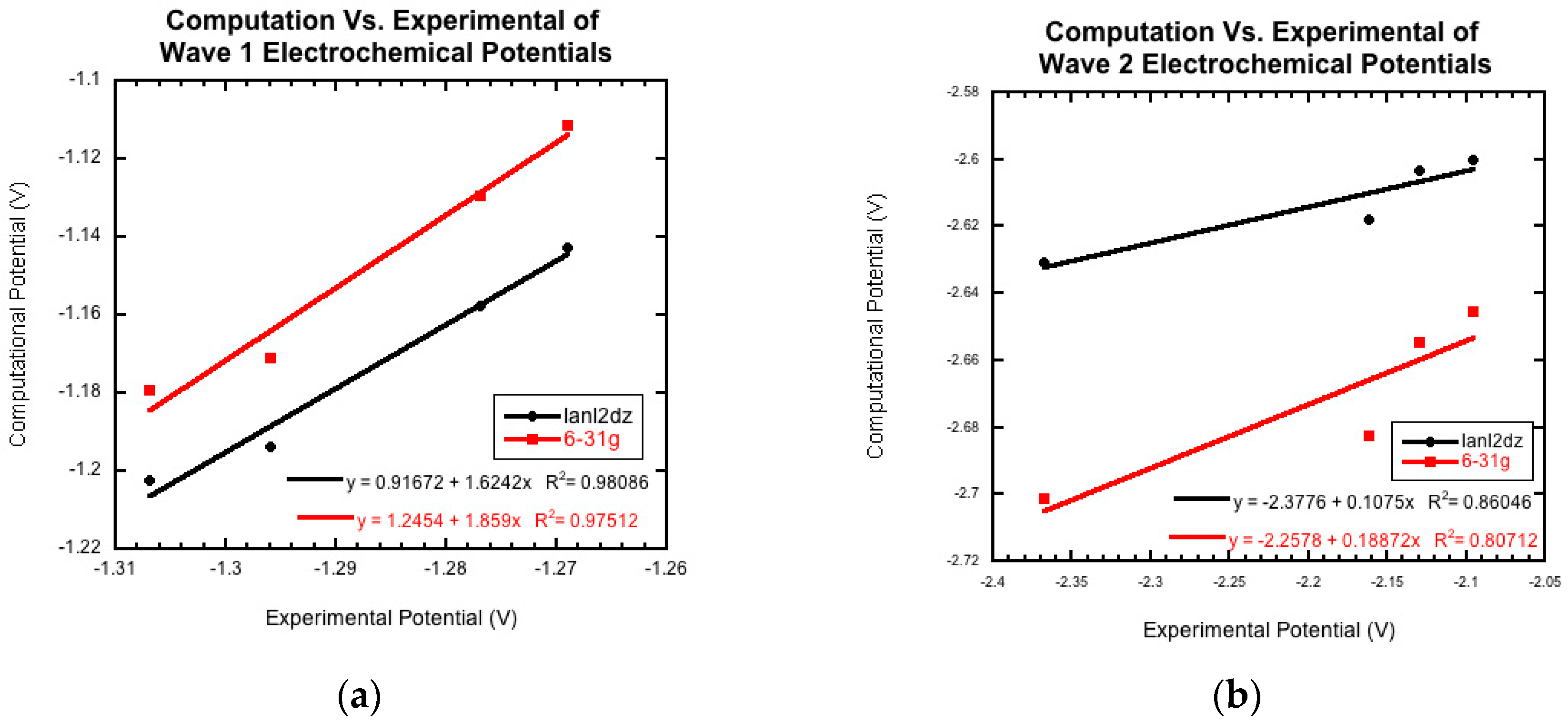

Figure 5. The computationally derived reduction potentials for (a) wave 1 (1st N-oxide reduction) and (b) wave 2 (2nd N-oxide reduction) compared to the experimentally measured data demonstrates a strong correlation. The basis set for lanl2dz, shown in black, can be compared to 6-31g, shown in red.
Figure 5. The computationally derived reduction potentials for (a) wave 1 (1st N-oxide reduction) and (b) wave 2 (2nd N-oxide reduction) compared to the experimentally measured data demonstrates a strong correlation. The basis set for lanl2dz, shown in black, can be compared to 6-31g, shown in red.
Molecules 22 01442 g005

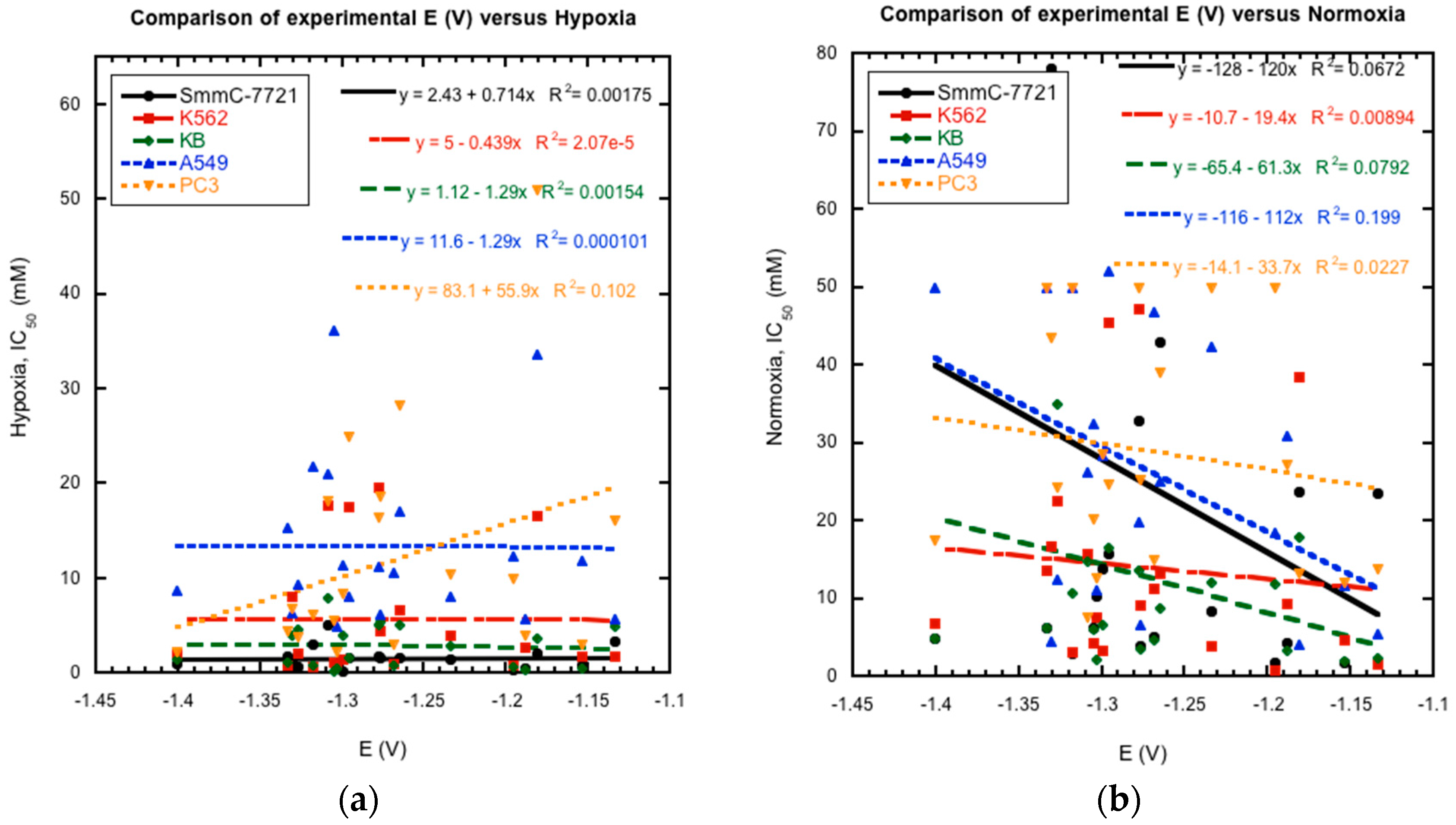

Figure 6. The comparison of experimentally measured reduction potentials for wave 1 (1st N-oxide reduction) to the previously reported IC50 (μM) for five cancer cell lines under (a) hypoxic and (b) normoxic conditions clearly shows no correlation. Hypoxia = 3% oxygen, Normoxia = 20% oxygen.
Figure 6. The comparison of experimentally measured reduction potentials for wave 1 (1st N-oxide reduction) to the previously reported IC50 (μM) for five cancer cell lines under (a) hypoxic and (b) normoxic conditions clearly shows no correlation. Hypoxia = 3% oxygen, Normoxia = 20% oxygen.
Molecules 22 01442 g006

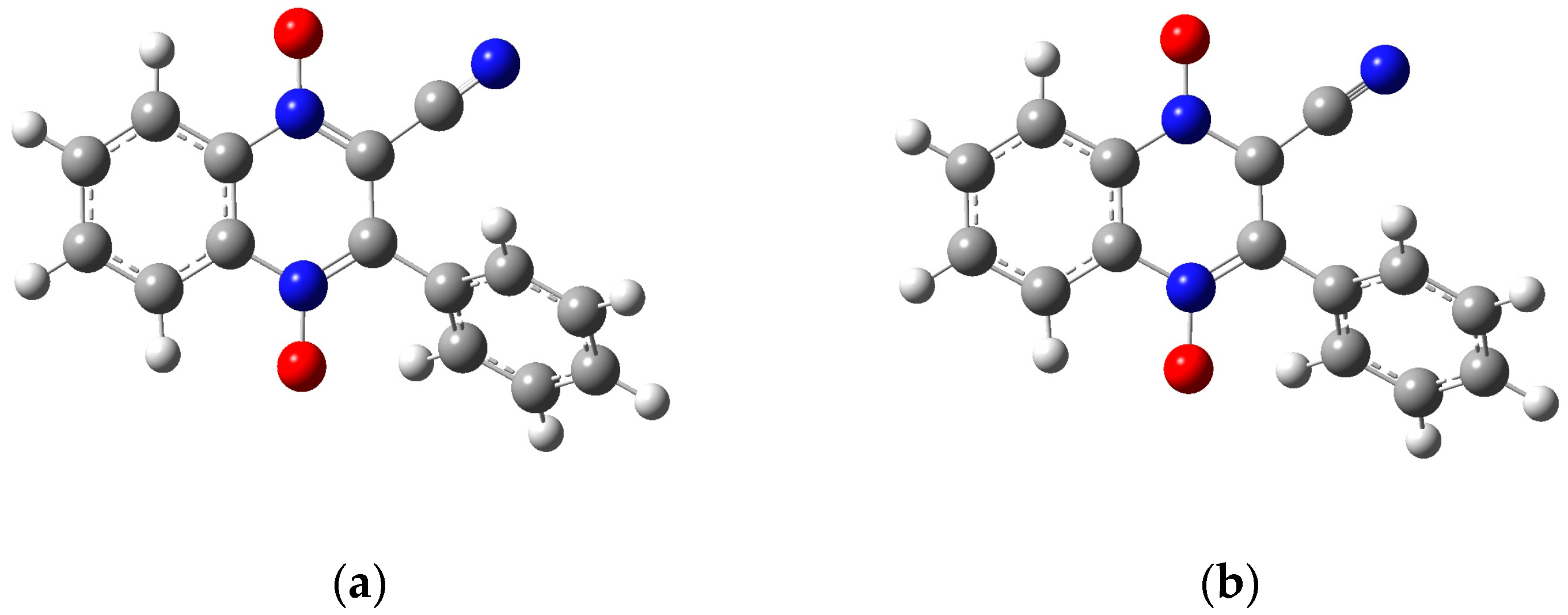

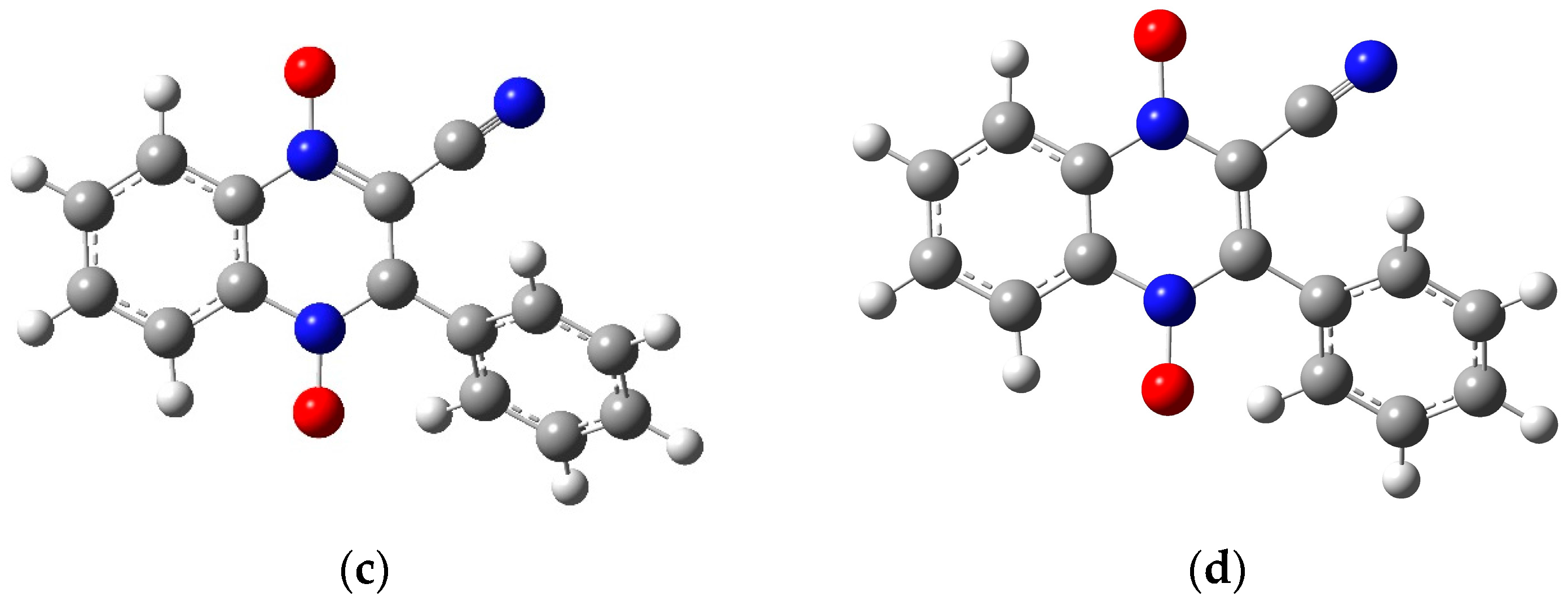

Figure 7. The optimized structures for molecule 1a using the 6-31g basis set: (a) the neutral molecule, (b) the anion product from wave 1 with the radical on the carbon attached to the cyano group, (c) the anion product of wave 1 with the radical on the carbon attached to the benzene ring, and (d) the dianion product of wave 2. Figures created in GaussView 5 [39] and optimized in Gaussian 09 [38].
Figure 7. The optimized structures for molecule 1a using the 6-31g basis set: (a) the neutral molecule, (b) the anion product from wave 1 with the radical on the carbon attached to the cyano group, (c) the anion product of wave 1 with the radical on the carbon attached to the benzene ring, and (d) the dianion product of wave 2. Figures created in GaussView 5 [39] and optimized in Gaussian 09 [38].
Molecules 22 01442 g007aMolecules 22 01442 g007b

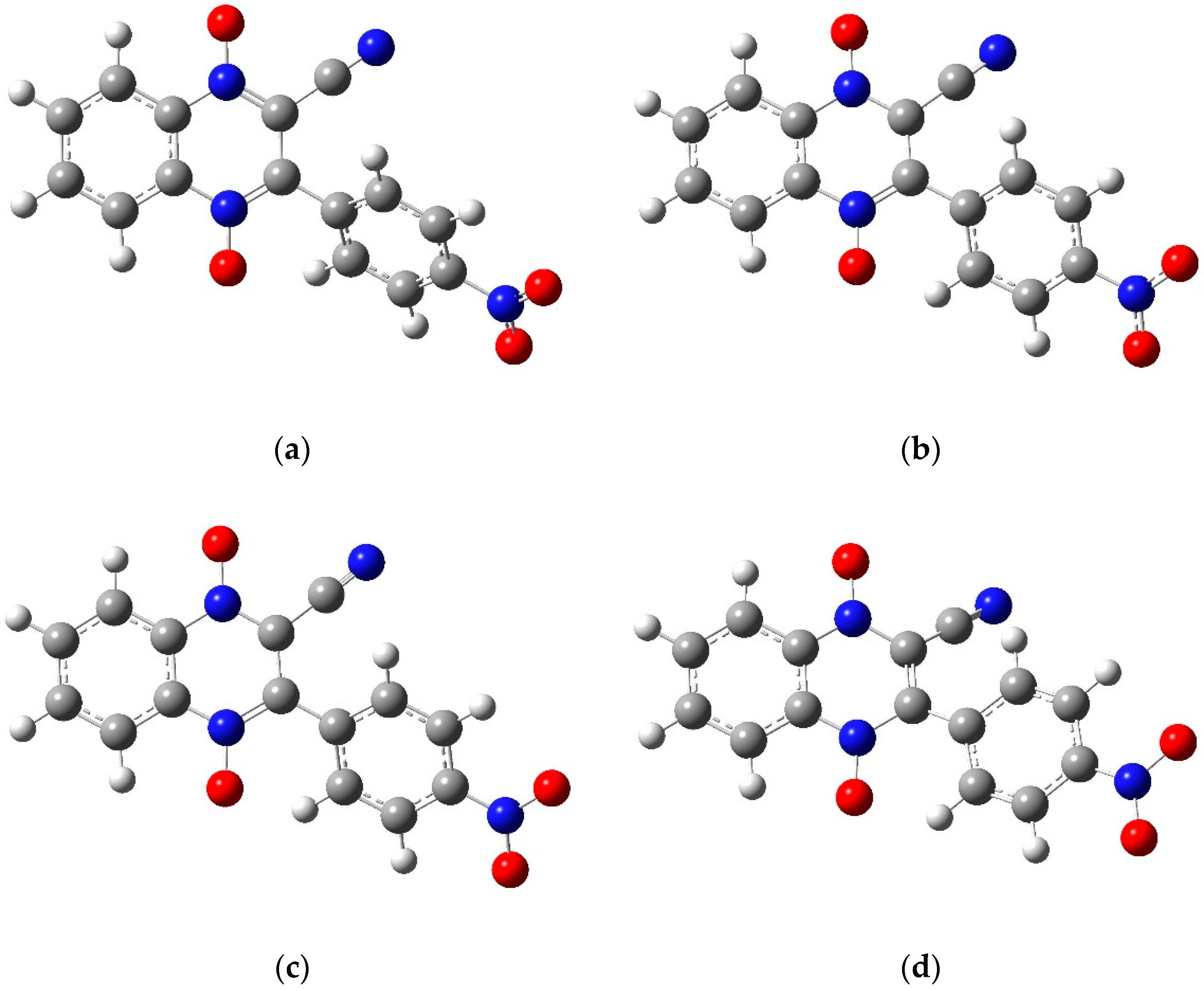

Figure 8. The optimized structures for molecule 1e using the 6-31g basis set: (a) the neutral molecule, (b) the anion product of wave 1 with the radical on the carbon attached to the cyano group, (c) the dianion product of the NO wave with radicals on the carbon attached to the cyano and on nitro group, and (d) the trianion product of wave 2. Figures created in GaussView 5 [39] and optimized in Gaussian 09 [38].
Figure 8. The optimized structures for molecule 1e using the 6-31g basis set: (a) the neutral molecule, (b) the anion product of wave 1 with the radical on the carbon attached to the cyano group, (c) the dianion product of the NO wave with radicals on the carbon attached to the cyano and on nitro group, and (d) the trianion product of wave 2. Figures created in GaussView 5 [39] and optimized in Gaussian 09 [38].
Molecules 22 01442 g008
Figure 9. The thermodynamic cycles used to calculate ΔGred: (a) wave 1 (1st N-oxide reduction) and wave 2 (2nd N-oxide reduction) for 1a1d and (b) wave 1 (1st N-oxide reduction), NO wave (nitro group reduction) and wave 2 (2nd N-oxide reduction) for 1e.
Figure 9. The thermodynamic cycles used to calculate ΔGred: (a) wave 1 (1st N-oxide reduction) and wave 2 (2nd N-oxide reduction) for 1a1d and (b) wave 1 (1st N-oxide reduction), NO wave (nitro group reduction) and wave 2 (2nd N-oxide reduction) for 1e.
Molecules 22 01442 g009
Table 1. Structures of the 3-aryl-quinoxaline-2-carbonitrile 1,4-di-N-oxide derivatives [21].
Table 1. Structures of the 3-aryl-quinoxaline-2-carbonitrile 1,4-di-N-oxide derivatives [21].
Molecules 22 01442 i001
CompoundR1R2
1aHH
1bH3-CH3
1cH3-Cl
1dH4-Br
1eH4-NO2
2aCH3H
2bCH33-CH3
2cCH33-Cl
2dCH34-Br
2eCH34-NO2
3aOCH3H
3bOCH33-CH3
3cOCH33-Cl
3dOCH34-Br
3eOCH34-NO2
4aClH
4bCl3-CH3
4cCl3-Cl
4dCl4-Br
4eCl4-NO2
Table 2. Cyclic voltammetric data of the 3-aryl-quinoxaline-2-carbonitrile 1,4-di-N-oxide derivatives a.
Table 2. Cyclic voltammetric data of the 3-aryl-quinoxaline-2-carbonitrile 1,4-di-N-oxide derivatives a.
1st N-oxide ReductionNitro Group Reduction2nd N-oxide Reduction b
CompoundE1/2 (V)ΔEp (V)Epc − E1/2 (V)ipc (μA)ipa/ipcE1/2 (V)ΔEp (V)Epc − E1/2 (V)ipc (μA)ipa/ipcEpc (V)ipc (μA)
1a−1.2960.076−0.0384.8830.918−2.1633.869
1b−1.3090.082−0.0412.1350.348−2.56 (sh) c
1c−1.2690.070−0.0352.8460.761−2.0973.753
1d−1.2780.069−0.0351.1770.689−2.06 (sh) c
1e−1.2340.103−0.0513.2200.297−1.5180.088−0.0443.8260.630−2.3063.808
2a−1.3270.097−0.0493.4880.830−2.3101.501
2b−1.3180.103−0.0513.3750.847−2.3773.395
2c−1.3030.089−0.0454.1190.835−2.1252.020
2d−1.3050.099−0.0504.4110.864−2.3265.656
2e−1.2650.083−0.0425.2610.270−1.5390.076−0.0385.2800.641−2.3527.525
3a−1.3310.077−0.0393.6750.798−2.1662.518
3b−1.3330.079−0.0394.2530.768−2.2163.049
3c−1.401 b7.460
3d−1.3000.075−0.0374.6010.767−1.9953.303
3e−1.2770.095−0.0473.3920.239−1.5660.096−0.0442.5460.699−2.3723.816
4a−1.1880.076−0.0384.2370.871−1.9733.650
4b−1.1960.093−0.0473.7530.859−2.1152.118
4c−1.1540.129−0.0652.8990.841−2.0801.342
4d−1.1810.107−0.0534.1030.930−2.1322.866
4e−1.1340.072−0.0363.0710.483−1.5140.063−0.0313.7750.641−2.1413.904
a Substrate, 1.0 mM; TBAP, 0.10 M; DMF; Pt working electrode; Ag/AgNO3 reference electrode; Pt wire counter electrode; 100 mV/s; room temperature; E vs. (Fc/Fc+)/V; currents reported in μA; voltammograms recorded with a CH Instruments Model 620 Electrochemistry Analyzer. b Irreversible. c Shoulder.
Table 3. First derivative voltammetric data of the 3-aryl-quinoxaline-2-carbonitrile 1,4-di-N-oxide derivatives a,b.
Table 3. First derivative voltammetric data of the 3-aryl-quinoxaline-2-carbonitrile 1,4-di-N-oxide derivatives a,b.
1st N-oxide ReductionNitro Group Reduction2nd N-oxide Reduction c
CompoundEpc (V)Epa (V)E1/2 (V)Epc (V)Epa (V)E1/2 (V)ΔEp (V)Epc (V)
1a−1.335−1.256−1.296−2.162
1b−1.350−1.264−1.307−2.368
1c−1.305−1.232−1.269−2.096
1d−1.314−1.240−1.277−2.130
1e−1.287−1.179−1.233−1.574−1.467−1.5210.107−2.309
2a−1.375−1.276−1.326−2.308
2b−1.369−1.266−1.318−2.366
2c−1.348−1.258−1.303−2.122
2d−1.356−1.253−1.305−2.279
2e−1.308−1.221−1.265−1.577−1.499−1.5380.078−2.355
3a−1.372−1.290−1.331−2.168
3b−1.374−1.292−1.332−2.216
3c−1.402−1.402 c−2.466
3d−1.339−1.26−1.299−1.996
3e−1.328−1.226−1.277−1.612−1.510−1.5620.101−2.371
4a−1.227−1.148−1.188−1.974
4b−1.243−1.146−1.195−2.114
4c−1.219−1.086−1.154−2.082
4d−1.236−1.126−1.181−2.130
4e−1.172−1.094−1.133−1.544−1.476−1.5100.068−2.142
a Substrate, 1.0 mM; TBAP, 0.10 M; DMF; Pt working electrode; Ag/AgNO3 reference electrode; Pt wire counter electrode; 100 mV/s; room temperature; E vs. (Fc/Fc+)/V; currents reported in μA; voltammograms recorded with a CH Instruments Model 620 Electrochemistry Analyzer. b Epc and Epa determined at the point where the derivative curve crosses the baseline [24]. c Irreversible.
Table 4. The half-cell reaction potentials in volts for the 1st N-oxide, nitro group and 2nd N-oxide reductions calculated using the lanl2dz and 6-31g basis sets in Gausian 09.
Table 4. The half-cell reaction potentials in volts for the 1st N-oxide, nitro group and 2nd N-oxide reductions calculated using the lanl2dz and 6-31g basis sets in Gausian 09.
Compound1st N-oxide ReductionNitro Group Reduction2nd N-oxide Reduction
Lanl2dz6-31gLanl2dz6-31gLanl2dz6-31g
1a3.60063.28912.17631.7774
1b3.59203.28072.16361.7586
1c3.65163.34882.19441.8146
1d3.63643.33072.19101.8055
1e3.86053.55182.62922.29852.96012.6072
Table 5. The reduction potentials in volts for the 1st N-oxide, nitro group and 2nd N-oxide reductions versus ferrocene, calculated using the lanl2dz and 6-31g basis sets in Gausian 09.
Table 5. The reduction potentials in volts for the 1st N-oxide, nitro group and 2nd N-oxide reductions versus ferrocene, calculated using the lanl2dz and 6-31g basis sets in Gausian 09.
1st N-oxide ReductionNitro Group Reduction2nd N-oxide Reduction
Hydrogen Half−Cell Reduction Set to Zero
CompoundLanl2dz6-31gLanl2dz6-31gLanl2dz6-31g
1a−1.9136−1.8908−3.3379−3.4025
1b−1.9223−1.8993−3.3507−3.4213
1c−1.8626−1.8312−3.3199−3.3654
1d−1.8778−1.8492−3.3233−3.3744
1e−1.6538−1.6281−2.8851−2.8814−2.5542−2.5728
Ferrocene Half−Cell Reduction Set to Zero
CompoundLanl2dz6-31gLanl2dz6-31gLanl2dz6-31g
1a−1.1936−1.1708−2.6179−2.6825
1b−1.2023−1.1793−2.6307−2.7013
1c−1.1426−1.1112−2.5999−2.6454
1d−1.1578−1.1292−2.6033−2.6544
1e−0.9338−0.9081−2.1651−2.1614−1.8342−1.8528
Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
