Molecules 2017, 22(9), 1438; doi:10.3390/molecules22091438

Article
Preparation and Characterization of Novel Cationic Chitosan Derivatives Bearing Quaternary Ammonium and Phosphonium Salts and Assessment of Their Antifungal Properties
Wenqiang Tan 1,2, Qing Li 1, Fang Dong 1, Qiuhong Chen 1 and Zhanyong Guo 1,2,*Orcid
1
Key Laboratory of Coastal Biology and Bioresource Utilization, Yantai Institute of Coastal Zone Research, Chinese Academy of Sciences, Yantai 264003, China
2
University of Chinese Academy of Sciences, Beijing 100049, China
*
Correspondence: Tel.: +86-535-2109171; Fax: +86-535-2109000
Received: 14 August 2017 / Accepted: 29 August 2017 / Published: 31 August 2017

Abstract

:
Chitosan is an abundant and renewable polysaccharide, its derivatives exhibit attractive bioactivities and the wide applications in various biomedical fields. In this paper, two novel cationic chitosan derivatives modified with quaternary phosphonium salts were successfully synthesized via trimethylation, chloride acetylation, and quaternization with tricyclohexylphosphine and triphenylphosphine. The structures and properties of synthesized products in the reactions were characterized by FTIR spectroscopy, 1H-NMR, 31P-NMR, elemental and thermogravimetric analysis. The antifungal activities of chitosan derivatives against four kinds of phytopathogens, including Phomopsis asparagi, Watermelon fusarium, Colletotrichum lagenarium, and Fusarium oxysporum were tested using the radial growth assay in vitro. The results revealed that the synthesized cationic chitosan derivatives showed significantly improved antifungal efficiency compared to chitosan. It was reasonably suggested that quaternary phosphonium groups enabled the obviously stronger antifungal activity of the synthesized chitosans. Especially, the triphenylphosphonium-functionalized chitosan derivative inhibited the growth of Phomopsis asparagi most effectively, with inhibitory indices of about 80% at 0.5 mg/mL. Moreover, the data demonstrated that the substituted groups with stronger electron-withdrawing ability relatively possessed greater antifungal activity. The results suggest the possibility that cationic chitosan derivatives bearing quaternary phosphonium salts could be effectively employed as novel antifungal biomaterials for application in the field of agriculture.
Keywords:
cationic chitosan derivatives; quaternary ammonium salts; quaternary phosphonium salts; antifungal activity; electron-withdrawing ability

1. Introduction

Chitosan, a naturally occurring linear biopolymer composed of d-glucosamine and N-acetyl-d-glucosamine residues, is derived from the complete or partial deacetylation of chitin [1,2]. Chitosan has a unique set of interesting characteristics such as biocompatibility, biodegradability, non-toxicity, and antimicrobial activity [3,4,5], and this has led to its wide applications in pharmaceuticals, cosmetics, agriculture, food science, and textiles [3,6,7]. However, its poor solubility in both organic and aqueous solvents limits considerably the further applications of chitosan in various advanced biomedical fields [6,8,9]. Chemical modification or derivatizations of chitosan by introducing small functional groups into the chitosan backbone to increase its solubility at neutral and alkaline pH values as well as enhance its original bioactivities have attracted special attention [8,10,11]. Moreover, the active primary amine and hydroxyl groups on the chitosan backbone provide excellent reactive sites for chemical modifications.
Of all the chitosan derivatives, cationic chitosans have many unique important physicochemical features such as water solubility and biological properties, especially antimicrobial activity [1,12]. As a most typical cationic chitosan, quaternary ammonium-functionalized chitosan derivatives have attracted increasing interest from both an academic and industrial point of view [12,13,14]. Among them, N,N,N-trimethylchitosan with good water solubility can be synthesized rapidly and effectively by peralkylation of free amine groups in the chitosan molecule with excess iodomethane [12,15,16], and have special appeal as substrates for the introduction of the other functional groups into the chitosan backbone. Recently, the compounds bearing quaternary phosphonium salts were reported to exhibit a higher antimicrobial activity compared with those with quaternary ammonium salts [17,18,19]. Quaternary phosphonium salts are considered as a new generation of efficient and broad-spectrum antiseptics [20,21]. The modification of chitosan by quaternary phosphonium salts can help enhance the biological activity and application value of chitosan. Guo et al. described that N-triphenylphosphonium chitosans with different degrees of substitution had favorable antibacterial activity and could be used as potential polymeric antibacterial agents [22]. Qiao et al. developed low toxicity N-triphenylphosphonium chitosans with two degrees of substitution which could be used as effective gene delivery vectors [23]. However, to the best of our knowledge these works have only focused on one kind of quaternary phosphonium salts—triphenylphosphonium salts. Besides, the previous studies mainly reported the antibacterial action of quaternary phosphonium-functionalized chitosan derivatives. Our group has reported the synthesis and antifungal property of low molecular weight chitosan derivatives bearing quaternary phosphonium groups, and chloroacetyl chitosan prepared by the reaction of low molecular weight water-soluble chitosan and chloroacetyl chloride in aqueous solutions was used as reaction intermediate [24], but this method is not a good fit for high molecular weight chitosan because of the poor water solubility of this substrate.
The aim of our project was to prepare the chitosan derivatives bearing quaternary phosphonium groups using high molecular weight chitosan as original raw material and investigate their antifungal activity. In this paper, we hereby report the preparation and antifungal property of two chitosan derivatives modified with quaternary phosphonium salts using high molecular weight chitosan as original raw material. The chemical structures of the derivatives were characterized by FTIR, 1H-NMR, and 31P-NMR. The quantitative data on degree of substitution, thermal stability, and water solubility of the synthesized chitosan derivatives were calculated. Four plant-threatening fungi, Phomopsis asparagi (P. asparagi), Watermelon fusarium (W. fusarium), Colletotrichum lagenarium (C. lagenarium), and Fusarium oxysporum (F. oxysporum), were selected to evaluate the antifungal properties of the new derivatives by hypha measurement in vitro.

2. Results and Discussion

2.1. Chemical Synthesis and Characterization

The synthetic strategy for the preparation of high molecular weight chitosan derivatives bearing quaternary phosphonium salts is shown in Scheme 1. Considering the poor solubility of pristine chitosan in water and organic solvents, trimethylation of amino groups as one of the most simple and efficient methods to avoid inefficient heterogeneous reaction conditions in the next chemical step [12,15]. Without any purification, N,N,N-trimethylchitosan can directly react with chloroacetyl chloride to obtain the reaction intermediate chloracetyl chitosan bearing quaternary ammonium salt 1. Then, the targeted chitosan derivatives 2a and 2b were synthesized by a one step chemical approach, by reacting chitosan derivative 1 with tricyclohexylphosphine and triphenylphosphine, respectively. In order to verify the successful synthesis of each compound, the FTIR (Figure 1) and 1H-NMR (Figure 2) spectra of chitosan and chitosan derivatives and 31P-NMR (Figure 3) spectra of the chitosan derivatives were recorded.
A comparison of the FTIR spectra for chitosan and the chitosan derivatives is given in Figure 1. The FTIR spectrum of chitosan displays a characteristic peak at 3417 cm−1, which is attributed to the –NH2 and –OH stretching vibration [1,8,9], at 2877 cm−1, which is attributed to the –CH2– stretching vibration [25], at 1600 cm−1, which is assigned to the –NH2 bending vibration [10,12,26], and at 1072 cm−1, which is assigned to the –C–O–C– stretching vibration of the glucosamine ring [8]. The formation of compound 1 is confirmed by the peaks at 1751 and 790 cm−1 in the FTIR spectrum which are due to the vibration absorption of –C=O and –C–Cl in the chloroacetyl group [27,28,29]. In addition, the peak at 1473 cm−1 is assigned to –N+(CH3)3 stretching vibrations [11,15]. After the quaternization reactions of compound 1 with tricyclohexylphosphine and triphenylphosphine, the peak of –C–Cl at 790 cm−1 is nearly eliminated and characteristic bands at 1438–1450 cm−1 assigned to the –P+R3 groups (R = cyclohexyl or phenyl) appear [30]. Besides, it is worth noting that the peak of –C=O stretching vibration of carboxylic esters at 1751 cm−1 has shifted to 1735 or 1739 cm−1 which may be attributed to the electron-withdrawing inductive effect of the quaternary phosphonium groups [22]. In addition, new peaks appear at 2935 and 2857 cm−1 (–CH– stretching vibration of cyclohexyl in compound 2a), and 752 and 686 cm−1 (–CH– bending vibration of phenyl in compound 2b) in the spectra of chitosan derivatives 2, indicating that tricyclohexylphosphine and triphenylphosphine have been grafted into the chitosan backbone.
The 1H-NMR spectra were further applied to confirm the chemical structures of chitosan and chitosan derivatives. As shown in Figure 2, the signals at 3.0–5.0 ppm are assigned to the protons of glucosamine unit of chitosan and the peak at 2.0 ppm is assigned to the methyl protons of the N-acetyl group [7,11]. Compared with the peaks of chitosan, the 1H-NMR spectrum of compound 1 shows a prominent –N+(CH3)3 peak at 3.1 ppm [31,32] along with the resonance peak at 4.4 ppm corresponding to the methylene protons of –COCH2Cl group [27,29]. Compared to compound 1, it can be clearly seen from the 1H-NMR spectra of chitosan derivatives 2a and 2b in Figure 2 that the characteristic resonance at 4.4 ppm for –COCH2Cl weakens greatly while new signals appear at 1.2-2.7 ppm in compound 2a, which are assigned to the protons of methyl and methylene moieties, and the resonances at 7.5–8.0 ppm are responded to the phenyl protons in compound 2b [18,32].
The 31P-NMR spectra of chitosan derivatives bearing quaternary ammonium and phosphonium salts are shown in Figure 3. The characteristic peaks at 33.9 and 20.1 ppm are attributed to the phosphorus atoms of the various quaternary phosphonium groups in chitosan derivatives 2a and 2b, respectively.

2.2. Thermal Stability

The thermogravimetric analyses (TGA) and derivative thermogravimetric (DTG) analyses curves of chitosan and chitosan derivatives are shown in Figure 4. They show that chitosan and chitosan derivative 1 have two stages of weight loss, while chitosan derivatives 2a and 2b undergo a three-step weight loss under a nitrogen atmosphere. The initial weight loss (below 150 °C) observed in all samples is due to the loss of absorbed and bound water. The major weight loss of chitosan occurs from 280 °C to 350 °C and 68% of mass is decomposed up to 800 °C. In contrast to chitosan, chitosan derivatives undergo a major weight loss from about 190 °C to 300 °C and 65–71% of their masses are decomposed up to 800 °C. In the second stage, the temperatures at the maximum degradation rate values of chitosan and chitosan derivatives 1, 2a and 2b are 315, 236, 233 and 237 °C, respectively, which indicates that chemical modification has a significant influence on the thermal stability of chitosan which may be due to the introduction of functional groups, which can break the intramolecular and intermolecular hydrogen bonding interaction and destroy the crystalline structure of the chitosan molecule [31,33,34]. Besides, in the third stage, the temperatures at the maximum degradation rate values registered at 405 °C and 389 °C for chitosan derivatives 2a and 2b, respectively.

2.3. Water Solubility

Figure 5 illustrates the water solubility of chitosan and chitosan derivatives at different pH values. It is well established that chitosan has poor solubility in water due to its strong intramolecular and intermolecular hydrogen bonds [10]. It is highly soluble in acidic solutions (pH < 6.5) due to the protonation of the primary amine [12,35]. After trimethylation of chitosan, chitosan derivative 1 showed higher water solubility because of the high hydrophilicity of its quaternary ammonium groups [16,31]. Meanwhile, the introduction of quaternary phosphonium moieties into chitosan derivative 1 further improves the water solubility, especially at alkaline pH (pH > 8.0). Table 1 also shows that the chitosan derivatives produced are soluble in 1% HOAc aqueous solution, water, DMSO, and DMF. The current finding suggest that the quaternization reaction is an effective mean for improving water solubility of chitosan, which is favorable to the application of chitosan.

2.4. Antifungal Activity

Four destructive phytopathogenic fungi, P. asparagi, W. fusarium, C. lagenarium, and F. oxysporum, were applied to test the potential antifungal activity of the prepared compounds in vitro by measuring mycelial inhibition of radial growth. The capabilities of the chitosan derivatives to inhibit the growth of the tested four common plant-threatening fungi are shown in Figure 6, Figure 7, Figure 8 and Figure 9, respectively. The growth-inhibiting effect was quantitatively determined by the ratio of the diameter of the growth zone in the medium with the chitosan derivatives to those with the deionized water instead of the chitosan derivatives (control).
P. asparagi is a kind of destructive pathogenic fungus that can cause severe stem blight of asparagus. As it can be seen from the Figure 6, the inhibitory indices of all of the compounds enhanced with the increase of concentration. All of the synthesized products show better ability of inhibiting the growth of P. asparagi than chitosan, and the highest antifungal activity is observed at 0.5 mg/mL. Compared with chitosan and compound 1, with inhibitory indices of 6.25% and 17.21%, the inhibitory indices of compounds 2a and 2b are 45.45% and 78.35%, respectively, which suggests that quaternary phosphonium groups should be the antifungal function groups. Furthermore, compound 2b is more active than compound 2a against P. asparagi. It is evident that the antifungal activity against P. asparagi decreases in the order: 2b > 2a > 1 > chitosan. Notably, compound 2b is still active against P. asparagi with inhibitory values of over 30% even when the dosage is lowered to 0.1 mg/mL.
W. fusarium can cause severe fusarium wilt and foot rot of some fruit plants, such as watermelon. As shown in Figure 7, all the samples are active against W. fusarium to some extent, and the antifungal activity of chitosan derivatives is concentration-dependent. The inhibitory indices of chitosan, compounds 1, 2a and 2b against W. fusarium are 14.20%, 25.50%, 39.49% and 69.66% at 0.5 mg/mL, respectively. The antifungal strong-to-weak sequence of the compounds against W. fusarium is similar to that against P. asparagi. The rationale behind the increased antifungal activity of compounds 2a and 2b versus compound 1 can be the result of the introduction of quaternary phosphonium groups which can contribute a lot to the antifungal action and consequently increased the antifungal activity of them.
C. lagenarium, carried mainly by ungerminated seeds, can lead to serious consequences for cucumber leaves that turn brown and wither. F. oxysporum can cause severe root rot and even death of the whole plant by infecting plant roots. Figure 8 and Figure 9 show the antifungal activity of chitosan and all the derivatives against C. lagenarium and F. oxysporum. The inhibitory indices of all the samples increase with increasing concentration. The chitosan derivatives 2 exhibit evidently better antifungal activity than chitosan and compound 1. The results reconfirm the significant contribution of quaternary phosphonium groups to the antifungal activity of the synthesized chitosan derivatives. Moreover, compared with compound 2a with inhibitory indices of 39.45% and 30.91%, the inhibitory indices of compound 2b are 61.36% and 51.48% at 0.5 mg/mL against C. lagenarium and F. oxysporum.
Based on the results mentioned above, the synthesized quaternary ammonium and phosphonium functionalized chitosan derivatives showed evidently enhanced antifungal properties against the four tested plant pathogenic strains at the tested concentrations compared with chitosan. The effective antifungal properties should be ascribed to the quaternary phosphonium groups. These quaternary phosphonium-functionalized chitosan derivatives could target the plant pathogens via the electrostatic interactions of amphiphile molecules on the outer cellular membranes [11,32]. The positively charged moieties of the cationic chitosan derivatives could interact with the negatively charged components on the fungal cell walls or cytomembranes [32,36,37]. This adherence of polycations to the outer membranes of the fungi could disrupt the microbial cell surface to hinder the transport of essential nutrients into the cell and also cause severe leakage of the cell constituents [11,38,39]. Generally, taking into consideration the relationships between inhibitory indices and structural characteristic of chitosan derivatives, electron-withdrawing substituent groups in quaternary phosphonium groups might be the major effective factor. The inhibition prowess of quaternary phosphonium functionalized chitosan derivatives against plant pathogens generally increases with the increasing electron-withdrawing ability of the substituent groups. In particular, strong electron-withdrawing groups could strengthen the positive charge density of quaternary phosphonium groups and could also more easily result in cell death [12].

3. Experimental Section

3.1. Materials

Chitosan with degree of deacetylation of 0.83 (C: 43.42%, N: 7.98%, H: 6.30%, C/N: 5.44) and molecular weight of 200 kDa was purchased from Qingdao Baicheng Biochemical Corp. (Qingdao, China). Iodomethane, chloroacetyl chloride, tricyclohexylphosphine (TCP), and triphenylphosphine (TPP) were purchased from the Sigma-Aldrich Chemical Corp. (Shanghai, China). The other reagents were all analytical grade and used as received. Four plant-threatening fungi, P. asparagi, W. fusarium, C. lagenarium, and F. oxysporum, were obtained from the Qingdao Academy of Agricultural Sciences.

3.2. Structural Characterization of Chitosan Derivatives

Fourier transform infrared (FTIR) spectra were recorded on a Jasco-4100 Fourier Transform Infrared Spectrometer (Jasco Co., Ltd., Shanghai, China) at 25 °C in the transmittance mode. The tested samples were grinded and mixed with KBr in the weight ratio 1/100 for observations. All spectra were scanned against a blank KBr pellet back-ground in the range of 4000–400 cm−1 at a resolution of 4.0 cm−1.
1H nuclear magnetic resonance (1H-NMR) spectra were recorded on an AVIII-500 spectrometer (Bruker, Zurich, Switzerland, provided by Bruker Tech. and Serv. Co., Ltd., Beijing, China) at 25 °C using D2O as solvent. Chemical shifts (δ ppm) were referenced to tetramethylsilane (TMS).
31P nuclear magnetic resonance (31P-NMR) spectra were measured with a Bruker AVANCE III spectrometer (provided by Bruker Tech. and Serv. Co., Ltd., Beijing, China) at room temperature operating at 600 MHz. Chemical shifts were recorded in parts per million relative to 85% of H3PO4 (0.0 ppm) in solution.
The thermogravimetric analyses (TGA) of samples were performed using a Mettler 5 MP thermal analyzer (Mettler-Toledo, Zurich, Switzerland). The samples were heated from 50 °C to 800 °C at a heating rate of 10 °C/min under a nitrogen flow.
The elemental analyses (C, H, and N) were carried out using a Vario EL III (Elementar, Langenselbold, Germany). The degrees of substitution (DS) of chitosan derivatives were calculated on the basis of the percentages of carbon and nitrogen according to the following equations:
D S 1 = n 1 × M C M N × W 1 n 2 × M C
D S 2 = M N × W 2 + n 2 × M C × D S 1 n 1 × M C n 3 × M C
D S 3 = M N × W 3 + n 2 × M C × D S 1 n 1 × M C n 3 × M C × D S 2 n 4 × M C
D S 4 = M N × W 4 + n 2 × M C × D S 1 n 1 × M C n 3 × M C × D S 2 n 4 × M C × D S 3 n 5 × M C
where DS1, DS2, DS3, and DS4 represent the deacetylation degree of chitosan, the degrees of substitution of N,N,N-trimethyl in chitosan derivatives, chloroacetyl in chitosan derivative 1, and quaternary phosphonium groups in chitosan derivatives 2; MC and MN are the molar mass of carbon and nitrogen, MC = 12, MN = 14; n1, n2, n3, n4, and n5 are the number of carbon of chitin, acetamido group, trimethyl, chloroacetyl group, and tricyclohexylphosphine or triphenylphosphine, n1 = 8, n2 = 2, n3 = 3, n4 = 2, n5 = 18; W1, W2, W3, and W4 represent the mass ratio (C/N ratio) between carbon and nitrogen in chitosan, N,N,N-trimethyl chitosan, chitosan derivative 1, and chitosan derivatives 2.

3.3. Synthesis of Chitosan Derivatives

3.3.1. Synthesis of Chloracetyl Chitosan Derivative with Quaternary Ammonium Salt 1

Chitosan (0.322 g, 2 mmol of glucosamine) was dispersed in N-methyl-2-pyrrolidone (NMP, 15 mL) and stirred at room temperature for 1 h. Then, NaI (0.90 g, 6 mmol), 15% NaOH aqueous solution (3 mL, 11 mmol), and CH3I (3 mL, 48 mmol) were subsequently added. The mixture was allowed to warm up to 60°C and stirred under reflux for an additional 1 h. The reaction solution was poured into 150 mL of absolute ethanol to afford some flavescent precipitate (elemental analysis: C: 31.43%, N: 4.52%, H: 5.49%, C/N: 6.95, DStrimethyl: 0.59). The precipitate collected by filtration was then dissolved in 30 mL of NMP and stirred at room temperature for 1 h before chloracetyl chloride (0.3 mL, 4 mmol) was added dropwise. After stirring continuously at room temperature for 12 h, the solution was poured into 150 mL of absolute ethanol to produce a yellowish precipitate. The precipitate was collected by filtration and then washed with ethanol for three times carefully. The resultant product was obtained by freeze-drying overnight in vaccum. Chitosan derivative 1: Yield: 71.1%; Elemental analysis: C: 36.32%, N: 4.35%, H: 5.81%, C/N: 8.35, DSchloroacetyl: 0.82.

3.3.2. Synthesis of Chitosan Derivatives Bearing Quaternary Ammonium and Phosphonium Salts 2a and 2b

Chloracetyl chitosan derivative with quaternary ammonium salt 1 (0.421 g) was dissolved in anhydrous dimethyl sulfoxide (DMSO, 15 mL) in a 50 mL flask, then organic phosphines (3 mmol) were added to the flask and dissolved, respectively. The solution was heated to 60 °C and stirred for 24 h under nitrogen. Then, the reaction solution was poured into 150 mL of acetone and collected by filtration, washed carefully with acetone. The unreacted organic phosphines were extracted in a Soxhlet apparatus with acetone for 24 h. The final products were obtained by drying in vacuum freeze dryer. Chitosan derivative 2a: Yield: 73.2%; Elemental analysis: C: 47.60%, N: 3.62%, H: 7.88%, C/N: 13.15, DStricyclohexylphosphonium: 0.31. Chitosan derivative 2b: Yield: 70.8%; Elemental analysis: C: 46.63%, N: 3.87%, H: 6.41%, C/N: 12.05, DStriphenylphosphonium: 0.24.

3.4. Estimation of Water Solubility

The water solubility of chitosan and chitosan derivatives at various pH values was determined by a turbidity measurement [40]. Briefly, 0.1 g of chitosan was dissolved in 100 mL of 1% HOAc aqueous solution and subsequently the transmittance of the solution at different pH values was recorded with the stepwise addition of 1 M NaOH on a TU-1810 UV spectrometer (General Instrument Co., Ltd., Beijing, China) at 600 nm.

3.5. Antifungal Assay

In consideration of the poor water solubility of pristine chitosan, the water-soluble low molecular weight chitosan (LCTS) was used for antifungal activity tests. All tested compounds (LCTS and chitosan derivatives 1, 2a and 2b) were firstly dissolved in distilled water at a concentration of 5 mg/mL as stock solutions. Then, each sample solution was added to sterile PDA medium to give the final concentrations of 0.05, 0.1 and 0.5 mg/mL. The final solutions were poured into sterilized Petri dishes (9 cm). After solidification, a mycelia disk (diameter: 5 mm) of active fungi was transferred to the center of the PDA Petri dishes and inoculated at 27 °C. When the mycelia of fungi reached the edges of the control plate (without the presence of samples), the growth inhibition was calculated by the formula:
Inhibitory   index   ( % ) = ( 1 D a / D b ) × 100
where Da is the diameter of the growth zone in the test plates and Db is the diameter of the growth zone in the control plate.

3.6. Statistical Analysis

All the experiments were performed in triplicate and the data were expressed as mean ± the standard deviation (SD, n = 3). Significant difference analysis was determined using Scheffe’s multiple range test. A level of p < 0.05 was considered statistically significant.

4. Conclusions

In this paper, cationic chitosan derivatives containing quaternary ammonium and phosphonium groups were successfully synthesized and their in vitro antifungal applications against four kinds of plant pathogens were reported. The quaternary ammonium- and phosphonium-functionalized chitosan derivatives were found to have significantly enhanced antifungal efficiency against plant pathogens when compared to chitosan. The results indicated that quaternary phosphonium groups should be high-efficiency antifungal groups. Moreover, the triphenylphosphonium-functionalized chitosan derivative showed the best antifungal activity and the electron-withdrawing ability of the different substituted groups on the quaternary phosphonium salts was believed to be the main reason for the marked improvement in antifungal behavior. They have the potential of becoming promising candidates for the control of fungal plant diseases and can also serve as a new lead structures for further design of antifungal materials.

Acknowledgments

We thank the National Natural Science Foundation of China (41576156), National key research and development program-China (2016YFF0202304), Shandong Province Science and Technology Development Plan (2015GSF121045), Yantai Science and Technology Development Plan (2015ZH078), and the Public Science and Technology Research Funds Projects of Ocean (No. 201505022-3) for financial support of this work.

Author Contributions

Wenqiang Tan participated in designing the experiments, wrote the paper, and was the chief experimenter. Qing Li, Fang Dong, and Qiuhong Chen also performed the experiments and were responsible for the language modification. Zhanyong Guo was the chief designer and the instructor of the experiment, and analyzed the experimental data. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviation are used in this manuscript:
FTIRFourier transform infrared spectra
1H-NMR1H nuclear magnetic resonance spectra
31P-NMR31P nuclear magnetic resonance spectra
TGAThermogravimetric analyses
DTGDerivative thermogravimetric
NMPN-methyl-2-pyrrolidone
DMSODimethyl sulfoxide
PDAPotato dextrose agar

References

  1. Sajomsang, W.; Ruktanonchai, U.R.; Gonil, P.; Warin, C. Quaternization of N-(3-pyridylmethyl) chitosan derivatives: Effects of the degree of quaternization, molecular weight and ratio of N-methylpyridinium and N,N,N-trimethyl ammonium moieties on bactericidal activity. Carbohydr. Polym. 2010, 82, 1143–1152. [Google Scholar] [CrossRef]
  2. Li, W.; Duan, Y.; Huang, J.; Zheng, Q. Synthesis, antioxidant and cathepsin D inhibition activity of quaternary ammonium chitosan derivatives. Carbohydr. Polym. 2016, 136, 884–891. [Google Scholar] [CrossRef] [PubMed]
  3. Mohamed, N.A.; Sabaa, M.W.; El-Ghandour, A.H.; Abdel-Aziz, M.M.; Abdel-Gawad, O.F. Quaternized N-substituted carboxymethyl chitosan derivatives as antimicrobial agents. Int. J. Biol. Macromol. 2013, 60, 156–164. [Google Scholar] [CrossRef] [PubMed]
  4. Sukamporn, P.; Baek, S.J.; Gritsanapan, W.; Chirachanchai, S.; Nualsanit, T.; Rojanapanthu, P. Self-assembled nanomicelles of damnacanthal-loaded amphiphilic modified chitosan: Preparation, characterization and cytotoxicity study. Mater. Sci. Eng. C 2017, 77, 1068–1077. [Google Scholar] [CrossRef] [PubMed]
  5. Baghbani, F.; Chegeni, M.; Moztarzadeh, F.; Hadian-Ghazvini, S.; Raz, M. Novel ultrasound-responsive chitosan/perfluorohexane nanodroplets for image-guided smart delivery of an anticancer agent: Curcumin. Mater. Sci. Eng. C 2017, 74, 186–193. [Google Scholar] [CrossRef] [PubMed]
  6. Li, Z.; Yang, F.; Yang, R. Synthesis and characterization of chitosan derivatives with dual-antibacterial functional groups. Int. J. Biol. Macromol. 2015, 75, 378–387. [Google Scholar] [CrossRef] [PubMed]
  7. Hakimi, S.; Mortazavian, E.; Mohammadi, Z.; Samadi, F.Y.; Samadikhah, H.; Taheritarigh, S.; Tehrani, N.R.; Rafiee-Tehrani, M. Thiolated methylated dimethylaminobenzyl chitosan: A novel chitosan derivative as a potential delivery vehicle. Int. J. Biol. Macromol. 2017, 95, 574–581. [Google Scholar] [CrossRef] [PubMed]
  8. Shahzad, S.; Shahzadi, L.; Mahmood, N.; Siddiqi, S.A.; Rauf, A.; Manzoor, F.; Chaudhry, A.A.; Rehman, I.U.; Yar, M. A new synthetic methodology for the preparation of biocompatible and organo-soluble barbituric- and thiobarbituric acid based chitosan derivatives for biomedical applications. Mater. Sci. Eng. C 2016, 66, 156–163. [Google Scholar] [CrossRef] [PubMed]
  9. Sajomsang, W.; Gonil, P.; Saesoo, S.; Ovatlarnporn, C. Antifungal property of quaternized chitosan and its derivatives. Int. J. Biol. Macromol. 2012, 50, 263–269. [Google Scholar] [CrossRef] [PubMed]
  10. Mohamed, N.A.; Abd El-Ghany, N.A. Preparation and antimicrobial activity of some carboxymethyl chitosan acyl thiourea derivatives. Int. J. Biol. Macromol. 2012, 50, 1280–1285. [Google Scholar] [CrossRef] [PubMed]
  11. Badawy, M.E.; Rabea, E.I.; Taktak, N.E. Antimicrobial and inhibitory enzyme activity of N-(benzyl) and quaternary N-(benzyl) chitosan derivatives on plant pathogens. Carbohydr. Polym. 2014, 111, 670–682. [Google Scholar] [CrossRef] [PubMed]
  12. Rahmani, S.; Mohammadi, Z.; Amini, M.; Isaei, E.; Taheritarigh, S.; Rafiee Tehrani, N.; Rafiee Tehrani, M. Methylated 4-N,N-dimethyl aminobenzyl N,O-carboxymethyl chitosan as a new chitosan derivative: Synthesis, characterization, cytotoxicity and antibacterial activity. Carbohydr. Polym. 2016, 149, 131–139. [Google Scholar] [CrossRef] [PubMed]
  13. He, G.; Ke, W.; Chen, X.; Kong, Y.; Zheng, H.; Yin, Y.; Cai, W. Preparation and properties of quaternary ammonium chitosan-g-poly(acrylic acid-co-acrylamide) superabsorbent hydrogels. React. Funct. Polym. 2017, 111, 14–21. [Google Scholar] [CrossRef]
  14. Liu, J.; Sun, H.; Dong, F.; Xue, Q.; Wang, G.; Qin, S.; Guo, Z. The influence of the cation of quaternized chitosans on antioxidant activity. Carbohydr. Polym. 2009, 78, 439–443. [Google Scholar] [CrossRef]
  15. Patrulea, V.; Hirt-Burri, N.; Jeannerat, A.; Applegate, L.A.; Ostafe, V.; Jordan, O.; Borchard, G. Peptide-decorated chitosan derivatives enhance fibroblast adhesion and proliferation in wound healing. Carbohydr. Polym. 2016, 142, 114–123. [Google Scholar] [CrossRef] [PubMed]
  16. Benediktsdottir, B.E.; Gudjonsson, T.; Baldursson, O.; Masson, M. N-alkylation of highly quaternized chitosan derivatives affects the paracellular permeation enhancement in bronchial epithelia in vitro. Eur. J. Pharm. Biopharm. 2014, 86, 55–63. [Google Scholar] [CrossRef] [PubMed]
  17. Zhu, D.; Cheng, H.; Li, J.; Zhang, W.; Shen, Y.; Chen, S.; Ge, Z.; Chen, S. Enhanced water-solubility and antibacterial activity of novel chitosan derivatives modified with quaternary phosphonium salt. Mater. Sci. Eng. C 2016, 61, 79–84. [Google Scholar] [CrossRef] [PubMed]
  18. Li, C.; Liu, Y.; Zeng, Q.-Y.; Ao, N.-J. Preparation and antimicrobial activity of quaternary phosphonium modified epoxidized natural rubber. Mater. Lett. 2013, 93, 145–148. [Google Scholar] [CrossRef]
  19. Song, W.; Guo, Z.; Zhang, L.; Zheng, H.; Zhao, Z. Antibacterial activity of starch/acrylamide/allyl triphenyl phosphonium bromide copolymers synthesized by gamma irradiation. Radiat. Phys. Chem. 2013, 91, 114–119. [Google Scholar] [CrossRef]
  20. Wu, T.; Xie, A.G.; Tan, S.Z.; Cai, X. Antimicrobial effects of quaternary phosphonium salt intercalated clay minerals on Escherichia coli and Staphylococci aureus. Colloids Surf. B 2011, 86, 232–236. [Google Scholar] [CrossRef] [PubMed]
  21. Anthierens, T.; Billiet, L.; Devlieghere, F.; Du Prez, F. Poly(butylene adipate) functionalized with quaternary phosphonium groups as potential antimicrobial packaging material. Innov. Food Sci. Emerg. 2012, 15, 81–85. [Google Scholar] [CrossRef]
  22. Guo, A.; Wang, F.; Lin, W.; Xu, X.; Tang, T.; Shen, Y.; Guo, S. Evaluation of antibacterial activity of N-phosphonium chitosan as a novel polymeric antibacterial agent. Int. J. Biol. Macromol. 2014, 67, 163–171. [Google Scholar] [CrossRef] [PubMed]
  23. Qian, C.; Xu, X.; Shen, Y.; Li, Y.; Guo, S. Synthesis and preliminary cellular evaluation of phosphonium chitosan derivatives as novel non-viral vector. Carbohydr. Polym. 2013, 97, 676–683. [Google Scholar] [CrossRef] [PubMed]
  24. Tan, W.; Zhang, J.; Luan, F.; Wei, L.; Chen, Y.; Dong, F.; Li, Q.; Guo, Z. Design, synthesis of novel chitosan derivatives bearing quaternary phosphonium salts and evaluation of antifungal activity. Int. J. Biol. Macromol. 2017, 102, 704–711. [Google Scholar] [CrossRef] [PubMed]
  25. Biao, L.; Tan, S.; Wang, Y.; Guo, X.; Fu, Y.; Xu, F.; Zu, Y.; Liu, Z. Synthesis, characterization and antibacterial study on the chitosan-functionalized Ag nanoparticles. Mater. Sci. Eng. C 2017, 76, 73–80. [Google Scholar] [CrossRef] [PubMed]
  26. Chen, Y.; Li, J.; Li, Q.; Shen, Y.; Ge, Z.; Zhang, W.; Chen, S. Enhanced water-solubility, antibacterial activity and biocompatibility upon introducing sulfobetaine and quaternary ammonium to chitosan. Carbohydr. Polym. 2016, 143, 246–253. [Google Scholar] [CrossRef] [PubMed]
  27. Rúnarsson, Ö.V.; Holappa, J.; Malainer, C.; Steinsson, H.; Hjálmarsdóttir, M.; Nevalainen, T.; Másson, M. Antibacterial activity of N-quaternary chitosan derivatives: Synthesis, characterization and structure activity relationship (SAR) investigations. Eur. Polym. J. 2010, 46, 1251–1267. [Google Scholar] [CrossRef]
  28. Li, R.; Guo, Z.; Jiang, P. Synthesis, characterization, and antifungal activity of novel quaternary chitosan derivatives. Carbohydr. Res. 2010, 345, 1896–1900. [Google Scholar] [CrossRef] [PubMed]
  29. Labafzadeh, S.R.; Vyavaharkar, K.; Kavakka, J.S.; King, A.W.; Kilpelainen, I. Amination and thiolation of chloroacetyl cellulose through reactive dissolution in N,N-dimethylformamide. Carbohydr. Polym. 2015, 116, 60–66. [Google Scholar] [CrossRef] [PubMed]
  30. Kenawy, E.-R.; Abdel-Hay, F.I.; El-Magd, A.A.; Mahmoud, Y. Biologically active polymers: VII. Synthesis and antimicrobial activity of some crosslinked copolymers with quaternary ammonium and phosphonium groups. React. Funct. Polym. 2006, 66, 419–429. [Google Scholar] [CrossRef]
  31. Chivangkul, T.; Pengprecha, S.; Padungros, P.; Siraleartmukul, K.; Prasongsuk, S.; Muangsin, N. Enhanced water-solubility and mucoadhesion of N,N,N-trimethyl-N-gluconate-N-homocysteine thiolactone chitosan. Carbohydr. Polym. 2014, 108, 224–231. [Google Scholar] [CrossRef] [PubMed]
  32. Chang, H.-I.; Yang, M.-S.; Liang, M. The synthesis, characterization and antibacterial activity of quaternized poly(2,6-dimethyl-1,4-phenylene oxide)s modified with ammonium and phosphonium salts. React. Funct. Polym. 2010, 70, 944–950. [Google Scholar] [CrossRef]
  33. Tan, W.; Li, Q.; Gao, Z.; Qiu, S.; Dong, F.; Guo, Z. Design, synthesis of novel starch derivative bearing 1,2,3-triazolium and pyridinium and evaluation of its antifungal activity. Carbohydr. Polym. 2017, 157, 236–243. [Google Scholar] [CrossRef] [PubMed]
  34. Qin, Y.; Liu, S.; Xing, R.; Li, K.; Yu, H.; Li, P. Synthesis and antifungal evaluation of (1,2,3-triazol-4-yl)methyl nicotinate chitosan. Int. J. Biol. Macromol. 2013, 61, 58–62. [Google Scholar] [CrossRef] [PubMed]
  35. Li, W.W.; Wang, H.Y.; Zhang, Y.Q. A novel chitosan hydrogel membrane by an improved electrophoretic deposition and its characteristics in vitro and in vivo. Mater. Sci. Eng. C 2017, 74, 287–297. [Google Scholar] [CrossRef] [PubMed]
  36. Guo, Z.; Xing, R.; Liu, S.; Zhong, Z.; Ji, X.; Wang, L.; Li, P. The influence of the cationic of quaternized chitosan on antifungal activity. Int. J. Food Microbiol. 2007, 118, 214–217. [Google Scholar] [CrossRef] [PubMed]
  37. Tan, W.; Li, Q.; Dong, F.; Wei, L.; Guo, Z. Synthesis, characterization, and antifungal property of chitosan ammonium salts with halogens. Int. J. Biol. Macromol. 2016, 92, 293–298. [Google Scholar] [CrossRef] [PubMed]
  38. Ng, V.W.L.; Tan, J.P.K.; Leong, J.; Voo, Z.X.; Hedrick, J.L.; Yang, Y.Y. Antimicrobial Polycarbonates: Investigating the Impact of Nitrogen-Containing Heterocycles as Quaternizing Agents. Macromolecules 2014, 47, 1285–1291. [Google Scholar] [CrossRef]
  39. Fan, L.; Yang, J.; Wu, H.; Hu, Z.; Yi, J.; Tong, J.; Zhu, X. Preparation and characterization of quaternary ammonium chitosan hydrogel with significant antibacterial activity. Int. J. Biol. Macromol. 2015, 79, 830–836. [Google Scholar] [CrossRef] [PubMed]
  40. Li, K.; Xing, R.; Liu, S.; Qin, Y.; Meng, X.; Li, P. Microwave-assisted degradation of chitosan for a possible use in inhibiting crop pathogenic fungi. Int. J. Biol. Macromol. 2012, 51, 767–773. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Samples of the compounds chitosan derivative 1, chitosan derivatives 2a and 2b are available from the authors.

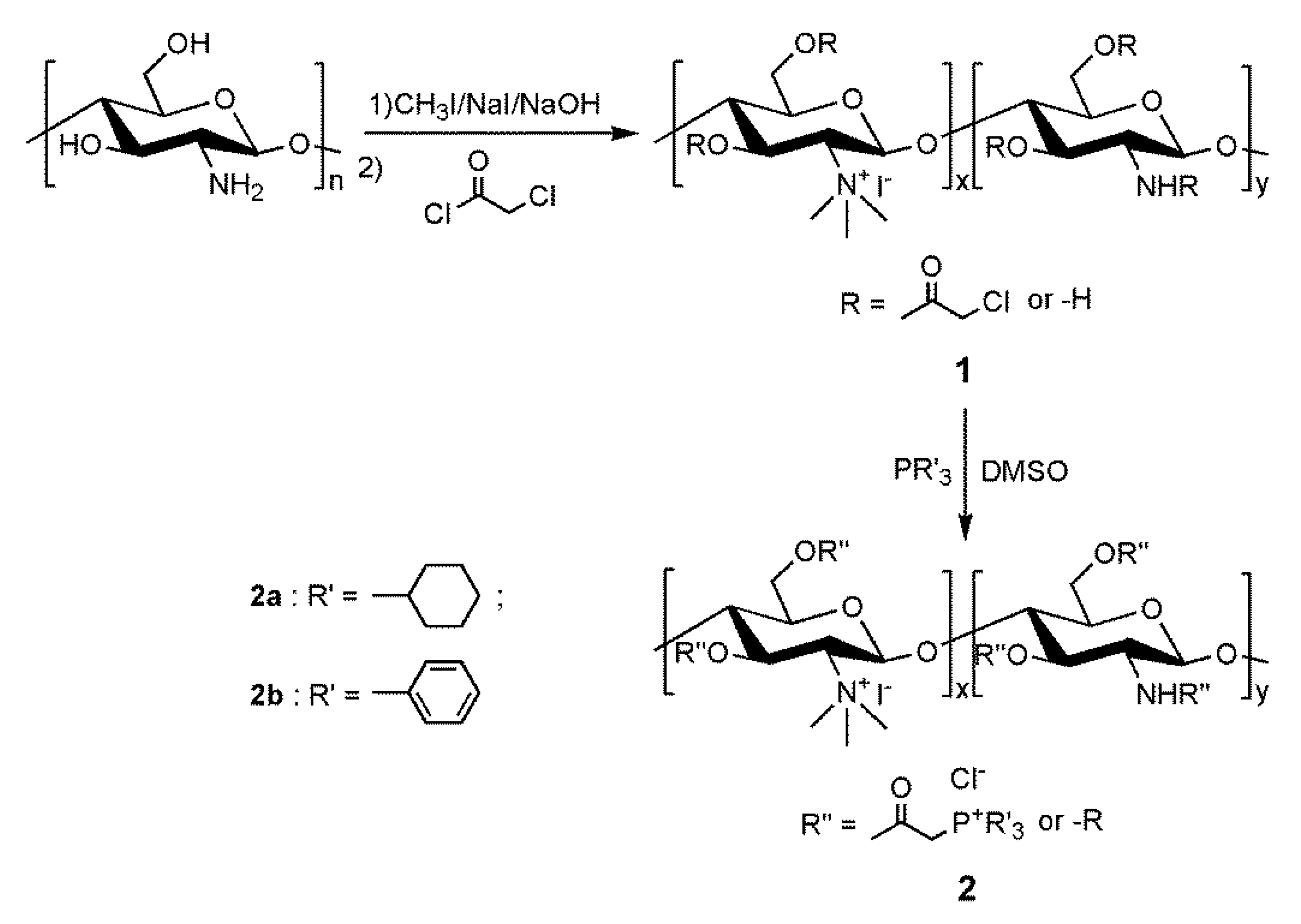

Scheme 1. Synthetic route to the novel chitosan derivatives.
Scheme 1. Synthetic route to the novel chitosan derivatives.
Molecules 22 01438 sch001

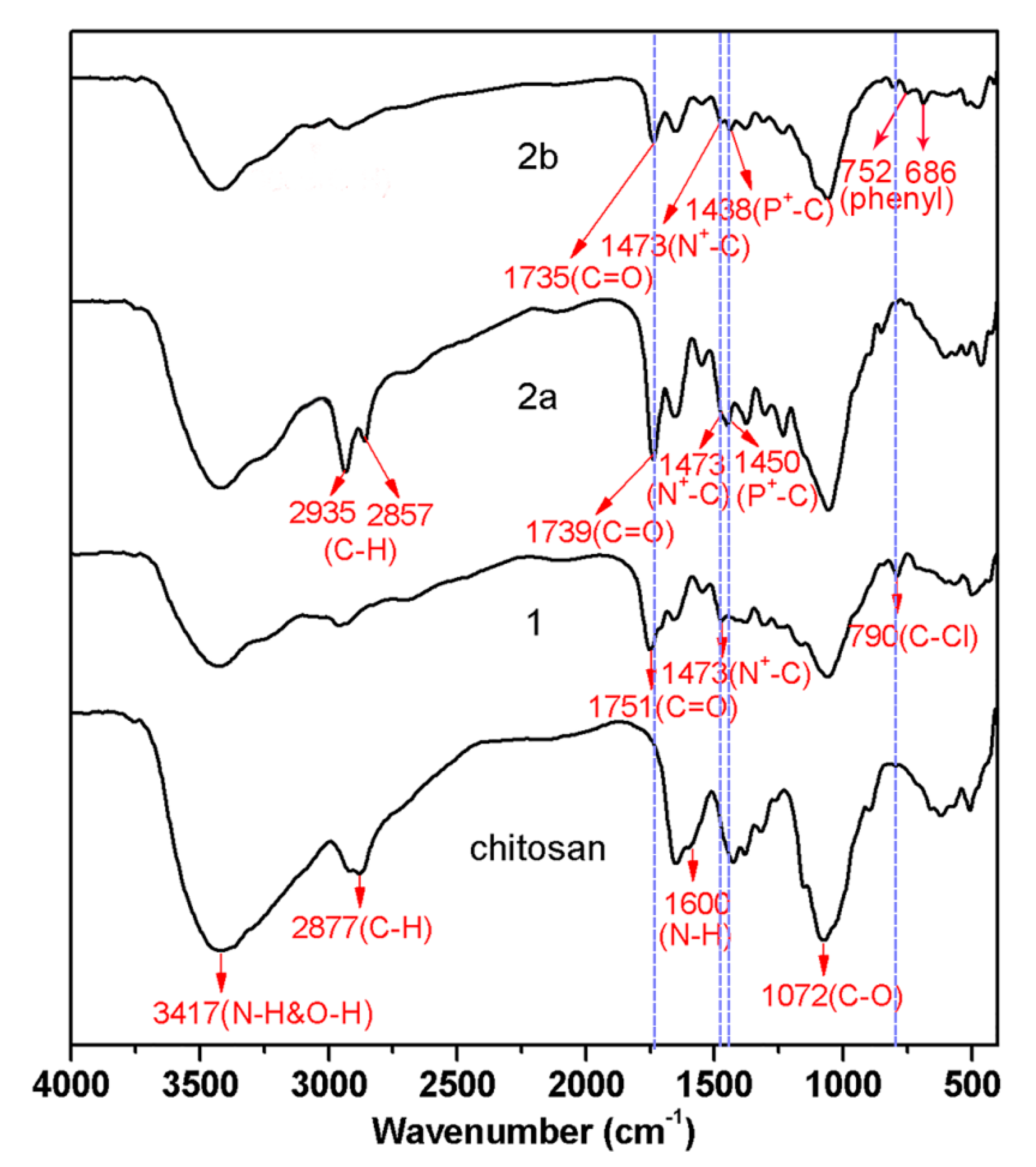

Figure 1. FTIR spectra of chitosan and chitosan derivatives.
Figure 1. FTIR spectra of chitosan and chitosan derivatives.
Molecules 22 01438 g001
Figure 2. 1H-NMR spectra of chitosan and chitosan derivatives.
Figure 2. 1H-NMR spectra of chitosan and chitosan derivatives.
Molecules 22 01438 g002

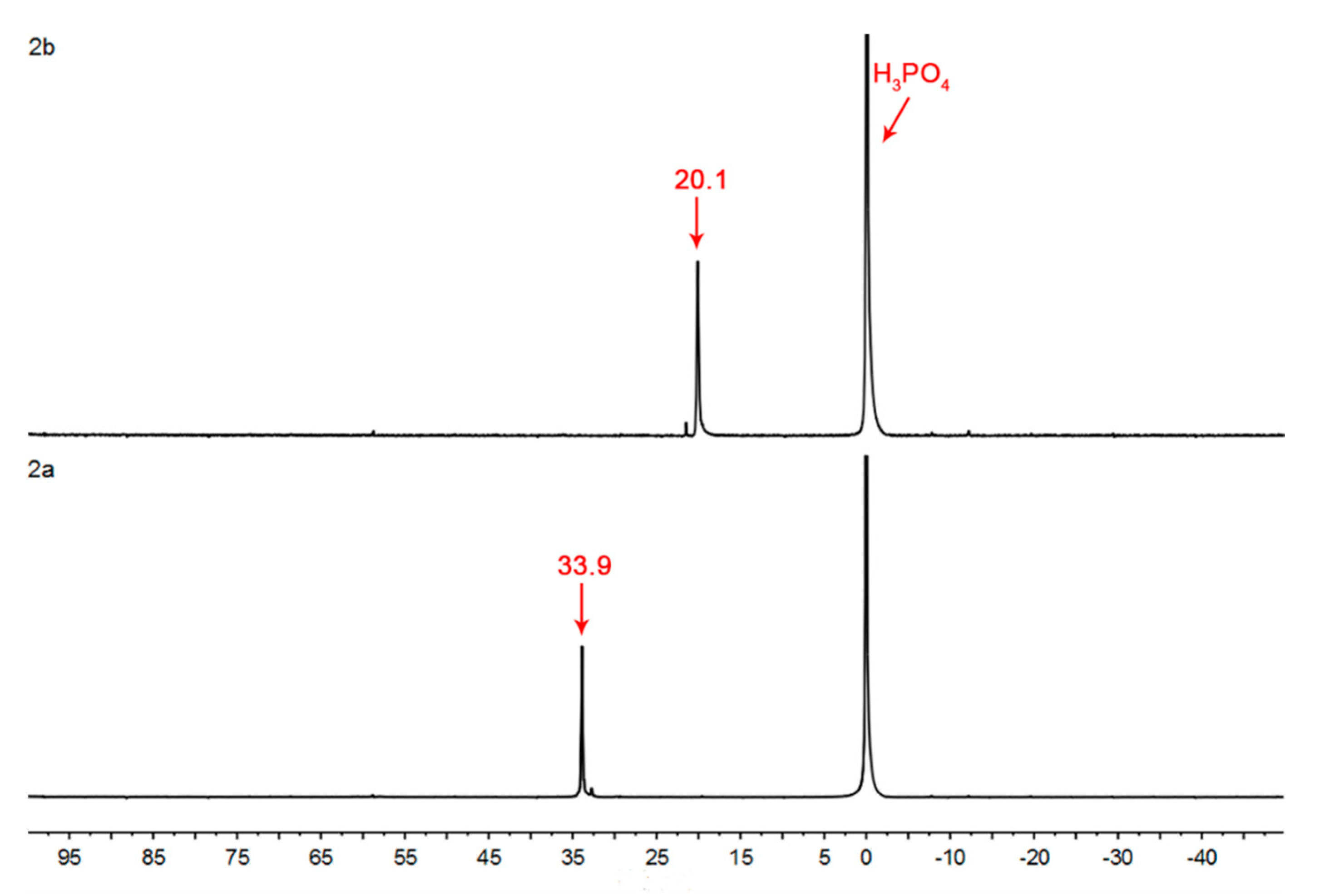

Figure 3. 31P-NMR spectra of chitosan derivatives.
Figure 3. 31P-NMR spectra of chitosan derivatives.
Molecules 22 01438 g003

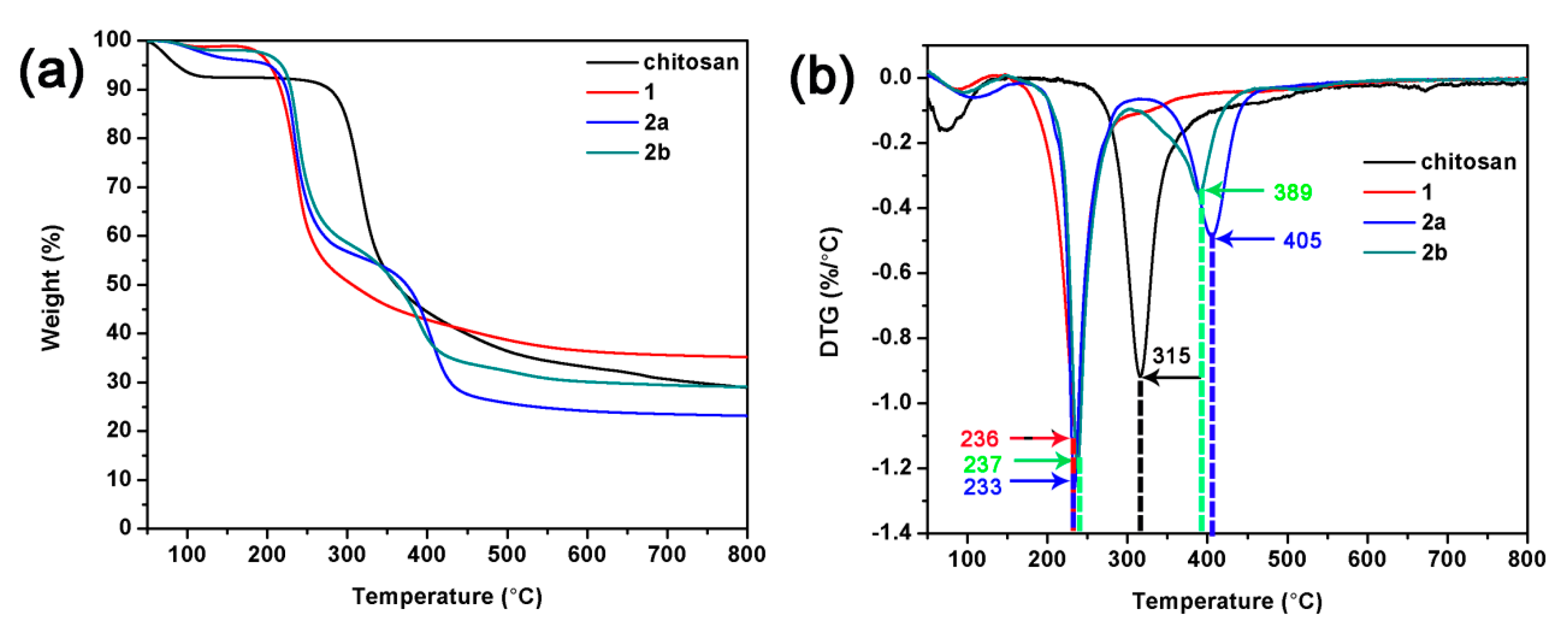

Figure 4. TGA (a) and DTG (b) curves of chitosan and chitosan derivatives.
Figure 4. TGA (a) and DTG (b) curves of chitosan and chitosan derivatives.
Molecules 22 01438 g004

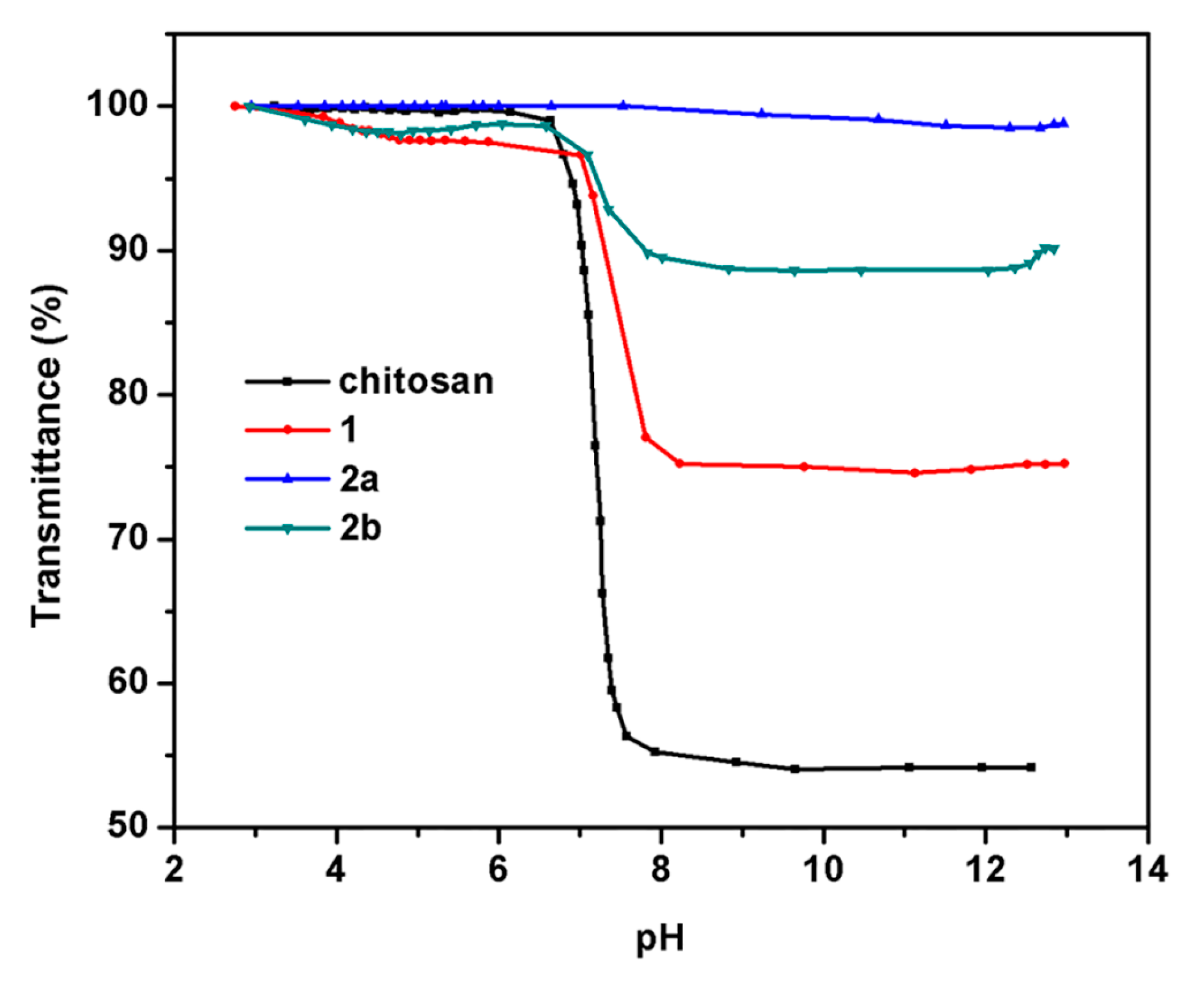

Figure 5. pH dependence of water solubility of chitosan and chitosan derivatives.
Figure 5. pH dependence of water solubility of chitosan and chitosan derivatives.
Molecules 22 01438 g005

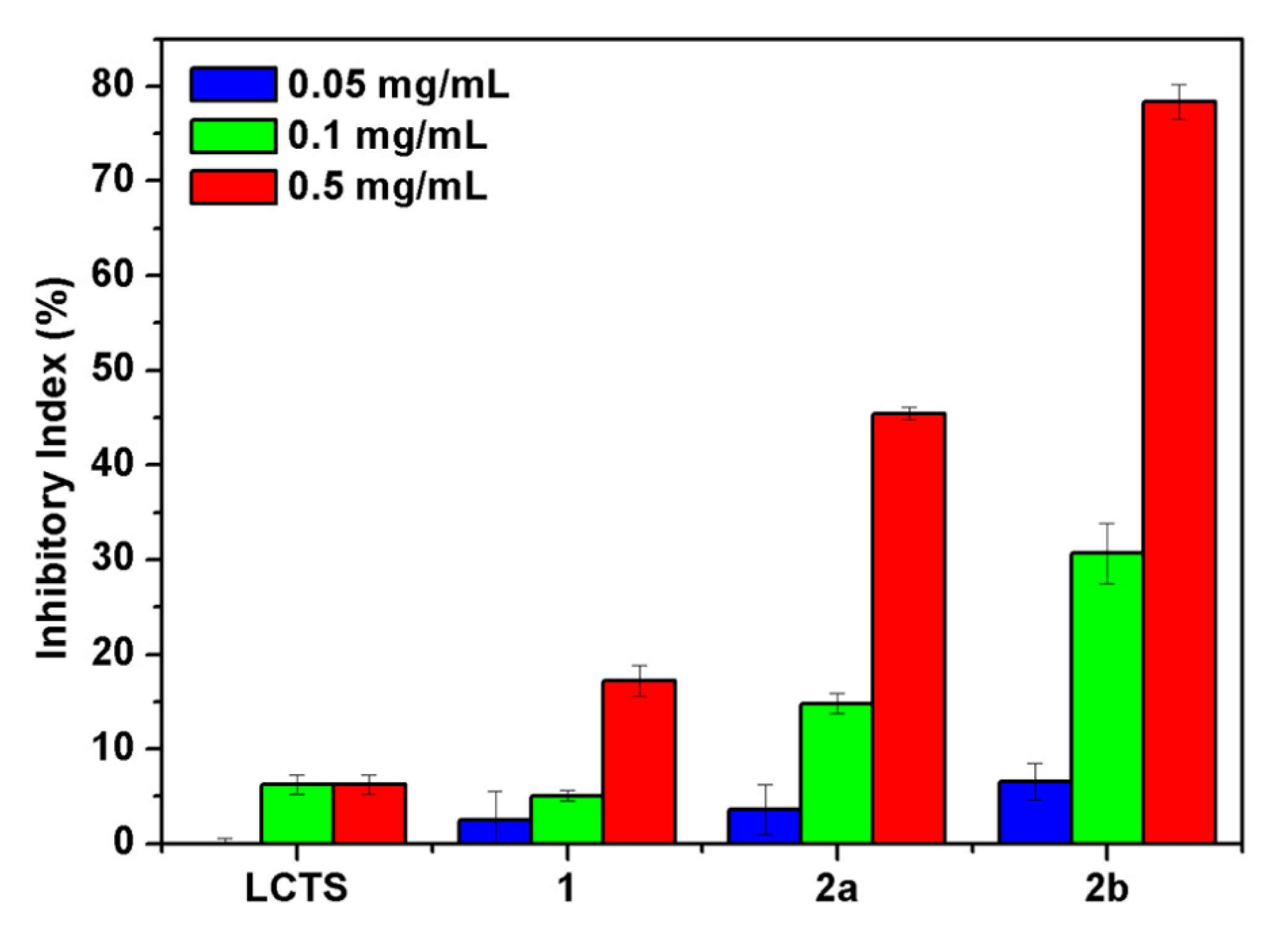

Figure 6. The antifungal activity of chitosan and chitosan derivatives against P. asparagi.
Figure 6. The antifungal activity of chitosan and chitosan derivatives against P. asparagi.
Molecules 22 01438 g006
Figure 7. The antifungal activity of chitosan and chitosan derivatives against W. fusarium.
Figure 7. The antifungal activity of chitosan and chitosan derivatives against W. fusarium.
Molecules 22 01438 g007
Figure 8. The antifungal activity of chitosan and chitosan derivatives against C. lagenarium.
Figure 8. The antifungal activity of chitosan and chitosan derivatives against C. lagenarium.
Molecules 22 01438 g008
Figure 9. The antifungal activity of chitosan and chitosan derivatives against F. oxysporum.
Figure 9. The antifungal activity of chitosan and chitosan derivatives against F. oxysporum.
Molecules 22 01438 g009
Table 1. Summary of the solubility properties of chitosan derivatives.
Table 1. Summary of the solubility properties of chitosan derivatives.
CompoundSolubility a
H2O1% HOAc aq.DMSODMFEtOH
Chitosan+
1++++
2a++++
2b++++
a (+) soluble, (−) insoluble.
