Molecules 2017, 22(2), 302; doi:10.3390/molecules22020302

Article
Efficient Catalytic Oxidation of 3-Arylthio- and 3-Cyclohexylthio-lapachone Derivatives to New Sulfonyl Derivatives and Evaluation of Their Antibacterial Activities
Mariana F. do C. Cardoso 1,2, Ana T. P. C. Gomes 1, Caroline dos S. Moreira 2, Mário M. Q. Simões 1, Maria G. P. M. S. Neves 1, David R. da Rocha 2, Fernando de C. da Silva 2, Catarina Moreirinha 3, Adelaide Almeida 3, Vitor F. Ferreira 2,* and José A. S. Cavaleiro 1,*
1
Department of Chemistry and QOPNA, University of Aveiro, Aveiro 3810-193, Portugal
2
Departamento de Química Orgânica, Instituto de Química, Universidade Federal Fluminense, Niterói 24020-150, RJ, Brazil
3
Department of Biology and CESAM, University of Aveiro, Aveiro 3810-193, Portugal
*
Correspondence: Tel.: +55-21-2629-2345 (V.F.F.); +351-234-370-717 (J.A.S.C.)
Academic Editor: João Paulo C. Tomé
Received: 18 January 2017 / Accepted: 13 February 2017 / Published: 16 February 2017

Abstract

:
New sulfonyl-lapachones were efficiently obtained through the catalytic oxidation of arylthio- and cyclohexylthio-lapachone derivatives with hydrogen peroxide in the presence of a Mn(III) porphyrin complex. The antibacterial activities of the non-oxidized and oxidized lapachone derivatives against the Gram-negative bacteria Escherichia coli and the Gram-positive bacteria Staphylococcus aureus were evaluated after their incorporation into polyvinylpyrrolidone (PVP) micelles. The obtained results show that the PVP-formulations of the lapachones 4bg and of the sulfonyl-lapachones 7e and 7g reduced the growth of S. aureus.
Keywords:
oxidation; porphyrinatoMn(III); hydrogen peroxide; arylthio/cyclohexylthio-lapachones; sulfonyl-lapachones; polyvinylpyrrolidone; antibacterial activity

1. Introduction

Naphthoquinones have been proven to be good antibacterial [1,2,3], antifungal [4], antiprotozoal [5,6], and antiviral agents [7,8,9,10]. Nor-β-Lapachone (1) is a very important naphthoquinone since it has selective cytotoxicity to human lymphocytes, HL-60 leukemia cells and murine fibroblasts V79 [11]. This compound has been the basis for the synthesis of several important analogues or derivatives with improved biological activities [12,13,14,15,16,17]. Recently, it was demonstrated that the modification of the dihydrofuran ring of nor-β-lapachone (1) could considerably change its activity against cancer cells [18,19,20,21], Trypanosoma cruzi (T. cruzi) [22,23,24,25,26], and candidal agents [27]. Indeed, the triazolyl series of compounds 2 and the arylamine group of compounds 3 are very active against some cancer cell lines and T. cruzi, respectively (Figure 1).
Since derivatives containing sulfur groups are interesting compounds due to their significant properties as intermediates in many biological processes [28,29], our group recently reported a straightforward and efficient one-step reaction to prepare new nor-β-lapachone derivatives (4) tethered with thio-substituents at position 3 of the furan ring (Figure 1) [30].
It is known that sulfones are widely used as solvents, polymers, and biopharmaceutical agents. Indeed, several drug molecules containing sulfone groups are used for the treatment of leprosy, dermatitis herpetiformis, and tuberculosis. Moreover, sulfones have also demonstrated various biological activities, mainly as anti-inflammatory, antimicrobial, anticancer, anti-HIV, antimalarial, and anti-inflammatory [31] properties. In particular, sulfones conjugated to naphthoquinones have several biological activities reported in the literature. Lee and coworkers [32] reported a new series of naphthoquinone derivatives in which compound 5, (Figure 2), proved to be a most potent inhibitor against HepG2 cell lines (IC50 of 0.44 µM).
Considering that the oxidation of organosulfur compounds can provide new derivatives with potential biological activities, and following our previous studies on oxidative transformations, we decided to evaluate the possibility of using a metalloporphyrin as a catalyst and hydrogen peroxide as oxidant in the oxidation process of 3-arylthio-nor-β-lapachone derivatives 4af. This aryl-substituted lapachone series was chosen keeping in mind the biological properties played by the aryl-substituted lapachones 2 and 3. However, in this work a cycloalkyl derivative, the cyclohexylthio-nor-β-lapachone 4g, was also considered to see if the alkyl-type substituent would give any significative difference in the biological assessment.
Metalloporphyrins are recognized as being excellent biomimetic catalysts in reactions like hydroxylation, epoxidation, dehydrogenation, N-dealkylation, N-oxide formation or S-oxidation [33,34,35,36] and hydrogen peroxide is a cheap and environmentally-safe oxidant. Therefore, the work presented here is in consonance with our interests on structural modification of nor-β-lapachone derivatives and on the use of metalloporphyrins and hydrogen peroxide to obtain high value-added products [37,38,39,40,41,42,43]. Antibacterial activities of non-oxidized and oxidized lapachone thio-derivatives were assessed against Gram-positive (Staphylococcus aureus 2065 MA) and Gram-negative (Escherichia coli ATCC 13706) bacteria.

2. Results

2.1. Synthesis of Sulfonyl-nor-β-lapachone Derivatives 7ag

The synthetic strategy to obtain the new nor-β-lapachone derivatives 7ag involved the experimental work summarized in Scheme 1.
The starting nor-β-lapachone-3-thio-derivatives 4af were obtained according to data in the literature [30] and the synthesis of 4g is described here. The steps involved the reaction of nor-lapachol (6) with bromine, followed by the in situ quenching of the cyclic cationic o-quinone methide intermediate with the adequate thiol derivatives.
The oxidation of derivatives 4ag was performed by using the manganese (III) complex of 5,10,15,20-tetrakis(2,6-dichlorophenyl)porphyrin, Mn(TDCPP)Cl (8) as a catalyst and hydrogen peroxide as the oxidant (Scheme 1). All reactions were performed in acetonitrile at ambient temperature and the oxidant was added every 15 min to the reaction mixture in aliquots of 0.15 mmol. After 1 h of reaction, thin-layer chromatography (TLC) control showed the total or almost total consumption of each starting arylthio/cyclohexylthio-lapachones 4ag and the formation of a more polar product. After the workup and purification of the reaction mixture by preparative TLC using CH2Cl2 as eluent, followed by a detailed spectroscopic analysis of the major compound in each case, it was possible to identify the nor-β-lapachone sulfonyl-products 7ag, which were isolated in yields ranging from 78% to 86% (Table 1). The structures of all new derivatives were confirmed by 1H- and 13C-NMR, IR spectroscopy and high-resolution mass spectra (HRMS-ESI) (see Experimental Section and Supplementary Materials). In particular, the mass spectra of derivatives 7 show molecular ions containing 32 mass units higher than the corresponding molecular ions of their precursors 4.
Additionally, in the 13C-NMR spectrum the distinctive signal of C3 of each sulfone occurs at a higher chemical shift than the corresponding C3 of its precursor 4, this being in agreement with the deprotection present in the product sulfone (Figure 3 shows the cases of 4e and 7e). None of the other signals were strongly affected.

2.2. Antibacterial Evaluation of Polyvinylpyrrolidone (PVP) Formulations of 3-Arylthio-nor-β-lapachone Derivatives 4af, 3-Cyclohexylthio-nor-β-lapachone 4g and of the Corresponding Sulfonyl Nor-β-lapachone Derivatives 7ag

Considering that sulfides and sulfones have already demonstrated antimicroorganism properties, the antibacterial activities of 3-arylthio/cyclohexylthio-nor-β-lapachones 4ag and corresponding oxidized nor-β-lapachone derivatives 7ag were evaluated against Gram-positive and Gram-negative bacteria. Since compounds 4 and 7 are not soluble in aqueous and/or physiological media, they were incorporated into polyvinylpyrrolidone micelles.

2.2.1. Incorporation of 3-Arylthio/Cyclohexylthio-nor-β-lapachone Derivatives 4ag and Nor-β-lapachone Derivatives 7ag into Polyvinylpyrrolidone Micelles

PVP is a water-soluble and non-toxic polymer, widely used to modify the water solubility of numerous biologically active compounds and also their pharmacokinetic and pharmacological activities [44]. In fact, PVP has been successfully applied in drug delivery of several antibiotics and antifungal agents, demonstrating high efficiency in the delivery of these drugs [45,46,47].
The micelles of PVP-arylthio/cyclohexylthio-lapachones 4ag and PVP-sulfonyl-lapachones 7ag were prepared by mixing chloroform solutions of PVP and lapachones (10:1 w/w). The resulting solutions were stirred for 2 h at room temperature and then the chloroform was evaporated under a nitrogen atmosphere. After this procedure, all residues were dissolved in 2 mL of water giving rise to the micelle solutions of PVP-arylthio/cyclohexylthio-lapachones 4ag and PVP-sulfonyl-lapachones 7ag.

2.2.2. Antibacterial Evaluation of PVP Formulations of 4ag and 7ag

The PVP-arylthio/cyclohexylthio-lapachones 4ag and PVP-sulfonyl-lapachones’ 7ag micelles were screened for potential antimicrobial activity against Gram-positive bacteria (Staphylococcus aureus 2065 MA) and Gram-negative bacteria (Escherichia coli ATCC 13706), using the Kirby–Bauer disc diffusion method [48].
A standard concentration of both bacteria was plated on Mueller–Hinton agar (Liofilchem, Italy). The 6-mm discs (Liofilchem, Italy) were immersed in the solutions of the formulations PVP-arylthio/cyclohexylthio-lapachones 4ag and PVP-sulfonyl-lapachones 7ag at concentrations of 1 mM (concentration of each lapachone derivative) and placed on the plates that were incubated overnight at 37 °C. After incubation, the diameters of the inhibition halos were measured. In order to control the toxicity of PVP, a control experiment with a solution of PVP (10 mg/mL) was also carried out for each bacteria strain.
The results of the preliminary antimicrobial activity tests show that E. coli growth is not inhibited by any one of the lapachone derivatives 4ag and 7ag, since no inhibitory halos were formed. However, that was not the case with S. aureus; the inhibition halos’ features obtained are summarized in Table 2 and shown in Figure 4.
These results show that S. aureus presents sensitivity to arylthio/cyclohexylthio-lapachones 4bg and sulfonyl-lapachones’ 7e and 7g PVP formulations (Figure 4 and Table 2). It is important to emphasize that, with the exception of 4a, all the other arylthio/cyclohexylthio-lapachones formulations were able to reduce the growth of S. aureus, with the larger inhibition halos obtained with 4d and 4f. However, with the sulfone derivatives, only compounds 7e and 7g have been demonstrated to maintain the anti-bacterial activity of S. aureus.

3. Experimental Section

3.1. Materials and Methods

A Mn(TDCPP)Cl (chloro [5,10,15,20-tetrakis-(2,6-dichlorophenyl)-porphyrinato] manganese(III)) catalyst was prepared by a procedure previously described in literature [42]. The 3-arylthio/cyclohexylthio-nor-β-lapachone derivatives 4ag were prepared according to a procedure described in the literature [30]. Other reagents and solvents used in the experimental work were purchased from Sigma-Aldrich (Jurubatuba, Brazil). The 3-sulfonyl-nor-β-lapachone derivatives 7ag were characterized by spectroscopic techniques such as 1H- and 13C-APT nuclear magnetic resonance, infrared (FT-IR) and mass spectrometry.
Melting points were obtained on a Fischer Jones apparatus and are uncorrected. Analytical grade solvents were used. Reagents were purchased from Aldrich. Column chromatography was performed on silica gel 60 (Merck 230–400 mesh, Rio de Janeiro, Brazil). Yields refer to purified compounds obtained by chromatographic techniques and confirmed by spectroscopic data. Reactions were monitored by thin-layer chromatography (TLC) performed on 0.25-mm E. Merck silica gel plates (60F-254) using UV light as the visualizing agent. Infrared spectra were recorded on a Perkin–Elmer FT-IR Spectrum One spectrophotometer (Jardim das Laranjeiras, Brazil), calibrated relatively to the 1601.8 cm−1 absorbance of polystyrene. NMR spectra were recorded on a Varian Unity Plus VXR (500 MHz) instrument in DMSO-d6 or CDCl3 solutions. The chemical shift data are reported in units of δ (ppm) downfield from tetramethylsilane or the solvent, either of which were used as the internal standard.
Coupling constants (J) are reported in Hertz and refer to apparent peak multiplicities. High-resolution mass spectra (HRMS) were recorded on a mass spectrometer, MICROMASS Q-TOF (Waters, Barueri, Brazil).

3.2. Synthesis of 3-Cyclohexylthio-nor-β-lapachone (4g)

A round-bottom flask containing a solution of nor-lapachol (500 mg, 2.2 mmol) in 40 mL of dry chloroform was externally cooled with ice and under an inert atmosphere, 4.4 mL (13.2 g, 8.36 mol) of bromine was added. Immediately a red solid precipitate of the cationic ortho-quinone methide derivative was formed; the reaction mixture was left stirring for additional 10 min. The bromine excess was removed under reduced pressure and immediately chloroform (40 mL) was added; the mixture was kept externally cool in an ice bath. To that mixture, chloroform solution with cyclohexanethiol (511 mg, 4.4 mmol in 25 mL) was slowly added. The reaction mixture was stirred for another 3 h and then poured into distilled water (50 mL). The organic phase was collected and successively washed with aqueous sodium bicarbonate solution (3 × 50 mL), and distilled water (3 × 50 mL), dried over anhydrous sodium sulfate, filtered and evaporated under reduced pressure. The resulting red solid was taken in chloroform and was purified by silica gel flash column chromatography, eluting with gradient mixtures of hexane and ethyl acetate.
3-(Cyclohexylthio)-2,2-dimethyl-2,3-dihydronaphtho[1,2-b]furan-4,5-dione (4g). Compound 4g was isolated as an orange solid in 81% yield. m.p. 155 °C; IR (KBr, cm−1): ν 2931, 2849, 1654, 1644, 1614, 1587, 1569, 1449, 1399, 1248, 1219, 1079; 1H-NMR (CDCl3, 500 MHz): δ 1.20–1.40 (6H, m, H-3’, H-4’, H-5’), 1.56 (3H, s, (C-2)-CH3), 1.71 (3H, s, (C-2)-CH3), 1.74–1.80 (2H, m, H-2’or H-6’), 1.96–2.11 (2H, m, H-2’or H-6’), 3.06–3.15 (1H, m, H1’), 4.16 (1H, s, H-3), 7.55–7.65 (1H, m, H-7), 7.55–7.65 (1H, m, H-8), 7.55–7.65 (1H, m, H-9), 8.08 (1H, dt, J = 7.3 and 1.1 Hz, H-6); 13C-NMR (CDCl3, 125 MHz): δ 24.4 (C-2)-CH3), 25.7 (C-4’), 25.9 (C-3’ or C-5’), 26.1 (C-3’ or C-5’), 28.4 (C-2)-CH3), 33.4 (C-2’ or C-6’), 34.5 (C-2’ or C-6’), 45.1 (C-1’), 52.2 (C-3), 95.2 (C-2), 118.3 (C-3a), 127.7 (C-9a), 129.3 (C-6), 130.9 (C-5a), 124.7, 132.0 and 134.4 (C-7, C-8 and C-9), 167.8 (C-9b), 175.0 (C-4), 180.9 (C-5). Anal. Calcd. for C20H22O3S (342.45 g/mol): 69.19% C; 6.38% H. Found: 69.14 % C; 6.37% H. HRMS: exact mass calculated for C20H22O3SNa+ 365.1182. Found 365.1193.

3.3. General Procedure for the Synthesis of 3-Aryl/Cyclohexyl-sulfonyl-nor-β-lapachone Derivatives (7ag)

For the catalytic studies, each substrate of 4ag (0.3 mmol), the catalyst (2.0 × 10−3 mmol, where the sub/cat molar ratio used was 150) and the co-catalyst (ammonium acetate, 0.2 mmol) were dissolved in CH3CN (2.0 mL). The reaction mixtures were kept under magnetic stirring and in the absence of light at 22–25 °C. The oxidant, 30% H2O2 (w/w, aqueous solution), was diluted with CH3CN (1:10) and this was followed by the addition of 0.15 mmol of the oxidant taking place at every 15 min. The reactions were followed by TLC. For all the substrates, the resulting sulfones were isolated by preparative TLC using CH2Cl2 as eluent.
3-(4-Fluorophenyl-sulfonyl)-2,2-dimethyl-2,3-dihydronaphtho[1,2-b]furan-4,5-dione (7a). Compound 7a was isolated as an orange solid in 84% yield. m.p. 188–190 °C; IR (KBr, cm−1): ν 1656, 1639, 1619, 1584, 1573, 1500, 1402, 1218, 1160, 829; 1H-NMR (CDCl3, 500 MHz): δ 1.16 (3H, s, (C-2)-CH3), 2.27 (3H, s, (C-2)-CH3), 4.58 (1H, s, H-3), 7.21 (2H, t, J = 8.5 Hz, H-2’ and H-6’), 7.65–7.73 (2H, m, H-3’ and H-5’), 7.76–7.86 (1H, m, H-7), 7.76–7.86 (1H, m, H-8), 7.76–7.86 (1H, m, H-9), 8.10 (1H, d, J = 7.2 Hz, H-6); 13C-NMR (CDCl3, 125 MHz): δ 22.7 (C-2)-CH3), 29.7 (C-2)-CH3), 71.9 (C-3), 95.6 (C-2), 110.7 (C-3a), 116.6 (C-3’), 116.9 (C-5’), 125.7 (C-9a), 129.7 (C-6), 131.9 (C-1’), 132.0 (C-5a), 133.3 (C-6’), 134.97 (C-2’), 125.7, 132.0 and 134.9 (C-7, C-8 and C-9), 170.5 (C-4’), 174.4 (C-9b), 176.8 (C-4), 180.2 (C-5). HRMS: exact mass calculated for C20H15FO5SNa+ 409.0522. Found 409.0523. HRMS: exact mass calculated for C20H15FO5SH+ 387.0702. Found 387.0700.
3-(4-Chlorophenyl-sulfonyl)-2,2-dimethyl-2,3-dihydronaphtho[1,2-b]furan-4,5-dione (7b). Compound 7b was isolated as an orange solid in 86% yield. m.p. 226–228 °C; IR (KBr, cm−1): ν 2926, 1660, 1644, 1615, 1567, 1477, 1403, 1251, 1220, 1095, 1004, 790; 1H-NMR (CDCl3, 500 MHz): δ 1.54 (3H, s, (C-2)-CH3), 2.10 (3H, s, (C-2)-CH3), 4.87 (1H, s, H-3), 7.17 (2H, dd, J = 7.8 and 1.9 Hz, H-2’ and H-6’), 7.34 (2H, dd, J = 8.3 and 1.9 Hz, H-3’ and H-5’), 7.47–7.63 (1H, m, H-7), 7.47–7.63 (1H, m, H-8), 7.47–7.63 (1H, m, H-9), 7.82 (1H, d, J = 7.3 Hz, H-6); 13C-NMR (CDCl3, 125 MHz): δ 22.9 (C-2)-CH3), 29.7 (C-2)-CH3), 71.8 (C-3), 95.6 (C-2), 110.4 (C-3a), 126.8 (C-9a), 128.2, 128.8 (C-2’ and C-6’), 129.2 (C-6), 131.0 (C-5a), 132.0 (C-4’), 133.6 (C-3’ and C-5’), 134.5 (C-1’), 125.6, 132.6 and 134.8 (C-7, C-8 and C-9), 170.0 (C-9b), 174.8 (C-4), 180.5 (C-5). HRMS: exact mass calculated for C20H15ClO5SNa+ 425.0226. Found 425.0225. HRMS: exact mass calculated for C20H15ClO5SH+ 368.0718. Found 368.0717.
2,2-Dimethyl-3-tosylsulfonil-2,3-dihydronaphtho[1,2-b]furan-4,5-dione (7c). Compound 7c was isolated as an orange solid in 81% yield. m.p. 185–188 °C; IR (KBr, cm−1): ν 1653, 1641, 1611, 1590, 1563, 1490, 1405, 1224, 1077, 788; 1H-NMR (CDCl3, 500 MHz): δ 1.63 (3H, s, (C-2)-CH3), 1.84 (3H, s, (C-2)-CH3), 2.04 (3H, s, (C-4’)-CH3), 4.52 (1H, s, H-3), 6.76 (2H, dd, J = 8.1 and 2.0 Hz, H-3’ and H-5’), 7.49 (2H, dd, J = 8.0 and 2.1 Hz, H-2’ and H-6’), 7.56–7.65 (1H, m, H-7), 7.56–7.65 (1H, m, H-8), 7.56–7.65 (1H, m, H-9), 8.05 (1H, d, J = 7.8 Hz, H-6); 13C-NMR (CDCl3, 125 MHz): δ 21.1 (C-2)-CH3), 27.6 (C-2)-CH3), 30.4 (C-4’)-CH3), 74.7 (C-3), 96.0 (C-2), 118.9 (C-3a), 126.5 (C-9a), 128.1, 128.6 (C-2’ and C-6’), 129.8 (C-6), 131.1 (C-5a), 131.4 (C-1’), 133.3 (C-3’ and C-5’), 125.6, 133.2 and 134.7 (C-7, C-8 and C-9), 147.5 (C-4’), 171.1 (C-9b), 174.4 (C-4), 180.0 (C-5). HRMS: exact mass calculated for C21H18O5SNa+ 405.0773. Found 405.0771. HRMS: exact mass calculated for C21H18O5SH+ 383.0953. Found 383.0954.
2,2-Dimethyl-3-(phenylsulfonyl)-2,3-dihydronaphtho[1,2-b]furan-4,5-dione (7d). Compound 7d was isolated as an orange solid in 85% yield. m.p. 231–233 °C; IR (KBr, cm−1): ν 1653, 1640, 1615, 1585, 1570, 1400, 1243, 1222, 1078; 1H-NMR (CDCl3, 500 MHz): δ 1.62 (3H, s, (C-2)-CH3), 1.89 (3H, s, (C-2)-CH3), 4.87 (1H, s, H-3), 7.41 (3H, t, J = 7.8 Hz, H-3’, H-4’, H-5’), 7.5–7.59 (2H, m, H-2’, H-6’), 7.65–7.82 (1H, m, H-7), 7.65–7.82 (1H, m, H-8), 7.65–7.82 (1H, m, H-9), 7.97 (1H, dd, J = 7.8, 1.4 Hz, H-6); 13C-NMR (CDCl3, 125 MHz): δ 23.2 (C-2)-CH3), 30.7 (C-2)-CH3), 73.9 (C-3), 100.6 (C-2), 110.8 (C-3a), 127.6 (C-4’), 128.2 (C-3’, C-5’), 128.7 (C-9a), 129.7 (C-6), 130.8 (C-5a), 133.8 (C-2’, C-6’), 125.0, 132.8, 134.8 (C-7, C-8, C-9), 134.6 (C-1’), 170.5 (C-9b), 189.5 (C-4), 192.3 (C-5). HRMS: exact mass calculated for C20H16O5SNa+ 391.0616. Found 391.0617. HRMS: exact mass calculated for C20H16O5SH+ 369.0797. Found 360.0798.
2,2-Dimethyl-3-(m-tolylsulfonyl)-2,3-dihydronaphtho[1,2-b]furan-4,5-dione (7e). Compound 7e was isolated as an orange solid in 80% yield. m.p. 240–242 °C; IR (KBr, cm−1): ν 1654, 1643, 1620, 1588, 1572, 1400, 1243, 1220, 1081, 772; 1H-NMR (CDCl3, 500 MHz): δ 1.46 (3H, s, (C-2)-CH3), 1.53 (3H, s, (C-2)-CH3), 1.92 (3H, s, (C-3’)-CH3), 4.67 (1H, s, H-3), 7.36 (1H, t, J = 7.8 Hz, H-4’), 7.50–7.59 (1H, m, H-7), 7.50–7.59 (1H, m, H-8), 7.50–7.59 (1H, m, H-9), 7.66–7.68 (2H, m, H-5’ and H-6’), 7.84 (1H, d, J = 7.7 Hz, H-2’), 7.93 (1H, d, J = 7.8 Hz, H-6); 13C-NMR (CDCl3, 125 MHz): δ 21.8 (C-2)-CH3), 25.3 (C-2)-CH3), 29.8 (C-3’)-CH3), 74.5 (C-3), 94.3 (C-2), 118.1 (C-3a), 126.7 (C-9a), 128.0 (C-6’), 128.5 (C-6), 129,6 (C-2’), 130.4 (C-4’), 131.2 (C-5a), 133.5 (C-5’), 134.9 (C-1’), 125.4, 130.4 and 134.0 (C-7, C-8 and C-9), 144.0 (C-3’), 170.8 (C-9b), 179.6 (C-4), 181.4 (C-5). HRMS: exact mass calculated for C21H18O5SNa+ 405.0773. Found 405.0772. HRMS: exact mass calculated for C21H18O5SH+ 383.0953. Found 383.0954.
3-(Pentafluorophenylsulfonyl)-2,2-dimethyl-2,3-dihydronaphtho[1,2-b]furan-4,5-dione (7f). Compound 7f was isolated as an orange solid in 78% yield. m.p. 235–237 °C; IR (KBr, cm−1): ν 1660, 1643, 1622, 1574, 1513, 1490, 1402, 1219, 1087, 978, 853; 1H-NMR (CDCl3, 500 MHz): δ 1.60 (3H, s, (C-2)-CH3), 1.98 (3H, s, (C-2)-CH3), 5.29 (1H, s, H-3), 7.40–7.59 (1H, m, H-7), 7.40–7.59 (1H, m, H-8), 7.40–7.59 (1H, m, H-9), 8.07 (1H, d, J = 7.3 Hz, H-6); 13C-NMR (CDCl3, 125 MHz): δ 22.7 (C-2)-CH3), 29.9 (C-2)-CH3), 74.7 (C-3), 96.6 (C-2), 111.8 (C-3a), 120.7 (C-1’), 128.5(C-9a), 129.3 (C-6), 130.4 (C-5a), 124.2, 131.3 and 134.9 (C-7, C-8 and C-9), 137.5 (C-4’), 144.5 (C-3’ and C-5’), 148.31 (C-2’ and C-6’), 170.5 (C-9b), 175.9 (C-4), 180.0 (C-5). HRMS: exact mass calculated for C20H11F5O5SNa+ 481.0145. Found 481.0146. HRMS: exact mass calculated for C20H11F5O5SH+ 459.0326. Found 459.0325.
3-(Cyclohexylsulfonyl)-2,2-dimethyl-2,3-dihydronaphtho[1,2-b]furan-4,5-dione (7g). Compound 7g was isolated as an orange solid in 81% yield. m.p. 222–225 °C; IR (KBr, cm−1): ν 2931, 2849, 1654, 1644, 1614, 1587, 1569, 1449, 1399, 1248, 1219, 1079; 1H-NMR (CDCl3, 500 MHz): δ 1.20–1.40 (6H, m, H-3’, H-4’, H-5’), 1.56 (3H, s, (C-2)-CH3), 1.71 (3H, s, (C-2)-CH3), 1.74–1.80 (2H, m, H-2’or H-6’), 1.96–2.11 (2H, m, H-2’or H-6’), 3.06–3.15 (1H, m, H1’), 4.16 (1H, s, H-3), 7.55–7.65 (1H, m, H-7), 7.55–7.65 (1H, m, H-8), 7.55–7.65 (1H, m, H-9), 8.08 (1H, dt, J = 7.3 and 1.1 Hz, H-6); 13C-NMR (CDCl3, 125 MHz): δ 24.4 (C-2)-CH3), 25.7 (C-4’), 25.9 (C-3’ or C-5’), 26.1 (C-3’ or C-5’), 28.4 (C-2)-CH3), 33.4 (C-2’ or C-6’), 34.5 (C-2’ or C-6’), 45.1 (C-1’), 73.4 (C-3), 95.2 (C-2), 118.3 (C-3a), 127.7 (C-9a), 129.3 (C-6), 130.9 (C-5a), 124.7, 132.0 and 134.4 (C-7, C-8 and C-9), 167.8 (C-9b), 175.0 (C-4), 180.9 (C-5). HRMS: exact mass calculated for C20H22O5SNa+ 397.1086. Found 397.1088. HRMS: exact mass calculated for C20H22O5SH+ 375.1266. Found 375.1264.

3.4. General Procedure for the Incorporation of 3-Arylthio/cyclohexylthio-nor-β-lapachone Derivatives 4ag and 3-Aryl/Cyclohexyl-sulfonyl-nor-β-lapachone 7ag Derivatives into PVP Micelles

To chloroform solutions of PVP (20 mg in 2 mL), a chloroform solution of ca. 2 mg of each 3-arylthio/cyclohexylthio-nor-β-lapachones 4ag or 3-aryl/cyclohexyl-sulfonyl-nor-β-lapachone 7ag (in 2 mL of chloroform) was added. The resulting solutions were stirred for 2 h at room temperature and then the chloroform was evaporated under nitrogen atmosphere. In order to remove all the organic solvents, the residues were kept in an oven at 45 °C for 24 h. After this procedure, all residues were dissolved in 2 mL of water, leading to the aqueous solution of PVP-arylthio/cyclohexylthio-lapachones 4ag and PVP-sulfonyl-lapachones 7ag micelles.

3.5. Antibacterial Evaluation of PVP Formulations of 3-Arylthio/Cyclohexylthio-nor-β-lapachone Derivatives 4ag and 3-sulfonyl-nor-β-lapachones 7ag

Staphylococcus aureus 2065 MA and Escherichia coli ATCC 13706 from fresh cultured plates were inoculated in tryptic soy broth (TSB) and grown overnight aerobically at 37 °C under 100 rpm. Then, an aliquot was transferred into fresh TSB at the same growth conditions to reach the early stationary phase. For E. coli, an optical density at 600 nm (OD600) of 1.6 ± 0.1 corresponded to ∼108 colony forming units (CFU)·mL−1. For S. aureus, an OD600 of 1.9 ± 0.1 corresponded to ∼108 CFU·mL−1.
The antibacterial evaluation of PVP formulations of 3-arylthio/cyclohexylthio-nor-β-lapachone derivatives 4ag and 3-sulphonyl-nor-β-lapachones 7ag was done according to the European Committee on Antimicrobial Susceptibility Testing standards (EUCAST 2015). The bacterial cultures of S. aureus and E. coli cultivated in TSB were diluted 1:100 in 0.85% saline solution to obtain a density of 0.5 MacFarland. After that, for each bacterium a sterile cotton swab was dipped into the suspension and the inoculum was spread over the entire surface of a Muller–Hinton plate by swabbing in three directions. Then, sterilized disks were immersed into the compounds with a concentration of 1 mM and placed at the plate and incubated inverted at 37 °C for 16–20 h. The diameters of inhibition zones were measured.

4. Conclusions

Herein we present a new, efficient and environmentally friendly methodology, involving the use of a manganese (III) porphyrin complex as a catalyst and aqueous hydrogen peroxide as an oxidant in order to promote the oxidation of several organosulfur derivatives of nor-β-lapachone. This methodology allowed the preparation of the new sulfonyl-lapachones 7ag in excellent yields through the oxidation of arylthio/cyclohexylthio-lapachones 4ag.
For the antibacterial activity studies, the lapachone derivatives were successfully incorporated in polyvinylpyrrolidone (PVP) micelles. The PVP-arylthio/cyclohexylthio-lapachones and PVP-sulfonyl-lapachones’ micelles were tested against a Gram-positive (S. aureus) and a Gram-negative (E. coli) bacteria. The preliminary results showed that such formulations are not active against E. coli. However, the PVP formulations with arylthio/cyclohexylthio-lapachones 4bg and with sulfonyl-lapachones 7e and 7g reduced the growth of S. aureus. These compounds can be considered as prototypes for future antibacterial agents.

Supplementary Materials

Supplementary materials are available online.

Acknowledgments

The authors would like to acknowledge the agencies that fund our research: CNPq, CAPES and FAPERJ, particularly through project funding PRONEX-FAPERJ (E-26/110.574/2010). Thanks are also due to FCT (Portugal), the European Union, QREN, FEDER and COMPETE for funding the research unit QOPNA (project PEstC/QUI/UI0062/2011), CESAM (FCT UID/MAR/0017/2013), the National NMR Network, and the project QREN (FCOMP-01-0124-FEDER-010840) (PTDC/QUI-QUI/102454/2008). Thanks are also due to the protocol agreement CAPES- FCT. Mariana F. C. Cardoso thanks CAPES for her scholarship (process 7129/13-0)). Ana Gomes thanks FCT for her post-doctoral fellowship (SFRH/BPD/79521/2011). Catarina Moreirinha gives thanks her postdoctoral grant (LIFE13 ENV/ES/001048).

Author Contributions

M.F.d.C. Cardoso: Synthesis of all compounds, analysis of spectral data and manuscript preparation. C.d.S. Moreira: Collaboration in the synthesis of the compounds. A.T.P.C. Gomes: Preparation of the PVP formulations, analysis of the biological results and manuscript preparation. C. Moreirinha: Antibacterial evaluation of PVP formulations, analysis of biological results and manuscript preparation. A. Almeida: Design of antibacterial evaluation of PVP formulation experiments, analysis of biological results and manuscript preparation. D.R. da Rocha: Aid in the analysis of spectral data, manuscript preparation and advisor for C.d.S. Moreira’s master’s dissertation, where the synthetic method for obtaining compounds 7ag was studied. M.M.Q. Simões: manuscript preparation. V.F. Ferreira and F.d.C. da Silva: Advice with respect to the PhD thesis of M.F.d.C. Cardoso and aid in the analysis of spectral data and manuscript elaboration. M.G.P.M.S. Neves and J.A.S. Cavaleiro: Supervision of the studies on catalysis performed in Aveiro and also participation in manuscript writing and submission.

Conflicts of Interest

The authors declare no conflict of interest. All authors read and approved the final manuscript.

References

  1. Ferreira, S.B.C.; da Silva, F.C.; Bezerra, F.A.F.M.; Lourenço, M.C.S.; Kaiser, C.R.; Pinto, A.C.; Ferreira, V.F. Synthesis of α- and β-pyran naphthoquinones as a new class of antitubercular agents. Arch. Pharm. Chem. Life Sci. 2010, 343, 81–90. [Google Scholar] [CrossRef] [PubMed]
  2. Wu, Z.; Li, S.; Li, J.; Chen, Y.; Saurav, K.; Zhang, Q.; Zhang, H.; Zhang, W.; Zhang, W.; Zhang, S.; et al. Antibacterial and cytotoxic new napyradiomycins from the marine-derived Streptomyces sp. SCSIO 10428. Mar. Drugs 2013, 11, 2113–2125. [Google Scholar] [CrossRef] [PubMed]
  3. Souza, M.A.; Johann, S.; Lima, L.A.R.S.; Campos, F.F.; Mendes, I.C.; Beraldo, H.; de Souza-Fagundes, E.M.; Cisalpino, P.S.; Rosa, C.A.; Alves, T.M.A.; et al. The antimicrobial activity of lapachol and its thiosemicarbazone and semicarbazone derivatives. Mem. Inst. Oswaldo Cruz 2013, 108, 342–351. [Google Scholar] [CrossRef] [PubMed]
  4. Guiraud, P.; Steiman, R.; Campos-Takaki, G.M.; Seigle-Murandi, E.; Simeon, B.M. Comparison of antibacterial and antifungal activities of lapachol and β-lapachone. Planta Med. 1994, 60, 373–374. [Google Scholar] [CrossRef] [PubMed]
  5. Pinto, A.V.; Gilbert, B.; Pinto, M.C. In vitro and in vivo evaluation of the toxicity of 1,4-naphthoquinone and 1,2-naphthoquinone derivatives against Trypanosoma cruzi. Ann. Trop. Med. Parasitol. 1978, 72, 523–531. [Google Scholar]
  6. Corrêa, G.; Vilela, R.; Menna-Barreto, R.F.S.; Midlej, V.; Benchimol, M. Cell death induction in Giardia lamblia: Effect of β-lapachone and starvation. Parasitol. Int. 2009, 58, 424–437. [Google Scholar] [CrossRef] [PubMed]
  7. Costa, E.C.B.; Amorim, R.; da Silva, F.C.; Rocha, D.R.; Papa, M.P.; Arruda, L.B.; Borges, R.S.M.; Ferreira, V.F.; Tanuri, A.; Costa, L.J.; et al. Synthetic 1,4-pyran naphthoquinones are potent inhibitors of dengue virus replication. PLoS ONE 2013, 8, e82504. [Google Scholar] [CrossRef] [PubMed]
  8. Fernandez-Villamil, S.H.; Carrizo, P.H.; di Rosso, M.E.; Molina-Portela, M.P.; Dubin, M. The metabolism of 9-chloro-β-lapachone and its effects in isolated hepatocytes. The involvement of NAD(P)H:quinone oxidoreductase 1 (NQO1). Chem. Biol. Interact. 2012, 200, 84–91. [Google Scholar] [CrossRef] [PubMed]
  9. Li, H.M.; Tang, Y.L.; Zhang, Z.H.; Liu, C.J.; Li, H.Z.; Li, R.T.; Xia, X.S. Compounds from Arnebia euchroma and their related anti-HCV and antibacterial activities. Planta Med. 2012, 78, 39–45. [Google Scholar] [CrossRef] [PubMed]
  10. Crosby, I.T.; Bourke, D.G.; Jones, E.D.; Jeynes, T.P.; Cox, S.; Coates, J.A.; Robertson, A.D. Antiviral agents 3. Discovery of a novel small molecule non-nucleoside inhibitor of Hepatitis B Virus (HBV). Bioorg. Med. Chem. Lett. 2011, 21, 1644–1648. [Google Scholar] [CrossRef] [PubMed]
  11. Cavalcanti, B.C.; Barros, F.W.A.; Cabral, I.O.; Ferreira, J.R.O.; Magalhães, H.I.F.; Júnior, H.V.N.; da Silva Júnior, E.N.; de Abreu, F.C.; Costa, C.O.; Goulart, M.O.F.; et al. Preclinical genotoxicology of nor-β-lapachone in human cultured lymphocytes and Chinese hamster lung fibroblasts. Chem. Res. Toxicol. 2011, 24, 1560–1574. [Google Scholar] [CrossRef] [PubMed]
  12. Ferreira, V.F.; Ferreira, S.B.; da Silva, F.C. Strategies for the synthesis of bioactive pyran naphthoquinones. Org. Biomol. Chem. 2010, 8, 4793–4802. [Google Scholar] [CrossRef] [PubMed]
  13. Da Silva, E.N., Jr.; de Deus, C.F.; Cavalcanti, B.C.; Pessoa, C.; Costa-Lotufo, L.V.; Montenegro, R.C.; de Moraes, M.O.; Pinto, M.C.F.R.; de Simone, C.A.; Ferreira, V.F.; et al. 3-arylamino and 3-alkoxy-nor-β-lapachone derivatives: synthesis and cytotoxicity against cancer cell lines. J. Med. Chem. 2010, 53, 504–508. [Google Scholar] [CrossRef] [PubMed]
  14. Da Silva Júnior, E.N.; de Moura, M.A.B.F.; Pinto, A.V.; Pinto, M.C.F.R.; de Souza, M.C.B.V.; Araújo, A.J.; Pessoa, C.; Costa-Lotufo, L.V.; Montenegro, R.C.; de Moraes, M.O.; et al. Cytotoxic, trypanocidal activities and physicochemical parameters of nor-β-lapachone-based 1,2,3-triazoles. J. Braz. Chem. Soc. 2009, 20, 635–643. [Google Scholar] [CrossRef]
  15. Da Silva, E.N., Jr.; de Souza, M.C.B.V.; Fernandes, M.C.; Menna-Barreto, R.F.S.; Pinto, M.C.F.R.; Lopes, F.A.; de Simone, C.A.; Andrade, C.K.Z.; Pinto, A.V.; Ferreira, V.F.; et al. Synthesis and anti-Trypanosoma cruzi activity of derivatives from nor-lapachones and lapachones. Bioorg. Med. Chem. 2008, 16, 5030–5038. [Google Scholar] [CrossRef] [PubMed]
  16. Lamberti, M.J.; Rumie Vittar, N.B.; da Silva, F.C.; Ferreira, V.F.; Rivarola, V.A. Synergistic enhancement of antitumor effect of β-lapachone by photodynamic induction of quinone oxidoreductase (NQO1). Phytomedicine 2013, 20, 1007–1012. [Google Scholar] [CrossRef] [PubMed]
  17. Francisco, A.I.; Vargas, M.D.; Fragoso, T.P.; Carneiro, J.W.M.; Casellato, A.; da Silva, F.C.; Ferreira, V.F.; Barbosa, J.P.; Pessoa, C.O.; Lotufo, L.V.; et al. Theoretical studies of the tautomerism in 3-(2-R-phenylhydrazono)-naphthalene-1,2,4-triones: Synthesis of copper(II) complexes and studies of antibacterial and antitumor activities. J. Braz. Chem. Soc. 2010, 21, 1293–1302. [Google Scholar] [CrossRef]
  18. Cavalcanti, B.C.; Cabral, I.O.; Rodrigues, F.A.R.; Barros, F.W.A.; Rocha, D.D.; Magalhães, H.I.F.; Moura, D.J.; Saffi, J.; Henriques, J.A.P.; Carvalho, T.S.C.; et al. Potent antileukemic action of naphthoquinoidal compounds: Evidence for an intrinsic death mechanism based on oxidative stress and inhibition of DNA repair. J. Braz. Chem. Soc. 2013, 24, 145–163. [Google Scholar] [CrossRef]
  19. Cruz, E.H.G.; Hussene, C.M.B.; Dias, G.G.; Diogo, E.B.T.; Melo, I.M.M.; Rodrigues, B.L.; Silva, M.G.; Valença, W.O.; Câmara, C.A.; Oliveira, R.N.; et al. 1,2,3-Triazole-, arylamino- and thio-substituted 1,4-naphthoquinones: Potent antitumor activity, electrochemical aspects, and bioisosteric replacement of C-ring-modified lapachones. Bioorg. Med. Chem. 2014, 22, 1608–1619. [Google Scholar] [CrossRef] [PubMed]
  20. Cardoso, M.F.C.; da Silva, I.M.C.B.; Santos, H.M., Jr.; Rocha, D.R.; Araújo, A.J.; Pessoa, C.; Moraes, M.O.; Costa-Lotufo, L.V.; da Silva, F.C.; Santos, W.C.; et al. A new approach for the synthesis of 3-substituted cytotoxic nor-β-lapachones. J. Braz. Chem. Soc. 2013, 24, 12–16. [Google Scholar] [CrossRef]
  21. Ferreira, F.R.; Ferreira, S.B.; Araújo, A.J.; Marinho Filho, J.D.B.; Pessoa, C.; Moraes, M.O.; Costa-Lotufo, L.V.; Montenegro, R.C.; da Silva, F.C.; Ferreira, V.F.; et al. Arylated α- and β-dihydrofuran naphthoquinones: Electrochemical parameters, evaluation of antitumor activity and their correlation. Electrochim. Acta 2013, 110, 634–640. [Google Scholar] [CrossRef]
  22. Da Silva, E.N., Jr.; de Souza, M.C.B.V.; Pinto, A.V.; Pinto, M.C.F.R.; Goulart, M.O.F.; Barros, F.W.A.; Pessoa, C.; Costa-Lotufo, L.V.; Montenegro, R.C.; de Moraes, M.O.; et al. Synthesis and potent antitumor activity of new arylamino derivatives of nor-β-lapachone and nor-α-lapachone. Bioorg. Med. Chem. 2007, 15, 7035–7041. [Google Scholar] [CrossRef] [PubMed]
  23. Ferreira, S.B.; Salomão, K.; da Silva, F.C.; Pinto, A.V.; Kaiser, C.R.; Pinto, A.C.; Ferreira, V.F.; de Castro, S.L. Synthesis and anti-Trypanosoma cruzi activity of β-lapachone analogues. Eur. J. Med. Chem. 2011, 46, 3071–3077. [Google Scholar] [CrossRef] [PubMed]
  24. Da Silva, F.C.; Ferreira, S.B.; Rocha, D.R.; Ferreira, V.F. Chagas disease: Challenges in developing new trypanocidal lead compounds. Rev. Virtual Quim. 2012, 4, 46–72. [Google Scholar] [CrossRef]
  25. Bourguignon, S.C.; Cavalcanti, D.F.B.; Souza, A.M.T.; Castro, H.C.; Rodrigues, C.R.; Albuquerque, M.G.; Santos, D.O.; Silva, G.G.; da Silva, F.C.; Ferreira, V.F.; et al. Trypanosoma cruzi: Insights into naphthoquinone effects on growth and proteinase activity. Exp. Parasitol. 2011, 127, 160–166. [Google Scholar] [CrossRef] [PubMed]
  26. Bourguignon, S.C.; Castro, H.C.; Santos, D.O.; Alves, C.R.; Ferreira, V.F.; Gama, I.L.; da Silva, F.C.; Seguins, W.S.; Pinho, R.T. Trypanosoma cruzi: In vitro activity of epoxy-alpha-Lap, a derivative of alpha-lapachone, on trypomastigote and amastigote forms. Exp. Parasitol. 2009, 122, 91–96. [Google Scholar] [CrossRef] [PubMed]
  27. Freire, C.P.V.; Ferreira, S.B.; Oliveira, N.S.M.; Matsuura, A.B.J.; Gama, I.L.; da Silva, F.C.; Souza, M.C.B.V.; Lima, E.S.; Ferreira, V.F. Synthesis and biological evaluation of substituted α- and β-2,3-dihydrofuran naphthoquinones as potent anticandidal agents. Med. Chem. Commun. 2010, 1, 229–232. [Google Scholar] [CrossRef]
  28. Villar, R.; Encio, I.; Migliaccio, M.; Gil, M.J.; Martinez-Merino, V. Synthesis and cytotoxic activity of lipophilic sulphonamide derivatives of the benzo[b]thiophene 1,1-dioxide. Bioorg. Med. Chem. 2004, 12, 963–968. [Google Scholar] [CrossRef] [PubMed]
  29. Bentley, R. Role of sulfur chirality in the chemical processes of biology. Chem. Soc. Rev. 2005, 34, 609–624. [Google Scholar] [CrossRef] [PubMed]
  30. Cardoso, M.F.C.; Salomão, K.; Bombaça, A.C.; da Rocha, D.R.; da Silva, F.C.; Cavaleiro, J.A.S.; Castro, S.L.; Ferreira, V.F. Synthesis and anti-Trypanosoma cruzi activity of new 3-phenylthio-nor-β-lapachone derivatives. Bioorg. Med. Chem. 2015, 23, 4763–4768. [Google Scholar] [CrossRef] [PubMed]
  31. Ahmad, I.; Shagufta. Sulfones: An important class of organic compounds with diverse biological activities. Int. J. Pharm. Pharm. Sci. 2015, 7, 19–27. [Google Scholar]
  32. Lee, K.; Cho, S.H.; Lee, J.H.; Goo, J.; Lee, S.Y.; Boovanahalli, S.K.; Yeo, S.K.; Lee, S.-J.; Kim, Y.K.; Kim, D.H.; et al. Synthesis of a novel series of 2-alkylthio substituted naphthoquinones as potent acyl-CoA: Cholesterol acyltransferase (ACAT) inhibitors. Eur. J. Med. Chem. 2013, 62, 515–525. [Google Scholar] [CrossRef] [PubMed]
  33. Lohmann, W.; Karst, U. Biomimetic modeling of oxidative drug metabolism. Anal. Bioanal. Chem. 2008, 391, 79–96. [Google Scholar] [CrossRef] [PubMed]
  34. Bernadou, J.; Meunier, B. Biomimetic Chemical Catalysts in the Oxidative Activation of Drugs. Adv. Synth. Catal. 2004, 346, 171–184. [Google Scholar] [CrossRef]
  35. Mansuy, D. A brief history of the contribution of metalloporphyrin models to cytochrome P450 chemistry and oxidation catalysis. C. R. Chimie 2007, 10, 392–413. [Google Scholar] [CrossRef]
  36. Simões, M.M.Q.; Neves, C.M.B.; Pires, S.M.G.; Neves, M.G.P.M.S.; Cavaleiro, J.A.S. P450 Mimicking Processes and the Use of Metalloporphyrins. Pure Appl. Chem. 2013, 85, 1671–1681. [Google Scholar] [CrossRef]
  37. Martins, R.R.L.; Neves, M.G.P.M.S.; Silvestre, A.J.D.; Simões, M.M.Q.; Silva, A.M.S.; Tomé, A.C.; Cavaleiro, J.A.S.; Tagliatesta, P.; Crestini, C. Oxidation of unsaturated monoterpenes with hydrogen peroxide catalysed by manganese(III) porphyrin complexes. J. Mol. Catal. A Chem. 2001, 172, 33–42. [Google Scholar] [CrossRef]
  38. Rebelo, S.L.H.; Simões, M.M.Q.; Neves, M.G.P.M.S.; Cavaleiro, J.A.S. Oxidation of alkylaromatics with hydrogen peroxide catalysed by manganese(III) porphyrins in the presence of ammonium acetate. J. Mol. Catal. A Chem. 2003, 201, 9–22. [Google Scholar] [CrossRef]
  39. Rebelo, S.L.H.; Gonçalves, A.R.; Pereira, M.M.; Simões, M.M.Q.; Neves, M.G.P.M.S.; Cavaleiro, J.A.S. Epoxidation reactions with hydrogen peroxide activated by a novel heterogeneous metalloporphyrin catalyst. J. Mol. Catal. A Chem. 2006, 256, 321–323. [Google Scholar] [CrossRef]
  40. Pires, S.M.G.; de Paula, R.; Simões, M.M.Q.; Silva, A.M.S.; Domingues, M.R.M.; Santos, I.C.M.S.; Vargas, M.D.; Ferreira, V.F.; Neves, M.G.P.M.S.; Cavaleiro, J.A.S. Novel biomimetic oxidation of lapachol with H2O2 catalysed by a manganese(III) porphyrin complex. RSC Adv. 2011, 1, 1195–1199. [Google Scholar] [CrossRef]
  41. Pires, S.M.G.; Simões, M.M.Q.; Santos, I.C.M.S.; Rebelo, S.L.H.; Pereira, M.M.; Neves, M.G.P.M.S.; Cavaleiro, J.A.S. Biomimetic oxidation of organosulfur compounds with hydrogen peroxide catalyzed by manganese porphyrins. Appl. Catal. A Gen. 2012, 439–440, 51–56. [Google Scholar] [CrossRef]
  42. Pires, S.M.G.; Simões, M.M.Q.; Santos, I.C.M.S.; Rebelo, S.L.H.; Paz, F.A.A.; Neves, M.G.P.M.S.; Cavaleiro, J.A.S. Oxidation of organosulfur compounds using an Iron(III) porphyrin complex: An environmentally safe and efficient approach. Appl. Catal. B Environ. 2014, 160–161, 80–88. [Google Scholar] [CrossRef]
  43. Da Silva, G.; Pires, S.M.G.; Silva, V.L.M.; Simões, M.M.Q.; Neves, M.G.P.M.S.; Rebelo, S.L.H.; Silva, A.M.S.; Cavaleiro, J.A.S. A green and sustainable method for the oxidation of 1,3-dihydrobenzo[c]thiophenes to sulfones using metalloporphyrin complexes. Catal. Commun. 2014, 56, 68–71. [Google Scholar] [CrossRef]
  44. Isakau, H.A.; Parkhats, M.V.; Knyukshto, V.N.; Dzhagarov, B.M.; Petrov, E.P.; Petrov, P.T. Toward understanding the high PDT efficacy of chlorin e6–polyvinylpyrrolidone formulations: Photophysical and molecular aspects of photosensitizer–polymer interaction in vitro. J. Photochem. Photobiol. B 2008, 92, 165–174. [Google Scholar] [CrossRef] [PubMed]
  45. Schwach-Abdellaouia, K.; Vivien-Castionib, N.; Gurny, R. Local delivery of antimicrobial agents for the treatment of periodontal disease. Eur. J. Pharm. Biopharm. 2000, 50, 83–99. [Google Scholar] [CrossRef]
  46. Risbud, M.V.; Hardikar, A.A.; Bhat, S.V.; Bhonde, R.R. pH-sensitive freeze-dried chitosan–polyvinyl pyrrolidone hydrogels as controlled release system for antibiotic delivery. J. Control. Release 2000, 68, 23–30. [Google Scholar] [CrossRef]
  47. Bühler, V. Polyvinylpyrrolidone Excipients for Pharmaceuticals: Povidone, Crospovidone and Copovidone; Springer-Verlag: Berlin, Germany, 2005. [Google Scholar]
  48. Bauer, A.W.; Kirby, W.M.M.; Sherris, J.C.; Turck, M. Antibiotic susceptibility testing by a standardized single disk method. Am. J. Clin. Pathol. 1966, 45, 493–496. [Google Scholar] [PubMed]
  • Sample Availability: Samples of all compounds are available from the authors.
Figure 1. Bioactive nor-β-lapachone (1) and general structures of some derivatives.
Figure 1. Bioactive nor-β-lapachone (1) and general structures of some derivatives.
Molecules 22 00302 g001

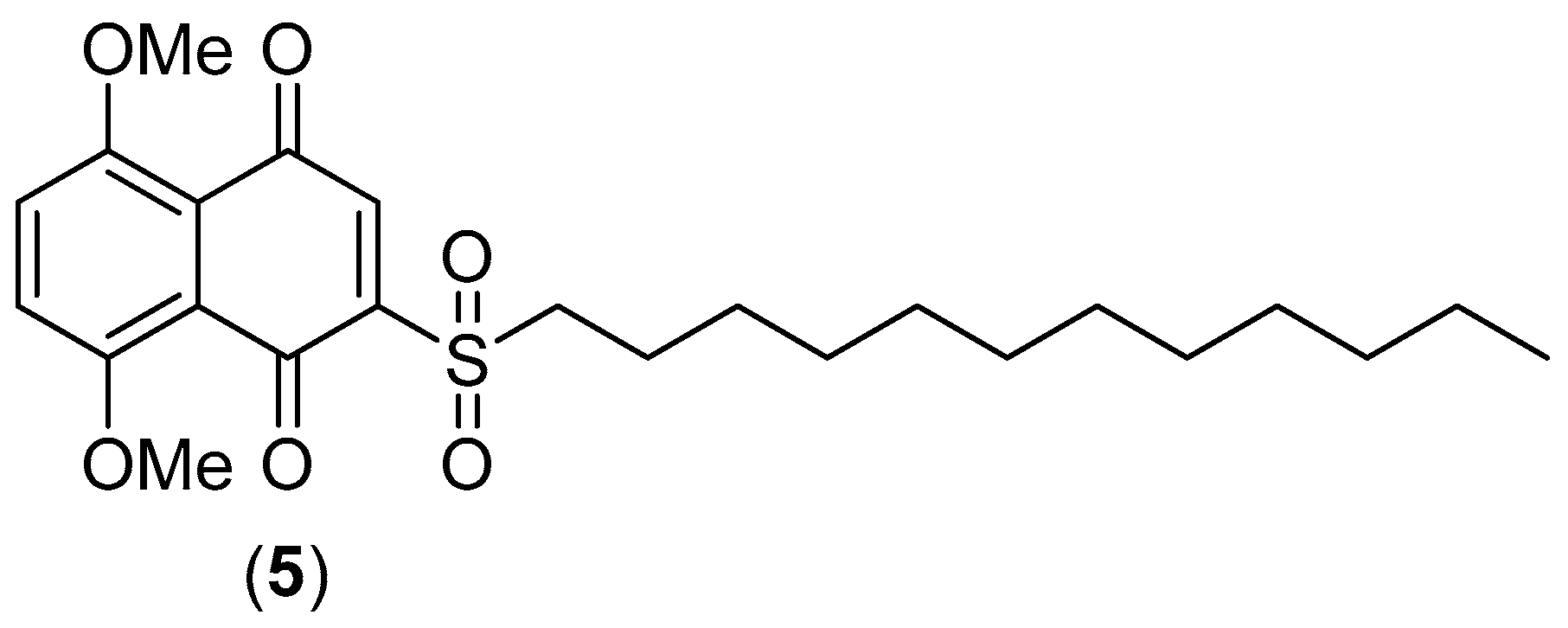

Figure 2. Naphthoquinone containing a sulfone moiety which is of biological significance.
Figure 2. Naphthoquinone containing a sulfone moiety which is of biological significance.
Molecules 22 00302 g002

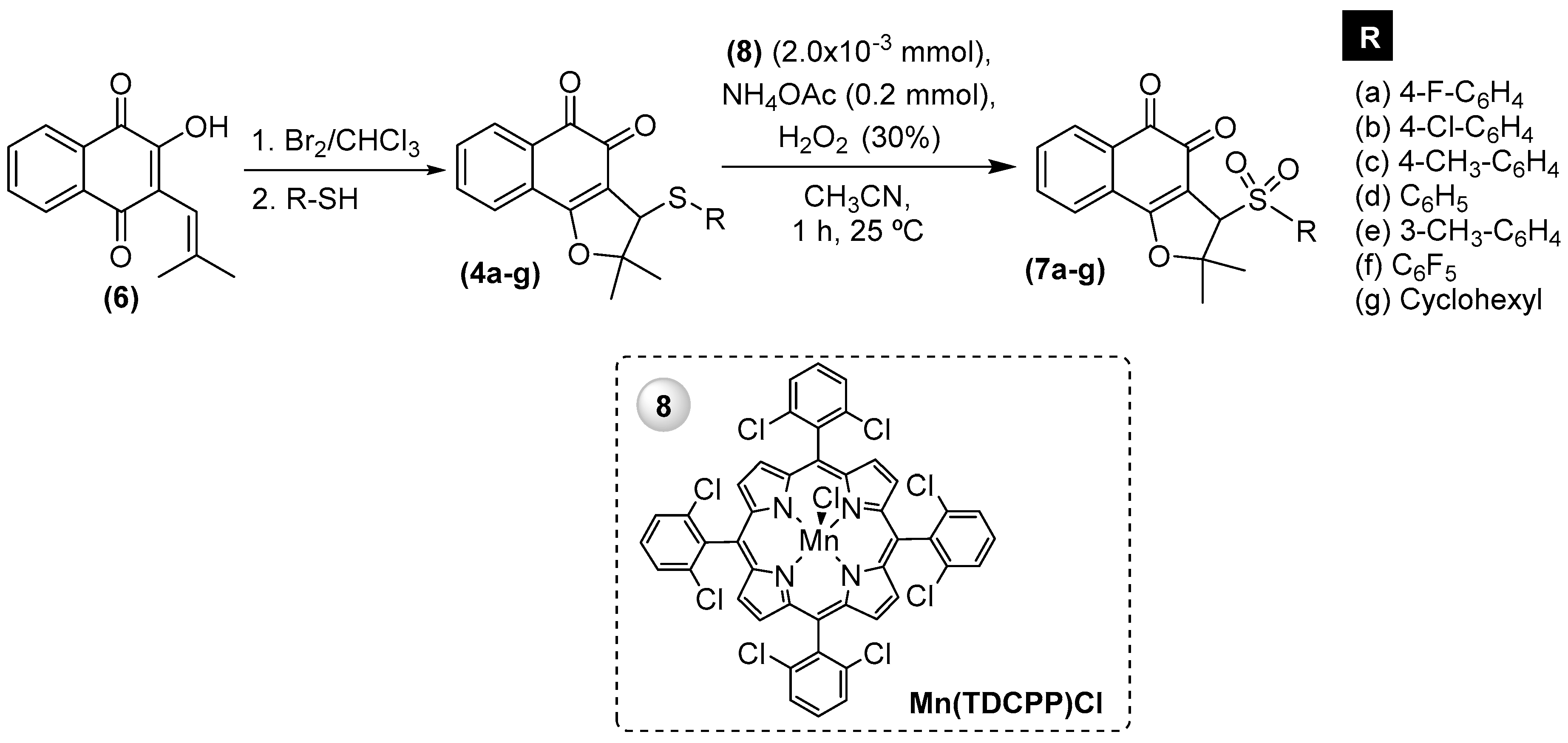

Scheme 1. Synthetic access to naphthoquinones 4ag and the oxidation conditions used for their conversion to 7ag.
Scheme 1. Synthetic access to naphthoquinones 4ag and the oxidation conditions used for their conversion to 7ag.
Molecules 22 00302 sch001

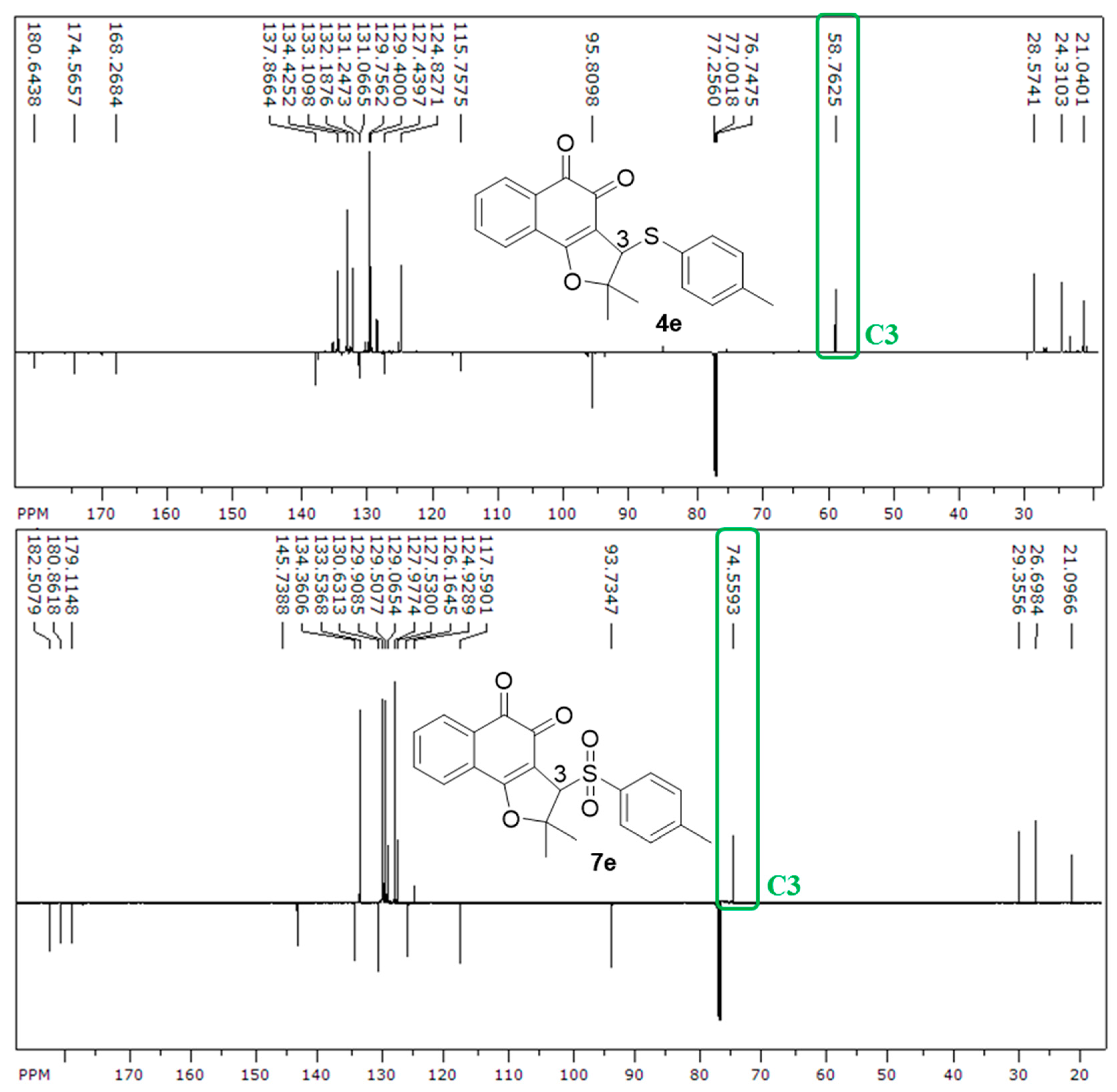

Figure 3. 13C-Attached proton test (13C-APT) spectra of 4e and 7e in CDCl3.
Figure 3. 13C-Attached proton test (13C-APT) spectra of 4e and 7e in CDCl3.
Molecules 22 00302 g003
Figure 4. Picture of the plate containing Staphylococcus aureus plated on Mueller–Hinton agar and the discs immersed in the solutions of the formulations PVP-arylthio/cyclohexylthio-lapachones 4ag and PVP-sulfonyl-lapachones 7ag at concentrations of 1 mM (concentration of each lapachone derivative) after incubation overnight at 37 °C.
Figure 4. Picture of the plate containing Staphylococcus aureus plated on Mueller–Hinton agar and the discs immersed in the solutions of the formulations PVP-arylthio/cyclohexylthio-lapachones 4ag and PVP-sulfonyl-lapachones 7ag at concentrations of 1 mM (concentration of each lapachone derivative) after incubation overnight at 37 °C.
Molecules 22 00302 g004
Table 1. Results obtained in the oxidation reactions of 4ag to 7ag.
Table 1. Results obtained in the oxidation reactions of 4ag to 7ag.
EntryCompounds 4η, Compounds 7 (%)
1a84
2b86
3c81
4d85
5e80
6f78
7g81
Table 2. Growth inhibition halo diameters (mm) for the polyvinylpyrrolidone (PVP)-arylthio/cyclohexylthio-lapachones 4ag and PVP-sulfonyl-lapachones 7ag (1 mM concentration of each lapachone derivative) against Staphylococcus aureus.
Table 2. Growth inhibition halo diameters (mm) for the polyvinylpyrrolidone (PVP)-arylthio/cyclohexylthio-lapachones 4ag and PVP-sulfonyl-lapachones 7ag (1 mM concentration of each lapachone derivative) against Staphylococcus aureus.
PVP Formulation (1 mM)4a4b4c4d4e4f4g7a7b7c7d7e7f7g
Gram-positive bacteria S. aureus 2065 MA0981181080000708
