9,10-Dihydrophenanthrene with Two Spiro(dibenzocycloheptatriene) Units: A Highly Strained Caged Hydrocarbon Exhibiting Reversible Electrochromic Behavior
Yusuke Ishigaki *Orcid, Yuki Hayashi, Kazuma Sugawara, Takuya Shimajiri, Wataru Nojo, Ryo Katoono and Takanori Suzuki *
Department of Chemistry, Faculty of Science, Hokkaido University, Sapporo 060-0810, Japan
*
Correspondence: Tel.: +81-11-706-2701 (Y.I.); +81-11-706-2714 (T.S.)
Received: 19 October 2017 / Accepted: 3 November 2017 / Published: 4 November 2017

Abstract

:
The title dispiro hydrocarbon 1 was designed as a new electrochromic material. This multiply clamped hexaphenylethane-type electron donor was prepared from 2,2′-diiodobiphenyl via biphenyl-2,2′-diylbis(dibenzotropylium) 22+ salt. X-ray analysis of 1 revealed a highly strained structure as reflected by an elongated “ethane” bond [bond length: 1.6665(17) Å] and nearly eclipsed conformation. The weakened bond was cleaved upon two-electron oxidation to regenerate the deeply colored dication 22+. The reversible interconversion between 1 and 22+ is accompanied not only by a drastic color change but also by C–C bond formation/cleavage. Thus, the voltammogram showed a pair of well-separated redox waves, which is characteristic of “dynamic redox (dyrex)” behavior. The tetrahydro derivative of 1 with two units of spiro(dibenzocycloheptadiene), which suffers from more severe steric congestion, was also prepared. The crystallographically determined bond length for the central C–C bond [1.705(4) Å] is greatest among the values reported for 9,9,10,10-tetraaryl-9,10-dihydrophenanthrene derivatives.
Keywords:
polycyclic aromatic hydrocarbons; long bond; dynamic redox system; dication; dibenzotropylium; electrochromism; through-bond interaction

1. Introduction

π–Conjugated systems have attracted much attention due to the facile modification of their properties by unique molecular design, as shown in several reports on sterically-congested and/or curved polycyclic aromatic hydrocarbons (PAHs) [1,2,3,4]. Some of them have been shown to have unusual geometric features, such as extremely twisted aromatic rings [5,6,7,8,9,10,11,12] or an extraordinarily long C–C bond [13,14,15,16,17,18,19,20], which result in intriguing physical properties.
9,10-Dihydrophenanthrene (DHP) with four aryl groups at the 9,9,10,10-positions is the clamped derivative of hexaphenylethane (HPE). In contrast to the easy dissociation of unclamped HPEs into two trityl radicals upon cleavage of the “ethane” bond [21], a series of tetraaryl-DHPs (Ar4DHPs) are considered to be thermally stable [22]. The C9–C10 bond fission in Ar4DHP is no longer entropically favored, so that even an elongated bond with a bond length far greater than the standard (1.54 Å) is intact when incorporated in the Ar4DHP skeleton [23]. Thus, the DHP skeleton is one of the most useful scaffolds for examining highly strained structures and their special properties.
Hexabenzo[4.4.4]propellane A [24], which was first reported in 1971, is a multiply clamped HPE in which the central Csp3–Csp3 bond [bond length: 1.563(2) Å] is not greatly expanded [25]. In this nonspiro-type clamped HPE, the steric repulsion among the six benzene rings is effectively reduced by adopting a twisted conformation with a torsion angle (α) of about 60° around the central C–C bond (Figure 1). On the other hand, dibenzodinaphtho[4.3.3]propellane B [26] has a longer bond [1.612(4) Å] because it has a less-skewed geometry due to the rigid naphthalene planes. This difference in bond length as well as its correlation with torsion/twisting angles (α, θ) could be supported by DFT calculations. On the other hand, Ar4DHPs were predicted to have much longer C–C bonds than those in B since the steric hindrance regarding the C9–C10 bond is greater for two unfused benzene rings than for a naphthalene nucleus.
We previously studied the structures and properties of a series of Ar4DHPs [27,28,29,30,31,32]. When we conducted an X-ray analysis of (4-CH3OC6H4)4DHP (C), we could not obtain accurate values for the bond length or torsion/twisting angles due to the positional disorder of the ethane unit [27]. Such disorder has often been observed in globular ethanes (e.g., unclamped HPEs [33] or hexachloroethane [34]), but was not present in the spiro-type Ar4DHPs (D and E). Their C9–C10 bond lengths could be accurately determined to be 1.646(4) and 1.635(2) Å by X-ray analyses [29,30]. These values are greater than those for other DHPs, and, thus, the spiro ring can be considered to be the key structure for observing a very long bond in Ar4DHPs.
Another interesting point regarding Ar4DHP is the electrochromic response with “dynamic redox (dyrex)” behavior. Two-electron oxidation induces the formation of cationic chromophores accompanied by fission of the elongated C9–C10 bond. Heterocyclic units (acridan/xanthene) or alkoxy/amino groups have often been incorporated into Ar4DHP to raise the HOMO level and to stabilize the corresponding dicationic species. However, under an appropriate molecular design, we envisaged that reversible electrochromic systems could be constructed without the aid of heteroatoms. Herein we report the details of the title spiro-type Ar4DHP 1, which is a pure hydrocarbon that can still exhibit reversible electrochromic behavior thanks to the raised HOMO level of 1 as well as the stability of the 14π–dibenzotropylium unit in the bond-dissociated dication 22+.

2. Results and Discussion

2.1. Design and Theoretical Study

The through-bond interaction (TBI) [35] in PAHs is an important factor which modifies the MO levels that determine their electron-donating properties. As postulated based on a simplified s-cis diphenylethane model (Figure 2), the σ–orbital of the ethane bond would be lowered whereas the π+–orbital should be raised through TBI. Greater perturbation is expected when the two energy levels are closer. The parallel arrangement of these orbitals is also important for realizing effective TBI.
For Ar4DHP, TBI would be maximized by elongation of the C9–C10 bond, since a longer bond has a higher σ–orbital level to narrow the energy gap toward the π+–orbital. At the same time, an eclipsed conformation is desirable to ensure that the orbitals are parallel. The spiro(dibenzocycloheptatriene) units are the ideal skeleton to be incorporated into Ar4DHP. In general, Ar4DHPs tend to adopt a skewed geometry to reduce the “front strain” [21] among the four aryl groups over the C9–C10 bond. The spiro(xanthene or 10-methylacridane) with the central six-membered ring can force the DHP skeleton to adopt a less-skewed geometry (Figure 1). Here, we propose that spiro(dibenzocycloheptatriene) with a central seven-membered ring is more favorable since it can make the DHP skeleton become nearly eclipsed by the greater steric hindrance between the inner protons on the benzo groups and the DHP plane (Figure 3). The nearly eclipsed conformation would also cause elongation of the C9–C10 bond due to the greater steric repulsion than in the skewed conformation, and, thus, the HOMO level of Ar4DHP with two spiro(dibenzocycloheptatriene) 1 would be effectively raised through TBI.
The tetrahydro derivative 3 with two units of spiro(dibenzocycloheptadiene) was also included in this study as a reference compound; it cannot adopt a similar eclipsed conformation due to severe steric repulsion between the CH2CH2 units in the cycloheptadiene rings.
Density functional theory (DFT) calculations [36] at the B3LYP/6-31G* level predicted that the optimized structure of 1 adopts a nearly eclipsed conformation, as designed. The C9–C10 bond length was estimated to be greater than 1.7 Å, which is much greater than the values previously reported for other Ar4DHPs (Figure 4). The calculated HOMO level of 1 was raised to −5.25 eV, which is much higher than that of (4-CH3OC6H4)4DHP (−5.44 eV). Thus, we designed a stronger electron-donating hydrocarbon than Ar4DHP with four CH3O groups.
As shown in Figure 5, the HOMO of 1 has the character of (π+σ), as evidenced by the large orbital coefficients on the ethane bond. Thus, the effective TBI between π+ and σ causes the perturbation of both orbital levels, resulting in an increase in the energy of (π+σ) to become higher than that of π [next-highest OMO (NHOMO), −5.39 eV].

2.2. Preparation and X-ray Analysis

With 2,2′-diiodobiphenyl as a starting material, diol 4 was prepared by successive reactions with BuLi and dibenzotropone [37]. Upon treatment of 4 with HBF4 in trifluoroacetic anhydride (TFAA), the dication salt 22+(BF4)2 was isolated as a deep purple powder with 85% yield. When dication 22+ was reduced with Zn powder, the newly designed dispiro Ar4DHP 1 with two spiro(dibenzocycloheptatriene) units was obtained quantitatively as a white solid (Scheme 1).
In the case of the spiro(dibenzocycloheptadiene) derivative, diol 5 was obtained in a similar manner and treated with TMSClO4 [38] in 1,1,1,3,3,3-hexafluoro-2-propanol (HFIP). The resulting precursor dication was directly reduced with Zn powder to give the desired compound 3 in 33% yield as a white solid. The low yield of 3 can be partly explained by the formation of by-products/decomposition products. From the mixture, isomer 6 with a spiro(fluorene) framework was isolated. The eight-membered-ring endoperoxide 7 was also generated as a decomposition pathway of 3.
X-ray analyses were performed at 150 K by using single crystals of 1 and 3 (Figure 6). Consistent with the results of DFT calculations, 1 adopts a nearly eclipsed geometry. For the DHP skeleton, the torsion angle α over the C9–C10 bond is 23.78(13)° and the dihedral angle θ for the biphenyl unit is only 3.7°. Due to the lack of skewing deformation to reduce the “front” strain, the C9–C10 bond is expanded. The length of 1.6665(17) Å is greater than any value ever reported for Ar4DHPs [39].
As indicated by the DFT calculation shown in Figure 4, both of the crystallographically independent molecules of 3 adopt a twisted conformation. In this way, close contact between the two CH2CH2 units over the C9–C10 bond is avoided. However, the molecules still suffer from large steric hindrance between the two spiro(dibenzocycloheptadiene) units. Thus, the bond lengths for the C9–C10 bond [1.705(4) and 1.697(4) Å] of 3 are the highest values reported for the Ar4DHP, including 1.

2.3. Redox Behavior

To investigate the electron-donating properties and reversibility of the redox behavior of 1, redox potentials were measured by cyclic voltammetry in CH2Cl2 (Figure 7). The one-wave two-electron oxidation peak was observed, which corresponds to the formation of the dication 22+ accompanied by C9–C10 bond cleavage. The corresponding reduction peak of 22+ appeared at +0.42 V. Such a separation of redox peaks is characteristic of dyrex systems. When scanning was repeated twice, no change was observed in the voltammogram, which indicates highly reversible interconversion between 1 and 22+.
The electron-donating properties of hydrocarbon 1 are striking. The oxidation potential (+0.95 V) is far less positive than that of (4-CH3OC6H4)4DHP (+1.44 V) measured under similar conditions [28]. Such a change can be qualitatively accounted for by the different HOMO levels calculated by the DFT method, which demonstrates the validity of our concept for raising the HOMO level of Ar4DHP through TBI without the aid of heteroatoms.

2.4. Electrochromic Behavior

Upon the electrochemical oxidation of 1 in CH2Cl2, from colorless to red, an electrochromic response was observed with an isosbestic point at 252 nm. The final UV/Vis spectrum is identical to that of the isolated dication 22+(BF4)2 (Figure 8). Regeneration of 1 with a drastic color change from red to colorless was attained by reverse electrolysis of the as-prepared dicationic solution (see Supplementary Materials Figure S1). This is a rare successful demonstration of electrochromic behavior based on pure hydrocarbon redox species [40].
Quantitative interconversion between donor 1 and dication 22+ can be conducted in a preparative manner by chemical oxidation and reduction. Thus, upon treatment of 1 with two equivalents of (4-BrC6H4)3N+●SbCl6 in CH2Cl2, dication 22+ was isolated quantitatively as a stable salt. The X-ray structural analysis of 22+(SbCl6)2·2(CH2Cl2) crystal shows that there is a ππ stacking interaction between two dibenzotropylium units [dihedral angle: 12.1°; closest C–C contact: 3.31(2) Å] (Figure 9a). The biphenyl unit in 22+ is twisted by 70.6°.
While 22+ was persistent in CH2Cl2, it underwent faci transformation into spiro(fluorene)-type monocation 8+ in CH3CN. When this conversion was followed by UV/Vis spectroscopy at 23 °C, several isosbestic points were observed (Figure 10), from which a reaction rate of 5.0 × 10−4 s−1 was deduced. Friedel–Crafts-type cyclization also proceeded cleanly in a preparative scale, and 8+ was isolated as a stable salt with 94% yield. The spiro-structure was unambiguously determined by X-ray analysis of the 8+(SbCl6)·(CH3CN) crystal (Figure 9b).
Many dicationic dyes with a biphenyl-2,2′-diyl skeleton adopt a twisted structure similar to that of 22+ with a ππ stacking arrangement, for which solvent polarity affects the twisting angle: more acute in a non-polar/less polar solvent and nearly perpendicular in a polar solvent [41,42]. The observed solvent effects for the Friedel–Crafts-type cyclization of 22+ might be related to this difference in dication conformation depending on the solvent. Facile degradation to the monocation 8+ in CH3CN may be related to the largely twisted conformation to facilitate nucleophilic addition of a benzene ring to the cationic center. The lack of further spiro cyclization of 8+ might be related to the ring strain of the 4,8-dihydrocyclopenta[def]fluorene structure [43].

3. Experimental

3.1. General Methods

All reactions were carried out under an argon atmosphere. All commercially available compounds were used without further purification unless otherwise indicated. Dry CH3CN was obtained by distillation from CaH2 prior to use. Column chromatography was performed on silica gel I-6-40 (YMC) of particle size 40–63 µm. 1H and 13C NMR spectra were recorded on a AscendTM 400 (1H/400 MHz and 13C/100 MHz) spectrometer (BRUKER, Billerica, MA, USA). IR spectra were measured as a KBr pellet on a JIR-WINSPEC100 FT/IR spectrophotometer (JEOL, Tokyo, Japan). Mass spectra were recorded on a JMS-T100GCV spectrometer (JEOL, Tokyo, Japan) in FD mode (GC-MS&NMR Laboratory, Research Faculty of Agriculture, Hokkaido University). Melting points were measured on a Yamato MP-21 or Yanagimoto micro melting point apparatus and are uncorrected. UV/Vis spectra were recorded on a U-3500 spectrophotometer (Hitachi, Tokyo, Japan). DFT calculations were performed with the Gaussian 09W program package (Revision E.01, 2013, Gaussian Inc., Wallingford, CT USA). The geometries of the compounds were optimized by using the B3LYP method in combination with the 6-31G* basis set. Redox potentials (Eox and Ered) were measured by cyclic voltammetry in dry CH2Cl2 containing 0.1 M1 Bu4NBF4 as a supporting electrolyte. All of the values shown in the text are in E/V versus SCE measured at a scan rate of 100 mV s1. Pt disk electrodes were used as the working and counter electrodes. The working electrode was polished using a water suspension of aluminum oxide (0.05 µm) before use. The irreversible half-wave potentials were estimated from the anodic peak potentials (Epa) as Eox = Epa − 0.03 or the cathodic peak potentials (Epc) as Ered = Epc + 0.03.

3.2. Synthetic Procedures

3.2.1. Dispiro(dibenzo[a,d]cycloheptatriene-5,9′-phenanthrene-10′,5″-dibenzo[a,d]cycloheptatriene) 1

From 22+(SbCl6)2: To a solution of 22+(SbCl6)2 (46.3 mg, 38.5 µmol) in dry CH3CN (1.8 mL) was added activated zinc powder (50.7 mg, 775 µmol) at 25 °C. The mixture was stirred for 15 min, and then diluted with water. The whole mixture was extracted with CH2Cl2 three times. The combined organic layers were washed with water and brine, and dried over anhydrous Na2SO4. After filtration, the solvent was concentrated under reduced pressure. The crude product was purified by column chromatography on silica gel (CH2Cl2) to give 1 (20.4 mg) as a white solid with 100% yield.
From 22+(BF4)2: To a solution of 22+(BF4)2 (265 mg, 375 µmol) in dry CH3CN (8.5 mL) was added activated zinc powder (496 mg, 7.59 mmol) at 24 °C. The mixture was stirred for 1 h at 24 °C, and then diluted with water. The whole mixture was extracted with CH2Cl2 three times. The combined organic layers were washed with water and brine, and dried over anhydrous Na2SO4. After filtration through silica gel, the solvent was concentrated under reduced pressure to give 1 (198 mg) as a white solid with 99% yield.
Mp: 259–260 °C (decomp.); 1H NMR (CDCl3): δ/ppm 8.10 (2H, dd, J = 1.2, 8.2Hz), 7.33 (2H, ddd, J = 1.3, 7.0, 8.2 Hz), 7.02 (2H, ddd, J = 1.2, 7.0, 8.1 Hz), 6.90 (2H, dd, J = 1.3, 8.1 Hz), 6.83 (4H, ddd, J = 1.1, 6.8, 7.8 Hz), 6.74 (4H, dd, J = 1.7, 7.8 Hz), 6.43 (4H, ddd, J = 1.7, 6.8, 8.5 Hz), 6.32 (4H, dd, J = 1.1, 8.5 Hz), 6.08 (4H, s); 13C NMR (CDCl3): δ/ppm 147.13, 143.59, 137.58, 137.15, 136.80, 133.25, 131.63, 131.26, 127.29, 126.56, 125.63, 125.34, 121.29, 70.50; IR (KBr): ν/cm−1 3049, 3030, 1952, 1591, 1491, 1457, 1441, 1426, 1306, 1285, 1172, 1159, 1071, 1053, 954, 880, 870, 797, 767, 746, 725; LR-MS (FD) m/z (%): 534.26 (11), 533.26 (45), 532.25 (M+, bp), 267.13 (2), 266.63 (10), 266.13 (22); HR-MS (FD) Calcd. for C42H28: 532.21910; Found: 532.22084; UV/Vis (CH2Cl2): λmax/nm (ε/M−1cm−1) 347 (9600), 290 (29,000), 246 (49,200).

3.2.2. 5,5′-([1,1′-Biphenyl]-2,2′-diyl)bis(5H-dibenzo[a,d]cycloheptatrien-5-ylium) bis(tetrafluoroborate) 22+(BF4)2

To a solution of diol 4 (252 mg, 445 µmol) in TFAA (4.7 mL) was added 42% HBF4 aq (670 µL, 4.45 mmol) at 0 °C to give a deep red solution, and the mixture was stirred for 2 h at 24 °C. The addition of dry ether led to precipitation of the dication salt. The precipitates were filtered and washed with dry ether three times to give 22+(BF4)2 (267 mg) as a red powder with 85% yield.
Mp: 209 °C (decomp.); 1H NMR and 13C NMR spectra are identical to those of 22+(SbCl6)2; IR (KBr): ν/cm−1 3063, 1609, 1602, 1517, 1476, 1429, 1385, 1337, 1223, 1177, 1163, 1068, 897, 850, 836, 801, 781, 751, 735; LR-MS (FD) m/z (%): 548.22 (9), 534.23 (10), 533.23 (47), 532.22 (M+, bp), 531.22 (7), 266.61 (10), 266.11 (21); HR-MS (FD) Calcd. for C42H28: 532.21910; Found: 532.21844; UV/Vis (CH3CN): λmax/nm (∑/M−1cm−1) 567 (4550), 534 (4330), 432 (4360), 386 (6760), 313 (76900), 269 (26200).

3.2.3. 5,5′-(1,1′-Biphenyl-2,2′-diyl)bis(5H-dibenzo[a,d]cycloheptatrien-5-ylium) bis(hexachloroantimonate) 22+(SbCl6)2

To a solution of 1 (225 mg, 422 µmol) in dry CH2Cl2 (10 mL) was added (4-BrC6H4)3N+●SbCl6 (680 mg, 833 µmol) at 23 °C, and the mixture was stirred for 1 h. The addition of dry ether led to precipitation of the dication salt. The precipitates were filtered and washed with dry ether three times to give 22+(SbCl6)2·2(CH2Cl2) (500 mg) as a red powder in 86% yield.
Mp: 258 °C (decomp.); 1H NMR (CH3CN): δ/ppm 8.98 (4H, brs), 8.49 (4H, brt, J = 7.0 Hz), 8.42 (4H, brt, J = 7.0 Hz), 7.80 (4H, brs), 7.61–7.53 (4H, m), 7.50 (4H, brs), 7.46 (2H, brt, J = 7.4 Hz), 7.06 (2H, brd, J = 7.4 Hz); 13C NMR (CH3CN): δ/ppm 180.00, 146.66, 145.95, 141.64, 140.49, 140.15, 139.40, 138.51, 136.97, 134.76, 134.14, 132.92, 130.99, 128.48; IR (KBr): ν/cm−1 3055, 2931, 1636, 1600, 1512, 1473, 1426, 1383, 1335, 1253, 1222, 1164, 829, 847, 829, 796, 750, 730; LR-MS (FD) m/z (%): 534.26 (11), 533.26 (45), 532.25 (M+, bp), 267.13 (2), 266.63 (10), 266.13 (22); HR-MS (FD) Calcd. for C42H28: 266.10955 (M2+); Found: 266.10863 (M2+); UV/Vis (CH3CN): λmax/nm (∑/M−1cm−1) 569 (5000), 535 (4780), 425 (61,700), 387 (7740), 314 (85,600), 270 (43,000).

3.2.4. Dispiro(dibenzo[a,d]cycloheptadiene-5,9′-phenanthrene-10′,5″-dibenzo[a,d]cycloheptadiene) 3

To a solution of diol 5 in HFIP (3.0 mL) was added at 22 °C a solution of TMSClO4 in toluene (0.79 M, 1.40 mL, 1.11 mmol), which was prepared from TMSCl (500 µL, 3.96 mmol) and AgClO4 (830 mg, 4.00 mmol) in dry toluene (5 mL). After stirring at 22 °C for 1 h, the solvent was evaporated. To the residue were added dry CH3CN (8 mL) and activated zinc powder (1.78 g, 27.2 mmol). The mixture was stirred at 22 °C for 1 h, and then diluted with water. The whole mixture was extracted with CH2Cl2 three times. The combined organic layers were washed with water and brine, and dried over anhydrous Na2SO4. After filtration, the solvent was concentrated under reduced pressure. The crude product was purified by column chromatography on silica gel (hexane/CH2Cl2 = 5) to give 3 (47.5 mg) as a white solid with 33% yield.
Mp: 197–200 °C (decomp.); 1H NMR (CDCl3): δ/ppm 7.96 (2H, dd, J = 1.4, 8.2 Hz), 7.28 (2H, ddd, J = 1.2, 7.0, 8.2 Hz), 6.95–6.87 (6H, m), 6.78 (4H, d, J = 7.0 Hz), 6.44 (4H, brs), 6.29 (2H, dd, J = 1.2, 8.1 Hz), 6.11 (4H, brs), 2.92 (4H, dd, J = 9.7, 14.4 Hz), 2.57 (4H, brs); 13C NMR (CDCl3): δ/ppm 147.57, 145.21, 143.04, 137.89, 135.52, 1340.28, 129.31, 127.46, 126.55, 126.35, 123.55, 121.62, 71.24, 35.78; IR (KBr): ν/cm−1 3106, 3053, 3019, 2936, 2843, 2360, 2341, 1920, 1673, 1657, 1597, 1486, 1441, 1430, 1385, 1365, 1314, 1280, 1265, 1217, 1162, 1129, 1100, 1083, 1068, 956, 866, 790, 781, 759, 746, 708, 668, 646, 625, 621, 589, 561, 534; LR-MS (FD) m/z (%): 539.26 (2), 538.26 (11), 537.26 (46), 536.26 (M+, bp), 268.13 (2); HR-MS (FD) Calcd. for C42H32: 536.25040, Found : 536.25269.

3.2.5. 2,2′-Bis(5-hydroxydibenzo[a,d]cycloheptatriene-5-yl)biphenyl 4 [37]

To a solution of 2,2′-diiodobiphenyl [44] (1.13 g, 2.78 mmol) in dry THF (10 mL) was added nBuLi (1.55 M in hexane, 4.3 mL, 6.67 mmol) dropwise over 2 min at –78 °C. After stirring at –78 °C for 1 h, dibenzotropone (1.38 g, 6.67 mmol) was added to the suspension and the mixture was warmed to 23 °C. The resulting solution was stirred for 1 h at 23 °C, and then diluted with water. The whole mixture was extracted with EtOAc three times. The combined organic layers were washed with water and brine, and dried over anhydrous Na2SO4. After filtration, the solvent was concentrated under reduced pressure. The crude product was washed with methanol to give diol 4 (1.12 mg) as a white solid with 71% yield.
1H NMR (CDCl3): δ/ppm 8.13 (2H, dd, J = 1.2, 7.9 Hz), 7.50 (2H, ddd, J = 1.8, 6.8, 7.9 Hz), 7.39 (2H, dd, J = 1.3, 8.0 Hz), 7.30 (2H, dt, J = 1.2, 6.8 Hz), 7.02 (2H, dd, J = 1.8, 6.8 Hz), 6.98 (2H, dd, J = 1.3, 7.3 Hz), 6.86 (2H, dt, J = 1.3, 7.3 Hz), 6.79 (2H, ddd, J = 1.3, 7.3, 8.0 Hz), 6.67(4H, s), 6.61 (2H, ddd, J = 1.5, 7.5, 8.7 Hz), 6.46 (2H, dt, J = 1.2, 7.5 Hz), 6.39 (2H, dd, J = 1.2, 8.7 Hz), 6.05 (2H, dd, J = 1.5, 7.5 Hz), 5.04 (2H, s).

3.2.6. 2,2′-Bis(5-hydroxydibenzo[a,d]cycloheptadiene-5-yl)biphenyl 5 [37]

To a solution of 2,2′-diiodobiphenyl (409 mg, 1.01 mmol) in dry THF (5 mL) was added nBuLi (1.55 M in hexane, 1.55 mL, 2.40 mmol) dropwise over 2 min at –78 °C. After stirring at –78 °C for 1 h, dibenzosuberone (432 µL, 2.40 mmol) was added to the suspension, and the mixture was warmed to 25 °C. The resulting solution was stirred for 15 h at 25 °C, and then diluted with water. The whole mixture was extracted with EtOAc three times. The combined organic layers were washed with water and brine, and dried over anhydrous Na2SO4. After filtration, the solvent was concentrated under reduced pressure. The crude product was washed with methanol to give 5 (467 mg) as a white solid with 81% yield.
1H NMR (CDCl3): δ/ppm 8.13 (2H, dd, J = 1.5, 7.6 Hz), 7.25 (2H, dt, J = 1.5, 7.6 Hz), 7.20 (2H, dt, J = 1.5, 7.6 Hz), 7.05 (2H, dd, J = 1.5, 7.6 Hz), 7.02 (2H, dd, J = 1.5, 7.6 Hz), 6.98–6.84 (8H, m), 6.66 (2H, dt, J = 1.5, 7.6 Hz), 6.44 (2H, dt, J = 1.4, 7.5 Hz), 6.00 (2H, dd, J = 1.4, 7.5 Hz), 5.15 (2H, s), 3.07–2.86 (4H, m), 2.70–2.60 (2H, m), 2.48–2.39 (2H, m).

3.2.7. 5-(Spiro[dibenzo[a,d]cycloheptatriene-5,9′-fluoren]-4’-yl)-5H-dibenzo[a,d]cycloheptatriene-5-ylium hexachloroantimonate 8+(SbCl6)

A solution of 22+(SbCl6)2 (83.9 mg, 69.8 µmol) in dry CH3CN (3 mL) was stirred for 2 days at 22 °C. The addition of dry ether led to precipitation of the monocation salt. The precipitates were filtered and washed with dry ether three times to give 8+(SbCl6) (56.7 mg) as a red powder with 94% yield.
Mp: 218 °C (decomp.); 1H NMR (acetone-d6): δ/ppm 9.71 (2H, s), 9.14 (2H, dd, J = 1.2, 8.1 Hz), 8.80 (2H, ddd, J = 1.0, 7.2, 8.1 Hz), 8.65 (2H, d, J = 8.9 Hz), 8.45 (1H, dd, J = 0.9, 7.7 Hz), 8.29 (2H, ddd, J = 1.2, 7.2, 8.9 Hz), 7.95 (1H, d, J = 7.7 Hz), 7.75 (1H, t, J = 7.7 Hz), 7.58 (2H, dd, J = 1.6, 7.3 Hz), 7.57 (1H, dd, J = 0.9, 7.7 Hz), 7.38 (2H, dt, J = 1.0, 7.3 Hz), 7.16 (2H, ddd, J = 1.6, 7.3, 8.3 Hz), 7.15 (2H, s), 7.13 (1H, dt, J = 0.9, 7.7 Hz), 7.03 (2H, dd, J = 1.0, 8.3 Hz), 6.68 (1H, dt, J = 0.9, 7.7 Hz), 5.78 (1H, d, J = 7.7 Hz); 13C NMR (acetone-d6): δ/ppm 181.17, 154.51, 154.39, 147.39, 145.88, 141.66, 141.23, 138.85, 138.12, 136.78, 136.75, 136.66, 136.02, 135.89, 134.09, 133.20, 132.88, 129.89, 128.78, 128.73, 128.46, 128.34, 128.16, 127.96, 127.84, 127.32, 122.72, 66.00; IR (KBr): ν/cm−1 3061, 2935, 2859, 2360, 1600, 1513, 1479, 1428, 1385, 1337, 1258, 1177, 892, 848, 833, 801, 752, 734; LR-MS (FD) m/z (%): 588.24 (6), 566.19 (6), 533.23 (11), 532.23 (47), 531.22 (M+, bp); HR-MS (FD) Calcd. for C42H27: 531.21128; Found: 531.21124; UV/Vis (CH2Cl2): λmax/nm (∑/M−1cm−1) 567 (5200), 533 (4680), 406 (6310), 388 (7980), 315 (104,500), 275 (35,800), 242 (46,700).

3.3. Crystal Data

Data were collected with a Rigaku Mercury 70 diffractometer (Mo-Kα radiation, λ = 0.71075 Å). The structure was solved by the direct method (SIR2004) and refined by the full-matrix least-squares method on F2 with anisotropic temperature factors for non-hydrogen atoms. All the hydrogen atoms were located at the calculated positions and refined with riding.
1: Crystals were obtained by recrystallization from CHCl3/hexane. MF: C42H28, FW: 532.68, colorless block, 0.20 × 0.20 × 0.20 mm3, monoclinic P21/c, a = 13.3661(12) Å, b = 12.6558(11) Å, c = 16.166(2) Å, β = 95.8567(13)°, V = 2720.4(5) Å3, ρ (Z = 4) = 1.301 g cm−3. A total of 20359 reflections (2θmax = 55.0°) were measured at T = 150 K. Numerical absorption correction was applied (µ = 0.735 cm−1). The final R1 and wR2 values are 0.0439 (I > 2σI) and 0.1179 (all data) for 5332 reflections and 379 parameters. Estimated standard deviations are 0.0017–0.003 Å for bond lengths and 0.09–0.17° for bond angles. CCDC 1580196.
22+(SbCl6)2·2(CH2Cl2): Crystals were obtained by recrystallization from CH2Cl2/ether. MF: C44H32Cl16Sb2, FW: 1371.48, red platelet, 0.60 × 0.10 × 0.10 mm3, monoclinic P21/c, a = 11.109(2) Å, b = 15.074(3) Å, c = 30.901(6) Å, β = 91.693(3)°, V = 5172(2) Å3, ρ (Z = 4) = 1.761 g cm−3. A total of 31500 reflections (2θmax = 55.0°) were measured at T = 150 K. Numerical absorption correction was applied (µ = 19.007 cm−1). The final R1 and wR2 values are 0.0983 (I > 2σI) and 0.2428 (all data) for 8942 reflections and 559 parameters. Estimated standard deviations are 0.004–0.03 Å for bond lengths and 0.13–0.8° for bond angles. CCDC 1580197.
3: Crystals were obtained by recrystallization from benzene/hexane. MF: C42H32, FW: 536.71, colorless prism, 0.40 × 0.30 × 0.20 mm3, monoclinic P21/n, a = 16.557(6) Å, b = 20.113(7) Å, c = 17.343(6) Å, β = 103.513(5)°, V = 5616(4) Å3, ρ (Z = 8) = 1.270 g cm−3. A total of 42292 reflections (2θmax = 55.0°) were measured at T = 150 K. Numerical absorption correction was applied (µ = 0.716 cm−1). The final R1 and wR2 values are 0.0679 (I > 2σI) and 0.1926 (all data) for 11017 reflections and 757 parameters. Estimated standard deviations are 0.003–0.005 Å for bond lengths and 0.15–0.3° for bond angles. CCDC 1580198.
8+(SbCl6)·(CH3CN): Crystals were obtained by recrystallization from CH3CN/ether. MF: C44H30Cl6NSb, FW: 907.20, red platelet, 0.80 × 0.20 × 0.10 mm3, triclinic P 1 ¯ , a = 9.518(7) Å, b = 13.5559(10) Å, c = 15.433(11) Å, α = 98.195(9)°, β = 92.202(13)°, β = 102.889(11)°, V = 1916(2) Å3, ρ (Z = 2) = 1.572 g cm−3. A total of 14621 reflections (2θmax = 55.0°) were measured at T = 150 K. Numerical absorption correction was applied (µ = 11.707 cm−1). The final R1 and wR2 values are 0.0415 (I > 2σI) and 0.1049 (all data) for 7454 reflections and 454 parameters. Estimated standard deviations are 0.0013–0.007 Å for bond lengths and 0.04–1.2° for bond angles. CCDC 1580199.

4. Conclusions

Based on a molecular design that maximizes the effects of TBI, the novel Ar4DHP 1 with two spiro(dibenzocycloheptatriene) units was designed as an electron-donating hydrocarbon. Based on reversible interconversion with the bis(dibenzotropylium)-type dicationic dye 22+ accompanied by C–C bond formation/cleavage (dyrex behavior), the present redox pair exhibits electrochromism with a vivid change in color, and thus represents a class of less well-developed hydrocarbon-based systems. Compound 1 was predicted to have a highly strained structure during the molecular design by a DFT calculation, which was finally confirmed by X-ray analysis of the hydrocarbon prepared as a stable entity. A more highly strained structure was observed in the tetrahydro derivative 3, the C9–C10 bond length of which is the greatest among the values ever reported for Ar4DHPs. Thus, the spiro(dibenzocycloheptadiene) unit was proven to be a promising spiro skeleton for inducing extreme bond expansion when incorporated in the clamped/fused HPE skeleton.

Supplementary Materials

Supplementary materials are available online, Figure S1: Change in the UV/Vis spectrum upon electrochemical reduction (20 µA) of as-prepared 22+ in CH2Cl2 containing 0.05 M Bu4NBF4 as a supporting electrolyte (every 4 min).

Acknowledgments

This work was supported by Grant-in-aid for Scientific Research on Innovative Areas: “Middle molecular strategy” (No. 2707) from MEXT and JSPS KAKENHI Grant Numbers JP16H06591, JP15H03790, JP16K13968, JP16H01125, JP15K17818. This work was also supported by the Cooperative Research Program of “Network Joint Research Center for Materials and Devices”. We are grateful to Takanori Fukushima at Laboratory for Chemistry and Life Science, Tokyo Institute of Technology. Mass spectra were measured by Eri Fukushi and Yusuke Takata at the GC-MS&NMR Laboratory (Research Faculty of Agriculture, Hokkaido University).

Author Contributions

Y.I. and T.S. conceived and designed the experiments; Y.H., K.S., T.S. and W.N. performed the experiments; Y.I., Y.H. and K.S. analyzed the data; Y.I. carried out the computational studies; Y.I., R.K. and T.S. discussed the data; Y.I. and T.S. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wu, Y.-T.; Siegel, J.S. Aromatic molecular-bowl hydrocarbons: synthetic derivatives, their structures, and physical properties. Chem. Rev. 2006, 106, 4843–4867. [Google Scholar] [CrossRef] [PubMed]
  2. Sygula, A.; Rabideau, P.W. Synthesis and chemistry of polycyclic aromatic hydrocarbons with curved Surfaces: Buckybowls. In Carbon-Rich Compounds; Wiley-VCH Verlag GmbH & Co., KGaA: Weinheim, Germany, 2006; pp. 529–565. ISBN 9783527607990. [Google Scholar]
  3. Dodziuk, H. Strained Hydrocarbons; Wiley-VCH Verlag GmbH & Co., KGaA: Weinheim, Germany, 2009; ISBN 9783527627134. [Google Scholar]
  4. Rieger, R.; Müllen, K. Forever young: Polycyclic aromatic hydrocarbons as model cases for structural and optical studies. J. Phys. Org. Chem. 2010, 23, 315–325. [Google Scholar] [CrossRef]
  5. Lu, J.; Ho, D.M.; Vogelaar, N.J.; Kraml, C.M.; Pascal, R.A. A Pentacene with a 144° Twist. J. Am. Chem. Soc. 2004, 126, 11168–11169. [Google Scholar] [CrossRef] [PubMed]
  6. Pascal, R.A. Twisted acenes. Chem. Rev. 2006, 106, 4809–4819. [Google Scholar] [CrossRef] [PubMed]
  7. Feng, C.-N.; Kuo, M.-Y.; Wu, Y.-T. Synthesis, structural analysis, and properties of [8] circulenes. Angew. Chem. Int. Ed. 2013, 52, 7791–7794. [Google Scholar] [CrossRef] [PubMed]
  8. Sakamoto, Y.; Suzuki, T. Tetrabenzo[8] circulene: Aromatic saddles from negatively curved graphene. J. Am. Chem. Soc. 2013, 135, 14074–14077. [Google Scholar] [CrossRef] [PubMed]
  9. Kashihara, H.; Asada, T.; Kamikawa, K. Synthesis of a double helicene by a palladium-catalyzed cross-coupling reaction: Structure and physical properties. Chemistry 2015, 21, 6523–6527. [Google Scholar] [CrossRef] [PubMed]
  10. Fujikawa, T.; Segawa, Y.; Itami, K. Synthesis, structures, and properties of π-extended double helicene: A combination of planar and nonplanar π-systems. J. Am. Chem. Soc. 2015, 137, 7763–7768. [Google Scholar] [CrossRef] [PubMed]
  11. Fujikawa, T.; Segawa, Y.; Itami, K. Synthesis and structural features of quadruple helicenes: highly distorted π systems enabled by accumulation of helical repulsions. J. Am. Chem. Soc. 2016, 138, 3587–3595. [Google Scholar] [CrossRef] [PubMed]
  12. Gu, X.; Li, H.; Shan, B.; Liu, Z.; Miao, Q. Synthesis, structure, and properties of tetrabenzo[7] circulene. Org. Lett. 2017, 19, 2246–2249. [Google Scholar] [CrossRef] [PubMed]
  13. Kammermeier, S.; Jones, P.G.; Herges, R. [2+2] Cycloaddition products of tetradehydrodianthracene: experimental and theoretical proof of extraordinary long C–C single bonds. Angew. Chem. Int. Ed. Engl. 1997, 36, 1757–1760. [Google Scholar] [CrossRef]
  14. Tanaka, K.; Takamoto, N.; Tezuka, Y.; Kato, M.; Toda, F. Preparation and structural study of naphtho- and anthrocyclobutene derivatives which have extremely long C–C bonds. Tetrahedron 2001, 57, 3761–3767. [Google Scholar] [CrossRef]
  15. Kawai, H.; Takeda, T.; Fujiwara, K.; Inabe, T.; Suzuki, T. Exceptionally large difference in bond length among conformational isomorphs of a hexaphenylethane derivative with a dispiropyracene skeleton. Cryst. Growth Des. 2005, 5, 2256–2260. [Google Scholar] [CrossRef]
  16. Kawai, H.; Takeda, T.; Fujiwara, K.; Wakeshima, M.; Hinatsu, Y.; Suzuki, T. Ultralong carbon-carbon bonds in dispirobis(10-methylacridan) derivatives with an acenaphthene, pyracene, or dihydropyracylene skeleton. Chemistry 2008, 14, 5780–5793. [Google Scholar] [CrossRef] [PubMed]
  17. Takeda, T.; Kawai, H.; Herges, R.; Mucke, E.; Sawai, Y.; Murakoshi, K.; Fujiwara, K.; Suzuki, T. Negligible diradical character for the ultralong C–C bond in 1,1,2,2-tetraarylpyracene derivatives at room temperature. Tetrahedron Lett. 2009, 50, 3693–3697. [Google Scholar] [CrossRef]
  18. Takeda, T.; Uchimura, Y.; Kawai, H.; Katoono, R.; Fujiwara, K.; Suzuki, T. Hexaphenylethanes with an Ultralong C–C Bond: Expandability of the C–C Bond in Highly Strained Tetraarylpyracenes. Chem. Lett. 2013, 42, 954–962. [Google Scholar] [CrossRef]
  19. Suzuki, T.; Uchimura, Y.; Nagasawa, F.; Takeda, T.; Kawai, H.; Katoono, R.; Fujiwara, K.; Murakoshi, K.; Fukushima, T.; Nagaki, A.; et al. Expandability of ultralong C–C Bonds: Largely different C1–C2 bond lengths determined by low-temperature X-ray structural analyses on pseudopolymorphs of 1,1-bis(4-fluorophenyl)-2,2-bis(4-methoxyphenyl)pyracene. Chem. Lett. 2014, 43, 86–88. [Google Scholar] [CrossRef]
  20. Nishiuchi, T.; Uno, S.; Hirao, Y.; Kubo, T. Intramolecular interaction, photoisomerization, and mechanical C–C bond dissociation of 1,2-di(9-anthryl)benzene and its photoisomer: A fundamental moiety of anthracene-based π-cluster molecules. J. Org. Chem. 2016, 81, 2106–2112. [Google Scholar] [CrossRef] [PubMed]
  21. Hounshell, W.D.; Dougherty, D.A.; Hummel, J.P.; Mislow, K. Structure of hexaphenylethane and congeners as determined by empirical force field calculations. J. Am. Chem. Soc. 1977, 99, 1916–1924. [Google Scholar] [CrossRef]
  22. Wittig, G.; Petri, H. Über das 9, 10-Tetraphenyl-dihydrophenanthren und 4,5-Dimethoxy-9, 10-tetraphenyl-dihydrophenanthren. (V. Mitt. über Ringschluß und Radikalbildung. Eur. J. Org. Chem. 1933, 505, 17–41. [Google Scholar] [CrossRef]
  23. Suzuki, T.; Takeda, T.; Kawai, H.; Fujiwara, K. Ultralong C-C bonds in hexaphenylethane derivatives. Pure Appl. Chem. 2008, 80, 547–553. [Google Scholar] [CrossRef]
  24. Wittig, G.; Schoch, W. Propellane des Dibenzo[g.p]chrysen-Systems. Eur. J. Org. Chem. 1971, 749, 38–48. [Google Scholar] [CrossRef]
  25. Debroy, P.; Lindeman, S.V.; Rathore, R. Hexabenzo[4.4.4]propellane: A helical molecular platform for the construction of electroactive materials. Org. Lett. 2007, 9, 4091–4094. [Google Scholar] [CrossRef] [PubMed]
  26. Dyker, G.; Körning, J.; Jones, P.G.; Bubenitschek, P. Palladium-catalyzed arylation of tetrasubstituted double bonds: A simple synthesis of annelated propellanes. Angew. Chem. Int. Ed. Engl. 1993, 32, 1733–1735. [Google Scholar] [CrossRef]
  27. Suzuki, T.; Nishida, J.; Tsuji, T. Hexaphenylethane derivatives exhibiting novel electrochromic behavior. Angew. Chem. Int. Ed. Engl. 1997, 36, 1329–1331. [Google Scholar] [CrossRef]
  28. Suzuki, T.; Nishida, J.; Tsuji, T. A new type of tricolor electrochromic system based on the dynamic redox properties of hexaarylethane derivatives. Chem. Commun. 1998, 2193–2194. [Google Scholar] [CrossRef]
  29. Suzuki, T.; Ono, K.; Nishida, J.; Takahashi, H.; Tsuji, T. Preparation and molecular structures of 9,10-dihydrophenanthrenes: Substituent effects on the long bond length. J. Org. Chem. 2000, 65, 4944–4948. [Google Scholar] [CrossRef] [PubMed]
  30. Suzuki, T.; Migita, A.; Higuchi, H.; Kawai, H.; Fujiwara, K.; Tsuji, T. A novel redox switch for fluorescence: Drastic UV–vis and fluorescence spectral changes upon electrolysis of a hexaphenylethane derivative of 10,10′-dimethylbiacridan. Tetrahedron Lett. 2003, 44, 6837–6840. [Google Scholar] [CrossRef]
  31. Suzuki, T.; Ohta, K.; Nehira, T.; Higuchi, H.; Ohta, E.; Kawai, H.; Fujiwara, K. Unprecedented four-way-output molecular response system based on biphenyl-2,2′-diyldiacridiniums: Induction of axial chirality through intramolecular hydrogen bonds between chiral amide groups. Tetrahedron Lett. 2008, 49, 772–776. [Google Scholar] [CrossRef]
  32. Suzuki, T.; Tamaoki, H.; Nishida, J.; Higuchi, H.; Iwai, T.; Ishigaki, Y.; Hanada, K.; Katoono, R.; Kawai, H.; Fujiwara, K.; et al. Redox-mediated reversible σ-bond formation/cleavage. In Organic Redox Systems; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2015; pp. 13–37. ISBN 9781118858981. [Google Scholar]
  33. Kahr, B.; Van Engen, D.; Mislow, K. Length of the ethane bond in hexaphenylethane and its derivatives. J. Am. Chem. Soc. 1986, 108, 8305–8307. [Google Scholar] [CrossRef]
  34. Atoji, M.; Oda, T.; Watanabé, T. On the crystal structure of cubic hexachloroethane. Acta Crystallogr. 1953, 6, 868. [Google Scholar] [CrossRef]
  35. Hoffmann, R. Interaction of orbitals through space and through bonds. Acc. Chem. Res. 1971, 4, 1–9. [Google Scholar] [CrossRef]
  36. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision E.01, Gaussian, Inc.: Wallingford, CT, USA, 2013.
  37. Weber, E.; Wierig, A.; Skobridis, K. Crystalline diol hosts featuring a bulky biphenyl framework—Host Synthesis and Formation of Inclusion Compounds. Adv. Synth. Catal. 1996, 338, 553–557. [Google Scholar] [CrossRef]
  38. Saitoh, T.; Yoshida, S.; Ichikawa, J. 1,8-Bis(diphenylmethylium)naphthalenediyl dication as an organic oxidant: Synthesis of benzidines via self-coupling of N,N-dialkylanilines. Org. Lett. 2004, 6, 4563–4565. [Google Scholar] [CrossRef] [PubMed]
  39. Wada, K.; Takeda, T.; Kawai, H.; Katoono, R.; Fujiwara, K.; Suzuki, T. Geometrical remote steric effects in 4,5-disubstituted-9,10-dihydrophenanthrenes: expansion of prestrained C9–C10 bond in di(spiroacridan) derivatives. Chem. Lett. 2013, 42, 1194–1196. [Google Scholar] [CrossRef]
  40. Ito, S.; Morita, N. Creation of stabilized electrochromic materials by taking advantage of azulene skeletons. Eur. J. Org. Chem. 2009, 2009, 4567–4579. [Google Scholar] [CrossRef]
  41. Suzuki, T.; Iwai, T.; Ohta, E.; Kawai, H.; Fujiwara, K. Electrochiroptical systems based on biphenyl-2,2′-diyl-type dicationic dyes: Strong chiroptical signals through the transmission of point chirality to axial chirality. Tetrahedron Lett. 2007, 48, 3599–3603. [Google Scholar] [CrossRef]
  42. Suzuki, T.; Ishigaki, Y.; Iwai, T.; Kawai, H.; Fujiwara, K.; Ikeda, H.; Kano, Y.; Mizuno, K. Multi-input/multi-output molecular response system based on the dynamic redox behavior of 3,3,4,4-tetraaryldihydro[5]helicene derivatives: reversible formation/destruction of chiral fluorophore and modulation of chiroptical properties by solvent polarity. Chemistry 2009, 15, 9434–9441. [Google Scholar] [CrossRef] [PubMed]
  43. Trost, B.M.; Kinson, P.L.; Maier, C.A.; Paul, I.C. Structure of 4,8-dihydrodibenzo[cd,gh] pentalene. J. Am. Chem. Soc. 1971, 93, 7275–7281. [Google Scholar] [CrossRef]
  44. Neugebauer, W.; Kos, A.J.; von Ragué Schleyer, P. Regioselektive dimetallierung von aromaten. Bequemer zugang zu 2,2′-disubstituierten biphenylderivaten. J. Organomet. Chem. 1982, 228, 107–118. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds 18 are available from the authors.

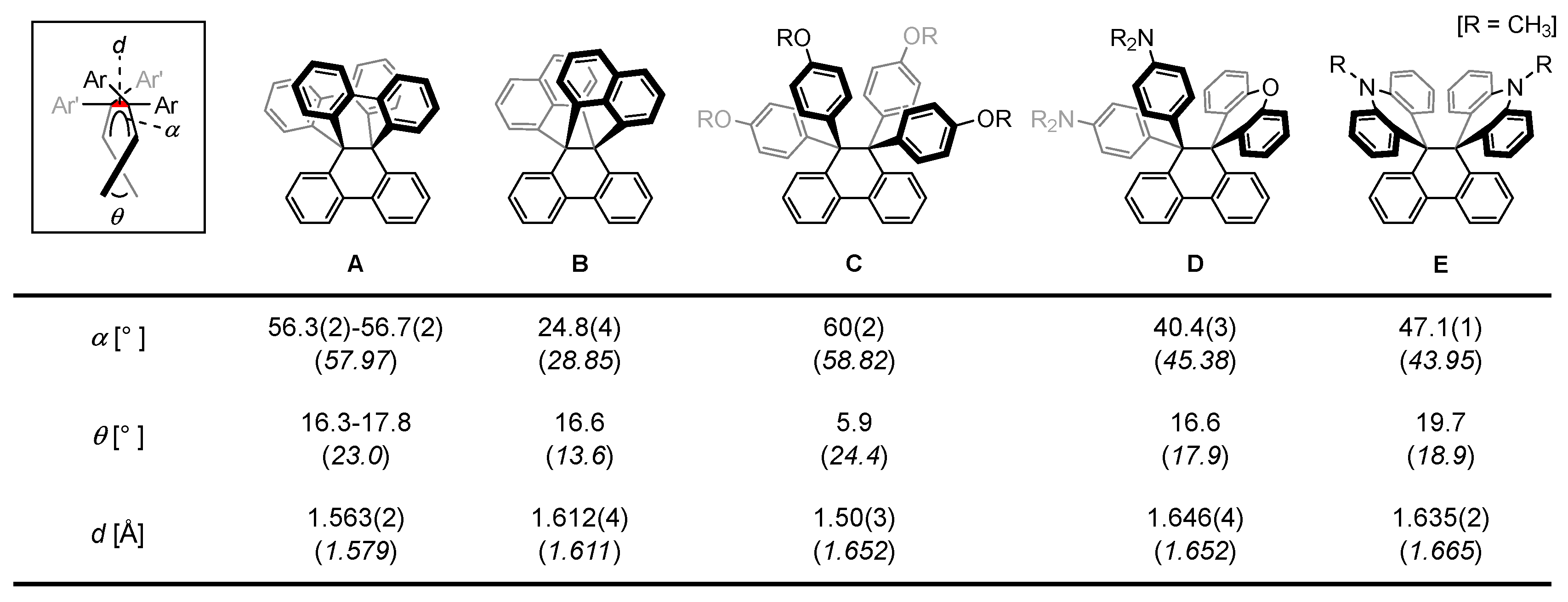

Figure 1. Reported structural parameters of Ar4DHPs determined by X-ray analyses. The values obtained by DFT calculations at the B3LYP/6-31G* level in this study are shown in brackets.
Figure 1. Reported structural parameters of Ar4DHPs determined by X-ray analyses. The values obtained by DFT calculations at the B3LYP/6-31G* level in this study are shown in brackets.
Molecules 22 01900 g001

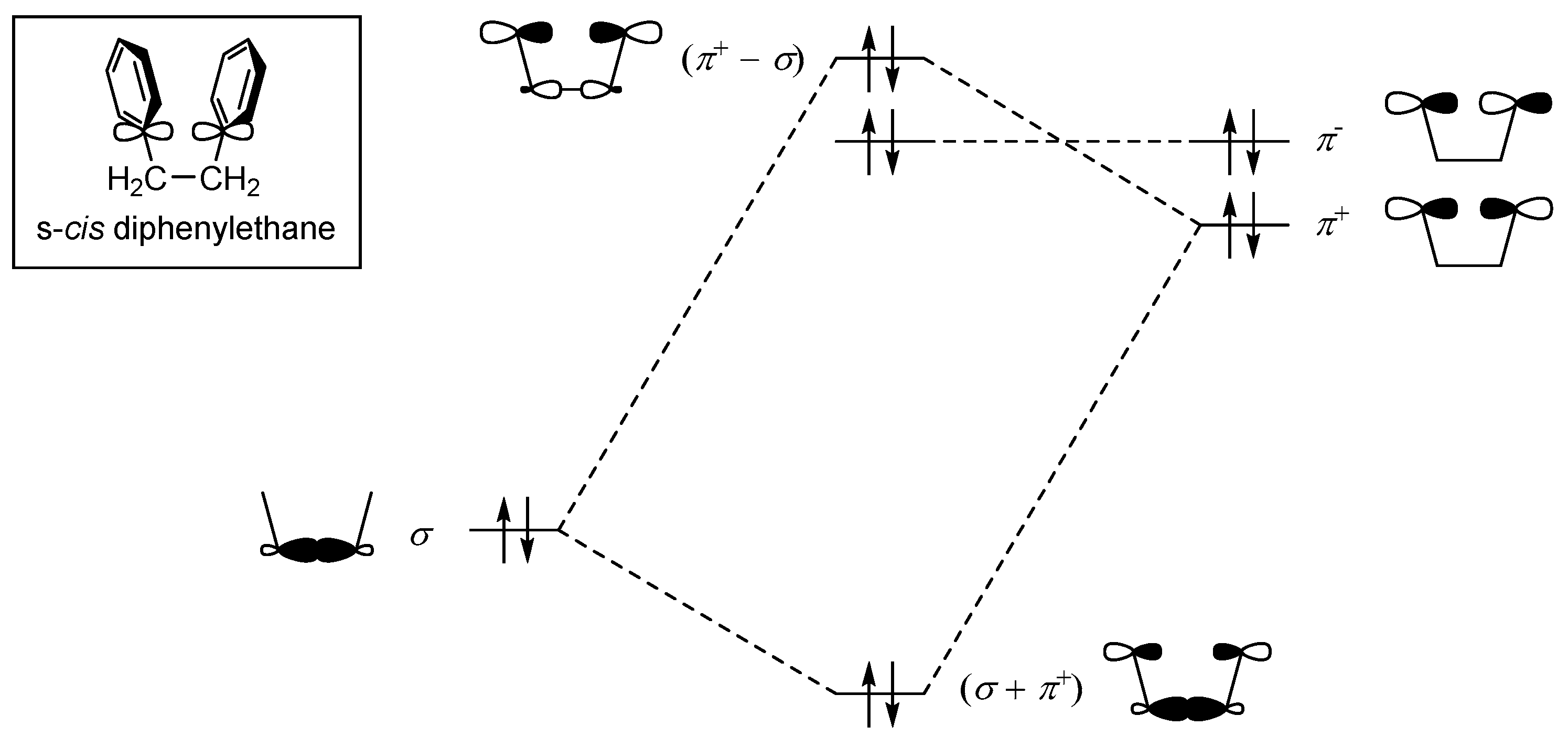

Figure 2. Schematic view of through-bond interaction in the diphenylethane model.
Figure 2. Schematic view of through-bond interaction in the diphenylethane model.
Molecules 22 01900 g002
Figure 3. Molecular design of Ar4DHP 1 with two spiro(dibenzocycloheptatriene) units.
Figure 3. Molecular design of Ar4DHP 1 with two spiro(dibenzocycloheptatriene) units.
Molecules 22 01900 g003

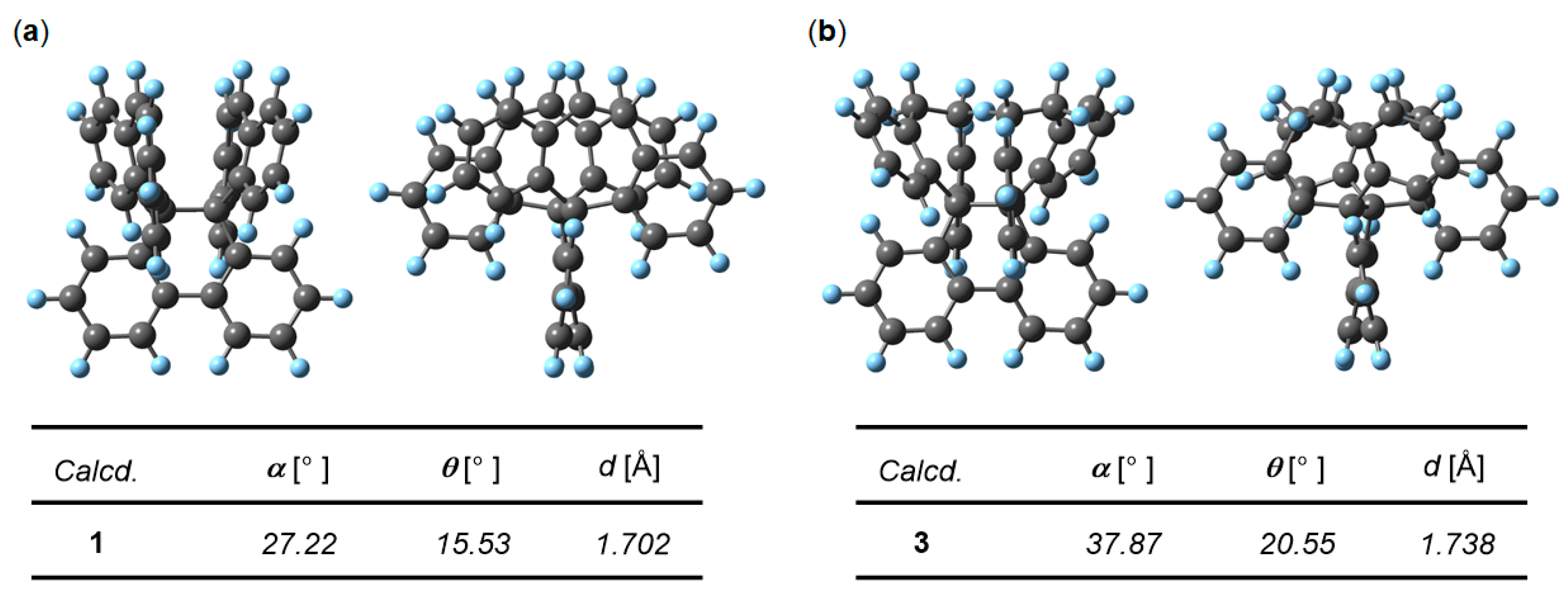

Figure 4. Optimized structures (left: front view, right: side view) of (a) 1 and (b) 3.
Figure 4. Optimized structures (left: front view, right: side view) of (a) 1 and (b) 3.
Molecules 22 01900 g004

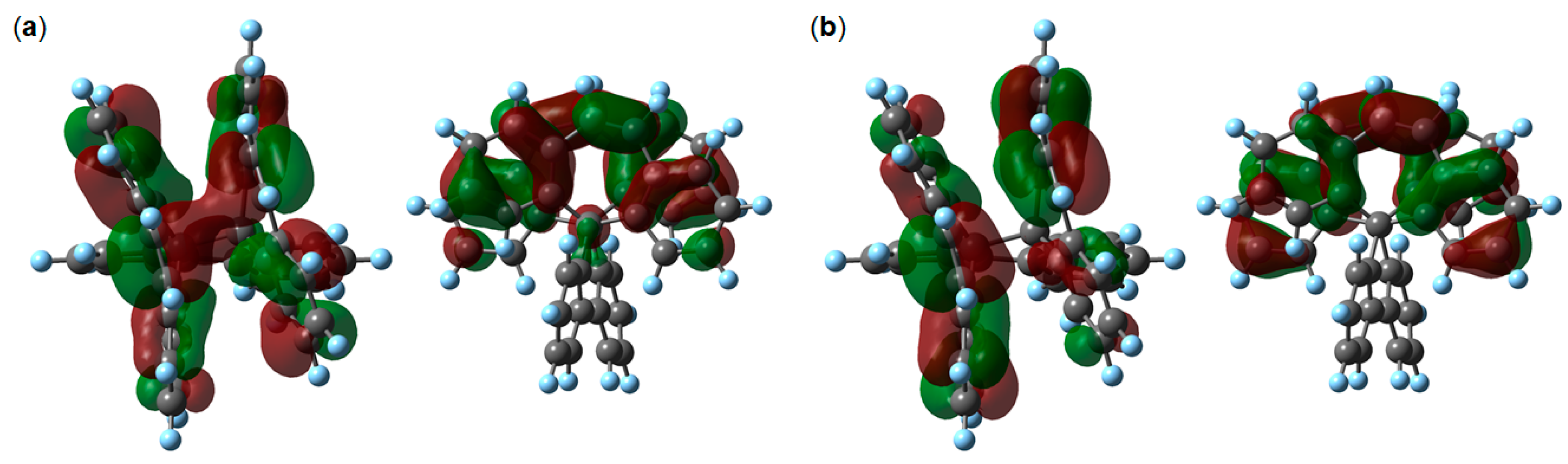

Figure 5. (a) HOMO and (b) next-highest OMO (NHOMO) of 1 based on DFT calculations (B3LYP/6-31G*).
Figure 5. (a) HOMO and (b) next-highest OMO (NHOMO) of 1 based on DFT calculations (B3LYP/6-31G*).
Molecules 22 01900 g005

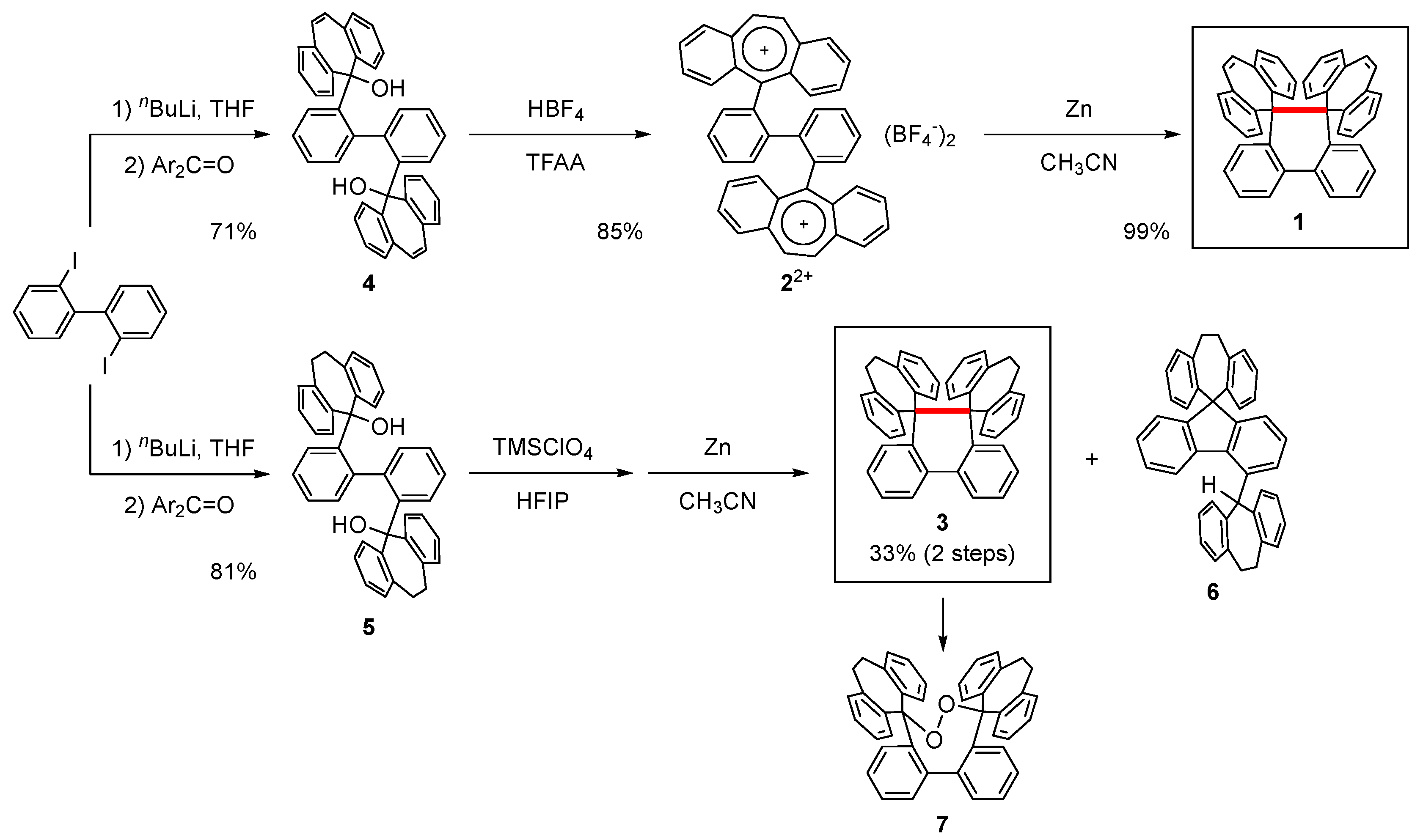

Scheme 1. Preparation of newly designed Ar4HPEs 1 and 3.
Scheme 1. Preparation of newly designed Ar4HPEs 1 and 3.
Molecules 22 01900 sch001

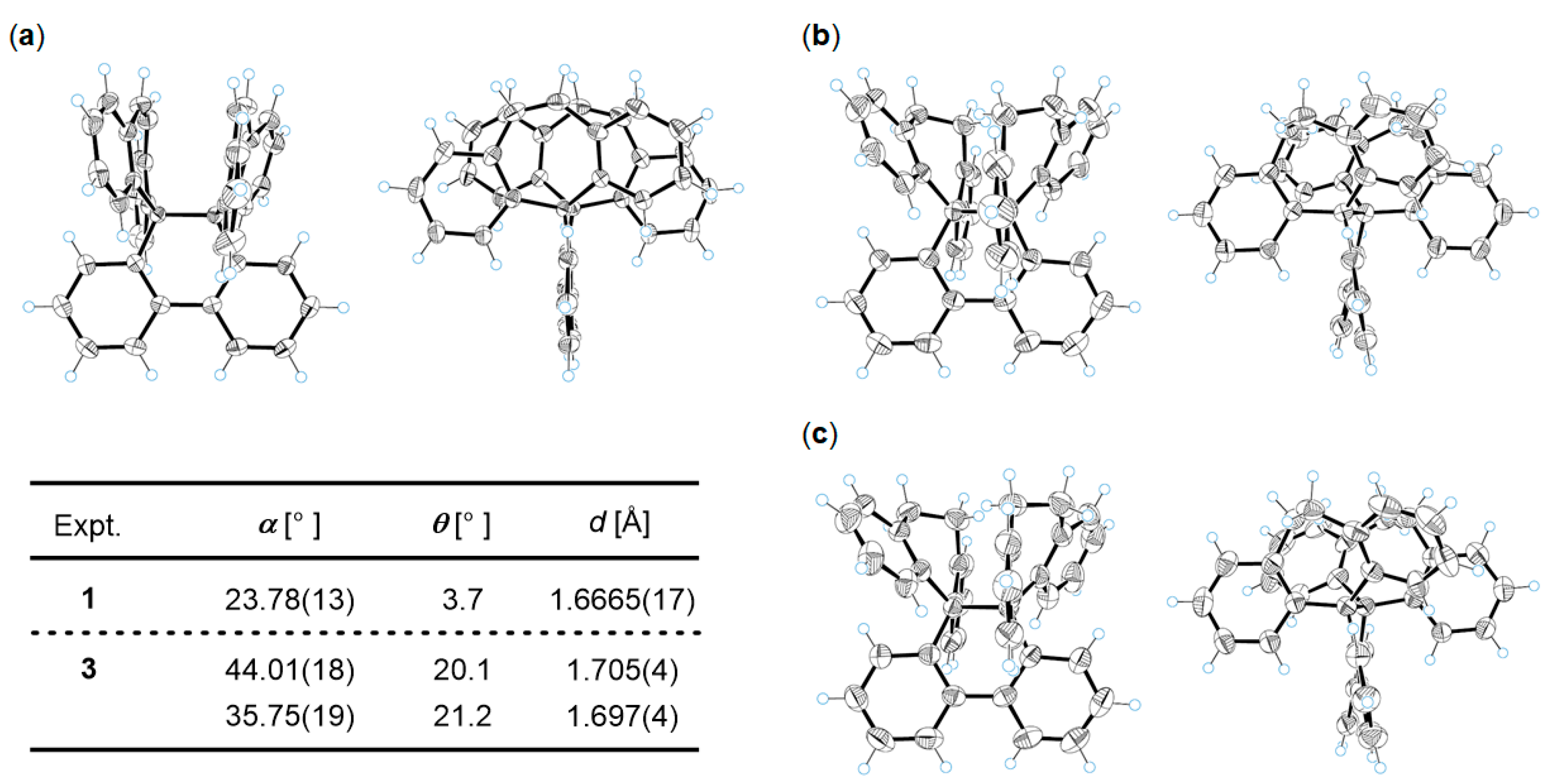

Figure 6. ORTEP drawings (left: front view, right: side view) of (a) 1; (b) 3 (mol-1) and (c) 3 (mol-2) at 150 K. Thermal ellipsoids are shown at the 50% probability level.
Figure 6. ORTEP drawings (left: front view, right: side view) of (a) 1; (b) 3 (mol-1) and (c) 3 (mol-2) at 150 K. Thermal ellipsoids are shown at the 50% probability level.
Molecules 22 01900 g006

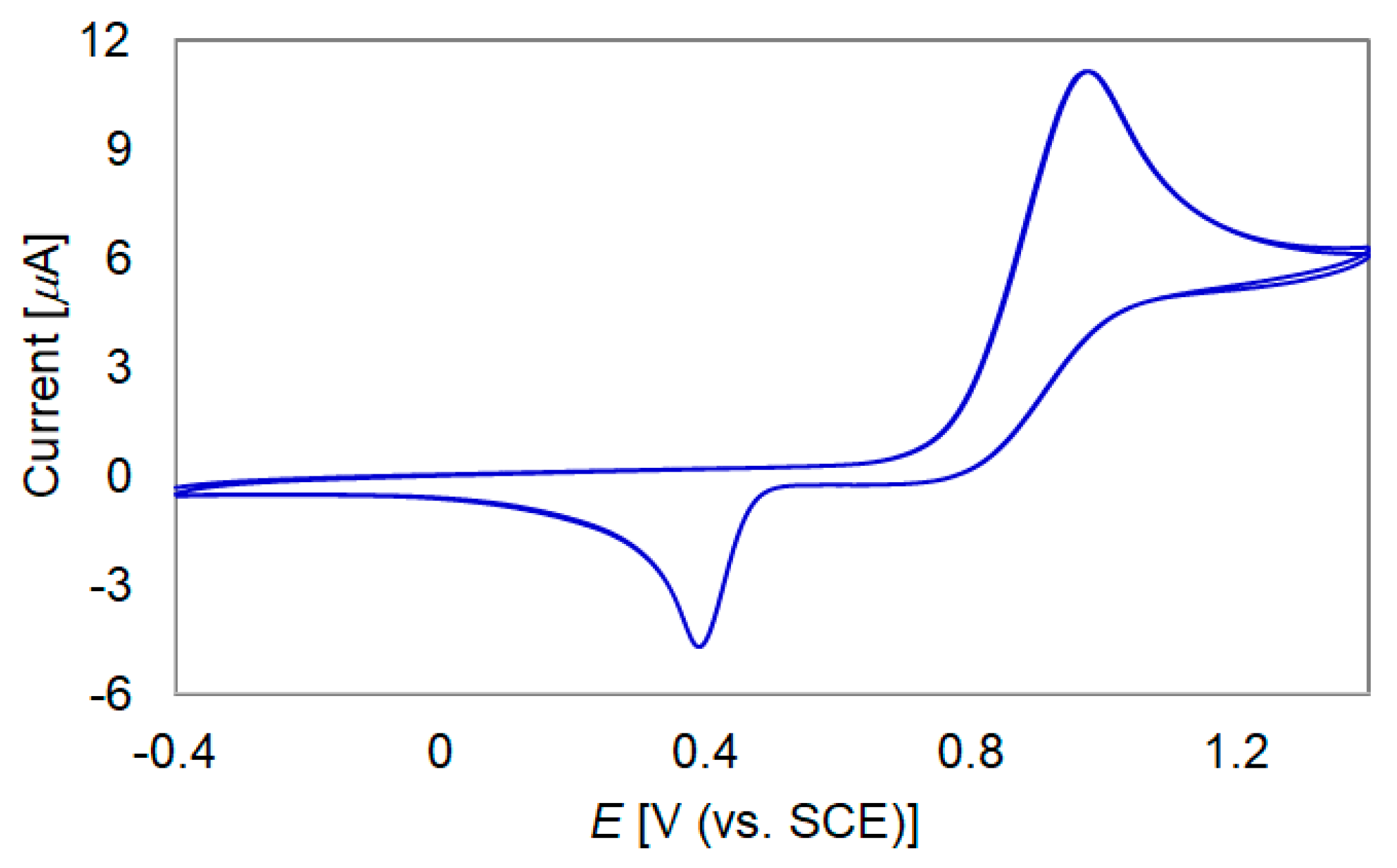

Figure 7. Cyclic voltammogram of 1 in CH2Cl2 containing 0.1 M Bu4NBF4 as a supporting electrolyte (scan rate 100 mV s−1, Pt electrode).
Figure 7. Cyclic voltammogram of 1 in CH2Cl2 containing 0.1 M Bu4NBF4 as a supporting electrolyte (scan rate 100 mV s−1, Pt electrode).
Molecules 22 01900 g007

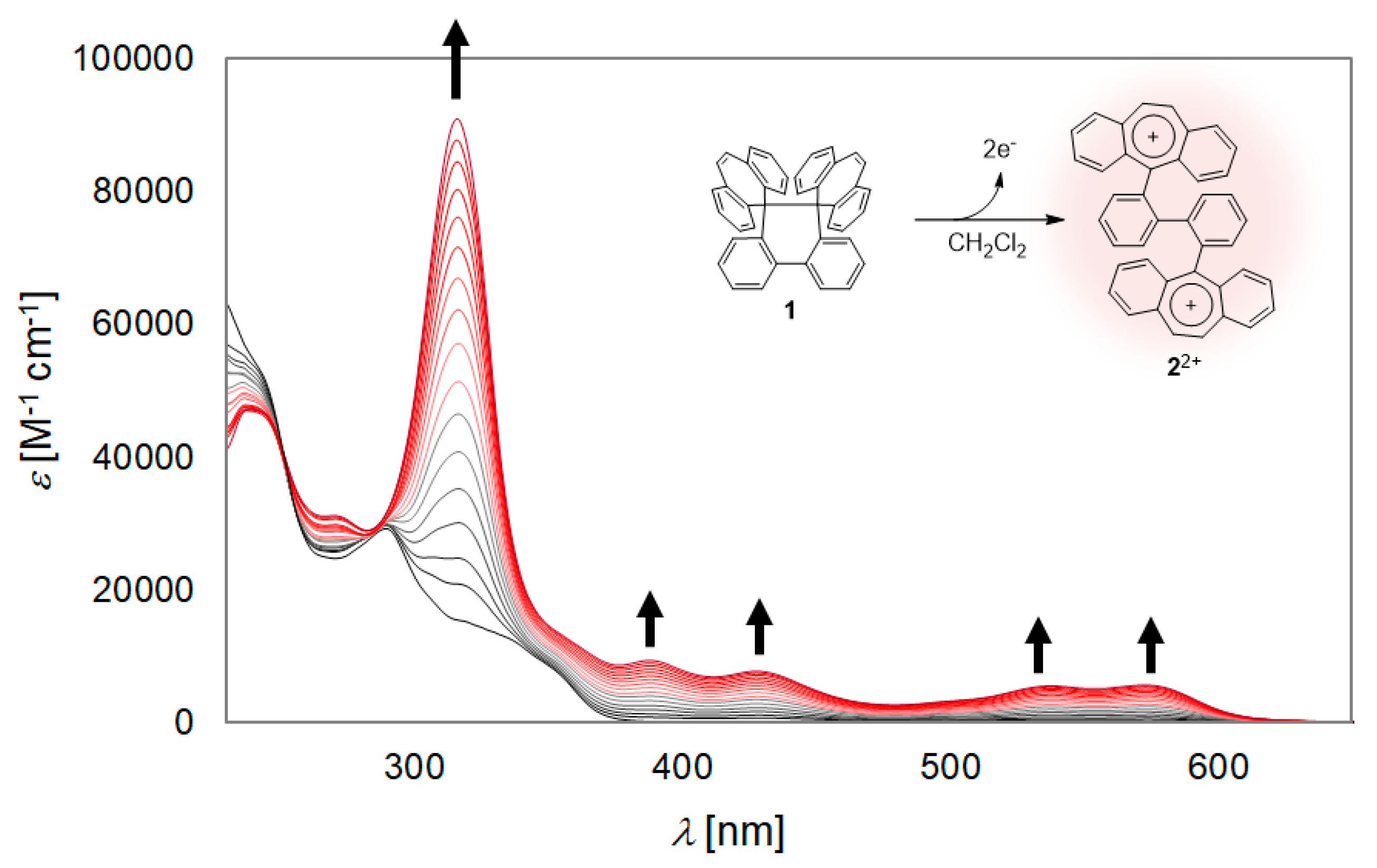

Figure 8. Change in the UV/Vis spectrum upon electrochemical oxidation (20 µA) of 1 in CH2Cl2 containing 0.05 M Bu4NBF4 as a supporting electrolyte (every 4 min).
Figure 8. Change in the UV/Vis spectrum upon electrochemical oxidation (20 µA) of 1 in CH2Cl2 containing 0.05 M Bu4NBF4 as a supporting electrolyte (every 4 min).
Molecules 22 01900 g008

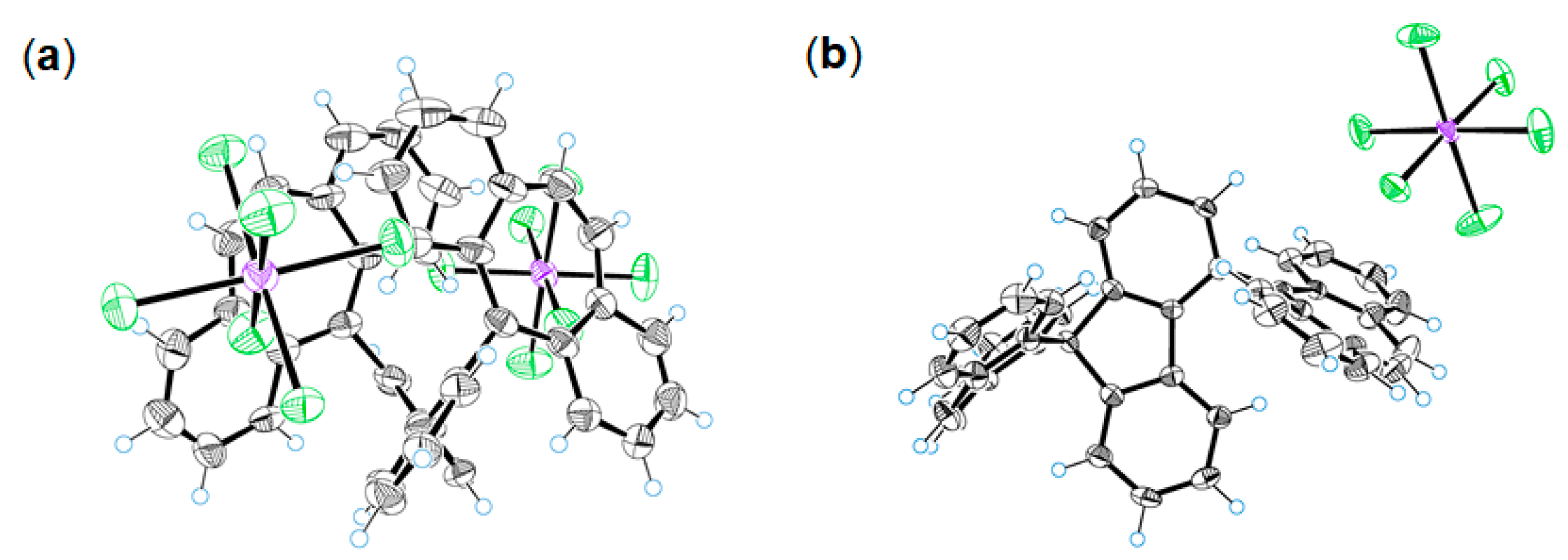

Figure 9. ORTEP drawings of (a) 22+(SbCl6)2·2(CH2Cl2) and (b) 8+(SbCl6)·(CH3CN) at 150 K. Solvent molecules are omitted for clarity and thermal ellipsoids are shown at the 50% probability level.
