Molecules 2017, 22(11), 1834; doi:10.3390/molecules22111834

Article
‘Click Chemistry’ Synthesis of Novel Natural Product-Like Caged Xanthones Bearing a 1,2,3-Triazole Moiety with Improved Druglike Properties as Orally Active Antitumor Agents
Xiang Li 1,2, Yue Wu 1,3, Yanyan Wang 1,3, Qidong You 1,3,* and Xiaojin Zhang 1,4,*Orcid
1
Jiangsu Key Laboratory of Drug Design and Optimization, State Key Laboratory of Natural Medicines, China Pharmaceutical University, Nanjing 210009, China
2
Department of Pharmaceutical Engineering, China Pharmaceutical University, Nanjing 211198, China
3
Department of Medicinal Chemistry, China Pharmaceutical University, Nanjing 21009, China
4
Department of Organic Chemistry, China Pharmaceutical University, Nanjing 211198, China
*
Correspondence: Tel.: +86-25-83271351 (Q.Y.); +86-13913007140 (X.Z.)
Received: 12 October 2017 / Accepted: 26 October 2017 / Published: 27 October 2017

Abstract

:
DDO-6101, a natural-product-like caged xanthone discovered previously in our laboratory based on the pharmacophoric scaffold of the Garcinia natural product gambogic acid (GA), shows potent cytotoxicity in vitro, but poor efficacy in vivo due to its poor druglike properties. In order to improve the druglike properties and in vivo antitumor potency, a novel series of ten triazole-bearing caged xanthone derivatives of DDO-6101 has been efficiently synthesized by ‘click chemistry’ and evaluated for their in vitro antitumor activity and druglike properties. Most of the target compounds have sustained cytotoxicity against A549, HepG2, HCT116, and U2OS cancer cells and possess improved aqueous solubility, as well as permeability. Notably, these caged xanthones are also active towards taxol-resistant or cisplatin-resistant A549 cancer cells. Taking both the in vitro activities and druglike properties into consideration, compound 8g has been advanced into in vivo efficacy experiments. The results reveal that 8g (named as DDO-6318), both by intravenous or per os administration, are much more potent than the lead DDO-6101 in A549-transplanted mice models and it could be a promising antitumor candidate for further evaluation.
Keywords:
caged xanthones; click chemistry; druglike; antitumor; natural-product-like

1. Introduction

Natural products (NPs) and natural-product-like compounds inspired by NP structures have played an important role in new drug discovery [1,2]. Notably, in the case of anticancer drugs, more than 70% of the anticancer drugs approved worldwide owe their origins to NPs [1]. Gambogic acid (GA) (Figure 1), a naturally-occurring caged xanthone isolated from Garcinia plants, is a promising antitumor agent in clinical study [3,4,5]. Although great efforts has been put into revealing its antitumor mechanisms, the primary direct molecular target of GA is still debatable [6,7,8,9,10,11,12].
Intrigued by the unique structure and therapeutic promise of GA, a large library of its derivatives and simplified caged xanthone analogues has been synthesized and evaluated in our laboratory to explore the structure-activity relationship (SAR) [13,14,15,16], which allows us to understand that the intact BCD ring containing the unique caged scaffold is the minimum pharmacophoric motif essential for its activity. These studies have led to the identification of DDO-6101 (Figure 1), a natural-product-like caged xanthone with a remarkably simple structure that retains the in vitro antitumor activity of GA [14]. Unfortunately, DDO-6101 showed poor efficacy in vivo on the tumor growth inhibition in cancer cell-transplanted mice models [13]. This may be due to its poor druglike properties, such as aqueous solubility and cell membrane permeability. Further medicinal chemistry research on DDO-6101 have revealed that the modifications at the C1 site of the B ring and C15 site in the side chain of the D ring are well-tolerated [17,18], and the introduction of hydrophilic heteroatom-containing groups can improve the druglike properties and enhance the in vivo antitumor potency [13,17,18,19], as shown in the structures of caged xanthone derivatives DDO-6306 and DDO-6337 (Figure 1) [17,18]. The main drawbacks of the two types of compounds lie in the unstable ester linker group, which makes the molecules hardly able to survive in the presence of the ester hydrolases in plasma and the acidic environment of the stomach when administered orally.
The copper-catalyzed 1-3-dipolar cycloaddition reaction that couples alkynes and azides forming a 1,2,3-triazole ring, which is commonly known as ‘click chemistry’ due to its ease of use, has become a powerful approach for the rapid construction of pharmacologically-active compounds [20,21]. The 1,2,3-triazole ring is chemically stable against acidic and basic hydrolysis and relatively resistant to metabolic degradation. Moreover, it participates actively in hydrogen bond formation and is beneficial to solubility in water. Herein we present a click chemistry-based linking strategy to couple hydrophilic groups and caged xanthone pharmacophoric motifs to rapidly derive a new series of triazole-bearing caged xanthones (Figure 1) with improved drug-like properties and oral antitumor activity in vivo.

2. Results and Discussion

2.1. Chemistry

The designed caged xanthane derivatives 8a8j and their synthetic routes are shown in Scheme 1. The starting material 1 was prepared according to our previously-reported procedure [14]. Heating 1 in DMF gave rise to the caged xanthone 3 (DDO-6101) via a Claisen rearrangement and Diels-Alder addition cascade. The hydroxyl group at the C1 position is considered as a potential modification site. Treatment of 3 with 3-bromoprop-1-yne (4) in the presence of potassium carbonate produced the alkyne intermediate 5. Meanwhile, the substitution reaction between 6a6j and sodium azide provided the azide intermediates 7a7j quantitatively, which were directly used for the following reaction without further purification. The click reaction between alkyne 5 and azide 7a7j in the presence of CuSO4·5H2O and sodium ascorbate led to the target triazole-bearing caged xanthone derivatives 8a8j in excellent yields. The chemical structures of these derivatives were characterized using 1H-nuclear magnetic resonance (NMR), infrared (IR) spectroscopy, and high-resolution mass spectrometry (HRMS). Representative compounds 8a, 8c, 8e, 8g and 8h were further characterized by 13C-NMR. All of the target compounds yielded acceptable purity (>95%) by high-performance liquid chromatography (HPLC) analysis. 1H-NMR, 13C-NMR, HRMS spectra for the target compounds are shown in supplementary materials 1.

2.2. In Vitro Cytotoxic Effects

The antiproliferative activity of the ten synthesized caged xanthone derivatives, as well as the lead compound DDO-6101 and GA were assessed with the 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay, as previously reported [18], against six human cancer cell lines, including the human lung carcinoma A549 cell line, taxol-resistant A549 cell line (A549/taxol), cisplatin-resistant A549 cell line (A549/cisplatin), the human hepatocellular carcinoma HepG2 cell line, the human colon carcinoma HCT-116 cell line, and the human glioblastoma U251 cell line. The antiproliferative activities, expressed as IC50 values, are summarized in Table 1. DDO-6101 and GA were used as positive controls for the in vitro assay.
As shown in Table 1, in general, most of the designed triazole-bearing caged xanthones 8a8h inhibited potent antiproliferative activities against A549, HepG2, HCT116, and U2OS cells, with IC50 values in the low micromolar range, which are comparable to those of DDO-6101 and natural product GA. Interestingly, it was observed that these compounds showed comparable, or even better, cytotoxic activity against A549/taxol and A549/cisplatin cell lines when compared to A549 cells, as well as three other cancer cell lines. The results indicated that these xanthone derivatives with triazole- and nitrogen-containing side chains at the C1 site function in cancer cells and multidrug-resistant ones, as well.
Different compounds showed different activities against the six cancer cell lines. 8f, 8g, 8h and 8j showed potent cytotoxicity against A549 cells, with growth inhibition IC50 values of 1.07 ± 0.28, 0.31 ± 0.02, 1.03 ± 0.06, and 0.93 ± 0.08 μM, respectively, which were much more active than both the DDO-6101 and GA. Moreover, the taxol-resistant and cisplatin-resistant A549 cell lines were both significantly sensitive to 8g and 8h, with IC50 values ranging from 0.33 to 0.55 μM. The HepG2 cell line was sensitive to 8b and 8c, with IC50 values of 1.36 ± 0.16 and 1.19 ± 0.31 μM, respectively, which were more potent than DDO-6101 and GA, while in the HCT116 cell lines 8g exerted the best cytotoxic activity with an IC50 value of 0.28 ± 0.03 μM. Although many other compounds, such as 8c, 8d, 8h and 8j, possessed low micromolar activities against HCT116 cells, they were less active than DDO-6101. In the case of the U2OS cell line, it was generally less sensitive to this series of compounds as compared to the five other cell lines, with IC50 values ranging from 0.73 to 9.51 μM. However, eight compounds 8a8h showed more potent cytotoxicity than DDO-6101 against U2OS, among which 8h was the most active with an IC50 value of 0.73 ± 0.07 μM.
According to the in vitro data in Table 1, it was found that the introduction of the triazole moiety with nitrogen-containing hydrophilic groups, especially the morpholino and 4-methylpiperizin-1-yl groups as in 8g8j, could improve the cytotoxic activity against most of the tested cancer cell lines. Few differences in cytotoxicity were found between compounds with different carbon chain lengths (n = 2 or 3). Among this series of target compounds, 8g showed the most potent inhibitory activities in vitro towards A549, A549/taxol, A549/cisplatin, and HCT116 cells, with IC50 values of 0.31 ± 0.02, 0.42 ± 0.05, 0.33 ± 0.07, and 0.28 ± 0.03, respectively, which was more active in vitro than the lead DDO-6101. It was noteworthy that 8g displayed approximately eight-fold higher activity than DDO-6101 in A549 cells.

2.3. Drug-Like Property Evaluation

In parallel with the in vitro antitumor activity testing, the physicochemical properties of the target caged xanthone derivatives were theoretically predicted and experimentally determined in an effort to identify potential druglike compounds prior to the time-consuming and costly development and optimization of derivatives that may ultimately fail in efficacy experiments in vivo. The partition coefficient (logD) was experimentally determined on a Gemini Profiler instrument (pION, Inc., Woburn, MA, USA) by a potentiometric titration method [13]. The polar surface area (PSA), as well as intestinal absorption level, were theoretically predicted by Accelrys Discovery Studio 4.0 (BIOVIA, San Diego, CA, USA) using the ADMET protocol [17]. The aqueous solubility were experimentally measured using HPLC at the maximum absorption wavelength of 290 nm based on the results of full-wave scanning [18]. The permeability coefficient (Pe) was determined using a standard parallel artificial membrane permeability assay (PAMPA) on a PAMPA Explorer instrument (pION) [17]. Ketoprofen and propranolol were used as internal standards for permeability. These data are shown in Table 2 and Figure 2.
Whether a drug can be well-absorbed intestinally after oral administration depends on the intrinsic properties of the molecule. The polar surface area and distribution coefficient are the two main aspects. Analysis of a plot of the logD versus PSA_2D of the caged xanthones 8a8j (Table 2 and Figure 2) showed that all of the compounds fell within the ellipse region of 95% (aborption_level = 0) while GA fell outside the ellipse region of 95% (aborption_level = 1). These results suggested that the xanthone derivatives are likely to have favorable intestinal absorption.
Meanwhile, compounds 8a8j were set to determine experimentally their aqueous solubility and permeability, which are the two important properties reflecting the ability of molecules to penetrate to the therapeutic target across the cell membrane and watery environment in vivo. DDO-6101 and GA were used as reference compounds for comparison. As shown in Table 2, all the xanthone derivatives displayed aqueous solubility that was significantly improved over that of DDO-6101 and GA. This may be attributed to the introduction of 1,2,3-triazole and hydrophilic groups, as well as the disruption of intermolecular hydrogen bonds between C1-OH and the adjacent carbonyl group in the structure of DDO-6101. Surprisingly, compounds with a chain of three carbon atom (e.g., 8b, 8d, 8f, 8h, 8j) showed slightly more solubility than the corresponding ones with a chain of two carbon atoms (e.g., 8a, 8c, 8e, 8g, 8i). Moreover, it was found that compounds 8g8j were more soluble than that of 8a8f. The results suggested that the introduction of hydrophilic groups, such as morpholino and 4-methylpiperazin-1-yl groups, resulted in a significant increase in solubility.
In addition, the introduction of triazole moiety and hydrophilic groups to the C1 site of DDO-6101 also led to an improvement in permeability. As shown in Figure 3 (for the detailed data see Supplementary Materials Table S1), most of the xanthone derivatives displayed improved permeability than DDO-6101 (Pe = 18.0–23.6 × 10–6 cm/s) and GA (Pe = 0.9–2.3 × 10–6 cm/s). The permeability decreased as the aqueous environment turned to be more acidic. Among the compounds tested, 8e and 8g showed preferable permeability under different pH from 5.0 to 7.4 with Pe values of 47.0–78.2 × 10–6 cm/s and 51.3–74.4 × 10–6 cm/s, respectively. This suggested that these xanthone derivatives are likely to have favorable properties of absorption and distribution in vivo.

2.4. In Vivo Antitumor Evaluations of Compound 8h

In the light of the in vitro antitumor activity and druglike properties, such as aqueous solubility and permeability, we selected compound 8h to determine its in vivo efficacy. The lung cancer A549 transplanted mouse model was employed. DDO-6101 and antitumor drug 5-fluorouracil (5-FU) were also tested for comparison. As shown in Table 3, the tumor growth inhibitory rates of DDO-6101 and 5-FU were 34.56% and 64.71%, respectively, at 20 mg/kg twice daily doses, over a period of two weeks. 8g displayed significant inhibitory effect on the growth of inoculated A549 in mice in a dose-dependent manner, with 30.88%, 52.21% and 71.32% inhibition in tumor growth, at 5, 10 and 20 mg/kg twice daily doses, respectively. No vascular irritation or weight loss was observed in any of these in vivo tests. Compared with DDO-6101, the triazole-bearing derivative 8g was much more potent in vivo on the inhibition of the growth of inoculated A549 in mice. This may be attributed to the increased in vitro cytotoxicity and improved druglike properties, such as aqueous solubility and cell membrane permeability of 8g compared to DDO-6101.
Subsequently, 8g was set to determine further its in vivo efficacy with per os administration on the growth of inoculated A549 in mice using DDO-6101 as a comparison control. As shown in Table 4, 8g displayed much more inhibitory potency on the growth of inoculated A549 in mice than DDO-6101. According to the data, 66.43% inhibition in tumor growth for 8g was observed at 50 mg/kg daily oral dose, over a period of one week, while the inhibitory rate of DDO-6101 was 21.43%. Thus, compound 8g was identified as a new and orally-active natural-product-like caged xanthone and also a promising antitumor agent for further clinical development.

3. Materials and Methods

3.1. General Information

All reagents were purchased from commercial sources and, unless otherwise noted, were used without further purification. Organic solutions were concentrated in a rotary evaporator (Büchi Rotavapor, Büchi, Uster, Switzerland) below 45 °C (70 °C for DMF) under reduced pressure. Reactions were monitored by thin-layer chromatography (TLC, Qingdao Haiyang Chemical Co., Ltd., Qingdao, China) on 0.25 mm silica gel plates (GF254) and visualized under UV light. Silica gel (60 Å, 300–400 mesh) was used for flash column chromatography. Melting points were determined with a Melt-Temp II apparatus (Barnstead/Thermolyne Corp., Dubuque, IA, USA) and were reported without correction. IR spectra were recorded on a Nicolet iS10 Avatar FT-IR spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) using KBr film. The 1H-NMR and 13C-NMR spectra were measured on a Bruker AV-300 instrument (Bruker, Billerica, MA, USA) using deuterated solvents with tetramethylsilane (TMS) as an internal standard. High-resolution mass spectra (HRMS) were recorded on a Water Q-Tof micro mass spectrometer (Waters, Milford, MA, USA). The purity is verified by the HPLC study performed on an Amethyst C18-P (4.6 × 150 mm, 5 μm, Merck, Darmstadt, Germany) column using a mixture of solvent methanol or acetonitrile/water at the flow rate of 2 mL/min and peak detection at 240 nm under UV.
Cancer cell lines were obtained from Cell Bank of Shanghai, Chinese Academy of Sciences. Cells were cultured in 90% RPMI 1640 medium (GIBCO, Invitrogen Corporation, New York, NY, USA) supplemented with 10% fetal bovine serum (Sijiqing Biotechnology Co., Hangzhou, China), 100 U/mL benzyl penicillin, and 100 μg/mL streptomycin in a humidified environment with 5% CO2 at 37 °C. All the tested compounds were dissolved in DMSO at a concentration of 0.01 mol/L and stored at −4 °C.

3.2. Synthesis of Compound 3

Compound 1. (5.0 g, 13.16 mmol) was dissolved in DMF (20 mL) and the reaction solution was stirred at 120 °C under nitrogen for 2 h. The reaction mixture was then cooled to room temperature and concentrated. The residue was purified by column chromatography (16:1 petroleum ether/ethyl acetate) to afford compound 3 (DDO-6101) (3.925 g, 78.5%) as a yellow solid. m.p.: 130–132 °C. 1H-NMR (300 MHz, CDCl3): 0.95 (s, 3H), 1.18–1.25 (m, 4H), 1.30 (s, 3H), 1.61 (s, 3H), 2.26 (dd, J1 = 13.5 Hz, J2 = 4.5 Hz, 1H), 2.37 (d, J = 9.6 Hz, 1H), 2.54 (d, J = 7.8 Hz, 2H), 3.44 (dd, J1 = 6.9 Hz, J2 = 4.5 Hz, 1H), 4.32–4.36 (m, 1H), 6.43 (dd, J1 = 8.1 Hz, J2 = 0.9 Hz, 1H), 6.45 (dd, J1 = 8.1 Hz, J2 = 0.9 Hz, 1H), 7.32 (t, J = 8.1 Hz, 1H), 7.41 (d, J = 9.6 Hz, 1H), 12.00 (s, 1H); HRMS (ESI): calcd. for C23H24O5 [M + H]+ 381.1697, found 381.1715; HPLC 99.5% (80% acetonitrile in water, tR: = 4.7 min).

3.3. Synthesis of Compound 5

To a stirring solution of compound 3 (3.8 g, 0.1 mol) in DMF (50 mL) was added K2CO3 (15.18 g, 0.11 mol) and 3-bromoprop-1-yne (12.83 mL, 0.11 mol). The reaction mixture was stirred at room temperature overnight. A saturated ammonium chloride aqueous (200 mL) was added. The mixture was extracted by ethyl acetate (100 mL × 3). The ethyl acetate layer was partitioned, combined, washed with brine (50 mL × 3), dried over magnesium sulfate, and concentrated. The residue was purified by column chromatography (5:1 petroleum ether/ethyl acetate) to afford compound 5 (3.625 g, 86.7%) as a white solid. m.p. 151–153 °C; 1H-NMR (300 MHz, CDCl3): δ 1.11 (s, 3H), 1.27–1.31 (m, 4H), 1.42 (s, 3H), 1.72 (s, 3H), 2.33 (dd, J1 = 8.8 Hz, J2 = 4.5 Hz, 1H), 2.42 (d, J = 9.6 Hz, 1H), 2.54 (t, J = 2.3 Hz,1H), 2.63 (d, J = 7.7 Hz, 2H), 3.44–3.48 (m, 1H), 4.51 (t, J = 7.8 Hz, 1H), 4.86 (d, J = 2.3 Hz, 2H), 6.73–6.76 (m, 2H), 7.32 (d, J = 6.9 Hz, 1H), 7.41–7.47 (t, J = 8.4 Hz, 1H); IR (KBr, cm−1): 3253, 2993, 1738, 1672, 1613, 1600, 1573, 1467, 1109, 1061, 848, 799, 697; HRMS (ESI): calcd. for C26H27O5 [M + H]+ 419.1853, found 419.1864. HPLC purity: 97.7% (elution: 70% methanol in water, tR: 12.4 min).

3.4. Synthesis of Compounds 8a8j

To a solution of corresponding reactant 6a6j (4 mmol) in water (30 mL) was added K2CO3 (1.656 g, 12 mmol) and sodium azide (0.390 g, 6 mmol). The reaction mixture was stirred at 75 °C for 10 h, then cooled to room temperature and extracted by dichloromethane (15 mL × 3). The organic layer was partitioned, combined, washed with bine (15 mL), dried over magnesium sulfate and concentrated to afford crude product 7a7j. The crude residue 7a7j was then dissolved in a mixture solvent of t-BuOH/H2O (v:v = 1:1, 15 mL). Compound 5 (0.836 g, 2 mmol), sodium ascorbate (119 mg, 0.6 mmol), and CuSO4·5H2O (5 mg, 0.02 mmol) were added into the mixture. The reaction mixture was stirring at room temperature under N2 protection overnight. Then water (200 mL) was added and the mixture was extracted by dichloromethane (15 mL × 3). The organic layer was partitioned, combined, washed with bine (15 mL), dried over magnesium sulfate and concentrated. The residue was purified by column chromatography (20:1 dichloromethane/methanol) to afford the products 8a8j.
Compound 8a. Yield 91.5%. Slight yellow solid. m.p. 156–158 °C; 1H-NMR (300 MHz, CDCl3): δ 1.01 (s, 3H), 1.18–1.24 (m, 4H), 1.31 (s, 3H), 1.63 (s, 3H), 2.22–2.27 (m, 7H), 2.33 (d, J = 9.5 Hz, 1H), 2.54 (d, J = 7.8 Hz, 2H), 2.73 (t, J = 6.5 Hz, 2H), 4.37–4.46 (m, 1H), 4.31–4.42 (m, 3H), 5.26 (s, 2H), 6.61–6.69 (m, 2H), 7.20–7.23 (m, 1H), 7.35 (t, J = 8.3 Hz, 1H), 7.95 (s, 1H); 13C-NMR (75 MHz, CDCl3): δ 16.48, 25.03, 25.13, 28.48, 29.76, 30.38, 44.89, 46.21, 47.84, 47.99, 58.22, 63.35, 82.85, 83.91, 89.41, 105.73, 110.15, 110.55, 118.13, 123.04, 131.86, 134.15, 135.71, 136.02, 143.59, 159.09, 160.66, 175.09, 202.64; IR (KBr, cm−1): 3197, 3109, 2996, 1737, 1667, 1603, 1474, 1460, 1401, 1258, 1111, 1066, 846, 791, 669; HRMS (ESI): calcd. for C30H37N4O5 [M + H]+ 533.2758, found 533.2774; HPLC purity: 100% (elution: 75% methanol in water, tR: 4.63 min).
Compound 8b. Yeild 92.4%. Slight yellow solid. m.p. 133–136 °C; 1H-NMR (300 MHz, CDCl3): δ 1.08 (s, 3H, C14-H), 1.25–1.29 (m, 4H), 1.37 (s, 3H), 1.69 (s, 3H, C20-H), 2.15–2.25 (m, 2H), 2.28–2.41 (m, 8H), 2.48–2.53 (m, 2H), 2.61 (d, J = 7.7 Hz, 2H), 3.43–3.47 (m, 1H), 4.45–4.49 (m, 3H), 5.31 (s, 2H), 6.71 (t, J = 7.8 Hz, 2H), 7.26–7.29 (m, 1H), 7.43 (t, J = 8.3 Hz, 1H), 7.98 (s, 1H); IR (KBr, cm−1): 3196, 3106, 2996, 1737, 1669, 1603, 1475, 1401, 1258, 1111, 1066, 846, 791, 669; HRMS (ESI): calcd. for C31H39N4O5 [M + H]+ 547.2915, found 547.2916; HPLC purity: 100% (elution: 75% methanol in water, tR: 4.47 min).
Compound 8c. Yeild 90.2%. Slight yellow solid. m.p. 168–170 °C; 1H-NMR (300 MHz, CDCl3): δ 1.08 (s, 3H), 1.25–1.29 (m, 4H, C15-H), 1.37 (s, 3H), 1.70 (s, 3H), 1.78–1.81 (m, 4H), 2.33 (dd, J1 = 8.8 Hz, J2 = 4.5 Hz, 1H), 2.42 (d, J = 9.6 Hz, 1H), 2.60–2.62 (m, 6H), 3.04 (t, J = 6.7 Hz, 2H), 3.44–3.47 (m, 1H), 4.49–4.56 (m, 3H), 5.33 (s, 2H), 6.68–6.76 (m, 2H), 7.27–7.29 (m, 1H), 7.42 (t, J = 8.4 Hz, 1H), 8.05 (s, 1H); 13C-NMR (75 MHz, CDCl3): δ 16.49, 23.02, 25.04, 25.13, 28.48, 28.50, 29.77, 46.22, 48.00, 48.66, 53.49, 54.77, 63.31, 82.85, 83.92, 89.45, 105.70, 110.15, 110.57, 118.12, 123.19, 131.89, 134.17, 135.69, 136.01, 143.65, 159.06, 160.67, 175.07, 202.67; IR (KBr, cm−1): 3196, 3110, 2996, 1737, 1668, 1603, 1474, 1458, 1400, 1258, 1110, 1066, 847, 791, 669; HRMS (ESI): calcd. for C32H39N4O5 [M + H]+ 559.2915, found 559.292; HPLC purity: 95.1% (elution: 75% methanol in water, tR: 4.45 min).
Compound 8d. Yeild 96.4%. Slight yellow solid. m.p. 144–146 °C; 1H-NMR (300 MHz, CDCl3): δ 1.10 (s, 3H), 1.26–1.33 (m, 4H), 1.39 (s, 3H), 1.72 (s, 3H), 1.83 (m, 4H), 2.14–2.23 (m, 2H), 2.33 (dd, J1 = 9.2 Hz, J2 = 4.3 Hz, 1H), 2.42 (d, J = 9.6 Hz, 1H), 2.53–2.64 (m, 8H), 3.45–3.49 (m, 1H), 4.47–4.54 (m, 3H), 5.34 (s, 2H), 6.73 (t, J2 = 8.7 Hz, 2H), 7.29–7.31 (m, 1H), 7.44 (t, J = 8.4 Hz, 1H), 7.98 (s, 1H); IR (KBr, cm−1): 3196, 3110, 2996, 1736, 1670, 1604, 1474, 1458, 1401, 1263, 1110, 1066, 847, 791, 669; HRMS (ESI): calcd. for C33H41N4O5 [M + H]+ 573.3071, found 573.3080; HPLC purity: 98.8% (elution: 75% methanol in water, tR: 4.46 min).
Compound 8e. Yeild 92.8%. Slight yellow solid. m.p. 173–176 °C; 1H-NMR (300 MHz, CDCl3): δ 1.07 (s, 3H, C14-H), 1.28 (m, 4H), 1.36 (s, 3H), 1.42–1.44 (m, 2H), 1.56–1.60 (m, 4H), 1.69 (s, 3H), 2.31 (dd, J1 = 9.0 Hz, J2 = 4.5 Hz, 1H), 2.39 (d, J = 9.6 Hz, 1H), 2.45 (m, 4H), 2.60 (d, J = 7.7 Hz, 2H), 2.80 (t, J = 6.5 Hz, 2H), 3.42–3.46 (m, 1H), 4.46–4.50 (m, 3H), 5.32 (s, 2H), 6.67–6.75 (m, 2H), 7.27 (d, J = 6.8 Hz, 1H), 7.41 (t, J = 8.3 Hz, 1H), 8.07 (s, 1H); 13C-NMR (75 MHz, CDCl3): δ 16.45, 23.62, 25.04, 25.14, 25.28, 28.48, 28.50, 29.77, 46.21, 47.31, 47.99, 54.00, 57.66, 63.37, 82.85, 83.93, 89.45, 105.70, 110.16, 110.54, 118.12, 123.21, 131.80, 134.18, 135.67, 136.05, 143.56, 159.08, 160.65, 175.00, 202.69; IR (KBr, cm−1): 3200, 3111, 2996, 1738, 1668, 1603, 1476, 1458, 1400, 1259, 1116, 1064, 791, 669; HRMS (ESI): calcd. for C33H41N4O5 [M + H]+ 573.3071, found 573.3084; HPLC purity: 100% (elution: 75% methanol in water, tR: 4.69 min).
Compound 8f. Yeild 93.6%. Slight yellow solid. m.p. 125–128 °C; 1H-NMR (300 MHz, CDCl3): δ 1.07 (s, 3H), 1.23–1.30 (m, 4H), 1.36 (s, 3H, C19-H), 1.42–1.44 (m, 2H), 1.57–1.61 (m, 4H), 1.68 (s, 3H), 2.10–2.15 (m, 2H), 2.29–2.40 (m, 8H), 2.60 (d, J = 7.7 Hz, 2H), 3.42–3.46 (m, 1H), 4.42–4.49 (m, 3H), 5.31 (s, 2H), 6.67–6.73 (m, 2H), 7.26–7.28 (m, 1H), 7.41 (t, J = 8.3 Hz, 1H), 7.93 (s, 1H); IR (KBr, cm−1): 3200, 3111, 2996, 1739, 1668, 1605, 1478, 1462, 1401, 1267, 1116, 1064, 878, 791, 669; HRMS (ESI): calcd. for C34H43N4O5 [M + H]+ 587.3228, found 587.3228; HPLC purity: 98.5% (elution: 75% methanol in water, tR: 4.45 min).
Compound 8g. Yeild 96.4%. Slight yellow solid. m.p. 175–178 °C; 1H-NMR (300 MHz, CDCl3): δ 1.09 (s, 3H), 1.26–1.32 (m, 4H), 1.37 (s, 3H, C19-H), 1.70 (s, 3H), 2.32 (dd, J1 = 8.9 Hz, J2 = 4.5 Hz, 1H), 2.40 (d, J = 9.5 Hz, 1H), 2.51 (t, 4H, J = 4.5 Hz), 3.72 (d, J = 7.6 Hz, 2H), 2.85 (t, J = 6.2 Hz, 2H), 3.44–3.48 (m, 1H), 3.72 (t, J = 4.7 Hz, 4H), 4.48–4.52 (m, 3H), 5.33 (s, 2H), 6.72 (t, J = 7.7 Hz, 2H), 7.27–7.29 (m, 1H), 7.43 (t, J = 8.3 Hz, 1H), 8.14 (s, 1H); 13C-NMR (75 MHz, CDCl3): δ 16.47, 25.03, 25.12, 28.48, 29.77, 30.37, 46.22, 46.93, 48.02, 52.97, 57.29, 63.44, 66.27, 82.85, 83.90, 89.49, 105.50, 110.10, 110.59, 118.15, 123.16, 131.90, 134.11, 135.71, 136.02, 143.79, 159.05, 160.70, 175.03, 202.61; IR (KBr, cm−1): 3200, 3111, 2993, 1737, 1668, 1603, 1474, 1457, 1401, 1258, 1109, 1066, 872, 846, 791, 689; HRMS (ESI): calcd. for C32H39N4O6 [M + H]+ 575.2864, found 575.2892; HPLC purity: 95.8% (elution: 75% methanol in water, tR: 8.56 min).
Compound 8h. Yeild 91.8%. Slight yellow solid. m.p. 143–145 °C; 1H-NMR (300 MHz, CDCl3): δ 1.09 (s, 3H), 1.26–1.30 (m, 4H), 1.38 (s, 3H), 1.71 (s, 3H), 2.10–2.17 (m, 2H), 2.30–2.44 (m, 8H), 2.60 (d, J = 7.7 Hz, 1H), 3.45–3.48 (m, 1H), 3.72 (t, J = 4.7 Hz, 4H), 4.46–4.53 (m, 3H), 5.33 (s, 2H), 6.72 (t, J = 7.6 Hz, 2H), 7.27–7.30 (m, 1H), 7.44 (t, J = 8.4 Hz, 1H), 7.97 (s, 1H); 13C-NMR (75 MHz, CDCl3): δ 16.48, 25.06, 25.12, 26.47, 28.49, 28.51, 29.77, 46.20, 47.65, 47.98, 53.00, 54.43, 63.41, 66.41, 82.87, 83.89, 89.44, 105.51, 110.05, 110.62, 118.15, 122.82, 131.88, 134.14, 135.77, 135.99, 143.73, 159.00, 160.68, 175.09, 202.62; IR (KBr, cm−1): 3201, 3112, 2963, 1737, 1668, 1604, 1477, 1457, 1400, 1267, 1115, 1064, 878, 844, 793, 696; HRMS (ESI): calcd. for C33H41N4O6 [M + H]+ 589.3021, found 589.3037; HPLC purity: 95.7% (elution: 75% methanol in water, tR: 4.12 min).
Compound 8i. Yeild 90.6%. Slight yellow solid. m.p. 171–175 °C; 1H-NMR (300 MHz, CDCl3): δ 1.07 (s, 3H), 1.25–1.30 (m, 4H), 1.37 (s, 3H), 1.69 (s, 3H), 2.30–2.62 (m, 15H), 2.85 (t, J = 6.4 Hz, 2H)), 3.43–3.47 (m, 1H), 4.46–4.50 (m, 3H), 5.32 (s, 2H), 6.68–6.75 (m, 2H), 7.26–7.29 (m, 1H), 7.42 (t, J = 8.4 Hz, 1H), 8.05 (s, 1H); IR (KBr, cm−1): 3210, 3113, 2967, 1738, 1672, 1602, 1475, 1457, 1400, 1109, 1064, 791, 685; HRMS (ESI): calcd. for C33H42N5O5 [M + H]+ 588.3180 found 588.3189; HPLC purity: 95.9% (elution: 70% methanol in water, tR: 3.13 min).
Compound 8j. Yeild 91.2%. Slight yellow solid. m.p. 126–129 °C; 1H-NMR (300 MHz, CDCl3): δ 1.10 (s, 3H), 1.24–1.33 (m, 4H), 1.39 (s, 3H), 1.71 (s, 3H), 2.05–2.15 (m, 2H), 2.31–2.48 (m, 15H), 2.63 (d, J = 7.5 Hz, 1H), 3.45–3.49 (m, 1H), 4.44–4.51 (m, 3H), 5.34 (s, 2H), 6.70–6.76 (m, 2H), 7.28–7.31 (m, 1H), 7.44 (t, J = 8.3 Hz, 1H), 7.96 (s, 1H); IR (KBr, cm−1): 3103, 2973, 1741, 1683, 1616, 1605, 1478, 1462, 1399, 1262, 1110, 1013, 878, 792, 695; HRMS (ESI): calcd. for C34H44N5O5 [M + H]+ 602.3337 found 602.3346; HPLC purity: 97.5% (elution: 75% methanol in water, tR: 4.39 min).

3.5. Cell Proliferation Assay

The inhibition of tumour cell growth was measured by a modified tetrazolium (MTT) salt assay. Cells were cultured in a 96-well plate and treated with culture medium alone or different concentrations of the compounds. The cells were incubated for 72 h, and then the MTT assay reagent was added. After a 4 h incubation, the formazan product was quantitated at 570 nm. The IC50 values (the concentrations that gave rise to 50% inhibition of cell viability) were calculated using GraphPad Prism 6 using a variable slope (four parameters).

3.6. Determination of the Druglike Properties

A HPLC system with an ultraviolet (UV) detector was used to detect the solubility of the compounds. The optimal wavelength was 290 nm. Ethanol/water (85:15) was an efficient eluent at a flow rate of 0.5 mL/min. The compounds were stirred in deionized water overnight to maximize the retention of the compounds in solution. Then, the solutions were filtered and the supernatant was used as a fluid sample for HPLC detection. The permeability (Pe) of the compounds was tested with the help of a standard PAMPA (pION). PAMPA was performed on a PAMPA Explorer instrument (pION) with the PAMPA Explorer command software (Version 3.7.4.1). The compounds were diluted to 10 mM with the system solution buffer (pH 7.4). Then, 150 μL of the diluted compound solution was transferred to a UV plate, and the UV spectrum was collected and used as a reference. Then, paint the membrane with 5 μL of gastrointestinal tract (GIT) lipid. The acceptor chamber was filled with 200 μL of acceptor solution buffer, and the donor chamber was filled with 200 μL of diluted compound solution. The PAMPA sandwich was assembled and left at 25 °C for 4 h. The UV spectra (240–500 nm) from the donor and the acceptor were collected. The permeability coefficient was calculated with the PAMPA Explorer Command software (Version 3.7.4.1) based on the area under the curve (AUC) of the reference plate, the donor plate, and the acceptor plate. The permeability coefficient of the compound was tested for four times, and the data are shown as the average values. Ketoprofen (1.8 × 10−6 cm/s) and propranolol (127.5 × 10−6 cm/s) were used as the standards in this assay.

3.7. In Vivo Tumor Growth Inhibition Assay

Kunming mice with body weights of 18–22 g were transplanted with lung cancer A549 cells according to protocols of transplant tumor research, as previously reported [22]. Twenty-four hours after tumor transplantation, animals were weighed and randomly divided into five groups. All test drugs were given through injections 24 h after tumor transplantation. The treated groups were intravenously injected or administered per os different doses of test compounds, respectively. The negative control group received 0.9% normal saline. Treatments were conducted at a frequency of one dose per two days for the intravenous group or one dose per day for the per os group for two or one week, respectively. All animals were sacrificed 24 h after the final treatment. All data are presented as mean ± SD and the statistical significance was evaluated by t-test.

4. Conclusions

In summary, a click chemistry-based optimization of the C1-OH site of the lead compound DDO-6101, utilizing a strategy that concerned both the in vitro activity and druglike property, successfully led to the discovery of a novel series of natural-product-like triazole-bearing caged xanthones with improved druglike properties as orally-active antitumor agents in vivo, represented by compound 8g. It showed potent inhibitory activities in vitro towards A549, A549/taxol, A549/cisplatin, and HCT116 cells, with IC50 values of 0.31 ± 0.02, 0.42 ± 0.05, 0.33 ± 0.07, and 0.28 ± 0.03, respectively, which was more active than the lead DDO-6101. Notably, 8g displayed 66.43% growth inhibition in the lung cancer cell (A549)-transplanted mice with per os administration. Thus, 8g (named as DDO-6318) was identified as a new and orally-active natural-product-like caged xanthone, and also a promising antitumor agent for further clinical development.

Supplementary Materials

Supplementary Materials are available online. 1: 1H-NMR, 13C-NMR, HRMS spectra for target compounds; Table S1: Data for Figure 3.

Acknowledgments

We are thankful for the financial support of the National Natural Science Foundation of China (No. 81603025, 81773571), the Natural Science Foundation of Jiangsu Province (BK20170088), the ‘Qing Lan’ Project of Jiangsu Province, the National Major Science and Technology Project of China (2015ZX09101032, 2017ZX09302003, 2017ZX09101004-003-006), the Fundamental Research Funds for the Central Universities (2632017ZD03), and the Priority Academic Program Development of Jiangsu Higher Education Institutions (PAPD).

Author Contributions

Z.X. and Y.Q. conceived and designed the experiments; L.X., W.Y. and W.Y. performed the experiments and analyzed the data; and L.X. and Z.X. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Newman, D.J.; Cragg, G.M. Natural product as sources of new drugs over the 30 years from 1981 to 2014. J. Nat. Prod. 2016, 79, 629–661. [Google Scholar] [CrossRef] [PubMed]
  2. Butler, M.S. The role of natural product chemistry in drug discovery. J. Nat. Prod. 2004, 67, 2141–2153. [Google Scholar] [CrossRef] [PubMed]
  3. Zhao, L.; Zhen, C.; Wu, Z.; Hu, R.; Zhou, C.; Guo, Q. General pharmacological properties, developmental toxicity, and analgesic activity of gambogic acid, a novel natural anticancer agent. Drug Chem. Toxicol. 2010, 33, 88–96. [Google Scholar] [CrossRef] [PubMed]
  4. Chantarasriwong, O.; Batova, A.; Chavasiri, W.; Theodorakis, E. A Chemistry and biology of the caged Garcinia xanthones. Chem. Eur. J. 2010, 6, 9944–9962. [Google Scholar] [CrossRef] [PubMed]
  5. Han, Q.B.; Xu, H.X. Caged Garcina xanthones: Development since 1937. Curr. Med. Chem. 2009, 16, 3775–3796. [Google Scholar] [CrossRef] [PubMed]
  6. Zhao, L.; Guo, Q.-L.; You, Q.-D.; Wu, Z.-Q.; Gu, H.-Y. Gambogic acid induces apoptosis and regulates expressions of Bax and Bcl-2 protein in human gastric carcinoma MGC-803 cells. Biol. Pharm. Bull. 2004, 27, 998–1003. [Google Scholar] [CrossRef] [PubMed]
  7. Pandey, M.K.; Sung, B.; Ahh, K.S.; Kunnumakkara, A.B.; Chaturvedi, M.M.; Aggarwall, B.B. Gambogic acid, a novel ligand for transferrin receptor, potential TNF-induced apoptosis through modulation of the nuclear factor-κB signaling pathway. Blood 2007, 110, 3517–3525. [Google Scholar] [CrossRef] [PubMed]
  8. Qiang, L.; Yang, Y.; You, Q.-D.; Ma, Y.-J.; Yang, L.; Nie, F.-F.; Gu, H.-Y.; Zhao, L.; Lu, N.; Qi, Q.; et al. Inhibition of glioblastoma growth and angiogenesis by gambogic acid: An in vivro and in vivo study. Biochem. Pharmcol. 2008, 75, 1083–1092. [Google Scholar] [CrossRef] [PubMed]
  9. Li, X.; Liu, S.; Huang, H.; Liu, N.; Zhao, C.; Liao, S.; Yang, C.; Liu, Y.; Zhao, C.; Li, S.; et al. Gambogic acid is a tissue-specific proteasome inhibitor in vitro and in vivo. Cell Rep. 2013, 3, 211–222. [Google Scholar] [CrossRef] [PubMed]
  10. Yim, K.H.; Preince, T.L.; Qu, S.; Bai, F.; Jennings, P.A.; Onuchic, J.N.; Theodorakis, E.A.; Neckers, L. Gambogic acid identifies an isoform-specific druggable pocket in the middle domain of Hsp90β. Proc. Natl. Acad. Sci. USA 2016, 113, 4801–4809. [Google Scholar] [CrossRef] [PubMed]
  11. Zhou, Y.; Li, W.; Zhang, X.; Zhang, H.; Xiao, Y. Global profiling of cellular targets of gambogic acid by quantitative chemical proteomics. Chem. Commun. 2016, 52, 14035–14038. [Google Scholar] [CrossRef] [PubMed]
  12. Zhao, K.; Zhang, S.; Song, X.; Yao, Y.; Zhou, Y.; You, Q.; Lu, N. Gambogic acid suppresses cancer invasion and migration by inhibiting TGFβ1-induced epithelial-to-mesenchymal transition. Oncotarget 2017, 8, 27120–27136. [Google Scholar] [CrossRef] [PubMed]
  13. Zhang, X.; Li, X.; Sun, H.; Wang, X.; Zhao, L.; Gao, Y.; Liu, X.; Zhang, S.; Wang, Y.; Yang, Y.; et al. Garcina xanthones as orally active antitumor agents. J. Med. Chem. 2013, 56, 276–292. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, X.; Lu, N.; Yang, Q.; Gong, D.; Lin, C.; Zhang, S.; Xi, M.; Gao, Y.; Wei, L.; Guo, Q.; et al. Studies on chemical modification and biology of a natural product, gambogic acid (III): Determination of the essential pharmacophore for biological activity. Eur. J. Med. Chem. 2011, 46, 1280–1290. [Google Scholar] [CrossRef] [PubMed]
  15. Zhang, X.; Li, X.; Sun, H.; Jiang, Z.; Tao, L.; Guo, Y.; Guo, Q.; You, Q. Synthesis and evaluation of novel aza-caged Garcina xanthones. Org. Biomol. Chem. 2012, 10, 3288–3299. [Google Scholar] [CrossRef] [PubMed]
  16. Wang, Y.-Y.; Zhang, X.-J.; Yang, Y.-R.; Sun, H.-P.; You, Q.-D. Progress in research of the structural optimization of natural product-like Garcinia caged xanthones. Acta Pharm. Sin. 2014, 49, 293–302. [Google Scholar]
  17. Wu, Y.; Hu, M.; Yang, L.; Li, X.; Bian, J.; Jiang, F.; Sun, H.; You, Q.; Zhang, X. Novel natural-product-like caged xanthones with improved druglike properties and in vivo antitumor potency. Bioorg. Med. Chem. Lett. 2015, 25, 2584–2588. [Google Scholar] [CrossRef] [PubMed]
  18. Xu, X.; Wu, Y.; Hu, M.; Li, X.; Bao, Q.; Bian, J.; You, Q.; Zhang, X. Novel natural product-like caged xanthones bearing a carbamate moiety exhibit antitumor potency and anti-angiogenesis activity in vivo. Sci. Rep. 2016, 35771. [Google Scholar] [CrossRef] [PubMed]
  19. Xu, X.; Wu, Y.; Hu, M.; Li, X.; Gu, C.; You, Q.; Zhang, X. Structure-activity relationship of Garcina xanthones analogues: Potent Hsp90 inhibitors with cytotoxicity and antiangiogenesis actitvity. Bioorg. Med. Chem. 2016, 24, 4626–4635. [Google Scholar] [CrossRef] [PubMed]
  20. Meghani, N.M.; Amin, H.; Lee, B.J. Mechanistic applications of click chemistry for pharmaceutical drug discovery and drug delivery. Drug Discov. Today 2017. [Google Scholar] [CrossRef] [PubMed]
  21. Dheer, D.; Singh, V.; Shankar, R. Medicinal attributes of 1,2,3-triazoles: Current developments. Bioorg. Chem. 2017, 71, 30–54. [Google Scholar] [CrossRef] [PubMed]
  22. Zhang, X.; Bian, J.; Li, X.; Wu, X.; Dong, Y.; You, Q. 2-Substituted 3,7,8-trimethylnaphtho[1,2-b]furan-4,5-diones as specific L-shaped NQO1-mediated redox modulators for the treatment of non-small cell lung cancer. Eur. J. Med. Chem. 2017, 138, 616–629. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Samples of the compounds 8a8j are available from the authors.

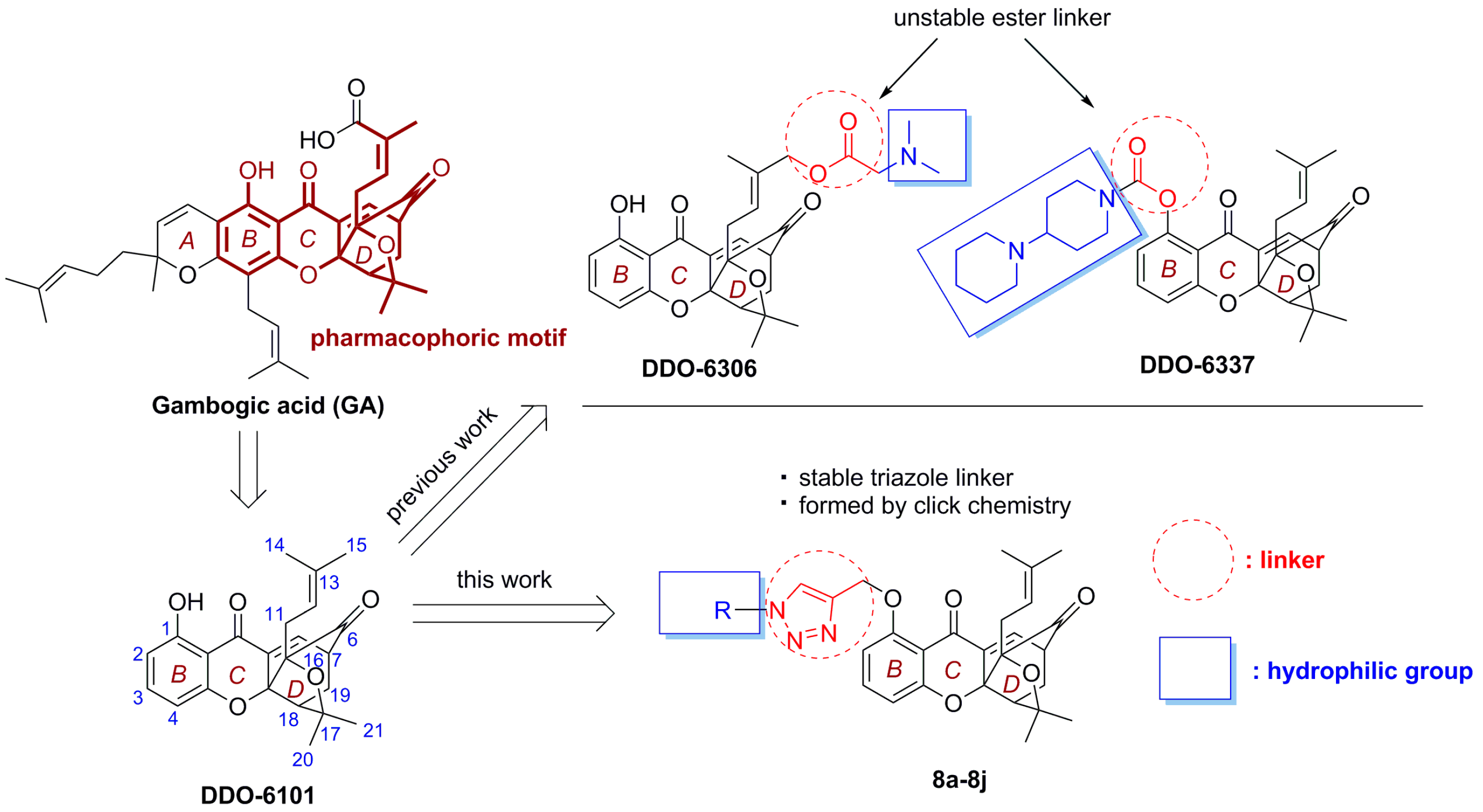

Figure 1. Structures of GA, its simplified caged xanthone analogues and the newly-designed natural product-like compounds.
Figure 1. Structures of GA, its simplified caged xanthone analogues and the newly-designed natural product-like compounds.
Molecules 22 01834 g001

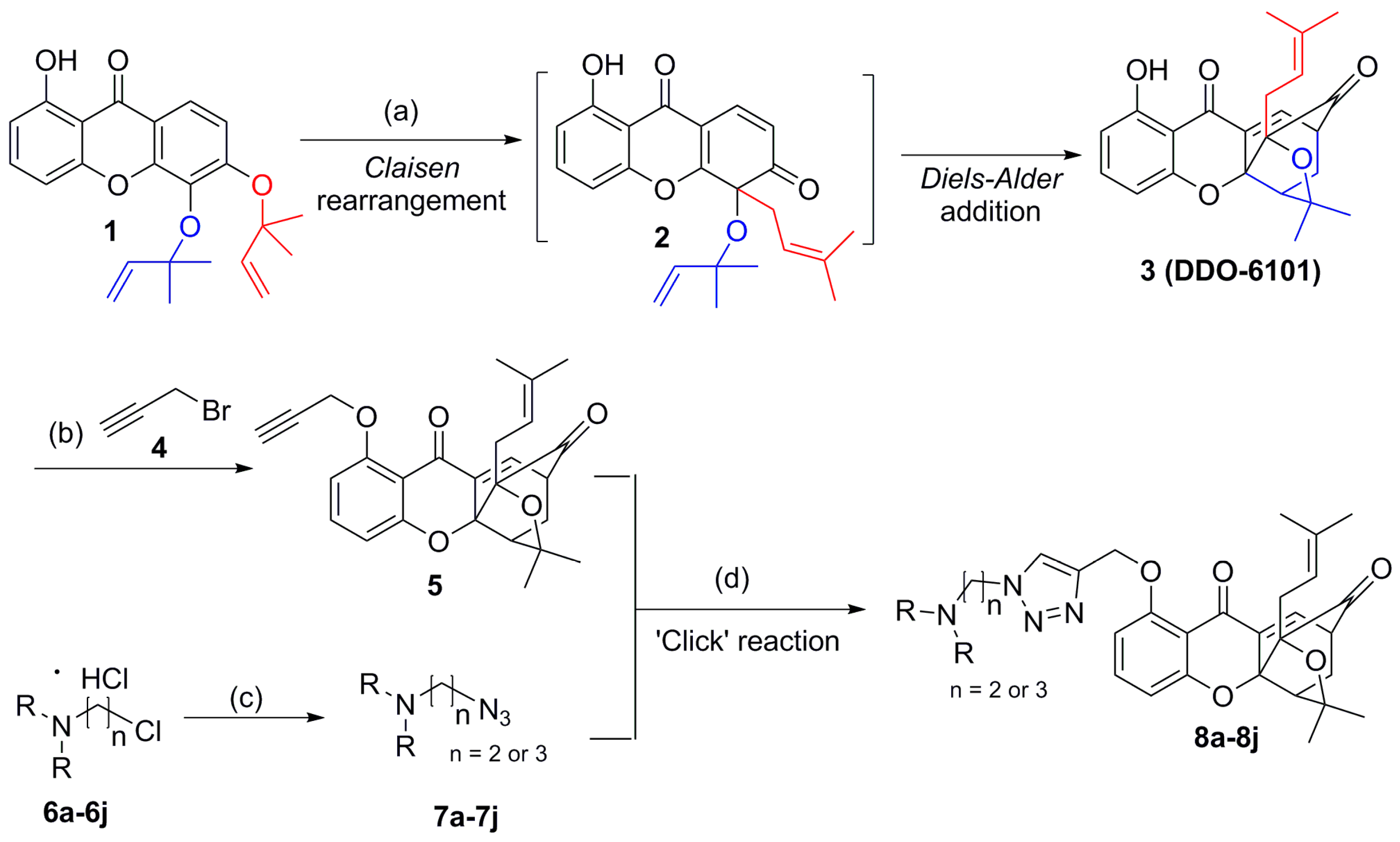

Scheme 1. The synthetic route of designed compounds. Reagents and conditions: (a) DMF, 120 °C, 2 h, 78.5%; (b) 4 (1.1 equiv.), K2CO3 (1.1 equiv.), DMF, r.t., overnight, 86.7%; (c) NaN3 (1.5 equiv.), K2CO3 (3 equiv.), H2O, 75 °C, 15 h; (d) 7a–7j (2 equiv. relative to 5), CuSO4·5H2O (0.01 equiv.), sodium ascorbate (0.3 equiv.), t-BuOH/H2O (v:v = 1:1), r.t., overnight, 90.2–96.4%. For the detailed substitution groups for 8a8j see Table 1.
Scheme 1. The synthetic route of designed compounds. Reagents and conditions: (a) DMF, 120 °C, 2 h, 78.5%; (b) 4 (1.1 equiv.), K2CO3 (1.1 equiv.), DMF, r.t., overnight, 86.7%; (c) NaN3 (1.5 equiv.), K2CO3 (3 equiv.), H2O, 75 °C, 15 h; (d) 7a–7j (2 equiv. relative to 5), CuSO4·5H2O (0.01 equiv.), sodium ascorbate (0.3 equiv.), t-BuOH/H2O (v:v = 1:1), r.t., overnight, 90.2–96.4%. For the detailed substitution groups for 8a8j see Table 1.
Molecules 22 01834 sch001

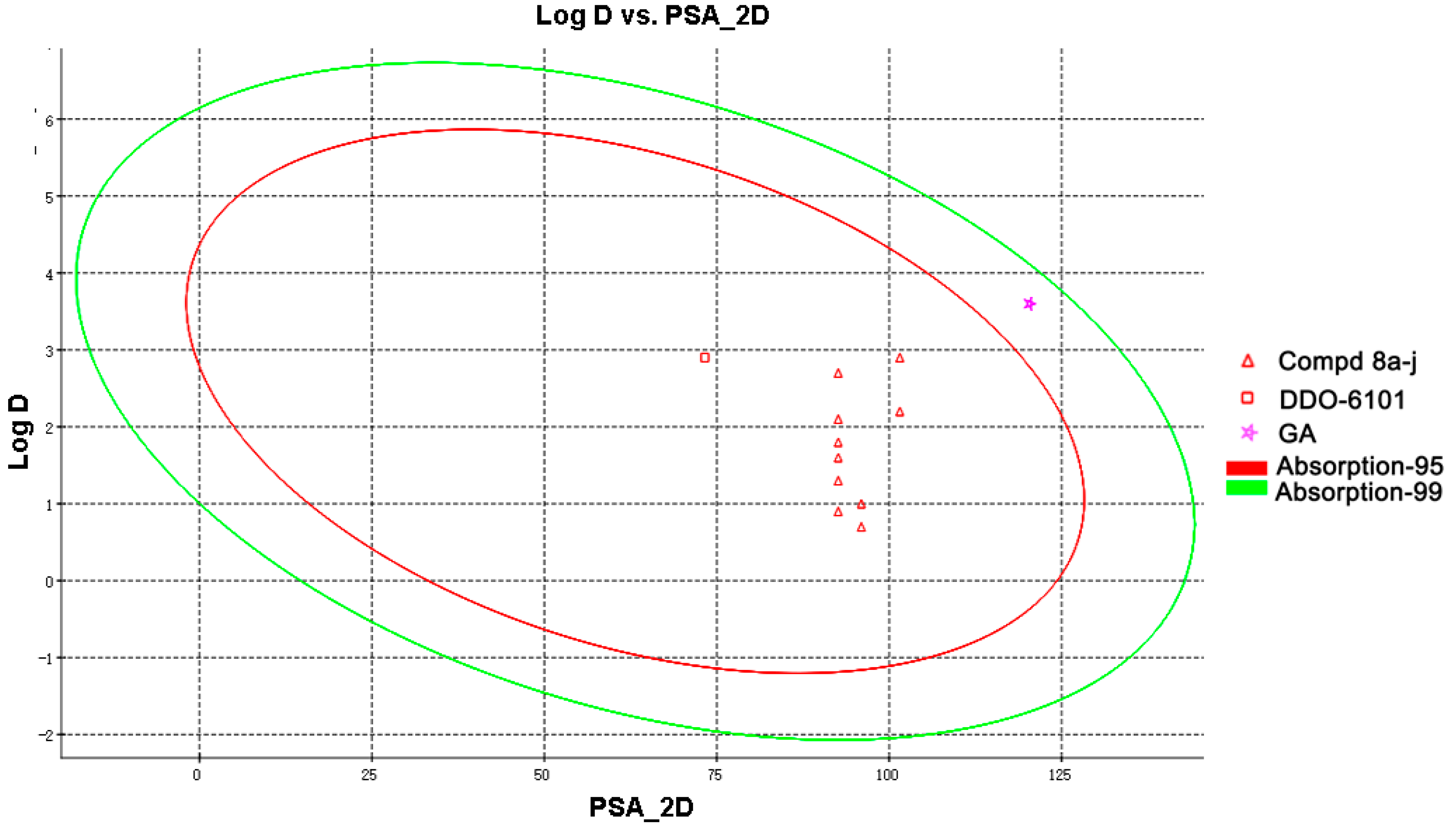

Figure 2. Plot of log P versus PSA_2D.
Figure 2. Plot of log P versus PSA_2D.
Molecules 22 01834 g002
Figure 3. Experimental determination of membrane permeability of compounds 8a8j at different pH values.
Figure 3. Experimental determination of membrane permeability of compounds 8a8j at different pH values.
Molecules 22 01834 g003

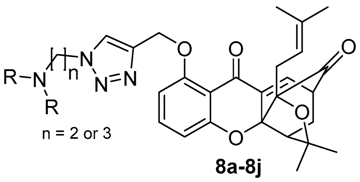

Table 1. In vitro antiproliferative activity of the 1,2,3-triazole-bearing caged xanthone compounds.
Table 1. In vitro antiproliferative activity of the 1,2,3-triazole-bearing caged xanthone compounds.
Molecules 22 01834 i001
Cpd-NRRnIC50 (μM)
A549A549/TaxolA549/CisplatinHepG2HCT116U2OS
8aMolecules 22 01834 i00221.95 ± 0.401.22 ± 0.211.48 ± 0.102.12 ± 0.411.64 ± 0.262.22 ± 0.09
8bMolecules 22 01834 i00232.62 ± 0.201.30 ± 0.081.66 ± 0.111.36 ± 0.162.27 ± 0.052.73 ± 0.05
8cMolecules 22 01834 i00322.58 ± 0.391.29 ± 0.071.34 ± 0.091.19 ± 0.310.98 ± 0.312.01 ± 0.20
8dMolecules 22 01834 i00332.62 ± 0.041.70 ± 0.120.89 ± 0.244.48 ± 0.291.02 ± 0.033.05 ± 0.07
8eMolecules 22 01834 i00422.17 ± 0.122.03 ± 0.111.29 ± 0.484.85 ± 0.392.14 ± 0.184.66 ± 0.03
8fMolecules 22 01834 i00431.07 ± 0.281.29 ± 0.081.32 ± 0.126.30 ± 0.481.39 ± 0.042.07 ± 0.11
8gMolecules 22 01834 i00520.31 ± 0.020.42 ± 0.050.33 ± 0.073.79 ± 0.430.28 ± 0.030.95 ± 0.21
8hMolecules 22 01834 i00531.03 ± 0.060.55 ± 0.080.36 ± 0.043.07 ± 0.130.95 ± 0.120.73 ± 0.07
8iMolecules 22 01834 i00623.33 ± 0.492.12 ± 0.090.78 ± 0.085.35 ± 0.236.15 ± 0.869.51 ± 1.52
8jMolecules 22 01834 i00630.93 ± 0.080.82 ± 0.081.29 ± 0.112.91 ± 0.031.09 ± 0.215.86 ± 0.21
DDO-6101 2.59 ± 0.170.46 ± 0.032.11 ± 0.102.04 ± 0.080.71 ± 0.105.35 ± 0.08
GA 2.02 ± 0.020.29 ± 0.042.50 ± 0.062.08 ± 0.070.34 ± 0.084.67 ± 0.11
Table 2. Druglike properties of the caged xanthone derivatives 8a8j.
Table 2. Druglike properties of the caged xanthone derivatives 8a8j.
CpdPSA_2D (Å2) aLog D 7.4 bAbsorption_Level cS (mM) d
8a92.6142.101.12
8b92.6141.801.54
8c92.6142.201.40
8d92.6141.601.92
8e92.6142.900.56
8f92.6142.710.88
8g101.5441.303.02
8h101.5440.903.70
8i95.9671.003.22
8j95.9670.704.02
DDO-610173.2772.90<0.005
GA120.3233.61<0.005
a Calculated value with Accelrys Discovery Studio 4.0; b Measured value of log D 7.4 on a Gemini Profiler instrument (pION); c The data were predicted with Accelrys Discovery Studio 4.0. Absorption_level (0 = good, 1 = moderate); d The solubility in water.
Table 3. The inhibitory effect of 8g with intravenous administration on the growth of A549 transplanted mice.
Table 3. The inhibitory effect of 8g with intravenous administration on the growth of A549 transplanted mice.
GroupDose (mg/kg)Body Weight (g)Weight of Tumor (g)Inhibitory Rate (%)
Pre-DoseAfter-Dose
control020.95 ± 1.2229.25 ± 3.371.36 ± 0.200.0
8g520.80 ± 1.5328.53 ± 2.810.94 ± 0.24 a30.88
8g1021.40 ± 1.8128.08 ± 2.660.65 ± 0.17 b52.21
8g2020.67 ± 1.3027.73 ± 2.780.40 ± 0.14 b71.32
DDO-61012021.13 ± 1.2227.69 ± 1.900.89 ± 0.18 b34.56
5-FU2020.25 ± 1.2724.43 ± 2.620.48 ± 0.17 b64.71
a p < 0.05; b p < 0.01 vs. control.
Table 4. The inhibitory effect of 8g with per os administration on the growth of A549-transplanted mice.
Table 4. The inhibitory effect of 8g with per os administration on the growth of A549-transplanted mice.
GroupDose (mg/kg)Body Weight (g)Weight of Tumor (g)Inhibitory Rate (%)
Pre-DoseAfter-Dose
control020.86 ± 1.1828.55 ± 2.971.40 ± 0.220.0
8g5020.67 ± 1.2027.73 ± 2.780.47 ± 0.12 a66.43
DDO-61015021.13 ± 1.0226.69 ± 1.901.10 ± 0.25 b21.43
a p < 0.05; b p < 0.01 vs. control.
