Article

Design, Synthesis, and Evaluation of Novel Phenolic Acid/Dipeptide/Borneol Hybrids as Potent Angiotensin Converting Enzyme (ACE) Inhibitors with Anti-hypertension Activity

1
Key Laboratory of Resource Biology and Biotechnology in Western China, Ministry of Education, Northwest University, Xi’an 710069, China
2
Key Laboratory of Synthetic and Natural Functional Molecule Chemistry of the Ministry of Education, College of Chemistry & Materials Science, Northwest University, Xi’an 710127, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this paper and share co-first authorship.
Molecules 2017, 22(11), 1739; https://doi.org/10.3390/molecules22111739
Submission received: 27 September 2017 / Revised: 9 October 2017 / Accepted: 9 October 2017 / Published: 3 November 2017
(This article belongs to the Section Medicinal Chemistry)

Abstract

:
Under the guidance of combination of traditional Chinese medicine chemistry (CTCMC), this study describes the preparation of a phenolic acid/dipeptide/borneol hybrid consisting of phenolic acid and a bornyl moiety connected to the dipeptide N-terminal and C-terminal respectively. It also evaluates their angiotensin converting enzyme (ACE) inhibitory and synergistic antihypertensive activities. Briefly, a series of novel phenolic acid/dipeptide/borneol hybrids were prepared and investigated for their ability to inhibit ACE. The influence of the phenolic acid and bornyl moiety on subsite selectivity is also demonstrated. Among all the new compounds, two compounds—7a and 7g—reveal good inhibition potency in in vitro ACE-inhibitory tests. Interestingly, favorable binding results in molecular docking studies also supported the in vitro results. Additionally, the bioassay showed that oral administration of the two compounds displayed high and long-lasting antihypertensive activity both in acute antihypertensive tests and in therapeutic antihypertensive tests by non-invasive blood pressure measurements in spontaneously hypertensive rats.

Graphical Abstract

1. Introduction

Hypertension is a metabolic cardiovascular syndrome that affects nearly one billion people around the world [1,2]. Clinically, it is the major risk factor for various heart diseases, such as arteriosclerosis, coronary heart disease, stroke, peripheral arterial disease, and heart failure [3,4]. Nowadays, the angiotensin converting enzyme (ACE) inhibitors (e.g., Capoten (captopril), Vasotec (enalapril), Prinivil, or Zestril (lisinopril), etc.) have been considered as first-line drugs for the treatment of hypertension and myocardial infarction [5,6]. However, it was found that any single currently used ACE inhibitor cannot completely prevent and cure hypertension. Clinically, they are usually used in conjunction with one or two other therapeutic agents including beta blockers, long-acting nitrate, and calcium channel blockers for a better therapeutic effect (e.g., Enalapril/hydrochlorothiazide, Enalapril/Valsartan, and Enalapril/nifedipine, etc.). Moreover, ACE inhibitors are also found to have some side effects, such as cough, elevated blood potassium levels, low blood pressure, and kidney failure [7,8]. Therefore, the trend has been toward developing safer and multi-functional ACE inhibitors.
Many pioneering work in the mid-1970s to mid-1990s revealed that the N-substituted derivative of proline is an extremely potent ACE inhibitor [9,10,11,12]. Recently, during our study on compound Salvia recipe (including three Chinese herbal medicines: Salvia miltiorrhiza Bge. (Danshen), Panax pseudoginseng Wall. (Sanqi), and Borneol (Bingpian, from Cinnamomum camphora (L.) Presl)) for searching new antihypertensive drugs, we noticed that the phenolic acids extract from Danshen plays a pivotal role in regulating blood pressure, protecting against oxidative damage diseases, slightly slowing the heart rate, and relaxing and widening blood vessels [13], while borneol may help other medicinal molecules to penetrate cell membrane easily [14,15]. In fact, the molecular dimension of some phenolic acids, especial those structures varying from C6–C1 to C6–C3, are more suitable for ACE S1 subsite [16] and the hydroxyls on these phenolic acids may serve as good hydrogen donors to chelate with Zn2+ in the active site of ACE [17]. More recently, some phenolic acids, such as ferulic acid, gallic acid, chlorogenic acid, and caffeic acid, have been demonstrated to be a new class of selective inhibitors of ACE [18,19]. So, in this study, based on the effectiveness of compound Salvia recipe in the prevention and treatment of angiocardiopathy and the ideas of CTCMC, we tried to add these effective phenolic acid and bornyl moieties simultaneously to the N-terminal and C-terminal of dipeptides (Val or Leu-Pro, the core structure of some lead ACE inhibitors [20,21,22]) (see Figure 1) by simply using amide and ester bonds, respectively. We envision that this molecular construction strategy may result in producing more novel lead compounds with multi-functions, not only targeting ACE, but also other targets relating to synergistic hypotensive effects, which can overcome some side effects of current ACE inhibitors.

2. Materials and Methods

2.1. Synthesis and Preparation of 7a7h

Commercially available l-proline 1 was initially converted to N-Boc-Proline 2 in the presence of di-tert-butyl dicarbonate in good yield and then followed by bornyl ester formation under Steglich esterification conditions to afford N-Boc-Pro-bornyl ester 3. This was subjected to trifluoracetic acid(TFA)/dichloromethane(DCM) conditions to afford compound 4, which was coupled with N-Boc-Val and N-Boc-Leu respectively under the 1-ethyl-3-(3-dimethyllaminopropyl) carbodiimide hydrochloride(EDCI)/1-hydroxybenzotriazole (HOBT) system to furnish the corresponding N-Boc-dipeptide ester 5a and 5b. Removal of the Boc group of 5a and 5b was accomplished with the above mentioned TFA/DCM conditions to give 6a and 6b in near-quantitative yields. Finally, the target compounds 7a7h were achieved by general coupling reaction of 5a and 5b with corresponding phenolic acids under the benzotriazole-1-yl-oxytripyrrolidinophosphonium hexafluorophosphate(Pybop)/N,N-diisopropyl-ethylamine (DIPEA) system. The synthesis of the new ACE inhibitors 7a7h is shown in Scheme 1.

2.2. Biological Investigations

2.2.1. In Vitro ACE-Inhibitory Activity

The in vitro ACE-inhibitory activity of the newly synthesized compounds was evaluated using ACE inhibition assay (Sigma-aldrich, St. Louis, MO, USA, No. A-6778). The experiments were carried out for all the designed compounds (7a7h), for ACE-inhibitory activity at five different concentrations (0.01–10 µM). Lisinopril, a well-known ACE inhibitor drug, was used as standard for comparison with the inhibitory activity of synthesized compounds. The ACE-inhibitory activity can be calculated by the following equation: ACE-inhibitory activity (inhibition rate %) = [(Ablank1 − Asample)/(Ablank1 − Ablank2)] × 100, where blank 1: Positive control (without ACE inhibition) and blank 2: Reagent blank. Then we measured and calculated the IC50 values of the designed compounds (7a7h).

2.2.2. Molecular Docking Study

To gain insight into the interaction of ACE with the most potent compound, it was docked on to tACE (PDB code: 1O86) using AutoDock Vina software (v4.2) (The Scripps Research Institute, San Diego, CA, USA). Structures of the ligand were generated using ChemBioDraw Ultra (v13.0) (Cambridgesoft, Billerica, MA, USA).

2.2.3. Antihypertensive Tests In Vivo

All the experiments were approved by the Institutional Animal Ethics Committee of Northwest University. Experiments were carried out on spontaneously hypertension rats (SHRs) that were 9–10 weeks old and weighed 200–220 g. SHRs treated with normal saline were used as controls. Lisinopril was used as a standard drug. Blood pressure (BP) was recorded automatically every day by the indirect tail-cuff method using an electrosphygmomanometer (BP-2010A Storage Pressure Meter). In acute antihypertensive tests in vivo, the most potent and active compounds obtained in in vitro tests were measured using spontaneously hypertensive rats. The BP were measured before and 0.5, 1, 2, 3, 4, 5 and 6 h after a single dose of intragastrical administration of active compounds. In therapeutic antihypertensive tests, the more potent and active compound and lisinopril were treated orally for 7 consecutive days, and the BP was measured every day between drug delivery day and 14 days after the drug treatment using an intelligent non-invasive blood pressure remote monitoring instrument.

3. Results and Discussion

3.1. Chemistry

The synthesis of target compounds 7a7h was achieved following the procedures outlined in Scheme 1. The chemical structure, synthetic conditions and yield of 7a7h are shown in Scheme 2.

Compound Identification (7a7h)

(7a). White powder. m/z = [M + 1] 487.2804, calculated value: 486.2729. 1H-NMR (600 MHz, CDCl3) δ 8.34 (s, 1H), 7.40 (dd, J = 30.8, 9.5 Hz, 1H), 7.31 (s, 1H), 7.18 (d, J = 8.4 Hz, 1H), 6.80 (d, J = 8.3 Hz, 1H), 4.98 (d, J = 9.9 Hz, 1H), 4.72 (t, J = 8.1 Hz, 1H), 4.46 (dd, J = 8.4, 4.6 Hz, 1H), 4.02–3.94 (m, 1H), 3.78–3.70 (m, 1H), 2.34–2.30 (m, 1H), 2.25–2.17 (m, 3H), 2.08–2.01 (m, 2H), 2.00–1.93 (m, 2H), 1.92–1.85 (m, 1H), 1.77–1.70 (m, 1H), 1.31–1.22 (m, 3H), 1.12 (d, J = 6.7 Hz, 3H), 1.04 (d, J = 6.7 Hz, 3H), 0.99 (d, J = 6.7 Hz, 1H), 0.97–0.95 (m, 1H), 0.89 (s, 3H), 0.86 (s, 3H), 0.81 (s, 3H). 13C NMR (151 MHz, CDCl3) δ 172.22 (s), 171.83 (s), 168.25 (s), 148.42 (s), 144.02 (s), 125.46 (s), 120.53 (s), 115.10 (s), 114.29 (s), 81.03 (s), 59.57 (s), 56.76 (s), 49.09 (s), 48.13 (s), 44.91 (s), 36.46 (s), 31.47 (s), 29.83 (s), 29.48 (s), 28.04 (s), 27.21 (s), 24.94 (s), 19.81 (s), 19.51 (s), 18.93 (s), 18.63 (s), 13.74 (s).
(7b). White powder. m/z = [M + 1] 501.2970, calculated value: 500.2886. 1H-NMR (600 MHz, CDCl3) δ 7.41 (s, 1H), 6.99 (s, 1H), 6.68 (d, J = 12.4 Hz, 1H), 6.62–6.51 (m, 2H), 4.94 (d, J = 9.8 Hz, 1H), 4.55 (t, J = 8.1 Hz, 1H), 4.52–4.43 (m, 1H), 3.99–3.93 (m, 1H), 3.70–3.57 (m, 1H), 3.49–3.44 (m, 1H), 3.37 (d, J = 15.5 Hz, 1H), 2.33–2.26 (m, 1H), 2.24–2.19 (m, 1H), 2.09–1.94 (m, 5H), 1.89–1.84 (m, 1H), 1.79–1.67 (m, 2H), 1.35–1.15 (m, 3H), 1.03 (d, J = 6.6 Hz, 3H), 0.91 (d, J = 7.3 Hz, 3H), 0.87 (s, 3H), 0.85 (s, 3H), 0.79 (s, 3H). 13C-NMR (151 MHz, CDCl3) δ 173.05 (s), 172.12 (s), 171.41 (s), 125.94 (s), 121.52 (s), 116.33 (s), 115.93 (s), 115.49 (s), 81.01 (s), 59.58 (s), 56.40 (s), 49.03 (s), 48.09 (s), 47.75 (s), 44.87 (s), 42.75 (s), 36.46 (s), 31.29 (s), 29.50 (s), 28.04 (s), 27.20 (s), 24.99 (s), 19.80 (s), 19.41 (s), 18.91 (s), 18.37 (s), 18.02 (s), 13.71 (s).
(7c). White powder. m/z = [M + 1] 527.3128, calculated value: 526.3042. 1H-NMR (600 MHz, CDCl3) δ 8.22 (s, 1H), 7.51 (d, J = 15.5 Hz, 1H), 7.01 (d, J = 8.2 Hz, 1H), 6.98 (s, 1H), 6.89 (d, J = 8.1 Hz, 1H), 6.53 (d, J = 8.4 Hz, 1H), 6.29 (d, J = 15.5 Hz, 1H), 5.03–4.94 (m, 1H), 4.89–4.80 (m, 1H), 4.80–4.70 (m, 1H), 4.59–4.51 (m, 1H), 3.90 (dd, J = 16.2, 3.9 Hz, 3H), 3.77–3.69 (m, 1H), 3.67–3.55 (m, 1H), 2.36–2.30 (m, 1H), 2.26–2.21 (m, 1H), 2.18–2.11 (m, 1H), 2.10–2.01 (m, 3H), 1.94–1.88 (m, 1H), 1.78–1.72 (m, 1H), 1.71–1.66 (m, 1H), 1.29–1.24 (m, 2H), 1.10 (d, J = 6.6 Hz, 3H), 0.96 (d, J = 6.7 Hz, 3H), 0.89 (s, 3H), 0.87 (s, 3H), 0.81 (s, 3H). 13C-NMR (151 MHz, CDCl3) δ 172.31 (s), 171.14 (s), 166.24 (s), 147.61 (s), 146.91 (s), 141.44 (s), 127.39 (s), 122.63 (s), 118.13 (s), 114.85 (s), 109.48 (s), 80.73 (s), 59.29 (s), 56.02 (s), 49.08 (s), 48.10 (s), 47.49 (s), 44.92 (s), 36.49 (s), 31.73 (s), 29.50 (s), 28.07 (s), 27.22 (s), 25.03 (s), 19.82 (s), 18.93 (s), 18.10 (s), 13.74 (s).
(7d). White powder. m/z = [M + 1] 503.2755, calculated value: 502.2679.1H-NMR (600 MHz, CDCl3) δ 8.34 (s, 1H), 7.46 (s, 1H), 7.48 (s, 1H), 7.33 (s, 2H), 5.00 (d, J = 9.8 Hz, 1H), 4.73 (t, J = 8.1 Hz, 1H), 4.48 (dd, J = 8.4, 4.6 Hz, 1H), 4.00–3.93 (m, 1H), 3.76–3.69 (m, 1H), 2.36–2.31 (m, 1H), 2.25–2.19 (m, 3H), 2.08–2.00 (m, 2H), 1.95–1.90 (m, 2H), 1.90–1.83 (m, 1H), 1.79–1.73 (m, 1H), 1.29–1.21 (m, 3H), 1.16 (d, J = 6.8 Hz, 3H), 1.08 (d, J = 6.8 Hz, 3H), 0.99 (d, J = 6.8 Hz, 1H), 0.98–0.95 (m, 1H), 0.91 (s, 3H), 0.87 (s, 3H), 0.80 (s, 3H). 13C-NMR (151 MHz, CDCl3) δ 172.21 (s), 171.84 (s), 168.27 (s), 148.45 (s), 148.47 (s), 144.00 (s),120.58 (s), 114.31 (s), 81.02 (s), 59.55 (s), 56.78 (s), 49.06 (s), 48.17 (s), 44.90 (s), 36.44 (s), 31.43 (s), 29.85 (s), 29.44 (s), 28.02 (s), 27.25 (s), 24.97 (s), 19.85 (s), 19.52 (s), 18.94 (s), 18.65 (s), 13.75 (s).
(7e). White solid. m/z = [M + 1] 501.2970, calculated value: 500.2886. 1H-NMR (600 MHz, CDCl3) δ 8.41 (s, 1H), 7.45 (s, 1H), 7.31 (s, 1H), 7.18 (d, J = 8.3 Hz, 1H), 6.81 (d, J = 8.3 Hz, 1H), 5.03–4.98 (m, 1H), 4.55 (dd, J = 8.6, 4.3 Hz, 1H), 3.72–3.62 (m, 1H), 3.53–3.38 (m, 1H), 3.33–3.21 (m, 1H), 2.41–2.34 (m, 1H), 2.24–2.19 (m, 1H), 2.00–1.92 (m, 2H), 1.91–1.84 (m, 1H), 1.82–1.70 (m, 2H), 1.68–1.50 (m, 3H), 1.30–1.18 (m, 3H), 1.00 (d, J = 6.5 Hz, 3H), 0.93 (d, J = 6.5 Hz, 3H), 0.88 (s, 3H), 0.87 (s, 3H), 0.80 (s, 3H). 13C-NMR (151 MHz, CDCl3) δ 174.01 (s), 172.09 (s), 171.88 (s), 148.43 (s), 144.00 (s), 125.43 (s), 120.50 (s), 115.13 (s), 114.27 (s), 81.19 (s), 59.37 (s), 49.04 (s), 48.09 (s), 47.24 (s), 44.99 (s), 41.12 (s), 39.95 (s), 36.70 (s), 29.30 (s), 28.17 (s), 27.33 (s), 24.85 (s), 24.71 (s), 23.51 (s), 21.48 (s), 19.83 (s), 18.93 (s), 13.74 (s).
(7f). White solid. m/z = [M + 1] 515.3125, calculated value: 514.3042. 1H-NMR (600 MHz, CDCl3) δ 7.40 (s, 1H), 6.98 (s, 1H), 6.64 (d, J = 12.2 Hz, 1H), 6.60–6.50 (m, 2H), 5.01–4.98 (m, 1H), 4.55 (dd, J = 8.4, 4.1 Hz, 1H), 3.71–3.65 (m, 1H), 3.53–3.37 (m, 1H), 3.35–3.22 (m, 1H), 2.36–2.29 (m, 1H), 2.27–2.17 (m, 1H), 2.06–1.97 (m, 2H), 1.91–1.83 (m, 1H), 1.81–1.70 (m, 2H), 1.69–1.53 (m, 3H), 1.33–1.21 (m, 3H), 1.02 (d, J = 6.4 Hz, 3H), 0.96 (d, J = 6.7 Hz, 3H), 0.88 (s, 3H), 0.86 (s, 3H), 0.80 (s, 3H). 13C-NMR (151 MHz, CDCl3) δ 173.04 (s), 172.15 (s), 171.42 (s), 125.95 (s), 121.50 (s), 116.31 (s), 115.92 (s), 115.47 (s), 80.84 (s), 59.46 (s), 56.42 (s), 49.02 (s), 48.09 (s), 47.63 (s), 44.83 (s), 42.51 (s), 36.52 (s), 29.93 (s), 29.12 (s), 27.26 (s), 24.97 (s), 24.78 (s), 22.60 (s), 21.87 (s), 19.20 (s), 18.98 (s), 13.72 (s).
(7g). Light yellow solid. m/z = [M + 1] 541.3273, calculated value: 540.3199. 1H-NMR (600 MHz, CDCl3) δ 8.18 (s, 1H), 7.47 (d, J = 15.6 Hz, 1H), 6.98 (d, J = 8.2 Hz, 1H), 6.94 (s, 1H), 6.87 (d, J = 8.2 Hz, 1H), 6.27 (d, J = 15.6 Hz, 1H), 5.00–4.95 (m, 1H), 4.56 (dd, J = 8.5, 4.2 Hz, 1H), 3.89 (s, 3H), 3.70–3.64 (m, 1H), 3.54–3.39 (m, 1H), 3.36–3.20 (m, 1H), 2.38–2.29 (m, 1H), 2.26–2.19 (m, 1H), 2.07–1.99 (m, 2H), 1.93–1.84 (m, 1H), 1.83–1.71 (m, 2H), 1.71–1.54 (m, 3H), 1.34–1.20 (m, 3H), 1.03 (d, J = 6.5 Hz, 3H), 0.95 (d, J = 6.7 Hz, 3H), 0.89 (s, 3H), 0.87 (s, 3H), 0.81 (s, 3H). 13C-NMR (151 MHz, CDCl3) δ 172.22 (s), 171.80 (s), 166.28 (s), 147.61 (s), 146.92 (s), 141.35 (s), 127.44 (s), 122.58 (s), 118.12 (s), 114.88 (s), 109.59 (s), 80.74 (s), 59.26 (s), 56.02 (s), 49.05 (s), 48.09 (s), 47.03 (s), 44.93 (s), 42.21 (s), 36.62 (s), 29.43 (s), 28.12 (s), 27.29 (s), 24.98 (s), 24.88 (s), 23.60 (s), 21.87 (s), 19.80 (s), 18.91 (s), 13.72 (s).
(7h). White solid. m/z = [M + 1] 517.2924, calculated value: 516.2835. 1H-NMR (600 MHz, CDCl3) δ 8.35 (s, 1H), 7.48 (s, 1H), 7.47 (s, 1H), 7.32 (s, 2H), 5.00–4.96 (m, 1H), 4.55 (dd, J = 8.3, 4.1 Hz, 1H), 3.71–3.66 (m, 1H), 3.55–3.41 (m, 1H), 3.36–3.27 (m, 1H), 2.35–2.25 (m, 1H), 2.23–2.18 (m, 1H), 2.05–1.98 (m, 2H), 1.97–1.86 (m, 1H), 1.84–1.75 (m, 2H), 1.72–1.53 (m, 3H), 1.35–1.22 (m, 3H), 1.02 (d, J = 6.6 Hz, 3H), 0.97 (d, J = 6.6 Hz, 3H), 0.91 (s, 3H), 0.87 (s, 3H), 0.81 (s, 3H).13C-NMR (151 MHz, CDCl3) δ 174.21 (s), 171.81 (s), 166.27 (s), 148.45 (s), 148.47 (s), 144.00 (s), 121.60 (s), 120.58 (s), 114.31 (s), 80.68 (s), 59.25 (s), 56.12 (s), 49.02 (s), 48.05 (s), 47.00 (s), 44.91 (s), 42.31 (s), 36.66 (s), 29.42 (s), 28.11 (s), 27.30 (s), 24.98 (s), 24.89 (s), 23.60 (s), 21.85 (s), 19.82 (s), 18.89 (s), 13.71 (s).

3.2. ACE-Inhibitory Activity In Vitro

The preliminary biological investigations were conducted in vitro using the ACE-inhibition assay. The experiments carried out for all the designed compounds (7a7h), for ACE-inhibitory activity at five different concentrations (0.01–10 µM), revealed that these newly synthesized compounds inhibited ACE in a dose-dependent manner (Figure 2). The evaluation results of all eight new compounds for their ACE-inhibitory activity are presented in Table 1. Unfortunately, all of these new compounds showed a comparatively lower ACE-inhibitory activity. Relatively, evaluation of IC50 data against ACE for these compounds revealed that 7a and 7g are the best candidates and more encouraging compounds with the lowest IC50 values of 6.76 and 6.88 μM, respectively. In contrast, the size of the amino acid side chain had a great influence on the activity of these compounds. That is, the activity of these compounds gradually declined when the size of the amino acid side chain increased. Besides, the influence of phenolic acids on ACE-inhibitory activity was more obvious following the order: protocatechuic acid > ferulic acid > gallic acid > 3,4-dihydroxybenzene acid. That is, substituents in positions 3 and 4 in the benzene ring are beneficial to the increase of ACE-inhibitory activity. At the same time, the shorter the amino side chain in phenolic acids, the better the ACE-inhibitory activity.

3.3. ACE Molecular Docking

Based on the inhibition results, we selected the most potent compound 7a, our best ACE inhibitor in this study, as a ligand example. To gain insight into the interaction of ACE with compound 7a, it was docked on to tACE (PDB code: 1O86) using AutoDock Vina software [23]. As shown in Figure 3A, 7a and ligand compound (Lisinopril) of tACE can nearly overlap in the binding model. That is, they have the same binding sites and have a similar combination model. The intermolecular interactions between tACE binding site residues and predicted poses for compound 7a are presented in Figure 3B. Results showed that the docking position of compound 7a showed a similar binding mode to that of lisinopril. The intermolecular hydrogen-bonding interactions of 7a were mainly seen with the Gln281, His 353, His 513, Tyr 522 and Tyr 523, which are partly similar to lisinopril.

3.4. Antihypertensive Tests In Vivo

In acute antihypertensive tests in vivo, the more potent and active compounds 7a and 7g were investigated further using spontaneously hypertensive rats (SHRs). Lisinopril was used as a positive control. The reduction in blood pressure (BP, systolic arterial pressure) of SHRs treated with compounds 7a and 7g at the same molar dose was slightly better than that of lisinopril under similar conditions. Additionally, the antihypertensive activity of 7a and 7g occurred evidently 0.5 h after oral treatment and lasted for four hours (Figure 4A,B). We then assessed the effects of compounds 7a and 7g in therapeutic antihypertensive tests in SHRs. We found that BP in compound 7a- and 7g-treated (100 mg/kg, Po. 7days) rats was decreased remarkably on the second day after oral administration. Then, the BP maintained at a relatively stable level. After drug withdrawal, the BP on the eighth day remained at a lower level. However, the BP began to rebound starting from the ninth day, and it returned back to the level before administration on the fourth day after drug withdrawal. Thus, compounds 7a and 7g showed remarkable hypotensive activity in SHRs (Figure 4C), and the maximum antihypertensive effect of the two compounds at a dose of 100 mg/kg daily was also approximately equivalent to that of lisinopril (20 mg/kg/day). It is worth noting that successive dosing has no effect on the body weight of the test rats in therapeutic antihypertensive tests.

4. Conclusions

In conclusion, we developed an efficient and shortcut method for drug discovery based on both the means of combinatorial chemistry and pharmaceutical design philosophy of traditional Chinese medicine. We call this method combination of traditional Chinese medicine chemistry (CTCMC). Using this method, and inspired by the “Danshen-borneol” drug pair and some classical ACE inhibitors, we designed eight novel peptidomimetics (phenolic acid-Pro-borneol) compounds, which were successively synthesized and evaluated in vitro and in vivo as potential ACE inhibitors with less side effects. Of these, bornyl esters of 7a and 7g exhibited good in vivo ACE-inhibitory activity. These two compounds are most likely acting as prodrugs since both were found to have moderate activity in vitro as inhibitors of ACE. Based on these preliminary and promising results, more suitable modifications in the phenolic moieties and amino acid residue adjoining proline are under development. This class of novel molecules, combined with their detailed antihypertensive activities, will be useful for future drug development and shall be presented in the near future.

Acknowledgments

This work was supported by the Development and Application of Supercritical Fluid Chromatography (2013YQ170525; subproject: Application Research of Supercritical Fluid Chromatography in Chinese Traditional Medicine and Its Metabolites, 2013YQ17052509), Program for Changjiang Scholars and Innovative Research Team in University of Ministry of Education of China (IRT_15R55), the project for Innovative Research Team of Research and Technology of Shaanxi Province (2013KCT-24), the Technology Support Plan Project (2008BAI51B01), National Natural Science Foundation of China (20875074), and the Seventh Group of Hundred-Talent Program of Shaanxi Province (2015), and Natural Science Foundation of Shaanxi Province, China (Grant No. 2017JM8054).

Author Contributions

Yajun Bai and Xiaohui Zheng designed the research; Ying Sun, Pei Liu, and Xufei Chen performed experiments; Yujun Bai and Zefeng Zhao analyzed the data; Xirui He and Yajun Bai wrote or contributed to the writing of the manuscript.

Conflicts of Interest

The authors declare that there is no conflict of interest.

References

  1. Os, I.; Hjermann, I.; Nordby, G. Hypertension as a part of metabolic cardiovascular syndrome. Tidsskr. Nor. Laegeforen. 1991, 111, 3062–3064. [Google Scholar] [PubMed]
  2. Kearney, P.M.; Whelton, M.; Reynolds, K.; Muntner, P.; Whelton, P.K.; He, J. Global burden of hypertension: Analysis of worldwide data. Lancet 2005, 365, 217–223. [Google Scholar] [CrossRef]
  3. Wong, T.Y.; Wong, T.; Mitchell, P. The eye in hypertension. Lancet 2007, 369, 425–435. [Google Scholar] [CrossRef]
  4. Messerli, F.H.; Williams, B.; Ritz, E. Essential hypertension. Lancet 2007, 370, 591–603. [Google Scholar] [CrossRef]
  5. Anonymous. Angiotensin II receptor antagonists and heart failure: Angiotensin-converting-enzyme inhibitors remain the first-line option. Prescrire Int. 2005, 14, 180–186. [Google Scholar]
  6. Thurston, H. Angiotensin-converting enzyme inhibition as first-line treatment for hypertension. Clin. Exp. Pharmacol. Physiol. Suppl. 1992, 19, 67–71. [Google Scholar] [CrossRef] [PubMed]
  7. Antonios, T.F.T.; MacGregor, G.A. Angiotensin converting enzyme inhibitors in hypertension: Potential problems. J. Hypertens. 1995, 13, S11–S16. [Google Scholar] [CrossRef]
  8. Israili, Z.H.; Hall, W.D. Cough and angioneurotic edema associated with angiotensin-converting enzyme inhibitor therapy. A review of the literature and pathophysiology. Ann. Intern. Med. 1992, 117, 234–242. [Google Scholar] [CrossRef] [PubMed]
  9. Galardy, R.E. Inhibition of angiotensin-converting enzyme by phosphoramidates and polyphosphates. Biochemistry 1982, 21, 5777–5781. [Google Scholar] [CrossRef] [PubMed]
  10. Thorsett, E.D.; Harris, E.E.; Peterson, E.R.; Greenlee, W.J.; Patchett, A.A.; Ulm, E.H.; Vassil, T.C. Phosphorus-containing inhibitors of angiotensin-converting enzyme. Proc. Natl. Acad. Sci. USA 1982, 79, 2176–2180. [Google Scholar] [CrossRef] [PubMed]
  11. Galardy, R.E. Inhibition of angiotensin-converting enzyme with Nα-phosphoryl-l-alanyl-l-proline and Nα-phosphoryl-l-valyl-l-tryptophan. Biochem. Biophys. Res. Commun. 1980, 97, 94–99. [Google Scholar] [CrossRef]
  12. Galardy, R.E.; Kontoyiannidou-Ostrem, V.; Kortylewicz, Z.P. Inhibition of angiotensin converting enzyme by phosphonic amides and phosphonic acids. Biochemistry 1983, 22, 1990–1995. [Google Scholar] [CrossRef] [PubMed]
  13. Wu, Y.-B.; Ni, Z.-Y.; Shi, Q.-W.; Dong, M.; Kiyota, H.; Gu, Y.-C.; Cong, B. Constituents from Salvia Species and Their Biological Activities. Chem. Rev. 2012, 112, 5967–6026. [Google Scholar] [CrossRef] [PubMed]
  14. Song, J.; Bi, H.; Xie, X.; Guo, J.; Wang, X.; Liu, D. Natural borneol enhances geniposide ophthalmic absorption in rabbits. Int. J. Pharm. 2013, 445, 163–170. [Google Scholar] [CrossRef] [PubMed]
  15. Liu, J.; Fu, S.; Wei, N.; Hou, Y.; Zhang, X.; Cui, H. The effects of combined menthol and borneol on fluconazole permeation through the cornea ex vivo. Eur. J. Pharmacol. 2012, 688, 1–5. [Google Scholar] [CrossRef] [PubMed]
  16. Bala, M.; Qadar Pasha, M.A.; Bhardwaj, D.K.; Pasha, S. Novel peptidomimics as angiotensin-converting enzyme inhibitors: A combinatorial approach. Bioorg. Med. Chem. 2002, 10, 3685–3691. [Google Scholar] [CrossRef]
  17. Chen, C.H.; Lin, J.Y.; Lin, C.N.; Hsu, S.Y. Inhibition of Angiotensin-I-Converting Enzyme by Tetrahydroxyxanthones Isolated from Tripterospermum lanceolatum. J. Nat. Prod. 1992, 55, 691–695. [Google Scholar] [CrossRef] [PubMed]
  18. Alam, M.A.; Sernia, C.; Brown, L. Ferulic Acid Improves Cardiovascular and Kidney Structure and Function in Hypertensive Rats. J. Cardiovasc. Pharmacol. 2013, 61, 240–249. [Google Scholar] [CrossRef] [PubMed]
  19. Actis-Goretta, L.; Ottaviani, J.I.; Fraga, C.G. Inhibition of Angiotensin Converting Enzyme Activity by Flavanol-Rich Foods. J. Agric. Food Chem. 2005, 54, 229–234. [Google Scholar] [CrossRef] [PubMed]
  20. Siltari, A.; Viitanen, R.; Kukkurainen, S.; Vapaatalo, H.; Valjakka, J. Does the cis/trans configuration of peptide bonds in bioactive tripeptides play a role in ACE-1 enzyme inhibition? Biol. Targets Ther. 2014, 8, 59–65. [Google Scholar]
  21. Vermeirssen, V.; van Camp, J.; Verstraete, W. Bioavailability of angiotensin I converting enzyme inhibitory peptides. Br. J. Nutr. 2004, 92, 357–366. [Google Scholar] [CrossRef] [PubMed]
  22. Byun, H.-G.; Kim, S.-K. Structure and activity of angiotensin I converting enzyme inhibitory peptides derived from Alaskan pollack skin. J. Biochem. Mol. Biol. 2002, 35, 239–243. [Google Scholar] [CrossRef] [PubMed]
  23. Trott, O.; Olson, A.J. AutoDock Vina: Improving the speed and accuracy of docking with a new scoring function, efficient optimization, and multithreading. J. Comput. Chem. 2010, 31, 455–461. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds 7a7h are available from the author Yajun Bai.
Figure 1. Structure design inspired by the formula of compound Salvia recipe and classical angiotensin converting enzyme (ACE) inhibitors. VPP: valine-proline-proline; IPP: isoleucine-proline-proline.
Figure 1. Structure design inspired by the formula of compound Salvia recipe and classical angiotensin converting enzyme (ACE) inhibitors. VPP: valine-proline-proline; IPP: isoleucine-proline-proline.
Molecules 22 01739 g001

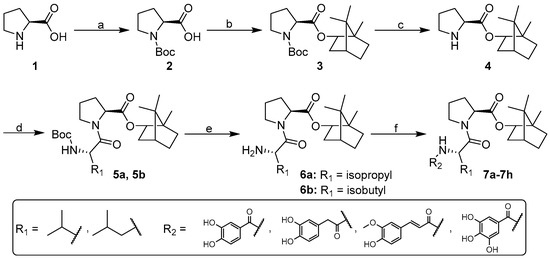

Scheme 1. Synthesis of new ACE Inhibitors 7a7h. Reagents, conditions, and yields: (a) (Boc)O2, dioxane/H2O, NaOH, 0 °C–25 °C, 12 h, 86% isolated yield; (b) EDCI, DMAP, (+)-borneol, THF, room temperature, 18 h, 75% isolated yield; (c) TFA:DCM = 1:5, room temperature, 6 h, 91% isolated yield; (d) EDCI, HOBT, corresponding Boc-protective amino acid, DMF, room temperature, 10–20 h; (e) TFA:DCM = 1:4, room temperature, 4–8 h; (f) corresponding phenolic acids, Pybop, DIPEA, THF, DMF or DMSO, room temperature, under nitrogen atmosphere, 12–30 h.
Scheme 1. Synthesis of new ACE Inhibitors 7a7h. Reagents, conditions, and yields: (a) (Boc)O2, dioxane/H2O, NaOH, 0 °C–25 °C, 12 h, 86% isolated yield; (b) EDCI, DMAP, (+)-borneol, THF, room temperature, 18 h, 75% isolated yield; (c) TFA:DCM = 1:5, room temperature, 6 h, 91% isolated yield; (d) EDCI, HOBT, corresponding Boc-protective amino acid, DMF, room temperature, 10–20 h; (e) TFA:DCM = 1:4, room temperature, 4–8 h; (f) corresponding phenolic acids, Pybop, DIPEA, THF, DMF or DMSO, room temperature, under nitrogen atmosphere, 12–30 h.
Molecules 22 01739 sch001

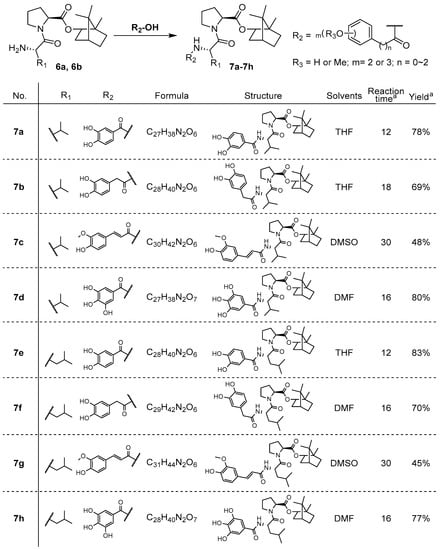

Scheme 2. Chemical structure, synthetic conditions and yield of 7a–7h. a For the last step.
Scheme 2. Chemical structure, synthetic conditions and yield of 7a–7h. a For the last step.
Molecules 22 01739 sch002

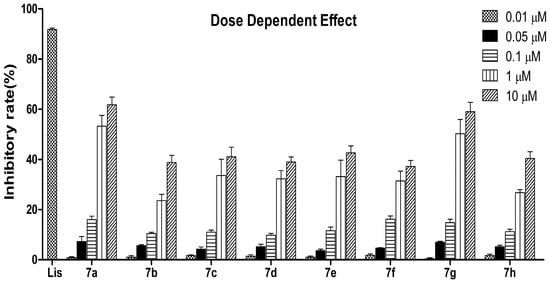

Figure 2. Dose-dependent angiotensin converting enzyme (ACE) inhibition activity of test compounds and lisinopril (Lis). The results are presented as means ± SEM (n = 8).
Figure 2. Dose-dependent angiotensin converting enzyme (ACE) inhibition activity of test compounds and lisinopril (Lis). The results are presented as means ± SEM (n = 8).
Molecules 22 01739 g002

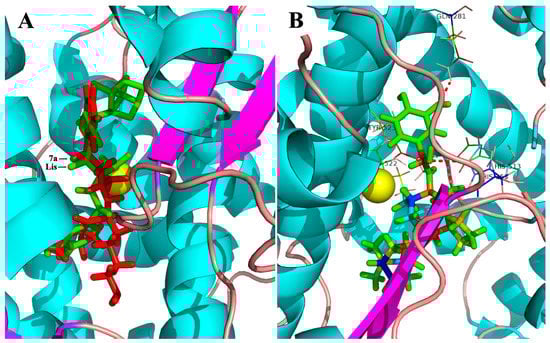

Figure 3. (A) Docking confirmation of compound 7a (green) and ligand compound lisinopril (red) with tACE; 1, α-helix; 2, random coil; 3,β-sheet; (B) Best expected binding mode of compound 7a (green) at the tACE binding site.
Figure 3. (A) Docking confirmation of compound 7a (green) and ligand compound lisinopril (red) with tACE; 1, α-helix; 2, random coil; 3,β-sheet; (B) Best expected binding mode of compound 7a (green) at the tACE binding site.
Molecules 22 01739 g003

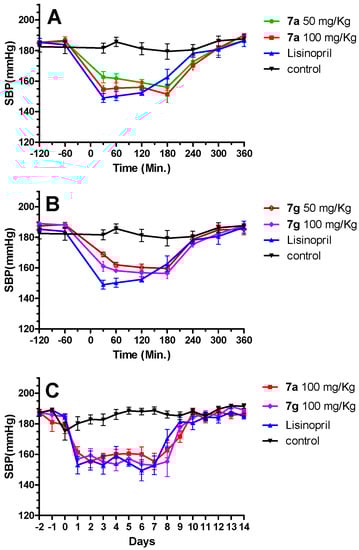

Figure 4. (A,B), the acute antihypertensive activity of compounds 7a and 7g in spontaneously hypertension rats (SHRs) for single dose administration (dosing time: 0 min); (C) the therapeutic antihypertensive activity of compounds 7a and 7g in SHRs for 7 days treatment (dosing time: 0 day; blood pressure (BP) measured time: 9:30–11:30 am). Data are presented as mean ± SEM, n = 6. The BP was determined with a BP-2010A Storage Pressure Meter. This system measures BP by recording the cuff pressure at which the interrupted blood flow returns to the tail. Before drug administration, training consisted of five sessions over 3 days. The SHRs were placed into a thermostatically controlled Lucite box of the Visitech system BP2010A, and heated on a heated pad maintained at 37 °C for 2 min before BP measurement started. The tail root of SHR was surrounded by an inflatable tubular sleeve, and a pulse electron detector was placed in the root of the tails. Then BP was measured after the computer provided a stable signal. The BP for the session was accepted as the average of five BP readings that were within 10 mm Hg. The average BP values were calculated by employing the ANOVA method.
Figure 4. (A,B), the acute antihypertensive activity of compounds 7a and 7g in spontaneously hypertension rats (SHRs) for single dose administration (dosing time: 0 min); (C) the therapeutic antihypertensive activity of compounds 7a and 7g in SHRs for 7 days treatment (dosing time: 0 day; blood pressure (BP) measured time: 9:30–11:30 am). Data are presented as mean ± SEM, n = 6. The BP was determined with a BP-2010A Storage Pressure Meter. This system measures BP by recording the cuff pressure at which the interrupted blood flow returns to the tail. Before drug administration, training consisted of five sessions over 3 days. The SHRs were placed into a thermostatically controlled Lucite box of the Visitech system BP2010A, and heated on a heated pad maintained at 37 °C for 2 min before BP measurement started. The tail root of SHR was surrounded by an inflatable tubular sleeve, and a pulse electron detector was placed in the root of the tails. Then BP was measured after the computer provided a stable signal. The BP for the session was accepted as the average of five BP readings that were within 10 mm Hg. The average BP values were calculated by employing the ANOVA method.
Molecules 22 01739 g004
Table 1. ACE-inhibitory activity of each newly synthesized compound (IC50 values in μM).
Table 1. ACE-inhibitory activity of each newly synthesized compound (IC50 values in μM).
CompoundCompound StructureIC50 (μM)
Lisinopril Molecules 22 01739 i001<0.01
7a Molecules 22 01739 i0026.76 ± 0.96
7b Molecules 22 01739 i00313.94 ± 1.61

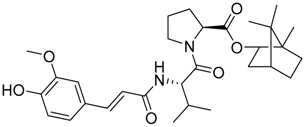

7c Molecules 22 01739 i00411.88 ± 1.82
7d Molecules 22 01739 i00513.46 ± 2.02
7e Molecules 22 01739 i00610.58 ± 1.72
7f Molecules 22 01739 i00713.97 ± 1.84
7g Molecules 22 01739 i0086.88 ± 0.85
7h Molecules 22 01739 i00913.25 ± 2.47
Note: The amount of hippuric acid (HA) released is directly proportional to the ACE activity. Briefly, ACE activity was assayed by testing the release of HA from the hydrolysis of 0.3% (w/v) Hippuryl-l-Histidyl-l-Leucine Solution (HHL) (Sigma-aldrich, St. Louis, MO, USA, No. H1635). The enzyme reaction (0.33 unit/mL, 50 µL) was started by adding 50 µL of ACE enzyme, 200 µL of 50 mM HEPES HCl buffer with 300 mM sodium chloride (pH 8.3) and 50 µL HHL immediately mixed by swirling and incubated for 15 min at 37 °C. Then, 0.25 mL of 1 M HCl was added followed by 2 mL ethyl acetate (Sigma, No. 27, 052-0). The solution was shaken vigorously for 60 s and then centrifuged for 2 min. The clear upper layer (1.0 mL) was pipetted from each vial into corresponding 4-dram vials. The ethyl acetate was evaporated in a boiling water bath and 3 mL deionized water was added. The solution was mixed by inversion but not shaken. A spectrophotometer (U-3310) was used to record the absorbance of 228 nm.
