Molecules 2017, 22(10), 1807; doi:10.3390/molecules22101807

Article
Design of Novel, Water Soluble and Highly Luminescent Europium Labels with Potential to Enhance Immunoassay Sensitivities
Henri Sund 1, Kaj Blomberg 1, Niko Meltola 1,2 and Harri Takalo 1,*
1
Radiometer Turku Oy, Biolinja 12, 20750 Turku, Finland
2
Present affiliation ArcDia International Oy Ltd., Lemminkäisenkatu 32, 20520 Turku, Finland
*
Correspondence: Tel.: +358-40-508-7104
Received: 29 September 2017 / Accepted: 19 October 2017 / Published: 24 October 2017

Abstract

:
To meet the continual demands of more-sensitive immunoassays, the synthesis of novel luminescent Eu(III) chelate labels having similar substituted 4-(phenylethynyl)pyridine chromophores in three different chelate structure classes are reported. Significantly enhanced luminescence intensities were obtained, evidently caused by the intra-ligand charge transfer (ILCT) mediated sensitization, but the alternative ligands triplet state process cannot be ruled out. Based on the present study, even quite small changes on the chelate structure, and, especially, on the substituents’ donor/acceptor strength on both ends of 4-(phenylethynyl)pyridine subunits have an unpredictable effect on the luminescence. The highest observed brightness was 16,400 M−1 cm−1 in solution and 69,500 M−1 cm−1 on dry surface, being 3.4 and 8.7 fold higher compared to the reference chelate. The new label chelates provide solutions for improved assay sensitivity up-to tenfold from the present concepts.
Keywords:
europium chelate; label; (phenylethynyl)pyridine chromophore; luminescence; intra-ligand charge transfer

1. Introduction

Time-resolved fluorometry (TRF) employing long-lifetime emitting luminescent lanthanide chelates has been applied in many specific binding assays, such as immunoassays, DNA hybridization assays, receptor-binding assays, enzymatic assays, bio-imaging such as immunocytochemical, immunohisto-chemical assays or cell based assays to measure the wanted analyte at very low concentration [1,2,3]. Lanthanide chelates have special properties offering proper alternative markers in bio-affinity assays: (i) the difference between the excitation and emission wavelengths is large; (ii) normally, they have long emission life-time compared to the background, and, thus, the time-resolved fluorescence (TR-FIA) measurement techniques together with narrow emission lines eliminate the fluorescence background almost completely; (iii) the concentration quenching is small and enables using wide dynamic assay range without additional dilutions, and (iv) several different sample matrixes e.g., whole blood, serum and plasma can be used for the assays. Applications based on TRF have been commercialized in the fields of clinical diagnostics and drug discovery [1].
For TRF applications, an optimal label has to fulfill several strict requirements. First, the label has to be photo-chemically stable both in the ground and excited states, and it has to be kinetically and chemically stable. The excitation wavelength has to be as high as possible, preferable over 300 nm. It has to have efficient cation emission i.e., intense brightness (excitation coefficient x quantum yield, εΦ). The lanthanide chelate has to have a high absorptivity and efficient energy transfer from the excited level of the so-called antenna ligand (i.e., chromophore) to the proper emitting level of the lanthanide ion. Luminescence quenching by water molecules should be prevented to enable a long luminescence decay time, but, at the same time, the chelate has to have good water solubility. For the purpose of labeling, it should have a reactive group to allow covalent attachment to a bio-specific binding reactant, and the affinity and nonspecific binding properties of the labeled biomolecules have to be retained. It is challenging to prepare a chelate-label molecule that fulfills all requirements, and, therefore, certain compromises are generally made in the development of suitable labels. As a consequence hereof, a number of attempts (see e.g., [4]) have been made to tune the photo-physical properties of the chelate labels suitable for TRF applications, and only a few viable chelate labels are in commercial use.
Since the discovery in the mid-1980s and the later publication of the phenylethynylpyridine antenna for Eu(III) chelates [5,6], several new chelates utilizing the chromophore have been described in literature, inter alia three [6,7,8,9,10], seven [6,7,8,11,12,13] and nine-dentate acyclic [8,14,15] as well as macro-cyclic ligands [8,16,17,18,19]. The nine-dentate Eu(III) label (1 in Scheme 1) has been applied already almost for 15 years in TRF immunoassays [14,20,21,22,23,24] especially in near-patient testing such as critical care and emergency situations. The technology has offered quick, easy-to-use, high quality and quantitative point-of-care testing platform called as AQT90 FLEX (Radiometer Medical ApS). The aim of the present work is to enhance the brightness and to red-shift the excitation wavelength of the present label 1 to be able to use a UV LED based excitation [25] with significantly improved assay sensitivity. For that purpose, we prepared three different nine-dentate chelate label designs i.e., with two and three individual chromophore moieties in acyclic and macrocyclic ligand formats (chelates 28 in Scheme 1). The objective was to study the effect of electron-releasing substituents (OCH2COO) in mesomeric para- and orto-position of phenylethynylpyridine moiety together with electron-withdrawing (COO) as well as releasing (CH2) groups at the other end of the chromophoric moiety in those three different ligand groups. The novel chelates were tested after coupled with taurine (2a8a) and protein (2b8b) being comparable to the derivative 1a,b of the used reference chelate 1.

2. Results

2.1. Syntheses

The syntheses of two different terminal acetylenes 14 and 15 used in the study started from 4-bromobenzene-1,3-diol and benzene-1,3,5-triol, which were transformed to the corresponding intermediates 11 and 9 with the reaction of ethyl bromoacetate in dry MeCN and using K2CO3 as the needed base (Scheme 2). For the synthesis of compound 9, careful control of reaction conditions is required to achieve a reasonable yield; otherwise, a dramatic drop in yield together with purification problems will be the result. Direct iodination of the compound 9 with I2 and NaHCO3 in H2O/CHCl3 mixture afforded poor results, whereas the reaction with N-chlorosuccimide and NaI in acetic acid described by Yamamoto et al. [26] produced the iodo derivative 10 in quantitative yield. As an alternative route to the compound 10, a reaction of 2-iodo-benzene-1,3,5-triol [27] with ethyl bromoacetate was entirely unsuccessful. Both halides 10 and 11 were conjugated with trimethysilylacetylene using the Sonogashira reaction in the presence of a catalytic amount of Pd(II) catalyst and CuI under argon. Microwave heating at 100 °C for 30–45 min in diethyl amine (DEA) and dimethylformamide (DMF) gave appropriate yields of products. In the reaction with 11, an improved yield was obtained by using PPh3 in the mixture. We also tested using a corresponding bromo derivative to the compound 10—nicely obtained by the reaction of 9 with N-bromosuccimide, but, unfortunately, without success. Finally, the deprotection with tetrabutylammonium fluoride gave the wanted phenylacetylenes 14 and 15 with quantitative yields.
The second Sonogashira reaction between the acetylenes 14 and 15 and the dibromo intermediate 16 [14] gave ligand esters 17 and 18, respectively. The esters 17 and 18 were hydrolyzed with KOH in EtOH–H2O followed by the forming of chelates 19 and 20 with EuCl3 in slightly acidic conditions and precipitating the excess europium as Eu(OH)3 by adjusting the pH to 8.5. The chelates 19 and 20 were purified by the semi-preparative HPLC.
The activation of the amino group of the chelates by transformation to the corresponding isothiocyanato group in the final labeling reagents 2 and 3 was performed with thiophosgene in H2O/CHCl3.
The synthesis of the acyclic labeling regents (4 and 5 in Scheme 3) with three chromophores started from the protection of aminophenyl acetylene with trifluoroacetic acid anhydride to get compound 21. After the Sonagashira coupling reaction with the 6-bromo-2,6-di-hydroxy-methylpy-ridine 22 [28], diol 23 was transformed with PBr3 into bis(bromomethyl) derivative 24. This product was conjugated with two pyridine subunits 26 in the dry MeCN in the presence of K2CO3 to get the key intermediate 27. The needed building block 26 was prepared from 4-bromo-6-bromomethyl-2-carboxyethylpyridine 25 [14] using five-fold excess of glycine ethyl ester hydrochloride in dry MeCN and di-isopropylethylamine. After the triplet bond coupling reaction of the two bromo groups in the compound 27 with the acetylenes 14 and 15, the target ester ligands 28 and 29 were hydrolyzed, transformed to the corresponding Eu(III) chelates 30 and 31 including the HPLC purifications, and, finally, activated to the target labeling chelates 4 and 5 as described above with the chelates 2 and 3.
The synthesis of the unsymmetrical acyclic analogue to the labeling reagent 5 i.e., the Eu(III) chelate 6 in Scheme 4 was more complicated. First, the 6-bromo-2,6-dibromomethylpyridine 32 [28] was transformed to diester 33 by the reaction with two ethyl glysinates, and, after conjugation to one equivalent of the compound 25, the triester 34 was obtained with a reasonable yield. It is worth mentioning that, although in the last step only one main product spot is seen on TLC, besides the wanted product 34, the TLC spot actually also contains a product in which two equivalents of the compound 25 have reacted with the compound 33. With a careful column chromatography, the two products can be separated from each other. The secondary amino in 33 was coupled to the bromomethyl group of 37 in almost quantitative yield. The coupling reaction between acetylene 21 and 4-bromo-6-hydroxymethyl-2-carboxyethylpyridine 35 [14] followed by the bromination of the hydroxyl group in 36 with PBr3 gave the compound 37. After a similar Sonagashira reaction as described above, the ligand ester 39 was formed followed by the hydrolysis, the formation of Eu(III) chelate 40, the HPLC purification and activation to the labeling reagent 6.
The synthesis of macrocyclic Eu(III) chelates 7 and 8 is presented in Scheme 5. After the organometallic coupling of the acetylenes 14 and 15 with the 4-bromo-6-hydroxymethyl-2-carboxy-ethylpyridine 35 to get the conjugates 41 and 42, and the bromination of the hydroxyl group with PBr3, the needed chromophores 43 and 44 were isolated to be used for coupling with two amino functions of the macrocyclic intermediate 46. The diBoc-protected 1,4,7-triazacyclononane derivative 45 formed from 37 and di-tert-butyl 1,4,7-triazacyclononane-1,4-dicarboxylate (diBocTACN) was deprotected with CF3COOH to get the compound 46. The two phenylethynylpyridine subunits 43 and 44 were coupled with 46 in dry MeCN and DIPEA with high yields. It is notable that, according to mass spectra analysis of the crude reaction mixture, a mass corresponding of an over conjugated product was found i.e., the reactivity of bromide in 43 and 44 is high enough to be able to form ternary substituted amino function, although steric hindrance could be assumed significant enough to prevent such a reaction. The synthesis strategy to prepare the chromophores before conjugation to the 1,4,7-triazacyclononane (TACN) was chosen as the organometallic coupling reaction was not efficient when TACN was present, probably due to possible complex formations between Cu(I)/Pd(II) and the azacrown, which lead to incomplete reaction.
The ethyl ester groups of 47 and 48 were saponified with KOH in EtOH–H2O mixture; however, the conventional Eu(III) chelate formation in slightly acidic solution at room temperature lead to incomplete chelate formation according to HPLC and MS analyses. After multiple tests, the reasonable complex formation of 49 and 50 was achieved within several days incubation at 95 °C and pH 9.5 in aqueous citric solution to prevent Eu(OH)3 precipitation. The possible reason for the slow complexation could be the high negative charge of the two chromophores causing repulsion and slow rotation of the chromophores to reach the final complex i.e., high rigidity of the ligand and/or a possible strong encapsulation of potassium ion in the TACN cavity during the earlier phase, as has been seen with e.g., crown ethers and cryptands. After the HPLC purification of chelates 49 and 50, the amino groups were activated with thiophosgene to receive the labeling reagents 7 and 8.

2.2. Photophysical Properties

The reference chelate (1) and prepared labeling reagents (28) were conjugated to taurine (1a8a) and protein (1b8b) followed by purifications. The photochemical properties i.e., the absorption maxima (λabs), the excitation maxima (λexc), decay-times (τ), the corresponding molar absorption coefficients (ε), brightness (εΦ) and quantum yield (Φ) in tris-saline-azide (TRIS) buffer (TRIS 50 mM, NaCl 0.9%, pH 7.75) are presented in Table 1. The table includes also the obtained enhanced signals from dried troponin I immunoassay wells, compared with the corresponding signal of the reference chelate with a known effect of drying [20].
The excitation wavelengths of the new chelates are ca. 15–20 nm red-shifted compared to the reference chelate, and are between 340–350 nm due to the additional electron-releasing ether functions at para- and meta-positions of the chromophores. The excitation maxima fit perfectly to a recently published new optical system based on UV light emitting diode excitation at 340 nm [25]. The third ether substituent (e.g., chelate 5 compared to 4) does not have any notable effect on the excitation wavelength, except with the chelate 2 (ca. 345 nm) compared to the corresponding complex 3 (ca. 350 nm). Generally, the increase of the chromophores decreases the H2O solubility as well as increases the formation of aggregates during the bio-molecule labeling process and non-specific binding properties for the labelled proteins. Aggregations will produce purification problems and reduce the yield of labelled material. Moreover, increased non-specific binding of the labelled biomolecule can enhance the assay background, and, thus, reduces the assay sensitivity. In the present study, the additional COONa+ groups, together with the ether substituents offer high solubility in H2O, reduce the nonspecific binding of the labelled biomolecule, and the affinity properties of the used biomolecules are almost unchanged despite the increased negative charge of the labels. However, such groups close to each other might cause nonspecific binging to positive groups present in the assay, and, thus, interference with assay components might be obtained.
The absorptivities between the two chromophore chelates 1a3a are close to each other from 55,000 to 58,000 M−1 cm−1. As it could be assumed, the third chromophore increases the absorptivities. The measured values from 64,000 (5a) to 89,000 M−1 cm−1 (7a) express the higher value for the 2,4-substituted taurine chelate designs compared to the corresponding 2,4,6-substitued ones. The coupling of chelate to the protein changes the polarity of the chelates environment and seems to enhance absorptivity with all new chelates except 4b and 6b, and the change is strongest with the TACN based label 8b (104,000 vs. 77,000 M−1 cm−1).
The luminescence decay-times of the new chelates with two chromophores 2 and 3 are slightly shorter compared to 1, and are more reduced with the acyclic chelates with three chromophores 46 being lowest with TACN derivatives 7 and 8. Moreover, the life-times with 2,4,6-trisubstituted chelate designs are shorter compared to the corresponding 2,4-disubstitued analogues (3 vs. 2, 5 vs. 4 and 8 vs. 7). Moreover, the chromophore with an electron donating NH(C=S)NH group can have its own influence on the luminescence lifetime. This phenomenon of luminescence lifetime reduction is rather surprising as all chelate structures are nine-dentate and the chromophores are similar. Generally, the sensitization of lanthanide luminescence occurs through the ligands’ triplet excited state. However, lately, an alternative route through an intra-ligand charge transfer (ILCT) state has been demonstrated [10,29]. Ligands, which contain a conjugated π-electron skeleton, such 4-(phenylethynyl)pyridine moiety, substituted by an electron-donating substituent together with an electron accepting substituent at the other end of the antenna, can be excited through the ligands’s CT-state. Such antenna chromophore can present a dipolar (push-pull) geometry. The lanthanide ion acting as a Lewis acid increases the acceptor strength of this push–pull feature and lowers the energy of the relaxed CT excited state. When the CT state is low enough, the excited energy can transfer back from the excited state of lanthanide ion, which is observed as a reduced luminescence life-time. Thus, the shortened luminescence life-time can be assumed to reflect the energy transfer through the ILCT together with the original triplet state mediating route. It is known that the relaxation in the CT excitation path is strongly correlated with the donor/acceptor pair, which supports the shorter luminescence life-time of the chelates having chromophores with only one CH2 group and one electron accepting COO group in the pyridines (7 and 8) over the other chelates having chromophores also with two CH2 groups. Thus, the chelates 7 and 8 have chromophores with lower CT states, whereas the others have subunits with CT state(s) at a higher energy level, which minimized both the energy transfer trough ILCT and the energy backflow. Similarly, the complexes with two chromophores 13 have only electron donating CH2 groups in pyridine and show the longest lifetimes. Moreover, reference chelate 1 has only one electron donating substituent in the phenyl ring compared to others, and, thus, the longest decay time is observed. As a consequence, the increase of luminescence lifetime in order 1 > 2 > 3 > 4 > 5 = 6 > 7 > 8 can be attributed to the push–pull feature of the complex chromophores. Further evidence for the energy back-transfer phenomenon due to the low lying ILCT state indicates the luminescence lifetime measurements of chelates 6b (0.55 ms) and 8b (0.42 ms) in D2O, which rule out the possible lifetime reduction caused by water molecules.

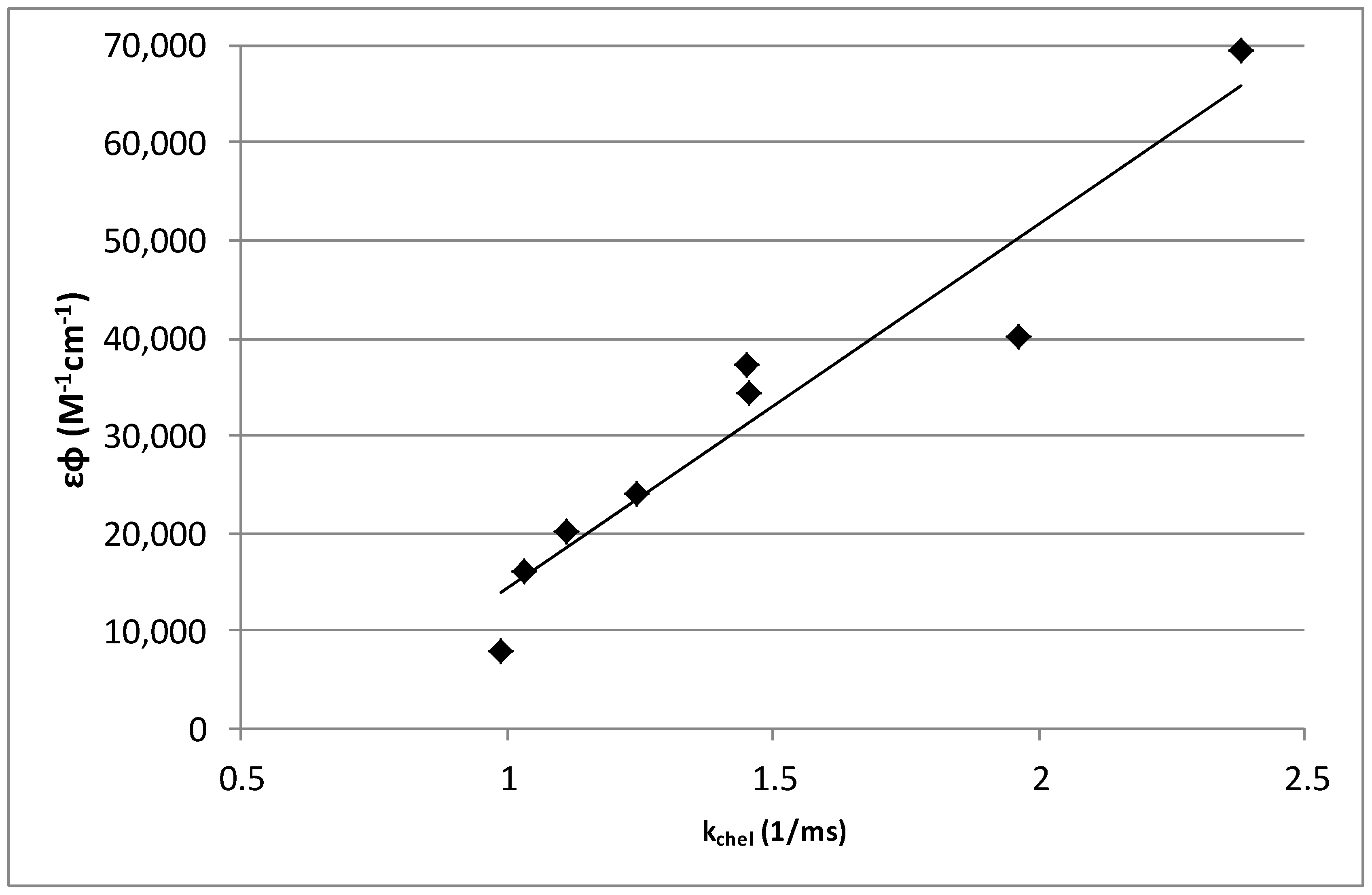

The luminescence effectiveness of the chelates is affected by the molar absorption coefficient (ε) and the quantum yield (Φ), and it can be illustrated by the product εΦ, called brightness. From the chelates with two chromophores 2a gives almost two fold higher signal, whereas 3 is about at the same level compared to reference 1. The acyclic chelates 46 show notable enhanced luminescence intensities (9700–16,400 M−1 cm−1), being 2.0–3.1 times higher compared to the chelate 1. In addition, the quantum yields (13–26%) are significantly increased. A remarkable drop of brightness and quantum yield is seen with the chelates 7 and 8. The reason behind the obtained luminescence intensities cannot be explained by differences between triplet state energy levels as those can be assumed to be near to each other. Earlier triplet state energy level measurements from several different chelate designs having the same (phenylethynyl)pyridine subunit including three, seven and nine-dentate chelates have given the triplet state energy values in a range of 21,600–21,830 cm−1 [8]. Therefore, the observed effect on the luminescence intensity should be attributed to the excited energy transfer through the low lying ILCT states, although the triplet mediated process cannot be entirely ruled out. If the ILCT state is too low, the signal is reduced in aqueous solutions. Further evidence of the energy transfer through the ILCT state is seen from the brightness measurements on the surface dried assay wells after an immunoreaction (Table 1) compared to the corresponding wet measurements. The signal increase of 60% (i.e., 1.7 fold) for the chelate 1 has been demonstrated in literature [20]. It is known that with lanthanide chelates, which have low-lying CT state, the signal is highly dependent on solvent or environment polarity [29]. The enhanced luminescence on the dried surface are without doubt partly caused by the loss of H2O molecules causing the signal reduction due to the IR overtones of OH bonds in aqueous solution but also by the polarity change. The signal enhancement between wet and dry formats is ca. 2.8–4.1, 1.5–3.8 and 69–80 folds for the two chromophores containing chelates 2 and 3, the acyclic chelates 46 and the TACN chelates 7 and 8, respectively (see also Figure 1). When compared to the dry signal level of chelate 1, brightness improvement from 2.0 to 8.7 fold is obtained. More evidence of the CT route and its significance on the luminescence is clearly seen from Figure 2. A quite clear correlation is seen between the decay constants (kchel = 1/τ) in TRIS buffer and the measured enhanced brightness of the different chelates (1b8b) after the drying.

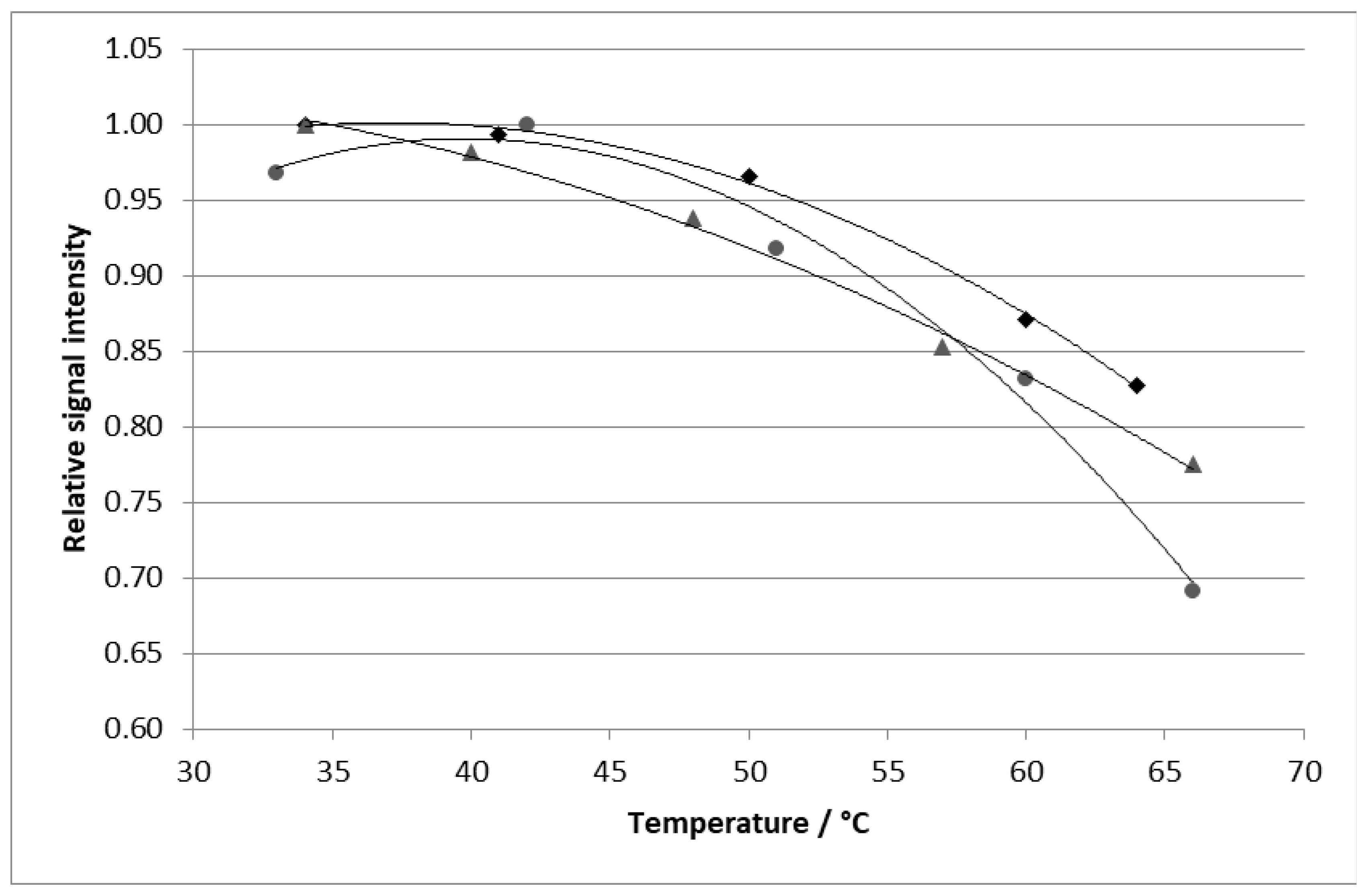

Finally, the dependency of luminescence on the measurement temperature between three chelates 1b, 6b and 8b in Figure 3 shows increasing luminescence quenching in order 8b > 6b > 1b being accordance with above observations, and is in agreement with the behavior of ILCT transition i.e., hypsochromic shift upon decreasing the temperature obtained earlier with phenylethynylpyri-dine Eu(III) chelates [29].
The luminescence intensities after drying are really remarkable e.g., when compared to the brightness of the well-known dissociation-enhanced lanthanide fluorescent immunoassays (DELFIA®) enhancement solution (26,320 M−1 cm−1 in [30]) used in many sensitive bio-affinity assays. Therefore, it should be possible to design highly sensitive TR-FIA assays by using the novel labeling chelates. Actually, preliminary troponin I assays performed have given three, five and seven folds improved assay sensitivities by using e.g., chelate labels 3, 6 and 8, respectively.

3. Materials and Methods

3.1. Materials

All commercially available solvents and reagents were used without further purifications. MeCN, THF and TEA were dried with molecular sieves and K2CO3 was dried overnight at 140 °C before use. The organic intermediates were purified by silica gel 60 (Merck, Darmstadt, Germany) column chromatography. The low fluorescence MaxiSorp single wells made of irradiated polystyrene were purchased from Nunc (Thermo Fisher Scientific, Waltham, MA, USA). The monoclonal anti-troponin I detection antibodies were manufactured by International Point of Care Inc., Toronto, ON, Canada. The troponin I capture antibody and antigen were purchased from HyTest Ltd. (Turku, Finland).

3.2. Syntheses

The general synthetic pathways used for the Eu(III) Chelates 28 are shown in Scheme 2, Scheme 3, Scheme 4 and Scheme 5. The more detailed synthetic procedures and the results of the spectroscopic product characterization are presented in the Supporting information. Microwave assisted syntheses were performed with a Initiator+ microwave synthesizer from Biotage (Uppsala, Sweden).
The Eu(III) chelates were analysed and purified by using a reversed phase HPLC (2996 Photodiode Array Detector, 600 Controller, Delta 600 Fraction Collector III; Waters, Milford, MA, USA) with a RP-18 column. The solvents were A: triethylammonium acetate buffer (20 mM, pH 7) and B: 50% acetonitrile in triethylammonium acetate buffer (20 mM, pH 7). The gradient was started from 5% of solvent B and the amount of solvent B was linearly raised to 100% within 30 min.
The 1H and 13C-NMR spectra were recorded on an AVANCE 500 DRX (Bruker, Billerica, MA, USA). The chemical shifts are given in ppm from the internal tetramethylsilane. Mass spectra were recorded on Applied Biosystems QSTAR® XL ESI-TOF (electrospray ionization-time-of-flight mass analyzer) instrument (Thermo Fisher Scientific) using α-cyano-4-cinnamic acid matrix. UV-Vis spectra were recorded on an Ultrospec® 3300 pro (GE Healthcare Life Sciences, Chicago, IL, USA) or a UV-1800 spectrophotometer (Shimadzu, Kyoto, Japan).
Eu(III) Chelate (1a). A mixture of Eu(III) chelate 1 (2.5 μmol) and taurine (3.1 mg, 25 μmol) in aqueous 50 mM Na2CO3 buffer (0.125 mL, pH 9.8) was stirred overnight at RT (room temperature). The product was purified by HPLC. Rf(HPLC): 15.1 min. UV: 320 nm.
Triethyl 2,2′,2′′-[benzene-1,3,5-triyltris(oxy)]triacetate (9). Ethyl bromoacetate (14.6 mL, 132 mmol) was added within 2 h to a mixture of benzene-1,3,5-triol (5.04 g, 40 mmol) and dry K2CO3 (18.2 g, 132 mmol) in dry MeCN (300 mL) at 50 °C under argon. After stirring for ca. 20 h at 50 °C, the mixture was filtered, the solid material washed with MeCN and the filtrate evaporated to dryness. The product was purified by silica gel column chromatography using MeOH/CH2Cl2 (first 0:100, then 1:99) as an eluent. Yield: 10.8 g (70%). 1H-NMR [DMSO-d6 (dimethyl sulfoxide), δ ppm]: 6.13 (3H, s), 4.74 (6H, s), 4.17 (6 H, q, J = 7.1 Hz), 1.22 (9H, t, J = 7.1 Hz). 13C-NMR (DMSO-d6, δ ppm): 169.02, 159.84, 95.12, 65.27, 61.10, 14.51. MS(ESI-TOF) calculated for C18H24O9 [M + H]+: 385,15, found: 385.04.
Triethyl 2,2′,2′′-[(2-iodobenzene-1,3,5-triyl)tris(oxy)]triacetate (10). The compound 9 (8.36 g, 22 mmol) in CH3COOH (40 mL) was added to a mixture of N-chlorosuccinimide (2.95 g, 22 mmol) and NaI (3.30 g, 22 mol) in CH3COOH (65 mL). After stirring for 1.5 h at RT, the mixture was evaporated to dryness. The residue was dissolved in EtOAc (ethyl acetate, 320 mL) and neutralized with saturated NaHCO3 solution. The phases were separated, the aqueous phase was extracted with EtOAc (80 mL) and the combined organic phases were dried with Na2SO4. Yield: 11,2 g (100%). 1H-NMR (CDCl3, δ ppm): 6.10 (2H, s), 4.65 (4H, s), 4.55 (4H, s), 4.27 (2H, q, J = 7.15 Hz), 4.26 (4H, q, J = 7.15 Hz), 1.31 (3H, t, J = 7.15 Hz), 1.30 (6H, t, J = 7.15 Hz). 13C-NMR (CDCl3, δ ppm): 168.14, 168.01, 159.89, 158.65, 94.34, 66.61, 65.61, 61.52, 61.43, 14.05. MS(ESI-TOF) calculated for C18H23IO9 [M + H]+: 511.05, found: 510.93.
Diethyl 2,2′-[(4-bromo-1,3-phenylene)bis(oxy)]diacetate (11). A mixture of 4-bromobenxene-1,3-diol (3.18 g, 16.8 mmol), dry K2CO3 (5,12 g, 37,0 mmol) and ethyl bromoacetate (4.11 mL, 37.0 mmol) in dry MeCN (60 mL) was stirred for 24 h at 50 °C. The mixture was filtered, the solid material washed with MeCN and the filtrate evaporated to dryness. The product was purified by silica gel column chromatography using MeOH/CH2Cl2 (first 0:100, then 1:99) as an eluent. Yield: 5.97 g (98%). 1H-NMR (DMSO-d6, δ ppm): 7.46, (1H, d, J = 8.8 Hz), 6.65 (1H, d, J = 2.7 Hz), 6.51 (1H, dd, J = 2.7 and 8.8 Hz), 4.91 (2H, s), 4.79 (2H, s), 4.18 (2H, q, J = 7.1 Hz), 4.16 (2H, q, J = 7.1 Hz), 1.22 (3 H, t, J = 7.1 Hz), 1.21 (3 H, t, J = 7.1 Hz). 13C-NMR (DMSO-d6, δ ppm): 168.65, 158.62, 155.08, 133.55, 108.65, 102.64, 102.09, 65.81, 65.44, 61.21, 61.15, 14.49. MS(ESI-TOF) calculated for C14H17BrO6 [M + H]+: 361.03 and 363.03 found: 360.89 and 362.92.
General Procedure for the Synthesis of Compounds 12 and 13. A mixture of compound 10 or 11 (5.33 mmol), bis(triphenylphosphine)palladium(II) chloride (186 mg, 0.27 mmol), CuI (51 mg, 0.27 mmol), triphenylphosphine (142 mg, 0.54 mmol; only for compound 12) in diethylamine (10 mL) and dry DMF (5 mL) was de-aerated with argon. After addition of trimethylsilylacetylene (1.17 mL, 8.34 mmol), the mixture was stirred for 45 or 30 min for compound 10 and 11, respectively, at 100 °C using microwave heating. After evaporation to dryness, the residue was dissolved in CH2Cl2 (50 mL), washed with H2O (2 × 25 mL), dried with Na2SO4 and purified with column chromatography.
Diethyl 2,2′-{{4-[(trimethylsilyl)ethynyl]-1,3-phenylene}bis(oxy)}diacetate (12). The product was purified by silica gel column chromatography using EtOAc/petroleum ether (20:80) as an eluent. Yield: 94%. 1H-NMR (DMSO-d6, δ ppm): 7.31 (1H, d, J = 8.8 Hz), 6.52 (1 H, d, J = 2.4 Hz), 6.61 (1H, dd, J = 2.4 and 8.8 Hz), 4.85 (2H, s), 4.81 (2H, s), 4.18 (2H, q, J = 7.1 Hz), 4.17 (2H, q, J = 7.1 Hz), 1.23 (3H, t, J = 7.1 Hz), 1.21( 3H, t, J = 7.1 Hz), 0.22 (9H, s). 13C-NMR (DMSO-d6, δ ppm): 168.73, 160.08, 159.70, 134.94, 107.33, 105.18, 102.16, 100.66, 97.00, 65.66, 65.30, 61.17, 14.51, 14.49, 0.57. MS(ESI-TOF) calculated for C19H22O6Si [M + H]+: 379.16, found 379.39.
Triethyl 2,2′,2′′-{{2-[(trimethylsilyl)ethynyl]benzene-1,3,5-triyl}tris(oxy)}triacetate (13). The product was purified by silica gel column chromatography using EtOAc/petroleum ether (first 20:80, then 30:70) as an eluent. Yield: 70%. 1H-NMR (CDCl3, δ ppm): 6.10 (2H, s), 4.67 (4H, s), 4.55 (2H, s), 4.27 (2H, g, J = 7.15 Hz), 4.26 (4H, q, J = 7.15 Hz), 1.30 (6H, t, J = 7.15 Hz), 1.29 (3H, t, J = 7.15 Hz), 0.26 (9H, s). 13C-NMR (DMSO-d6, δ ppm): 168.60, 168.56, 160.98, 159.66, 101.34, 98.17, 95.29, 93.43, 65.77, 65.31, 61.06, 61.04, 14.41, 14.38, 0.56. MS(ESI-TOF) calculated for C23H32O9Si [M + H]+: 481.19, found: 481.99.
General Procedure for the Synthesis of Compounds 14 and 15. A mixture of compound 12 or 13 (10.4 mmol) and tetrabutylammonium fluoride (3.25 g, 12.4 mmol) in CH2Cl2 (200 mL) stirred for 1.5 h at RT under argon. Mixture was washed with aqueous 10% citric acid solution (200 mL), H2O (200 mL), died with Na2SO4 and used for the next step without further purification as no impurities were found with the TLC analysis.
Diethyl 2,2′-{[4-(ethynyl)-1,3-phenylene]bis(oxy)}diacetate (14). Yield: 100%. 1H-NMR (DMSO-d6, δ ppm): 7.34 (1H, d, J = 8.8 Hz), 6.53 (1H, d, J = 2.4 Hz), 6.52 (1H, dd, J = 2.4 and 8.8 Hz), 4.89 (2H, s), 4.81 (2H, s), 4.17 (2H, q, J = 7.1 Hz), 4.16 (2H, q, J = 7.1 Hz), 4.10 (1H, s), 1.22 (3H, t, J = 7.1 Hz), 1.21 (3H, t, J = 7.1 Hz). 13C-NMR (DMSO-d6, δ ppm): 168.84, 168.83, 160.29, 159.59, 134.90, 107.29, 104.62, 100.49, 83.70, 80.35, 65.40, 65.29, 61.17, 14.49. MS(ESI-TOF) calculated for C16H18O6 [M + H]+: 307.12, found: 307.01.
Triethyl 2,2′,2′′-{[2-(ethynyl]benzene-1,3,5-triyl]tris(oxy)}triacetate (15). Yield: 100%. 1H-NMR (CDCl3, δ ppm): 6.06 (2H, s), 4.69 (4H, s), 4.55 (2H, s), 4.27 (2H, q, J = 7.15 Hz), 4.26 (4H, q, J = 7.15 Hz), 3.50 (1H, s), 1.30 (3H, t, J = 7.15 Hz), 1.29 (6H, t, J = 7.15 Hz). 13C-NMR (CDCl3, δ ppm): 168.23, 168.10, 161.48, 159.39, 95.25, 94.18, 85.18, 66.42, 65.49, 61.64, 61.49, 14.14. MS(ESI-TOF) calculated for C20H24O9 [M + H]+: 409.15, found: 409.20.
General Procedure for the Synthesis of Ligand Esters 17 and 18. A mixture of compound 16 (0.22 g, 0.25 mmol; [31]) and compound 14 or 15 (0.60 mmol) in dry TEA (2 mL) and THF (4 mL) was de-aerated with argon. After an addition of bis(triphenylphosphine)palladium(II) dichloride (11 mg, 16 μmol) and CuI (6 mg, 32 μmol), the mixture was stirred overnight at 55 °C and evaporated to dryness. The residue was dissolved in CH2Cl2 (30 mL), washed with H2O (2 × 15 mL), dried with Na2SO4 and purified by column chromatography.
Ligand Ester 17. The product was purified by silica gel column chromatography using TEA/EtOAc/petroleum ether (20:40:40) as an eluent. Yield: 48%. 1H-NMR (DMSO-d6, δ ppm): 7.47 (2 H, d, J = 1.1 Hz), 7.45 (2H, d, J = 8.6 Hz), 7.43 (2H, d, J = 1.1 Hz), 6.79 (2H, d, J = 8.4 Hz), 6.61 (2H, d, J = 2.3 Hz), 6.55 (2H, dd, J = 8.4 and 2.3 Hz), 6.44 (2H, d, J = 8.4 Hz), 4.91 (4H, s), 4.83 (4H, s), 4.75 (2H, s), 4.17 (4H, q, J = 7.1 Hz), 4.17 (4H, q, J = 7.1 Hz), 4.05 (4H, q, J = 7.1 Hz), 3.94 (4H, s), 3.82 (4H, s), 3.56 (8H, s), 2.65 (4H, s), 1.23 (6H, t, J = 7.1 Hz), 1.20 (6H, t, J = 7.1 Hz), 1.16 (12H, t, J = 7.1 Hz). 13C-NMR (DMSO-d6, δ ppm): 171.14, 168.77, 168.702, 160.28, 160.14, 159.58, 159.21, 146.96, 134.86, 129.34, 129.28, 129.18, 127.50, 122.84, 122.50, 114.42, 107.61, 104.26, 100.64, 90.62, 90.38, 65.65, 65.35, 61.21, 61.19, 59.73, 59.60, 56.67, 54.98, 32.61, 14.50, 14.49, 14.46. MS(ESI-TOF) calculated for C70H84N6O20 [M + 2H]+: 1329.59, found: 1330.66.
Ligand Ester 18. The product purified by silica gel column chromatography using MeOH/CH2Cl2 (5:95) as an eluent. Yield: 73%. 1H-NMR (CDCl3, δ ppm): 7.56 (2H, s), 7.51 (2H, s), 6.88 (2H, d, J = 8.3 Hz), 6.56 (2H, d, J = 8.3 Hz), 5.98 (4H, s), 4.70 (8H, s), 4.52 (4H, s), 4.28 (4H, q, J = 7.1 Hz), 4.26 (8H, q, J = 7.1 Hz), 4.15 (8H, q, J = 7.1 Hz), 4.04 (4H, s), 3.87 (4H, s), 3.62 (8H, s), 2.80–2.70 (4H, m), 1.65 (2H, bs), 1.31 (6H, t, J = 7.1 Hz), 1.25 (12H, t, J = 7.1 Hz), 1.24 (12H, t. J = 7.1 Hz). 13C-NMR (CDCl3, δ ppm): 171.14, 168.45, 168.14, 160.91, 159.58, 159.52, 157.81, 144.59, 133.17, 130.33, 129.52, 123.52, 122.58, 115.26, 96.52, 95.52, 93.46, 85.52, 66.04, 65.29, 61.54, 61.32, 60.49, 60.35, 59.92, 56.02, 54.88, 32.58, 14.24, 14.16, 14.15. MS(ESI-TOF) calculated for C78H96N6O26 [M + 2H]+: 1533.65, found: 1532.96.
General Procedure for the Synthesis of Eu(III) Chelates 19 and 20. Compound 17 or 18 (52 μmol) in 0.5 M KOH in EtOH (5.4 mL) was stirred for 30 min at RT, H2O (2.7 mL) was added and the mixture was further stirred at RT for 2 h. After evaporation of EtOH and an additional stirring for 2 h at RT, the pH was adjusted to 6.5 by addition of 6 M HCl. EuCl3 (21 mg, 57 μmol) in water (0.5 mL) was added within 5 min and the pH was maintained at 6.0–6.5 with suitable additions of solid NaHCO3. After stirring overnight at RT, the pH was adjusted to 8.5 with 1 M NaOH. The precipitate was removed by centrifugation and the supernatant evaporated to dryness. The product was purified by HPLC.
Eu(III) Chelate 19. Yield: 88%. Rf(HPLC): 14.8 min. UV: 342 nm.
Eu(III) Chelate 20. Yield: 92%. Rf(HPLC): 12.3 min. UV: 346 nm.
General Procedure for the Synthesis of Eu(III) Chelates 2 and 3. An aqueous solution (1.3 mL) of the Eu(III) chelate 19 or 20 (55 μmol) was added within 5 min to a mixture of CSCl2 (30 µL, 0.39 mmol) and NaHCO3 (37 mg, 0.44 mmol) in CHCl3 (1.3 mL). After stirring for 45 min at RT, the two phases were separated and the aqueous phase was washed with CHCl3 (3 × 1.3 mL). The product was precipitated with acetone (ca. 45 mL), isolated by centrifugation, washed with acetone (2 × 10 mL) and dried overnight in vacuum desiccator. The products were used as such for next phase or for labeling the antibodies.
Eu(III) Chelate 2. Rf(HPLC): 18.4 min. UV: 346 nm.
Eu(III) Chelate 3. Rf(HPLC): 14.6 min. UV: 350 nm.
General Procedure for the Synthesis of Eu(III) Chelates 2a and 3a. A mixture of Eu(III) chelate 2 or 3 (2.5 μmol) and taurine (3.1 mg, 25 μmol) was stirred in aqueous 50 mM Na2CO3 buffer (0.125 mL, pH 9.8) for overnight at RT. The product was purified by HPLC.
Eu(III) Chelate 2a. Rf(HPLC): 15.1 min. UV: 340 nm.
Eu(III) Chelate 3a. Rf(HPLC): 12.5min. UV: 351 nm.
N-(4-Ethynylphenyl)-2,2,2-trifluoroacetamide (21). 4-Ethynylaniline (1.17 g, 10 mmol) was added in small portions to a ice-cold trifluoroacetic anhydride (5.6 mL, 40 mmol). After stirring for 2.5 h at RT, cold H2O was added, the mixture filtrated and the product washed with cold H2O. Yield: 2.12 g (98%). 1H-NMR (CDCl3, δ ppm): 8.08 (1H, bs), 7.55 (2H, d, J = 8.8 Hz), 7.51 (2 H, d, J = 8.8 Hz), 3.1 (1H, s). 13C-NMR (CDCl3, δ ppm): 154.72, 135.40, 133.23, 129.92, 120.25, 120.01, 82.67, 77.99. MS(ESI-TOF) calculated for C10H6F3NO [M + H]+: 213.04, found 213.05.
N-{4-{[2,6-Bis(hydroxymethyl)pyridin-4-yl]ethynyl}phenyl}-2,2,2-trifluoroacetamide (23) A mixture of the compound 21 (0.55 g, 2.58 mmol) and 4-bromo-2,6-dihydroxymethylpyridine (22; [28]) (0.47 g, 2.15 mmol) in dry TEA (5 mL) and THF (10 mL) was de-aerated with argon. After addition of bis(triphenylphosphine)palladium(II) chloride (30 mg, 43 μmol) and CuI (16 mg, 86 μmol), the mixture was stirred for 19 h at 55 °C. After evaporation to dryness, the residue was treated with a cold mixture of CH2Cl2 (40 mL) and H2O (20 mL), filtered and the product washed with cold H2O (10 mL) and CH2Cl2 (10 mL). Yield: 0.56 g (75%). 1H-NMR (DMSO-d6, δ ppm): 11.5 (1H, bs), 7.79 (2H, d, J = 8.8 Hz), 7.68 (2H, d, J = 8.8 Hz), 7.41 (2H, s), 5.49 (2H, bs), 4.56 (4H, s). 13C-NMR (DMSO-d6, δ ppm): 162.25, 155.53, 155.23, 154.94, 154.64. 138.01, 133.12, 131.39, 121.52, 120.00, 119.58, 118.63, 117.29, 114.99, 92.93, 87.98, 64.39. MS(ESI-TOF) calculated for C17H13F3N2O3 [M + H]+: calculated 351.10, found 351.96.
N-{4-{[2,6-bis(bromomethyl)pyridin-4-yl]ethynyl}phenyl}-2,2,2-trifluoroacetamide (24). PBr3 (0.35 mL, 3.67 mmol) was added in a suspension of the compound 23 (0.86 g, 2.45 mmol) in CHCl3 (100 mL). After stirring for 20 h at 60 °C, the mixture was neutralized with 5% NaHCO3 (50 mL). The aqueous phase was extracted with CHCl3 (50 mL) and the combined organic phases were dried with Na2SO4, filtered and evaporated to dryness. The product 24 (1.09 g, 93%) was used for the next step without further purifications. 1H-NMR (CDCl3, δ ppm): 7.93 (1H, s), 7.63 (2H, d, J = 8.7 Hz), 7.59 (2H, d, J = 8.7 Hz), 7.47 (2H, s), 4.53 (4H, s). 13C-NMR (CDCl3, δ ppm): 157.02, 155.16, 154.85, 154.55, 154.23, 134.92, 133.36, 133.11, 124.55, 120.26, 119.73, 118.98, 116.68, 114.38, 112.10, 93.70, 86.77, 32.98. MS(ESI-TOF) calculated for C17H11Br2F3N2O [M + H]+: 474.93, 476.93, 478.92, found 475.38, 477.44, 479.45.
Ethyl-2-{[4-bromo-6-(carboxyethyl)pyridine-2-yl]methylenenitrilo}acetate (26). A mixture of 4-bromo-6-bromomethyl-2-carboxyethylpyridine (25; [14]) (1.66 g, 5.15 mmol), glycine ethyl ester hydrochloride (3.60 g, 25.8 mmol) and di-isopropylethylamine (9.1 mL) in dry MeCN (70 mL) was stirred overnight at RT. The mixture was evaporated to dryness and the product was purified by silica gel column chromatography using MeOH/CH2Cl2 (3:97) as an eluent. Yield 1.55 g (87%). 1HNMR: (CDCl3, δ ppm): 8.14 (1H, d, J = 1.65 Hz), 7.85 (1H, d, J = 1.60 Hz), 4.47 (2H, q, J = 7.12 Hz), 4.20 (2H, q, J = 7.13 Hz), 4.05 (2H, s), 3.47 (2H, s), 2.26 (1H, s), 1.43 (3H, t, J = 7.13 Hz), 1.28 (3H, t, J = 7.13 Hz). 13C-NMR (DMSO-d6, δ ppm): 172.41, 164.08, 162.23, 148.76, 133.81, 128.53, 126.29, 62.07, 60.47, 53.65, 50.24, 14.59, 14.54. MS(ESI-TOF) calculated for C13H17BrN2O4 [M + H]+: 345.05, 347.05, found 344.97, 346.97.
Synthesis of Compound 27. A mixture of compounds 24 (0.44 g, 0.94 mmol), 26 (0.65 g, 1.89 mmol), dry K2CO3 (0.52 g, 3.76 mmol) was stirred in dry MeCN (30 mL) for 27 h at 70 °C. The mixture was filtrated and the filtrate evaporated to dryness, and the product was purified by silica gel column chromatography using TEA/EtOAc/petroleum ether (1:69:30) as an eluent. Yield: 66%. 1H-NMR (CDCl3, δ ppm): 8.53 (1H, s), 8.14 (2H, d, J = 1.80 Hz), 8.11 (2H, d, J = 1.80 Hz), 7.68 (2 H, d, J = 8.73 Hz), 7.60 (2H, d, J = 8.73 Hz), 7.34 (2H, s), 4.44 (4H, q, J = 7.08 Hz), 4.18 (4 H, q, J = 7.15 Hz); 4.10 (4H, s), 3.98 (4 H, s), 3.50 (4 H, s), 1.40 (6H, t, J = 7.08 Hz), 1.28 (6H, t, J = 7.15 Hz). 13C-NMR (CDCl3, δ ppm): 171.02, 164.11, 161.85, 158.48, 155.23, 154.92, 154.62, 154.32, 148.52, 136.02, 134.37, 132.98, 132.16, 129.28, 128.35, 127.01, 123.43, 120.28, 119.04, 116.74, 114.45, 112.15, 92.79, 87.68, 62.23, 60.68, 59.82, 59.64, 55.41, 14.24. MS(ESI-TOF) calculated for C43H43Br2F3N6O9 [M + H]+: 1003.15, 1005.15, 1007.15, found 1003.71, 1005.48, 1007.58.
General Procedure for the Synthesis of Ligand Esters 28 and 29. A mixture of compound 27 (0.120 g, 0.148 mmol), compound 14 or 15 (0.355 mmol) in dry TEA (1 mL) and THF (2 mL) was de-aerated with argon. After an addition of bis(triphenylphosphine)palladium(II) dichloride (10 mg, 14 μmol) and CuI (6 mg, 28 μmol), the mixture was stirred overnight at 55 °C and evaporated to dryness. The residue was dissolved in CH2Cl2 (30 mL), washed with H2O (2 × 15 mL), dried with Na2SO4 and purified by silica gel column chromatography.
Ligand Ester 28. The product purified by silica gel column chromatography using 10% EtOH/CH2Cl2 as an eluent. Yield: 69%. 1H-NMR (DMSO-d6, δ ppm): 11.44 (1H, s), 7.85 (2H, s), 7.77 (2H, s), 7.69 (2H, d, J = 8.1 Hz), 7.57 (2H, d, J = 6.7 Hz), 7.45 (2H, d, J = 8.1 Hz), 7.43 (2H, s), 6.60 (2H, s), 6.53 (2H, d, J = 6.7 Hz), 4.91 (4H, s), 4.82 (4 H, s), 4.30 (4H, q, J = 6.7 Hz), 4.17 (8H, q, J = 7.1 Hz), 4.06 (4H, q, J = 6.9 Hz), 4.00 (4 H, s), 3.95 (4 H, s), 3.53 (4 H, s), 1.30 (6H, t, J = 6.7 Hz), 1.22 (6H, t. J = 7.1 Hz), 1.20 (6H, t, J = 7.1 Hz), 1.18 (6H, t, J = 6.9 Hz). 13C-NMR (DMSO-d6, δ ppm): 171.19, 168.67, 168.62, 164.58, 160.62, 160.32, 159.04, 155.47, 155.18, 154.89, 154.59, 147.74, 137.93, 134.95, 133.48, 132.98, 130.67, 129.50, 127.50, 124.78, 123.44, 121.34, 119.46, 118.50, 117.26, 114.96, 112.67, 107.69, 103.73, 100.64, 92.13, 89.65, 87.58, 65.70, 65.34, 61.84, 61.20, 60.48, 59.64, 56.50, 55.71, 55.38, 14.51, 14.46. MS(ESI-TOF) calculated for C75H77F3N6O21 [M + H]+: 1455.52, found 1455.36.
Ligand Ester 29. The product was purified by silica gel column chromatography using TEA/EtOAc/petroleum ether (1:69:30) as an eluent. Yield: 57%. 1H-NMR (CDCl3, δ ppm): 9.12 (1H, s), 8.09 (2H, d, J = 1.25 Hz), 8.06 (2H, d, J = 1.25 Hz), 7.57 (2 H, s), 7.34 (2H, d, J = 8.80 Hz), 7.30 (2H, d, J = 8.80 Hz), 5.97 (4H, s), 4.63 (8H, s), 4.60 (4H, s), 4.45 (4H, q, J = 7.12 Hz), 4.30 (4H, q, J = 7.12 Hz), 4,21 (8H, q, J = 7.12 Hz), 4.17 (4H, q, J = 7.12), 4.10 (4H, s), 4.02 (4H, s), 3.52 (4H, s), 1.42 (6H, t, J = 7.12 Hz), 1.33 (6H, t, J = 7.12 Hz), 1.29 (6H, J = 7.12 Hz), 1.25 (12H, t, J = 7.12 Hz). 13C-NMR (CDCl3, δ ppm): 171.13, 168.69, 168.69, 165.07, 161.08, 160.53, 159.98, 159.03, 154.95, 154.66, 147.65, 136.35, 133.99, 132.56, 132.17, 128.47, 127.64, 125.43, 123.12, 119.95, 116.90, 114.59, 96.39, 94.76, 93.71, 92.65, 87.75, 87.21, 66.12, 65.22, 61.91, 61.89, 61.51, 60.57, 60.10, 59.94, 55.11, 14.32, 14.27, 14.13. MS(ESI-TOF) calculated for C83H89F3N6O27 [M + H]+: 1659.58, found 1659.81.
General Procedure for the Synthesis of Eu(III) Chelates 30 and 31. Compound 28 or 29 (90 μmol) was stirred in 0.5 M KOH in EtOH (13 mL) for 30 min at RT. H2O (10 mL) was added and the mixture was further stirred at RT for 3 h. After evaporation of EtOH and an additional overnight stirring at RT, the pH was adjusted to 6.5 by addition of 6 M HCl. EuCl3 (33 mg, 90 μmol) in water (0.5 mL) was added within 5 min and the pH was maintained at 6.0–6.5 with suitable additions of solid NaHCO3. After stirring overnight at RT, the pH was adjusted to 8.5 with 1 M NaOH. The precipitate was removed by centrifugation and the supernatant evaporated to dryness. The product was purified by HPLC.
Eu(III) Chelate 30. Yield: 100%. Rf(HPLC): 14.2 min. UV: 340 nm.
Eu(III) Chelate 31. Yield: 100%. Rf(HPLC): 14.5 min. UV: 359 nm.
General Procedure for the Synthesis of Eu(III) Chelates 4 and 5. An aqueous solution (2.7 mL) of the Eu(III) chelate 30 or 31 (0.10 mmol) was added within 5 min to a mixture of CSCl2 (53 µL, 0.70 mmol) and NaHCO3 (67 mg, 0.80 mmol) in CHCl3 (2.7 mL). After stirring for 30 min at RT, the two phases were separated and the aqueous phase was washed with CHCl3 (3 × 3 mL). The product was precipitated with acetone (ca. 45 mL), isolated by centrifugation, washed with acetone (2 × 10 mL) and dried overnight in vacuum desiccator.
Eu(III) Chelate 4. Rf(HPLC): 18.4 min. UV: 346 nm.
Eu(III) Chelate 5. Rf(HPLC): 20.9 min. UV: 325 (sh), 340 and 362 (sh) nm.
General Procedure for the Synthesis of Eu(III) Chelates 4a and 5a. A mixture of Eu(III) chelate 4 or 5 (6.3 μmol) and taurine (8 mg, 63 μmol) was stirred in aqueous 50 mM Na2CO3 buffer (0.64 mL, pH 9.8) and DMF (0.64 mL) for overnight at RT. The product was purified by HPLC.
Eu(III) Chelate 4a. Rf(HPLC): 16.7 min. UV: 340 nm.
Eu(III) Chelate 5a. Rf(HPLC): 14.3 min. UV: 349 nm.
Diethyl 2,2′-{[(4-bromopyridine-2,6-diyl)bis(methylene)]bis(azanediyl)}diacetate (33). A mixture of 4-bromo-2,6-dibromomethylpyridine (32, [28]) (3.50 g, 10 mmol), glycine ethyl ester hydrochloride (14.0 g, 0.10 mol) and di-isopropylethylamine (35 mL) in dry MeCN (130 mL) was stirred overnight at RT. After evaporation to dryness, the residue was dissolved in CH2Cl2 (100 mL), washed with H2O (3 × 50 mL), dried with Na2SO4, and the product was purified by silica gel column chromatography using TEA/EtOAc/petroleum ether (first 10:20:70, then 15:30:55) as an eluent. Yield 2.48 g (64%). 1H-NMR (CDCl3, δ ppm): 7.43 (2H, s), 4.20 (4H, q, J = 7.2 Hz), 3.91 (4H, s), 3.46 (4H, s), 2.25–2.15 (2H, bs), 1.28 (6H, t, J = 7.2 Hz). 13C-NMR (CDCl3, δ ppm): 172.00, 160.40, 133.83, 60.75, 54.00, 50.34, 14.18. MS(ESI-TOF) calculated for C15H22BrN3O4 [M + H]+: 388.09 and 390.09, found 388.75 and 390.75.
Ethyl 4-bromo-6-{{{{4-bromo-6-{[(2-ethoxy-2-oxoethyl)amino]methyl}pyridin-2-yl}methyl}(2-ethoxy-2-oxo-ethyl)amino}methyl}picolinate (34). 4-Bromo-6-bromomethyl-2-carboxyethylpyridine (25, [14]) (2.06 g, 6.39 mmol) was added in small portions to a mixture of the compound 33 (2.49 h, 6.39 mmol), dry K2CO3 (3.53 g, 25.6 mmol) in dry MeCN (215 mL) within 2 h at RT. After stirring for 22 h at RT, the mixture was filtrated and the filtrate evaporated to dryness. The product was purified by silica gel column chromatography using TEA/EtOAc/petroleum ether (first 10:25:65) as an eluent. Yield 2.03 g (50%). 1H-NMR (CDCl3, δ ppm): 8.12 (1H, d, J = 1.7 Hz), 8.07 (1H, d, J = 1.7 Hz), 7.55 (1H, d, J = 1.5 Hz), 7.43 (1H, d, J = 1.5 Hz), 4.46 (2H. q, J = 7.2 Hz), 4.19 (4H, q, J = 7.2 Hz), 4.09 (2H, s), 3.95 (2H, s), 3.90 (2H, s), 2.3–2.1 (1H, bs), 1.43 (3H, t, J = 7.2 Hz), 1.29 (3H, t, J = 7.2 Hz), 1.29 (3H, t, J = 7.2 Hz). 13C-NMR (CDCl3, δ ppm): 171.98, 170.81, 164.03, 161.57, 160.41, 159.70, 148.54, 134.26, 133.90, 129.13, 126.95, 124.60, 123.77, 62.16, 60.75, 60.63, 59.61, 59.48, 55.38, 54.00, 50.36, 14.19, 14.17, 14.14. MS(ESI-TOF) calculated for C24H30Br2N4O6 [M + H]+: 629.06, 631.05 and 633.06, found 629.54, 631.56 and 633.54.
Ethyl 6-(hydroxymethyl)-4-{[4-(2,2,2-trifluoroacetamido)phenyl]ethynyl}picolinate (36). A mixture of the compound 21 (0.34 g, 1.60 mmol) and 35 (0.47 g, 2.15 mmol; [14]) in dry TEA (5 mL) and THF (10 mL) was de-aerated with argon. After addition of bis(triphenylphosphine)palladium(II) chloride (19 mg, 27 μmol) and CuI (10 mg, 53 μmol), the mixture was stirred for 24 h at 55 °C. After evaporation to dryness, the product was purified by silica gel column chromatography using EtOH/CH2Cl2/TEA (10:89:1) as an eluent. Yield: 0.49 g (94%). 1H-NMR (CDCl3, δ ppm): 8.49 (1H, s), 8.08 (1H, s), 7.66 (2H, d, J = 8.7 Hz), 7.60 (1H, s), 7.59 (2H, d, J = 8.7 Hz), 4.85 (2H, s), 4.49 (2 H, q, J = 7.1 Hz), 1.43 (3H, t, J = 7.1 Hz). 13C-NMR (CDCl3, δ ppm): 164.55, 160.42, 155.24, 154.94, 154.64, 154.34, 147.42, 136.24, 133.10, 132.99, 125.58, 125.27, 120.30, 119.36, 118.94, 116.65, 114.35, 112.06, 94.24, 87.57, 64.30, 62.10, 14.18. MS(ESI-TOF) calculated for C19H15F3N2O4 [M + H]+ 393.18; found 394.16.
Ethyl 6-(bromomethyl)-4-{[4-(2,2,2-trifluoroacetamido)phenyl]ethynyl}picolinate (37). A mixture of compound 36 (2.10 g, 5.35 mmol) and PBr3 (0.75 mL, 8.03 mmol) in dry CHCl3 (180 mL) was stirred for 18 h at 55 °C, neutralized with aqueous 5% NaHCO3 (150 mL), the aqueous phase was extracted with CHCl3 (2 × 50 mL) and the combined organic phases were dried with Na2SO4. The product was purified by silica gel column chromatography using EtOH/CH2Cl2 (10:90) as an eluent. Yield: 2.01 g (84%). 1H-NMR (CDCl3, δ ppm): 8.25 (1H, s), 8.01 (1H, d, J = 1.1 Hz), 7.75 (1H, d, J = 1.1 Hz); 7.68 (2H, d, J = 8.7 Hz), 7.65 (2H, d, J = 8.7 Hz); 4.62 (2H, s), 4.50 (2H, q, J = 7.1 Hz), 1.45 (3H, t, J = 7.1 Hz). 13C-NMR (CDCl3, δ ppm): 164.32, 157.68, 155.16, 154.85, 154.55, 154.25, 148.06, 136.21, 133.59, 133.06, 128.36, 126.09, 120.26, 119.32, 118.92, 116.62, 114.32, 112.03, 94.61, 86.29, 62.25, 32.62, 14.20. MS(ESI-TOF) calculated for C19H14BrF3N2O3 [M + H]+ 455.02 and 457.02; found 455.78 and 457.73.
Compound 38. A mixture of compound 34 (2.02 g, 3.20 mmol), compound 37 (1.46 g, 3.20 mmol), dry K2CO3 (1.77 g, 12.8 mmol) in dry MeCN (70 mL) was stirred for 18 h at RT under argon. The mixture was filtrated and the filtrate evaporated to dryness. The product was purified by silica gel column chromatography using EtOH/CH2Cl2 (first 5:95, then 10:90) as an eluent. Yield: 3.03 g (94%). 1H-NMR (DMSO-d6, δ ppm): 11.46 (1H, s), 7.97, (1H, s), 7.90 (1H, s), 7.82–7.77 (4H, m), 7.65 (2H, d, J = 8.4 Hz), 7.58 (1H, s), 7.54 (1H, s), 4.35 (2H, q, J = 7.1 Hz), 4.32 (2H, q, J = 7.2 Hz), 4.07 (2H, q, J = 7.1 Hz), 4.06 (2H, q, J = 7.1 Hz), 4.01 (2H, s), 3.98 (2H, s), 3.90 (2 H, s), 3.89 (2H, s), 3.57 (2H, s), 3.53 (2H, s), 1.34 (3H, t, H = 7.1Hz),1.31 (3H, t, J = 7.2 Hz), 1.20 (3H, t, J = 7.1 Hz), 1.18 (3H, t, J = 7.1 Hz). 13C-NMR (DMSO-d6, δ ppm): 170.71, 170.69, 170.68, 170.56, 164.00, 163.38, 161.62, 160.41, 159.98, 159.81, 154.94, 154.64, 154.36, 154.03, 148.04, 147.33, 137.57, 135.94, 133.09, 132.78, 132.66, 132.62, 131.45, 128.42, 125.84, 120.81, 120.61, 118.07, 116.68, 114.39, 112.06, 93.81, 86.24, 61.43, 61.28, 61.14, 58.89, 58.19, 58,13, 58.94, 58.88, 55.32, 55.21, 14.07, 14.01, 13.96, 13.94. MS(ESI-TOF) calculated for C43H43Br2F3N6O9 [M + H]+ 1003.22, 1005.22 and 1007.22; found 1003.59, 1005.48 and 1007.40.
Ligand Ester 39. A mixture of compound 38 (0.23 g, 0.23 mmol), compound 15 (0.22 g, 0.55 mmol) in dry TEA (2 mL) and THF (4 mL) was de-aerated with argon. After an addition of bis(triphenyl-phosphine)palladium(II) dichloride (10 mg, 14 μmol) and CuI (6 mg, 28 μmol), the mixture was stirred overnight at 55 °C and evaporated to dryness. The product was purified by silica gel column chromatography using EtOH/CH2Cl2/TEA (10:89/1) as an eluent. Yield: 0.31 g (57%). 1H-NMR (DMSO-d6, δ ppm): 11.43 (1H, s), 7.90 (1H, s), 7.87 (1H, s), 7.83 (1H, s), 7.77 (1H, s), 7.71 (2H, d, J = 8.6 Hz), 7.60 (2H, d, J = 8.6 Hz), 7.38 (1H, s), 7.37 (1H, s), 4.87 (4H, s), 4.83 (4H, s), 4.82 (2H, s), 4.79 (2H, s), 4.32 (2H, q, J = 7.1 Hz), 4.31 (2H, q, J = 7.1 Hz), 4.18 (4H, q, J = 7.1 Hz), 4.17 (2H, s), 4.16 (4H, q, J = 7.1 Hz), 4.13 (4H, q, J = 7.1 Hz), 4.06 (2H, q, J = 7.2 Hz), 4.05 (2H, q, J = 7.2 Hz), 4.04 (2H, s), 3.96 (2H, s), 3.95 (2H, s), 3.54 (2H, s), 3.52 (2H, s), 1.31 (3H, t, J = 7.1 Hz), 1.30 (3H, t, J = 7.1 Hz), 1.22 (6H, t, J = 7.1 Hz), 1.20 (6H, t, J = 7.1 Hz), 1.18 (6H, t, J = 7.1 Hz), 1.17 (3H, t, J = 7.2 Hz), 1.16 (3H, t, J = 7.2 Hz). 13C-NMR (DMSO-d6, δ ppm): 171.27, 171.21, 168.60, 164.73, 164.62, 162.78, 161.07, 160.92, 160.66, 160.55, 158.80, 158.68, 155.53, 155.25, 154.96, 154.65, 147.81, 138.43, 133.45, 133.10, 132.74, 132.13, 127.72, 127.21, 124.93, 124.63, 123.14, 123.08, 121.35, 119.62, 118.07, 117.33, 115.04, 112.74, 94.65, 94.43, 94.29, 93.93, 93.88, 93.44, 93.42, 89.09, 87.53, 86,80, 65.83, 65.76, 65.46, 65.44, 61.82, 61.75, 61.19, 61.17, 61.14, 60.40, 60.35, 59.59, 59.53, 59.29, 59.25, 55.37, 55.02, 14.50, 14.48, 14.47, 14.46, 14.45, 14.44, 14.42. MS(ESI-TOF) calculated for C83H89F3N6O27 [M + H]+ 1659.58; found 1659.34.
Eu(III) Chelates 40. The compound 39 (0.28 g, 0.169 mmol) in 0.5 M KOH in EtOH (18.2 mL) was stirred for 30 min at RT, H2O (10 mL) was added and the mixture was further stirred at RT for 7 h. After evaporation of EtOH and an additional overnight stirring at RT, the pH was adjusted to 6.5 by addition of 6 M HCl. EuCl3 (68 mg, 0.186 μmol) in water (1.0 mL) was added within 5 min and the pH was maintained at 6.0–6.5 with suitable additions of solid NaHCO3. After stirring overnight at RT, the pH was adjusted to 8.5 with 1 M NaOH. The precipitate was removed by centrifugation and the supernatant evaporated to dryness. The product was purified by HPLC. Yield: 0.20 g (56%). Rf(HPLC): 15.2 min. UV: 358 nm.
Eu(III) Chelate 6. An aqueous solution (2.25 mL) of the Eu(III) chelate 40 (0.13 g, 61 μmol) was added within 5 min to a mixture of CSCl2 (64 µL, 0.85 mmol) and NaHCO3 (82 mg, 0.97 mmol) in CHCl3 (2.25 mL). After stirring for 15 min at RT, the two phases were separated and the aqueous phase was washed with CHCl3 (3 × 2.25 mL). The product was precipitated with acetone (ca. 45 mL), isolated by centrifugation, washed with acetone (2 × 10 mL) and dried overnight in vacuum desiccator over silica gel. Yield: 0.12 g. Rf(HPLC): 21.9 min. UV: 342 nm.
Eu(III) Chelate 6a. A mixture of Eu(III) chelate 6 (25 mg 11.7 μmol) and taurine (15 mg, 0.117 mmol) in aqueous 50 mM Na2CO3 buffer (0.88 mL, pH 9.8) was stirred for overnight at RT. The product was purified by HPLC. Rf(HPLC): 14.9 min. UV: 352 nm.
General Procedure for the Synthesis of Compounds 41 and 42. A mixture of compound 14 or 15 (1.00 mmol), and compound 35 (0.22 g, 0.84 mmol; [28]) in dry TEA (5 mL) and THF (10 mL) was de-aerated with argon. After an addition of bis(triphenylphosphine)palladium(II) dichloride (10 mg, 14 μmol) and CuI (6 mg, 28 μmol), the mixture was stirred overnight at 55 °C and evaporated to dryness. The residue was dissolved in CH2Cl2 (30 mL) washed with H2O (3 × 10 mL), dried with Na2SO4 and evaporated to dryness. The product was purified by silica gel column chromatography.
Diethyl 2,2′-{{4-[(2-(ethoxycarbonyl)-6-(hydroxymethyl)pyridin-4-yl]ethynyl)-1,3-phenylene}bis-(oxy)}-di-acetate (41). The product was purified by silica gel column chromatography using MeOH/CH2Cl2 (5:95) as an eluent. Yield: 80%. 1H-NMR (CDCl3, δ ppm): 8.08 (2H, s), 7.60 (2H, s), 7.45 (1H, d, J = 8.5 Hz), 6.50 (1H, dd, J = 2.0 and 8.5 Hz), 6.45 (1H, d, J = 2.0 Hz), 4.85 (2H, s), 4.71 (2H, s), 4.63 (2H, s), 4.47 (2H, q, J = 7.1 Hz), 4.30 (2H, q, J = 7.1 Hz), 4.29 (2H, q, J = 7.1 Hz), 1.44 (3H, t, J = 7.1 Hz), 1.32 (3H, t, J = 7.1 Hz), 1.31 (3H, t, J = 7.1 Hz). 13C-NMR (CDCl3, δ ppm): 168.11, 168.00, 164.63, 161.71, 160.08, 159.95, 147.27, 134.81, 127.02, 125.50, 106.42, 105.38, 100.99, 91.30, 89.67, 65.91, 65.34, 64.32, 62.24, 61.93, 61.54, 14.20, 14.19, 14.07. MS(ESI-TOF) calculated for C25H27NO9[M + H]+ 486.18; found 486.46.
Triethyl 2,2′,2′′-{{2-{[2-(ethoxycarbonyl)-6-(hydroxymethyl)pyridin-4-yl]ethynyl)}benzene-1,3,5-triyl}tris-(oxy)}triacetate (42). The product was purified by silica gel column chromatography using EtOAc/petroleum ether/TEA (from 69:30:1 to 89:10:1) as an eluent. Yield: 76%. 1H-NMR (CDCl3, δ ppm): 8.11 (1H, d, J = 0.5 Hz), 7.64 (1H, d, J = 0.5 Hz), 6.09 (2H, s), 4.84 (2 H, s), 4.70 (4H, s), 4.58 (2H, s), 4.47 (2H, q, J = 7.1 Hz), 4.29 (4H, q, J = 7.1 Hz), 4.28 (2 H, q, J = 7.1 Hz), 3.45 (1 H, bs), 1.44 (3H, t, J = 7.1 Hz), 1.32 (3H, t, J = 7.1 Hz), 1.31 (6H, t, J = 7.1 Hz). 13C-NMR (CDCl3, δ ppm): 167.97, 167.89, 164.70, 161.04, 160.22, 158.87, 147.21, 134.13, 125.42, 125.17, 96.17, 94.27, 93.80, 87.78, 66.21, 65.42, 64.29, 61.86, 61.61, 61.49, 14.20, 14.08, 14.06. MS(ESI-TOF) calculated for C29H33NO12[M + H]+ 588.56; found 589.03.
General Procedure for the Synthesis of Compounds 43 and 44. A mixture of compound 41 or 42 (0.613 mmol) and PBr3 (86 μL, 0.919 mmol) in dry CHCl3 (20 mL) was stirred for 2.5 h at RT, neutralized with aqueous 5% NaHCO3 (20 mL), the aqueous phase was extracted with CHCl3 (2 × 20 mL) and the combined organic phases were dried with Na2SO4. The product was purified by silica gel column chromatography.
Diethyl 2,2′-{{4-{[2-(bromomethyl)-6-(ethoxycarbonyl)pyridin-4-yl]ethynyl}-1,3-phenylene}bis-(oxy)}diacetate (43). The product was purified by silica gel column chromatography using EtOH/CH2Cl2 (10:90) as an eluent. Yield: 89%. 1H-NMR (CDCl3, δ ppm): 8.10 (1H, d, J = 1.2 Hz), 7.75 (1H, d, J = 1.2 Hz), 7.46 (1H, d, J = 8.5 Hz), 6.50 (1H, dd, J = 2.3 and 8.5 Hz), 6.46 (1H, d, J = 2.3 Hz), 4.72 (2H, s), 4.63 (2H, s), 4.60 (2H, s), 4.49 (2H, q, J = 7.1 Hz), 4.30 (2H, q, J = 7.1 Hz), 4.29 (2H, q, J = 7.1 Hz), 1.45 (3H, t, J = 7.1 Hz), 1.32 (3H, t, J = 7.1 Hz), 1.31 (3H, t, J = 7.1 Hz). 13C-NMR (CDCl3, δ ppm): 168.10, 167.97, 164.43, 160.05, 160.03, 157.41, 147.95, 134.88, 127.65, 126.00, 106.42, 105.28, 100.97, 91.97, 89.34, 65.92, 65.35, 62.40, 62.09, 61.54, 61.49, 32.88, 14.22, 14.09, 14.07. MS(ESI-TOF) calculated for C25H26BrNO8[M + H]+ 548.09 and 550.09; found 548.83 and 550.80.
Triethyl 2,2′,2′′-{{2-{[2-(bromomethyl)-6-(ethoxycarbonyl)pyridin-4-yl]ethynyl}benzene-1,3,5-triyl}-tris(oxy)}-triacetate (44). The product was purified by silica gel column chromatography using EtOH/CH2Cl2 (10:90) as an eluent using EtOH/CH2Cl2 (10:90) as an eluent. Yield: 82%. 1H-NMR (CDCl3, δ ppm): 8.12 (1H, d, J = 1.3 Hz), 7.79 (1H, d, J = 1.3 Hz), 6.08 (2H, s), 4.71 (4H, s), 4.59 (2H, s), 4.51 (2H, s), 4.48 (2H, q, J = 7.1 Hz), 4.30 (4H, q, J = 7.1 Hz), 4.29 (2H, q, J = 7.1 Hz), 1.43 (3H, t, J = 7.1 Hz), 1.31 (9 H, t, J = 7.1 Hz). 13C-NMR (CDCl3, δ ppm): 167.92, 167.79, 164.52, 156.29, 133.27, 125.98, 125.08, 96.09, 93.92, 93.76, 88.21, 66.22, 65.59, 65.43, 62.04, 61.62, 61.51, 32.96, 14.22, 14.07, 14.03. MS(ESI-TOF) calculated for C29H32BrNO11[M + H]+ 650.13 and 652.13; found 651.08 and, 653.02.
Compound 45. A mixture of compound 37 (0.41 g, 0.90 mmol), diBoc-TACN (0.14 g, 0.82 mmol), dry K2CO3 (0.23 g, 1.62 mmol) and dry MeCN (8 mL) was stirred for 24 h at RT. After filtration and washing the solid material with CH2Cl2, the filtrate was evaporated to dryness. The product was purified by silica gel column chromatography using EtOH/CH2Cl2 (from 1:99 to 3:97) as an eluent. Yield: 0.31 g (53%). 1H-NMR (DMSO-d6, δ ppm): 11.48 (1H, s), 7.97 (1 H, s), 7.78–7.85 (3H, m), 7.66 (2H, d, J = 8.3 Hz), 4.38 (2H, q, J = 7.1 Hz); 3.80–3.85 (2H, m), 3.10–3.45 (8H, m), 2.65–2.75 (2H, m), 2.65–2.55 (2H, m), 1.43 (3H, s), 1.42 (3H, s), 1.40 (6H, s), 1.39 (6H, s), 1.34 (3 H, t, J = 7.1 Hz). 13C-NMR (DMSO-d6, δ ppm): 164.09, 155.78, 154.96, 154.80, 154.70, 154.56, 154.37, 154.08, 147.22, 137.51, 132.74, 132.54, 129.33, 127.03, 124.69, 120.85, 118.97, 116.69, 114.39, 112.62, 93.89, 86.35, 78.71, 61.44, 61.29, 51.42, 50.18, 49,69, 28.03, 14.02. Both spectra indicate the existence of rigid compound having different structural isomers. MS(ESI-TOF) calculated for C35H44F3N5O7[M + H]+ 704.33; found 705.09.
Compound 46. A mixture of compound 45 (0.29 g, 0.41 mmol) and TFA (2 mL) was stirred for 2 h at RT, evaporated to dryness and triturated with Et2O (40 mL). The product (0.34 g, 89%) was centrifuged, washed with Et2O (2 × 15 mL) and dried. 1H-NMR (DMSO-d6, δ ppm): 11.54 (1H, s), 7.82 (2 H, d, J = 8.4 Hz), 7.81 (1 H, s), 7.80 (1H, s), 7.71 (2 H, d, J = 8.4 Hz), 4.44 (2H, q, J = 7.0 Hz), 4.17 (2H, s), 3.69 (4H, bs), 3,26 (4H, bs), 2.97 (4H, bs), 1.39 (3H, t, J = 7.0 Hz). 13C-NMR (DMSO-d6, δ ppm): 154.41, 160.60, 155.48, 155.18, 154.89, 154.59, 147.17, 138.30, 133.24, 133.06, 129.87, 128.40, 125.22, 121.41, 118,57, 116.19, 114.84, 112.54, 95.54, 86.36, 62.47, 57.68, 50.42, 45.90, 45.36, 14,45. MS(ESI-TOF): calculated C25H28F3N5O3 [M + 2H]+ 505.54; found 505.31.
General Procedure for the Synthesis of Ligand Esters 47 and 48. A mixture of compound 46 (0.12 g, 0.15 mmol), 43 or 44 (0.32 mmol), di-isopropylethylamine (0.40 mL) and dry MeCN (3.0 mL) was stirred for 5.5 h at RT and evaporated to dryness. The product was purified by silica gel column chromatography.
Ligand Ester 47. The product was purified by silica gel column chromatography using EtOH/CH2Cl2/TEA (from 10:90:0 to 10:89:1) as an eluent. Yield: 84%. As the product contains 2–3 rigid isomers, the NMR spectra were too complicated to assign the isomers. MS(ESI-TOF) calculated for C75H78F3N7O19 [M + H]+ 1438.54; found 1439.41.
Ligand Ester 48. The product was purified by silica gel column chromatography using EtOH/CH2Cl2/TEA (from 10:90:0 to 15:80:5) as an eluent. Yield: 79%. As the product contains 2–3 rigid isomers, the NMR spectra were too complicated to assign the isomers. MS(ESI-TOF): calculated [M + H]+1642.60; found 1643.57.
General Procedure for the Synthesis of Eu(III) Chelates 49 and 50. A mixture of the compound 47 or 48 (64 μmol) and 0.5 M KOH in EtOH (6.5 mL) was stirred for 1 h at RT and H2O (3 mL) was added. After stirring for 4 h at RT, EtOH was evaporated, some H2O (2 mL) added and the residue was stirred for 24 h at RT. After addition of citric acid (41 mg, 0.21 mmol) in H2O (0.25 mL), the pH was adjusted to ca. 6.5 with 6 M HCl. Europium(III) chloride (26 mg, 71 μmol) in H2O (0.25 mL) was added within 10 min and the pH was adjusted to ca. 9.5 with 1 M NaOH. The mixture was stirred for 4–6 weeks at 95 °C (after the analytical HPLC chromatogram showed completed complexation), the pH was adjusted to ca. 7.0 with 1 M HCl, evaporated to dryness, dissolved in 20 mmol Triethylammonium acetate (TEAA) buffer (1 mL) and purified with HPLC.
Eu(III) Chelate 49. Rf(HPLC) = 19.2 min. UV: 350 nm. MS(ESI-TOF) calculated for C59H48EuN7O18 [M + H]+ 1296.24; found 1295.85. Ligand isomers shown in the HPLC during the Eu(III) loading: (1) Rf(HPLC) = 21.7 min, UV: 347 nm; (2) Rf(HPLC) = 22.3 min, UV: 339 nm; (3) Rf(HPLC) = 23.6 min, UV: 343 nm. All of these peaks finally gave the product peak at Rf(HPLC) = 19.2 min. UV: 350 nm.
Eu(III) Chelate 50. Rf(HPLC) = 16.0 min. UV: 360 nm MS(ESI-TOF) calculated for C63H62EuN7O24 [M + H]+ 1444.24; found 1443.96. Ligand isomers shown in HPLC during the Eu(III) loading: (1) Rf(HPLC) = 18.5 min, UV: 345 nm; (2) Rf(HPLC) = 20.4 min, UV: 347 nm; (3) Rf(HPLC) = 21.7 min, UV: 347 nm. All of these peaks finally gave the product peak at Rf = 16.0 min, UV = 360 nm.
The Eu complex formation caused the observed bathochromic shift of 13–15 nm at UV. This was separately secured with the complex 50 by an additional HPLC purification of the ligand isomers and loadings of Eu(III) ion to each isomers. All of these tests gave finally the same product at Rf(HPLC) = 16.0 min.
General Procedure for the Synthesis of Eu(III) Chelates 7 and 8. An aqueous solution (1 mL) of the chelate 49 or 50 (21 μmol) was added within 5 min to a mixture of CSCl2 (22 µL, 0.29 mmol) and NaHCO3 (28 mg, 0.33 mmol) and CHCl3 (1 mL). After stirring for 40 min at RT, the two phases were separated and the aqueous phase was washed with CHCl3 (3 × 1 mL). The product was precipitated with acetone (ca. 45 mL), isolated by centrifugation, washed with acetone (2 × 10 mL), and dried overnight in a vacuum desiccator. The products were used as such for next phase or for labeling the antibodies.
Eu(III) Chelate 7. Rf(HPLC) = 19.9 min. UV: 350 nm.
Eu(III) Chelate 8. Rf(HPLC) = 17.6 min. UV: 356 nm.
General Procedure for the Synthesis of Eu(III) Chelates 7a and 8a. A mixture of chelate 7 or 8 (2 mg) and taurine (2 mg) in 50 mM Na2CO3 buffer (300 μL, pH 9.8) was stirred overnight at RT. The product was purified by using HPLC.
Eu(III) Chelate 7a. Rf(HPLC) = 17.2 min. UV = 348 nm.
Eu(III) Chelate 8a. Rf(HPLC) = 15.2 min. UV = 354 nm.

3.3. Coupling of the Chelates 28 to Protein

The activated chelates were coupled to a troponin I antibody with a similar method as described in [15] by using 100–300 fold excess of the labelling reagents. The reagents were incubated with the antibody (1 mg) in 100–350 mM carbonate buffer (500–1000 μL, pH 9.8) overnight at RT. Labeled antibody was separated from the chelate excess on a Superdex 200 GL 10/30 gel filtration column (GE Healthcare Life Sciences) by using TRIS buffer (TRIS 50 mM, NaCl 0.9%, pH 7.75) as an eluent. The fractions containing the antibody were pooled and the europium concentration was measured by UV and confirmed by ICP-MS to obtain the labeling degrees i.e., Eu content per antibody. Finally, bovine serum albumin was added to a concentration of 1g/L to the solutions containing the europium labeled antibodies. The solutions were stored at 4 °C.

3.4. Fluorescence Measurements of the Eu Chelates 2a8a and the Antibody Conjugates (2b8b)

The fluorescence parameters for the Eu Chelates 2a8a as well as the labeled antibodies (2b8b) were analyzed in 50 mM TRIS buffer (pH 7.75) and the Eu concentrations were measured by using an ICP-MS (inductively coupled plasma mass spectrometer) instrument, ELAN 6100 DRC Plus (PerkinElmer, Waltham, MA, USA), in quantitative mode. The analyzing parameters were: the Peak Hopping mode, 20 sweeps/reading, 7 replicates, the Dwell time and the integration time was 50 ms and 1000 ms, respectively. Rhodium was used as the internal standard and the europium was measured on Mass 152.929. A commercial multi-standard IMS–101, ICP-MS calibration standard 1 (ULTRA Scientific, North Kingstown, RI, USA) was used for the calibration. The sample preparation for the ICP-MS was done by using a digestion procedure i.e., the Microwave Sample preparation System, Multiwave 3000 (Anton Paar GmbH, Graz, Austria). The Eu chelate in the 50 mM TRIS buffer was digested with microwave in mixture of Suprapur acids, HNO3 (5 mL) and H2O2 (1 mL). Afterwards, the sample was diluted with deionized water (100 mL).
The fluorescence measurements were standardized using the Chelate 1a and 1b as a reference. The photochemical values are based on earlier measurements [15,20]. The emission intensities of the solutions were measured using the most intense emission line at 613–618 nm. Fluorescence efficiencies and decay times were determined with VICTORTM X4 multilabel reader (PerkinElmer) and Cary Eclipse spectrofluorometer (Agilent Technologies, Santa Clara, CA, USA), respectively.

3.5. Immunoassay and Signal Measurement from the Dried Microwell Surface

The troponin I antibody labeled with the chelate 2b8b was tested in sandwich immunoassay for cardiac troponin I. A troponin I antibody labelled with 1b was used as a reference compound.
General assay procedure: 10 µL of diluted tracer antibody (5 ng/µL) and 20 µL of troponin I standard solution were pipetted to a pre-coated assay well (single wells in 96 well plate format, wells coated with streptavidin and a biotinylated capture antibody against troponin I, Radiometer Turku Oy). The reaction mixtures were incubated 20 min at 36 °C with shaking. The wells were washed 6 times and dried prior to measurement with VICTOR Plate fluorometer. More exact details have been described in literature [15,20].

4. Conclusions

Altogether, seven new Eu(III) labeling chelates having two to three 4-(phenylethynyl)pyridine chromophors in three different basic structural designs were synthesized and their key photophysical properties were studied in this work. The focus of the study was to improve the signal level of the label currently used in immunoassays, and, thus, to clarify the possibilities to enhance the assay sensitivity. The significance of ligand antennas ILCT state as an alternative sensitization process on the label’s brightness has been demonstrated, and the enhanced luminescence intensities were unprecedentedly large especially when the signal was measured on the dried surface. These new labeling chelates provide a solution to improve the assay sensitivity up-to tenfold from the present concepts.

Acknowledgments

The authors would like to thank Sirpa Oksman for technical synthesis support. Moreover, the authors appreciate the contribution of the troponin I research team including Jari-Matti Sirkka, Virpi Leppänen, Susann Eriksson, Sanna Rönnmark, Timo Valta, Heidi Vehmaan-Kreula, Titta Seppä and all project technicians for the technical immunoassay support.

Author Contributions

All compounds were designed and prepared by Henri Sund, Harri Takalo and Niko Meltola. The photochemical measurements were performed by Henri Sund and Kaj Blomberg’s research team. All authors are aware of this manuscript and have agreed on this publication.

Conflicts of Interest

The authors declare no conflict of interest. A part of this research project has resulted in issued patents Meltola N.; Takalo H.; WO2013026790 and Meltola N.; Takalo H.; Sund H.; WO2013092992.

References and Notes

  1. Hemmilä, I.; Mukkala, V.-M. Time resolution in fluorometry technologies, labels and applications in bioanalytical assays. Crit. Rev. Clin. Lab. Sci. 2000, 38, 441–519. [Google Scholar] [CrossRef]
  2. Eliseeva, S.V.; Bünzli, J.-C. Lanthanide luminescence for functional materials and bio-sciences. Chem. Soc. Rev. 2010, 39, 189–227. [Google Scholar] [CrossRef] [PubMed]
  3. Bünzli, J.-C. Lanthanide light for biology and medical diagnosis. J. Luminescence 2016, 170, 866–878. [Google Scholar] [CrossRef]
  4. Hovinen, J.; Guy, P.M. Bioconjugation with Stable Luminescent Lanthanide(III) Chelates Comprising Pyridine Subunits. Bioconj. Chem. 2009, 20, 404–421. [Google Scholar] [CrossRef] [PubMed]
  5. Kankare, J.; Takalo, H.; Pasanen, P. Fluorescent Lanthanide Chelates. European Patent 0 203 047, 26 October 1986. [Google Scholar]
  6. Kankare, J.; Latva, M.; Takalo, H. Fluorescence intensities of Eu (III) complexes with substituted 4-phenylethynylpyridines as ligands. Eur. J. Solid State Inorg. Chem. 1991, 28, 183–186. [Google Scholar]
  7. Takalo, H.; Hänninen, E.; Kankare, J. Luminescence of europium (III) chelates of substituted 4-phenytethynylpyridines as ligands. Helv. Chim. Acta 1993, 76, 877–883. [Google Scholar] [CrossRef]
  8. Latva, M.; Takalo, H.; Mukkala, V.-M.; Matachescu, C.; Rodriques-Ubis, J.C.; Kankare, J. Correlation between the lowest triplet state energy level of the ligand and lanthanide(III) luminescence quantum yield. J. Luminescence 1997, 75, 149–169. [Google Scholar]
  9. Picot, A.; Malvolti, F.; Le Guennic, B.; Baldeck, P.L.; Williams, J.A.G.; Andraud, C.; Maury, O. Two-photon antenna effect induced in octupolar europium complexes. Inorg. Chem. 2007, 46, 2659–2665. [Google Scholar] [CrossRef] [PubMed]
  10. D’Aléo, A.; Picot, A.; Baldeck, P.L.; Andraud, C.; Maury, O. Design of Dipicolinic Acid Ligands for the Two-Photon Sensitized Luminescence of Europium Complexes with Optimized Cross-Sections. Inorg. Chem. 2008, 47, 10269–10279. [Google Scholar] [CrossRef] [PubMed]
  11. Takalo, H.; Mukkala, V.-M.; Mikola, H.; Liitti, P.; Hemmilä, I. Synthesis of europium(III) chelates suitable for labeling of bioactive molecules. Bioconj. Chem. 1994, 5, 278–282. [Google Scholar] [CrossRef]
  12. Takalo, H.; Hänninen, E.; Kankare, J. The influence of substituents on the luminescence properties of the Eu(III) and Tb(III) chelates of 4-(phenylethynyl)pyridine derivatives. J. Alloys Comp. 1995, 225, 511–514. [Google Scholar] [CrossRef]
  13. Mikola, H.; Takalo, H.; Hemmilä, I. Syntheses and Properties of Luminescent Lanthanide Chelate Labels and Labeled Haptenic Antigens for Homogeneous Immunoassays. Bioconj. Chem. 1995, 6, 235–241. [Google Scholar] [CrossRef]
  14. Takalo, H.; Hemmilä, I.; Sutela, T.; Latva, M. Synthesis and luminescence of novel Eu(III) complexing agents and labels with 4-(phenylethynyl)pyridine subunits. Helv. Chim. Acta 1996, 79, 789–802. [Google Scholar] [CrossRef]
  15. Von Lode, P.; Rosenberg, J.; Pettersson, K.; Takalo, H. A europium chelate for quantitative point-of-care immunoassays using direct surface measurement. Anal. Chem. 2003, 75, 3193–3201. [Google Scholar] [CrossRef] [PubMed]
  16. Walton, J.W.; Bourdolle, A.; Butler, S.J.; Soulie, M.; Delbianco, M.; McMahon, B.K.; Pal, R.; Puschmann, H.; Zwier, J.M.; Lamarque, M.; et al. Very bright europium complexes that stain cellular mitochondria. Chem. Commun. 2013, 49, 1600–1602. [Google Scholar] [CrossRef] [PubMed]
  17. Placide, V.; Pitrat, D.; Grichine, A.; Duperray, A.; Andraud, C.; Maury, O. Design and synthesis of europium luminescent bio-probes featuring sulfobetaine moieties. Tetrahedron Lett. 2014, 55, 1357–1361. [Google Scholar] [CrossRef]
  18. Soulié, M.; Latzko, F.; Bourrier, E.; Placide, V.; Butler, S.J.; Pal, R.; Walton, J.W.; Baldeck, P.; Le Guennic, B.; Andraud, C.; et al. Comparative analysis of conjugated alkynyl chromophore-triazacyclononane ligands for sensitized emission of europium and terbium. Chem. Eur. J. 2014, 20, 8636–8646. [Google Scholar] [CrossRef] [PubMed]
  19. Delbianco, M.; Lamarque, L.; Parker, D. Synthesis of meta and para-substituted aromatic sulfonate derivatives of polydentate phenylazaphosphinate ligands: Enhancement of the water solubility of emissive europium(III) EuroTracker® dyes. Org. Biomol. Chem. 2014, 12, 8061–8071. [Google Scholar] [CrossRef] [PubMed]
  20. Pettersson, K.; von Lode, P.; Eriksson, S.; Lövgren, J.; Takalo, H. Multi-assay point-of-care platform: Highly sensitive time-resolved fluorometric detection in combination with a universal “all-in-one” assay format. Point Care 2003, 2, 225–232. [Google Scholar] [CrossRef]
  21. Ylikotila, J.; Välimaa, L.; Vehniäinen, M.; Takalo, H.; Lövgren, T.; Pettersson, K. A Sensitive TSH Assay in Spot-Coated Microwells Utilizing Recombinant Antibody Fragments. J. Immunol. Methods 2005, 306, 104–114. [Google Scholar] [CrossRef] [PubMed]
  22. Ylikotila, J.; Hellström, J.; Eriksson, S.; Vehniäinen, M.; Välimaa, L.; Takalo, H.; Bereznikova, A.; Pettersson, K. Utilization of recombinant Fab fragments in a cTnI immunoassay conducted in spot wells. Clin. Biochem. 2006, 39, 843–850. [Google Scholar] [CrossRef] [PubMed]
  23. Wittfooth, S.; Qin, Q.-P.; Lund, J.; Tierala, I.; Pulkki, K.; Takalo, H.; Pettersson, K. Immunofluorometric Point-of-Care Assays for the Detection of Acute Coronary Syndrome-Related Noncomplexed Pregnancy-Associated Plasma Protein A. Clin. Chem. 2006, 52, 1794–1801. [Google Scholar] [CrossRef] [PubMed]
  24. Välimaa, L.; Ylikotila, J.; Kojola, H.; Soukka, T.; Takalo, H.; Pettersson, K. Streptavidin-coated spot surfaces for sensitive immunoassays using fluorescence surface readout. Anal. Bioanal. Chem. 2008, 391, 2135–2144. [Google Scholar] [CrossRef] [PubMed]
  25. Rodenko, O.; Fodgaard, H.; Tidemand-Lichtenberg, P.; Petersen, P.M.; Pedersen, C. 340 nm pulsed UV LED system for europium-based time-resolved fluorescence detection of immunoassays. Opt. Express 2016, 24, 22135–22143. [Google Scholar] [CrossRef] [PubMed]
  26. Yamamoto, T.; Toyota, K.; Morita, N. An efficient and regioselective iodination of electron-rich aromatic compounds using N-chlorosuccinimide and sodium iodide. Tetrahedron Lett. 2010, 51, 1364–1366. [Google Scholar] [CrossRef]
  27. Thomsen, I.; Torssell, K.B.G. Iodination of resorcinol, 5-methoxyresorcinol, phloroglucinol and resorcylic acid. Acta Chem. Scand. 1991, 45, 539–542. [Google Scholar] [CrossRef]
  28. Takalo, H.; Pasanen, P.; Kankare, J. Synthesis of 4-(phenylethynyl)-2,6-bis[N,N-bis-(carboxymethyl)aminomethyl]pyridine. Acta Chem. Scand. Ser. B 1988, 42, 373–377. [Google Scholar] [CrossRef]
  29. D’Aleo, A.; Pointillard, F.; Ouahab, L.; Andraud, C.; Maury, O. Charge transfer excited states sensitization of lanthanide emitting from the visible to the near-infra-red. Coord. Chem. Rev. 2012, 256, 1604–1620. [Google Scholar] [CrossRef]
  30. Hemmilä, I.; Mukkala, V.-M.; Takalo, H. Development of luminescent lanthanide chelate labels for diagnostic assays. J. Alloys Comp. 1997, 249, 158–162. [Google Scholar] [CrossRef]
  31. Compound 16 was prepared using the method described by [14]. 1H-NMR (DMSO-d6, δ ppm): 7.65 (2H, d, J = 1.8 Hz), 7.45 (2H, d, J = 1.8 Hz), 6.79 (2H, d, J = 8.4 Hz), 8.35 (2H, J = 8.4 Hz), 4.80 (2H, s), 4.05 (8H, q, J = 7.1 Hz), 3.91 (4H, s), 3.76 (4H, s), 3.55 (8H, s), 2.66–2.58 (4H, m), 1.16 (12H, t, J = 7.1Hz). 13C-NMR (DMSO-d6, δ ppm): 171.18, 161.14, 160.90, 147.07, 133.44, 129.43, 127.37, 124.29, 124.07, 114.46, 60.43, 59.50, 59.43, 56.63, 55.09, 32.59, 14.54. MS(ESI-TOF) calculated for C38H50Br2N6O8 [M + 2H]+ 878.23, 880.23, 882.23; found 879.56, 881.57, 883.57.
Scheme 1. The studied label structures numbered 18.
Scheme 1. The studied label structures numbered 18.
Molecules 22 01807 sch001
Scheme 2. Synthesis of compounds 2 and 3. Reactions: (i) and (iv) BrCH2COOEt, K2CO3, MeCN; (ii) NCS, NaI, CH3COOH; (iii) and (v) trimethylsilylacetylene (TMSA), Pd(II), CuI, DEA, DMF; with the compound 11 PPh3 was used as an additional catalyst; (vi) TBAF, CH2Cl2; (vii) Pd(II), CuI, TEA, THF; (viii) KOH, EtOH, H2O, EuCl3; (ix) CSCl2, NaHCO3, CHCl3, H2O.
Scheme 2. Synthesis of compounds 2 and 3. Reactions: (i) and (iv) BrCH2COOEt, K2CO3, MeCN; (ii) NCS, NaI, CH3COOH; (iii) and (v) trimethylsilylacetylene (TMSA), Pd(II), CuI, DEA, DMF; with the compound 11 PPh3 was used as an additional catalyst; (vi) TBAF, CH2Cl2; (vii) Pd(II), CuI, TEA, THF; (viii) KOH, EtOH, H2O, EuCl3; (ix) CSCl2, NaHCO3, CHCl3, H2O.
Molecules 22 01807 sch002

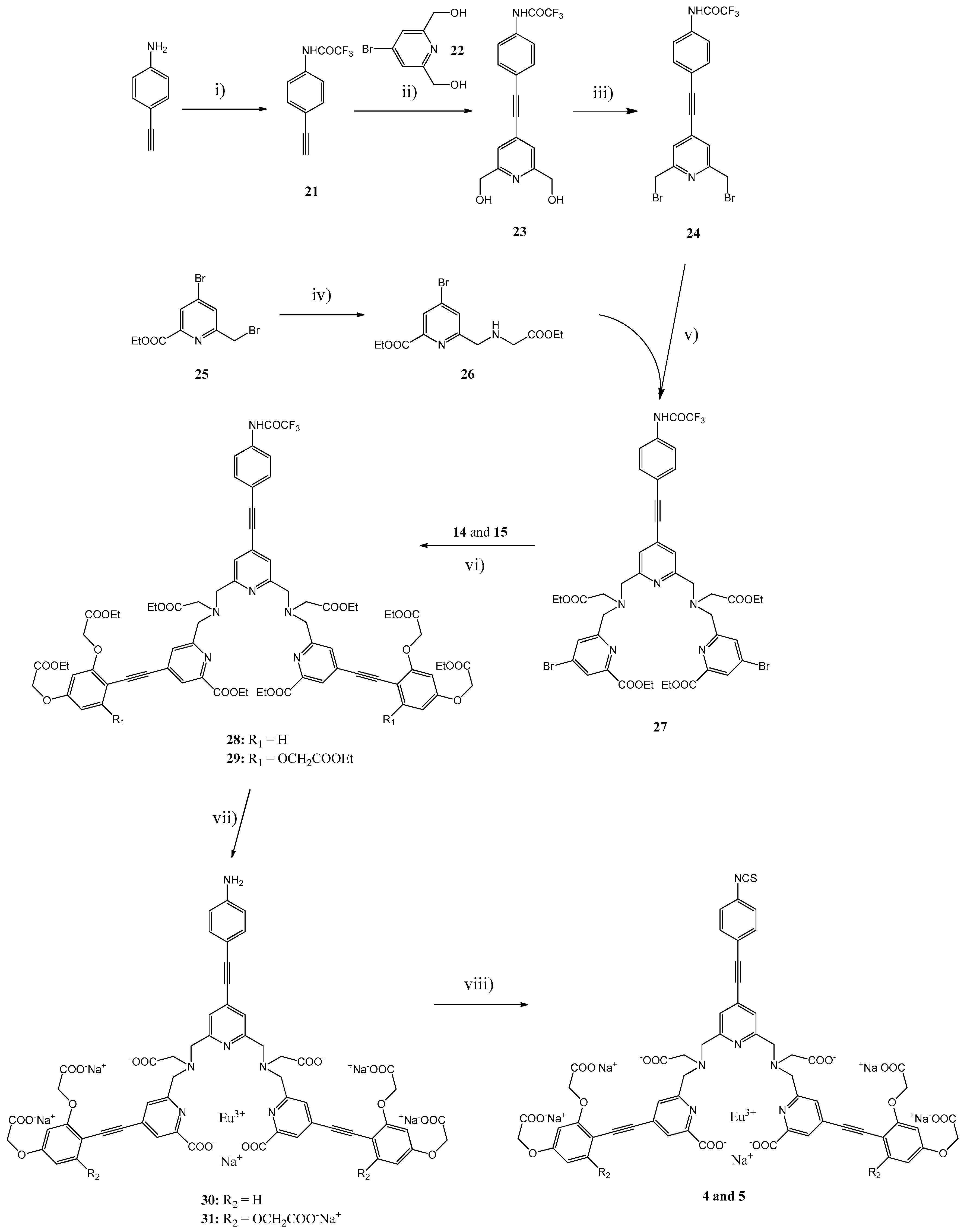

Scheme 3. Synthesis of compounds 4 and 5. Reactions: (i) TFAA; (ii) Pd(II), CuI, triethylamine (TEA), tetrahydrofuran (THF); (iii) PBr3, CHCl3; (iv) NH2CH2COOEt, N,N-diisopropylethylamine (DIPEA), MeCN; (v) K2CO3, MeCN; (vi) Pd(II), CuI, TEA, DMF; (vii) KOH, EtOH, H2O, EuCl3; (viii) CSCl2, NaHCO3, CHCl3, H2O.
Scheme 3. Synthesis of compounds 4 and 5. Reactions: (i) TFAA; (ii) Pd(II), CuI, triethylamine (TEA), tetrahydrofuran (THF); (iii) PBr3, CHCl3; (iv) NH2CH2COOEt, N,N-diisopropylethylamine (DIPEA), MeCN; (v) K2CO3, MeCN; (vi) Pd(II), CuI, TEA, DMF; (vii) KOH, EtOH, H2O, EuCl3; (viii) CSCl2, NaHCO3, CHCl3, H2O.
Molecules 22 01807 sch003
Scheme 4. Synthesis of compound 6. Reactions: (i) NH2CH2COOEt, DIPEA, MeCN; (ii) and (v) K2CO3, MeCN; (iii) and (vi) Pd(II), CuI, TEA, THF; (iv) PBr3, CHCl3; (vii) KOH, EtOH, H2O, EuCl3; (viii) CSCl2, NaHCO3, CHCl3, H2O.
Scheme 4. Synthesis of compound 6. Reactions: (i) NH2CH2COOEt, DIPEA, MeCN; (ii) and (v) K2CO3, MeCN; (iii) and (vi) Pd(II), CuI, TEA, THF; (iv) PBr3, CHCl3; (vii) KOH, EtOH, H2O, EuCl3; (viii) CSCl2, NaHCO3, CHCl3, H2O.
Molecules 22 01807 sch004

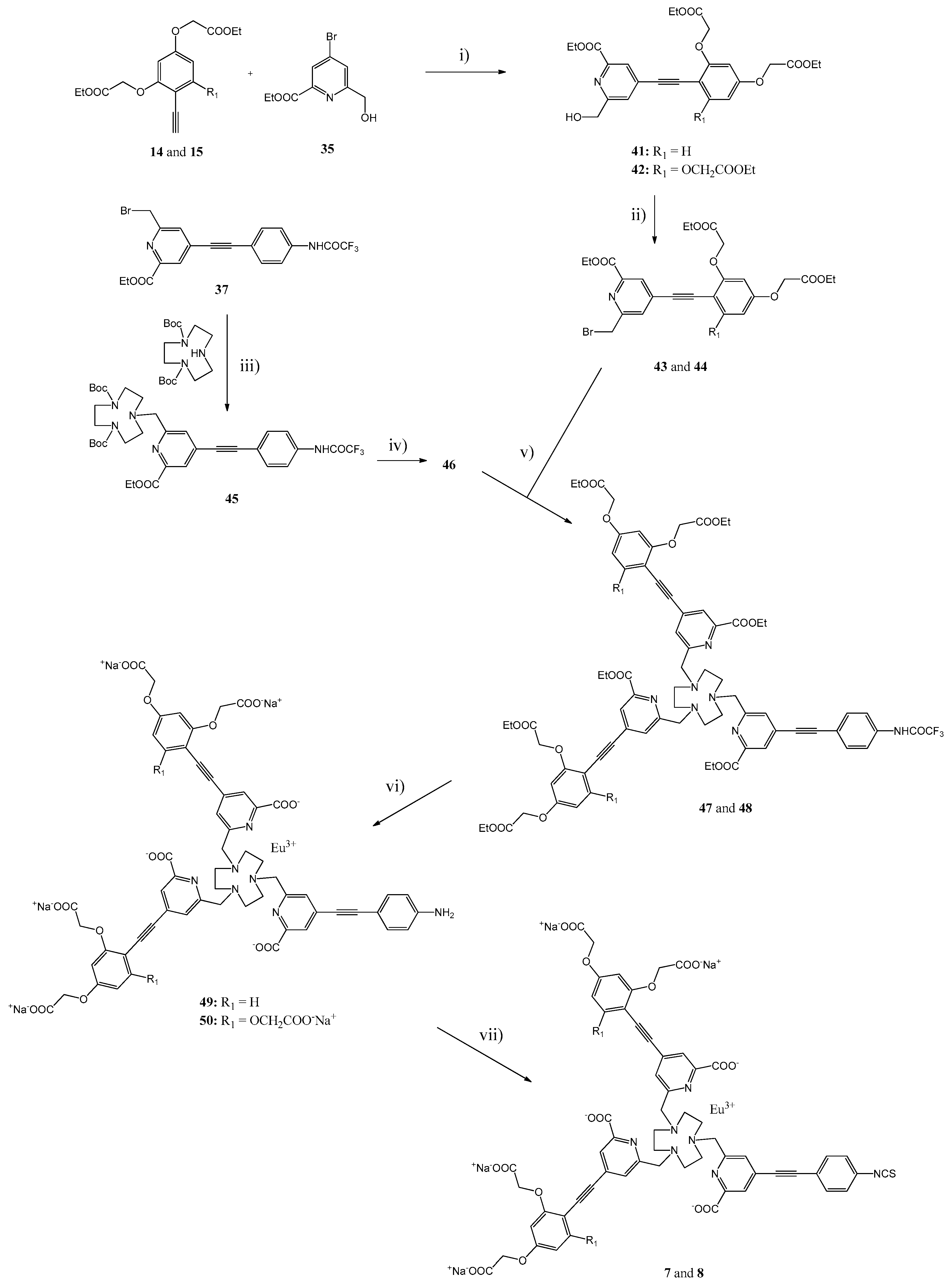

Scheme 5. Synthesis of compounds 7 and 8. Reactions: (i) Pd(II), CuI, TEA, THF; (ii) PBr3, CHCl3; (iii) K2CO3, MeCN; (iv) TFA; (v) DIPEA, MeCN; (vi) KOH, EtOH, H2O, EuCl3, citric acid; (vii) CSCl2, NaHCO3, CHCl3, H2O.
Scheme 5. Synthesis of compounds 7 and 8. Reactions: (i) Pd(II), CuI, TEA, THF; (ii) PBr3, CHCl3; (iii) K2CO3, MeCN; (iv) TFA; (v) DIPEA, MeCN; (vi) KOH, EtOH, H2O, EuCl3, citric acid; (vii) CSCl2, NaHCO3, CHCl3, H2O.
Molecules 22 01807 sch005

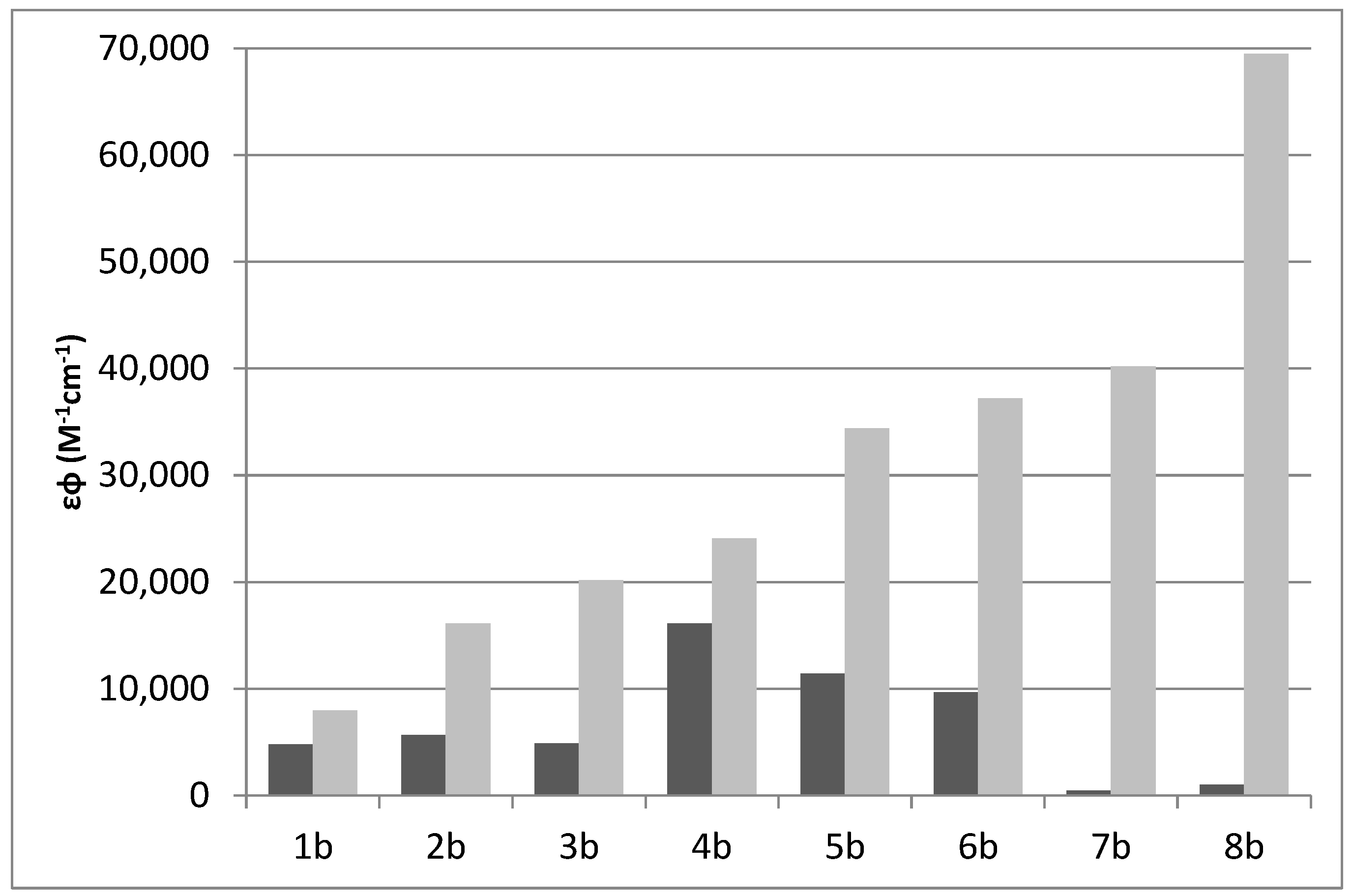

Figure 1. Brightness of the chelates 1b8b in 0.05 M TRIS buffer (dark grey) and on a dried surface (light grey).
Figure 1. Brightness of the chelates 1b8b in 0.05 M TRIS buffer (dark grey) and on a dried surface (light grey).
Molecules 22 01807 g001
Figure 2. Measured enhanced brightness of chelates 1b8b on the dried surface vs. decay constant (kchel = 1/τ) measured in 0.05 M TRIS buffer.
Figure 2. Measured enhanced brightness of chelates 1b8b on the dried surface vs. decay constant (kchel = 1/τ) measured in 0.05 M TRIS buffer.
Molecules 22 01807 g002
Figure 3. Relative luminescence intensity of chelate 1b (square), 6b (triangle) and 8b (circle) vs. measurement temperature.
Figure 3. Relative luminescence intensity of chelate 1b (square), 6b (triangle) and 8b (circle) vs. measurement temperature.
Molecules 22 01807 g003
Table 1. Absorption maxima (λabs) and excitation maxima (λexc), luminescence decay times (τ), molar absorption coefficients (ε), brightness (εΦ) and quantum yields (Φ) in TRIS buffer (pH 7.75) as well as the enhanced brightness on dried surface.
Table 1. Absorption maxima (λabs) and excitation maxima (λexc), luminescence decay times (τ), molar absorption coefficients (ε), brightness (εΦ) and quantum yields (Φ) in TRIS buffer (pH 7.75) as well as the enhanced brightness on dried surface.
Chelateλabs (nm)λexc (nm)τ (ms)ε (M−1 cm−1)εΦ (M−1 cm−1)Φ (%)εΦ 1 (M−1 cm−1)
1a3203251.0155,00048009-
1b3253251.0155,000480098000
2a3433400.9657,000850015-
2b3443400.9755,00057001016,100
3a3513460.8858,00044008-
3b3493450.9068,0004900720,200
4a3433430.8485,00014,90018-
4b3483430.8077,00016,1002124,100
5a3493430.7064,00016,40026-
5b3513440.6978,00011,4001534,400
6a3523420.7780,00015,40019-
6b3503450.6975,00097001337,200
7a3483410.5889,0006000.7-
7b3523460.5199,0005000.540,200
8a3543450.4877,0007000.9-
8b3563480.42104,00010001.069,500
1 Enhanced brightness after drying.
Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
