Molecules 2017, 22(10), 1762; doi:10.3390/molecules22101762

Article
Self-Assembly with 2,6-Bis(1-(pyridin-4-ylmethyl)-1H-1,2,3-triazol-4-yl)pyridine: Silver(I) and Iron(II) Complexes
Daniel A. W. RossOrcid, Dan Preston * and James D. Crowley *Orcid
Department of Chemistry, University of Otago, P.O. Box 56, Dunedin 9016, Otago, New Zealand
*
Correspondence: Tel.: +64-3-479-7731 (J.D.C.)
Received: 29 September 2017 / Accepted: 14 October 2017 / Published: 19 October 2017

Abstract

:
A new “click” ligand, 2,6-bis(1-(pyridin-4-ylmethyl)-1H-1,2,3-triazol-4-yl)pyridine (L) featuring a tridentate 2,6-bis(1,2,3-triazol-4-yl)pyridine (tripy) pocket and two pyridyl (py) units was synthesized in modest yield (42%) using the copper(I) catalyzed azide-alkyne cycloaddition (CuAAC) reaction. The coordination chemistry of the ligand with silver(I) and iron(II) ions was examined using a battery of solution (1H and DOSY (diffusion ordered spectroscopy) nuclear magnetic resonance (NMR), infrared and absorption spectroscopies, high-resolution electrospray ionization mass spectrometry (HR-ESI-MS)), and solid state (X-ray crystallography, elemental analysis) techniques. When treated with silver(I) ions, the ligand forms discrete [Ag(L)]+ (X, where X = BF4, NO3 or SbF6) complexes in dimethyl sulfoxide (DMSO) solution but these complexes crystallize as coordination polymers. The addition of [Fe(H2O)6](BF4)2 to an acetonitrile solution of the ligand forms the expected monomeric octahedral [Fe(L)2]2+ complex and treatment of the iron(II) complex with AgBF4 generates a heterometallic linear coordination polymer.
Keywords:
silver(I); CuAAC “click”; iron(II); metallosupramolecular; co-ordination polymer; self-assembly

1. Introduction

The generation of self-assembled metallosupramolecular architectures has been studied extensively in the past 30 years [1]. The main factors controlling the outcome of the self-assembly process are now reasonably well understood, appropriate matching of the coordination geometry preference of the metal ion(s), the denticity of the ligands, and the length and flexibility of the linking units between binding sites on the ligands usually provides good-to-excellent control on the resulting assembly. The combination of a suitable metal ion with a rigid bridging ligand will reliably generate either discrete macrocyclic or cage architectures or continuous metal-organic framework materials. However, bridging ligands with more flexibility provide less control on the outcome of the self-assembly process and can lead to mixtures or coordination polymers [2]. Coordination polymers can also be generated by exploiting rigid ligands with divergent coordinating units. As these metallosupramolecular systems can be readily self-assembled, as opposed to generated through (potentially) more laborious step-by-step synthetic procedures, they have been examined for a wide range of applications, including gas sorption [3,4], drug delivery [5,6], and catalysis [7,8]. Metallosupramolecular systems with interesting biological [9], photophysical [10,11] and redox [12,13,14,15] properties have also been generated. Recently, as a part of efforts to further widen the potential applications of metallosupramolecular architectures, there has been a focus on the design and synthesis of heterometallic [16,17] complexes/assemblies.
There are potentially several different approaches to the generation of heterometallic architectures and ligands that feature binding pockets with different denticities (e.g., bidentate and monodentate or tridentate and monodentate) have been used to synthesize both discrete and polymeric systems. In particular, classical 2,2-bipyridine (bipy) and 2,2′:6′,2″-terpyridine (terpy) chelators conjugated to pyridyl units have received considerable attention (Figure 1A–D). The chelate effect leads to the initial complexation of a metal ion within the bidentate or tridentate pocket of the ligands, while the addition of a second equivalent of the same or a different metal ion generates either discrete [18,19,20,21] or polymeric [22,23,24,25,26,27,28] metallosupramolecular assemblies.
Recently, the 2-(1-R-1H-1,2,3-triazol-4-yl)pyridine (R-pytri) and 2,6-bis(1-R-1H-1,2,3-triazol-4-yl)pyridine (R-tripy) chelator units have emerged as alternatives to the more well established bipy and terpy ligands. The interest in the R-pytri and R-tripy ligands is fueled, in part, by the fact that the compounds are synthesized using the mild functional group tolerant copper(I) catalyzed alkyne-azide 1,3-cycloaddition (CuAAC) “click” reaction. This enables a wide variety of functionalized “click” ligands to be generated for different applications. We and others have used “click” ligands to assemble a variety of discrete metallosupramolecular architectures. [29] Herein, we build on those studies and report the synthesis of the new “click” ligand, 2,6-bis(1-(pyridin-4-ylmethyl)-1H-1,2,3-triazol-4-yl)pyridine (L). The ligand features a central tridentate 2,6-bis-(1H-1,2,3-triazol-4-yl)pyridine (tripy) binding pocket and two peripheral pyridyl units. The self-assembled metallosupramolecular architectures generated from L and silver(I) and iron(II) ions are examined using solution and solid state techniques.

2. Results and Discussion

2.1. Ligand Synthesis and Homometallic Complexation

The “click” ligand, 2,6-bis(1-(pyridin-4-ylmethyl)-1H-1,2,3-triazol-4-yl)pyridine (L) was synthesized from 4-pyridinemethanol and 2,6-diethynylpyridine [30] without the need to isolate the intermediate azide (Scheme 1). 4-Pyridinemethanol (3 equiv.) and methanesulfonyl chloride (MsCl, 3 equiv.) were stirred in dimethylformamide (DMF) with triethylamine (NEt3) for 1 h to generate the methanesulfonate ester of 4-pyridinemethanol [31]. Sodium azide (2.5 equiv.) was then added to the reaction mixture and the resulting solution was stirred at room temperature overnight (20 h). The DMF solution of the in situ generated 4-(azidomethyl)pyridine was then added to a mixture of 2,6-diethynylpyridine (1 equiv.), CuSO4·5H2O and sodium ascorbate in DMF/H2O (4:1) and stirred at room temperature for 20 h (Scheme 1) providing, after work up, the desired ligand in modest yield (42%).
The new ligand, L, was characterised via 1H-NMR, 13C-NMR, and infrared spectroscopies and high-resolution electrospray mass spectrometry (HR-ESI-MS) and elemental analysis (Scheme 1, Supplementary Materials, Figures S1 and S2).

2.2. Homometallic Silver(I) and Iron(II) Complexes

Diamagnetic, labile, d10 silver(I) ions have been used extensively in the construction of metallosupramolecular architectures because they can adopt a wide variety of coordination numbers (ranging from 2 to 6) and geometries. We have previously shown that silver(I) forms interesting polynuclear complexes with bi- and tri-dentate pyridyl-1,2,3-triazole ligands [32,33,34] and metallomacrocycles [35] with pyridyl based ligands, thus we initially examined the complexation of 2,6-bis(1-(pyridin-4-ylmethyl)-1H-1,2,3-triazol-4-yl)pyridine (L) with a range of silver(I) salts (Scheme 1).
The silver(I) complexes of L were prepared by adding an acetonitrile or acetone solution of AgX (1 equiv., where X = BF4, NO3 or SbF6) to an acetonitrile or acetone solution of the ligand (L 1 equiv.). The resulting solutions were stirred at room temperature for 5 min in the absence of light (Scheme 1) and colorless solids immediately precipitated in each case. Repeating the synthesis in dimethylformamide (DMF), resulted in colorless solutions. Vapor diffusion of diethyl ether into the DMF solutions generated either X-ray quality colorless crystals or microcrystalline powders in good yields (50–92%). IR spectra of the isolated colorless solids show absorption bands resulting from C-H stretching (3100–2900 cm−1) and from the skeletal vibrations of the aromatic rings (1600–1400 cm−1) confirming the presence of the ligands in the isolated materials, while elemental analysis indicated that complexes with 1:1 metal:ligand ratios were obtained.
The complexes were only soluble in polar DMF or DMSO, 1H NMR spectroscopy (500 MHz, d6-DMSO, 298 K) of the three complexes showed the downfield shifting of ligand protons Ha (Δδ = 0.12–0.17 ppm) and Hc (Δδ = 0.25–0.32 ppm), relative to the “free” ligand consistent with complex formation (Figure 2, Supplementary Materials, Figures S3–S9). No/negligible shifts of the He and Hf protons of the pendent pyridyl group suggested that the silver(I) ions are coordinated in the central tripy tridentate pocket only, and are not interacting with the pendent pyridines in solution. 1H DOSY experiments (Table 1, Figure 3) confirmed that for the three silver compounds, a 1:1 complex of the ligand and silver forms in solution as the diffusion coefficients (D = 1.8–2.3 × 10−10 m2 s−1) are all slightly smaller than that of the free ligand (D = 2.5 × 10−10 m2 s−1). HR-ESI-MS (acetonitrile/DMF) of the different silver(I) complexes were each dominated by a peak that was consistent with the presence of [Ag(L)]+ (m/z = 502.0661), confirming the formation of monomeric complexes in solution. Interestingly, the spectra of all the complexes also displayed minor peaks at m/z = 899.2158 indicative of the presence of [Ag(L)2]+ ions.
All three of the silver(I) complexes were characterized by X-ray crystallography (Figure 4 and Figure 5 and Supplementary Materials, Figures S13–S15). X-ray diffraction quality crystals of [Ag(L)]SbF6 and [Ag(L)]BF4 were grown by vapour diffusion of diethyl ether into DMF solution of the complexes. Vapour diffusion of diethyl ether into DMSO and acetonitrile (2:1) solution of [Ag(L)] NO3 provided X-ray quality single crystals. Each of the silver complexes formed coordination polymers with the [Ag(L)]NO3 and [Ag(L)]BF4 compounds, crystallizing in the monoclinic space groups P21/n and P21/c while the [Ag(L)]SbF6 complex crystallized in the triclinic space group P 1 ¯ . In each complex, the silver(I) ion was coordinated within the tripy tridentate pocket with two pyridyl units completing the coordination sphere giving an unsual five coordinate square pyramidal geometry (τ5 [36] values range from 0.085–0.20). For [Ag(L)]NO3 and [Ag(L)]BF4, this generates isostructural extended one dimensional coordination polymers with the Ag-N bond lengths (2.250–2.725 Å) in the expected ranges for Ag(I)-pyridyl [35] and Ag(I)–triazole [32,33,37] interactions (Figure 4). One Ag-Ntri for [Ag(L)]BF4 is quite long (Ag1-N6 = 2.725(2) Å), but the nitrogen lone pair is directly pointing to the silver(I) ion suggestive of a bonding interaction. In the linear polymers, the ligand adopts an anti-conformation with a pyridyl unit above and below the plane of the tripy core. In the [Ag(L)]BF4 complex the BF4 anions hydrogen bond to the triazole C-H in a bifurcated fashion (C15---F4 3.401(4), H15---F4 2.516, C15---F1 3.304(4), H15---F1 2.502 Å), and there is no evidence of any stabilizing Ag(I)-Ag(I) interactions (the shortest Ag(I)-Ag(I) distance is 9.7707(7) Å). For the [Ag(L)]NO3 complex the NO3 anions engage in hydrogen bonding interactions with the triazole C-H in a bifurcated fashion (C15---O1 3.266(5), H15---O1 2.306, C15---O3 3.249(5), H15---O3 2.564 Å) and with α-pyridyl hydrogens (C17---O2 3.438(5), H17---O2 2.538, C21---O1 3.165(5), H21---O1 2.456 Å of the ligand and the shortest Ag(I)-Ag(I) distance was 9.1515(6) Å.
The [Ag(L)]SbF6 complex crystallizes as a 4+4 net rather than an linear polymer (Figure 5). The ligand adopts a syn conformation with both pyridyl units on the same side of the plane of the tripy core. The Ag-N bond lengths (2.26–2.72 Å) are similar to those observed in the linear polymers and the network structure displays large voids but these are filled with SbF6 anions and DMF molecules. The SbF6 anions form hydrogen bonding interactions with the triazole C-H hydrogens (C7---F6 2.97(2), H7---F6 2.00, C17---F2 3.74(5), H17---F2 3.24 Å) and with methylene hydrogens (C16---F5 3.31(2), H16A---F5 2.94, H16B---F5 3.02) while the DMF molecules hydrogen bond to a triazole C-H (C15---O3 3.09(2), H15---O2 2.32). The shortest Ag(I)-Ag(I) distance was 10.099(2) Å (Supplementary Materials).
The [Fe(L)2](BF4)2 complex was synthesized by combining two equivalents of L with one equivalent of [Fe(OH2)6](BF4)2 in acetonitrile at room temperature. The solution instantly became orange (λmax = 440 nm), which is consistent with the formation of the [Fe(L)2]2+ complex (Supplementary Materials, Figure S10). [38] 1H NMR spectroscopy (500 MHz, 298 K) of the [Fe(L)2](BF4)2 complex in d3-acetonitrile displayed downfield shifts of protons Ha, Hb, and Hc, relative to “free” ligand while the proton resonances for Hd, He, and Hf are shifted upfield consistent with the formation of the expected [Fe(L)2]2+ complex and indicating that the iron(II) is sitting within the central tridentate tripy pocket (Supplementary Materials, Figure S11). The DOSY spectra (500 MHz, d3-acetonitrile, 298 K) of the ligand (D = 14.2 × 10−10 m2 s−1) and complex (D = 8.81 × 10−10 m2 s−1) were quite different with the diffusion coefficient of the complex just over half that of the free ligand consistent with the formation of the 2:1 octahedral complex. HR-ESI-MS (CH3CN) of the [Fe(L)2](BF4)2 complex only displayed one peak at m/z = 432.1435 with the correct isotope pattern and charge (2+), confirming the presence of the [Fe(L)2]2+ monomeric complex in solution (Supplementary Materials, Figure S12).
Interestingly, the addition of DMSO to the [Fe(L)2](BF4)2 complex results instantaneously in the loss of the orange color, providing a colorless solution as was observed previously with related [Fe(R-pytri)2](BF4)2 complexes. [39] 1H and DOSY NMR spectra (500 MHz, d6-DMSO, 298 K) are broad but the chemical shifts are the same as free L in DMSO indicating that the complex has dissociated into free L and presumably [Fe(DMSO)6]2+. [40]
X-ray diffraction quality crystals of the [Fe(L)2](BF4)2 complex were obtained by the slow diffusion of carefully layered nitromethane solutions of the ligand (L) and [Fe(OH2)6](BF4)2. The iron(II) complex crystallized in the triclinic space group P 1 ¯ , and displayed the expected [Fe(L)2]2+ cation with an octahedral iron(II) center coordinated to the tripy tridentate pockets of two L ligands (Figure 6, Supplementary Materials, Figure S16). The Fe-N bond lengths (1.924–1.969 Å) were similar to those observed for related iron(II)-tripy [38] and pytri [39] complexes and consistent with the expected diamagnetic low spin state. The pyridyl units of the ligand adopt an anti conformation and interestingly two of the pyridyl units are protonated (Figure 6). One of the protonated pyridyl units engages in hydrogen bonding interactions with two of the BF4 anions (N1---F3 2.81(1), H1A---F3 2.041, N1---F6 2.894(9), H1A---F6 2.254 Å). Two of the [Fe(L)2]2+ cations dimerize around another proton (N18---N18′ 2.629(5), H18A---N18 1.751) (Figure 6b).

2.3. Heterometallic Silver(I)-Iron(II) Complex

Having shown that silver(I) and iron(II) ions would form homometallic complexes with L, we attempted to generate a self-assembled heterometallic silver(I)-iron(II) coordination polymer. The [Fe(L)2](BF4)2 complex (1 equiv.) was dissolved in acetonitrile and AgBF4 (2 equiv.) was added at RT resulting in the formation of an orange precipitate. The orange solid was quite insoluble but could be dissolved in DMSO. However, the color immediately changed from orange to colorless consistent with decomposition of the iron(II) complex, as seen above for the [Fe(L)2](BF4)2 complex, consistently the NMR and HR-ESI-MS data were reminiscent of the [Ag(L)]BF4 complex. Elemental analysis of the orange solid was consistent with the formulation [FeAg2(L)2](BF4)4.4H2O.
X-ray diffraction quality crystals of the heterometallic [FeAg2(L)2](BF4)4·4H2O complex were obtained via slow diffusion of carefully layered solutions of [Fe(L)2](BF4)2 complex in acetonitrile and AgBF4 in tetrahydrofuran (THF). Small orange crystals in the orthorhombic Cmca space group were obtained. While the structure displayed some disorder in the silver(I) and pyridyl fragments, it clearly showed that the heterometallic architecture had assembed (Figure 7, Supplementary Materials, Figure S17). The structure contained the expected [Fe(L)2]2+ cations coordinated to Ag(I) ions through the peripheral pyridyl units. The Fe-N bond lengths (1.93–1.95 Å) of the [Fe(L)2]2+ cations were similar to those observed in the monomeric [Fe(L)2](BF4)2 complex.
In one of the disordered silver-pyridyl components of the structure, the silver(I) ions are each coordinated to two pyridyl units (Ag-N range from 2.22 to 2.38 Å) with a water (H2O) ligand sandwiched between adjacent [Ag(py)2]+ units (Figure 7c). One of the silver(I) ions was essentially two coordinate with a distorted linear coordination geometry (N9A-Ag1A-N9A 164°). The other silver(I) ion was three coordinate bound to two pyridyl units and a water (H2O) ligand. The bond angle of the [Ag(py)2]+ units was not linear (N1A-Ag1A-N1A 121°) suggesting that the silver(I) is coordinated to a third ligand giving a trigonal coordination geometry. The silver(I) ions were both close to a H2O molecule (Ag1A-O1 2.66 Å, N1A-Ag1A-O1 93°, Ag2A-O1 2.67 Å) suggestive of a bridging interaction (Figure 7c). In the second disordered silver-pyridyl component of the structure the silver(I) ions are each coordinated to two pyridyl units with a water (H2O) ligand coordinated to only one of the [Ag(py)2]+ units (Figure 7d). There is one short silver-water interaction/bond (Ag1B-O32 2.27 Å) while the other silver ion is 3.65 Å away from the water ligand, too long for any type of bonding.

3. Experimental

General

Unless otherwise stated, all of the reagents were purchased from commercial sources and used without further purification, except for 2,6-diethynylpyridine [30], which was synthesized according to the literature procedure. Solvents were laboratory reagent grade. Petroleum ether refers to the fraction of petrol boiling in the range 40–60 °C, isopropyl alcohol (IPA), methanol (CH3OH), dichloromethane (CH2Cl2), ethylenediaminetetraacetate (EDTA), ethynyltrimethylsilane (TMS-acetylene), acetonitrile (CH3CN), tetrahydrofuran (THF), dimethyl sulfoxide (DMSO), and dimethylformamide (DMF). 1H and 13C NMR spectra were recorded on either a 400 MHz Varian 400-MR or Varian 500 MHz AR spectrometer (Varian, Santa Clara, CA, USA). Chemical shifts are reported in parts per million and referenced to residual solvent peaks (CDCl3: 1H δ 7.26 ppm, 13C δ 77.16 ppm; CD3CN: 1H δ 1.94, 13C δ 1.32, 118.26 ppm, d6-DMSO: 1H δ 2.50 ppm; 13C δ 39.52 ppm, d3-nitromethane: 1H δ 4.30, 13C δ 57.3). Coupling constants (J) are reported in Hertz (Hz). Standard abbreviations indicating multiplicity were used as follows: m = multiplet, q = quartet, quin = quintet, t = triplet, dt = double triplet, d = doublet, dd = double doublet, s = singlet, br = broad. IR spectra were recorded on a Bruker ALPHA FT-IR spectrometer with an attached ALPHA-P measurement module (Bruker Daltonik, Bremen, Germany). Microanalyses were performed at the Campbell Microanalytical Laboratory at the University of Otago. Electrospray mass spectra (ESMS) were collected on a Bruker micrOTOF-Q spectrometer (Bruker Daltonik, Bremen, Germany).
CAUTION: Azides are explosive and care should be taken when handling them. Reactions were carried out on small scale. No problems were encountered during the course of this work.
2,6-Bis(1-(pyridin-4-ylmethyl)-1H-1,2,3-triazol-4-yl)pyridine (L): 4-pyridinemethanol (1.69 g, 15.5 mmol) was stirred in DMF (15 ml) in a water bath for 10 min, at which point methanesulfonyl chloride (1.77 g, 1.2 mL, 15.5 mmol) and triethylamine (1.5 g, 2.2 mL, 16 mmol) were added and the resulting orange mixture stirred for one hour. NaN3 (0.838 g, 12.9 mmol) was added and the mixture stirred for 18 h. 2,6-diethynylpyridine [30] (0.656 g, 5.16 mmol), CuSO4∙5H2O (0.644 g, 2.58 mmol), sodium ascorbate (1.02 g, 5.16 mmol), DMF (35 mL) and water (10 mL) were added and the mixture stirred at RT for 24 h. After addition of CH2Cl2 (75 mL) and 0.1 M EDTA/NH4OH aqueous solution (75 mL) and stirring for 30 min, the organic phase was washed with water (1 × 200 mL) and brine (1 × 200 mL), dried over Na2SO4, filtered and the solvent removed in vacuo. Column chromatography on silica (gradient: CH2Cl2 to acetone in 20% increments) afforded the product as an off-white powder (0.85 g, 2.2 mmol, 42%). 1H NMR (400 MHz, d6-DMSO, 298 k) δ: 8.75 (2H, s, Hc), 8.58 (4H, d, J = 6.0 Hz, Hf), 8.01–7.99 (3H, m, Ha,b), 7.26 (4H, d, J = 6.0 Hz, He), 5.79 (4H, s, Hd). 13C NMR (101 MHz, d6-DMSO, 298 K) δ: 150.1(Cf), 149.7, 147.5, 144.7, 138.4 (Cb), 124.2 (Cc), 122.3 (Ce), 118.6 (Ca), 51.8 (Cd). HR ESI-MS (CHCl3/CH3OH) m/z = 396.1651 [M + H]+ (calc. for C21H18N9, 396.1680), 418.1478 [M + Na]+ (calc. for C21H17N9Na, 418.1499). Anal. calcd. for C21H17N9: C, 63.79; H, 4.33; N, 31.88%. Found: C, 63.70; H, 4.49; N, 31.82%. IR: ν (cm−1) 3068, 2963, 1601, 1429, 1414, 1222, 1203, 1046, 822, 784.
[Ag(L)]NO3: Vapour diffusion of diethyl ether into a solution of L (22 mg, 0.056 mmol) and AgNO3 (10 mg, 0.059 mmol) in 2:1 DMSO:acetonitrile, afforded the product as small colorless crystals which were washed with diethyl ether and dried in vacuo (29 mg, 0.051 mmol, 92%). 1H NMR (500 MHz, d6-DMSO, 298 K) δ: 9.07 (2H, s, Hc), 8.60 (4H, d, J = 5.0 Hz, Hf), 8.15 (1H, t, J = 7.8 Hz, Ha), 8.01 (2H, d, J = 7.8 Hz, Hb), 7.31 (4H, d, J = 6.1 Hz, He), 5.85 (4H, s, Hd). 13C NMR (126 MHz, d6-DMSO, 298 K) δ: 150.3 (Cf), 147.4, 145.3, 144.5, 139.8 (Ca), 125.2 (Cc), 122.6 (Ce), 120.6 (Cb), 52.2 (Cd). HR ESI-MS (DMSO/CH3CN) m/z = 502.0661 [M − NO3]+ (calc. for C21H17N9Ag, 502.0652). Anal. calcd. for C21H17AgN10O3·2H2O·1DMSO: C, 40.66; H, 4.01; N, 20.61%. Found: C, 40.68; H, 3.72; N, 20.73%. IR: ν (cm−1) 3067, 1601, 1577, 1421, 1333, 1012, 905, 804, 789.
[Ag(L)]BF4: Diethyl ether was added to a DMF solution of L (23 mg, 0.058 mmol) and AgBF4 (12 mg, 0.062 mmol), affording the product as an off-white precipitate which was collected via centrifuge (13,000 rpm, 10 min) and dried in vacuo (26 mg, 0.44 mmol, 76%). 1H NMR (500 MHz, d6-DMSO, 298 K) δ: 9.11 (2H, s, Hc), 8.60 (4H, d, J = 5.0 Hz, Hf), 8.17 (1H, t, J = 7.9 Hz, Ha), 8.01 (2H, d, J = 7.8 Hz Hb), 7.31 (4H, d, J = 5.2 Hz, He), 5.87 (4H, s, Hd). 13C NMR (126 MHz, d6-DMSO, 298 K) δ: 150.3 (Cf), 147.1, 145.0, 144.6, 139.9 (Ca), 125.4 (Cc), 122.6 (Ce), 120.8 (Cb), 52.3 (Cd). HR ESI-MS (DMF/CH3CN) m/z = 502.0714 [M – BF4]+ (calc. for C21H17N9Ag, 502.0652). Anal. calcd. for C21H17AgN9BF4∙H2O: C, 41.48; H, 3.15; N, 20.73%. Found: C, 41.57; H, 2.99; N, 20.82%. IR: ν (cm−1) 3134, 1609, 1577, 1452, 1423, 1049, 805, 788.
[Ag(L)]SbF6: Diethyl ether was added to a DMF solution of L (22 mg, 0.056 mmol) and AgSbF6 (20 mg, 0.058 mmol), affording the product as a white precipitate which was collected via centrifuge (13,000 rpm, 10 min) and dried in vacuo (21 mg, 0.028 mmol, 50%). 1H NMR (500 MHz, d6-DMSO, 298 K) δ: 9.00 (2H, s, Hc), 8.60 (4H, d, J = 4.4 Hz, Hf), 8.12 (1H, t, J = 8.3 Hz, Ha), 8.01 (2H, d, J = 7.7 Hz, Hb), 7.30 (4H, d, J = 4.8 Hz, He), 5.84 (4H, s, Hd). 13C NMR (126 MHz, d6-DMSO, 298K) δ: 150.2 (Cf), 147.9, 145.8, 144.5, 139.4 (Ca), 125.0 (Cc), 122.5 (Ce), 120.1 (Cb), 52.1 (Cd). HR ESI-MS (DMF/CH3CN) m/z = 502.0698 [M − SbF6]+ (calc. for C21H17N9Ag, 502.0652). Anal. calcd. for C21H17AgF6N9Sb: C, 34.13; H, 2.32; N, 17.06%. Found C, 34.03; H, 2.36; N, 17.00%. IR: ν (cm−1) 3141, 1605, 1580, 1452, 1422, 1052, 807, 791, 651.
[Fe(L)2](BF4)2: Vapour diffusion of diethyl ether into an acetonitrile solution of L (21 mg, 0.053 mmol) and Fe(BF4)2·6H2O (9 mg, 0.03 mmol), afforded the product as red block crystals which were washed with diethyl ether and dried in vacuo (20 mg, 0.020 mmol, 74%). 1H NMR (500 MHz, CD3CN, 298 K) δ: 8.75 (2H, br, Hc), 8.54 (2H, br s, Hb), 8.43 (4H, br s, Hf), 8.35 (1H, br, Ha), 6.86 (4H, s, He), 5.45 (4H, s, Hd). The broadness of the peaks precluded the collection of a 13C NMR spectrum. HR ESI-MS (CH3CN) m/z = 423.1435 [M − 2BF4]2+ (calc. for C42H34FeN18, 423.1276). Anal. calcd. for C42H34B2F8FeN18∙1.25CH3CN·2.55H2O: C, 47.83; H, 3.86; N, 24.13%. Found C, 47.45; H, 3.46; N, 24.52%. IR: ν (cm−1) 3127, 1600, 1416, 1045, 794. UV-Vis (CH3CN, ε [M−1·cm−1]): λmax nm = 440 (2.3 × 103).
[FeAg2(L)2](BF4)4·4H2O: A solution of L (21 mg, 0.053 mmol) and Fe(BF4)26H2O (9 mg, 0.03 mmol) in acetonitrile was layered on top of a solution of AgBF4 (11 mg, 0.057 mmol) in THF. After diffusion small red block crystals of [FenAg2n(L)2n(OH2)2n](BF4)4n had formed, which were washed with diethyl ether and dried in vacuo (26 mg, 0.021 mmol, 79%). Anal. calcd. for C42H36Ag2B4F16FeN18O∙3H2O: C, 34.05; H, 2.86; N, 17.02%. Found C, 34.02; H, 2.79; N, 17.12%. IR: ν (cm−1) 3126, 1613, 1425, 1033, 798.

4. Conclusions

A new “click” ligand, 2,6-bis(1-(pyridin-4-ylmethyl)-1H-1,2,3-triazol-4-yl)pyridine (L), featuring a tridentate tripy pocket and two pyridyl units was synthesized in modest yield (42%) using the copper(I) catalyzed azide-alkyne cycloaddition (CuAAC) reaction. The coordination chemistry of the ligand with silver(I) and iron(II) ions was examined using a range of solution and solid state techniques. When treated with silver(I) ions, the ligand forms discrete [Ag(L)](X) (where X = BF4, NO3 or SbF6) complexes in dimethyl sulfoxide (DMSO) solution, but these complexes crystallize as coordination polymers featuring an unusual (for silver(I)) five coordinate square pyramidal geometry. With Fe(II) ions, the ligand forms a bis-ligated complex with four uncoordinated pyridyl units. The addition of AgBF4 to the iron(II) complex generates a heterometallic silver(I)-iron(II) linear coordination polymer. The collected results indicate that L, and related, hybrid “click” ligands featuring chelating pockets appended with pyridyl donors, could be exploited to generate a wide range of new metallosupramolecular architectures. A range of other octahedral metal ions could potentially be coordinated within the tripy pockets of the ligand, while other cis-protected or naked metal ions could be used to interact with the peripheral pyridyl units to generate a vast family of discrete or polymeric systems. Efforts in these directions are underway.

Supplementary Materials

The following are available online, 1H-, 13C-NMR, UV-Vis and HR-ESI-MS spectral data and crystallographic data in CIF format.

Acknowledgments

This work was supported by the University of Otago, Department of Chemistry. DAWR and DP thank the University of Otago for Ph.D. scholarships.

Author Contributions

J.D.C. and D.P. conceived and designed the experiments; D.P. and D.A.W.R. performed the experiments; D.P., D.A.W.R. and J.D.C. analyzed the data and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cook, T.R.; Stang, P.J. Recent Developments in the Preparation and Chemistry of Metallacycles and Metallacages via Coordination. Chem. Rev. 2015, 115, 7001–7045. [Google Scholar] [CrossRef] [PubMed]
  2. Cook, T.R.; Zheng, Y.-R.; Stang, P.J. Metal–Organic Frameworks and Self-Assembled Supramolecular Coordination Complexes: Comparing and Contrasting the Design, Synthesis, and Functionality of Metal–Organic Materials. Chem. Rev. 2013, 113, 734–777. [Google Scholar] [CrossRef] [PubMed]
  3. He, Y.; Zhou, W.; Qian, G.; Chen, B. Methane storage in metal-organic frameworks. Chem. Soc. Rev. 2014, 43, 5657–5678. [Google Scholar] [CrossRef] [PubMed]
  4. Sumida, K.; Rogow, D.L.; Mason, J.A.; McDonald, T.M.; Bloch, E.D.; Herm, Z.R.; Bae, T.-H.; Long, J.R. Carbon Dioxide Capture in Metal–Organic Frameworks. Chem. Rev. 2012, 112, 724–781. [Google Scholar] [CrossRef] [PubMed]
  5. Rojas, S.; Devic, T.; Horcajada, P. Metal organic frameworks based on bioactive components. J. Mater. Chem. B 2017, 5, 2560–2573. [Google Scholar] [CrossRef]
  6. Cai, W.; Chu, C.-C.; Liu, G.; Wáng, Y.-X.J. Metal–Organic Framework-Based Nanomedicine Platforms for Drug Delivery and Molecular Imaging. Small 2015, 11, 4806–4822. [Google Scholar] [CrossRef] [PubMed]
  7. Liu, J.; Chen, L.; Cui, H.; Zhang, J.; Zhang, L.; Su, C.-Y. Applications of metal-organic frameworks in heterogeneous supramolecular catalysis. Chem. Soc. Rev. 2014, 43, 6011–6061. [Google Scholar] [CrossRef] [PubMed]
  8. Gascon, J.; Corma, A.; Kapteijn, F.; Llabrés i Xamena, F.X. Metal Organic Framework Catalysis: Quo vadis? ACS Catal. 2014, 4, 361–378. [Google Scholar] [CrossRef]
  9. Cook, T.R.; Vajpayee, V.; Lee, M.H.; Stang, P.J.; Chi, K.-W. Biomedical and Biochemical Applications of Self-Assembled Metallacycles and Metallacages. Acc. Chem. Res. 2013, 46, 2464–2474. [Google Scholar] [CrossRef] [PubMed]
  10. Saha, M.L.; Yan, X.; Stang, P.J. Photophysical Properties of Organoplatinum(II) Compounds and Derived Self-Assembled Metallacycles and Metallacages: Fluorescence and its Applications. Acc. Chem. Res. 2016, 49, 2527–2539. [Google Scholar] [CrossRef] [PubMed]
  11. Xu, L.; Wang, Y.-X.; Yang, H.-B. Recent advances in the construction of fluorescent metallocycles and metallocages via coordination-driven self-assembly. Dalton Trans. 2015, 44, 867–890. [Google Scholar] [CrossRef] [PubMed]
  12. Croue, V.; Goeb, S.; Salle, M. Metal-driven self-assembly: The case of redox-active discrete architectures. Chem. Commun. 2015, 51, 7275–7289. [Google Scholar] [CrossRef] [PubMed]
  13. Croue, V.; Goeb, S.; Szaloki, G.; Allain, M.; Salle, M. Reversible Guest Uptake/Release by Redox-Controlled Assembly/Disassembly of a Coordination Cage. Angew. Chem. Int. Ed. 2016, 55, 1746–1750. [Google Scholar] [CrossRef] [PubMed]
  14. Bivaud, S.; Goeb, S.; Croue, V.; Allain, M.; Pop, F.; Salle, M. Tuning the size of a redox-active tetrathiafulvalene-based self-assembled ring. Beilstein J. Org. Chem. 2015, 11, 966–971. [Google Scholar] [CrossRef] [PubMed]
  15. Bivaud, S.; Goeb, S.; Croue, V.; Dron, P.I.; Allain, M.; Salle, M. Self-Assembled Containers Based on Extended Tetrathiafulvalene. J. Am. Chem. Soc. 2013, 135, 10018–10021. [Google Scholar] [CrossRef] [PubMed]
  16. Zhang, Y.-Y.; Gao, W.-X.; Lin, L.; Jin, G.-X. Recent advances in the construction and applications of heterometallic macrocycles and cages. Coord. Chem. Rev. 2017, 344, 323–344. [Google Scholar] [CrossRef]
  17. Li, H.; Yao, Z.-J.; Liu, D.; Jin, G.-X. Multi-component coordination-driven self-assembly toward heterometallic macrocycles and cages. Coord. Chem. Rev. 2015, 293–294, 139–157. [Google Scholar] [CrossRef]
  18. Laramée-Milette, B.; Nastasi, F.; Puntoriero, F.; Campagna, S.; Hanan, G.S. Photo-Induced Assembly of a Luminescent Tetraruthenium Square. Chem. Eur. J. 2017. [Google Scholar] [CrossRef]
  19. Shen, C.; Kennedy, A.D.W.; Donald, W.A.; Torres, A.M.; Price, W.S.; Beves, J.E. Self-assembled supramolecular cages containing dinuclear ruthenium(II) polypyridyl complexes. Inorg. Chim. Acta 2017, 458, 122–128. [Google Scholar] [CrossRef]
  20. Yang, J.; Bhadbhade, M.; Donald, W.A.; Iranmanesh, H.; Moore, E.G.; Yan, H.; Beves, J.E. Self-assembled supramolecular cages containing ruthenium(II) polypyridyl complexes. Chem. Commun. 2015, 51, 4465–4468. [Google Scholar] [CrossRef] [PubMed]
  21. Schouwey, C.; Holstein, J.J.; Scopelliti, R.; Zhurov, K.O.; Nagornov, K.O.; Tsybin, Y.O.; Smart, O.S.; Bricogne, G.; Severin, K. Self-Assembly of a Giant Molecular Solomon Link from 30 Subcomponents. Angew. Chem. Int. Ed. 2014, 53, 11261–11265. [Google Scholar] [CrossRef] [PubMed]
  22. Iranmanesh, H.; Arachchige, K.S.A.; Bhadbhade, M.; Donald, W.A.; Liew, J.Y.; Liu, K.T.C.; Luis, E.T.; Moore, E.G.; Price, J.R.; Yan, H.; et al. Chiral Ruthenium(II) Complexes as Supramolecular Building Blocks for Heterometallic Self-Assembly. Inorg. Chem. 2016, 55, 12737–12751. [Google Scholar] [CrossRef] [PubMed]
  23. Beves, J.E.; Constable, E.C.; Decurtins, S.; Dunphy, E.L.; Housecroft, C.E.; Keene, T.D.; Neuberger, M.; Schaffner, S.; Zampese, J.A. Structural diversity in the reactions of 4′-(pyridyl)-2,2′:6′,2″-terpyridine ligands and bis{4-(4-pyridyl)-2,2′:6′,2″-terpyridine}iron(II) with copper(II) salts. CrystEngComm 2009, 11, 2406–2416. [Google Scholar] [CrossRef]
  24. Beves, J.E.; Dunphy, E.L.; Constable, E.C.; Housecroft, C.E.; Kepert, C.J.; Neuburger, M.; Price, D.J.; Schaffner, S. Vectorial property dependence in bis{4′-(n-pyridyl)-2,2″:6′,2″-terpyridine}iron(ii) and ruthenium(ii) complexes with n = 2, 3 and 4. Dalton Trans. 2008, 386–396. [Google Scholar] [CrossRef]
  25. Beves, J.E.; Bray, D.J.; Clegg, J.K.; Constable, E.C.; Housecroft, C.E.; Jolliffe, K.A.; Kepert, C.J.; Lindoy, L.F.; Neuburger, M.; Price, D.J.; Schaffner, S.; Schaper, F. Expanding the 4,4′-bipyridine ligand: Structural variation in {M(pytpy)2}2+ complexes (pytpy = 4′-(4-pyridyl)-2,2′:6′,2″-terpyridine, M = Fe, Ni, Ru) and assembly of the hydrogen-bonded, one-dimensional polymer. Inorg. Chim. Acta 2008, 361, 2582–2590. [Google Scholar] [CrossRef]
  26. Beves, J.E.; Constable, E.C.; Housecroft, C.E.; Neuburger, M.; Schaffner, S. A palladium(II) complex of 4′-(4-pyridyl)-2,2′:6′,2″-terpyridine: Lattice control through an interplay of stacking and hydrogen bonding effects. Inorg. Chem. Commun. 2007, 10, 1185–1188. [Google Scholar] [CrossRef]
  27. Ollagnier, C.M.A.; Nolan, D.; Fitchett, C.M.; Draper, S.M. 4′-(pyridyl)-2,2′:6′,2″-Terpyridine ligands: Discrete metal complexes and their polymeric assemblies as a function of N-pyridyl substitution patterns. Supramol. Chem. 2012, 24, 563–571. [Google Scholar] [CrossRef]
  28. Ollagnier, C.M.; Nolan, D.; Fitchett, C.M.; Draper, S.M. [Ru(3-pyridyl-4′-terpy)2]2+ as a metallo-ligand—Adding to the complexity of supramolecular polymers. Inorg. Chem. Commun. 2007, 10, 1045–1048. [Google Scholar] [CrossRef]
  29. Vasdev, R.A.S.; Preston, D.; Crowley, J.D. Functional metallosupramolecular architectures using 1,2,3-triazole ligands: It’s as easy as 1,2,3 “click”. Dalton Trans. 2017, 46, 2402–2414. [Google Scholar] [CrossRef] [PubMed]
  30. Dana, B.H.; Robinson, B.H.; Simpson, J. Intramolecular interactions in 2,6-pyridylacetylenes and their Co2(CO)4dppm complexes. J. Organomet. Chem. 2002, 648, 251–269. [Google Scholar] [CrossRef]
  31. Bevilacqua, V.; King, M.; Chaumontet, M.; Nothisen, M.; Gabillet, S.; Buisson, D.; Puente, C.; Wagner, A.; Taran, F. Copper-Chelating Azides for Efficient Click Conjugation Reactions in Complex Media. Angew. Chem. Int. Ed. 2014, 53, 5872–5876. [Google Scholar] [CrossRef] [PubMed]
  32. Crowley, J.D.; Bandeen, P.H.; Hanton, L.R. A one pot multi-component CuAAC “click” approach to bidentate and tridentate pyridyl-1,2,3-triazole ligands: Synthesis, x-ray structures and copper(II) and silver(I) complexes. Polyhedron 2010, 29, 70–83. [Google Scholar] [CrossRef]
  33. Crowley, J.D.; Bandeen, P.H. A multicomponent CuAAC “click” approach to a library of hybrid polydentate 2-pyridyl-1,2,3-triazole ligands: New building blocks for the generation of metallosupramolecular architectures. Dalton Trans. 2010, 39, 612–623. [Google Scholar] [CrossRef] [PubMed]
  34. Preston, D.; Tucker, R.A.J.; Garden, A.L.; Crowley, J.D. Heterometallic [MnPtn(L)2n]x+ Macrocycles from Dichloromethane-Derived Bis-2-pyridyl-1,2,3-triazole Ligands. Inorg. Chem. 2016, 55, 8928–8934. [Google Scholar] [CrossRef] [PubMed]
  35. Kilpin, K.J.; Gower, M.L.; Telfer, S.G.; Jameson, G.B.; Crowley, J.D. Toward the Self-Assembly of Metal-Organic Nanotubes Using Metal-Metal and π-Stacking Interactions: Bis(pyridylethynyl) Silver(I) Metallo-macrocycles and Coordination Polymers. Inorg. Chem. 2011, 50, 1123–1134. [Google Scholar] [CrossRef] [PubMed]
  36. Addison, A.W.; Rao, T.N.; Reedijk, J.; van Rijn, J.; Verschoor, G.C. Synthesis, structure, and spectroscopic properties of copper(II) compounds containing nitrogen-sulphur donor ligands; the crystal and molecular structure of aqua[1,7-bis(N-methylbenzimidazol-2′-yl)-2,6-dithiaheptane]copper(II) perchlorate. J. Chem. Soc. Dalton Trans. 1984, 1349–1356. [Google Scholar] [CrossRef]
  37. Gower, M.L.; Crowley, J.D. Self-assembly of silver(I) metallomacrocycles using unsupported 1,4-substituted-1,2,3-triazole “click” ligands. Dalton Trans. 2010, 39, 2371–2378. [Google Scholar] [CrossRef] [PubMed]
  38. Li, Y.; Huffman, J.C.; Flood, A.H. Can terdentate 2,6-bis(1,2,3-triazol-4-yl)pyridines form stable coordination compounds? Chem. Commun. 2007, 26, 2692–2694. [Google Scholar] [CrossRef] [PubMed]
  39. Vellas, S.K.; Lewis, J.E.M.; Shankar, M.; Sagatova, A.; Tyndall, J.D.A.; Monk, B.C.; Fitchett, C.M.; Hanton, L.R.; Crowley, J.D. [Fe2L3]4+ cylinders derived from bis(bidentate) 2-pyridyl-1,2,3-triazole “click” ligands: Synthesis, structures and exploration of biological activity. Molecules 2013, 18, 6383–6407. [Google Scholar] [CrossRef] [PubMed]
  40. White, A.P.; Robertson, K.N.; Cameron, T.S.; Liengme, B.V.; Leznoff, D.B.; Trudel, S.; Aquino, M.A.S. Synthesis and characterization of [M(DMSO)6][SnCl6] complexes (M = Fe2+, Co2+, and Ni2+)—An old mystery solved. Can. J. Chem. 2007, 85, 372–378. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds are available from the authors.
Figure 1. 2,2-Bipyridine (bipy) and 2,2′:6′,2″-terpyridine (terpy) chelators conjugated to pyridyl units, 4,4′:2′,2″:4″,4″′-quaterpyridine (A), 4,5′:2′,2″:5″,4″′-quaterpyridine (B), 4′-(4-pyridinyl)-2,2′:6′,2″-terpyridine (C) and 4′-(3-pyridinyl)-2,2′:6′,2″-terpyridine (D).
Figure 1. 2,2-Bipyridine (bipy) and 2,2′:6′,2″-terpyridine (terpy) chelators conjugated to pyridyl units, 4,4′:2′,2″:4″,4″′-quaterpyridine (A), 4,5′:2′,2″:5″,4″′-quaterpyridine (B), 4′-(4-pyridinyl)-2,2′:6′,2″-terpyridine (C) and 4′-(3-pyridinyl)-2,2′:6′,2″-terpyridine (D).
Molecules 22 01762 g001

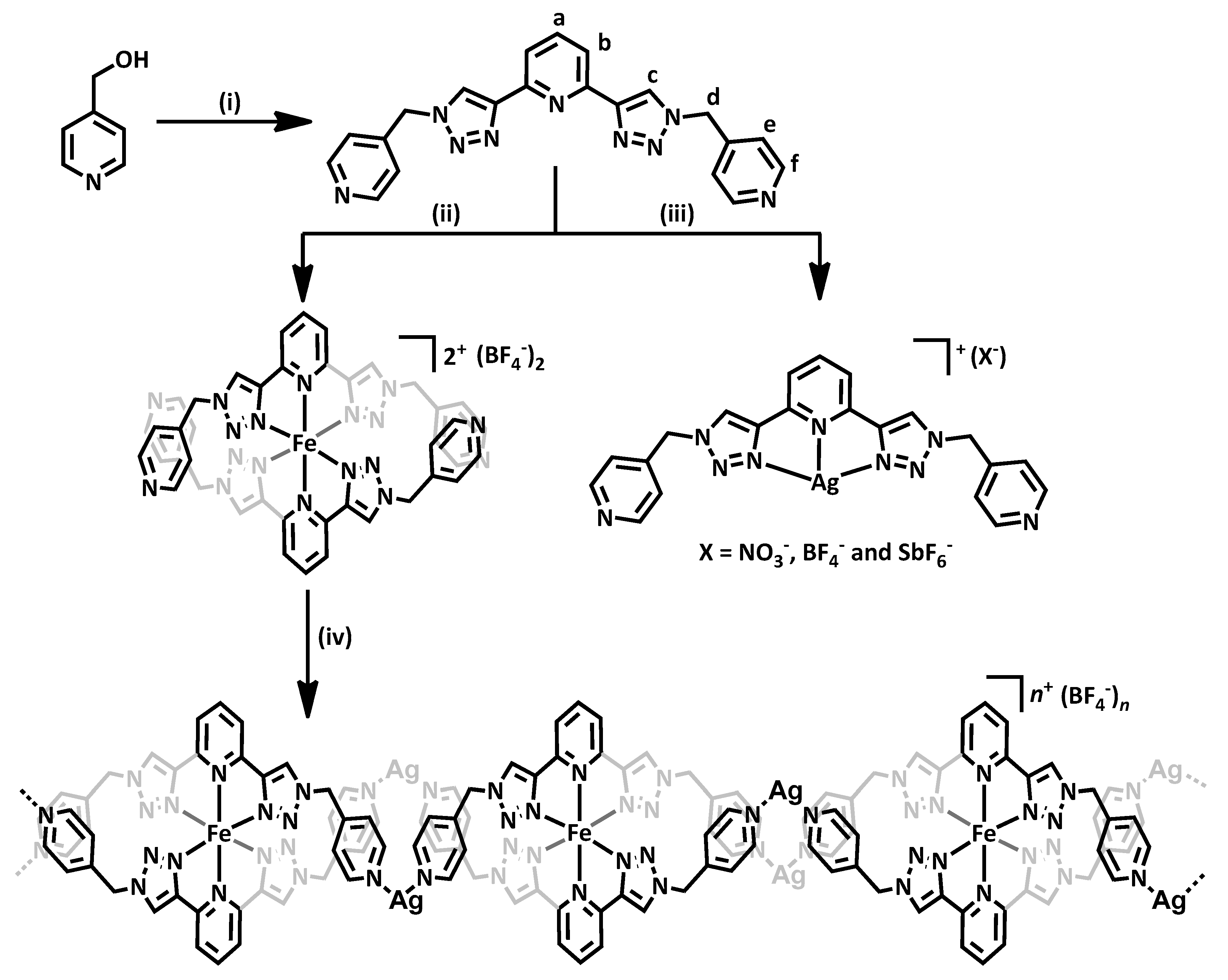

Scheme 1. Synthesis of the ligand (L) and the corresponding silver(I) and iron(II) complexes: (i) (a) MsCl, NEt3, DMF, 1 h; (b) NaN3, DMF, RT, 20 h, (c) 2,6-diethynylpyridine [30], CuSO4·5H2O, sodium ascorbate, DMF/H2O (4:1), RT, 20 h; (ii) [Fe(OH2)6](BF4)2, CH3CN, RT, 5 min; and, (iii) AgX (where X = BF4, NO3 or SbF6), DMF, RT, 5 min (iv) AgBF4, CH3CN/THF, RT, 24 h.
Scheme 1. Synthesis of the ligand (L) and the corresponding silver(I) and iron(II) complexes: (i) (a) MsCl, NEt3, DMF, 1 h; (b) NaN3, DMF, RT, 20 h, (c) 2,6-diethynylpyridine [30], CuSO4·5H2O, sodium ascorbate, DMF/H2O (4:1), RT, 20 h; (ii) [Fe(OH2)6](BF4)2, CH3CN, RT, 5 min; and, (iii) AgX (where X = BF4, NO3 or SbF6), DMF, RT, 5 min (iv) AgBF4, CH3CN/THF, RT, 24 h.
Molecules 22 01762 sch001

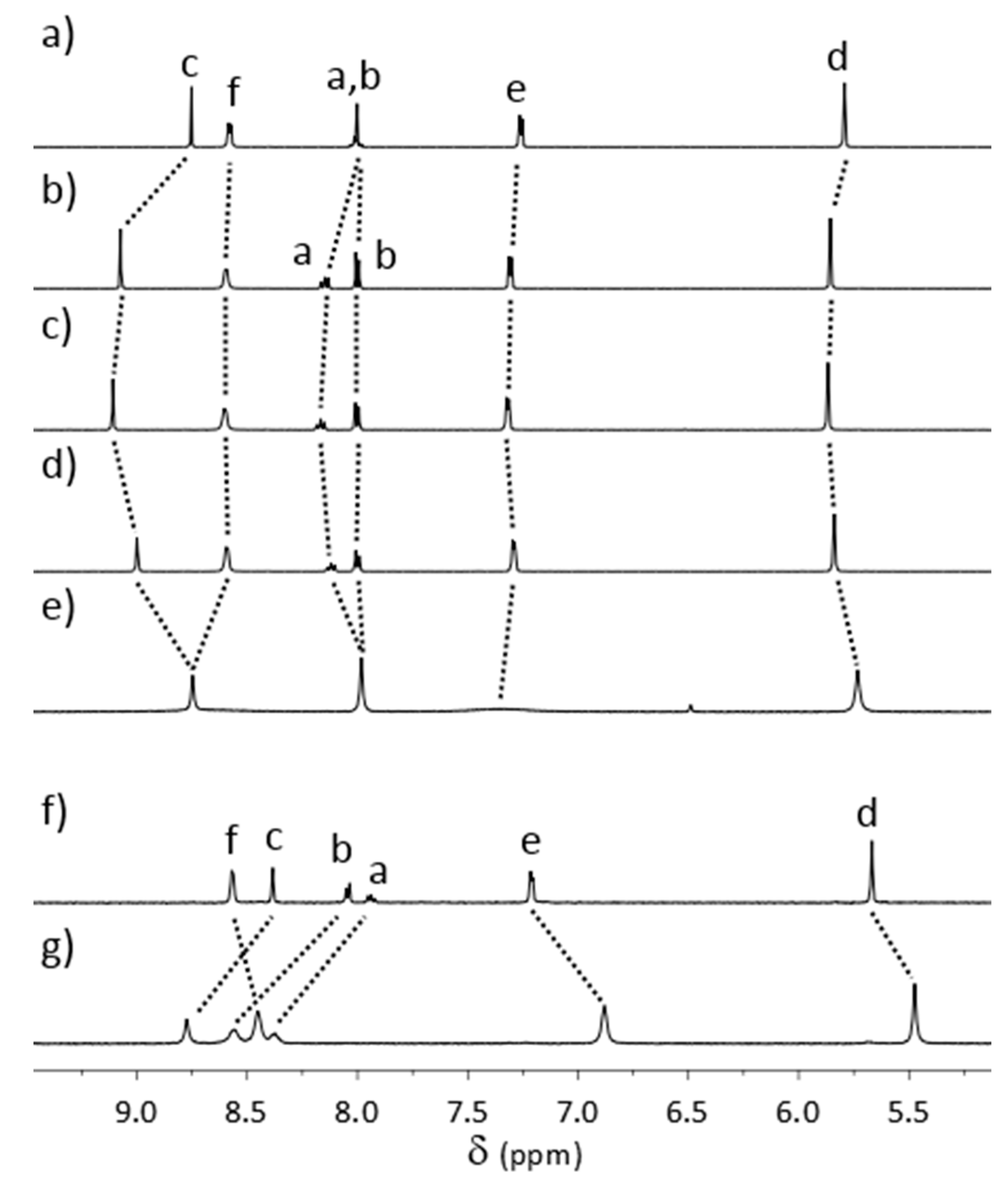

Figure 2. Partial stacked 1H-NMR spectra (500 MHz, d6-DMSO, 298 K) of (a) L; (b) [Ag(L)]NO3; (c) [Ag(L)]BF4; (d) [Ag(L)]SbF6 and (e) [Fe(L)2](BF4)2 and (500 MHz, d3-acetonitrile, 298 K) (f) L and (g) [Fe(L)2](BF4)2.
Figure 2. Partial stacked 1H-NMR spectra (500 MHz, d6-DMSO, 298 K) of (a) L; (b) [Ag(L)]NO3; (c) [Ag(L)]BF4; (d) [Ag(L)]SbF6 and (e) [Fe(L)2](BF4)2 and (500 MHz, d3-acetonitrile, 298 K) (f) L and (g) [Fe(L)2](BF4)2.
Molecules 22 01762 g002

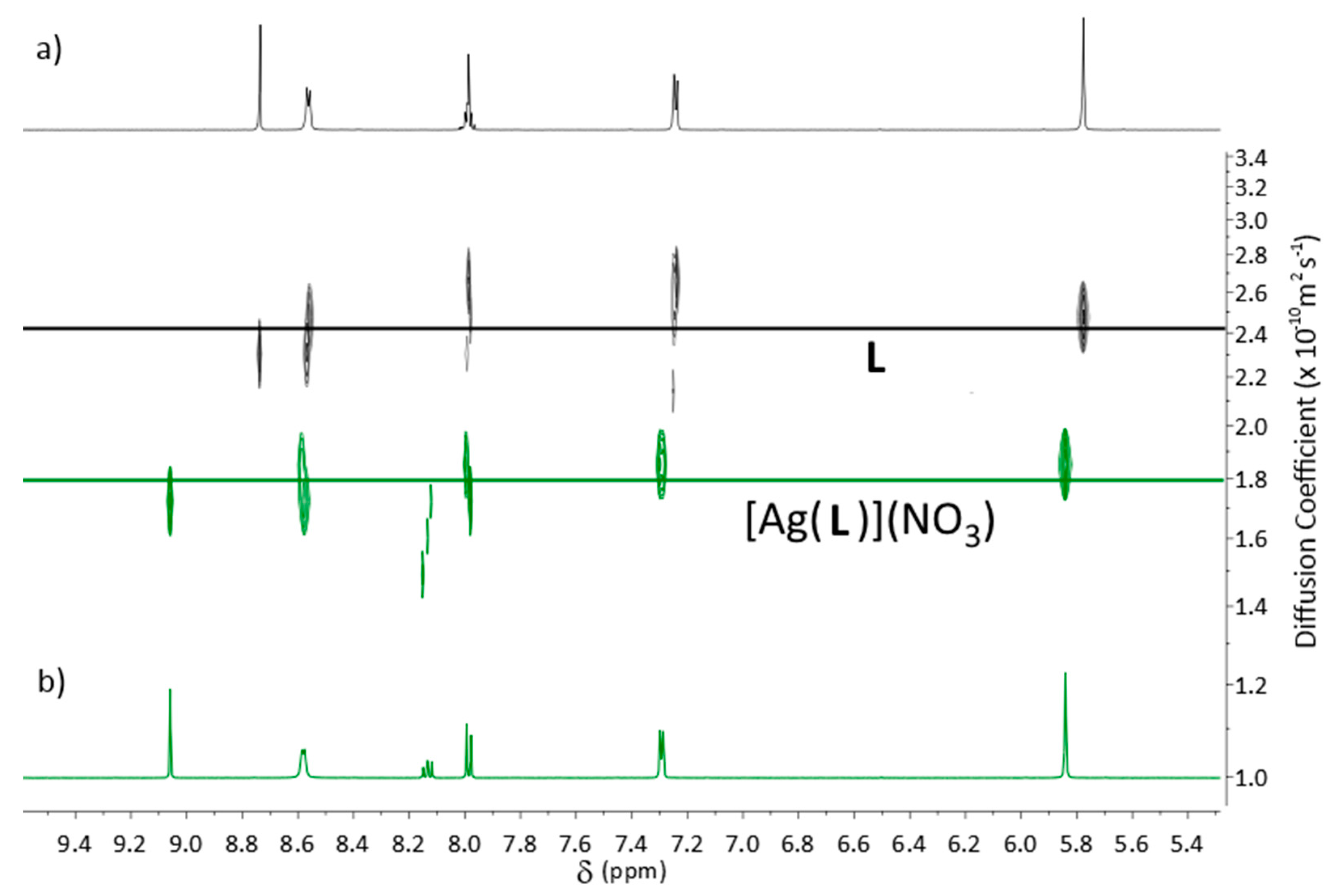

Figure 3. Partial stacked 1H DOSY NMR spectra (500 MHz, d6-DMSO, 298 K) of (a) L (black trace), (b) [Ag(L)]NO3 (green trace).
Figure 3. Partial stacked 1H DOSY NMR spectra (500 MHz, d6-DMSO, 298 K) of (a) L (black trace), (b) [Ag(L)]NO3 (green trace).
Molecules 22 01762 g003
Figure 4. Solid state structures of (a) [Ag(L)]NO3 and (b) [Ag(L)]BF4. Selected bond lengths (Å): [Ag(L)]NO3 Ag1-N1 = 2.298, Ag1-N9 = 2.315, Ag1-N4 = 2.493, Ag1-N5 = 2.397, Ag1-N6 = 2.480; [Ag(L)]BF4 Ag1-N5 = 2.451, Ag1-N9 = 2.331, Ag1-N1 = 2.250, Ag1-N6 = 2.725, Ag1-N4 = 2.500. Color scheme: carbon, grey; nitrogen, blue; silver, silver; boron, salmon; fluorine, green; oxygen, red. Hydrogen atoms were omitted for clarity.
Figure 4. Solid state structures of (a) [Ag(L)]NO3 and (b) [Ag(L)]BF4. Selected bond lengths (Å): [Ag(L)]NO3 Ag1-N1 = 2.298, Ag1-N9 = 2.315, Ag1-N4 = 2.493, Ag1-N5 = 2.397, Ag1-N6 = 2.480; [Ag(L)]BF4 Ag1-N5 = 2.451, Ag1-N9 = 2.331, Ag1-N1 = 2.250, Ag1-N6 = 2.725, Ag1-N4 = 2.500. Color scheme: carbon, grey; nitrogen, blue; silver, silver; boron, salmon; fluorine, green; oxygen, red. Hydrogen atoms were omitted for clarity.
Molecules 22 01762 g004
Figure 5. Solid state structure of [Ag(L)]SbF6 showing linear chains of macrocycles (a) and the extended structure (b). Selected bond lengths (Å): Ag1-N9 = 2.26, Ag1-N13 = 2.43, Ag1-N10 = 2.33, Ag1-N14 = 2.45, Ag1-N15 = 2.72. Color scheme: carbon, grey; nitrogen, blue; silver, silver. Hydrogen atoms, solvent molecules and SbF6 counter anions were omitted for clarity.
Figure 5. Solid state structure of [Ag(L)]SbF6 showing linear chains of macrocycles (a) and the extended structure (b). Selected bond lengths (Å): Ag1-N9 = 2.26, Ag1-N13 = 2.43, Ag1-N10 = 2.33, Ag1-N14 = 2.45, Ag1-N15 = 2.72. Color scheme: carbon, grey; nitrogen, blue; silver, silver. Hydrogen atoms, solvent molecules and SbF6 counter anions were omitted for clarity.
Molecules 22 01762 g005
Figure 6. Solid state structure of [Fe(L)2](BF4)2, (a) [Fe(L)2(H)]3+ cation (b) hydrogen bonded dimer of [Fe(L)2(H)]. Selected bond lengths (Å): Fe1-N5 = 1.924, Fe1-N6 = 1.969, Fe1-N13 = 1.952, Fe1-N14 = 1.925, Fe1-N4 = 1.954, Fe1-N15 = 1.948, N18-H18A = 1.751, H1A-F6 = 2.254, H1A-F3 = 2.041. Color scheme: carbon, grey; nitrogen, blue; iron, orange; boron, salmon; fluorine, green; hydrogen, white. Sovlent molecules and a BF4 anion were omitted for clarity.
Figure 6. Solid state structure of [Fe(L)2](BF4)2, (a) [Fe(L)2(H)]3+ cation (b) hydrogen bonded dimer of [Fe(L)2(H)]. Selected bond lengths (Å): Fe1-N5 = 1.924, Fe1-N6 = 1.969, Fe1-N13 = 1.952, Fe1-N14 = 1.925, Fe1-N4 = 1.954, Fe1-N15 = 1.948, N18-H18A = 1.751, H1A-F6 = 2.254, H1A-F3 = 2.041. Color scheme: carbon, grey; nitrogen, blue; iron, orange; boron, salmon; fluorine, green; hydrogen, white. Sovlent molecules and a BF4 anion were omitted for clarity.
Molecules 22 01762 g006
Figure 7. Solid state structure of the heterometallic complex [FeAg2(L)2](BF4)4·4H2O, (a) side view (b) top view (c,d) the disordered [Ag2(py)4(OH2)]+ fragments of the coordination polymer. Selected bond lengths (Å): Fe1-N4 = 1.94, Fe1-N5 = 1.93, Fe1-N6 = 1.95, Ag1A-N1A = 2.38, Ag2A-N9A = 2.22, Ag1A-O1 = 2.66, Ag2A-O1 = 2.73. Color scheme: carbon, grey; nitrogen, blue; iron, orange; oxygen, red. Solvent molecules, anions, and hydrogen atoms were omitted for clarity.
Figure 7. Solid state structure of the heterometallic complex [FeAg2(L)2](BF4)4·4H2O, (a) side view (b) top view (c,d) the disordered [Ag2(py)4(OH2)]+ fragments of the coordination polymer. Selected bond lengths (Å): Fe1-N4 = 1.94, Fe1-N5 = 1.93, Fe1-N6 = 1.95, Ag1A-N1A = 2.38, Ag2A-N9A = 2.22, Ag1A-O1 = 2.66, Ag2A-O1 = 2.73. Color scheme: carbon, grey; nitrogen, blue; iron, orange; oxygen, red. Solvent molecules, anions, and hydrogen atoms were omitted for clarity.
Molecules 22 01762 g007
Table 1. 1H DOSY data (500 MHz, 298 K) for the silver(I) and iron(II) complexes.
Table 1. 1H DOSY data (500 MHz, 298 K) for the silver(I) and iron(II) complexes.
CompoundDiffusion Coefficient (D) × 10−10 m2 s−1
d6-DMSOd3-Acetonitrile
L2.514.2
[Ag(L)]NO31.8-
[Ag(L)]BF42.3-
[Ag(L)]SbF62.2-
[Fe(L)2](BF4)22.48.8
