Molecules 2017, 22(10), 1663; doi:10.3390/molecules22101663

Review
High Resolution NMR Spectroscopy as a Structural and Analytical Tool for Unsaturated Lipids in Solution
Eleni Alexandri 1, Raheel Ahmed 2, Hina Siddiqui 2, Muhammad I. Choudhary 3, Constantinos G. Tsiafoulis 4 and Ioannis P. Gerothanassis 1,2,*
1
Section of Organic Chemistry and Biochemistry, Department of Chemistry, University of Ioannina, GR-45110 Ioannina, Greece
2
H.E.J. Research Institute of Chemistry, International Center for Chemical and Biological Sciences, University of Karachi, Karachi 75270, Pakistan
3
Department of Biochemistry, Faculty of Science, King Abdulaziz University, Jeddah 214412, Saudi Arabia
4
NMR Center, University of Ioannina, GR-45110 Ioannina, Greece
*
Correspondence: Tel.: +30-265-100-8389
Received: 5 September 2017 / Accepted: 1 October 2017 / Published: 5 October 2017

Abstract

:
Mono- and polyunsaturated lipids are widely distributed in Nature, and are structurally and functionally a diverse class of molecules with a variety of physicochemical, biological, medicinal and nutritional properties. High resolution NMR spectroscopic techniques including 1H-, 13C- and 31P-NMR have been successfully employed as a structural and analytical tool for unsaturated lipids. The objective of this review article is to provide: (i) an overview of the critical 1H-, 13C- and 31P-NMR parameters for structural and analytical investigations; (ii) an overview of various 1D and 2D NMR techniques that have been used for resonance assignments; (iii) selected analytical and structural studies with emphasis in the identification of major and minor unsaturated fatty acids in complex lipid extracts without the need for the isolation of the individual components; (iv) selected investigations of oxidation products of lipids; (v) applications in the emerging field of lipidomics; (vi) studies of protein-lipid interactions at a molecular level; (vii) practical considerations and (viii) an overview of future developments in the field.
Keywords:
unsaturated lipids; polyunsaturated fatty acids (PUFAs); NMR; chemical shifts; coupling constants

1. Introduction

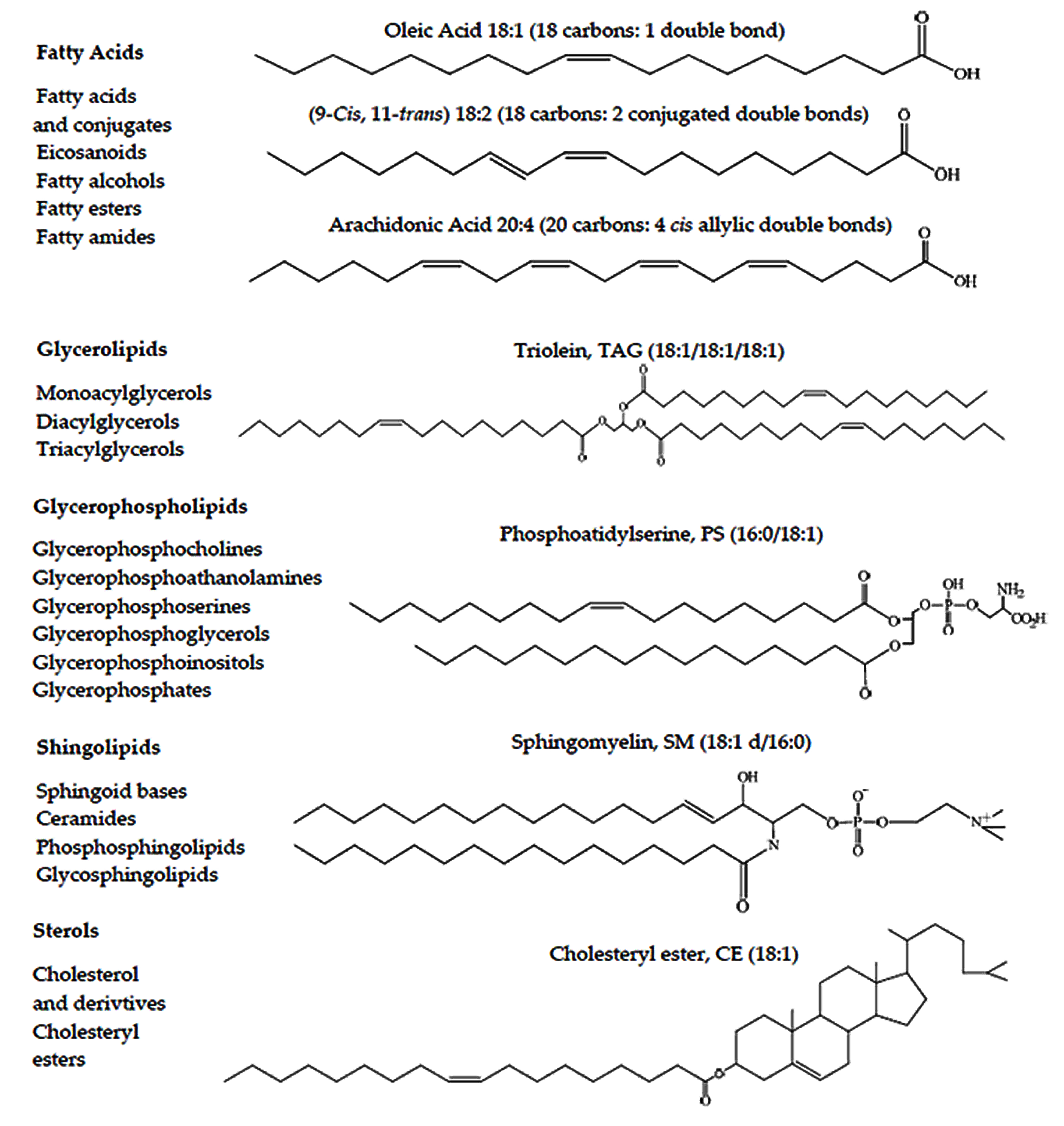

Lipids are a broad and diverse group of naturally occurring biomolecules with numerous physicochemical and biological properties. They play diverse and important roles in nutrition and health [1,2,3,4]. Lipids have important functional roles as major constituents of cellular membranes (e.g., brain consists mainly of fats [4]), signaling molecules, and as energy source for metabolic processes. Lipids due to their hydrophobic chemical structures are incompatible with an aqueous medium, therefore, their circulation through the blood stream to reach peripheral tissues is achieved through the formation of macromolecular complexes with lipoproteins. Fatty acids (FAs) are the major lipid building blocks of complex lipids, such as glycerolipids, i.e., monoacylglycerols (MAGs), diacylglycerols (DAGs), and triacylglycerols (TAGs, Figure 1). These neutral lipids have a glycerol backbone with FA chains attached to the glycerol group, most commonly with an ester bond, but ether bonded FAs can be also found in minor amounts.
Lipids are widely distributed in plants and animals. In plants, they are found in seeds (e.g., sunflower, papeseed, cottonseed and soybean), fruits (e.g., olive, palm fruit and avocado), and nuts (e.g., almonds and walnuts). Common animal lipid sources are meat, fish, eggs and milk. Monounsaturated lipids are widely distributed in olives, peanuts, canola and other vegetable oils. Polyunsaturated lipids are found in various seed oils and sea food. The degree of unsaturation of various lipids has raised considerable research interest in the last decades, since dietary oils containing saturated fatty acids were shown to elevate total and LDL cholesterol and, thereby, increase the risk for cardiovascular diseases [5]. On the contrary, oils which contain polyunsaturated lipids lower the plasma lipid levels [5,6,7]. Health concerns have also been raised about the trans fatty acids that may be present in processed oils as a result of isomerization of the cis double bonds during refining and deodorization processes [8,9]. Health organizations, therefore, have recommended limited dietary intake of trans fatty acids [10,11] and for food products which contain fats, the nutritional labelling should include specific information about the content in trans, saturated, mono- and polyunsaturated fatty acids [12].
The nomenclature of unsaturated fatty acids (UFAs) derives from the name of the parent hydrocarbon with the suffix enoic acid [13]. The numbering of carbon atoms in FAs (Table 1 and Table 2) begins at the carbonyl terminus and the end methyl carbon is known as omega (ω) or n carbon atom. Thus, linoleic acid is a ω-6 (n-6) fatty acid because the second double bond is 6 carbons from the methyl end of the molecule (i.e., between C-12 and C-13 from the carbonyl end). Various conventions are adopted for indicating the positions of the double bonds. The most widely used is the symbol delta (Δ) followed by the superscript number. For example Δ9 means that there is a double bond between C-9 and C-10. The total number of carbon atoms and number of position(s) of double bond(s) is again indicated by convention. Thus, the symbol 18:2; 9, 12 denotes a C-18 fatty acid with two double bonds between C-9 and C-10 and between C-12 and C-13.
Analytical and structural determination of unsaturated lipids is challenging, due to their physicochemical, biological, and nutritional diversity, markedly different polarities and the lack of chromophores that might facilitate spectrophotometric detection. Furthermore, when the acyl chain of the glycerol hydroxyl groups C-1 and C-3 are different or when one of the primary hydroxyls is esterified, the central carbon atom becomes a chiral center and enantiomeric configurations should be identified (Figure 2). Therefore, highly sensitive and selective analytical and structural methods are required for comprehensive study of this class of lipids [14,15]. Methods widely used include gas chromatography (GC), GC-mass spectrometry (GC-MS), GC-tandem mass spectrometry (MS/MS), LC-UV, liquid chromatography-mass spectrometry (LC-MS), and LC-MS/MS. The most powerful tool for analysis of lipid mediators is LC-MS/MS due to its specificity and high sensitivity [14,15]. However, GC methods involve several manipulation and derivatization steps that may cause oxidation of lipids [16,17], variable results depending on the trans-methylaction method and columns used [16,17] and undesirable isomerization processes [18].
High resolution nuclear magnetic resonance (NMR) spectroscopy has become a widely utilized method in lipid analysis. It allows structure elucidation, and qualitative and quantitative analysis of lipid molecules even in complex mixtures. Compared to common chromatographic analysis (e.g., GC and HPLC), NMR spectroscopy has several advantages. NMR is a non-destructive method and, for quantification, no specific standards are necessary. However, NMR techniques have only low to moderate sensitivity, compared to MS. Moreover, NMR-based lipid-analytical and structural methods are typically limited by overlapping signals in the 1H-NMR spectrum and the low natural abundance of 13C. Nevertheless, with the increasing availability of high field instrumentation, high sensitivity cryogenic probes and micro coil technology, advanced data processing and the great variety of multinuclear 1D and 2D NMR techniques, high-resolution NMR spectroscopy has become increasingly popular in the study of lipids. Readers should consult relevant review articles and books [19,20,21,22,23,24,25,26,27,28,29].
The objective of this review article is to provide a synopsis of the pleiotropic roles of unsaturated fatty acids and an overview of the critical 1H-, 13C- and 31P-NMR parameters for structural and analytical investigations and of the various 1D and 2D NMR techniques that can be utilised for resonance assignments. Several selected analytical and structural studies will be provided with emphasis in the identification of major and minor polyunsaturated fatty acids in complex lipid extracts without the need for the isolation of the individual components, investigations of oxidation products of lipids, applications in the emerging field of lipidomics and of protein-lipid interactions. A synopsis of practical aspects and future developments in the field will, also, be provided.

2. The Pleiotropic Role of Unsaturated Fatty Acids

Unsaturated fatty acids (UFAs) exert their physiological effects from specific locations in phospholipid pools in which they can be esterified. The movement of UFAs into phospholipid pools is catalyzed by fatty acid carrier proteins [30]. The acyl compositions of membranes and specific phospholipid pools are mediated by the specification of these enzymes. Two common functions of unsaturated fatty acids are protein-lipid interactions for enzyme targeting and messenger signaling [31]. A protein domain can recognize a membrane lipid and be targeted to a specific location in the cell for specific protein function. Lipids may also act as signaling molecules. For example, diacyglycerol (DAG) is a lipid second messenger that can modulate the function of protein kinase C (PKC) [32], while lysophosphatidic acid (PLA) is involved in the regulation of cell proliferation, migration and survival [33].
There is considerable evidence that the unsaturated fatty content of membranes can modify the structure and functionality of membrane enzymes [34]. Unsaturated fatty acids into membranes are confined, with few exceptions, in the sn-2 position of phospholipids (Figure 2). The occurrence of unsaturated and saturated fatty acids in the same phospholipid molecule can have important implications in membrane structure and function. First, the two types of acyl chains cannot demix in the membrane. Second, high degree of cis unsaturation implies less ability for rotation around the double bonds and, thus, greatly influences membrane acyl packing. Third, the position of the cis double bonds can play a role in the modification of the membrane structures. In contrast, the structures of trans fatty acids are relatively unaffected by the double bond position.
Omega-6 and omega-3 polyunsaturated fatty acids (PUFAs), are essential fatty acids because they cannot be synthesized from simple precursors in the diet. They are precursors of biologically active lipid mediators such as eicosanoids including prostaglandins (PG), leukotrienes (LT), hydroxy eicosapentaenoic acid (HEPE), hydroxy eicosatetraenoic acid (HETE), epoxyeicosatrienoic acid (EET), and thromboxanes (TX) (Figure 3). They are a diverse class of bioactive lipid mediators derived from arachidonic acid (AA, 20:4ω-6) and eicosapentaenoic acid (EPA, 20:5ω-3) via cyclooxygenase (COX), lipoxygenase (LOX), and cytochrome P450 (CYP450) as well as nonenzymatic pathways. Lipid mediators are also produced from linoleic acid (e.g., hydroxyoctadecadienoic acid [HODE] and oxooctadecadienoic acid [KODE]) via the 15-LOX or non-enzymatic pathway. Other potent anti-inflammatory metabolites such as resolvins, protectins, and maresins are produced within the same pathway from EPA, docosapentaenoic acid (DPA, 22:5ω-3), and docosahexaenoic acid (DHA, 22:6ω-3).
It has recently been demonstrated [36,37] that several key actions of ω-3 fatty acids are mediated by two G-protein-coupled receptors (GPCRs) in the free fatty acid receptor (FFAR) family, FFA1 (GPR40) and FFA4 (GPR120). This is a rather strong evidence supporting preventative effects of ω-3 fatty acid consumption on several human cancers [38] including breast cancer [39].
The effects of ω-3 fatty acids on cardiometabolic risk factors, such as obesity, insulin resistance and dyslipidaemia are widely reported and debated in the literature. It has been postulated that the changing ratio of ω-3 vs. ω-6 fatty acids has affected physiology and that humans may have developed major classes of pathologies such as coronary artery disease, cancer and autoimmunity [40,41,42,43]. The primary reasons are the increased uptake of ω-6 fatty acids (most typically found in seed crops, which are consequence of modern tendencies in agricultural [30]) and the increased uptake of high energy food with less intake of ω-3 fatty acids.
Conjugated linoleic acids (CLAs) is an important class of polyunsaturated fatty acids which is a complex mixture of positional (6–8 to 13–15) and geometric (cis-cis, trans-trans, cis-trans and trans-cis) fatty acid isomers that contain conjugated double bonds [44]. CLA isomers occur naturally in foods derived from ruminants and are produced as intermediates of the biohydrogenation of poly-unsaturated fatty acids especially linoleic (cis-9, cis-12) 18:2 and α-linolenic (cis-9, cis-12, cis-15) 18:3 by rumen bacteria [45]. Figure 4 illustrates that most of the cis-9, trans-11 18:2 CLA incorporated into tissue lipids and milk fat, may be synthesized by the action of stearoyl-CoA desaturase (SCD) on trans-11 18:1 in adipose and in the mammary glands. Trans-11 18:1 is formed as the intermediate of 18:2 ω-6 and 18:3 ω-3 metabolism in the rumen. Cis-9, trans-11 18:2 CLA in adipose may also be synthesized from the elongation and desaturation of trans-9 16:1 formed in the rumen during the biohydrogenation of 16:3 ω-4 [45].
CLAs have a number of effects on human health with regard to cancer, atherosclerosis, obesity, and immune response [46]. Thus, it has been postulated that the cis-9, trans-11 18:2 CLA isomer, in a range of animal models, is implicated in anti-carcinogenesis, immunomodulation and anti-atherosclerosis effects. On the contrary, there is accumulating evidence that the trans-10, cis-12 18:2 CLA isomer may adversely affect insulin sensitivity and blood lipids and can elicit pro-carcinogenic effects in animal models [47,48]. The multiple physiological effects reported for CLA are probably due to contribution to numerous metabolic signaling pathways.
The group of eicosanoids, docosanoids, and other lipid mediators exhibits a large number of isobaric compounds, therefore, detailed MS/MS analysis is required to distinguish and quantify these species. High resolution mass spectrometry (HRMS) allows the separation of many of these isobars by measuring accurate m/z values of the lipid species and computing the elemental formulae. However, as pointed out recently [15], in several cases isomers were chosen to maximize structural difference and, thus, technical success. The analysis of CLA isomers is also extremely challenging and complex, since it can be very slow and laborious and may require various preparations and analysis steps during which undesirable additional isomerization may take place. This subject has been critically evaluated for various chromatographic and hyphenated techniques [18]. NMR spectroscopy can provide a rapid, reliable and efficient analytical and structural probe with minimum derivatization steps or specific sample preparation procedures, as it will be discussed in detail in the following sections.

3. NMR Structural and Analytical Parameters

Naturally occurring lipids consist mainly of the elements hydrogen, carbon, oxygen, nitrogen, and phosphorous. Each of these elements has at least one isotope with a non-zero spin quantum number, I. The 17O nucleus (I = 5/2) has very low natural abundance (0.037%), very low gyromagnetic ratio (−3.628 × 107 rad T−1 s−1), extremely low receptivity with respect to that of 1H (~1.08 × 10−5) [49] and very broad NMR resonances due to quadrupolar relaxation [50,51,52]. These unfavorable nuclear properties do not allow the routine NMR use of this nucleus. The 14N nucleus (I = 1) has a high natural abundance (99.63%), very low gyromagnetic ratio (~1.938 × 107 rad T−1 s−1) and small receptivity (~1 × 10−3) with respect to that of 1H. Furthermore, relatively large quadrupolar coupling constants and, thus, broad resonances limit applications of this isotope to nitrogen sites with spherical electronic symmetry around the nitrogen nucleus. The 15N isotope has a spin quantum number I = 1/2, very low natural abundance of 0.37%, very low gyromagnetic ratio (−2.71 × 107 rad T−1 s−1) and extremely low receptivity (0.39 × 10−5) with respect to that of 1H and, thus, has been found very limited applications [53]. Therefore, for the purpose of the present review article only 1H, 13C and 31P nuclei will be discussed.

3.1. 1H-NMR Spectroscopy

The 1H nucleus with spin quantum number I = 1/2, high gyromagnetic ratio (26.75 × 107 rad T−1 s−1) and natural abundance of 99.985% is the most sensitive NMR probe and, thus, appropriate for investigating even minor unsaturated lipids within a short experimental time. 1H nuclei can lead to different NMR signals when hydrogens are in different chemical environments. Peaks in a specific spectral region can, therefore, be assigned to certain structural elements and the amount of different groups in lipids can be determined.

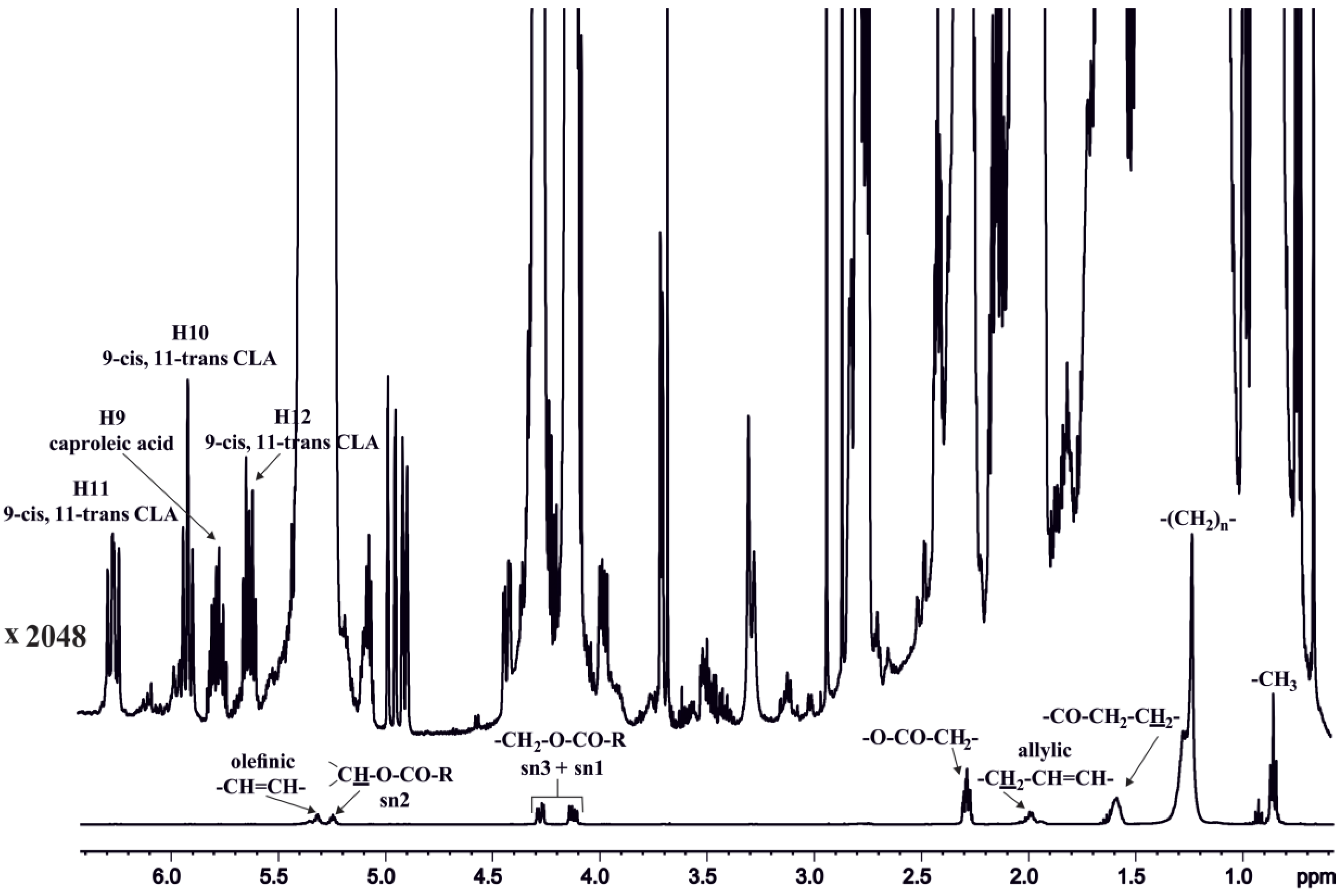

A typical 1H-NMR spectrum of the lipid fraction of a milk sample is illustrated in Figure 5. The 1H-NMR chemical shifts can be grouped in several broadly defined regions: the olefinic protons of isolated double bonds in the region of 6.2–5.30 ppm, the olefinic protons of conjugated double bonds in the region of 6.40–5.20 ppm, the protons of the glycerol moiety of 5.10–3.70 ppm, the allylic protons of 3.05–2.60 ppm, the α-CH2 protons of 2.50–2.30 ppm, the CH2–CH=CH protons of ~2.0 ppm and the (CH2)n and CH3 protons in the regions of 1.60–1.2 ppm and 0.98–0.86 ppm, respectively. Resonances can also be observed in the region of 10.5–8 ppm which can be attributed to the autoxidation of unsaturated fatty acids. This process results in the formation of hydroperoxides and, subsequently, in the chain scission and the formation of shorter chain saturated and unsaturated aldehydes. This topic will be analyzed in Section 5.4.

3.1.1. Olefinic Protons

The olefinic protons, –CH=CH–, of unsaturated fatty acids appear mainly in the region of 5.2–5.5 ppm. Exception is the terminal ω-1 double bond (vinyl group) of caproleic acid which results in a multiplet at 5.79 ppm (H9) and two doublets of quadruplets at 4.91 ppm and at 4.97 ppm due to H10 and H11 protons (Figure 5). Similarly, the olefinic 1H-NMR chemical shifts of 2-cis methyl octadecenoate are deshielded due to conjugation of the COOH group and depend upon the configuration of the double bond (Table 3) [54].The 1H-NMR chemical shifts of the various positional isomers were explained in terms of long-range deshielding effects which depend upon the number of intervening CH2 groups from the carboxyl group. However, it is clear from Table 3 that reliable distinction cannot be made with respect to the position and configuration of the double bonds at positions above 4-cis/4-trans, especially in mixture analysis.

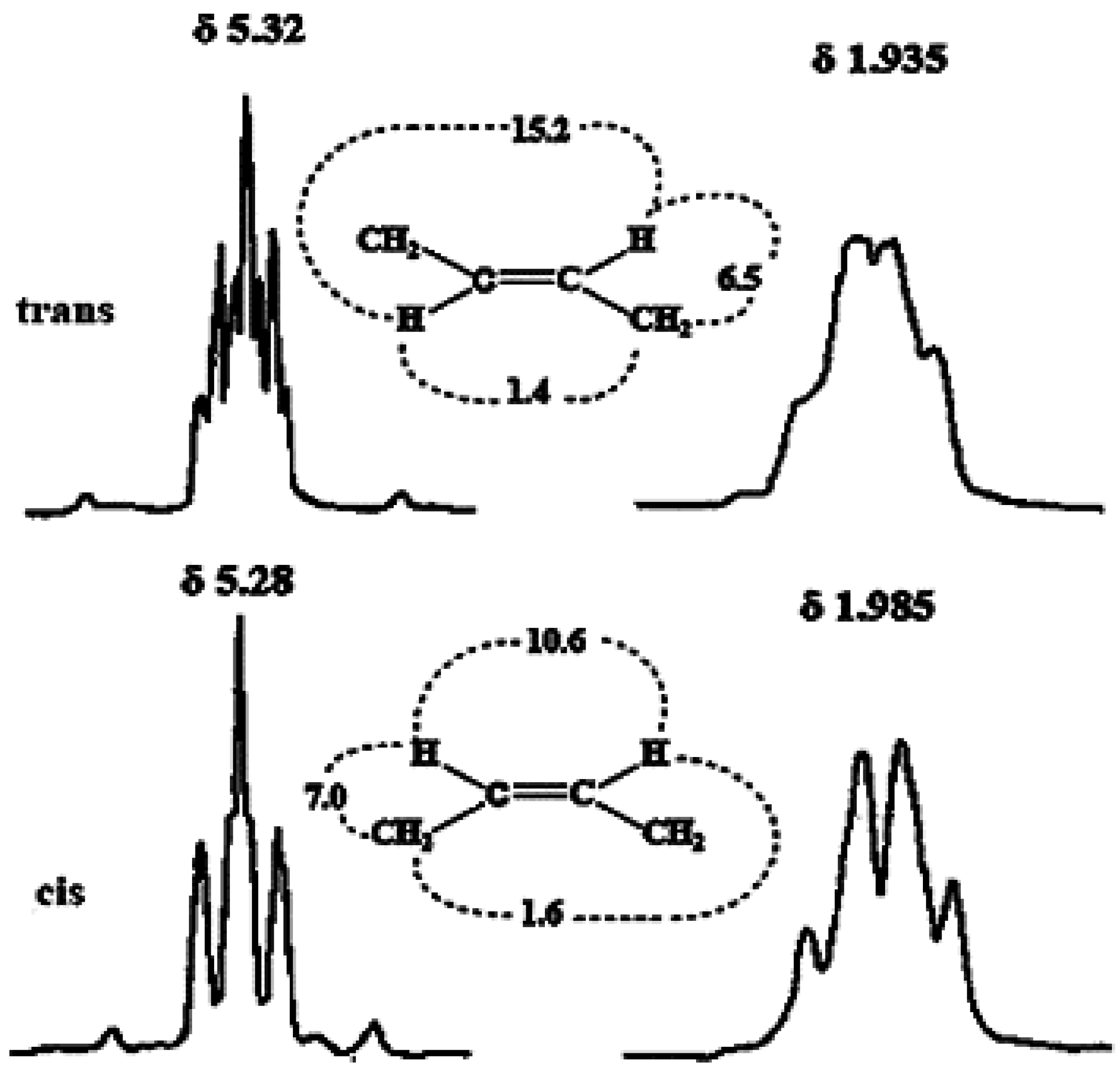

The geometric isomerization of the double bond could, in principle, be determined by the coupling constant of the methylene protons which is larger for the trans (3J ≈ 15 Hz) than that of the cis bonds (3J ≈ 10 Hz). However, in practice, this is very difficult because the chemical shift differences of the methylene proton are very small and, thus, the spin coupling system illustrates a second order spin pattern. Figure 6 shows computer simulations of alkenyl protons of isolated cis and trans double bonds under the hypothesis that there is no chemical shift difference between the two alkenyl protons. Determining the cis/trans stereochemistry of lipid double bonds with the use of 1H-NMR of the olefinic protons, therefore, is problematic in lipid analysis and, at this stage, such data are mostly limited to the identification of stereoisomers from a limited number of standards. Recent progress has been achieved with the use of band selective 1H-13C HMBC experiments (Section 4.7) and shift reagents (Section 4.9).

3.1.2. Olefinic Protons in Conjugated Double Bonds

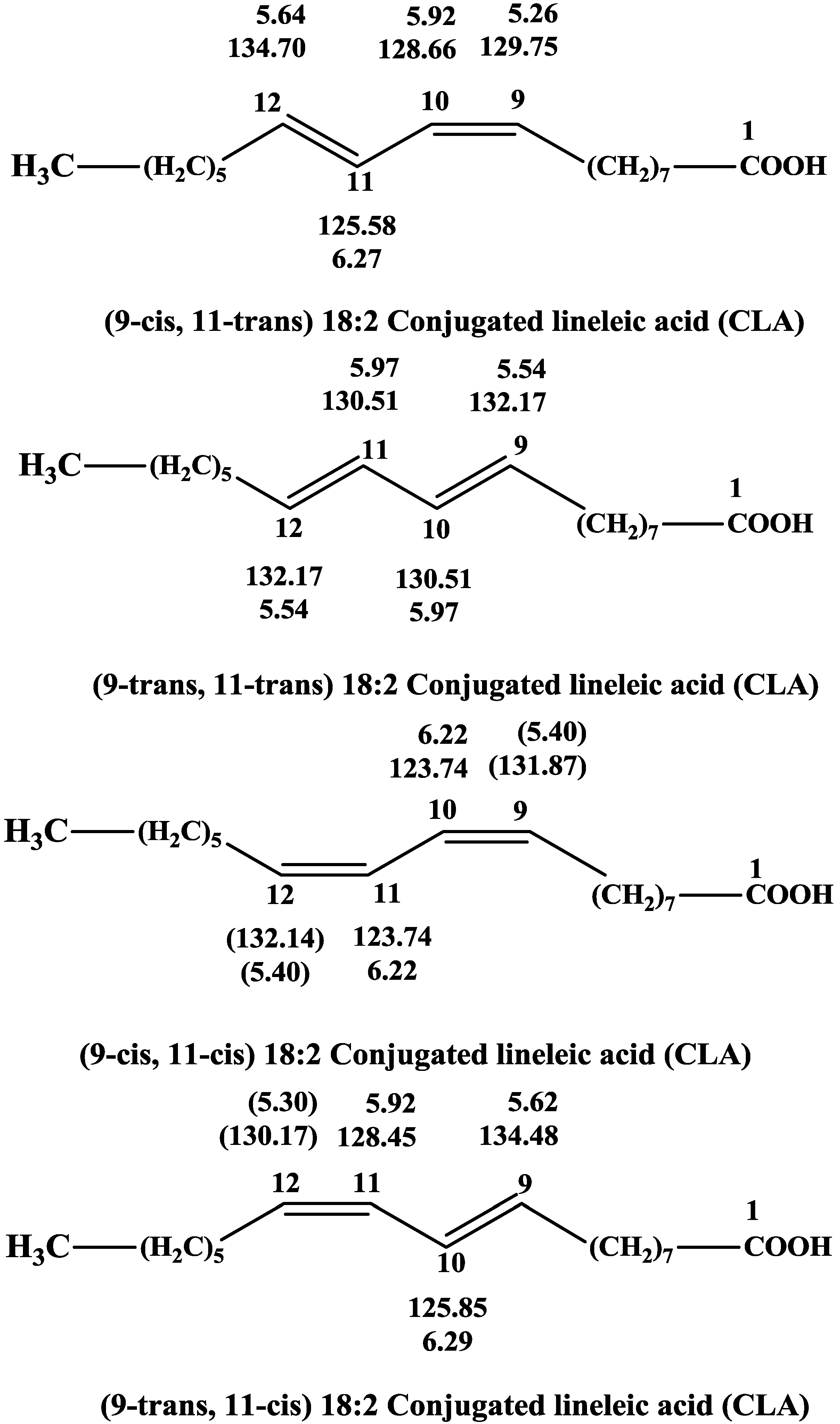

Conjugated linoleic acids (CLAs) have been extensively investigated using 1H-NMR (Table 4) including the (cis-9, trans-12) 18:2 isomer, which is the dominant species in dairy products, and several other positional and geometric isomers [55,56] which may have different biological functions. Figure 5 illustrates that the 1H-NMR spectrum of CLAs in the lipid fraction of milk exhibit highly diagnostic resonances due to the –CH= protons of the conjugated double bonds in the region of 6.35 to 5.50 ppm. Some of these resonances are clearly shifted to higher frequencies with respect to protons of isolated double bonds, thus, illustrating the increased delocalization of conjugated double bonds. The “inner” olefinic protons of C10 and C11 are deshielded with respect the olefinic protons of C9 and C12. Furthermore, in the mixed cis/trans isomers the signals of the cis bonds are deshielded with respect to those of the trans bonds. In the case of identical bond configuration, the signals of the two “inner” protons overlap as well as the two signals of the “outer” protons.
Conjugated linolenic acids (CLnAs) is a group of positional (8, 10, 12–18:3; 9, 11, 13–18:3; 10, 12, 14–18:3; etc.) and geometric (trans-trans-trans, cis-trans-trans, cis-trans-cis etc.) [57,58] isomers which occur in significant amounts in some seed oils such as tung oil, catalpa and cherry seed oil. NMR studies of CLnAs are limited to 13C-NMR [57] and 1H and 13C-NMR [58] data of α-eleostearic acid: (9-cis, 11-trans, 13-trans) 18:3, β-eleostearic acid: (9-trans, 11-trans, 13-trans) 18:3 and punicic acid: (9-cis, 11-trans, 13-cis) 18:3 (Table 5). Due to extensive overlap of the 1H-NMR signals, homonuclear 1H decoupling techniques were extensively used for the simplification of the 1H-NMR spectra and calculation of the 3J coupling constants. In the all-trans β-eleostearic acid, three multiplets at 6.10(2H) ppm, 6.04(2H) ppm, and 5.66(2H) ppm were found due to near magnetic equivalence of the protons of each group. As in the case of CLAs, conjugation results in a change in the charge density of the “inner” protons and, thus, shielding compared with the olefinic protons in the “outer” position.

3.1.3. Protons of the Glycerol Moiety

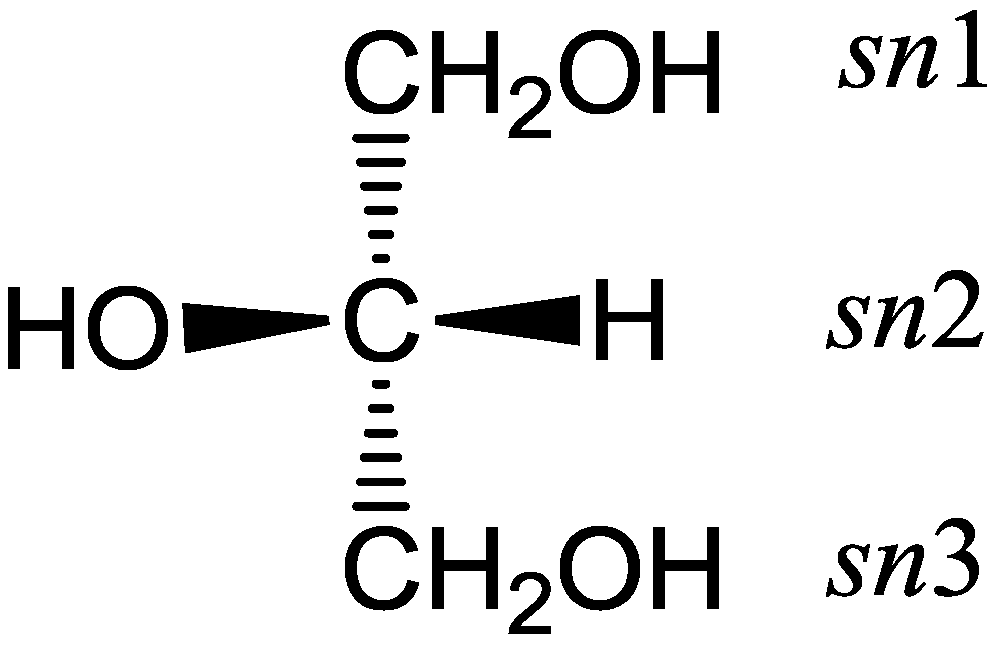

The location of acyl chain esterification on the glycerol backbone was assigned as sn-1, sn-2 and sn-3 (Figure 2). NMR spectroscopy can be used to provide information on the regiospecific distribution of fatty acids of triacylglycerols (TAGs) and phospholipids. 1,3-triglycerides (TAG), 1- and 2-monoacylglycerides (MAG) and 1,2-diacylglycerides (DAG) can be identified on the basis of the chemical shifts of the protons attached to glycerol carbons (Table 6). The proton signal at 5.26 ppm (m, J1a′,2′ = 5.88 Hz) was assigned to H2 of the glycerol backbone of TAG. The H1 and H3 protons of the glycerol moiety in TAG appear at 4.15 and 4.30 ppm. The 2′-CH–OCO– and HO–CH2–CH resonances of sn-1/2,3 DAG, the 1′b-CH2–OCO– and 1′a-CH2–OCO– resonances of sn-1,2 DAG and the 1′b, 3′b-CH2–OCO–, 1′a, 3′a-CH2–OCO– and –CH2–OCO resonances of sn-1,3 DAG have also been assigned in oils. The 3′a-CH2–OCO– resonance of 1-MAG appears at 3.59 ppm.

3.1.4 Bis-allylic Protons

The bis-allylic protons, =HC–CH2–CH=, in polyenoic fatty acids and esters are in a characteristic region of 2.60–2.85 ppm due to the effect of the magnetic anisotropy of the double bonds. The chemical shifts appear to be related to the number and the geometric configuration of the double bonds (Table 7). Thus, the bis-allylic protons of DHA, α-linolenic acid and linoleic acid appear at 2.85, 2.82 and 2.78 ppm, respectively. The bis-allylic protons of α-linolenic acid are more deshielded (δ = 2.82 ppm) than in linoleic acid (δ = 2.78 ppm) due to a larger number of double bonds in the former case. The cis-cis configuration results in a stronger deshielding effect with respect to cis-trans and trans-trans configuration.
The deshielding effect in polyyonic fatty acids and esters is stronger than that observed in polyenoic fatty acids and esters (Table 8). This may be attributed to the position of the allylic protons in the deshielding region of the magnetic anisotropy of the triple bond.

3.1.5. α-CH2, Allylic CH2–CH=CH and (CH2)n Protons

The CH2–CH2–COOH protons of DHA result in a composite signal at 2.46 ppm due to the combined deshielding effect of the COOH group and the ω-3 double bond (Table 9). This chemical shift is highly diagnostic for the presence of DHA in mixture analysis especially in fish oils (Section 5.1). The –OOC–CH2–CH2– protons of all fatty acids appear at 2.33 ppm. The double bond configuration influences the chemical shift of the –CH2–CH=CH– protons of UFA. In particular, the methylene protons adjacent to a cis double bond is deshielded by ~0.05 ppm with respect to that adjacent to a trans bond.

3.1.6. The CH3 Protons

The –CH3 group of α-linolenic acid appears at 0.98 ppm (triplet, 3J = 7.5 Hz), the –CH3 group of butyric acid at 0.94 ppm (3J = 7.4 Hz), and the –CH3 terminal groups of the rest of the fatty acids in a narrow range of chemical shifts of 0.885 to 0.87 ppm (triplets, 3J = 6.9 to 7.3 Hz). α-linolenic acid (18:3, ω-3) contains a double bond close to the terminal –CH3 group that causes a shift to higher ppm values from 0.89 to 0.98 ppm.

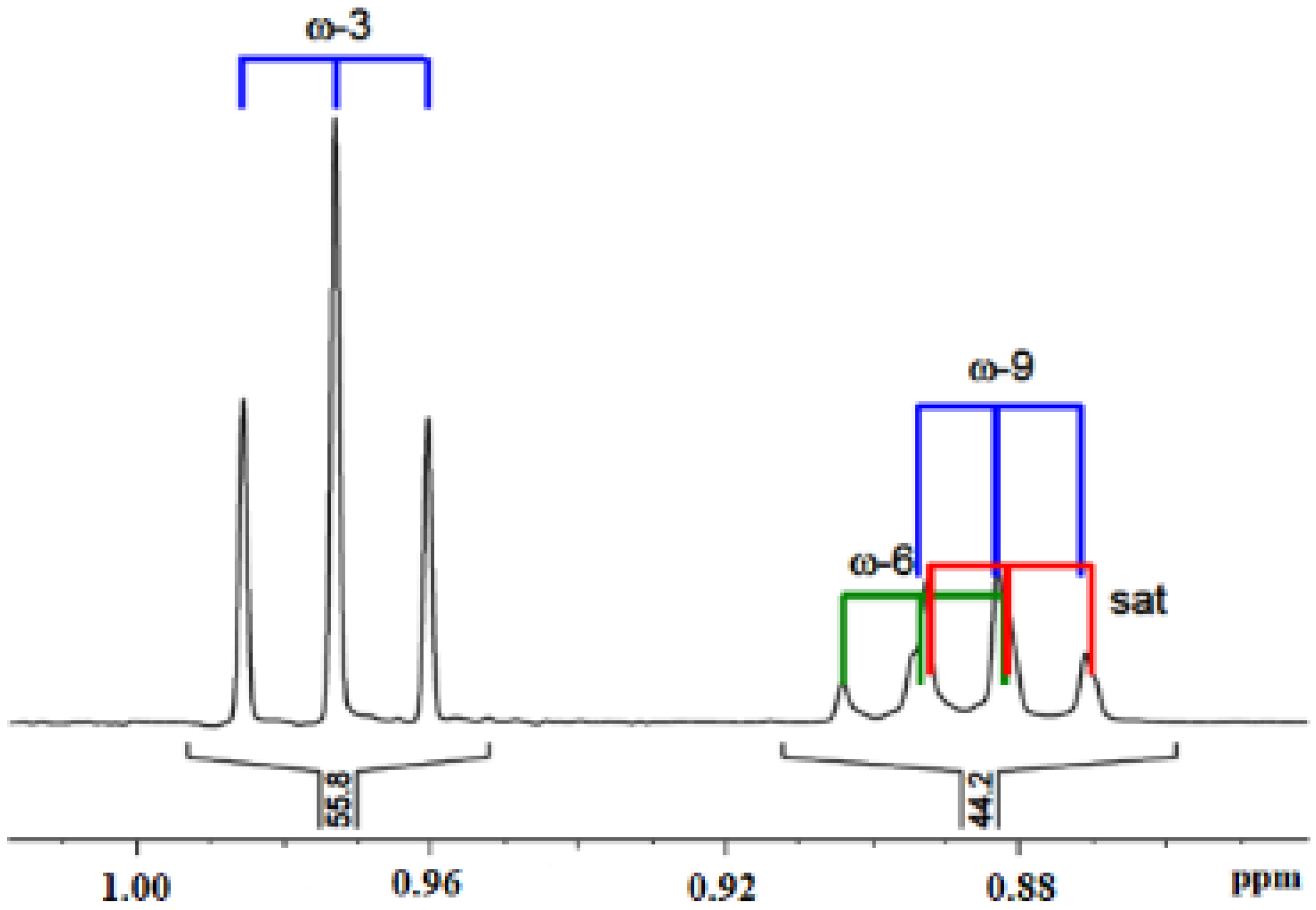

Figure 7 illustrates that ω-3 fatty acids can be clearly identified from the other lipids on the basis of the chemical shifts of the terminal methyl group. Interestingly, the apparently quartet at ~0.88 ppm is due to superposition of three triplets which results in the identification of the ω-6 and ω-9 fatty acids from the saturated FA. This demonstrates the significant long range effect of the double bond on the chemical shifts of the terminal CH3 groups. It should be emphasized, however, that sufficient separation of the triplets would require either the use of ultra-high magnetic fields or advanced 2D 1H-13C HSQC-TOCSY (Section 4.6) and band selective 1H-13C HMBC (Section 4.7) experiments.

3.1.7. 1H-NMR Relaxation Times

In order to obtain quantitative NMR data and avoid differential saturation effects, the protons should be fully relaxed. This demands recycling time i.e., acquisition time + relaxation delay of at least 5 × T1, where T1 is the longitudinal relaxation time of the slowest relaxing nuclei. The longitudinal relaxation times (T1) of the 1H nuclei of the acyl chains of triglycerides in oils were found to be sufficiently short, the longest being that of the terminal CH3 group (1.51 s) (Table 10), and substantially shorter than those of the 13C nuclei (see Section 3.2). This implies that very good S/N ratio and, thus, quantitative results can be obtained even for minor analytes within relatively short period of time.

3.2. 13C-NMR Spectroscopy

The 13C nucleus with I = 1/2 has become a very useful analytical and structural tool in lipid research despite its low gyromagnetic ratio (6.726 × 107 rad T−1 s−1), its low natural abundance (1.108%) and the low receptivity with respect to that of 1H (1.7 × 10−4). This may be attributed to the fact that 13C has a large chemical shift range (~200 ppm) with respect to that of 1H (~10 ppm), the significant advances in NMR instrumentation, the use of versatile pulse sequences, polarization transfer experiments and sophisticated 2D 1H-13C NMR experiments. High resolution 13C-NMR, therefore, has emerged as a versatile technique for the analysis of lipids, since the pioneering work of Shoolery [61], Gunstone [19,62] and Wollenberg [63], which allows the characterization of the isomeric distribution of omega-3 PUFA in lipid fractions. 13C-NMR was demonstrated to be an excellent method in determining the distribution of triacylglycerols and the position of the fatty acids on the glycerol backbone and in obtaining quantitative information about the fatty acid composition of vegetable oils, vegetable seeds and other lipid extracts, as will be analyzed below.
The 13C-NMR chemical shifts of lipids can be grouped in four regions: the carbonyl and carboxyl carbons in the region of 172–178 ppm, unsaturated carbons of 124–134 ppm, the glycerol backbone carbons of 60–72 ppm and aliphatic carbons of 10–35 ppm.

3.2.1. Carbonyl and Carboxyl Carbon Region

The carboxyl carbon atoms of the free fatty acids appear in a narrow but distinct region of 177.5 to 180 ppm. The resonances are shifted to high frequency with respect to ethyl esterified derivatives by ~4 ppm (Table 11 and Figure 8). This high frequency shift is sufficient for the quantification of free fatty acids with respect to esterified lipids. For accurate quantification results, however, caution should be exercised since the relaxation times of carboxyl and carbonyl carbon atoms (Table 12) are significantly longer than those of 1H-NMR (Table 10). To obtain quantitative data, the relaxation problem can be resolved by adding a relaxation reagent, such as chromium acetonylacetonoate (Cr(acac)3), or by recording proton decoupled NOE suppressed 13C-NMR spectra with sufficiently long interpulse delay (~5 T1, where T1 is the longest relaxation time of a lipid mixture).
The carbonyl carbons of fatty acids of TAG appear as two sets of resonances: the high frequency group which includes the chains esterified at 1(3)-glycerol positions and the low frequency group which includes the 2-glycerol position chains. The chemical shift difference of about 0.42 ppm was explained by the effect of two γ-gauche interactions on the C=O group of 2-position with respect to one interaction of the carbonyls of 1(3) chains [64].

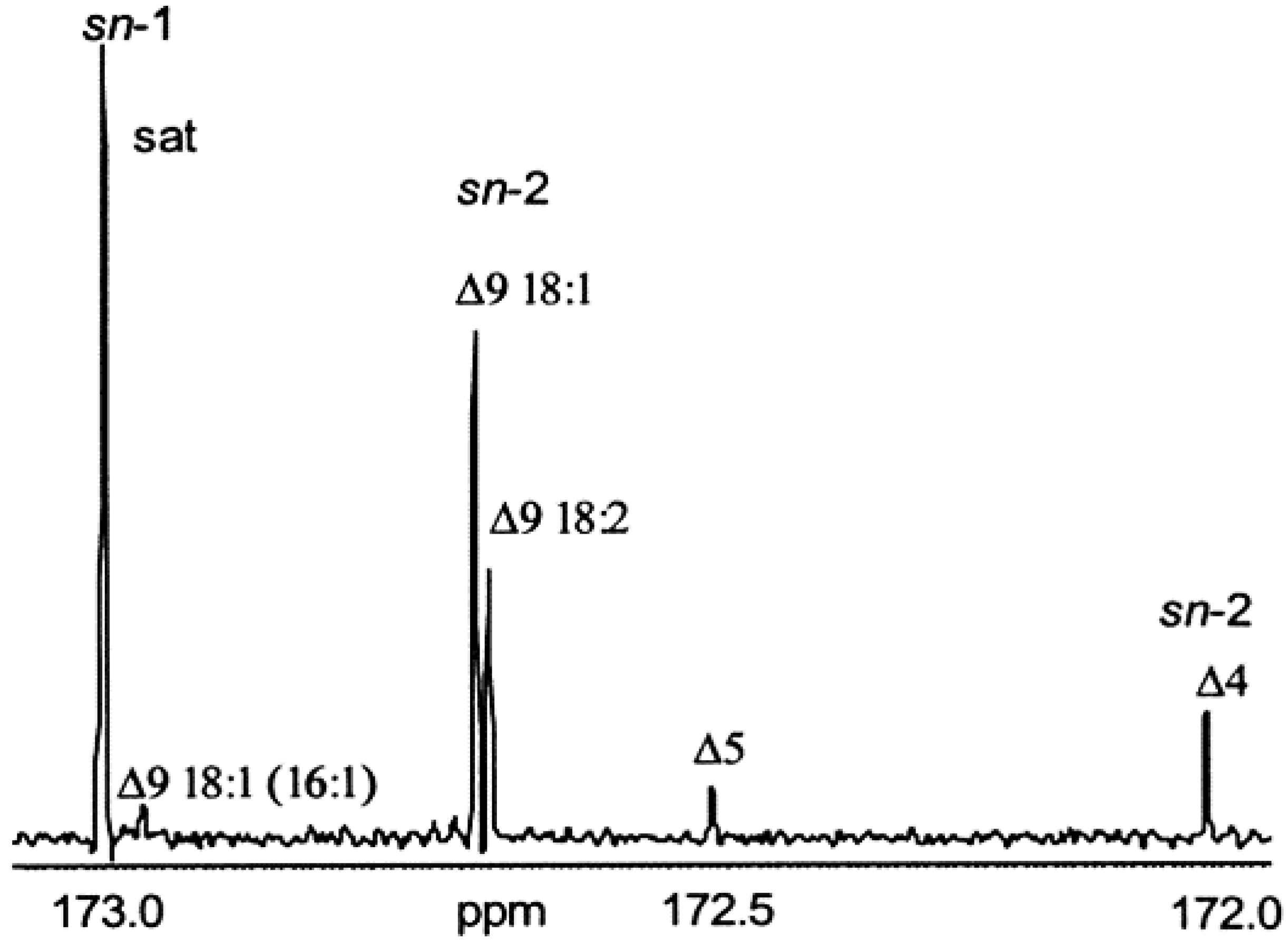

The carbonyl carbons of long chain saturated and unsaturated acyl groups in sn-1,3 TAG appear at 172.8–172.7 ppm while those in sn-2 TAG at 172.41–172.38 ppm. Saturated and unsaturated acyl groups in sn-1,3 DAG appear at 173.35–173.32 ppm. Acyl chains in the external position in sn-1,2/-2,3 DAG appear at 173.18 ppm while those in sn-2 at 173.08 ppm. It should be emphasized that the 13C-NMR carbonyl and carboxyl signals enable the selective identification of different Δ type fatty acids i.e., DHA which is a Δ4 and EPA which is a Δ5 fatty acid (Figure 8). The carbonyl signals can also be used for the integration of the position of unsaturated fatty acids within the glycerol moiety (sn-1,3 and sn-2). Thus, 13C-NMR enables the identification and, thus, quantification of sn-1 saturated with respect to sn-1 Δ9 18:1 and the sn-2 distribution of Δ9 18:1, Δ9 18:2, Δ5 and Δ4 without the need for the isolation of the individual lipid components (Figure 9).

3.2.2. Olefinic Carbon Region

The 13C-NMR chemical shift range of the olefinic carbons (124–134 ppm) is wider than that of the carbonyl and carboxyl carbons (Table 13 and Table 14). Nevertheless, the olefinic carbon region is usually the most complex part of the spectrum in lipid mixture analysis. The unsaturated carbons were resolved according to the position of the double bond with respect to the C=O carbons and the double bond number. The non-equivalence of the 13C chemical shifts of olefinic carbons has been investigated in a number of mono-unsaturated fatty acids with different number of C–C bonds separating the double bond and the ester group. The unsaturated carbon nearest to the chain of the ester group is shifted to lower frequency from the unsaturated carbon nearest to the chain methyl end. This allows the shift differences of the double bond pair to be used as a criterion of the number of C–C bonds intervening between the C=O and the C=C bonds [64,65,66]. The carbon of the double bond closer to the carbonyl C=O bond in the sn-2 position is shielded with respect to that in the 1(3)-position. The opposite trend was observed for the carbon which is further from the C=O bond. The chemical shift differences were explained in terms of a linear electric field effect of the C=O group [67].
Davis et al. [68] suggested the use of shift increments to predict the configuration of an unknown CLA geometric and positional isomer. For a number of (7-cis, 9-trans), (8-cis, 10-trans), (9-cis, 11-trans), (10-cis, 12-trans) and (11-cis, 13-trans) 18:2 positional isomers, the differential chemical shift, Δδ, between C1ol (the olefinic carbon closest to the carboxyl group) and C4ol (the olefinic carbon most remote from the carboxyl group) shows a gradual and significant shift as the conjugated system becomes more remote from the carboxyl function (Table 15).

3.2.3. Glycerol Carbons

The 13C-NMR signals of the glycerol carbon occur in the region of 60–72 ppm (Table 16). 2-monoacylglycerols, 1,3-diacyglycerols and triacylglycerols result in two signals for the glycerol moiety with intensity rations 1:2. The asymmetrical 1-monoacyglycerols and 1,2-diacyglycerols result in three signals. The resonances of the glycerol C-2 of all glycerides are shifted to higher frequencies with respect to those of the glycerol 1(3)-carbons. The length and degree of unsaturation of the acyl chains has been shown to influence the chemical shifts of the glycerol carbons (see Section 5.6.3).

3.2.4. Aliphatic Carbons

The 13C-NMR chemical shift range of the aliphatic carbons (Table 17) is very wide and has been utilized extensively for the identification and quantification of lipids. The mixed geometric (9-cis, 11-trans) 18:2 and (9-trans, 11-cis) 18:2 CLA isomers were identified on the basis of the carbon chemical shifts of the allylic methylene groups. Resonances at δ(13C) ≈ 27.6 ppm are characteristic of an adjacent cis-double bond and signals at δ(13C) ≈ 32.8 ppm to methylene carbons adjacent to the trans-bond.
The length of saturated FA and acyl chains and the proximity of the last double bond to the methyl end, strongly affects the 13C chemical shift which can be utilized for the classification and quantification of ω-3, ω-6 and ω-7 fatty acids (Figure 10). The 13C resonance of the CH3 groups of ω-3 fatty acids is deshielded by 0.15 ppm with respect to the CH3 group of saturated fatty acids. Separation of the ω-6, ω-7 and ω-9 UFA can also be achieved, however, the chemical shift do not follow a regular pattern with respect to the number of intervening CH2 bonds (Figure 10). The methylene C-2 carbons demonstrate a clear separation of the ω-3 EPA (δ = 20.41 ppm) and DHA (δ = 20.40 ppm) (Figure 11).

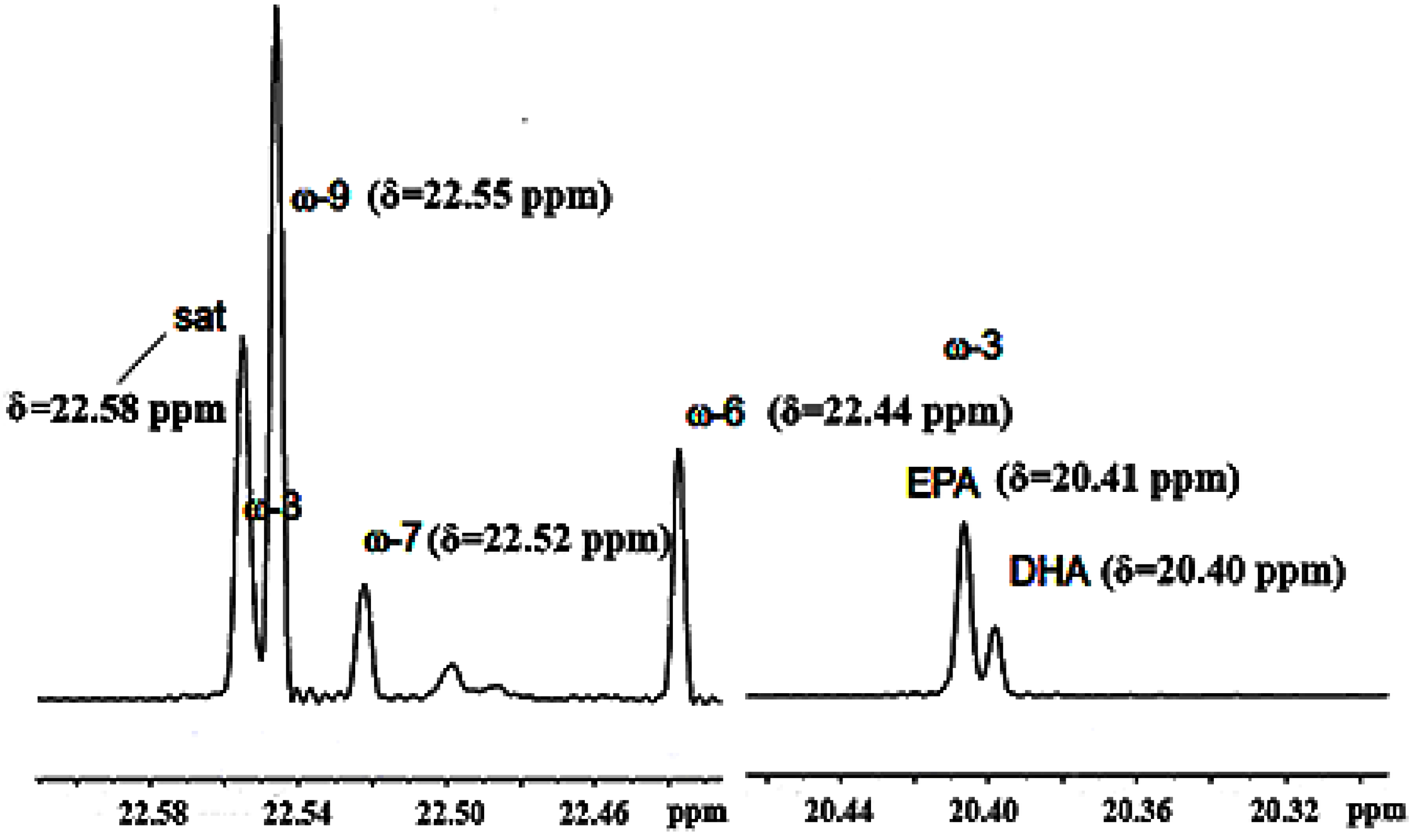

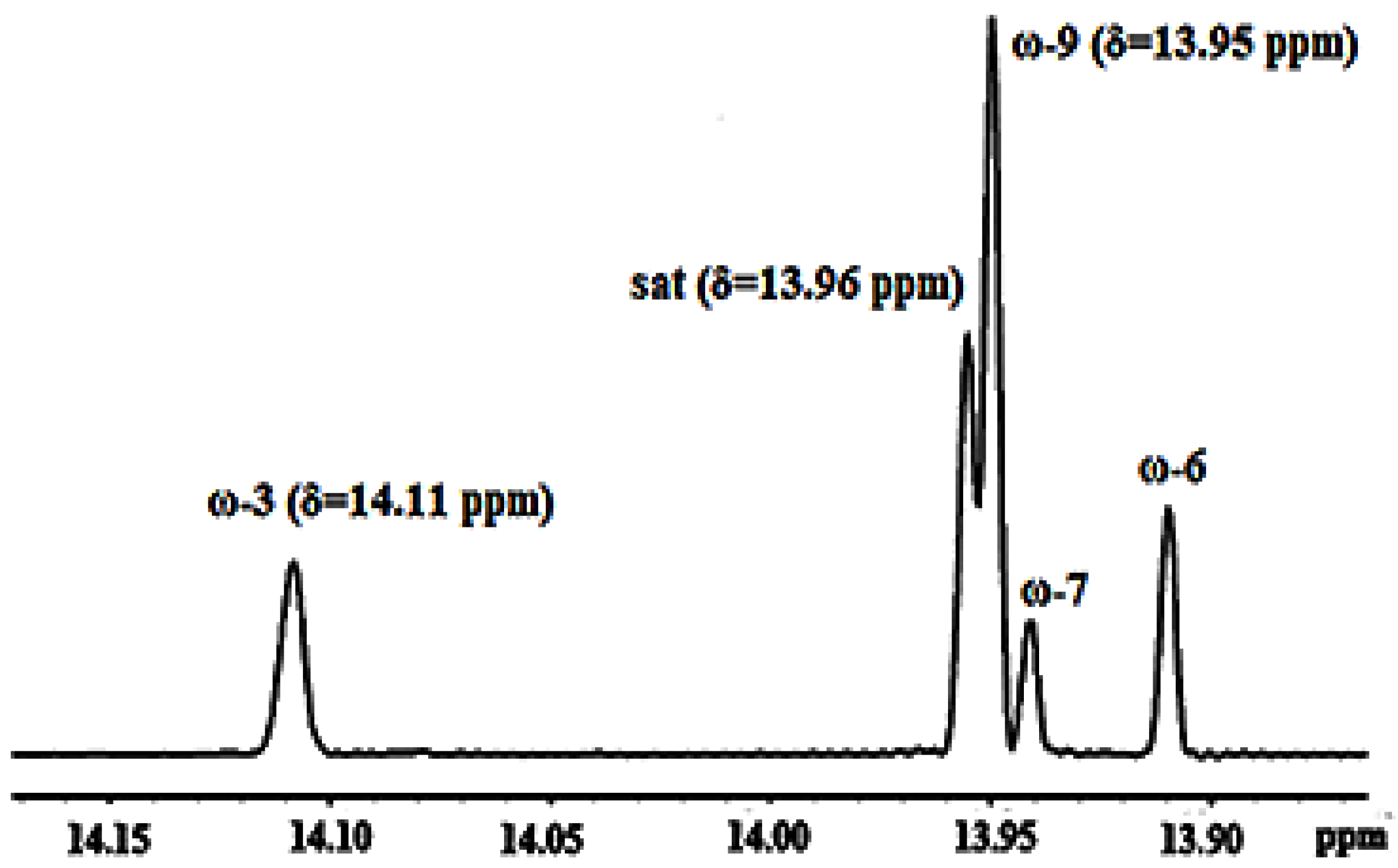

Combination, therefore, of the –CH3 and methylene C-2 spectral regions results in chromatographic like NMR methodology for the identification and quantification of various PUFA, even when using a medium strength spectrometer (500 MHz for 1H).

3.3. 31P-NMR Spectroscopy

The 31P nucleus has I = 1/2, high gyromagnetic ratio (10.829 × 109 rad T−1 s−1) and a wide range of chemical shifts, 100% natural abundance and, thus, high sensitivity, which is only 15 times less than that of the 1H nucleus [23]. 31P-NMR has been shown to be a powerful method in phospholipid analysis. 31P-NMR spectra show separate signals depending on the fatty acid distribution of the phospholipids. In soybean lecithin ~20% of the fatty acids are saturated and nearly 100% of them are distributed in the sn-1 position. The unsaturated fatty acids are distributed in the sn-1 and sn-2 positions. 31P-NMR was able to distinguish between double unsaturated and mixed saturated/unsaturated phospholipids. Similarly, the 31P of phosphatidic acid (PA) shows two unequal signals due to the presence of the mixed saturated / unsaturated (40%) and unsaturated/unsaturated (60%) lipids [21,69].

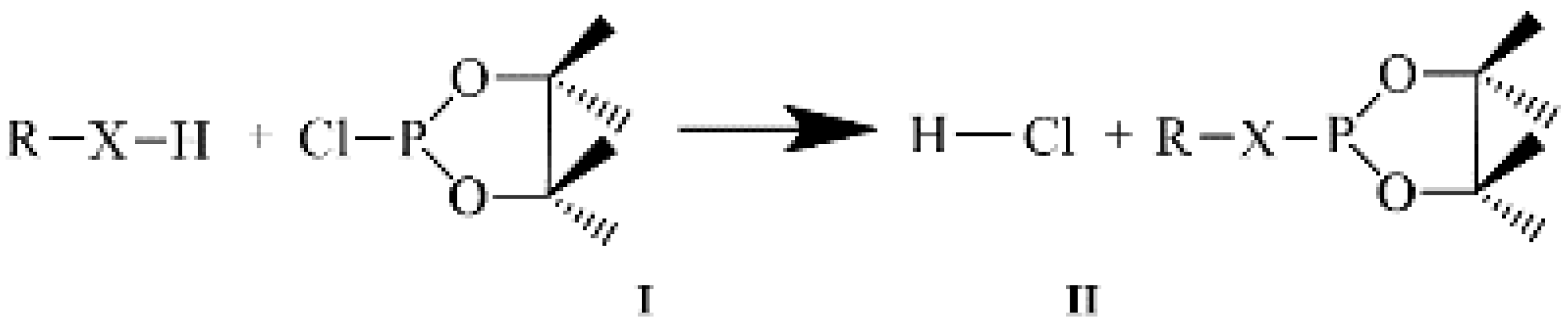

31P-NMR has been applied in the analysis of olive oil and other vegetable oils [59,70,71,72] and, especially, in cases where strong signal overlap and dynamic range problems in 1H-NMR spectra and/or long relaxation times of the insensitive 13C nuclei make the analysis of oils a difficult task. Application of 31P-NMR in the analysis of olive oil and other vegetable oils was achieved by derivatization of the labile hydrogens of functional groups, such as hydroxyl and carboxyl groups of the oil constituents with the phosphorus reagent 2-chloro-4,4,5,5-tetramethyldioxaphospholane (I) and the use of 31P chemical shifts to identify labile groups (compound II). The phosphitylation reaction (Scheme 1) is quantitative, takes place under mild conditions (within the NMR tube) and is completed in less than 15 min. Using this reaction, it was possible to quantify DAG and MAG species and free glycerol in oils. Quantitative 31P requires the use of the inverse gated decoupling technique in combination with the paramagnetic chemical shift reagent Cr(acac)3 and a relaxation delay 5T1 ≈ 4.6 s, where T1 is the relaxation time of the internal standard. The disadvantage of the 31P-NMR methodology is the destruction of the analytes.

4. NMR Methods for Assignment

4.1. Selective Suppression of Major Signals

1H-NMR spectroscopy has found limited application in the identification and quantification of minor species in lipid extracts. This is due to the fact that the equilibrium magnetization of e.g., the olefinic (CH2)n 1H spins of the major constituents of the lipids is 102–104 greater than the equilibrium magnetization of the 1H spins of the minor species. The problem is particularly severe in two dimensional experiments in which changes in the phase of the strong signals during various increments can lead to severe t1 noise. A straightforward method of reducing major resonances is the saturation of selective resonances by the use of variable frequency presaturation.

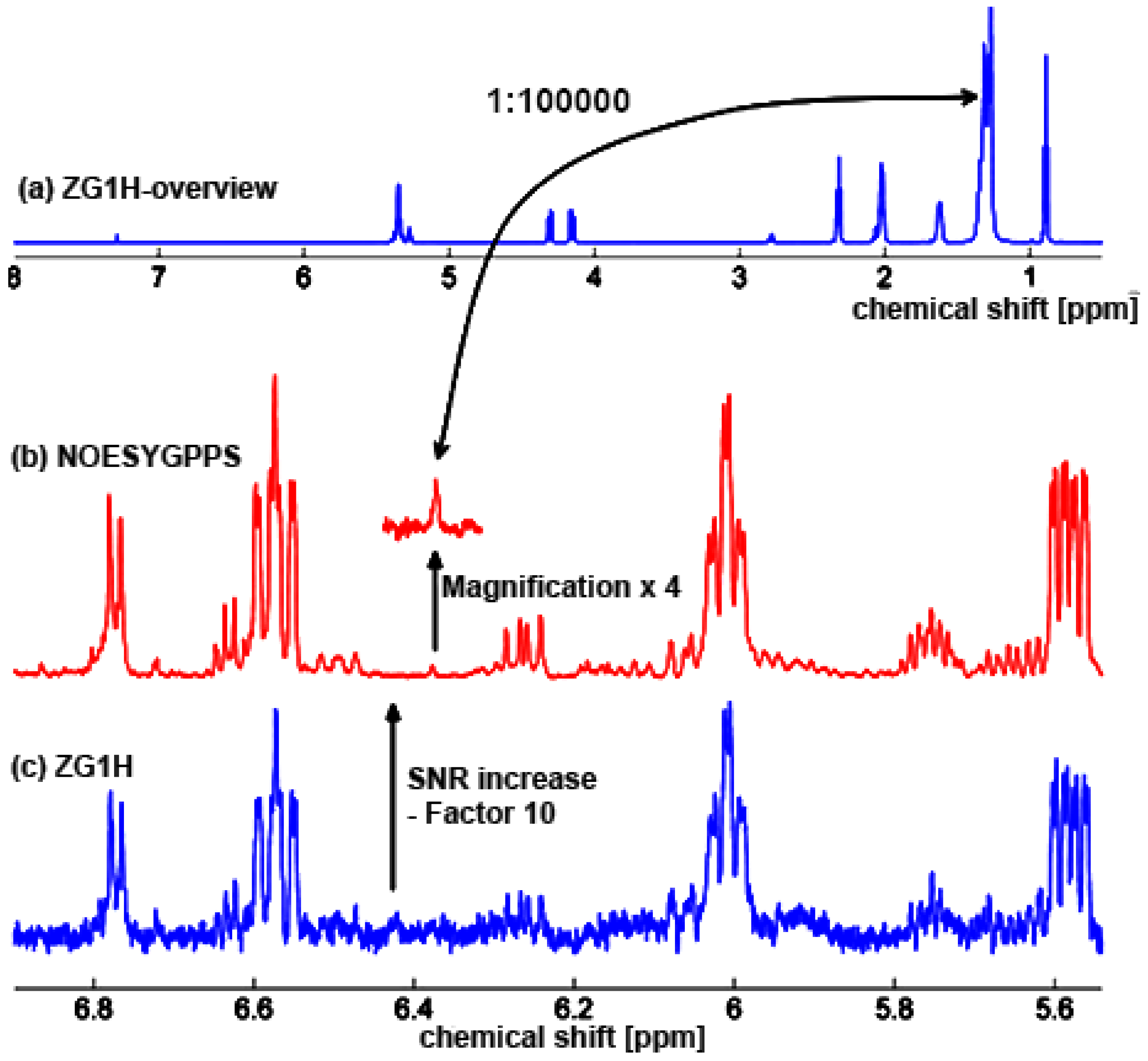

Figure 12 illustrates that a S/N ratio increase by a factor of ~10 was achieved after multiple suppression of dominating lipid signals due to increase in the receiver gain of the spectrometer [73]. Similarly, selective suppression of the two major lipid resonances at 0.90 and 1.20 ppm in the lipid fraction of a lyophilized milk resulted in an increase in the S/N ratio of the minor CLA resonances by a factor of ~3 which allowed the identification and quantification of minor CLA isomers [56].

4.2. Selective 1D TOCSY Experiments

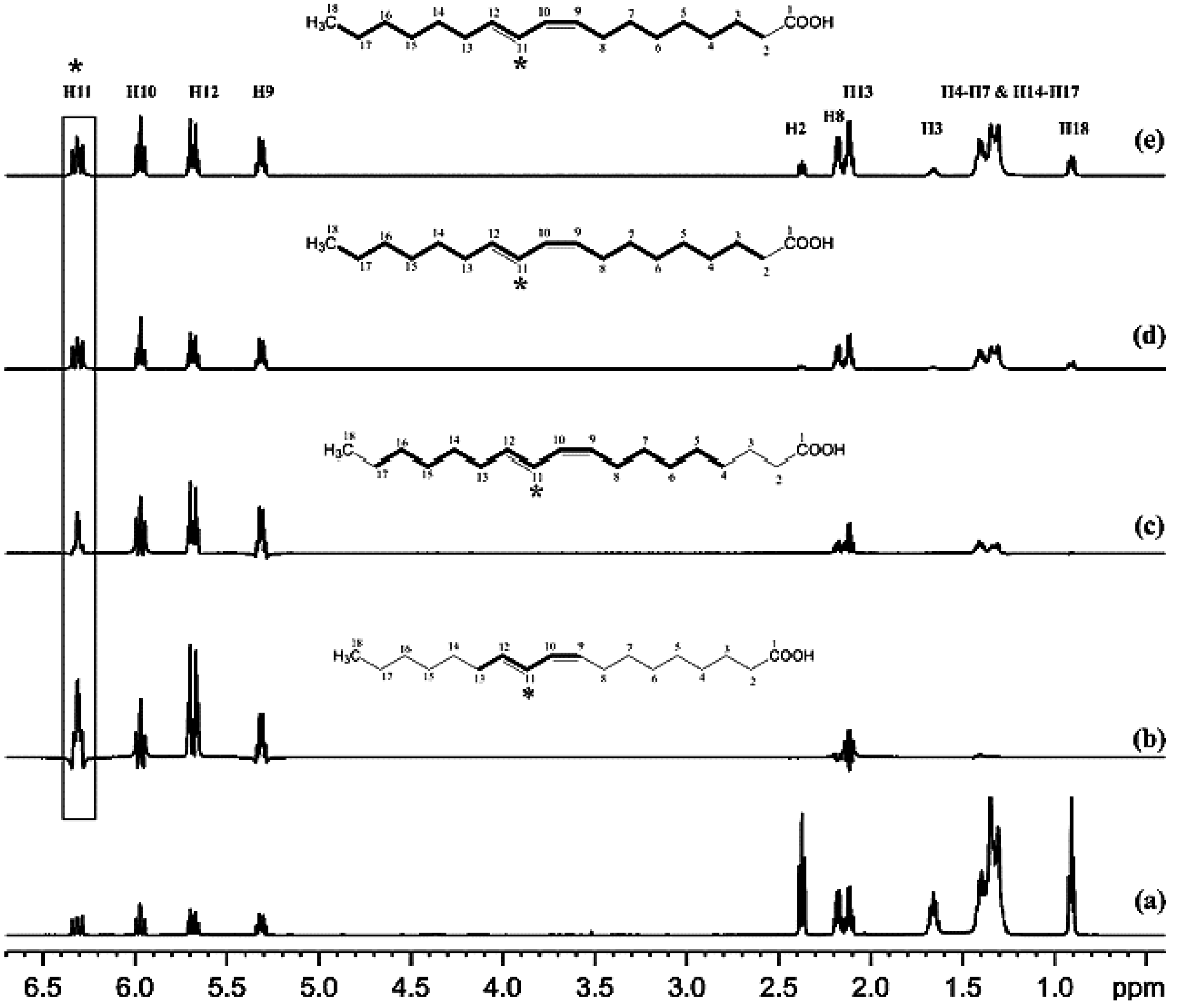

The selective 1D TOCSY experiment is an important NMR technique for establishing 1H-1H connectivity via scalar coupling in small and medium size molecules [74,75]. However, the method has found limited applications in complex mixtures and, more specific, in natural products and food extracts [76,77,78,79]. Figure 13 illustrates a series of selective 1D TOCSY spectra of the (9-cis, 11-trans) 18:2 CLA isomer. The H11 olefinic proton (δ = 6.27 ppm) was selected for excitation using mixing times τm of 33 ms, 70 ms, 200 ms and 400 ms. For mixing times of τm = 200 ms and 400 ms the complete assignment and structure of the compound can be achieved with very good resolution. In mixture analysis what is required, is an isolated target peak to be used as the magnetization transfer source. This is the case e.g., of CLA olefinic resonances which provided a means to distinguish a lipid in complex lipid fractions not only at a class level, with reference to molecular fragments (saturated, monounsaturated, bis-allylic, and polyunsaturated), but also at the level of individual compounds (Section 5.2).

4.3. Homonuclear 2D 1H-1H COSY and 2D 1H-1H TOCSY Experiments [80,81,82]

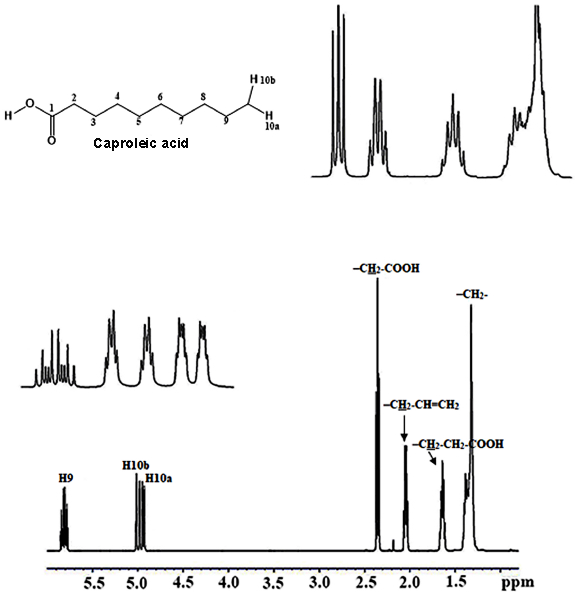

The 1H-NMR spectrum of the caproleic acid (Figure 14) shows the resonances due to the protons of the –CH=CH2 proton at 5.79 ppm (multiplet), the =CH2 protons at 4.98 ppm (H10b, dq) and 4.92 ppm (H10a, dq), the –CH2–COOH protons at 2.35 ppm (triplet), the –CH2–CH=CH2 protons at 2.05 ppm (multiplet), the –CH2-CH2–COOH protons at 1.64 ppm (multiplet) and all –CH2– protons at 1.25 ppm (multiplet). Figure 15 illustrates a selected region of the 2D 1H-1H TOCSY spectrum of the caproleic acid. The use of mixing time τm = 100 ms cause magnetization transfer throughout the whole number of protons of caproleic acid. The H9 (5.79 ppm) correlates with the H8 (2.05 ppm) and the H7 (1.35 ppm). The red peaks show the weak correlations between H9 (5.79 ppm)–H2 (2.35 ppm) and H9 (5.79 ppm)–H3 (1.65 ppm). This also provides unequivocal assignment of the H9 with respect to H10a,b and H2 for the given mixing time.

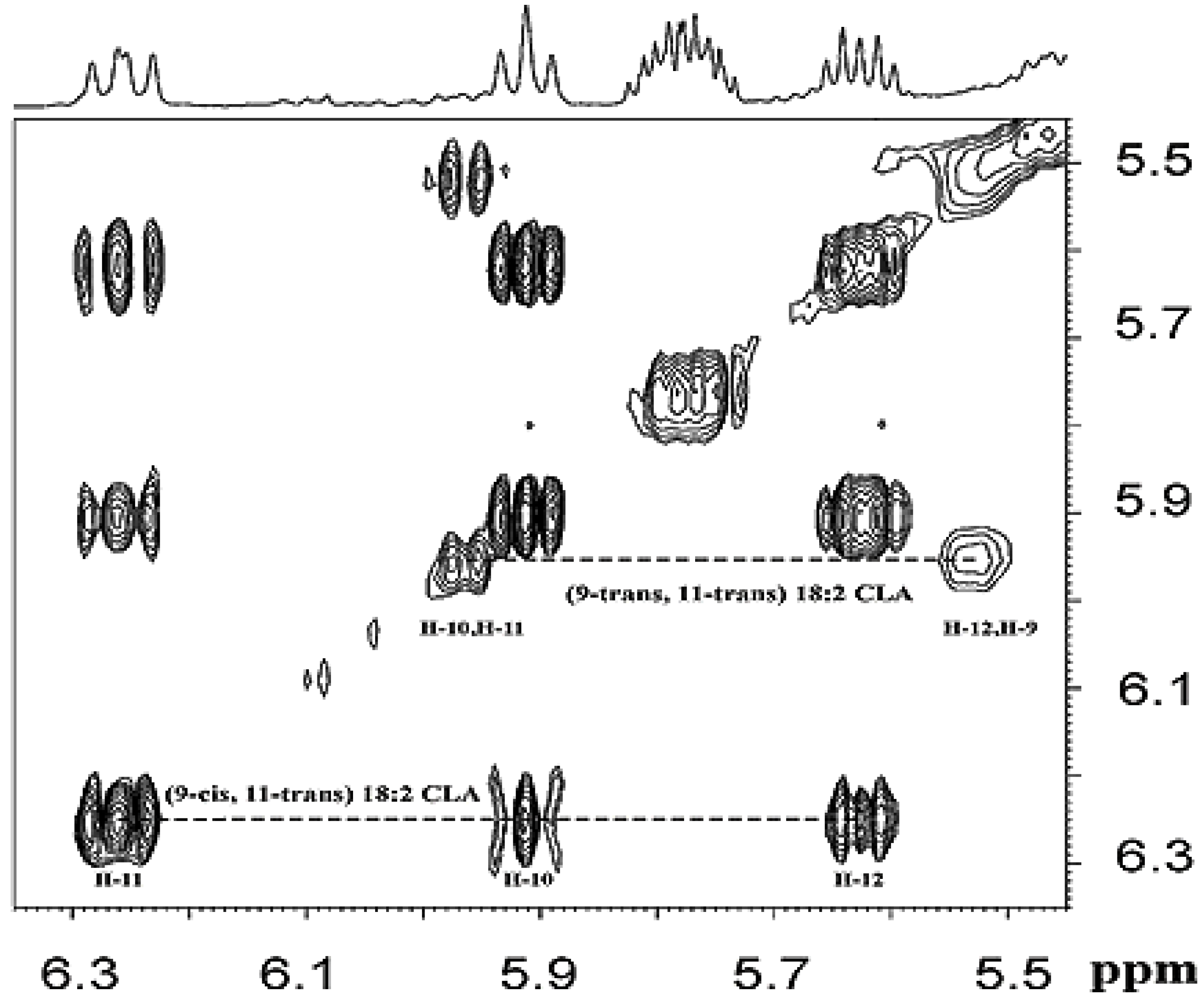

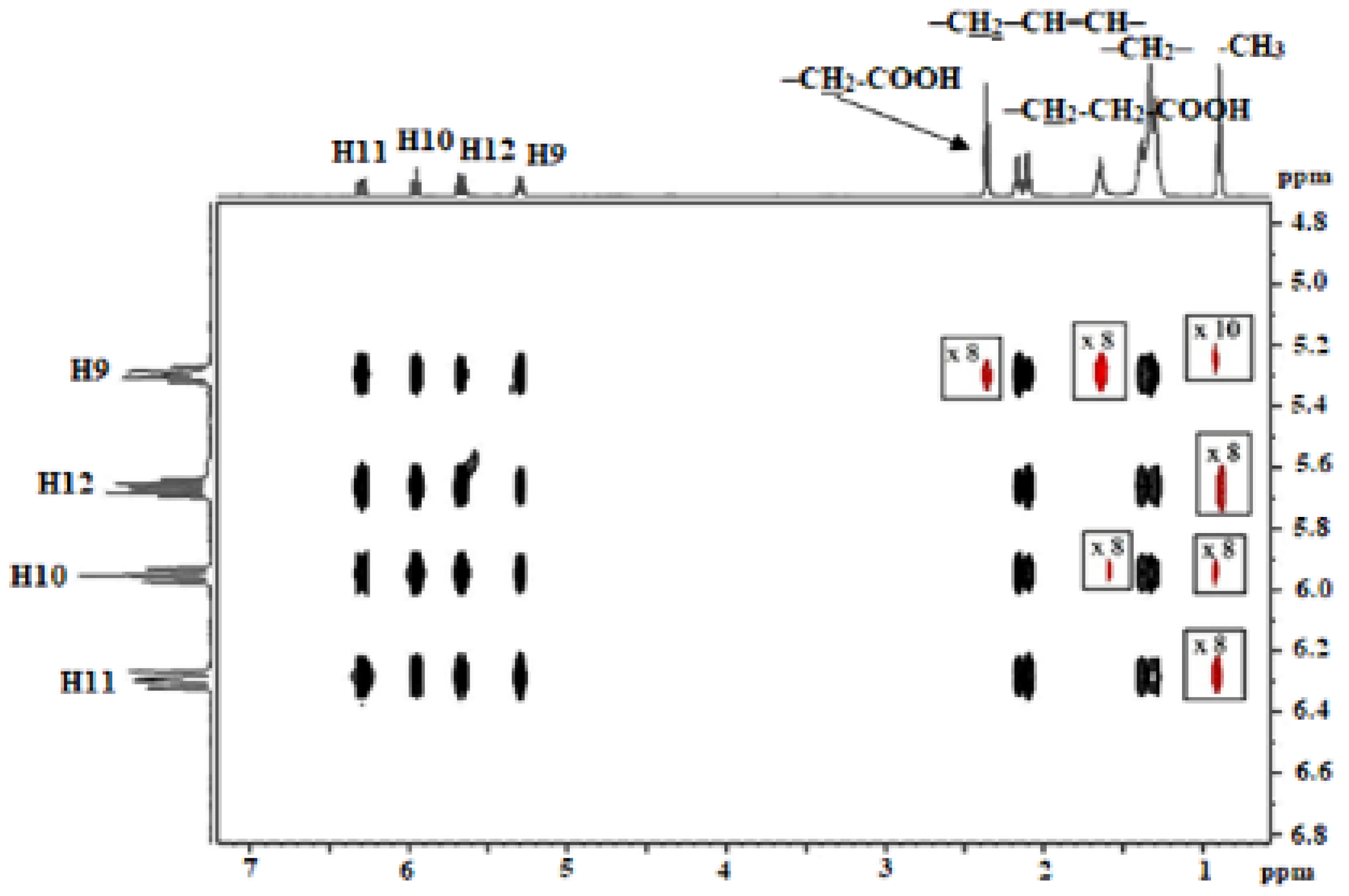

The 1D 1H-NMR and 2D 1H-1H NMR spectra of the (9-cis, 11-trans) 18:2 CLA isomer are illustrated in Figure 16 and Figure 17, respectively. Again the use of mixing time τm = 100 ms cause the polarization to spread out the whole number of protons. Thus, the olefinic H9 proton demonstrates cross peaks, at lower contour level, with both H2 and H18 protons (Table 18). The assignment, however, of the composite signals at 1.25–1.35 ppm due to H4-H7 and H14-H17 protons would require the use of several 2D 1H-1H TOCSY or selective 1D 1H TOCSY with various mixing times. The 1D 1H TOCSY experiment has the following advantages: (i) significantly increases the digital resolution while in the 2D TOCSY it is limited by the number of points taken in the indirect dimension, (ii) removes dynamic range issues and detects cross peaks even in regions with strong signal overlap of lipid extracts and (iii) decreases significantly the experimental time [78].

4.4. 1H-13C Heteronuclear Single-Quantum Correlation Spectroscopy (1H-13C HSQC)-Band Selective 1H-13C HSQC [80,81,82,83]

1H-13C HSQC spectroscopy detects correlations between 1H-13C nuclei which are separated by one bond. 1J (1H-13C) couplings are typically optimized for 145 Hz, being an average value for one bond couplings [83,84,85]. This method results in one cross peak per pair of coupled nuclei whose two coordinates are the chemical shifts of 1H (observed nucleus) and 13C (indirectly detected nucleus). This experiment enables: (i) proton assignments to be mapped directly into their bonded carbons and, thus, may be used to spread complex 1H-NMR spectra, as in the case of lipids, according to the greater dispersion of the carbon resonances and (ii) quantification of minor lipids even in complex mixtures (see Section 5.2).
Identification and quantification of minor lipids in complex mixtures with the use of 1H-13C gHSQC experiment suffers from low resolution in the 13C dimension. A significant increase in the digital resolution can be achieved with the use of either reduced 13C spectra width (Section 5.2) or band selected 1H-13C gHSQC experiment [86]. Dais et al. [60] utilized band selected 1H-13C gHSQC experiment to identify the terminal methyl protons of minor trans fatty acids in fish oil supplements which indicated a cross peak at δ = 13.72 ppm (Figure 18). This low frequency chemical shift is characteristic of trans fatty acids [87]. The achievable resolution was found to be comparable to that of the 1D 13C-NMR spectrum in addition to much higher sensitivity due to indirect detection.

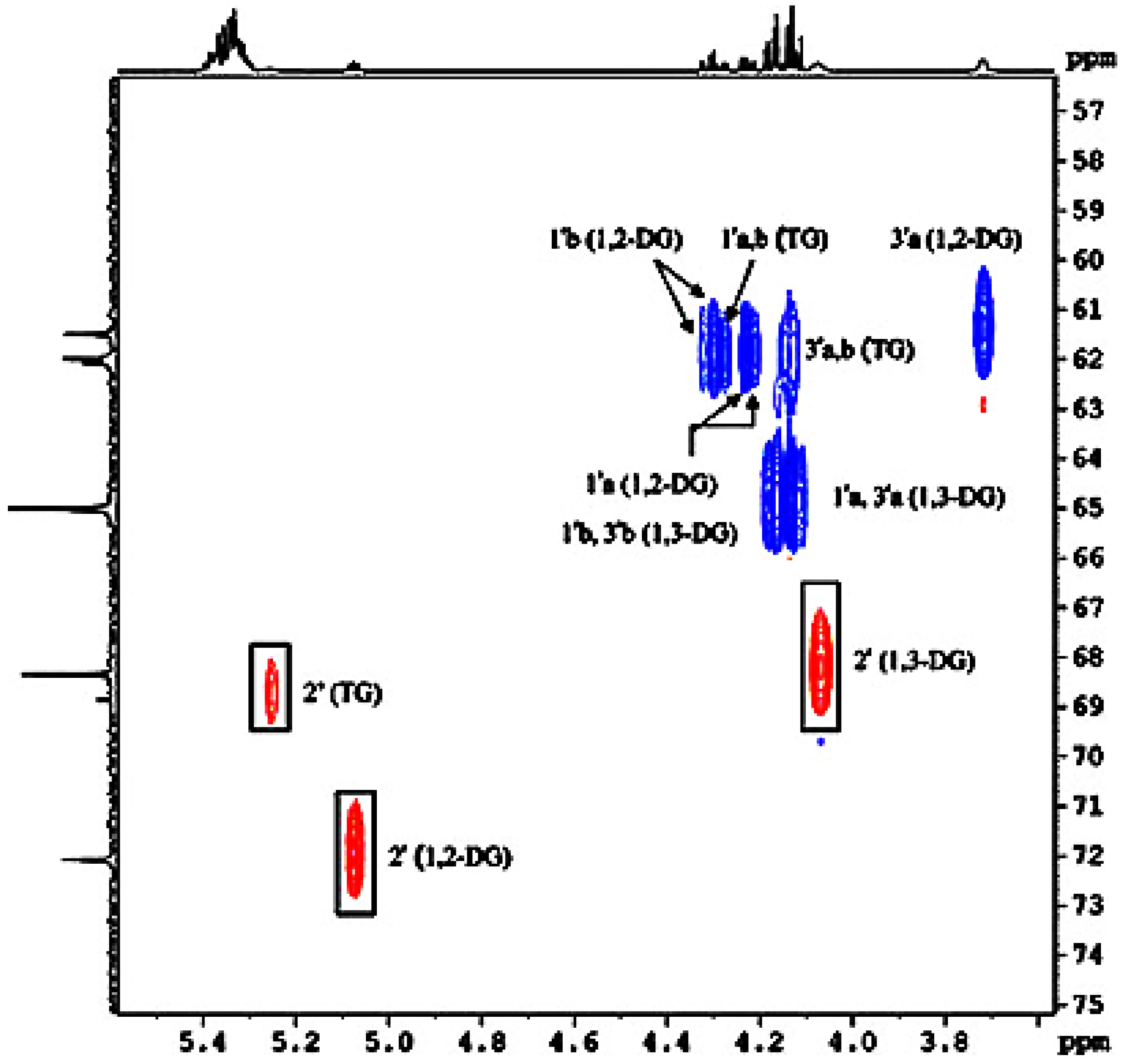

4.5. Multiplicity Edited 1H-13C HSQC

This is a variant HSQC method which combines both spectra editing (i.e., DEPT-135) and HSQC into one experiment [81,86,88]. The correlation cross peaks are phase coded according to DEPT-135 multiplicity e.g., CH and CH3 are of the same positive phase, whereas CH2 groups are of negative sign. The method has been successfully applied for the assignment of the 13C signals of the glycerol backbone protons of diacylglycerol (DAG) oil (Figure 19). The same experiment was also utilized to assign the methyl, allylic and bis-allylic carbons of linoleic and linolenic acids [59].

4.6. 2D 1H-13C HSQC-TOCSY-Band Selective Experiments

2D 1H-13C HSQC-TOCSY is a hybrid NMR experiment which combines the HSQC and TOCSY pulse sequences in order to relay the magnetization along with a proton network, using the greater dispersion of the 13C chemical shifts. This experiment is very useful to elucidate assignments in overcrowded 1H-NMR spectra since its row, for a particular 13C chemical shift, contains a 1H TOCSY sub-spectrum of the molecular fragment. The 2D 1H-13C HSQC-TOCSY experiment has been successfully employed to correlate carbon signals with the adjacent allylic protons of unsaturated fatty acids [89,90] and to analyze the positional distribution of unsaturated chains in TAG model compounds [91]. Of particular interest is the application of gHSQC-TOCSY experiment for mixture analysis in DAG oils [59]. Carbon - proton pairs connected over two bonds were observed for the allylic and bis-allylic carbons of the unsaturated chains which resulted in the unambiguous assignment of several carbons of the acyl chains of oleic, linoleic and linolenic acids (Figure 20). For example, with the use of the pairs H7, C17 of linolenic acid (LN) direct assignment of the allylic carbons C17, C16, C14, C11 and C8 could be achieved with a mixing time of 80 ms (for the notation system for 1H resonances see the original article).
A significant increase in the digital resolution in the 13C dimension can be achieved with the use of band selective 1H-13C HSQC-TOCSY experiment. The method has been successfully applied by Willker et al. [86] to investigate multiple 13C labeled biofluids and to identify and quantify blood plasma lipids [89] (see Section 5.6.4).

4.7. 1H-13C Heteronuclear Multiple-Bond Correlation (1H-13C HMBC) Experiments—Band Selective Constant Time 1H-13C HMBC [80,81,82,83]

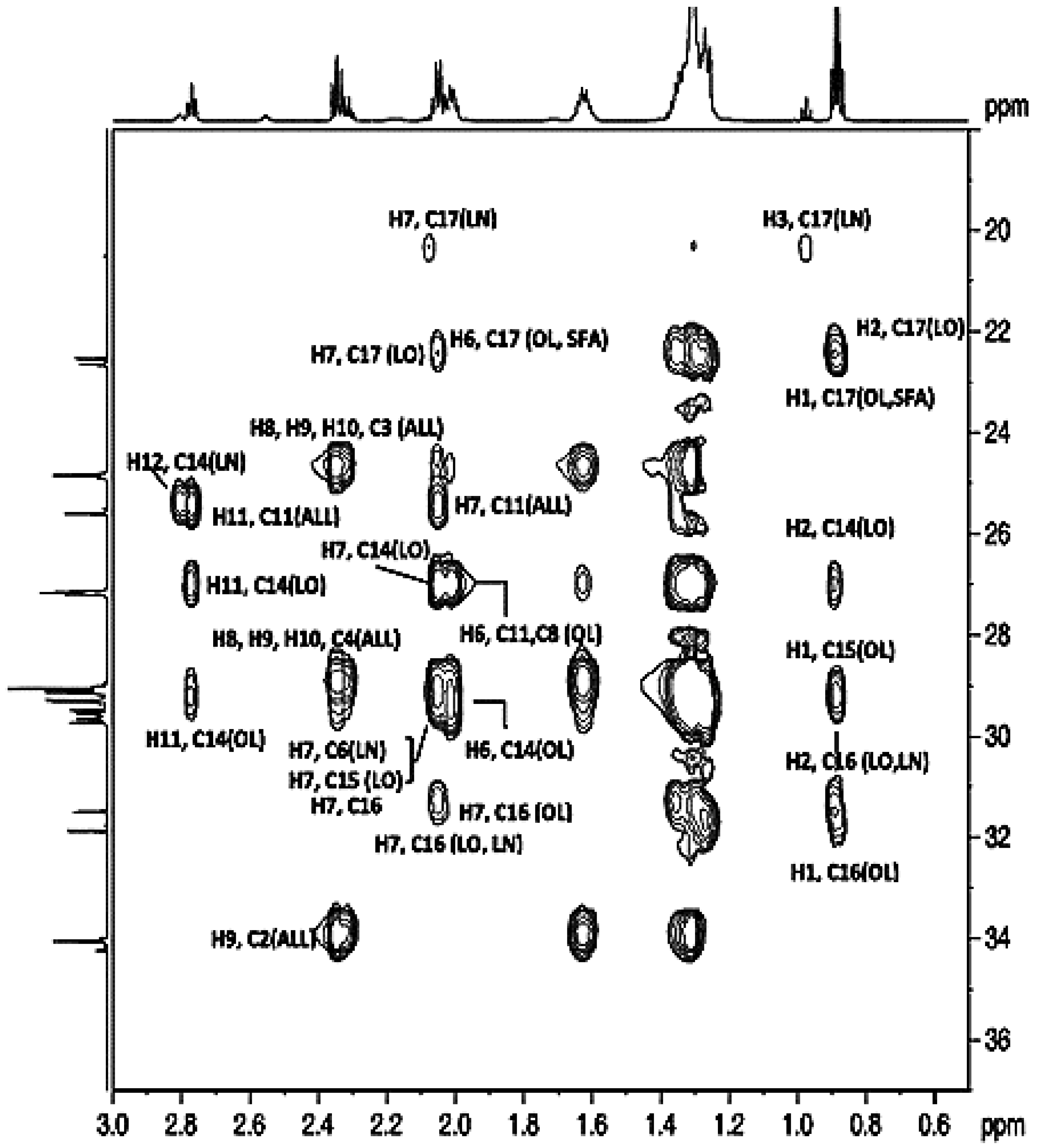

The 1H-13C HMBC experiment detects correlations due to nJ(1H-13C) couplings, where n = 2–4 (possibly n > 4 for favorable extended conjugated systems). The method can provide correlations across C–C and C–X fragments, thus, providing one of the most powerful tools for investigating connectivities within extensive molecular skeletons. Due to the variety of nJ(1H-13C) couplings, the pulse sequence is usually optimized for ~8 Hz.

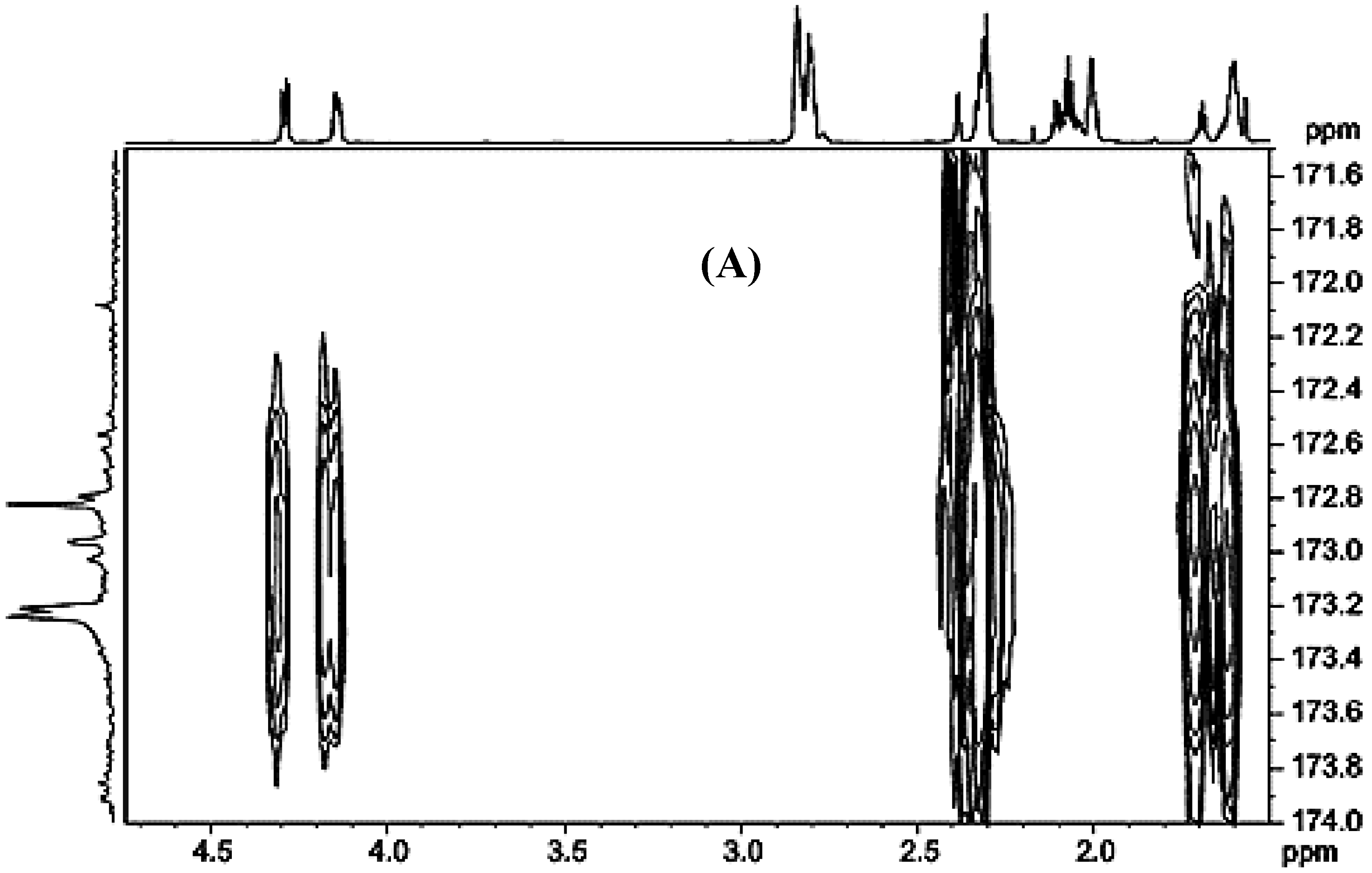

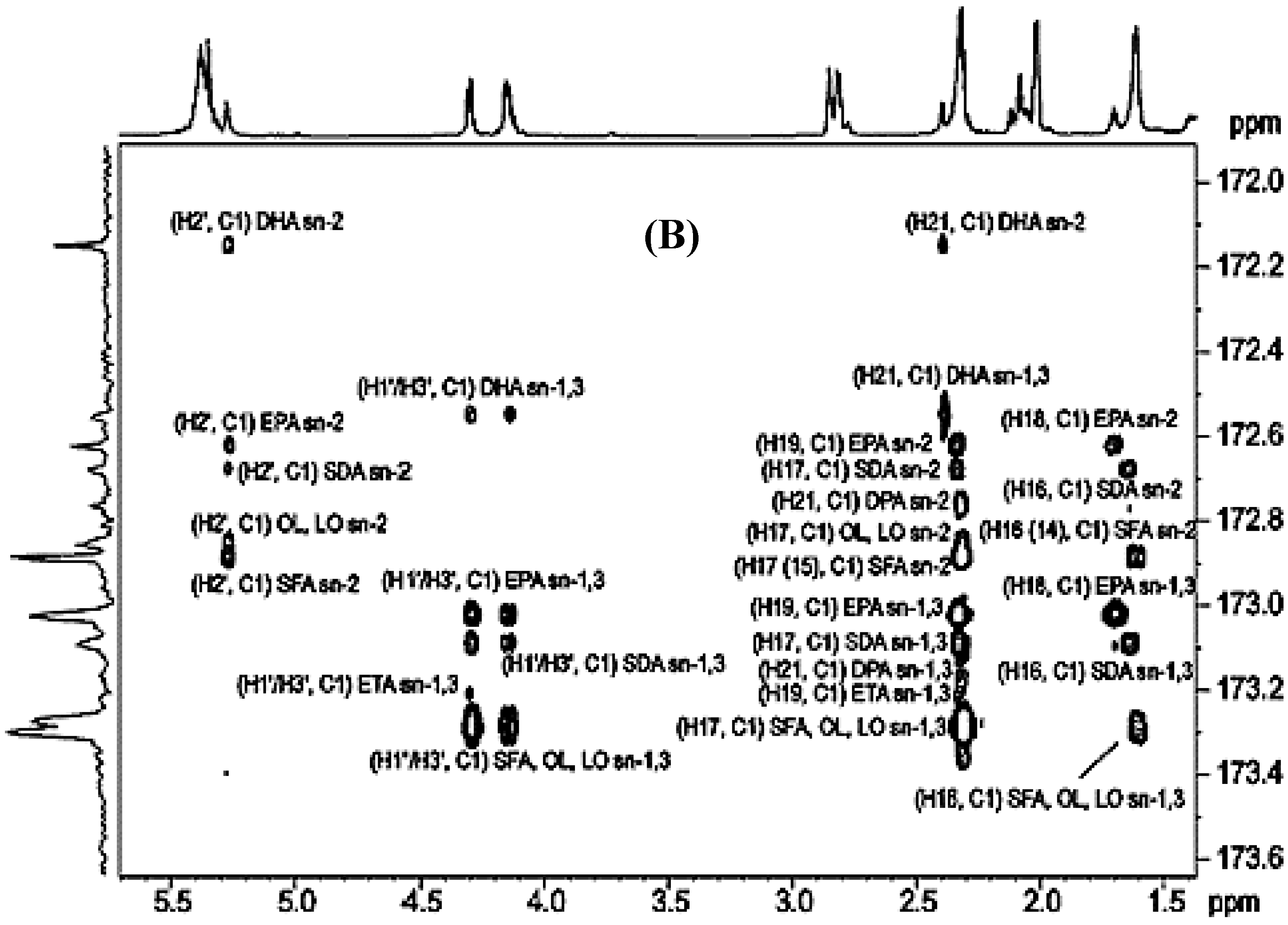

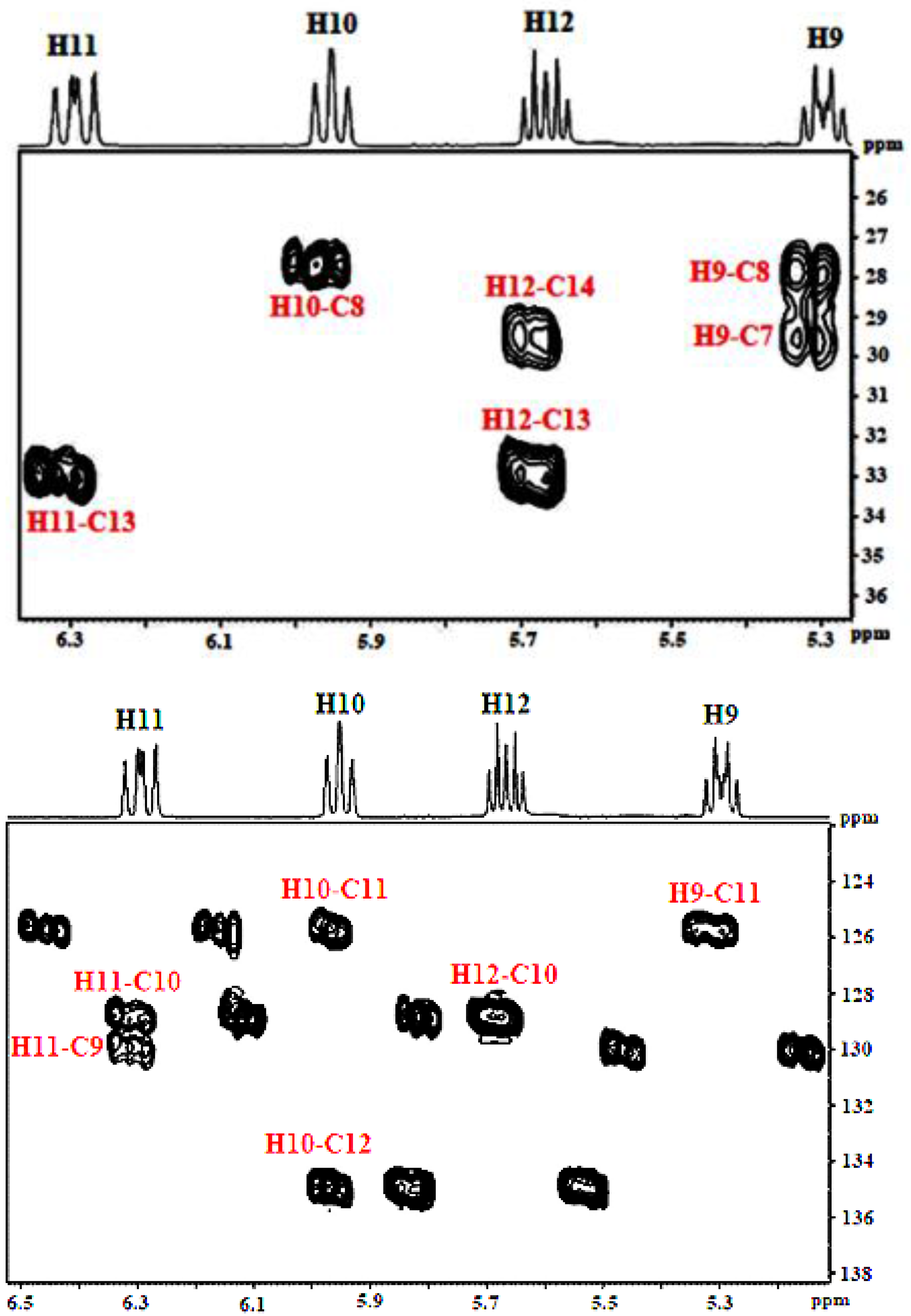

Figure 21 illustrates selected regions of the 1H-13C HMBC experiments of the (cis-9, trans-11) 18:2 CLA isomer in CDCl3. The 1H signals at 6.28 and 5.93 ppm have been assigned to the protons involved in the olefinic bonds. Μore specifically, the proton at 6.28 ppm correlates with the carbon at 125.3 ppm that was assigned to C11 (Table 19). Similarly, the proton at 5.93 ppm correlates with the carbon at 128.4 ppm (C10). Proton at 5.33 ppm correlates with carbon at 129.6 ppm and, thus, was assigned to the C9. In addition, the H11 (6.28 ppm) shows correlations with the C13 (33.4 ppm), C10 (128.4 ppm) and C9 (129.6 ppm) The H10 (5.93 ppm) correlates with the carbons at 28.1, 125.3 and 134.8 ppm which were assigned to C8, C11, and C12, respectively. The H12 (5.65 ppm) shows correlations with the carbons C14 (29.1 ppm), C13 (33.4 ppm) and C10 (128.4 ppm). The H9 (5.33 ppm) shows correlations with C8 (28.1 ppm), C7 (29.7 ppm) and C11 (125.3 ppm).
1H-13C HMBC experiments have been successfully applied in lipid mixture analysis. Thus, the gHMBC spectrum of DAG oils [59] provided cross-peaks between protons of the glycerol moiety with the ester CO carbons of the attached fatty acid chain. This allowed the unequivocal identification of the fatty acid which was previously based on additive properties of inductive effects of the double bonds [92]. The authors were able to classify the carbonyl signals into three groups corresponding to 1,3-DAG (173.92–173.82 ppm), 1,2-DAG (173.84–173.30 ppm) and TAG (172.91–172.84 ppm).
Band selective constant time 1H-13C HMBC experiments [93,94] provide a significantly enhanced digital resolution in the 13C dimension compared to that of the 1H-13C gHMBC experiments. Figure 22 illustrates a band selective constant time 1H-13C HMBC experiment of a fish oil sample using a selective 2 ppm 13C spectral width. The excellent resolution of the resulting cross peaks between the carbonyl carbons of various FAs with the glyceridic sn-1, sn-3 and sn-2 positions can provide unequivocal determination of the positional distribution of ω-3, ω-6 and ω-9 fatty acids in the glycerol moiety, including the ω-3 docosapentaenoic acid (DPA) which is an elongated metabolite of EPA (Table 2).

4.8. DOSY Experiments

Diffusion-ordered spectroscopy (DOSY) [95] is a sensitive technique that allows the determination of self-diffusion coefficients which are due to random translational motions of molecules as a consequence of their thermal energy. The self-diffusion coefficients, D(m2 s−1), depend upon molecular properties (size, shape, molecular weight) but, also, on concentration, solvent, temperature and aggregation state. With the DOSY method each component of a mixture can be separated according to its apparent diffusion coefficient and, thus, has found several applications in mixture analysis [96], combinatorial chemistry [95], food chemistry [59,97] and natural products [98,99,100]. In the field of lipid research, the signals of the glycerol segment of TAG were separated relative to those of TAG on the basis of their different diffusion coefficients obtained from the DOSY NMR spectrum of DAG oil [59,60]. The TAG, with larger molecular weight, showed smaller diffusion coefficient (4.5 × 10−10 m2 s−1) than that of the DAG components (5.4 × 10−10 m2 s−1). DOSY experiments were also utilized to obtain qualitative information about the degree of glycerol esterification by the n-acyl and trans acyl chains [60]. Diffusion-edited NMR techniques, which enhance NMR signals of lipoproteins and remove signals from low molecular weight analytes, have found several applications in body fluids and lipoprotein analysis. This subject will be discussed in Section 5.6.4.

4.9. Chemical Shift Reagents (CSR)

Lipid derivatives generally afford NMR spectra that preclude a simple first order interpretation, especially in the case of olefinic, allylic and (CH2)n protons (Figure 5 and Figure 6). It has been demonstrated that NMR chemical shift reagents (CSR) such as Eu(fod)3 [tris-(1,1,1,2,2,3,3-heptafluoro-7,7-dimethyl-4,6-octanedionate)-europium(III)] can increase considerably the amount of structural information obtained from NMR studies [101]. The effect of chemical shift reagents can be considered to be mainly due to dipolar interaction and has been reported to depend on the Lewis basicity of the functional group [102,103]. Thus, the strength of interaction decreases in the order:
amines > alcohols > ketones ≥ aldehydes ≥ ethers > esters > nitriles.
Halides, indoles and double bonds are generally considered to be inactive. Chemical shift studies of methyl oleate revealed that at the optimum [Eu(fod)3]/[methyl oleate] ratio of ~1.8, discrete proton signals could only be obtained from C-1 up to C-5 which are near to the coordination site. No induced chemical shifts were observed for the olefinic protons [103]. Information for unsaturated lipid derivatives can be obtained by the introduction of additional functional groups which are CSR active. Thus, successful CSR studies were published on methyl ricinoleate (methyl 12-hydroxy-cis9,10-octadecenoate) and methyl 12-hydroxy stearate (methyl 12-hydroxy-9,10-octadecanoate) [104]. For methyl ricinoleate, individual signals were observed for each of the olefinic protons 9 and 10 and their induced shifts were related to the proximity of the OH group. Yb(fod)3 has been utilized to identify and discriminate side chain isomers of phytosterols even when using a 90 MHz instrument [105]. For unambiguous assignment of overlapping proton signals it was necessary to perform an incremental CSR study, the construction of proton plots and the calculation of induced shift values.
Despite the original promising results, the CSR method has found limited application in lipid research presumably due to extensive use of high magnetic fields. Nevertheless, Agiomyrgianaki et al. [106] exploited the use of a shift reagent in order to distinguish cis and trans unsaturation in oils and fats. The method is based on the ability of silver ions to form weak charge-transfer complexes with the olefinic double bonds and the fact that cis-unsaturated fatty acids form stronger complexes than the trans geometric isomers. The authors were able to differentiate cis and trans unsaturation in mixtures of cis and trans methyl esters of monoene aliphatic acids and unsaturated triacylglycerol mixtures, using a low magnetic field instrument (300 MHz for 1H). For a mixture of 0.2 M in CDCl3 of methyl oleate and methyl elaidate, which have single cis and trans bonds respectively, very good separation of the mono allylic and olefinic protons at δ = 2.02 ppm and δ = 5.34 ppm was achieved with a silver shift reagent/substrate molar ratio of 0.5. However, attempts to differentiate lipid molecules with different degree of unsaturation and positional distribution of cis double bonds were unsuccessful.

4.10. Database Matching Approach—Resolving NMR Signals Using Multivariate Data Analysis

Extracts of natural sources consist of complex mixtures of compounds which cannot be effectively and rapidly detected without considerable effort and extensive workup. Thus, the general availability of natural product databases containing experimental data and bioinformatics navigation tolls can greatly facilitate the identification of natural products from complex mixtures [107]. Several NMR databases have been published [108,109]. In the database matching approach, the NMR analysis relies on the spectral comparison using databases of NMR spectra. With this method automatic compound identification can be achieved or the number of possible candidates can be significantly reduced. Among the various data bases, the most popular are the various versions of the Chenomx NMR Suit library (Chenomx, Inc., Edmonton, AB, Canada). Unfortunately, the number of fatty acid standards is, at present, rather limited which precludes unambiguous identification. It should be emphasized that chemical shift variations can occur in lipid extracts with respect to model compounds, due to complex interactions that may occur in the former case and differences in concentration, temperature, solvent etc.
Multivariate data analysis (MDA) has been extensively used to reduce information contained in complex NMR spectra with strongly overlapped peaks. Among the variety of algorithms, the principal component analysis (PCA) has been extensively utilized in order to deconvolute the signals and convert complex systems to simplified and reduced processed information. Recently Pereira et al. [110] applied an unsupervised component analysis to resolve and identify the NMR signals of 3 short-chain fatty acids: acetic acid, propionic acid and butyric acid. The principal object analysis was able to identify the number of independent contributions present in the mixture. The method, however, was applied to a relatively simple mixture, therefore, its utility in complex lipid extracts has yet to be thoroughly investigated.

5. Selected Analytical and Structural Studies

5.1. Identification and Quantification of Unsaturated Fatty Acids in Complex Mixtures

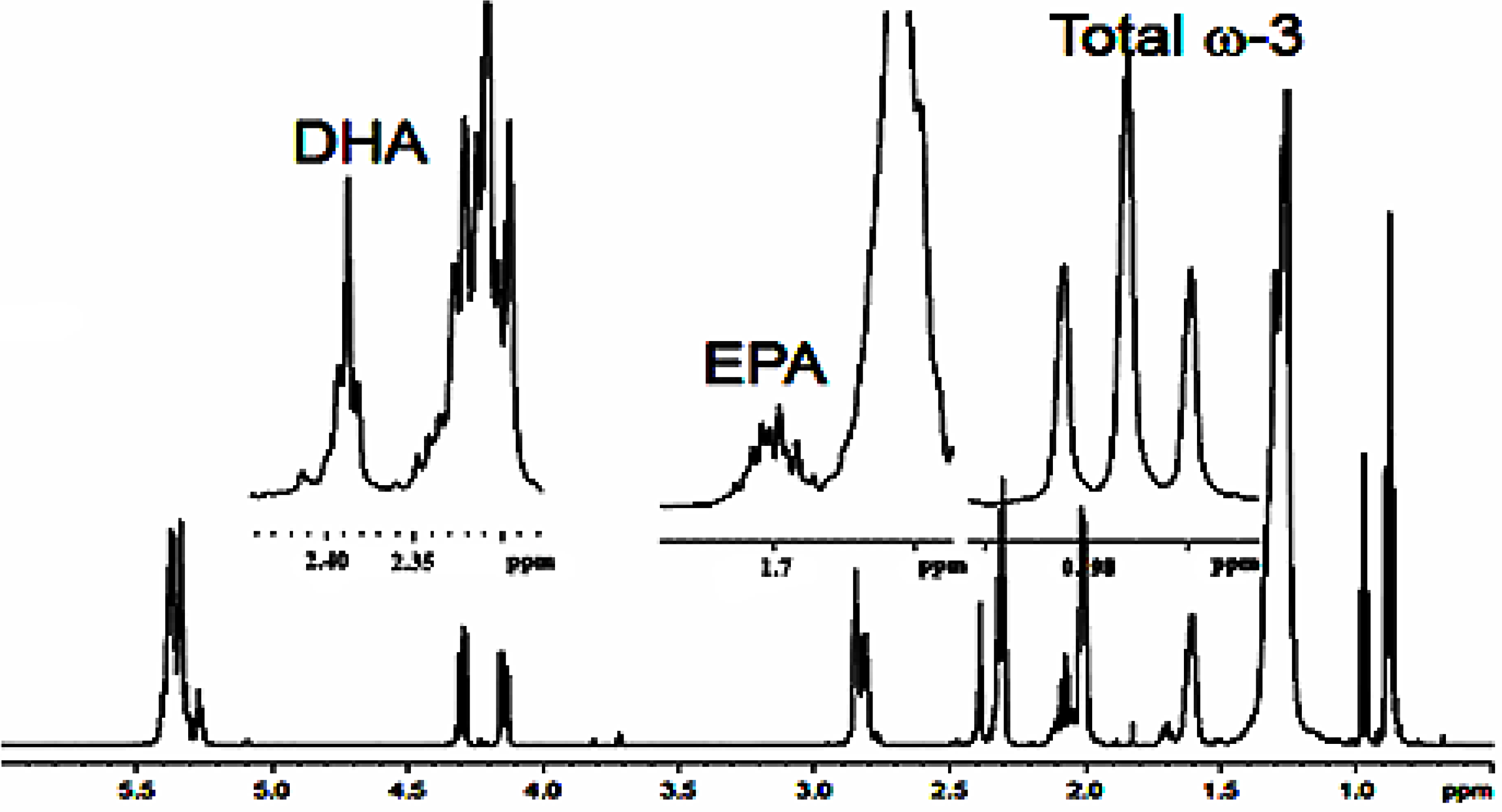

Omega-3 fatty acids are widely distributed in nature and can be found in walnuts, flaxseed, soybean oil, canola oil, shellfish, salmon, herring, sardins, anchovies, trout, etc. (Table 20 [111]). Omega-6 fatty acids can be found in soybean oil, safflower oil and other liquid vegetable oils. The fatty acid profiles of a variety of fats and oils with emphasis on unsaturated and polyunsaturated fatty acids have been extensively quantified using 1H- and 13C-NMR [19,20,21,22,25,62,63,112,113,114,115,116,117,118,119,120,121,122]. The 1H-NMR method utilizes the integration area per proton and provides equations for determining the mol amounts of the unsaturated fatty acids. Although some modified equations have been suggested depending on the particular fat/oil to be investigated, there is a general consensus that 1H-NMR can provide an excellent method for obtaining quantitative results on TAG, 1,2-DAG, DHA, α-linolenic acid, linoleic acid and UFA.
Evaluation of the total amount (%) of triacylglycerides (TAG) can be based on the integrals of the signals due to –CH2–OOC– protons of the glycerol moiety at ~4.30 ppm (I4.30) using the following equation [123]:
TAG   ( % ) = I 4.30   I 2.46 2 + I 2.33   ×   100 .
where I2.46 and I2.33 are the integrals of the COOH–CH2–CH2– protons of DHA acid and –OOC–CH2– CH2– protons of all fatty acids.
Evaluation of the total amount (%) of 1,2-diacylglycerides (1,2-DAG) can be based on the integral of the HO–CH2–CH– group of the glycerol moiety at ~3.72 ppm (I3.72) using the following equation:
1 ,   2 DAG   ( % ) =   I 3.72   I 2.46 2 + I 2.33   × 100 .
Evaluation of the total amount (%) of docosahexaenoic acid (DHA) can be based on the integral of the COOH–CH2–CH2– protons at ~2.46 ppm (I2.46) using the following equation:
DHA   ( % )   = I 2.46 2 I 2.46 2 + I 2.33   ×   100 .
Alternatively, evaluation of the DHA can be based on the integral of the =HC–CH2–CH= protons of the DHA at ~2.85 ppm (I2.85) as follows:
DHA   ( % ) = 3   I 2.85 6   I 0.89 1 ×   100
where I0.89–1 is the total integral of the –CH3 group of α-linolenic acid at 0.98 ppm and of the rest of the fatty acids at ~0.89 ppm.
Evaluation of the total amount (%) of α-linolenic acid was based on the integral of the =CH–CH2–CH= protons at ~2.82 ppm (I2.82) using the following equation:
α linolenic   ( % ) = 3   I 2.82 4   I 0.89 1 ×   100 .
Alternatively, evaluation of the α-linolenic acid can be based on the integral of the –CH3 group at ~0.98 ppm (I0.98) as follows:
α linolenic   ( % ) = 2   I 0.98 3   (   I 2.46 2 + I 2.33   )   ×   100 .
Evaluation of the total amount (%) of linoleic acid was based on the integral of the =CH–CH2–CH= protons at ~2.78 ppm (I2.78) using the following equations:
linoleic   ( % ) = I 2.78   I 2.33 ×   100   and
linoleic   ( % ) = 3   I 2.78 2   I 0.89 1 ×   100 .
Evaluation of the total amount (%) of UFA was based on the integrals of the signals due to –CH2–CH=CH– protons at ~2.02 ppm (I2.02) as follows:
UFA   ( % ) = 2   I 2.02 4   (   I 2.46 2 + I 2.33   ) ×   100   and
UFA   ( % ) = 3   I 2.02 4   I 0.89 1 ×   100 .
Evaluation of the degree of total unsaturation in oils and fats with 1H-NMR (Equations (9) and (10)) has distinct advantages with the respect to the classical iodine value since it is more rapid and can provide information on the different types of unsaturated fatty acids [124]. Quantification of ω-6 and ω-3 polyunsaturated fatty acids can also be carried out by 1H-NMR using the above equations in a simple and efficient way compared to classical analytical methods which involve trans-esterification of the oil or fat to produce methyl esters and the identification and quantification by gas chromatography [125]. The conversion of 1H-NMR data from mol % to wt % can be achieved [124] with the hypothesis that the average chain lengths of mono- and poly- unsaturated are C18 and by estimating the average number of protons in unsaturated and saturated chains from the integrals of given resonances in the spectrum. Figure 23 illustrates the 1H-NMR spectrum of a salmon oil. The amount of total ω-3 can be easily calculated using the integral of the triplet at 0.97 ppm. Quantification of the individual DHA and EPA fatty acid can also be obtained on the basis of the integrals at 2.40 ppm, due to CH2–CH2–COOR protons of DHA, and, at 1.7 ppm, due to CH2–CH=CH protons of EPA.

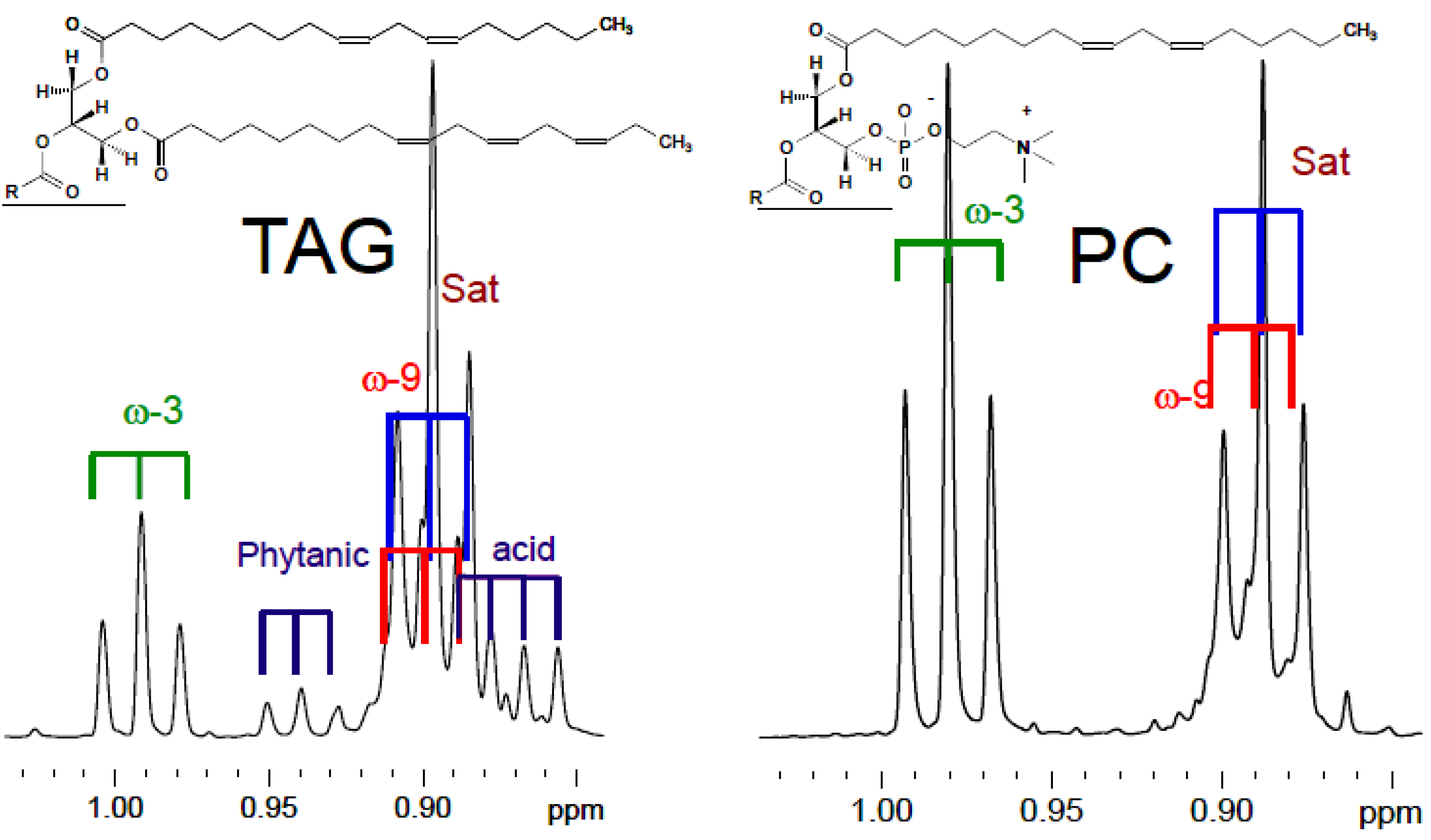

Figure 24 illustrates the 1H-NMR spectra of TAG and phospholipid fractions from krill oil after preparative separation. The identification and quantification of ω-3 from ω-6, ω-9 and saturated fatty acids can be achieved. Interestingly, the branched phytanic acid can also be quantified.

5.2. Identification and Quantification of Minor Lipids in Complex Mixtures

The analysis of minor lipids is extremely challenging and complex because it can be very slow and laborious using the classical chromatographic analytical methods. Tsiafoulis et al. [56] reported direct identification and quantification of four minor geometric (9-cis, 11-trans) 18:2, (9-trans, 11-cis) 18:2, (9-cis, 11-cis) 18:2 and (9-trans, 11-trans) 18:2 conjugated linoleic acid (CLA) isomers (Figure 25) in lipid fractions of lyophilized milk samples with the combined use of 2D 1H-1H TOCSY (Figure 26) and 2D 1H-13C HSQC (Figure 27). Selective saturation of major lipid signals, resulted in an increase in the S/N of the CLA resonances by a factor of three due to the significantly higher receiver gain of the spectrometer (Section 4.1). This allowed the identification of both the (9-cis, 11-trans) 18:2 CLA and the minor (9-trans, 11-trans) 18:2 CLA.

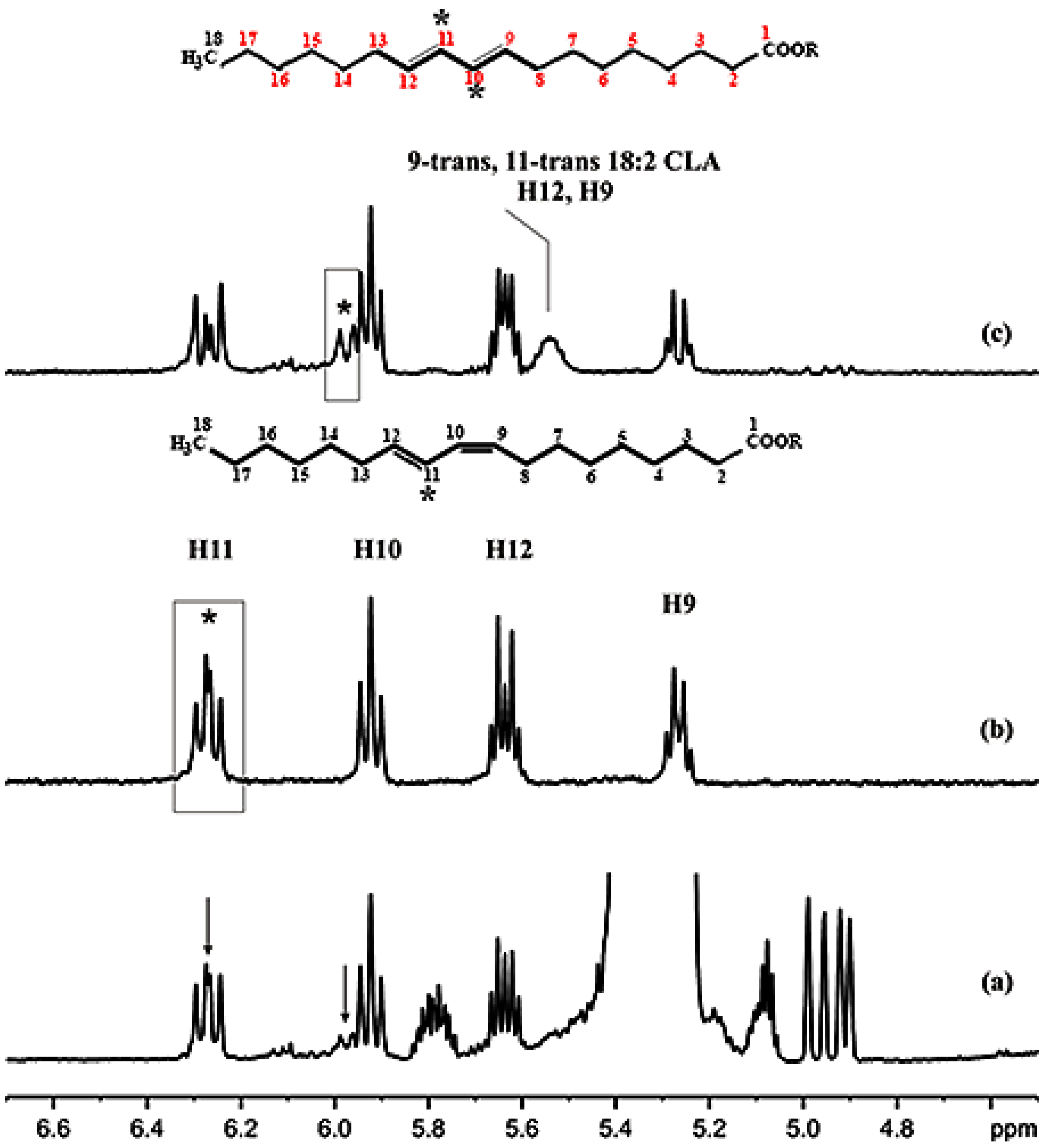

Further confirmation of the above assignments was achieved with the use of 1H-13C HSQC experiment (Figure 27). Thus, the near generated H10 and H11 protons at 5.97 ppm of (9-trans, 11-trans) 18:2 CLA isomer indicated a 13C cross peak at 130.51 ppm which should be compared with the literature 13C values of 130.37 and 130.51 ppm for carbons, respectively. Moreover, the H10 and H11 resonances at 6.22 ppm that correlate to the C10 and C11 carbons at 123.74 ppm are most likely due to the presence of (9-cis, 11-cis) 18:2 CLA isomer. Decrease of the spectral width in the 13C dimension from ~143 ppm to ~30 ppm resulted in a significant increase in the digital resolution. Thus, in addition to the major resonance at 6.27 ppm with a cross peak at 125.58 ppm, due to (9-cis, 11-trans) 18:2 isomer, the minor resonance at 6.29 ppm with a cross peak at 125.85 ppm was tentatively designed to H10-C10 connectivities of the (9-trans, 11-cis) 18:2 isomer.
The determination of the concentration of the CLA isomers was based on the combination of 1D 1H-NMR and 2D 1H-13C HSQC described by Lewis et al. [126] on the basis of calibration curves from known concentrations of the geometric isomers. The integral of each isomer was normalized with the respect to the signal of the reference compound TSP-d4 in DMSO-d6, of known concentration, in a coaxial arrangement.
Although the reduced 13C spectra width is a useful method to increase digital resolution in the 13C dimension in 2D 1H-13C HSQC experiments, complications may arise due to folding resonances. As demonstrated by Dais et al. [60] band-selective 1H-13C HSQC and 1H-13C HMBC experiments can provide excellent resolution in the 13C dimension comparable to that obtain with 1D 13C-NMR (Figure 18 and Figure 22).

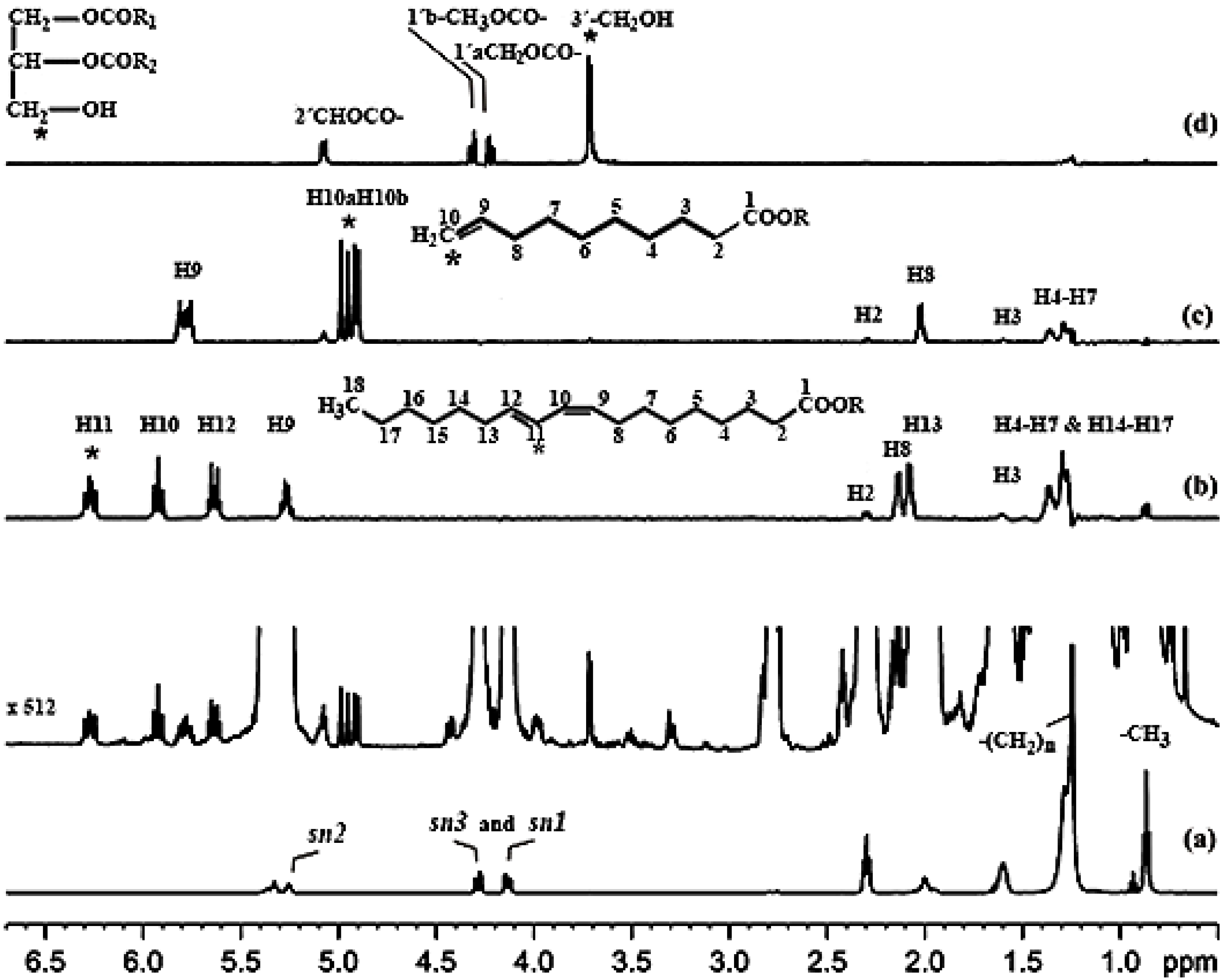

Recently the direct identification of six minor species in the lipid fraction of milk and halloumi cheese, (9 cis, 11-trans) 18:2 and (9-trans, 11-trans) 18:2 CLA isomers, caproleic acid (CA), glycerol in 1,2-diacylglyceride (1,2 DAG), 1-monoacylglyceride (1-MAG), and 2-monoacylglyceride (2-MAG), was achieved with the use of selective one-dimensional total correlation spectroscopy (1D-TOCSY). Figure 28 illustrates a 500 MHz 1H-NMR spectrum of the lipid fraction of a lyophilized halloumi cheese sample in CDCl3. Selective 1D TOCSY experiment, with 400 mixing time of the H11 proton of the (9-cis, 11-trans) 18:2 CLA isomer illustrates an effective magnetization transfer throughout the full spin system, although the signals of the H2 to H8 and H12 to H18 were completely hidden in the conventional 1D 1H-NMR spectrum under the resonances of the abundant TAG analytes with signal intensities stronger by a factor of 4 × 102 to 3 × 103. Similar experiments were performed with the selective excitation of the H10a H10b protons at 4.97 ppm of caproleic acid (Figure 28c) and at 3.72 ppm of the 3′-CH2OH proton of the glycerol moiety in 1,2 DAG (Figure 28d).
In all cases the 1D TOCSY experiment allows the complete identification of minor lipids in a time-efficient manner and with excellent resolution. The 1D TOCSY quantification was based on the standard addition method of Sandusky et al. [127]. More specific successive amounts of e.g., 0.5, 1.0 and 2.0 mM of caproleic acid were added and the resulting linear correlation was utilized for the estimation of the concentration of caproleic acid. Table 21 provides the quantification data which are in agreement with those obtained with the use of the GC-MS method of analysis (ISO 15884: 2002) [128].
Selective 1D TOCSY excitation of the bis-allylic protons at 2.82 ppm demonstrated the effective magnetization transfer to the proton of methyl group at 0.98 ppm. Similar results were obtained with selective 1D TOCSY excitation of the –CH3 group at 0.98 ppm which demonstrated the effective magnetization transfer to the bis-allylic protons at 2.82 ppm with complete elimination of the bis-allylic protons of linoleic acid at 2.78 ppm. This provided assignment that the resonances at 2.82 and 0.98 ppm should be attributed to the α-linolenic acid [123].
A selective 1D TOCSY excitation for the assignment of the weak bis-allylic protons at 2.85 ppm demonstrated not only an effective magnetization transfer to the –CH3 group at 0.98 ppm and, thus, its assignment as an ω-3 lipid, but also to a very characteristic complex resonance at 2.46 ppm. This provided an unequivocal assignment that the ω-3 lipid is the docasahexaenoic acid (DHA). These experiments clearly demonstrated that the 1D TOCSY allows for the unequivocal assignment and structure elucidation of ω-3 and ω-6 lipids in a time-efficient manner and with excellent spectral resolution [123].
Figure 29 illustrates the potential of 1D TOCSY experiment in the case of the minor components of 2-MAG and 1-MAG. The spin systems of the glycerol moieties of 2-MAG and 1-MAG were unequivocally assigned, although the 1-MAG resonances are strongly overlapped in the region of 3.75 to 3.55 ppm. The 1D TOCSY experiment can be applied even in cases of strongly overlapped resonances. Figure 30 illustrates an apparent triplet at 5.92 ppm (3J = 10.9 Hz) of the H10 olefinic proton of the (9-cis, 11-trans) 18:2 CLA which is strongly overlapped with a minor peak at 5.97 ppm which has been assigned to the composite signal of the H10 and H11 protons of the (9-trans, 11-trans) 18:2 CLA isomer. Selective excitation of the minor peak at 5.97 ppm clearly demonstrates magnetization transfer to the composite signal of the H9 and H12 resonances at 5.54 ppm which are not overlapped with other resonances of the lipid milk fraction.

5.3. Identification and Quantification of Free Fatty Acids

Free fatty acids (FFAs) in oils, waxes and various pharmaceutical excipients [129] arise from several processes including: (i) the hydrolysis of triacylglycerides (TAGs) during production and storage of the oil, (ii) handling of the row material and (iii) secondary oxidation of unsaturated aldehydes or other oxidation products originating from the cleavage of lipid hydroperoxides resulting in the formation of short chain FFAs [130].
Satyarthi et al. [131] utilized the integration of the α-CH2 methylene protons to quantify free fatty acids in non-edible lipids and biodiesel. The method is not sufficiently sensitive to detect small content of FFA in lipids due to the presence of a strong signal from the α-CH2 protons of esterified groups. Recently, Skiera et al. [129,132] utilized the integration of the free carboxylic group which is extremely deshielded. The method was applied to 305 oil and fat samples. Application to castor oil was not successful due to extensive line broadening which may be attributed to exchange with the OH protons of alcohol groups. It was, therefore, necessary to use mixtures of CDCl3/DMSO-d6 to reduce exchange rates and, thus, line widths. Non-protic hydrogen bonding organic solvents, especially DMSO-d6, have been extensively utilized in the reduction of proton exchange rates of OH groups in natural products [133,134,135,136]. 31P-NMR has been utilized to investigate FFA content in lipids, however, the method requires the derivatization of FFAs prior to 31P-NMR analysis [137,138,139]. It should be emphasized that the most successful method for the identification and quantification of FFAs is 13C-NMR in the carboxyl and ester carbonyl region (Section 3.2.1) despite the long experimental times required [140,141].

5.4. Investigation of Oxidation Products

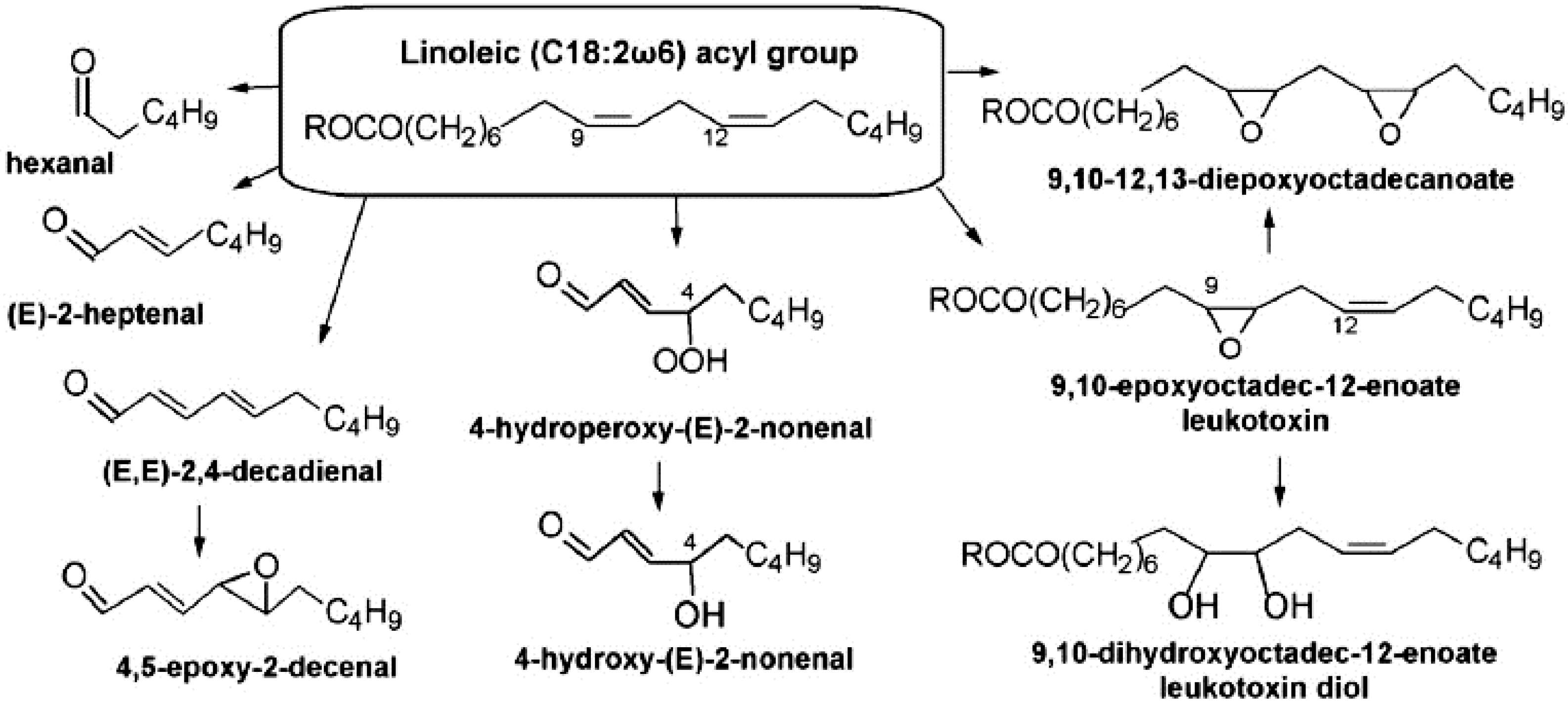

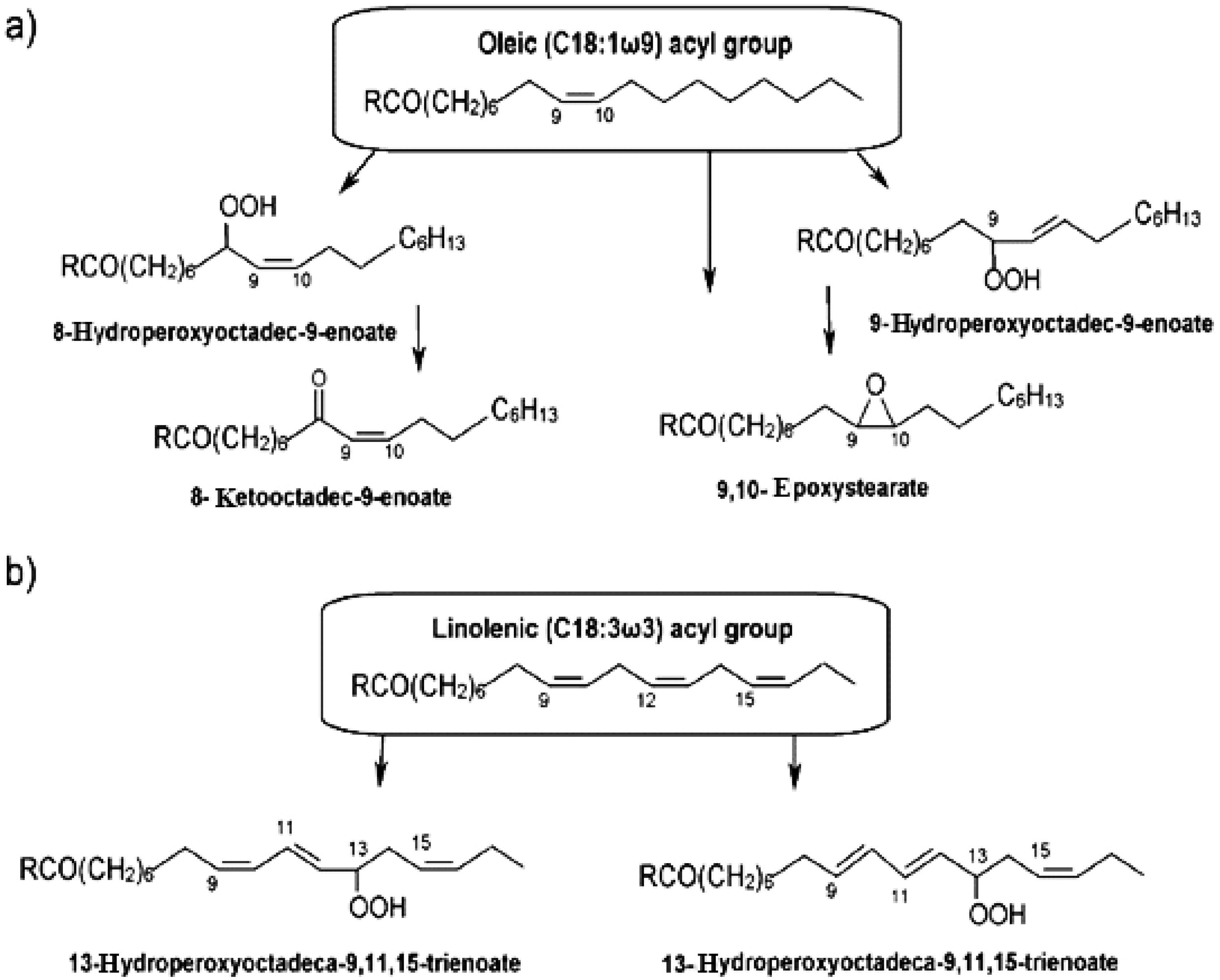

The problem of oxidative deterioration is of great economic importance in the production of lipid containing foods. Oxidation of unsaturated lipids not only produces offensive odours and flavours but can also decrease the nutritional quality and safety due to the formation of secondary reaction products. Even for a simple monounsaturated lipid, such as oleate, the autoxidation may lead to a variety of hydroperoxides and terminal products. NMR spectroscopy is regarded as one of the most reliable methods to study lipid peroxidation for two reasons: (i) it can investigate changes in the starting materials as well as the evolution of various oxidation products during the process, and (ii) does not require any chemical reaction, contrary to various spectrophotometric techniques [26,28,29].

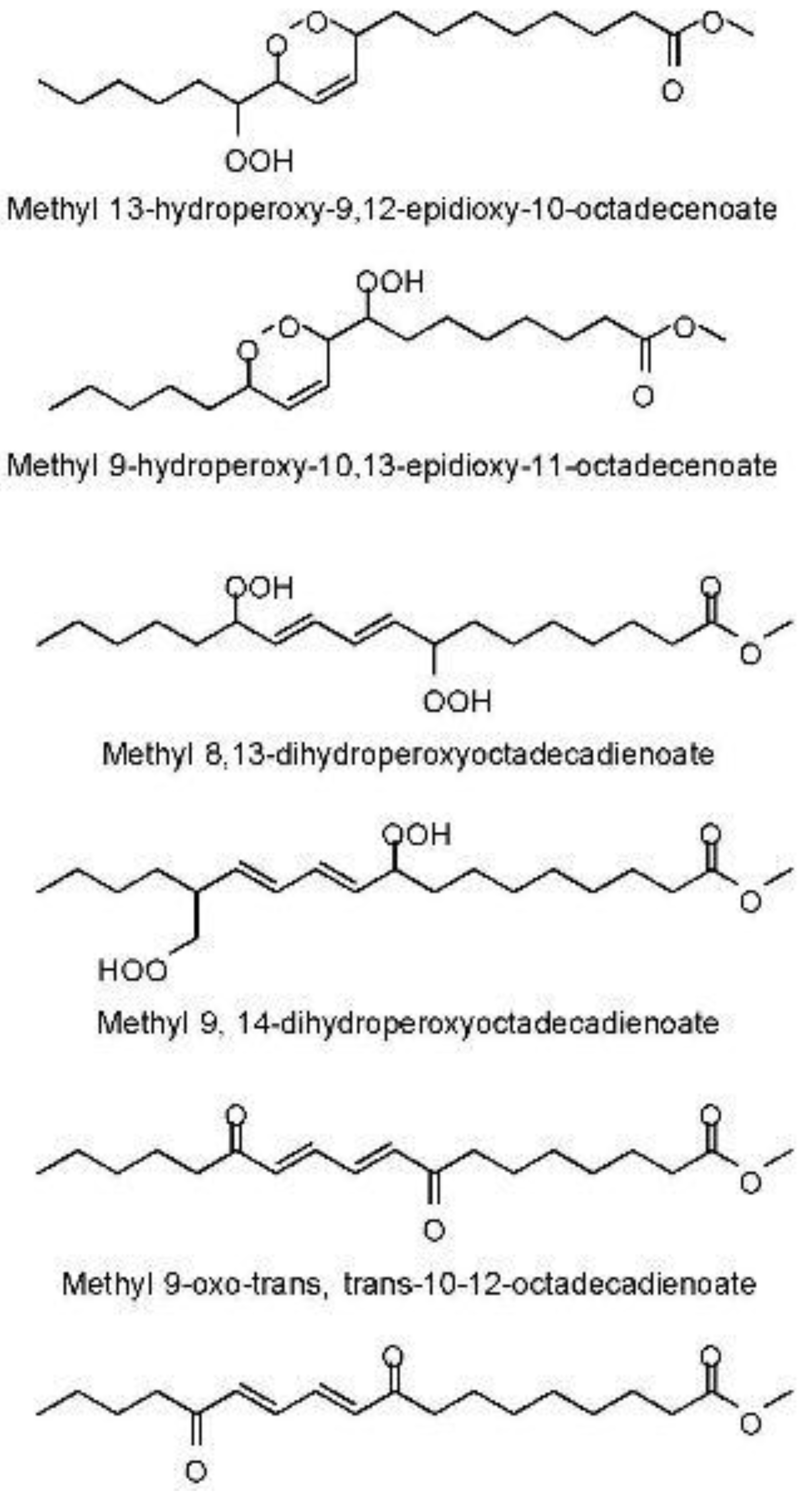

1H-NMR spectroscopy has been extensively utilized to elucidate the structures of primary and secondary products of lipid peroxidation [26,28,29]. Chan et al. [142] investigated the oxidation of methyl linoleate for 48–72 h at 30 °C and elucidated, after HPLC analysis, the structures of four major oxidized products by using a low field (90 MHz) NMR spectrometer. Similarly, Neff et al. [143], elucidated the structures of oxidized products from photoxidation of methyl linoleate (Figure 31). It should be emphasized that the six membered epidioxides undergo hydrogen abstraction, loss of O2 and rearrangement of double bonds to form other oxidized products of methyl linoleate.
1H-NMR was used by Saito [144] to determine the extent of lipid peroxidation of fish oil stored at 40 °C. A significant difference in the peak area of olefinic protons compared to the aliphatic protons was observed, which is a strong indication of oxidation. The ratios of aliphatic to olefinic protons and aliphatic to diallylmethylene protons were found to gradually increase during the oxidation of lipids and may serve as an index of oxidative degradation of oil samples [145].
Grootveld et al. [146,147,148] investigated in detail lipid oxidation products in autoxidized culinary oils rich in PUFAs which were subjected to standard frying/cooking practices. With the use of various 2D 1H-1H and 2D 1H-13C-NMR techniques the detection and quantification of trans-2-alkenals, trans-trans, and cis-trans-alka-2,4-dienals and n-alkanals were achieved.
Goicoechea and Guillen [149], have reported a detailed study of primary and secondary oxidized products of corn oil being oxidized at room temperature and provided chemical shifts and splitting patterns for a variety of oxidation products which are of importance in analysing lipid oxidation. For example, the aldehyde proton resonates at 9.3–10 ppm and a doublet signal indicates an adjacent CH group. Therefore, the doublet signal at 9.49 ppm can be regarded as (E)-2-alkenal. On the other hand, the triplet signal at 9.75 indicates an adjacent CH2 group and may be regarded as the aldehyde proton from alkanals.
Guillen et al. [26] comprehensively reviewed the use of NMR techniques to study the thermal oxidation of food lipids. In addition to thermal oxidation, the concentration and nature of the compounds formed were also described. Table 22 presents chemical shifts and multiplicities of the 1H-NMR signals in CDCl3 of some primary and secondary (or further) oxidation compounds generated in edible oils and model lipid compounds submitted to different degradative conditions [149,150,151,152,153,154,155,156,157,158,159,160,161,162,163]. These include various types of aldehydes, ketones, alcohols and epoxides. The formation of these secondary oxidized compounds depends upon composition of the original food lipid and thermo-oxidation conditions used.
It is worth noticing that aldehydes are, generally, considered to be the secondary oxidation products, all α,β-unsaturated aldehydes have conjugated double bonds and few of them have hydroperoxy groups as well. This indicates that neither conjugated diene nor the hydroperoxy group are exclusive primary oxidation products. Figure 32 illustrates some primary oxidation products derived from unsaturated oleic and linolenic acyl groups. Figure 33 illustrates secondary and further oxidation products derived from linolenic acyl groups.

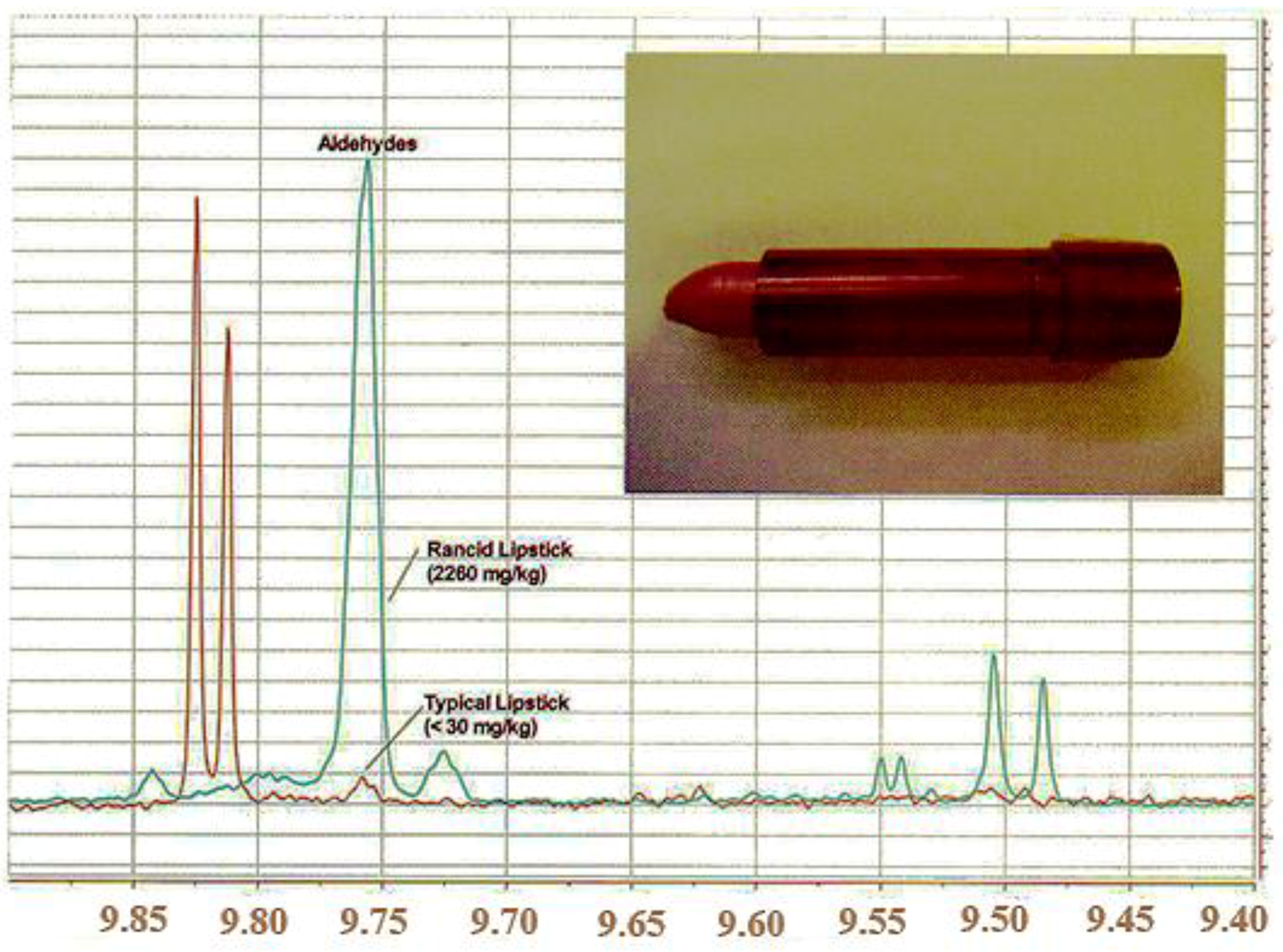

Skiera et al. [164] suggested a 1H-NMR method for the quantification of hydroperoxides in edible oils. Proton transfer line width broadening of the hydroperoxide (OOH) signal was significantly eliminated using a mixture of CDCl3 and DMSO-d6 (5:1 v:v) and, thus, accurate integration could be obtained. The method was applied to 200 edible oil samples and the analytical performance was compared with the commonly used method of peroxide value (PV). Significant discrepancies between the two methods for some oil varieties were observed. The low hydroperoxide values in the case of olive oils compared with the NMR values were attributed to the high content of specific phenolic compounds which exhibit strongly deshielded 1H-NMR chemical shifts in the region of hydroperoxide signals [165,166,167].

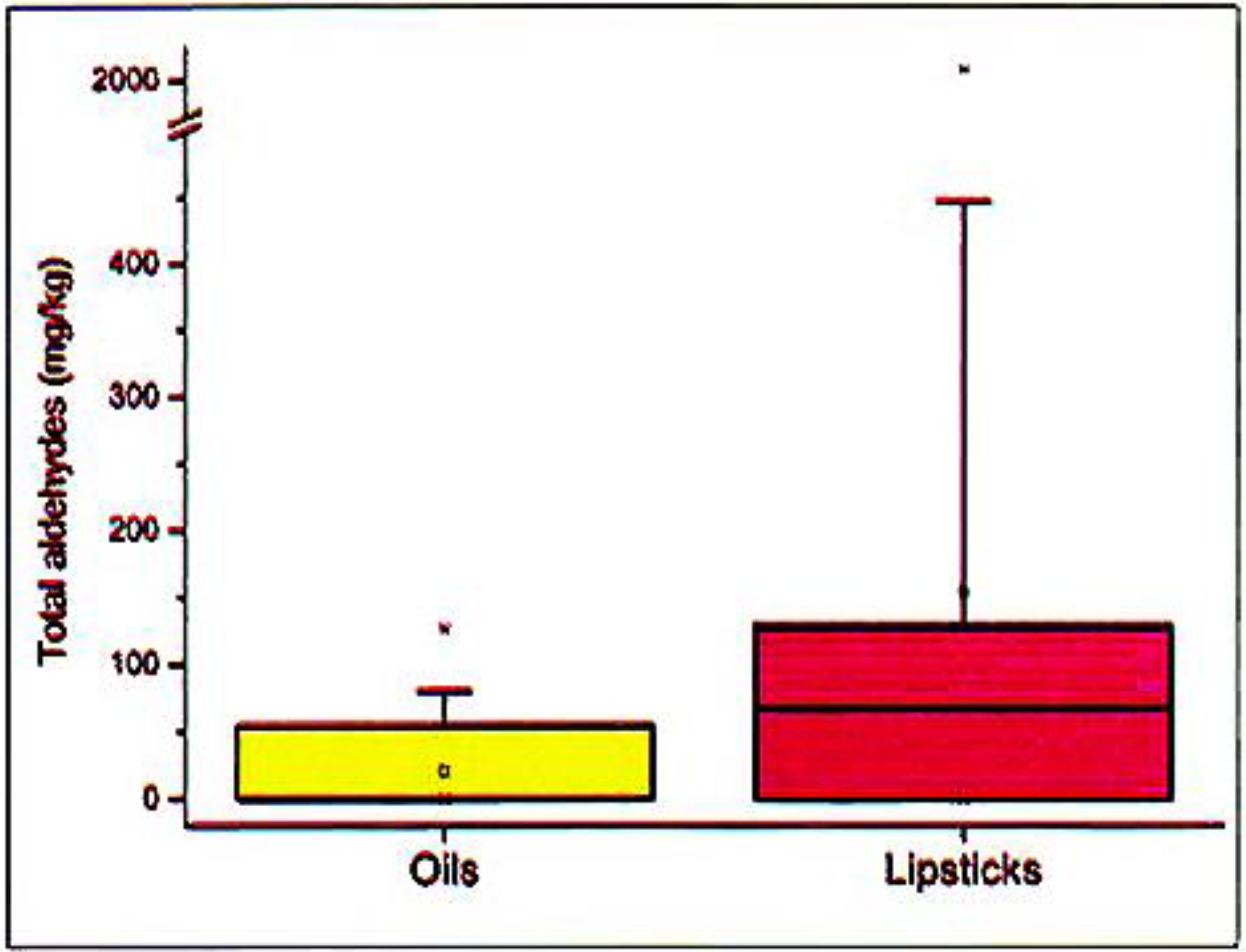

Lachenmeier et al. [166] utilized the aldehyde proton resonances in the region of 9–10 ppm for quality control of vegetable oils and decorative cosmetics. The method was used to analyze 72 oil and 38 cosmetic samples in order to investigate their compliance with food and cosmetics regulations. 22 samples (31%) from the vegetable oil, contained detectable levels of aldehydes. Only two samples contained levels above 100 mg kg−1 (Figure 34). 26 samples (68%) from the analyzed 38 lipsticks were found to contain aldehydes above the detection limits and 15 had levels above 100 mg kg−1. One sample, which was characterized by a rancid state, was found to contain over 2000 mg kg−1 of total aldehydes (Figure 35). It was concluded that lipsticks are problematic with regard to oxidative stability presumably due to relatively high temperatures (>75 °C) used and the presence of pro-oxidants, such as iron oxides, which may be contained as pigments.

5.5. LC-NMR

LC-NMR is one of the most powerful methods for separation and structural elucidation of unknown compounds in mixtures [169,170,171,172,173]. LC-NMR, thus, represents a potentially interesting complementary technique to LC-MS in analysis of complex biological matrices for the detailed on-line structural analysis of products. However, there is a very limited number of recent publications about applications that can demonstrate the usefulness of this technique in lipid analysis.
LC-NMR was used for the quantification of α- and γ-linolenic free fatty acids resulting from blackcurrant (Ribes nigrum) hydrolysis reaction [174]. A 2D reverse phase HPLC method with two HPLC columns, C8 and C18 in a series, was utilized. The results were found to be in agreement with the GC method on FAME.

5.6. Lipidomics

Lipidomics is a subfield of metabolomics that focuses on the study of molecular lipids within a cell, tissue, and biofluids, including the analysis of lipid species and their abundance as well as studies of their biological activities, subcellular localization, and tissue distribution [175,176,177]. The most commonly applied analytical methods for lipidomics are based on MS, often combined with chromatographic separation methods such as LC and GC. Several hundreds of lipids can be separated with the UPLC-MS methodologies in the profiling studies of various biological matrices. For sufficiently volatile lipids, GC-MS and GC coupled to flame ionization detection is the most widely used method for the analysis of FAs, both for FFAs and esterified FAs. Nevertheless, a significant number of studies have used NMR in the field of lipidomics including composition and authenticity of oils, quality and identification of dairy products and their provenance and geographical origin quality, and lipoprotein analysis in serum/plasma. Some representative examples will be analyzed below.

5.6.1. Authentication and Quality Assessment of Oils

Extra virgin olive oil is the most investigated oil due to its high quality nutritional and sensorial properties and, thus, high commercial value. This frequently leads to adulterations with low quality oils of different botanical origin or refined olive oils. Furthermore, the analysis and monitoring of olive oils of specific protected geographical origin is a challenging analytical problem for NMR spectroscopy because there is no single physicochemical parameter which allows a comprehensive investigation [178,179]. Therefore, emphasis has been given to food fingerprinting with the intrinsic aim to detect as many compounds in the metrics as possible. Mannina and Sobolev provided a comprehensive overview of high resolution NMR characterization of Mediterranean olive oils in terms of quality, authenticity and geographical characterization [180]. Dais and Hatzakis investigated, with the use of NMR, the geographical and varietal classification of extra virgin oil [181] and provided a comprehensive overview of NMR methods for quality control and authentication of olive oil through metabolic profiling or fingerprinting [182].
1H-NMR investigations of a large number of oil samples and subsequent PLS-DA statistical analysis demonstrated the correct, up to 90%, sample classification/prediction [183,184,185]. 1H NMR was utilized to predict the geographical origin of olive oil samples (three regions from Italy and four regions from Greece) with a use of data bucketing and PSA and by a Monte Carlo embedded cross-validation [73]. Due to the rather limited number of samples which were investigated, correct prediction probabilities of 78% were achieved with region specific correct predictions of 53% to 100%. 1H-NMR and isotopic fingerprinting were utilized to investigate the geographical origin or protected designation origin (PDO) of 125 virgin olive oils from five Mediterranean countries, using a variety of supervised or unsupervised statistical tools [186]. Mannina et al. [187] investigated by 1H NMR the presence of refined hazelnut oil in admixtures with refines olive oils. Analysis of 92 samples with multiple regression models predicted, with R2 >0.9984, contamination of hazelnut oil in olive oil at concentrations as low as 10%.

5.6.2. Authentication and Quality Assessment of Dairy Products

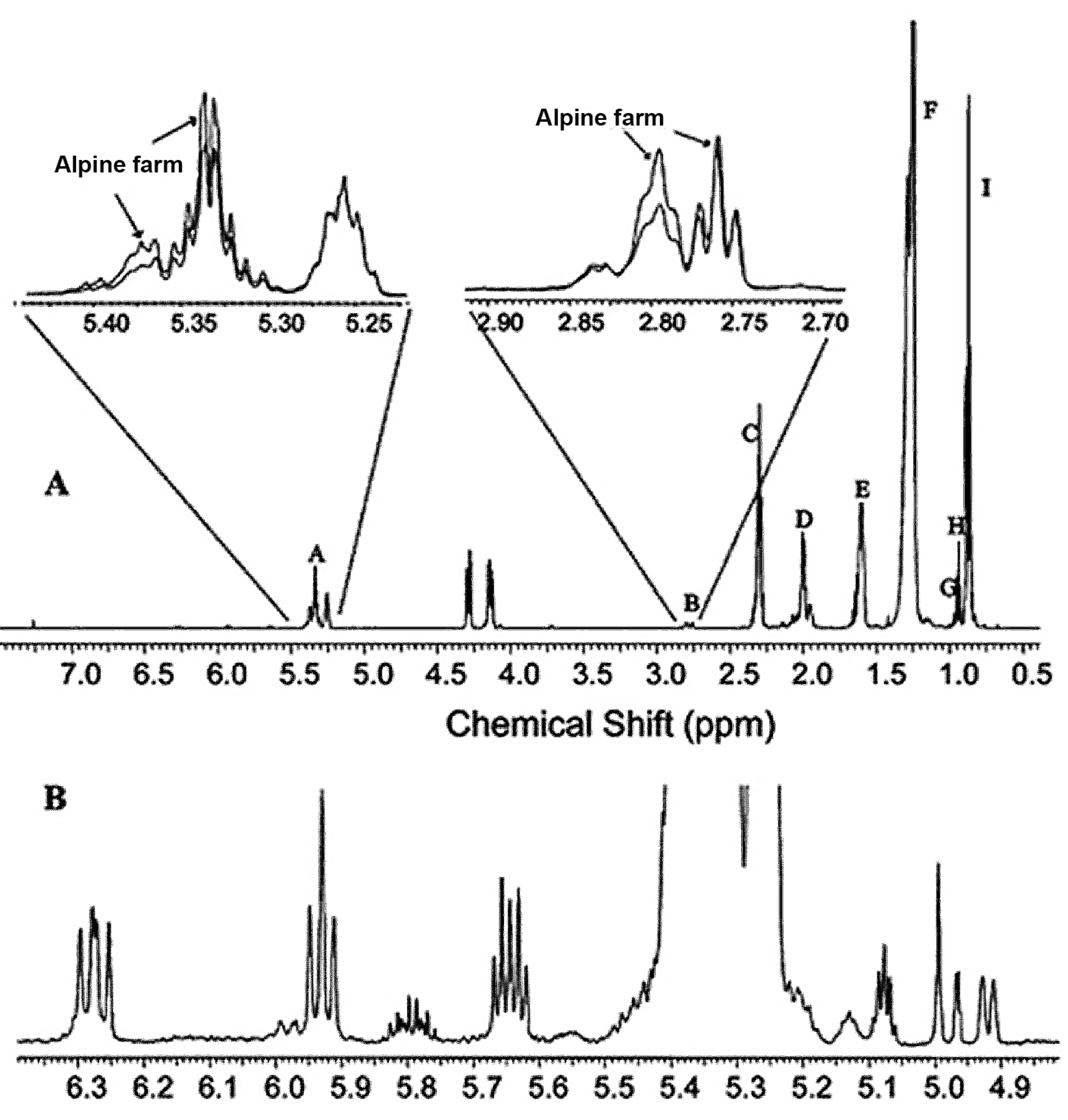

1H-NMR was used to characterize the lipid fraction of buffalo and cow milk samples [188]. Multivariate statistical analysis of the quantification results permitted buffalo and cow milk to be differentiated. The total concentration of saturated and unsaturated FAs were eliminated from the data since they were found to be highly correlated with the MUFA concentrations.
Schievano et al. [189] utilized a combination of 1H-NMR selective 1D TOCSY, 13C and 1H-13C HMQC to discriminate Asiago d’ Allevo cheese samples. The cheese, which is produced from raw dairy milk, has a protected denomination of origin (PDO) mark. Figure 36 illustrates selected regions of the 1H-NMR spectrum of a representative cheese sample from an alpine farm and comparison with the spectrum from an industrial factory (insets in Figure 36). A higher amount of unsaturated fatty acids, both in the olefinic and bis-allylic regions, were observed in the cheese from alpine farms. A statistical analysis of the NMR spectra of the lipid fraction demonstrated that the cheese samples from alpine farms are clearly separated from the remaining ones and are clustered in the left side of the PCA plot. The loadings in Figure 37 demonstrate PC1 negative values for the olefinic and allylic protons, the methyl groups of linolenic acid and the bis-allylic protons in which case the higher contribution is from linolenic acid. On the contrary, PC1 loadings show positive values for the saturated fatty acids. It was concluded that cheeses produced in alpine farms are significantly different i.e., they contain higher amount of PUFA, from those produced in low land and mountain industrialized factories based on objective NMR metabolite parameters.

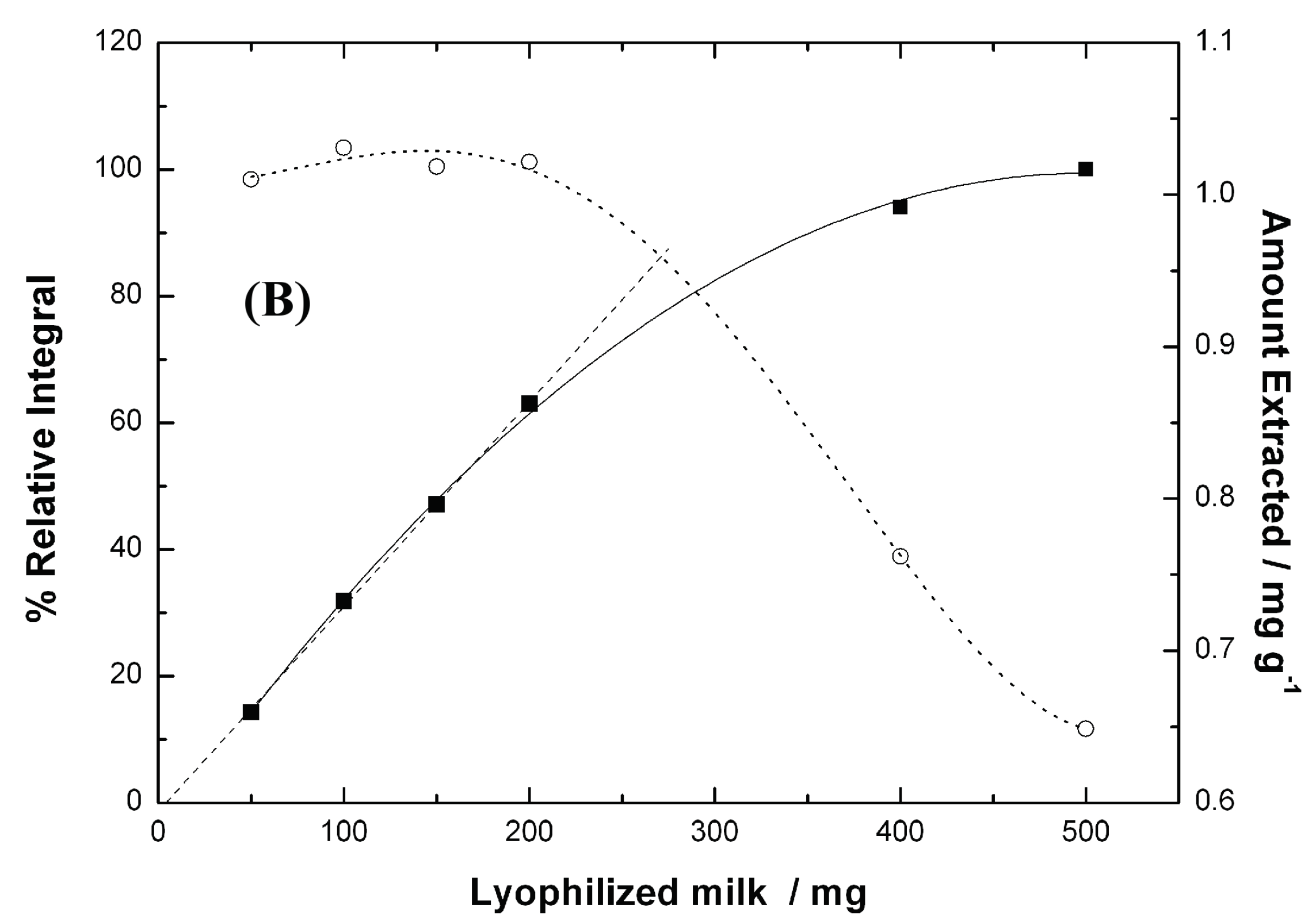

Of particular interest is the application of 1H-NMR to whole milk without any pre-treatment [190]. The 1H-NMR signals of butyric acid, mono and polyunsaturated fatty chains and lecithin have been assigned using 2D NMR experiments.
Chemometric analysis of 1H and 13C-NMR, stable isotope-ratio mass spectrometry and GC data was utilized to differentiate organic and conventional milk [191]. Yang et al. [192] investigated metabolic biomarkers of the water soluble fraction of milk from Holstein cows and other minor dairy animals. Data of the lipid fraction, however, were not reported.

5.6.3. Authentication and Quality Assessment of Fish and Meat Lipids

The increasing production and consumption of fish products, has led to an increasing demand for analytical methods for the unequivocal determination of wild vs. farmed specimens, ecological products and geographical origins. The lipid variability and profile of fish is very large with about 20 fatty acids in relative amounts >1%.

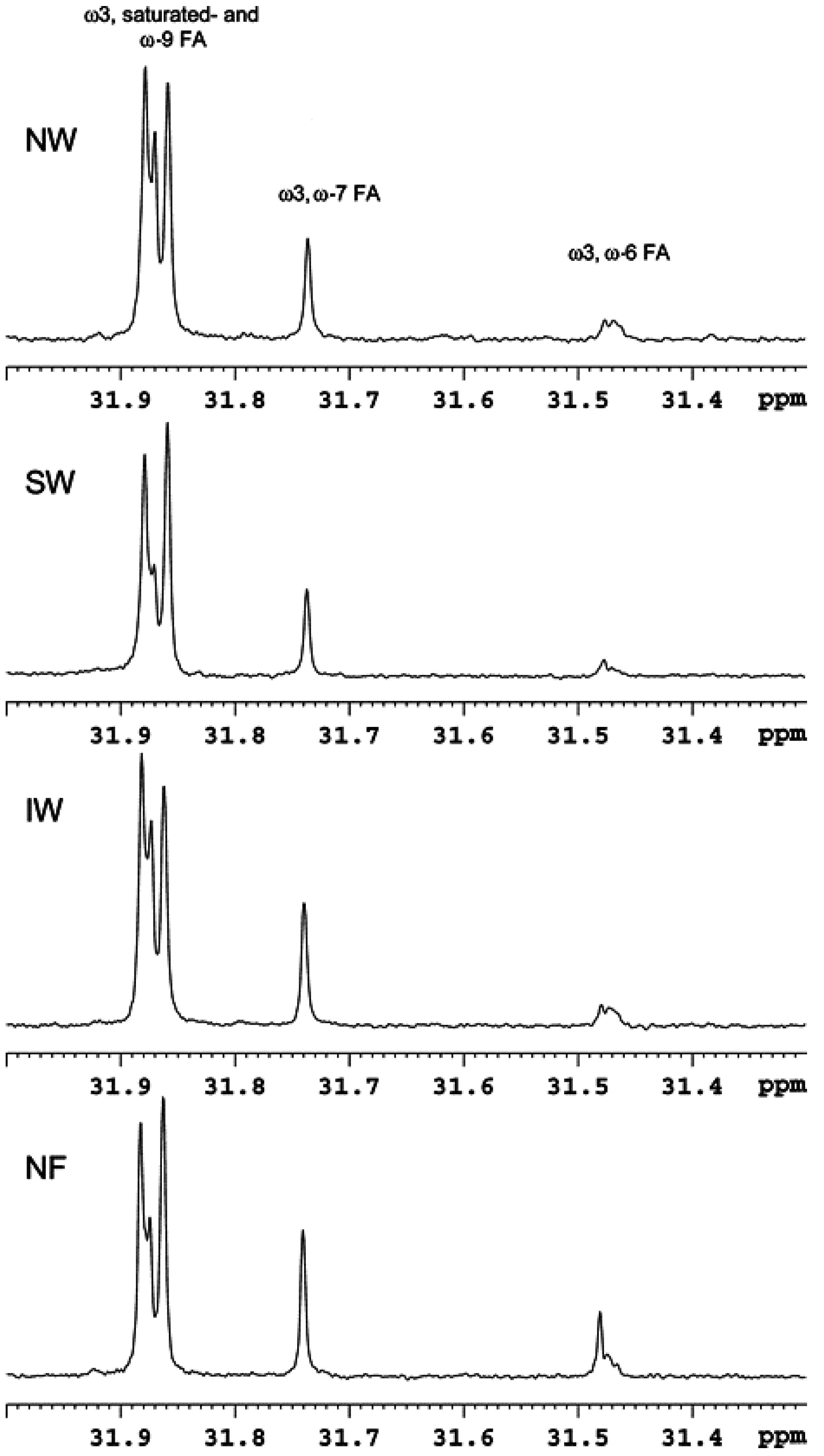

Aursand et al. [193] utilized 13C-NMR and pattern recognition techniques for the discrimination of farmed and wild Atlantic salmon (Salmo salar L.), different geographical origins and verification of the origin of market samples. Muscle lipids of 195 samples from seven different countries in addition to market samples, were analyzed. Excellent discrimination (98.5% to 100%) was achieved between wild and farmed salmon. Correct classification with respect to geographical origin was from 82.2% to 99.3%. The farmed fish was found to have a relatively high level of ω-6 fatty acids, abundant in vegetables oils, compared to the wild fish (Figure 38). 13C-NMR was used for the regiospecific analysis of TAG in fish oils [194]. Through PCA analysis, it was concluded that the chemical shifts of the sn-2 MUFAs and SFAs contribute mostly to the classification of different salmon species. 13C-NMR was also applied for the classification of 112 commercial fish oil capsule products using unsupervised multivariate analysis, Kohonen neural networks and generative topographic mapping [195]. 1H-NMR profiling of lipids extracts combined with PCA and LDA was used to classify wild and farmed samples of gilthead sea bream from the Mediterranean region [196] and to investigate the effect of various production practices.
Although the glycerol carbon atoms are usually considered to be less sensitive to individual asymmetric distribution, Diehl et al. [197] were able to investigate detailed regiospecific analysis of the FA distribution in neutral and polar lipids from krill oil. In contrast to fish oil where EPA and DHA are found in the TAG form, krill oil is characterized by lower amounts of TAG. Figure 39 illustrates the dominant presence of PUFAs and more specific of DHA and EPA in the sn-2 position of phosphatidylcholine (PC).

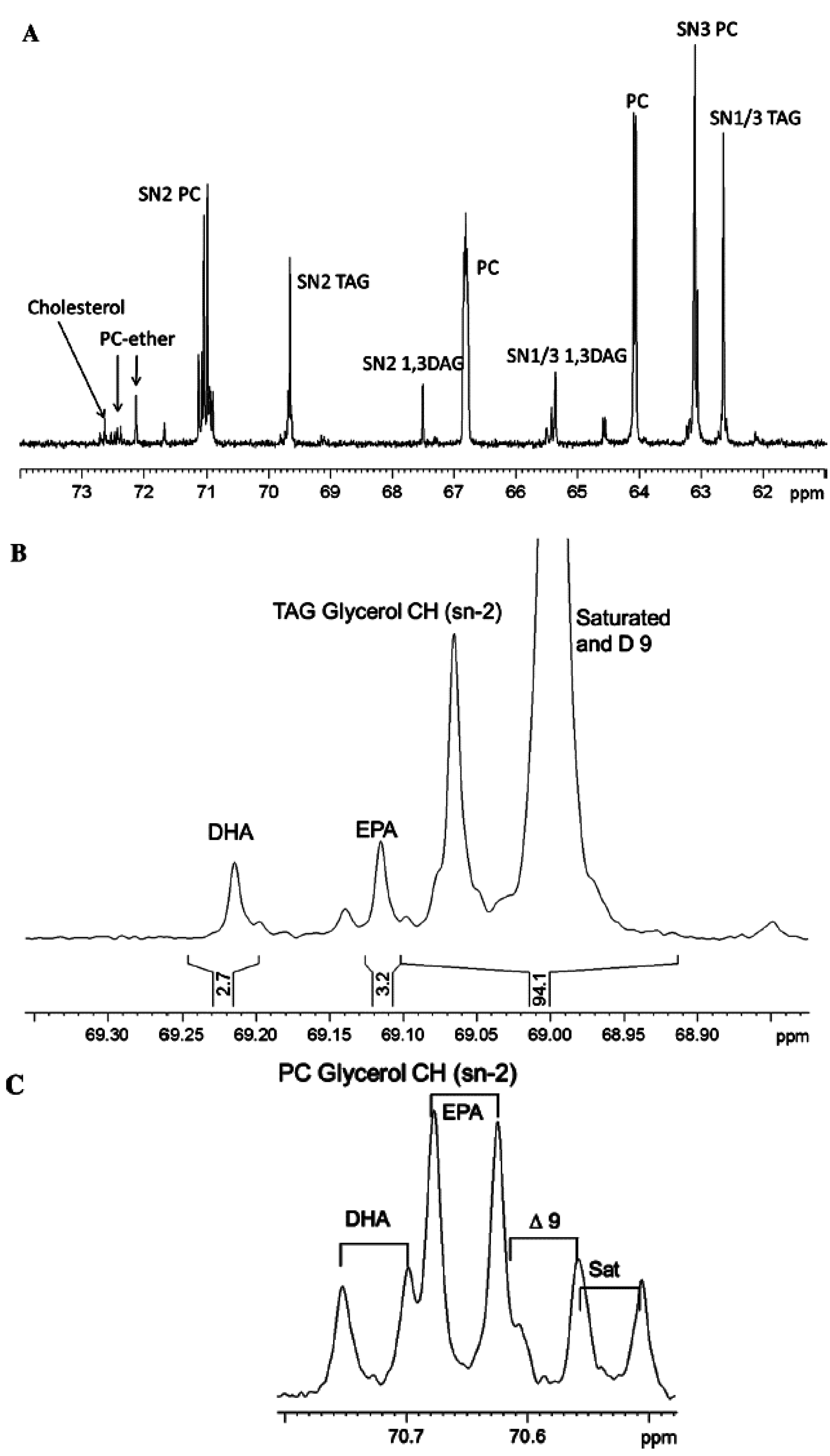

31P-NMR was validated, with regard to major phospholipid species of krill oil, according to Good Laboratory Practice (GLP) and International Council for Harmonization (ICH) guidelines [197]. It was demonstrated that the method is highly accurate, sensitive, reproducible and robust regardless of the type of NMR spectrometer used by different laboratories.
1H-NMR has also been used in meat authentication and determination of geographical origin and investigation of adulteration practice of mixing meat from different species or tissues. Al-Jowder et al. [198] reported that 1H-NMR can be utilized to distinguish liver, kidney and muscle tissues of beef. Authentication of beef vs. horse meat was achieved using a very low frequency (60 MHz) instrument [199]. The analysis of 107 extracts was based on the 1H-NMR signals of olefinic, bis-allylic, and terminal –CH3 groups. 1H-NMR fingerprinting of lipids with chemometric tools allowed the detection of irradiated vs. non irradiated beef samples [200]. NMR and isotope ratio mass spectrometry was used to characterize animal products according to geographic origin and feeding diet [201]. 13C-NMR demonstrated that the degree of saturation of FAs and MUFAs was significantly higher (p < 0.005) for animals fed on maize silage than for grazing steers (vice versa for PUFAs and SFAs).

5.6.4. Serum/Plasma Lipoprotein Analysis

Several human diseases show abnormal patterns of unsaturated fatty acids especially due to insufficient capabilities for desaturation or chain elongation. Therefore, the assignment and quantification of individual unsaturated fatty acids in body fluids are of great importance. Willker and Leibfritz utilized a semi-selective 1H-13C HSQC experiment [86,89] to obtain ultra-high resolution in the 13C double bond region (~0.7 Hz per point) and, thus, to assign and quantify individual unsaturated fatty acids, such as 18:1, 18:2 and 20:4 in body fluids (blood plasma and cerebrospinal fluid) and pig brain (grey and white matter). Additional 1H-13C HSQC-TOCSY experiments allowed the direct correlation between the olefinic 13C signals with the adjacent allylic 1H signals. Figure 40 illustrates selective 800 MHz 1H-13C HSQC-TOCSY spectrum of the double bond region of blood plasma lipids. In the C=C–CH2–C=C region the 18:2 signals are well separated from 18:3 and 20:4 polyunsaturated fatty acids. In the C=C–CH2– region the 18:1 and 20:4 signals are well separated from the rest of the lipids [89].

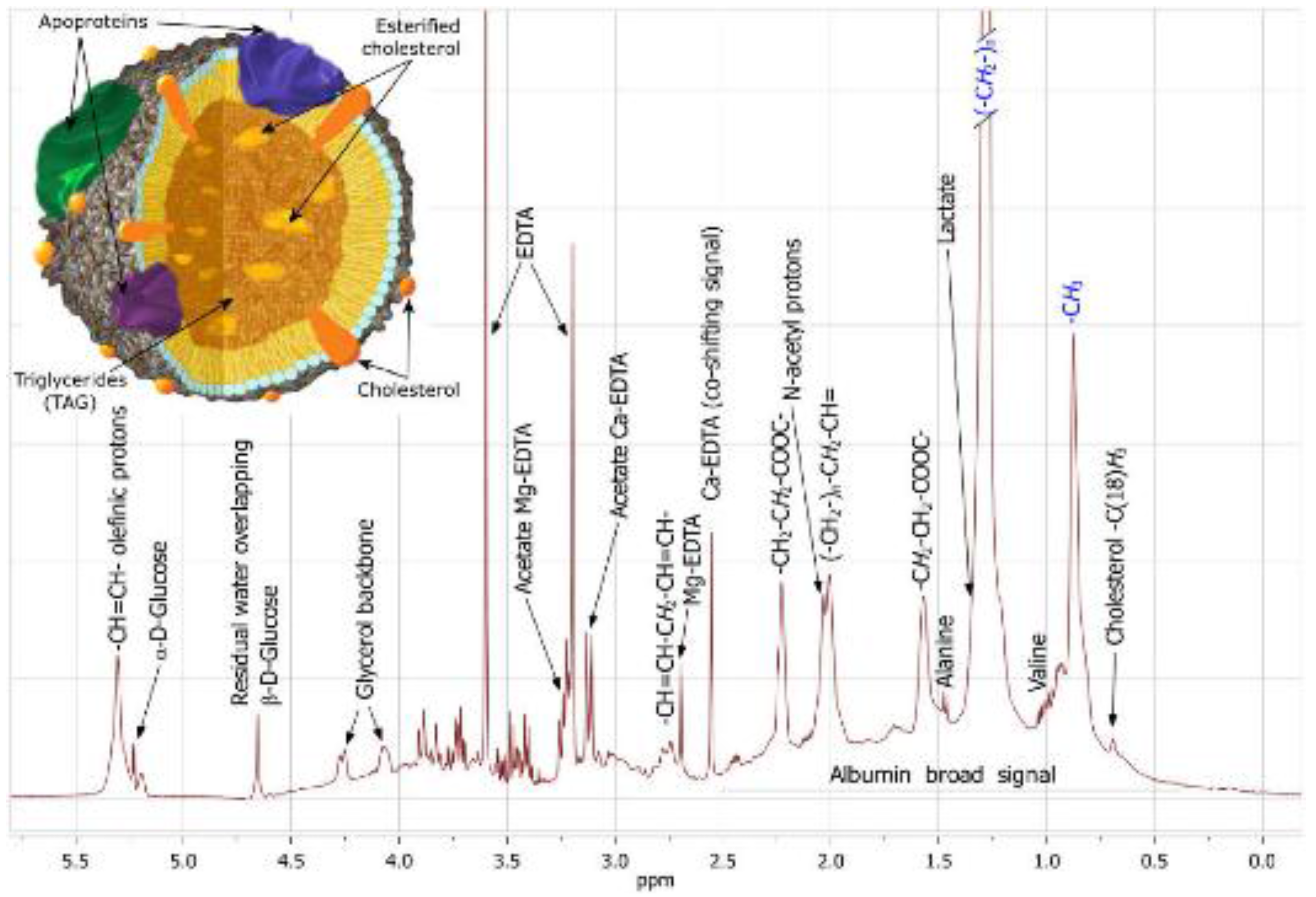

NMR spectroscopy has been extensively utilized for the qualitative and quantitative determination of lipoproteins, cholesterol and triacylglycerides (Figure 41 [202]) and the number of sub fraction articles and their size [203,204]. Numerous studies have been reported to monitor changes in the organization of lipids within particle subclasses [205], to investigate the effects of exercise on lipoprotein profile [206], changes in lipids induced by diet therapies [207], lipoprotein analysis in the study of diabetes and related diseases [208], in assessing CVD risk [202] and in investigating the progression of coronary heart disease [209]. Readers should consult a recent comprehensive review article [203].
A diffusion-edited NMR spectrum enhances the NMR signal of lipoproteins and removes signals from small metabolites [210]. This allows the composition of the constituent lipids of lipoproteins to be assigned and analyzed, through the acquisition of a set of diffusion-edited NMR spectra with an increasing strength in gradient, which enables the translational diffusion coefficients to be calculated.
For the quantification of cholesterol and triacylglycerides in several sub fractions and the calculation of particle number, the decomposition of the CH3 groups and/or correlation statistical methods have been utilized [211,212,213]. Peak overlapping, however, is very severe which makes the lineshape fitting to individual sub fractions problematic and prone to finding multiple solutions [204].

5.7. Investigation of Lipid-Derived Molecules

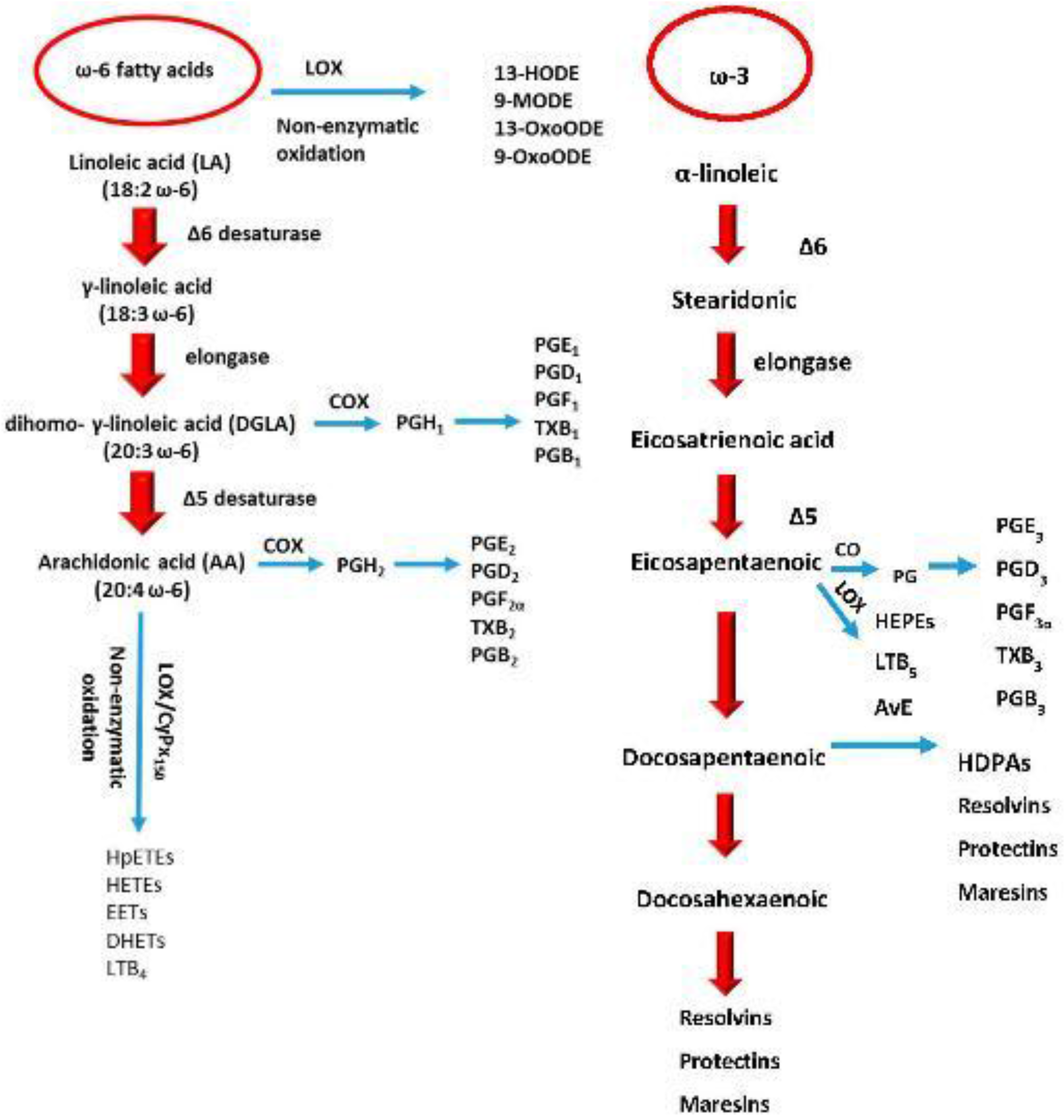

Lipid-derived molecules play a pivotal role in many biological processes including cellular signaling, secretion and cellular proliferation [214]. Brash et al. [215] isolated and characterized two geometric allene isomers synthesized from natural 9S-hydroperoxylinoleic acid by allene oxide synthese cytochrome P450 CYB74C3. The obtained results, especially of a novel 10 cis isomer, provided insights into the mechanisms of allene oxide cyclization and the double bond geometry in naturally occurring allene oxides.
Liu et al. [216] characterized by GC-MS and 1H-NMR several dihydroxylated metabolites derived from α-linolenic acid (9(R),16(S)-dihydroxy-10E,12E,14E-octadecatrienoic acid, 9(S),16(S)-dihydroxy-10E,12E,14E-octadecatrienoic acid, 9(S),16(S)-dihydroxy-10E,12Z,14E-octadecatrienoic acid, and 9(R),16(S)-dihydroxy-10E,12Z,14E-octadecatrienoic acid) treated by soybean 15-lipoxygenase (sLOX). Despite the use of a 1 GHz (23.4 T) NMR instrument several selective decoupling, 2D DQF COSY, and 2D-J resolved experiments were necessary for unequivocal assignments of the resulting dihydroxylated metabolites. Mono- and dihydroxyresolvins from EPA and DHA using soybean 15-lipoxygenase were also investigated [217]. Of particular interest is the use of D-camphor ketals as 1H-NMR shift reagent to investigate the unusual stereochemical configuration of an endosome-specific lipid [218].

5.8. Protein-Lipid Interactions

Large amounts of free fatty acids, FFA, circulate in mammalian plasma and play significant role in a variety of physiological activities, as substrates for complex protein-lipid interactions and in important signaling events [219,220]. FFA are present in blood at concentration from about 100 μM to more than 0.1 mM. The pool of circulating FFA is composed of approximately forty distinct molecular species. The FFA profile is expected to reflect the physiological state and changes in the profile have been correlated with diseases [221].

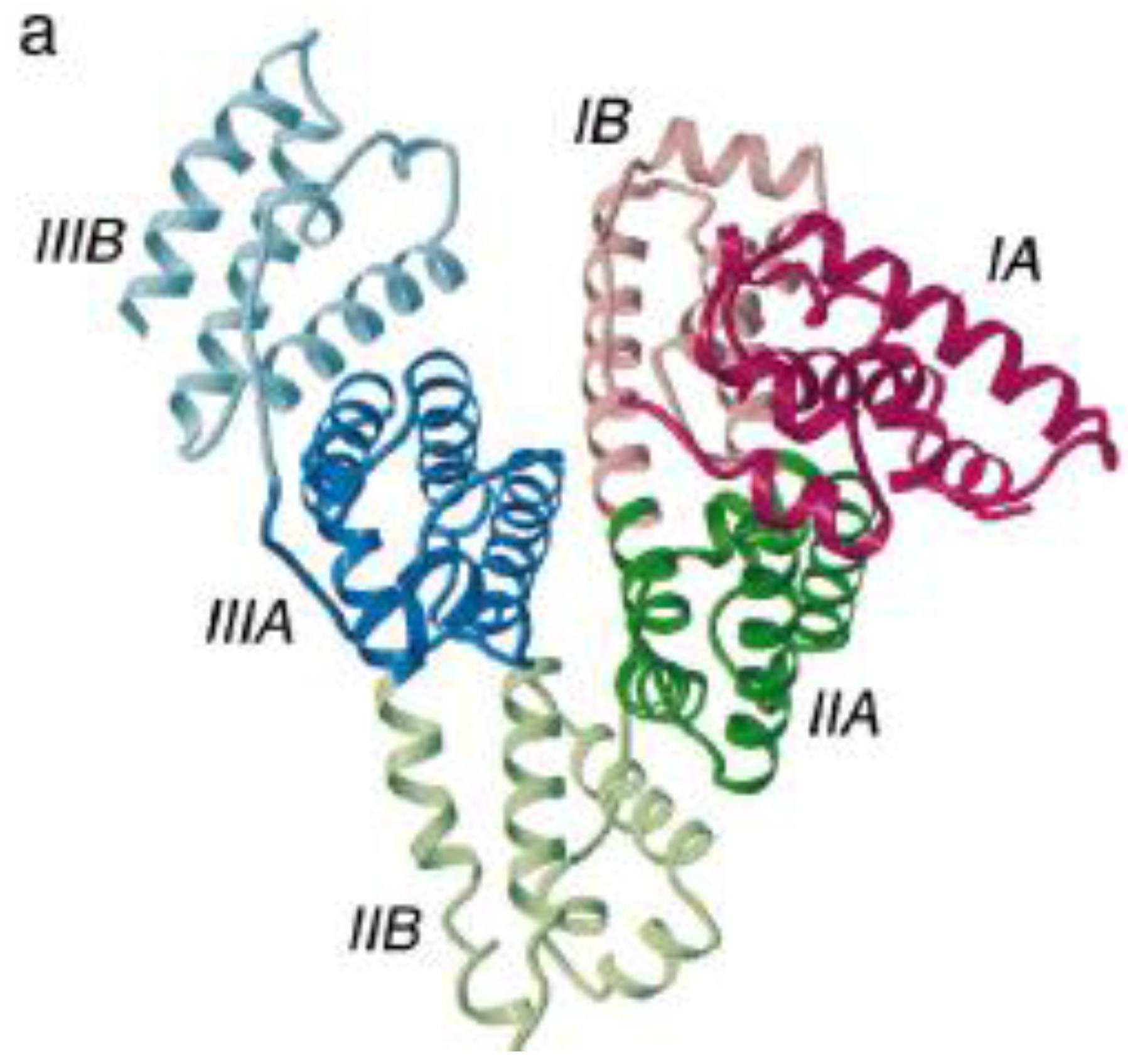

Many FFA are bound to serum albumin. Under normal physiological conditions 0.1–2 moles of fatty acids are bound to albumin. The fatty acid ligands are in rapid exchange between solution and their binding sites in the protein. Human serum albumin (HSA) is a monomeric protein of 585 amino acids with a molecular weight of 66.4 kDa. The X-ray structure determination [222,223] demonstrated that the protein is 67% α-helical, without β-sheets, with three homologous domains (labeled I–III) and 17 intra-subdomain disulphide bridges which are conserved across species and contribute to the high thermostability of the protein. Each domain is comprised of two subdomains. The X-ray structure of the complex of HSA with myristate revealed six fatty acid binding sites [224]. Five of the sites (numbers 1–5 in Figure 42) are characterized by a strong electron density of the ligand [225]. The sixth ligand was tentatively assigned at the interface between the subdomains IIA and IIB. The binding sites 1, 4 and 5 are within a single subdomain in IB, IIIA and IIIB, respectively. The binding sites 2 and 3 incorporate residues from different domains [225].

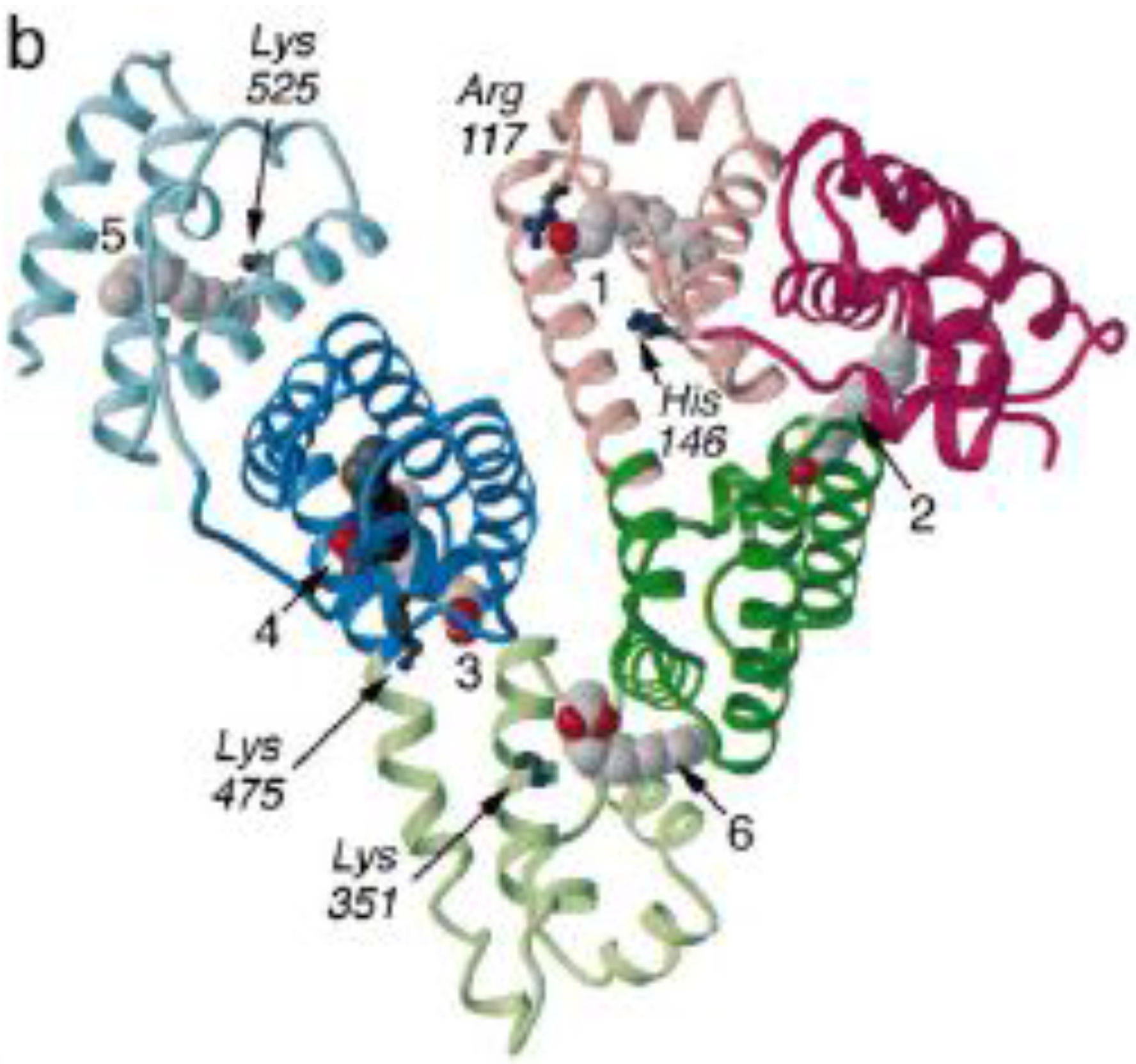

A number of biochemical labeling and NMR experiments [226,227,228] implicated domains I and III in fatty acid binding. In particular, NMR studies using fatty acids selectively labeled with 13C demonstrated that the carboxylate group of the fatty acid ligand was bound more tightly in the binding site due to electrostatic interactions, than the flexible hydrophobic methylene chain [229,230]. Subsequent NMR studies with 13C-labeled laurate, myristate, palmitate, stearate and oleate were interpreted with the existence of at least five distinct chemical shifts for the carboxylate carbon due to five distinct binding sites with BSA [231,232,233]. Variation of the pH revealed that four of the five binding sites are involved in electrostatic interactions in the pH range of 4-8 due to ionic hydrogen bonds between the carboxylate group of the fatty acid and side chain of basic aminoacids, such as arginine or lycine. It should be noticed that the X-ray structure demonstrates ionic hydrogen bond interactions for all six binding sites. Comparative NMR studies of intact and proteolitic fragments of BSA identified three high-affinity sites of oleic acid [226], one in domain I and two in domain II.
Detailed NMR studies of the binding of 13C-carboxyl labelled palmitate to HSA in the presence of competitor ligands and drugs, for specific binding sites, allowed the location of high and low affinity fatty acid and the correlation of specific binding site from the X-ray structures to specific 13C-NMR signals.

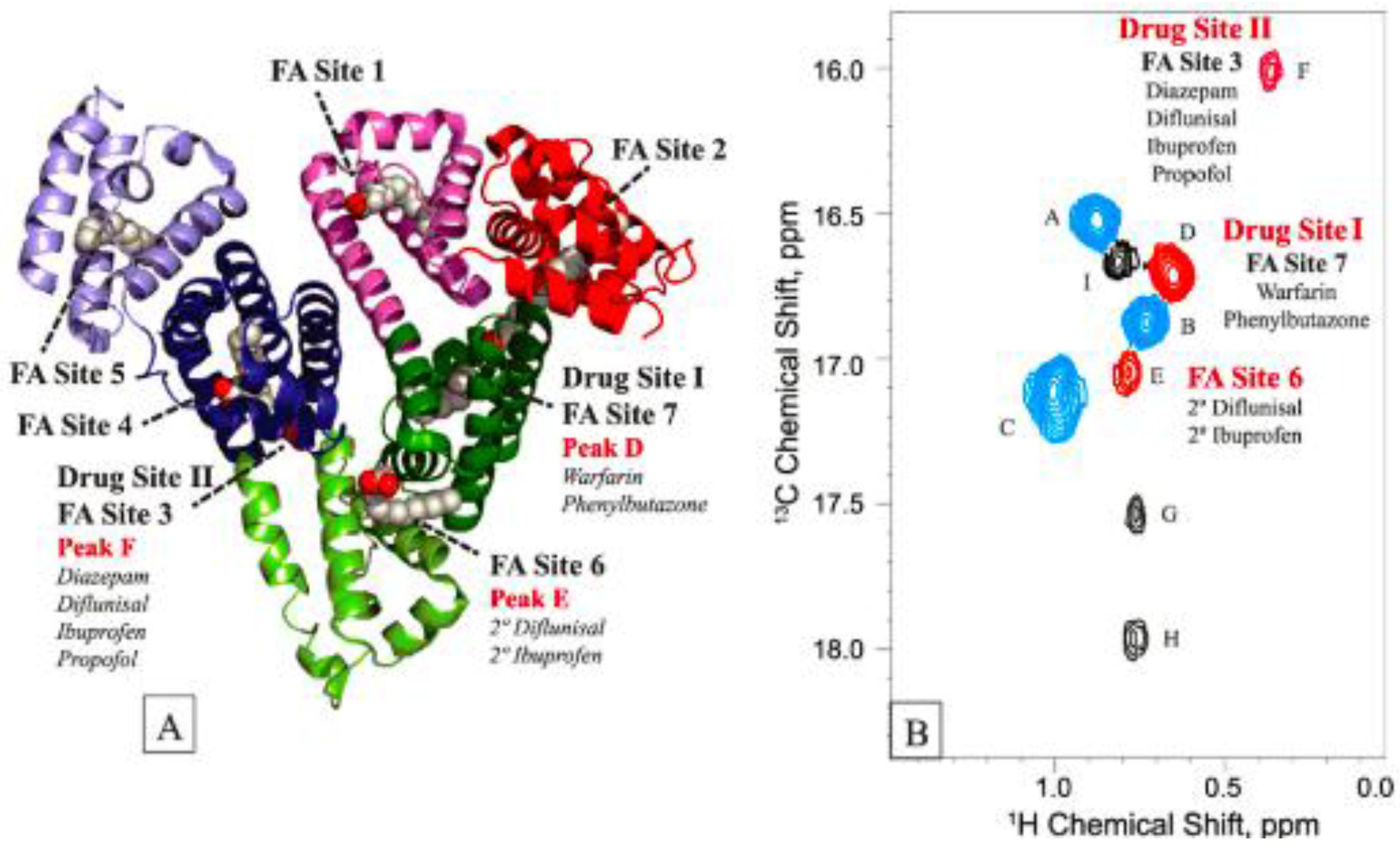

Figure 43 illustrates a strategy of resolving and identifying peaks by drug competition. FA site 1 appears as a well-resolved peak and FA site 2 with enhanced resolution. The propofol (PFL), site II drug, displaces FA from sites 3 and 4 and, thus, 4 attenuates the NMR peaks corresponding to those sites. Displacement of FA from these sites leads to enhancement of the signal from site 1 [234]. It was demonstrated that fatty acid sites 2,4 and 5 bind FA with high affinity, while sites 1, 3, 6 and 7 exhibit low affinity to FA. More recently, the enhanced sensitivity and resolution of 1H-13C HSQC experiments using [13C]-methyl-labeled oleic acid 18:1 provided evidence of nine distinct binding sites to HSA (Figure 44) [235]. Individual binding sites were detected in the NMR spectra since the binding sites are structurally distinct and the binding site exchange rates are slow in the NMR time scale. Detailed analysis of competition experiments, with a wide range of drugs, provided evidence for site-specific characterization of the mutual effects of FA and ligand binding [235,236].
NMR studies have not been published using isotopic labeling of specific protein aminoacids with 13C and 15N to investigate the effect of pH on fatty acid binding. Furthermore, to the best of our knowledge, saturation transfer difference (STD) [237,238,239] and Tr-NOESY [240,241] experiments for unsaturated lipids have not been applied. These experiments would allow the rapid characterization of the binding epitope of the ligand closest to the receptor and the conformational changes upon ligand binding without the need of selectively enriched lipids.

6. Practical Considerations

6.1. Preparation of Solid and Liquid Samples

The sample preparation includes sampling, concentration and homogenation. In the case of dairy products specific methods of conservation should be used in order to preserve the quality and the composition of nutrients. For animal tissues, rapid metabolic changes can be quenched by a rapid freezing in liquid nitrogen after slaughter [24]. Lyophlization is a common method for long-term stability of samples which increases the efficiency of extraction of lipids due to disruption of cellular membranes [242,243] and increased surface area, and provides a convenient method for a normalization of metabolites per sample dry weight [24]. Some volatile analytes may be lost during the freeze-drying process although, compared to other drying methods, the loss of these compounds may not be a major concern [244]. In the case of oils, the analysis does not involve any pretreatment although, due to high viscosity, dilution is necessary as a preliminary step [114]. The significant effect of concentration on the chemical shifts, should also be taken into account (see discussion below).

6.2. Lipid Extraction Methods

Sample preparation is one of the most important steps in the analysis of lipids since it can affect analyte concentration and, thus, the accuracy of quantitative results. The Folch et al. [245] and Bligh-Dyer [246] methods and their variants have been widely used. The method relies upon partitioning the lipid matrix into two immiscible layers, as upper water-methanol and a chloroform one. Optimization of the extraction process can involve several parameters such as agiation or sonication assisted, time duration and temperature of the extraction, the lipid content extracted and the optimum chloroform volume [56]. Figure 45 illustrates a comparison of the efficiency of various extraction methods with respect to unsaturated fatty acids in lyophilized milk samples. The concentration of the extracted analytes deviates strongly from linearity for lyophilized milk above 250 mg, presumably due to progressive saturation of the solution. The extracted solution, after a centrifiguration step, can be evaporated or dried under vacuum and subsequently dissolved in deuterated solvent.

6.3. NMR Sample Preparation

6.3.1. NMR Solvent, Referenicng and Quantification Methods

Deuterated chloroform has been widely used in 1H-and 13C NMR since it is an excellent solvent for most lipids. For specific applications, mixtures of CDCl3 and DMSO-d6 have also been utilized [132,164]. DMSO-d6 induces significant chemical shift changes with respect to those in CDCl3 which should be taken into consideration when comparing literature data. The chemical shift of the residual 1H-NMR signal of CDCl3 and the 13C signal of CDCl3 have been commonly utilized for referencing.
Quantification of unsaturated fatty acids can be achieved in 1H-NMR using Equations (1) to (10) without the use of internal standard. As previously emphasized, the conversion of 1H-NMR data from mol % to wt % can be achieved with the hypothesis that the average chain lengths of unsaturated fatty acids are C18 and by estimating the average number of protons in unsaturated and saturated chains from the integrals of given resonances in the spectrum [124]. An alternative method for quantification is the ERETIC method which provides a reference signal synthesized by an electronic device [247]. Quantification in 13C-NMR can be obtained by integration of the appropriate carbonyl and olefinic signals [20,92].
For 31P-NMR, pyridine-chloroform solutions have been utilized (1.6:1.0 volume ratio) containing 0.165 μM of Cr(acac)3. Integration of the signal was obtained with respect to cyclohexanol as an internal standard [23,59].

6.3.2. Effects of Temperature and Conentration

Most 1H-, 13C- and 31P-NMR spectra have been acquired in the range of 296 to 298 K, therefore, no significant changes in the chemical shifts of literature data due to temperature variation are expected.
The effect of concentration on chemical shifts is an important aspect which should be considered in lipid analysis. The use of high concentrated solutions in 1H NMR results: (i) in broadening of the NMR signals and, thus, poor resolution, (ii) baseline distortions and spurious signals due to receiver overload, (iii) saturation of analytes and, thus, unreliable quantification results and (iv) chemical shift variation. Vlahov et al. [92] investigated in detail the effect of sample concentration (200 mg and 50 mg) on the 13C NMR chemical shifts of lampante olive oils. In most cases, chemical shift variations below 0.2 ppm were observed, however, the large chemical shift variations of the methylene C-2 and C-3 carbons prevented an unequivocal assignment.

7. Conclusions and Future Prospects

The research work summarized in this article provides sufficient evidence that 1H-, 13C- and 31P-NMR spectroscopy has been a valuable structural and analytical tool for unsaturated lipids The quantitative analysis performed by integration of the appropriate signals is greatly facilitated by the unequivocal assignment of the signals using a variety of 1D and 2D NMR techniques, such as 1H-1H TOCSY, 1H-13C HSQC, 1H-13C HMBC, 1H-13C HSQC-DEPT, etc. Further, the latest developments with respect to sensitivity, and the introduction of cryogenerated micro-NMR probes have greatly facilitated the rapid de novo identification of specific polyunsaturated fatty acids.
NMR spectroscopy will undoubtedly continue to be developed as a primary structural and analytical spectroscopic method in the field of unsaturated lipid research. It should be emphasized, however, that it appears unlikely that any single NMR technique will be a panacea for the complete structural analysis of lipids. Cited below are selected current and potential areas where further research could be fruitful:
(1)
The excellent resolution and sensitivity advantages of the selective 1D TOCSY and band selective 1H-13C HSQC, 1H-13C HSQC-TOCSY and 1H-13C HMBC experiments show great potential in deciphering complex lipid extracts and oxidation products, even though such methods are still not frequently used in lipid research.
(2)
Application of broadband 1H homonuclear decoupled techniques will result in highly resolved 1H-NMR spectra with collapsed singlets, thus minimizing overlap and expediting spectral analysis [248,249]. Several novel 1D and 2D selective experiments and improved slice—selective experiments have been proposed which can provide ultra-highly resolved NMR spectra with great potentialities for accurate determination of very small chemical shift differences, coupling constants, and relaxation times [250,251,252,253,254].
(3)
Development of comprehensive NMR databases combined with prediction software will greatly improve the amount of structural information that can be extracted from 1H, 13C, 1H-1H COSY, 1H-1H TOCSY, 1H-13C HSQC, and 1H-13C HMBC NMR data and would accelerate the dereplication process [255,256].
(4)
Application of hyperpolarizable techniques will greatly improve sensitivity since they are capable of generating spin population levels that are ~5 × 104 times higher than the Boltzman equilibrium at room temperature [257]. Particularly promising results can be obtained in solution state by dissolution dynamic nuclear polarization (DNP), where the sample to be analyzed is mixed with free radicals in a solution frozen to liquid helium temperatures and hyperpolarized by irradiating in the vicinity of the ESR of the unpaired electrons of the radicals [258,259].
(5)
Development of automated hyphenated LC-SPE-NMR-MS platforms [260].
(6)
More comprehensive and systematic comparisons between NMR and other analytical methods, such as GC-MS, should be performed in order to investigate their limitations, strengths and weaknesses as well as the advantages of their combined use.
(7)
Development of officially recognized NMR methodologies for fats and oils through collaboration of various NMR groups.
(8)
Application of STD and Tr-NOESY techniques would allow the analysis of interactions of chemically unmodified fatty acids with full-length proteins and, thus, provide further understanding of fatty acid conformational changes upon binding to lipoproteins even at a cellular level [240,241].
(9)
Further developments in DOSY (Diffusion Order Spectroscopy) can make it special powerful tool for the analysis of unsaturated fatty acids and lipids [248].
(10)
DFT calculations of 1H-, 13C- and 13P-NMR chemical shifts [261,262,263,264,265] can contribute significantly in the new field of NMR “crystallography” in the powder [266,267] and in solution [268,269].
It is hoped that this review will provide some guidance and stimulus for future NMR applications in the field of unsaturated lipid research.

Acknowledgments

We are grateful to the Greek Community Support Framework III, Regional Operational Program of Epirus 2000–2006 (MIS 91629) for supporting the purchase of an Advance-500 LC-NMR instrument.

Author Contributions

E.A., R.A., H.S., M.I.C. and C.G.T. performed bibliographic researches and corrected the manuscript. I.P.G. conceived the idea, designed the review structure and supervised manuscript drafting. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References and Note

  1. Gunstone, F.D. Fatty Acid and Lipid Chemistry, 1st ed.; Springer: New York, NY, USA, 1996. [Google Scholar]
  2. Vance, D.E.; Vance, J.E. (Eds.) Biochemistry of Lipids, Lipoproteins and Membranes, 5th ed.; Elsevier: Amsterdam, The Netherlands, 2008.
  3. Akoh, C.C.; Min, D.B. (Eds.) Food Lipids, Chemistry, Nutrition and Biochemistry, 1st ed.; Marcel Dekker Inc.: New York, NY, USA, 2002.
  4. Leray, C. Dietary Lipids for Healthy Brain Function; CRC Press: Boca Raton, FL, USA, 2017. [Google Scholar]
  5. Kuller, L.H. Nutrition, lipids, and cardiovascular disease. Nutr. Rev. 2006, 64, S15–S26. [Google Scholar] [CrossRef] [PubMed]
  6. Layden, B.T.; Angueira, A.R.; Brodsky, M.; Durai, V.; Lowe, W.L., Jr. Short chain fatty acids and their receptors: New metabolic targets. Transl. Res. 2013, 161, 131–140. [Google Scholar] [CrossRef] [PubMed]
  7. Schwager, J.; Richard, N.; Riegger, C.; Salem, N., Jr. ω-3 PUFAs and resveratrol differently modulate acute and chronic inflammatory processes. BioMed. Res. Int. 2015, 2015. [Google Scholar] [CrossRef] [PubMed]
  8. Kummerow, F.A. The negative effects of hydrogenated trans fats and what to do about them. Atherosclerosis 2009, 205, 458–465. [Google Scholar] [CrossRef] [PubMed]
  9. Nishida, C.; Uauy, R. WHO scientific update on health consequences of trans fatty acids: Introduction. Eur. J. Clin. Nutr. 2009, 63, S1–S4. [Google Scholar] [CrossRef] [PubMed]
  10. US Department of Health and Human Services and US Department of Agriculture. Dietary Guidelines for Americans, 6th ed.; US Government Printing Office: Washington, DC, USA, 2005.
  11. World Health Organization (WHO). Diet, Nutrition and the Prevention of Chronic Diseases; RWHO/FAO; World Health Organization: Geneva, Switzerland, 2003; pp. 87–89. [Google Scholar]
  12. Council Directive 90/496/EEC of 24.9.1990 on Nutrition Labelling for Foodstuffs, OJ L 276, 6.10.1990.
  13. O’Keefe, S.F. Nomenclature and classification of lipids. In Food Lipids, Chemistry, Nutrition and Biochemistry, 1st ed.; Akoh, C.C., Min, D.B., Eds.; Marcel Dekker Inc.: New York, NY, USA, 2002. [Google Scholar]
  14. Mitchell, T.W.; Brown, S.H.O.; Blanksby, S.J. Structural lipidomics. In Lipidomics: Technologies and Applications; Ekroos, K., Ed.; Wiley VCH: Weinheim, Germany, 2012; pp. 99–128. [Google Scholar]
  15. Hancock, S.E.; Poad, B.J.; Batarseh, A.; Abbott, S.K.; Mitchell, T.D. Advances and unresolved challenges in the structural characterization of isomeric lipids. Anal. Biochem. 2017, 524, 45–55. [Google Scholar] [CrossRef] [PubMed]
  16. Medina, I.; Aubourg, S.; Gallardo, J.M.; Pérez-Martín, R. Comparison of six methylation methods for analysis of the fatty acid composition of albacore lipid. Int. J. Food Sci. Technol. 1992, 27, 597–601. [Google Scholar] [CrossRef]
  17. Igarashi, T.; Aursand, M.; Hirata, Y.; Gribbestad, I.S.; Wada, S.; Nonaka, M. Nondestructive quantitative determination of docosahexaenoic acid and n-3 fatty acids in fish oils by high-resolution 1H nuclear magnetic resonance spectroscopy. J. Am. Oil. Chem. Soc. 2000, 77, 737–748. [Google Scholar] [CrossRef]
  18. De la Fuente, A.M.; Luna, P.; Juárez, M. Chromatographic techniques to determine conjugated linoleic acid isomers. Trends Anal. Chem. 2006, 25, 917–926. [Google Scholar] [CrossRef]
  19. Gunstone, F.D. High resolution 13C-NMR spectroscopy of lipids. In Advances in Lipid Methodology—Two; Christie, W.W., Ed.; The Oily Press: Dundee, UK, 1993; pp. 1–68. [Google Scholar]
  20. Vlahov, G. Application of NMR to the study of olive oils. Prog. Nucl. Magn. Reson. Spectrosc. 1999, 35, 341–357. [Google Scholar] [CrossRef]
  21. Diehl, B.W.K. High resolution NMR spectroscopy. Eur. J. Lipid Sci. Technol. 2001, 103, 830–834. [Google Scholar] [CrossRef]
  22. Diehl, B.W.K. Multinuclear high resolution nuclear magnetic resonance spectroscopy. In Lipid Analysis in Oils and Fats; Hamilton, R.J., Ed.; Springer: Boston, MA, USA, 1998; pp. 87–135. [Google Scholar]
  23. Spyros, A.; Dais, P. 31P NMR spectroscopy in food analysis. Prog. Nucl. Magn. Reson. Spectrosc. 2009, 54, 195–207. [Google Scholar] [CrossRef]
  24. Mannina, L.; Sobolev, A.P.; Viel, S. Liquid state 1H high field NMR in food analysis. Prog. Nucl. Magn. Reson. Spectrosc. 2012, 66, 1–39. [Google Scholar] [CrossRef] [PubMed]
  25. Gunstone, F.D.; Knothe, G.H. Nuclear Magnetic Resonance Spectroscopy of Fatty Acids and Their Derivatives. AOCS Lipid Library, Updated 2nd April 2014. Available online: www.aocs.org (accessed on 31 July 2014).
  26. Μartínez-Yusta, A.; Goicoechea, E.; Guillén, M.D. A review of thermo-oxidative degradation of food lipids studied by 1H NMR spectroscopy: Influence of degradative conditions and food lipid nature. Compr. Rev. Food Sci. Food Saf. 2014, 13, 838–859. [Google Scholar] [CrossRef]
  27. Pikula, S.; Bandorowicz, J.; Groves, P. NMR of Lipids. In Nuclear Magnetic Resonance: Volume 43; Kamienska-Trela, K., Wojcik, J., Eds.; Royal Society of Chemistry: London, UK, 2014; pp. 378–400. [Google Scholar]
  28. Hwang, H.-S.; Bakota, E.L. NMR spectroscopy for evaluation of lipid oxidation. In Applications of NMR Spectroscopy; Rahman, A.U., Choudhary, M.I., Eds.; Bentham eBooks: Oak Park, IL, USA; Volume 4, pp. 62–95.
  29. Hwang, H.-S. Advances in NMR Spectroscopy for Lipid Oxidation Assessment, 1st ed.; Springer Briefs in Food, Health, and Nutrition; Springer International Publishing: Cham, Switzerland, 2017. [Google Scholar]
  30. Watkins, S.M.; German, J.B. Unsaturated fatty acids. In Food Lipids, Chemistry, Nutrition and Biochemistry, 1st ed.; Akoh, C.C., Min, D.B., Eds.; Marcel Dekker Inc.: New York, NY, USA, 2002. [Google Scholar]
  31. Lemmon, M.A. Membrane recognition by phospholipid-binding domains. Nat. Rev. Mol. Cell Biol. 2008, 9, 99–111. [Google Scholar] [CrossRef] [PubMed]
  32. Newton, A.C. Diacylglycerol’s affair with protein kinase C turns 25. Trends Pharmacol. Sci. 2004, 25, 175–177. [Google Scholar] [CrossRef] [PubMed]
  33. Moolennar, W.H.; van Meeteren, L.A.; Giepmans, B.N.G. The ins and outs of lysophosphatidic acid signaling. Bioassays 2004, 26, 870–881. [Google Scholar] [CrossRef] [PubMed]
  34. Cook, H.W.; McMaster, C.R. Fatty acid desaturation and chain elongation in eukaryotes. In Biochemistry of Lipids, Lipoproteins and Membranes, 4th ed.; Vance, D.E., Vance, J.E., Eds.; Elsevier Science: Oxford, UK, 2002; pp. 181–204. [Google Scholar]
  35. Masoodi, M.; Volmer, D.A. Comprehensive quantitative determination of PUFA-related bioactive lipids for functional lipidomics using high-resolution mass spectrometry. Methods Mol. Biol. 2014, 1198, 221–232. [Google Scholar] [PubMed]
  36. Liu, Z.; Hopkins, M.M.; Zhang, Z.; Quisenberry, C.B.; Fix, L.C.; Galvan, B.M.; Meier, K.E. ω-3 Fatty acids and other FFA4 agonists inhibit growth factor signaling in human prostate cancer cells. J. Pharmacol. Exp. Ther. 2015, 352, 1–15. [Google Scholar]
  37. Hopkins, M.M.; Zhang, Z.; Liu, Z.; Meier, K.E. Eicosopentaneoic acid and other free ratty acid receptor agonists inhibit lysophosphatidic acid- and epidermal growth factor-induced proliferation of human breast cancer cells. J. Clin. Med. 2016, 5, 16. [Google Scholar] [CrossRef] [PubMed]
  38. Hardman, W.E. Omega-3 fatty acids to augment cancer therapy. J. Nutr. 2002, 132, 3508S–3512S. [Google Scholar] [PubMed]
  39. Zheng, J.-S.; Hu, X.-J.; Zhao, Y.-M.; Yang, J.; Duo, L. Intake of fish and marine n-3 polyunsaturated fatty acids and risk of breast cancer: Meta-analysis of data from 21 independent prospective cohort studies. Br. Med. J. 2013, 346. [Google Scholar] [CrossRef] [PubMed]
  40. Simopoulos, A.P. The importance of the ratio of omega-6/omega-3 essential fatty acids. Biomed. Pharmacother. 2002, 56, 365–379. [Google Scholar] [CrossRef]
  41. Simopoulos, A.P. The importance of the omega-6/omega-3 fatty acid ratio in cardiovascular disease and other chronic diseases. Exp. Biol. Med. 2008, 233, 674–688. [Google Scholar] [CrossRef] [PubMed]
  42. Gupta, R.; Lakshmy, R.; Abraham, R.A.; Reddy, K.S.; Jeemon, P.; Prabhakaran, D. Serum omega-6/omega-3 ratio and risk markers for cardiovascular disease in an industrial population of Delhi. Food Nutr. Sci. 2013, 4, 94–97. [Google Scholar] [CrossRef] [PubMed]
  43. Blasbalg, T.L.; Hibbeln, J.R.; Ramsden, C.E.; Majchrzak, S.F.; Rawlings, R.R. Changes in consumption of omega-3 and omega-6 fatty acids in the United States during the 20th century. Am. J. Clin. Nutr. 2011, 93, 950–962. [Google Scholar] [CrossRef] [PubMed]
  44. Sebedio, J.L.; Christie, W.W.; Adolf, R.O. (Eds.) Advances in Conjugated Linoleic Acid Research; American Oil Chemists’ Society: Champaign, IL, USA, 2003; Volume 2.
  45. Shingfield, K.J.; Wallace, R.J. Synthesis of conjugated linoleic acid in ruminants and humans. In Conjugated Linoleic Acids and Conjugated Vegetable Oils; Sels, B., Philippaerts, A., Eds.; Royal Society of Chemistry: Cambridge, UK, 2014; pp. 1–65. [Google Scholar]
  46. Dilzer, A.; Park, Y. Implication of conjugated linoleic acid (CLA) in human health. Crit. Rev. Food Sci. Nutr. 2012, 52, 488–513. [Google Scholar] [CrossRef] [PubMed]
  47. Wahle, K.W.; Heys, S.D.; Rotondo, D. Conjugated linoleic acids: Are they beneficial or detrimental to health? Prog. Lipid Res. 2004, 43, 553–587. [Google Scholar] [CrossRef] [PubMed]
  48. Tricon, S.; Burdge, G.C.; Williams, C.M.; Calder, P.C.; Yaqoob, P. The effects of conjugated linoleic acid on human health-related outcomes. Proc. Nutr. Soc. 2005, 64, 171–182. [Google Scholar] [CrossRef] [PubMed]
  49. Harris, R.K.; Mann, B.E. (Eds.) NMR and the Periodic Table, 5th ed.; Academic Press: London, UK, 1978; pp. 5–7.
  50. Gerothanassis, I.P. Oxygen-17 NMR spectroscopy: Basic principles and applications (Part I). Prog. Nucl. Magn. Reson. Spectrosc. 2010, 56, 95–197. [Google Scholar] [CrossRef] [PubMed]
  51. Gerothanassis, I.P. Oxygen-17 NMR spectroscopy: Basic principles and applications (Part II). Prog. Nucl. Magn. Reson. Spectrosc. 2010, 57, 1–110. [Google Scholar] [CrossRef] [PubMed]
  52. Gerothanassis, I.P.; Lauterwein, J. An evaluation of various pulse sequences for the suppression of acoustic ringing in oxygen-17 NMR. J. Magn. Reson. 1986, 66, 32–42. [Google Scholar] [CrossRef]
  53. Andersson, H.; Carlsson, A.-C.C.; Nekoueishahraki, B.; Brath, U.; Erdélyi, M. Solvent effects on nitrogen chemical shifts. Annu. Rep. NMR Spectrosc. 2015, 86, 73–210. [Google Scholar]
  54. Frost, D.J.; Gunstone, F.D. The PMR analysis of non-conjugated alkenoic and alkynoic acids and esters. Chem. Phys. Lipids 1975, 15, 53–85. [Google Scholar] [CrossRef]
  55. Kellersmann, C.; Steinhart, Η.; Francke, W. Syntheses of conjugated octadecadienoic acids. Lipids 2006, 41, 777–788. [Google Scholar] [CrossRef] [PubMed]
  56. Tsiafoulis, C.G.; Skarlas, T.; Tzamaloukas, O.; Miltiadou, D.; Gerothanassis, I.P. Direct nuclear magnetic resonance identification and quantification of geometric isomers of conjugated linoleic acid in milk lipid fraction without derivatization steps: Overcoming sensitivity and resolution barriers. Anal. Chim. Acta 2014, 821, 62–71. [Google Scholar] [CrossRef] [PubMed]
  57. Tulloch, A.P.; Bergter, L. Analysis of the conjugated trienoic acid containing oil from Fevillea trilobata by 13C nuclear magnetic resonance spectroscopy. Lipids 1979, 14, 996–1002. [Google Scholar] [CrossRef]
  58. Cao, Y.H.-L.; Chen, J.-N.; Chen, Z.-Y.; Yang, L. Identification and characterization of conjugated linolenic acid isomers by Ag+-HPLC and NMR. J. Agric. Food Chem. 2006, 54, 9004–9009. [Google Scholar] [CrossRef] [PubMed]
  59. Hatzakis, E.; Agiomyrgianaki, A.; Kostidis, S.; Dais, P. High-resolution NMR spectroscopy: An alternative fast tool for qualitative and quantitative analysis of diacylglycerol (DAG) oil. J. Am. Oil. Chem. Soc. 2011, 88, 1695–1708. [Google Scholar] [CrossRef]
  60. Dais, P.; Misiaka, M.; Hatzakis, E. Analysis of marine dietary supplements using NMR spectroscopy. Anal. Methods 2015, 7, 5226–5238. [Google Scholar] [CrossRef]
  61. Shoolery, J.N. Some quantitative applications of 13C NMR spectroscopy. Prog. Nucl. Magn. Reson. Spectrosc. 1977, 11, 79–93. [Google Scholar] [CrossRef]
  62. Gunstone, F.D. 13C-NMR studies of mono-, di-and tri-acylglycerols leading to qualitative and semiquantitative information about mixtures of these glycerol esters. Chem Phys. Lipids 1991, 58, 219–224. [Google Scholar]
  63. Wollenberg, K.F. Quantitative high resolution 13C nuclear magnetic resonance of the olefinic and carbonyl carbons of edible vegetable oils. J. Am. Oil Chem. Soc. 1990, 67, 487–494. [Google Scholar] [CrossRef]
  64. Howarth, O.W.; Samuel, C.J.; Vlahov, G. The σ-inductive effects of C=C double bond, and C≡C bonds: Predictability of NMR shifts at sp2 carbon in non-conjugated polyenoic acids, esters and glycerides. J. Chem. Soc. Perkin Trans. 2 1995, 12, 2307–2310. [Google Scholar]
  65. Bianchi, G.; Howarth, C.W.; Samuel, C.J.; Vlahov, G. σ-Inductive interaction through up to fourteen saturated C–C bonds. J. Chem. Soc. Chem. Commun. 1994, 5, 627–628. [Google Scholar] [CrossRef]
  66. Bianchi, G.; Howarth, C.W.; Samuel, C.J.; Vlahov, G. Long-range σ-inductive interactions through saturated C–C bonds in polymethylene chains. J. Chem. Soc. Perkin Trans. 2 1995, 97, 1427–1432. [Google Scholar] [CrossRef]
  67. Batchelor, J.G.; Prestegard, J.H.; Cushley, R.J.; Lipsky, S.R. Electric field effects in the carbon-13 nuclear magnetic resonance spectra of unsaturated fatty acids. Potential tool for conformational analysis. J. Am. Chem. Soc. 1973, 95, 6358–6364. [Google Scholar] [CrossRef] [PubMed]
  68. Davis, A.L.; Mc Neill, G.P.; Caswell, D.C. Analysis of conjugated linoleic acid isomers by 13C NMR spectroscopy. Chem. Phys. Lipids 1999, 97, 155–156. [Google Scholar] [CrossRef]
  69. Meneses, P.; Glonek, T. High resolution 31P NMR of extracted phospholipids. J. Lipid Res. 1988, 29, 679–689. [Google Scholar] [PubMed]
  70. Vigli, G.; Philippidis, A.; Spyros, A.; Dais, P. Classification of edible oils by employing 31P and 1H NMR spectroscopy in combination with multivariate statistical analysis. A proposal for the detection of seed oil adulteration in virgin olive oils. J. Agric. Food Chem. 2003, 51, 5715–5722. [Google Scholar] [CrossRef] [PubMed]
  71. Dais, P.; Spyros, A. 31P NMR spectroscopy in the quality control and authentication of extra-virgin olive oil: A review of recent progress. Magn. Reson. Chem. 2007, 45, 367–377. [Google Scholar] [CrossRef] [PubMed]
  72. Hatzakis, E.; Dagounakis, G.; Agiomyrgianaki, A.; Dais, P. A facile NMR method for the quantification of total, free and esterified sterols in virgin olive oil. Food Chem. 2010, 122, 346–352. [Google Scholar] [CrossRef]
  73. Longobardi, F.; Ventrella, A.; Napoli, C.; Humpfer, E.; Schütz, B.; Schäfer, H.; Kontominas, M.G.; Sacco, A. Classification of olive oils according to geographical origin by using 1H NMR fingerprinting combined with multivariate analysis. Food Chem. 2012, 130, 177–183. [Google Scholar] [CrossRef]
  74. Parella, T. High-quality 1D spectra by implementing pulsed-field gradients as the coherence pathway selection procedure. Magn. Reson. Chem. 1996, 34, 329–347. [Google Scholar] [CrossRef]
  75. Sharman, G.J. Development of a selective TOCSY experiment and its use in analysis of a mixture of related compounds. Chem. Commun. 1999, 14, 1319–1320. [Google Scholar] [CrossRef]
  76. Sandusky, P.; Raftery, D. Use of selective TOCSY NMR experiments for quantifying minor components in complex mixtures: Application to the metabonomics of amino acids in honey. Anal. Chem. 2005, 77, 2455–2463. [Google Scholar] [CrossRef] [PubMed]
  77. Koda, M.; Furihata, K.; Wei, F.; Miyakawa, T.; Tanokura, M. Metabolic discrimination of mango juice from various cultivars by band-selective NMR spectroscopy. J. Agric. Food. Chem. 2012, 60, 1158–1166. [Google Scholar] [CrossRef] [PubMed]
  78. Papaemmanouil, C.; Tsiafoulis, C.G.; Alivertis, D.; Tzamaloukas, O.; Miltiadou, D.; Tzakos, A.; Gerothanassis, I.P. Selective 1D TOCSY NMR experiments for a rapid identification of minor components in the lipid fraction of milk and dairy products: Towards spin-chromatography? J. Agric. Food. Chem. 2015, 63, 5381–5387. [Google Scholar] [CrossRef] [PubMed]
  79. Kontogianni, V.G.; Tsiafoulis, C.G.; Roussis, I.G.; Gerothanassis, I.P. Selective 1D TOCSY NMR method for the determination of glutathione in white wine. Anal. Methods 2017, 9, 4464–4470. [Google Scholar] [CrossRef]
  80. Günther, H. NMR Spectroscopy: Basic Principles, Concepts and Applications in Chemistry, 3rd ed.; John Wiley & Sons: Hoboken, NJ, USA, 2013. [Google Scholar]
  81. Rahman, A.-U.; Choudhary, M.I.; Wahab, A.-T. Solving Problems with NMR Spectroscopy, 2nd ed.; Elsevier Inc.: Amsterdam, The Netherlands, 2015. [Google Scholar]
  82. Claridge, T. High-Resolution NMR Techniques in Organic Chemistry, 3rd ed.; Elsevier: Oxford, UK, 2016. [Google Scholar]
  83. Berger, S.; Braun, S. (Eds.) 200 and More NMR Experiments: A Practical Course; Wiley VCH: Weinheim, Germany, 2004.
  84. Exarchou, V.; Troganis, A.; Gerothanassis, I.P.; Tsimidou, M.; Boskou, D. Analysis of phenolic acids in complex phenolic mixtures by the use of variable temperature two dimensional 1H-1H COSY, 1H-13C HMQC and 1H-13C HMBC gradient enhanced NMR spectroscopy: Application to methanolic extracts of several oregano species. J. Agric. Food Chem. 2001, 49, 2–8. [Google Scholar] [CrossRef] [PubMed]
  85. Kontogianni, V.G.; Exarchou, V.; Troganis, A.; Gerothanassis, I.P. Rapid and novel discrimination and quantification of oleanolic and ursolic acids in complex plant extracts using two-dimensional nuclear magnetic resonance spectroscopy-comparison with HPLC methods. Anal. Chim. Acta 2009, 635, 188–195. [Google Scholar] [CrossRef] [PubMed]
  86. Willker, W.; Flögel, U.; Leibfritz, D. Ultra-high-resolved HSQC spectra of multiple-13C-labeled biofluids. J. Magn. Reson. 1997, 125, 216–219. [Google Scholar] [CrossRef] [PubMed]
  87. Fiori, L.; Solana, M.; Manfrini, M.; Guella, G. Lipid profiles of oil from trout (Oncorhynchus mykiss) heads, spines and viscera: Trout by-products as a possible source of omega-3 lipids? Food Chem. 2012, 134, 1088–1095. [Google Scholar] [CrossRef] [PubMed]
  88. Parella, T.; Sanchez-Ferrando, F.; Virgili, A. Improved sensitivity in gradient-based 1D and 2D multiplicity-edited HSQC experiments. J. Magn. Reson. 1997, 126, 274–277. [Google Scholar] [CrossRef]
  89. Willker, W.; Leibfritz, D. Assignments of mono- and polyunsaturated fatty acids in lipids of tissue and body fluids. Magn. Reson. Chem. 1998, 36, S79–S84. [Google Scholar] [CrossRef]
  90. Vatèle, J.-M.; Fenet, B.; Eynard, T. Complete 13C assignments and structural elucidation of n-3 polyunsaturated fatty acids by the use of a new 2D NMR technique: SAPHIR-HSQC. Chem. Phys. Lipids 1998, 94, 239–250. [Google Scholar] [CrossRef]
  91. Simova, S.; Ivanova, G.; Spassov, S.L. Alternative NMR method for quantitative determination of acyl positional distribution in triacylglycerols and related compounds. Chem. Phys. Lipids 2003, 126, 167–176. [Google Scholar] [CrossRef] [PubMed]
  92. Vlahov, G.; Giuliani, A.A.; Del Re, P. 13C NMR spectroscopy for determining the acylglycerol positional composition of lampante olive oils. Chemical shift assignments and their dependence on sample concentration. Anal. Methods 2010, 2, 916–923. [Google Scholar] [CrossRef]
  93. Gaillet, C.; Lequart, C.; Debeire, P.; Nuzillard, J.-M. Band-selective HSQC and HMBC experiments using excitation sculpting and PFGSE. J. Magn. Reson. 1999, 139, 454–459. [Google Scholar] [CrossRef] [PubMed]
  94. Claridge, T.D.W.; Pérez-Victoria, I.P. Enhanced 13C resolution in semi-selective HMBC: A band-selective, constant-time HMBC for complex organic structure elucidation by NMR. Org. Biomol. Chem. 2003, 1, 3632–3634. [Google Scholar] [CrossRef] [PubMed]
  95. Cohen, Y.; Avram, L.; Frish, L. Diffusion NMR spectroscopy in supramolecular and combinatorial chemistry: An old parameter-new insights. Angew. Chem. Int. Ed. 2005, 44, 520–554. [Google Scholar] [CrossRef] [PubMed]
  96. Caldareli, S. Chromatographic NMR: A tool for the analysis of mixtures of small molecules. Magn. Reson. Chem. 2007, 45, S48–S55. [Google Scholar] [CrossRef] [PubMed]
  97. Gil, A.M.; Duarte, I.; Cabrita, E.; Goodfellow, B.J.; Spraul, M.; Kerssebaum, R. Exploratory applications of diffusion ordered spectroscopy to liquid foods: An aid towards spectral assignment. Anal. Chim. Acta 2004, 506, 215–223. [Google Scholar] [CrossRef]
  98. Rodrigues, E.D.; Silva, D.B.; Oliveira, D.C.R.; Silva, G.V.J. DOSY NMR applied to analysis of flavonoid glycosides from Bidens sulphurea. Magn. Reson. Chem. 2009, 47, 1095–1100. [Google Scholar] [CrossRef] [PubMed]
  99. Primikyri, A.; Kyriakou, E.; Charisiadis, P.; Tsiafoulis, C.; Stamatis, C.; Tzakos, A.G.; Gerothanassis, I.P. A fine-tuning of the diffusion dimension of –OH groups for high resolution DOSY NMR applications in crude enzymatic trans formations and mixtures of organic compounds. Tetrahedron 2012, 68, 6887–6891. [Google Scholar] [CrossRef]
  100. Vieira, M.G.S.; Gramosa, N.V.; Ricardo, N.M.P.S.; Morris, G.A.; Adams, R.W.; Nilsson, M. Natural product mixture analysis by matrix-assisted DOSY using Brij surfactants in mixed solvents. RSC Adv. 2014, 4, 42029–42034. [Google Scholar] [CrossRef]
  101. Swern, D.; Wineburg, J.P. NMR chemical shift reagents. Application to structural determination of lipid derivatives. J. Am. Oil. Chem. Soc. 1971, 48, 371–372. [Google Scholar] [CrossRef]
  102. Cockerill, A.F.; Davies, G.L.O.; Harden, R.C.; Rackham, D.M. Lanthanide shift reagents for nuclear magnetic resonance spectroscopy. Chem. Rev. 1973, 73, 553–588. [Google Scholar] [CrossRef]
  103. Wineburg, J.P.; Swern, D. NMR chemical shift reagents in structural determination of lipid derivatives: II. Methyl petroselinate and methyl oleate. J. Am. Oil. Chem. Soc. 1972, 49, 267–273. [Google Scholar] [CrossRef]
  104. Wineburg, J.P.; Swern, D. NMR chemical shift reagents in structural determination of lipid derivatives: III. Methyl ricinoleate and methyl 12-hydroxystearate. J. Am. Oil. Chem. Soc. 1973, 50, 142–146. [Google Scholar] [CrossRef] [PubMed]
  105. Iida, T.; Tamura, T.; Matsumoto, T. Proton nuclear magnetic resonance identification and discrimination of side chain isomers of phytosterols using a lanthanide shift reagent. J. Lipid Res. 1980, 21, 326–338. [Google Scholar] [PubMed]
  106. Agiomyrgianaki, A.; Sedman, J.; Van de Voort, F.R.; Dais, P. Cis and trans components of lipids: Analysis by 1H NMR and silver shift reagents. Eur. J. Lipid Sci. Technol. 2012, 114, 504–509. [Google Scholar] [CrossRef]
  107. Kim, H.K.; Choi, Y.H.; Verpoorte, R. NMR-based metabolomic analysis of plants. Nat. Protoc. 2010, 5, 536–549. [Google Scholar] [CrossRef] [PubMed]
  108. López-Perez, J.L.; Therón, R.; del Olmo, E.; Díaz, D. NAPROC-13: A database for the dereplication of natural product mixtures in bioassay-guided protocols. Bioinformatics 2007, 23, 3256–3257. [Google Scholar] [CrossRef] [PubMed]
  109. Kuhn, S.; Egert, B.; Neumann, S.; Steinbeck, C. Building blocks for automated elucidation of metabolites: Machine learning methods for NMR prediction. BMC Bioinform. 2008, 9, 400. [Google Scholar] [CrossRef] [PubMed]
  110. Pereira, J.C.; Jarak, I.; Carvalho, R.A. Resolving NMR signals of short chain fatty acid mixtures using unsupervised component analysis. Magn. Reson. Chem. 2017, 55, 936–943. [Google Scholar] [CrossRef] [PubMed]
  111. Asif, M. Chemical characteristics and nutritional potentials of unsaturated fatty acids. Chem. Internsh. 2015, 1, 118–133. [Google Scholar]
  112. Aursand, M.; Rainuzzo, R.J.; Grasdalen, H. Quantitative high-resolution 13C and 1H nuclear magnetic resonance of ω3 fatty acids from white muscle of atlantic salmon (Salmo salar). J. Am. Oil. Chem. Soc. 1993, 70, 971–981. [Google Scholar] [CrossRef]
  113. Sacchi, R.; Medina, I.; Aubourg, S.P.; Addeo, F.; Paolillo, L. Proton nuclear magnetic resonance rapid and structure-specific determination of ω-3 polyunsaturated fatty acids in fish lipids. J. Am. Oil. Chem. Soc. 1993, 70, 225–228. [Google Scholar] [CrossRef]
  114. Sacchi, R.; Addeo, F.; Paolillo, L. 1H and 13C-NMR of virgin olive oil. An overview. Magn. Reson. Chem. 1997, 35, S133–S145. [Google Scholar] [CrossRef]
  115. Miyake, Y.; Yokomizo, K.; Matsuzaki, N. Determination of unsaturated fatty acid composition by high-resolution nuclear magnetic resonance spectroscopy. J. Am. Oil. Chem. Soc. 1998, 75, 1091–1094. [Google Scholar] [CrossRef]
  116. Miyake, Y.; Yokomizo, K.; Matsuzaki, N. Rapid determination of iodine value by 1H nuclear magnetic resonance spectroscopy. J. Am. Oil. Chem. Soc. 1998, 75, 15–19. [Google Scholar] [CrossRef]
  117. Fauhl, C.; Reniero, F.; Guillou, C. 1H NMR as a tool for the analysis of mixtures of virgin olive oil with oils of different botanical origin. Magn. Reson. Chem. 2000, 38, 436–443. [Google Scholar] [CrossRef]
  118. Sacco, A.; Brescia, M.A.; Liuzzi, V.; Reniero, F.; Guillou, G.; Ghelli, S.; van der Meer, P. Characterization of italian olive oils based on analytical and nuclear magnetic resonance determinations. J. Am. Oil. Chem. Soc. 2000, 77, 619–625. [Google Scholar] [CrossRef]
  119. Knothe, G. Monitoring a progressing trans esterification reaction by fiber-optic near-infrared spectroscopy with correlation to 1H nuclear magnetic resonance spectroscopy. J. Am. Oil. Chem. Soc. 2001, 77, 489–493. [Google Scholar] [CrossRef]
  120. Knothe, G.; Kenar, J.A. Determination of the fatty acid profile by 1H-NMR spectroscopy. Eur. J. Lipid Sci. Technol. 2004, 106, 88–96. [Google Scholar] [CrossRef]
  121. Mannina, L.; Segre, A. High resolution nuclear magnetic resonance: From chemical structure to food authenticity. Grasas y Aceites 2002, 53, 22–33. [Google Scholar] [CrossRef]
  122. Williamson, Κ.; Hatzakis, E. NMR spectroscopy as a robust tool for the rapid evaluation of the lipid profile of fish oil supplements. J. Vis. Exp. 2017, 123, e55547. [Google Scholar] [CrossRef] [PubMed]
  123. Papaemmanouil, C.; Tsiafoulis, C.G.; Alivertis, D.; Tzamaloukas, O.; Miltiadou, D.; Balayssac, S.; Malt-Martino, M.; Gerothanassis, I.P. Unpublished work. 2017.
  124. Sedman, J.; Gao, L.; García-González, D.; Ehsan, S.; van de Voort, F.R. Determining nutritional labeling data for fats and oils by 1H NMR. Eur. J. Lipid Sci. Technol. 2010, 112, 439–451. [Google Scholar] [CrossRef]
  125. Guillén, M.D.; Ruiz, A. High resolution 1H nuclear magnetic resonance in the study of edible oils and fats. Trends Food Sci. Technol. 2001, 12, 328–338. [Google Scholar] [CrossRef]
  126. Lewis, I.A.; Schommer, S.C.; Hodis, B.; Robb, K.A.; Tonelli, M.; Westler, W.M.; Sussman, M.R.; Markley, J.L. Method for determining molar concentrations of metabolites in complex solutions from two-dimensional 1H-13C NMR spectra. Anal. Chem. 2007, 79, 9385–9390. [Google Scholar] [CrossRef] [PubMed]
  127. Sandusky, P.; Appiah-Amponsah, E.; Raftery, D. Use of optimized 1D TOCSY NMR for improved quantitation and metabolomic analysis of biofluids. J. Biomol. NMR 2011, 49, 281–290. [Google Scholar] [CrossRef] [PubMed]
  128. International Organization of Standardization (ISO). Milk Fat—Preparation of Fatty Acid Methyl Esters; ISO 15884:2002 (IDF 182:2002); ISO: Geneva, Switzerland, 2002; p. 6. [Google Scholar]
  129. Skiera, C.; Steliopoulos, P.; Kuballa, T.; Diehl, B.; Holzgrabe, U. Determination of free fatty acids in pharmaceutical lipids by 1H NMR and comparison with the classical acid value. J. Pharm. Biomed. Anal. 2014, 93, 43–50. [Google Scholar] [CrossRef] [PubMed]
  130. Pokorny, J. Volumetric analysis of oxidized lipids. In Analysis of Lipid Oxidation; Kamal-Eldin, A., Pocorny, J., Eds.; AOCS Press: Champaign, IL, USA, 2005; pp. 8–16. [Google Scholar]
  131. Satyarthi, J.K.; Srinivas, D.; Ratnasamy, P. Estimation of free fatty acid content in oils, fats, and biodiesel by 1H NMR Spectroscopy. Energy Fuels 2009, 23, 2273–2277. [Google Scholar] [CrossRef]
  132. Skiera, C.; Steliopoulos, P.; Kuballa, T.; Holzgrabe, U.; Diehl, B. Determination of free fatty acids in edible oils by 1H NMR spectroscopy. Lipid Technol. 2012, 24, 279–281. [Google Scholar] [CrossRef]
  133. Charisiadis, P.; Exarchou, V.; Troganis, A.N.; Gerothanassis, I.P. Exploring the “forgotten” –OH-1H-NMR spectral region in natural products. Chem. Commun. 2010, 46, 3589–3591. [Google Scholar] [CrossRef] [PubMed]
  134. Kontogianni, V.; Primikyri, A.; Exarchou, V.; Charisiadis, P.; Tzakos, A.; Gerothanassis, I.P. Ηydrogen bonding probes of phenol –OH groups: Shielding ranges, solvent effects and temperature coefficients of 1H-NMR shieldings and –OH diffusion coefficients. Org. Biomol. Chem. 2013, 11, 1013–1025. [Google Scholar] [CrossRef] [PubMed]
  135. Neratzaki, A.A.; Tsiafoulis, C.G.; Charisiadis, P.; Kontogianni, V.G.; Gerothanassis, I.P. Novel determination of the total phenolic content in crude plant extracts by the use of 1H-NMR of the –OH spectral region. Anal. Chim. Acta 2011, 688, 54–60. [Google Scholar] [CrossRef] [PubMed]
  136. Charisiadis, P.; Kontogianni, V.G.; Tsiafoulis, C.G.; Tzakos, A.G.; Siskos, M.; Gerothanassis, I.P. 1H-NMR as a structural and analytical tool of intra- and intermolecular hydrogen bonds of phenol-containing natural products and model compounds. Molecules 2014, 19, 13643–13682. [Google Scholar] [CrossRef] [PubMed]
  137. Dayrit, F.M.; Buenafe, O.E.; Chainani, E.T.; De Vera, I.M. Analysis of monoglycerides, diglycerides, sterols, and free fatty acids in coconut (Cocos nucifera L.) oil by 31P NMR spectroscopy. J. Agric. Food Chem. 2008, 56, 5765–5769. [Google Scholar] [CrossRef] [PubMed]
  138. Spyros, A.; Dais, P. Application of 31P NMR spectroscopy in food analysis. 1. Quantitative determination of the mono- and diglyceride composition of olive oils. J. Agric. Food Chem. 2000, 48, 802–805. [Google Scholar] [CrossRef] [PubMed]
  139. Dais, P.; Spyros, A.; Cristophoridou, S.; Hatzakis, E.; Fragaki, G.; Agiomyrgianaki, A.; Salivaras, E.; Siragakis, G.; Daaskalaki, D.; Tasioula-Margari, M.; et al. Comparison of analytical methodologies based on 1H and 31P NMR spectroscopy with conventional methods of analysis for the determination of some olive oil constituents. J. Agric. Food Chem. 2007, 55, 577–584. [Google Scholar] [CrossRef] [PubMed]
  140. Sacchi, R.; Medina, I.; Aubourg, S.P.; Giudicianni, I.; Paolillo, L.; Addeo, F. Quantitative high resolution 13C NMR analysis of lipids extracted from the wine muscle of Atlantic Tuna (Thunnus alalunga). J. Agric. Food Chem. 1993, 41, 1247–1253. [Google Scholar] [CrossRef]
  141. Ng, S. Quantitative analysis of partial acylglycerols and free fatty acids in palm oil by 13C Nuclear Magnetic Resonance Spectroscopy. J. Am. Oil Chem. Soc. 2000, 77, 749–755. [Google Scholar] [CrossRef]
  142. Chan, H.W.; Levett, G. Autoxidation of methyl linoleate. Separation and analysis of isomeric mixtures of methyl linoleate hydroperoxides and methyl hydroxylinoleates. Lipids 1977, 12, 99–104. [Google Scholar] [CrossRef] [PubMed]
  143. Neff, W.E.; Frankel, E.N.; Selke, E.; Weisleder, D. Photosensitized oxidation of methyl linoleate monohydroperoxides: Hydroperoxy cyclic peroxides, dihydroperoxides, keto esters and volatile thermal decomposition products. Lipids 1983, 18, 868–876. [Google Scholar] [CrossRef]
  144. Saito, H. Estimation of the oxidative deterioration of fish oils by measurements of Nuclear Magnetic Resonance. Agric. Biol. Chem. 1987, 51, 3433–3435. [Google Scholar]
  145. Saito, H.; Udagawa, M. Application of NMR to evaluate the oxidative deterioration of brown fish meal. J. Sci. Food Agric. 1992, 58, 135–137. [Google Scholar] [CrossRef]
  146. Silwood, C.J.L.; Grootveld, M. Application of high-resolution, two-dimensional 1H and 13C nuclear magnetic resonance techniques to the characterization of lipid oxidation products in autoxidized linoleoyl/linolenoylglycerol. Lipids 1999, 34, 741–756. [Google Scholar] [CrossRef] [PubMed]
  147. Claxson, A.W.D.; Hawkes, G.E.; Richardson, D.P.; Naughton, D.P.; Haywooday, R.M.; Chander, C.L.; Atherton, M.; Lynch, E.J.; Grootveld, M.C. Generation of lipid peroxidation products in culinary oils and fats during episodes of thermal stressing: A high field 1H NMR study. FEBS Lett. 1994, 355, 81–90. [Google Scholar] [CrossRef]
  148. Haywood, R.M.; Claxson, A.W.D.; Hawkes, G.E.; Richardson, D.P.; Naughton, D.P.; Coumbarides, G.; Hawkes, J.; Lynch, E.J.; Grootveld, M.C. Detection of aldehydes and their conjugated hydroperoxydiene precursors in thermally-stressed culinary oils and fats: Investigations using high resolution proton NMR spectroscopy. Free Radic. Res. 1995, 22, 441–482. [Google Scholar] [CrossRef] [PubMed]
  149. Guillen, M.D.; Goicoechea, E. Oxidation of corn oil at room temperature: Primary and secondary oxidation products and determination of their concentration in the oil liquid matrix from 1H nuclear magnetic resonance data. Food Chem. 2009, 116, 183–192. [Google Scholar] [CrossRef]
  150. Porter, N.A.; Mills, K.A.; Carter, R.L. A mechanistic study of oleate autoxidation: Competing peroxyl H-atom abstraction and rearrangement. J. Am. Chem. Soc. 1994, 116, 6690–6696. [Google Scholar] [CrossRef]
  151. Kuklev, D.V.; Christie, W.W.; Durand, T.; Rossi, J.C.; Vidal, J.P.; Kasyanov, S.P.; Akulin, V.N.; Bezuglov, V.V. Synthesis of keto- and hydroxydienoic compounds from linoleic acid. Chem. Phys. Lipids 1997, 85, 125–134. [Google Scholar] [CrossRef]
  152. Jie, M.S.F.L.K.; Lam, C.N.W. Reaction of mono-epoxidized conjugated linoleic acid ester with boron trifluoride etherate complex. Lipids 2004, 39, 583–587. [Google Scholar] [CrossRef] [PubMed]
  153. Guillen, M.D.; Ruiz, A. Study of the oxidative stability of salted and unsalted salmon fillets by 1H nuclear magnetic resonance. Food Chem. 2004, 86, 297–304. [Google Scholar] [CrossRef]
  154. Guillen, M.D.; Ruiz, A. Formation of hydroperoxy- and hydroxyalkenals during thermal oxidative degradation of sesame oil monitored by proton NMR. Eur. J. Lipid Sci. Technol. 2004, 106, 680–687. [Google Scholar] [CrossRef]
  155. Guillen, M.D.; Ruiz, A. Monitoring the oxidation of unsaturated oils and formation of oxygenated aldehydes by proton NMR. Eur. J. Lipid Sci. Technol. 2005, 107, 36–47. [Google Scholar] [CrossRef]
  156. Guillen, M.D.; Goicoechea, E. Detection of primary and secondary oxidation products by Fourier transform infrared spectroscopy (FTIR) and 1H nuclear magnetic resonance (NMR) in sunflower oil during storage. J. Agric. Food Chem. 2007, 55, 10729–10736. [Google Scholar] [CrossRef] [PubMed]
  157. Lin, D.; Zhang, J.; Sayre, L.M. Synthesis of six epoxyketooctadecenoic acid (EKODE) isomers, their generation from nonenzymatic oxidation of linoleic acid, and their reactivity with imidazole nucleophiles. J. Org. Chem. 2007, 72, 9471–9480. [Google Scholar] [CrossRef] [PubMed]
  158. Guillen, M.D.; Uriarte, P.S. Contribution to further understanding of the evolution of sunflower oil submitted to frying temperature in a domestic fryer: Study by 1H nuclear magnetic resonance. J. Agric. Food Chem. 2009, 57, 7790–7799. [Google Scholar] [CrossRef] [PubMed]
  159. Guillen, M.D.; Uriarte, P.S. Study by 1H NMR spectroscopy of the evolution of extra virgin olive oil composition submitted to frying temperature in an industrial fryer for a prolonged period of time. Food Chem. 2012, 134, 162–172. [Google Scholar] [CrossRef]
  160. Guillen, M.D.; Uriarte, P.S. Monitoring by 1H nuclear magnetic resonance of the changes in the composition of virgin linseed oil heated at frying temperature. Comparison with the evolution of other edible oils. Food Control 2012, 28, 59–68. [Google Scholar] [CrossRef]
  161. Guillen, M.D.; Uriarte, P.S. Simultaneous control of the evolution of the percentage in weight of polar compounds, iodine value, acyl groups proportions and aldehydes concentrations in sunflower oil submitted to frying temperature in an industrial fryer. Food Control 2012, 24, 50–56. [Google Scholar] [CrossRef]
  162. Goicoechea, E.; Guillen, M.D. Analysis of hydroperoxides, aldehydes and epoxides by 1H nuclear magnetic resonance in sunflower oil oxidized at 70 and 100 °C. J. Agric. Food Chem. 2010, 58, 6234–6245. [Google Scholar] [CrossRef] [PubMed]
  163. Martınez-Yusta, A.; Guillen, M.D. A study by 1H nuclear magnetic resonance of the influence on the frying medium composition of some soybean oil-food combinations in deep-frying. Food Res. 2014, 55, 347–355. [Google Scholar] [CrossRef]
  164. Skiera, C.; Steliopoulos, P.; Kuballa, T.; Holzgrabe, U.; Diehl, B. 1H-NMR spectroscopy as a new tool in the assessment of the oxidative state in edible oils. J. Am. Oil Chem. Soc. 2012, 89, 1383–1391. [Google Scholar] [CrossRef]
  165. Charisiadis, P.; Primikyri, A.; Exarchou, V.; Tzakos, A.; Gerothanassis, I.P. Unprecedented ultra-high-resolution hydroxy group 1H-NMR spectroscopic analysis of plant extracts. J. Nat. Prod. 2011, 74, 2462–2466. [Google Scholar] [CrossRef] [PubMed]
  166. Charisiadis, P.; Tsiafoulis, C.G.; Exarchou, V.; Tzakos, A.G.; Gerothanassis, I.P. Rapid and direct low micromolar NMR method for the simultaneous detection of hydrogen peroxide and phenolics in plant extracts. J. Agric. Food Chem. 2012, 60, 4508–4513. [Google Scholar] [CrossRef] [PubMed]
  167. Tsiafoulis, C.; Gerothanassis, I.P. A novel NMR method for the determination and monitoring of evolution of hydrogen peroxide in aqueous solution. Anal. Bioanal. Chem. 2014, 406, 3371–3375. [Google Scholar] [CrossRef] [PubMed]
  168. Lachenmeier, D.W.; Gary, M.; Monakhova, Y.B.; Kuballa, T.; Mildau, G. Rapid NMR screening of total aldehydes to detect oxidative rancidity of vegetable oils and decorative cosmetics. Spectrosc. Eur. 2010, 22, 11–14. [Google Scholar]
  169. Albert, K. On Line LC-NMR and Related Techniques; John Wiley & Sons: Hoboken, NJ, USA, 2002. [Google Scholar]
  170. Exarchou, V.; Godejohann, M.; van Beek, T.A.; Gerothanassis, I.P.; Vervoort, J. LC-UV-solid phase extraction-NMR-MS combined with a cryogenic flow probe and its application to the identification of compounds present in Greek oregano. Anal. Chem. 2003, 75, 6288–6294. [Google Scholar] [CrossRef] [PubMed]
  171. Exarchou, V.; Krucker, M.; van Beek, T.A.; Vervoort, J.; Gerothanassis, I.P.; Albert, K. LC-NMR coupling technology: Recent advancements and applications in natural products analysis. Magn. Reson. Chem. 2005, 43, 681–687. [Google Scholar] [CrossRef] [PubMed]
  172. Tatsis, E.C.; Boeren, S.; Exarchou, V.; Troganis, A.N.; Vervoort, J.; Gerothanassis, I.P. Identification of the major constituents of hypericum perforatum by LC/SPE/NMR and/or LC/MS. Phytochemistry 2007, 68, 383–393. [Google Scholar] [CrossRef] [PubMed]
  173. Charisiadis, P.; Kontogianni, V.G.; Tsiafoulis, C.G.; Tzakos, A.G.; Gerothanassis, I.P. Determination of polyphenolic phytochemicals using highly deshielded –OH 1H-NMR signals. Phytochem. Anal. 2017, 28, 159–170. [Google Scholar] [CrossRef] [PubMed]
  174. Sýkora, J.; Bernášek, P.; Zarevúcká, M.; Kurfürst, M.; Sovová, H.; Schraml, J. High-performance liquid chromatography with nuclear magnetic resonance detection—A method for quantification of α- and γ-linolenic acids in their mixtures with free fatty acids. J. Chromatogr. A 2007, 1139, 152–155. [Google Scholar] [CrossRef] [PubMed]
  175. Gross, R.W.; Han, Χ. Lipidomics at the interface of structure and function in systems biology. Chem. Biol. 2011, 18, 284–291. [Google Scholar] [CrossRef] [PubMed]
  176. Cifuentes, A. Special Issue: Advanced separation methods in food analysis. J. Chromatogr. A 2009, 1216, 7109–7358. [Google Scholar] [CrossRef] [PubMed]
  177. Laghi, L.; Ricone, G.; Capozzi, F. Nuclear magnetic resonance for foodomics beyond food analysis. Trends Anal. Chem. 2014, 59, 93–102. [Google Scholar] [CrossRef]
  178. Esslinger, S.; Riedl, J.; Fauhl-Hassek, C. Potential and limitations of non-targeted fingerprinting for authentication of food in official control. Food Res. Int. 2014, 60, 189–204. [Google Scholar] [CrossRef]
  179. Hidalgo, F.J.; Zamora, R. Edible oil analysis by high-resolution nuclear magnetic resonance spectroscopy: Recent advances and future perspectives. Trends Food Sci. Technol. 2003, 14, 199–506. [Google Scholar] [CrossRef]
  180. Mannina, L.; Sobolev, A.P. High resolution NMR characterization of olive oils in terms of quality, authenticity and geographical origin. Magn. Reson. Chem. 2011, 49, S3–S11. [Google Scholar] [CrossRef] [PubMed]
  181. Dais, P.; Hatzakis, E. Analysis of bioactive microconstituents in olives, olive oil and olive leaves by NMR spectroscopy: An overview of the last decade. In Olives and Olive Oil Bioactive Constituents; Boskou, D., Ed.; AOCS Press: Urbana, IL, USA, 2015; pp. 321–324. [Google Scholar]
  182. Dais, P.; Hatzakis, E. Quality assessment and authentication of virgin olive oil by NMR spectroscopy: A critical review. Anal. Chim. Acta. 2013, 765, 1–27. [Google Scholar] [CrossRef] [PubMed]
  183. Alonso-Salces, R.M.; Héberger, K.; Holland, M.V.; Moreno-Rojas, J.M.; Mariani, C.; Bellan, G.; Reniero, F.; Guillou, C. Multivariate analysis of NMR fingerprint of the unsaponifiable fraction of virgin olive oils for authentication purposes. Food Chem. 2010, 118, 956–965. [Google Scholar] [CrossRef]
  184. Alonso-Salces, R.M.; Moreno-Rojas, J.M.; Holland, M.V.; Reniero, F.; Guillou, C.; Héberger, K. Virgin olive oil authentication by multivariate of 1H NMR fingerprints and δ13C and δ2H data. J. Agric. Food Chem. 2010, 58, 5586–5596. [Google Scholar] [CrossRef] [PubMed]
  185. Mannina, L.; Marini, F.; Gobbino, M.; Sobolev, A.P.; Capitani, D. NMR and chemometrics in tracing European olive oils: The case study of Ligurian samples. Talanta 2010, 80, 2141–2148. [Google Scholar] [CrossRef] [PubMed]
  186. Alonso-Salces, R.M.; Segebarth, N.; Garmón-Lobato, S.; Holland, M.V.; Moreno-Rojas, J.M.; Fernández-Pierna, J.A.; Baeten, V.; Fuselli, S.R.; Gallo, B.; Berrueta, L.A.; et al. 1H-NMR and isotopic fingerprinting of olive oil and its unsaponifiable fraction: Geographical origin of virgin olive oils by pattern recognition. Eur. J. Lipid Sci. Technol. 2015, 117, 1991–2006. [Google Scholar] [CrossRef]
  187. Mannina, L.; D'Imperio, M.; Capitani, D.; Rezzi, S.; Guillou, C.; Mavromoustakos, T.; Vilchez, M.D.; Fernández, A.H.; Thomas, F.; Aparicio, R. 1H NMR-based protocol for the detection of adulterations of refined olive oil with refined hazelnut oil. J. Agric. Food Chem. 2009, 57, 11550–11556. [Google Scholar] [CrossRef] [PubMed]
  188. Brescia, M.A.; Mazzilli, V.; Sgaramella, A.; Ghelli, S.; Fanizzi, F.P.; Sacco, A. 1H NMR characterization of milk lipids: A comparison between cow and buffalo milk. J. Am. Oil Chem. Soc. 2004, 81, 431–436. [Google Scholar] [CrossRef]
  189. Schievano, E.; Pasini, G.; Cozzi, G.; Mammi, S. Identification of the production chain of Asiago d’Allevo cheese by nuclear magnetic resonance spectroscopy and principal component analysis. J. Agric. Food Chem. 2008, 56, 7208–7214. [Google Scholar] [CrossRef] [PubMed]
  190. Hu, F.; Furihata, K.; Ito-Ishida, M.; Kaminogawa, S.; Tanokura, M. Nondestructive observation of bovine milk by NMR spectroscopy: Analysis of existing states of compounds and detection of new compounds. J. Agric. Food Chem. 2004, 52, 4969–4974. [Google Scholar] [CrossRef] [PubMed]
  191. Erich, S.; Schill, S.; Annweiler, E.; Waiblinger, H.-U.; Kuballa, T.; Lachenmeier, D.W.; Monakhova, Y.B. Combined chemometric analysis of 1H NMR, 13C NMR and stable isotope data to differentiate organic and conventional milk. Food Chem. 2015, 188, 1–7. [Google Scholar] [CrossRef] [PubMed]
  192. Yang, Y.; Zheng, N.; Zhao, X.; Zhang, Y.; Han, R.; Yang, J.; Zhao, S.; Li, S.; Guo, T.; Zhang, C.; et al. Metabolomic biomarkers identify differences in milk produced by Holstein cows and other minor dairy animals. J. Proteom. 2016, 136, 174–182. [Google Scholar] [CrossRef] [PubMed]
  193. Aursand, M.; Standal, I.B.; Praël, A.; McEvoy, L.; Irvine, J.; Axelson, D.E. 13C NMR pattern recognition techniques for the classification of atlantic salmon (Salmo salar L.) According to their wild, farmed, and geographical origin. J. Agric. Food Chem. 2009, 57, 3444–3451. [Google Scholar] [CrossRef] [PubMed]
  194. Standal, I.B.; Axelson, D.E.; Aursand, M. Differentiation of fish oils according to species by 13C-NMR regiospecific analyses of triacyglycerols. J. Am. Oil Chem. Soc. 2009, 86, 401–407. [Google Scholar] [CrossRef]
  195. Aursand, M.; Standal, I.B.; Axelson, D.E. High-resolution 13C nuclear magnetic resonance spectroscopy pattern recognition of fish oil capsules. J. Agric. Food Chem. 2007, 55, 38–47. [Google Scholar] [CrossRef] [PubMed]
  196. Rezzi, S.; Giani, I.; Héberger, K.; Axelson, D.E.; Moretti, V.M.; Reniero, F.; Guillou, C. Classification of gilthead sea bream (Sparus aurata) from 1H NMR lipid profiling combined with principal component and linear discriminant analysis. J. Agric. Food Chem. 2007, 55, 9963–9968. [Google Scholar] [CrossRef] [PubMed]
  197. Burri, L.; Hoem, N.; Monakhova, Y.B.; Diehl, B.W.K. Fingerprinting krill oil by 31P, 1H and 13C NMR spectroscopies. J. Am. Oil Chem. Soc. 2016, 93, 1037–1049. [Google Scholar] [CrossRef]
  198. Al-Jowder, O.; Casuscelli, F.; Defernez, M.; Kemsley, E.K.; Wilson, R.H.; Colquhoun, I.J. High resolution NMR studies of meat composition and authenticity. In Magnetic Resonance in Food Science: A View to the Future; Webb, G.A., Belton, P.S., Gil, A.M., Delgadillo, I., Eds.; Royal Society of Chemistry: Cambridge, UK, 2001; pp. 232–238. [Google Scholar]
  199. Jakes, W.; Gerdova, A.; Defernez, M.; Watson, A.; McCallum, C.; Limer, W.; Colquhoun, I.J.; Williamson, D.; Kemsley, E.K. Authentication of beef versus horse meat using 60 MHz 1H NMR spectroscopy. Food Chem. 2015, 175, 1–9. [Google Scholar] [CrossRef] [PubMed]
  200. Zanardi, E.; Caligiani, A.; Padovani, E.; Mariani, M.; Ghidini, S.; Palla, G.; Ianier, A. Detection of irradiated beef by nuclear magnetic resonance lipid profiling combined with chemometric techniques. Meat Sci. 2013, 93, 171–177. [Google Scholar] [CrossRef] [PubMed]
  201. Renou, J.-P.; Bielicki, G.; Deponge, C.; Gachon, P.; Micol, D.; Ritz, P. Characterization of animal products according to its geographic origin and feeding diet using Nuclear Magnetic Resonance and Isotope Ratio Mass Spectrometry Part II: Beef meat. Food Chem. 2004, 86, 251–256. [Google Scholar] [CrossRef]
  202. Savorani, F.; Kristensen, M.; Larsen, F.H.; Astrup, A.; Engelsen, S.B. High throughput prediction of chylomicron triglycerides in human plasma by nuclear magnetic resonance and chemometrics. Nutr. Metab. 2010, 7, 43. [Google Scholar] [CrossRef] [PubMed]
  203. NMR Lipo Profile Test, LipoScience Inc., 2011. Available online: https://www.liposcience.com (accessed on 9 June 2011).
  204. Mallol, R.; Rodriguez, M.A.; Brezmes, J.; Masana, L.; Correig, X. Human serum/plasma lipoprotein analysis by NMR: Application to the study of diabetic dyslipidemia. Prog. Nucl. Magn. Reson. Spectrosc. 2013, 70, 1–24. [Google Scholar] [CrossRef] [PubMed]
  205. Sears, B.; Deckelbaum, R.J.; Janiak, M.J.; Shipley, G.G.; Small, D.M. Temperature-dependent carbon-13 nuclear magnetic resonance studies of human serum low density lipoproteins. Biochemhistry 1976, 15, 4151–4157. [Google Scholar] [CrossRef]
  206. Seip, R.L.; Otvos, J.; Bilbie, C.; Tsongalis, G.J.; Miles, M.; Zoeller, R.; Visich, P.; Gordon, P.; Angelopoulos, T.J.; Pescatello, L.; et al. The effect of apolipoprotein E genotype on serum lipoprotein particle response to exercise. Atherosclerosis 2006, 188, 126–133. [Google Scholar] [CrossRef] [PubMed]
  207. Burdge, G.C.; Powell, J.; Dadd, T.; Talbot, D.; Civil, J.; Calder, P.C. Acute consumption of fish oil improves postprandial VLDL profiles in healthy men aged 50–65 years. Br. J. Nutr. 2009, 102, 160–165. [Google Scholar] [CrossRef] [PubMed]
  208. Makinen, V.-P.; Soininen, P.; Forsblom, C.; Parkkonen, M.; Ingman, P.; Kaski, K.; Groop, P.-H.; Korpela, M.A. 1H NMR metabonomics approach to the disease continuum of diabetic complications and premature death. Mol. Syst. Biol. 2008, 4, 167. [Google Scholar] [CrossRef] [PubMed]
  209. Kostara, C.E.; Papathanasiou, A.; Psychogios, N.; Cung, M.T.; Elisaf, M.S.; Goudevenos, J.; Bairaktari, E.T. NMR-based lipidomic analysis of blood lipoproteins differentiates the progression of coronary heart disease. J. Proteome Res. 2014, 13, 2585–2598. [Google Scholar] [CrossRef] [PubMed]
  210. Liu, M.; Tang, H.; Nicholson, J.K.; Lindon, J.C. Use of 1H NMR-determined diffusion coefficients to characterize lipoprotein fractions in human blood plasma. Magn. Reson. Chem. 2002, 40, S83–S88. [Google Scholar] [CrossRef]
  211. Ala-Korpela, M.; Korhonen, A.; Keisala, J.; Horkko, S.; Korpi, P.; Ingman, L.P.; Jokisaari, J.; Savolainen, M.J.; Kesaniemi, Y.A. 1H NMR-based absolute quantitation of human lipoproteins and their lipid contents directly from plasma. J. Lipid Res. 1994, 35, 2292–2304. [Google Scholar] [PubMed]
  212. Petersen, M.; Dyrby, M.; Toubro, S.; Engelsen, S.B.; Nørgaard, L.; Pedersen, H.T.; Dyerberg, J. Quantification of lipoprotein subclasses by proton nuclear magnetic resonance–based partial least-squares regression models. Clin. Chem. 2005, 51, 1457–1461. [Google Scholar] [CrossRef] [PubMed]
  213. Mallol, R.; Rodríguez, M.A.; Heras, M.; Vinaixa, M.; Cañellas, N.; Brezmes, J.; Plana, N.; Masana, L.; Correig, X. Surface fitting of 2D diffusion-edited 1H NMR spectroscopy data for the characterisation of human plasma lipoproteins. Metabolomics 2011, 7, 572–582. [Google Scholar] [CrossRef]
  214. Pikula, S.; Bandorowicz, J.; Groves, P. NMR of Lipids. In Nuclear Magnetic Resonance: Volume 44 (Specialist Periodical Reports); Kamienska-Trela, K., Ed.; Royal Society of Chemistry: London, UK, 2015; pp. 385–406. [Google Scholar]
  215. Brash, A.R.; Boeglin, W.E.; Stec, D.F.; Voehler, M.; Schneider, C.; Cha, J.K. Isolation and characterization of two geometric allene oxide isomers synthesized from 9S-hydroperoxylinoleic acid by cytochrome P450 CYP74C3. J. Biol. Chem. 2013, 288, 20797–20806. [Google Scholar] [CrossRef] [PubMed]
  216. Liu, M.; Chen, P.; Véricel, E.; Lelli, M.; Béguin, L.; Lagarde, M.; Guichardant, M. Characterization and biological effects of di-hydroxylated compounds deriving from the lipoxygenation of ALA. J. Lipid Res. 2013, 54, 2083–2094. [Google Scholar] [CrossRef] [PubMed]
  217. Dobson, E.P.; Barrow, C.J.; Kralovec, J.A.; Adcock, J.L. Controlled formation of mono- and dihydroxy-resolvins from EPA and DHA using soybean 15-lipoxygenase. J. Lipid Res. 2013, 54, 1439–1447. [Google Scholar] [CrossRef] [PubMed]
  218. Tan, H.-H.; Makino, A.; Sudesh, K.; Greimel, P.; Kobayashi, T. Spectroscopic evidence for the unusual stereochemical configuration of an endosome-specific lipid. Angew. Chem. Int. Ed. 2012, 51, 533–535. [Google Scholar] [CrossRef] [PubMed]
  219. Quehenberger, O.; Dennis, E.A. The human plasma lipidome. N. Engl. J. Med. 2011, 365, 1812–1823. [Google Scholar] [CrossRef] [PubMed]
  220. Yli-Jama, P.; Meyer, H.E.; Ringstad, J.; Pedersen, J.I. Serum free fatty acid pattern and risk of myocardial infarction: A case-control study. J. Intern. Med. 2002, 251, 19–28. [Google Scholar] [CrossRef] [PubMed]
  221. Huber, A.H.; Kleinfeld, A.M. Unbound free fatty acid profiles in human plasma and the unexpected absence of unbound palmitoleate. J. Lipid Res. 2017, 58, 578–585. [Google Scholar] [CrossRef] [PubMed]
  222. Xe, X.M.; Carter, D.C. Atomic structure and chemistry of human serum albumin. Nature 1992, 358, 209–215. [Google Scholar]
  223. Sugio, S.; Kashima, A.; Mochizuki, S.; Noda, M.; Kobayashi, K. Crystal structure of human serum albumin at 2.5 Å resolution. Protein Eng. 1999, 12, 439–446. [Google Scholar] [CrossRef] [PubMed]
  224. Curry, S.; Mandelkow, H.; Brick, P.; Franks, N. Crystal structure of human serum albumin complexed with fatty acid reveals an asymmetric distribution of binding sites. Nat. Struct. Biol. 1998, 5, 827–835. [Google Scholar] [CrossRef] [PubMed]
  225. Curry, S.; Brick, P.; Franks, N.P. Fatty acid binding to human serum albumin: New insights from crystallographic studies. Biochim. Biophys. Acta. 1999, 1441, 131–140. [Google Scholar] [CrossRef]
  226. Hamilton, J.A.; Era, S.; Bhamidipati, S.P.; Reed, R.G. Locations of the three primary binding sites for long-chain fatty acids on bovine serum albumin. Proc. Natl. Acad. Sci. USA 1991, 88, 2051–2054. [Google Scholar] [CrossRef] [PubMed]
  227. Reed, R.G. Location of long chain fatty acid-binding sites of bovine serum albumin by affinity labeling. J. Biol. Chem. 1986, 261, 15619–15624. [Google Scholar] [PubMed]
  228. Sklar, L.A.; Hudson, B.S.; Simoni, R.D. Conjugated polyene fatty acids as fluorescent probes: Binding to bovine serum albumin. Biochemistry 1977, 16, 5100–5108. [Google Scholar] [CrossRef] [PubMed]
  229. Hamilton, J.A.; Cistola, D.P.; Morrisett, J.D.; Sparrow, J.T.; Small, D.M. Interactions of myristic acid with bovine serum albumin: A 13C NMR study. Proc. Natl. Acad. Sci. USA 1984, 81, 3718–3722. [Google Scholar] [CrossRef] [PubMed]
  230. Parks, J.S.; Cistola, D.P.; Small, D.M.; Hamilton, J.A. Interactions of the carboxyl group of oleic acid with bovine serum albumin: A 13C NMR study. J. Biol. Chem. 1983, 258, 9262–9269. [Google Scholar] [PubMed]
  231. Cistola, D.P.; Small, D.M.; Hamilton, J.A. Carbon 13 NMR studies of saturated fatty acids bound to bovine serum albumin. II. Electrostatic interactions in individual fatty acid binding sites. J. Biol. Chem. 1987, 262, 10980–10985. [Google Scholar] [PubMed]
  232. Cistola, D.P.; Small, D.M.; Hamilton, J.A. Carbon 13 NMR studies of saturated fatty acids bound to bovine serum albumin. I. The filling of individual fatty acid binding sites. J. Biol. Chem. 1987, 262, 10971–10979. [Google Scholar] [PubMed]
  233. Kenyon, M.A.; Hamilton, J.A. 13C NMR studies of the binding of medium-chain fatty acids to human serum albumin. J. Lipid Res. 1994, 35, 458–467. [Google Scholar] [PubMed]
  234. Simard, J.R.; Zunszain, P.A.; Hamilton, J.A.; Curry, S. Location of high and low affinity fatty acid binding sites on human serum albumin revealed by NMR drug-competition analysis. J. Mol. Biol. 2006, 361, 336–351. [Google Scholar] [CrossRef] [PubMed]
  235. Krenzel, E.S.; Chen, Z.; Hamilton, J.A. Correspondence of fatty acid and drug binding sites on human serum albumin: A two-dimensional nuclear magnetic resonance study. Biochemistry 2013, 52, 1559–1567. [Google Scholar] [CrossRef] [PubMed]
  236. Hamilton, J.A. NMR reveals molecular interactions and dynamics of fatty acid binding to albumin. Biochim. Biophys. Acta. 2013, 1830, 5418–5426. [Google Scholar] [CrossRef] [PubMed]
  237. Claasen, B.; Axmann, M.; Meinecke, R.; Meyer, B. Direct observation of ligand binding to membrane proteins in living cells by a saturation transfer double difference (STDD) NMR spectroscopy method shows a significantly higher affinity of integrin alpha(IIb)beta3 in native platelets than in liposomes. J. Am. Chem. Soc. 2005, 127, 916–919. [Google Scholar] [CrossRef] [PubMed]
  238. Viegas, A.; Manso, J.; Nobrega, F.L.; Cabrita, E.J. Saturation-transfer difference (STD) NMR: A simple and fast method for ligand screening and characterization of protein binding. J. Chem. Educ. 2011, 88, 990–994. [Google Scholar] [CrossRef]
  239. Tanoli, A.K.S.; Tanoli, U.N.; Bondancia, M.T.; Usmani, S.; Ul-Haq, Z.; Fernandes, B.J.; Thomasi, S.S.; Ferreira, G.A. Human serum albumin-specific recognition of the natural herbal extract of Stryphnodendron polyphyllum through STD NMR, hyphenations and docking simulation studies. RSC Adv. 2015, 5, 23431–23442. [Google Scholar] [CrossRef]
  240. Mari, S.; Invernizzi, C.; Spitaleri, A.; Alberici, L.; Ghitti, M.; Bordignon, C.; Traversari, C.; Rizzardi, G.P.; Musco, G. 2D Tr-NOESY experiments interrogate and rank ligand-receptor interactions in living human cancer cells. Angew. Chem. Int. Ed. 2010, 49, 1071–1074. [Google Scholar] [CrossRef] [PubMed]
  241. Primikyri, A.; Sayyad, N.; Quilici, G.; Vrettos, E.I.; Lim, K.; Chi, S.-W.; Musco, G.; Tzakos, A.; Gerothanassis, I.P. Probing 3′ quercetin-alanine binding to Bcl-2 protein in living human cells with in-cell NMR spectroscopy. 2017; in preparation. [Google Scholar]
  242. Kaiser, K.A.; Barding, G.A., Jr.; Lavine, C.K. A comparison of metabolite extraction strategies for 1H-NMR-based metabolic profiling using mature leaf tissue from the model plant Arabidopsis thaliana. Mang. Reson. Chem. 2009, 47, S147–S156. [Google Scholar] [CrossRef] [PubMed]
  243. Lin, C.Y.; Wu, H.; Tjeerdema, R.S.; Viant, M.R. Evaluation of metabolite extraction strategies from tissue samples using NMR metabolomics. Metabolomics 2007, 3, 55–67. [Google Scholar] [CrossRef]
  244. Venskutonis, P.R. Effect of drying on the volatile constituents of thyme (Thymus vulgaris L.) and sage (Salvia officinalis L.). Food Chem. 1997, 59, 219–227. [Google Scholar] [CrossRef]
  245. Folch, J.; Lees, M.; Sloane Stanley, G.H. A simple method for the isolation and purification of total lipides from animal tissues. J. Biol. Chem. 1959, 226, 497–509. [Google Scholar]
  246. Bligh, E.G.; Dyer, W.J. A rapid method of total lipid extraction and purification. Can. J. Biochem. Physiol. 1959, 37, 911–917. [Google Scholar] [CrossRef] [PubMed]
  247. Akoka, S.; Barantin, L.; Trierweiler, M. Concentration measurement by proton NMR using the ERETIC method. Anal. Chem. 1999, 71, 2554–2557. [Google Scholar] [CrossRef] [PubMed]
  248. Castañar, L.; Parella, T. Broadband 1H homodecoupled NMR experiments: Recent developments, method and applications. Magn. Reson. Chem. 2015, 53, 399–426. [Google Scholar] [CrossRef] [PubMed]
  249. Zangger, K. Pure shift NMR. Prog. Nucl. Magn. Spectrosc. 2015, 86–87, 1–20. [Google Scholar] [CrossRef] [PubMed]
  250. Meyer, N.H.; Zangge, Κ. Simplifying proton NMR spectra by instant homonuclear broadband decoupling. Angew. Chem. Int. Ed. 2013, 52, 7143–7146. [Google Scholar] [CrossRef] [PubMed]
  251. Paudel, L.; Adams, R.W.; Kiraly, P.; Aguilar, J.A.; Foroozandeh, M.; Cliff, M.J.; Nilsson, M.; Sandor, P.; Waltho, J.P.; Morris, G.A. Simultaneously enhancing spectral resolution and sensitivity in heteronuclear correlation NMR spectroscopy. Angew. Chem. Int. Ed. 2013, 52, 11616–11619. [Google Scholar] [CrossRef] [PubMed]
  252. Pérez-Trujillo, M.; Castañar, L.; Monteagudo, E.; Kuhn, L.T.; Nolis, P.; Virgili, A.; Williamsonc, R.T.; Parella, T. Simplifying proton NMR spectra by instant homonuclear broadband decoupling. Chem. Commun. 2014, 50, 10214–10217. [Google Scholar] [CrossRef] [PubMed]
  253. Glanzer, S.; Zangger, K. Directly decoupled diffusion-ordered NMR spectroscopy for the analysis of compound mixtures. Chem. Eur. J. 2014, 20, 11171–11175. [Google Scholar] [CrossRef] [PubMed]
  254. Poggetto, D.G.; Castañar, L.; Morris, G.A.; Nillson, M. A new tool for NMR analysis of complex systems: Selective pure shift TOCSY. RSC Adv. 2016, 6, 100063–100066. [Google Scholar] [CrossRef]
  255. Jeannerat, D. Human- and computer-accessible 2D correlation data for a more reliable structure determination of organic compounds. Future roles of researchers, software developers, spectrometer managers, journal editors, reviewers, publisher and database managers toward artificial-intelligence analysis of NMR spectra. Magn. Reson Chem. 2017, 55, 7–14. [Google Scholar] [PubMed]
  256. Zani, C.L.; Carroll, A.R. Database for rapid dereplication of known natural products using data from MS and fast NMR experiments. J. Nat. Prod. 2017, 80, 1758–1766. [Google Scholar] [CrossRef] [PubMed]
  257. Navon, G.; Song, Y.-Q.; Room, T.; Appelt, S.; Taylor, R.E.; Pines, A. Enhancement of solution NMR and MRI with laser-polarized xenon. Science 1996, 271, 1848–1851. [Google Scholar] [CrossRef]
  258. Ardenkjaer-Larsen, J.H.; Fridlund, B.; Gram, A.; Hansson, G.; Hansson, L.; Lerche, M.H.; Servin, R.; Thaning, M.; Golman, K. Increase in signal-to-noise ratio of >10,000 times in liquid state NMR. Proc. Natl. Acad. Sci. USA 2003, 100, 10158–10163. [Google Scholar] [CrossRef] [PubMed]
  259. Donovan, K.J.; Frydman, L. HyperBIRD: A sensitivity-enhanced approach to collecting homonuclear-decoupled proton NMR spectra. Angew. Chem. Int. Ed. 2014, 54, 594–598. [Google Scholar] [CrossRef] [PubMed]
  260. Schlotterbeck, G.; Ceccarelli, S.M. LC-SPE-NMR-MS: A total analysis system for bioanalysis. Bioanalysis 2009, 1, 549–559. [Google Scholar]
  261. Lodewyk, M.W.; Siebert, M.R.; Tantillo, D.J. Computational prediction of 1H and 13C chemical shifts: A useful tool for natural product, mechanistic, and synthetic organic chemistry. Chem. Rev. 2012, 112, 1839–1862. [Google Scholar] [CrossRef] [PubMed]
  262. Přecechtělová, J.; Novák, P.; Munzarová, M.L.; Kaupp, Μ.; Sklenář, V. Phosphorus chemical shifts in a nucleic acid backbone from combined molecular dynamics and density functional calculations. J. Am. Chem. Soc. 2010, 132, 17139–17148. [Google Scholar] [CrossRef] [PubMed]
  263. Siskos, M.; Kontogianni, V.G.; Tsiafoulis, C.; Tzakos, A.; Gerothanassis, I.P. Investigation of solute-solvent interactions in phenol compounds: Accurate ab initio calculations of solvent effects on 1H-NMR shieldings. Org. Biomol. Chem. 2013, 11, 7400–7411. [Google Scholar] [CrossRef] [PubMed]
  264. Siskos, M.G.; Tzakos, A.G.; Gerothanassis, I.P. Accurate ab initio calculations of O–H⋯O and O–H⋯-O proton chemical shifts: Towards elucidation of the nature of the hydrogen bond and prediction of hydrogen bond distances. Org. Biomol. Chem. 2015, 13, 8852–8868. [Google Scholar] [CrossRef] [PubMed]
  265. Siskos, M.G.; Choudhary, M.I.; Gerothanassis, I.P. Refinement of labile hydrogen positions based on DFT calculations of 1H NMR chemical shifts: Comparison with X-ray and neutron diffraction methods. Org. Biomol. Chem 2017, 15, 4655–4666. [Google Scholar] [CrossRef] [PubMed]
  266. Apperley, D.C.; Harris, R.K.; Hodgkinson, P. (Eds.) Solid State NMR: Basics Principles and Practices; Momentum Press LLC: New York, NY, USA, 2012.
  267. Elizabeth, S.; Ashbrook, M.; McKay, D. Combining solid-state NMR spectroscopy with first-principles calculations - a guide to NMR crystallography. Chem. Commun. 2016, 52, 7186–7204. [Google Scholar]
  268. Siskos, M.G.; Choudhary, M.C.; Tzakos, A.G.; Gerothanassis, I.P. 1H NMR chemical shift assignment, structure and conformational elucidation of hypericin with the use of DFT calculations—The challenge of accurate labile hydrogens. Tetrahedron 2016, 72, 8287–8293. [Google Scholar] [CrossRef]
  269. Siskos, M.G.; Choudhary, M.I.; Gerothanassis, I.P. Hydrogen atomic positions of O–H···O hydrogen bonds in solution and in the solid state: The synergy of quantum chemical calculations with 1H-NMR chemical shifts and X-ray diffraction methods. Molecules 2017, 22, 415. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Representative structures of various classes of lipids. Adopted, with permission, from [14]. Copyright 2012, Wiley VCH.
Figure 1. Representative structures of various classes of lipids. Adopted, with permission, from [14]. Copyright 2012, Wiley VCH.
Molecules 22 01663 g001
Figure 2. Stereospecific numbering of sn of triacylglycerols. Adopted, with permission, from [13]. Copyright 2002, Marcel Dekker, Inc.
Figure 2. Stereospecific numbering of sn of triacylglycerols. Adopted, with permission, from [13]. Copyright 2002, Marcel Dekker, Inc.
Molecules 22 01663 g002
Figure 3. Schematic overview of ω-3 and ω-6 PUFA-derived lipid mediators. Adopted, with permission, from [35]. Copyright 2014, Springer International Publishing, AG.
Figure 3. Schematic overview of ω-3 and ω-6 PUFA-derived lipid mediators. Adopted, with permission, from [35]. Copyright 2014, Springer International Publishing, AG.
Molecules 22 01663 g003
Figure 4. Metabolic pathways of endogenous conjugated linoleic acid synthesis in ruminants. Adopted, with permission, from [45]. Copyright 2014, Royal Society of Chemistry.
Figure 4. Metabolic pathways of endogenous conjugated linoleic acid synthesis in ruminants. Adopted, with permission, from [45]. Copyright 2014, Royal Society of Chemistry.
Molecules 22 01663 g004
Figure 5. 500 MHz 1H-NMR spectrum of the lipid extract of a milk sample in CDCl3 (298 K, acquisition time (AQ) = 4.0 s, relaxation delay (RD) = 3.6 s, total experimental = 1 h 5 min). The inset shows 2048× magnification of the spectrum in order to display some resonances of the minor species 9-cis, 11-trans, 18:2 CLA and caproleic acid.
Figure 5. 500 MHz 1H-NMR spectrum of the lipid extract of a milk sample in CDCl3 (298 K, acquisition time (AQ) = 4.0 s, relaxation delay (RD) = 3.6 s, total experimental = 1 h 5 min). The inset shows 2048× magnification of the spectrum in order to display some resonances of the minor species 9-cis, 11-trans, 18:2 CLA and caproleic acid.
Molecules 22 01663 g005
Figure 6. Computer simulated 1H-NMR signals for alkenyl and allylic protons in isolated cis and trans double bonds. Adopted, with permission, from [54]. Copyright 1975, North-Holland Publishing Company.
Figure 6. Computer simulated 1H-NMR signals for alkenyl and allylic protons in isolated cis and trans double bonds. Adopted, with permission, from [54]. Copyright 1975, North-Holland Publishing Company.
Molecules 22 01663 g006
Figure 7. Separation of ω-3 from ω-6, ω-9 and saturated fatty acids on the basis of 1H-NMR chemical shifts of –CH3 groups. Free download from: http://www.ilps.org/index.php/Standardized_Methods.html.
Figure 7. Separation of ω-3 from ω-6, ω-9 and saturated fatty acids on the basis of 1H-NMR chemical shifts of –CH3 groups. Free download from: http://www.ilps.org/index.php/Standardized_Methods.html.
Molecules 22 01663 g007
Figure 8. 13C-NMR simultaneous detection of free fatty acids (left side) and their alkyl esters (right side). Free download from: http://www.ilps.org/index.php/Standardized_Methods.html.
Figure 8. 13C-NMR simultaneous detection of free fatty acids (left side) and their alkyl esters (right side). Free download from: http://www.ilps.org/index.php/Standardized_Methods.html.
Molecules 22 01663 g008
Figure 9. 13C-NMR of the carbonyl region of docosahexaenoic acid-enriched egg yolk phosphatidylcholine. Adopted, with permission, from [21]. Copyright 2001, Wiley-VCH.
Figure 9. 13C-NMR of the carbonyl region of docosahexaenoic acid-enriched egg yolk phosphatidylcholine. Adopted, with permission, from [21]. Copyright 2001, Wiley-VCH.
Molecules 22 01663 g009
Figure 10. 13C-NMR chemical shifts of the terminal methyl groups allow the identification and quantification of ω-3, ω-6, ω-7, ω-9 and saturated fatty acids of a salmon oil. Free download from: http://www.ilps.org/index.php/Standardized_Methods.html.
Figure 10. 13C-NMR chemical shifts of the terminal methyl groups allow the identification and quantification of ω-3, ω-6, ω-7, ω-9 and saturated fatty acids of a salmon oil. Free download from: http://www.ilps.org/index.php/Standardized_Methods.html.
Molecules 22 01663 g010
Figure 11. 13C-NMR chemical shifts of the methylene C-2 carbons allow the identification of the EPA and DHA ω-3 fatty acids. Free download from: http://www.ilps.org/index.php/Standardized_Methods.html.
Figure 11. 13C-NMR chemical shifts of the methylene C-2 carbons allow the identification of the EPA and DHA ω-3 fatty acids. Free download from: http://www.ilps.org/index.php/Standardized_Methods.html.
Molecules 22 01663 g011
Scheme 1. Reaction of hydroxyl and carboxyl groups with the phosphorus reagent 2-chloro-4,4,5,5-tetramethyldioxaphospholane (I) and the phosphitylated product (II).
Scheme 1. Reaction of hydroxyl and carboxyl groups with the phosphorus reagent 2-chloro-4,4,5,5-tetramethyldioxaphospholane (I) and the phosphitylated product (II).
Molecules 22 01663 sch001
Figure 12. Signal-to-noise (SNR) increase by a factor of ~10 was obtained after suppression of multiple dominating lipid signals due to the increase of the receiver gain. Number of scans and total experimental time were kept constant, i.e., NS = 32 and 4 min, respectively. Adopted, with permission, from [73]. Copyright 2011, Elsevier Ltd.
Figure 12. Signal-to-noise (SNR) increase by a factor of ~10 was obtained after suppression of multiple dominating lipid signals due to the increase of the receiver gain. Number of scans and total experimental time were kept constant, i.e., NS = 32 and 4 min, respectively. Adopted, with permission, from [73]. Copyright 2011, Elsevier Ltd.
Molecules 22 01663 g012
Figure 13. (a) 500 MHz 1D 1H-NMR spectrum of 20 mM solution of the (9-cis,11-trans) 18:2 CLA in CDCl3 (T, 298 K; acquisition time, 4.3 s; relaxation delay, 5 s; number of scans, 256; and experimental time, ~25 min). (be) Selective 1D TOCSY spectra of the above solution using a mixing time of τm = 33 ms (b), 70 ms (c), 200 ms (d), and 400 ms (e). The asterisk denotes the selected H11 resonance that was excited. For panels (be), the magnetization transfer network is illustrated. Adopted, with permission, from [78]. Copyright 2015, American Chemical Society.
Figure 13. (a) 500 MHz 1D 1H-NMR spectrum of 20 mM solution of the (9-cis,11-trans) 18:2 CLA in CDCl3 (T, 298 K; acquisition time, 4.3 s; relaxation delay, 5 s; number of scans, 256; and experimental time, ~25 min). (be) Selective 1D TOCSY spectra of the above solution using a mixing time of τm = 33 ms (b), 70 ms (c), 200 ms (d), and 400 ms (e). The asterisk denotes the selected H11 resonance that was excited. For panels (be), the magnetization transfer network is illustrated. Adopted, with permission, from [78]. Copyright 2015, American Chemical Society.
Molecules 22 01663 g013
Figure 14. 500 MHz 1D 1H-NMR spectrum of caproleic acid in CDCl3 (concentration: 5 mM, T: 298 K, acquisition time: 2.7 s, relaxation delay: 8 s, number of scans: 128, experimental time: ~23 min).
Figure 14. 500 MHz 1D 1H-NMR spectrum of caproleic acid in CDCl3 (concentration: 5 mM, T: 298 K, acquisition time: 2.7 s, relaxation delay: 8 s, number of scans: 128, experimental time: ~23 min).
Molecules 22 01663 g014
Figure 15. Selected region of 500 MHz 2D 1H-1H TOCSY spectrum of caproleic acid in CDCl3 (solution conditions the same as in Figure 14). Mixing time τm = 100 ms, number of scans (ns) = 32, number of increments = 256, total experimental time = 5 h 19 min.
Figure 15. Selected region of 500 MHz 2D 1H-1H TOCSY spectrum of caproleic acid in CDCl3 (solution conditions the same as in Figure 14). Mixing time τm = 100 ms, number of scans (ns) = 32, number of increments = 256, total experimental time = 5 h 19 min.
Molecules 22 01663 g015
Figure 16. 500 MHz 1D 1H-NMR spectrum of (9-cis, 11-trans) 18:2 CLA in CDCl3 (concentration: 10 mM, T: 298 K, acquisition time: 2.7 s, relaxation delay: 8 s, number of scans: 128, experimental time: ~23 min).
Figure 16. 500 MHz 1D 1H-NMR spectrum of (9-cis, 11-trans) 18:2 CLA in CDCl3 (concentration: 10 mM, T: 298 K, acquisition time: 2.7 s, relaxation delay: 8 s, number of scans: 128, experimental time: ~23 min).
Molecules 22 01663 g016
Figure 17. Selected region of 500 MHz 2D 1H-1H TOCSY NMR spectrum of (9-cis, 11-trans) 18:2 CLA (solution conditions the same as in Figure 16). Mixing time τm = 100 ms, number of scans (ns) = 16, number of increments = 256, total experimental time = 2 h 39 min.
Figure 17. Selected region of 500 MHz 2D 1H-1H TOCSY NMR spectrum of (9-cis, 11-trans) 18:2 CLA (solution conditions the same as in Figure 16). Mixing time τm = 100 ms, number of scans (ns) = 16, number of increments = 256, total experimental time = 2 h 39 min.
Molecules 22 01663 g017
Figure 18. 850 MHz band selective 1H-13C gHSQC spectrum of the aliphatic region of a fish oil supplement. Adopted, with permission, from [60]. Copyright 2015, Royal Society of Chemistry.
Figure 18. 850 MHz band selective 1H-13C gHSQC spectrum of the aliphatic region of a fish oil supplement. Adopted, with permission, from [60]. Copyright 2015, Royal Society of Chemistry.
Molecules 22 01663 g018
Figure 19. 600 MHz HSQC-DEPT NMR spectrum of DAG olive oil in CDCl3 solution, showing one bond correlations between the glycerol backbone protons and carbons; negative (blue color) signals for the CH2 carbons and positive (red color) signals for the CH carbons. Adopted, with permission, from [59]. Copyright 2011, Springer AOCS.
Figure 19. 600 MHz HSQC-DEPT NMR spectrum of DAG olive oil in CDCl3 solution, showing one bond correlations between the glycerol backbone protons and carbons; negative (blue color) signals for the CH2 carbons and positive (red color) signals for the CH carbons. Adopted, with permission, from [59]. Copyright 2011, Springer AOCS.
Molecules 22 01663 g019
Figure 20. 600 MHz gHSQC-TOCSY spectrum of DAG oil in CDCl3 solution, showing consecutive connectivities between carbons and protons along a common coupling pathway (for the notation system for 1H resonances see the original article). Adopted, with permission, from [59]. Copyright 2011, Springer AOCS.
Figure 20. 600 MHz gHSQC-TOCSY spectrum of DAG oil in CDCl3 solution, showing consecutive connectivities between carbons and protons along a common coupling pathway (for the notation system for 1H resonances see the original article). Adopted, with permission, from [59]. Copyright 2011, Springer AOCS.
Molecules 22 01663 g020
Figure 21. Selected region of 500 MHz 2D 1H-13C HMBC spectrum of the (9-cis, 11-trans) 18:2 CLA isomer in CDCl3 (solution conditions the same as in Figure 16). Total experimental time = 7 h 41 min.
Figure 21. Selected region of 500 MHz 2D 1H-13C HMBC spectrum of the (9-cis, 11-trans) 18:2 CLA isomer in CDCl3 (solution conditions the same as in Figure 16). Total experimental time = 7 h 41 min.
Molecules 22 01663 g021
Figure 22. Comparison of the 850 MHz 1H-13C gHMBC spectrum of a fish oil supplement acquired over a 200 ppm spectral width (A) and the band selective constant time HMBC spectrum of the same sample acquired with a 2 ppm spectral width (B), in CDCl3 solution. Adopted, with permission, from [60]. Copyright 2015, Royal Society of Chemistry.
Figure 22. Comparison of the 850 MHz 1H-13C gHMBC spectrum of a fish oil supplement acquired over a 200 ppm spectral width (A) and the band selective constant time HMBC spectrum of the same sample acquired with a 2 ppm spectral width (B), in CDCl3 solution. Adopted, with permission, from [60]. Copyright 2015, Royal Society of Chemistry.
Molecules 22 01663 g022aMolecules 22 01663 g022b
Figure 23. 1H-NMR spectrum of a salmon oil which allows the simultaneous detection and quantification of ω-3, EPA and DHA. Free download from: http://www.ilps.org/index.php/Standardized_Methods.html.
Figure 23. 1H-NMR spectrum of a salmon oil which allows the simultaneous detection and quantification of ω-3, EPA and DHA. Free download from: http://www.ilps.org/index.php/Standardized_Methods.html.
Molecules 22 01663 g023
Figure 24. 1H-NMR spectra of TAG and phospholipids from krill oil after preparative separation. The neutral lipids fraction contains the branched phytanic acid which can also be quantified. Free download from: http://www.ilps.org/index.php/Standardized_Methods.html.
Figure 24. 1H-NMR spectra of TAG and phospholipids from krill oil after preparative separation. The neutral lipids fraction contains the branched phytanic acid which can also be quantified. Free download from: http://www.ilps.org/index.php/Standardized_Methods.html.
Molecules 22 01663 g024
Figure 25. 1H- and 13C-NMR chemical shifts, in ppm, of C9 to C12 carbons and their attached protons for the four geometric isomers of 18:2 CLA. Adopted, with permission, from [56]. Copyright 2014, Elsevier B.V.
Figure 25. 1H- and 13C-NMR chemical shifts, in ppm, of C9 to C12 carbons and their attached protons for the four geometric isomers of 18:2 CLA. Adopted, with permission, from [56]. Copyright 2014, Elsevier B.V.
Molecules 22 01663 g025
Figure 26. 500 MHz 1H-1H TOCSY NMR spectrum of the lipid fraction of a lyophilized milk sample in CDCl3 with suppression of two major lipid proton resonances at 1.27 and 5.35 ppm. Experimental conditions: 298 K, 32 repetitions of 256 increments, total experimental time 5 h 5 min. Adopted, with permission, from [56]. Copyright 2014, Elsevier B.V.
Figure 26. 500 MHz 1H-1H TOCSY NMR spectrum of the lipid fraction of a lyophilized milk sample in CDCl3 with suppression of two major lipid proton resonances at 1.27 and 5.35 ppm. Experimental conditions: 298 K, 32 repetitions of 256 increments, total experimental time 5 h 5 min. Adopted, with permission, from [56]. Copyright 2014, Elsevier B.V.
Molecules 22 01663 g026
Figure 27. Selected regions of 500 MHz 1H-13C HSQC spectra of the lipid fraction of a lyophilized milk sample of Figure 26. (A) With 13C shielding spectral range from 0 to 160 ppm and (B) with reduced 13C spectral range from 112 to 142 ppm. Experimental conditions: 298 K, 40 repetitions of 256 increments, total experimental time 4 h 55 min and 5 h 49 min for (A,B), respectively. Adopted, with permission, from [56]. Copyright 2014, Elsevier B.V.
Figure 27. Selected regions of 500 MHz 1H-13C HSQC spectra of the lipid fraction of a lyophilized milk sample of Figure 26. (A) With 13C shielding spectral range from 0 to 160 ppm and (B) with reduced 13C spectral range from 112 to 142 ppm. Experimental conditions: 298 K, 40 repetitions of 256 increments, total experimental time 4 h 55 min and 5 h 49 min for (A,B), respectively. Adopted, with permission, from [56]. Copyright 2014, Elsevier B.V.
Molecules 22 01663 g027
Figure 28. Spin chromatogram of the lipid fraction of a lyophilized cheese sample in CDCl3. (a) 500 MHz 1H-NMR spectrum of the lipid fraction of a lyophilized cheese sample in CDCl3 (T, 298 K; number of scans, 256; acquisition time, 4.3 s; relaxation delay, 5 s; and total experiment time, ~25 min). The major lipid resonances are denoted (sn1, sn2, and sn3 indicate the stereospecific numbering of esterified glycerol). The inset shows 512× magnification of the spectrum to display resonances from the 18:2 CLA and other minor species. (bd) 1D TOCSY spectra of panel with τm = 400 ms (number of scans, 256; and total experiment time, ~25 min). The asterisks denote the resonances that were excited by the use of a selective pulse. Adopted, with permission, from [78]. Copyright 2015, American Chemical Society.
Figure 28. Spin chromatogram of the lipid fraction of a lyophilized cheese sample in CDCl3. (a) 500 MHz 1H-NMR spectrum of the lipid fraction of a lyophilized cheese sample in CDCl3 (T, 298 K; number of scans, 256; acquisition time, 4.3 s; relaxation delay, 5 s; and total experiment time, ~25 min). The major lipid resonances are denoted (sn1, sn2, and sn3 indicate the stereospecific numbering of esterified glycerol). The inset shows 512× magnification of the spectrum to display resonances from the 18:2 CLA and other minor species. (bd) 1D TOCSY spectra of panel with τm = 400 ms (number of scans, 256; and total experiment time, ~25 min). The asterisks denote the resonances that were excited by the use of a selective pulse. Adopted, with permission, from [78]. Copyright 2015, American Chemical Society.
Molecules 22 01663 g028
Figure 29. Selected regions of (a) Figure 28a, (b) 1D TOCSY spectrum that demonstrates the spin system of the glycerol moiety in 2-MAG (in panels b1 and b2, the selective excitation pulse was set on the 1′,3′-CH2OH (δ = 3.82 ppm) and 2′-CHOCOR (δ = 4.92 ppm) peaks in 2-MAG, respectively), and (c) 1D TOCSY spectrum of the spin system of the glycerol moiety in 1-MAG (in panels c1 and c2, the selective excitation pulse was set on the 3′-CH2OH (δ = 3.67 ppm) and 2′-CH2OH (δ = 3.92 ppm) peaks in 1-MAG, respectively). Adopted, with permission, from [78]. Copyright 2015, American Chemical Society.
Figure 29. Selected regions of (a) Figure 28a, (b) 1D TOCSY spectrum that demonstrates the spin system of the glycerol moiety in 2-MAG (in panels b1 and b2, the selective excitation pulse was set on the 1′,3′-CH2OH (δ = 3.82 ppm) and 2′-CHOCOR (δ = 4.92 ppm) peaks in 2-MAG, respectively), and (c) 1D TOCSY spectrum of the spin system of the glycerol moiety in 1-MAG (in panels c1 and c2, the selective excitation pulse was set on the 3′-CH2OH (δ = 3.67 ppm) and 2′-CH2OH (δ = 3.92 ppm) peaks in 1-MAG, respectively). Adopted, with permission, from [78]. Copyright 2015, American Chemical Society.
Molecules 22 01663 g029
Figure 30. (a) Selected region of the 1D 1H-NMR spectrum of the solution of Figure 28a. The asterisks denote the position of the selected target resonances which were excited. (b,c) selective 1D TOCSY spectra of the above solution. In (b) τm = 400 ms was used for magnetization transfer from H11 to H9 of the (9-cis, 11-trans) 18:2 CLA. In (c) τm = 70 ms was used in order to optimize magnetization transfer from H10, 11 to H9, 12 of the (9-trans, 11-trans) 18:2 CLA. The asterisks denote the resonances that were excited with the use of a selective pulse.
Figure 30. (a) Selected region of the 1D 1H-NMR spectrum of the solution of Figure 28a. The asterisks denote the position of the selected target resonances which were excited. (b,c) selective 1D TOCSY spectra of the above solution. In (b) τm = 400 ms was used for magnetization transfer from H11 to H9 of the (9-cis, 11-trans) 18:2 CLA. In (c) τm = 70 ms was used in order to optimize magnetization transfer from H10, 11 to H9, 12 of the (9-trans, 11-trans) 18:2 CLA. The asterisks denote the resonances that were excited with the use of a selective pulse.
Molecules 22 01663 g030
Figure 31. Oxidized products of methyl linoleate. Adopted, with permission, from [143]. Copyright 1983, Oil Chemists’ Society (AOCS).
Figure 31. Oxidized products of methyl linoleate. Adopted, with permission, from [143]. Copyright 1983, Oil Chemists’ Society (AOCS).
Molecules 22 01663 g031
Figure 32. Some of the primary oxidation compounds derived from (a) oleic and (b) linolenic acyl groups, that can be detected by 1H-NMR. Adopted, with permission, from [26]. Copyright 2014, Institute of Food Technologists.
Figure 32. Some of the primary oxidation compounds derived from (a) oleic and (b) linolenic acyl groups, that can be detected by 1H-NMR. Adopted, with permission, from [26]. Copyright 2014, Institute of Food Technologists.
Molecules 22 01663 g032
Figure 33. Some of the secondary or further oxidation compounds derived from linoleic acyl groups that can be detected by 1H-NMR. Adopted, with permission, from [26]. Copyright 2014, Institute of Food Technologists.
Figure 33. Some of the secondary or further oxidation compounds derived from linoleic acyl groups that can be detected by 1H-NMR. Adopted, with permission, from [26]. Copyright 2014, Institute of Food Technologists.
Molecules 22 01663 g033
Figure 34. Total aldehydes in 72 oils and 38 cosmetics. The boxplot shows a statistical distribution whiskers: minimum and minimum (max 1.5 times the length of the inner quartiles; data points outside are outliers). Adopted, with permission, from [168]. Copyright 2010, John Wiley & Sons Ltd.
Figure 34. Total aldehydes in 72 oils and 38 cosmetics. The boxplot shows a statistical distribution whiskers: minimum and minimum (max 1.5 times the length of the inner quartiles; data points outside are outliers). Adopted, with permission, from [168]. Copyright 2010, John Wiley & Sons Ltd.
Molecules 22 01663 g034
Figure 35. NMR spectrum of an authentic rancid lipstick sample (shown in insert) compared to a non-oxidized sample. Adopted, with permission, from [168]. Copyright 2010, John Wiley & Sons Ltd.
Figure 35. NMR spectrum of an authentic rancid lipstick sample (shown in insert) compared to a non-oxidized sample. Adopted, with permission, from [168]. Copyright 2010, John Wiley & Sons Ltd.
Molecules 22 01663 g035
Figure 36. 600 MHz 1H-NMR spectra of: (A) an organic lipid fraction of an Asiago cheese from an alpine farm with the assignment of the major components (A, olefinic protons of all unsaturated chains; B, bis-allylic protons; C, methylenic protons bonded to C2 of all fatty acid chains; D, allylic protons; E, methylenic protons bonded to C3; F, methylenic protons; G, methyl protons of linolenic acid; H, methyl protons of butyric acid; I, all other methyl protons. The insets illustrate a comparison of the lipid fraction of an alpine farm and an industrial factory. (B) Expansion of a region in which some important olefinic resonances from CLA are illustrated. Adopted, with permission, from [189]. Copyright 2008, American Chemical Society.
Figure 36. 600 MHz 1H-NMR spectra of: (A) an organic lipid fraction of an Asiago cheese from an alpine farm with the assignment of the major components (A, olefinic protons of all unsaturated chains; B, bis-allylic protons; C, methylenic protons bonded to C2 of all fatty acid chains; D, allylic protons; E, methylenic protons bonded to C3; F, methylenic protons; G, methyl protons of linolenic acid; H, methyl protons of butyric acid; I, all other methyl protons. The insets illustrate a comparison of the lipid fraction of an alpine farm and an industrial factory. (B) Expansion of a region in which some important olefinic resonances from CLA are illustrated. Adopted, with permission, from [189]. Copyright 2008, American Chemical Society.
Molecules 22 01663 g036
Figure 37. PCA of the 1H-NMR resonances of lipid fractions: (a) score plot of PC1 vs. PC2 [training set (◆) alpine farms; (•) lowland industrialized factories, (▲) mountain industrialized factories; test set (◊) alpine farms; (○) lowland industrialized factories, (△) mountain industrialized factories]; (b) loadings profile (letters correspond to Figure 36). Adopted, with permission, from [189]. Copyright 2008, American Chemical Society.
Figure 37. PCA of the 1H-NMR resonances of lipid fractions: (a) score plot of PC1 vs. PC2 [training set (◆) alpine farms; (•) lowland industrialized factories, (▲) mountain industrialized factories; test set (◊) alpine farms; (○) lowland industrialized factories, (△) mountain industrialized factories]; (b) loadings profile (letters correspond to Figure 36). Adopted, with permission, from [189]. Copyright 2008, American Chemical Society.
Molecules 22 01663 g037
Figure 38. 13C-NMR aliphatic region (32.0–31.3 ppm) of lipids extracted from salmon of four different origins: (from top) wild salmon from Norway (NW), Scotland (SW), and Ireland (IW) and farmed salmon from Norway (NF). Adopted, with permission, from [193]. Copyright 2009, American Chemical Society.
Figure 38. 13C-NMR aliphatic region (32.0–31.3 ppm) of lipids extracted from salmon of four different origins: (from top) wild salmon from Norway (NW), Scotland (SW), and Ireland (IW) and farmed salmon from Norway (NF). Adopted, with permission, from [193]. Copyright 2009, American Chemical Society.
Molecules 22 01663 g038
Figure 39. 13C-NMR spectrum of krill oil in the region of glycerol carbon atoms (A). Selected 13C regions of triacylglycerol (TAG) (B) and phosphatidylchorine (PC) (C). Adopted, with permission, from [197]. Copyright 2016, AOCS.
Figure 39. 13C-NMR spectrum of krill oil in the region of glycerol carbon atoms (A). Selected 13C regions of triacylglycerol (TAG) (B) and phosphatidylchorine (PC) (C). Adopted, with permission, from [197]. Copyright 2016, AOCS.
Molecules 22 01663 g039

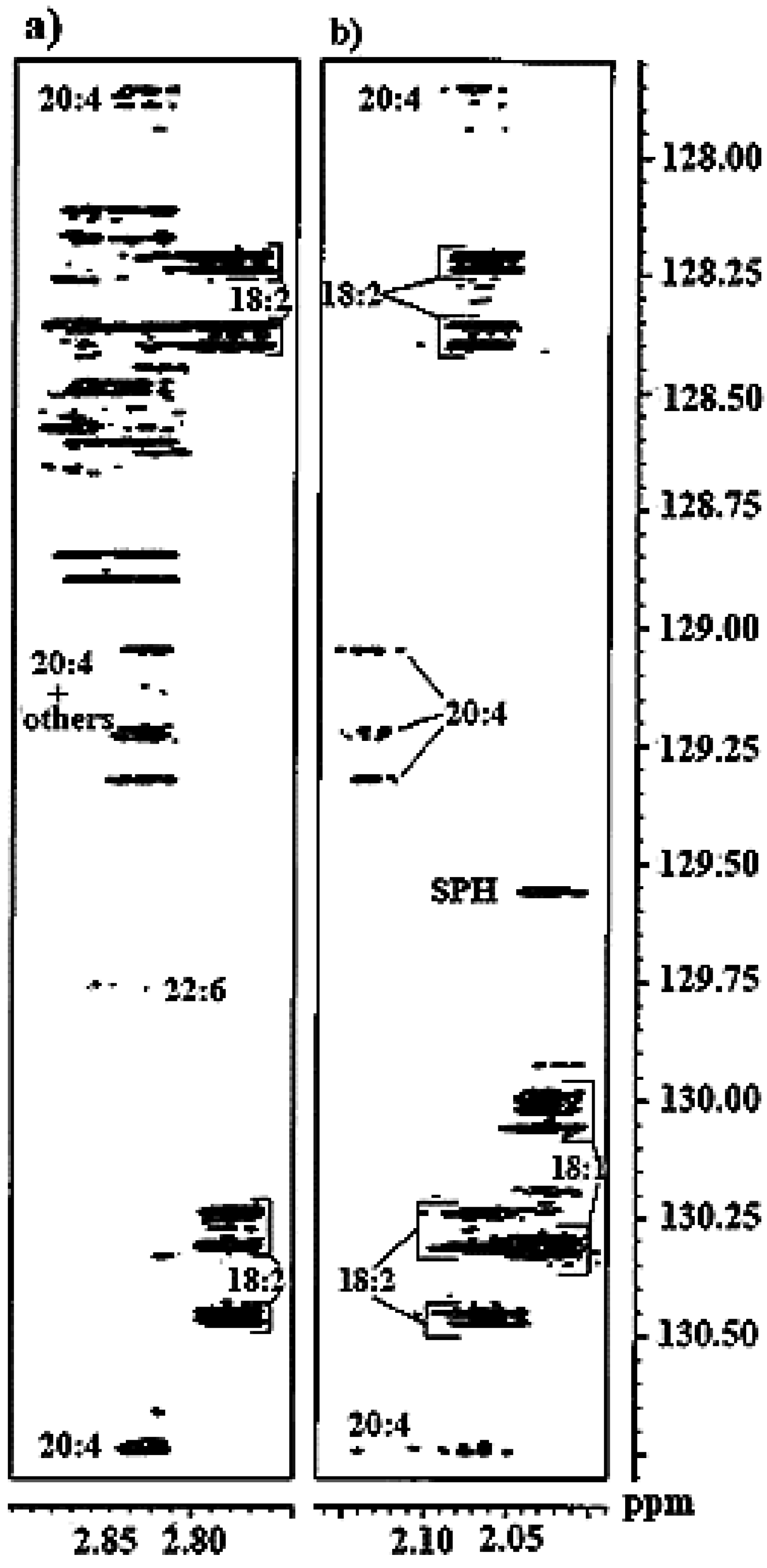

Figure 40. Semi-selective 800 MHz HSQC-TOCSY spectrum of the double bond region of blood plasma lipids. (a) Correlations to the allylic Δ–CH2–Δ protons (ca. 2.8 ppm) (b); Δ–1CH protons (ca. 2.05 ppm). In the Δ–CH2–Δ region the 18:2 signals are well separated from the higher polyunsaturated fatty acids, whereas in the Δ–1 region the 18:1 signals are separated from all other signals. The 20:4 fatty acid shows additional well separated signals at 2.13 ppm. Adopted, with permission, from [89]. Copyright 1998, John Wiley & Sons, Ltd.
Figure 40. Semi-selective 800 MHz HSQC-TOCSY spectrum of the double bond region of blood plasma lipids. (a) Correlations to the allylic Δ–CH2–Δ protons (ca. 2.8 ppm) (b); Δ–1CH protons (ca. 2.05 ppm). In the Δ–CH2–Δ region the 18:2 signals are well separated from the higher polyunsaturated fatty acids, whereas in the Δ–1 region the 18:1 signals are separated from all other signals. The 20:4 fatty acid shows additional well separated signals at 2.13 ppm. Adopted, with permission, from [89]. Copyright 1998, John Wiley & Sons, Ltd.
Molecules 22 01663 g040
Figure 41. Representative 1H-NMR spectrum (500 MHz) of human blood. Inset shows a schematic view of the micellar chylomicron structure. Adopted, with permission, from [202]. Copyright 2010, BioMed Central Ltd.
Figure 41. Representative 1H-NMR spectrum (500 MHz) of human blood. Inset shows a schematic view of the micellar chylomicron structure. Adopted, with permission, from [202]. Copyright 2010, BioMed Central Ltd.
Molecules 22 01663 g041
Figure 42. Binding of fatty acid to HSA induces significant conformational changes in the protein. (a) Crystal structure of unliganded HSA [223] (PDB ID, 1ao6). The subdomains are color-coded as follows: IA, red; IB, light-red; IIA, green; IIB, light-green; IIIA, blue; IIIB, light-blue. (b) Crystal structure of HSA-myristate [224] (PDB ID, 1bj5). Both crystal structures have been fully refined to 2.5 Å resolution. The six myristate molecules are numbered 1–6 and shown in a space-filling representation. Adopted, with permission, from [225]. Copyright 1999, Elsevier Science B.V.
Figure 42. Binding of fatty acid to HSA induces significant conformational changes in the protein. (a) Crystal structure of unliganded HSA [223] (PDB ID, 1ao6). The subdomains are color-coded as follows: IA, red; IB, light-red; IIA, green; IIB, light-green; IIIA, blue; IIIB, light-blue. (b) Crystal structure of HSA-myristate [224] (PDB ID, 1bj5). Both crystal structures have been fully refined to 2.5 Å resolution. The six myristate molecules are numbered 1–6 and shown in a space-filling representation. Adopted, with permission, from [225]. Copyright 1999, Elsevier Science B.V.
Molecules 22 01663 g042aMolecules 22 01663 g042b
Figure 43. Correlation of the 13C-NMR and crystal structure data for HSA. (a) Crystal structure of HSA complexed with palmitate. Labels indicate the FA binding sites and their assigned chemical shifts. The effects of various drugs on these chemical shifts are noted. (b) Spectrum of [13C] palmitate bound to HSA at a FA/HSA mole ratio of 4:1. Although a broad shoulder signal may be present at ∼182.6 ppm, the peaks for FA sites 1 and 6 are typically not observed in spectra of wild-type HSA at the FA/HSA ratios investigated. The positions of these two peaks (derived from multiple competition experiments) are indicated in the spectrum for [13C]-palmitate bound to wild-type HSA at a ratio of 4:1. (c) Spectrum of [13C] palmitate bound to PFL-HSA at a FA/HSA mole ratio of 4:1. Adopted, with permission, from [236]. Copyright 2013, Elsevier B.V.
Figure 43. Correlation of the 13C-NMR and crystal structure data for HSA. (a) Crystal structure of HSA complexed with palmitate. Labels indicate the FA binding sites and their assigned chemical shifts. The effects of various drugs on these chemical shifts are noted. (b) Spectrum of [13C] palmitate bound to HSA at a FA/HSA mole ratio of 4:1. Although a broad shoulder signal may be present at ∼182.6 ppm, the peaks for FA sites 1 and 6 are typically not observed in spectra of wild-type HSA at the FA/HSA ratios investigated. The positions of these two peaks (derived from multiple competition experiments) are indicated in the spectrum for [13C]-palmitate bound to wild-type HSA at a ratio of 4:1. (c) Spectrum of [13C] palmitate bound to PFL-HSA at a FA/HSA mole ratio of 4:1. Adopted, with permission, from [236]. Copyright 2013, Elsevier B.V.
Molecules 22 01663 g043aMolecules 22 01663 g043b
Figure 44. Summary of oleic acid (OA)-HSA competition experiments. (A) Crystal of HSA bound to seven labeled OA molecules. Drugs and endogenous compound primary and secondary binding sites are listed (PDB entry 1E7G). (B) 1H-13C HSQC spectrum of the 4:1 OA–HSA complex. FA-2, -4, and -5 (blue) are primary sites for FA and are generally not impacted by competition binding. The low-affinity sites, FA-3, -6, and -7 (red), were identified through drug competition experiments. The locations of the competition of the drugs and endogenous compounds for their primary and secondary binding are listed. The spectrum was recorded at 500 MHz, 25 °C, and pH 7.4 in a 50 mM phosphate, 50 mM NaCl buffer. Adopted, with permission, from [235]. Copyright 2013, by the American Chemical Society.
Figure 44. Summary of oleic acid (OA)-HSA competition experiments. (A) Crystal of HSA bound to seven labeled OA molecules. Drugs and endogenous compound primary and secondary binding sites are listed (PDB entry 1E7G). (B) 1H-13C HSQC spectrum of the 4:1 OA–HSA complex. FA-2, -4, and -5 (blue) are primary sites for FA and are generally not impacted by competition binding. The low-affinity sites, FA-3, -6, and -7 (red), were identified through drug competition experiments. The locations of the competition of the drugs and endogenous compounds for their primary and secondary binding are listed. The spectrum was recorded at 500 MHz, 25 °C, and pH 7.4 in a 50 mM phosphate, 50 mM NaCl buffer. Adopted, with permission, from [235]. Copyright 2013, by the American Chemical Society.
Molecules 22 01663 g044
Figure 45. (A) Comparison of various extraction methods in respect to the total (9-cis, 11-trans), (9-trans, 11-cis) and (9-cis, 11-cis) 18:2 CLA isomers and caproleic acid integrals. (B) Efficiency of the extraction of the milk lipid fraction using the Bligh and Dyer 1:2 method in respect to mg of lyophilized milk sample; (■), the relative integrals of the composite (9-cis, 11-trans), (9-trans, 11-cis) and (9-cis, 11-cis) 18:2 CLA isomers in respect to the standard reference compound as above. (○), the amount of the extracted composite (9-cis, 11-trans), (9-trans, 11-cis) and (9-cis, 11-cis) 18:2 CLA isomers expressed in mg g−1 of lyophilized milk sample. Adopted, with permission, from [56]. Copyright 2014, by the Elsevier B.V.
Figure 45. (A) Comparison of various extraction methods in respect to the total (9-cis, 11-trans), (9-trans, 11-cis) and (9-cis, 11-cis) 18:2 CLA isomers and caproleic acid integrals. (B) Efficiency of the extraction of the milk lipid fraction using the Bligh and Dyer 1:2 method in respect to mg of lyophilized milk sample; (■), the relative integrals of the composite (9-cis, 11-trans), (9-trans, 11-cis) and (9-cis, 11-cis) 18:2 CLA isomers in respect to the standard reference compound as above. (○), the amount of the extracted composite (9-cis, 11-trans), (9-trans, 11-cis) and (9-cis, 11-cis) 18:2 CLA isomers expressed in mg g−1 of lyophilized milk sample. Adopted, with permission, from [56]. Copyright 2014, by the Elsevier B.V.
Molecules 22 01663 g045aMolecules 22 01663 g045b
Table 1. Some representative unsaturated and polyunsaturated ω-6 fatty acids.
Table 1. Some representative unsaturated and polyunsaturated ω-6 fatty acids.
Common NameLipid NotationΔn NotationMolecular Formula
Oleic acid18:1 (ω-9) Δ9CH3(CH2)7CH=CH(CH2)7COOH
Linoleic acid18:2 (ω-6) Δ9,12CH3(CH2)4CH=CHCH2CH=CH(CH2)7COOH
Arachidonic acid (AA)20:4 (ω-6) Δ5,8,11,14CH3(CH2)3(CH2CH=CH)4(CH2)3COOH
γ-Linolenic acid18:3 (ω-6) Δ6,9,12CH3(CH2)3(CH2CH=CH)3(CH2)COOH
Dihomo-γ-linolenic acid20:3 (ω-6)Δ8,11,14CH3(CH2)3(CH2CH=CH)4(CH2)3COOH
Adrenic acid22:4 (ω-6)Δ7,10,13,16CH3(CH2)3(CH2CH=CH)4(CH2)5COOH
Table 2. Common ω-3 fatty acids found in Nature.
Table 2. Common ω-3 fatty acids found in Nature.
Common NameLipid NotationChemical Name
n/a16:3 (ω-3)all-cis-7,10,13-hexadecatrienoic acid
α-Linolenic acid (ALA)18:3 (ω-3)all-cis-9,12,15-octadecatrienoic acid
Stearidonic acid (SDA)18:4 (ω-3)all-cis-6,9,12,15-octadecatetraenoic acid
Eicosatrienoic acid (ETE)20:3 (ω-3)all-cis-11,14,17-eicosatrienoic acid
Eicosatetraenoic acid (ETA)20:4 (ω-3)all-cis-8,11,14,17-eicosatetraenoic acid
Eicosapentaenoic acid (EPA)20:5 (ω-3)all-cis-5,8,11,14,17-eicosapentaenoic acid
Docosapentaenoic acid (DPA)22:5 (ω-3)all-cis-7,10,13,16,19-docosapentaenoic acid
Docosahexaenoic acid (DHA)22:6 (ω-3)all-cis-4,7,10,13,16,19-docosahexaenoic acid
Tetracosapentaenoic acid24:5 (ω-3)all-cis-9,12,15,18,21-docosahexaenoic acid
Tetracosahexaenoic acid (Nisinic acid)24:6 (ω-3)all-cis-6,9,12,15,18,21-tetracosenoic acid
Table 3. 1H-NMR chemical shifts of alkenyl protons of some methyl octadecenoates in CCl4. Reprinted, with permission, from [54]. Copyright 1975, North-Holland Publishing Company.
Table 3. 1H-NMR chemical shifts of alkenyl protons of some methyl octadecenoates in CCl4. Reprinted, with permission, from [54]. Copyright 1975, North-Holland Publishing Company.
Double Bondδ-ValueDouble Bondδ-Value
2-cis6.145
5.680
2-trans6.85
5.72
3-cis5.513-trans5.47
4-cis5.314-trans5.40
5-cis5.325-trans5.34
6-cis5.296-trans-
7-cis5.287-trans-
17-cis5.72
4.94
4.88
17-trans-
-
-
Table 4. 1H-NMR resonance assignments of olefinic protons of conjugated linoleic acids (CLAs) in CDCl3 [55,56].
Table 4. 1H-NMR resonance assignments of olefinic protons of conjugated linoleic acids (CLAs) in CDCl3 [55,56].
CompoundAtomFunctional Groupδ (ppm)Multiplicity (Hz)
(10-cis, 12-cis)-CLAH11, H12–CH=6.85m
(7-trans, 9-cis)-CLAH8–CH=6.3dd
(9-trans, 11-cis)-CLAH10–CH=6.29t
(9-cis, 11-trans)-CLAH11–CH=6.28dd
(9-cis, 11-cis)-CLAH10, H11–CH=6.22dd
(10-trans, 12-cis)-CLAH11–CH=6.22m
(10-cis, 12-cis)-CLAH10, H13–CH=6.13m
(10-trans, 12-trans)-CLAH11, H12–CH=5.99m
(9-trans, 11-trans)-CLAH10, H11–CH=5.96m
(9-cis, 11-trans)-CLAH10–CH=5.93t
(9-trans, 11-cis)-CLAH9–CH=5.93m
(7-trans, 9-cis)-CLAH9–CH=5.93dd
(10-trans, 12-cis)-CLAH12–CH=5.87t
(9-trans, 11-cis)-CLAH11–CH=5.66t
(9-cis, 11-trans)-CLAH12–CH=5.65m
(7-trans, 9-cis)-CLAH7–CH=5.64m
(10-trans, 12-cis)-CLAH10–CH=5.58m
(10-trans, 12-trans)-CLAH10, H13–CH=5.56m
(9-trans, 11-trans)-CLAH9, H12–CH=5.54m
(9-cis, 11-cis)-CLAH9, H12–CH=5.40m
(9-cis, 11-trans)-CLAH9–CH=5.33m
(7-trans, 9-cis)-CLAH10–CH=5.31m
(9-trans, 11-cis)-CLAH12–CH=5.30m
(10-trans, 12-cis)-CLAH13–CH=5.23m
Table 5. 1H-NMR chemical shift values (ppm) and coupling constants (Hz) of olefinic hydrogens of conjugated linolenic acids (CLnAs) in CDCl3. Reprinted, with permission, from [58]. Copyright 2006, American Chemical Society.
Table 5. 1H-NMR chemical shift values (ppm) and coupling constants (Hz) of olefinic hydrogens of conjugated linolenic acids (CLnAs) in CDCl3. Reprinted, with permission, from [58]. Copyright 2006, American Chemical Society.
Proton Notationβ-eleostearic Acid:
(9-trans, 11-trans, 13-trans) 18:3
Punicic Acid:
(9-cis, 11-trans, 13-cis) 18:3
α-eleostearic Acid:
(9-cis, 11-trans, 13-trans) 18:3
9,14-H5.66, J = 12.8 Hz5.46, J = 10.8 Hz5.40 (9-H, J = 10.8 Hz)
5.74 (14-H, J = 14 Hz)
10,13-H6.04, J = 12.8 Hz6.08, J = 10.8 Hz6.01 (10-H, J = 10.8 Hz)
6.12 (13-H, J = 14 Hz)
11,12-H6.10, J = 11.6 Hz6.48, J = 12.8 Hz6.40 (12-H, J = 13.6 Hz)
6.19 (11-H, J = 13.6 Hz)
Table 6. 1H-NMR resonance assignments of the glycerol moiety of lipids in CDCl3 [59,60].
Table 6. 1H-NMR resonance assignments of the glycerol moiety of lipids in CDCl3 [59,60].
CompoundFunctional Groupδ (ppm)MultiplicityJ Coupling (Hz)
Glycerol in TAG2′-CHOCO–5.26mJ1′a,2′ = 5.9 Hz
sn-1,2/2,3 DAG2′-CHOCO–5.08m-
sn-1,2 DAG1′b-CH2–OCO–4.31ddJ1′a,1′b = 11.9 Hz
J1′a,2′ = 4.5 Hz
Glycerol in TAG1′a,b-CH2–OCO–4.30ddJ3′a,3′b = 11.9 Hz J3′a,2′ = 4.4 Hz
sn-1,2 DAG1′a-CH2–OCO–4.23ddJ1′a,1′b = 11.9 Hz J3′a,2′ = 5.7 Hz
sn-1,3 DAG1′b, 3′b-CH2–OCO–4.18ddJ1′a,1′b = 11.4 Hz J1′a,2′ = 4.4 Hz
Glycerol in TAG–CH2–OCO–4.15dd-
sn-1,3 DAG1′a, 3′a-CH2–OCO–4.13ddJ1′a,1′b = 11.4 Hz J1′a,2′ = 6.0 Hz
sn-1,3 DAG–CH2–OCO–4.03m-
sn-1,2/2,3 DAGHO–CH2–CH–3.72m-
Glycerol in 1-MAG3′a-CH2–OCO-3.59ddJ3′a,3′b = 11.4 Hz J3′a,2′ = 6.0 Hz
Table 7. 1H-NMR features of some characteristic groups in polyenoic fatty acids and esters (in CC14). Reprinted, with permission, from [54]. Copyright 1975, North-Holland Publishing Company.
Table 7. 1H-NMR features of some characteristic groups in polyenoic fatty acids and esters (in CC14). Reprinted, with permission, from [54]. Copyright 1975, North-Holland Publishing Company.
Groupδ-Value
Molecules 22 01663 i001Molecules 22 01663 i0022.72
2.67
2.61
2.76
Molecules 22 01663 i003(a) 2.78
(b) 2.76
Molecules 22 01663 i0042.04
Molecules 22 01663 i005(a) 1.38
(b) 2.00
Molecules 22 01663 i006(a) 1.34
(b) 2.00
Table 8. 1H-NMR chemical shifts of some characteristic groups in polyynoic fatty acids and esters (in CC14). Reprinted, with permission, from [54]. Copyright 1975, North-Holland Publishing Company.
Table 8. 1H-NMR chemical shifts of some characteristic groups in polyynoic fatty acids and esters (in CC14). Reprinted, with permission, from [54]. Copyright 1975, North-Holland Publishing Company.
Groupδ-Value
Molecules 22 01663 i0073.06–3.07
Molecules 22 01663 i0082.98–2.99
Molecules 22 01663 i0093.04–3.05
Molecules 22 01663 i010(a) 3.04
(b) 3.0–3.10
Molecules 22 01663 i0112.33
Table 9. 1H-NMR resonance assignments of allylic protons, α-protons and CH3 groups in CDCl3.
Table 9. 1H-NMR resonance assignments of allylic protons, α-protons and CH3 groups in CDCl3.
CompoundFunctional Groupδ (ppm)Multiplicity
DHA–OOC–CH2–CH22.46d
All FA–OOC–CH2–CH22.33t
ω-3CH3–CH2–CH=CH–2.07m
ω-6–CH2–CH=CH–2.03m
UFA–CH2–CH=CH–2.02m
ω-9–CH2–CH=CH–2.01m
α-linolenic acid–CH30.98t (7.5 Hz)
Butyric acid–CH30.94t (7.4 Hz)
Linoleic acid–CH30.883t (7.0 Hz)
ω-9–CH30.880t (7.2 Hz)
SFA–CH30.88-0.87t (6.9 Hz)
Table 10. Longitudinal relaxation times T1 of proton nuclei of acyl chains of olive oil triacylglycerides. Reprinted, with permission, from [20]. Copyright 1999, Elsevier Science B.V.
Table 10. Longitudinal relaxation times T1 of proton nuclei of acyl chains of olive oil triacylglycerides. Reprinted, with permission, from [20]. Copyright 1999, Elsevier Science B.V.
1H ResonancesChemical Shift (ppm)T1 (s)
Glycerol residue
1(3)4.320.42
1′(3′)4.170.44
25.260.79
Acyl residues
22.300.53
31.570.73
4–71.250.86
82.001.06
9, 105.341.26
112.761.30
180.871.51
Table 11. 13C-NMR peak assignments of the carboxyl and the ester carbonyl region of UFAs in CDCl3.
Table 11. 13C-NMR peak assignments of the carboxyl and the ester carbonyl region of UFAs in CDCl3.
CompoundCarbonFunctional Groupδ (ppm)
(9-cis, 11-trans)-CLA, (9-trans, 11-cis)-CLA,
(11-cis, 13-trans)-CLA, (10-trans, 12-cis)-CLA
C1OOC–CH2-180.09
(8-trans, 10-cis)-CLAC1OOC–CH2-180.05
(9-cis, 11-cis)-CLAC1OOC–CH2-179.98
(9-trans, 11-trans)-CLAC1OOC–CH2-179.86
FFAC1OOC–CH2-178.04
Unsaturated FA in sn-1,3 of DAGC1–CH2–OOC–CH2-173.32
FA in sn-1 (sn-3) of 1,2 (2,3) DAGC1–CH2–OOC–CH2-173.18
FA in sn-2 of 1,2 (2,3) DAGC1–CH–OOC–CH2-173.08
Unsaturated FA in sn-1,3 of TAGC1–CH2–OOC–CH2-172.70
Butyric acid in sn-1,3 of TAGC1–CH2–OOC–CH2-172.60
Unsaturated FA in sn-2 of TAGC1–CH–OOC–CH2-172.38
Table 12. NOE and T1 values of carbonyl carbons of triglycerides. Reprinted, with permission, from [20]. Copyright 1999, Elsevier Science B.V.
Table 12. NOE and T1 values of carbonyl carbons of triglycerides. Reprinted, with permission, from [20]. Copyright 1999, Elsevier Science B.V.
Carbon Atomδ (ppm) aNOE (1 + η)Τ1 (s)
C1 sn-1(3)-Tripalmitin173.101.775.6
Triolein173.071.7815.6
Trilinolein173.061.735.4
C1 sn-2-Tripalmitin172.701.743.9
Triolein172.671.674.5
Trilinolein172.661.684.4
a Chemical shifts are referenced with respect to TMS = 0 ppm.
Table 13. 13C-NMR peak assignments of the olefinic carbons of some representative UFAs in CDCl3.
Table 13. 13C-NMR peak assignments of the olefinic carbons of some representative UFAs in CDCl3.
CompoundCarbonFunctional Groupδ (ppm)
Caproleic acidC9CH=CH2138.70
(9-cis, 11-trans)-CLAC12CH=CH135.80
(11-cis, 13-trans)-CLAC14CH=CH134.66
(10-trans, 12-cis)-CLAC10CH=CH134.58
(9-trans, 11-cis)-CLAC9CH=CH134.51
(8-trans, 10-cis)-CLAC8CH=CH134.32
(9-trans, 11trans)-CLAC12CH=CH132.53
(9-trans, 11-trans)-CLAC9CH=CH132.21
(9-cis, 11-cis)-CLAC12CH=CH132.19
(9-cis, 11-cis)-CLAC9CH=CH131.87
All ω-3 FAω3CH=CH131.66
(9-trans, 11-trans)-CLAC10CH=CH130.46
(9-trans, 11trans)-CLAC11CH=CH130.30
(8-trans, 10-cis)-CLAC11CH=CH130.27
(9-trans, 11-cis)-CLAC12CH=CH130.17
(10-trans, 12-cis)-CLAC13CH=CH130.16
(11-cis, 13-trans)-CLAC11CH=CH130.04
Linoleic acid, Linolenic acidC13, C9CH=CH129.89
(9-cis, 11-trans)-CLAC9CH=CH129.89
Linoleic acidC9CH=CH129.51–129.49
(9-cis, 11-trans)-CLAC10CH=CH128.73
(11-cis, 13-trans)-CLAC12CH=CH128.66
(10-trans, 12-cis)-CLAC12CH=CH128.60
(9-trans, 11-cis)-CLAC11CH=CH128.57
(8-trans, 10-cis)-CLAC10CH=CH128.54
Linolenic acidC13, C12CH=CH127.97–127.92
Linoleic acidC10CH=CH127.77–127.76
Linoleic acidC12CH=CH127.59–127.58
Linolenic acidC10CH=CH127.46–127.44
All ω-3 FAω4CH=CH126.77
(8-trans, 10-cis)-CLAC9CH=CH125.83
(9-trans, 11-cis)-CLAC10CH=CH125.72
(10-trans, 12-cis)-CLAC11CH=CH125.70
(11-cis, 13-trans)-CLAC13CH=CH125.65
(9-cis, 11-trans)-CLAC11CH=CH125.58
(9-cis, 11-cis)-CLAC10CH=CH123.72
(9-cis, 11-cis)-CLAC11CH=CH123.55
Caproleic acidC10–CH=CH2114.05
Table 14. 13C chemical shift values of olefinic carbons of α-eleostearic acid, punicic acid, and β-eleostearic acid (ppm) in CDCl3. Reprinted, with permission, from [58].
Table 14. 13C chemical shift values of olefinic carbons of α-eleostearic acid, punicic acid, and β-eleostearic acid (ppm) in CDCl3. Reprinted, with permission, from [58].
Carbon Notationβ-eleostearic Acid:
(trans-9, trans-11, trans-13) 18:3
Punicic Acid:
(cis-9, trans-11, cis-13) 18:3
α-eleostearic Acid:
(cis-9, trans-11, trans-13) 18:3
C-9134.46132.69131.75
C-10130.87128.82128.72
C-11130.51127.94132.83
C-12130.41127.79126.00
C-13130.73128.71130.53
C-14134.23132.46135.17
Table 15. 13C chemical shift increments (ppm) of the olefinic carbons in several positional CLA isomers. Reprinted, with permission, from [68].
Table 15. 13C chemical shift increments (ppm) of the olefinic carbons in several positional CLA isomers. Reprinted, with permission, from [68].
Δδ7-cis, 9-trans8-cis, 10-trans9-cis, 11-trans10-cis, 12-trans11-cis, 13-trans
C1ol–C2ol0.450.831.071.221.30
C4ol–C3ol9.439.259.149.068.93
Table 16. 13C-NMR peak assignments of the carbons of the glycerol moiety in CDCl3.
Table 16. 13C-NMR peak assignments of the carbons of the glycerol moiety in CDCl3.
CompoundCarbonFunctional Groupδ (ppm)
Glycerol in 1,2/2,3 DAG CH–OOC–71.85
Glycerol in TAG CH–OOC–68.72
Glycerol in 1,3 DAG HO-CH–(CH2)267.81
Glycerol in 1,3 DAG CH2–OOC–64.75
Glycerol in 1,2/2,3 DAG HO–CH2–CH–62.02
Glycerol in TAG CH2–OOC–61.83
Glycerol in 1,2 DAG CH2–OOC–60.83
Table 17. 13C-NMR peak assignment of the aliphatic carbons of lipids in CDCl3.
Table 17. 13C-NMR peak assignment of the aliphatic carbons of lipids in CDCl3.
CompoundCarbonFunctional Groupδ (ppm)
Butyric acidC2–OOC–CH2–CH235.62
(9-trans, 11-cis)-CLAC2–OOC–CH2–CH234.10
(9-cis, 11-cis)-CLA, (11-cis, 13-trans)-CLA,
(10-trans, 12-cis)-CLA
C2–OOC–CH2–CH234.06
(9-cis, 11-trans)-CLAC2–OOC–CH2–CH234.05
(18-trans, 10-cis)-CLAC2–OOC–CH2–CH234.03
(9-trans, 11-tans)-CLAC2–OOC–CH2–CH234.00
All FA except butyric in sn-2 of TAGC2–OOC–CH2–CH233.92
All FA except butyric in sn-1,3 of TAGC2–OOC–CH2–CH233.76
(9-cis, 11-trans)-CLAC13CH2–CH=CH–32.90
(10-trans, 12-cis)-CLAC9CH2–CH=CH–32.87
(9-trans, 11-cis)-CLAC8CH2–CH=CH–32.86
(8-trans, 10-cis)-CLAC7CH2–CH=CH–32.78
(9-trans, 11-trans)-CLAC13CH2–CH=CH–32.63
(11-cis, 13-trans)-CLAC15CH2–CH=CH–32.57
(9-trans, 11-trans)-CLAC8CH2–CH=CH–32.56
(8-trans, 10-cis)-CLAC16CH2–CH2–CH331.87
(9-trans, 11-trans)-CLA,
(9-trans, 11-cis)-CLA
C16CH2–CH2–CH331.77
(9-cis, 11-cis)-CLA, (9-cis, 11-trans)-CLAC16CH2–CH2–CH331.76
(11-cis, 13-trans)-CLAC16CH2–CH2–CH331.59
(10-trans, 12-cis)-CLAC16CH2–CH2–CH331.50
Linoleic acidω3CH2–CH2–CH331.32
(8-trans, 10-cis)-CLAC13–CH229.76
(11-cis, 13-trans)-CLAC9–CH229.73
(9-trans, 11-cis)-CLAC14–CH229.73
(9-cis, 11-cis)-CLAC14–CH229.64
(9-cis, 11-cis)-CLAC7–CH229.57
All FA –(CH2)n29.56–28.73
(10-trans, 12-cis)-CLAC15–CH229.44
(9-trans, 11-trans)-CLAC14–CH229.42
(9-cis, 11-trans)-CLAC14–CH229.40
(10-trans, 12-cis)-CLAC8–CH229.39
(9-trans, 11-trans)-CLAC7–CH229.36
(10-trans, 12-cis)-CLAC5, C6, C7–CH229.16–29.29
(9-trans, 11-cis)-CLAC5, C6, C7–CH229.13–29.45
(9-cis, 11-trans)-CLAC5, C6, C7–CH229.12–29.67
(11-cis, 13-trans)-CLAC4, C5, C6, C7, C8–CH229.07–29.45
(10-trans, 12-cis)-CLAC4–CH229.06
(9-cis, 11-trans)-CLAC4–CH229.03
(9-cis, 11-cis)-CLAC4, C5, C6, C15–CH228.99–29.11
(9-trans, 11-cis)-CLAC4, C15–CH228.97
(9-cis, 11-trans)-CLAC15–CH228.93
(9-trans, 11-trans)-CLAC4, C5, C6, C15–CH228.92–29.10
(8-trans, 10-cis)-CLAC4, C5, C6, C14, C15–CH228.81–29.25
(9-trans, 11-cis)-CLAC13CH2–CH=CH–27.72
(8-trans, 10-cis)-CLAC12CH2–CH=CH–27.71
(11-cis, 13-trans)-CLAC10CH2–CH=CH–27.69
(10-trans, 12-cis)-CLAC14CH2–CH=CH–27.68
(9-cis, 11-trans)-CLAC8CH2–CH=CH–27.65
(9-cis, 11-cis)-CLAC8CH2–CH=CH–27.52
(9-cis, 11-cis)-CLAC13CH2–CH=CH–27.43
Unsaturated FA CH2–CH=CH–26.91–26.88
PUFA –CH=CH–CH2–CH=CH–25.34
(9-trans, 11-cis)-CLAC3–CH224.95
(11-cis, 13-trans)-CLAC3–CH224.69
(9-cis, 11-cis)-CLAC3–CH224.68
(9-trans, 11-trans)-CLA, (9-cis, 11-trans)-CLA,
(10-trans,12-cis)-CLA
C3–CH224.67
(8-trans, 10-cis)-CLAC3–CH224.63
All FA except butyric –OOC–CH2CH224.58
(8-trans, 10-cis)-CLAC17CH2–CH322.68
(9-trans, 11-cis)-CLAC17CH2–CH322.65
(9-cis, 11-cis)-CLAC17CH2–CH322.64
(9-trans, 11-trans)-CLA, (9-cis, 11-trans)-CLAC17CH2–CH322.63
(10-trans, 12-cis)-CLAC17CH2–CH322.57
All FA except ω-3ω2CH2–CH322.48
(11-cis, 13-trans)-CLAC17CH2–CH322.29
ω-3ω2CH2–CH320.13
Butyric acidC3CH2–CH318.10
(9-trans, 11-cis)-CLAC18–CH314.12
ω-3ω1–CH314.11
(8-trans, 10-cis)-CLAC18–CH314.11
(9-trans, 11-trans)-CLA, (9-cis, 11-trans)-CLAC18–CH314.10
(9-cis, 11-cis)-CLAC18–CH314.09
(10-trans, 12-cis)-CLAC18–CH314.06
(11-cis, 13-trans)-CLAC18–CH313.95
Saturatedω-1–CH313.96
ω-9ω-1–CH313.95
ω-7ω-1–CH313.94
ω-6ω-1–CH313.91
Table 18. 1H-NMR peak assignments of the (9-cis, 11-trans) 18:2 CLA in CDCl3.
Table 18. 1H-NMR peak assignments of the (9-cis, 11-trans) 18:2 CLA in CDCl3.
Functional GroupAtomδ (ppm)Multiplicity
HOOC–H110.43a
–CH=H116.28dd
–CH=H105.93t
–CH=H125.65m
–CH=H95.33m
–CH2-COOHH22.35t
–CH2–CH=CH–H8, H132.13m
–CH2-CH2–COOHH31.65m
–CH2H4–H7, H14–H171.25–1.35m
–CH3H180.87t
a Very broad resonance due to 1H exchange with traces of H2O in the organic solvent.
Table 19. 1H and 13C peak assignments of the (9-cis, 11-trans) 18:2 CLA isomer in CDCl3 (solution conditions the same as in Figure 16).
Table 19. 1H and 13C peak assignments of the (9-cis, 11-trans) 18:2 CLA isomer in CDCl3 (solution conditions the same as in Figure 16).
1HδΗ (ppm)13Cδc (ppm)
H110.43C1179.0
H22.35C234.2
H31.65C324.9
H41.31C429.5
H51.32C529.4
H61.34C629.6
H71.36C729.7
H82.1C828.1
H95.33C9129.6
H105.93C10128.4
H116.28C11125.3
H125.65C12134.8
H132.08C1333.4
H141.30C1429.1
H151.28C1528.9
H161.27C1632.0
H171.26C1723.1
H180.87C1814.3
Table 20. ω-3 content (%) of α-linolenic acid (ALA) in seed oils. Reprinted with permission from [111].
Table 20. ω-3 content (%) of α-linolenic acid (ALA) in seed oils. Reprinted with permission from [111].
Common NameLinnaean Nameω-3 (%)
ChiaSalvia hispanica64
KiwifruitActinidia chinensis62
PerillaPerilla frutescens58
FlaxLinum usitatissimum55
LingonberryVaccinium vitis-idaea49
CamelinaCamelina sativa36
PurslanePortulaca oleracea35
Black RaspberryRubus occidentalis33
Table 21. Results obtained using 1D TOCSY NMR, conventional 1H-NMR and GC-MS methods for the determination of the caproleic acid in two milk samples. Reprinted, with permission, from [78]. Copyright 2015, American Chemical Society.
Table 21. Results obtained using 1D TOCSY NMR, conventional 1H-NMR and GC-MS methods for the determination of the caproleic acid in two milk samples. Reprinted, with permission, from [78]. Copyright 2015, American Chemical Society.
SampleAnalyte/Units1D TOCSY a1H-NMR aRelative Deviation b (%)GC-MSRelative Deviation c (%)
1Caproleic acid/mM1.02 ± 0.030.97 ± 0.02 a5.15
Caproleic acid/% of the lipid fraction 0.26 ± 0.01 0.28−7.14
2Caproleic acid/mM1.92 ± 0.061.83 ± 0.06 a1.75
% of the lipid fraction 0.74 ± 0.01 0.688.82
a Results are expressed as mM of caproleic acid (in tube; standard deviation (n = 3)). b Results are expressed as 100 × [(1D TOCSYvalue) − (1D 1H NMRvalue)]/(1D 1H NMRvalue). c Results are expressed as 100 × [(NMRvalue) − (GC-MSvalue)]/(GC-MSvalue).
Table 22. 1H-NMR chemical shifts and spin multiplicities of oxidation products of edible lipids. Adopted, with permission, from [26]. Copyright 2014, Institute of Food Technologists.
Table 22. 1H-NMR chemical shifts and spin multiplicities of oxidation products of edible lipids. Adopted, with permission, from [26]. Copyright 2014, Institute of Food Technologists.
SignalChemical Shift (ppm)MultiplicityFunctional Group
Primary Oxidation Compounds
–CH=CH–CH=CH6.58dddd(Z,E)-conjugated double
6.00ddtdbonds associated with
5.56ddmhydroperoxides (OOH)
5.51dtm
–CH=CH–CH=CH6.45ddd(Z,E)-conjugated double
5.94ddbonds associated with
5.64ddhydroxides (OH)
5.40ddt
–CH=CH–CH=CH6.27ddm(E,E)-conjugated double
6.06ddtdbonds associated with
5.76dtmhydroperoxides (OOH)
5.47ddm
–CHOOH–CH=CH5.72mDouble bond associated with
hydroperoxides (OOH)
–OOH8.3 to 8.9-Hydroperoxide group
Secondary or Further Oxidation Compounds
Aldehydes
–CHO9.49d(E)-2-alkenals
–CHO9.52d(E,E)-2,4-alkadienals
–CHO9.55d4,5-epoxy-2-alkenals
–CHO9.57d4-hydroxy-(E)-2-alkenals
–CHO9.58d4-hydroperoxy-(E)-2-alkenals
–CHO9.60d(Z,E)-2,4-alkadienals
–CHO9.75tn-alkanals
–CHO9.78t4-oxo-alkanals
–CHO9.79tn-alkanals of low molecular
weight (ethanal and propanal)
Alcohols
–CHOH–CHOH–3.43m9,10-dihydroxy-12-octadecenoate
(leukotoxindiol)
–CHOH–3.54–3.59msecondary alcohols
–CH2OH–3.62tprimary alcohols
Epoxides
–CHOHC–2.63m(E)-9,10-epoxystearate
–CHOHC–2.88m(Z)-9,10-epoxystearate
–CHOHC–2.90m9,10-epoxy-octadecanoate;
9,10-epoxy-12-
octadecenoate
(leukotoxin); 12,13-epoxy-
9-octadecenoate
(isoleukotoxin)
–CHOHC–CHOHC–2.90m9,10–12,13-diepoxy
octadecanoate
–CHOHC–CH2–CHOHC–3.10m9,10–12,13-diepoxy
octadecanoate
Ketones and Unidentified
O=C<CH=CH–6.08dtDouble bond conjugated with a keto group
6.82m
Unidentified7.50-Unidentified
Unidentified8.10-Unidentified
d, doublet; t, triplet; m, multiplet.
Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
