Molecules 2017, 22(10), 1534; doi:10.3390/molecules22101534

Article
Antimicrobial Effects of Violacein against Planktonic Cells and Biofilms of Staphylococcus aureus
Andressa H. M. Batista 1,*Orcid, Anne C. D. Moreira 1, Rafael M. de Carvalho 1, Gleilton W. P. Sales 1Orcid, Patrícia C. N. Nogueira 2, Thalles B. Grangeiro 3Orcid, Suelen C. Medeiros 3, Edilberto R. Silveira 2 and Nádia A. P. Nogueira 1
1
Clinical Department of Toxicological Analysis, Faculty of Pharmacy, Federal University of Ceará, Fortaleza 60356000, Brazil
2
Organic Chemistry Department, Federal University of Ceará, Fortaleza 60356000, Brazil
3
Biology Department, Federal University of Ceará, Fortaleza 60356000, Brazil
*
Correspondence: Tel.: +55-85-3366-8267
Received: 7 August 2017 / Accepted: 9 September 2017 / Published: 25 September 2017

Abstract

:
Violacein is an indole compound, produced by Chromobacterium violaceum, a bacteria present in tropical and subtropical areas. Among its numerous biological activities, its antimicrobial potential stands out. This study aims to determine the antimicrobial activity of VIO on S. aureus in planktonic culture and biofilms. VIO showed excellent antimicrobial activity in inhibiting and killing S. aureus in planktonic cultures and biofilm formation. The minimum bactericidal concentration (5 μg/mL) of VIO caused the death of S. aureus after 3–4 h of exposure and the minimum inhibitory concentration (1.25 μg/mL) of VIO inhibited bacterial growth within the first 8 h of contact. Biofilm formation was also strongly inhibited by VIO (1.25 μg/mL), in contrast to the higher resistance verified for S. aureus in mature biofilm (40 μg/mL). The high bacterial metabolic activity favored VIO activity; however, the good activity observed during phases of reduced metabolism indicates that VIO action involves more than one mechanism. Thus, VIO is a promising molecule for the development of an antimicrobial drug for the eradication of S. aureus infections.
Keywords:
violacein; antimicrobial activity; biofilms; Staphylococcus aureus

1. Introduction

Staphylococcus aureus, one of the main etiological agents of acquired infections in the community and the environment [1], has a remarkable ability to adapt and an enormous ability to rapidly develop resistance to countless antibiotics [2]. Its ability to produce numerous virulence factors contributes to its pathogenicity and ability to cause a variety of infectious diseases [3].
Biofilms are heterogeneous bacterial communities, irreversibly bound to a complex matrix consisting of DNA, proteins, and polysaccharides [3], which have an altered phenotype regarding growth rate and gene transcription [4]. Microbial growth in biofilm plays an important role during infection by providing different defense mechanisms to the microorganism. The biofilm matrix can prevent the access of immune cells, such as macrophages [5], as well as promote increased tolerance of microorganisms to antimicrobial agents [6].
The ability of S. aureus to form biofilms on medical devices, such as catheters and prostheses, increases its virulence and contributes to treatment failure [4,7]. Compared to its planktonic state, S. aureus in biofilms shows a significant difference in gene expression and in its physiology [8].
Thus, due to the difficulty for antimicrobial agents to promote inhibition and eradication of S. aureus biofilm, the search for new therapies is extremely important for the successful treatment of infectious diseases.
Violacein (VIO) is a purple bisindole metabolite, natural violet pigment produced by several Gram-negative bacteria, including the species Chromobacterium violaceum. VIO is a bioactive secondary metabolite, formed by the condensation of two tryptophan molecules through the action of proteins [9,10] (Figure 1).
VIO has attracted much attention in the scientific community due to its several pharmacological properties, such as antitumor, antibacterial, antiviral, antiparasitic, antioxidant action, as well as fungicide and leishmanicidal properties [10,11,12,13].
An excellent antibacterial activity of VIO has been demonstrated in vitro assays [13], as well as its synergistic potential in association with gentamicin, cefadroxil, azithromycin, and kanamycin, suggesting the possibility of using it as an alternative therapy [14], when administered in combination with other antibiotics, VIO is more effective than the use of antibiotics alone [10]. Nanoparticles loaded with VIO were two to five times more effective than VIO alone against strains of methicillin-resistant S. aureus (MRSA) [15].
Given the concern about the emergence of antibiotic-resistant strains, there is a great need for searching and investigating new molecules, as well as understanding their mechanism of action. In this context, VIO with its excellent antimicrobial activity especially on S. aureus, has emerged as a promising molecule. However, it is necessary to elucidate its antimicrobial mechanism of action so that VIO can become a new drug for the treatment of microbial infections [13,15]. The aim of this study was to determine the antistaphylococcal activity of VIO in planktonic cultures and biofilms.

2. Results

2.1. Structure Characterization

The 1H-NMR spectrum showed 13 proton signals, four singlets at δ 11.88, 10.72, 10.60, and 9.33; six doublets at δ 8.93 (J = 8.0 Hz, H-19), 8.06 (J = 3.1 Hz, 2 H), 7.55 (J = 2.0 Hz, H-13), 7.35 (J = 8.7 Hz, H-8), 7.23 (J = 2.0 Hz, H-5), and 6.83 (J = 8.0 Hz, H-22); two triplets of doublet at δ 7.20 (J = 8.0; 1.0 Hz, 21-H) and 6.95 (J = 8.0, 1.0 Hz, H-20); and, finally, a double doublet at δ 6.79 (J = 8.7; 2.0 Hz, H-7).
The singlets at δ 11.88 (NH-1), 10.72 (NH-10) and 10.60 (NH-15) were attributed to hydrogen atoms bonded to nitrogen atoms, while the singlet at δ 9.33 was associated to the proton of a hydroxyl, suggested as an oxygenated carbon substituent at δ 152.9. The 13C-NMR spectrum showed 20 carbon signals, in agreement with the deduced molecular formula, all related to sp2 carbons (Table 1).
All these data, together with the comparison with the NMR data in the literature [16], allowed the identification of the compound as (3E)-[3-(1,2-dihydro-5-(5-hydroxy-1H-indol-3-yl)-2-oxo-3H-pyrrol-3-ylidene)-1,3-dihydro]-2H-indol-2-one, known as VIO. The Supplementary Materials are available online. NMR are available as Supporting Information.

2.2. Antimicrobial Activity of VIO

The values of MIC and MBC ranged from 1.25 to 20 μg/mL and 5 to 40 μg/mL, respectively. Interestingly, VIO showed excellent activity inhibiting biofilm growth, with MBIC equal to MIC, indicating that its action occurs during biofilm formation, when the cells show intense metabolism (Table 2).
The results shown in Figure 1 exhibiting the viability of planktonic cultures of S. aureus exposed to MIC, 2× MIC, and 4× MIC for 2, 4, 6, 8, 10, 12, and 24 h at 37 °C. VIO showed antimicrobial activity, depending on concentration, against cells of S. aureus ATCC 6538P, completely preventing bacterial metabolism after 3–4 h of exposure to 5 μg/mL (Figure 2).
In the beginning of the exponential growth phase (4 h), when cells are young and have an intense metabolic activity, an initial reduction of 3 log10 CFU/mL was observed in the microbial population (Figure 3). At the end of the exponential growth phase (8 h) and stationary growth phase, VIO inhibitory action can also be observed, but to a lower intensity (1–2 log10 CFU/mL).

2.3. Antibiofilm Activity

VIO effect on mature biofilm viability was the concentration of 40 μg/mL. Our results show total inhibition of bacterial metabolism and loss of S. aureus cell viability in mature biofilm after 150 min of exposure to MBEC (Figure 4).
A better effect was obtained when VIO concentration was 2× MBEC, with a significantly greater reduction of cell viability (3 log10 CFU/mL) being observed when compared to the MBEC activity (<1 log10 CFU/mL) after 30 min of exposure and total cell inactivity between 90 and 120 min. The VIO subinhibitory concentration (0.5× MBEC) inhibited cell growth in biofilm when compared to the control (p < 0.05), but was not able to reduce the number of viable cells (Figure 5).

3. Discussion

Many biological activities have been identified for VIO and among them we can highlight the anti-inflammatory, anti-diarrheal, anti-ulcer, anti-tumor, antimalarial, antimicrobial, and antimycobacterial activities [10,11,13,17,18,19].
Our results show VIO antimicrobial activity on S. aureus strains, both resistant and susceptible to oxacillin, in suspension and in biofilm. All tested strains were susceptible to VIO and the OSSA strains showed greater susceptibility than ORSA strains.
S. aureus strains are often responsible for hospital infections, increasing the costs to the health system and increasing mortality and morbidity rates. Furthermore, the resistance of S. aureus to antimicrobial agents used in the treatment of infectious diseases hinders or even prevents treatment success, which is enhanced by its biofilm growth [20].
In order to consider VIO a molecule with potential for the development of a new chemotherapy drug for the treatment of staphylococcal infections, it is important to establish the kinetics of its antimicrobial action on cells in planktonic cultures and in biofilm. For that purpose, we performed the time–kill assay, which determines the time of action of a compound antimicrobial activity. The used strain was S. aureus ATCC 6538P, the most sensitive among the tested strains and the only one that had its growth in mature biofilm eradicated by the action of VIO at the tested concentration range (MBEC = 40 µg/mL). The S. aureus ATCC 6538P strain was also used in other assays of this study.
The VIO MIC (1.25 μg/mL) was able to inhibit the growth of S. aureus for up to 8 h, a period of intense metabolic activity. After this period, exponential growth was observed until 24 h of incubation, when growth was once again inhibited. The recovery of microbial growth after 8 h may be related to possible decomposition of VIO, as well as the reduction in cell activity levels, suggesting that VIO mechanism of action involves macromolecule synthesis.
The lower sensitivity of S. aureus in mature biofilm, verified in our study, confirms the importance of the active microbial metabolism for VIO action, as the bacteria inside the biofilm have reduced metabolic activity [21]. The influence of cell metabolism on VIO activity is also confirmed by the VIO ability to inhibit biofilm formation.
Considering the occurrence of possible VIO decomposition after 8 h of incubation, as well as the possibility that VIO inhibitory action be favored by the high cell metabolism rate, one can infer that cell growth inhibition observed after 24 h, when cell division is minimal, may be associated with the high nutritional depletion and metabolite concentration.
VIO showed inhibitory activity in all stages of S. aureus growth. In these assays, the substance is added at different stages of growth and its activity is assessed after 4 and 24 h. The fact that VIO was added to each of the different stages of bacterial growth might have prevented its decomposition and favored its action, even at the low bacterial metabolism stages. Thus, an initial decrease in the microbial population (up to 4 h) was demonstrated for all phases. This was not observed when VIO was added only at the beginning of incubation, in the time–kill assay, which reinforces the idea that VIO may have degraded after 4–8 h, in microbial culture, under the experimental conditions.
The ability of S. aureus to form biofilms is a major virulence factor and contributes to the success of the infectious process [20]. The greater resistance of S. aureus in the mature biofilm matrix, when compared to that of its cells in planktonic culture, can be attributed to the ability of the bacterial biofilm to limit the access and dissemination of antimicrobial agents in its interior. In the biofilm, the cells are protected from antimicrobial agents, environmental conditions, and from the host’s immune response, and can display an increase of up to 1000 times the antimicrobial resistance rate [22].
In this study, we demonstrate that VIO has an excellent antimicrobial activity against S. aureus in intensive metabolism (exponential growth phase), possibly showing that its mechanism of action involves the synthesis of macromolecules. However, we also verified VIO antimicrobial action against S. aureus at all growth stages, although at a lower intensity, suggesting the existence of more than one antimicrobial mechanism of action for VIO.

4. Materials and Methods

4.1. Violacein

VIO extracted from the strain Chromobacterium violaceum ATCC 12472 was purified and characterized by nuclear magnetic resonance (NMR) [23].

4.2. Bacterial Strains

This study used four reference strains: S. aureus ATCC 6538P and S. aureus ATCC 14458 (oxacillin-susceptible strains-OSSA), S. aureus ATCC 33591 and S. aureus CCBH 5330 (oxacillin-resistant strains-ORSA).

4.3. Determination of Minimum Inhibitory Concentration (MIC) and Minimum Bactericidal Concentration (MBC)

The MIC was determined using the microdilution method in culture broth [24]. Aliquots of the microbial suspensions (106 CFU/mL) in Brain–Heart Infusion Broth (BHI) (Merck Millipore Corporation) were added to the wells containing 95 µL of BHI and 100 µL of VIO (0.019–40 µg/mL), in 0.1% Dimethyl Sulfoxide (DMSO). The microplates were incubated for 24 h/37 °C. The MIC was considered as the lowest VIO concentration capable of completely inhibiting microbial growth. As experiment controls, sterile BHI broth, amikacin, and 0.1% DMSO were used.
The MBC was determined by counting viable cells [25]. Briefly, 5 μL of inoculum were collected and plated. The MBC was regarded as the lowest VIO concentration capable of determining the death of 99.9% of S. aureus cells of the initial inoculum. The assays were performed in triplicate.

4.4. Time–Kill Assay

Aliquots of 20 μL of VIO (MIC, 2× MIC, 4× MIC) were added to the microplate wells containing 100 µL of BHI broth and 80 µL of bacterial suspension (106 CFU/mL). The microplates were incubated at 37 °C and 10 μL aliquots were removed, diluted in 0.85% sterile saline solution and plated for colony counting, at predetermined time intervals (0, 2, 4, 6, 8, 10, 12, and 24 h) [26]. Microbial cultures with no exposure to VIO were used as experimental control. The assays were performed in triplicate and the results were expressed in log10 CFU/mL.

4.5. Determination of VIO Effect on S. aureus at Different Stages of Microbial Metabolism

A microbial suspension was exposed to VIO MIC. VIO was added at the start of the incubation period (t = 0) and after 4, 8, and 24 h and microbial growth was determined after 4 and 24 h of exposure. Cultures of S. aureus, without VIO addition and submitted to the same experimental conditions were used as control [27]. The experiment was performed in triplicate and the results expressed as log10 CFU/mL.

4.6. Determination of Minimum Biofilm Inhibitory Concentration (MBIC)

The effect of VIO on biofilm formation was assessed by determining the MBIC [28]. The biofilm was obtained and its mass quantified using the crystal violet technique [29]. The strains were cultivated in Tryptic Soy Broth (TSB) with 1% (p/v) of glucose for 24 h/37 °C. Aliquots of 100 μL of the culture and 100 μL of VIO (0.019 to 80 µg/mL) were added to microplates and incubated for 24 h/37 °C. The wells were washed and 200 μL of 99% methanol was added for 15 min. After, aliquots of 200 μL of crystal violet solution (CV) 2% (v/v) were added for 15 min. The CV uptake by the bacterial cells was released by adding 160 μL of 33% acetic acid and optical density reading was performed at 570 (OD570) on a microplate reader (Model Synergy HT, Biotek, Winooski, VT, USA). MBIC was regarded as the lowest concentration of VIO capable of inhibiting the formation of bacterial biofilm and the experiments were performed in triplicate.

4.7. Determination of Minimum Biofilm Eradication Concentration (MBEC)

MBEC was determined to evaluate VIO effect on mature biofilm viability [30]. The S. aureus ATCC 6538P strains were grown in TSB supplemented with 1% (p/v) of glucose (24 h/37 °C). Aliquots of 100 μL (106 CFU/mL) were transferred into microplates and incubated for 72 h/37 °C. 50 µL of TSB and 50 µL of VIO (10–160 µg/mL) were added to the wells containing biofilm. The microplates were incubated for 24 h/37 °C and the viability of the remaining biofilms was measured by counting the colonies. Biofilms not treated with VIO were used as controls. MBEC was considered the lowest VIO concentration able to prevent microbial growth. The experiments were performed in triplicate and the results were expressed in log10 CFU/mL.

4.8. Biofilm Time–Kill Assay

VIO aliquots of 20 µL (0.5, 1, and 2× MBEC) were added to microplates containing 100 µL of TSB and mature biofilm of S. aureus ATCC 6538P, formed in 72 h as previously described. The microplates were incubated at 37 °C, and after 24 h the remaining biofilm viability was measured by counting the colonies at the time of VIO addition and at predetermined time intervals (30, 60, 90, 120, and 150 min) after VIO addition. Aliquots of the biofilm serial dilutions were plated and the counting of colonies was performed after 24 h/37 °C. Biofilms not treated with VIO were used as controls. The experiments were performed in triplicate and the results were expressed in log10 CFU/mL [30].

4.9. Statistical Analysis

Statistical analyses were performed using one-way ANOVA with post hoc Bonferroni test. The data were performed in triplicate. The charts are shown as mean ± standard deviation. Data were considered significant when p < 0.05.

5. Conclusions

VIO is a promising molecule for the development of an antimicrobial drug for the eradication of S. aureus biofilm infections. However, while its action is enhanced by the active cell metabolism, it is also present in cells with reduced metabolism.

Supplementary Materials

The following are available online. 1H- and 13C-NMR of VIO.

Acknowledgments

We thank Coordination for Enhancement of Higher Education Personnel (CAPES) for their financial support.

Author Contributions

A.H.M.B. assisted of growing C. violaceum, in the production of violacein and in the implementation of microbiological experiments and wrote the article; A.C.D.M. and G.W.P.S. assisted in the implementation of microbiological experiments; R.M.d.C. assisted in growing C. violaceum and in the production violacein; T.B.G. and S.C.M. provided the strain Chromobacterium violaceum ATCC 12472, assisted of growing C. violaceum and in the production violacein; E.R.S. and P.C.N.N. assisted in the purification and characterization of VIO; N.A.P.N. assisted in the implementation of microbiological experiments and contributed to the coordination of the study and wrote the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lister, J.L.; HorswilL, A.R. Staphylococcus aureus biofilms: Recent developments in biofilm dispersal. Front. Cell. Infect. Microbiol. 2014, 4, 178. [Google Scholar] [CrossRef] [PubMed]
  2. Mccallum, N.; Berger-Bächi, B.; Senn, M.M. Regulation of antibiotic resistance in Staphylococcus aureus. Int. J. Med. Microbiol. 2010, 300, 18–29. [Google Scholar] [CrossRef] [PubMed]
  3. Shi, C.; Zhao, X.; Li, W.; Meng, R.; Liu, Z.; Liu, M.; Guo, N.; Yu, L. Inhibitory effect of totarol on exotoxin proteins hemolysin and enterotoxins secreted by Staphylococcus aureus. World J. Microbiol. Biotechnol. 2015, 31, 1565–1573. [Google Scholar] [CrossRef] [PubMed]
  4. Donlan, R.M.; Costerton, J.W. Biofilms: Survival mechanisms of clinically relevant microorganisms. Clin. Microbiol. Rev. 2002, 15, 167–193. [Google Scholar] [CrossRef] [PubMed]
  5. Scherr, T.D.; Hanke, M.L.; Huang, O.; James, D.B.; Horswill, A.R.; Bayles, K.W.; Fey, P.D.; Torres, V.J.; Kielian, T. Staphylococcus aureus biofilms induce macrophage dysfunction through leukocidin ab and alpha-toxin. mBio 2015, 6, e01021-15. [Google Scholar] [CrossRef] [PubMed]
  6. De la Fuente-Núñez, C.; Reffuveille, F.; Fairfull-Smith, K.E.; Hancock, R.E. Effect of nitroxides on swarming motility and biofilm formation, multicellular behaviors in Pseudomonas aeruginosa. Antimicrob. Agents Chemother. 2013, 57, 4877–4881. [Google Scholar] [CrossRef] [PubMed]
  7. Otto, M. Staphylococcal biofilms. Curr. Top. Microbiol. Immunol. 2008, 322, 207–228, PMC2777538. [Google Scholar] [PubMed]
  8. Beenken, K.E.; Dunman, P.M.; Mcaleese, F.; Macapagal, D.; Murphy, E.; Projan, S.J.; Blevins, J.S.; Smeltzer, M.S. Global gene expression in Staphylococcus aureus biofilms. J. Bacteriol. 2004, 186, 4665–4684. [Google Scholar] [CrossRef] [PubMed]
  9. Hoshino, T. Violacein and related tryptophan metabolites produced by Chromobacterium violaceum: Biosynthetic mechanism and pathway for construction of violacein core. Appl. Microbiol. Biotechnol. 2011, 91, 1463–1475. [Google Scholar] [CrossRef] [PubMed]
  10. Choi, S.Y.; Yoon, K.H.; Lee, J.I.; Mitchell, R.J. Violacein: Properties and Production of a Versatile Bacterial Pigment. BioMed Res. Int. 2015, 2015, 1–8. [Google Scholar] [CrossRef] [PubMed]
  11. Durán, N.; Justo, G.Z.; Ferreira, C.V.; Melo, P.S.; Cordi, L.; Martins, D. Violacein: Properties and biological activities. Biotechnol. Appl. Biochem. 2007, 48, 127–133. [Google Scholar] [CrossRef] [PubMed]
  12. Anju, S.; Kumar, N.S.; Krishnakumar, B.; Kumar, B.S.D. Synergistic combination of violacein and azoles that leads to enhanced killing of major human pathogenic dermatophytic fungi Trichophyton rubrum. Front. Cell. Infect. Microbiol. 2015, 5, 57. [Google Scholar] [CrossRef] [PubMed]
  13. Cazoto, L.L.; Martins, D.; Ribeiro, M.G.; Duran, N.; Nakazato, G. Antibacterial activity of violacein against Staphylococcus aureus isolated from bovine mastitis. J. Antibiot. 2011, 64, 395–397. [Google Scholar] [CrossRef] [PubMed]
  14. Subramaniam, S.; Ravi, V.; Sivasubramanian, A. Synergistic antimicrobial profiling of violacein with commercial antibiotics against pathogenic micro-organisms. Pharm. Biol. 2014, 52, 86–90. [Google Scholar] [CrossRef] [PubMed]
  15. Martins, D.; Costa, F.; Brocchi, M.; Duran, N. Evaluation of the antibacterial activity of poly-(d, l-lactide-co-glycolide) nanoparticles containing violacein. J. Nanopart. Res. 2011, 13, 355–363. [Google Scholar] [CrossRef]
  16. Ahmad, W.A.; Yusof, N.Z.; Nordin, N.; Zakaria, Z.A.; Rezali, M.F. Production and Characterization of Violacein by Locally Isolated Chromobacterium violaceum Grown in Agricultural Wastes. Appl. Biochem. Biotechnol. 2012, 167, 1220–1234. [Google Scholar] [CrossRef] [PubMed]
  17. Duran, N.; Menck, C.F. Chromobacterium violaceum: A review of pharmacological and industiral perspectives. Crit. Rev. Microbiol. 2001, 27, 201–222. [Google Scholar] [CrossRef] [PubMed]
  18. Antonisamy, P.; Kannan, P.; Aravinthan, A.; Duraipandiyan, V.; Valan Arasu, M.; Ignacimuthu, S.; Abdullah AL-Dhabi, N.; Kim, J.H. Gastroprotective activity of violacein isolated from Chromobacterium violaceum on indomethacin-induced gastric lesions in rats: Investigation of potential of mechanisms of action. Sci. World J. 2014, 2014, 1–10. [Google Scholar] [CrossRef] [PubMed]
  19. Verinaud, L.; Lopes, S.C.P.; Prado, I.C.N.; Zanucoli, F.; Da Costa, T.A.; Di Gangi, R.; Issayama, L.K.; Carvalho, A.C.; Bonfanti, A.P.; Niederauer, G.F. Violacein treatment modulates acute and chronic inflammation through the suppression of cytokine production and induction of regulatory t cells. PLoS ONE 2015, 10, e0125409. [Google Scholar] [CrossRef] [PubMed]
  20. Savage, V.J.; Chopra, I.; O’neill, A.J. Staphylococcus aureus biofilms promote horizontal transfer of antibiotic resistance. Antimicrob. Agents Chemother. 2013, 57, 1968–1970. [Google Scholar] [CrossRef] [PubMed]
  21. Hoiby, N.; Bjarnsholt, T.; Givskov, M.; Molin, S.; Ciofu, O. Antibiotic resistance of bacterial biofilms. Int. J. Antimicrob. Agents 2010, 35, 322–332. [Google Scholar] [CrossRef] [PubMed]
  22. Haussler, S.; Fuqua, C. Biofilms 2012: New discoveries and significant wrinkles in a dynamic field. J. Bacteriol. 2013, 195, 2947–2958. [Google Scholar] [CrossRef] [PubMed]
  23. Rettori, D.; Durán, N. Production, extraction and purificationof violacein: An antibiotic pigment producedby Chromobacterium violaceum. World J. Microbiol. Biotechnol. 1988, 14, 685–688. [Google Scholar] [CrossRef]
  24. CLSI. Performance Standards for Antimicrobial Susceptibility Testing; Twenty-Fifth Informational Supplement; CLSI Document M100-S25; Clinical and Laboratory Standards Institute: Wayne, PA, USA, 2015. [Google Scholar]
  25. Shanholtzer, C.J.; Peterson, L.R.; Mohn, M.L.; Moody, J.A.; Gerding, D.N. Mbcs for Staphylococcus aureus as determined by macrodilution and microdilution techniques. Antimicrob. Agents Chemother. 1984, 26, 214–219, PMCID:284123. [Google Scholar] [CrossRef] [PubMed]
  26. Olajuyigbe, O.O.; Afolayan, A.J. In vitro antibacterial and time–kill assessment of crude methanolic stem bark extract of acacia mearnsii de wild against bacteria in shigellosis. Molecules 2012, 17, 2103–2118. [Google Scholar] [CrossRef] [PubMed]
  27. Muroi, H.; Kubo, I. Antibacterial activity of anacardic acid and totarol, alone and in combination with methicillin, against methicillin resistant Staphylococcus aureus. J. Appl. Bacteriol. 1996, 80, 387–394. [Google Scholar] [CrossRef] [PubMed]
  28. Nostro, A.; Roccaro, A.S.; Bisignano, G.; Marino, A.; Cannatelli, M.A.; Pizzimenti, F.C.; Cioni, P.L.; Procopio, F.; Blanco, A.R. Effects of oregano, carvacrol and thymol on Staphylococcus aureus and Staphylococcus epidermidis biofilms. J. Med. Microbiol. 2007, 56, 519–523. [Google Scholar] [CrossRef] [PubMed]
  29. Stepanović, S.; Vuković, D.; Dakić, I.; Savić, B.; Švabić-Vlahović, M. A modified microtiter-plate test for quantification of Staphylococcal biofilm formation. J. Microbiol. Methods 2000, 40, 175–179. [Google Scholar] [CrossRef]
  30. Kwieciński, J.; Eick, S.; Wójcik, K. Effects of tea tree (Melaleuca alternifolia) oil on Staphylococcus aureus in biofilms and stationary growth phase. Int. J. Antimicrob. Agents 2009, 33, 343–347. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Samples of the compounds are not available from the authors.
Figure 1. Structure of violacein from the NMR.
Figure 1. Structure of violacein from the NMR.
Molecules 22 01534 g001

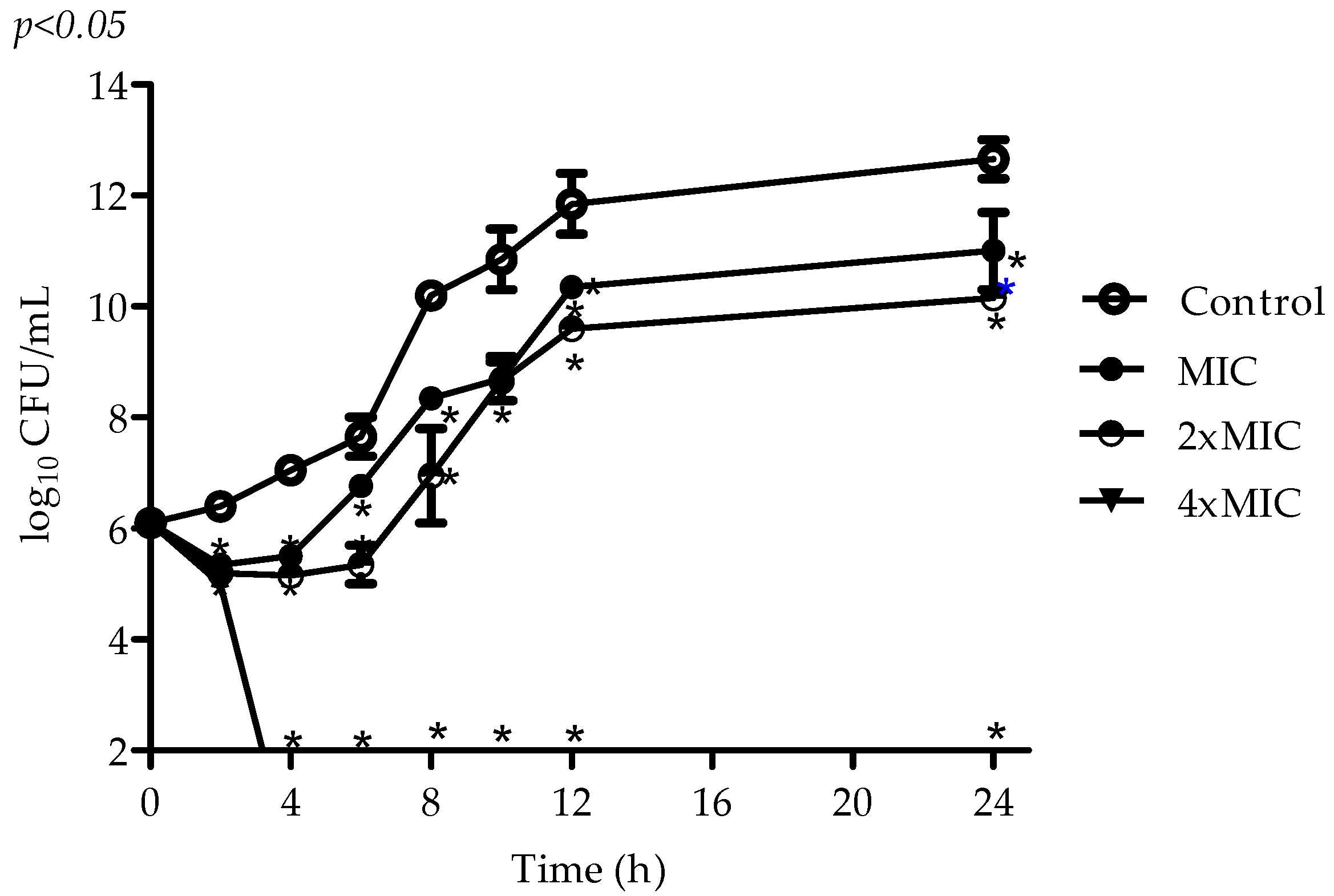

Figure 2. Effects of VIO on the viability of S. aureus ATCC 6538P. VIO (MIC = 1.25 µg/mL); Control: without VIO. Detection limit was 102 colony forming units per milliliter (CFU/mL) and the assays were performed in triplicate. Data are expressed as mean ±SEM of three experiments. * p < 0.05 compared with the control.
Figure 2. Effects of VIO on the viability of S. aureus ATCC 6538P. VIO (MIC = 1.25 µg/mL); Control: without VIO. Detection limit was 102 colony forming units per milliliter (CFU/mL) and the assays were performed in triplicate. Data are expressed as mean ±SEM of three experiments. * p < 0.05 compared with the control.
Molecules 22 01534 g002

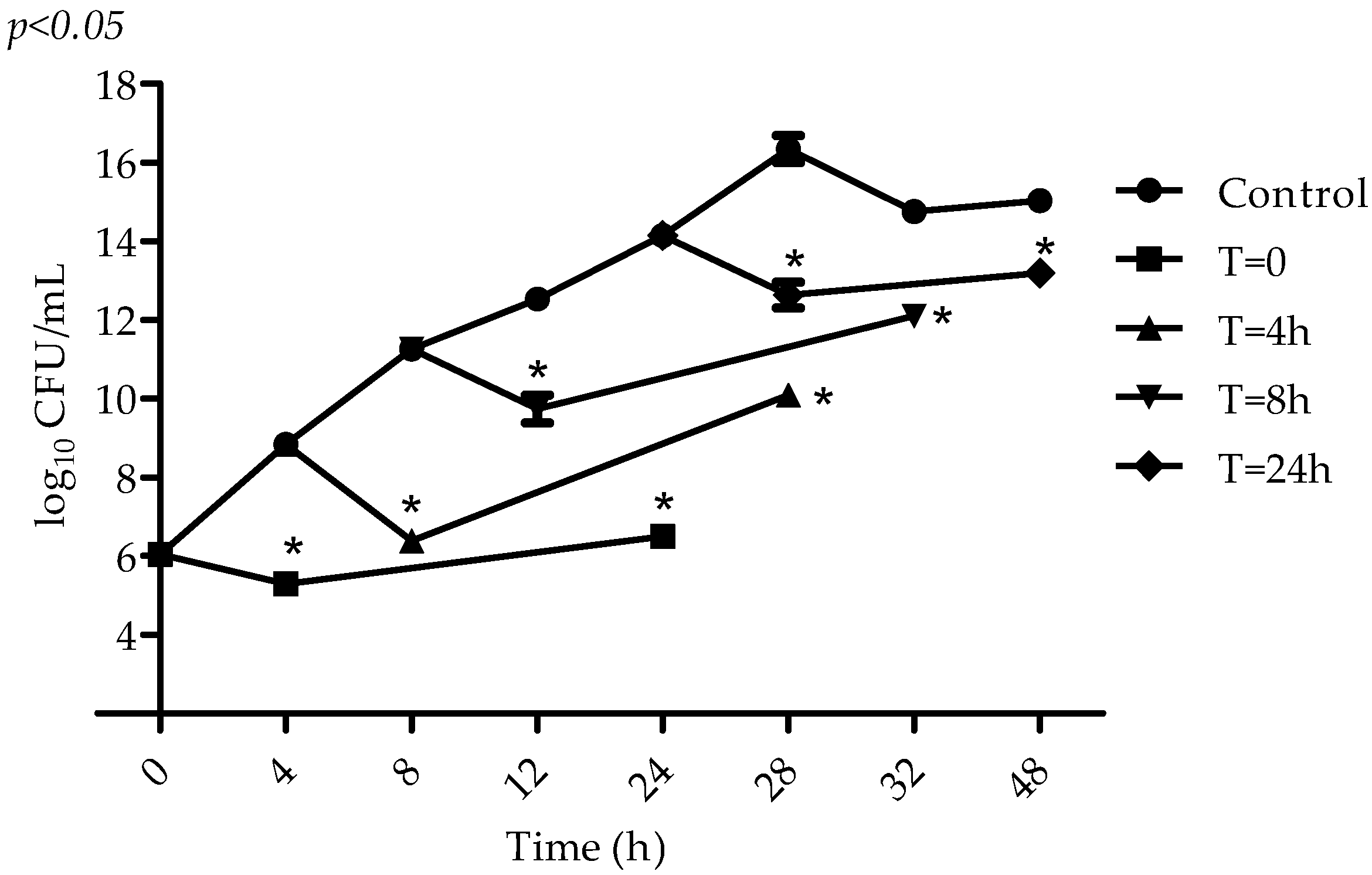

Figure 3. VIO effect on S. aureus ATCC 6538P viability at the phases of exponential and stationary growth. VIO (MIC = 1.25 µg/mL) was added at the start of incubation (t = 0), and after 4, 8, and 24 h. Microbial growth was assessed after 4 and 24 h of exposure. Control: without VIO. Detection limit was 102 colony-forming units per milliliter (CFU/mL) and assays were performed in triplicate. * p < 0.05 compared with the control.
Figure 3. VIO effect on S. aureus ATCC 6538P viability at the phases of exponential and stationary growth. VIO (MIC = 1.25 µg/mL) was added at the start of incubation (t = 0), and after 4, 8, and 24 h. Microbial growth was assessed after 4 and 24 h of exposure. Control: without VIO. Detection limit was 102 colony-forming units per milliliter (CFU/mL) and assays were performed in triplicate. * p < 0.05 compared with the control.
Molecules 22 01534 g003

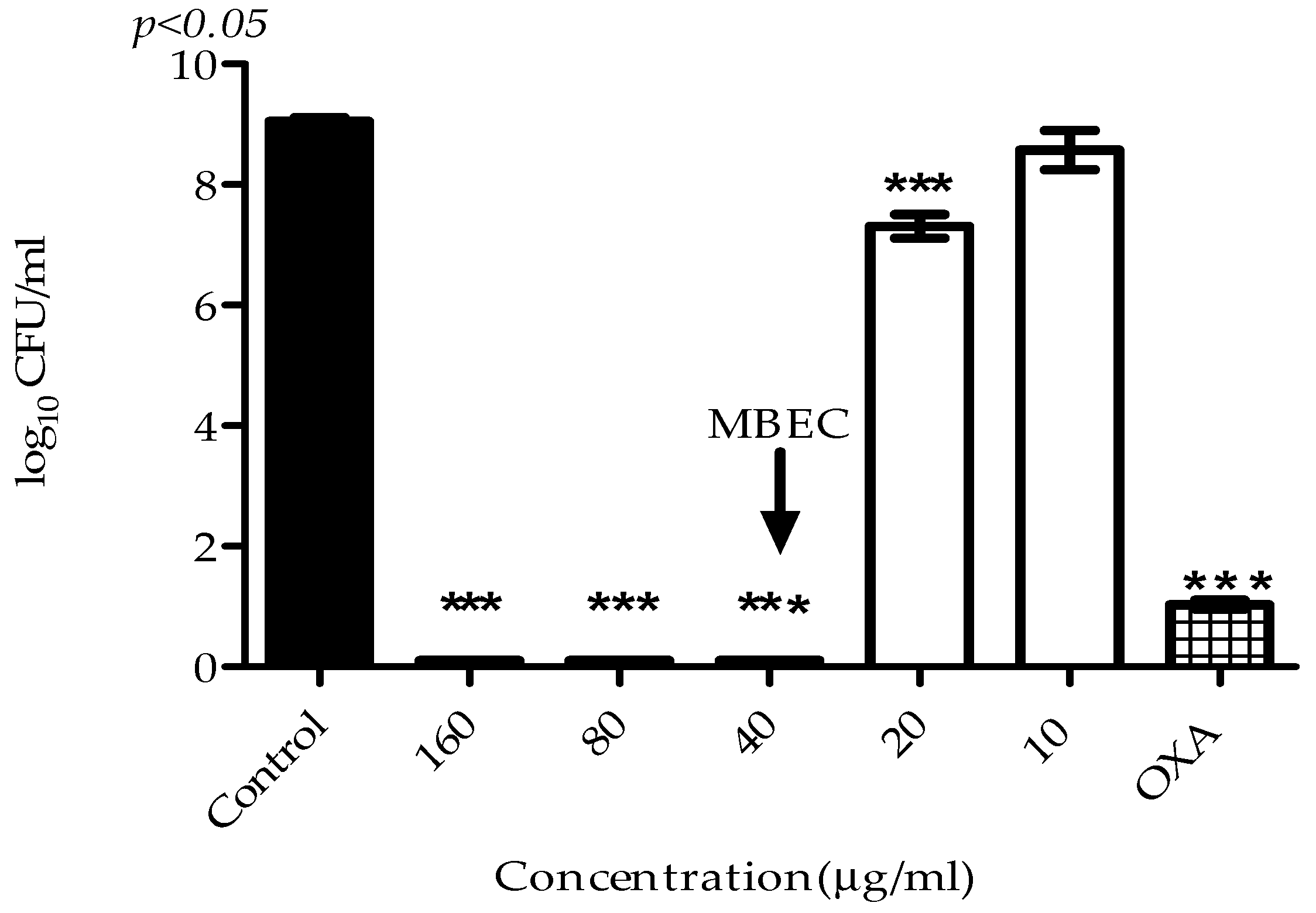

Figure 4. Effect of different concentrations of VIO on the viability of biofilm formed by S. aureus ATCC 6538P following a 24 h exposure. MBEC: minimum biofilm eradication concentration; Control: without VIO; OXA: oxacillin 20 μg/mL. Detection limit was 102 colony forming units per milliliter (CFU/mL) and the assays were performed in triplicate. Data are expressed as mean ± SEM of three experiments. *** p < 0.05 compared with the control.
Figure 4. Effect of different concentrations of VIO on the viability of biofilm formed by S. aureus ATCC 6538P following a 24 h exposure. MBEC: minimum biofilm eradication concentration; Control: without VIO; OXA: oxacillin 20 μg/mL. Detection limit was 102 colony forming units per milliliter (CFU/mL) and the assays were performed in triplicate. Data are expressed as mean ± SEM of three experiments. *** p < 0.05 compared with the control.
Molecules 22 01534 g004

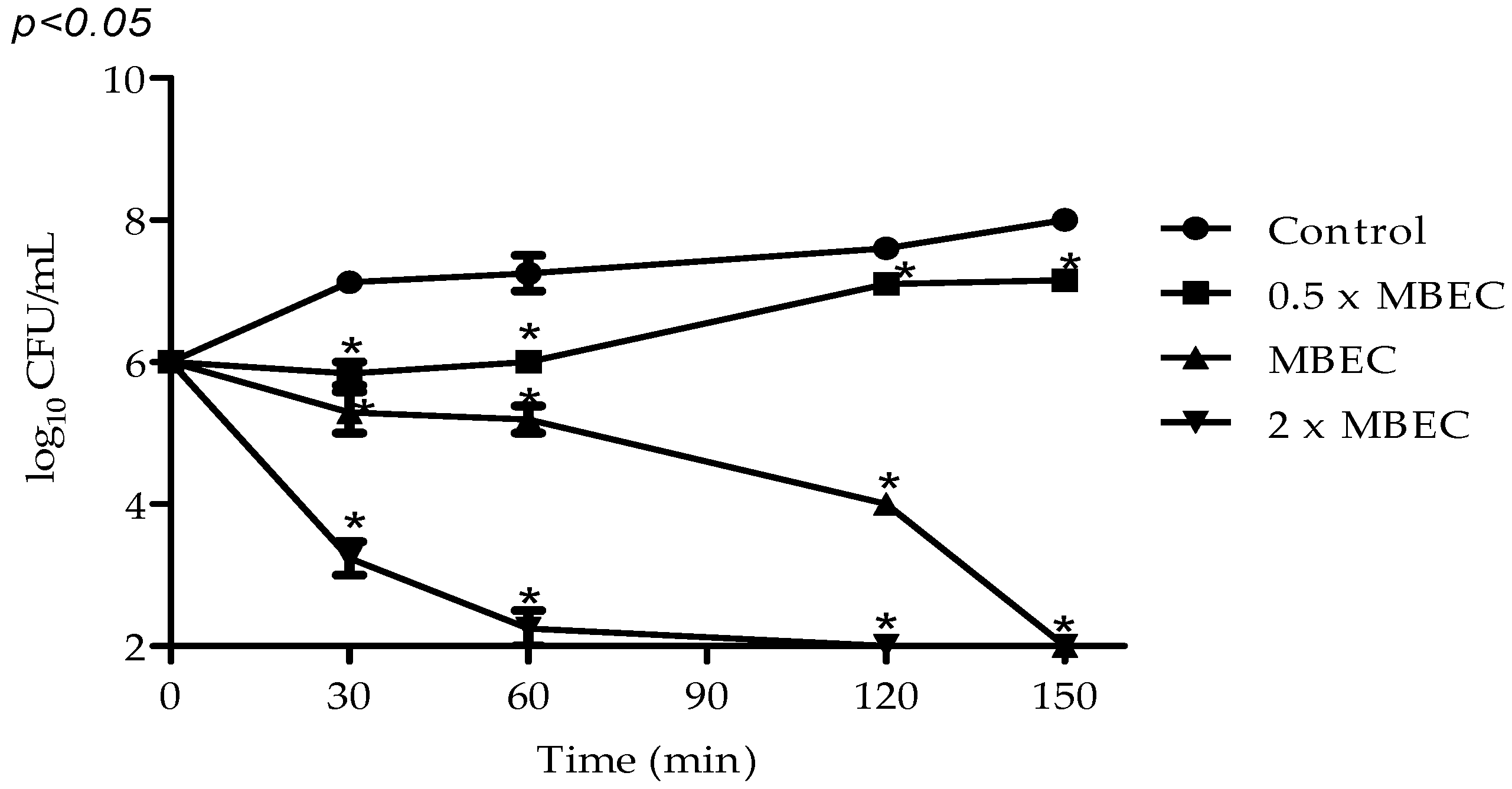

Figure 5. Time–kill curves for Staphylococcus aureus ATCC 6538P biofilm after treatment with VIO. MBEC: minimum biofilm eradication concentration (40 µg/mL); Control: without VIO. Detection limit was 102 colony-forming units per milliliter (CFU/mL) and assays were performed in triplicate. Data are expressed as mean ± SEM of three experiments. * p < 0.05 compared with the control.
Figure 5. Time–kill curves for Staphylococcus aureus ATCC 6538P biofilm after treatment with VIO. MBEC: minimum biofilm eradication concentration (40 µg/mL); Control: without VIO. Detection limit was 102 colony-forming units per milliliter (CFU/mL) and assays were performed in triplicate. Data are expressed as mean ± SEM of three experiments. * p < 0.05 compared with the control.
Molecules 22 01534 g005
Table 1. 1H- and 13C-NMR spectrals data of VIO.
Table 1. 1H- and 13C-NMR spectrals data of VIO.
HSQCHMBC
δCδH (Mult, J/Hz)2JCH3JCH
2129.78.06 (d 3.1)
3105.8H-2NH-1, H-13, H-5
4125.6 NH-1, H-2, H-8
5104.67.23 d (2.0) OH, H-7
6152.9OH, H-5, H-7H-8
7113.16.79 dd (8.7, 2.0) OH, H-5
8113.47.35 d (8.7)
9131.6NH-1H-2, H-5, H-7
11171.7NH-10H-13
12137.0H-13NH-10
1397.07.55 d (2.0) NH-10
14147.7NH-10, H-13
16170.3NH-15
17118.7 NH-15, H-19
18122.4 NH-15, H-20, H-22
19126.48.93 d (8.0)H-20H-21
20120.96.95 td (8.0, 1.0) H-22
21129.47.20 td (8.0, 1.0)H-20H-19
22109.16.83 d (8.0) H-20
23141.8NH-15H-19, H-21
NH-1 11.88 (s)
NH-10 10.72 (s)
NH-15 10.60 (s)
OH 9.33 (s)
DMSO-d6, 500 e 75 MHz.
Table 2. VIO antimicrobial activity on planktonic cultures and biofilms of S. aureus.
Table 2. VIO antimicrobial activity on planktonic cultures and biofilms of S. aureus.
Microbial StrainVIO μg/mL
MICMBCMBIC
S. aureus ATCC 6538P (OSSA)1.2551.25
S. aureus ATCC 14458 (OSSA)2.5102.5
S. aureus ATCC 3359 (ORSA)204020
S. aureus CCBH 5330 (ORSA)5205
MIC: minimum inhibitory concentration; MBC: minimum bactericidal concentration; MBIC: minimum biofilm inhibitory concentration; ATCC: American type culture collection; CCBH: culture collection of hospital-acquired bacteria. OSSA: oxacillin-susceptible strain, ORSA: oxacillin-resistant strain. Assays were performed in triplicate.
