Next Article in Journal
Development of Singlet Oxygen Luminescence Kinetics during the Photodynamic Inactivation of Green Algae
Next Article in Special Issue
Identification of Subnanometric Ag Species, Their Interaction with Supports and Role in Catalytic CO Oxidation
Previous Article in Journal
Sesquiterpenoids and Diterpenoids from the Wood of Cunninghamia konishii and Their Inhibitory Activities against NO Production
Previous Article in Special Issue
On the High Sensitivity of the Electronic States of 1 nm Gold Particles to Pretreatments and Modifiers
Article Menu
Issue 4 (April) cover image

Export Article

Open AccessArticle
Molecules 2016, 21(4), 486; doi:10.3390/molecules21040486

Causes of Activation and Deactivation of Modified Nanogold Catalysts during Prolonged Storage and Redox Treatments

1
Department of Physical and Analytical Chemistry, Tomsk Polytechnic University, Tomsk 634050, Russia
2
Centro de Nanociencias y Nanotecnología, UNAM, Ensenada 22860, Mexico
3
Laboratory of Catalytic Research, Tomsk State University, Tomsk 634050, Russia
4
Institute of Catalysis and Petroleumchemistry (ICP), CSIC, 28049 Madrid, Spain
*
Author to whom correspondence should be addressed.
Academic Editor: Sónia Carabineiro
Received: 6 February 2016 / Revised: 29 March 2016 / Accepted: 8 April 2016 / Published: 13 April 2016
(This article belongs to the Special Issue Coinage Metal (Copper, Silver, and Gold) Catalysis)
View Full-Text   |   Download PDF [4517 KB, uploaded 13 April 2016]   |

Abstract

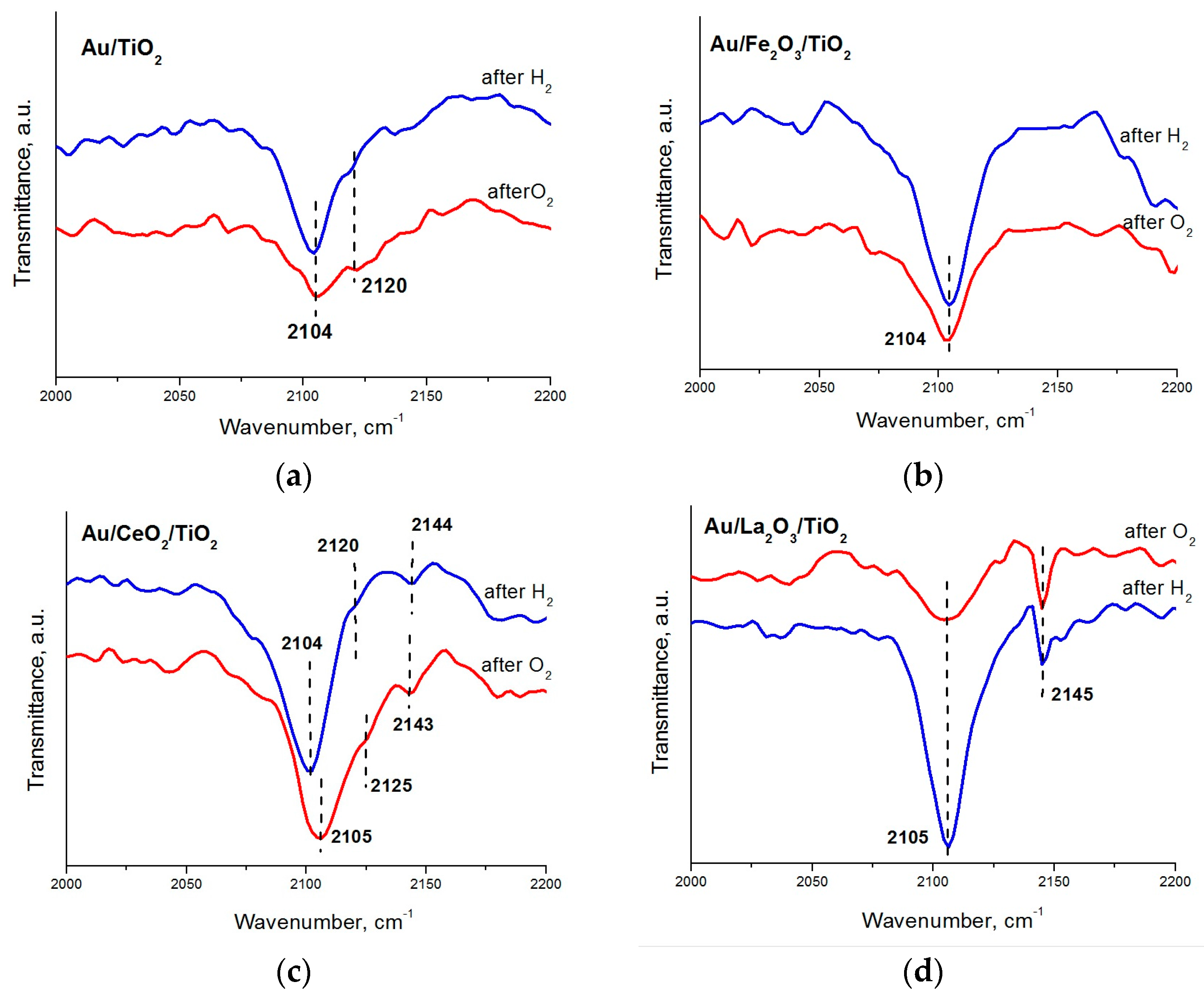

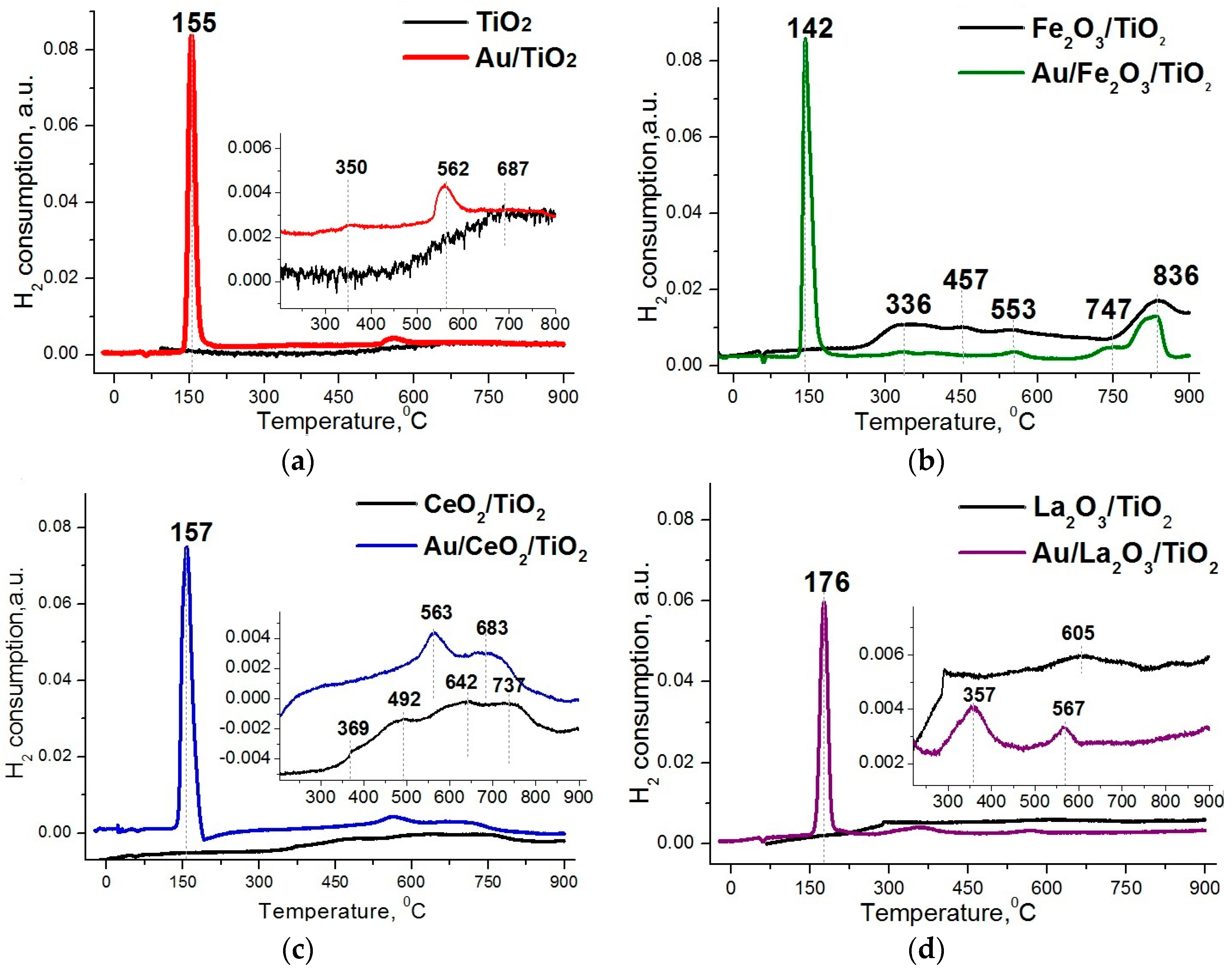

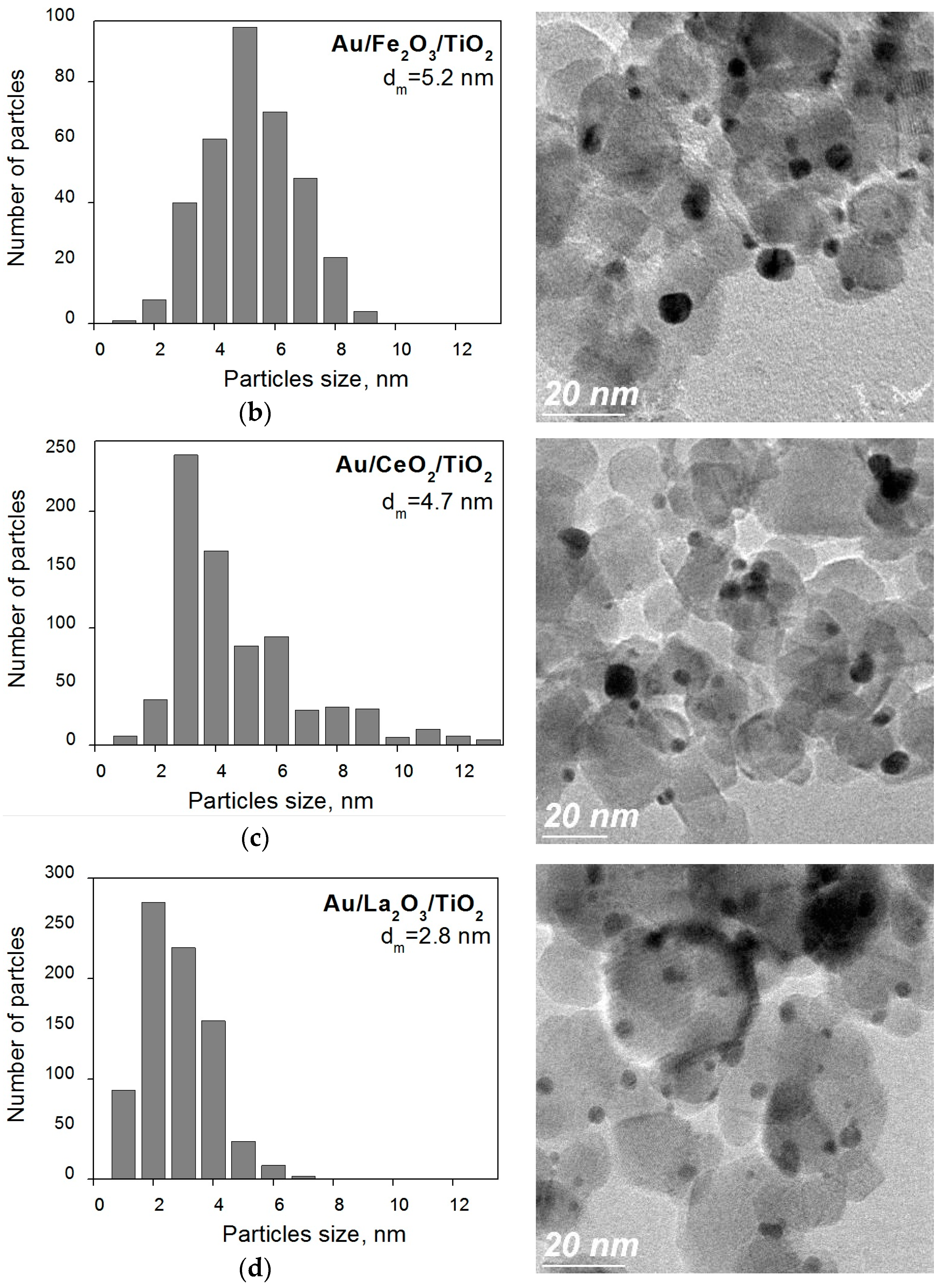

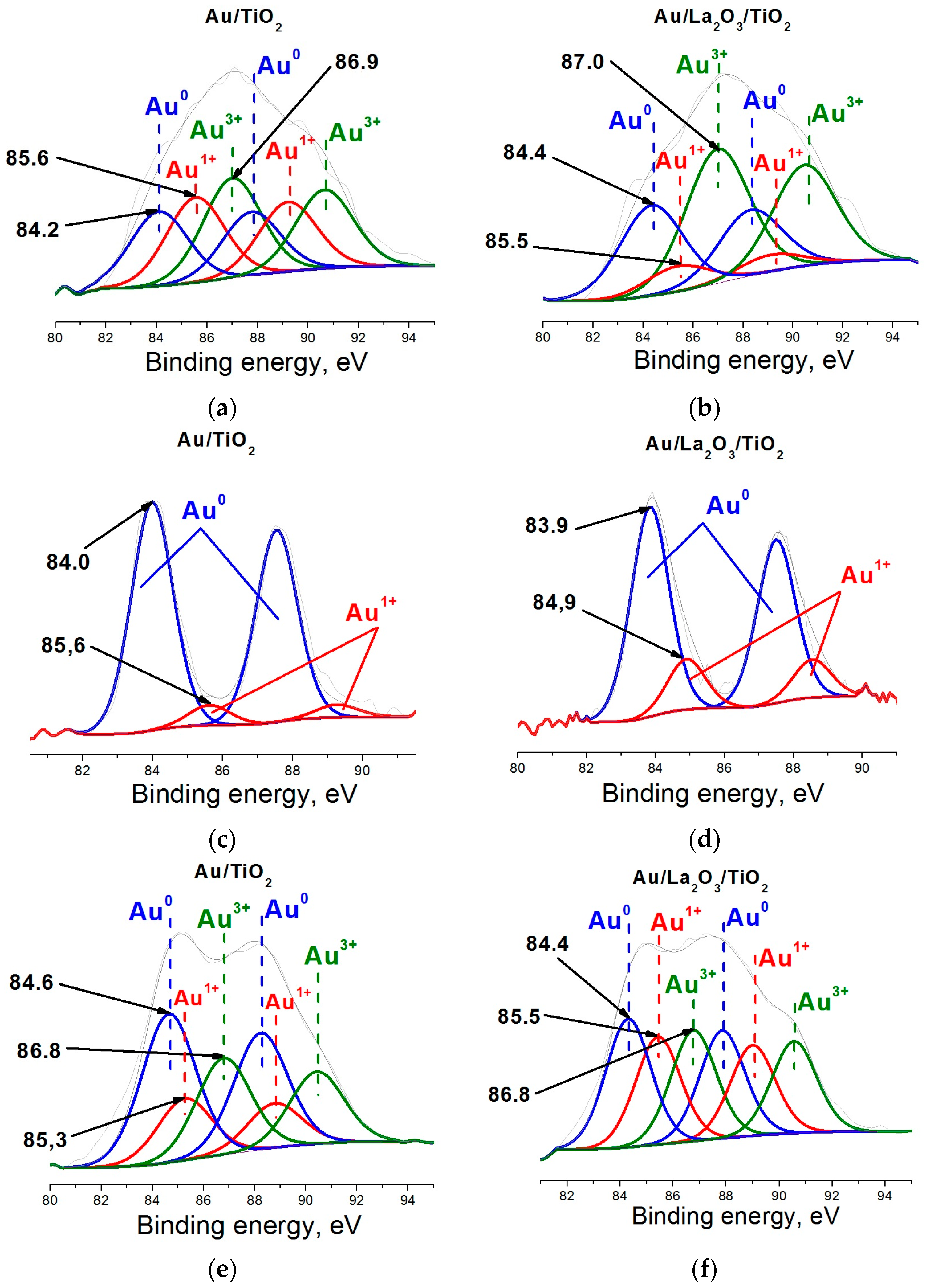

The catalytic properties of modified Au/TiO2 catalysts for low-temperature CO oxidation are affected by deactivation and reactivation after long-term storage and by redox treatments. The effect of these phenomena on the catalysts was studied by HRTEM, BET, SEM, FTIR CO, XPS and H2 TPR methods. The main cause for the deactivation and reactivation of catalytic properties is the variation in the electronic state of the supported gold, mainly, the proportion of singly charged ions Au+. The most active samples are those with the highest proportion of singly charged gold ions, while catalysts with a high content of trivalent gold ions are inactive at low-temperatures. Active states of gold, resistant to changes caused by the reaction process and storage conditions, can be stabilized by modification of the titanium oxide support with transition metals oxides. The catalyst modified with lanthanum oxide shows the highest stability and activity. View Full-Text
Keywords: gold catalysts; support modification; CO oxidation; effect of storage; catalyst deactivation; catalyst reactivation gold catalysts; support modification; CO oxidation; effect of storage; catalyst deactivation; catalyst reactivation
Figures

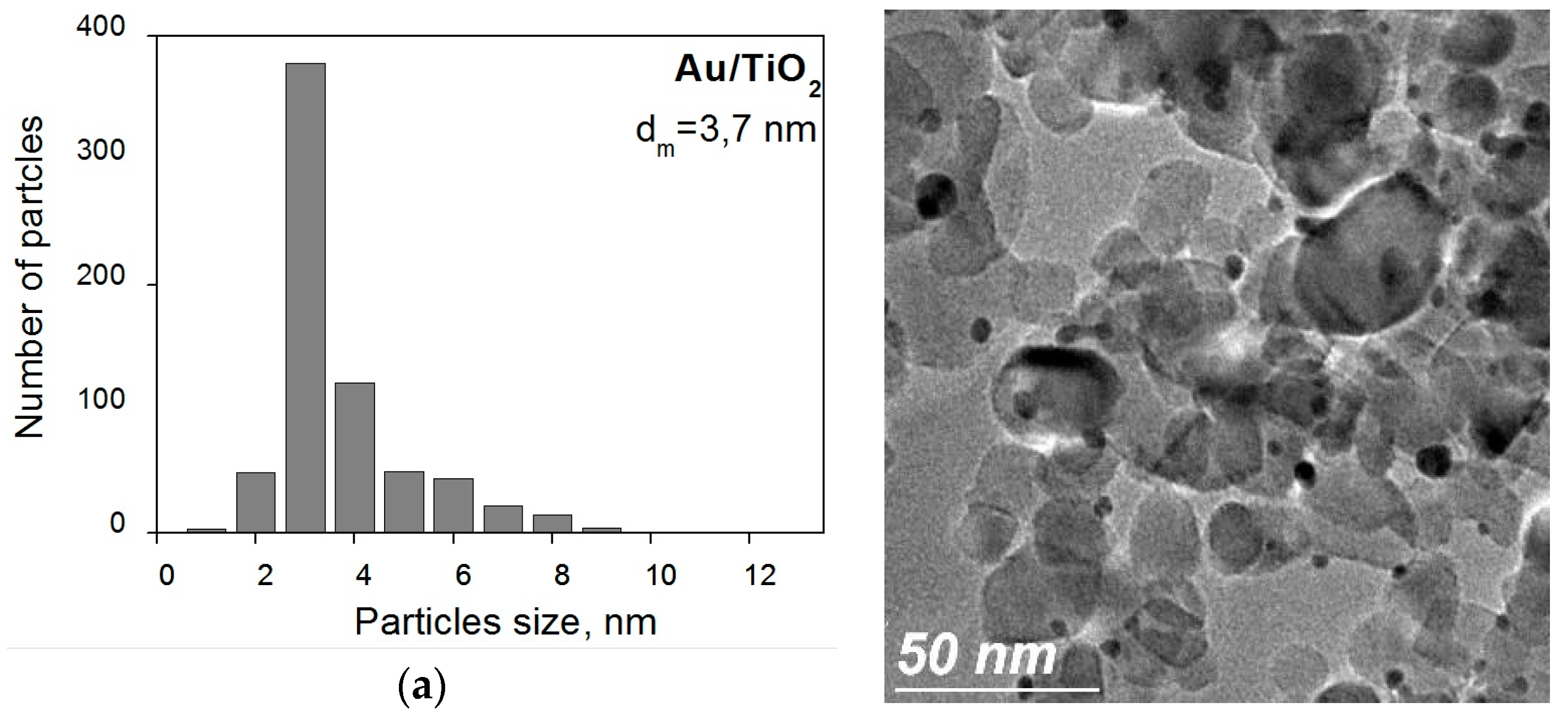

Figure 1a

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Kolobova, E.; Kotolevich, Y.; Pakrieva, E.; Mamontov, G.; Farías, M.H.; Bogdanchikova, N.; Cortés Corberán, V.; Pestryakov, A. Causes of Activation and Deactivation of Modified Nanogold Catalysts during Prolonged Storage and Redox Treatments. Molecules 2016, 21, 486.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]

Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
