Article

Comparative Studies of Interactions between Fluorodihydroquinazolin Derivatives and Human Serum Albumin with Fluorescence Spectroscopy

by
Yi Wang
1,2,
Meiqing Zhu
1,
Feng Liu
2,
Xiangwei Wu
1,
Dandan Pan
1,
Jia Liu
1,3,
Shisuo Fan
1,
Zhen Wang
1,
Jun Tang
1,
Risong Na
1,3,
Qing X. Li
4,
Rimao Hua
1,* and
Shangzhong Liu
2,*
1
Department of Science of Pesticides, School of Resources and Environment, Anhui Agricultural University, No. 130 Changjiang West Road, Hefei 230036, China
2
Department of Applied Chemistry, China Agricultural University, No. 2 Yuanmingyuan West Road, Beijing 100193, China
3
Collaborative Innovation Center of Henan Grain Crops, National Key Laboratory of Wheat and Maize Crop Science, College of Plant Protection, Henan Agricultural University, Wenhua Road No. 95, Zhengzhou 450002, China
4
Department of Molecular Biosciences and Bioengineering, University of Hawaii, 1955 East-West Road, Honolulu, HI 96822, USA
*
Authors to whom correspondence should be addressed.
Molecules 2016, 21(10), 1373; https://doi.org/10.3390/molecules21101373
Submission received: 9 September 2016 / Revised: 5 October 2016 / Accepted: 12 October 2016 / Published: 14 October 2016
(This article belongs to the Special Issue Fluorine Chemistry 2016)
Browse Figures
Versions Notes

Abstract

:
In the present study, 3-(fluorobenzylideneamino)-6-chloro-1-(3,3-dimethylbutanoyl)-phenyl-2,3-dihydroquinazolin-4(1H)-one (FDQL) derivatives have been designed and synthesized to study the interaction between fluorine substituted dihydroquinazoline derivatives with human serum albumin (HSA) using fluorescence, circular dichroism and Fourier transform infrared spectroscopy. The results indicated that the FDQL could bind to HSA, induce conformation and the secondary structure changes of HSA, and quench the intrinsic fluorescence of HSA through a static quenching mechanism. The thermodynamic parameters, ΔH, ΔS, and ΔG, calculated at different temperatures, revealed that the binding was through spontaneous and hydrophobic forces and thus played major roles in the association. Based on the number of binding sites, it was considered that one molecule of FDQL could bind to a single site of HSA. Site marker competition experiments indicated that the reactive site of HSA to FDQL mainly located in site II (subdomain IIIA). The substitution by fluorine in the benzene ring could increase the interactions between FDQL and HSA to some extent in the proper temperature range through hydrophobic effect, and the substitution at meta-position enhanced the affinity greater than that at para- and ortho-positions.

1. Introduction

Human serum albumin (HSA) is the most abundant plasma protein in the circulatory system of the human body and contains 585 amino acids. HSA plays a key function in physiological and pharmacological processes. For example, HSA can transport several endogenous and exogenous compounds, like fatty acids, nutrients, steroids, certain metal ions, hormones and drugs, and also significantly affect their biological activity in pharmacology through altering their pharmacokinetic properties [1,2,3,4,5,6,7]. Binding of drugs to plasma proteins may strongly influence their distribution and elimination [8], for instance, many drug candidates were rendered ineffective due to their unusually high binding affinity to HSA [9,10,11,12,13,14]. Therefore, investigation of the binding interaction between drugs and HSA is of importance in pharmacology and pharmacodynamics.
Heterocyclic structures play a pivotal role in many pharmaceutical, agrochemical, and veterinary products, like quinazolines. An increasing number of quinazoline derivatives have been reported to possess antibacterial [15], anticancer [16], antitubercular [17], anti-HIV [18], antifungal [19], analgesic [20], anti-inflammatory [21], anticonvulsant [22], antiparkinson [23], anthelmintic [24], anti-histaminic [25], and antihypertensive activities [26]. Much attention has been focused on their structures and bioactivity. Little information is, however, available on the interactions of quinazolines with HSA. Fluorine substituents have often been introduced in developing pharmaceutical products and agrochemicals to improve the biological activity and metabolism. However, it is hard to estimate whether the compounds are effective with introducing a fluorine substituent by molecule designing. Especially because there is no information about the impact of fluorine substituent position on the interactions between quinazoline derivatives and HSA.
We have previously reported the impact of halogen substituents on the interactions between quinazoline derivatives and HSA [27]. In the present study, new 6-chloro-1-(3,3-dimethylbutanoyl)-3-(fluorobenzylideneamino)-phenyl-2,3-dihydroquinazolin-4(1H)-one (FDQL) derivatives (3b–d) (Scheme 1) were designed and synthesized, and their binding interactions to HSA at three temperatures were investigated via fluorescence spectroscopy. The obtained information about the molecular interactions, including quenching mechanism, binding mode, binding sites, binding constants, thermodynamic parameters, and conformation of HSA may offer a better understanding of its biological action in vivo. The influence of the position of fluorine substituent on FDQL-HSA interactions was studied under simulated physiological conditions using 3-(benzylideneamino)-6-chloro-1-(3,3-dimethyl-butanoyl)-2-phenyl-2,3-dihydroquinazolin-4(1H)-one as a reference compound. The results provide a quantitative understanding of fluorine substitution effects on FDQL-HSA interactions to some extent, which could be useful for further design of potential biologically active quinazolinone derivatives.

2. Results and Discussion

2.1. Synthesis

In the previous work, the introduction of t-butylacetyl moieties on quinazolines improved their binding to HSA to some extent through hydrophobic action [27]. Thus, based on 3a that was previously reported, we designed and synthesized compounds 3b–d to study the impact of fluorine substituents on the interactions of HSA and quinazolines. These new compounds have been characterized with NMR and HRMS spectra (see Supplementary Materials).

2.2. Fluorescence Quenching Mechanism

The effect of FDQL on the fluorescence emission spectra of HSA was first tested with a fluorescence spectrophotometer, and obtained data were plotted in Figure 1. This figure clearly displays that the fluorescence intensity of HSA consistently decreased in the presence of increasing concentration of FDQL due to fluorescence quenching by FDQL, and a complex formation between FDQL and HSA.
In general, the fluorescence of HSA could be dynamically or statically quenched by an organic compound. As to which one works herein, some variable tests about temperature, viscosity, and lifetime measure were employed and the Stern-Volmer Equation (1) [28] were used to analyze the data for determining the mechanism of quenching fluorescence of HSA by FDQL.
F0/F = 1 + KSV [Q] = 1 + Kqτ0 [Q]
where F0 and F are the fluorescence intensities of HSA without and with the quencher, respectively, KSV is the linear Stern-Volmer quenching constant, Kq is the bimolecular quenching constant, [Q] is the concentration of the quencher, τ0 is the average lifetime of the biomolecule in the absence of the quencher (τ0 = 10−8 s−1) [29]. The Stern-Volmer plot curves were linear with high values, and the calculated KSV and Kq at the corresponding temperatures were listed in Table 1.
It is known that linear Stern-Volmer plots indicate one type of quenching mechanism as predominant, either static or dynamic [30]. Moreover, in Table 1, the values of Kq at different temperatures were much higher than the limiting diffusion rate constant of biomolecules (kd ≈ 2.0 × 1010 M−1·s−1) [31,32,33,34], which revealed static quenching via forming a complex.
For a complex formation process, the affinity constant Ka of the binding between FDQL and HSA was analyzed by modified Stern-Volmer Equation (2) [35,36,37]:
F0/(F0 − F) = fa−1·Ka−1·[Q]−1 + fa−1
where fa represents the fraction of accessible fluorescence and Ka is the effective quenching constant. F0/(F0 − F) is linear with the reciprocal value of the quencher concentration [Q], and the slope equals to the value of fa−1·Ka−1. According to the modified Stern-Volmer Equation, data were calculated to obtain the linear plots at different temperatures shown in Figure 2. The corresponding values of Ka in Table 2 showed that the affinity constants all increased after substitution by fluorine atom on the benzene ring.

2.3. Binding Sites and Identification of Binding Sites on HSA

For the static quenching process, the number of binding sites can be obtained on the double-logarithmic equation [38,39,40]
lg[(F0 − F)/F] = lgKb + nlg[Q]
where F0 and F are the fluorescence intensities without and with the ligand, and Kb and n are the binding constant and the number of binding sites, respectively. According to Equation (3), the number of binding sites n can be determined on the slope of a straight line produced by the plots of lg[(F0 − F)/F] versus log[Q]. The data shown in Table 3 demonstrated a good linear relationship and n approximates to 1, indicating that only one site in HSA is reactive to FDQL.
HSA is a globular protein composed of three homologous α-helical domains (I–III), and each domain contains two subdomains (A and B). The principal regions of ligand binding sites on HSA locate in hydrophobic cavities in subdomains IIA and IIIA [41]. Sjöholm et al. [42] reported that phenylbutazone (PB), flufenamic acid (FA), and digitoxin (Dig) bind subdomain IIA (site I), subdomain IIIA (site II), and site III, respectively, which were used in the present study as the site markers in competitive experiments to identify the binding sites of FDQL on HSA. The fluorescence quenching data in the presence of site markers were analyzed with the modified Stern-Volmer Equation, and the values of binding constants listed in Table 4 showed a remarkable decrease after the addition of FA, but relatively small changes after the addition of PB and Dig. Therefore, FDQL would be mainly bound to HSA in site II (subdomain IIIA).

2.4. Thermodynamic Parameters and Binding Modes

The interaction forces between ligands and biomolecules include probably electrostatic interactions, multiple hydrogen bonds, van der Waals force, hydrophobic and steric contacts, and so on [43]. Generally, the signs and magnitudes of the thermodynamic parameters enthalpy change (ΔH) and entropy change (ΔS) can account for the main forces involved in the binding process.
If ΔH does not vary significantly in the temperature range studied, both ΔH and ΔS can be evaluated from the Van′t Hoff equation:
lnKa = −ΔH/RT + ΔS/R
where Ka is analogous to the associative binding constants at the corresponding temperature and R is the gas constant.
To elucidate the interaction between FDQL and HSA, the thermodynamic parameters were calculated from the Van′t Hoff plots (Figure 3). ΔH was calculated from the slope of the Van′t Hoff relationship. The free energy change (ΔG) was then estimated from the following equation:
ΔG = ΔH − TΔS
The negative signs for free energy (ΔG) of the FDQL-HSA systems indicated that the interaction processes were spontaneous (Table 2). The signs for ΔH and ΔS of the binding reaction were both found to be positive, which indicated that the binding was mainly entropy-derived and the enthalpy was unfavorable for it, according Ross and Subramanian [44]. Thus, the hydrophobic forces played a major role in the binding process of FDQL to HSA.
With use of 3-(benzylideneamino)-6-chloro-1-(3,3-dimethylbutanoyl)-2-phenyl-2,3-dihydro quinazolin-4(1H)-one as a reference compound, the changes of ΔH and ΔS (ΔΔH and ΔΔS, respectively) were compared and studied after incorporating different fluorine substituent positions in the benzene ring. The signs of ΔΔH and ΔΔS listed in Table 5 showed that the binding affinity was enhanced by hydrophobic interaction after incorporating para-fluoro atoms, but by van der Waals force after incorporating meta-fluoro and ortho-fluoro atoms upon on the thermodynamic law summarized by Ross and Subramanian.
In addition, the data at the corresponding temperature in Table 6 displayed the ΔG changes (ΔΔG) of interactions of FDQL-HSA after incorporating fluorine atom on the benzene ring. The values showed that the ΔΔG changed only slightly as the temperature changed, and the negative sign of ΔΔG indicated that incorporation of substitution fluorine atom increased the binding affinity in the FDQL-HSA systems. Furthermore, it was found that the meta-fluoro substitution enhanced the affinity more greatly than that of para-fluoro and ortho-fluoro substitution.

2.5. HSA Conformational Change by CD and FT-IR Measurements

Currently, CD spectroscopy is a sensitive technique to provide some information about the secondary structure of proteins. In order to explore any molecular conformation changes of HSA occurring in the binding process, the Far-UV CD measurements for HSA in the absence and presence of FDQL were carried out in the range of 200–260 nm. The CD spectra of HSA and FDQL-HSA complex were shown in Figure 4 which exhibited two negative bands in the UV region at 208 nm and 222 nm, showing characteristic of α-helix structure units of protein [45]. The intensities of the negative bands increased with the addition of FDQL without a change in the position and shape of peak. The calculated results of the fractions of α-Helix, β-sheet, β-Turn, and Random Coil structures were listed in Table 7. These results indicated that the structure of HSA after addition of FDQLs is still predominantly α-helix. Overall, FDQL-HSA complex forms in the solution and the binding process can induce some secondary structure change of HSA.
FT-IR spectroscopy was performed to confirm the CD results, and structural changes of HSA after binding with FDQL were observed with FT-IR (Figure 5). According to the literature [46], the FT-IR spectra for HSA monitored over a range of 1700–1500 cm−1 reveal the presence of two bands, the amide I band (1700–1600 cm−1, mainly C=O stretch) and the amide II band (1600–1500 cm−1, a C-N stretch coupled with N-H bending mode), which are related to the secondary structure of the protein. After addition of FDQLs to HSA, the peak position of amide I was shifted from 1652 cm−1 to 1621 cm−1, and amide II was moved from 1541 cm−1 to 1513 cm−1. In addition, the intensity of the amide I and amide II band decreased and the peak shape changed, indicating that FDQLs interacted with the C=O and C-N groups in the protein structural subunits. These observations jointly support that FDQLs could induce conformational changes in HSA during the binding process, which agreed with the results of CD experiments.

3. Experimental Section

3.1. General Methods and Materials

Melting points were measured with a Fisher-Johns melting point apparatus (Cole-Parmer Co., Shanghai, China) without correction. Nuclear magnetic resonance (NMR) spectra were recorded with a 400-MHz spectrometer (Bruker, Billerica, MA, USA) and 600-MHz spectrometer (Agilent Technologies, Inc., Santa Clara, CA, USA) using tetramethylsilane (TMS) as an internal standard. IR spectra were recorded on a Bruker Tensor 27 (Bruker Optics GmbH, Ettlingen, Germany) in KBr pellets in the range 4000–400 cm−1. Mass spectra were recorded using an HPLC-1100/TOF MS high resolution mass spectrometer (Agilent Technologies). All fluorescence spectra were measured on a Cary Eclipse fluorescence spectrophotometer (Agilent Technologies) equipped with a thermostat bath. Quartz cuvettes with a 1-cm path length and 3-mL volume were used for all measurements. All pH measurements were completed with a PHS-25 digital pH meter (Shanghai REX Instrument Factory, Shanghai, China). HSA (≥99.9, fatty-acid free), purchased from Sigma-Aldrich (St. Louis, MO, USA), was used without further purification. PB, FA, and Dig were of analytical grade, and purchased from the National Institute for Control of Pharmaceutical and Bioproducts (Beijing, China), and the stock solutions were prepared in absolute ethanol. All other commercial reagents were used as obtained from Sigma-Aldrich, Alfa Aesar (Ward Hill, MA, USA), and J&K (Beijing, China). Flash column chromatography with silica gel was used to purify the crude products.

3.2. Fluorescence Titration Experiments

All HSA solutions were prepared in buffer solution (0.1 M Tris base and 0.1 M NaCl at pH 7.4), and the HSA stock solutions were kept in the dark at 4 °C. The solution (3.0 mL) containing 1.0 × 10−6 M HSA was titrated by successive additions of 8.0 × 10−4 M ethanol stock solution of FDQL (the final concentration is 1.333–10.667 × 10−6 M). Titrations were done manually by using trace syringes, and the fluorescence intensity was measured (excitation at 280 nm and emission at 337 nm). All experiments were conducted at three temperatures (298, 307, and 316 K).

3.3. Site Marker Competitive Experiments

Binding location studies between FDQL and HSA in the presence of three site makers (phenylbutazone, flufenamic acid, digitoxin) were measured according to the fluorescence titration methods. The concentration of HSA and site makers were all stabilized at 1.0 × 10−6 M. The solution of FDQL was then gradually added to the phenylbutazone-HSA, flufenamic acid-HSA, or digitoxin-HSA mixtures, and the fluorescence intensity was recorded (λex 280 nm and λem 337 nm).

3.4. Circular Dichroism Spectra Studies

The CD measurements were performed on a Jasco-810 spectropolarimeter (Jasco, Japan) at 298 K with a thermostatically controlled cell holder attached to a NeslabRTE-110 water bath with an accuracy of ±0.1 °C. The instrument was sufficiently purged with 99.9% dry nitrogen gas and calibrated with d-10-camphorsulfonicacid before starting the apparatus. Each spectrum was performed with the use of a quartz cuvette of 0.1 cm path length and taken at wavelengths between 200 and 260 nm with 1 nm step resolution and the average of five successive scans recorded at a speed of 50 nm·min−1 and response time of 1 s. All observed CD spectra were baselines subtracted for buffer and the secondary structure was computed using the Jasco standard spectra analysis software package.

3.5. Fourier Transform Infrared (FT-IR) Measurements

FT-IR measurements were carried out at room temperature on a Thermo Scientific Nicolet iS50 FTIR spectrometer (Thermo, Tewksbury, MA, USA) equipped with a germanium attenuated total reflection (ATR) accessory. All spectra were taken via 32 scans with a resolution of 4 cm−1. The FT-IR spectra of HSA in the absence and presence of FDQL were first collected in the range of 500 cm−1–4000 cm−1 and the absorbance of the buffer solution (Tris-HCl buffer solution at pH 7.40) was then subtracted.

3.6. Synthesis of (un)Substituted Phenyl-2,3-dihydroquinazolin-4(1H)-one Derivatives FDQL 3a–d

Compound 1 and compounds 2a–d were prepared according to the reported methods [47,48]. Their properties were as follows:
2-Amino-5-chlorobenzohydrazide (1): white crystals, yield 85%; m.p. 139.6–140.5 °C; 1H-NMR (400 MHz, DMSO-d6) δ 9.60 (s, 1H), 7.48 (d, J = 2.5 Hz, 1H), 7.16 (dd, J = 8.8, 2.5 Hz, 1H), 6.74 (d, J = 8.8 Hz, 1H), 6.46 (s, 2H), 4.42 (s, 2H).
3-(Benzylideneamino)-6-chloro-2-phenyl-2,3-dihydroquinazolin-4(1H)-one (2a): light yellow solid, yield 75.3%; m.p. 193.5–194.5 °C; 1H-NMR (400 MHz, Chloroform-d) δ 9.16 (s, 1H), 7.86 (d, J = 2.4 Hz, 1H), 7.61–7.52 (m, 2H), 7.40–7.34 (m, 2H), 7.33–7.22 (m, 6H), 7.21–7.17 (m, 1H), 6.58 (d, J = 8.6 Hz, 1H), 6.21 (s, 1H), 4.82 (s, 1H).
6-Chloro-3-(2-fluorobenzylideneamino)-2-phenyl-2,3-dihydroquinazolin-4(1H)-one (2b): light yellow crystal, yield 63.7%; m.p. 193.3–194.1 °C; 1H-NMR (400 MHz, Chloroform-d) δ 9.25 (d, J = 1.2 Hz, 1H), 7.85 (d, J = 2.5 Hz, 1H), 7.39–7.32 (m, 2H), 7.29 (d, J = 2.1 Hz, 1H), 7.28–7.23 (m, 5H), 7.19 (d, J = 1.8 Hz, 1H), 7.02–6.96 (m, 1H), 6.59 (d, J = 8.6 Hz, 1H), 6.20 (s, 1H), 4.82 (s, 1H).
6-Chloro-3-(3-fluorobenzylideneamino)-2-phenyl-2,3-dihydroquinazolin-4(1H)-one (2c): light yellow crystal, yield 60.5%; m.p. 204.3–206.1 °C; 1H-NMR (400 MHz, Chloroform-d) δ 9.13 (s, 1H), 7.91–7.80 (m, 1H), 7.61–7.49 (m, 2H), 7.42–7.30 (m, 2H), 7.31–7.23 (m, 3H), 7.21–7.16 (m, 1H), 7.00–6.92 (m, 2H), 6.64–6.53 (m, 1H), 6.23–6.15 (m, 1H), 4.88–4.77 (m, 1H).
6-Chloro-3-(4-fluorobenzylideneamino)-2-phenyl-2,3-dihydroquinazolin-4(1H)-one (2d): white crystal, yield 65.3%; m.p. 200.1–202.0 °C; 1H-NMR (400 MHz, Chloroform-d) δ 9.32 (s, 1H), 7.90–7.85 (m, 1H), 7.73 (td, J = 7.5, 1.8 Hz, 1H), 7.38–7.31 (m, 2H), 7.28–7.24 (m, 4H), 7.20–7.16 (m, 2H), 7.05–6.95 (m, 2H), 6.58 (d, J = 8.6 Hz, 1H), 6.23 (d, J = 1.9 Hz, 1H), 4.86 (s, 1H).
For the preparation of compounds 3a–d, the corresponding compound 2 (3 mmol) in anhydrous tetrahydrofuran (30 mL) was cooled to 0 °C with an ice bath, and sodium hydride (3.6 mmol) was added. The mixture was stirred for 0.5 h at 0 °C followed by another 1.0 h at room temperature. tert-Butylacetyl chloride (3.6 mmol) in anhydrous tetrahydrofuran (5 mL) was added slowly at 0 °C in 0.5 h, and then the mixture was stirred again at room temperature overnight. The solvent was removed under vacuum, and the residue was then purified by flash chromatography using hexane and ethyl acetate (v/v = 6:1) as the eluent to obtain the title compounds.
3-(Benzylideneamino)-6-chloro-1-(3,3-dimethylbutanoyl)-2-phenyl-2,3-dihydroquinazolin-4(1H)-one (3a): white solid, yield 49.5%; m.p. 149.5–150.8 °C; 1H-NMR (600 MHz, DMSO-d6) δ 9.17 (s, 1H), 7.81 (m, 4H), 7.61 (s, 2H), 7.52–7.41 (m, 3H), 7.33–7.13 (m, 5H), 2.67 (s, 2H), 0.95 (s, 9H); 13C-NMR (151 MHz, DMSO-d6) δ 171.56, 158.59, 152.50, 136.82, 136.54, 134.42, 133.39, 131.45, 130.95, 129.34, 129.27, 129.02, 128.16, 128.01, 127.57, 126.33, 125.90, 44.73, 32.14, 29.86; HRMS: m/z calc for C27H26ClN3O2 [M + H]+ 460.1786, found 460.1776
6-Chloro-1-(3,3-dimethylbutanoyl)-3-(2-fluorobenzylideneamino)-2-phenyl-2,3-dihydroquinazolin-4(1H)-one (3b): white solid, yield 53.3%; m.p. 172.2–173.0 °C; 1H-NMR (600 MHz, DMSO-d6) δ 9.17 (s, 1H), 7.96–7.66 (m, 4H), 7.61 (s, 2H), 7.52–7.38 (m, 1H), 7.37–7.11 (m, 6H), 2.79–2.57 (m, 2H), 0.95 (s, 9H); 13C-NMR (151 MHz, DMSO-d6) δ 171.56, 158.55, 136.83, 130.50, 130.44, 129.36, 129.28, 129.03, 128.17, 126.33, 125.85, 116.55, 116.40, 44.72, 39.76, 32.14, 29.86; IR (v·cm−1): 3677.1, 2958.4, 1891.5, 1670.9, 1603.8, 1511.2, 1371.9, 1315.9, 1233.3, 1164.6, 839.6, 768.9, 755.1, 700.0, 594.9, 540.1; HRMS: m/z calc for C27H25ClFN3O2 [M + H]+ 478.1692, found 478.1680.
6-Chloro-1-(3,3-dimethylbutanoyl)-3-(3-fluorobenzylideneamino)-2-phenyl-2,3-dihydroquinazolin-4(1H)-one (3c): white solid, yield 50.9%; m.p. 114.2–116.0 °C; 1H-NMR (600 MHz, DMSO-d6) δ 9.20 (s, 1H), 7.81 (s, 2H), 7.71–7.55 (m, 4H), 7.54–7.44 (m, 1H), 7.38–7.10 (m, 6H), 2.67 (m, 2H), 0.95 (s, 9H); 13C-NMR (151 MHz, DMSO-d6) δ 171.56, 158.69, 150.38, 137.05, 136.87, 133.51, 131.46, 131.41, 129.32, 129.28, 129.04, 128.15, 128.05, 127.61, 126.31, 125.77, 124.54, 118.20, 118.06, 114.09, 113.94, 47.77, 44.73, 32.13, 29.85; IR (v·cm−1): 3430.0, 2957.5, 1693.5, 1668.1, 1479.5, 1421.4, 1359.6, 1278.3, 1232.0, 1146.0, 755.9, 704.9, 542.2; HRMS: m/z calc for C27H25ClFN3O2 [M + H]+ 478.1692, found 478.1677.
6-Chloro-1-(3,3-dimethylbutanoyl)-3-(4-fluorobenzylideneamino)-2-phenyl-2,3-dihydroquinazolin-4(1H)-one (3d): white solid, yield 56.3%; m.p. 148.0–149.1 °C; 1H-NMR (600 MHz, DMSO-d6) δ 9.56 (s, 1H), 7.99–7.86 (m, 1H), 7.84–7.66 (m, 2H), 7.62 (s, 2H), 7.54 (m, 1H), 7.47 (m, 1H), 7.34–7.15 (m, 6H), 2.67 (s, 2H), 0.96 (s, 9H); 13C-NMR (151 MHz, DMSO-d6) δ 171.57, 162.43, 160.76, 159.08, 158.58, 145.92, 136.78, 134.42, 133.54, 131.46, 129.35, 129.31, 129.27, 129.07, 128.16, 128.02, 127.59, 127.12, 126.33, 126.27, 125.77, 125.51, 125.49, 122.05, 116.71, 116.57, 44.73, 32.10, 29.86, 29.82; IR (v·cm−1): 3423.2, 2962.9, 1670.1, 1481.4, 1431.8, 1359.8, 1125.8, 830.8, 755.8, 596.9; HRMS: m/z calc for C27H25ClFN3O2 [M + H]+ 478.1692, found 478.1682.

4. Concluding Remarks

In summary, interactions of four FDQLs with HSA have been studied with fluorescence spectroscopy, CD, and FT-IR experiments. The experimental results indicated that the FDQL could bind to HSA in the site II (subdomain IIIA), induce conformation and the secondary structure changes of HSA and quench the intrinsic fluorescence of HSA through a static quenching mechanism. The quenching of HSA fluorescence takes place with 1:1 complex formation between FDQL and HSA. In the complex formation between HSA and FDQL, hydrophobic forces play a significant role. The studies of the FDQL-HSA interactions showed that substitution of a fluorine atom on the benzene ring could enhance the binding affinity through the steric and hydrophobic effects; specifically, meta-fluoro substitution enhanced the binding affinity most greatly by hydrophobic interaction. This study has provided some valuable information for further research into the rational design of this series of compounds. As the functions of the same substituent in aromatic compounds are relatively consistent and stable, the obtained results about varying fluorine substitution positions are hopefully valuable for guiding molecular design and modification of benzene rings.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/21/10/1373/s1.

Acknowledgments

This work was performed in part by the National High Technology Research and Development Program of China (2013AA102804B), the National Natural Science Foundation of China (NSFC) (No. 31601657, 31272062, 31572033 and 21602043), the Anhui Agricultural University Youth Fund Project (2014zr003, yj2015-25), the Performance Project of Key laboratory of Anhui Province (1506c085006), the Natural Science Foundation of Anhui Province of China (1408085MKL36), and the Foundation for the Excellent Youth Scholars of Anhui Province (2013SQRL016ZD).

Author Contributions

This research was carried on by all authors. Y. Wang, R. Hua, and S. Liu designed the theme of the study as well as manuscript preparation. M. Zhu, F. Liu, X. Wu, D. Pan, J. Liu, S. Fan, Z. Wang, J. Tang, and R. Na participated in the synthesis of compounds and fluorescence experiments. Q.X. Li contributed to data interpretation and manuscript revision.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kandagal, P.B.; Ashoka, S.; Seetharamappa, J.; Shaikh, S.M.T.; Jadegoud, Y.; Ijare, O.B. Study of the interaction of an anticancer drug with human and bovine serum albumin: Spectroscopic approach. J. Pharm. Biomed. Anal. 2006, 41, 393–399. [Google Scholar] [CrossRef] [PubMed]
  2. Wu, S.; Liu, Y.; Liu, S. Spectroscopic studies on the interaction of human serum albumin and water-soluble carboxyl carbon nanotubes. Spectrosc. Spect. Anal. 2016, 36, 1109–1115. [Google Scholar]
  3. Ma, X.; Yan, J.; Xu, K.; Guo, L.; Li, H. Binding mechanism of trans-n-caffeoyltyramine and human serum albumin: Investigation by multi-spectroscopy and docking simulation. Bioorg. Chem. 2016, 66, 102–110. [Google Scholar] [CrossRef] [PubMed]
  4. Rohacova, J.; Marin, M.L.; Miranda, M.A. Complexes between fluorescent cholic acid derivatives and human serum albumin. A photophysical approach to investigate the binding behavior. J. Phys. Chem. B 2010, 114, 4710–4716. [Google Scholar] [CrossRef] [PubMed]
  5. Housaindokht, M.R.; Rouhbakhsh Zaeri, Z.; Bahrololoom, M.; Chamani, J.; Bozorgmehr, M.R. Investigation of the behavior of hsa upon binding to amlodipine and propranolol: Spectroscopic and molecular modeling approaches. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2012, 85, 79–84. [Google Scholar] [CrossRef] [PubMed]
  6. Ding, F.; Zhang, L.; Diao, J.; Li, X.; Ma, L.; Sun, Y. Human serum albumin stability and toxicity of anthraquinone dye alizarin complexone: An albumin-dye model. Ecotoxicol. Environ. Saf. 2012, 79, 238–246. [Google Scholar] [CrossRef] [PubMed]
  7. Ding, F.; Peng, W. Biophysical evaluation of protein structural flexibility for ligand biorecognition in solid solution. Phys. Chem. Chem. Phys. 2016, 18, 6595–6606. [Google Scholar] [CrossRef] [PubMed]
  8. Alam, P.; Abdelhameed, A.S.; Rajpoot, R.K.; Khan, R.H. Interplay of multiple interaction forces: Binding of tyrosine kinase inhibitor nintedanib with human serum albumin. J. Photochem. Photobiol. B 2016, 157, 70–76. [Google Scholar] [CrossRef] [PubMed]
  9. Liu, X.; Du, Y. Study on the binding of chiral drug duloxetine hydrochloride to human serum albumin. Eur. J. Med. Chem. 2010, 45, 4043–4049. [Google Scholar] [CrossRef] [PubMed]
  10. Abdollahpour, N.; Asoodeh, A.; Saberi, M.R.; Chamani, J. Separate and simultaneous binding effects of aspirin and amlodipine to human serum albumin based on fluorescence spectroscopic and molecular modeling characterizations: A mechanistic insight for determining usage drugs doses. J. Lumin. 2011, 131, 1885–1899. [Google Scholar] [CrossRef]
  11. Wang, T.; Xiang, B.; Wang, Y.; Chen, C.; Dong, Y.; Fang, H.; Wang, M. Spectroscopic investigation on the binding of bioactive pyridazinone derivative to human serum albumin and molecular modeling. Colloids Surf. B Biointerfaces 2008, 65, 113–119. [Google Scholar] [CrossRef] [PubMed]
  12. Gao, W.; Li, N.; Chen, G.; Xu, Y.; Chen, Y.; Hu, S.; Hu, Z. Binding studies of costunolide and dehydrocostuslactone with hsa by spectroscopy and atomic force microscopy. J. Lumin. 2011, 131, 2063–2071. [Google Scholar] [CrossRef]
  13. Bijari, N.; Shokoohinia, Y.; Ashrafi-Kooshk, M.R.; Ranjbar, S.; Parvaneh, S.; Moieni-Arya, M.; Khodarahmi, R. Spectroscopic study of interaction between osthole and human serum albumin: Identification of possible binding site of the compound. J. Lumin. 2013, 143, 328–336. [Google Scholar] [CrossRef]
  14. Afrin, S.; Riyazuddeen; Rabbani, G.; Khan, R.H. Spectroscopic and calorimetric studies of interaction of methimazole with human serum albumin. J. Lumin. 2014, 151, 219–223. [Google Scholar] [CrossRef]
  15. Mabkhot, Y.N.; Al-Har, M.S.; Barakat, A.; Aldawsari, F.D.; Aldalbahi, A.; Ul-Haq, Z. Synthesis, anti-microbial and molecular docking studies of quinazolin-4(3H)-one derivatives. Molecules 2014, 19, 8725–8739. [Google Scholar] [CrossRef] [PubMed]
  16. Ghorab, M.M.; Alsaid, M.S.; Al-Dosari, M.S.; El-Gazzar, M.G.; Parvez, M.K. Design, synthesis and anticancer evaluation of novel quinazoline-sulfonamide hybrids. Molecules 2016, 21, 189. [Google Scholar] [CrossRef] [PubMed]
  17. Yadav, R.R.; Khan, S.I.; Singh, S.; Khan, I.A.; Vishwakarma, R.A.; Bharate, S.B. Synthesis, antimalarial and antitubercular activities of meridianin derivatives. Eur. J. Med. Chem. 2015, 98, 160–169. [Google Scholar] [CrossRef] [PubMed]
  18. Wang, Z.; Wang, M.; Yao, X.; Li, Y.; Tan, J.; Wang, L.; Qiao, W.; Geng, Y.; Liu, Y.; Wang, Q. Design, synthesis and antiviral activity of novel quinazolinones. Eur. J. Med. Chem. 2012, 53, 275–282. [Google Scholar] [CrossRef] [PubMed]
  19. Farghaly, T.A.R.; Edrees, M.M.; Mosselhi, M.A. Synthesis, tautomeric structure and antimicrobial activity of 3-arylhydrazono-4-phenyl-[1,2,4]-triazepino[2,3-a]quinazoline-2,7(1h)-diones. Molecules 2012, 17, 8483–8493. [Google Scholar] [CrossRef] [PubMed]
  20. Abdel-Aziz, A.A.M.; Abou-Zeid, L.A.; ElTahir, K.E.H.; Mohamed, M.A.; Abu El-Enin, M.A.; El-Azab, A.S. Design, synthesis of 2,3-disubstituted 4(3H)-quinazolinone derivatives as anti-inflammatory and analgesic agents: Cox-1/2 inhibitory activities and molecular docking studies. Bioorg. Med. Chem. 2016, 24, 3818–3828. [Google Scholar] [CrossRef] [PubMed]
  21. Abdel-Aziz, A.A.M.; Abou-Zeid, L.A.; El Tahir, K.E.H.; Ayyad, R.R.; El-Sayed, M.A.A.; El-Azab, A.S. Synthesis, anti-inflammatory, analgesic, cox-1/2 inhibitory activities and molecular docking studies of substituted 2-mercapto-4(3H)-quinazolinones. Eur. J. Med. Chem. 2016, 121, 410–421. [Google Scholar] [CrossRef] [PubMed]
  22. Georgey, H.; Abdel-Gawad, N.; Abbas, S. Synthesis and anticonvulsant activity of some quinazolin-4-(3H)-one derivatives. Molecules 2008, 13, 2557–2569. [Google Scholar] [CrossRef] [PubMed]
  23. Khattab, S.N.; Haiba, N.S.; Asal, A.M.; Bekhit, A.A.; Amer, A.; Abdel-Rahman, H.M.; El-Faham, A. Synthesis and evaluation of quinazoline amino acid derivatives as mono amine oxidase (mao) inhibitors. Bioorg. Med. Chem. 2015, 23, 3574–3585. [Google Scholar] [CrossRef] [PubMed]
  24. Dahiya, R.; Kumar, A.; Yadav, R. Synthesis and biological activity of peptide derivatives of iodoquinazolinones/nitroimidazoles. Molecules 2008, 13, 958–976. [Google Scholar] [CrossRef] [PubMed]
  25. Alagarsamy, V.; Sharma, H.K.; Parthiban, P.; Singh, J.C.H.; Murugan, S.T.; Solomon, V.R. Cheminform abstract: 4-(3-Methoxyphenyl)-1-substituted-4H-[1,2,4]triazolo [4,3-a]quinazolin-5-ones: New class of h 1-antihistaminic agents. Cheminform 2009, 40, 5–9. [Google Scholar] [CrossRef]
  26. Bandurco, V.T.; Wong, E.M.; Levine, S.D.; Hajos, Z.G. Antihypertensive pyrrolo[1,2-c]quinazolines and pyrrolo[1,2-c]quinazolinones. J. Med. Chem. 1981, 24, 1455–1460. [Google Scholar] [CrossRef] [PubMed]
  27. Liu, F.; Wang, Y.; Lv, C.; Wang, L.; Ou, J.; Wang, M.; Liu, S. Impact of halogen substituents on interactions between 2-phenyl-2,3-dihydroqulinazolin-4(1H)-one derivatives and human serum albumin. Molecules 2012, 17, 2000. [Google Scholar] [CrossRef] [PubMed]
  28. Lakowicz, J.R. (Ed.) Mechanisms and dynamics of fluorescence quenching. In Principles of Fluorescence Spectroscopy; Springer: Boston, MA, USA, 2006; pp. 331–351.
  29. Lakowicz, J.R.; Weber, G. Quenching of fluorescence by oxygen. Probe for structural fluctuations in macromolecules. Biochemistry 1973, 12, 4161–4170. [Google Scholar] [CrossRef] [PubMed]
  30. Papadopoulou, A.; Green, R.J.; Frazier, R.A. Interaction of flavonoids with bovine serum albumin: A fluorescence quenching study. J. Agric. Food Chem. 2005, 53, 158–163. [Google Scholar] [CrossRef] [PubMed]
  31. Ware, W.R. Oxygen quenching of fluorescence in solution: An experimental study of the diffusion process. J. Phys. Chem. 1962, 66, 316–320. [Google Scholar] [CrossRef]
  32. Chaves, O.A.; Amorim, A.P.O.; Castro, L.H.E.; Sant′Anna, C.M.R.; de Oliveira, M.C.C.; Cesarin-Sobrinho, D.; Netto-Ferreira, J.C.; Ferreira, A.B.B. Fluorescence and docking studies of the interaction between human serum albumin and pheophytin. Molecules 2015, 20, 19526–19539. [Google Scholar] [CrossRef] [PubMed]
  33. Cacita, N.; Nikolaou, S. Studying the interaction between trinuclear ruthenium complexes and human serum albumin by means of fluorescence quenching. J. Lumin. 2016, 169, 115–120. [Google Scholar] [CrossRef]
  34. Cheng, X.; Fan, X.; Jiang, F.; Liu, Y.; Lei, K. Resonance energy transfer, ph-induced folded states and the molecular interaction of human serum albumin and icariin. Luminescence 2015, 30, 1026–1033. [Google Scholar] [CrossRef] [PubMed]
  35. Niu, M.; Hong, M.; Chang, G.; Li, X.; Li, Z. A comparative study of cytotoxicity and interaction with DNA/protein of five transition metal complexes with schiff base ligands. J. Photochem. Photobiol. B 2015, 148, 232–341. [Google Scholar] [CrossRef] [PubMed]
  36. Zhang, W.; Zhang, Q.; Wang, F.; Yuan, L.; Xu, Z.; Jiang, F.; Liu, Y. Comparison of interactions between human serum albumin and silver nanoparticles of different sizes using spectroscopic methods. Luminescence 2015, 30, 397–404. [Google Scholar] [CrossRef] [PubMed]
  37. Cheng, Z.; Liu, R.; Jiang, X.; Xu, Q. The interaction between cepharanthine and two serum albumins: Multiple spectroscopic and chemometric investigations. Luminescence 2014, 29, 504–515. [Google Scholar] [CrossRef] [PubMed]
  38. Trivedi, V.D.; Vorum, H.; Honore, B.; Qasim, M.A. Molecular basis of indomethacin-human serum albumin interaction. J. Pharm. Pharmacol. 1999, 51, 591–600. [Google Scholar] [CrossRef] [PubMed]
  39. Cui, F.; Fan, J.; Li, J.; Hu, Z. Interactions between 1-benzoyl-4-p-chlorophenyl thiosemicarbazide and serum albumin: Investigation by fluorescence spectroscopy. Bioorg. Med. Chem. 2004, 12, 151–157. [Google Scholar] [CrossRef] [PubMed]
  40. Tang, K.; Qin, Y.; Lin, A.; Hu, X.; Zou, G. Interaction of daunomycin antibiotic with human serum albumin: Investigation by resonant mirror biosensor technique, fluorescence spectroscopy and molecular modeling methods. J. Pharm. Biomed. Anal. 2005, 39, 404–410. [Google Scholar] [CrossRef] [PubMed]
  41. Cheng, F.; Wang, Y.; Li, Z.; Dong, C. Fluorescence study on the interaction of human serum albumin with bromsulphalein. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2006, 65, 1144–1147. [Google Scholar] [CrossRef] [PubMed]
  42. Sjöholm, I.; Ekman, B.; Kober, A.; Ljungstedt-Påhlman, I.; Seiving, B.; Sjödin, T. Binding of drugs to human serum albumin: Xi. The specificity of three binding sites as studied with albumin immobilized in microparticles. Mol. Pharmacol. 1979, 16, 767–777. [Google Scholar] [PubMed]
  43. Leckband, D. Measuring the forces that control protein interactions. Annu. Rev. Biophys. Biomol. Struct. 2003, 29, 1–26. [Google Scholar] [CrossRef] [PubMed]
  44. Ross, P.D.; Subramanian, S. Thermodynamics of protein association reactions: Forces contributing to stability. Biochemistry 1981, 20, 3096–3102. [Google Scholar] [CrossRef] [PubMed]
  45. Kelly, S.M.; Jess, T.J.; Price, N.C. How to study proteins by circular dichroism. Biochim biophys acta. Biochim. Biophys. Acta 2005, 1751, 119–139. [Google Scholar] [CrossRef] [PubMed]
  46. Yue, Y.; Sun, Y.; Dong, Q.; Liu, R.; Yan, X.; Zhang, Y.; Liu, J. Interaction of human serum albumin with novel imidazole derivatives studied by spectroscopy and molecular docking. Luminescence 2016, 31, 671–681. [Google Scholar] [CrossRef] [PubMed]
  47. Sircar, J.C.; Capiris, T.; Kesten, S.J.; Herzig, D.J. Pyrazolo[5,1-b]quinazolin-9-ones: A new series of antiallergic agents. J. Med. Chem. 1981, 24, 735–742. [Google Scholar] [CrossRef] [PubMed]
  48. Fulop, F.; Simeonov, M.; Pihlaja, K. Formation of 1,2-dihydroquinazolin-4(3H)-ones. Reinvestigation of a recently reported 1,3,4-benzotriazepine synthesis. Tetrahedron 1992, 48, 531–538. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds are available from authors.
Molecules 21 01373 sch001 550
Scheme 1. Synthetic route of 6-Chloro-3-fluorobenzylideneamino-2-phenyl-2,3-dihydroquinazolin-4(1H)-one (FDQL). R = H (3a), p-F (3b), m-F (3c), o-F (3d). p, para; m, meta; o, ortho; and F, fluorine.
Scheme 1. Synthetic route of 6-Chloro-3-fluorobenzylideneamino-2-phenyl-2,3-dihydroquinazolin-4(1H)-one (FDQL). R = H (3a), p-F (3b), m-F (3c), o-F (3d). p, para; m, meta; o, ortho; and F, fluorine.
Molecules 21 01373 sch001
Molecules 21 01373 g001 550

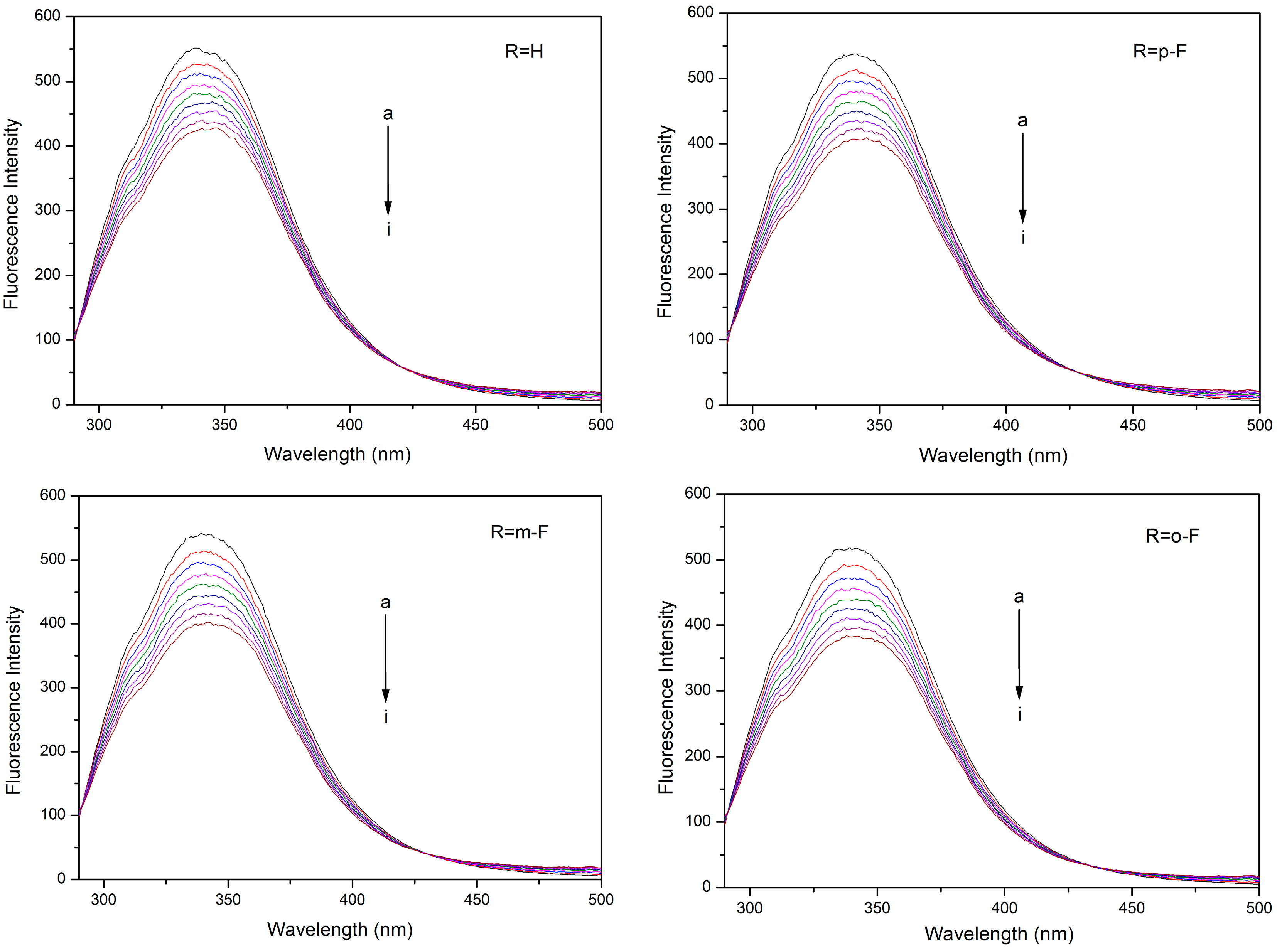

Figure 1. Fluorescence quenching spectra of HSA at different concentrations of FDQL at 298 K; λex = 280 nm; C(HSA) = 1.0 × 10−6 M; C(FDQL)/(×10−6 M), (a–i) 0.000, 1.333, 2.667, 4.000, 5.333, 6.667, 8.000, 9.333, and 10.667 respectively.
Figure 1. Fluorescence quenching spectra of HSA at different concentrations of FDQL at 298 K; λex = 280 nm; C(HSA) = 1.0 × 10−6 M; C(FDQL)/(×10−6 M), (a–i) 0.000, 1.333, 2.667, 4.000, 5.333, 6.667, 8.000, 9.333, and 10.667 respectively.
Molecules 21 01373 g001
Molecules 21 01373 g002 550
Figure 2. Modified Stern-Volmer plots of FDQL-HSA systems.
Figure 2. Modified Stern-Volmer plots of FDQL-HSA systems.
Molecules 21 01373 g002
Molecules 21 01373 g003 550
Figure 3. Van′t Hoff plots for FDQL-HSA systems.
Figure 3. Van′t Hoff plots for FDQL-HSA systems.
Molecules 21 01373 g003
Molecules 21 01373 g004 550
Figure 4. Far-UV CD spectra of the FDQL–HSA system: CHSA = 1 μM and 1 μM HSA + 2 μM FDQL.
Figure 4. Far-UV CD spectra of the FDQL–HSA system: CHSA = 1 μM and 1 μM HSA + 2 μM FDQL.
Molecules 21 01373 g004
Molecules 21 01373 g005 550
Figure 5. FTIR spectra of free HSA (10 μM) and the FDQL-HSA complex ([FDQL] = 20 μM).
Figure 5. FTIR spectra of free HSA (10 μM) and the FDQL-HSA complex ([FDQL] = 20 μM).
Molecules 21 01373 g005
Table
Table 1. Stern-Volmer quenching constants for interactions of FDQL with HSA at different temperatures.
Table 1. Stern-Volmer quenching constants for interactions of FDQL with HSA at different temperatures.
CompoundT (K)KSV (×104 M−1)Kq (×1012 M−1·s−1)R aSD b
R = H2982.772.770.999160.00605
3072.982.980.998980.00677
3163.233.230.999190.00513
R = p-F2983.113.110.999310.00451
3073.253.250.999330.00466
3163.523.520.999460.00453
R = m-F2983.243.240.999410.00436
3073.443.440.998890.00633
3163.633.630.999240.00553
R = o-F2983.303.300.999730.00299
3073.363.360.999420.00449
3163.403.400.999070.00573
a R is the correlation coefficient. b SD is the standard deviation for the KSV values.
Table
Table 2. Thermodynamic parameters of FDQL-HSA binding systems at different temperatures.
Table 2. Thermodynamic parameters of FDQL-HSA binding systems at different temperatures.
CompoundT (K)Ka (×104 M−1)R aΔH (kJ·mol−1)ΔG (kJ·mol−1)ΔS (J·mol−1·K−1)
R = H2982.160.999497.14−24.72106.92
3072.340.99969−25.68
3162.540.99963−26.65
R = p-F2982.330.999458.83−24.92113.24
3072.590.99967−25.93
3162.850.99967−26.95
R = m-F2982.730.999795.49−25.31103.36
3072.920.99960−26.24
3163.100.99967−27.17
R = o-F2982.460.999564.50−25.0499.13
3072.580.99949−25.93
3162.720.99912−26.83
a R is the correlation coefficient.
Table
Table 3. Binding numbers of FDQL to HSA.
Table 3. Binding numbers of FDQL to HSA.
CompoundT (K)nR aSD b
R = H2980.993140.999450.01088
3070.984230.999470.01059
3160.974920.999280.01220
R = p-F2980.970470.999140.01329
3070.981210.999420.01100
3160.981600.999470.01054
R = m-F2980.989760.999490.01043
3071.006210.999260.01276
3160.999600.999420.01126
R = o-F2980.949070.999590.00895
3070.972080.999360.01150
3160.980930.998840.01562
a R is the correlation coefficient. b SD is the standard deviation for the n values.
Table
Table 4. Effects of the site probe on the binding constants of FDQL to HSA.
Table 4. Effects of the site probe on the binding constants of FDQL to HSA.
CompoundSite MarkerKa (×104 M−1)R aSD b
R = HBlank2.160.999490.26651
PB1.880.999620.27020
FA1.040.999480.25962
Dig2.180.999380.24163
R = p-FBlank2.330.999450.23559
PB2.440.999600.23309
FA2.100.999760.22148
Dig2.430.999540.20943
R = m-FBlank2.730.999790.14653
PB2.080.999310.26689
FA1.650.999690.26159
Dig2.780.999550.18883
R = o-FBlank2.460.999560.18871
PB2.250.999220.25466
FA1.720.999720.22793
Dig2.540.999140.24946
a R is the correlation coefficient. b SD is the standard deviation for the Ka values.
Table
Table 5. The values of ΔΔH and ΔΔS in FDQL-HSA systems.
Table 5. The values of ΔΔH and ΔΔS in FDQL-HSA systems.
CompoundΔΔH (kJ·mol−1)ΔΔS (J·mol−1·K−1)
R = p-F1.696.32
R = m-F−1.65−3.56
R = o-F−2.64−7.79
Table
Table 6. Values of ΔΔG at corresponding temperature in FDQL-HSA systems.
Table 6. Values of ΔΔG at corresponding temperature in FDQL-HSA systems.
T (K)R = p-FR = m-FR = o-F
ΔΔG (kJ·mol−1)298−0.20−0.59−0.32
307−0.25−0.56−0.25
316−0.30−0.52−0.18
Table
Table 7. Conformation changes of the secondary structure of HSA with and without FDQL.
Table 7. Conformation changes of the secondary structure of HSA with and without FDQL.
SampleSecondary Structure (%)
α-Helixβ-Sheetβ-TurnRandom Coil
HSA38.823.611.026.6
HSA + 3a (1:2)35.822.714.227.2
HSA + 3b (1:2)36.817.617.028.6
HSA + 3c (1:2)35.116.319.728.9
HSA + 3d (1:2)38.023.912.525.5

Share and Cite

MDPI and ACS Style

Wang, Y.; Zhu, M.; Liu, F.; Wu, X.; Pan, D.; Liu, J.; Fan, S.; Wang, Z.; Tang, J.; Na, R.; et al. Comparative Studies of Interactions between Fluorodihydroquinazolin Derivatives and Human Serum Albumin with Fluorescence Spectroscopy. Molecules 2016, 21, 1373. https://doi.org/10.3390/molecules21101373

AMA Style

Wang Y, Zhu M, Liu F, Wu X, Pan D, Liu J, Fan S, Wang Z, Tang J, Na R, et al. Comparative Studies of Interactions between Fluorodihydroquinazolin Derivatives and Human Serum Albumin with Fluorescence Spectroscopy. Molecules. 2016; 21(10):1373. https://doi.org/10.3390/molecules21101373

Chicago/Turabian Style

Wang, Yi, Meiqing Zhu, Feng Liu, Xiangwei Wu, Dandan Pan, Jia Liu, Shisuo Fan, Zhen Wang, Jun Tang, Risong Na, and et al. 2016. "Comparative Studies of Interactions between Fluorodihydroquinazolin Derivatives and Human Serum Albumin with Fluorescence Spectroscopy" Molecules 21, no. 10: 1373. https://doi.org/10.3390/molecules21101373

Article Metrics

Back to TopTop
