Article

The Influence of the Terminal Phosphorothioate Diester Bond on the DNA Oxidation Process. An Experimental and Theoretical Approach

Food Science Department, Medical University of Lodz, ul. Muszynskiego 1, 90-151 Lodz, Poland
Molecules 2015, 20(7), 12400-12411; https://doi.org/10.3390/molecules200712400
Submission received: 6 March 2015 / Revised: 12 June 2015 / Accepted: 24 June 2015 / Published: 8 July 2015
(This article belongs to the Special Issue Frontiers in Nucleic Acid Chemistry)

Abstract

:
In this study, the influence of the terminal phosphorothioate (PT) internucleotide bond in ds-DNA on the oxidation process was taken into consideration. The interaction of UV with the targeted oligonucleotide leads to an electron ejection and radical cation “hole” migration through the ds-DNA until it is trapped irreversibly in a suitable place. Phosphorothiate internucleotide bonds were detected in the bacterial genome; however, their role is still unclear. In this study a PAGE analysis of irradiated ds-DNA showed that the degradation rea ction was slowed down by the presence PT next to the anthraquinone moiety. Further, theoretical study shows that [RP] AQ-PS-dG can adopt a slightly lower ionisation potential energy and triplet excited state with a subsequent slightly higher adiabatic electron affinity value in comparison with [SP] AQ-PS-dG and AQ-PO-dG. Moreover, the energy gap between HOMO and LUMO, indicated the radical stabilisation properties of [RP] AQ-PS-dG, which can hinder the charge transfer through ds-DNA.

Graphical Abstract

1. Introduction

Genetic information is preserved in cellular DNA in every living organism [1]. This storage medium is continuously exposed to oxidative stress, which can lead to a variety of DNA lesions [2]. So far, more than 80 such DNA lesions have been detected [3,4]. One of the main causes of their ocurrence is the activity of reactive oxygen species (ROS), which may be generated by endocellular processes, such as the Haber-Weis type reaction [5]. Physical factors, such as ionisation radiation (gamma, X-rays, etc.) or solar light (95% UVA), can also induce the ROS formation process. Due to the nature of ds-DNA, in favourable conditions, once it has been oxidized, the formed radical cation “hole” can hop reversibly through the double-helix until it is trapped, usually by the reaction of the formed guanine radical cation (G●+) with H2O (Scheme 1) [6]. Depending on the nature of the G:::C base pair radical, two reaction paths are possible with or without the addition of a water molecule [6,7]. The first path leads to the 8-oxo-7,8-dihydroguanine (8-oxoG) formation.

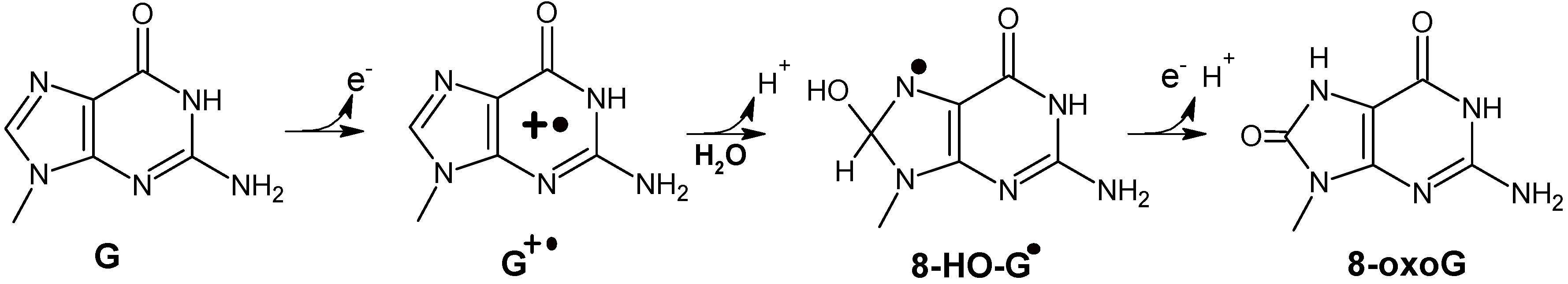

Scheme 1. The formation of 8-oxoG in the one-electron oxidation process [6].
Scheme 1. The formation of 8-oxoG in the one-electron oxidation process [6].
Molecules 20 12400 g005
On the other hand, in 2006 Schuster demonstrated that spermine disulphide can protect ds-DNA from oxidative damage [8]. One year later, in 2007, Wang et al. showed that phosphorothiate (PT) modification in an internucleotide bond can naturally appear in the bacterial genome [9]. This modification was not detected in other cells of living organisms. In phosphorothioate diester linkage, one of the non-bridging oxygen atoms is replaced by sulphur; this change leads to a new chiral centre appearing on the phosphorus atom (Figure 1). Due to the minimal distortion of the spatial geometry and π stacking interaction in ds-DNA, S-oligomers (S-DNA) have been widely studied as useful tools in antisense strategy [10,11]. In this work, the influence of the phosphorothioate internucelotide bond on the light-induced oxidation process was examined.
Figure 1. Graphical representation of AQ-PO-dG, AQ-PS-dG and phosphorothioate internucleotide bond stereochemistry and antraquinone (AQ) covalent linkage to 5′-end of the oligonucleotides.
Figure 1. Graphical representation of AQ-PO-dG, AQ-PS-dG and phosphorothioate internucleotide bond stereochemistry and antraquinone (AQ) covalent linkage to 5′-end of the oligonucleotides.
Molecules 20 12400 g001

2. Results and Discussion

Among the variety of photo-oxidants, an anthraquinone (AQ) derivative covalently linked to the 5′-end was used to initiate the DNA strand cleavage [12,13]. To elucidate the influence of terminal PT on the DNA oxidation process two ds-DNA oligonucleotides (Table 1) were synthesized, purified and characterized according to the commonly followed procedure. Each of the duplexes contained an AQ moiety on the 5′-end of one strand and 32P on the 5′-end of the complementary one. In oligo-A the anthraqunione moiety was connected to a DNA strand by a phosphate diester bond, and in oligo-B by phosphorothioate one. Following the mechanisms proposed by Schuster, the oligonucleotides were irridiated in their double-stranded form by UVA (350 nm) and rapidly formed a triplet excited state of anthraquinone (AQ*3) with one-electron DNA oxidation [12,13]. Subsequently, the generated radical ion pair AQ●─B●+ could give rise toO2●─ formation by the reaction with oxygen. Therefore, it was possible for an individual nucleobase radical cation (B●+) to migrate through ds-DNA until it was annihilated [13].
Table 1. Structure/nucleobase sequence of ds-oligonucleotides with phosphorotioate linkage indication.
Table 1. Structure/nucleobase sequence of ds-oligonucleotides with phosphorotioate linkage indication.
oligo-A32P-5′-1A2A3A4T5T6A7A8T9A10T11G12T13A14T15T16G17T18A19T20A21T22A23A24A25T26T27A28T29T-3′-End
T T T A A T T A T A C A T A A C A T A T A T T T A A T A A-AQ-5′
oligo-B32P-5′-1A2A3A4T5T6A7A8T9A10T11G12T13A14T15T16G17T18A19T20A21T22A23A24A25T26T27A28T29T-3′-End
T T T A A T T A T A C A T A A C A T A T A T T T A A T A A-PS-AQ-5′
Both double-stranded oligonucleotides, presented in Table 1, were irradiated at 350 nm for 0, 30, 60 and 120 min. The alkali-labile DNA sites/lesions were detected by an autoradiogram of PAGE analysis with the previous piperidine sample treatments. It is important to mention here that the profile of CD spectra as well as the Tm values assigned after 120 min of UVA irradiation showed the same profile and similar values as those denoted without radiation (data presented in supplementary materials). Moreover, as shown in the preparation of 5′-end-labeled oligonucleotides in the Supplementary Materials, no strand cleavages were observed before the piperidine treatment. These results indicated the absence of a hydroxyl radical (•OH). The activity of •OH can lead to an accidental-single strand break formation by abstraction of the hydrogen atom from the sugar moiety with subsequent 2-deoxyribose radical rearmament [5]. Additionally, the integrity of oligo-A and oligo-B after UVA irradiation was confirmed by a comparison of ds-DNA melting temperature values and CD spectra profiles with un-irradiated ones. These comparative analyses barely reveal any fluctuation for both discussed double-stranded oligonucleotides (see supplementary materials).
Based on the available literature data, the formation of DNA damage induced by a “hole” migration process was expected with its potential inhibition by the phosphorothioate moiety [8]. The distance between the AQ unit and the first guanine (G16) in this study was around 54 Å (i.e., 14 bases); in Schuster’s previous work, this was extended up to 22 bases [14]. For this reason, a significant influence on 8-oxoG formation in the oligo-A was hypothetically expected, induced by a one-electron oxidising mechanism. Surprisingly, as depicted in Figure 2 for both oligo-A and oligo-B no strand cleavages were observed at the G16 position and hardly any at G11. Lesions were observed at the T19, T21, T26 locations. Additionally for both ds-oligos, intrastrand crosslink bands were denoted (Figure 2). The densitometry quantification of the 32P radio-labelled oligos PAGE analysis disclosed the influence of the PT internucleotide bond on ds-DNA’ stability. These unexpected results can be derived from the effect of the neighbouring base next to G. The effective energy of the positive charge localised in the middle of G in the trimer (5′-XGY-3′ sequence) was strongly dependent on enclosed nucleobases and adopts values in the range of 7.89 to 8.85 eV [15]. The highest values were assigned for 5′-TGC-3′ and 5′-TGT-3′. In the structure of both discussed oligonucleotides, two isolated Gs were flanked by thymidines. Due to that, the charge migration process, hypothetically, can be hindered. Additionally Giese noted, that the charge transfer from G to G, which are separated by a tetramer, occurs by a hopping mechanism, not tunnelling [16]. Based on above, the oxidation efficiency of G in the investigated ds-oligonucleotides, of G11 should be reduced.
Figure 2. Autoradiogram of the results of irradiation of AQ-linked oligo-A (A) and oligo-B (B) and standard cleavage ratios of the investigated double-stranded oligonucleotides. Irradiation time 0, 30, 60, 120 min, -4 corresponding to T26, -9 to T21, -11 to T19, -14 to G19 in the sequence of 32P radiolabelled strand.
Figure 2. Autoradiogram of the results of irradiation of AQ-linked oligo-A (A) and oligo-B (B) and standard cleavage ratios of the investigated double-stranded oligonucleotides. Irradiation time 0, 30, 60, 120 min, -4 corresponding to T26, -9 to T21, -11 to T19, -14 to G19 in the sequence of 32P radiolabelled strand.
Molecules 20 12400 g002
However; on the other hand; in the case of PS-oligo; the difference in oligonucleotide resistance to UVA irradiation might be due to the dynamic fluctuation of the terminal 5′-end part of double-stranded DNA; which is slightly disturbed by the presence of PT. This can be supported by the fact that the PT linkage was positioned exactly on the 5′-end of the strand; where the stability of duplex is lower than in the central part of ds-oligo. Additionally; following the results of other authors; phosphorothioate can be recognized as an antioxidant [17]. This observation was indirectly supported when; during a negative electrospray ionization mass spectroscopy induced by a hydroxyl radical; a desulphurization process was noticed [18]. The “protective” role of the PT moiety against one-electron DNA oxidation was investigated for the first time by Sevilla et al. [19].
In this study, a comparison of the lesion patterns as a function of time revealed a difference between oligo-A and oligo-B (Figure 2). Oligo-B showed a higher UVA stability. In ds-DNA, oligo-B, the phosphorothioate diester bond shifted to the opposite strandin relation to oligo-A, and directly next to the AQ moiety. In this case, the cation radical migration through ds-DNA is potentially slowed down or inhibited. One hypothetical explanation of this phenomenon is that firstly the desulphurization process via •OH-induced S to O replacement of the phosphorothioate internucleotide bond, as described for ESI experiments [18], with a subsequent “hole” migration process, can take place. A second possible explanation of the discussed difference between A and B ds-DNA is the influence of PT, depending on phosphorus stereochemistry RP or SP, on the spatial arrangement of AQ unit vs. duplex.
To elucidate the above postulate the AQ-PS-dG and AQ-PO-dG were synthesized (Scheme 1). The CD spectra of these model molecules, after their separation to pure diastereoisomeric forms Fast and Slow, showed differences in the regions of B DNA form (260 nm) and anthraquinone (300–400 nm). Fast is a form of the diastereomer with a shorter retention time under RP-HPLC analysis. Based on the previous results concerning the stereochemistry of phosphorothioates and Cahn-Ingold-Prelog roles, the SP configuration of the phosphorus atom can be proposed for a “Fast” isomer and RP for “Slow”. The CD spectra (Figure 3) of the Fast profile are much more similar to those of AQ-PO-dG than Slow. This observation suggests that the PT diastereomer corresponding to the Fast form is spatially similar to the construct with a natural phosphate bond. This can be supported by theoretically assigned—DM dipole moment values (Table 2). The [SP] AQ-PS-dG shows a higher DM among all the molecules in O=P-SH form, i.e., 15.05[D]. This value is higher than for AQ-PO-dG by 2.42[D] and by 1.69[D] for [RP] AQ-PS-dG. For the S=P-OH variant the situation is opposite to the RP diastereomer of AQ-PS-dG, which shows a higher DM value, i.e., 16.89[D]. Surprisingly [SP] AQ-PS-dG and AQ-PO-dG adopted almost the same value i.e., 12.90[D] and 12.63[D], respectively.
The DM differences that were found can force differences in the profile of CD spectra due to the fact that the dipole moment is involved in the Cotton effect [20]. Moreover, a comparison of the 3-D structures of the discussed molecules reveals a different spatial arrangement between the AQ moiety and guanine, as shown in Figure 4.
Therefore, further study of the absolute configuration on the phosphorus atom (crystallography or NMR) in the above mentioned molecules is highly recommended. Also, it can be postulated that the spatial position of the sulphur atom in the phosphodiester bond is crucial for the initiation of the hole hopping process in the case of oligo-B.

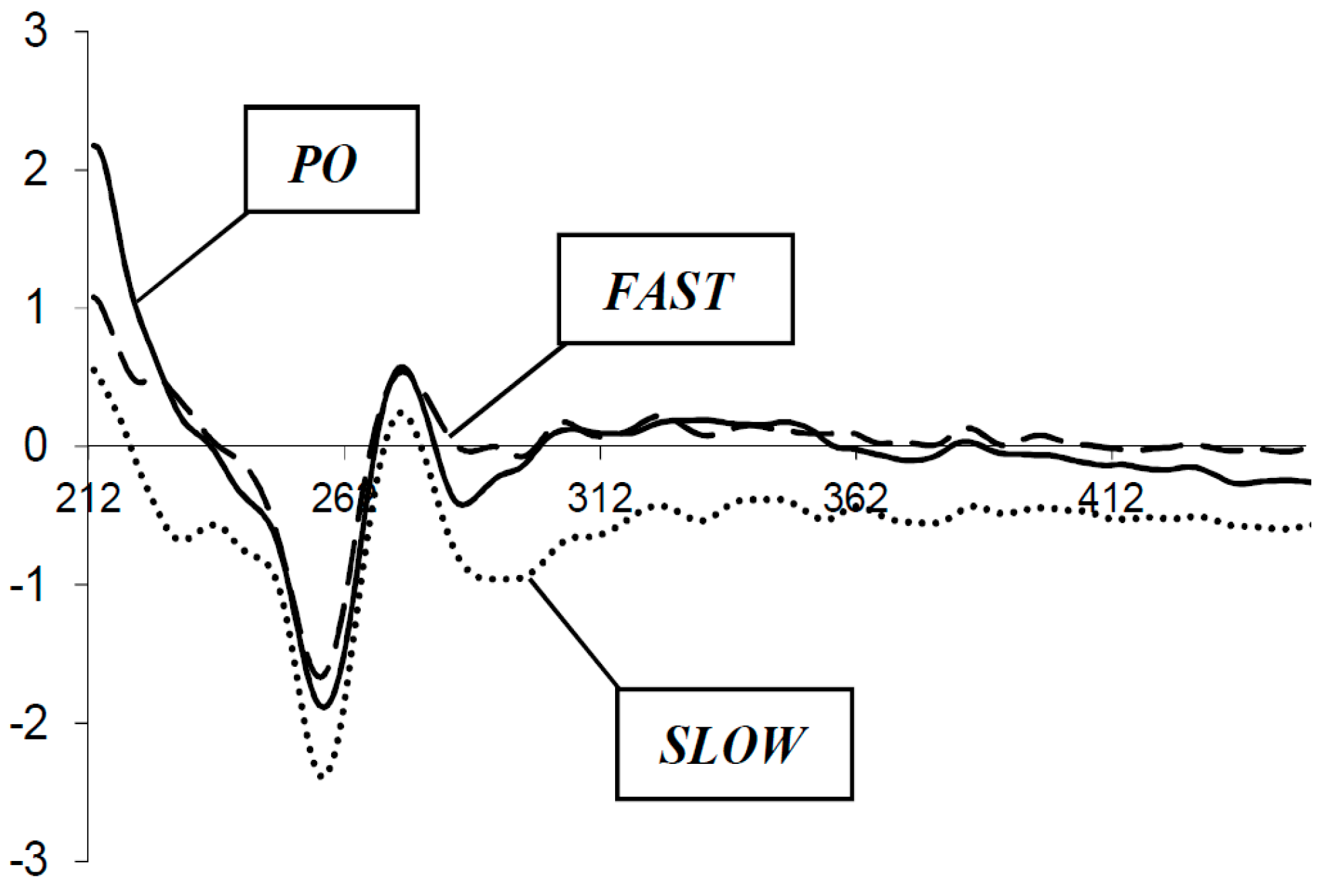

Figure 3. CD spectra of AQ-PO-dG, Fast and Slow forms of AQ-PS-dG molecules.
Figure 3. CD spectra of AQ-PO-dG, Fast and Slow forms of AQ-PS-dG molecules.
Molecules 20 12400 g003

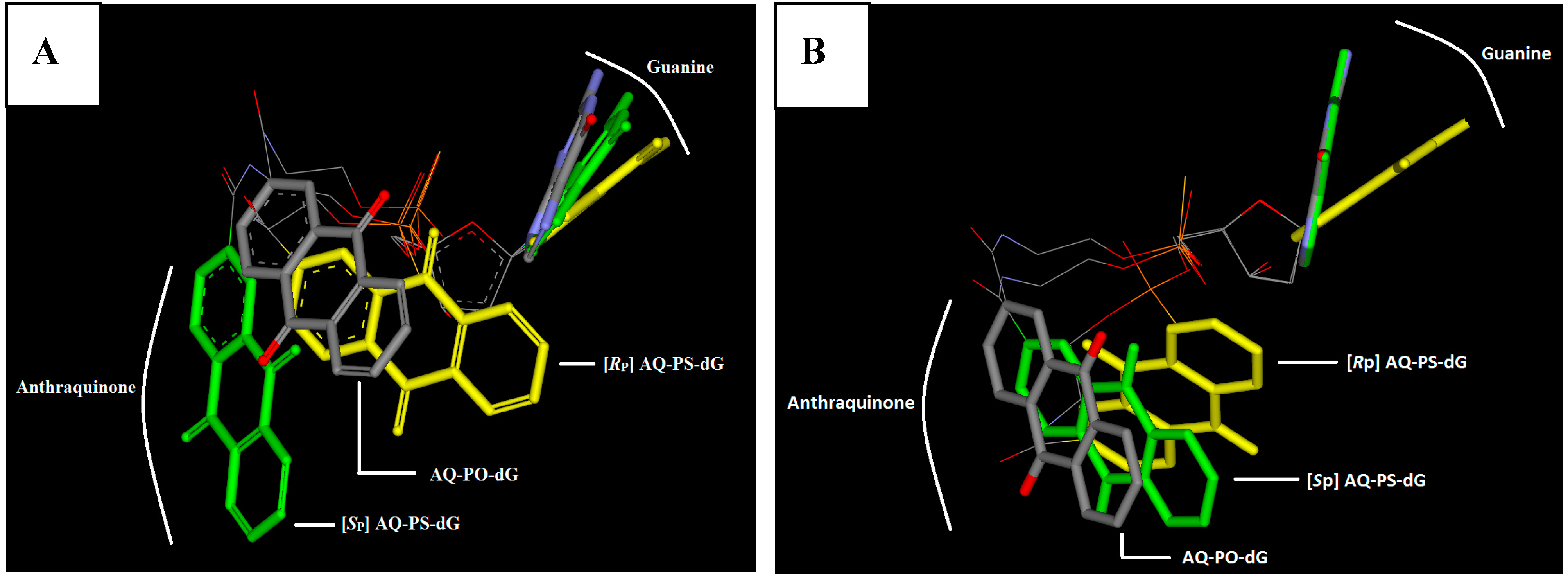

Figure 4. A spatial geometry comparison between AQ-PO-dG colored by elements, [RP] AQ-PS-dG—yellow and [SP] AQ-PS-dG—green after pentose ring overlap. The structures have been optimized at the M06-2X/6-31+G(d,p) level of theory in the aqueous phase in different protonated forms: (A) O=P-SH and (B) S=P-OH.
Figure 4. A spatial geometry comparison between AQ-PO-dG colored by elements, [RP] AQ-PS-dG—yellow and [SP] AQ-PS-dG—green after pentose ring overlap. The structures have been optimized at the M06-2X/6-31+G(d,p) level of theory in the aqueous phase in different protonated forms: (A) O=P-SH and (B) S=P-OH.
Molecules 20 12400 g004
Table 2. The electronic properties of [RP] AQ-PS-dG, [SP] AQ-PS-dG, AQ-PO-dG obtained by calculation at M06-2X/6-31+G(d,p) and TD M06-2X/6-31++G(d,p) levels of theory in the aqueous phase, see Figure S13 (S—Supplementary Materials). Energy values given in eV and dipole moment (DM) in Debyes.
Table 2. The electronic properties of [RP] AQ-PS-dG, [SP] AQ-PS-dG, AQ-PO-dG obtained by calculation at M06-2X/6-31+G(d,p) and TD M06-2X/6-31++G(d,p) levels of theory in the aqueous phase, see Figure S13 (S—Supplementary Materials). Energy values given in eV and dipole moment (DM) in Debyes.
Electronic PropertiesM06-2X/6-31+G(d,p)
AQ-PS-dG
AQ-PO-dG[RP] Slow[SP] Fast
O=P-SHS=P-OHO=P-SHS=P-OH
AIP5.965.815.846.035.99
AIPZPVE5.725.585.585.845.78
VIP9.439.386.339.556.39
VEAC3.903.885.673.815.66
AEA3.683.793.843.693.68
AEAZVPE3.393.503.583.393.39
VEA0.020.0833.430.0683.45
VEDE−5.54−5.61−3.88−5.58−3.92
NRE13.473.570.493.520.40
NRE22.061.930.172.220.39
NER3−3.67−3.71−0.41−3.62−0.23
NER41.861.820.041.890.23
DM12.6314.2316.8915.0512.90
Energy GAP9.659.609.689.729.67
Energy GAPZVPE9.119.089.169.239.17
Electronic PropertiesM06-2X/6-31+G(d,p)
TD-DFT M06-2X/6-31++G(d,p)
AQ-PO-dG[RP] Slow[SP] Fast
O=P-SHS=P-OHO=P-SHS=P-OH
Singlet Excited Energy3.253.243.253.253.14
3.523.513.393.513.41
4.164.143.504.163.52
Triplet Excited Energy2.902.892.902.902.90
3.143.143.143.143.25
3.233.273.263.273.28
DM12.7014.3116.8815.2412.90
GAPLUMO/HOMO5.044.995.005.055.00

Theoretical (DFT) Study

Following the obtained experimental results, a theoretical approach was used for their clarification. Details of DFT calculation in the aqueous phase are given in the Supplementary Materials. As a model, the AQ-PO-dG and AQ-PS-dG (Figure 1) was chosen. It is important to point out here that the theoretical results obtained at the CBS-QB3 level of theory are in accordance with the experimental crystallographic/thermodynamic data of Frey, Boorman and Uhlenbeck. Based on this, the sulphur protonated form of a PT internucleotide bond was chosen [21,22,23,24]. Moreover, the proposed structures serve as a model in a correctly expressed physiological situation, where the pKa value of the PT diester bond was found to be 2.2 lower than that of the phosphate one [21]. Therefore, the internucleotide phosphothioate bond should possess a net negative charge localised on the sulphur atom [22,23,24,25]. However, in light of the atom’s electronegativity, protonation of oxygen can be expected. Consequently, both the internucleotide bond variants O=P-SH and S=P-OH were taken into theoretical consideration (Figure 1).
Besides the phosporothioate/native diester linkage, these molecules possessed an anthraquinone moiety and the 2′-deoxyguanine (dG), dG was recognised as a nucleobase with the lowest ionisation potential [26]. Therefore, it was expected that any influence of the PT linkage on the electrochemical properties of the discussed molecules should be distinctly noticeable under a DFT study in the aqueous phase. As depicted in Figure S6, seven parameters describe the ability of a molecule to attach or detach the electron, namely: adiabatic ionisation potential (AIP), adiabatic electron affinity (AEA), vertical ionisation potential (VIP), vertical electron affinity (VEA), vertical electron detachment energy (VEDE), vertical electron affinity of cation (VEAC), and the energy difference between AIP and AEA (i.e., GAP) (see Supplementary Material) [27,28,29,30]. The results of the theoretical calculations are presented in Table 2. Each DFT study was performed using Gaussian 09 [31].
In the study, the following order of adiabatic (with or without zero-point vibration energy (ZVPE) correction) and vertical ionisation potential was assigned: [RP] AQ-PS-dG < AQ-PO-dG < [SP] AQ-PS-dG for both variants discussed. The following orders of vertical electron affinity of the cation were found: [SP] AQ-PS-dG < [RP] AQ-PS-dG < AQ-PO-dG and AQ-PO-dG < [SP] AQ-PS-dG < [RP] AQ-PS-dG for the O=P-SH and S=P-OH respectively.
These data show that the configuration on the phosphorus atom in a phosphorothioate internuclotide bond can play a significant role during the charge migration through ds-DNA. The presence of [RP] PT linkage decreases the IP value by 0.16 eV/0.12 eV (O=P-SH/S=P-OH) in comparison to AQ-PO-dG. The IPZPVE values have been found at the same level for both variants IPZVPE = 0.14 eV. On the other hand, the appearance of [SP] PT linkage increases the IP value by 0.07 eV/0.03 eV and IPZVPE by 0.06 eV/0.12 eV for the O=P-SH and S=P-OH forms respectively. Surprisingly, a higher vertical electron attachment energy was assigned for AQ-PO-dG (see Table 2) in the case of the sulphur protonated form. The VEAC (O=P-SH) differences between AQ-PO-dG/[RP]AQ-PS-dG and AQ-PO-dG/[SP]AQ-PS-dG were found as follows: 0.03 eV and 0.10 eV respectively. The situation was found to be the opposite for the oxygen protonated variant, with the AQ-PO-dG exhibiting a lower value than phosphorothioate derivatives RP and SP. The following differences were found: 1.77 eV (AQ-PO-dG/[RP]AQ-PS-dG) and 1.70 eV (AQ-PO-dG/[SP]AQ-PS-dG). Finally the nuclear relaxation energies were examined, and it was found that the [RP] AQ-PS-dG demanded a lower energetic effort for both the discussed O=P-SH and S=P-OH variants (Table 2). Based on the ionisation potential values and on the sum of the nuclear relaxation energy (NRE1 and 2, Table 2), it can be concluded that in both protonated forms, [RP] AQ-PS-dG demonstrates a higher ability to form and stabilise the cation radical among all the discussed molecules. However, derivatives in which the oxygen atom is protonated showed better electronic properties towards the stabilisation of the cation radical than those found for the O=P-SH variant (Table 2).
From another point of view, the attachment of an electron by a molecule leads to a radical anion formation. For stable anionic forms, EA adopts a positive value. Conversely, a negative EA indicates anion instability and a significantly shorter lifetime. Initially, the attachment of an excess electron leads to “transient negative ion” formation without spatial geometry reorganization [32]. Therefore, in this state, the vertical attachment energy determines the energy necessary for fast electron capture by the molecule. For all the investigated molecules the vertical electron affinity energies adopted positive values (see Table 2), in the following order: [RP] AQ-PS-dG > [SP] AQ-PS-dG > AQ-PO-dG for the sulphur protonated forms and [RP] AQ-PS-dG ~ [SP] AQ-PS-dG > AQ-PO-dG for the oxygen protonated forms. These data indicate that the presence of the PT internucleotide bond, depending on the configuration on the phosphorus atom [RP] or [SP], is substantial for initially attracting the electron; if the sulphur atom is protonated, the difference is negligible. In the case of the oxygen protonated form, the RP and SP forms of AQ-PS-dG adopt almost identical VEA values: 3.43 eV and 3.45 eV, respectively. The electron attracted in the initial stage was sequentially delocalized over [RP] AQ-PS-dG, [SP] AQ-PS-dG, and AQ-PO-dG. The dispersion of negative charge led to changes in geometry, manifested as relaxation energy corresponding to the adiabatic electron affinity. All the discussed molecules showed a positive value of AEA and AEAZPVE energies (in eV) in the following order: [RP] AQ-PS-dG > [SP] AQ-PS-dG ~ AQ-PO-dG (Table 2). This was independent of sulphur or oxygen protonation in the PT bond, which indicates that radical anionic forms are allowed for the discussed conjugates. Moreover, the phosphorothioate [RP] showed a higher electron affinity and VEDE (Table 2) in both the O=P-SH and S=P-OH variants. However, for the above-mentioned molecule, the relaxation energy, after electron detachment i.e., NRE 4 (O=P-SH), adopted a lower value: 1.816 eV, vs. 1.888 eV and 1.856 eV for [SP] AQ-PS-dG and AQ-PO-dG respectively. In the case of S=P-OH the following VEDE values were found in eV: 0.04 [RP] AQ-PS-dG, 0.23 [SP] AQ-PS-dG (Table 2).
Based on these results it can be tentatively predicted that [RP] AQ-PS-dG should exhibit some predisposition to excess electron attachment in both protonated forms of the PT bond. The difference between ZVPE aorected/uncorected AIP and AEA, i.e., GAP, indicates the stability of the radical forms formed by molecules. The lower value of GAP indicates the more stable radical. The GAP/GAPZPEV energy was found to range between: 9.60 eV/9.08 eV and 9.71 eV/9.23 eV. Based on this relationship and the obtained results presented in Table 2, it can be concluded that the radicals formed by each of the discussed molecules (S=P-OH and O=P-SH variants) should show the same stability.
It is important to mention here that a comparison of the electronic properties of both diastereomers RP and SP of AQ-PS-dG in the different protonated forms of the internucleotide phosphorothioate bond did not show a significant influence on the AIP, AEA and GAP energy. However, from the energetic point of view, the protonation of the oxygen atom was found to be favoured. For all the molecules, in their optimized geometries, the energies (E° and EZVPE) for the S=P-OH variant were found to be low in comparison with those of O=P-SH, as shown in Table S4.
Therefore, the presence of [RP] phosphorothioate (with a lower AIP value) should protect the oligonuncleotide against lesion formation by hindering the charge transfer through ds-DNA independently of sulphur or oxygen protonation. This is most probably why oligo-B showed a higher stability under UVA irradiation conditions than native ds-DNA oligo-A (see Figure 2).
Additionally, for both investigated forms O=P-SH and S=P-OH, the TD-DFT [33] energy calculation elucidated that the [RP] AQ-PS-dG adopts preferably a triplet excited state (Table 2). Moreover, for all the discussed molecules, the formation of a triplet excited state was found to be preferable to the singlet. These results correspond well with previous data [13]. Additionally, the calculated GAPHOMO/LUMO energy, based on HOMO and LUMO energies [28], which can be roughly recognized as IP and EA energies according to Koopmans’ theorem, confirm the ability of [RP] AQ-PS-dG to form a stable radical independently of sulphur or oxygen atom protonation in the phosphordiester bond.

3. Experimental Section

The experimental section has been attached as Electronic Supplementary Files which contain: the synthesis and characterization of oligonucleotides, CD spectra, Tm value, MALDI TOF. Characterization of AQ-PO-dG and AQ-PS-dG molecules: UV, MALDI TOF, RP HPLC analysis. Preparation of radiolabeled oligonucleotides, procedure of irradiation and cleavage analysis.

4. Conclusions

Based on the experimental findings presented above, the following conclusions can be proposed:
(1)
the distal/terminal PT internucleotide bond present in ds-DNA significantly slowed down the charge migration;
(2)
probably the presence of sulphur in the diester bond (phosphorothioate), which covalently links AQ to the oligonucleotide, reduced the oxidation process due to the disturbance of a mutual AQ/oligonucleotide spatial interaction;
(3)
a comparison of the electronic properties of both diastereomers RP and SP of AQ-PS-dG did not show a significant influence of the different protonated forms of the PT bond on AIP, AEA and GAP energies, or on the ZPVE corrected variants, either. Therefore, the influence of oxygen or sulphur protonation of PT bond on the “hole” migration process should lead to barely perceptible changes;
(4)
the theoretical study showed that [RP] AQ-PS-dG can adopt a lower energy of ionisation potential and triplet excited state with a subsequent higher electron affinity value. Moreover, the energy gap between HOMO and LUMO, calculated by TD-DFT methodology, indicated the radical stabilisation properties of [RP] AQ-PS-dG, which can hinder the undisturbed charge transfer through ds-DNA.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/20/07/12400/s1.

Acknowledgments

This work was supported by the Polish Ministry of Science and Higher Education (NN 405 615 838) and Medical University of Lodz (503/3-045-02/503-31-002), for which we are grateful.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Watson, J.D.; Baker, T.A.; Bell, S.P.; Gann, A.; Levine, M.; Losick, R. Molecular Biology of the Gene, 5th ed.; Cold Spring Harbor Laboratory Press: San Francisco, CA, USA, 2004. [Google Scholar]
  2. Panasci, L.C.; Alaoui-Jamali, M.A. DNA Repair in Cancer Therapy; Human Press: Totowa, NJ, USA, 2004. [Google Scholar]
  3. Cook, M.S.; Evans, M.D.; Dizdaroglu, M.; Lunec, J. Oxidative DNA damage: Mechanisms, mutation and disease. FASEB J. 2003, 17, 1195–1214. [Google Scholar] [CrossRef] [PubMed]
  4. Burrows, C.; Muller, J.G. Oxidative Nucleobase Modifications Leading to Strand Scission. Chem. Rev. 1998, 98, 1109–1152. [Google Scholar]
  5. Eberhardt, M.K. Reactive Oxygen Metabolites: Chemistry and Medical Consequences; CRC Press: Boca Raton, FL, USA, 2001. [Google Scholar]
  6. Rokhlenko, Y.; Cadet, J.; Geacintov, N.E.; Shafirovich, V. Mechanistic aspects of hydration of guanine radical cation in DNA. J. Am. Chem. Soc. 2014, 136, 5956–5962. [Google Scholar] [CrossRef] [PubMed]
  7. Genereux, J.C.; Barton, J.K. Mechanisms for DNA charge transport. Chem. Rev. 2010, 110, 1642–1662. [Google Scholar] [CrossRef] [PubMed]
  8. Kanvah, S.; Schuster, G.B. Oxidative damage to DNA: Inhibition of guanine damage. Pure Appl. Chem. 2006, 78, 2297–2304. [Google Scholar] [CrossRef]
  9. Wang, L.; Chen, S.; Xu, T.; Taghizadeh, K.; Wishnok, J.S.; Zhou, X.; You, D.; Deng, Z.; Dedon, P.C. Phosphorothioation of DNA in bacteria by dnd genes. Nat. Chem. Biol. 2007, 3, 709–710. [Google Scholar] [CrossRef] [PubMed]
  10. Eckstein, F. Phosphorothioate oligodeoxynucleotides: What is their origin and what is unique about them? Antisense Nucleic Acid Drug Dev. 2000, 10, 117–121. [Google Scholar] [CrossRef] [PubMed]
  11. Stec, W.J.; Wilk, A. Stereocontrolled Synthesis of Oligo(nucleoside Phosphorothioate)s. Angew. Chem. Int. Ed. Eng. 1994, 33, 709–722. [Google Scholar] [CrossRef]
  12. Wagenknecht, H.A. Charge Transfer in DNA: From Mechanism to Application; Wiley-VCH Verlag GmbH & Co. KGaA: Weinhim, Germany, 2005. [Google Scholar]
  13. Barnett, N.R.; Cleceland, C.L.; Landman, U.; Boone, E.; Kanvah, S.; Schuster, G.B. Effect of Base Sequence and Hydration on the Electronic and Hole Transport Properties of Duplex DNA: Theory and Experiment. J. Phys. Chem. A 2003, 107, 3525–3537. [Google Scholar] [CrossRef]
  14. Kanvah, S.; Schuster, G.B. One-electron oxidation of DNA: Thymine versus guanine reactivity. Org. Biomol. Chem. 2010, 8, 1340–1343. [Google Scholar] [CrossRef] [PubMed]
  15. Senthilkumar, K.; Grozema, F.C.; Guerra, C.F.; Bickelhaupt, F.M.; Siebbeles, L.D.A. Mapping the sites for selective oxidation of guanines in DNA. J. Am. Chem. Soc. 2003, 125, 13658–13659. [Google Scholar] [CrossRef] [PubMed]
  16. Giese, B.; Amaudrut, J.; Kohler, A.; Spormann, M.; Wessely, S. Direct observation of hole transfer through DNA by hopping between adenine bases and by tunnelling. Nature 2001, 412, 318–320. [Google Scholar] [CrossRef] [PubMed]
  17. Xie, X.; Liang, J.; Pu, T.; Xu, F.; Yao, F.; Yang, Y.; Zhou, X.; Deng, Z.; Wang, Z. Phosphorothioate DNA as an antioxidant in bacteria. Nucleic Acid Res. 2012, 40, 9115–9124. [Google Scholar] [CrossRef] [PubMed]
  18. Wu, L.; White, D.E.; Ye, C.; Vogt, F.G.; Terfloth, G.J.; Matsuhashi, H. Desulfurization of phosphorothioate oligonucleotides via the sulfur-by-oxygen replacement induced by the hydroxyl radical during negative electrospray ionization mass spectrometry. J. Mass Spectrom. 2012, 47, 836–844. [Google Scholar] [CrossRef] [PubMed]
  19. Adhikary, A.; Kumar, A.; Palmer, B.J.; Todd, A.D.; Sevilla, M.D. Formation of S–Cl phosphorothioate adduct radicals in dsDNA S-oligomers: Hole transfer to guanine vs. Disulfide anion radical formation. J. Am. Chem. Soc. 2013, 135, 12827–12838. [Google Scholar] [CrossRef] [PubMed]
  20. Berova, N.; di Bari, L.; Pescitelli, G. Application of electronic circular dichroism in configurational and conformational analysis of organic compounds. Chem. Soc. Rev. 2007, 36, 914–931. [Google Scholar] [CrossRef] [PubMed]
  21. Zhang, Y.C.; Liang, J.; Lian, P.; Han, Y.; Chen, Y.; Bai, L.; Wang, Z.; Liang, J.; Deng, Z.; Zhao, Y.L. Theoretical study on steric effects of DNA phosphorothioation: B-helical destabilization in RP-phosphorothioated DNA. J. Phys. Chem. B 2012, 116, 10639–10648. [Google Scholar] [CrossRef] [PubMed]
  22. Frey, P.A.; Sammons, R.D. Bord order and charge localisation in nucleoside phosphorotioates. Science 1985, 228, 541–545. [Google Scholar] [CrossRef] [PubMed]
  23. Boorman, P.M.; Gao, X.; Parvez, M. X-ray structural characterisation of thiolate salt displaying a very string S-H••S hydrogen bond. J. Chem. Soc. Chem. Commun. 1992, 1656–1658,. [Google Scholar] [CrossRef]
  24. Dertinger, D.; Behlen, L.S.; Uhlenbeck, O.C. Using phosphorothioate-substituted RNA to investigate the thermodynamic role of phosphates in a sequence specific RNA−protein complex. Biochemistry 2000, 39, 55–63. [Google Scholar] [CrossRef] [PubMed]
  25. Liang, C.; Allen, L.C. Sulphur does not form double bonds in phosphorothioate anions. J. Am. Chem. Soc. 1987, 109, 6449–6453. [Google Scholar] [CrossRef]
  26. Sugiyama, H.; Saito, I. Theoretical Studies of GG-Specific Photocleavage of DNA via Electron Transfer: Significant lowering of ionization potential and 5′-localization of HOMO of stacked GG bases in B-form DNA. J. Am. Chem. Soc. 1996, 118, 7063–7068. [Google Scholar] [CrossRef]
  27. Rienstra-Kiracofe, J.C.; Tschumper, G.S.; Schaefer, H.F., III; Nandi, S.; Ellison, B. Atomic and molecular electron affinities: Photoelectron experiments and theoretical computations. Chem. Rev. 2002, 102, 231–282. [Google Scholar]
  28. Zhan, C.-G.; Nichols, J.A.; Dixon, D.A. Ionization potential, electron affinity, electronegativity, hardness, and electron excitation energy: Molecular properties from density functional theory orbital energies. J. Phys. Chem. A 2003, 107, 4184–4195. [Google Scholar] [CrossRef]
  29. Sevilla, M.D.; Becker, D.; Yan, M.; Summerfield, S.R. Relative abundances of primary ion radicals in gamma-irradiated DNA: Cytosine vs. thymine anions and guanine vs. adenine cations. J. Phys. Chem. 1991, 95, 3409–3415. [Google Scholar] [CrossRef]
  30. Foresman, J.B.; Frisch, A. Exploring Chemistry with Electronic Structure Methods, 2nd ed.; Gaussian, Inc.: Pittsburgh, PA, USA, 1996; pp. 141–160. [Google Scholar]
  31. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision A.02; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  32. Kumar, A.; Sevilla, M.D. The role of πσ* excited states in electron-induced DNA strand break formation: A time-dependent density functional theory study. J. Am. Chem. Soc. 2008, 130, 2130–2131. [Google Scholar] [CrossRef] [PubMed]
  33. Rugne, E.; Gross, E.K.U. Density-Functional Theory for Time-Dependent Systems. Phys. Rev. Lett. 1984, 52, 997–1000. [Google Scholar]
  • Sample Availability: Samples of the compounds are not available.
