A Practical Route for the Preparation of 1,4,7-Triazacyclononanyl Diacetates with a Hydroxypyridinonate Pendant Arm

Abstract

The preparation of triazamacrocyclic hydroxypyridinonate (HOPO-TACN) derivatives as potential chelators for metals in biomedical applications was reported. The synthesis is based on a convergent synthetic approach, in which the key intermediate di-tert-butyl-2,2′-(1,4,7-triazonane-1,4-diyl) diacetate was coupled with a hydroxypyridinonate pendant arm. The method is suitable for rapid syntheses of metal chelator HOPO-TACNs of biomedical interest.

1. Introduction

There has been considerable interest in the synthesis and coordination chemistry of polyazacycles with coordinating pendant arms because of their potential use in applications such as magnetic resonance imaging (MRI) contrast agents [1,2], positron emission tomography (PET) [3,4], luminescence probes [5,6,7,8], catalysis [9], and so on. Among the polyazacycle derivatives, tetraazamacrocycles with acetate side chains have received the most attention owing to their strong chelating properties and higher selectivity toward di- or trivalent metal ions [10,11,12,13]. In contrast to tetraazamacrocycles, less attention has be paid on the triazamacrocycle derivatives [12,14,15,16,17,18,19,20,21]. The interest in the triazamacrocycle derivatives, especially 1,4,7-triazacyclononane (TACN) and TACN-based derivatives, has continued to grow in the past few years in the field of nuclear medicine for diagnosis and therapy [4,22,23,24].

TACN derivatives provide versatile platforms for strongly chelating radiometals such as ⁹⁰Y, ¹⁷⁷Lu, ^212/213Bi, ^67/68Ga, ^64/67Cu, ^99mTc and ¹⁸F-Al for SPECT, PET imaging and radiotherapy applications [25,26]. The strong coordination capabilities and high selectivity of the TACN derivatives toward di- or trivalent metal ions were determined by the cooperative binding mode from TACN and pendant arms. The pendent arm on TACN platform is expected to accelerate complexation with isotopes while maintaining a high level of stability of the complexes, coupled with the preorganization and macrocyclic effect of the TACN substructure [27]. So far, some researchers have been focused on the TACN derivatives with acetate pendant arms and phosphinate pendant arms. However, far less attention had been paid to other suitable pendent donor groups. In addition, selecting the correct type of chelating unit is one of the most decisive factors in achieving high selectivity toward the specific metal ion.

A class of multidentate hydroxypyridinonate (HOPO) was synthesized and studied for their outstanding abilities to scavenge lanthanide and actinide ions [28]. In particular, the octadentate ligand 3,4,3-LI(1,2-HOPO) has been identified as an effective metal chelator and is currently undergoing development as a prospective therapeutic actinide decorporation agent [29]. The pendent oxygen-containing donor hydroxypyridinonate demonstrated high affinities to hard Lewis acid.

In this context, new prospects for the synthesis of new chelating agents may be delineated while combining geometric and functional features of the TACN platform and the structural potential of common oxygen-containing donor, such as HOPO, and carboxylic acid. A triazamacrocycle with one HOPO and two carboxylic acids is ideally suited to form seven-coordinate complexes with two groups of facial donor, where the macrocyclic nitrogen atoms on the one side and the pendant donors on the other. The lanthanide ions and many other metal ions have coordination numbers larger than six, thus, these ligands have the potential to be excellent chelating agent in the MRI or radioimmunotherapy (RIT) applications.

With the aim of expanding the diversity of TACN based chelators which may permit orientation for all donors to assume an optimal geometry with coordination sphere, we explored the synthesis of HOPO-TACN derivatives, 2,2ʹ-(7-(2-(3-hydroxy-2-oxopyridin-1(2H)-yl)ethyl)-1,4,7-triazonane-1,4-diyl) diacetic acid (1, HE-NO2A) and 2,2ʹ-(7-(3-(3-hydroxy-2-oxopyridin-1(2H)-yl)propyl)-1,4,7-triazonane-1,4-diyl) diacetic acid (2, HP-NO2A) as potential chelators for metal in the biomedical applications (Figure 1).

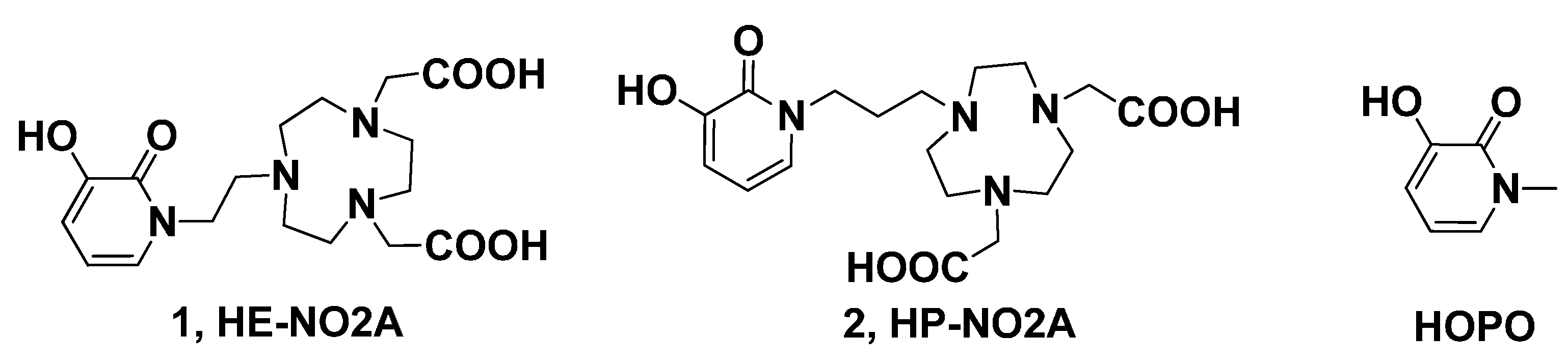

Figure 1. Structures of novel ligands HE-NO2A, HP-NO2A.

Figure 1. Structures of novel ligands HE-NO2A, HP-NO2A.

2. Results and Discussion

The synthetic strategy for the preparation of the target ligands HE-NO2A and HP-NO2A involves the synthesis and coupling reaction of the fragment 3 with 4 or 5, which were obtained from readily available starting materials 1,4,7-triazacyclononane (TACN) and 3,2-hydroxypridinone (3,2-HOPO), respectively. The practical, reproducible, and readily scalable synthetic route and efficient purification of all precursor molecules for macrocyclic HOPO-TACN derivatives was developed as shown in Scheme 1.

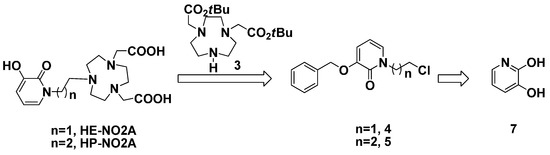

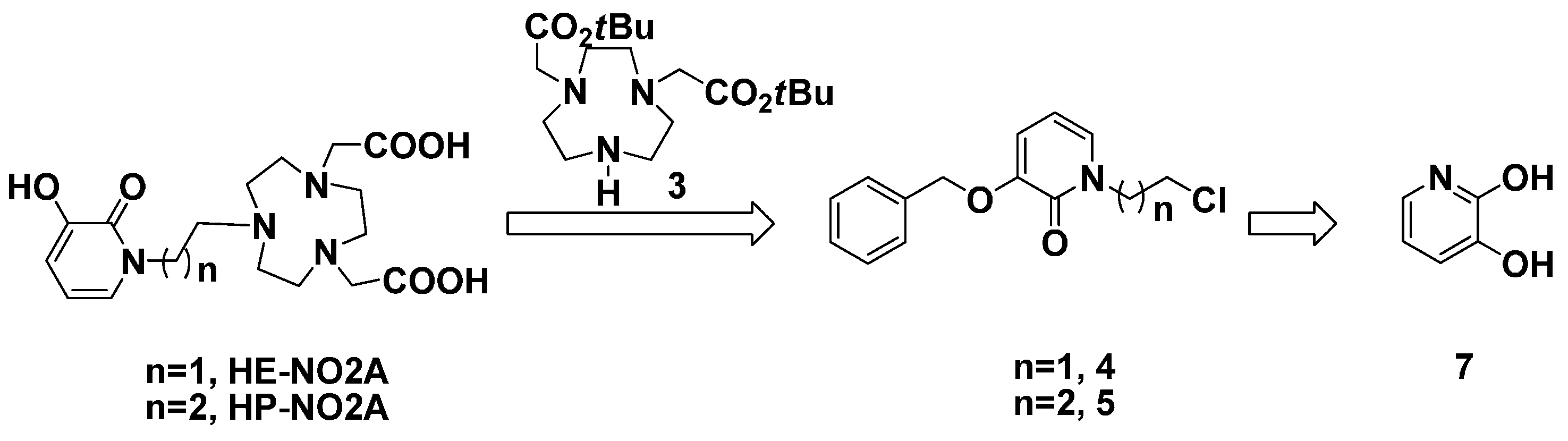

Scheme 1. Retrosynthetic route to HE-NO2A and HP-NO2A.

Scheme 1. Retrosynthetic route to HE-NO2A and HP-NO2A.

Fragment 3 were synthesized from 1,4,7-triazacyclononane (6) by reacting with tert-butylbromoacetate using the reported methods (Scheme 2) [24,30,31,32]. However, the yield was not good, because the reaction produced a mixture of mono-, di-, and trisubstituted TACN. We then optimized the reaction conditions by choosing a different solvent, optimizing the amount and ratio of reactants, and adding base to scavenge the protons formed during the reaction. In many attempts, we found that adding bases such as potassium carbonate, TEA, or sodium bicarbonate to the reaction negatively affected the yield of disubstituted compounds. The possible reason was that the protons produced in-situ would react with the unsubstituted amine to prevent oversubstitution to give trisubstituted compounds. In addition, through optimizing the ratio of reactants, the best yield was obtained when 2.0 eq. of tert-butylbromoacetate to TACN was used in the reaction. Finally, using acetonitrile as a solvent to alkylate TACN with 2 eq. tert-butyl bromoacetate gave as the major product disubstituted TACN in an acceptable yield as monitored by TLC. While the purification using column chromatography was unsuccessful, a carefully pH-controlled extraction was applied to obtain the fragment 3 in 49% isolated yield.

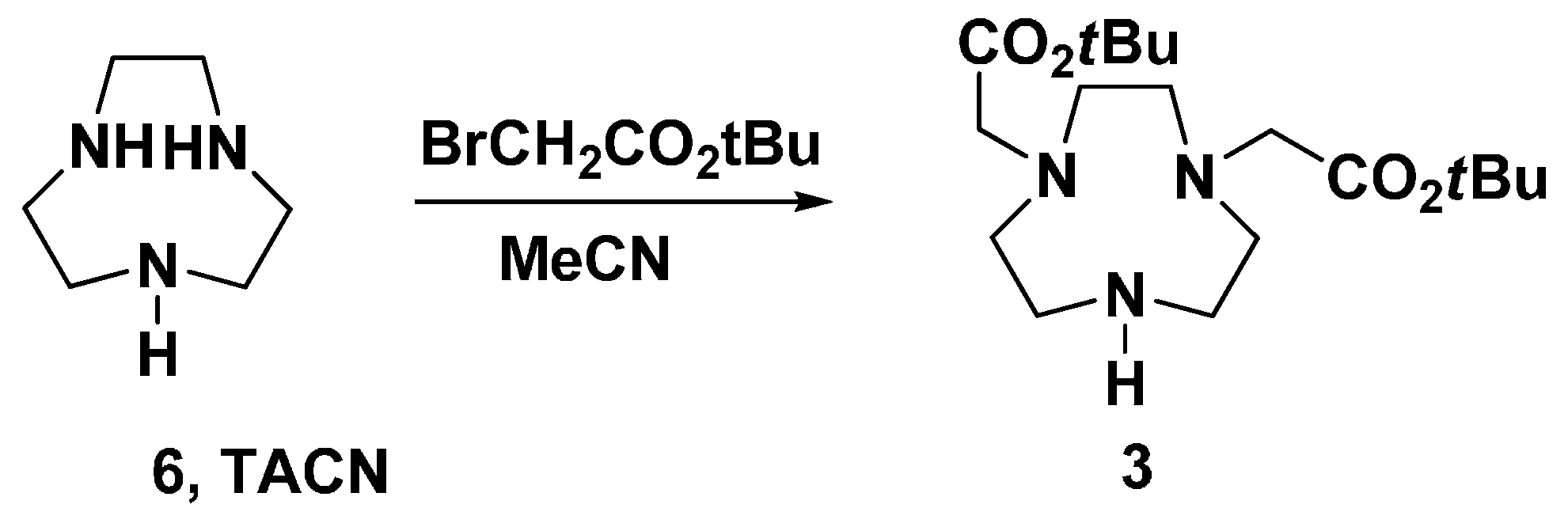

Scheme 2. Synthesis of fragment 3.

Scheme 2. Synthesis of fragment 3.

As shown in Scheme 3, the synthesis of fragment 4 was started from 3,2-hydroxypridinone, which was refluxed with 5 eq. ethyl bromoacetate under the protection of N₂ to give 8 in 86% yield. In order to get the pure alcohol 10, the needed 9a was obtained via the hydroxyl function protection of 8 by O-benzylation. However, column chromatography must be applied to purify both 9a and 10. In another approach, 9b was directly obtained by O-benzylation and hydrolysis in one batch, and the purification by recrystallization proved very convenient. The following reduction of carboxylic acid 9b with BH₃/THF was easily carried out to afforf 10 in higher yield than the approach from 9a. When we tried to convert alcohol 10 into 10-OMs by treating it with 1.2 eq. of MsCl in chloroform in the presence of 3 eq. of TEA, an unexpected chloride 4 was obtained. The same product was obtained by treating 10 with TsCl [33]. During the above reaction, two new spots were formed visualized by TLC during the first few hours, which cannot be separated from the reaction mixture. We presumed that the unidentified spot was the intermediate 10-OMs. This spot was slowly converted into the other, and the whole reaction proceeded efficiently to give the chloride 4 in one batch in 72% yield. With chloride 4 in hand, HE-NO2A (1) was prepared readily from disubstituted TACN 3 in two steps (Scheme 3). The alkylation of disubstituted TACN 3 with 4 using DIEA in refluxing MeCN gave the trisubstituted TACN 11 in excellent yield. Further reaction of 11 with the hydrolysis agent HBr/HOAc at room temperature gave the target ligand 1 in 91% yield, where the O-benzyl hydroxyl protection functional group was simultaneously removed in the reaction.

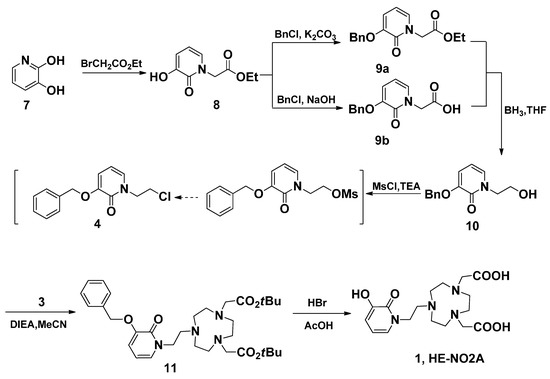

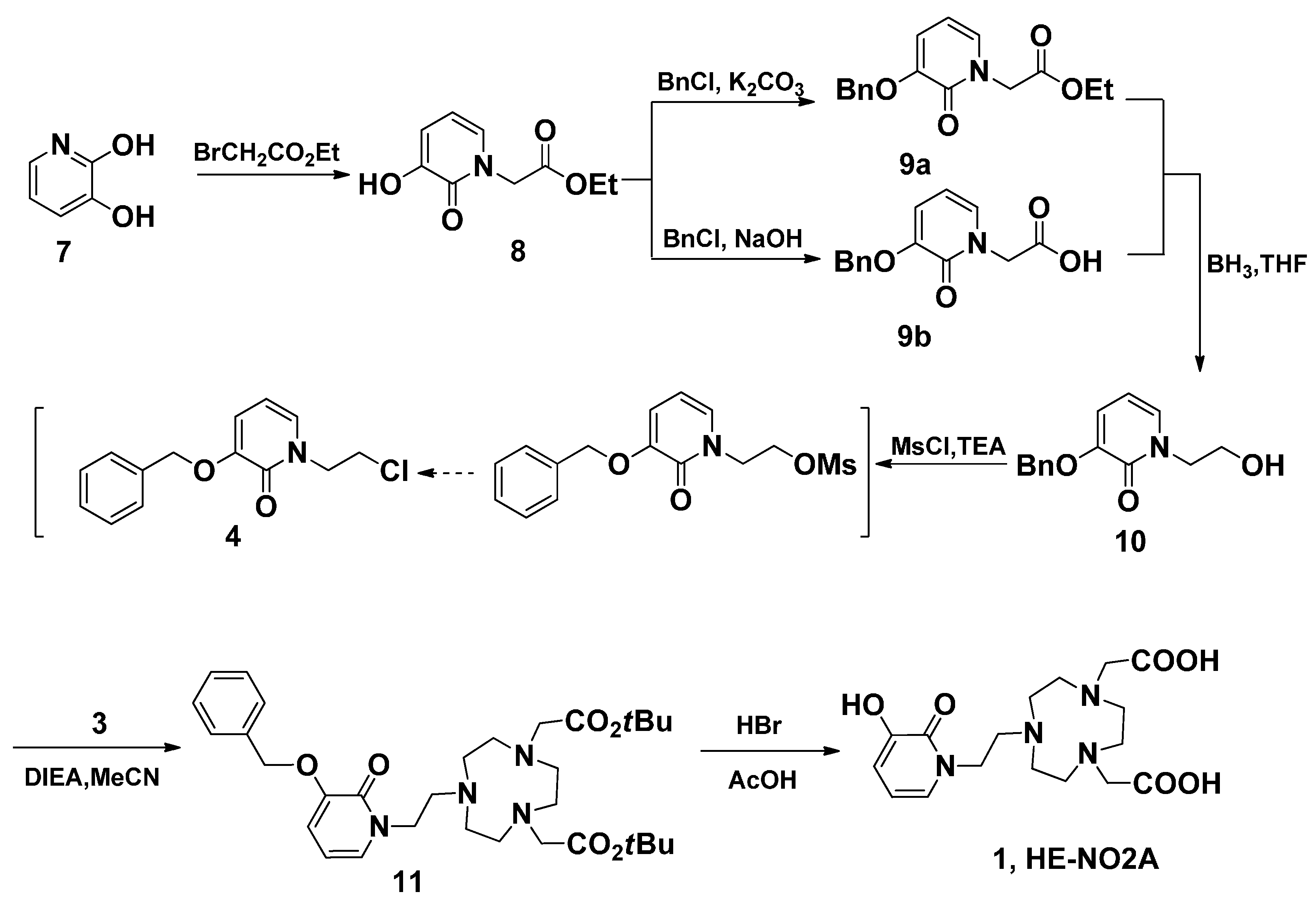

Scheme 3. The synthesis of ligand HE-NO2A (1).

Scheme 3. The synthesis of ligand HE-NO2A (1).

Similar reaction strategy was applied in the synthesis of HP-NO2A (2), since the analogue 2 is just a one carbon extension on the HOPO side arm of 1 (Scheme 4). A Michael addition of methyl acrylate using CsF as a catalyst was employed to introduce a propanoic acid methyl ester side chain on 3,2-HOPO (7). The obtained product 12 was reacted with benzyl chloride in a NaOH/MeOH/H₂O system to form O-benzyl protected 13a in 97% yield after a recrystallization from methanol. The reduction of 13a using borane-tetrahydrofuran at room temperature obtained 14 in 67% isolated yield. In order to improve the yield, the 14 could also be obtained through the reduction of 13b using borane-tetrahydrofuran at room temperature in 81% yield, after hydrolysis of 13a. This reduction method was successful in the preparation of 14 on a larger scale because of the higher yield and easier purification. Following the same conditions used for the synthesis of 4, alcohol 14 was treated with methanesulfonic chloride in chloroform in the presence of trimethylamine. However, the unusual 3,4-dihydro-2H-pyrido[2,1-b][1,3]oxazin-5-ium product 15 was isolated. A similar reaction was also reported in another paper [34]. In another report, the electrophilic 3,2-HOPO imidate salt 15, which can be used for the facile incorporation of the HOPO moiety, reacted with a variety of nucleophiles, including amines [35]. Thus, in the current reaction, alkylation of 3 with 15 in acetonitrile in the presence of DIEA produced 16. After purification via column chromatography, pure 16 were obtained in 53% yield. The tert-butyl and benzyl groups of 16 were then removed with HBr/AcOH to obtain the target compounds HP-NO2A (2) in 90% yield.

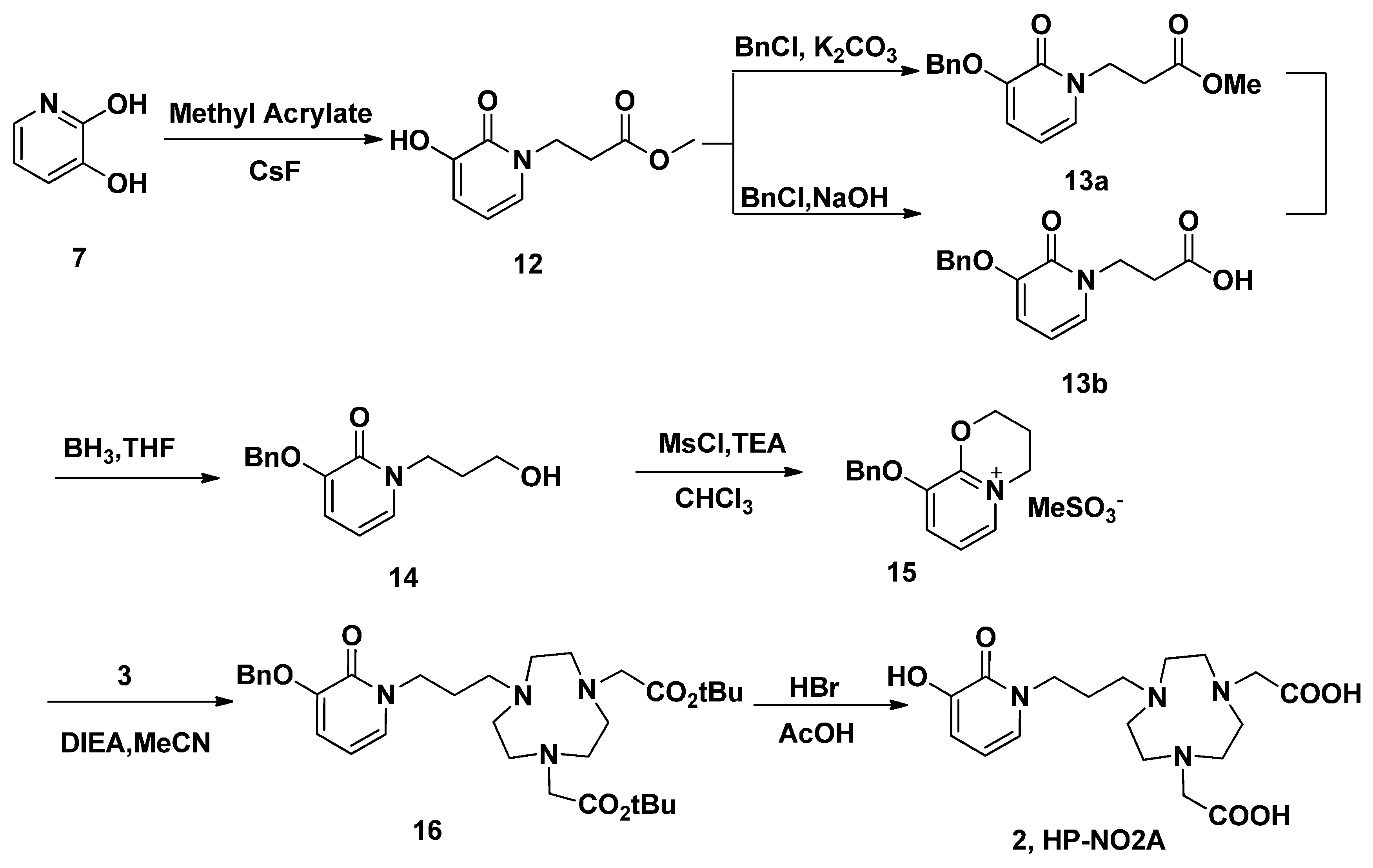

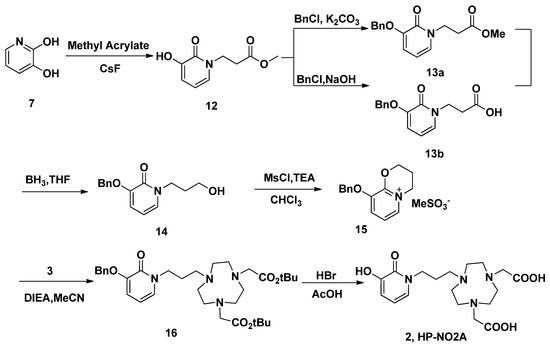

Scheme 4. The synthesis of ligand HP-NO2A (2).

Scheme 4. The synthesis of ligand HP-NO2A (2).

In conclusion, efficient synthetic routes for two hydroxylpyridinone TACN derivatives have been developed. The new family of monosubstituted macrocyclic ligand HE-NO2A and HP-NO2A with 3,2-HOPO moieties as pendant arms could be used as potential metal chelators in future MRI or PET research. Future study for the ligands in making new Ln(III) complexes (Gd³⁺, Eu³⁺,Tb³⁺,Yb³⁺) and other metal complexes (Cu²⁺, Fe³⁺, Ga³⁺) is in progress.

3. Experimental Section

3.1. General Information

¹H- (400 MHz) and ¹³C-NMR (101 MHz) were obtained using a 400 MHz WB Solid-State NMR Spectrometer (Bruker Corporation, Billerica, MA, USA), and chemical shifts are reported in ppm on the δ scale relative to TMS. High-resolution mass spectra (HRMS) were obtained on Bruker ultrafleXtreme MALDI-TOF/TOF matrix:HCCA (Bruker Corporation). 1,4,7-Triazacyclononane was purchased from Synpartner PharmaTech (Quzhou, China). 3,2-Hydroxypridinone was purchased from Aladdin Industrial (Shanghai, China). The other solvents and reagents were obtained from Sinopharm (Shanghai, China). All commercially available reagents were used as received.

3.2. 1,4-bis(tert-Butoxycarbonylmethyl)-1,4,7-triazacyclononane (3)

To a solution of TACN (3.0 g, 23 mmol) in CH₃CN (50 mL) at 0 °C t-butyl bromoacetate (9.0 g, 46 mmol) in CH₃CN (100 mL) was added dropwise over 4 h. The resulting mixture was allowed to reach room temperature and stirred for 24 h. The reaction mixture was filtered, the filtrate was evaporated, and the residue was treated with DI water (15 mL). The resulting solution was adjusted to pH 3 using 1 M HCl and extracted with ether (3 × 50 mL). The aqueous layer was then adjusted to pH 8 using 1 M NaOH and extracted with CH₂Cl₂. The CH₂Cl₂ layer was dried, filtered and evaporated to dryness. The residue was treated with ether (50 mL), and the yellowish solid formed and filtered. The solid was treated with hexane (30 mL) and filtered and dried to afford pure 3 (4.0 g, 49%) as a white powder. ¹H-NMR (CDCl₃) δ 3.36 (s, 4H), 3.22 (t, J = 5.6 Hz, 4H), 3.04 (t, J = 5.7 Hz, 4H), 2.77 (s, 4H), 1.46 (s, 18H). ¹³C-NMR (CDCl₃) δ 170.80, 82.06, 56.63, 51.75, 48.78, 44.66, 28.14.

3.3. Ethyl 2-(3-Hydroxy-2-oxopyridin-1(2H)-yl) Acetate (8)

The mixture of 3,2-hydroxypridinone (5.5 g, 50 mmol) and tert-butyl-bromoacetate (25 mL) was heated at 140 °C for 3 days. After cooling to room temperature, the solution was filtered and washed with cold MeOH. Recrystallization the solid from ethanol gave 8 as a white solid (8.4 g, 86%). ¹H-NMR (DMSO-d₆) δ 9.14 (s, 1H), 7.13 (dd, J = 6.9, 1.6 Hz, 1H), 6.72 (dd, J = 7.3, 1.6 Hz, 1H), 6.11 (t, J = 7.1 Hz, 1H), 4.71 (s, 2H), 4.13 (q, J = 7.1 Hz, 2H), 1.30–1.07 (m, 3H). ¹³C-NMR (DMSO-d₆) δ 168.48, 158.35, 147.12, 129.31, 115.81, 105.67, 61.39, 50.76, 14.46.

3.4. Ethyl 2-(3-(Benzyloxy)-2-oxopyridin-1(2H)-yl) Acetate (9a)

To a solution of 8 (1.0 g, 5.1 mmol) in MeCN was added BnCl (1.3 g, 10 mmol) and K₂CO₃ (1.4 g, 10 mmol), and the reaction mixture was heated at 50 °C for 4 h. The reaction mixture was filtered and evaporated. The residue was purified by silica column chromatography (ethyl acetate-hexane, 1:3) to obtain 9a (1.2 g, 84%) as a white solid. ¹H-NMR (CDCl₃) δ 7.41 (d, J = 7.4 Hz, 2H), 7.34 (t, J = 7.3 Hz, 2H), 7.29 (d, J = 7.2 Hz, 1H), 6.85 (dd, J = 6.9, 1.6 Hz, 1H), 6.66 (dd, J = 7.4, 1.5 Hz, 1H), 6.04 (t, J = 7.2 Hz, 1H), 5.09 (s, 2H), 4.65 (s, 2H), 4.22 (q, J = 7.1 Hz, 2H), 1.37–1.19 (m, 3H). ¹³C-NMR (CDCl₃) δ 167.69, 158.19, 148.81, 136.19, 129.36, 128.53, 127.97, 127.33, 116.03, 104.92, 70.74, 61.79, 50.48, 14.10.

3.5. 2-(3-(Benzyloxy)-2-oxopyridin-1(2H)-yl)acetic Acid (9b)

Compound 8 (4.6 g, 23 mmol) was dissolved in methanol-water (9:1, 150 mL). To this solution BnCl (11.8 g, 93.2 mmol) and NaOH (2.8 g, 70 mmol) were added, and the mixture was heated to reflux for 6 h. The methanol was removed by evaporation and the aqueous solution was extracted with dichloromethane to remove excess benzyl chloride. The aqueous phase is diluted slightly by adding extra water and then acidified to pH 2 using concentrated hydrochloric acid, which results in the precipitation of a beige solid. The precipitate filtered off and washed with diethyl ether. The crude product was recrystallized from ethanol to give 9b (5.7 g, 95%) as a white solid. ¹H-NMR (DMSO-d₆) δ 7.46–7.30 (m, 5H), 7.25 (dd, J = 6.9, 1.6 Hz, 1H), 6.92 (dd, J = 7.5, 1.5 Hz, 1H), 6.13 (t, J = 7.1 Hz, 1H), 5.00 (s, 2H), 4.62 (s, 2H). ¹³C-NMR (DMSO-d₆) δ 169.87, 157.54, 148.36, 136.96, 131.20, 128.86, 128.41, 128.39, 116.19, 104.24, 70.23, 50.66.

3.6. 3-(Benzyloxy)-1-(2-hydroxyethyl)pyridin-2(1H)-one (10)

To a solution of acid 9a (200 mg, 0.696 mmol) in dry THF (5 mL) under N₂ was added BH₃·THF (1.0 M, 1.4 mL, 1.4 mmol), and the reaction mixture was stirred at room temperature for 5 h. The reaction mixture was poured over crushed ice, extracted with dichloromethane, dried (MgSO₄), and filtered, and the solvents were removed in vacuo to give 10 (136 mg, 80.0%) as a colorless oil which was used in the next step without purification. ¹H-NMR (CDCl₃) δ 7.38 (d, J = 7.0 Hz, 2H), 7.34–7.28 (m, 2H), 7.28–7.22 (m, 1H), 6.93 (dd, J = 6.9, 1.6 Hz, 1H), 6.64 (dd, J = 7.5, 1.5 Hz, 1H), 6.00 (t, J = 7.2 Hz, 1H), 5.03 (s, 2H), 4.07 (t, J = 4.7 Hz, 2H), 3.88–3.82 (m, 2H), 2.29 (s, 1H). ¹³C-NMR (CDCl₃) δ 158.99, 148.73, 136.09, 130.05, 128.59, 128.07, 127.38, 116.01, 105.07, 70.77, 61.39, 53.21.

3.7. 3-(Benzyloxy)-1-(2-hydroxyethyl)pyridin-2(1H)-one (10)

To a solution of acid 9b (5.8 g, 22 mmol) in dry THF (20 mL) under N₂ was added BH₃·THF (1.0 M, 44.5 mmol), and the reaction mixture was stirred at room temperature for 5 h. The reaction mixture was poured over crushed ice, extracted with dichloromethane, dried (MgSO₄), and filtered, and the solvents were removed in vacuo to give 10 (2.2 g, 90%) as a colorless oil which was used in the next step without purification.

3.8. 3-(Benzyloxy)-1-(2-chloroethyl)pyridin-2(1H)-one (4)

To a solution of 10 (2.5 g, 10 mmol) and TEA (3.0 g, 30 mmol) in dry CHCl₃ (30 mL) was added MsCl (1.4 g, 12 mmol) in CHCl₃ (20 mL) dropwise at 0 °C. The reaction mixture was allowed to warm to room temperature and stirred overnight. The reaction mixture was evaporated and passed a short silica column (ethyl acetate/hexane, 1:5) to give 4 (1.9 g, 72%) as a white solid.¹H-NMR (CDCl₃) δ 7.43 (d, J = 7.3 Hz, 2H), 7.39–7.33 (m, 2H), 7.33–7.26 (m, 1H), 6.96 (dd, J = 6.9, 1.6 Hz, 1H), 6.68 (dd, J = 7.5, 1.6 Hz, 1H), 6.04 (t, J = 7.2 Hz, 1H), 5.11 (s, 2H), 4.25 (dd, J = 7.0, 4.3 Hz, 2H), 3.91 (dd, J = 7.0, 4.3 Hz, 2H). ¹³C-NMR (CDCl₃) δ 158.03, 148.83, 136.13, 130.18, 128.59, 128.04, 127.33, 115.78, 104.37, 70.77, 52.21, 41.91.

3.9. tert-Butyl-2,2'-(7-(2-(3-(benzyloxy)-2-oxopyridin-1(2H)-yl)ethyl)-1,4,7-triazonane-1,4-diyl) Diacetate (11)

To a solution of 3 (357 mg, 1.00 mmol) in acetonitrile (20 mL) was dropwise added DIEA (387 mg, 3.00 mmol) and 4 (316.0 mg, 1.2 mmol) in acetonitrile (10 mL). The reaction mixture was stirred at room temperature (23 °C) for 1 d. After evaporation of the solvent, the residue was purified via silica column chromatography (CH₂Cl₂–MeOH, 20:1) to obtain 11 (364 mg, 62.2%) as a yellow oil. ¹H-NMR (CDCl₃) δ 7.56–7.47 (m, 1H), 7.44–7.20 (m, 5H), 6.67 (d, J = 7.5 Hz, 1H), 6.08 (t, J = 7.2 Hz, 1H), 5.02 (s, 2H), 4.51–4.39 (m, 2H), 3.50 (d, J = 9.1 Hz, 7H), 3.36 (d, J = 5.6 Hz, 2H), 3.22 (d, J = 14.3 Hz, 2H), 3.12–2.85 (m, 4H), 2.74 (t, J = 20.2 Hz, 2H), 1.40 (s, 18H). ¹³C-NMR (CDCl₃) δ 169.99, 158.18, 148.49, 135.94, 129.99, 128.58, 128.10, 127.41, 115.94, 105.63, 82.26, 70.74, 56.45, 52.77, 51.60, 50.71, 48.79, 45.46, 28.13. MALDI-HRMS (matrix: HCCA) Calculated for C₃₂H₄₈N₄O₆: [M + H]⁺ m/z 585.3607, Found 585.3636.

3.10. 2,2'-(7-(2-(3-Hydroxy-2-oxopyridin-1(2H)-yl)ethyl)-1,4,7-triazonane-1,4-diyl) Diacetic Acid (HE-NO2A, 1)

Compound 11 (100 mg, 0.171 mmol) at 0 °C in 2 mL acetic acid was added dropwise with 37% HBr in acetic acid (5 mL). The resulting mixture was allowed to warm at room temperature and stirred for 2 days. The solvent was evaporated in vacuo, the residue was taken up in DI water and passed through a 0.45 μm nylon syringe filter. The aqueous solution was concentrated in vacuo to provide HE-NO2A (60 mg, 91%) as a yellow solid. ¹H-NMR (D₂O) δ 7.17 (dd, J = 6.9, 1.6 Hz, 1H), 7.01 (dd, J = 7.6, 1.5 Hz, 1H), 6.47–6.37 (m, 1H), 4.46–4.39 (m, 2H), 3.91 (s, 4H), 3.75–3.69 (m, 2H), 3.61 (s, 4H), 3.45 (t, J = 5.6 Hz, 4H), 3.35 (s, 4H). ¹³C-NMR (D₂O) δ 171.99, 159.43, 145.64, 129.38, 119.55, 109.78, 57.30, 56.77, 51.14, 50.64, 49.52, 47.14. MALDI-HRMS (matrix: HCCA) Calculated for C₁₇H₂₆N₄O₆: [M + H]⁺ m/z 383.1886. Found: 383.1936.

3.11. Methyl 3-(3-Hydroxy-2-oxopyridin-1(2H)-yl) Propanoate (12)

To a solution of 7 (5.5 g 50 mmol) in methyl acrylate (25 mL) was added CsF (0.5 g), and the reaction mixture was heated at reflux for 2 days. The excess methyl acrylate was removed in vacuo. The residue was resolved in hot MeCN, and filtered. The filtratate was evaporated to give the crude, which was recrystallized from ethanol gave 12 as a white solid (8.5 g, 87%). ¹H-NMR (DMSO-d₆) δ 9.04 (s, 1H), 7.12 (dd, J = 6.8, 1.5 Hz, 1H), 6.69 (dd, J = 7.2, 1.5 Hz, 1H), 6.08 (t, J = 7.0 Hz, 1H), 4.13 (t, J = 7.0 Hz, 2H), 3.59 (s, 3H), 2.76 (t, J = 6.9 Hz, 2H). ¹³C-NMR (DMSO-d₆) δ 171.64, 158.13, 147.11, 128.85, 115.22, 105.69, 51.97, 45.66, 33.10.

3.12. Methyl 3-(3-(Benzyloxy)-2-oxopyridin-1(2H)-yl) Propanoate (13a)

To a solution of 12 (0.8 g 4 mmol) in MeCN was added BnCl (1.0 g, 7.9 mmol) K₂CO₃ (1.1 g, 8.0 mmol), and the reaction mixture was heated at 50 °C for 4 h. The reaction mixture was filtered and evaporated. The residue was purified by silica column chromatography (ethyl acetate–hexane, 1:3) to obtain 13a (0.9 g, 74%) as a white solid. ¹H-NMR (CDCl₃) δ 7.41 (d, J = 7.1 Hz, 2H), 7.34 (dd, J = 11.4, 4.4 Hz, 2H), 7.31–7.26 (m, 1H), 7.03 (dd, J = 6.9, 1.5 Hz, 1H), 6.64 (dd, J = 7.4, 1.5 Hz, 1H), 6.00 (t, J = 7.2 Hz, 1H), 5.08 (s, 2H), 4.20 (t, J = 6.4 Hz, 2H), 3.64 (s, 3H), 2.86 (t, J = 6.4 Hz, 2H). ¹³C-NMR (CDCl₃) δ 171.99, 158.06, 148.76, 136.21, 129.99, 128.54, 127.98, 127.31, 115.61, 104.53, 70.70, 51.85, 46.32, 32.72.

3.13. 3-(3-(Benzyloxy)-2-oxopyridin-1(2H)-yl) Propanoic Acid (13b)

Compound 12 (3.8 g 19 mmol) was dissolved in methanol/water (9:1, 70 mL). To this solution BnCl (9.8 g, 77 mmol) and NaOH (2.4 g, 60 mmol) was added, and the mixture was heated to reflux for 6 h. The methanol was removed by evaporation and the aqueous solution was extracted with dichloromethane to remove excess benzyl chloride. The aqueous phase is diluted slightly by adding extra water and then acidified to pH 2 using concentrated hydrochloric acid, which resulted in the precipitation of a beige solid. The precipitate filtered off and washed with diethyl ether. The crude product was recrystallized from ethanol to give 13b (5.1 g, 97%) as a white solid. ¹H-NMR (DMSO-d₆) δ 7.37 (m, 5H), 7.25 (d, J = 6.2 Hz, 1H), 6.88 (d, J = 7.1 Hz, 1H), 6.10 (t, J = 7.1 Hz, 1H), 4.99 (s, 2H), 4.06 (t, J = 6.9 Hz, 2H), 2.65 (t, J = 6.9 Hz, 2H). ¹³C-NMR (DMSO-d₆) δ 172.76, 157.30, 148.35, 137.00, 130.89, 128.85, 128.41, 128.38, 115.93, 104.29, 70.21, 45.81, 33.29.

3.14. 3-(Benzyloxy)-1-(3-hydroxypropyl) Pyridin-2(1H)-one (14)

To a solution of acid 13a (2.6 g, 10 mmol) in dry THF (15 mL) under N₂ was added BH₃·THF (1 M, 20 mL), and the reaction mixture was stirred at room temperature for 5 h. The reaction mixture was poured over crushed ice, extracted with dichloromethane, dried (MgSO₄), and filtered, and the solvents were removed in vacuo to give 14 (1.5 g, 67%) as a colorless oil which was used in the next step without purification. ¹H-NMR (CDCl₃) δ 7.40 (d, J = 7.3 Hz, 2H), 7.33 (t, J = 7.2 Hz, 2H), 7.30–7.26 (m, 1H), 6.92 (dd, J = 6.9, 1.6 Hz, 1H), 6.68 (dd, J = 7.5, 1.4 Hz, 1H), 6.10 (t, J = 7.1 Hz, 1H), 5.09 (s, 2H), 4.24–4.07 (m, 2H), 3.49 (t, J = 5.5 Hz, 2H), 1.95–1.82 (m, 2H). ¹³C-NMR (CDCl₃) δ 158.94, 148.56, 136.02, 128.83, 128.61, 128.08, 127.37, 115.96, 105.97, 70.80, 57.59, 45.82, 32.33.

3.15. 3-(Benzyloxy)-1-(3-hydroxypropyl) Pyridin-2(1H)-one (14)

To a solution of acid 13b (2.7 g.10 mmol) in dry THF (20 mL) under N₂ was added BH₃·THF (1.0 M, 20 mL, 20 mmol), and the reaction mixture was stirred at room temperature for 5 h. The reaction mixture was poured over crushed ice, extracted with dichloromethane, dried (MgSO₄), and filtered, and the solvents were removed in vacuo to give 14 (2.1 g, 81%) as a colorless oil which was used in the next step without purification.

3.16. 9-(Benzyloxy)-3,4-dihydro-2H-pyrido[2,1-b][1,3]oxazin-5-ium Methanesulfonate (15)

To a solution of 14 (2.6 g, 10 mmol) and TEA (3.0 g, 30 mmol) in dry CHCl₃ (30 mL) was added dropwise MsCl (1.4 g, 12 mmol) in CHCl₃ (20 mL) at 0 °C. The reaction mixture was allowed to warm to room temperature and stirred overnight. The reaction mixture was stirred overnight, diluted with CHCl₃, and washed with 5% NaHCO₃ (3 × 50 mL) and brine (1 × 50 mL). The organic solution was dried over Na₂SO₄ and evaporated in vacuo. Ethyl acetate (EA) was added to the residue, which resulted in the precipitation of a white solid. The precipitate filtered off and washed with EA to obtain 15 (2.7 g, 80%) as a white solid. ¹H-NMR (CDCl₃) δ 8.12 (d, J = 6.2 Hz, 1H), 7.69–7.63 (m, 1H), 7.35 (dt, J = 8.7, 7.2 Hz, 5H), 7.28–7.21 (m, 1H), 5.18 (s, 2H), 4.85 (dt, J = 28.7, 5.5 Hz, 4H), 2.60 (d, J = 2.0 Hz, 3H), 2.52–2.37 (m, 2H). ¹³C-NMR (CDCl₃) δ 161.49, 151.73, 146.13, 134.26, 132.53, 128.87, 127.80, 124.58, 117.84, 72.16, 68.71, 50.59, 39.51, 19.99.

3.17. tert-Butyl-2,2'-(7-(3-(3-(benzyloxy)-2-oxopyridin-1(2H)-yl)propyl)-1,4,7-triazonane-1,4-diyl) Diacetate (16)

To a solution of 3 (357 mg, 1.00 mmol) in acetonitrile was dropwise added DIEA (387 mg, 3.00 mmol) and 15 (400.0 mg, 1.2 mmol) in acetonitrile (10 mL). The reaction mixture was stirred at room temperature for 1 day. After evaporation of the solvent, the residue was purified via silica column chromatography (CH₂Cl₂–MeOH, 20:1) to obtain 16 (317.0 mg, 53%) as a yellow oil. ¹H-NMR (CDCl₃) δ 7.44–7.20 (m, 6H), 6.67 (d, J = 7.4 Hz, 1H), 6.08 (t, J = 7.1 Hz, 1H), 5.06 (s, 2H), 4.47 (d, J = 6.6 Hz, 2H), 3.54 (s, 3H), 3.47 (s, 4H), 3.38 (d, J = 25.6 Hz, 2H), 3.24 (d, J = 45.7 Hz, 4H), 2.78 (d, J = 24.1 Hz, 4H), 1.43 (s, 18H), 1.26 (dd, J = 16.3, 8.6 Hz, 2H). ¹³C-NMR (CDCl₃) δ 170.44, 158.19, 148.57, 136.00, 129.91, 128.57, 128.07, 127.33, 116.00, 105.53, 81.68, 70.76, 58.46, 54.15, 53.23, 52.57, 51.62, 45.49, 29.64, 28.13. MALDI-HRMS (matrix: HCCA) Calculated for C₃₃H₅₀N₄O₆: [M + H]⁺ m/z 599.3764, Found 599.3792.

3.18. 2,2'-(7-(3-(3-Hydroxy-2-oxopyridin-1(2H)-yl)propyl)-1,4,7-triazonane-1,4-diyl) Diacetic Acid (HP-NO2A, 2)

Compound 16 (150 mg, 0.251 mmol) at 0 °C in 2 mL acetic acid was added dropwise with 37% HBr in acetic acid (5 mL). The resulting mixture was allowed to warm to room temperature and stirred for 2 days. The solvent was evaporated in vacuo, the residue was taken up in DI water and passed through a 0.45 μm nylon syringe filter. The aqueous solution was concentrated in vacuo to provide 2 (89 mg, 90%) as a yellow solid. ¹H-NMR (D₂O) δ 7.20 (dd, J = 6.8, 1.5 Hz, 1H), 7.02 (dd, J = 7.6, 1.6 Hz, 1H), 6.47–6.40 (m, 1H), 4.17–4.07 (m, 2H), 3.95 (s, 3H), 3.99–3.84 (m, 4H), 3.63–3.54 (m, 5H), 3.46 (s, 4H), 3.41–3.30 (m, 6H), 2.40–2.20 (m, 2H). ¹³C-NMR (D₂O) δ 172.28, 158.73, 145.45, 129.09, 119.66, 109.64, 57.46, 57.07, 54.00, 51.27, 50.17, 49.22, 46.31, 24.09. MALDI-HRMS (matrix: HCCA) Calculated for C₁₈H₂₈N₄O₆: [M + H]⁺ m/z 397.2042. Found 397.2076.
