Open AccessArticle
Molecules 2014, 19(9), 13104-13121; doi:10.3390/molecules190913104

Hyperspectral Imaging and Chemometric Modeling of Echinacea — A Novel Approach in the Quality Control of Herbal Medicines

1
Department of Pharmaceutical Sciences, Tshwane University of Technology, Private Bag X680, Pretoria 0001, South Africa
2
Department of Pharmaceutics and Industrial Pharmacy, Faculty of Pharmacy King Abdulaziz University, Jeddah 21589, Saudi Arabia
*
Author to whom correspondence should be addressed.
Received: 17 June 2014 / Revised: 7 August 2014 / Accepted: 17 August 2014 / Published: 26 August 2014
(This article belongs to the Special Issue Advances of Vibrational Spectroscopic Technologies in Life Sciences)
View Full-Text   |   Download PDF [7078 KB, uploaded 26 August 2014]   |

Abstract

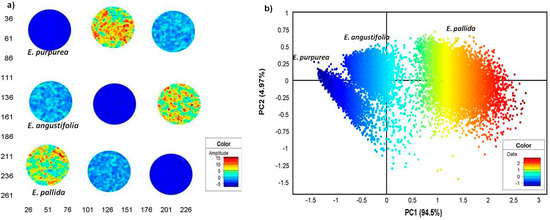

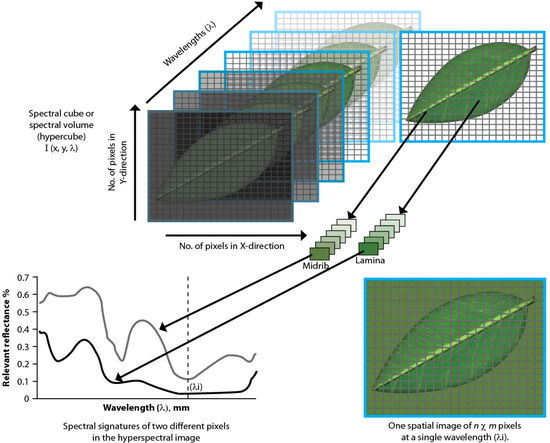

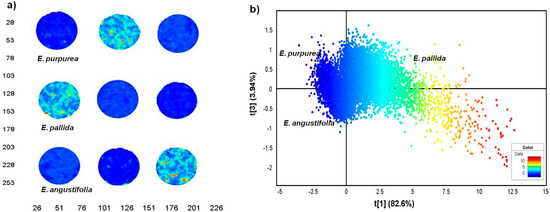

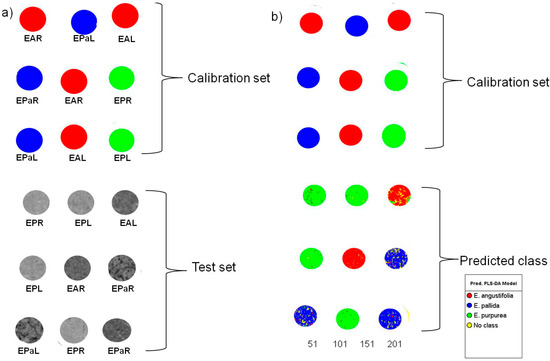

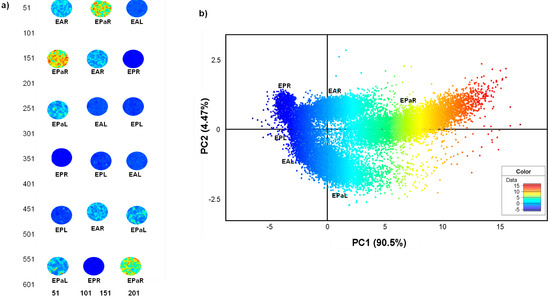

Echinacea species are popularly included in various formulations to treat upper respiratory tract infections. These products are of commercial importance, with a collective sales figure of $132 million in 2009. Due to their close taxonomic alliance it is difficult to distinguish between the three Echinacea species and incidences of incorrectly labeled commercial products have been reported. The potential of hyperspectral imaging as a rapid quality control method for raw material and products containing Echinacea species was investigated. Hyperspectral images of root and leaf material of authentic Echinacea species (E. angustifolia, E. pallida and E. purpurea) were acquired using a sisuChema shortwave infrared (SWIR) hyperspectral pushbroom imaging system with a spectral range of 920–2514 nm. Principal component analysis (PCA) plots showed a clear distinction between the root and leaf samples of the three Echinacea species and further differentiated the roots of different species. A classification model with a high coefficient of determination was constructed to predict the identity of the species included in commercial products. The majority of products (12 out of 20) were convincingly predicted as containing E. purpurea, E. angustifolia or both. The use of ultra performance liquid chromatography-mass spectrometry (UPLC-MS) in the differentiation of the species presented a challenge due to chemical similarities between the solvent extracts. The results show that hyperspectral imaging is an objective and non-destructive quality control method for authenticating raw material. View Full-Text
Keywords: Echinacea; chemometrics; hyperspectral imaging; principal component analysis; partial least squares discriminant analysis; quality control Echinacea; chemometrics; hyperspectral imaging; principal component analysis; partial least squares discriminant analysis; quality control
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Sandasi, M.; Vermaak, I.; Chen, W.; Viljoen, A.M. Hyperspectral Imaging and Chemometric Modeling of Echinacea — A Novel Approach in the Quality Control of Herbal Medicines. Molecules 2014, 19, 13104-13121.
