Molecules 2014, 19(5), 6450-6473; doi:10.3390/molecules19056450

Article
Chlorine Isotope Effects from Isotope Ratio Mass Spectrometry Suggest Intramolecular C-Cl Bond Competition in Trichloroethene (TCE) Reductive Dehalogenation
Stefan Cretnik 1, Anat Bernstein 1, Orfan Shouakar-Stash 2, Frank Löffler 3,4,5 and Martin Elsner 1,*
1
Institute of Groundwater Ecology, Helmholtz Zentrum München, Ingolstädter Landstr. 1, 85764 Neuherberg, Germany; E-Mails: one_fiftyone@hotmail.com (S.C.); anatbern@bgu.ac.il (A.B.)
2
Department of Earth and Environmental Sciences, University of Waterloo, Waterloo, ON N2L 3G1, Canada; E-Mail: orfan@uwaterloo.ca
3
Department of Microbiology & Center for Environmental Biotechnology, University of Tennessee, Knoxville, TN 37996-2000, USA; E-Mail: frank.loeffler@utk.edu
4
Department of Civil and Environmental Engineering, University of Tennessee, Knoxville, TN 37996-2000, USA
5
Oak Ridge National Laboratory (UT-ORNL) Joint Institute for Biological Sciences (JIBS) and Bioscience Division, Oak Ridge National Laboratory, Oak Ridge, TN 37831, USA
*
Author to whom correspondence should be addressed; E-Mail: martin.elsner@helmholtz-muenchen.de; Tel.: +49-89-3187-2565; Fax: +49-89-3187-3361.
Received: 27 February 2014; in revised form: 12 May 2014 / Accepted: 13 May 2014 /
Published: 20 May 2014

Abstract

: Chlorinated ethenes are prevalent groundwater contaminants. To better constrain (bio)chemical reaction mechanisms of reductive dechlorination, the position-specificity of reductive trichloroethene (TCE) dehalogenation was investigated. Selective biotransformation reactions (i) of tetrachloroethene (PCE) to TCE in cultures of Desulfitobacterium sp. strain Viet1; and (ii) of TCE to cis-1,2-dichloroethene (cis-DCE) in cultures of Geobacter lovleyi strain SZ were investigated. Compound-average carbon isotope effects were −19.0‰ ± 0.9‰ (PCE) and −12.2‰ ± 1.0‰ (TCE) (95% confidence intervals). Using instrumental advances in chlorine isotope analysis by continuous flow isotope ratio mass spectrometry, compound-average chorine isotope effects were measured for PCE (−5.0‰ ± 0.1‰) and TCE (−3.6‰ ± 0.2‰). In addition, position-specific kinetic chlorine isotope effects were determined from fits of reactant and product isotope ratios. In PCE biodegradation, primary chlorine isotope effects were substantially larger (by −16.3‰ ± 1.4‰ (standard error)) than secondary. In TCE biodegradation, in contrast, the product cis-DCE reflected an average isotope effect of −2.4‰ ± 0.3‰ and the product chloride an isotope effect of −6.5‰ ± 2.5‰, in the original positions of TCE from which the products were formed (95% confidence intervals). A greater difference would be expected for a position-specific reaction (chloride would exclusively reflect a primary isotope effect). These results therefore suggest that both vicinal chlorine substituents of TCE were reactive (intramolecular competition). This finding puts new constraints on mechanistic scenarios and favours either nucleophilic addition by Co(I) or single electron transfer as reductive dehalogenation mechanisms.
Keywords:
reductive dehalogenation; chlorinated ethenes; trichloroethene; biodegradation; organohalide respiration; dechlorination mechanism; regioselectivity; vitamin B12; reductive dehalogenase

1. Introduction

Chlorinated organic compounds have natural and anthropogenic sources and are represented in nearly every organic chemical class [1]. Much fundamental interest is directed at the underlying reaction chemistry of the C-Cl bond [2,3,4]. The widespread industrial application of chlorinated hydrocarbons as solvents, chemical intermediates and pesticides resulted in environmental contamination, with adverse effects on drinking water quality and ecosystem and human health [5,6,7]. A specific focus has therefore been on their reductive dehalogenation to non-halogenated hydrocarbons, where detoxification is achieved by reductive cleavage of the carbon-chlorine bonds. Evolution has brought forward specialized microorganisms that perform organohalide respiration by using chlorinated hydrocarbons for energy conservation [8].

Considering the importance of biotic reactions involved in the degradation of chlorinated hydrocarbons, surprisingly little is known about the underlying reaction mechanisms. Even the detailed reductive dehalogenation mechanisms of tetrachloroethene (PCE) and trichoroethene (TCE)—the two most abundant dry cleaning and degreasing agents and notorious groundwater pollutants—remain imperfectly understood. Some bacteria produce trans-DCE or 1,1-DCE in this reaction [9], but the typical case is the selective formation of cis-DCE as the bottleneck of microbial dehalogenation, which is a major problem in remediation strategies (Scheme 1) [10].

Molecules 19 06450 g008 200
Scheme 1. Typical stepwise reaction sequence in microbial dechlorination of PCE leading to less chlorinated ethenes and to non-toxic ethene.

Click here to enlarge figure

Scheme 1. Typical stepwise reaction sequence in microbial dechlorination of PCE leading to less chlorinated ethenes and to non-toxic ethene.
Molecules 19 06450 g008 1024

On the most fundamental level, this product formation depends on the initial reaction step of cob(I)alamin (coenzyme B12), the transition-metal cofactor present in reductive dehalogenases [11]. It is unclear whether the underlying dehalogenation reaction involves nucleophilic addition by Co(I), nucleophilic substitution by Co(I) or a radical mechanism involving a single electron transfer (SET) step from Co(I) to the organohalide (Scheme 2) [12,13,14,15,16,17,18].

Specifically, it remains unclear whether the transformation of TCE to cis-DCE is stereoselective at the geminal chlorine substituent in E-position—as one would presume for a nucleophilic substitution mechanism [19]—or whether both geminal E- and Z-positions are involved—as brought forward for SET by computational results from Nonnenberg et al. resulting in the formation of radical intermediates [20]. Involvement of both germinal chlorine substituents would also be expected for the pathway of nucleophilic addition, as suggested by a computational study by Pratt and van der Donk [21]. In the light of the selective formation of cis-DCE, a direct, complementary line of evidence is therefore warranted, which indicates whether one or two carbon-chlorine bonds are reactive in TCE.

Molecules 19 06450 g009 200
Scheme 2. Proposed degradation pathways of TCE catalyzed by cobalamin.

Click here to enlarge figure

Scheme 2. Proposed degradation pathways of TCE catalyzed by cobalamin.
Molecules 19 06450 g009 1024

A potential solution are measurements of kinetic isotope effects (KIEs), either on reacting bonds (primary isotope effects) or on adjacent bonds (secondary isotope effects). If only one C-Cl bond in TCE is reactive, a primary isotope effect would occur specifically in this position leading to a pronounced difference to the other positions where only secondary isotope effects would be expected. In contrast, if two positions are reactive, they would take turns in the reaction so that both would reflect a combination of primary and secondary effects. If isotope effects in both positions are compared, a smaller difference would therefore be expected. On the most fundamental level, however, general knowledge about typical primary and secondary isotope effects of chlorine would first be warranted, since so far only very limited knowledge exists on isotope effects in reductive dechlorination of chlorinated ethenes.

To close this research gap, KIEs on specific positions in a target molecule must be determined. Typical techniques are isotope labelling, or determination of position-specific KIEs by NMR-measurements [22]. However, these approaches do not work well for measurement of chlorine isotope effects in chlorinated ethenes. Even though the stable isotopes of chlorine (35Cl and 37Cl) are NMR active, they show broad chemical shifts and poor precision in signal integrations so that position-specific 37Cl/35Cl isotope analysis with NMR is challenging. [23] In addition, the method is not suitable to investigate biodegradation because samples contain diluted compound mixtures and NMR analysis requires large amounts of pure target compounds. Finally, position-specific isotopic labeling is impossible for PCE, where all chlorine substituents are chemically equivalent [24].

A potential solution to the problem is offered by recent instrumental developments in gas chromatography-isotope ratio mass spectrometry (GC-IRMS). Compounds are separated by gas chromatography and isotopologue ion multiplets of individual chlorinated ethene molecules are recorded simultaneously in dedicated Faraday cups of isotope ratio mass spectrometers [25,26]. Measurements of changes in chlorine isotope ratios have therefore become accessible even in complicated reaction mixtures observed in environmental systems. However, the measured isotope effects from such GC-IRMS methods typically reflect the compound average of the target compound.

Even though the recent introduction of chlorine isotope GC-IRMS—combined with routine carbon isotope GC-IRMS—has brought about first dual (carbon and chlorine) isotope effect investigations, these studies have, therefore, only targeted compound-average isotope effects of the reactant [27,28,29,30]. While they could delineate similarities and differences between experimental systems (different microorganisms, chemical reactants) [29] direct insight into underlying mechanisms remained elusive.

In this study, we take advantage of the fact that Cl is released during reductive dechlorination. Since the chlorine substituents of the parent chlorinated ethene end up in different products (i.e., Cl and the less chlorinated ethene), they are subject to different isotope effects (primary effects in the cleaved bond, secondary effects in non-reacting positions). Information on the magnitude of either position-specific isotope effect may therefore be retrieved from analysis of isotope ratios in the products (Cl and the less chlorinated ethene). This approach was discussed in previous work [31] and was pursued in a recent experimental study by Kuder et al. [30]. There, it was a priori excluded that more than one C-Cl bond is reactive in TCE—in contradiction to the scenarios of Scheme 1. Since this directly affected all further conclusions of this previous study—including estimates of secondary chlorine isotope effects [30]—resultant mechanistic conclusions were, unfortunately, biased and reliable insight based on Cl-isotope effect interpretations was not possible.

In this study, a more rigorous evaluation was enabled by (i) investigations of one-step dehalogenation reactions only and (ii) application of an appropriate mathematical framework. Cultures of Desulfitobacterium sp. strain Viet1, a PCE-to-TCE dechlorinator [32], were used to determine the typical magnitude of primary and secondary chlorine isotope effects. Further, cultures of Geobacter lovleyi strain SZ, a PCE/TCE-to-cis-DCE dechlorinator [33], were used to specifically investigate whether one or two C-Cl bonds are reactive in TCE as non-symmetric molecule. Mathematical equations were derived for reactant and product isotope ratios to model chlorine isotope trends and to extract primary and secondary chlorine isotope effects. This approach provided a first benchmark how chlorine isotope data can be interpreted in typical scenarios of reductive dechlorination of chlorinated ethenes. Another aim was to explore if information on one versus two reactive positions may be obtained and could be useful to constrain the number of possible reaction mechanisms for reductive TCE dehalogenation.

2. Experimental Section

Biodegradation Experiments and Carbon and Chlorine Isotope Analysis

Selective reductive dechlorination of PCE to TCE was accomplished in anaerobic biodegradation of PCE with the Firmicute Desulfitobacterium sp. strain Viet1, and selective transformation of TCE to cis-DCE was facilitated by the Deltaproteobacterium Geobacter lovleyi strain SZ. The cultures were grown following established procedures inside an anoxic glove box in glass bottles (250 mL) equipped with Mininert valves (Supelco, Bellefonte, PA, USA). The bottles were amended with 10 µL of neat PCE. After four days of shaking, inoculation was carried out by adding 20 mL of the active culture, which was previously grown in a similar medium. Liquid samples of 7 mL were collected at given time points within 48 h after inoculation until the initial amount of PCE or TCE (45 mg/L and 90 mg/L, respectively) had been dechlorinated. The samples were taken for (i) compound-specific isotope analysis (CSIA) of carbon and chlorine in chlorinated ethenes by GC-IRMS and (ii) concentration analysis using a gas chromatograph equipped with flame ionization detector (GC-FID). Limit of detection in these concentration measurements for the chlorinated ethenes were below 0.05 µg/L corresponding to less than 0.1% of the initial concentrations. This includes 1,1-DCE and trans-DCE as potential dechlorination products, which were not observed in any of the reactions. Abiotic controls were treated with an identical procedure but without inoculation of an active microbial culture. Concentrations in these controls did not decrease in significant amounts. The analytical uncertainty 2σ was ±0.5‰ for carbon isotope analysis and ±0.2‰ for chlorine isotope analysis. Detailed descriptions of experimental and analytical methods are provided in the Supporting Information (S.I.).

3. Mathematical Equations for Fitting Substrate and Product Isotope Ratios (I): Compound-Average Isotope Effects

Mass spectrometry can measure the proportion of different stable isotopes of element E in a given molecule. When looking at a given molecular position, this ratio of heavy isotopes hE to light isotopes lE, denoted with R0 for the starting material, typically changes during the progress of a reaction to a different ratio Rt at time t:

Molecules 19 06450 i001

Owing to the kinetic isotope effect (KIE), slower reacting isotopes become enriched during the reaction compared to the original starting material. This KIEE is given by the ratio of rate constants of the light isotope lk and heavy isotope hk:

Molecules 19 06450 i002

For the sake of simplicity, we stick to this this definition even though, strictly speaking, bacterial transformation gives isotope effects on (V/K)—V: maximum enzyme velocity, K: Michaelis-Menten constant—rather than on elementary rate constants k [34].

3.1. Compound-Average Isotope Effects from Reactant Values

The proportion of Rt/R0 is well established to depend on the remaining fraction f of the starting material and the KIE according to [34]:

Molecules 19 06450 i003

In the case of compound-specific isotope analysis, R represents the isotope ratio as a compound average RCompound-Average. This means that also the kinetic isotope effect is obtained as a compound average KIECompound-Average [35]:

Molecules 19 06450 i004

The exponent of Equation (3) can alternatively be called enrichment factor ε and 1/KIE be named fractionation factor α with the relationship [36]:

(1 / KIECompound-Average) − 1 = α − 1 = ε

A KIECompound-Average of 1.005, for example, corresponds to ε = −0.005 = −5‰, expressing a situation, in which molecules with an additional heavy isotope react on average by 5‰ slower than the respective lighter isotopologue. Combination of Equations (4) and (3) results in:

Molecules 19 06450 i005

The isotope ratios of the heavy (hE) and light (lE) element in a compound are typically stated relative to reference materials, (Vienna Pee Dee Belemnite (VPDB) for carbon, Standard Mean Ocean Chloride (SMOC) for chlorine) and the isotope ratio of a substance is typically expressed in the delta notation:

Molecules 19 06450 i006

Equation (6) can be rearranged to:

RCompound-Average = (δhE + 1) · RStandard

This can be introduced into Equation (5) according to:

Molecules 19 06450 i007

Equation (8) is typically used in its logarithmic form as the common Rayleigh equation:

ln (δhE + 1) - ln (δhE0 + 1) ≈ δhE − δhE0 = ε ln f ⇒ δhE = δhE0 + ε ln f

The obtained epsilon (ε) represents the isotope fractionation as a compound average and therefore expresses the average positions p of the element in the target compound, including primary as well as secondary positions:

Molecules 19 06450 i008

3.2. Expressions for Product Isotope Values

For the products formed during the reaction, an isotopic mass balance must be fulfilled in a closed system:

Molecules 19 06450 i009

Here, the reactant contains mS atoms of element E in its structure. δhE0 is the original reactant isotope ratio, whereas δhE is the ratio when reaction has occurred so that only a fraction f of reactant remains. A fraction of (1 − f) has then been converted to one or more (up to n) products; mi is the number of atoms of E inside the structure of product i, δhEP,i is the respective product’s isotope value.

3.3. Carbon Isotope Effects from Product Values

In the conversion from PCE to TCE or from TCE to cis-DCE, the two carbon atoms present in the reactant are passed on to the product. Therefore, in the case of carbon, Equation (11) simplifies to:

Molecules 19 06450 i010

An equation that allows fitting product isotope trends is obtained by combination of Equation (12) with Equation (9) to yield

Molecules 19 06450 i011

The parameter εcarbon from product data is identical to ε in Equation (9) for substrate data, because all carbon isotopes are transferred from reactant to product so that the product isotope curve reflects the enrichment trend of the original atoms in the reactant.

3.4. Chlorine Isotope Effects from Product Values

When chlorine isotope values are measured, reductive dechlorination of chlorinated ethenes releases chloride and simultaneously forms the less chlorinated ethene so that two chlorine-containing products are formed at the same time (n = 2). This circumstance generates information about primary and secondary chlorine isotope effects, as derived in the following section.

4. Mathematical Equations for Fitting Product Data (II): Insight into Primary and Secondary Chlorine Isotope Effects

4.1. Case 1—PCE: Indistinguishable Molecular Positions

4.1.1. General Equations

In the case of PCE, the molecular positions of all atoms are chemically equivalent so that the same chlorine atoms may potentially end up in TCE or as Cl. Accordingly, isotopes partition according to the kinetic isotope effects associated with the formation of either product Pi with αi = 1/KIEi. As a consequence, their isotope ratios relate according to:

Molecules 19 06450 i012

With Equation (7), the fractionation factors αi can be expressed in the delta notation as:

Molecules 19 06450 i013
with αDiff expressing the ratio between the primary isotope effect (in the formation of Cl) and the average secondary isotope effects (in the three molecular positions that become TCE). This equation can be rearranged and simplified according to:
Molecules 19 06450 i014
Molecules 19 06450 i015

Accordingly, the difference between primary and secondary isotope effects εDiff is directly obtained from product isotope values, because chlorine isotope ratios of Cl and TCE are always separated by εDiff.

For the reaction of PCE with four chlorine atoms to TCE with three chlorine atoms and Cl the enrichment trends of these products must follow Equation (17), as well as an isotopic mass balance. According to the derivation in the supporting information, the following equations apply:

Molecules 19 06450 i016
Molecules 19 06450 i017

When f approaches 1 in this expression (i.e., in the beginning of the reaction), the last term approaches +εPCE in Equations (18) and (19). As a consequence, the intercept (A) between PCE and the TCE formed, and the intercept (B) between PCE and the chloride released are determined by:

Molecules 19 06450 i018
Molecules 19 06450 i019

For interpretation of the experimental PCE degradation data, the product isotope trends of chloride and TCE were fitted in Sigma Plot according to Equations (18) and (19), respectively, with εPCE and εDiff as fitting parameters.

4.1.2. Interpretation of Product Isotope Enrichment Trends (εChlorine) and intercepts (εDifference) for PCE

In the case of PCE, εDiff—the intercept of the product curves—provides information about primary and secondary isotope effects. The parameter εPCE, in contrast, relates to changes in the four chemically equivalent positions of PCE (average of primary and secondary isotope effects) and is the same in fits of δ37ClPCE [Equation (9)], δ37ClCl− [Equation (20)] and δ37ClTCE [Equation (21)], for the same reasons as discussed above for carbon.

4.2. Case 2—TCE: Distinguishable Molecular Positions

In contrast to PCE, molecular positions in TCE are not chemically equivalent. In addition, formation of cis-DCE is clearly regioselective. No mechanism is known which would convert 1,1-dichloroethene into 1,2-dichloroethene intermediates so that cis-DCE can only be formed by cleavage of a C-Cl bond in the geminal α-positions and not in the β-position (see Scheme 3). Otherwise 1,1-dichloroethene would be detected which is not the case for Geobacter lovleyi strain SZ [33]. A primary isotope effect is therefore expected in the reacting bond in α-position and a secondary isotope effect in the other germinal bond in α-position that is not cleaved. A secondary isotope effect is also expected in the vicinal bond at Clβ because it does not experience C-Cl bond cleavage.

Although the two chlorine atoms in cis-DCE are chemically equivalent, they have a different history (see Scheme 3). One derives from the β-position of TCE—in which 37Cl/35Cl ratios change due to a secondary isotope effect—and one from the geminal α-positions of TCE, in which 37Cl/35Cl ratios may change due to a combination of primary and secondary effects.

Molecules 19 06450 g010 200
Scheme 3. One step reductive dechlorination of TCE with possible locations of primary isotope effects (dotted line) and the location of a secondary isotope effect (Clβ).

Click here to enlarge figure

Scheme 3. One step reductive dechlorination of TCE with possible locations of primary isotope effects (dotted line) and the location of a secondary isotope effect (Clβ).
Molecules 19 06450 g010 1024

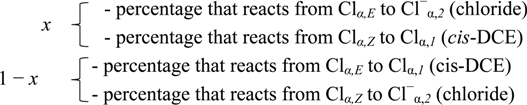

Since no trans-DCE is observed, it seems an intuitive interpretation that Clα,E should be the only reactive position, in analogy to the considerations for Clβ above. Previous studies, however, considered that selective formation of cis-DCE may be caused by cleavage of either C-Cl bond in the α‑positions followed by selective interconversion of cis-/trans-dichloroethene intermediates, as illustrated in Scheme 2 [20,37]. If two reactive positions are considered, one can therefore define

Molecules 19 06450 i020
With x = 1 or x = 0, the reaction would follow a position-specific cleavage; however with 1 > x > 0 two positions would be involved. According to the derivation shown in the Supporting Information, the enrichment trends in chlorine isotope values of cis-DCE and chloride can be expected to be described by individual enrichment factors according to:
εTCE−> chloride = (x·εα,E + (1 − xεα,Z)
for the enrichment trend in chloride isotope data, and
Molecules 19 06450 i021
for the enrichment trend in cis-DCE isotope data. Here, εα,E, εα,Z, and εβ are the position-specific isotope effects in the different bonds according to Scheme 3 (for interpretations see below). The situation is therefore different from the PCE case where both products (TCE and chloride) were formed from indistinguishable molecular positions of PCE so that their isotope enrichment trends reflected, and could be fitted by, the same enrichment factor εPCE. In contrast, distinguishable chlorine atoms are present in TCE so that εTCE->chloride and εTCE->cis-DCE are different. They can be obtained by fitting experimental chloride isotope data according to:
Molecules 19 06450 i022
And:
Molecules 19 06450 i023

The introduced constants K in Equations (24) and (25) are fitting constants in Sigma Plot for the respective intercept of each product. For their mathematical definition and interpretation see below, as well as the derivatization in the Supporting Information.

4.2.1. Interpretation of the Product Curve Enrichment Trends εTCE->chloride and εTCE->cis-DCE for TCE

The parameters εTCE->chloride and εTCE->cis-DCE describe the enrichment trend (i.e., the steepness) of δ37Cl curves of chloride and cis-DCE. Intriguingly, these parameters allow a glimpse on εα,E, εα,Z and εβ the position-specific isotope effects, which can tell whether only one, or both positions may react. Specifically, εα,E is a weighted average of εα,E primary and εα,E secondary. Here, εα,E primary is defined as the primary isotope effect when position E reacts to release chloride (percentage x), and εα,E secondary is the secondary isotope effect in E when position Z reacts to release chloride (percentage (1 − x)):

εα,E = x·εα,E,prim + (1 − xεα,E,sec = εα,E,sec + x·εDiff,α,E

In the same way εα,Z is expressed as

εα,Z = (1 − xεα,Z,prim + x·εα,Z,sec = εα,Z,sec + (1 − xεDiff,α,Z

Substitution into Equation (26) gives:

εTCE−> chloride = x·εα,E + (1 − xεα,Z = x [x·εα,E,prim + (1 − xεα,E,sec] + (1 − x) [(1 − xεα,Z,prim + x·εα,Z,sec]

In the same way, the contribution of εα,Z + (1 − xα,E in Equation (26)—the one which describes the chlorine atoms of cis-DCE stemming from the α-positions of TCE—is given by

x·εα,Z + (1 − xεα,E = x [(1 − xεα,Z,prim + x·εα,Z,sec] + (1 − x) [x·εα,E,prim + (1 − xεα,E,sec]

Figure 1 visualizes how both contributions depend on x (i.e., the percentage of Clα,E reacting to Cl) assuming exemplary numeric values for chlorine isotope effects (εprimary = −8‰ (KIECl = 1.008) and εsecondary = −1‰ (KIECl = 1.001)), which are further assumed to be identical in both positions (Z and E). For qualitatively similar trends with other numerical scenarios see the supporting information.

Molecules 19 06450 g001 200
Figure 1. Representation of parameters εα,E, εα,Z, εTCE->chloride and εTCE->cis-DCE in dependence of x, the percentage of Clα,E reacting to Cl. Assumed values for primary and secondary isotope effects were εprimary = −8‰ and εsecondary = −1‰ in both positions. Similar scenarios are obtained if the values are allowed to vary between the positions (see S.I.).

Click here to enlarge figure

Figure 1. Representation of parameters εα,E, εα,Z, εTCE->chloride and εTCE->cis-DCE in dependence of x, the percentage of Clα,E reacting to Cl. Assumed values for primary and secondary isotope effects were εprimary = −8‰ and εsecondary = −1‰ in both positions. Similar scenarios are obtained if the values are allowed to vary between the positions (see S.I.).
Molecules 19 06450 g001 1024

4.2.2. Contributions from α-Positions to εTCE->chloride and εTCE->cis-DCE

Figure 1 illustrates that εα,E and εα,Z vary linearly with x. In contrast, a non-linear variation with x occurs for εTCE->chloride, as well as for the α-position contribution of εTCE‑>cis-DCE for the following reasons. If more chloride is formed from one position (i) εα is stronger in the position from which more chloride is formed with a primary isotope effect; (ii) in addition, more atoms in these positions are released as chloride so that the product curve of chloride more strongly reflects this higher enrichment. The opposite trend can be observed in the product curve of cis-DCE. The combination of both contributions (i) and (ii) therefore lends the curves of εTCE‑>chloride and εTCE->cis-DCE their non-linear shape. In the case of x = 0.5, finally, both contributions are identical because the isotope enrichment trend from either position is passed on in equal parts to both products (true intramolecular competition; this corresponds to the example of PCE, where TCE and chloride also reflect the average isotope enrichment trend of the reactant.

Figure 1, therefore, predicts that εTCE->chloride and the contribution of x·εα,Z + (1 − xα,E to εTCE‑>cis‑DCE are very sensitive indicators whether the reaction of TCE involves two or only one reactive C-Cl bond(s). As illustrated in Figure 1, if both bonds are involved, the difference between εTCE->chloride and εTCE->cis-DCE is smaller than predicted for a typical difference between primary and secondary isotope effects. In contrast, only in the case that one position reacts (i.e., when x approaches 0 or 1) the positions in TCE can be strictly separated into one reactive chlorine substituent (experiencing a primary isotope effect) and two non-reactive chlorine substituents (experiencing secondary isotope effects). It is therefore only in this case that the enrichment trend of the two product curves reflects a typical difference between primary and secondary isotope effects, because only in this case is εTCE->chloride = εprimary and εTCE‑>cis‑DCE = εsecondary.

4.2.3. Interpretation of Intercepts K for the TCE Case

As illustrated in the supporting information, the difference K in chlorine isotope signatures of the initially formed chloride and cis-DCE at f = 1 is influenced by two factors. (i) The initial chlorine isotope ratio(s) δ37Cl0,i of the position(s), from which the respective product is formed (in contrast to PCE, the positions in TCE are not chemically equivalent and may show relevant variations of 37Cl/35Cl between each other); (ii) the kinetic isotope effect from the reaction (primary for Cl, secondary for cis-DCE).

Even though this kinetic isotope effect information is desirable, a direct interpretation like in the case of PCE is not possible because TCE internal isotope distributions cannot experimentally be determined. In contrast to interpretations of the PCE data, insight into position-specific chlorine isotope effects of TCE is therefore not given by the intercepts of Equations (24) and (25), but by the parameters εTCE->chloride and εTCE‑>cis‑DCE. Specifically, while in the case of PCE the parameter εPCE is the same for all product species, εTCE->chloride and εTCE‑>cis-DCE reflect isotope effects in the positions of TCE, from which the respective products are formed. These product enrichment trends are, therefore, a sensitive indicator whether the reaction of TCE involves one or two reactive positions (see Figure 1).

5. Results and Discussion

5.1. Compound-Specific Carbon Isotope Effects in Reductive Dehalogenation of PCE to TCE by Desulfitobacterium sp. Strain Viet1 and of TCE to cis-DCE by Geobacter Lovleyi Strain SZ

Selective reductive dechlorination of PCE to TCE and chloride was performed with the microorganism Desulfitobacterium sp. strain Viet1, whereas Geobacter lovleyi strain SZ converted TCE to stoichiometric amounts of cis-DCE and inorganic chloride (note that the TCE data of the latter experiment are identical to those reported in Cretnik et al. [29]). Evaluation of compound-specific carbon isotope fractionation during reductive dechlorination of chlorinated ethenes gave fairly consistent results by application of the Rayleigh equation in its different forms. The carbon isotopic enrichment factor ε of the transformation was either directly obtained from the difference for the very first product fraction at f = 1 (from intercepts: εPCE ≈ −19‰, εTCE ≈ −9‰ see Figure 2). Alternatively, since the product contained less 13C than the substrate from which it was formed, 13C/12C increased in the remaining reactant pool. Evaluation of reactant isotope data according to the Rayleigh equation [Equation (9)] was therefore an alternative way of determining ε (from reactant data: εPCE = −19.0‰ ± 0.9‰, εTCE = −12.2‰ ± 1.2‰). Finally, since this enrichment trend was reflected also in the steepness of the product δ13C curves, ε could alternatively be determined from product isotope data according to Equation (13): εPCE = −21.1‰ ± 2.2‰ (from TCE data); εTCE = −10.0‰ ± 0.8‰ (from cis-DCE data, see Figure 2).

Molecules 19 06450 g002 200
Figure 2. Carbon isotope data from degradation of PCE to TCE by Desulfitobacterium sp. strain Viet1, and of TCE to cis-DCE by Geobacter lovleyi strain SZ.

Click here to enlarge figure

Figure 2. Carbon isotope data from degradation of PCE to TCE by Desulfitobacterium sp. strain Viet1, and of TCE to cis-DCE by Geobacter lovleyi strain SZ.
Molecules 19 06450 g002 1024

After complete conversion at f = 0, the experimental data confirm that the product isotope signature has the same carbon isotope ratio as the starting material when the isotopic mass balance was closed.

5.2. Compound-Specific and Position-Specific Chlorine Isotope Effects in Reductive Dehalogenation of PCE to TCE by Desulfitobacterium sp. Strain Viet1

For the selective reductive dechlorination of PCE to TCE and chloride by Desulfitobacterium sp. strain Viet1 chlorine isotope signatures were measured in PCE and TCE, whereas chloride isotope signatures were calculated based on the isotopic mass balance (see S.I.).

Enrichment factors εPCE were obtained from PCE reactant data (−5.0‰ ± 0.1‰) according to Equation (9), from chloride product data (−4.1‰ ± 3.7‰) according to equation (18), and from TCE product data (−5.3‰ ± 0.3‰) according to Equation (19) (uncertainties are 95% confidence intervals). This confirms that the products TCE and chloride reflect the chlorine isotope enrichment trend of the four chemically equivalent positions of PCE from which they are formed. After full conversion at f = 0, the isotope signature of the released chloride must show an offset of −3/4εDiff compared to the initial isotope signature of PCE, and the isotope signature of the formed TCE must show an offset of 1/4εDiff, which the data confirm (Figure 3).

Molecules 19 06450 g003 200
Figure 3. Chlorine isotope data of PCE degradation to TCE and chloride by Desulfitobacterium sp. strain Viet1 including fits in Sigma Plot according to the presented mathematical approach and 95% confidence intervals of the nonlinear regressions (for regression data see S.I.). Uncertainties for δ37ClCl were calculated by error propagation including uncertainties in δ37ClPCE, δ37ClTCE and f(PCE) (see S.I.). Resultant uncertainties of the first two data points (error bars not shown) were 108‰ (*) and 24‰ (**). For regressions only data points with standard errors smaller than 2‰ were considered (black symbols).

Click here to enlarge figure

Figure 3. Chlorine isotope data of PCE degradation to TCE and chloride by Desulfitobacterium sp. strain Viet1 including fits in Sigma Plot according to the presented mathematical approach and 95% confidence intervals of the nonlinear regressions (for regression data see S.I.). Uncertainties for δ37ClCl were calculated by error propagation including uncertainties in δ37ClPCE, δ37ClTCE and f(PCE) (see S.I.). Resultant uncertainties of the first two data points (error bars not shown) were 108‰ (*) and 24‰ (**). For regressions only data points with standard errors smaller than 2‰ were considered (black symbols).
Molecules 19 06450 g003 1024

In contrast to the isotope pattern of carbon, these intercepts between PCE as starting material and the instantaneously formed products reveal additional information. In the case of a one-step scenario, the secondary and primary isotope effects are accessible from the intercepts according to Figure 4. The secondary chlorine isotope effect with εsec of −1.0‰ ± 0.5‰ (standard error) is obtained in the intercept (A) as average of the three non-reacted chlorine substituents that remain in TCE. The primary chlorine isotope effect of −16.0‰ ± 4.9‰ (standard error) is extracted from the isotope signature of the instantaneously formed chloride at the beginning of the reaction in the intercept (B).

Molecules 19 06450 g004 200
Figure 4. Interpretation of chlorine isotope data in a one-step scenario with respect to intercepts between PCE, TCE and chloride of the applied mathematical fits.

Click here to enlarge figure

Figure 4. Interpretation of chlorine isotope data in a one-step scenario with respect to intercepts between PCE, TCE and chloride of the applied mathematical fits.
Molecules 19 06450 g004 1024

In an alternative approach the primary isotope effect may be extracted in higher precision when considering that the enrichment factor of PCE is a weighted average of primary and secondary effects:

Molecules 19 06450 i024

The average secondary isotope effect is further given by

Molecules 19 06450 i025
so that the primary isotope effect in PCE can be calculated:
Molecules 19 06450 i026

In contrast, if a two-step scenario prevails, no absolute values are obtained, but instead only the difference between primary and secondary isotope effects is accessible from the intercepts of the two products TCE and chloride as illustrated in Figure 5.

Molecules 19 06450 g005 200
Figure 5. Interpretation of chlorine isotope data in a two-step scenario with respect to intercepts between PCE, TCE and chloride of the applied mathematical fits.

Click here to enlarge figure

Figure 5. Interpretation of chlorine isotope data in a two-step scenario with respect to intercepts between PCE, TCE and chloride of the applied mathematical fits.
Molecules 19 06450 g005 1024

In this case, the observed isotope effect of PCE with −5.0‰ ± 0.1‰ reflects the first step to the intermediate (I). A second rate-limiting step forms TCE and Cl. The difference between primary and secondary chlorine isotope effects for the second step is obtained from the difference of the intercepts (εDiff) with −16.3‰ ± 1.4‰ (standard error).

Independent of the prevailing scenario, the difference between primary and secondary isotope effects in reductive dehalogenation of PCE by Desulfitobacterium sp. strain Viet1 can therefore be determined as −16.3‰ ± 1.4‰. This indicates that primary chlorine isotope effects are of significantly larger magnitude than secondary isotope effects. In the case of the first scenario (one-step reaction), the exact value of the primary isotope effect (−17.0‰ ± 1.6‰) would even be directly accessible, as well as the average of all secondary isotope effects (−1.0‰ ± 0.5‰), which would be smaller by an order of magnitude.

5.3. Compound-Specific and Position-Specific Chlorine Isotope Effects in Reductive Dehalogenation of TCE to cis-DCE by Geobacter lovleyi Strain SZ

Geobacter lovleyi strain SZ converted TCE to stoichiometric amounts of cis-DCE and inorganic chloride. Compound-average chlorine isotope values were measured for TCE and cis-DCE, and calculated for chloride based on the closed isotopic mass balance (see S.I.).

In the case of TCE, the intercepts do not provide useful information about primary and secondary isotope effects because the three positions are distinguishable and TCE may have an unequal isotope distribution, which cannot be directly measured. For instance, if the reactive position in TCE contains more 37Cl/35Cl than the average molecule, a respective “lighter” signature would be found in the formed cis-DCE because the produced chloride pool would contain more 37Cl/35Cl. Such a scenario would bias the interpretation of intercepts. The following discussion is therefore only based on the fitted parameters of ε, which are independent of the intercepts in the isotope patterns. Since these parameters reflect enrichment trends in molecular positions of the reactant (even if extracted from product data), they reflect precisely those reaction steps that lead up to and include the first irreversible step. Consequently, they incorporate the initial reaction steps and their interpretation does not require consideration of the one vs. two-step case distinction as for PCE above.

Figure 6 shows the fit to the obtained enrichment factor of TCE, which is the average of enrichment factors from each of its three chlorinated positions according to:

Molecules 19 06450 i027

Since no 1,1-DCE is formed in Geobacter lovleyi cultures, the position Clβ in TCE does not react and will strictly represent a β-secondary isotope effect that is directly passed on to the formed cis-DCE with the enrichment factor εβ. In contrast, as discussed above, we considered the possibility that both α-chlorines may undergo C-Cl cleavage.

The resultant product isotope enrichment for the formed cis-DCE was fitted in Sigma Plot according to Equation (25) derived previously to give

εTCE->cis-DCE = −2.4‰ ± 0.3‰ (95% confidence interval)

Likewise, data on chloride were fitted according to Equation (24) to yield

εTCE->Chloride = −6.5‰ ± 2.5‰ (95% confidence interval)

Molecules 19 06450 g006 200
Figure 6. Chlorine isotope data of TCE degradation to cis-DCE and chloride by Geobacter lovleyi strain SZ including mathematical fits in Sigma Plot according to the presented mathematical approach. Error bars of individual data points indicate standard deviations; uncertainties of the regressions are 95% confidence intervals.

Click here to enlarge figure

Figure 6. Chlorine isotope data of TCE degradation to cis-DCE and chloride by Geobacter lovleyi strain SZ including mathematical fits in Sigma Plot according to the presented mathematical approach. Error bars of individual data points indicate standard deviations; uncertainties of the regressions are 95% confidence intervals.
Molecules 19 06450 g006 1024

As derived above, our considerations show that these parameters reflect enrichment trends in the molecular positions of TCE according to

Molecules 19 06450 i021
εTCE−> chloride = (x·εα,E + (1 − xεα,Z)

Assuming that only Clα,E is reacting (x = 1), the obtained enrichment trend of the formed chloride would strictly reflect a primary isotope effect with −6.5‰ ± 2.5‰. It follows that the formed cis-DCE would reflect only the average of secondary isotope effects, resulting in a remarkably large magnitude of secondary isotope effects with −2.4‰ ± 0.3‰. Therefore, this scenario of strictly one reactive position contrasts strongly with insight from PCE data, both regarding the absolute magnitude of primary isotope effects (too small) and secondary effects (too large) as well as the difference εDiff between them (too small). It may be argued that small values (and small differences) could be attributable to commitment in enzyme catalysis, since our data relates to isotope effects on (Vmax/Km) rather than to elementary rate constants [34]. This would affect the interpretation of the TCE data, because the products cis-DCE and chloride reflect position-specific effects in the reactant TCE, and such reactant data are subject to masking [35]. The interpretation of the PCE data, in contrast, would not be affected, because product-curve intercepts reflect the differences in isotope effects in a situation of intramolecular competition, which is not subject to masking. While this could explain the small primary isotope effect of −6.5‰ ± 2.5‰ for TCE, it would be unable to rationalize the surprisingly large secondary isotope effect of −2.5‰ ± 0.3‰. Invoking commitment to catalysis would have to make this value even larger. Therefore, the assumption of only one reactive position appears to be questionable because it opposes the observation in PCE where a substantial difference in the magnitude of primary and secondary isotope effects was observed.

A more consistent picture arises when the possibility of two reactive positions is considered, as encountered for any 1 > x > 0 in Figure 1. As illustrated in Figure 1, this scenario explains the relatively large isotope fractionation in the formed cis-DCE from a different angle, where a decrease in the difference between the isotope effects in cleaved chloride goes along with an increasingly even participation of both positions in the reaction. Therefore, the observation of the pronounced isotope effect of −2.5‰ ± 0.3‰ in the formation of cis-DCE with the relatively small difference to the isotope effect in the cleaved chloride of −6.5‰ ± 2.5‰ suggests that both positions react and primary and secondary chlorine isotope effects are reflected in both products.

Our results therefore indicate that the two chlorine substituents in the α-positions are accessible for reductive dechlorination of TCE. In this context, the selective formation of cis-DCE as the only dichloroethene-isomer is an intriguing observation, because it requires that: (i) that two different positions react; (ii) different chlorovinyl-intermediates are formed, and (iii) these intermediates selectively react to cis-DCE despite their different stereochemistry.

In previous mechanistic studies, the nucleophilic substitution of a chlorine substituent by the cobalt centre has been discussed as a potential pathway, leading to the formation of a dichlorovinyl-anion in the subsequent step of reduction [38,39]. Respective anionic intermediates have been investigated in a computational study by Nonnenberg et al., which suggest that these intermeditates are not susceptible to interconversion [20], which would be necessary to explain the observed selectivity to form the cis-conformation. Based on our results, the scenario of a direct nucleophilic substitution can, therefore, be ruled out for reduction of TCE by Geobacter lovleyi.

Recent studies pointed out that radical intermediates are involved in reductive dechlorination with cobalamin as model system [15,17]. The behaviour of chlorovinyl-radical species was investigated in the computational study by Nonnenberg et al. [20]. From their calculations, the dichlorovinyl-radicals may indeed be susceptible to a selective interconversion from the trans- into the energetically preferred cis-conformation of DCE (Scheme 4). If this preference was further enforced by steric constraints at the catalytic site, this could explain an exclusive formation of cis-DCE observed in biodegradation experiments, which would otherwise even exceed thermodynamic predictions. According to the chlorine isotope effects from the presented biodegradation experiments of TCE, the involvement of radical intermediates therefore appears to be a possible pathway.

Molecules 19 06450 g011 200
Scheme 4. Mechanistic proposal for dechlorination of TCE via a single electron transfer with selective formation of cis-DCE. Adapted from Nonnenberg et al. [20].

Click here to enlarge figure

Scheme 4. Mechanistic proposal for dechlorination of TCE via a single electron transfer with selective formation of cis-DCE. Adapted from Nonnenberg et al. [20].
Molecules 19 06450 g011 1024

Based on theoretical considerations, such a conformational change could also occur in a pathway of nucleophilic addition, where the addition of the cobalt centre of the corrinoid would lead to a change of hybridisation from sp2 to sp3 and create a freely rotating bond (Scheme 5).

Molecules 19 06450 g012 200
Scheme 5. Mechanistic proposal for dechlorination of TCE via nucleophilic addition followed by anti-elimination with selective formation of cis-DCE. Adapted from Pratt and van der Donk [21].

Click here to enlarge figure

Scheme 5. Mechanistic proposal for dechlorination of TCE via nucleophilic addition followed by anti-elimination with selective formation of cis-DCE. Adapted from Pratt and van der Donk [21].
Molecules 19 06450 g012 1024

This intermediate was computed by Pratt and van der Donk [21], where they suggested that its minimum energy conformation may lead to a preferential formation of cis-DCE in the following step of anti-elimination. It is noteworthy that this scenario requires an extraordinary selectivity to engage this hypothesized conformation prior to the elimination reaction in order to produce exclusively cis-DCE. Furthermore, the pronounced chlorine isotope effects in TCE would indicate another exceptional feature of this scenario. In order to relate the obtained isotope effects to primary chlorine isotope effects, the elimination-step must be the rate-limiting step, while the first addition step would have to be reversible. The reversibility of the formation of the chlorinated alkylcobalt complex appears to be unlikely; however, since its formation is computed to have a notable driving force of −30.3 kcal/mol [14], and this reverse reaction would demand for the elimination of the hydrogen substituent. Therefore, the first step of the nucleophilic addition would not be predicted to be reversible.

With these considerations, the scenario of nucleophilic addition would combine several unusual attributes, including a strict conformational selectivity at an sp3 hybridized carbon centre and an unexpectedly large magnitude of secondary chlorine isotope effects. Nonetheless, this pathway cannot be strictly ruled out as a possible transformation pathway.

6. Conclusions

With chlorine isotope effects from GC-IRMS measurements, our study brings forward a new perspective for investigating initial mechanisms of reductive chlorinated ethene dehalogenation. Mathematical equations accurately describe reactant and product isotope data, allow extracting position-specific chlorine isotope effect information and may serve as a benchmark for similar evaluations in the future. In reductive biotransformation of PCE, this evaluation allowed us to constrain the difference between primary and average secondary chlorine isotope effects to an unexpectedly large value of −16.3‰ ± 1.4‰ (standard error). This novel insight on primary and secondary chlorine isotope effects in chlorinated ethenes falls outside the range of typical chlorine isotope effects [40].

Our evaluation further allowed us to test whether one or two C-Cl bonds in TCE were reactive. In the first case (only one C-Cl position reacts), isotope values of chloride would be expected to exclusively reflect the primary isotope effect of the C-Cl bond cleavage, whereas isotope values of cis-DCE would reflect the secondary isotope effects in the remaining bonds. In contrast, in the second case both positions would take turns in reacting, they would end up in both products and the products would show a mixture of primary and secondary isotope effects. Their isotopic enrichment trends would, therefore, be more similar. Our data showed indeed only a relatively small difference between an average chlorine isotope effect of −6.5‰ ± 2.5‰ (95% confidence interval) in the C-Cl bond(s) from which chloride was formed, compared to an average effect of −2.5‰ ± 0.3‰ (95% confidence interval) in the C-Cl bonds that are precursors of cis-DCE. This small difference contrasts with the large difference between primary and secondary chlorine isotope effects observed in the PCE data. These findings suggest that two C-Cl bonds in TCE were reactive (case 2).

This insight, in turn, significantly constrained the mechanistic scenarios for the initial step in TCE reductive dehalogenation. Direct nucleophilic substitution via dichlorovinyl-anion intermediates could be ruled out for reduction of TCE by Geobacter lovleyi, whereas single electron transfer followed by radical formation, as well as nucleophilic addition followed by anti-elimination remain possible scenarios.

Finally, this insight can support current interpretations of dual element (C and Cl) isotope fractionation during TCE and PCE dehalogenation. Figure 7 shows the dual element isotope plots that are obtained when combining the carbon and chlorine data of the present study.

Molecules 19 06450 g007 200
Figure 7. Dual element (carbon and chlorine) isotope plots for degradation of PCE toTCE by Desulfitobacterium sp. strain Viet1, and of TCE to cis-DCE by Geobacter lovleyi strain SZ. Error bars are standard deviations, uncertainties are 95% confidence intervals).

Click here to enlarge figure

Figure 7. Dual element (carbon and chlorine) isotope plots for degradation of PCE toTCE by Desulfitobacterium sp. strain Viet1, and of TCE to cis-DCE by Geobacter lovleyi strain SZ. Error bars are standard deviations, uncertainties are 95% confidence intervals).
Molecules 19 06450 g007 1024

The value of ∆δ13CTCE/∆δ37ClTCE = 3.4 ± 0.2 (95% confidence interval) during dehalogenation of TCE by Geobacter lovleyi is based on the same data reported in Cretnik et al. [29]. There, a remarkable similarity was observed compared to experiments with Desulfitobacterium hafniense and with vitamin B12. The present study complements this finding with underlying mechanistic insight. Taken together, our results suggest that this insight may also be of relevance for reductive dehalogenation by vitamin B12. In addition, our calculations can explain the different numerical values in the TCE degradation experiment when ∆δ13C/∆δ37Cl of TCE is compared to ∆δC13C/∆δ37Cl of cis‑DCE. While the slope for TCE is equal to εTCE,carbonTCE,chlorine [31], the slope for cis-DCE corresponds to εTCE,carbonTCE‑>cis‑DCE,chlorine. The observation that εTCE->cis‑DCE,chlorine < εTCE,chlorine (see above) therefore explains the steeper slope for the cis-DCE data.

In the case of PCE, the dual element isotope slope of ∆δ13CPCE/∆δ37ClPCE = 3.8 ± 0.2 (confidence interval) is, to our knowledge, the first value reported under defined conditions with a pure bacterial strain. The treatment of our study can explain in part why the value is greater compared to ∆δ13CTCE/∆δ37ClTCE in the TCE experiment. In the compound-average chlorine εPCE of the PCE experiment, the primary isotope effect in the reacting C-Cl bond is “diluted” with three secondary isotope effects according to Equation (32). In the TCE experiment, only two secondary isotope effects contribute so that the primary isotope effect is more strongly represented in εTCE,chlorine. This, in turn, leads to a greater proportion of εchlorinecarbon and a smaller value of the dual element isotope slope, since εTCE,carbonTCE,chlorine = ∆δ13CTCE/ ∆δ37ClTCE. Finally, the value of ∆δ13CPCE/ ∆δ37ClPCE = 3.8 ± 0.2 coincides with the range of 2.2 to 4.2 observed by Wigert et al. [28] in an enrichment culture from a contaminated site (calculated from their value εchlorinecarbon= 0.35 ± 0.11). The combined results give a first indication of the range of ∆δ13CPCE/ ∆δ37ClPCE that is expected for reductive dechlorination of PCE and TCE at contaminated sites.

Supplementary Materials

Supporting Information can be accessed at: http://www.mdpi.com/1420-3049/19/5/6450/s1.

A1 MATERIALS and METHODS: Experimental protocols for biodegradation of PCE with Desulfitobacterium Strain Viet-1 and of TCE with Geobacter lovleyi Strain SZ; for concentration measurements, stable carbon isotope analysis, stable chlorine isotope analysis; A2 DERIVATION of mathematical equations; A3 Figure S1: Visualisation of observable isotope trends in chloride with different contributions of primary and secondary isotope effects; A4 Figure S2: concentration vs. time curves of PCE degradation by Desulfitobacterium strain Viet1; Figure S3: concentration vs. time curves of TCE degradation by Geobacter lovleyi strain SZ. A5 original experimental data including δ37clcl− and propagated errors; A6 equations to calcuate δ37clcl− and propagated errors; A7 all fitting procedures and regression reports.

Acknowledgments

We thank Kris McNeill from the ETH Zürich and Stefan Haderlein from University of Tübingen for helpful discussions and critical comments. We further thank Wolfgang zu Castell-Rüdenhausen and Michael Hagen from the Institute of Bioinformatics, Helmholtz Zentrum Munich, for helpful initial discussions on alternative approaches to mathematical fitting. This work was supported by the German Research Foundation (DFG), EL 266/3-1, as well as by the Initiative and Networking Fund of the Helmholtz Association. A.B. was supported by a fellowship of the Minerva Foundation, Max-Planck-Gesellschaft.

Author Contributions

SC, AB and ME designed the study, SC performed the research and analyzed the data. OSS contributed isotope standards, and FEL provided materials. ME and SC derived the mathematical framework for data interpretation and wrote the manuscript. All authors contributed to manuscript preparation and approved the final version.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gribble, G.W. Naturally occurring organohalogen compounds. Acc. Chem. Res. 1998, 31, 141–152, doi:10.1021/ar9701777.
  2. Patai, S. The Chemistry of the Carbon-Halogen Bond: Part 1; John Wiley & Sons: London, UK; New York, NY, USA; Sidney, Austrilia; Toronto, ON, Canada, 1973.
  3. Wang, C.B.; Zhang, W.X. Synthesizing nanoscale iron particles for rapid and complete dechlorination of TCE and PCBs. Environ. Sci. Technol. 1997, 31, 2154–2156, doi:10.1021/es970039c.
  4. Gillham, R.W.; O’Hannesin, S.F. Enhanced Degradation of Halogenated Aliphatics by Zero-Valent Iron. Ground Water 1994, 32, 958–967, doi:10.1111/j.1745-6584.1994.tb00935.x.
  5. Holliger, C.; Wohlfarth, G.; Diekert, G. Reductive dechlorination in the energy metabolism of anaerobic bacteria. FEMS Microbiol. Rev. 1998, 22, 383–398.
  6. Adrian, L.; Szewzyk, U.; Wecke, J.; Gorisch, H. Bacterial dehalorespiration with chlorinated benzenes. Nature 2000, 408, 580–583, doi:10.1038/35046063.
  7. Grostern, A.; Duhamel, M.; Dworatzek, S.; Edwards, E.A. Chloroform respiration to dichloromethane by a Dehalobacter population. Environ. Microbiol. 2010, 12, 1053–1060.
  8. He, J.Z.; Ritalahti, K.M.; Yang, K.L.; Koenigsberg, S.S.; Löffler, F.E. Detoxification of vinyl chloride to ethene coupled to growth of an anaerobic bacterium. Nature 2003, 424, 62–65, doi:10.1038/nature01717.
  9. Griffin, B.M.; Tiedje, J.M.; Löffler, F.E. Anaerobic microbial reductive dechlorination of tetrachloroethene to predominately trans-1,2-dichloroethene. Environ. Sci. Technol. 2004, 38, 4300–4303, doi:10.1021/es035439g.
  10. Duhamel, M.; Wehr, S.D.; Yu, L.; Rizvi, H.; Seepersad, D.; Dworatzek, S.; Cox, E.E.; Edwards, E.A. Comparison of anaerobic dechlorinating enrichment cultures maintained on tetrachloroethene, trichloroethene, cis-dichloroethene and vinyl chloride. Water Res. 2002, 36, 4193–4202, doi:10.1016/S0043-1354(02)00151-3.
  11. Smidt, H.; de Vos, W.M. Anaerobic microbial dehalogenation. Annu. Rev. Microbiol. 2004, 58, 43–73, doi:10.1146/annurev.micro.58.030603.123600.
  12. Jensen, F.; Buchanan, D. Preparation of 1-Methyl-2,2-diphenylcyclopropylcobaloxime and Theoretical Considerations for Its Mode of Formation. J. Am. Chem. Soc. 1973, 153–154.
  13. Semadeni, M.; Chiu, P.C.; Reinhard, M. Reductive transformation of trichloroethene by cobalamin: Reactivities of the intermediates acetylene, chloroacetylene, and the DCE isomers. Environ. Sci. Technol. 1998, 32, 1207–1213, doi:10.1021/es9705248.
  14. Buhl, M.; Golubnychiy, V. On the intermediacy of chlorinated alkylcobalt complexes in the reductive dehalogenation of chloroalkenes. A first-principles molecular dynamics study. Organometallics 2007, 26, 6213–6218, doi:10.1021/om7007474.
  15. Glod, G.; Angst, W.; Holliger, C.; Schwarzenbach, R.P. Corrinoid-mediated reduction of tetrachloroethylene, trichloroethylene and trichlorofluoroethane in homogeneoues aqueous solution: Reaction kinetics and reaction mechanisms. Environ. Sci. Technol. 1997, 31, 253–260, doi:10.1021/es9603867.
  16. Kliegman, S.; McNeill, K. Dechlorination of chloroethylenes by cob(i)alamin and cobalamin model complexes. Dalton Trans. 2008, 4191–4201, doi:10.1039/b801679h.
  17. Kliegman, S.; McNeill, K. Reconciling Disparate Models of the Involvement of Vinyl Radicals in Cobalamin-Mediated Dechlorination Reactions. Environ. Sci. Technol. 2009, 43, 8961–8967, doi:10.1021/es902267j.
  18. Schumacher, W.; Holliger, C.; Zehnder, A.J.B.; Hagen, W.R. Redox chemistry of cobalamin and iron-sulfur cofactors in the tetrachloroethene reductase of Dehalobacter restrictus. FEBS Lett. 1997, 409, 421–425, doi:10.1016/S0014-5793(97)00520-6.
  19. Follett, A.D.; McNabb, K.A.; Peterson, A.A.; Scanlon, J.D.; Cramer, C.J.; McNeill, K. Characterization of Co-C bonding in dichlorovinylcobaloxime complexes. Inorg. Chem. 2007, 46, 1645–1654, doi:10.1021/ic0618293.
  20. Nonnenberg, C.; van der Donk, W.A.; Zipse, H. Reductive Dechlorination of Trichloroethylene: A Computational Study. J. Phys. Chem. A 2002, 106, 8708–8715, doi:10.1021/jp0264073.
  21. Pratt, D.A.; van der Donk, W.A. On the role of alkylcobalamins in the vitamin B12-catalyzed reductive dehalogenation of perchloroethylene and trichloroethylene. Chem. Commun. 2006, 558–560, doi:10.1039/b513624e.
  22. Singleton, D.A.; Thomas, A.A. High-Precision Simultaneous Determination of Multiple Small Kinetic Isotope Effects at Natural-Abundance. J. Am. Chem. Soc. 1995, 117, 9357–9358, doi:10.1021/ja00141a030.
  23. Perras, F.A.; Bryce, D.L. Direct Investigation of Covalently Bound Chlorine in Organic Compounds by Solid-State 35Cl NMR Spectroscopy and Exact Spectral Line-Shape Simulations. Angew. Chem. Int. Ed. 2012, 51, 4227–4230, doi:10.1002/anie.201200728.
  24. Thoreson, K.A. Probing Reduced Metal Center-Mediated Dechlorination Mechanisms through the Use of Model Complexes and Isotope Ratio Mass Spectrometry. Ph.D. Thesis, University of Minnesota, Minneapolis, MN, USA, June 2010.
  25. Shouakar-Stash, O.; Drimmie, R.J.; Zhang, M.; Frape, S.K. Compound-specific chlorine isotope ratios of TCE, PCE and DCE isomers by direct injection using CF-IRMS. Appl. Geochem. 2006, 21, 766–781, doi:10.1016/j.apgeochem.2006.02.006.
  26. Elsner, M.; Hunkeler, D. Evaluating Chlorine Isotope Effects from Isotope Ratios and Mass Spectra of Polychlorinated Molecules. Anal. Chem. 2008, 80, 4731–4740, doi:10.1021/ac702543y.
  27. Abe, Y.; Aravena, R.; Zopfi, J.; Shouakar-Stash, O.; Cox, E.; Roberts, J.D.; Hunkeler, D. Carbon and Chlorine Isotope Fractionation during Aerobic Oxidation and Reductive Dechlorination of Vinyl Chloride and cis-1,2-Dichloroethene. Environ. Sci. Technol. 2009, 43, 101–107, doi:10.1021/es801759k.
  28. Wiegert, C.; Mandalakis, M.; Knowles, T.; Polymenakou, P.N.; Aeppli, C.; Macháčková, J.; Holmstrand, H.; Evershed, R.P.; Pancost, R.D.; Gustafsson, Ö. Carbon and Chlorine Isotope Fractionation During Microbial Degradation of Tetra- and Trichloroethene. Environ. Sci. Technol. 2013, 47, 6449–6456.
  29. Cretnik, S.; Thoreson, K.A.; Bernstein, A.; Ebert, K.; Buchner, D.; Laskov, C.; Haderlein, S.; Shouakar-Stash, O.; Kliegman, S.; McNeill, K.; et al. Reductive Dechlorination of TCE by Chemical Model Systems in Comparison to Dehalogenating Bacteria: Insights from Dual Element Isotope Analysis (13C/12C, 37Cl/35Cl). Environ. Sci. Technol. 2013, 47, 6855–6863.
  30. Kuder, T.; van Breukelen, B.M.; Vanderford, M.; Philp, P. 3D-CSIA: Carbon, Chlorine, and Hydrogen Isotope Fractionation in Transformation of TCE to Ethene by a Dehalococcoides Culture. Environ. Sci. Technol. 2013, 47, 9668–9677, doi:10.1021/es400463p.
  31. Hunkeler, D.; van Breukelen, B.M.; Elsner, M. Modeling Chlorine Isotope Trends during Sequential Transformation of Chlorinated Ethenes. Environ. Sci. Technol. 2009, 43, 6750–6756, doi:10.1021/es900579z.
  32. Amos, B.K.; Christ, J.A.; Abriola, L.M.; Pennell, K.D.; Löffler, F.E. Experimental Evaluation and Mathematical Modeling of Microbially Enhanced Tetrachloroethene (PCE) Dissolution. Environ. Sci. Technol. 2007, 41, 963–970, doi:10.1021/es061438n.
  33. Sung, Y.; Fletcher, K.F.; Ritalaliti, K.M.; Apkarian, R.P.; Ramos-Hernandez, N.; Sanford, R.A.; Mesbah, N.M.; Löffler, F.E. Geobacter lovleyi sp nov strain SZ, a novel metal-reducing and tetrachloroethene-dechlorinating bacterium. Appl. Environ. Microbiol. 2006, 72, 2775–2782, doi:10.1128/AEM.72.4.2775-2782.2006.
  34. Melander, L.; Saunders, W.H. Reaction Rates of Isotopic Molecules; John Wiley: New York, NY, USA, 1980.
  35. Elsner, M.; Zwank, L.; Hunkeler, D.; Schwarzenbach, R.P. A new concept linking observable stable isotope fractionation to transformation pathways of organic pollutants. Environ. Sci. Technol. 2005, 39, 6896–6916, doi:10.1021/es0504587.
  36. Elsner, M. Stable isotope fractionation to investigate natural transformation mechanisms of organic contaminants: Principles, prospects and limitations. J. Environ. Monit. 2010, 12, 2005–2031, doi:10.1039/c0em00277a.
  37. Follett, A.D.; McNeill, K. Reduction of Trichloroethylene by Outer-Sphere Electron-Transfer Agents. J. Am. Chem. Soc. 2005, 127, 844–845, doi:10.1021/ja043569z.
  38. McCauley, K.M.; Wilson, S.R.; van der Donk, W.A. Synthesis and characterization of chlorinated alkenylcobaloximes to probe the mechanism of vitamin B-12-catalyzed dechlorination of priority pollutants. Inorg. Chem. 2002, 41, 393–404, doi:10.1021/ic011023x.
  39. Follett, A.D.; McNeill, K. Evidence for the Formation of a cis-Dichlorovinyl Anion upon Reduction of cis-1,2-Dichlorovinyl(pyridine)cobaloxime. Inorg. Chem. 2006, 45, 2727–2732, doi:10.1021/ic052020d.
  40. Paneth, P. Chlorine kinetic isotope effects on enzymatic dehalogenations. Acc. Chem. Res. 2003, 36, 120–126, doi:10.1021/ar010101h.
  • Sample Availability: Not available.
Molecules EISSN 1420-3049 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
